Self-heating function of carbon nanofiber cement pastes

O. Galao^a, F.J. Baeza^a, E. Zornoza^a, P. Garcés^a*

a. University of Alicante, Alicante (Spain)

*pedro.garces@ua.es

1. INTRODUCTIONTOP

Concrete's main application is as a structural material. Despite cement's dielectric properties, which make it a bad electrical conductor, the addition of conductive admixtures (carbon fibers, nanofibers or nanotubes, graphite powder, steel fibers, etc.) can transform concrete into a good electrical conductor (1–2). And so, new functional applications are available, besides just the structural, so regular concrete becomes a multifunctional conductive concrete (3–4). These functional properties are related to self-heating (e.g. for deicing or room heating) (5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15), strain or damage sensing (16–17), EMI shielding (18, 19, 20), or as an anode in the electrochemical chloride extraction technique (21, 22, 23) or cathodic protection (24–25).

The self-heating application is directly related to the increase of the composite's thermal and electrical conductivities (8). Just like any electrical resistance, if a constant electrical current is applied to multifunctional cement composites (whose electrical resistivity has been diminished due to conductive admixtures) a part of the energy is transformed into heat; hence the specimen's temperature increases due to Joule effect (7). This property would be very useful if these conductive composites were used as heating or deicing elements (5–6, 15).

In the late 90's early studies regarding the thermal applications of cement pastes and mortars with carbon fibers addition can be found, e.g. temperature sensors (paste acting as a thermistor) or Seebeck effect. Furthermore the electrical resistivity and specific heart of these materials were reported. Both parameters are essential to develop heating elements or heat accumulators respectively (7, 8, 9, 11).

Other researchers focused their investigation, regarding self-heating concrete, on the optimization of concrete's dosages with the addition of carbon fibers and steel fibers (5–6). This group even built a road bridge's deck using conductive concrete with carbon admixtures, which was later used successfully as a deicing device during several snowstorms, showing a mean power consumption of 452 W/m² (12). This application removing the ice layer on transport infrastructures (e.g. highways, road bridges or airport runways) will definitely improve transport safety, without endanger the structural durability, as other usual deicing chemicals do. Several deicing methods that are currently being used are based on chemical agents that are aggressive to concrete or steel in civil infrastructures (bridges, tunnels, airports).

Yehia and Tuan (5) reported a comparison between different traditional deicing methods (either chemicals or heating devices) and a steel fiber concrete used for the same purpose. Amongst the available chemical products, sodium chloride (the cheapest salt used nowadays) can be used in temperatures over −10 °C, while calcium chloride can be used up to −25 °C (but it is ten times more expensive). Other products such as calcium magnesium acetate, urea, magnesium chloride, formamide or tetrapotassium pyrophosphate do not improve the former's effectiveness and their costs are also higher. However, the main problem associated with chloride salts is steel rebars corrosion, one of the main concrete's pathologies and an environmental issue too.

The alternative technique of mechanically removing the ice results obviously in a harder, more expensive and slower work. Especially compared to electrical deicing of self-heating materials, which is a continuous and simple method. Heating techniques come as an alternative to deicing chemicals. The first possibility would be infrared lamps, which is a low cost system but with poor durability and higher maintenance requirements in structures like bridges or airports. Electrical heating cable is another alternative with durability issues and higher power consumption, but cheaper than infrared solutions. Hot water or heating gas systems come both at higher power consumption, besides their problems to be used in isolated structures, such as road bridges. Finally, the energy requirements of a conductive concrete overlay are similar, and the total costs, considering maintenance and construction, will be lower than the other heating systems (5).

Over the last decades several reports have been focused on conductive admixtures in different matrices (1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36). Recently carbon nanotubes (CNT) and carbon nanofibers (CNF) have shown very good mechanical, thermal and electrical performances (28, 29, 30, 31, 32, 33). Carbon materials have a high thermal conductivity (however not as much as metals), a low thermal coefficient (lower than metals) and they are also very resistant to corrosion (8). All these properties are desirable in multifunctional cement composites, and carbon materials are therefore suitable as conductive admixtures. The new generation of carbon nano-filaments show excellent mechanical, electrical and thermal properties, and have been used successfully in polymer matrices (29, 30, 31, 32). These filaments, either CNF or CNT, could be an alternative or a complement to traditional carbon fibers. Furthermore, they can be also the foundation of the next generation of smart structures and multifunctional high performance cement composites.

A recent study reported a deicing system, in which a CNF polymeric composite was used as heating source and combined with a CNT cement composite as thermal conductor (15). However, there is a lack of studies with CNF cement composites acting simultaneously as heating element and as thermal conductor. If a conductive concrete overlay was used in a conventional concrete structure, strain could be monitored (and implemented in a service life control system) (34), rooms could be heated, undesired electromagnetic waves could be avoided (19, 20), and electrochemical chloride extraction (ECE) or cathodic protection could be applied (22, 23). All these functional applications could be achieved at once with only one composite.

Another breakthrough in this field would be the use of shotcrete as casting method for these materials. There are several studies confirming that most functional applications are not affected by this casting alternative method, e.g. strain sensing (3) or ECE anode (23). CNF cement composites could be a real alternative once the dosage and energy consumption have been optimized, as they show good durability and good mechanical performance (3, 28, 33, 35).

This research is the first work on the capacity of CNF cement pastes as heating element. Cement paste has been selected as matrix in order to avoid other elements (aggregates) which can difficult the phenomenon analysis. Moreover, the possibility of a shotcrete like casting method is studied (due to the good results obtained previously in strain sensing and ECE researches).

2. EXPERIMENTAL PROGRAM AND MATERIALSTOP

Cement pastes with different CNF additions were prepared in order to study their heating capacity. The materials used to prepare the pastes were: Portland cement type I (EN 197 CEM I 52.5 R), distilled water and carbon nanofibers (CNF) stacked-cup GANF4 type supplied by Grupo Antolín-Irausa, S.A. (Burgos, Spain), which main properties are included in Table 1.

In order to guarantee a proper CNF dispersion in the mix two different treatments were applied. First of all CNF were mechanically dispersed in the mix water using a high shear laboratory mixer. Afterwards an ultrasound treatment was applied using an ultrasound device model Hielschier UP200S. Finally all the components were mixed for 5 minutes. After 24 hours all specimens were demolded and kept for curing at controlled ambient room (100% RH and 20 °C) for 28 days until specimen's testing.

CNF dosages were 0, 1, 2 and 5% by cement mass. In order to achieve the same level of workability in the fresh mix without using plasticizers the water/cement ratio (w/c) was adjusted previously by measuring the slump according to standard UNE 83258-05. All dosages showed deviations lower than 10% with respect to the control specimen with no CNF and a w/c ratio of 0.5.

Testing specimens with 0, 1 and 2% CNF were fabricated pouring the fresh paste in a mold of internal dimensions 10 × 10 × 1 cm³. 5% CNF pastes were casted as shotcrete, method which required higher amount of water in the paste (w/c = 1). In previous studies these pastes with 5% CNF addition and w/c = 1 were casted by the traditional method (just pouring into the mold) and showed severe shrinkage problems that made impossible their testing. Table 2 summarizes all the dosages that were prepared, including their CNF addition, w/c ratio and casting method.

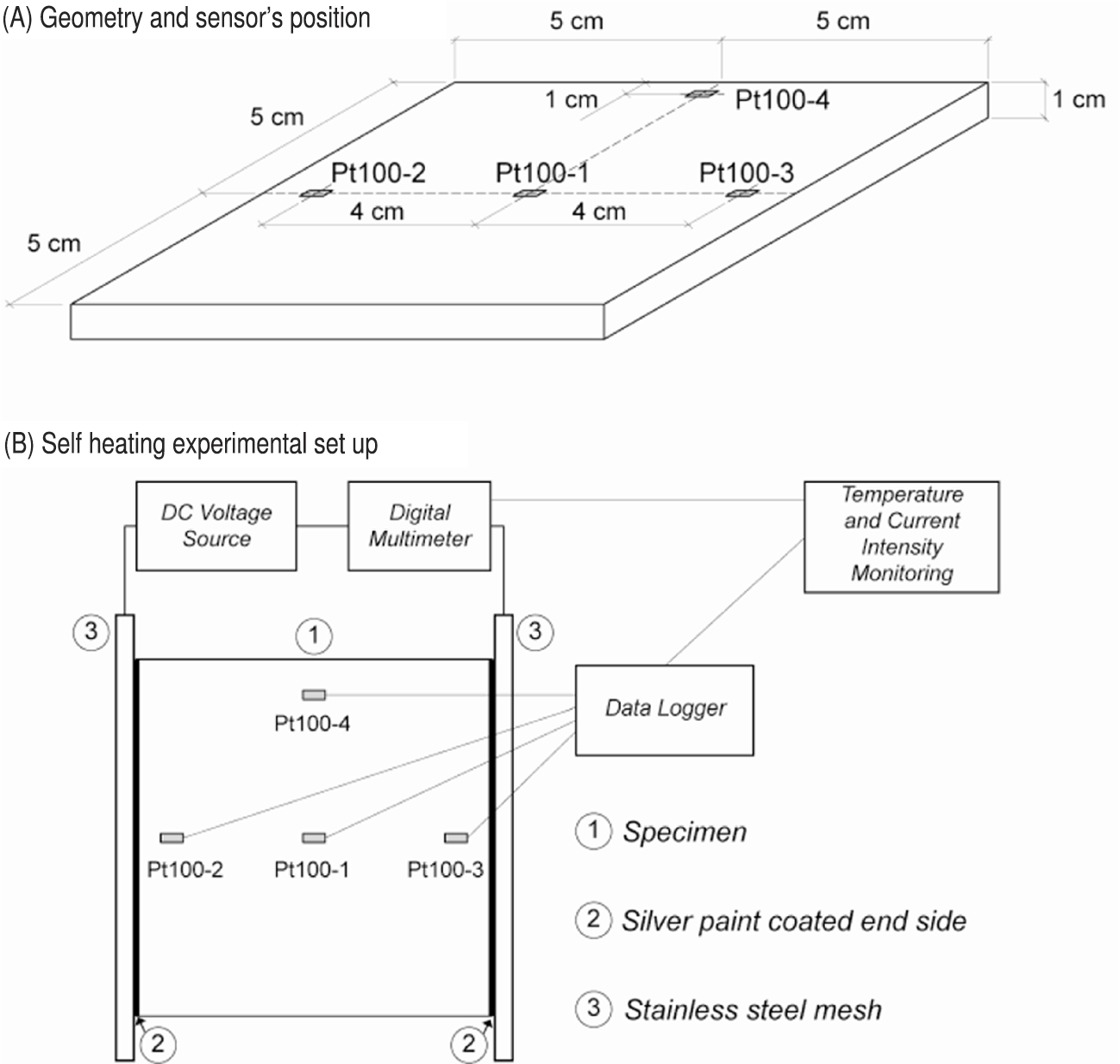

Figure 1 includes the main dimensions of the specimens and the experimental setup. Tests consisted on applying a constant voltage between two end sides of each specimen (10 × 1 cm²), which had been previously painted with conductive silver paint (Pelco conductive silver 187, from Ted Pella Inc., USA) in order to improve electrical contact between the primary electrode (stainless steel mesh 0.9 mm thick) and the composite. Changes in the surface temperature of the specimens were continuously registered by RTD temperature sensors type Pt100, distributed as shown in Figure 1, and connected to a data logger (model DAS-8000, Desin Instruments, Barcelona).

A digital Consort EV231 direct current source was used to fix the testing voltage, while current intensity was measured with a digital multimeter (Keithley 2002, National Instruments Inc.).

Testing voltages were fixed to 50, 100 and 150V. All specimens were kept in controlled environment until testing (20 °C and 100% RH). However, 3 specimens with 5% CNF were kept in laboratory conditions (20 °C and 55% RH, approximately) until constant weight, repeating the same experimental tests afterwards.

The following parameters were analyzed once the experimental tests were completed:

3. RESULTS AND DISCUSSIONTOP

Pt-100 distribution, as included in Figure 1, allowed to automatically control the temperature gradients between points in the upper side of the specimens. One sensor was located in the center of the surface, another two were close to each electrical contact and the fourth one close to the lateral side. Moreover, this temperature distribution was compared to the images taken with a FLIR E30 thermographic camera.

A pattern was detected in the temperature's distribution, as the maximum value was measured in the center of the specimens. However heating generation was quite uniform in the specimens, heat losses were higher in the lateral sides due to the experimental setup. Moreover, no damage was detected in any electrode during tests.

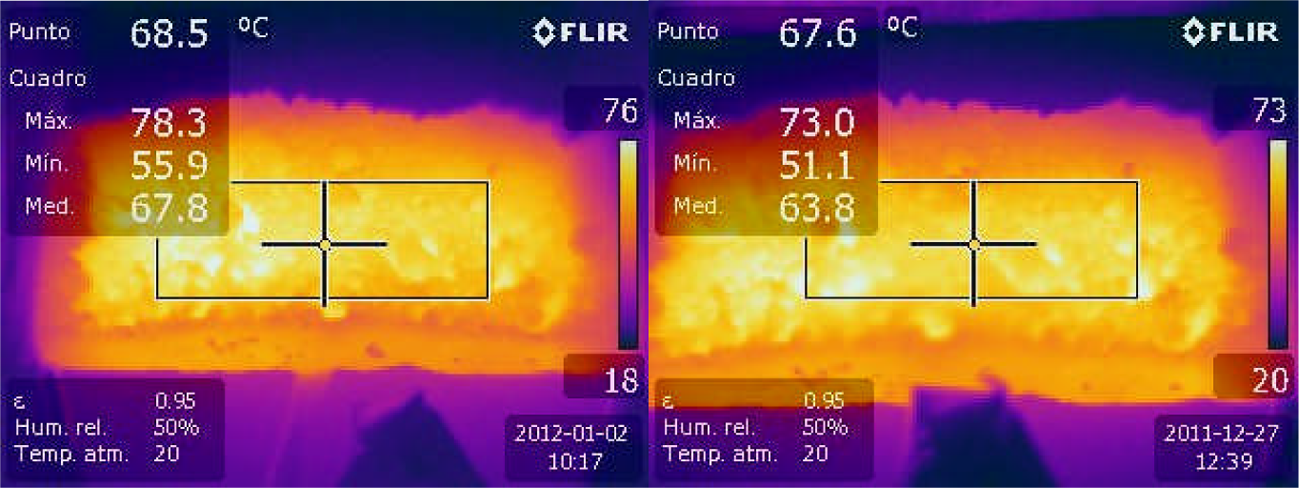

Figure 2 shows two termographies taken during different tests. The temperature field is quite homogeneous and therefore the previous discussion using discrete temperature measures may be extended to all the specimens. The temperature differences between sensors were small, compared to the maximum temperatures achieved, hence the following discussion during this paper will focus on the mean temperature value (calculated with the 4 sensor's data).

3.1. Effect of cnf dosage and voltageTOP

First of all, the effect of CNF dosage was considered. As an example, Figure 3 includes the results of self-heating tests for every dosage (0, 1, 2 and 5% CNF by cement mass) at 150V fixed voltage and all specimens in 100% RH conditions. Each graphic includes temperature at the center point and current intensity, versus time.

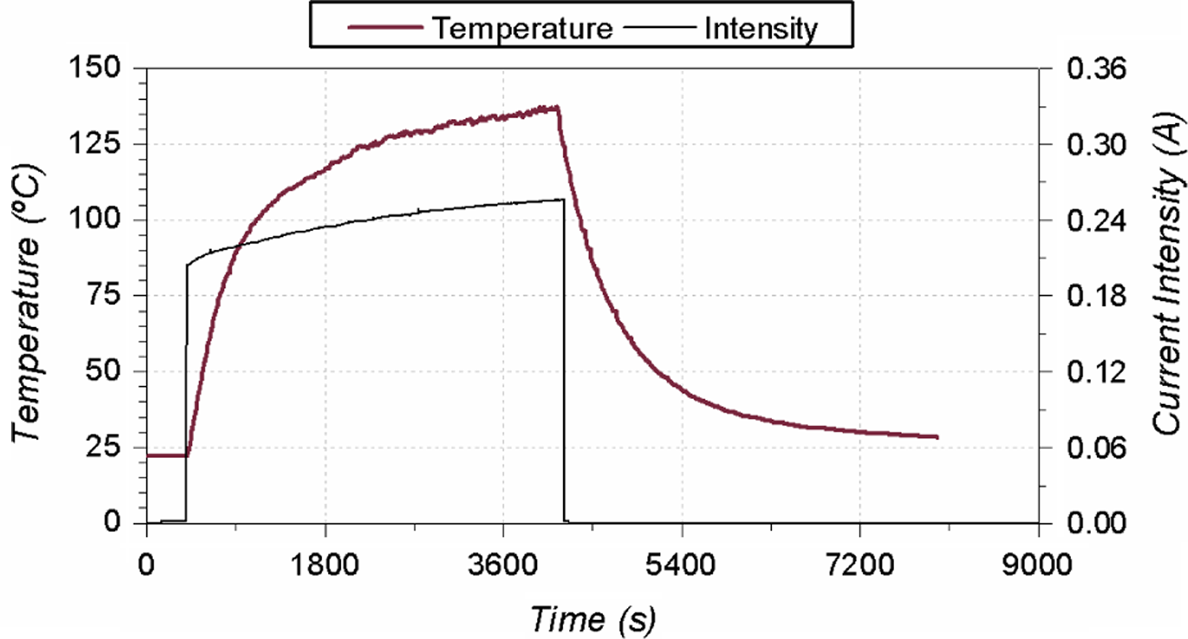

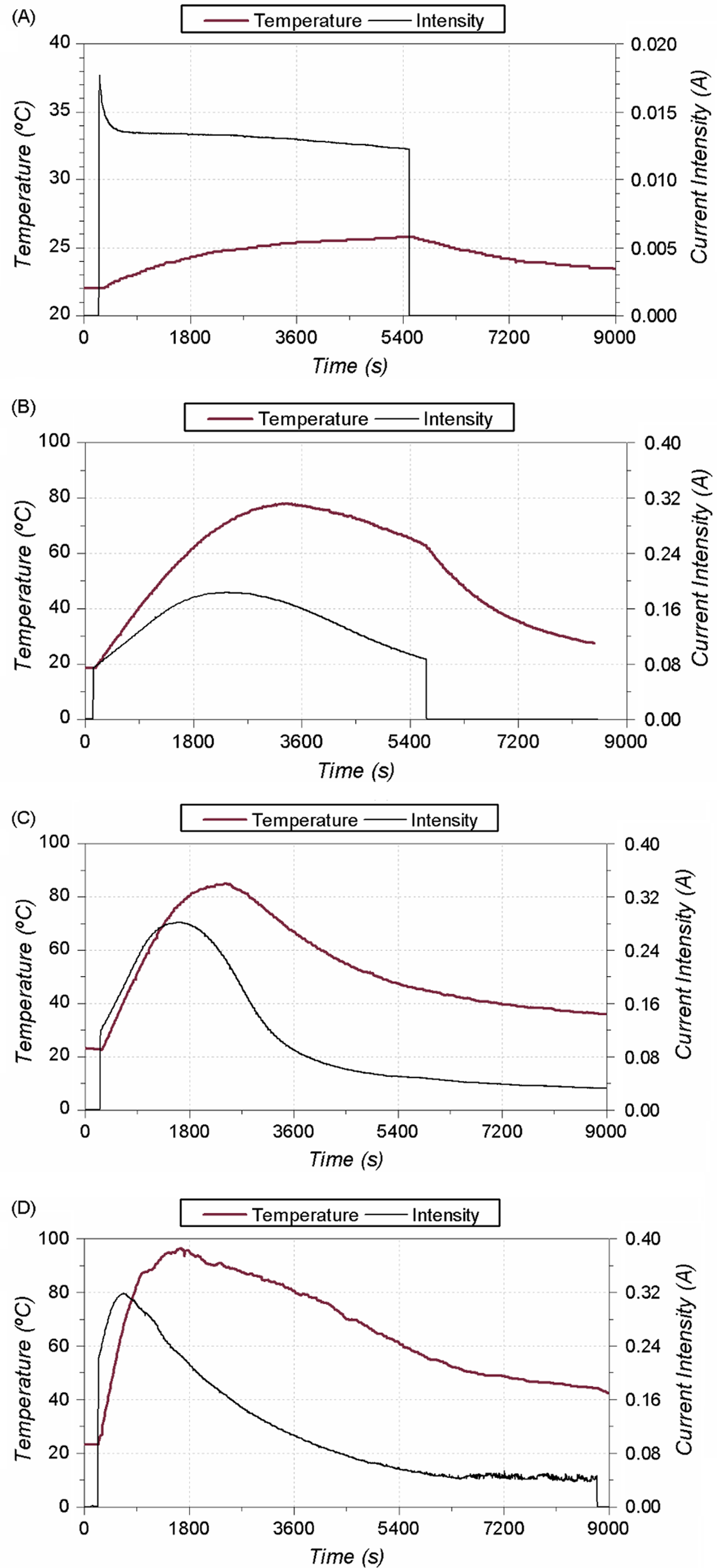

Three different phases can be distinguished: a first stage where ambient temperature was measured; after a few seconds the power source was connected to the corresponding voltage; and finally the power source was disconnected after a variable period of time depending on the particular conditions of each test. Temperature monitoring did not stop until ambient temperature was reached again. All 4 sensors measures and current intensity were continuously monitored. A first conclusion, according to Figure 3 is that pastes with higher amount of CNF reached higher temperatures. Figure 4 shows the same variables (i.e. current intensity and temperature) for 5% CNF specimens kept in laboratory conditions (20 °C and 55% RH) until constant weight. It can be observed that the moisture loss resulted in a higher maximum temperature in the laboratory conserved specimens with respect to its 100% RH counterpart (Figure 3D), when 150V were applied.

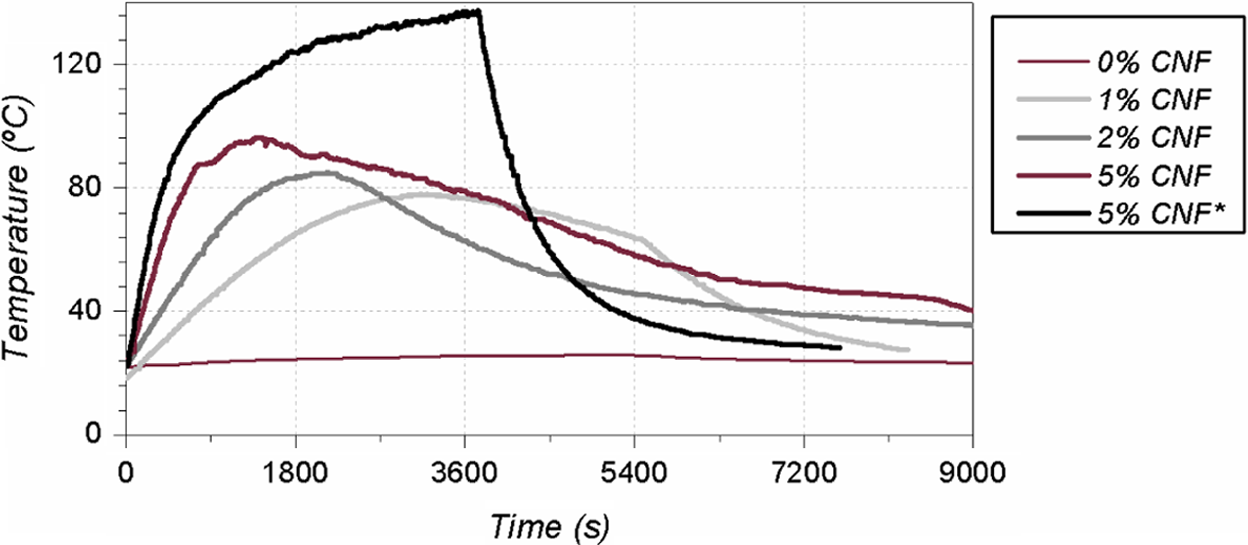

Figure 5 summarizes the temperature tests results registered at the center point of the specimens (Pt100-1 in Figure 1). Three different behaviors can be observed: first of all, specimens without CNF addition, in which no temperature increase was measured; second, all 100% RH specimens with any CNF dosage showed similar behavior; and finally 5% CNF specimens kept in laboratory conditions showed much higher heating rate and the maximum temperature achieved (actually these tests were stopped for safety concerns, in order to avoid high temperature system deterioration).

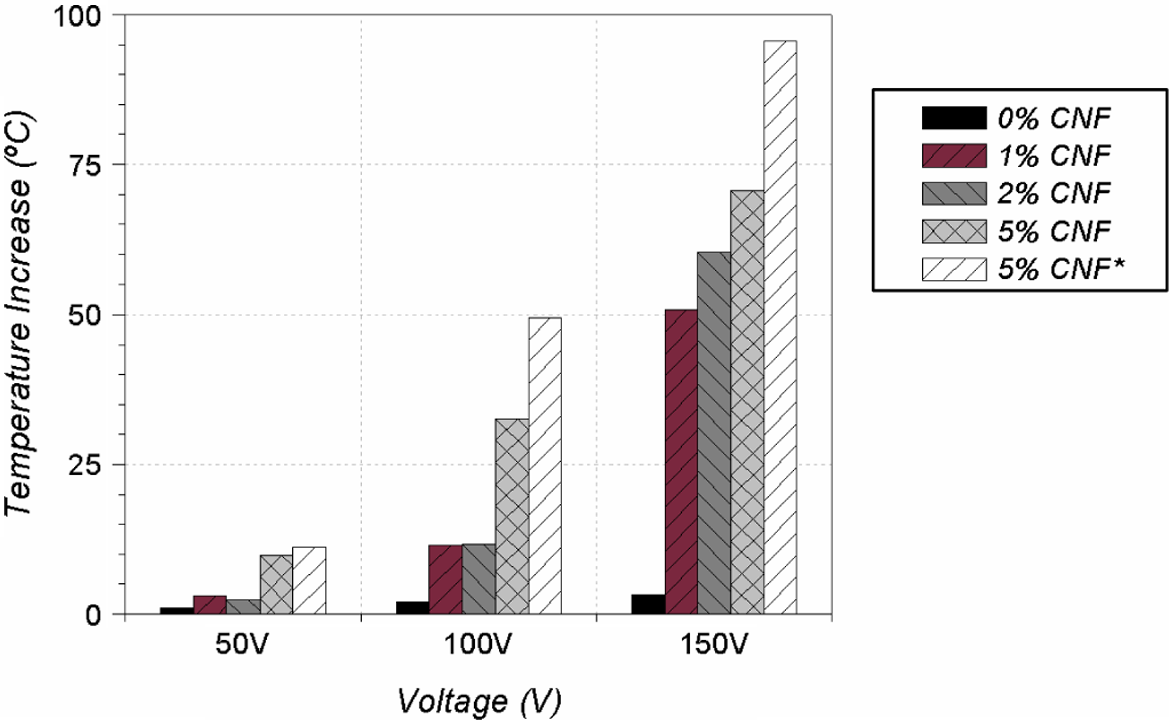

The effect of the voltage was studied repeating tests at 50, 100 and 150V, for all five dosages. Figure 6 includes the mean temperature increment (using all four Pt100) for each CNF dosage versus the fixed voltage during each test. As a general rule, higher voltages led to higher temperatures, and obviously to higher current intensity levels.

The range of temperatures reached during this research (up to 138 °C) is far beyond those reported in prior work with cement pastes and different conductive fibers (9), in which the maximum temperatures were 60, 56 and 24 °C for cement pastes with 0.7vol% steel fibers, 1vol% carbon fibers and 37vol% graphite powder respectively. The 138 °C of the current research is actually similar to a continuous carbon fiber mat in organic conglomerate (11). Other cement materials with 22.5% volumetric fraction of nickel particles reached 70 °C, but only needed 20V (36).

Analyzing each series individually, first of all, control specimens (without CNF) could not increase their temperature whichever voltage was applied (only 3 °C increase was registered with 150V). Electrical resistivity was so high that the current intensity was so low that the current density was not enough to heat the material due to Joule effect.

On the other hand, whichever voltage was selected the behavior regarding temperature increase of pastes with 1 or 2% CNF was very similar. Both of them showed higher temperature increases for higher voltages applied. But this temperature changes were almost imperceptible for 50V and very low for 100V (around 11 °C). However, if 150V were applied these composites showed temperature increases of + 50 °C and + 60 °C with respect to ambient temperature, for 1% and 2% CNF dosages, respectively. These maximum temperature values were reached after 3100 and 2100 seconds, respectively, i.e. heating rate was faster as CNF dosage was higher. Once this maximum was surpassed temperature began to decrease slightly, always 30 °C beyond ambient conditions, and was capable of maintaining it for more than one hour.

Considering only 5% CNF pastes specimens, when a 50V voltage was applied, temperature was increased by 10 °C, for all conservation conditions (100% RH or laboratory conditions). Temperature increases of specimens kept in laboratory conditions were always higher than its 100% RH counterparts. This difference was small if only 50V was applied, but increased significantly for 100V ( + 49 °C vs + 33 °C) and even more for 150V ( + 96 °C vs + 71 °C). It is worth mentioning that the + 96 °C increase corresponds to a mean specimen's temperature of 119 °C and a maximum 138 °C value, and then the current was cut off for safety concerns.

Finally the linear change in temperature functions with respect to the applied voltage was verified for the 5% CNF specimens, for both 100% RH and laboratory conservation. According to equation 1 the power consumption is directly proportional to V², hence it would be necessary to make voltage as low as possible. If linear regressions are considered, 65V will be enough to increase 20 °C the material's temperature in a real application, limiting therefore the energy cost. The real breakthrough that has been achieved by using 5% CNF pastes is their lower electrical resistivity, in comparison to other dosages and casting methods also studied (3).

3.2. Maximum heating ratesTOP

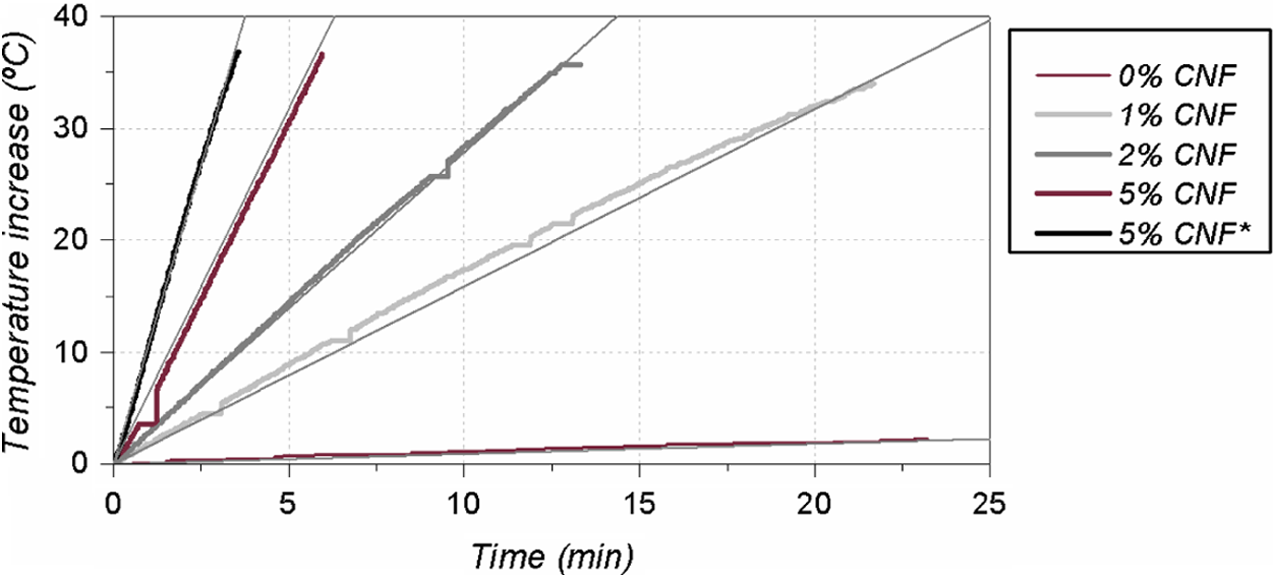

In order to study the heating rate, Figure 7 shows Pt100-1 temperature (Figure 1) up to 60 °C (corresponding to + 35 °C and + 40 °C temperature increments) versus time, for all dosages and 150V tests. Obviously control specimens, without CNF, were almost unable to increase the temperature, so only about 20 min time have been plotted. Additionally a linear regression function was calculated, whose characteristic parameters are summarized in Table 3. Both heating rates and time necessary to achieve the desire temperature increment are included. Once again, control specimens showed negligible heating rates, in contrast to the 10 °C/min heating rate showed by a 5% CNF cement paste kept at 100% RH (casted as shotcrete). Just like in the previous analysis CNF content can be directly related to the heating rate of CNF pastes. If only 5% CNF pastes are considered, the better results (faster heating rate) were shown by the laboratory conserved pastes instead of the 100% RH conserved composites. The values included in Table 3 are equal to or even higher than other examples found in prior works (9, 36), in which the composites with higher heating rates were: i) cement pastes with 0.7vol% steel fibers, 3.4 °C/min (9); ii) cement pastes with 1vol% carbon fibers, 4.6 °C/min (9); iii) cement pastes with 37vol% graphite powder, 1.6 °C/min (9); iv) cement pastes with 12vol% nickel particles, 1.5 °C/min (36).

3.3. Current intensity behaviorTOP

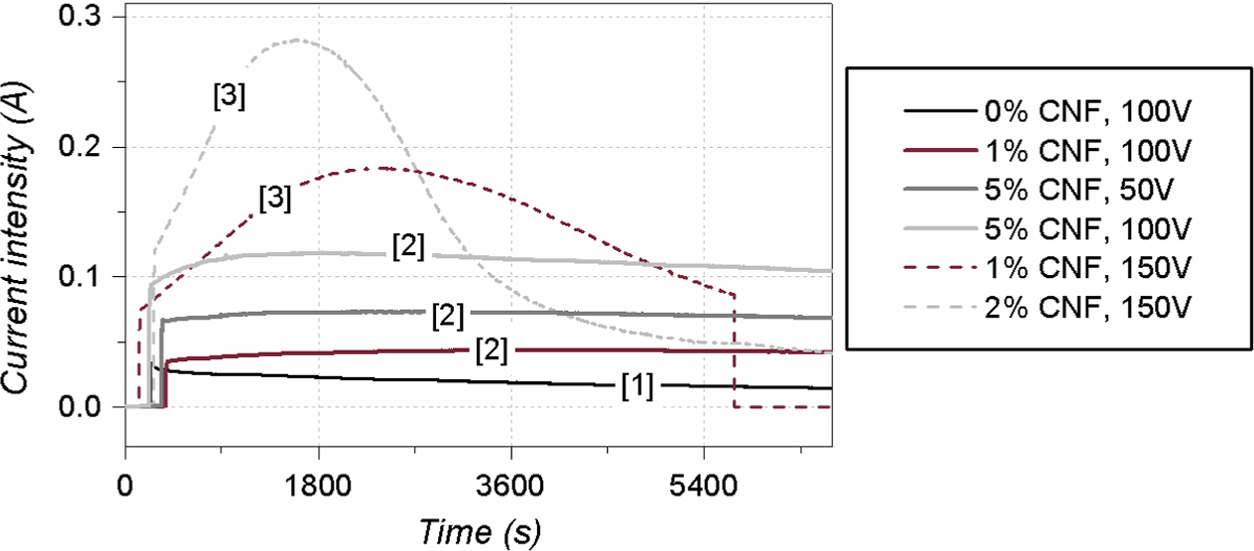

The following considers the different electrical current behavior, as they were introduced in Figures 3 and 4, and their relation to CNF dosages. During self-heating tests three different behavior patterns were detected. Figure 8 summarizes all different possibilities in this regard. The particular testing conditions are gathered in the figure's legend, but only a few examples of each behavior are shown.

Behavior type 1, according to Figure 8, was obtained for all control specimens whichever voltage conditions were selected, as well as 1% and 2% CNF pastes tested at 50V; in other words, non-conductive or low conductive composites, tested at low voltages. When the power source, which controlled the fixed voltage, was connected, a peak on the intensity was detected. After this initial peak (around 30 mA), due to the high resistivity of the material, the current intensity rapidly decreased and stabilized at 10 mA approximately. Thus the current density (i.e. intensity per area unit) was not enough to increase temperature by Joule effect.

The second behavior, type 2, showed a higher initial current peak between 40 and 100 mA, which led to temperature increases around + 12 °C and + 30 °C respectively. The main difference is the stability of this test, i.e. both intensity and temperature were quite stable during tests. Cement pastes with 1% and 2% CNF at 100V, and 5% CNF composites at 50V (for all conservation conditions) showed this behavior type. Hence type 2 is characteristic of low conductive pastes at medium voltages and more conductive pastes at low voltages. Temperature increments were not very high anyhow.

Finally, behavior type 3 showed initial currents of 100 mA approximately, which progressively increased up to a maximum 200 or 300 mA value. Temperatures increased almost + 50 °C or + 70 °C this time, and showed similar decreasing rates afterwards. Obviously temperature curves tend to match their current intensity counterparts, i.e. their increases and decreases, with some delay due to the material's thermal inertia. This behavior was only detected for the 150V tests with 1% and 2% CNF pastes and for 100 and 150V with 5% CNF composites kept in 100% RH ambient.

The main differences between each behavior type can be summarized as follows:

To sum up this section, specimen's water content is a very important parameter that should be consequently studied in depth in future researches.

3.4. Power consumption analysisTOP

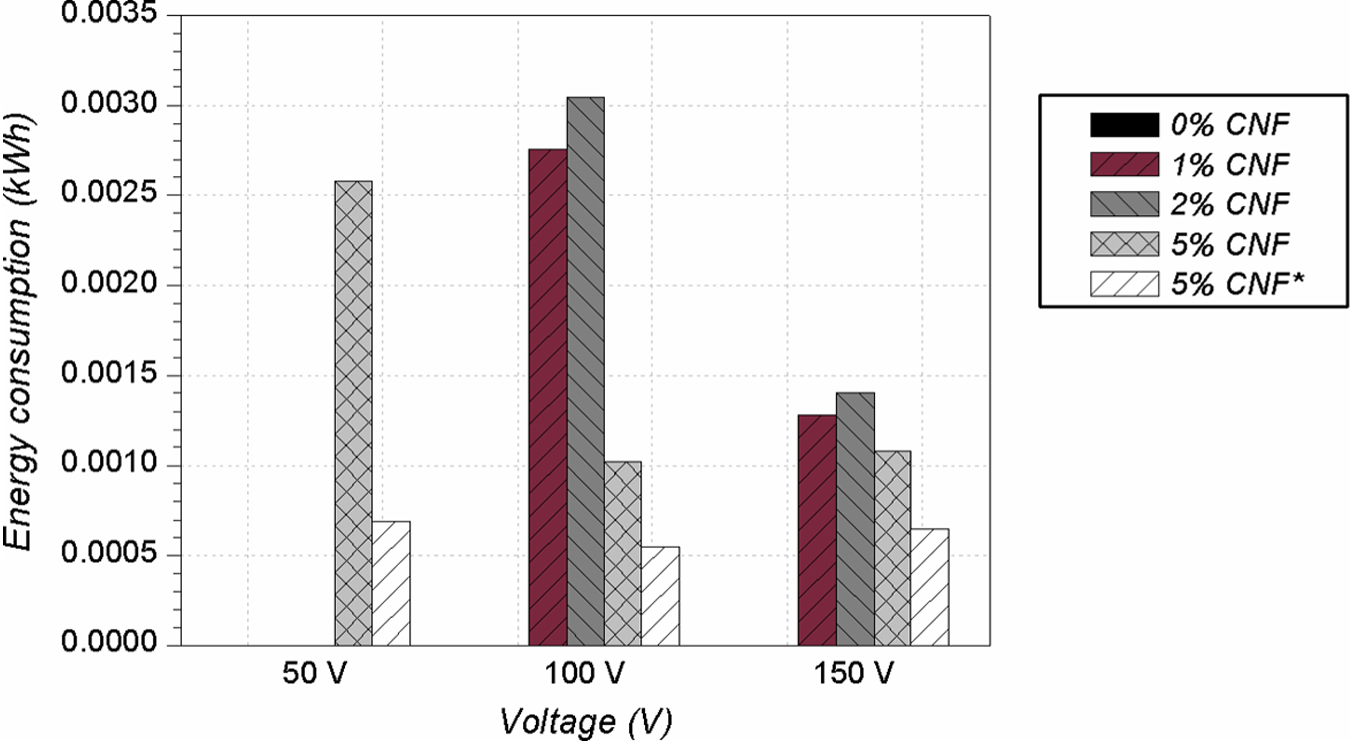

finally a brief study regarding the power consumption differences was made. Figure 9 includes the energy consumption in kWh that was necessary to increase 10 °C the initial specimen's temperature for every voltage and CNF dosages tested in this research. Those cases that were unable to heat at least 10 °C have not been included (0% CNF at all voltages, and 1 and 2% CNF at 50V). 5% CNF composites kept in laboratory conditions (and casted as shotcrete) showed very low energy requirements slightly higher than 60 Wh.

The low energy consumption of these 5% CNF pastes (after being kept in laboratory conditions) whichever voltage applied, makes them the most suitable cement paste for thermal applications, among all dosages tested in this study.

Voltages used in this research are especially high anyhow. A very strict set of safety measures would be necessary to avoid personal or material damages. Another future line of work should be designed to improve composite's conductivity, hence reducing the voltage necessary in the system, and consequently the current intensity, which is even more dangerous.

4. CONCLUSIONSTOP

Cement pastes with different CNF dosages were fabricated, and three different DC fixed voltages applied for testing. After all results have been discussed, the following conclusions can be drawn:

ACKNOWLEDGEMENTSTOP

The authors would like to thank the Spanish Ministerio de Ciencia e Innovación for its financial support (ref: Mat2009-10866).
