Effect of the aggregate grading on the concrete air permeability

C. Argiz^a,b, M.A. Sanjuán^c*, R. Muñoz-Martialay^a

^aInstituto de Ciencias de la Construcción Eduardo Torroja IETcc–CSIC, (Madrid, Spain)

^bUniversidad Politécnica de Madrid UPM (Madrid, Spain)

^cInstituto Español del Cemento y sus Aplicaciones -IECA (Madrid, Spain)

*masanjuan@ieca.es

1. INTRODUCTIONTOP

Long-time performance of concrete is considered currently as an important topic which has promoted an increasing study of the parameters related to its durability and the testing methods for its determination as in the case of air permeability. Compressive strength has been considered for long as the only indicator of durability. However, several authors have demonstrated that air permeability and compressive strength are independent properties of concrete (1, 2).

Volume of pores in aggregates is normally about 10% than that of the cement paste. However, its size is considerably larger. Thus, the size and gradation of aggregates in the concrete can have an important effect in its air permeability (3). Moreover, the cement paste-aggregate interface is a week point for microcracking and subsequent increase of air permeability, that is, cracks around aggregates promoted by volume changes of the cement paste increases the concrete air permeability (4, 5). As consequence, the permeability of concrete is normally about 100 times greater than the permeability of cement paste (6). Also, it has been reported that air entrainment increases air permeability (7).

Therefore, factors related to the production of concrete affect significantly its air permeability, i.e., mix proportioning (aggregate grading), casting and so on. In particular, the distribution of sizes of aggregates, cement and additions influences as well as water-cement ratio and degree of hydration on the concrete air permeability. The packing of all these components will result in a more or less presence of voids to refill by hydration products, particularly in the interfaces between the aggregate and paste (8, 9). The increase of air permeability with temperature is attributed to dilation of porous structure of the material (10) as result of changes in the microstructure of the calcium-silicate-hydrate reaction product (11).

Consequently, apart from the porosity of the cement paste in the concrete, it is also necessary to take into account the presence of aggregates which are sometimes not randomly distributed, and the transition zone between these and the cement paste.

In the present work, the objective is to study the influence of the aggregate grading in the concrete mix on its air permeability.

2. EXPERIMENTALTOP

2.1. Mix DesignTOP

Concrete specimens of Ø 15×30 cm³ made of a common Portland cement CEM I 42.5 N according to EN 197-1:2011 (12, 13) were elaborated using four cement contents of 434, 382, 340 and 307 kg/m³ and the water content was fixed to 160 dm³. Therefore, the water/cement ratios tested were of 0.37, 0.42, 0.47 and 0.52, respectively. These aggregates were combined in order to get two different gradings: fine and coarse. The sieve analysis is plotted in Figure 1. The aggregate content was: SAND: 628 kg/m³; PEBBLE: 842 kg/m³ and GRAVEL: 372 kg/m³, for the finer grading and SAND: 355 kg/m³; PEBBLE: 590 kg/m³ and GRAVEL: 900 kg/m³, for the coarser one.

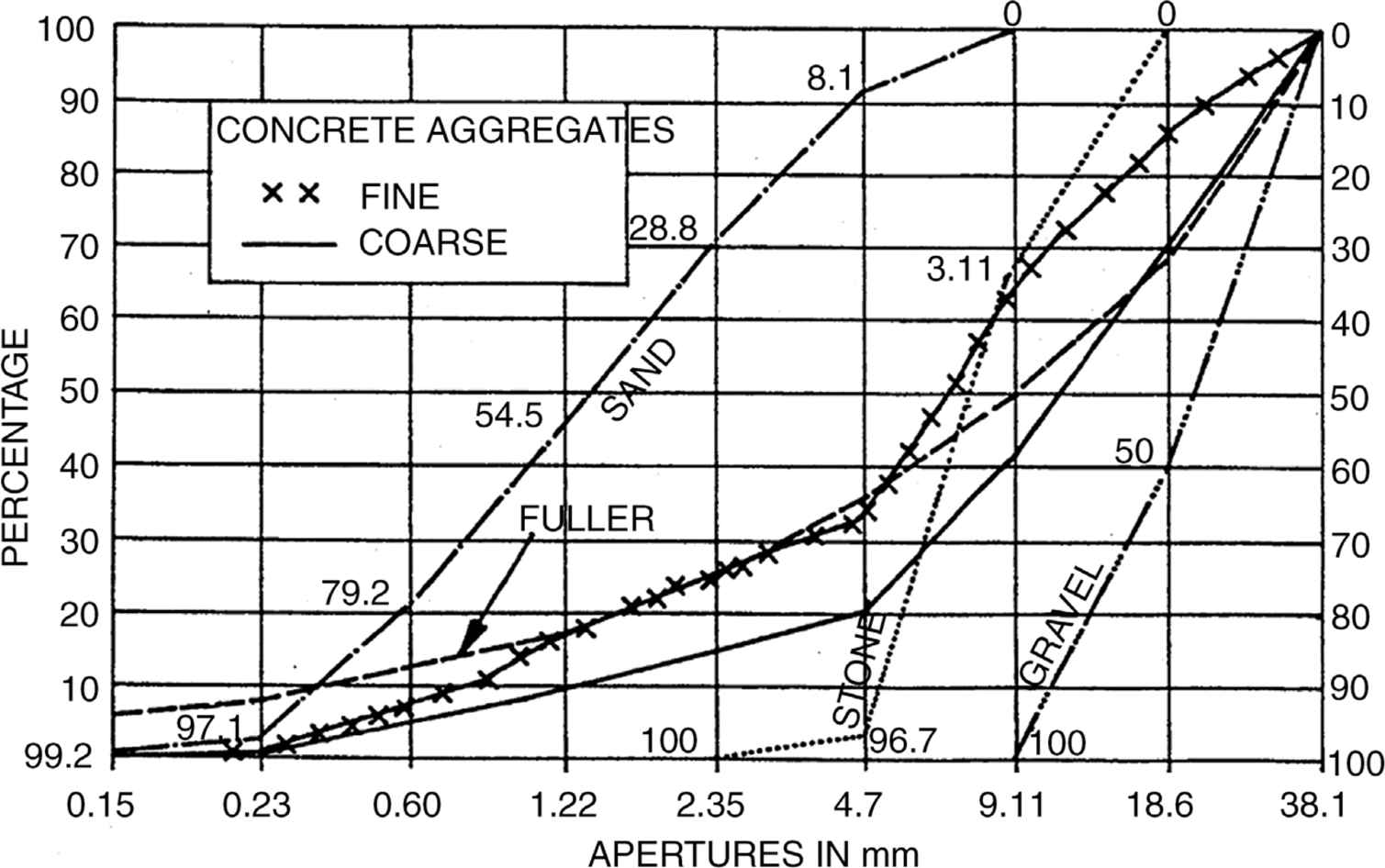

The series of sieves used was: 0.15 mm, 0.23 mm, 0.60 mm, 1.22 mm, 2.35 mm, 4.70 mm, 9.11 mm, 18.60 mm and 38.10 mm. The principles involved in separation of size by sifting are generally familiar. The grading corresponding to a Fuller aggregate distribution is also shown for comparison. The fine aggregate sample fitted better to the theoretical one of Fuller in the range from 0.60 to 4.7 mm; whereas the coarse one fitted better between 9.11 and 38.1 mm. After a curing at 100% RH for 24 hours, the specimens were preconditioned at 20 °C and 60 °C in an oven up to constant weight. These concretes can be classified as C30 according to the concrete European standard EN 206-1.

2.2. Testing procedureTOP

The experimental apparatus to measure air permeability in concretes has been described previously (14, 15). The air flow, Q (m³·s⁻¹) was recorded in steady-state conditions and transferred to normal conditions. The air permeability coefficient, D_air (m²), was calculated according to the Hagen-Poiseuille equation [1] for a laminar flow of a compressible fluid through a porous material:

Where the inlet pressures, P, were 128,040; 154,715; 181,390 and 280,065 N·m⁻² and the outlet and measuring pressures, P_a and P₀ respectively, were equal to the atmospheric pressure. The circular passing surface, A, was of 0.005 m² and the specimen thickness, L, was 0.07 m. The air at 20 °C has a value of dynamic viscosity, η, of 1.8 10⁻⁵ N·s·m⁻².

3. RESULTSTOP

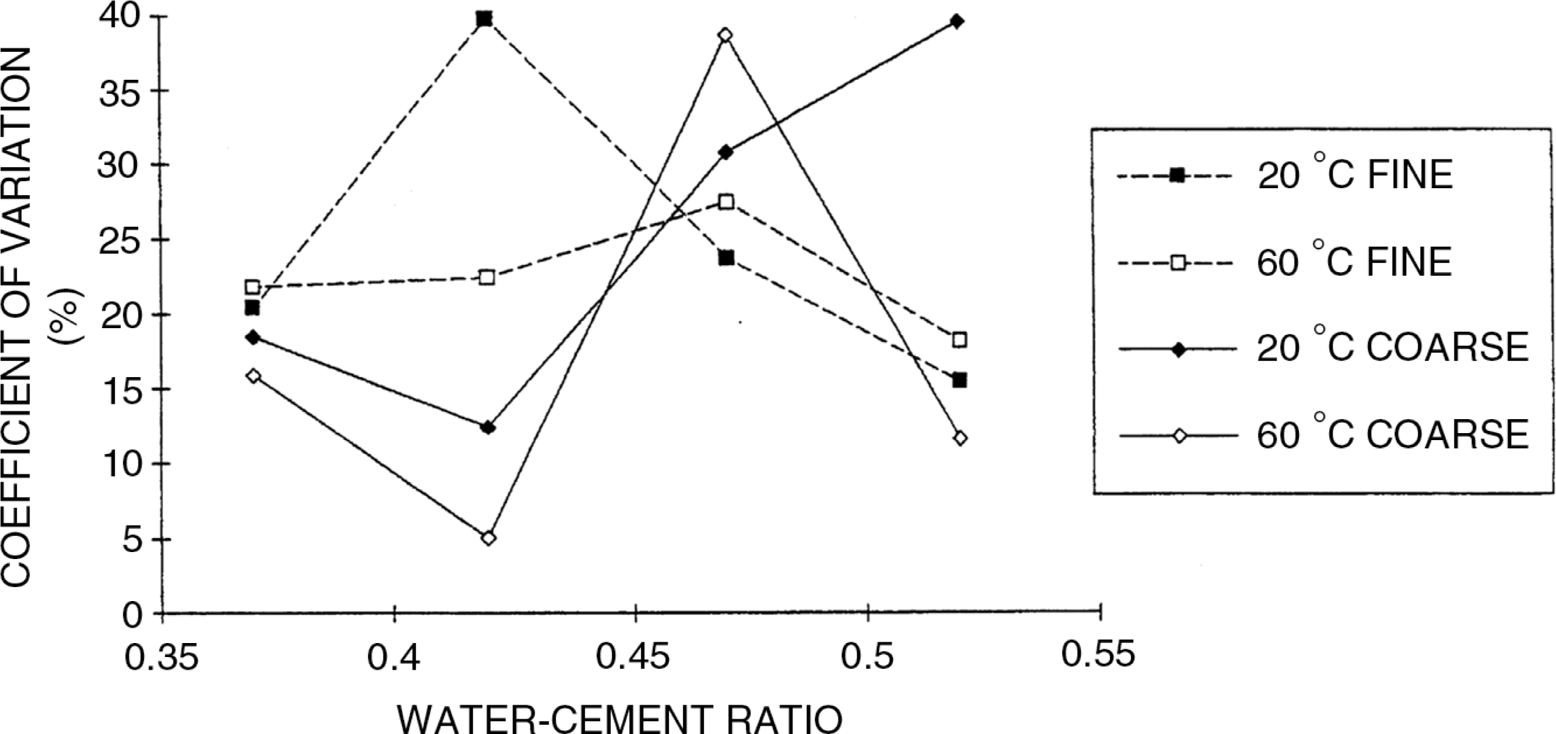

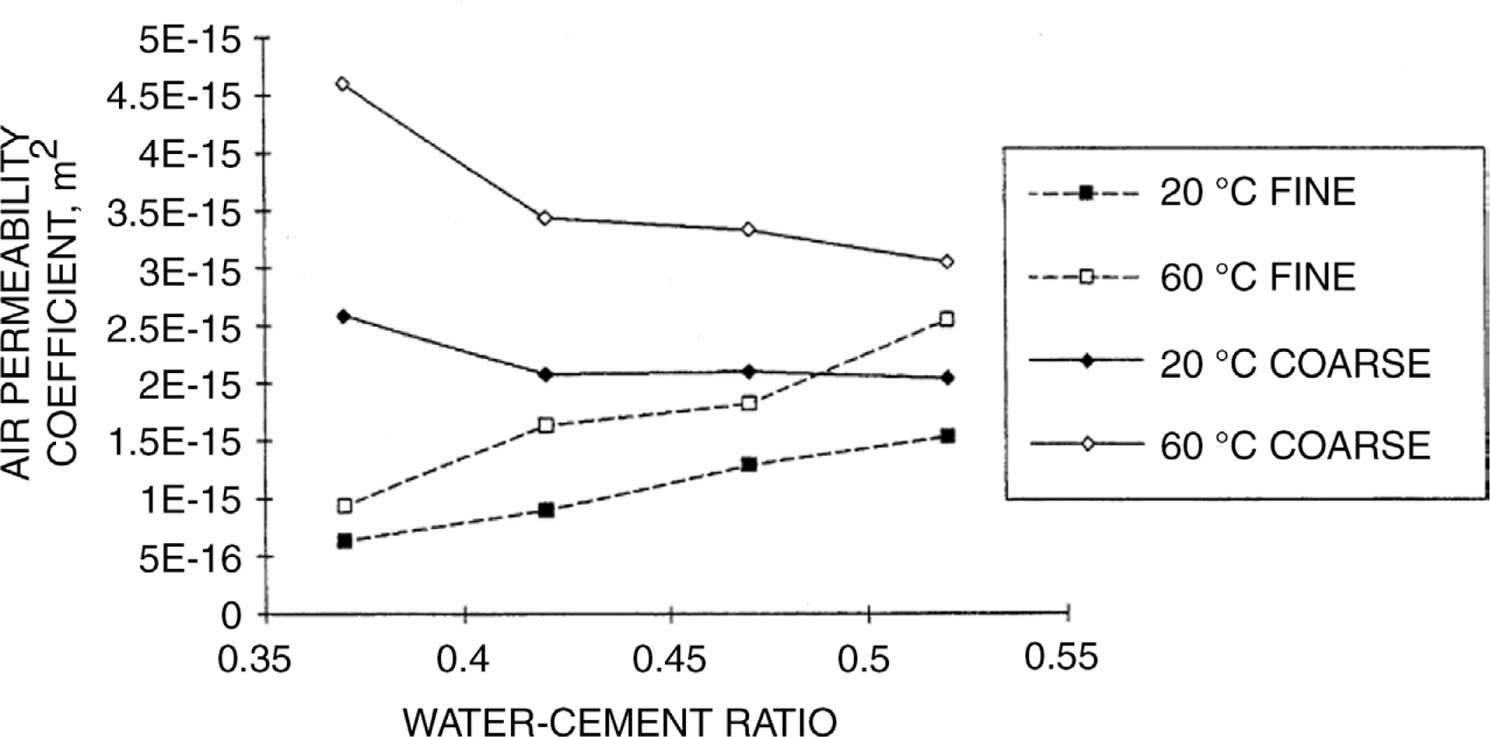

Figure 2 shows the air permeability coefficient for the eight concretes studied (four water/cement ratios × two aggregate gradings). These values correspond to the mean values of six samples which coefficients of variation are shown in Figure 3. It is noticeable that the coefficient of variation does not follow any tendency.

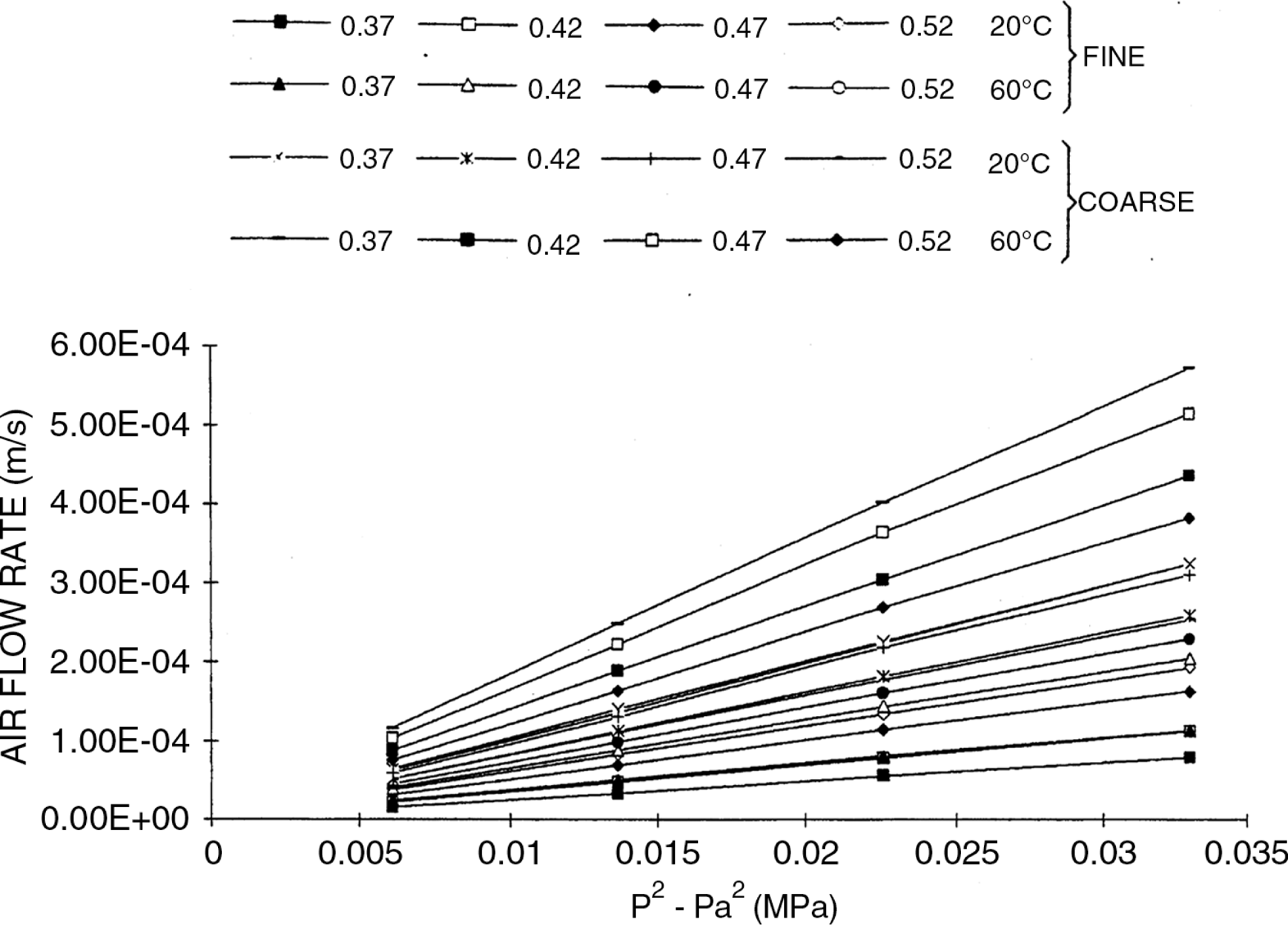

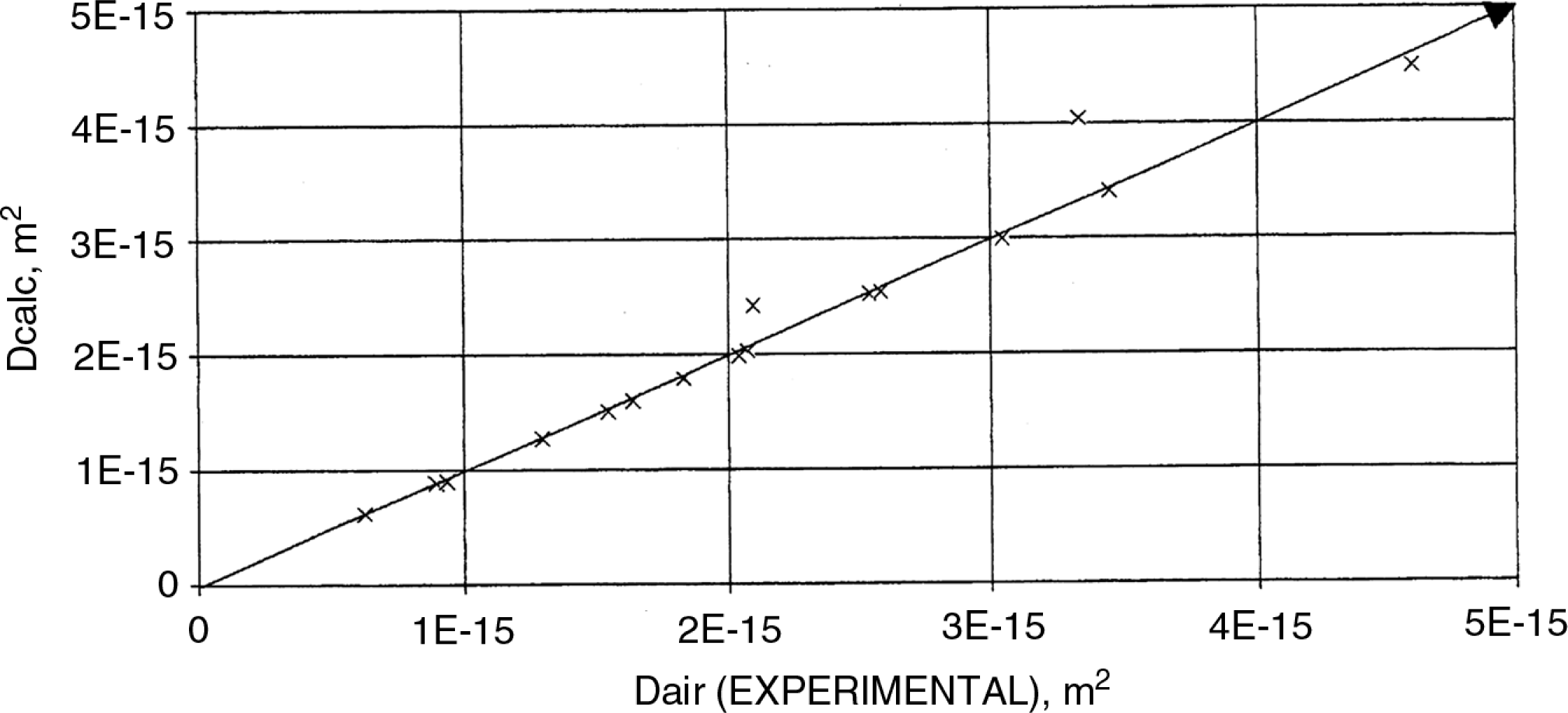

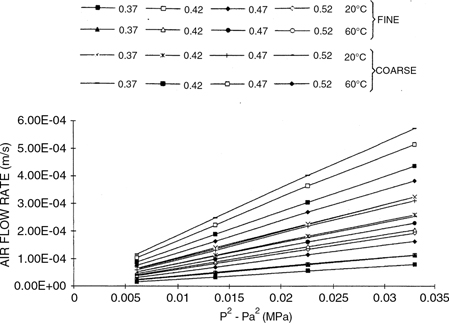

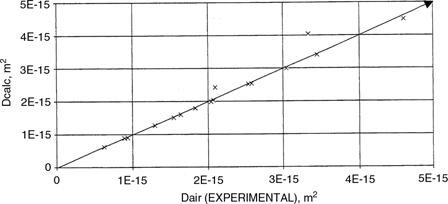

Figure 4 shows the relationship between the air flow rate and the applied pressure ratio P²−P_a². The calculated air permeability coefficient, D_calc, is obtained from the slope of these straight lines (Figure 5) in which a good correlation has been found in all the cases (r²>0.99). Finally, both of the air permeability coefficients that calculated by means of equation [1], D_air, and this one obtained from the slope of Figure 4, D_calc, are compared in Figure 6. It is noticeable the good agreement between them in spite of coefficients of variation about 40% in some cases.

4. DISCUSSIONTOP

As it is well-known, a concrete made using well-graded aggregates tend to be denser than another one made of poorly-graded aggregates (16), and also air entrained voids increases gas permeability (7). The results indicated that as the proportion of larger size aggregate increases in the mix, the air permeability increases. According to Basheer et al. (17), this fact is a consequence of the increase of the local porosity at the interfacial transition zone and could be explained because there is a reduction in the tortuosity of the flow path, which tends to increase the air permeability, and also because the possibility of the bleed water getting collected below the coarse aggregate increases (17). Cabrera et al. (18) concluded that the shape and surface texture of fines particles has a great impact on concrete and mortar rheology, observable in the increase in water demand in crushed sand compared to natural sand concretes. They also suggest that a 28% vol. more paste in crushed sand is needed to reduce the inter-particle friction. Martín-Morales et al. (19) and Medina et al. (20), studied recycled concrete, where natural coarse aggregate was substituted by recycled construction and demolition waste and ceramic aggregate, respectively. Both of them decided to used natural sand to obtain a good workability in fresh state and a better durability when it is hardened. Nevertheless, the two gradings considered in this investigation do not fit well to the theoretical pattern proposed. The high amount of small aggregates in the fine case leads to a better compactation, and hence, to a more dense and impermeable material as shown in Figure 2.

As expected, D_air increases with the water-cement ratio, but only when a well-graded concrete is tested. On the contrary, the coarse cases present a slightly decreasing of D_air from water-cement ratios of 0.35 to 0.40 which is a consequence of a better compactation when a higher amount of water is used. The absence of fine aggregates (Figure 1) lead to a less workable mixture, and therefore, the final material present a more porous microstructure and then a higher air permeability coefficient (Figure 2). In addition, from water-cement ratios of 0.40 to 0.55, that coefficient remains almost independent of the water-cement ratio. According to Bermejo et al. (21), porosity values are not enough to differentiate air permeability performance of concrete. By contrast, mean pore diameter and pore size distributions have a greater effect on transport mechanisms. However, they found that compressive strength declined where the penetration depth of water under pressure was deepest.

With regard to the coefficient of variation (Figure 3), Bhargava and Banthia (22) recommend to compare permeability data based on ratios due to the large variability normally associated with permeability results. The scatter between the permeability values obtained by Lafhaj et al. (23) did not exceed 30% and they concluded that this result show that the air permeability testing can be considered as an efficient tool to provide good permeability values.

In the calculated air permeability coefficient from Figure 4, D_air, the same increasing trend is observed in the fine aggregate grading case, whereas in the coarse case is discontinuous. This behaviour suggests that the D_air is independent of the water-cement ratio or at least cannot be either estimated accurately or predicted in function of the water-cement ratio.

Results from Figure 5 can be considered as reliable because the theoretical hypothesis of the model used, equation [1], of laminar flow has been checked by Pereira (24). Then, the permeability data constitute an accurate indication of concrete quality (25).

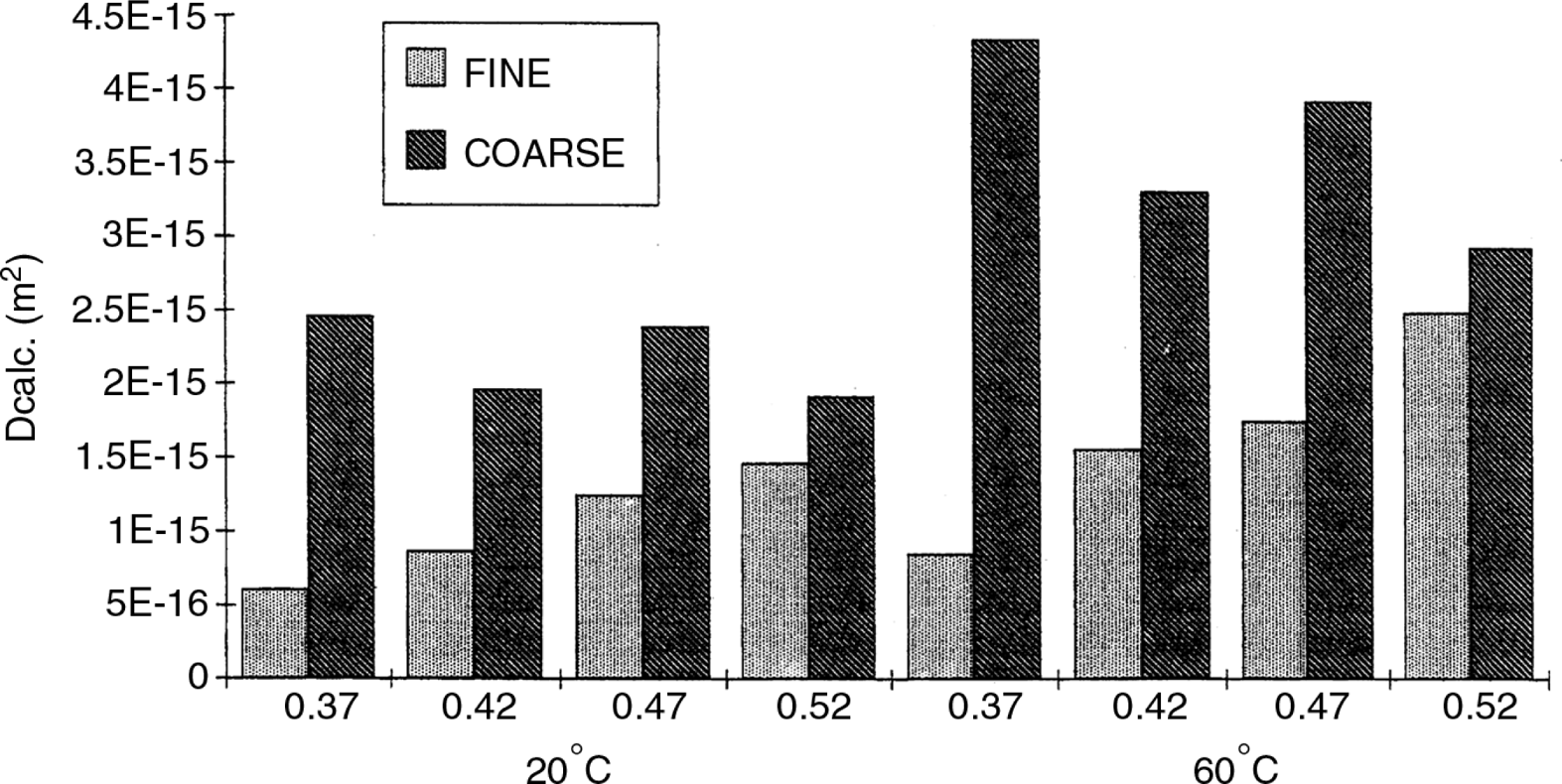

A preconditioning of 20 °C and water/cement ratio showed the maximum resistance to air permeability (Figure 5). The lowest water/cement ratio provided the lowest porosity when more fine aggregates are used in the concrete mix for both preconditioning temperatures (20 ° and 40 °C). However, no specific relationship is seen between air permeability and water/cement ratio when coarser aggregates are used in the concrete mix (Figure 5).

Dried-out concrete at 40 °C feature the highest air permeability coefficient (Figure 5). This fact can be explained because when the moisture content in the concrete specimen is increased, pores are partially filled and do not allow the air to enter. When coarser aggregates are used, these differences are getting lower and the water content in the concrete specimens influence on the value of the air permeability coefficient, D_air, starts prevailing (Figure 5).

The good agreement between the D_air and D_calc obtained from the slope of the lines plotted in Figure 4 indicates that the coefficients of variation obtained (Figure 3) can be considered technically acceptable. Only two cases present significant differences, both of them made of coarse grading aggregate and having a water-cement ratio of 0.47 which were preconditioned at 20 °C and 60 °C (16% and 21%, respectively). The rest of the specimens gave a good agreement.

5. CONCLUSIONTOP

An excess of fine aggregates with relation to the Fuller curve gives a more dense material than when the excess is of coarse ones. Therefore, in a non-well graded aggregate distribution it is preferable a higher amount of fine aggregates than coarse ones. However, it is always recommendable to dosage a proper amount either of fine and coarse aggregates in order to get an optimum compactation.

In both cases studied, a preconditioning from 20 °C to 60 °C lead to an increase of D_air ranged between 40 to 80%. In contrast, the air permeability coefficient in the fine case increases with the water-cement ratio, whereas in the coarse case with less sand content do not follow a clear relationship with this parameter.

Finally, the method for studying air permeability of concrete has given reliable results. However, it is recommended to test several samples in order to get accurate results due to the high coefficient of variation which may be obtained.

ACKNOWLEDGEMENTTOP

The authors are grateful to the people from the IETcc who helped in this study.
