Effects of mechanical cleaning by manual brushing and abrasive blasting on lime render coatings on Architectural Heritage

M.A. Iglesias-Campos *

Universitat de Barcelona / GRAPAC/CETEC-patrimoni. Universitat Autònoma de Barcelona (Barcelona. Spain)

*manuel.iglesias@ub.edu

1. INTRODUCTIONTOP

Mechanical cleaning is based on the application of energy with different tools to break and displace the bonding between surface deposits and substrate by impact, cutting or friction. Friction is considered the smoothest mechanism allowing greater control during treatment, although its effectiveness is usually restricted to thin and/or slightly compact surface deposits (1).

Mechanical methods can be classified in manual or abrasive blasting depending on the tool used. In manual techniques, since antiquity, different tools have been used for reducing, working or cutting away surface deposits with low-level penetration in the substrate. One of the most common techniques is manual brushing for its friction mechanism. Abrasive blasting, based on the same cleaning processes but where the tools are abrasives, is a procedure used for years in Architectural Heritage for the same purpose, also aiming for predominance of friction over impact. Both techniques are mentioned in most general publications on building materials treatment (2, 3, 4, 5), in descriptive articles (1) and in recommendations on standards for cleaning buildings (6, 7, 8, 9).

As with any other cleaning technique, both treatments have some specific parameters. The correlation between material characteristics (heterogeneity, texture, cohesion and hardness, among others), surface deposits (mainly thickness and adhesion) and the tool or equipment used, will determine the final result and the predominant cleaning mechanism.

No documented references about parameters of manual techniques have been found. Probably because of the difficulty of measuring them, parameters are not usually included in studies and research although there are some recommendations about controlling them to remove deposits properly during cleaning (10). Their parameters can be determined from traditional use (pressure, angle, rate of movement, vibration, rotation, etc.), and from the tool (size, shape, composition, etc.) related to the work formula [W = F × d = F × d × cosα] as a physical magnitude in classical mechanics, which posits a correspondence between energy or exerted force [F], the displacement of surface deposits in this case [d], and the angle formed by the force and the displacement vectors [cosα].

Regarding abrasive blasting, there are different studies analysing the influence of its parameters (11, 12, 13, 14), essentially similar to those of manual techniques. This cleaning technique is influenced by pressure, distance, angle, time, nozzle, particle-flow and specific abrasive properties (composition, size, specific weight, density, morphology, hardness, friability or toughness, etc.) because it is based on the kinetic energy formula [E = ½ m × v²], where m is mass or abrasive; and v, velocity or pressure. Most of these parameters are not specified in studies. Pressure, the abrasive used, and usually its grain size are all that are mentioned, providing insufficient information to determine either how the cleaning is done or the extrapolation of results for similar situations.

To understand the influence of the different parameters in both techniques, it is necessary to recognize how the conservator-restorer performs the treatment. In manual techniques the restorer slides and/or applies force with the selected tool during a specific time on the surface deposit; in abrasive blasting he manually moves a nozzle that projects pressurised air and abrasive on the surface. In both techniques the continuous application of the manual tool or of the different particles, together with visual observation, determine when the required cleanliness level has been reached.

In both manual techniques and abrasive blasting, depending on different factors related with the technique, the material and the surface deposits, either a precise treatment can be achieved or the substrate can be damaged. Alterations, if any, are related to abrasion, impact or cutting mechanisms derived from the technique itself, and they appear as differential erosion, microcracks, loss of shine etc. (15), i.e. textural modifications favouring surface alteration and increasing the probability of greater re-soiling after treatment.

The aim of the study is to analyse and evaluate comparatively some poorly documented aspects of these cleaning processes using basic analysis techniques, readily available for the conservator-restorer responsible for cleaning, as well as investigating further mechanical effects of friction, seeking their effectiveness in frequent situations. Friction mechanism is very obvious in manual brushing but in abrasive blasting this effect is influenced by blasting angle and the abrasive’s shape and grain size. As a parameter controlling friction mechanism, angle is not usually referred to except in some roughness tests (16), in some research papers (17) and in specific case studies (11, 13, 18), where a 45° angle is usually proposed as safer than 90° angle; although recent studies on silicic sandstones have shown that the least aggressive angle is close to 75° (19). Furthermore, although there are comparisons between products (11, 12, 13, 14, 17, 18) it is not usual to include morphology, grain size or friability when analysing their effects.

2. MATERIAL AND METHODSTOP

Tests were made on different fragments of the lime render coating of a late nineteenth century façade in order to eliminate two layers of whitewash of different thickness and adherence. A basic preliminary study of the material and its surface deposits was made with magnifying optical techniques and chemical microanalysis reaction observed under stereomicroscope to determine quickly its generic composition, in order to propose trials with the data obtained.

The cleaning results were analysed by macrophotography and USB digital microscope to observe morphological surface changes and the degree of surface deposits removal because they are reasonably low-cost instruments for the restorer, allowing an evaluation that could be performed in situ. Subsequently, to investigate topographic changes significant for evaluating the cleaning effects (20), a stereomicroscope with 3D visualization and measurement was used in laboratory to analyse the surface and the primary profiles after treatment. Since it is a mechanical cleaning method, optical techniques facilitated enough information to take potential decisions in an actual intervention, providing relevant information about the studied parameters and their effects on the material without requiring more complex analytical techniques.

The devices used for studying the material and the cleaning evaluation were a USB digital microscope PCE-MM200 with × 10–200 adjustable and a Leica M165C stereomicroscope with × 7.3–120 adjustable with software Leica Stereo Explorer 3D visualizing and measurement.

2.1. Lime render and whitewashesTOP

The fragments conserved a rough render coat (not considered in the study because it would be unaffected by cleaning) and a lime render with siliceous aggregates, between angular and rounded, predominant sizes of 250–500 μm and mix ratio 1:4. The observation of the chemical microanalysis reaction with stereomicroscope revealed a carbonated composition of the lime render.

Cohesion between the binder and aggregates did not present significant conservation problems, the packing density ranged between loose and compact, and space between aggregates was 50–90 μm. The render had a uniform thickness, between 1.3 and 1.5 mm; it was slightly rough, probably due to leaching of rain water, and maintained good adhesion to the rough render coat (Figure 1).

On the render there were two whitewashes: one on the surface in sienna colour, slightly powdery, with poor adherence to the lower layer, and 10–15 μm thick, and beneath it a white whitewash of 100–150 μm thick, of greater consistency, adherence and penetration in the rough render texture with which it could sometimes be confused. The observation of the chemical microanalysis reaction with stereomicroscope revealed a carbonated composition of the whitewashes.

The distribution of these artificial deposits varied depending on the fragments. Some had the sienna whitewash directly on the render, others conserved isolated traces of white whitewash between the sienna and the render; and those on which the final trials were made had both whitewashes. It was not known if either of these whitewashes were applied originally, although the location of certain repairs seemed to suggest they were subsequent.

In this case, the properties most likely to increase the probability of surface damage by manual brushing or abrasive blasting mechanical action are: low substrate mineral hardness, difference in size and hardness between binder and aggregates, mix ratio and the resulting packing density, surface texture and difference of adherence and hardness between the whitewash layers (Table 1).

2.2. MethodsTOP

The aim of the tests was to check the possibility of removing the two whitewashes, layer by layer, by manual brushing and abrasive blasting without damaging the render surface, taking into account that the original surface was the rough texture of the mortar.

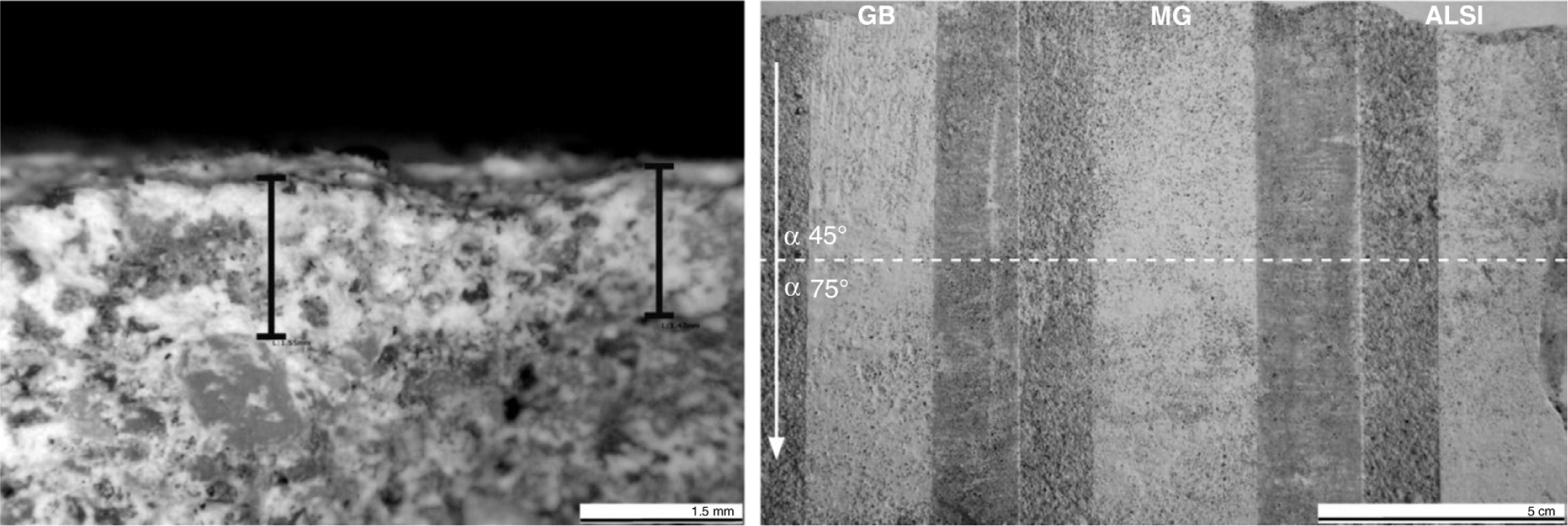

After initial trials on small fragments, tests were made on the larger fragment (17 × 11 × 2.5 cm) placed vertically to reproduce its position in a façade. Different surfaces, approximately 54 cm², were generated subdividing the fragment longitudinally to verify the feasibility of removing the sienna whitewash while maintaining the white one, and subsequently removing the white whitewash without damage to the render surface. The fragment was also subdivided transversely to compare the effects of changing the angle during the abrasive blasting (Figure 1). The area was delimited with special adhesive plastic tape for glazing to provide a reference to the initial situation. Cleaning was made without shaping the ends of the treatment area, superimposing it on the protective tape.

For abrasive cleaning a suction gun with 3 mm straight nozzle, 150 l/min flow compressor and dehumidifier filter were used. Despite being a soft substrate, 2 bars of pressure on the manometer was selected, since the suction equipment consumes about half of the energy to absorb the abrasive and the rest in blasting it, an output pressure of approximately 1 bar could be achieved (minimum blast pressure of most commercial equipment for sale or rent).

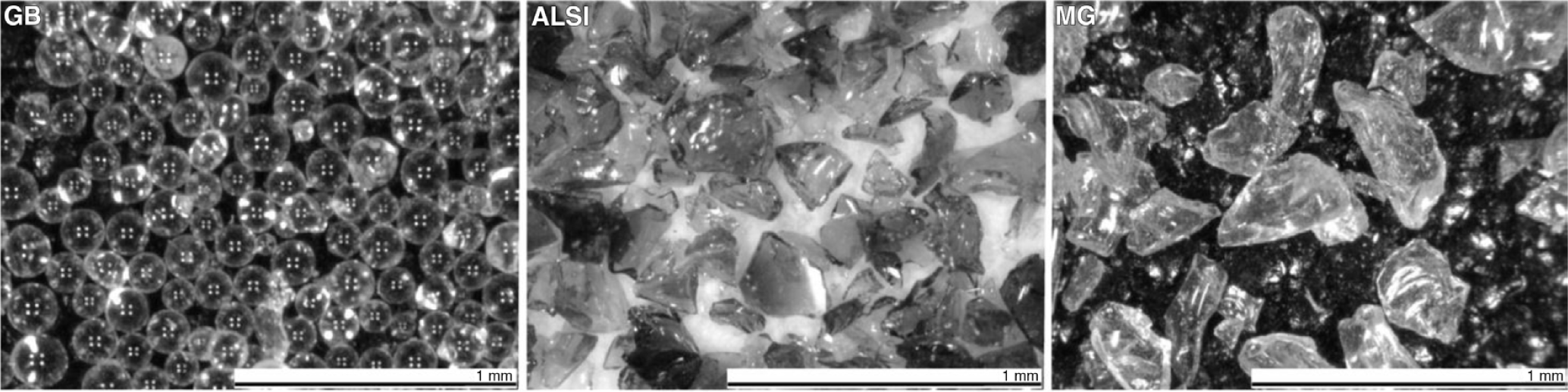

Three of the most common abrasives for these treatments were selected: glass beads 75–150 μm, micronized glass 100–250 μm, and aluminium silicate 80–160 μm. These abrasives, the most similar in grain size among the commercially available, despite having similar hardness, shapes and friability rates, are different and may influence final cleaning results (Figure 2, Table 2).

On every surface 45° and 75° angles were used. For distance, to unify the real measurement from the nozzle end with the selected angles, 10 cm was determined; this distance corresponds to the hypotenuse of the triangle formed between nozzle and surface with a distance of 7.1 cm at 45° and 9.7 cm at 75°. This distance was selected as one of the most usual ones when cleaning smooth surfaces with suction gun or microblaster. A reference rail was used to maintain distance and angle.

Samples were covered with a metal plate until a uniform and constant flow projection was reached to control as far as possible the homogeneity of this manual treatment. At this moment the trial was initiated. This procedure was necessary because when the switch is activated at first, flow is not constant depending on pressure, hose length and abrasive characteristics, among others. The same protective device was used to prevent the abrasive that continues to flow after releasing the switch control impacting with the surface at the end of the set time. After cleaning, each surface test was covered with paper to prevent visual and time comparisons that could influence the restorer’s treatment.

For manual cleaning a soft toothbrush of synthetic bristles 220 μm in diameter and 1 cm long grouped in tufts of 2 mm diameter, and a rectangular surface area of 3 cm² was used. It was moved longitudinally, hardly exerting pressure at an angle of 0°. Of the parameters that influence this manual treatment, only the angle, the tool material and its size could be defined.

During both tests an assistant was timing the duration of the treatments and protecting and uncovering the surface in the abrasive blasting. In time measurements a slight margin of error must be taken into account because it was not an automated system, and so time must be understood as a reference to the speed of cleaning.

3. RESULTS AND DISCUSSIONTOP

Analysing the removal of the sienna whitewash and evaluating the white whitewash as the final treatment surface, changing the blasting angle or the abrasive was not found to make a substantial difference. The low thickness of sienna whitewash and its poor adhesion to the white one required a very fast nozzle movement and therefore cleaning was performed with hardly any significant interaction between surface and particles. Air and a small quantity of abrasive eliminated this artificial deposit (time ± 2 s). Nevertheless, the white whitewash surface is slightly lowered, visibly and to the touch. With manual brushing the sienna whitewash is also easily removed (time ± 3 s) and, although it leaves more residues, the lowering produced on the white whitewash is less than with abrasive blasting.

Studying the removal of white whitewash and analysing the lime render as the final treatment surface, results with abrasive blasting were different and seem to be related to the effects of the angle and the characteristics of the abrasives used.

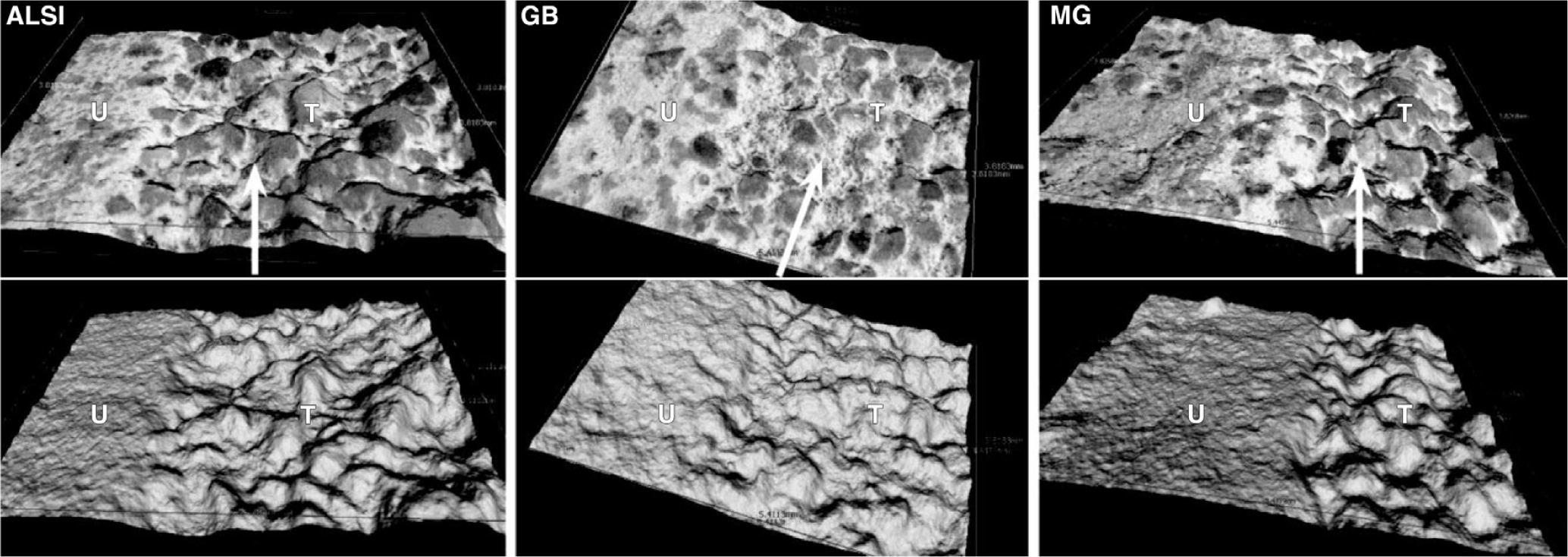

Regarding the angle, and irrespective of the abrasive, differences can be distinguished in the alteration produced. Surfaces treated at 45° show differential erosion which highlights the aggregates. The low mineral hardness of lime compared to the abrasives used, 3 and 6–7 Mohs respectively, suggests that, even with low pressure and significant distance, the binder is eroded by the friction mechanism. Aggregates, having a similar hardness to the abrasive, are not altered. Furthermore, in some cases this erosion provokes detachment of aggregates and significant surface recess of 250–550 μm (Figure 3).

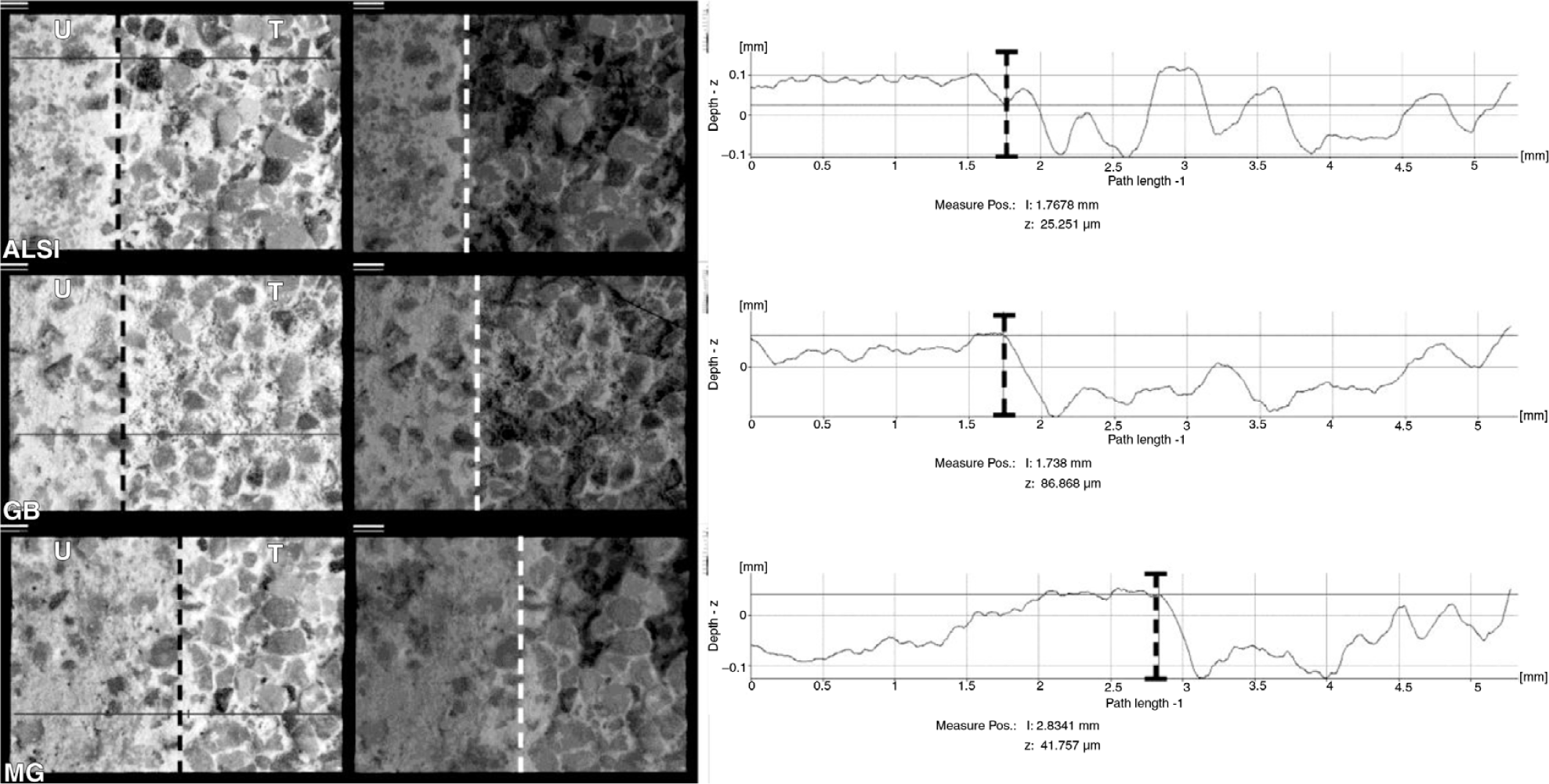

Tests at 75°, reducing the friction mechanism and slightly increasing the impact, also modify surface texture, leaving a less eroded surface with smaller loss of aggregates (Figure 4).

Although they concern different materials, pressures higher than those used here, and without references to angle variations, these observations are consistent with some studies of abrasive blasting on sandstones with carbonated cement. In those studies, it was observed by SEM and roughness measurements that cement is preferentially eroded more than other minerals, resulting in greater roughness when it was unevenly distributed (21).

With both angles used, individualized longitudinal marks to the blasting trajectory can be distinguished. Aggregates channel the abrasive distribution to the space filled with a binder of lower hardness. But compared to this general lime erosion, it is observed that, according to the projection trajectory, the binder does not suffer erosion on the rear side of the aggregates (Figures 3 and 4). Although they concern different materials, the data are consistent with studies on granite that report limited alteration of softer minerals which are protected by differences in the relief and greater hardness of the contiguous minerals (17) or studies on siliceous sandstone (19).

Therefore, as in natural detritic materials (19), an angle of 45° causes greater alteration and further modifies the surface by differential erosion of the softer components than the 75° angle.

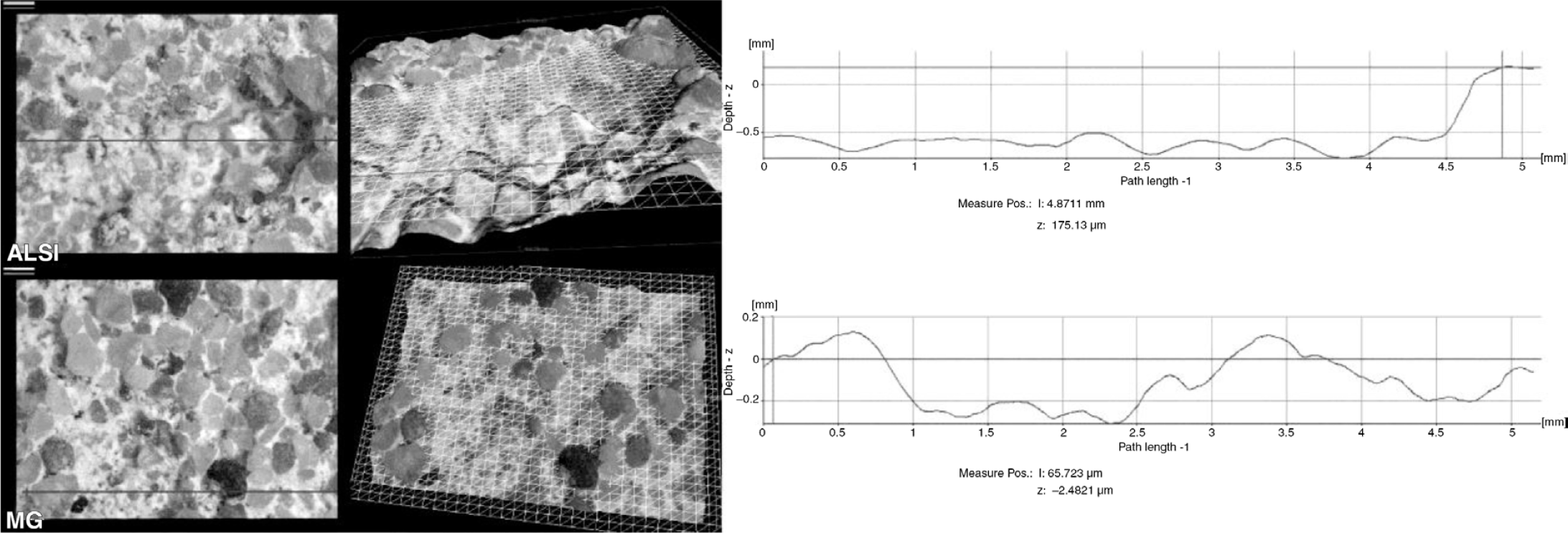

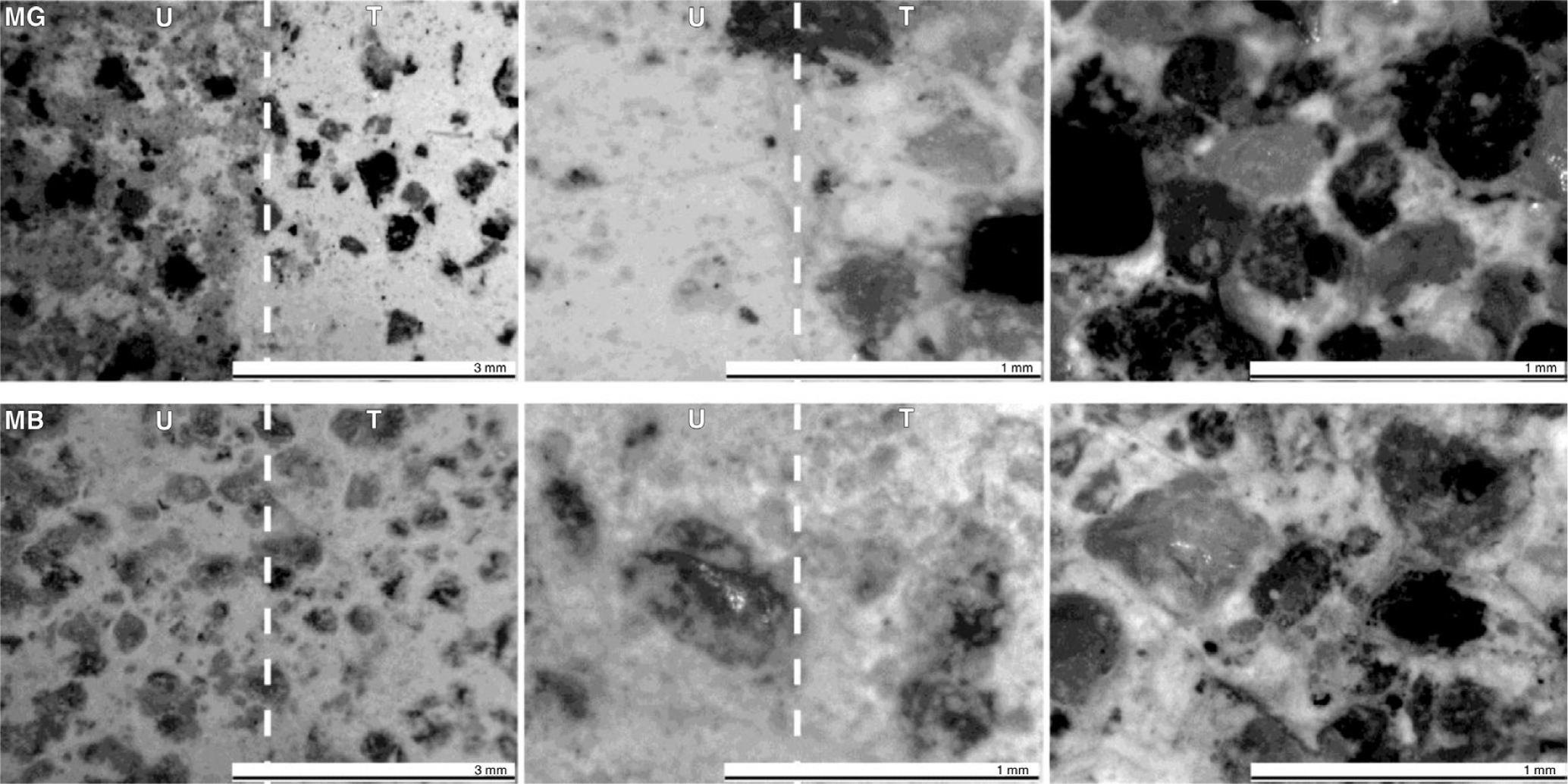

Analysing the influence of the abrasive regardless of the angle, no significant changes were observed between surfaces but the area treated with micronized glass is less altered when observed in detail (Figures 4 and 5). This seems mainly related to its larger particle size compared with the other abrasives used, and indirectly to its lower friability. The larger grain size of the micronized glass (100–250 μm) in relation to the space between the aggregates (50–100 μm) reduces the possibility of its penetration, and thus the erosion of the binder. Moreover, its smaller friability index reduces its breakage during transport through the hose and nozzle, and the particles reach the surface closer to the nominal sizes than other abrasives used. Thus, the overall recess caused by micronized glass is less than with other abrasives and primary profiles of analysed areas show lower penetration of the product between the spaces occupied by the binder. A similar effect, although in sedimentary rocks, is described evaluating two grain sizes of the same abrasive and observing that the larger size has less penetration between the calcite cement of the studied materials (17).

In this situation, therefore, the smaller size and the greater friability of glass beads and aluminium silicate enable their particles to be easily introduced between the intergranular space and favour differential erosion. As no differences have been observed in the surface morphology related to abrasive or time spent (time ± 3 s in all tests) the data seems to support the proposal of grain size as a prominent factor in alteration.

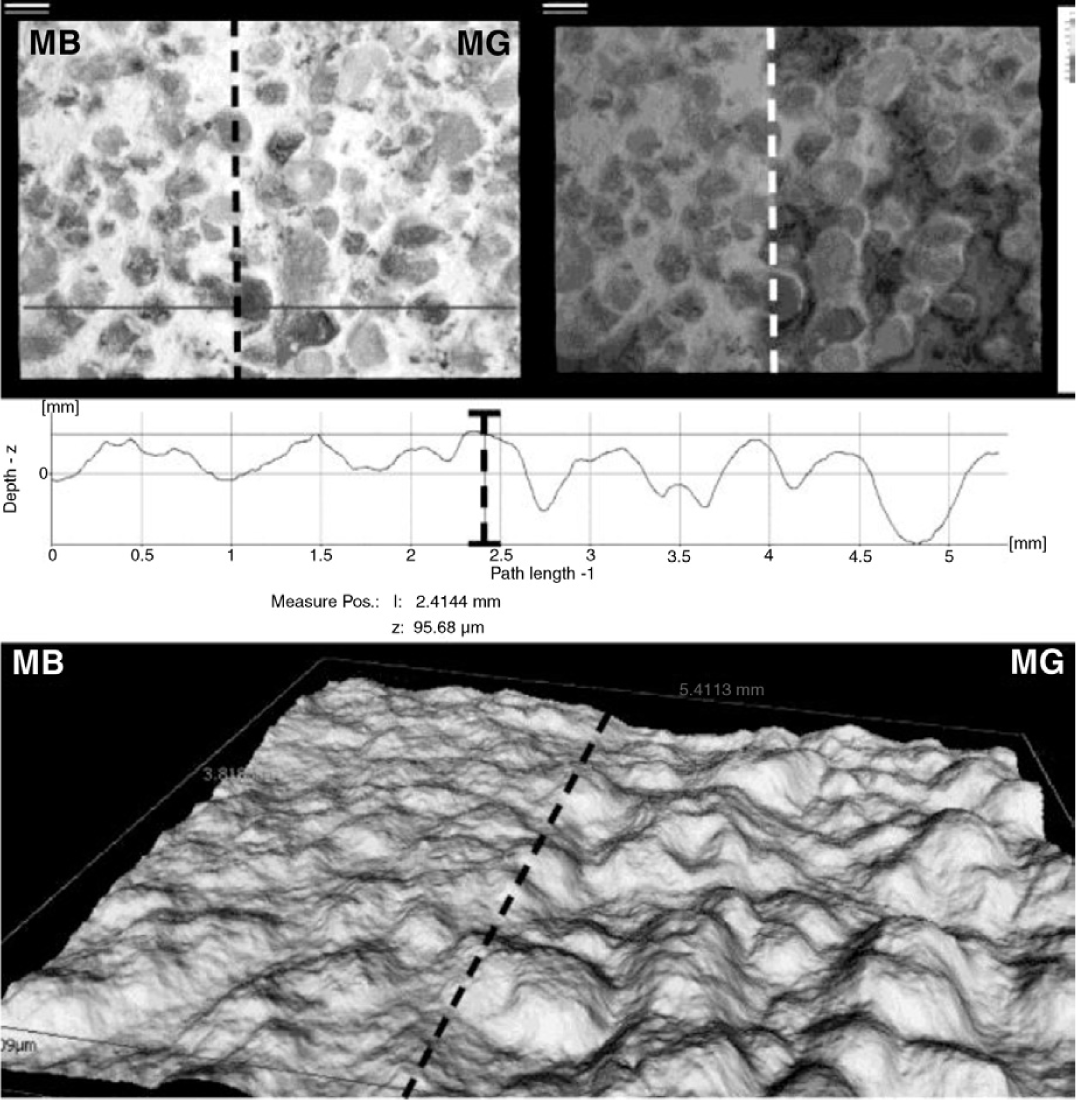

Regarding manual brushing, the consistency of white whitewash makes their removal difficult by exclusively manual mechanical treatment. Therefore bristles were wetted with deionised water using the same parameters as in dry cleaning. The results were similar to the abrasive blasting regarding alteration but with a minor recess of the binder. Brushing also produces differential erosions similar to any of the abrasives by the displacement of the bristles between the aggregates, and thus a lowering of the lime (Figure 6). This erosion may have been facilitated by the softening produced by the small amount of water used, as well as the added friction of surface whitewash particles removed during manual movement of the brush, which increased its erosive action. However, the surface finishing is different, especially in the degree of whitewash removal. Although it has been eliminated, the aggregate surface presents a less clear aspect because some residues are not fully removed (Figure 7). The time used to clean the surface was also greater ( ± 5 s).

4. CONCLUSIONSTOP

As has been verified, mechanical cleaning by manual brushing or abrasive blasting on lime render coatings produces differential erosion by a friction mechanism modifying its surface roughness; the binder is eroded while aggregates are not altered.

In abrasive blasting, maintaining parameters constant and using an abrasive with low friability and greater grain size than the space between mortar aggregates blasted at a 75° angle, differential erosion is reduced in comparison to abrasives which are more friable and/or smaller, because they penetrate less in the binder area.

Nevertheless, manual brushing is the mechanical technique which least alters the surface even though the time spent on cleaning is slightly longer.

Evaluation using simple techniques which allow comparative optical observation at different scales has been sufficient for a study according to the needs of an actual intervention. The surface analysis with macrophotography and USB digital microscope in situ and stereomicroscope with 3D visualization and measurement in laboratory have provided enough information to assess the effects of these mechanical cleanings. Direct observation and images obtained have clarified the results because surface deposits are essentially perceived as a modification of visual parameters of what is considered an original and clean surface.

Even though tests were made on a lime render coating, the treatment effects could be extrapolated to a cleaning affecting mortar joints of similar composition in a wall.

ACKNOWLEDGEMENTSTOP

To Dr. Salvador García Fortes (Secció de Conservació-Restauració. Facultat de Belles Arts. Universitat de Barcelona) and Dr. José Luis Prada Pérez (GRAPAC/CETEC-patrimoni) for their comments and suggestions. To Dr. Salvador Borrós and María José Alcayde (Grupo de Ingenieria de Materiales, Institut Químic de Sarrià, Universitat Ramon Llull) for facilitating the use of 3D stereomicroscope in this study.
