Industrial trial to produce a low clinker, low carbon cement

L.M. Vizcaíno-Andrés^a, S. Sánchez-Berriel^a, S. Damas-Carrera^b, A. Pérez-Hernández^c, K.L. Scrivener^d, J.F. Martirena-Hernández^a*

a. Center for the Research and Development of Structures and Materials (CIDem), Central University “Marta Abreu” of Las Villas (UCLV), (Villa Clara, Cuba)

b. Siguaney Cement Factory, Cement Enterprise Group (GECEM) (Siguaney, Sancti Spíritus, Cuba)

c. Technical Center for the Development of Construction Materials, Ministry of Construction, (La Habana, Cuba)

d. École Polytechnique Fédérale de Lausanne (EPFL), (Lausanne, Switzerland)

*f.martirena@enet.cu

1. INTRODUCTIONTOP

The amount of cement produced in 2011 was 3.6 billion of tonnes (1). If average content of cement per m³ of concrete ranges around 250 kg of cement; approximately 14 billion of m³ of concrete were made only in this year; this is equivalent to approximately 2 m³ of concrete for every inhabitant of planet Earth. No other material is produced in these massive quantities (2).

Approximately 5–9% of anthropogenic total emissions of CO₂ are related to the concrete production. This is caused by the massive production and use of cement in the construction sector; 85% of concrete emissions are associated with cement manufacture; thus its contribution is approximately 3–5% of global CO₂ emission (3, 4). Any improvement in cement manufacture may have a great impact on the reduction of CO₂ released to the atmosphere.

Tackling the urgent housing problems in development countries prompts for the massive availability of construction materials. The demand of cement is projected to double by 2050; and most of this increase will come from development countries; in which infrastructure is not been developed yet; and the growth of population will put pressure on expansion of existing urban areas (5).

The cement manufacture process includes burning the raw materials at very high temperatures to produce clinker. Depending on the type of process used; the energy consumption can be between 3000–6500 MJ/tonne of clinker (6). Greenhouse gases are released during cement manufacture; among them CO₂. Calcium carbonate represents approximately 72–78% of all raw materials used for clinker manufacture; the main component of cement. At around 900 °C; calcium carbonate turns into calcium oxide and releases 0.44 ton of CO₂ to the atmosphere per each tonne of calcined material; this represents approximately 60% of the CO₂ released during cement manufacture. The rest of CO₂ emitted comes from the fuel used in the firing process and the electricity used for grinding (3). Depending on the efficiency of the kiln; the rate of emission of cement production ranges between 0.67–1.00 tonnes CO₂/tonne cement (2).

A strategy for a higher reduction of CO₂ emissions during cement manufacture may be to reduce the amount of clinker used; for it is the main responsible of CO₂ emissions. This can be attained through the use of Supplementary Cementitious Materials (SCM) as clinker substitutes. However; the current substitution rate for most cement industries is around 30%; which is not sufficient enough to drastically reduce the global carbon emissions associated with cement manufacture (5). Further; the availability of suitable SCMs is limited and it is closely related with industrial development; which considerably affects developing countries (7).

The authors of this paper have developed a new cementitious system that increases clinker substitution to 50% without significantly influencing cement performance. The new system is based on the synergy between the aluminates supplied by calcined kaolinite clay and the carbonates from limestone; which enhances the pozzolanic reaction of the calcined clay; and thus enables a higher clinker substitution rate (8, 9). The CO₂ emissions associated to clinker are considerably reduced in the new system; and the CaCO₃ added to the system is not calcined; thus no extra CO₂ is not released to the atmosphere; this justifies the label “low carbon cement” (LCC) given to the cement.

The two SCMs used in the new system; calcined clay and limestone have a higher availability than other SCMs. Low grade kaolinite clay has proven to be a suitable alternative to the pure kaolinite metakaolin (MK) currently used by the industry (10). Low grade kaolinite clay reserves are huge and are better geographically distributed than pure kaolinite clay deposits. The size of limestone reserves is in the same order of magnitude as current world cement production (7).

This article presents the results of an industrial trial carried out at a cement plant in Cuba for the production of the new cement at industrial scale. Comparisons between industrial and lab results were made. Further; a preliminary environmental assessment of the production of the new cement was done; which included a comparison with cements produced industrially in Cuba.

2. CLINKER SUBSTITUTION RATE AT BLENDED CEMENTS VS. TERNARY BLEND CEMENTSTOP

Pozzolans are been extensively used as SCM to substitute clinker in cement production. They react as described below –for silica rich pozzolanic systems- (11, 13), [1]:

The amount of clinker than can be substituted by pozzolans depends on the availability of calcium hydroxide produced during cement hydration. In pure silica pozzolanic systems; for substitution ratios above 15% wt.; calcium hydroxide produced during hydration is not sufficient to react with all the pozzolanic material (see Table 1); and thus; the unreacted material performs like a filler (13). Higher replacement levels can compromise the mechanical properties of the binder as kinetics of the pozzolanic reaction is usually slower than in pure clinker systems. For this reason most of cement producers limit the clinker replacement up to approximately 25–35% wt.

Metakaolin (MK) (Al₂Si₂O₇) is a highly reactive pozzolan produced through the calcination of clays rich in kaolinite mineral. The reactivity of MK depends on several factors; such as temperature; rate of heating and cooling regimen. The optimal temperature of calcination is between 700–800 °C; although the dehydroxylation of the clay is known to begin at 500 °C (14).

The pozzolanic reaction of MK with the calcium hydroxide (CH) in pastes is described as follows (15, 16) [2]:

Metakaolin is rich in alumina; so its use as SCM increases the volume of new alumina phases in the system. If calcium carbonate is introduced in the system through an external source; for example; limestone; the alumina phases react with it to form the following compounds (8), [3, 4]:

Based on this principle; it is possible to replace a mass of clinker by a similar mass of MK and calcium carbonate mixed in a 2:1 ratio; respectively; to form hydration products; which are able to fill the pore system of the cement matrix and contribute to the strength. Experimental laboratory results (8) show that it is possible to replace up to 45% wt. of clinker without compromising compressive strength of the material. For 60% of replacement; 90% of strength -related to plain cement- can be reached. The alumina phases react faster; so the early strength is not substantially affected (9).

3. LOW CARBON CEMENTTOP

The low carbon cement developed is produced by using the ternary systems of clinker-calcined clays and limestone described above. Medium purity kaolinite clay has proven to be a good alternative to MK in this system; thus increasing the availability and reducing production cost of the cement. The limestone introduced to the system is not calcined; thus no extra CO₂ is emitted to the environment (8, 9).

There are already reports of such an approach for ternary Portland limestone blends with alumina rich pozzolans. De Weert et al. (17) and Moesgaard et al. (18) have worked in fly ash-limestone-Portland cement systems; and they have reported an increase of the mechanical properties caused by the synergy between the fly ash and limestone; which favors the formation of carboaluminate phases that provide a beneficial contribution of the performance of the system. Antoni et al. (8) have worked on similar systems; and the synergy established between the Metakaolin and limestone; as well as its contribution to improving the mechanical properties of cementitious systems with high level of clinker substitution has been proven.

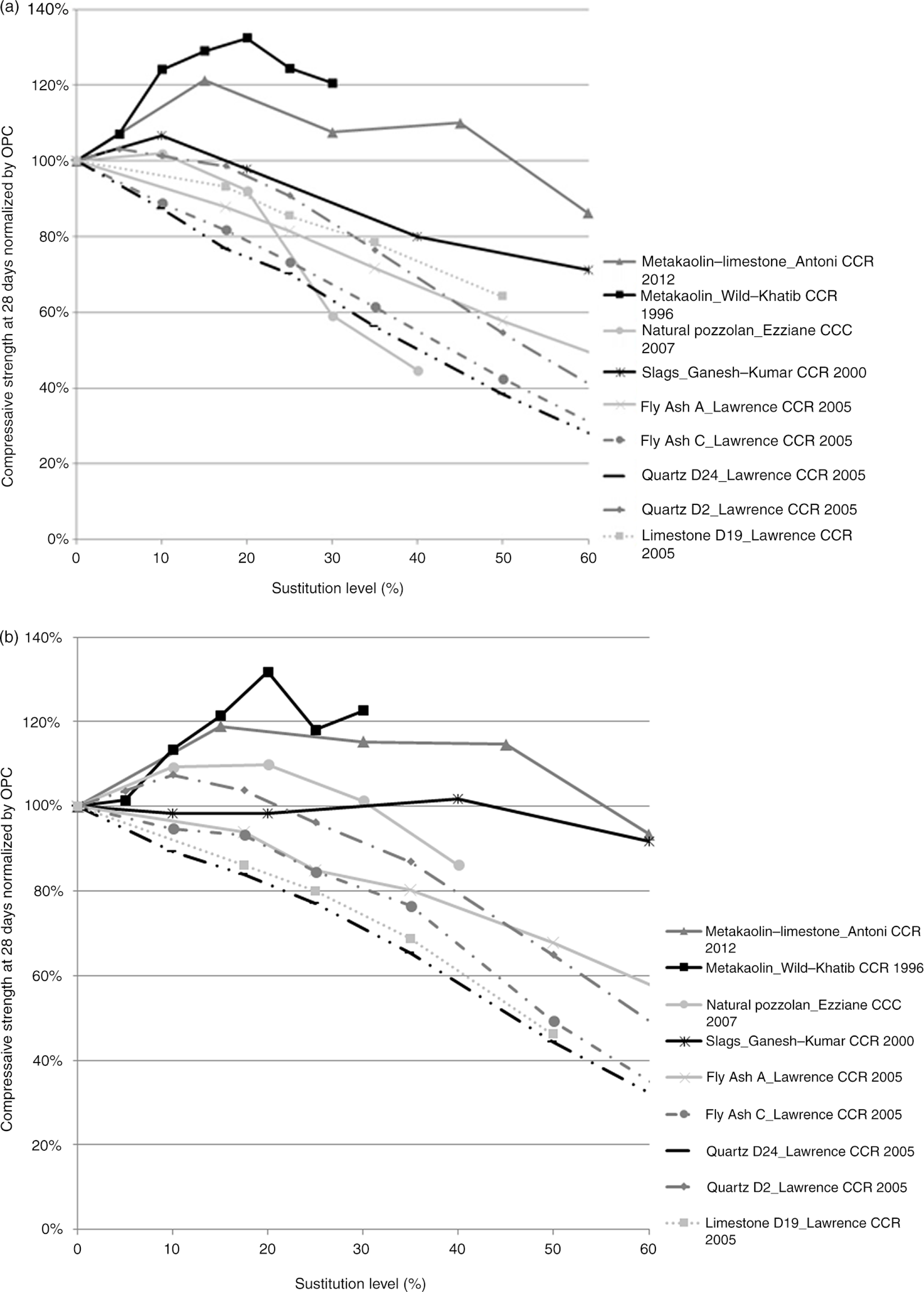

Figure 1 a) compares the different alternatives for blended cements and ternary blends at 7 days. The ternary blend cements; with higher clinker substitution rates achieve higher early strength than ordinary blended cements produced with different sources of pozzolan. This trend remains at later ages as presented in Figure 1 b).

4. PROOF OF CONCEPT: INDUSTRIAL TRIAL FOR THE MANUFACTURE OF LOW CARBON CEMENT (LCC) IN CUBATOP

The very promising results for ternary blends were achieved only at lab scale; under strictly controlled conditions. To scale up this process other considerations have to be taken into account. Significant differences between the procedures used for clay calcination and grinding at lab and industrial scale can take place. A full scale industrial trial was carried out for the production of bulky amounts of cement under real conditions. The Cuban cement industry designated the cement factory Siguaney for the industrial trial.

The target ternary cement should have clinker content around 50%. The trial included the calcination of 110 tonnes of medium grade kaolinitic clay; mixing and homogenizing of the calcined material with limestone in a 2:1 ratio; and co-grinding of the synergetic materials with clinker and gypsum.

For the trial; clay from the clay deposit Pontezuela was selected. The material is classified by the authors as a medium grade kaolinite clay; with an average content of kaolinite of 48.6%; measured by thermogravimetric analysis (TGA). Chemical composition for samples of the clay was assessed aided by X- ray fluorescence (XRF); Table 2 presents the results. X-ray diffraction (XRD) confirmed the presence of companion mineral such as quartz and iron.

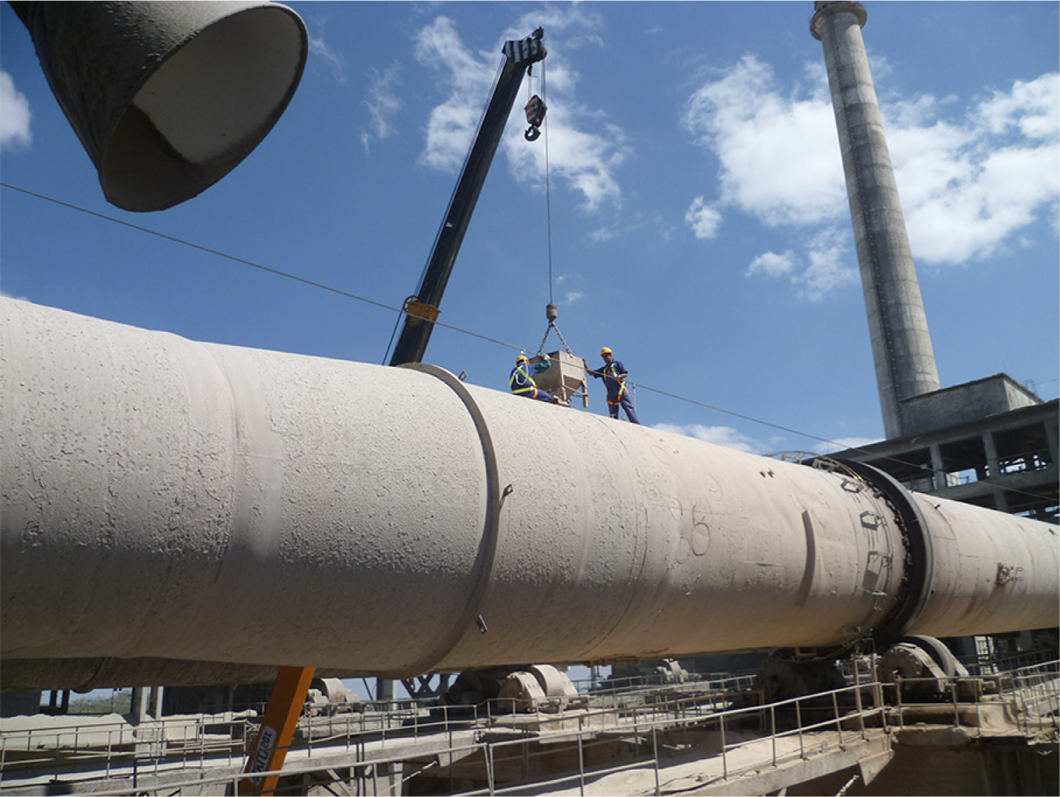

Calcination implied the modification of a wet process rotary kiln - regularly used for clinker production- in order to calcine the material on dry conditions (Figure 2). The clay was fed to the kiln and then heated to 750 °C; temperature chosen as optimal for calcination of the material (16, 23, 24).

After the calcination 90 tonnes of calcined material were obtained; the loss of material was associated with moisture content of the original clay; as well as the chemically bound water on the structure of the clay. The calcined material was stored in five heaps.

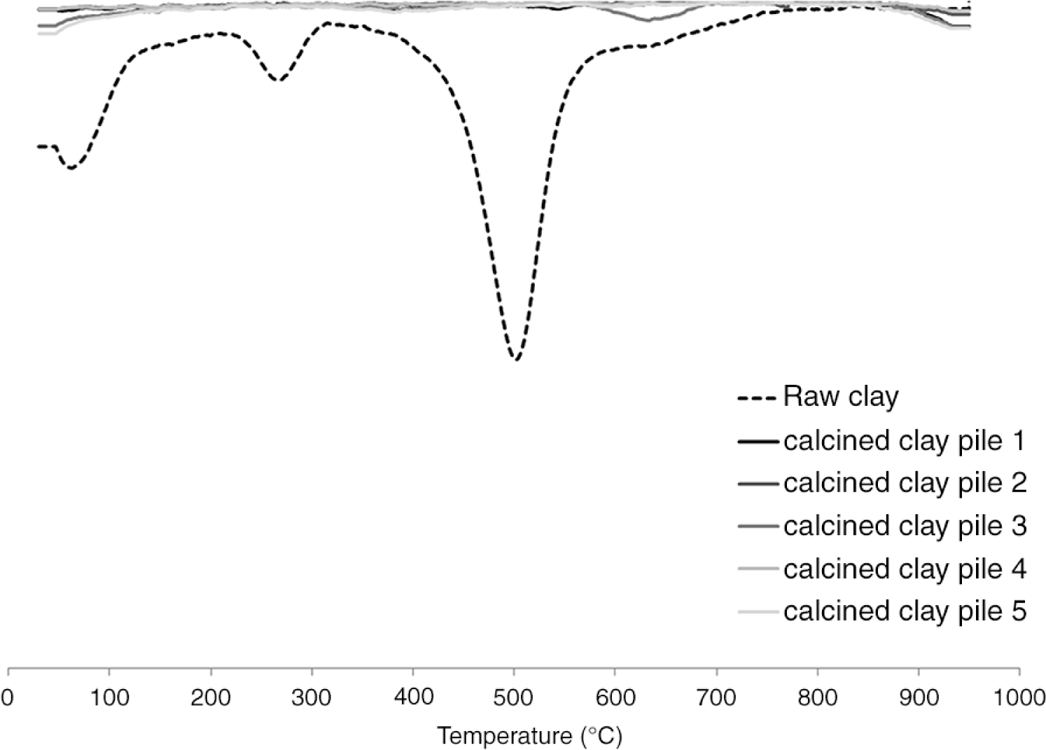

The quality of calcination was assessed through the dehydroxylation of the calcined clay. The complete dehydroxylation is achieved when all OH⁻ groups are released during calcination; and the peak associated with this in TGA disappears. Figure 3 presents the individual results for each of the five heaps of calcined material evaluated. All heaps have been completely dehydroxylated; thus indicating that the material has been fully activated.

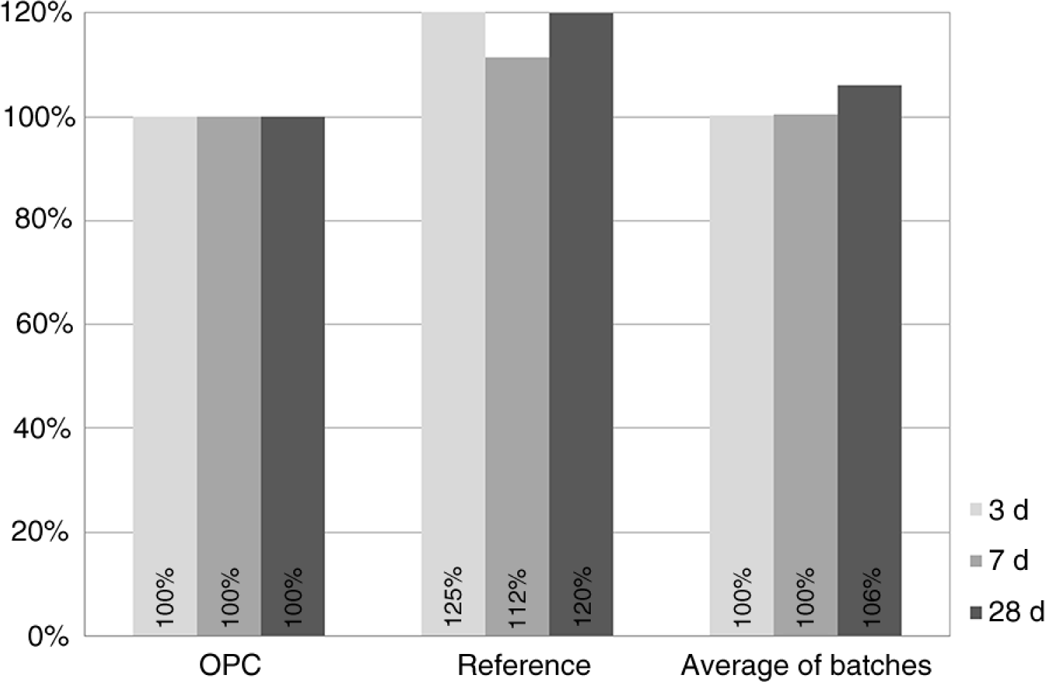

The pozzolanic reactivity of the calcined material was assessed through the compressive strength of standardized mortars; in which 30% wt. of cement is replaced by the pozzolanic material; following the protocol of Fernández and Antoni (8, 14). Two reference series were prepared with 100% of ordinary Portland cement (OPC) and cement with 30% wt. pozzolanic material calcined under optimal conditions at the laboratory. Figure 4 presents the results of compressive strength of standardized mortars at 3; 7 and 28 days. The reactivity of the material calcined in the rotary kiln (average of batches) proved to be similar to that of the material calcined at the lab; thus indicating that the industrial calcination was successful.

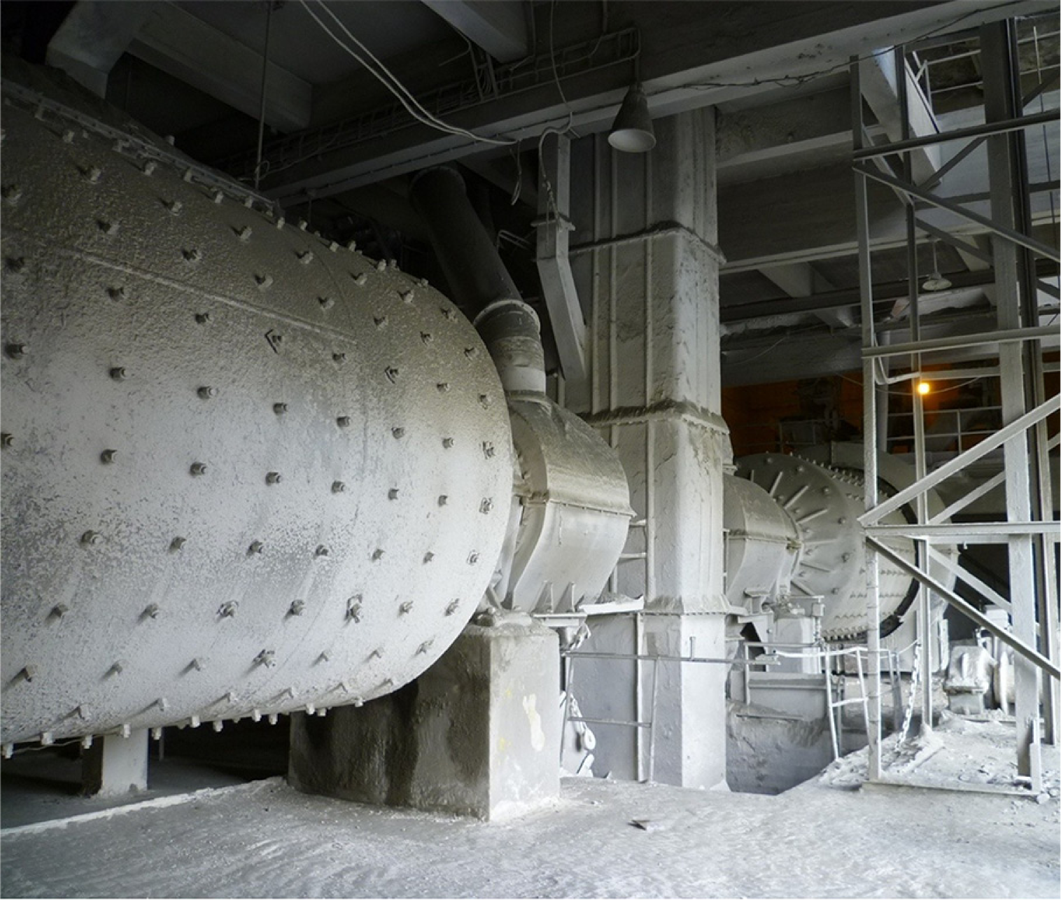

Grinding was made under industrial conditions; by using a ball mill with a double chamber grinding system (see Figure 5). In order to avoid high specific surface; it was decided to grind the material rather on the coarse side. Gypsum was adjusted to optimize the reaction of the alumina phase (8). The original gypsum used had a low purity; thus the relatively large proportion in the cement composition; but the total SO₃ content was adjusted to fulfill cement standards. Finally; grinding parameters were set as: 10–12% retained in the 90 μm sieve; specific surface between 4000–5000 cm²/g and SO₃ up to 3.0%.

Grinding was completed in 8 hours. Samples of the material were taken every approximately 30 minutes. Table 3 presents the chemical composition of the material obtained and the average proportion of the components.

The final cement was characterized following the protocol established for blended cements in Cuban standards (25, 26, 27, 28, 29, 30). Excess grinding of some softer materials through the interaction with other harder ingredients can be produced during the co-grinding process. This can have an influence on the grain size distribution of the cement; and it could eventually increase water demand of the mix (31). Results of the physical and mechanical tests are presented in Table 4.

5. INDUSTRIAL USE OF THE EXPERIMENTAL CEMENT PRODUCED IN THE INDUSTRIAL TRIALTOP

The industrial trial enabled the technical team to sound out the reaction of the construction and manufacturing industry to this new binder. Batches of the cement produced were distributed among builders and building material manufacturers; and their use was strictly supervised by the technical team. Potential customers were asked to use the new experimental cement in the same proportions as they usually use the Portland cement.

The trial focused on two main cement applications: (1) manufacture of hollow concrete blocks having size 500×200×150 mm; produced on a semi-automated vibro-compacting machine; and (2) manufacture of 25 MPa precast concrete elements at a prefabrication plant in Cuba. Table 5 presents mix proportions used for both applications. Mix design was accredited by the laboratory of the National Enterprise for Applied Research; in Cuba; following the regulations of Cuban standards (32, 33, 34, 35, 36).

Hollow concrete blocks were produced under standard manufacturing conditions; with a 1:1 cement substitution by the new cement. The quality of the blocks was assessed through the Cuban standard NC 247:2010 (37). This standard requires fulfillment of compressive strength and water absorption. Table 6 presents the results of the evaluation of concrete blocks made with the low carbon cement; as well as the reference blocks made with ordinary Portland cement. The experimental blocks met the standard’s requirements for compressive strength and water absorption; thus indicating that the new cement can replace Portland cement in this kind of industrial application.

Several cubic meters of 25 MPa concrete were cast under standard manufacturing conditions; with a 1:1 cement substitution by the new cement. Quality of the precast elements produced was assessed aided by the Cuban standards (32, 33, 34, 35, 36). Table 7 presents the results of compressive strength of both the experimental and normal concretes cast for the trial. Both mixes exceed the 28 day strength prescribed; and again; no major differences in rheology were observed; thus indicating that the new cement can replace Portland cement in this kind of industrial application.

6. ASSESSMENT OF THE ENVIRONMENTAL IMPACT OF THE EXPERIMENTAL CEMENT PRODUCED AT THE INDUSTRIAL TRIALTOP

Blended cements with clinker substitution up to 30% enable reduction of approximately 15–20% of the CO₂ emissions. The new cement formulation presented in this paper enables to increase clinker substitution to 50% without compromising performance; this represents a reduction of around 30% of the CO₂ emissions associated to the cement manufacture; as Table 8 presents. A preliminary assessment of the environmental impact was made; coupled to the industrial trial at cement factory Siguaney; with the aim of shedding light on the viability of such production from the environmental viewpoint.

Siguaney’s clinker manufacturing facilities consist only of wet-process rotary kilns. Because of its low efficiency; the factory is no longer using its clinker; and the clinker used is transported through railways from the cement plant Cienfuegos; located 100 km and equipped with a dry process rotary kiln of high efficiency. The production strategy also foresees clay calcination at Siguaney in a retrofitted wet process cement kiln. This could enable using the existing infrastructure for production in Siguaney–calcining clay; grinding cement; storing; etc. - and yet achieve some degree of efficiency in the process.

Clay calcination is foreseen in two alternative scenarios:

CO₂ emissions during cement manufacture were calculated by dividing the productive process in two phases: (i) clinker and clay calcination; and (ii) mixing and grinding of the clinker and additions.

During the calcination process; three main emission sources can be defined: a) Fossil fuels combustion; b) chemical decomposition of calcium carbonate (CaCO₃) and magnesium (MgCO₃) and c) electricity consumption. The methodology to estimate the CO₂ emissions followed the recommendations of the Intergovernmental Panel for Climate Change; 2006 (IPCC) (38); whereas clinker (CK) production is multiplied by an emission factor. So; the CO₂ emissions caused by the energy consumption (a and c); are calculated using the following formula [5]:

Where:

CO₂ emissions: kg CO₂/tonne CK-Calcined clay Emission factor: kg CO₂/unit of energy used Consumption index: unit of energy used/tonnes of CK-Calcined clay.

The dry process clinker production operates with pet-coke and the electricity is supplied by the National Energy System (NES) as energy sources. Table 9 presents the emissions associated to the energy consumption on the first stage of cement manufacture; mainly clinker production.

For clay calcination at cement plant Siguaney; crude oil was used and electricity was supplied by the National Energy System. Table 10 displays the emissions associated to energy consumption during clay calcination in the short and long term scenarios.

The emissions caused by the chemical decomposition of CaCO₃ y MgCO₃ contained in raw materials (grey limestone and clays); may be deduced through stoichiometry calculations with two different approaches:

The use of one or other approach is determined by the data availability; which helps to describe the chemical composition of the material; before and after processing it.

The authors chose to measure the differences between the CaO and MgO content of the materials while entering or exiting the kiln. The differences in the oxides content are converted by stoichiometry on the CO₂ released.

The CO₂ emissions due to the decarbonation of limestone were calculated for the conditions of Cienfuegos factory; which is the main clinker supplier for cement production in Siguaney. Table 11 presents the calculation of the emissions at the decarbonation of calcium and magnesium carbonate during clinker production at cement plant Cienfuegos.

The CO₂ emissions in the phase of cement grinding; are associated with the electricity consumption in the ball mill; see Table 12. Other sources of emissions are considered negligible and thus discarded.

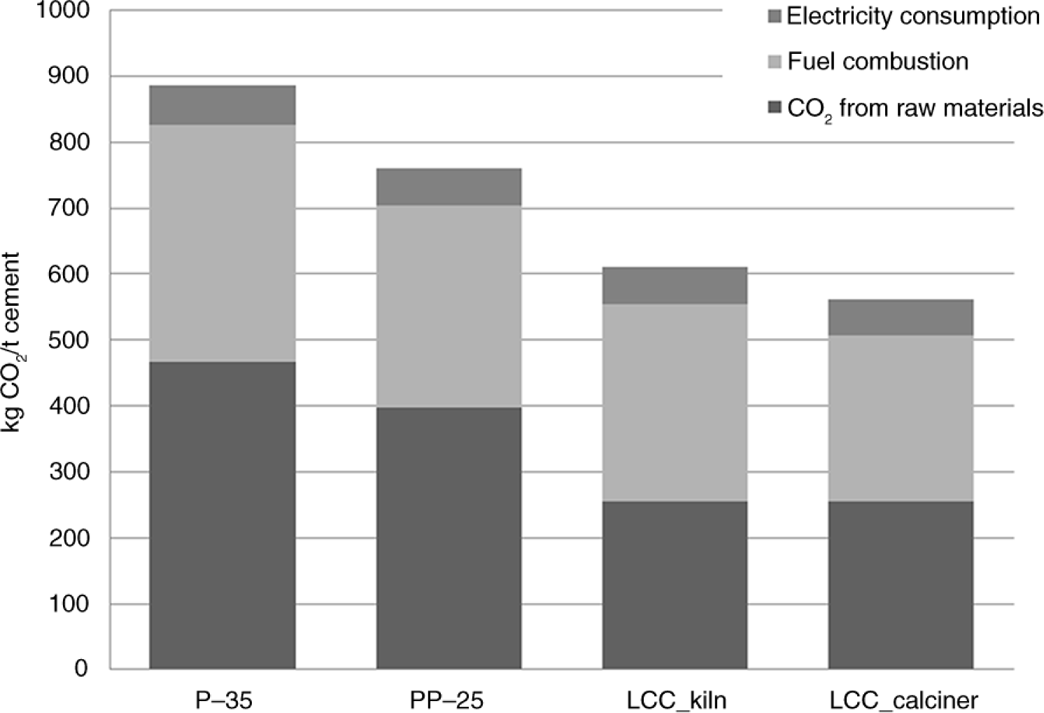

The final calculation of CO₂ emissions is presented in Figure 6. The low carbon cement produced in non-optimized conditions during industrial trial; reduces approximately 270 kg CO₂/tonnes in relation to OPC (P-35); this is approximately 31%. Reduction in reference to traditional Cuban blended cement (PP-25) is in the range of 125 kg CO₂/tonne. P-35 and PP-25 are both regularly produced at cement plant Siguaney.

In the projected long term scenario; the total estimated emissions for low carbon cement achieve emissions reduction higher than 300 kg CO₂/tonne in relation to P-35 and 200 kg CO₂/tonne in relation to PP-25. This represents more than 35% of reduction compared to business as usual practice.

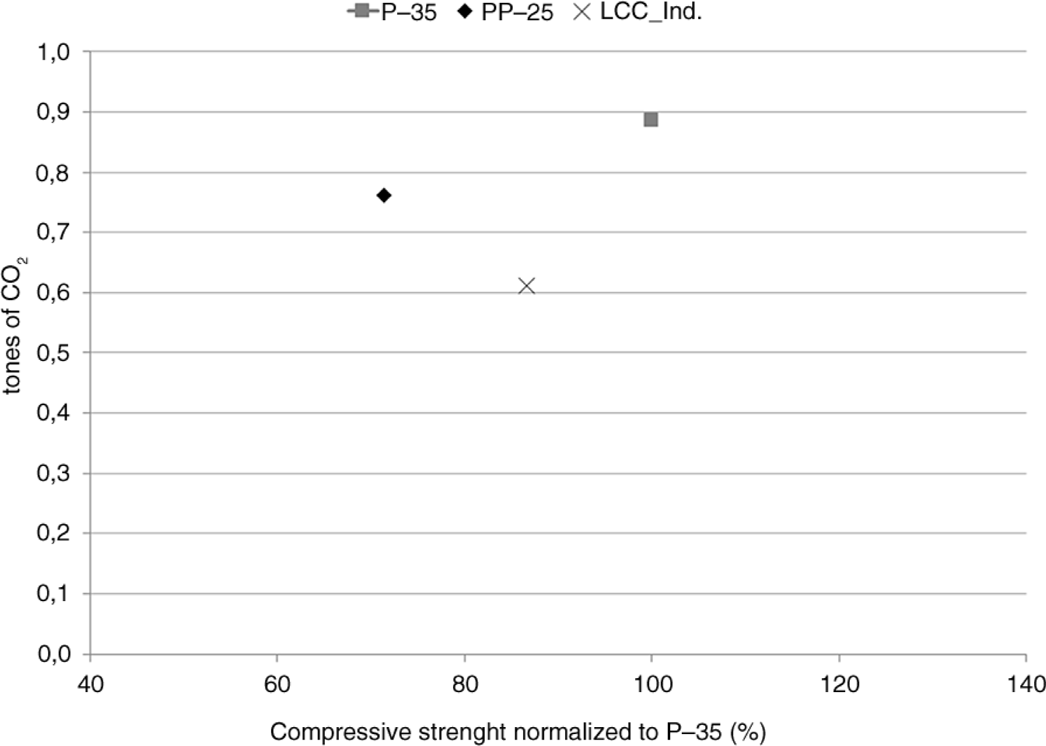

Figure. 7 presents emissions and compressive strength at 28 days of LCC produced at the industrial trial; compared with reference values of cements P-35 and PP-25. This illustrates the idea that LCC; despite its very low clinker content which leads to low carbon emissions; does not compromise performance of cement; even compared with other cements produced industrially at the cement plant.

7. CONCLUSIONSTOP

ACKNOWLEDGEMENTSTOP

The authors would like to thanks the financial support from the Swiss National Science Foundation (SNSF) to this project and the Laboratoires des Matériaux de Construction (LMC) of the École Polytechnique Fédérale de Lausanne (EPFL) for offering their facilities. The authors would also like to acknowledge Siguaney cement factory for the technical and material support.
