Pictorial materials used in the polychrome decorations of the façade of the palace of King Pedro I (The Royal Alcazar of Seville, Spain)

O. López-Cruz*, A. García-Bueno, V.J. Medina-Flórez, A. Sánchez-Navas, N. Velilla

Universidad de Granada (Granada, España)

*olimpia@ugr.es

1. INTRODUCTIONTOP

The Palace of King Pedro I was built between 1356 and 1366 within the precinct of the Royal Alcazar of Seville (Spain) and is one of the most outstanding monuments of medieval architecture in Spain. Over its history, the entire Alcazar has undergone constant remodelling and rehabilitation as a consequence of being the oldest palace in use by the Spanish monarchy, first as the residence of the Moorish heads of state and after the reconquest of Seville to the present, as an official royal residence.

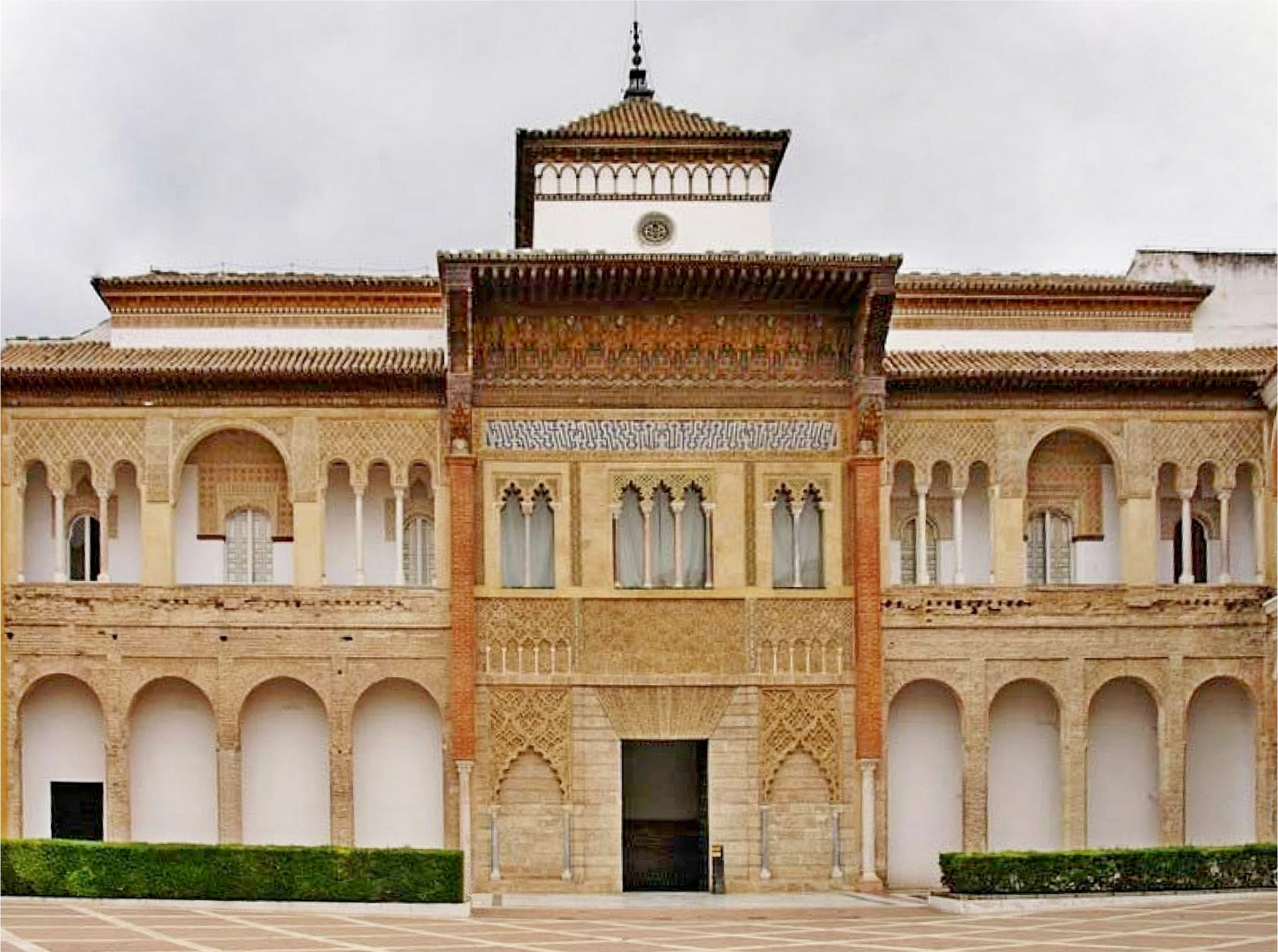

The façade of this palace, the most representative element of the precinct, is divided into three main sections, the central or portal and the two lateral ones, constructed of different materials, all originally polychromed. Notable among these is the monumental eave made of polychromed wood (Figure 1).

Under the arrocabe (ornate frieze) in the central section are two bands of decorated wall tiles in blue and white that separate the eave from the lower part of the main section. This lower zone is constructed in carved stone with intricate ornamentation of atauriques (stylized plant motifs) that must have been originally polychromed.

In the lateral sections of the portal, under the eaves, yeserías (decorative gypsum plasterwork) bears the same chromatic finishes as used on the wood of the façade. Made in the times of the Catholic Monarchs, these finishes follow the Nazarí style. Under them stand the original arches of the palace, which were closed probably at the end of the 15^th century and reopened in 1937.

This study was focused on the study of the polychrome decorations and made by the work team Wall Coating and Architectural Finishes, within the research group of the Regional Government of Andalusia Laboratory of City Archaeology and Architecture (HUM-104), under the research project of excellence of the Regional Government of Andalusia Colour in the Polychromed Façade of the Palace of Pedro I in the Royal Alcazar of Seville (HUM-02829). Given the great quantity of pictorial strata found in the polychrome decoration of the facade, our aim was to quantify and identify the different actions taken in retouching the polychromes and thereby establish the chromatic evolution of the different decorative elements.

2. METHODOLOGYTOP

For this study of the polychrome elements, a specific sampling method was used consisting of collecting the samples in the predetermined areas after dividing the decorated surface of each main section of the façade into three areas, i.e. left, right, and central. Within each area, 14 horizontal levels were differentiated, which in turn were divided in three zones. These levels were structured taking as a reference the ornamental elements and the different colours found in these.

From the overall façade, a total of 242 samples were taken, 94 from the central section, and 74 from each of the two lateral sections. This high number of samples was necessary to establish the complete register of the different polychroming of the various ornamental elements and their changes in colour.

The scientific-technical research undertaken is fundamental for knowledge of the materials, the execution processes, and alterations. In our case, this was focused on identifying the interventions made over the years on the basis of characterizing and comparing the samples in order to establish the correspondence between the different polychrome levels.

The analysis techniques used were:

3. POLYCHROME MATERIALSTOP

Any polychrome finish usually contains the following superimposed strata: preparatory layer, base layer, pigments and, in many cases, gold gild. In the samples studied, in addition to the identification of different pictorial materials comprising the façade of the Palace of King Pedro I, the strata making up the same polychromed area were recognized in order to determine the number of polychrome coats present in each sample studied.

Once assigned to polychrome groups, the strata were classified primarily according to the chronology provided by the pigment present in each stratum, which was described according to its chemical and mineralogical characteristics. The first polychrome type corresponded to the oldest materials, called historical. The second type was associated with the intermediate levels, in which synthetic azurite was identified, this pigment being discovered at the beginning of the 17^th century. Finally, the third group contained pigments and agglutinants of the most recent period, their manufacture being related to technological advances that led to the Industrial Revolution from the end of the 18th to the end of the 19th century, and were applied in later restoration.

3.1. Materials of the preparatory and base layersTOP

The preparatory layer associated with the original polychrome was distinguished by several characteristics: 1) It invariably appeared over the original support and often was severely deteriorated, with only scant remains; 2) it had a characteristic dull brownish colour; 3) its composition was normally mostly earth materials (phyllosilicates and quartz) and a small portion of gypsum.

By contrast, the rest of the preparation layers presented lighter colours than the original and were essentially composed of gypsum, with a small quantity of phyllosilicates.

The preparation layers were present, under stereoscopic microscope, as masses of earth colours, poorly compacted. Under optical microscope small, regular crystals were appreciable. In BSE (backscattered electrons) images of the SEM, these crystals appeared with dark-grey colours due to their low mean atomic number. EDX (energy-dispersive X-ray) analysis indicated peaks of S and Ca corresponding to the calcium sulphate (gypsum). Also, other elements were identified, these being the phyllosilicate components often accompanying this gypsum in these types of layers (Si, Al, K, Na, etc.).

The base strata of the deepest pigments appeared highly degraded, not only for their age but also because they generally contained higher amounts of gypsum than of white lead or calcite. Meanwhile, the most recent strata, with a great quantity of these latter materials, were more compact and better defined, and under the stereoscopic microscope appeared as well-defined layers of white colour. Under the optical microscope, crystals of variable size and morphology were visible. In BSE images with SEM, these appeared with intermediate grey colours due to their higher mean atomic number with respect to the older layers. The element analysis revealed the presence of Ca, S, and Pb and, in some cases (especially the most recent strata), Ba. This chemical composition corresponded to materials of calcium carbonate, calcium sulphate, white lead, and barium sulphate; this latter was found only very occasionally.

For recent restorations, two strata appeared as a base, presenting distinctive characteristics with respect to the previous ones, as both contained high percentages of lead. The deepest was an extremely compact layer composed exclusively of white lead. This differs from preceding and subsequent painting, which in addition to this pigment contained variable quantities of gypsum or calcite.

With respect to the last intervention, corresponding to the polychromy visible at present, the base layer bore a large quantity of white lead, but calcite was added in proportions that sometimes made it the majority mineral. Some samples also contained variable quantities of barite and occasionally a small proportion of gypsum.

3.2. Pigments identified in the pictorial layersTOP

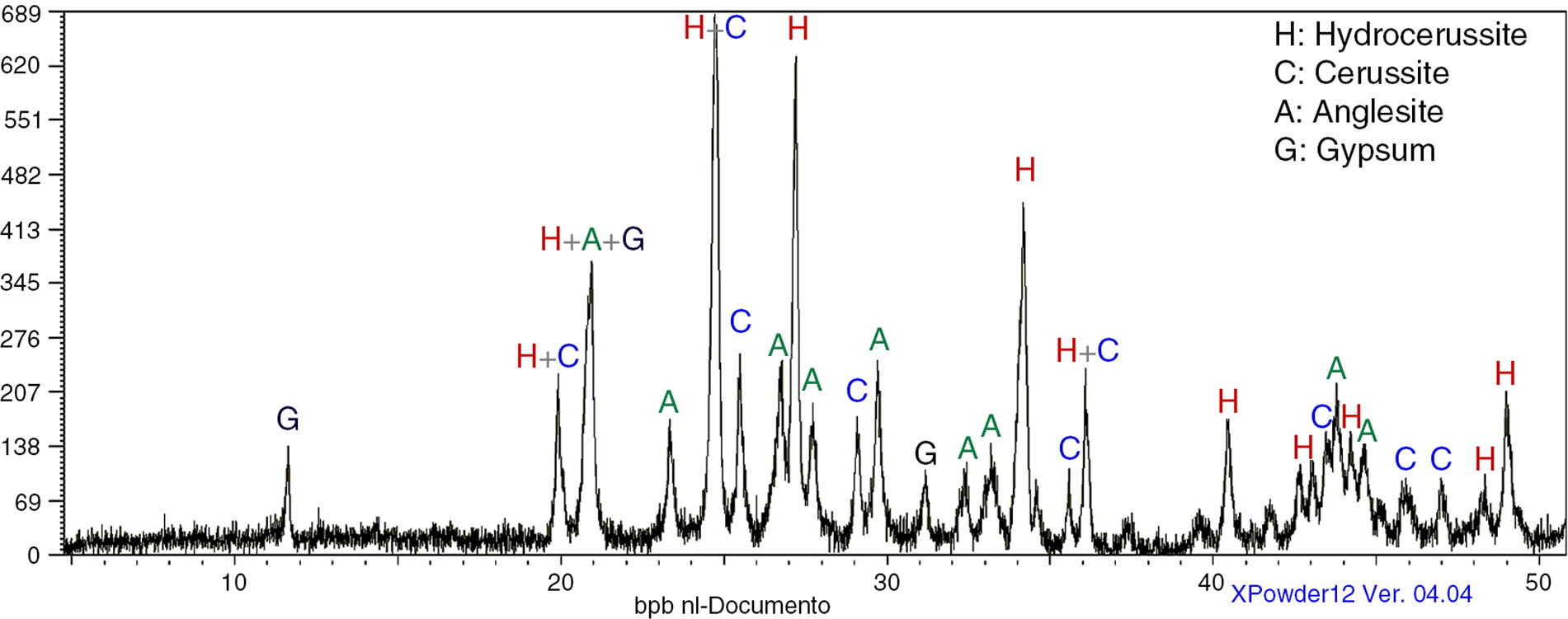

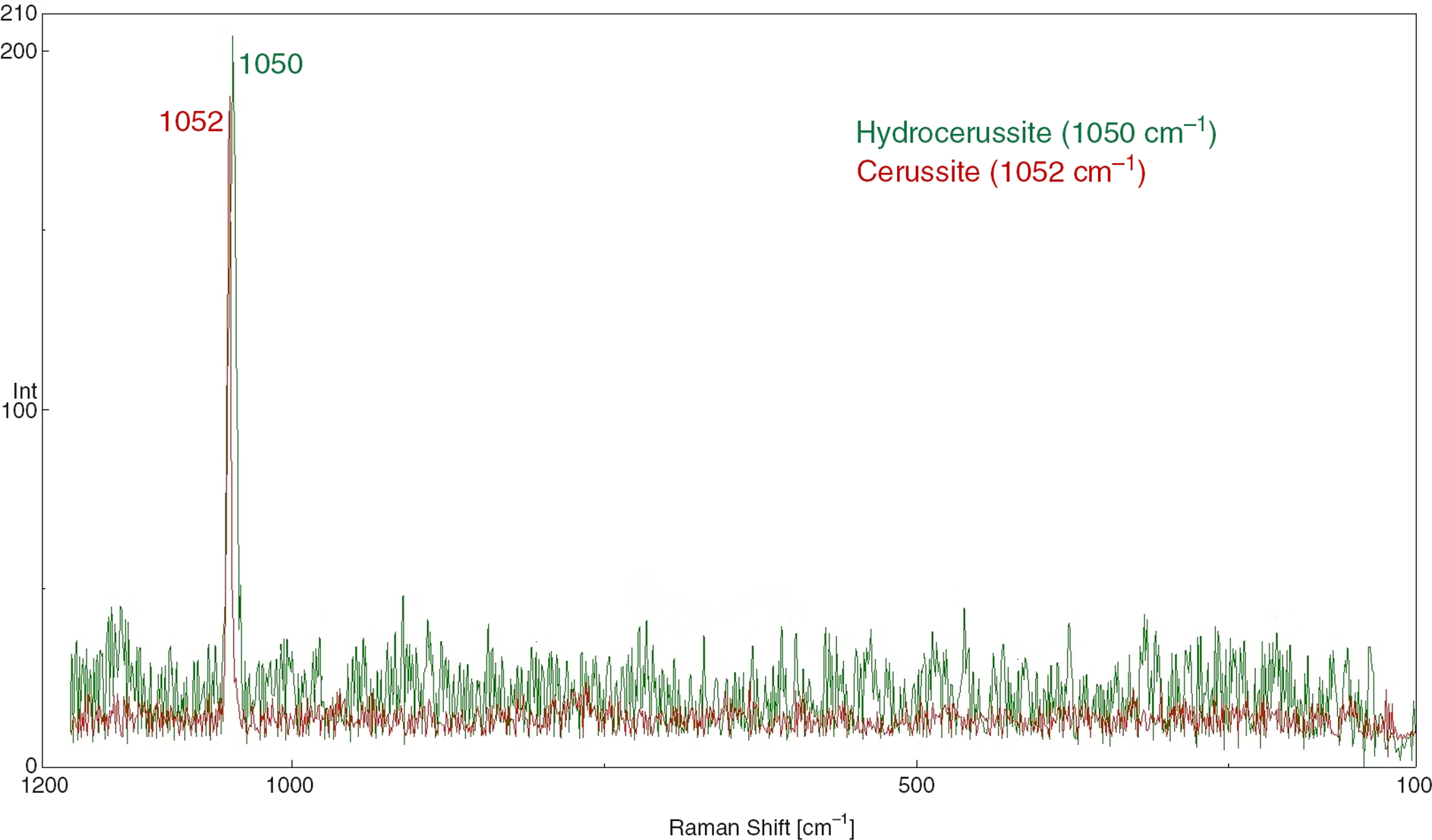

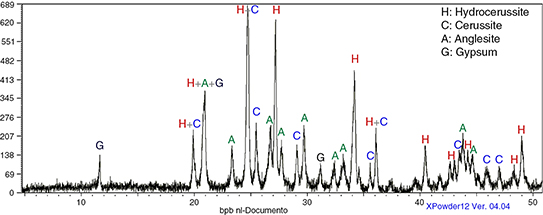

White lead (lead hidroxycarbonate and lead carbonate). These have been used since antiquity, produced by diverse procedures over time. Hydrocerussite (Pb₃(CO₃)₂(OH)₂) together with cerussite (PbCO₃) were the most abundant pigment in the samples studied and were used both for base strata as well in pictorial finishes (Figures 2, 3 and 4). In the pictorial layers, it had the same characteristics as described above for the base layers. It formed very compact and well-defined layers that under the optical microscope were found to be composed of brilliant rounded grains of very small size (1 μm). Under transmitted-light microscopy, the white lead presents strong opacity. In BSE images, these layers appeared with bright grey colours due to the high mean atomic number of this pigment. In the Raman spectra both hydrocerussite and cerussite are characterized by a very strong peak near 1050 cm⁻¹, but the corresponding to cerussite appears slightly displaced to a higher wave number that of hydrocerussite (Figure 3).

Calcite. This is a form of calcium carbonate (CaCO₃) that has been used since antiquity, especially in preparatory layers and to a lesser degree as a pigment (7). It can be natural or artificial in origin. Its natural varieties include chalk, which is a white, soft and porous rock, composed of an accumulation of the remains of marine microorganisms. In the samples in which it appeared, especially in the deep strata, it contained fossils debris, confirming that it is natural.

Baryte (barium sulphate, BaSO₄). This is a very stable white pigment but with moderate covering power. It is used primarily as a base for preparations and as a component or adulterant for other white pigments (8). In the Alcazar, this mineral appeared especially together with arsenate of copper greens and to give body to black in the modern polychroming of the central section of the façade. Bearn (9) pointed out that when barium sulphate is used together with a pigment that is not a white colour, such as green, it should not be considered an adulterant as it heightens the shine and gives a product of better optical properties at a low cost. In the case of samples studied, it appeared in both cases, together with white lead and calcite in the preparation layers, and together with green pigments of arsenic and copper for greater shine (Figures 5, 6 and 7).

Organic black. This pigment is produced by the combustion of several organic substances. Though not very consistent, it is extremely permanent and has a great power of coloration. This use of this colour has been confirmed in Roman painting (10). All the black colours found in the samples studied were formed by organic pigments. Normally, organic black does not show its characteristics under the optical microscope or SEM. Only a massive and homogeneous aspect was visible with the presence of craquelure due to the retraction of the abundant oils and resins that these pigments contained. The layers that formed often lost their continuity at the cost of the plastic behaviour of the material (Figure 4).

In addition to the organic agglutinants, they usually contained pigments that gave them body and acted as a drying agent and that varied according to the location of the sample. Thus, in the lateral areas of the façade, it was found mixed with red lead or vermillion, especially in the modern polychroming, while in the main section the accompanying pigment was barite. In deeper strata of the three main sections of the façade, this pigment was mixed with other drying pigments, i.e. mainly white lead, azurite, and red lead.

The Raman spectrum of this pigment is characterized by bands at 1570, 1360, and 1250 cm⁻¹.

Lead(II) oxide or litharge. This is a lead monoxide (PbO) which was used traditionally as a drying agent in oil painting, although it was also used as a pigment to a lesser degree. It has been made synthetically since antiquity by heating molten lead in the presence of air at 300 °C.

This pigment, like white lead, was found in the samples as a base or pictorial stratum and both in the electronic images as well as in the microanalysis of SEM-EDX it presented characteristics that were practically identical with white lead and therefore were impossible to differentiate. Also, the size of the crystals detected by optical microscopy was very similar in the two pigments. However, the two can be distinguished optically by the clear yellow colour of the lead oxide (Figure 8).

Lead-tin yellow (lead-tin oxide). This is produced by the fusion of lead and tin oxides in a crucible at temperatures of 800 °C (11). The most common compound is an oxide of the formula Pb₂SnO₄, although another is also known, this containing a small proportion of Si, replacing Sn. The origin of this pigment is unknown but it was used in Egypt and Mesopotamia.

In the façade, crystals of this pigment appeared intimately mixed with those of malachite, which was visible only in the study of the microsamples under the optical microscope. In fact, the lead-tin yellow can be concealed by malachite and only the crystals of larger size could be characterized well for their particular yellow colour (Figure 9). The use of EDX microanalysis enabled a confident determination on the basis of the characteristic association of the spectral lines of Pb and Sn. In the BSE images appeared crystals of lead-tin yellow, of high atomic number, with levels of greys close to white, and with irregular sizes and shapes. Also, this pigment has been detected in the Raman spectra by the presence of strong bands in the low wave number region, especially those corresponding to 194 and 128 cm⁻¹.

Red lead (lead oxide, Pb₃O₄). This is produced by calcination of white lead at about 450 °C. The product is a dense material, fine grained, with a high covering power (12).

This pigment is very significant in the polychroming of the façade, as it constituted the base stratum of the original polychromy over supports of wood and stone. It formed part of the deepest preserved layers (Figure 10). In most cases, it was manifested as disperse nodules of larger or smaller size with varying tonalities from intense red to orangish shades; although in some cases, it was conserved with a more continuous structure and with tonalities, under the optical microscope, shined brightly. Crystals of lead oxide have rounded morphologies and sizes ranging from 1 to 3 μm.

In the intermediate and upper levels of polychromed wood, it almost disappeared and, when found, usually went together with vermilion. In gypsum plasterworks (yeserías), it is main pigment used for the diverse decorative elements in the colour red.

Cinnabar/Vermilion (mercury sulphide, HgS). This pigment can be made in a natural form by grinding the mineral cinnabar or it can be produced artificially by synthesis (vermilion). The two pigments, natural and synthetic, have the same chemical formula, and therefore cannot be distinguished by element analysis with SEM-EDX.

In the samples studied, both the natural product as well as the synthetic one could be appreciated (Figures 11 and 12). Nevertheless, it might be deduced that the natural pigment must have been used profusely in the Royal Alcazar, as the edifice was built not far the mines of Almadén, the largest producers of cinnabar in the world.

However, with respect to the use of the two types of pigment in these samples, in agreement with the differences indicated, cinnabar seems to be found in the deepest layers, considered as the original ones, and vermilion-type pigment in the upper layers. Both appeared under the stereoscopic microscope as layers of bright red, very compact and relatively well preserved. They were distinguished in some cases under the optical microscope. Thus in the case of natural pigment (cinnabar), crystals of more uniform size appeared (2–3 μm), normally associated with some quartz grains from the original rock. On the contrary, the pigment vermilion, under the optical microscope, presented a colour that was sometimes orangish, the crystals were smaller, regular, and predominantly between 1 and 2 μm in size. The main difference with respect to natural pigment is that the synthetic one did not contain impurities, in particular, quartz.

In the BSE images, the brightness of these layers, because their high mean atomic number (71a.n.) was very high. EDX spectra of mercury sulphide presented the superimposition of the spectral lines corresponding to the two constituent elements Hg and S. In the Raman spectra, both cinnabar and vermilion have as the only significant reference an intense spectral band at 252 cm⁻¹.

Iron oxide red. This is a natural pigment that comes from clayey earth in red tones, which contains the mineral hematite. This pigment can be natural or artificial, but the chemical composition is always based on iron oxide (Fe₂O₃).

In the samples studied, this pigment presented a brownish-red colour in quite continuous layers of coloration, almost always situated above strata of vermilion in the intermediate polychrome layers. Under the optical microscope, its texture is heterogeneous for being composed of a mixture of clayey materials that also included quartz, with hematite iron oxides.

In the reflected-light images with cross polarisers, these layers show a reddish-brown tone as opposed to the red of the cinnabar or vermilion strata (Figure 12). However, in the examinations under reflected light and a single polarizer, there was a strong contrast with the red layers that accompanied it due to its low reflectance of light. In the BSE image revealed little brightness due to the low mean atomic number of the different mineral components. In the EDX spectra, the peaks Si, Al, K, Mg predominated, corresponding to the silicate minerals (clay and quartz) together with iron corresponding to iron oxides.

These oxides are mainly characterized in the Raman spectrum by a prominent band located at 401 cm⁻¹.

Azurite. This is a mineral pigment that is found in the oxidation zone of primary copper deposits. It is composed of basic copper carbonate, Cu₃(CO₃)₂(OH)₂. The pigment of natural azurite was used by the ancient Egyptians and continued to be used throughout antiquity. In Europe, however, it did not begin to be used frequently until the 12^th century, when this mineral was discovered in silver mines of Saxony and large deposits were found near Lyon. Its artificial production dates to the 17^th century and was later substituted in great part by Prussian blue, which was discovered in the 18^th century (13).

This was a very common pigment in the samples studied, both in its natural variant, which was found at the deepest levels, and in it synthetic form. Under the stereoscopic microscope, the natural and the artificial pigment formed well defined, relatively thick, strata with a granular texture. The natural azurite crystals observed by optical microscopy presented irregular shapes, very angular and of notable size with a highly variable granulometry ranging from 10 to 50 μm (Figure 13). The strata of synthetic azurite were characterized by the massive presence of spherulites with diameters of 10 to 15 μm, which were composed of an aggregate of small needle crystals in a fibrous-radial array (Figures 14 and 15). In the BSE images of SEM, the natural or synthetic azurite appear with intermediate grey to dark levels corresponding to an intermediate mean atomic number (19.4). The EDX spectra were very simple as they presented significant peaks corresponding only to copper.

In the Raman spectrum, it can be distinguished with a characteristic band at 400 cm⁻¹ and an array of minor bands at low wave numbers.

Ultramarine blue. This (sodium and calcium sulfo-aluminosilicate) was first synthesised in 1828 (14). Its chemical composition can be expressed as Na₁₀Si₆Al₆O₂₄S₂, which is similar, although not identical to the mineral lazurite. The product obtained by synthesis presents greater purity than that of mineral origin (15).

In samples studied, the synthetic variety invariably appeared and was never found in the deep polychrome layers. In the most recent polychromies, it formed very characteristic strata under the microscope, where the intense blue colour of this pigment highlighted the white lead matrix that it accompanied in the pictorial layer (Figure 14). The proportion of ultramarine crystals with respect to the matrix was relatively small. These crystals were predominantly equidimensional, although they also appeared with irregular shapes. They had uneven granulometry and their size rarely surpassed 10 μm. Its isotropic character, apart from the colour, was the foremost optical property for its identification by optical microscopy.

The BSE images of the strata showed great contrast between the ultramarine blue that appeared practically black due to its very low mean atomic number (less than 12) and the brilliance of the white lead (averaging approximately 67). The EDX spectra were very characteristic with the sequence of lines Na-Al-Si-S-(K-Ca) that clearly defines its composition.

The spectrum Raman is also very typical with an intense central band at 544 cm⁻¹, a medium band at 544 cm⁻¹, and two low-intensity bands at approximately 985 and 260 cm⁻¹.

Malachite. This is probably the oldest green pigment known, clearly more abundant than azurite. Composed of basic copper carbonate Cu₂(CO₃)(OH)₂, it often appears as botryodal masses with an internal fibrous structure. The material is prepared simply by grinding and, like azurite, the colour intensity decreases sharply with the decrease of grain size. Also, it is manufactured artificially although it was not identified as such in the polychroming of the façade, where little was identified and only in the deep layers (Figure 9). It was present in the floral ornament of the channels of the central section, where it was intimately mixed with lead-tin yellow.

The Raman spectrum of malachite contains numerous bands with a main band at 432 cm⁻¹. The position of strong bands in the low wave number region of the spectrum below 400 cm⁻¹ enables azurite to be distinguished.

Emerald green (copper acetate-arsenite). With the chemical formula 3Cu(AsO₂)₂.Cu(CH₃COO)₂, this was first manufactured in 1814 in Schweinfurt (Germany) (15). This serves to situate the pigment, as with other synthetic colours, chronologically in the stratum where it appears. It soon became a very popular pigment, presenting a darker and more brilliant colour than its predecessor Scheele’s green and was a higher-quality pigment.

Emerald green was detected in many samples in the façade. Under the stereoscopic microscope, it formed layers of intense green that were sometimes very deteriorated. This pigment presented a variable tonality depending on the degree of alteration or of its impregnation of oil, but when it was not degraded, it had a highly saturated and brilliant green hue (Figure 16).

Both by optical microscope as well as by BSE with FESEM, the images showed crystallization into spherulite forms, composed of very regular needle crystals with a radiating fibrous texture. The size or the spherulites normally ranged from 5 to 10 μm, but some reach 30 μm. In these BSE images, pictorial layers composed of emerald green appeared as grey layers in accord with the intermediate mean atomic number of this pigment (approx. 24). The EDX spectrum of this pigment showed the characteristic lines of As and Cu.

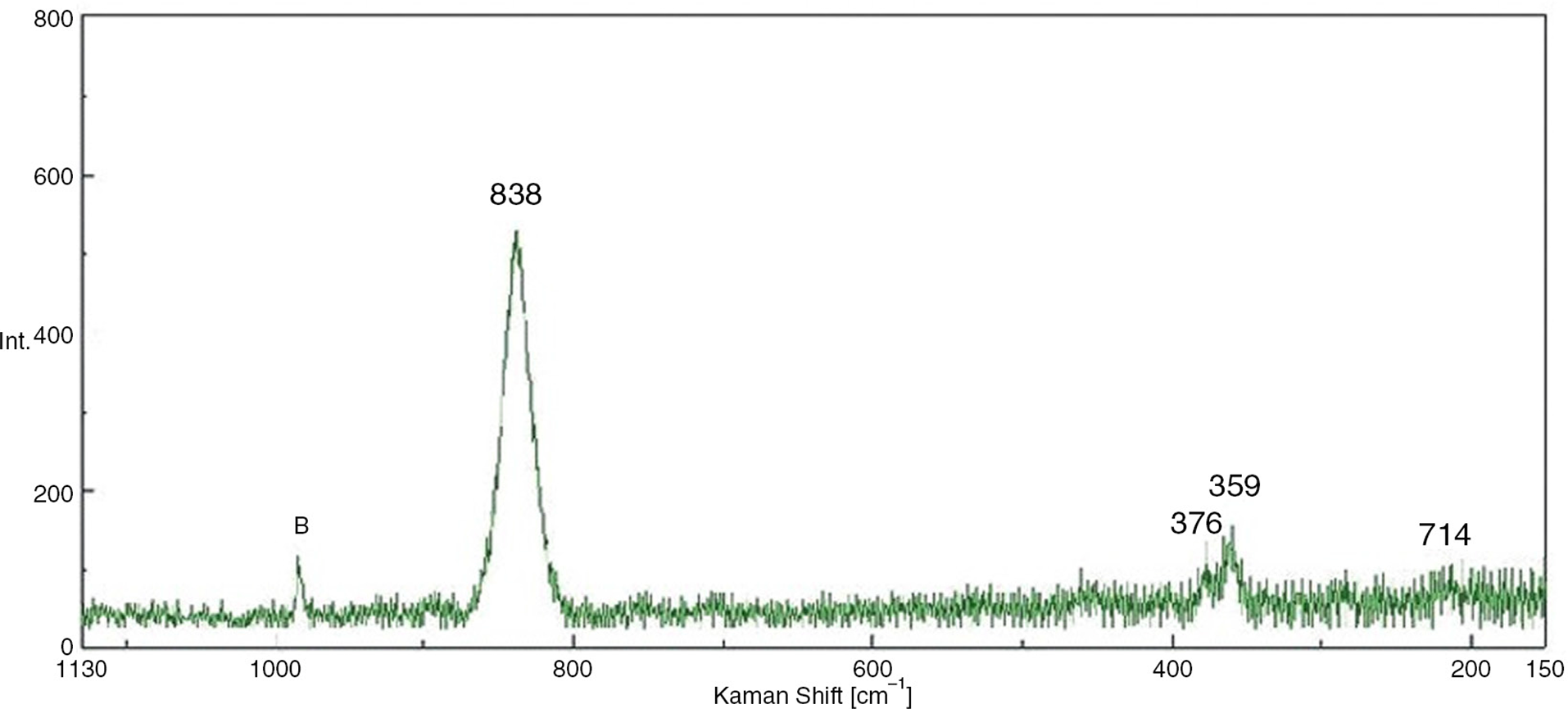

The Raman spectrum is very characteristic with a profusion of intense bands in the lower part of the spectrum, below 400 cm⁻¹.

Copper arsenite green. This green could be associated with Scheele’s green, discovered in 1775 by the Swedish chemist C.W. Scheele, who used arsenic and copper to produce this green. This is an inorganic pigment of variable composition and heterogeneous, as reflected by the fact that a dozen compounds have been described under this name that correspond mainly to copper arsenites, although they also include some arsenate (16). In the studied samples it appears only in the most recent polychroming of 1898.

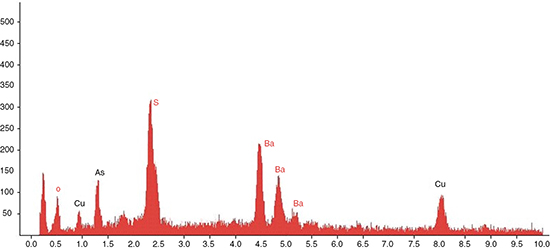

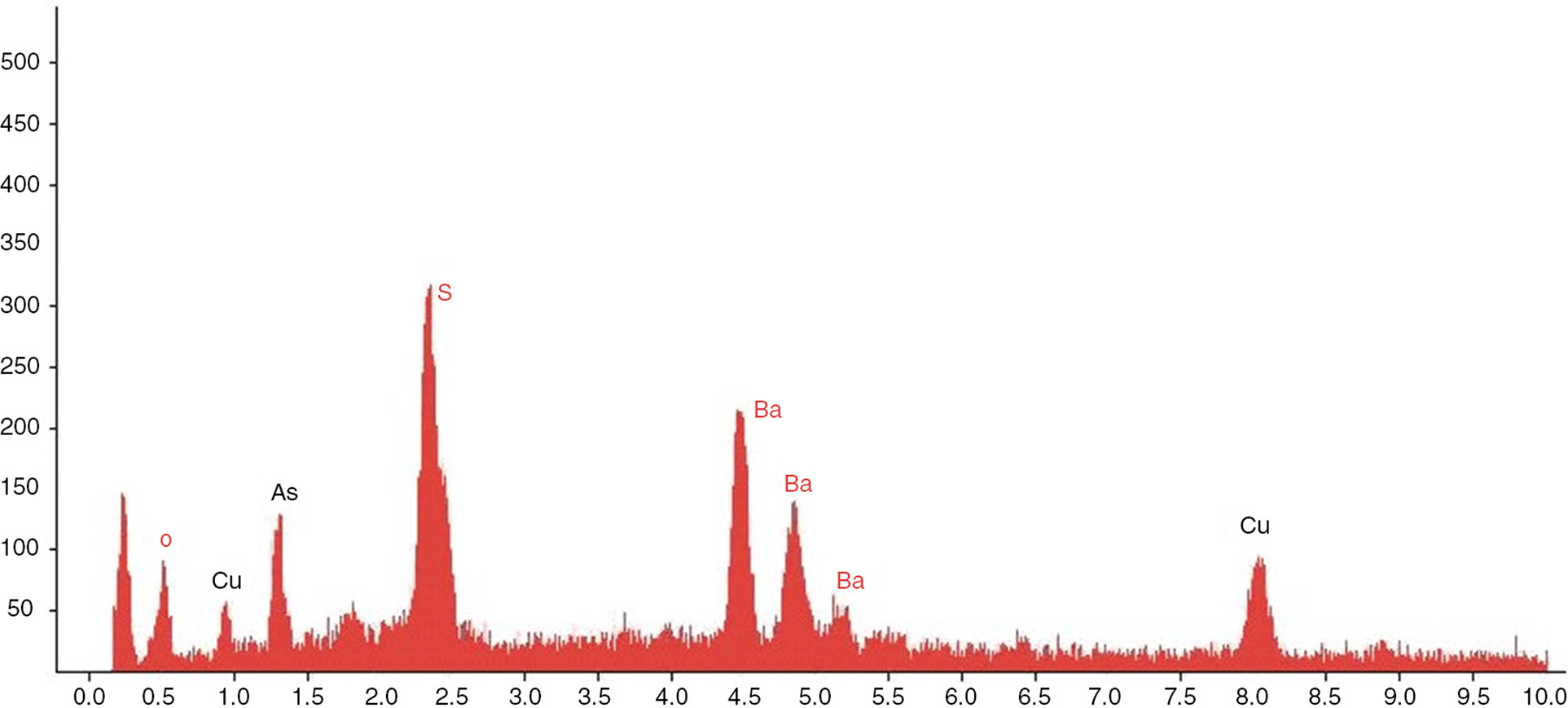

The most characteristic aspect of this pigment was its invariable association with barite in all the studied samples in which it appeared. Barite was found forming irregular grains or, in some cases, euhedral crystals, and with variable size that can exceed 50 μm, and thus can be well identified optically. The green pigment did not show crystallinity under the optical microscope and formed a matrix of intense green colour among grains of barite, which, given their transparency and refraction index, heightened the brightness of the resulting pigment. The analytical EDX data showed only the presence of the spectral lines of As and Cu, in addition to those associated with the presence of barite (Figures 5 and 6).

3.3. GildingTOP

Gold is a very common element in the polychromy of the façade, and in the samples studied it appeared from the deepest strata to the most superficial ones (Figures 8 and 17, and Table 1). In the most superficial strata, where the gold layer was better conserved, the design could be traced by more or less continuous and brilliant lines. In the EDX microanalysis, only the spectral lines of the gold appeared, indicative of its purity, although at times it could be found forming alloys with silver and copper, the latter being detected in minor proportions, both in the earlier and later layers.

3.4. Agglutinants of the preparatory, base and pictorial layersTOP

The analytical results showed a quite homogeneous use of the agglutinants over time. Thus, the deepest (original) polychromed layers, i.e. preparatory and base, were agglutinated with animal glue which in some cases contained traces of linseed oil and colophony resin, probably from the migration of the superimposed layers (e.g. Figure 17, and Table 1). Afterwards, animal glue continued to be used to agglutinate the preparatory strata of the three later polychrome strata.

With respect to the base layers of white lead or those constituted by this pigment, appearing in intermediate or superficial polychrome layers, in all the cases were agglutinated with linseed oil, with traces of colophony resin appearing in many cases.

In the pictorial layers, even greater homogeneity was found, since all the samples analysed belonging to the different levels were agglutinated with linseed oil and in many cases also had traces of colophony resin (Figure 17, and Table 1). The only exception found, though important, was a sample belonging to the mocarabes (honeycomb stalactite ornamentation) that presented egg as the agglutinant in the original layer of red lead, indicating that it was made with a tempera technique (Figure 18, and Table 2). This confirms the documentary references (17) that cite this technique in the original polychroming.

3.5. Yellow layers used as the gold base or as the pictorial layerTOP

These bright yellow layers were used in interventions most recent of 1848 and were made up of a mixture of oil and resins plus pigments such as ochres or litharge (Figure 8), which were used as the base layer for the gold. All these strata in the microanalysis by SEM-EDX presented a great variety of elements such as Pb, Fe, Ca, and S. The relative proportions of these chemical elements enabled the distinction of one layer from another, although this does not usually strongly influence their final tonality. All of them had the function of simulating a yellow tone analogous to gold, but using a cheaper product. In some cases, these layers were used so that, on applying the gold layer, the possible gaps would go unnoticed. In other cases, the pigment was not even gilded. The deep layers were composed of white lead and iron oxides, while the last presented chrome yellow (Lead(II) chromate, PbCrO₄) as the pigment providing the colour of this layer. The SEM-EDX microanalyses of these layers indicated that in all cases there was a majority proportion of white lead.

There were other layers of yellow colour, less intense, that corresponded to applications of oils and varnishes used mainly to refresh the paints. These layers were darker under the optical microscope and SEM for being an organic material of low molecular weight.

Other differentiating traits of these strata include the size as well as the shape that was so peculiar of the pigment particles. Thus, the iron oxides and litharge appeared as large nodules in the white-lead matrix, while in the strata containing chrome yellow, the pigment in question was constituted by small, dispersed crystals that offer a very saturated orangish yellow colour in the white-lead layer (Figure 15).

The BSE images showed practically no differences, as all the compounds had a high mean atomic number and their differences were minor, so that the coefficient of electron backscattering was quite similar and therefore so was the brightness of the image.

4. CONCLUSIONSTOP

In general, it is deduced that the Palace of King Pedro I has been carefully maintained, as it has benefited from being a palace under constant care, having remained under royal use until the present. As a result, there have been numerous pictorial interventions of the façade of the palace and 9 polychromy levels, including a total of 24 layer, have been identified in this investigation.

From the study of materials and techniques of execution, three large groups were identified: historical polychroming, which includes the original ones, with a common denominator of the use of white lead, red lead, cinnabar, malachite, natural azurite, organic black, and gold. The intermediate layers, have as a fundamental characteristic the use in large measure of artificial azurite, and the last layers show the massive use of synthetic pigments from the 18^th and 19^th centuries, such as artificial ultramarine blue, emerald green, copper arsenate, and chrome yellow. In the recent interventions, yellow layers, made up of a mixture of oil and resins plus ochres or litharge pigments, simulate a yellow tone analogous to gold and were used as the pictorial layer instead of gold or as the gold base.

The original preparatory layers are the characteristics of panel painting with gesso, phyllosilicates, and agglutinants with protein glues. On these, a stratum of red lead was applied as a base for the first pictorial layer. Other preparations were identified that serve as a reference for the chronological attribution, such as white lead and red lead with linseed oil. This preparation was observed in all the supports, whether wood, plaster, or stone.

The intermediate polychrome layers and the more recent ones were done in oil, and furthermore in subsequent interventions, applications were made in oil and terpenic resins used to fortify and refresh the layers. The study of agglutinants of the deeper strata show that the technique used in the original strata was tempera. These results coincide with the references in the documentary sources.

ACKNOWLEDGEMENTSTOP

We thank the technicians of Scientific Instrumentation Center of the University of Granada for their help during analytical work. In particular, we have sincerely appreciated the help of Dr. Parra Crego of the Larco Química y Arte laboratories (Madrid).
