Improved cement mortars by addition of carbonated fly ash from solid waste incinerators

O. López-Zaldívar^a*, P.L. Mayor-Lobo^a, F. Fernández-Martínez^b, F. Hernández-Olivares^c

a. School of Building. Technical University of Madrid (UPM) (Madrid, Spain)

b. School of Industrial Design and Engineering. Technical University of Madrid (UPM) (Madrid, Spain)

c. School of Architecture. Technical University of Madrid (UPM) (Madrid, Spain)

*oscar.lopezz@upm.es

1. INTRODUCTION AND OBJECTIVESTOP

Urban development promotes the increase of municipal solid waste incineration (MSWI), with the consequent problem of collection, transportation and storage. Currently, incineration is presented as the best possible method to manage this waste (1, 2, 3). But the incineration of MSW produces fly ashes with high heavy metal content that must be handled, with the added difficulty of their consideration in the European list of hazardous waste (4).

The present legislation[1] and the future environmental legislation[2], together the technological developments carried out in the past years, predict an improvement in the management of MSW processing plants, minimizing pollutant emissions to reduce their environmental impact. Recent researches have analyzed the implementation of these improvements restricted to collecting and processing organic waste and wastewater (5, 6). In Battistoni, P., et al., 2007 (7), the aim is to integrate the municipal management of MSW within small towns and decentralized areas. This integrated performance over all the MSW produces savings both in transport, and in their management, as well as an optimization of the consumption of generated energy, and a few new low cost by-products.

At the same time, new techniques of urban solid waste treatment are established as a transformative element of the urban landscape, involving architects and urban planners in the modification of the social organization. Similarly, a new way of relating the inhabitants of urban contexts and this new environment is fostered, like they do with the general network of sanitation or water or electricity supply. In this way, the day itself is the generator of resources or byproducts, achieving the commitment that each district or new created settlement is self-sufficient and that they use up their own self-generated resources.

The implementation of waste shredding systems in urban settings of new creation, besides or in combination with the selective waste collection processes, favors direct collection, channeling it to processing plants of smaller size than the current ones, with better social and aesthetic implementation in the urban landscape. Once there, waste would be classified, purified, dried, and prepared for incineration.

In the process of incineration of urban solid waste, 75% of the generated products are estimated to be combustion gases, while the remaining 25% is the solid remnant of it. Of this amount, 21% are slags and bottom ashes, while the remaining 4% corresponds to fly ash (8, 9). MSWI fly ashes represent a very serious environmental problem. During the incineration process, the finest ash fraction is mixed with the combustion gases giving rise to a granular product containing large quantities of easily leachable heavy metals, as well as other toxic substances (dioxins, furans, PAHs, etc.). Fly ashes must be treated, stabilized or encapsulated with the objective of reducing its environmental impact, in order to be subsequently valorized and used as a construction material (10, 11, 12, 13, 14, 15).

The first objective of the present research aims to transform the waste formed mainly by calcium hydroxide and calcium hydroxychlorides into another limy-type material -calcium carbonate material. This is achieved by transforming the high soluble heavy metals chlorides into low soluble carbonates.

The second objective focuses on the stabilization and use of this MSWI fly ash as part of the aggregates used in the production of cement mortars (16, 17, 18, 19) demonstrate that the mortars elaborated with ordinary Portland cement represent a very safe way of reusing these hazardous materials and play an important part in the encapsulation of heavy metals. However, those studies emphasize that the mechanical strength of mortars resulting from the incorporation of fly ash as a partial substitute for the aggregate were significantly affected when compared to the reference mortars.

In addition, the use of calcium aluminate cement (CAC) has been demonstrated to be a highly effective way to safely encapsulate hazardous materials (20, 21) as well as the use of sulfoaluminate cements (CSA) (22). In addition, carbonation process in CAC cements and pastes are reported to increase mechanical strength (23). On the basis of the foregoing, it was decided to perform a screening and statistical analysis comparing mortars manufactured with ordinary Portland cements (CEM-I and CEM-II) and fast-setting cements (CAC and CSA). Calcium sulfoaluminate cements (CSA) were also chosen due to the perception that sulphur content would make the precipitation of heavy metals in the form of sulphides easier.

2. EXPERIMENTAL WORKTOP

2.1. MaterialsTOP

2.1.1. CementTOP

To produce the mortars, four types of different cements were used:

2.1.2. AggregateTOP

The criteria for the selection of the aggregates was based on the intention of performing statistical analysis on how these fine particles of fly ash could affect the hydration of mortars, since water retention capacity is directly related to the specific surface of the aggregate. To this end, the aggregate chosen was washed silica sand, ranging between 0/2 and 0/4 mm in diameter, from the gravel pit of Sotopajares, San Martín de la Vega, Madrid (Spain). Both diameters comply with UNE-EN 13043:2003/AC: 2004 standard on mortars.

2.1.3. Fly ashTOP

MSWI fly ash came from the integral waste treatment plant of Mataró, Barcelona (Spain), which performs the process of incineration in a moving grate. Approximately 100 kg of fly ash were collected in ESP/baghouse during the month of January 2010 and stored in barrels sealed for later use and study in the laboratory.

2.2. Experimental procedureTOP

2.2.1. Chemical composition of MSWI fly ashTOP

Clear solution of nitric acid digeste original fly ash (FA) and treated fly ash (TFA) were analyzed, on the basis of a macro elemental study by Optical Emission Spectrophotometry techniques with Inductive Coupling Plasma SPECTRO (model ICP-OES ARCOS), and elementary components, through Mass Spectrometry with Inductive Coupling Plasma VARIAN ICP-MS (model ULTRAMASS). Ionic Chromatography with conductometric detector (DIONEX-DX500 model) was also used in such analysis.

Finally, with the aim of checking the total carbonation process, FA and TFA ashes were also evaluated by using SDT-Q600 Thermo Gravimetric Analyzer and simultaneously Differential Scanning Calorimeter (TGA-DSC), in order to show the transitions related to the decomposition of both ashes showing details about the chemical reactions. This analysis provides simultaneous measurement of weight and true differential heat flow on the mortar samples from ambient temperature to 1000 °C. Smashed mortar samples are placed on 110 μl platinum pans and compared to empty reference pans. Both are placed into the furnace at a heating rate of 20 °C/min. At the same time, a nitrogen gas system with mass flow control provides better baselines and removes decomposition products from the samples for a precise metering. At this rate and atmosphere, TGA signals record the different dehydration steps of the samples and DSC trace shows the loss of water plus higher temperature solid state phase and melting transitions respectively.

2.2.2. Fly ash stabilization processTOP

2.2.2.1. Search of possible reagents to be used in the stabilization processTOP

A search of the possible reagents has been carried out to use them in the stabilization process of fly ash, taking into account its heavy metal content. To this end, literature has been reviewed finding various anions that would react with the present soluble heavy metals and, that would generate an insoluble precipitate (24). The most important data to take into account is the 25 °C solubility product, defined by the neutral water equilibrium constant for the reaction of the compound dissolution (B_yC_x) [1]:

In this way, considering previous researches (25, 26) aiming to stabilize heavy metals and, at the same time to eliminate part of chlorides of fly ash through washing, an alternative method using NaHCO₃ is established. An appropriate combination of this will exercise a buffer function and maintain pH at an optimum value, for which the heavy metals content in the leachate will be minimal. Likewise, the addition of Na⁺ ion in equivalent quantities to chloride ions, in the fly ash washing process, will facilitate the removal of a large amount of chlorides in the form of sodium chloride. In addition, NaHCO₃ is a cheap and safe stabilizing agent and does not alter the pH of cementitious materials.

2.2.2.2. Determining NaHCO₃ quantity to be used in the stabilization reaction.TOP

In order to eliminate most of the chloride from the fly ash, the equivalent number of it will be taken as reference to determine the equivalent sodium required and to complete the elimination of chloride. At the same time, the CO₃^2- anion carbonate reacts with the existing heavy metals ions to form insoluble carbonates.

In order to quantify the chloride content, a weighed ash amount is completely dissolved in diluted nitric acid and subsequently the free chloride ion is quantified by potentiometric silver titration. The number of gram-equivalent obtained per mass unit will also be the number of gram-equivalents of NaHCO₃ used per mass unit (127 mg of Cl⁻/gr of fly ash sample or 3.24 Eq/Kg de Cl⁻).

2.2.2.3. Stabilization process and valorization of MSWI fly ash.TOP

The stabilizing procedure began by washing the original ashes, with a proportion of deionized water/fly ash of 10: 1. To that effect, 4 kg of fly ashes were placed in 40 dm³ of water and this mixture was manually stirred by mechanical means during 15 minutes, while the same equivalents amount of NaHCO₃ was added to the initially present chloride. The resulting pH obtained results of 8.3, which ensures that heavy metals are precipitated in form of carbonate or hydroxides and not redissolved, while plumbite or zincate anions are not generated as will be occurring at a higher pH level. Indeed, in alkaline medium solubility of heavy metal carbonates or hydroxides is lower than the calculated from the solubility constant for metal carbonates or metal hydroxides in neutral water (24).

The mixture was left to rest for 24 hours. The liquid part, composed mostly of sodium chloride (NaCl) dissolved in water, was removed and analyzed by ICP-OES (Table 1). Chloride analyses were made by Ionic Chromatography. The heavy metals low levels obtained as analytical results of the first washing lixiviate are shown in Table 1. In accordance to the value limits established in the European Directive for acceptable waste at landfills (27, 28), the washing water could be handled as a non-hazardous waste. In order to reduce the high chloride content in TFA, a total of three deionized water washings were performed, after which the TFA recovery process was started by filtering at low pressure and washing through a Büchner funnel of 2 dm³ capacity connected to a Kitasato flask and a vacuum pump.

The recovered paste was placed on trays to dry in a furnace for 24 hours, at 75 °C temperature. A dry cake of brittle material was obtained which was then manually grinded and sifted through a sieve of 63 μm. The greyish powder obtained, mostly calcite and portlandite phases, is easily combinable with the selected aggregates for the mortars implementation.

2.2.3. Fresh mortarTOP

In order to develop high performance cement mortars by the addition of municipal solid waste incineration fly ash stabilized in the form of insoluble carbonates, two different types of standardized mortar specimens of the four referred cements were carried out: a first reference mortar (R) without additions, and a second MSWI fly ash mixed mortar replacing 10% in weight of the aggregates by treated fly ash (TFA) in accordance with research literature (29, 30, 31, 32).

Likewise, all mortar samples cover different cement proportions both using aggregates with different diameters (0/2 and 0/4 mm range) and different cement/aggregate ratios (1/1 and 1/3).

The consistency of all samples was carried to a runoff value of 175±10 mm determined by the flow table in accordance with EN 1015-3: 2000 standard concerning mortars with bulk densities higher than 1200 kg/m³.

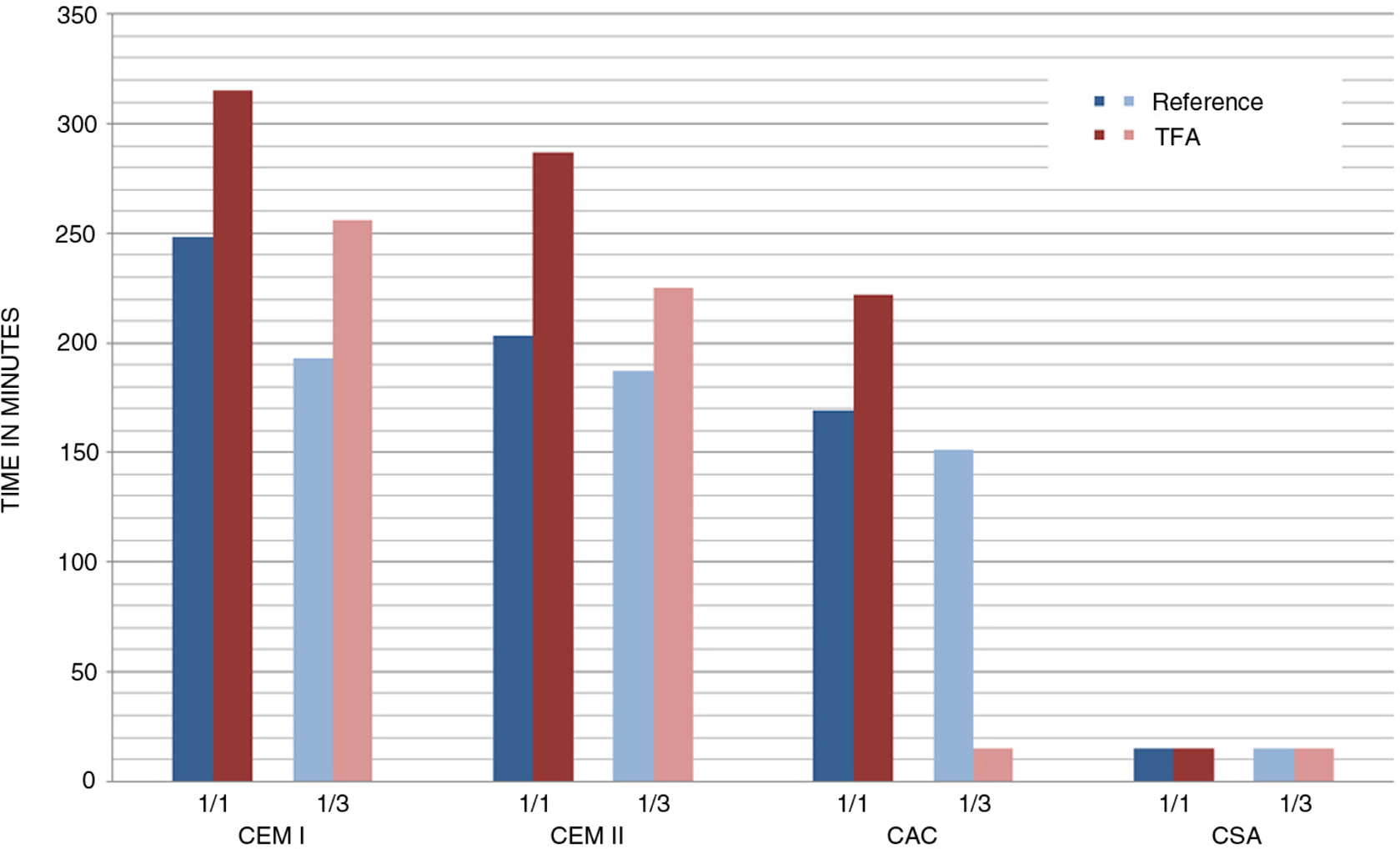

In samples of fresh mortar, in turn, the workability period in minutes was determined, as defined in the EN 1015-9: 2000 European standard on current use masonry mortars.

2.2.4. Hardened mortarTOP

Mortar specimens of 4×4×16 cm³ were prepared in steel molds, unmolded at 24 hours and cured at 20 °C immersed in water, complying with the test method stated in EN 196-1 European standard.

Since the final result is a construction product, it has become necessary to evaluate dimensional and volumetric stability of the different mortars in order to avoid mixtures with shrinkage or expansion movements which may provoke cracks or fractures in the material. Based on this, a study of the dimensional stability of the specimens has been carried out (in accordance with UNE 83831: 2010 EX) characterized by the study of the lengths and initial masses of mortar specimens and specific variation thereof, in% deformation, at 7, 14 and 28 days.

Similarly, the mean bulk densities of dry mortars were determined by calculating the masses and volumes of specimens applying the EN 1015-10: 2000 standard.

Also, carbonation of portlandite level was determined according to EN 13295, measuring the depth of carbonation reached by the samples in a period of 60 days (33, 34). To this end, after fracturing different specimens with a press to obtain two regular, flat surfaces, all residual dust was eliminated from the fractured surfaces and a 1% solution of phenolphthalein was sprayed on them. Carbonated areas did not change color, while areas with pH higher than 9 acquired a bright fuchsia color due to OH⁻ presence of portlandite phase. This color change shows the depth of the carbonation front.

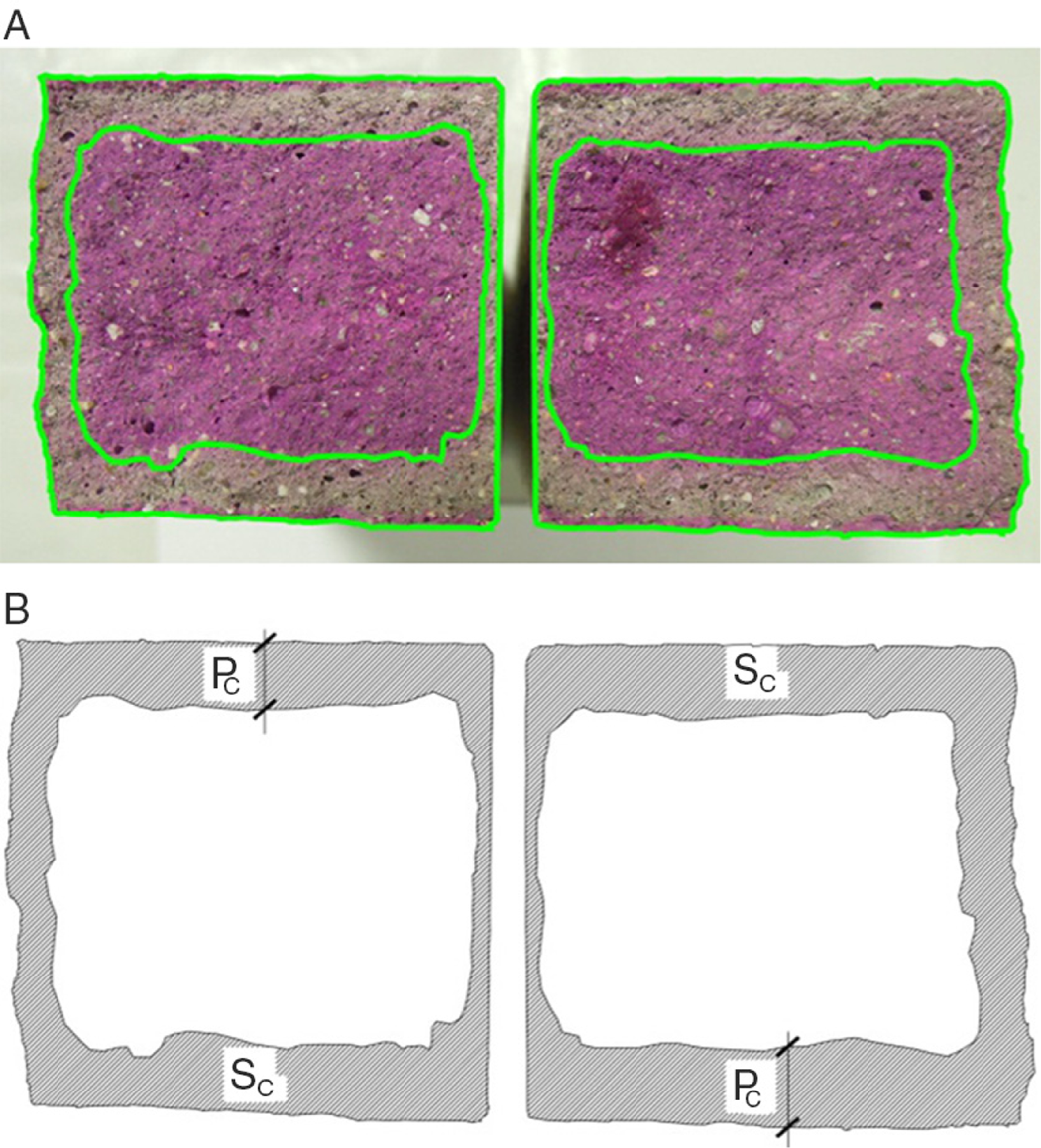

After this, a digital photograph (Figure 1) was taken using a macro, trying to capture the real magnitude of the treated surface. This photograph was inserted into a Computer Assisted Design (CAD) program to draw a series of polylines referring to the outlines of the different specimens (S) and the carbonation surfaces (S_c) (Figure 1). Once the calculation of both areas was performed, the percentage of carbonate surface was possible to be determined.

A mean theoretical depth of carbonation (P_c) was estimated. In this way, and taking into account that the supporting side of the specimen had not suffered any direct carbonation process, the active perimeter of carbonation was estimated to be of 120 mm linear (corresponding to the other three exposed faces), and therefore [2]:

Being:

Pc: Mean theoretical carbonation depth (mm).

Sc: Calculated carbonation surface (mm²).

To finish the physical/mechanical tests, mechanical strengths, in N/mm², were determined, calculating the mean values of both ultimate bending and compression strengths at 7, 28, 60 and 90 days (EN 1015-11: 2000).

2.2.5. X-Ray diffractionTOP

X-ray diffraction has been performed on the fly ash samples in order to determine the different crystalline phases so as to define the possible uses of fly ash, using the powder method by means of Siemens D-5000 diffractometer. Likewise, treated fly ashes were also analyzed in the same way in order to test the complete carbonation process.

The diffraction diagram has been in the range of 2θ [5.00° a 100.00°], with a step of Δ(2θ)=0.04° and a time of 4 seconds per step. Kα del Cu=1.5418 Å has been used.

2.2.6. Leaching testsTOP

The leaching test analysis of hardened specimens was carried out at the age of 28 days. According to previous researches on the matter related to monolithic mortars (17, 26, 35, 36) it was decided to run the French standard NF P X31-211 on mortars of the best mechanical performance. Both specimens, reference mortar and treated ash mortar, were sawed in 4×4×4 cm³ prisms. The test referred consists of one leaching cycle of 24h in stirred de-ionized water. The liquid to solid ratio was set to 10, which makes 96 cm² exposed surface area for 640 ml of water. Zn, Pb, Cu and Cd measurements on the leachate collected after filtration through a 0.45 μm filter were performed by stripping voltammetry determination. In order to check the heavy metal content in lixiviate, Cu²⁺ was analyzed as a level indicator example of non-amphoteric heavy cation. Amphoteric Zn²⁺ and Pb⁺² are also controlled being Cd²⁺ a cation test.

3. RESULTS AND DISCUSSIONTOP

3.1. Fly ash stabilization processTOP

3.1.1. Search of possible reagents to be used in the stabilization processTOP

A search of the possible reagents has been carried out to use them in the stabilization process of fly ash, taking into account its heavy metal content. To this end, literature has been reviewed finding various anions that would react with the present soluble heavy metals and, that would generate an insoluble precipitate (24). The most important data to take into account is the 25 °C solubility product, defined by the neutral water equilibrium constant for the reaction of the compound dissolution (B_yC_x) [3]:

B_yC_{x (s)} D yB^x-_(aq.) + xC^y+_(aq.)   [3]

In this way, considering previous researches (25, 26) aiming to stabilize heavy metals and, at the same time to eliminate part of chlorides of fly ash through washing, an alternative method using NaHCO₃ is established. An appropriate combination of this will exercise a buffer function and maintain pH at an optimum value, for which the heavy metals content in the leachate will be minimal. Likewise, the addition of Na⁺ ion in equivalent quantities to chloride ions, in the fly ash washing process, will facilitate the removal of a large amount of chlorides in the form of sodium chloride. In addition, NaHCO₃ is a cheap and safe stabilizing agent and does not alter the pH of cementitious materials.

3.1.2. Determining NaHCO₃ quantity to be used in the stabilization reactionTOP

In order to eliminate most of the chloride from the fly ash, the equivalent number of it will be taken as reference to determine the equivalent sodium required and to complete the elimination of chloride. At the same time, the CO₃^2- anion carbonate reacts with the existing heavy metals ions to form insoluble carbonates.

In order to quantify the chloride content, a weighed ash amount is completely dissolved in diluted nitric acid and subsequently the free chloride ion is quantified by potentiometric silver titration. The number of gram-equivalent obtained per mass unit will also be the number of gram-equivalents of NaHCO₃ used per mass unit (127 mg of Cl⁻/gr of fly ash sample or 3.24 Eq/Kg de Cl⁻).

3.2. Characteristics of the fly ash (FA & TFA)TOP

3.2.1. Chemical composition of MSWI fly ashTOP

Analytical data in Table 2 shows a high content of heavy metals in original fly ashes, mainly regarding Zn and Pb content and also high levels of chlorides. The problem arising from Cl⁻ ion excess in cementations mixtures is the one derived from corrosion. On the one hand, depassivation chloride ions generate a fast pitting corrosion which locally erodes the reinforcement that may exist (both on the structural one and on those designed to prevent surface cracks) (37). On the other hand, there is a reaction of Ca(OH)₂ (portlandite) to form solid Ca(OH)Cl (calcium hydroxychloride). In this way, Ca(OH)₂ stops reacting with silica, and a mortar pH decrease is produced. Uniform corrosion is the consequence of pH decrease and could destroy the passive film that protects steel reinforcement. In this case, the combination of both possibilities (decrease in pH and chloride excess) could lead to a dramatic general corrosion.

Two goals are achieved through the treatment with the NaHCO₃ solution. Firstly, the soluble heavy metal ions existing in the original ashes, due to chloride presence, are transformed into poor soluble solid carbonate or hydroxide precipitates. Secondly, the content of chlorides has been drastically reduced in almost 99% but, despite this, their use is not recommended with steel reinforcing rods (38). An advantage of this process of washing and treatment of fly ash from MSWI is that, along with water from the washing, almost all of the original Cl⁻ is eliminated due to the formation of a soluble non-polluting waste such as NaCl (sodium chloride solution). With the solution addition of sodium bicarbonate to the washing process, all heavy metal ions are transformed into non soluble carbonates and, at the same time, the Na⁺ provided by them reacts forming NaCl solution.

3.2.2. X-Ray diffractionTOP

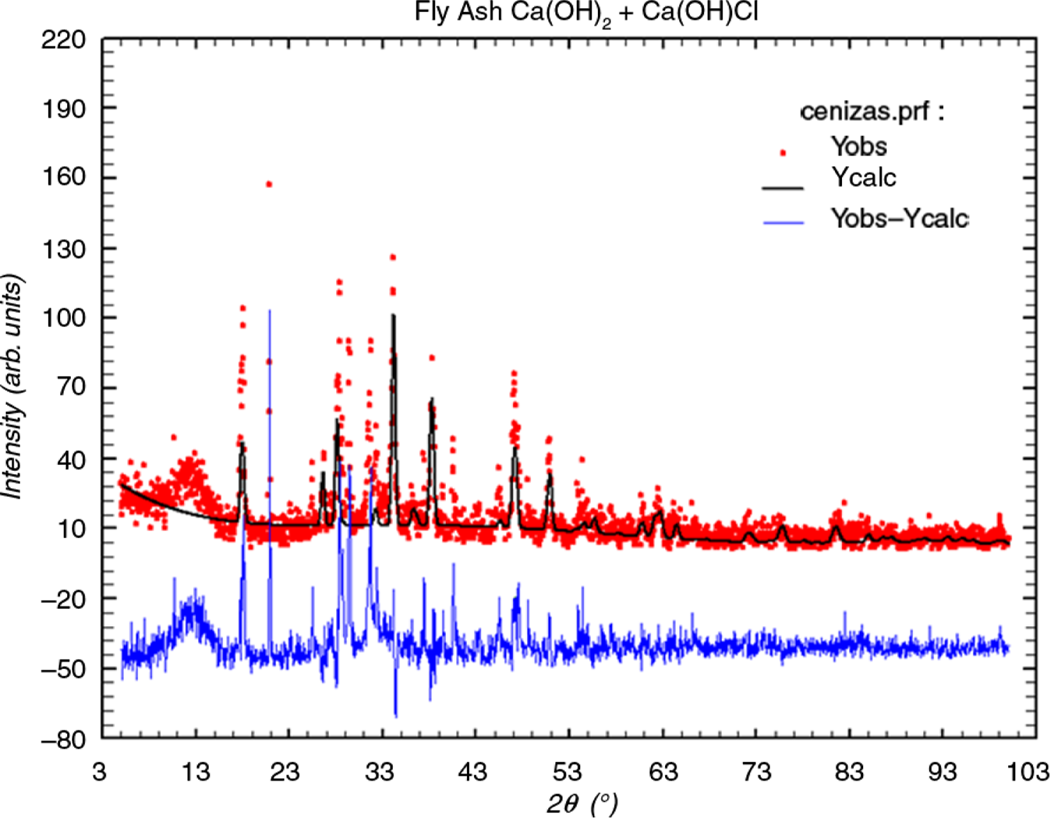

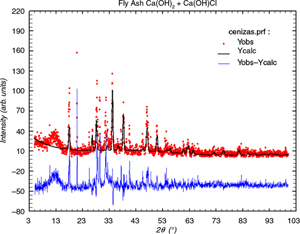

FA XRD analysis is shown in Figure 2. The diffraction diagram shows broad and low intensity diffraction peaks, characteristic of a poor crystallized material. Two crystalline phases have been clearly identified: Ca(OH)₂ and Ca(OH)Cl. The X-ray diffraction diagram was refined using the Rietveld method, in which:

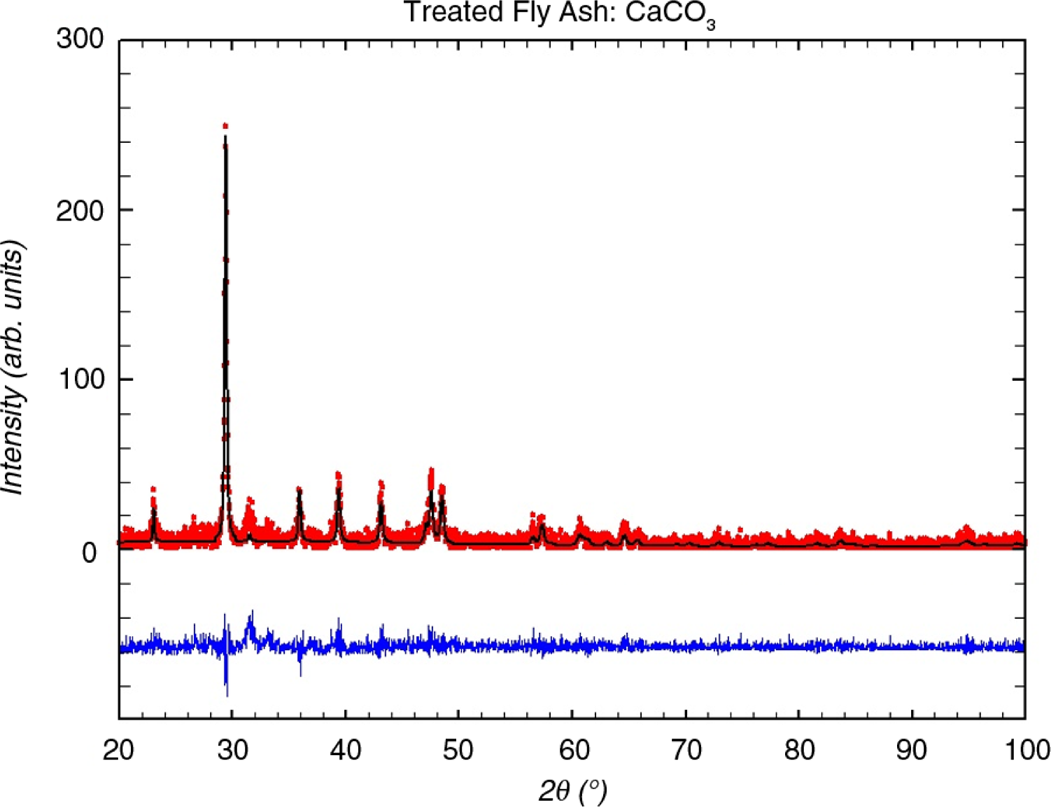

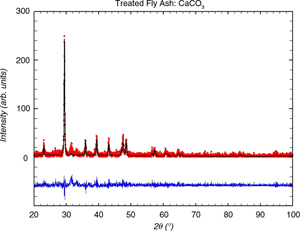

Figure 3 shows XRD analysis of TFA. The diffraction diagram shows one crystalline phase clearly identified: Calcite (CaCO₃). The evidence proves that successful carbonation of the samples was achieved.

3.2.3. Differencial Scanning Calorimetry and ThermogravimetryTOP

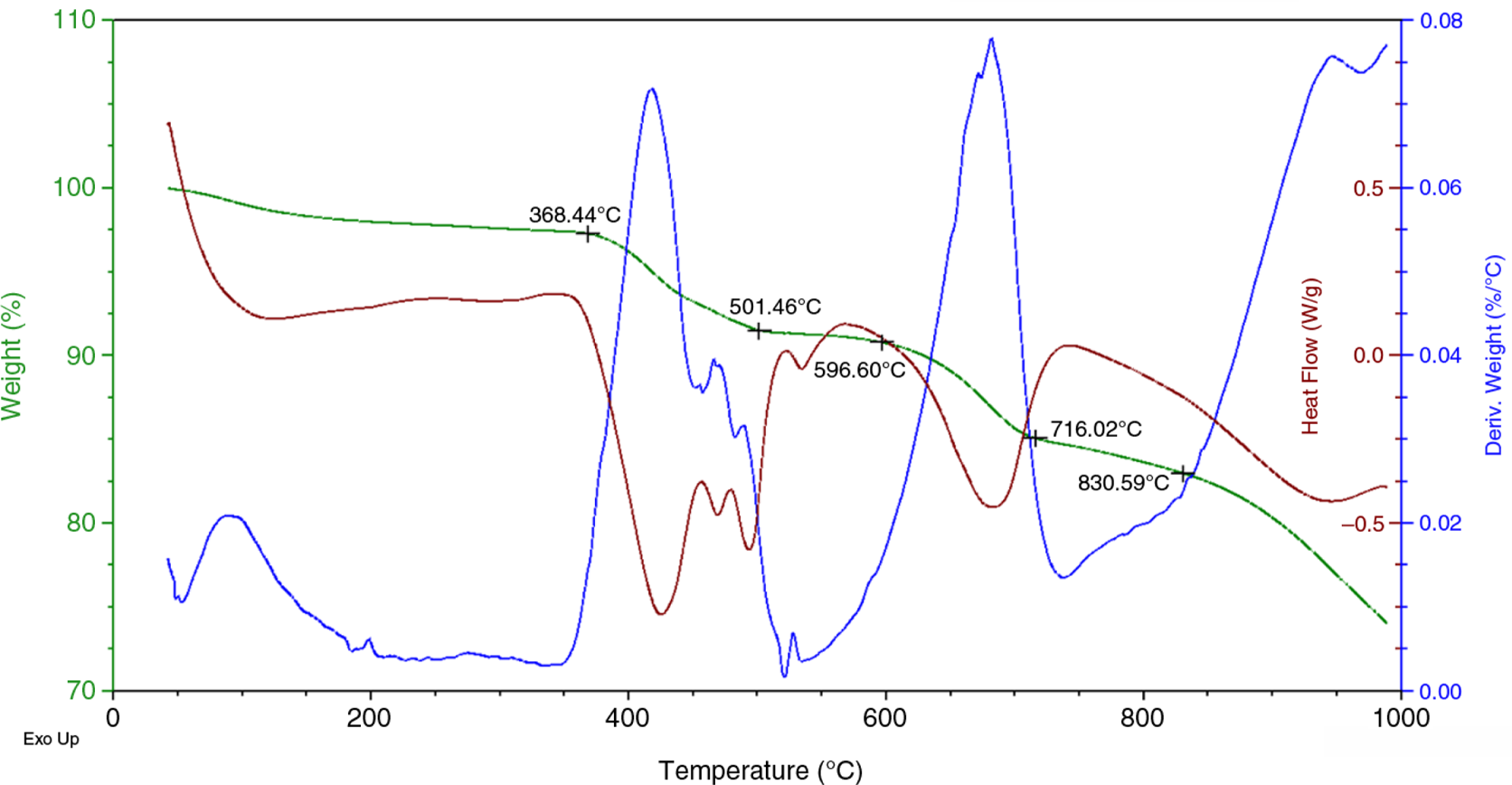

Differential scanning calorimetry and thermogravimetry (DSC-TGA) was used to study the type of decomposition process in FA and TFA ashes. Figure 4 shows FA curves in which several endothermic reactions according to two main signals are appreciated. The first signal, between 368 °C and 501 °C, is mainly due to the superposed decomposition of Calcium Hydroxide - Ca(OH)₂ - and calcium hydroxychloride - CaClOH - (39, 40, 41) which will overlap with the combustion of some organic matter content in the FA (40, 41, 42). The second signal, between 596 °C and 716 °C, is in accordance with the decomposition of carbonates, particularly calcium carbonate (41). Above 830 °C, a slight decomposition of well-crystallized carbonates occurs (43).

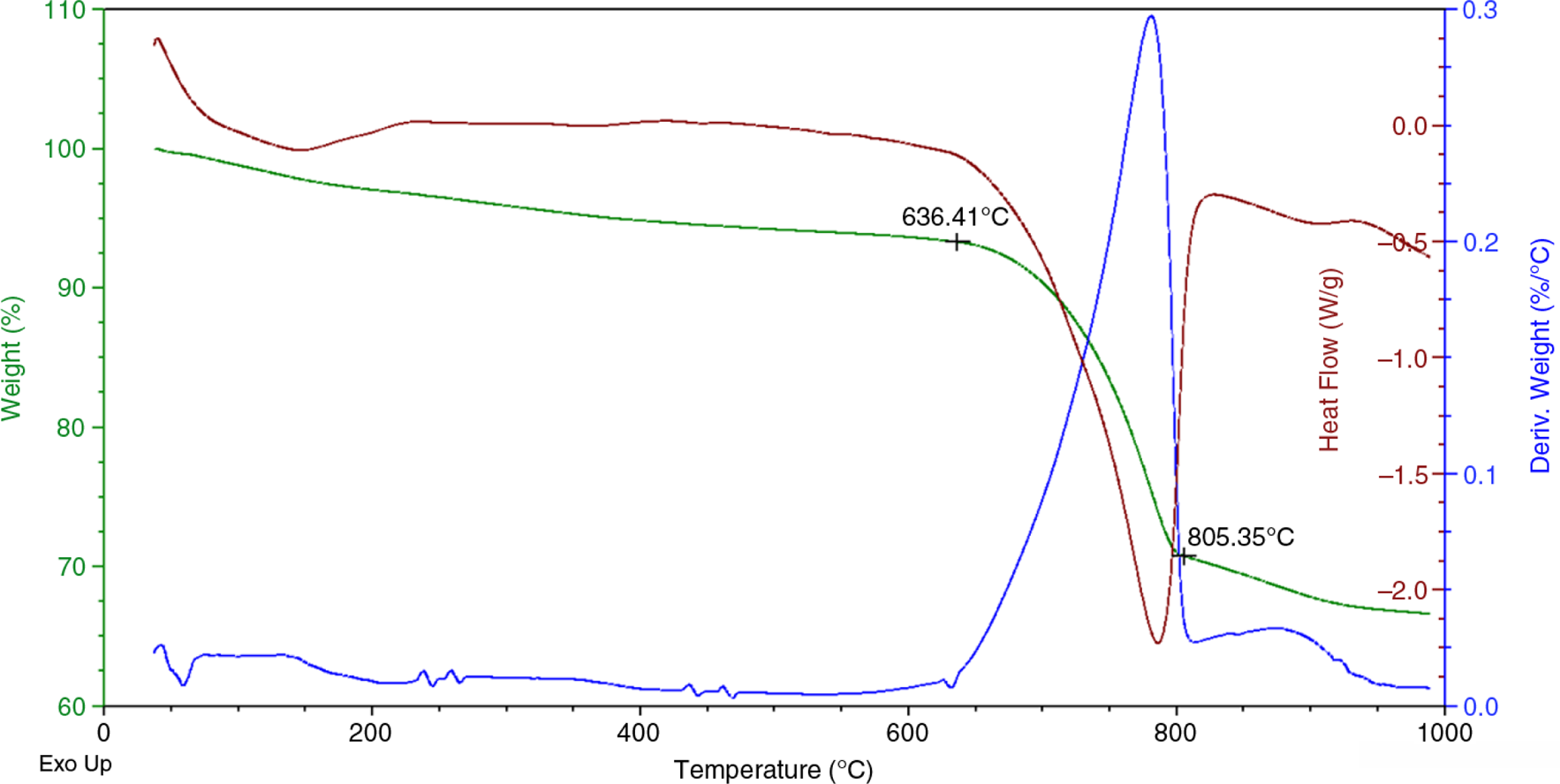

Figure 5 shows one clear endothermic peek between 636 °C and 805 °C in the DSC-TGA signal for TFA. This fact allows precise identification of the hydrated phase according to the characteristic of decarbonation which shows a correlation between the weight loss and the size of the peek (40, 41). Therefore full carbonation of TFA is confirmed from the DSC analysis.

3.3. Water proportion in mortarsTOP

In Table 3, results of water/cement ratios for all tested mortars are show. In every case, except in 1/1 proportion of mortars performed with CAC, the addition of TFA in mortars considerably increases the water needed to maintain the workability of the batch. In the case of CAC mortars, this will be directly related with the compressive strength values.

In the analyses carried out so far, the Zn and Pb content stabilized in the form of carbonates, does not produce a delay in the setting (44). As seen in Table 2, these two metals are present in fly ash and, nevertheless, setting time acceleration is produced in all mortars studied, possibly because they appear in the form of carbonates.

Finally, when comparing the water/cement ratio used in the preparation of samples shown in Table 3, with the results of the setting time of Figure 6, a reduced workability of both CAC cement mortars with the incorporation of TFA can be observed. This could cause an increase in compressive strength based on the water absorption during the preparation of the batch. This absorption of water decreases the effectiveness of water/cement ratio causing an increase in strength.

3.4. Dimensional stabilityTOP

Table 4 shows the results of dimensional stability of the mortars made with CEM-I and 1/1 proportion. Mortars with ash additions have a higher percentage of contraction than that of the reference mortar, being TFA mortars where larger strains can be appreciated, although the deformations remain constant throughout the testing process. Conversely, mortars with some kind of fly ash present a smaller mass loss than their reference counterparts.

Table 4 also provides the results of CEM-I mortars in a1/3 proportion. Strain of TFA mortars are slightly lower than those developed in proportion 1/1, although comparing it with the reference mortar, it is worse, since it remains virtually unchanged. The mass loss of TFA mortars with CEM-I and proportion 0/2 is higher than 8% with regard to the reference mortars.

Table 4 shows the dimensional stability data of the mortars made with CEM-II. Strains observed in TFA mortars, just as with the other type of Portland cement, are the highest in both proportions (1/1 and 1/3) with data from 0.19% and 0.20%. However, once again the trend is repeated, since they offer relative stability in their behavior being very similar in both cases. The specific mass variation at 1/1 and 1/3 proportions presents some very similar behavioral schemes, but with best performance in 1/1 mortars.

Dimensional stability data of mortars made with CAC are also shown on Table 4. Data provided by mortars with this type of cement for the 1/1 proportion are very positive. Both deformation and specific mass variation results exceed the reference mortars ones. This mortar turns out to be the one with greater dimensional stability of all the ones studied. Data for 1/3 proportion can also be considered as a good relative value, although they are below those offered by the reference mortars at all times.

Table 4 finally provides dimensional stability data of mortars made with CSA. Deformations in both types of proportions are particularly positive. Not only does the trend mark a conservation of dimensional stability, unlike reference mortars, but also the values offered at 28 days are the best ones obtained with this type of mortars and of all the ones tested. Nevertheless, a greater specific mass loss is observed with values below those offered by the reference mortar.

In all cases studied, the high content of chlorides and sulphates of MSWI fly ash can produce the formation of large quantities of Ettringite and Chloroaluminate, mobilizing a large amount of water molecules. The early formation of any of these hydrates could explain the dry shrinkage of mortar containing fly ash at early stages.

As a supplementary analysis to the one on dimensional stability, Table 4 presents the density results of the dry mortar samples studied. In all cases, except for the CAC mortars and proportion 1/1, a gradual material lightening occurs when TFA are added. In CEM-I mortars, the decrease in the material density is around 11%. Mortar with CEM-II lightening is 10%, and for those performed with CSA, lightening is reduced by 4.5% for 1/1 proportion, and by 6.5 percent for the 1/3 proportion. Especially interesting is the case of the CAC mortars in a 1/1 proportion, in which the trend is reversed and a minimum density increase of 3.5% takes place.

3.5. CarbonationTOP

The study of carbonation in the tested samples is very important regarding heavy metal encapsulation, as opposed to what was initially expected: it is very useful in reducing heavy metal leaching. In fact, (45), conclude that the carbonation process can be used as a pre-treatment for the retention of heavy metals, while a series of MSWI fly ash washings are carried out to remove soluble salts.

Table 5 shows the mean value of six data gatherings for each analyzed sample, data concerning the percentage of carbonate surface, regarding the total fracture surface of each of the mortar specimens tested. The carbonation process is further stressed when the mortar is more porous and the amount of carbon dioxide in the atmosphere is greater. All specimens have been exposed to the same environmental conditions; this implies that these analyses are a clear indicator of the porosity of the mortars tested. However, another process that greatly influences carbonation is the degree of saturation, and given that CO₂ diffusion throughout the mortar internal structure is only possible through air-filled pores, the maximum acceleration in the process can be reached when there is a balance between the occluded air in the mortar matrix and the moisture degree in it. Therefore, in these results, the mixing water used in each of the mortars (Table 3) needs to be considered and to be related to each other.

Regarding ordinary Portland cement mortars, those made with CEM-I and proportion 1/1, present a very homogeneous stain of phenolphthalein, with a very bright fuchsia color and a very well-defined rectilinear perimeter parallel to the surface. Carbonation depth increases proportionally, at both 1/1 and 1/3 proportions, while fly ash is being added to the mixture. Maximum carbonation depths are reached with TFA mortars; something logical since fly ash is added in the form of calcium carbonate.

For CEM-I and 1/3 proportion, carbonation depths are close to the double of those obtained for 1/1 proportion. Rounded corners on the indicator stain can be seen, and part of it shows small carbonated sections, while regularity and parallelism at the edges are maintained. TFA mortars can be highlighted because their carbonation process occurs in a much more homogeneous way than the reference mortar, despite having a somewhat higher carbonation depth. In ordinary Portland cement mortars, the amount of CaCO₃ present in the TFA favors carbonation speed (45).

CEM-II samples maintain the same pattern regarding the phenolphthalein stain than those samples performed with CEM-I, despite having greater carbonation depths. In this case, the inclusion of TFA in the 1/1 proportion is to be commented, as it causes a decrease in the depth of the carbonation front which comes closely to the levels of the of the reference mortar.

CAC mortars present in both proportions a very irregular phenolphthalein stain with many peaks. In the reference mortar the color of the indicator is bright pink, whereas, the TFA mortar presents a much more diffused color, which indicates a very advanced internal carbonation process. Carbonation depth in TFA mortars with 1/1 proportion are virtually identical to the reference mortar one, although the carbonation speed of the central area of the specimen is much greater in the former mortars.

Unlike reactions produced in Portland cement mortars, in which the appearance of calcium carbonate (CaCO₃) is produced by the transformation of calcium hydroxide (Ca(OH₂)) in aluminous cements, the affected products will be hydrated calcium aluminates which will produce aluminum hydroxide, in addition to calcium carbonate. This process together with the fact that alkalinity and the initial pH of aluminate cements are lower than that of Portland cement, favors carbonation. However, carbonation does not entail a decrease in strength. Carbonation generates a reduction of mortar porosity due to the precipitation in the existing pores of the products originated in the reaction, and therefore, a slight increase in strength is produced.

Regarding CSA mortars, they present much higher rates of carbonation compared with both Portland and CAC cements. For CSA mortars with proportion 1/3, as well as for TFA mortars of proportion 1/1, a singular feature is observed: i.e. the carbonation front does not start on the surface, but gets in gradually. In this case, an area of surface protection, which is not carbonated, can be seen; this area is much more pronounced in the reference mortar. This fact may be due to the characteristics of the used cement. This cement is produced in a similar process to that of Portland cement but with less energy consumption, different configuration phases and similar or higher mechanical properties than that other cement. CSA cements present a rapid hydration, which can generate a very heterogeneous distribution of pores and therefore, a higher carbonation, which in turn, has been accelerated with the addition of TFA resulting in a total carbonation of the studied surfaces.

In all cases studied, the inclusion of TFA implies an increase in the porosity of the resulting mortar. However, as it occurs in the section concerning strengths, this does not affect the final compressive strengths. Similarly, verifying that the carbonation process significantly reduces the values of Pb and Zn leachate is needed (45).

3.6. StrengthsTOP

Results of mechanical compressive strengths of mortars made with CEM-I are presented in Table 6. Similar behaviors can be seen for 1/1 and 1/3 proportions. In both cases, the inclusion of treated fly ash considerably reduces strengths obtained in relation to the reference mortars (19.79% and 25.44%, respectively). In this case, through the process carried out by washing with sodium hydrogen carbonate (NaHCO₃) a transformation of hydroxides into inert carbonates occurs, especially calcium carbonate (CaCO₃).

Table 6 also shows the results of compressive strength for CEM-II mortars. Data are proportional to the ones observed for CEM-I mortars and quite close to the strengths provided, considering that CEM-II type has a 10 MPa initial strength smaller than CEM-I. Again, mortars with TFA present strength declines of nearly 20% (22.72% and 17.27%, respectively) while in this case, results are reversed since the greatest strength losses can be seen in proportion 1/1, in contrast with CEM-I mortars.

Another explanation of the strength loss is that this type of particle can be considered as a weaknesses within the mortar matrix. (46), showed that reactivity within mixtures of fly ash and cement pastes was particularly weak.

Compressive strength results of mortar made with CAC cements are presented in Table 6. The behavior of 1/1 proportion mortar made with TFA is particularly noticeable. In each and every one of the studied ages, this cement shows strengths higher than the reference mortar, being particularly outstanding the data at 90 days, as it provides more than 25% higher compressive strength than the reference mortar. In the case of the 1/3 proportion, the best data are achieved at 90 days, on a clear upward trend. Once again, results are practically 1.5% higher than those shown by the reference mortar.

On the other hand, despite having reduced almost 99% the content of chlorides in the treated ash, the presence of certain quantities of chlorides may also be the cause of an increase in strength. In fact, chlorides are known to have accelerating effects on the setting process (44).

Behavior regarding compression of CSA mortars is presented in Table 6. While the reference mortars show high initial strengths–although with a gradual strength loss at 28 and 60 days-two proportions, 1/1 and 1/3, made with TFA reverse this trend and present moderate initial strength but with a clear upward trend; in the case of the 1/1 proportion of TFA showing even more than 1% higher values than those offered by the reference mortar. As a consequence, CSA present certain benefits in comparison with ordinary Portland cements (47). As it is a cement type with high initial strength, when used in combination with MSWI fly ash it promotes its stabilization/solidification in the mortar matrixes. Likewise, as previously said, the used ashes are rich in chlorides and sulfates, which may easily react with the calcium sulfoaluminate in the hydration process and take advantage of the new phases of this hydration to encapsulate heavy metals (48, 49). Similarly, the sulfide included in its initial formulation, will facilitate the precipitation of heavy metals contained in TFA in the form of sulfates.

Both CAC mortars, as well as CSA ones suffer higher carbonation rates. Aggregates, together with the evaporation of the mixing water lead to the development of a system of pores promoting CO₂ diffusion. This fact, far from being negative, reduces shrinkage and cracking of the samples during drying and they can give rise to subsequent puzzolanic reactions favoring the increase of compressive strengths.

Finally, Table 6 also presents the results of bending strengths for all the mortars studied. Among them, CAC mortars with addition of TFA are particularly interesting. Proportions analyzed to date present an increase in strength of 21.46% and 29.96% compared to the reference mortar, reaching values of 16.978 N/mm² and 8.730 N/mm², respectively for 1/1 and 1/3 proportions. Likewise, CSA mortars made with TFA and 1/3 proportion between cement and water, show a positive performance with regard to bending strengths, although to a minor extent. These data are very positive if the ultimate goal of this type of mortars is to be used in the manufacture of prefabricated pieces without structural reinforcement that must withstand its own shape and size, such as, for example, pipes for large collectors.

3.7. Leaching testsTOP

Table 7 shows the results of the leaching test carried out on the mortars through stripping voltammetry determination. Leaching tests have been conducted on monolithic samples of the best mechanical performance mortar (CAC, aggregate 0/2, cement/water ratio =1/1).

As a result that cement mortars generate a solvent alkaline medium, Zn, Pb, Cd and Cu ions have been tested. Among them, only Zn and Pb quantities are significant because of their possibility to generate plumbite or zincate anions, whereas Cd and Cu have been measured just as a contrast. According to the shown data, only Pb ion slightly solubilizes and leachates, while the rest of the heavy metals ions analyzed remain at very low values (practically zero).

Therefore, the experimental results indicate that the shielding effect of the matrix of the CAC cement mortars encapsulates completely Zn ions and mitigates the leaching behavior of Pb ions.

4. CONCLUSIONSTOP

From the above stated reasons, it might be concluded that mortars with the incorporation of treated fly ash made with CAC 1/1 and 1/3 and CSA 1/3, may be perfectly valid for uses in which a fast-curing product, with high initial strength and a drying shrinkage compensation with a high dimensional stability is required. Based on this, CAC mortars with TFA could be used as repair mortar for structures, roads and industrial pavements requiring high performance, such as: industrial floorings, landing tracks, parking lots, etc. Alternatively, CAC and CSA with TFA mortars could also be used in the manufacture of prefabricated elements without structural reinforcement, given its high bending strength.

ACKNOWLEDGEMENTSTOP

The authors would like to thank the company Valoriza Servicios Medioambientales, S.A. for the support received through the cooperation agreement established with the Polytechnic University of Madrid, for the research “Proyecto de Investigación y Desarrollo de Sistema de Inertización de Cenizas Volantes de Incineradora” (Código: P115625344). Their gratitude also goes to Emilio Vallejo, quality manager of CEMEX Spain and to Agustín Laplaza from Departamento de Asistencia Técnica y Prescripción de FYM-Italcementi. Likewise, Óscar López Zaldívar would like to thank the collaboration of Santiago Villa, and the staff of the laboratory of Construction Materials of the ETSEM. Thanks also to Isabel Salto-Weiss for the language revision.
