The influence of the curing conditions of concrete on durability after freeze-thaw accelerated testing

G. Al-Assadi^a, M.J. Casati^b, J.C. Gálvez^a*, J. Fernández^a, S. Aparicio^c

a. E.T.S. de Ingenieros de Caminos, Canales y Puertos, Universidad Politécnica de Madrid, (Madrid, España)

b. E.T.S.I. Aeronáutica y del Espacio, Universidad Politécnica de Madrid, (Madrid, España)

c. Instituto de Tecnologías Físicas y de la Información “Leonardo Torres Quevedo”, ITEFI, (CSIC), (Madrid, España)

*jaime.galvez@upm.es

1. INTRODUCTIONTOP

The number of publications dealing with frost durability is extensive and this work does not seek to summarise all the contributions to this vast and complex subject (1, 2, 3, 4). Concrete behaves well even under adverse weather conditions if it has been adequately designed, cast and cured. In countries with a continental climate, concrete is often cast in the summer months - under conditions of high temperature and low humidity - and is subject to freeze-thaw cycles during winter. This scenario can worsen if de-icing salts are added (5, 6, 7), such as the cases of the pillars and slabs of road bridges (8, 9).

A good curing process of concrete during the summer is essential for the durability of the material, especially under freezing conditions in the following winters (10, 11). The microstructure and hydration grade of the concrete are highly influenced by the curing conditions. In general terms, a good curing process creates a closer porous structure and higher physical and chemical resistance (12). It should be noted that for almost all types of concrete, resistance to internal cracking due to freeze and thaw cycles can only be achieved if the mixture contains an adequate system of entrained air voids (7, 13, 14).

Several works have clearly indicated that the curing temperature can have a highly significant influence on concrete scaling resistance. However, in the laboratory the curing is generally performed by immersing samples in lime-saturated water or by placing them in a fog room, with both cases being quite close to saturated conditions. Surprisingly, the number of studies of the influence of the type of curing, combining high temperature and low humidity, on the scaling behaviour of the concrete remains extremely limited. While in certain cases the type of curing is found to have little influence (15, 16), in others concretes cured with a curing admixture appear to have an improved scaling resistance (17, 18).

Concrete cured under high temperatures, such as the steam-cured concrete coming from prefabrication plants, modifies the morphology of the hydrated silicates and shows a more crystalline and porous structure (19, 20, 21, 22, 23, 24). This procedure has been found to be detrimental to the scaling resistance of the concrete. However, some authors (25, 26, 27) have found an improvement in the scaling resistance of the high-strength concrete when passing from 20 °C to 60 °C at early ages of the concrete.

The objective of this paper is to study the influence of the curing conditions of concrete when cast under summer conditions (high temperature and low humidity) in the internal deterioration and scaling resistance under freeze-thaw cycles (winter conditions). Since the curing conditions modify the microstructure of concrete, the “potential” durability is also studied after the rapid freezing-thawing tests, according to ASTM C 666 standard (28). This complementary aspect may be important, given that freeze-thawed damaged concrete is also exposed to aggressive environments, such as chloride ions or carbon dioxide. The freezing-thawing test, depending on the previous curing conditions of concrete, may modify the microstructure and the porous structure of the material, affecting the transport mechanisms (29).

In this work, conditions of good and bad practice curing conditions are studied. The effectiveness of using an air-entraining admixture is also examined. The experimental programme includes evaluation of the mechanical properties of the concrete, study of the cement hydration, measurement of the volume and pore sizes of the concrete, oxygen permeability, chloride diffusion and water penetration under pressure tests. These tests were performed before and after the application of the freeze-thaw cycles. The work includes a statistical study, based on Spearman’s rank correlation coefficient, to analyse the possible correlation among variables. This analysis is needed for the correct interpretation of the experimental results.

Similar to previous papers focused on the frost resistance of concrete, this paper studies the influence of the curing conditions of the concrete in the freezing-thawing test, and the “potential” durability of the concrete after such a test. Analysis is performed for concrete with and without entrained air voids.

Whereas the following section examines the experimental programme, Section 3 shows the results. Discussion of the results is then presented in Section 4, with Section 5 showing statistical analysis of the results. Finally, conclusions are presented in Section 6.

2. EXPERIMENTAL PROGRAMMETOP

2.1. Materials and specimensTOP

Four different concretes were tested, combining two compression strengths (C30 and C45) and either using or not an air-entrainment admixture. The mixes were cast by using the same cement: CEM I 42.5 R. The aggregate consisted of siliceous rolled with grade 0/5 sand and 5/20 crushed limestone gravel. Whereas the fineness modulus was 2.71 for sand, it was 6.96 for gravel. A polycarboxylate superplasticiser was added (0.6% of cement weight). An air-entrained agent was also added to two of the mixtures. The water/cement ratios were 0.5 and 0.4 for the C30 and C45 concretes, respectively. The water content of the admixtures was computed in the w/c ratio. Table 1 shows the compound composition of the cement. In Table 2, concrete mixes are given.

The concrete was mixed by using a vertical-axis planetary mixer with a capacity of 100l. Fifteen cylindrical specimens of 150 φ×300 mm height were cast for each concrete mix.

2.2. Concrete curingTOP

All specimens were demoulded after 24 hours. They were subsequently stored in a climatic chamber at 30 °C and 37% relative humidity for 28 days. These temperature and humidity values represent the average environmental conditions of summer in central Spain. Under these conditions, two curing processes were performed. The so-called “wet curing” (W) was carried out daily, wetting the specimens inside the climatic chamber during the first week, as recommended by the Spanish Code of Structural Concrete (EHE-08) (30). The “dry curing” (D) was performed by avoiding the daily wetting of the specimens. The combination of the four types of concrete and the two curing conditions supplied eight different concretes with the following nomenclature: strength of concrete (30 MPa is C30 and 45 MPa is C45) - percentage of air-entrained agent referring to the weight of cement (0% is 00, and 0.05% is 0.05) - type of curing (wet is W and dry is D). Table 3 shows the combination of these variables and the nomenclature of each cured concrete.

2.3. Test procedures and methodsTOP

2.3.1. Mechanical propertiesTOP

In mechanical terms, three properties were measured: compressive strength (EN 12390-3 standard (31)), elasticity modulus (EN 12390-13 standard (32)) and tensile strength (EN 12390-6 standard (33)). The tests were performed before and after the freeze-thaw cycles.

2.3.2. Freezing-thawing testsTOP

Six specimens for each type of concrete were tested according to freezing-thawing ASTM C 666 standard (28). One specimen of each type of concrete was stored at 20 °C and 45–50% relative humidity for comparison.

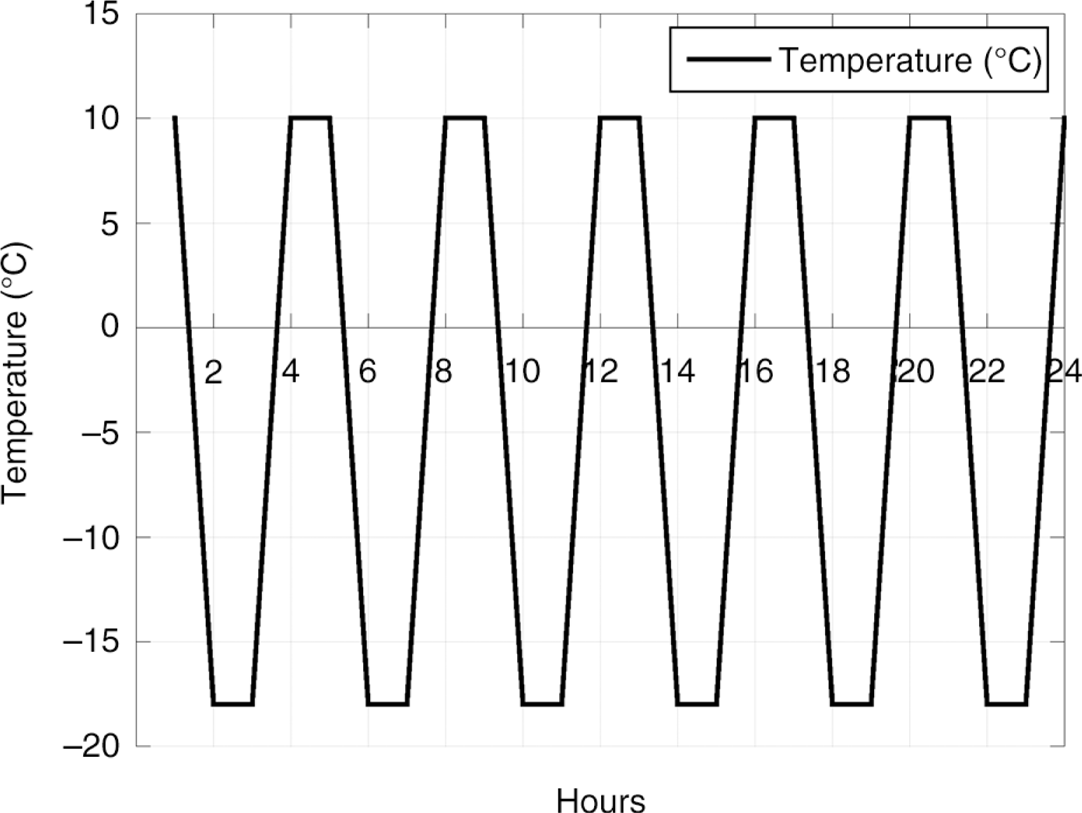

The test was performed as follows: at the age of 28 days the specimens were immersed in water for four days by which saturation was ensured. Then, they were inserted in the climate chamber and subjected to 300 freeze-thaw cycles according to the temperature versus time diagram shown in Figure 1.

Every week, i.e. every 42 cycles, the length, weight and ultrasonic pulse velocity were measured in each specimen. The specimens were removed from the climatic chamber for measurement at a temperature of 10 °C. Upon completion of 300 freeze-thaw cycles, the modulus of elasticity, tensile and compressive strength was measured on each specimen. In accordance with the ASTM C 666 standard (28) the relative dynamic modulus of elasticity (RDME) was calculated [1]:

where: P_c is the RDME, after c freeze-thaw cycles (percentage), n is the fundamental transverse frequency at 0 freeze-thaw cycles, and n₁ after c cycles.

The durability factor is calculated as follows [2]:

where: DF is the durability factor, P is the RDME at N freeze-thaw cycles (percentage), N is the number of cycles at which P reaches the specified minimum value for discontinuing the test or the specified number of cycles at which the exposure is to be terminated, whichever is less, and M the specified number of cycles at which the exposure is to be terminated.

2.3.3. Physicochemical testsTOP

Physicochemical tests were performed in order to study the durability of concrete before and after freezing-thawing tests. Parameters concerning transport mechanisms in concrete were analysed. Mercury intrusion porosimetry, oxygen permeability, chloride diffusion and water penetration tests were performed. In addition, differential thermal analysis (DTA) and thermal gravimetric analysis (TG) were performed to study the hydration of the cement during the testing period.

Mercury intrusion porosimetry (MIP) tests were performed with a Micromeritics porosimeter, Autopore IV 9500 model, which reached a pressure of 228 MPa, and measured the diameter of pores from 0.006 μm to 175 μm. The ASTM D4404 standard (34) was adopted. The weight of the sample was 3.5 g ±0.3 g. The specimen was dried at 40 °C and degasified. For modelling, the pores were idealised as cylindrical channels, and the Washburn-Laplace law adopted to relate the mercury pressure with the radius of the pore, as equation [3] shows:

where: γ is the surface tension, θ the contact angle, d the pore diameter and p the pressure required for mercury to penetrate into the pore.

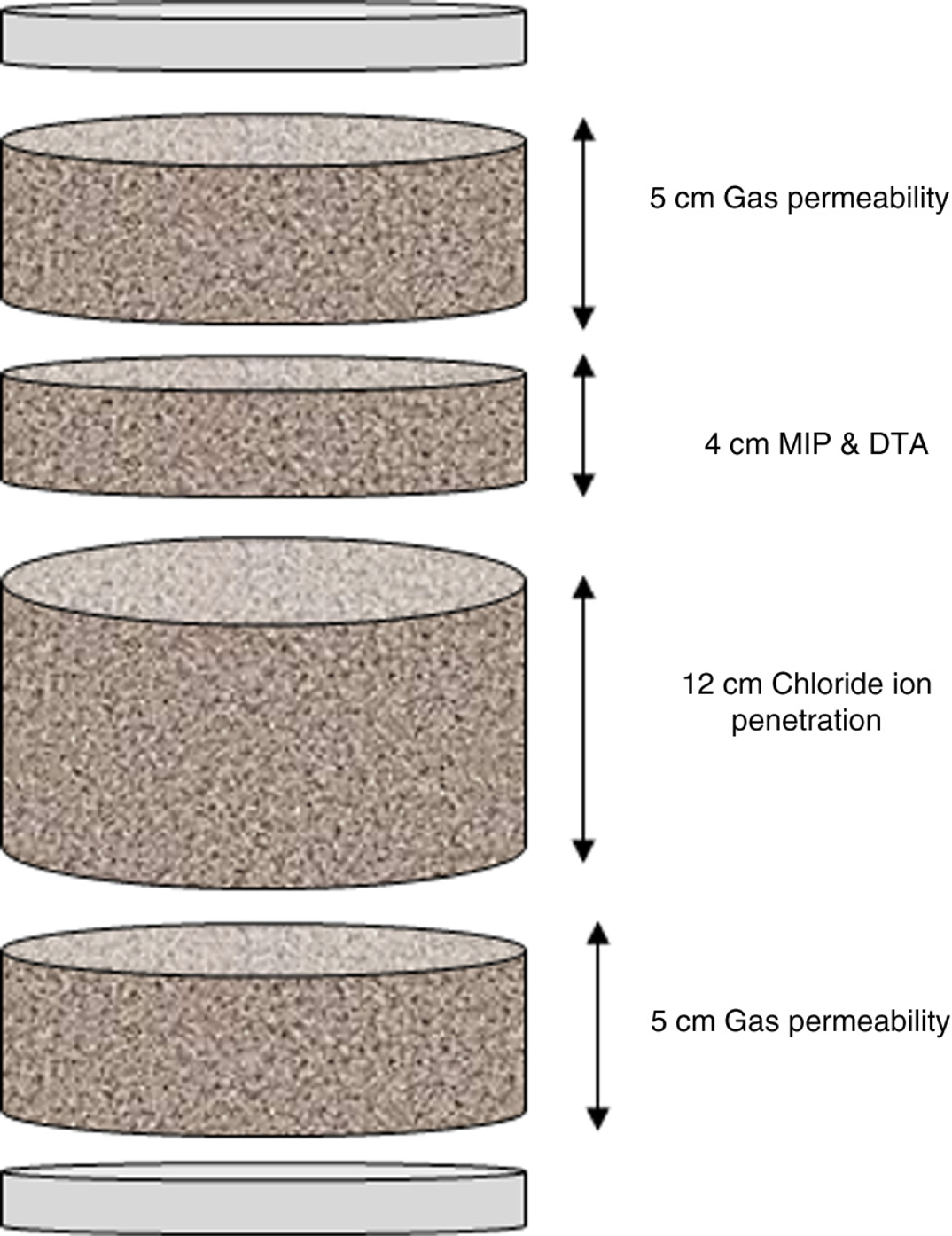

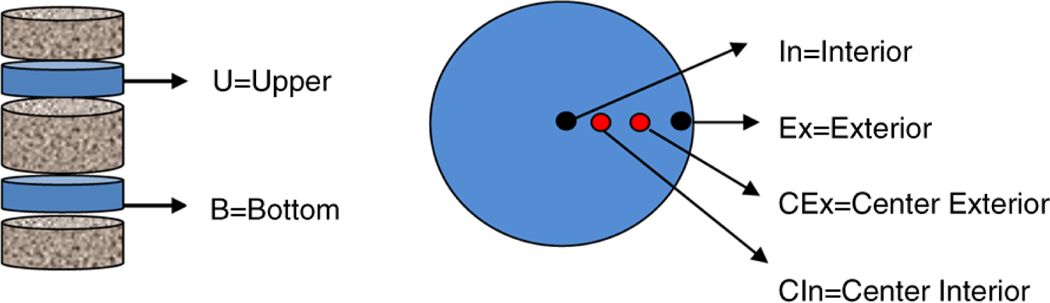

The samples were obtained from cylindrical slices placed at 5 cm from the base of the specimens. In the case of the tests after freeze-thaw cycles, four samples were obtained and tested; these were extracted at different distances from the circumferential face of the specimen in the radial direction. Figure 2 shows a sketch of the specimen with the slices for the various tests.

The oxygen permeability tests were conducted according to RILEM-TC 116-PCD (35) and CEMBUREAU (36) recommendations. Tests were performed with two cylindrical slides (φ 150 mm 50 mm in thickness) cut from the bottom and upper parts of the specimen (see Figure 2). The flow of oxygen through concrete slides was measured at steady state against the test pressure and the material saturation rate. The apparent coefficient of permeability, K_A, was calculated for laminar flow of a compressible viscous fluid through a porous material from the Hagen-Poiseuille relationship [4]:

where: Q is the measured oxygen flow (m³/s), μ the dynamic viscosity of the oxygen (Ns/m²), L the thickness of the sample (m), p_atm the atmospheric pressure (N/m²), A the cross-sectional area of the sample (m²) pore diameter and p the absolute pressure applied (N/m²).

A chloride diffusion test was performed with cylindrical 150 φ×300 mm height samples, in accordance with the ASTM C1543 standard (37). This test was carried out in saturated material, under unidirectional diffusion (waterproofing the vertical face and bottom base of the cylinder) in an aggressive solution (NaCl concentration of 3% in deonised water) at 20 °C. Measurement of the chloride concentration inside the specimen was performed down to the depth of 30 mm, with intervals of 6 mm. The UNE 112-010 Spanish standard (38) was adopted for measurement of the chloride concentration. The effective diffusion coefficient is calculated according the solution of Flick’s second law [5]:

where, C(x,t) is the chloride content at x depth and t time (percentage of weight), x the depth (m), t the time (s), C_s the chloride content at the concrete surface (percentage of weight), C_i the initial chloride content (percentage of weight), erf the error function and D_e the effective chloride diffusion coefficient (m²/s).

Water penetration under a pressure test was performed with cylindrical 15 φ×30 cm height samples, in accordance with the EN 12390-8 standard (39). Water applied pressure was 500 kPa with a duration of three days. Then the sample was split and the depth profile of water within the split specimen measured.

A TG/DTA analysis was performed to study the hydration of the cement. The STA 791 device was used. The specimen was heated to a temperature of 1000 °C, with a velocity of 10 °C/min. The reference material was α-Al₂O₃, heated to 1200 °C. The tests were carried out in N₂ atmosphere with a flow of 80 ml/min. Results, in accordance with the ASTM E1131 standard (40), were obtained when the concrete life was at 28, 90 and 365 days.

3. RESULTSTOP

3.1. Results of the fresh concreteTOP

Table 4 shows the results of slump test (ASTM C 143 standard (41)) and the air content in the fresh concrete.

3.2. Mechanical properties of concrete before and after freezing-thawing testsTOP

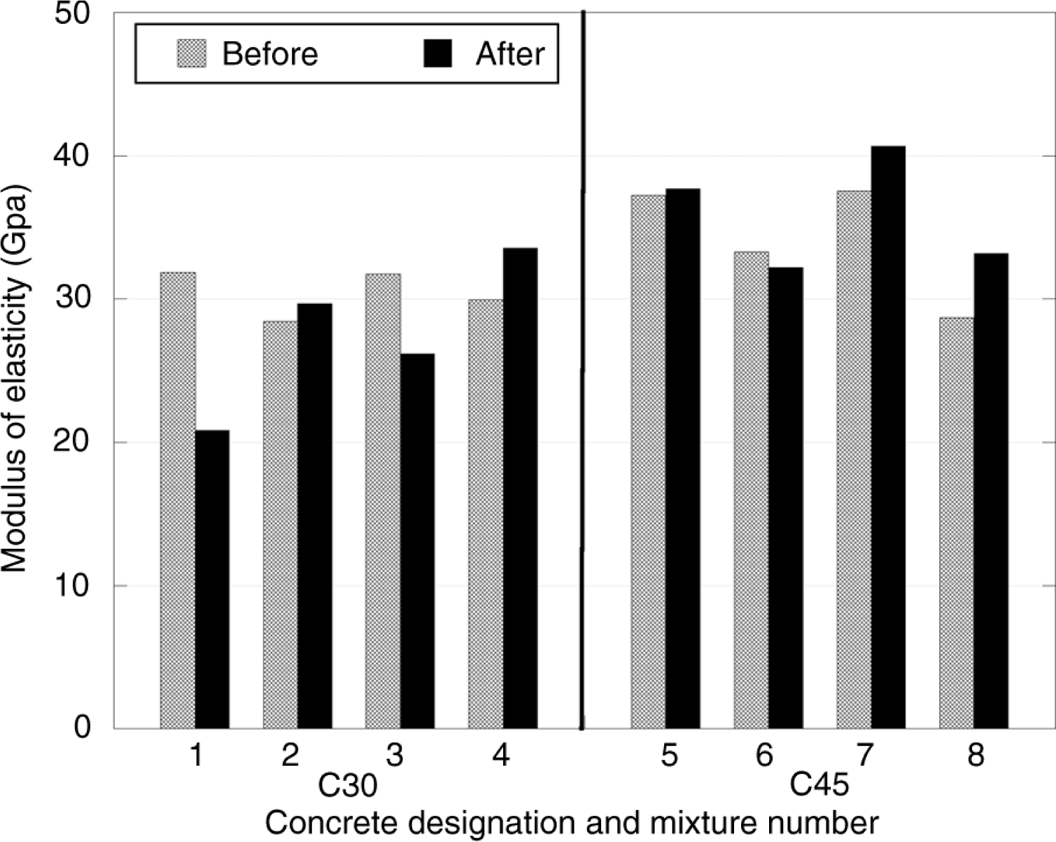

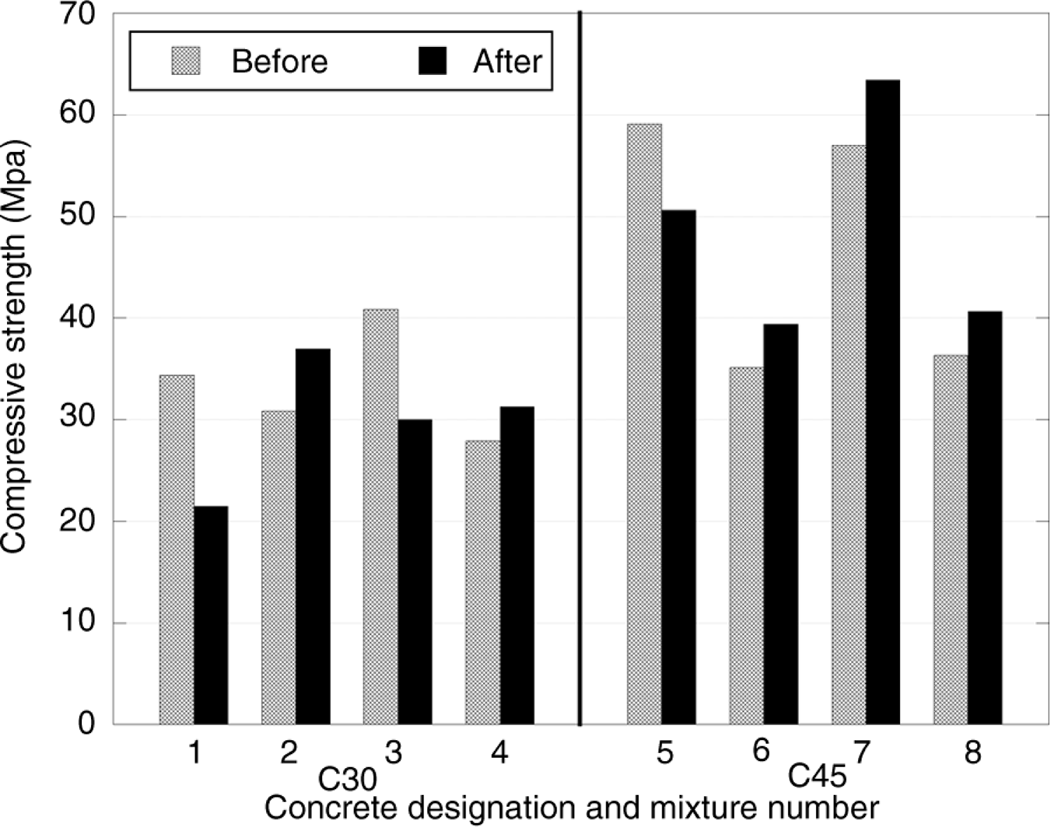

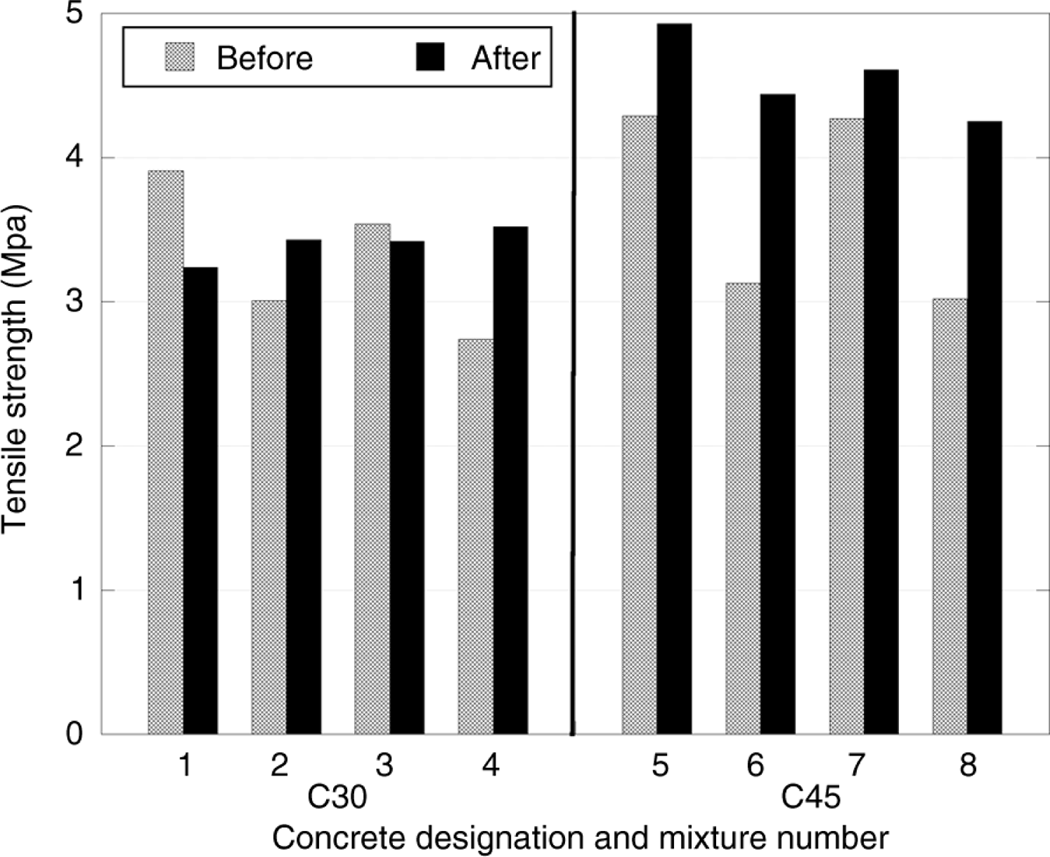

Figures 3, 4 and 5 show the results for the compressive strength, modulus of elasticity and tensile strength for the specimens before and after the freeze-thaw cycles.

3.3. Results of freezing-thawing testsTOP

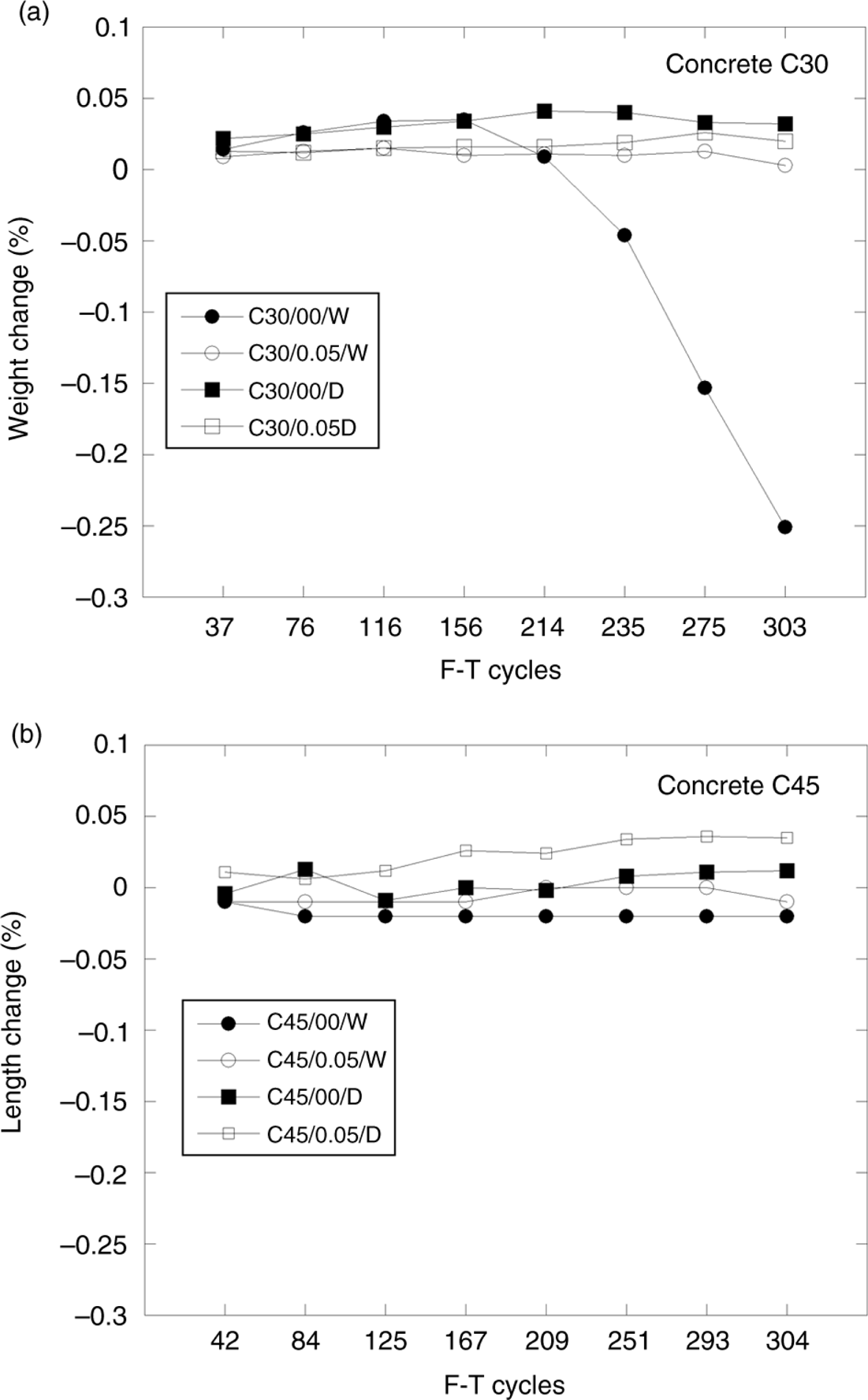

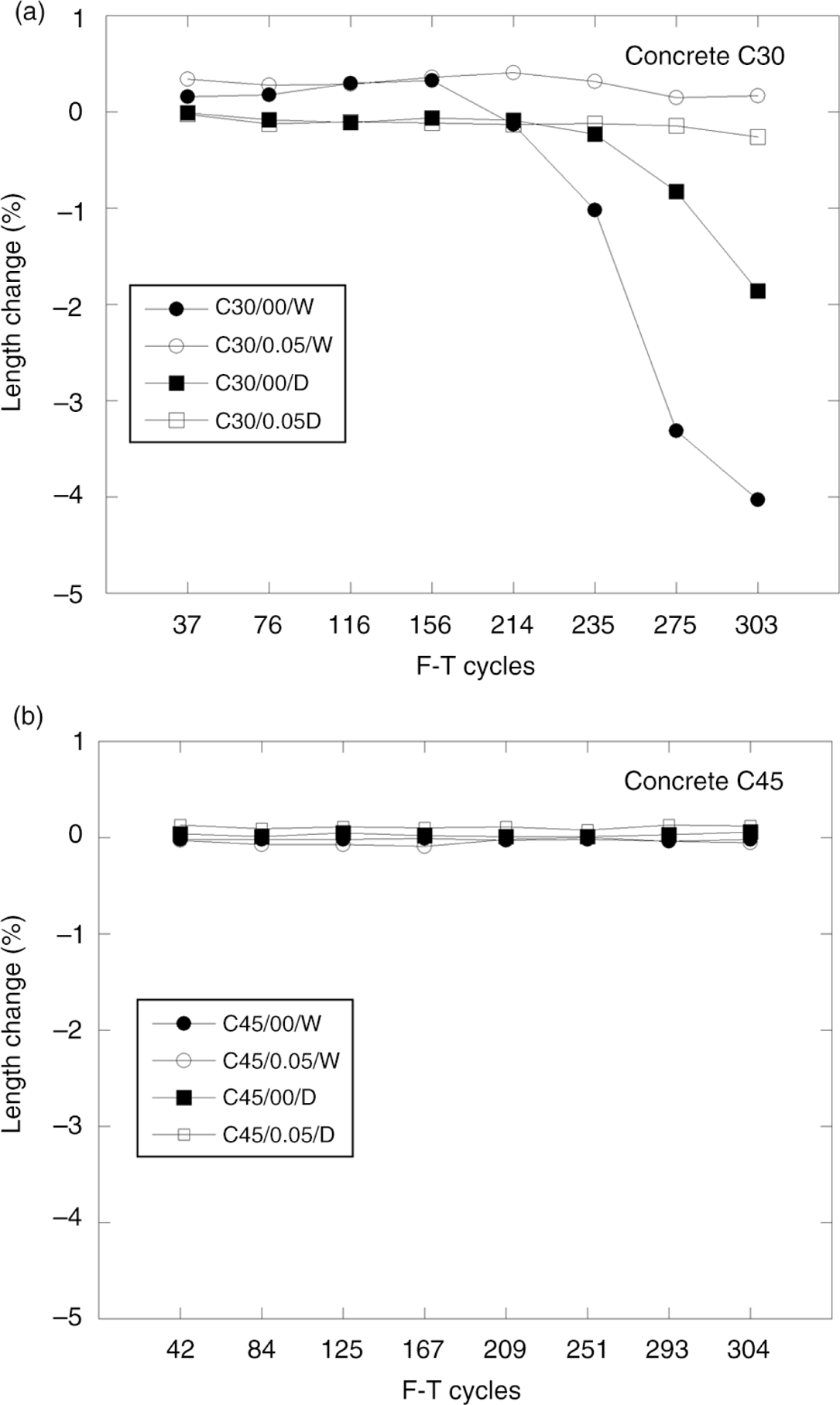

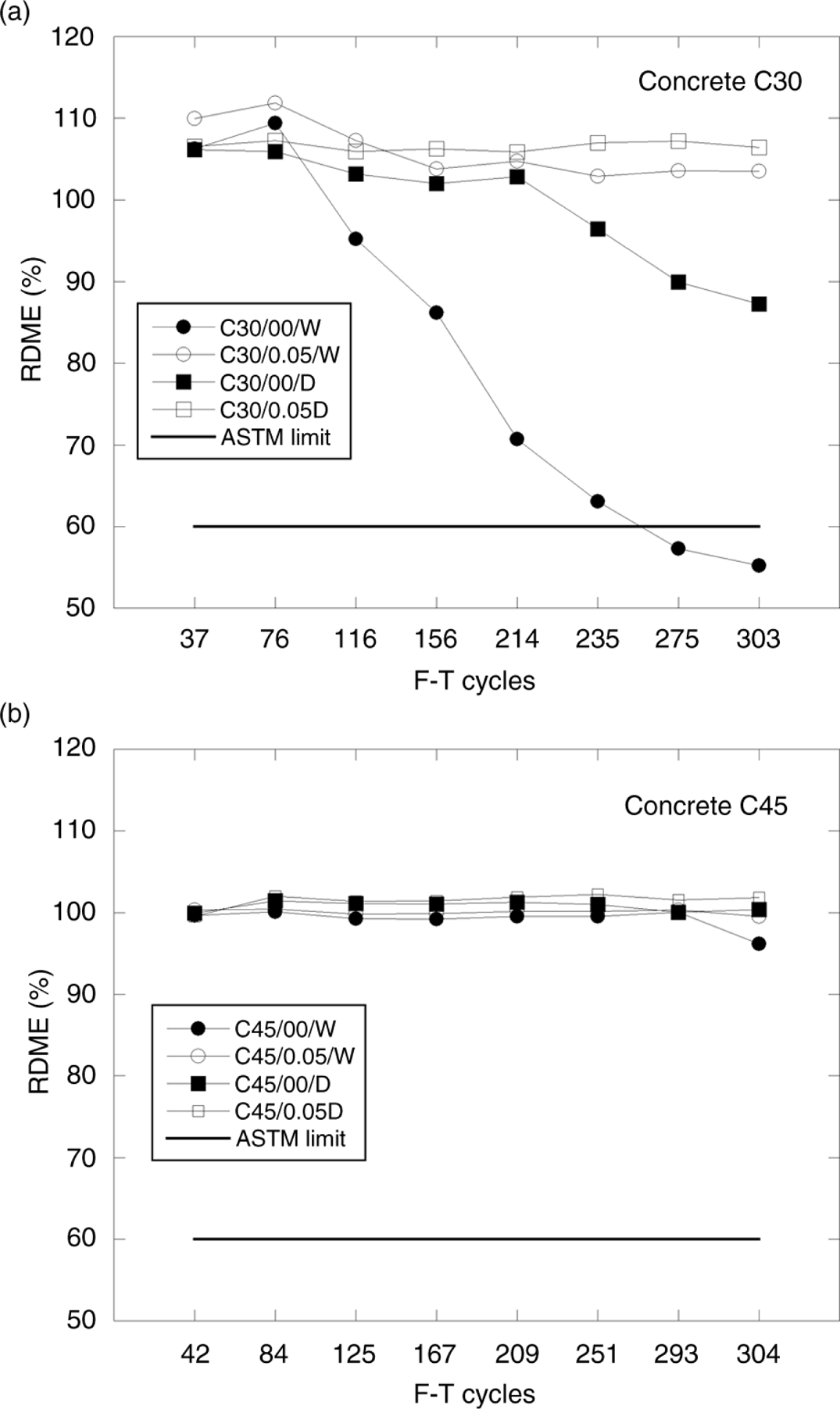

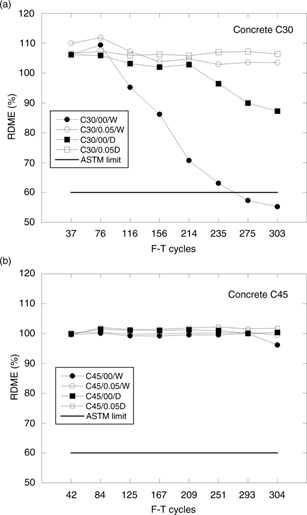

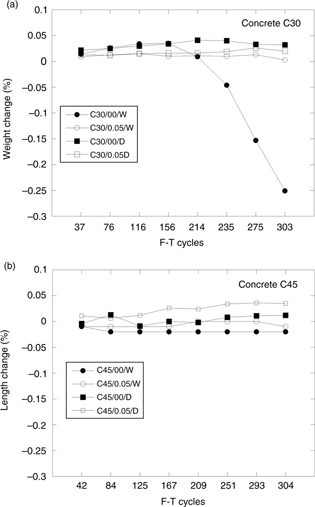

Figure 6 shows the evolution of the RDME under freeze-thaw testing for the C30 and C45 concretes. Figure 7 and Figure 8 show analogous results for length and weight variation of the specimens during the freeze-thaw cycles.

3.4. Physicochemical propertiesTOP

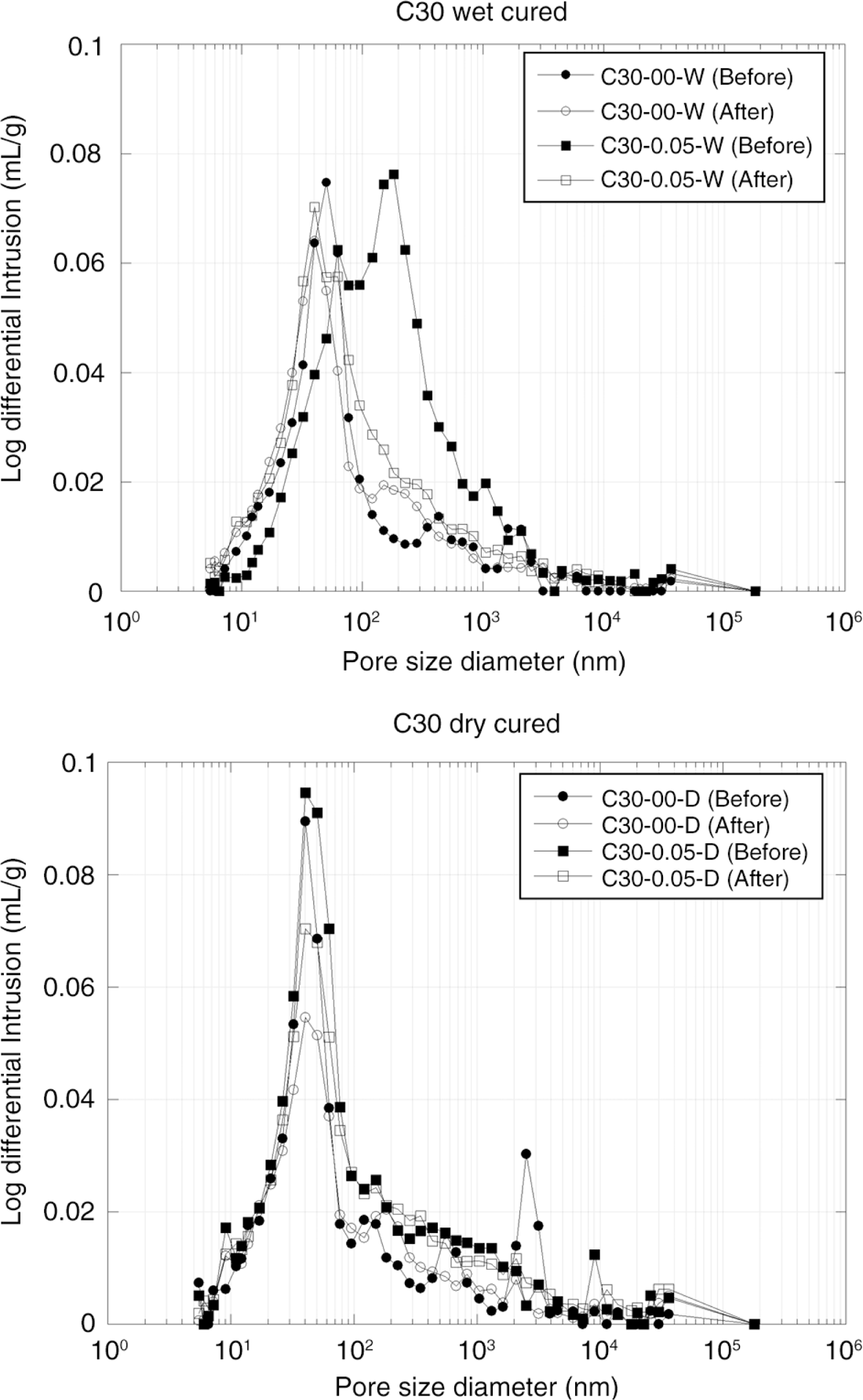

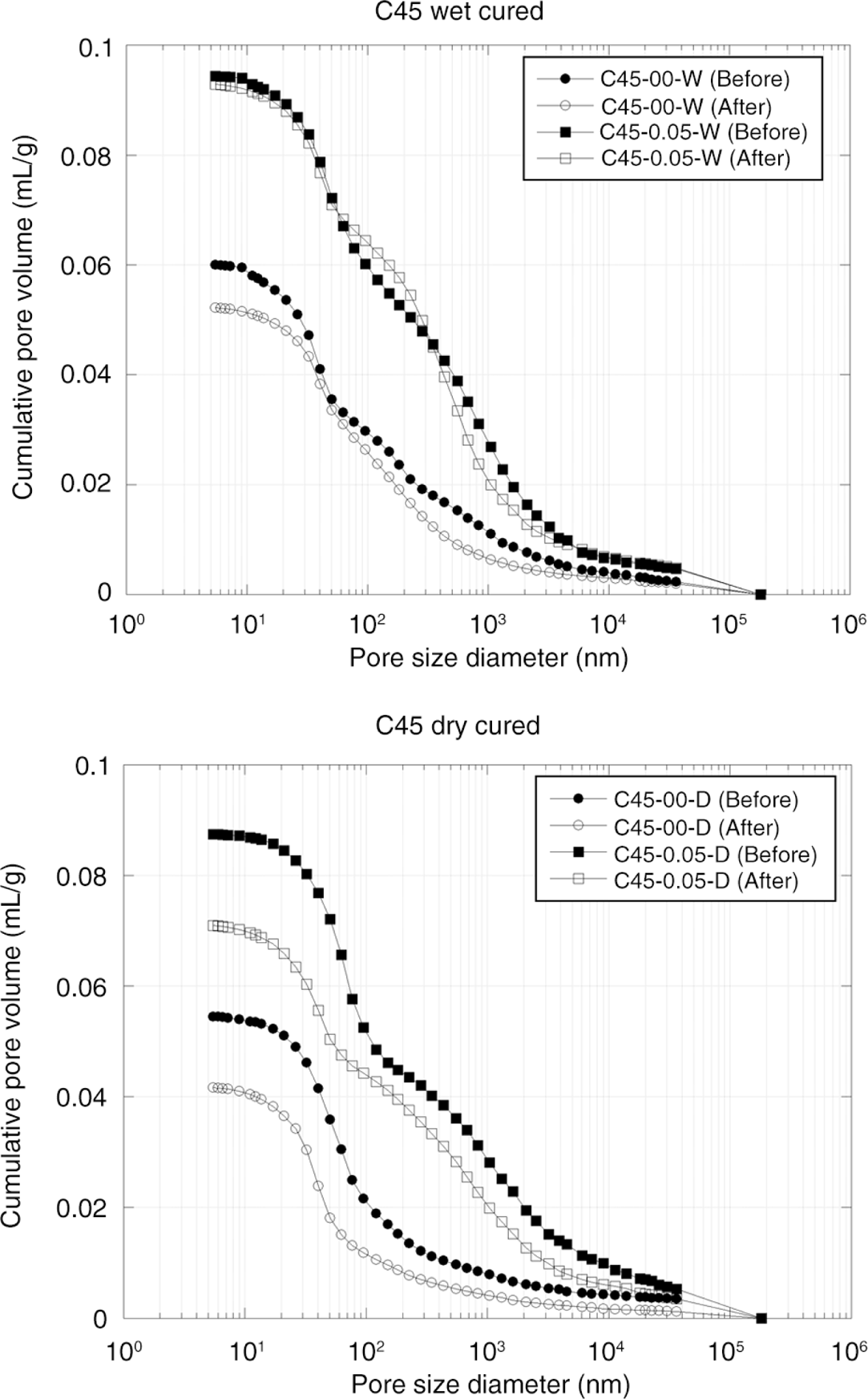

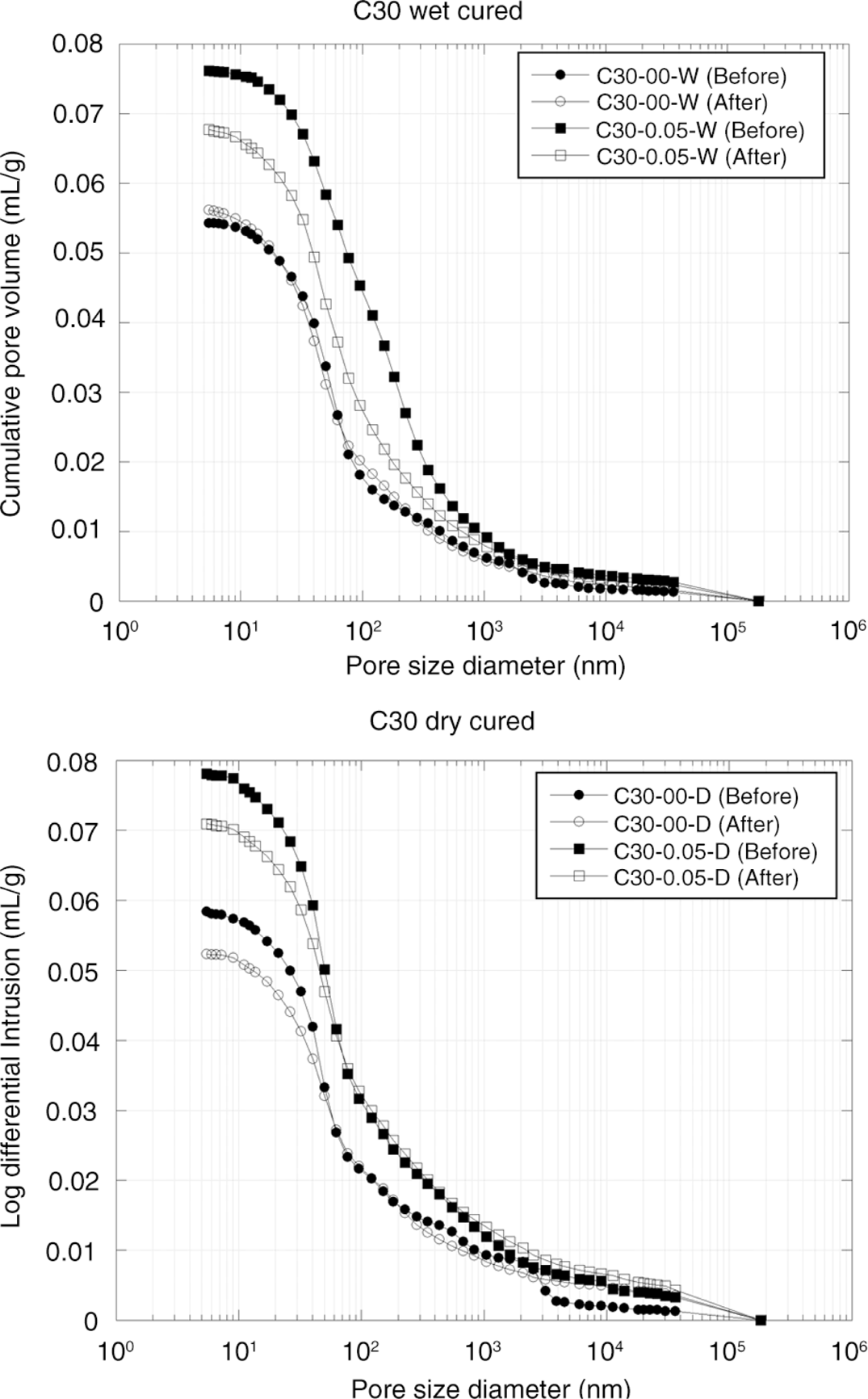

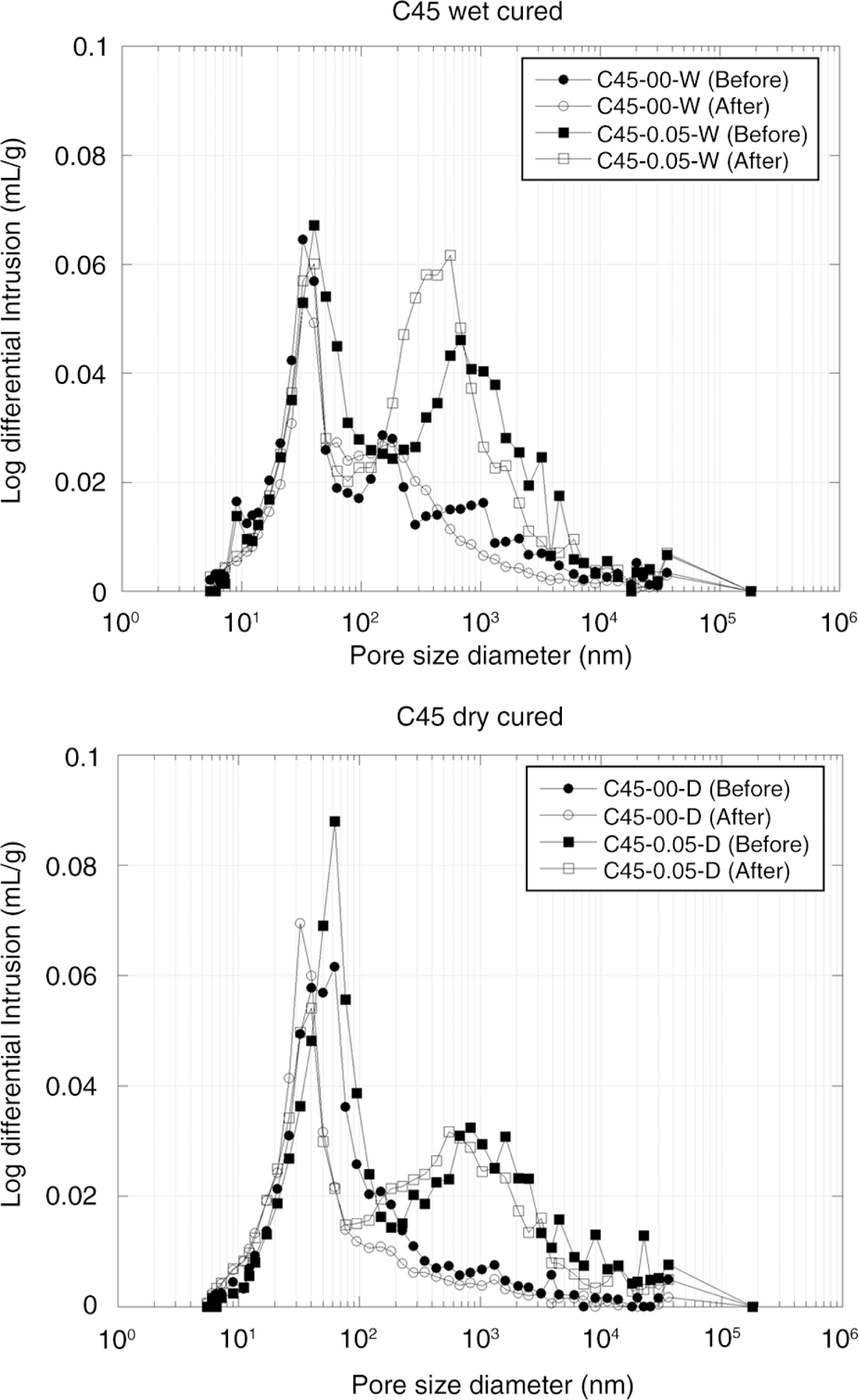

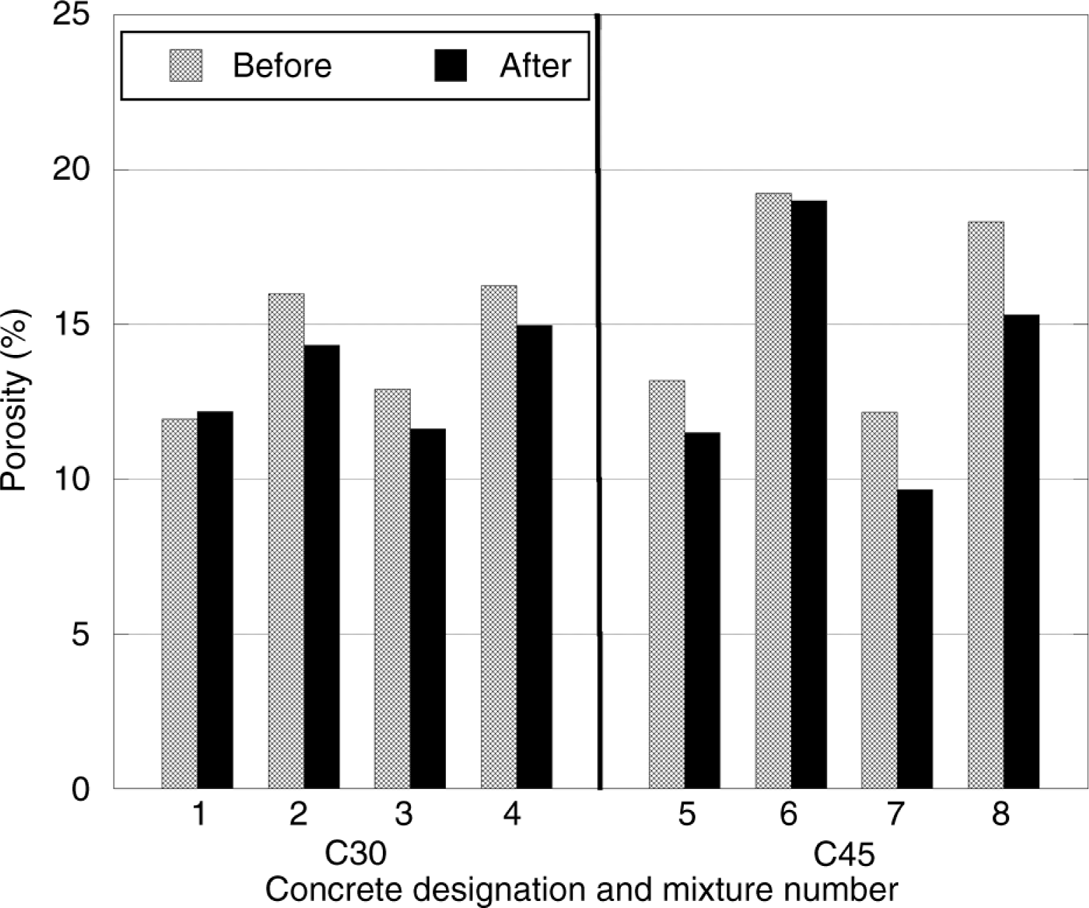

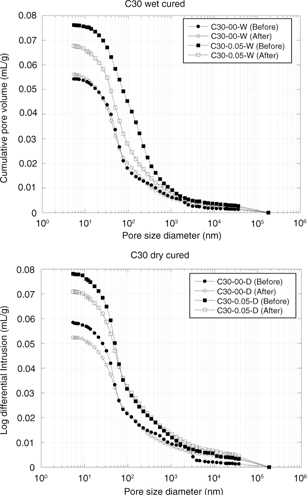

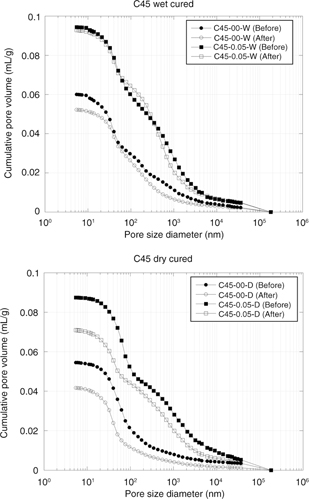

Figure 9 compares the total porosity of the MIP tests for the concretes before and after freeze-thaw cycles. Figures 10 to 13 show the logarithmic differential intrusion volume and the cumulative intruded pore volume for the tested specimens. The shown curves for the specimens after freeze-thaw cycles are the mean value obtained from four points placed at different depths, measured in a radial direction.

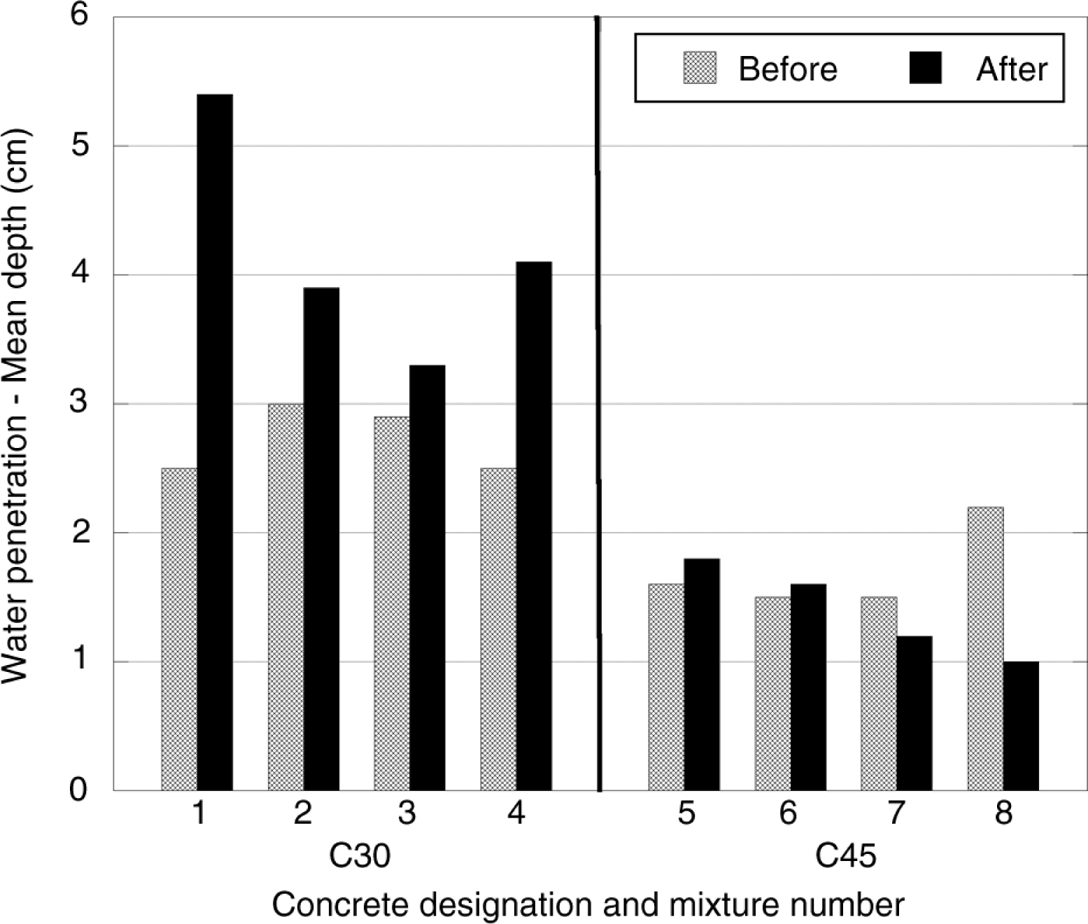

Figure 14 shows the mean value of the depth water penetration for the specimens after water penetration under pressure tests.

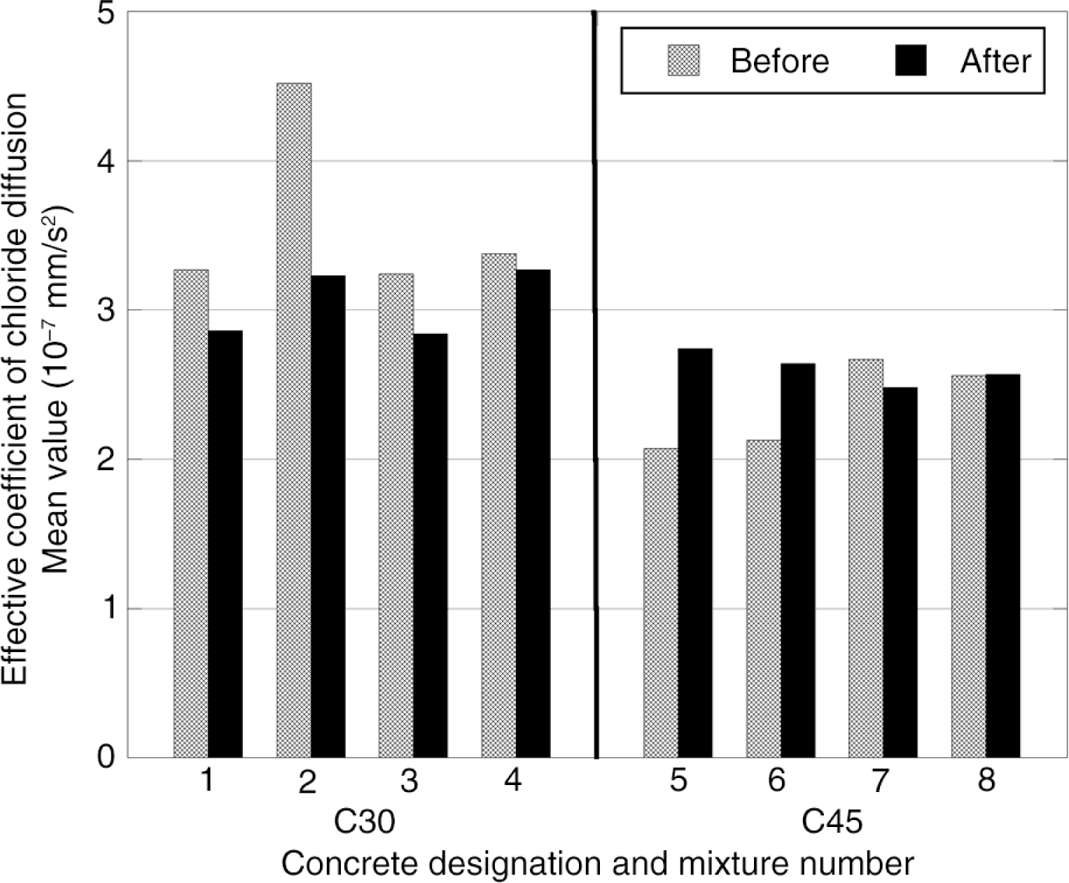

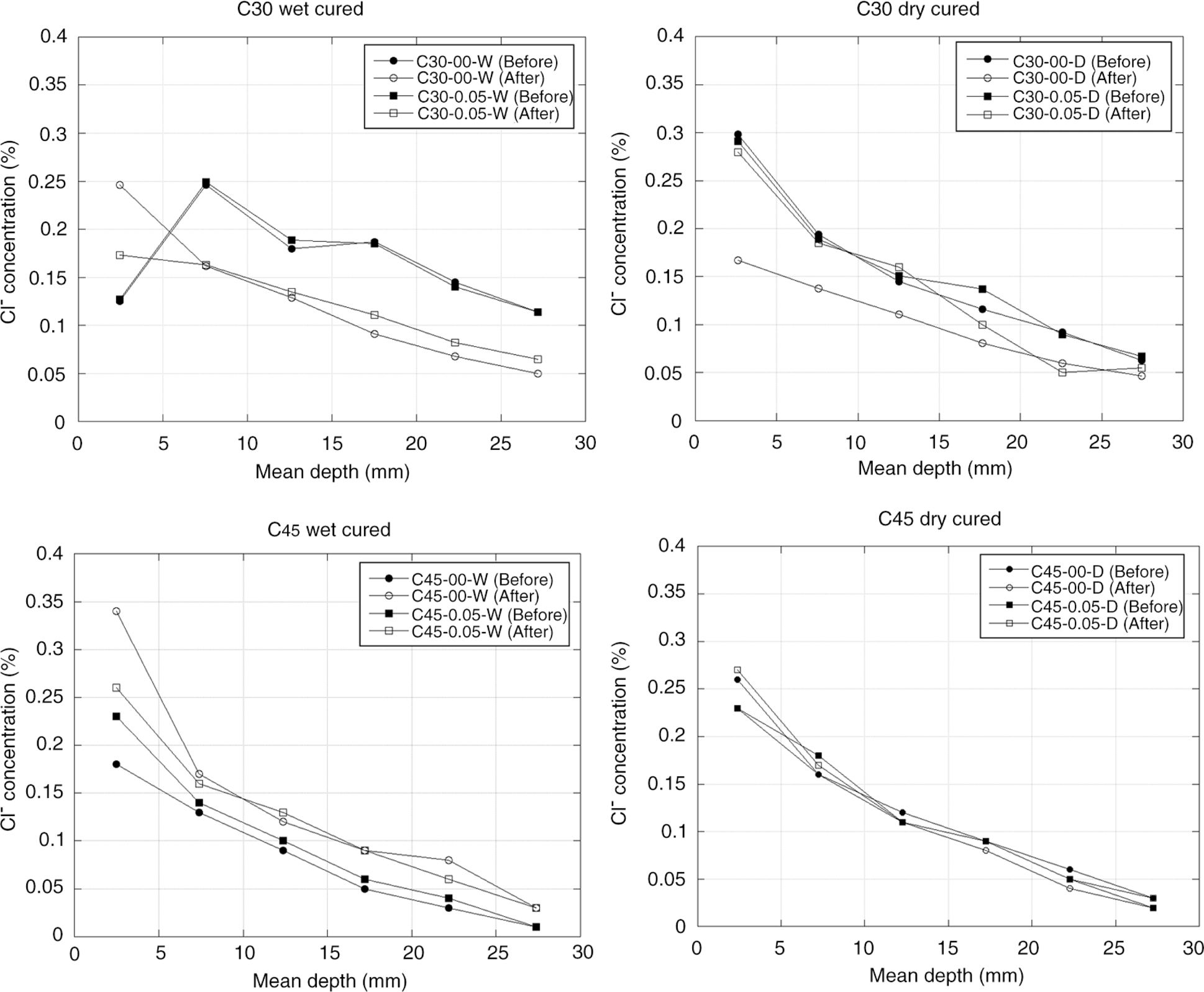

Figure 15 shows the values of the effective coefficient of chloride diffusion of the concrete specimens before and after freeze-thaw cycles. Figure 16 shows the chloride profile in the tested concrete specimens. The presented profiles are the mean value of two slides from the same specimen, obtained from the bottom and upper parts of the specimen.

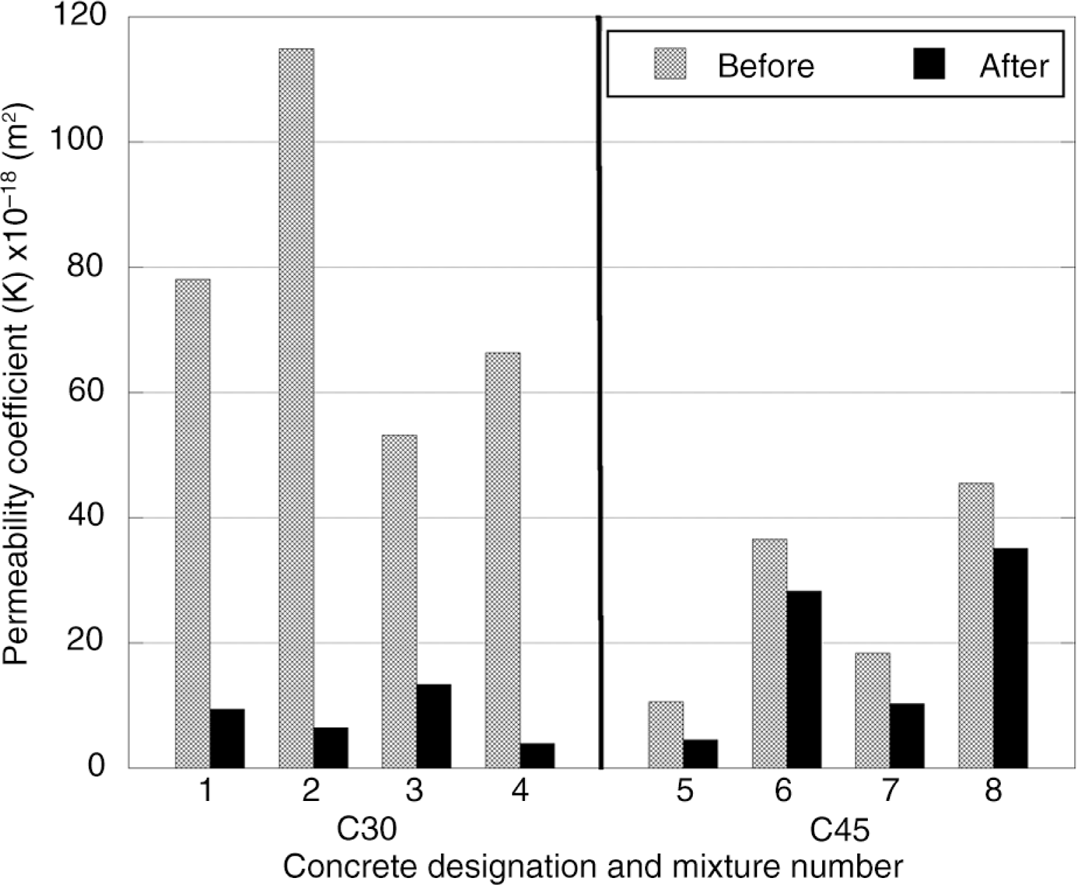

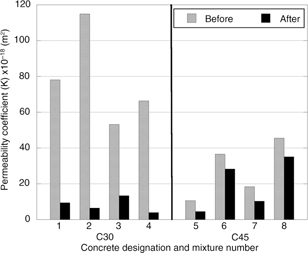

Figure 17 shows the apparent coefficient of oxygen permeability. This figure shows the mean value of two slides (upper and bottom part) from the same specimen.

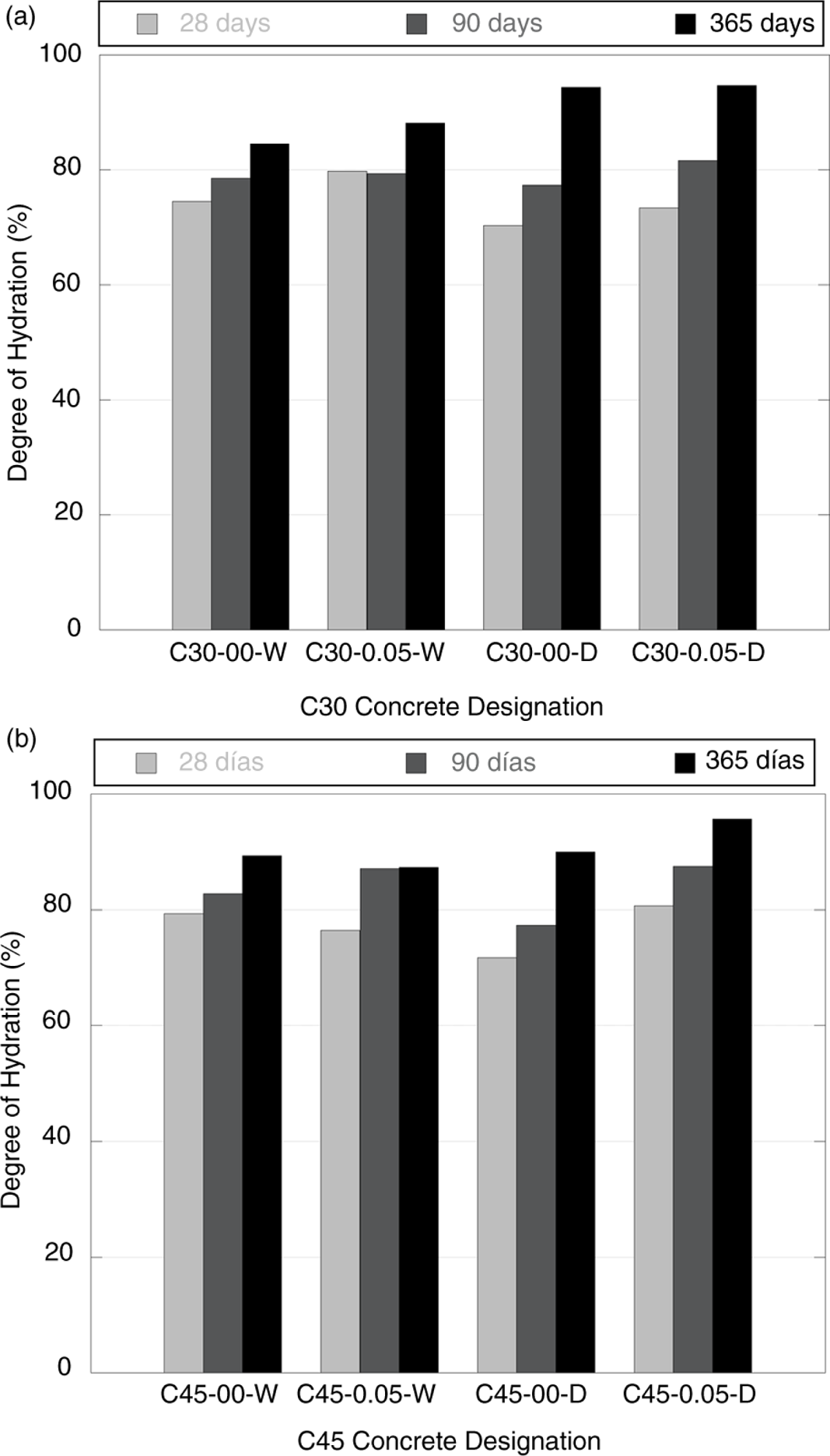

Figure 18 (a and b) includes the hydration level of the concrete specimens at 28, 90 and 365 days.

4. DISCUSSIONTOP

4.1. Mechanical properties of concrete before and after freeze-thaw cyclesTOP

As a rule, air entrainment increased concrete porosity and reduced its compressive and tensile strength (see Figures 3 to 5).

In the absence of the air-entraining admixture, the C30 specimens showed poorer mechanical performance after the freeze-thaw cycle, while the C45 samples did not. Entrained air is, however, known to strengthen concrete resistance to freeze-thaw cycles. In this study, even the mechanical properties appeared to show improvement, most likely due to the greater age of the specimens (approximately 90 days) as well as their higher freeze-thaw resistance.

4.2. Non-destructive testing during freeze-thaw cyclesTOP

As Figures 6 to 8 show, in the absence of the air-entraining admixture, the decline in weight, specimen length and RDME intensified with the increase in the number of cycles. The concretes that contain the admixture, by contrast, exhibited practically no obvious change in weight, RDME or length during the cycles, even though such changes would normally be expected in this type of test.

While the ASTM C666 standard (28) does not use change in weight as a failure criterion, weight loss during the freeze-thaw cycles is a sign of concrete scaling, such as that observed in C30-00-W (Figure 8).

The decline in RDME values, denoting a decrease in ultrasound velocity, showed that in concrete with insufficient entrained air each freeze-thaw cycle generated cracks. Since the waves must follow a longer path in damaged concrete, their velocity decreases and the waves themselves may be attenuated to such a point that they may fail to pass completely through the concrete. These findings, along with the weight and length data, confirmed the existence of post-cycle damage in the specimens, as predicted.

4.3. Durability tests before and after freeze-thaw cyclesTOP

The MIP findings revealed greater porosity in the wet- than in the dry-cured concrete after the cycles (see Figures 9 to 13). The explanation is to be found in the low relative humidity and high temperature curing conditions, which delayed cement hydration. Hydration continued during the freeze-thaw cycles in the moist chamber, though in the case of relative humidity being 98% the percentage of pores decreased. According to the results obtained for all the mixes, with the exception of C30-00-W where the variation was small, porosity declined after the freeze-thaw cycles by around 10% in concrete C30 and 15% in concrete C45. These values were unaffected by the inclusion of an air-entraining admixture. Table 5 shows the measured porosity after cycles at four distances from the surface (Figure 19). In all cases differences in the porosity values were found.

Should the decline in performance induced by exposure to the freeze-thaw cycles be the sole reason for the microstructural variations, the pore size distribution would be expected to change after the cycles: the peak representing the predominant size on the distribution curve should shift toward a greater diameter. As figures 10 to 13 show, however, this was not always the case. In some specimens the opposite was observed, with a significant increase in the smaller pores being observed after the freeze-thaw cycles. This may be because the hydration process, initially detained, re-commenced when the samples were water-saturated prior to the freeze-thaw cycles. This would mean that the initial water content in the concrete was insufficient to prevent self-desiccation and significant rehydration took place in some specimens.

The data on the penetration depth of water under pressure (Figure 14) showed that both concretes appeared to perform better when an air-entraining admixture was included in the mix. Both admixture-free concretes appeared to perform better when dry- than wet-cured. These findings also showed that all the concretes met the Spanish Code of Structural Concrete (EHE-08) (30) water-resistance requirements.

The chloride diffusion results for all the wet-cured concretes (Figure 15 and Figure 16) showed a higher chloride content in the outer few centimetres after than before the cycles. Consequently, the initial curing conditions had a substantial impact on chloride ion penetration during early exposure to a chloride environment. After longer exposure periods, the effect of initial curing on chloride ion penetration was insignificant (42).

The gas permeability constant before the freezing-thawing test (see Figure 17) shows values in accordance with the porosity assessed by MIP (see Figure 9), with the values of C30 being greater than the ones of C45. The observations explained above for MIP findings may be extended to the gas permeability results. Since the gas permeability test assesses the “connected porosity”, the lower values of the gas permeability constant for C45, in comparison with C30, are in agreement with a closer porosity induced by a higher content of cement. The gas permeability constant declined after the freezing-thawing test, in accordance with the hydration that continued during the freeze-thaw cycles in the moist chamber.

Figure 18 (a and b) shows the hydration level of the concrete specimens at 28, 90 and 365 days. It can be observed that at 365 days all specimens increase their hydration level. The hydration level reached by the C45 specimens is higher than the C30. This is because of the higher cement content 400 kg/m³, compared with the 380 kg/m³ of the C30.

As expected, it was also observed that at 28 days all the dry-cured specimens showed a lower hydration level than the moist cured specimens, with this difference being more notable for the C45 specimens. From these results it can be concluded that the moist-cured specimens experienced a higher hydration rate than the dry- cured specimens. The hydration rate of the dry-cured specimens was slower, resulting in more accessible pore space to the moist movement and improvements in the concrete freeze-thaw resistance. This coincides with the higher pore percentage in dry-cured specimens, especially in the case of the C30. This tendency was maintained also at 90 days, though with less pronounced differences. At 365 days, the duration that the specimens were maintained in the climatic chamber, all the specimens cured at extreme conditions reached higher hydration levels than the specimens that were wet during the first week.

This surprising result, under which concrete under dry-curing conditions improves its behaviour after freeze-thaw cycles, should be treated with caution. The accelerated test in a climatic chamber leads to completion of the hydration process of the bad-cured concrete explains the reason for the improvement of the concrete behaviour. Obviously, a well-cured concrete with an air-entrainment agent should be the best solution against the freeze-thaw cycle and scaling behaviour of concrete. In the practical case of in situ concrete, with a bad curing process, shrinkage cracking will appear and the microstructure will be more porous, with both being detrimental to the freezing-thawing behaviour.

Table 6 shows the measured values of water gel, portlandite content and degree of hydration, before and after cycles, at four distances from the surface (Figure 19) of the C30-00 specimens. In all cases, differencesin the water gel, portlandite content and degree of hydration values were found. Similar differences were found for the other concretes.

5. STATISTICAL ANALYSIS OF RESULTSTOP

Given the large number of variables involved, a rigorous statistical analysis is essential for the correct interpretation of the above results. Logical differences appeared to be detected in the values of some of the properties in the two classes of concrete. The existence or otherwise of entrained air proved to be a determinant in concrete behaviour when exposed to freeze-thaw cycles. Specimen curing was apparently unrelated to such behaviour, although it did affect durability in a number of ways.

Some concrete properties (strength, for instance) may improve after freeze-thaw cycles as a result of the increase in age. Less favourable values would be an indication of physical damage induced by the cycles. Other properties may be unaffected by age but impacted by the mechanical effect of the freezing and thawing. Hence, the possible dependence among variables and their variation before and after the freeze-thaw cycles must be analysed.

The effect of the freeze-thaw cycles was determined by statistically analysing the data interdependence with SPSS software, pursuant to the following:

a) Variables related to concrete characteristics: curing, wet (1) or dry (2); entrained air content (0) (no air entraining admixture) or 0.5 (0.5% of admixture by cement weight); and characteristic concrete strength (30 or 45 MPa). The result of the combination of variables is given in Table 7.

All the above variables are categorical, that is to say, each group accounts for 50% of the data for each variable. This must be taken into account in statistical analysis of the data.

b) Variables related to the mechanical damage induced by the freeze-thaw cycles: variation in compressive strength, modulus of elasticity, tensile strength and Poisson’s ratio.

In all cases strength may have risen due to the increasing age of the samples, while a decline would indicate the existence of mechanical damage.

c) Variables related to durability: variation in the depth of water penetration, porosity and the chloride diffusion coefficient.

d) Variables related to monitoring-mediated damage detection: variation in the relative dynamic modulus of elasticity (RDME) measured with ultrasound, as well as in weight and length.

The value used in the last three groups of variables is the ratio between the post- and pre-cycle values.

Spearman’s rank correlation coefficient was used to formulate the correlation matrix and analyse the possible correlation among variables, since the residues were non-standard. This non-parametric statistic can be used in such cases.

Table 8 shows the correlation matrix for all the found with this statistic, along with the levels of significance. A correlation was considered to be significant where the bilateral value was lower than 0.05. Where the value was lower than 0.01, the correlation was considered to be determinant (43, 44).

The following conclusions can be drawn from an analysis of the matrix:

Post-cycle variation in compressive strength, with respect to the categorical variables representing concrete characteristics and curing conditions are analysed below, using error bars. These bars show the distribution of all the variations in the strength values in each group of the categorical variable (for example, with or without an air-entraining admixture), along with the mean value and the 95% confidence interval.

A mean value greater than 1 indicates that strength increased after the freeze-thaw cycles, due to the greater age of the specimens, and that no damage was caused. The opposite denotes cycle-induced damage. A small confidence interval reinforces the conclusions, given that it means that the group analysed played a primary role in mediating the damage, while the other variables had scant if any effect.

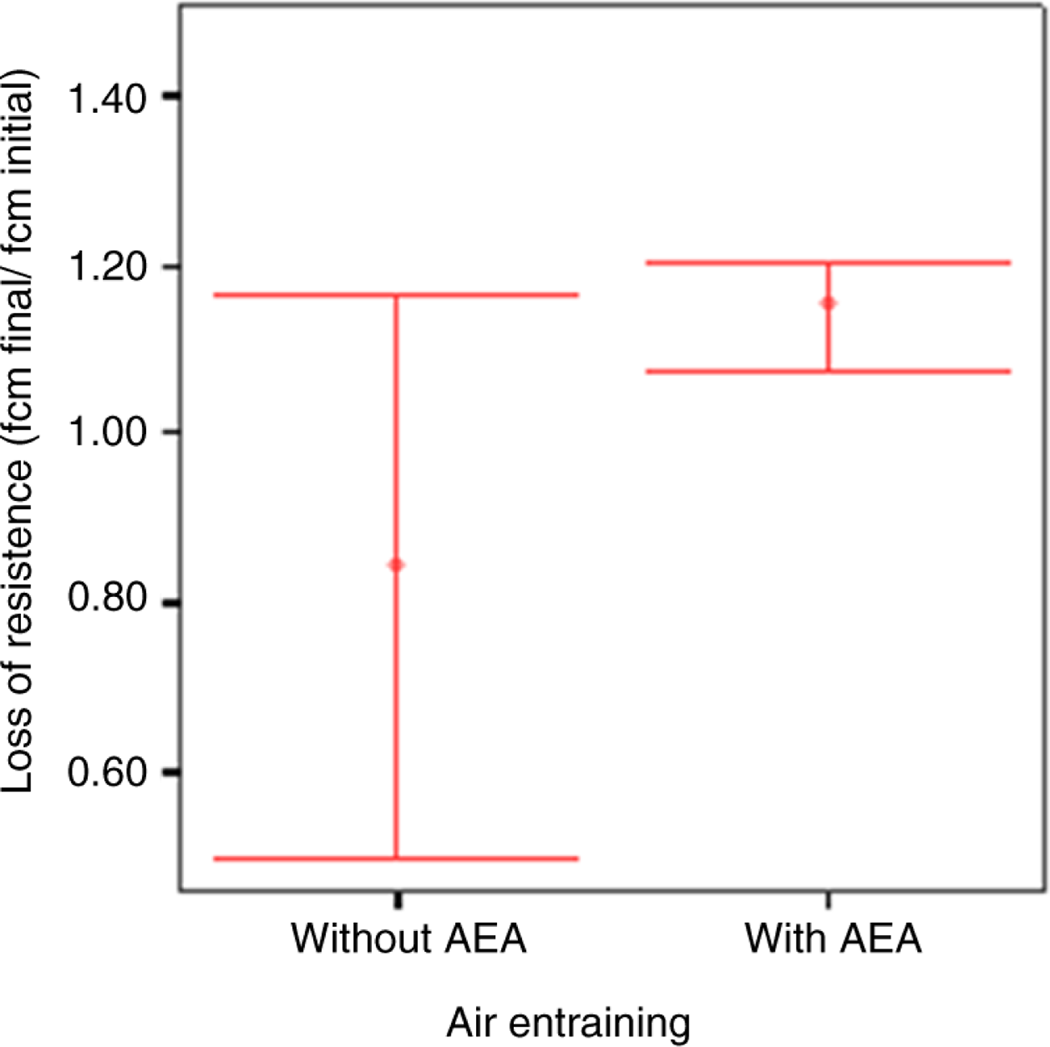

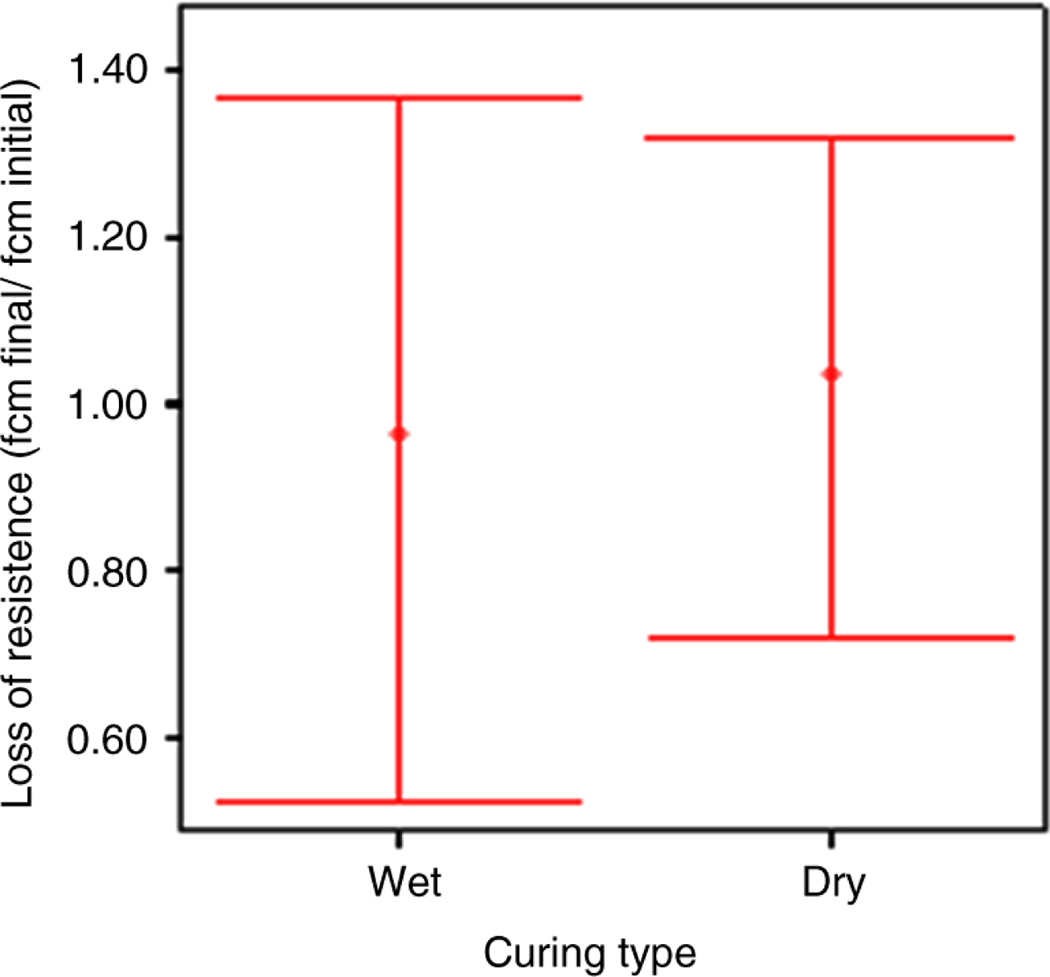

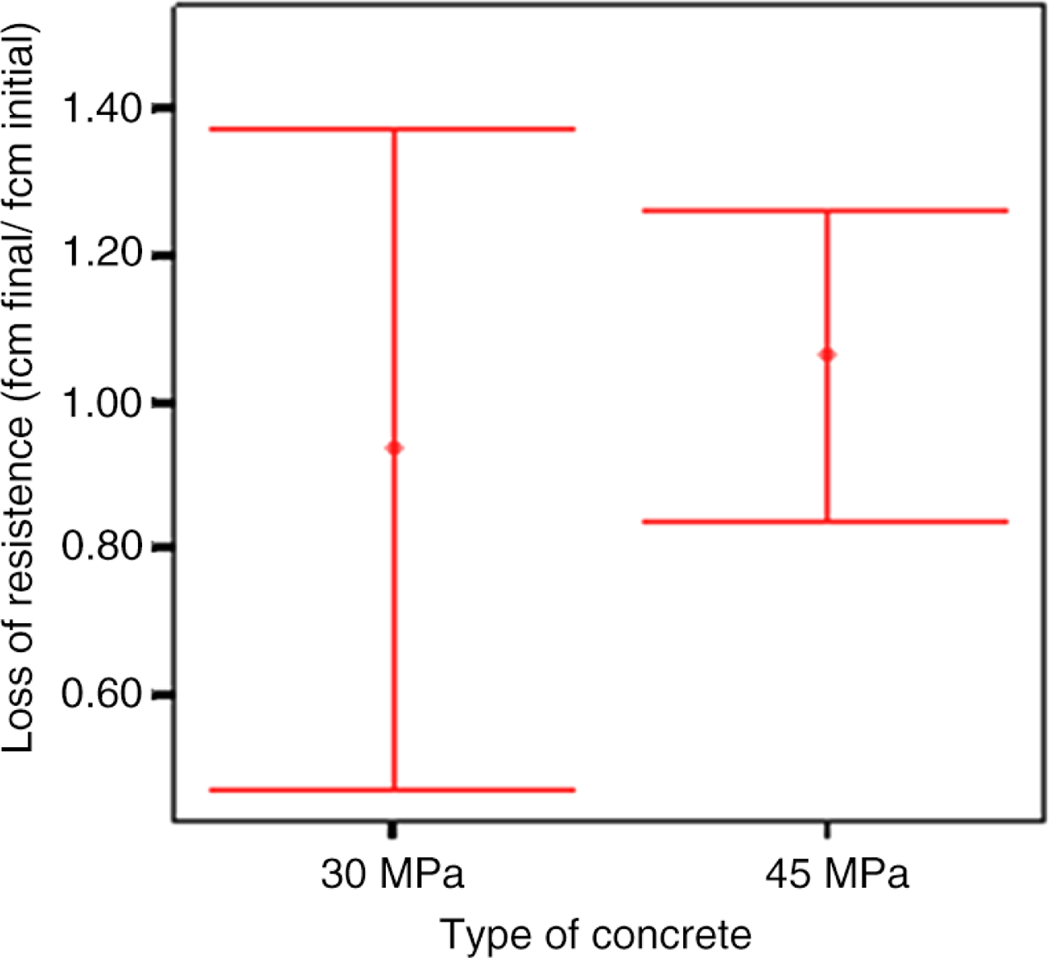

Figures 20 to 22 show strength loss versus the presence/absence of air-entraining admixture, wet- and dry-curing and 30/45 MPa characteristic strength. The implications of these graphs are discussed below.

6. CONCLUSIONSTOP

The specimens without an air-entraining agent experience generalised deterioration of the mechanical properties as a result of the freezing-thawing test. The specimens with an air-entraining agent are more resistant to the freeze-thaw cycles than those without the air-entraining agent. The statistical study confirmed the test results to the effect that the sole concrete property with a determining effect on its freeze-thaw resistance involved the presence or absence of an air-entraining admixture. The RDME evolution and durability factor seem to be a useful and precise technique to detect the freezing-thawing deterioration at early ages.

Concrete quality and curing conditions appeared to have a slight effect on concrete freezing-thawing performance, which was higher in dry- than wet-cured specimens and higher in 45- than in 30-MPa concrete. This was detected in the population study in both cases, for no significant correlation was observed between these variables and compressive strength loss.

Even though the statistical analysis concludes that the main affecting parameter to freeze-thaw resistance is the presence or absence of an air-entraining admixture, some additional conclusions may be obtained from the experimental results:

ACKNOWLEDGEMENTSTOP

The authors gratefully acknowledge the financial support for the research provided by the Spanish Ministerio de Economía y Competitividad under grant DPI-2011-24876.
