A proposal for the maximum use of recycled concrete sand in masonry mortar design

E. Fernández-Ledesma^a, J.R. Jiménez^a*, J. Ayuso^a, V. Corinaldesi^b, F.J. Iglesias-Godino^c

a. Construction Engineering Area. University of Córdoba (Córdoba, Spain)

b. Department of Materials and Environment Engineering and Physics, Università Politecnica delle Marche (Ancona, Italy)

c. Department of Chemical, Environmental, and Materials Engineering, University of Jaen (Jaen, Spain)

* jrjimenez@uco.es

1. INTRODUCTIONTOP

Concrete is one of the most widely used materials in the world for making architectural structures, foundations, walls, pavements, bridges, dams, reservoirs, pipes and precast elements. Conventional concrete is not considered an environmentally friendly material because of the use of non-renewable natural resources, such as sand and gravel, and its high embodied energy. In most cases, these concrete elements are demolished at the end of their useful life, generating what is known as construction and demolition waste (CDW). Using selective demolition techniques, very pure concrete waste with a high potential for recycling can be obtained (1). For this, all non-mineral dry building materials, such as plasterboards, wood, metals, plastics, should be removed and separated before the demolition of concrete elements. Indeed, in some cases, it may also be worthwhile to separate ceramic elements such as brick and tiles. This has led to the concept of deconstruction techniques (2).

Concrete waste is treated in recycling plants, where the reinforced steel is removed from the concrete rubble. Concrete rubble is crushed in an impact or jaw crusher to reduce the grain size to produce recycled concrete aggregate (RCA). Depending on its subsequent use, the RCA is screened to obtain different sizes. If the RCA is to be used in road pavement, it is screened to obtain 0/22 mm, 0/32 mm or 0/40 mm fractions (3, 4), but for its use in the manufacture of new concrete or mortar, the RCA is screened to obtain two different fractions: a coarse fraction (4/16 mm, 4/22 mm, or 4/32 mm) and a fine fraction (0/4 mm). The manufacture of concrete and mortars allows for greater added value to RCA.

The use of fine RCA (recycled concrete sand) has been investigated less than the coarse fraction in concrete manufacturing because of its inferior properties, such as a larger amount of cement paste, higher water absorption and more sulfur compounds (5). Evangelista and de Brito (6) concluded that replacement ratios of up to 30% of natural sand by recycled concrete sand does not jeopardize the mechanical properties of concrete. Kou and Poon (7) showed that it is possible to use fine RCA in concrete, although the use of fine RCA decreased the compressive strength and increased the drying shrinkage of the concrete. The use of superplasticizers improves the mechanical properties of concrete with fine RCA (8). However, the water absorption and non-steady-state chloride migration coefficient increase linearly with the replacement ratio of fine natural aggregate by fine RCA, whereas the carbonation resistance is reduced (9). For durability reasons, the use of fine RCA in structural concrete may pose serious difficulties. Several countries, including China, Germany, Hong Kong, Portugal, Spain and the U.K., forbid the use of fine RCA in the manufacturing of concrete (10). In a recent article, Evangelista and de Brito (11) concluded that, considering the particularities of fine RCA in the method used for the mix design and production, it is possible to replace natural sand with fine RCA to make structural concrete.

The use of fine RCA in the manufacture of non-structural concrete or masonry mortar, to be used in structures or building elements not affected by durability issues (e.g., partition walls in indoor environments), might constitute an alternative way to recycle this fraction as recycled concrete sand. However, scientific and technical studies on the use of fine RCA in the manufacture of mortar are scarce. Corinaldesi and Moriconi (12) and Corinaldesi (13) concluded that replacement levels up to 100% by weight of natural sand by recycled concrete sand decreases the flexural and compressive strength with respect to the reference mortar, although the masonry assemblages with recycled mortar displayed excellent mechanical behavior. Dapena et al. (14) reported that the compressive strength dropped linearly with the percentage of replacement of natural sand by recycled concrete sand. Vegas et al. (15) proposed that it is possible to replace, by weight, up to 25% of natural sand with recycled concrete sand without decreasing the mechanical strength, workability and shrinkage in masonry mortar. These authors replaced natural sand with recycled concrete sand by weight. Because of the lower density of the fine RCA, substituting materials by weight produces a larger volume of lower-quality mortar (16).

Martínez et al. (17) replaced by volume 100% of natural sand with different types of recycled sand and found that most of the natural aggregate mortars achieved higher mechanical properties than the recycled aggregate mortars. Very fine RCA, with particle sizes less than 0.150 mm, have also been used in mortars. Braga et al. (18) obtained very satisfactory results for most of the mortars prepared with different incorporation levels of fine concrete aggregates. Neno et al. (19) studied the effect of different replacement levels of river sand by recycled concrete sand on mortar properties, although these authors did not propose a maximum replacement ratio that meets all the performance requirements of mortars. Ledesma et al. (20) evaluated the short- and long-term properties of masonry mortar and concluded that a replacement ratio of up to 40% is a viable alternative for masonry mortar production. Cuenca-Moyano et al. (21) studied the influence of pre-soaked recycled fine aggregates from CDW on the properties of masonry concrete and concluded that this method may be more effective to compensate for the higher water absorption of recycled aggregates.

The aim of this work was to establish the maximum feasible replacement level of natural sand by recycled concrete sand in the manufacturing of masonry mortars. For this study, the performances of fresh and hardened mortar with replacement levels of up to 100% by volume were tested. The findings of this article support the use of recycled concrete sand, as it minimizes the consumption of non-renewable natural resources such as natural sand from rivers, reduces the energy consumption and CO₂ emissions that occur when rock and gravel are crushed to produce natural sand and promotes the recycling of construction and demolition waste.

2. MATERIALS AND EXPERIMENTAL PROCEDURETOP

2.1. Material characterizationTOP

Two different aggregates were used in this study: natural siliceous river sand (NA) as a reference and fine RCA from a recycling plant located in northern Córdoba, Spain. The recycling plant was equipped with a mobile crushing unit with a magnetic ferrous metal separator and a mobile vibrating screen with two sieves that could produce three recycled aggregate fractions: 0/8 mm, 8/40 mm and >40 mm. The fine RCA was collected from the 0/8 mm stockpile, and this sample was sieved in the laboratory to remove particles larger than 4 mm to obtain the same maximum particle size as the NA. The primary constituent of the RCA, determined in accordance with standard UNE-EN 933-11:2009, was concrete (98%). Only a few impurities, such as asphalt (1.7%) and ceramics (0.4%), were found. Thus, the recycled aggregate used can be considered very pure.

Both sands met the specifications of standard UNE-EN 13139:2002 for mortar aggregates. Table 1 shows the size distribution determined in accordance with European standard UNE-EN 933-1:2006 and Table 2 shows the materials’ physico-mechanical and chemical properties. The fine RCA had approximately double the fine content (<0.063 mm), similar sand equivalents, a higher water absorption, lower dry density and higher friability coefficient than the NA. In the chemical characterization, the fine RCA did not exceed the 1% sulfur and soluble salt ceilings set by standard UNE-EN 13139:2002 for total sulfur compounds (1%). Organic matter or other substances that might have altered the mortar setting time were not detected. The water-soluble chlorides and the loss on ignition were higher than for the NA. Both materials were classified as non-reactive according to UNE 146507-1:1999. All results were in agreement with the properties described in the literature for RA from CDW (17, 22).

The aggregates were also analyzed by powder X-ray diffraction patterns (PXRD) using a Siemens D-5000 instrument with CuKα radiation. The equipment used is as described by Jiménez et al. (16); the main crystalline phase was quartz for both the NA and RCA (Table 3), whereas the other minor phases were calcite, dolomite, illite, albite and sanidine. These results depend on the mineralogical composition of the virgin aggregates used in the manufacture of concrete and reflect the geological environs of the plant location (23).

The environmental performance of the fine aggregates was assessed using the UNE-EN 12457-3:2003 leaching test. This standard is a two-step batch leaching test in which 175 g of dry samples of material at liquid to solid ratios (L/S) of 2 and 10 l/kg are used. The quantities of several major and trace elements were determined in the laboratory using inductively coupled plasma mass spectrometry (ICP-MS). Table 4 shows the leached concentrations (mg/kg) for L/S=2 and L/S=10 and the limits established in Annex 2 of the 2003/33/CE Council Decision for landfill classification. Both materials were classified as inert. As shown in this table, the amount of Cr and SO₄⁻ leachate was higher in the fine RCA than NA. These elements come from the cement composition and in some cases exceed the limit of inert materials (16).

A cement type CEM-II/BL 32.5N, according to UNE-EN 197-1:2011, was used to make the mortar. A commercial admixture (NEOPLAST) was mixed directly into the water at a dosage of 0.1 cm³. This admixture is a conventional plasticizer for mortars used to improve the workability and reduce the amount of mixing water. Pereira et al. (8) and Cartuxo et al. (24) demonstrated that the use of admixtures in concrete made with fine RCA exhibited better mechanical and rheological performance than the reference mixes without admixtures.

2.2. Mortar batchingTOP

To design the mortar mixture proportions, the following criteria were established.

a)	Maintaining the original grading curves below 4 mm for NA and fine RCA.
b)	Maintaining a volumetric proportion of cement-to-aggregate of 1:5 in all mixes.
c)	A gradual increase in the incorporation of fine RCA: 0%, 25%, 50%, 75% and 100%. Five mortars were tested: MA-100/0, MF-75/25, MG-50/50, MH-25/75 and MI-0/100.
d)	A replacement by volume of the NA by RCA. The dry mass of each component was calculated using the formulas [1] to [4]. Table 5 shows the dry mass of 1600 cm3 of components. Due to RCA’s lower density, the dry mass of RCA was lower than that of NA for the same volume of mixed material.
e)	No pre-saturation of the fine RCA. Based on the study of Ferreira et al. (25), the aggregates were not previously pre-saturated. RCA were used with their natural moisture (2.7%).
f)	Use of a fixed amount of admixture in all mixes. The admixture was added directly into the water at a dosage of 0.1 cm3.

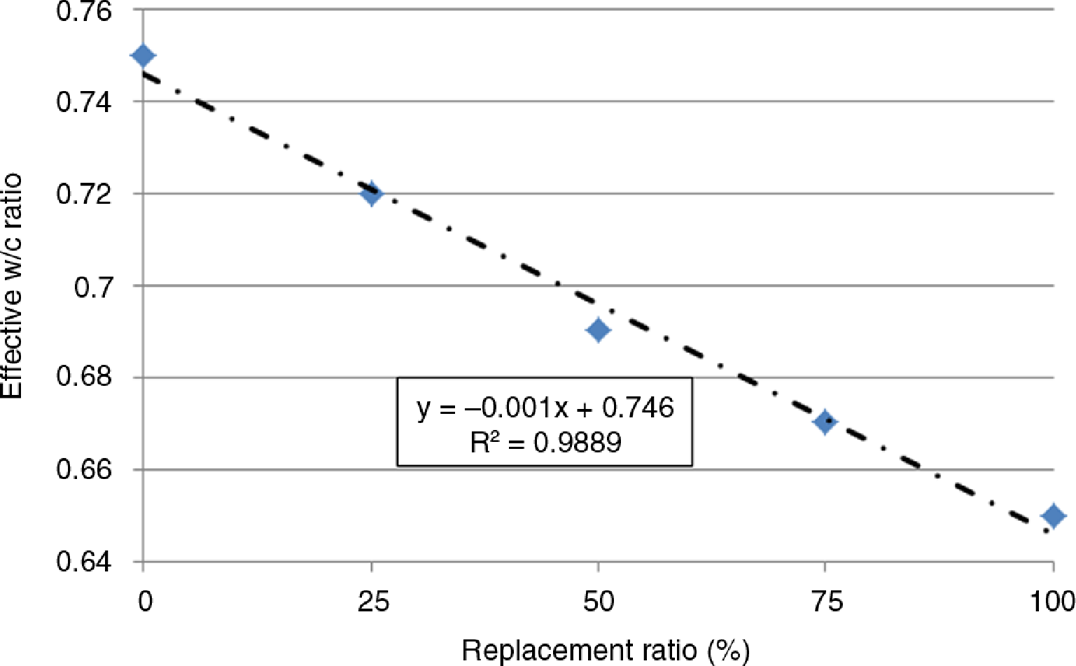

g)	The water content was set experimentally to achieve a consistency of 175±10 mm (UNE-EN 1015-3:1999). As the replacement ratio increased, it was necessary to increase the amount of water because of the higher water absorption of fine RCA. The total water/cement ratio (w/c) ranged from 0.78 in the MA-100/0 to 0.97 in the MI-0/100 mortar, whereas the effective w/c ratio obtained by subtracting the difference in water absorbed by the NA and RCA over 24 h ranged from 0.75 in MA-100/0 to 0.65 in MI-0/100. The decrease in the (w/c)ef ratio with the incorporation of the fine RCA is explained by the recycled aggregates not absorbing their potential capacity (24 h) during the mixing period (3, 4 min). Pereira et al. (8, 26) showed the fine RCA’s water absorption over time and found that after 10 min the fine RCA had absorbed 50% of its potential capacity.

2.3. Mixing procedureTOP

The mortars were mixed in a standard mixer (UNE-EN 196-1:1996) according to the procedure described by Jiménez et al. (16).

2.4. TestsTOP

Three properties were tested to evaluate the fresh mortar: density, air content and workability. The hardened mortar was characterized by studying seven properties: dry bulk density, flexural strength, compressive strength, dimensional instability (shrinkage), adhesive strength, water absorption due to capillary action and durability. Four different mixes of each mortar type were made. Table 6 shows the testing standards used and the climatic conditions of the three climatic chambers used in these tests. The test methods are described in their correspondent standard, except for the durability test.

According to Vegas et al. (15), the durability test was focused on determining resistance to salt crystallization (UNE-EN 12370:1999). This test method, described in the standard for natural stone, was applied to 40×40×160-mm prismatic specimens. After drying to constant mass, the specimens were immersed in a sodium sulfate solution and then dried in an oven and left to cool to laboratory temperature. This cycle was repeated 15 times, and the percentage change in mass was determined.

2.5. Statistical analysisTOP

To determine whether the replacement ratio had a statistically significant effect on the mortar’s properties, a one-way ANOVA was conducted. If the p-value of the F-test is greater than 0.05, there is no statistically significant difference between the mean values from one level of replacement to another at the 95.0% confidence level. If the p-value of the F-test is less than 0.05, there is a significant difference between the mean values from one level of replacement to another at the 95.0% confidence level. A multiple range test was also conducted to determine which means were significantly different from the others. Homogeneous groups were identified using columns of Xs. For replacement ratios whose mean values had statistically significant differences, a trend line was adjusted with the aim of studying the effect of the incorporation of fine RCA on the ‘measured property’.

3. RESULTS AND DISCUSSIONTOP

3.1. Bulk density of fresh mortarTOP

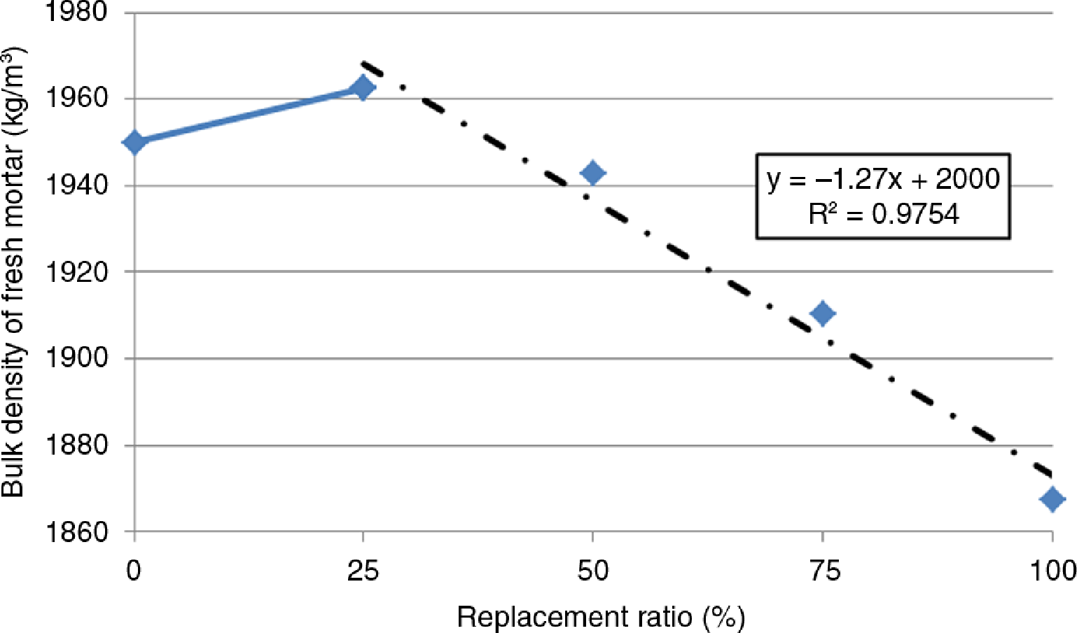

The p-value of the F-test was less than 0.05 (p-value=0.000); thus, the bulk density of fresh mortar was affected by the incorporation of fine RCA. From a statistical standpoint, three homogeneous groups were identified in the multiple range tests. Table 7 shows that there were no statistically significant differences between the mean values of mixes with replacement ratios below 50%. Analyzing the evolution of these mean values (Figure 1), the fresh bulk density slightly increased with a replacement ratio of 25% and decreased linearly with higher replacement levels.

These results can be explained three different ways. The higher amount of very fine particles (<0.063 mm) of RCA that at low rates of replacement has a filler effect on the matrix of mortar consequently produces a higher density. The higher uniformity coefficient of RCA gives greater compactness to the mix (27, 28). The lower particle density of RCA, at replacement rates above 25%, has a greater effect than the previous two.

Neno et al. (19) showed that fresh bulk density decreased linearly as the content of RCA increased. These authors did not observe a higher fresh bulk density in mixes with low replacement rates of NA by fine RCA. This can be explained because these authors kept the particle size distribution constant in all mixes. The maximum loss observed by Neno et al. (19) was 6.8%, whereas in this study the maximum loss was 4.2%. The use of fine RCA caused less of a decrease than the fine ceramic aggregates. Jiménez et al. (16) demonstrated that the use of fine RA from ceramic waste caused significant differences from the reference mortar, with replacement rates above 5%.

This is not a limiting property because the European standards do not set a minimum or maximum value for masonry mortar. A maximum replacement ratio of 100% could be suggested for masonry mortar production to ensure proper performance in terms of the bulk density of fresh mortar.

3.2. Entrained air contentTOP

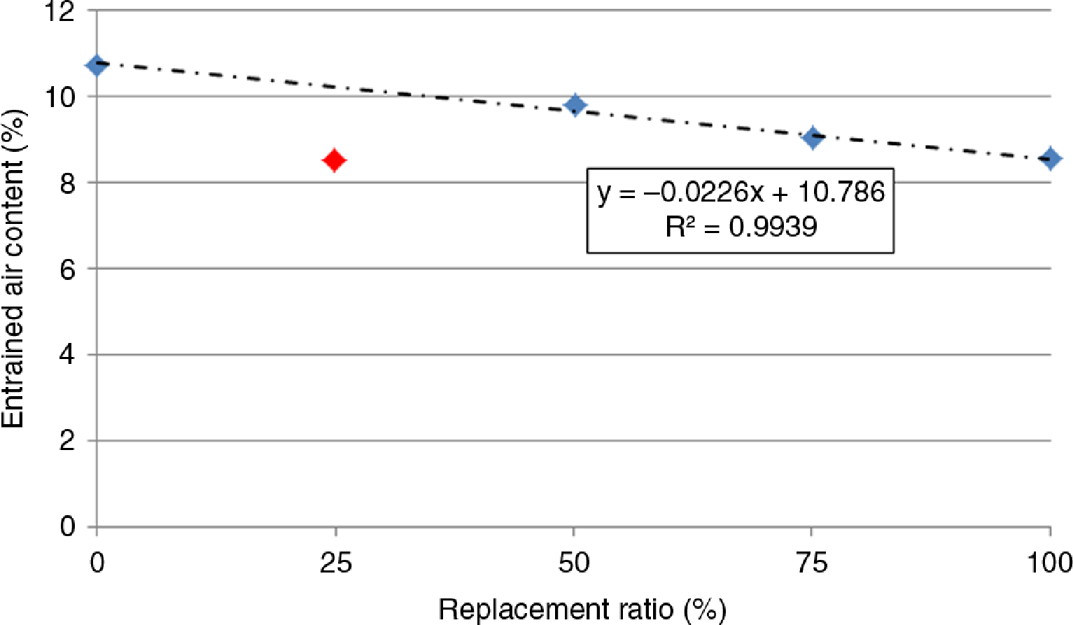

The p-value of the F-test was greater than 0.05 (p-value=0.061); thus, the replacement ratio did not have a significant effect on this property. Due to the high dispersion of the data, the multiple-range test showed only one homogeneous group (Table 8). The replacement ratio of 25% that showed the highest fresh bulk density also showed the lowest entrained air content, which is a consistent result. From a statistical standpoint, this is not a limiting property and a maximum replacement ratio of 100% can be proposed for masonry mortar production to ensure proper performance in terms of entrained air content. Although the statistical results, the entrained air content mean values, decreased linearly as the fine RCA content increased (Figure 2).

Ledesma et al. (20) and Vegas et al. (15) found no significant differences in the entrained air values of mortars with a 25% and 40% replacement of natural sand by fine RCA, respectively. Cuenca-Moyano et al. (21) found that the use of pre-soaked recycled fine aggregate reduced the air content slightly. These authors also observed a clear influence of the w/c ratio on the air content of masonry mortar: the air content increased with the total w/c ratio. In contrast, the air content decreased with bulk and dry bulk density. Most researchers have not included this test in their work.

3.3. WorkabilityTOP

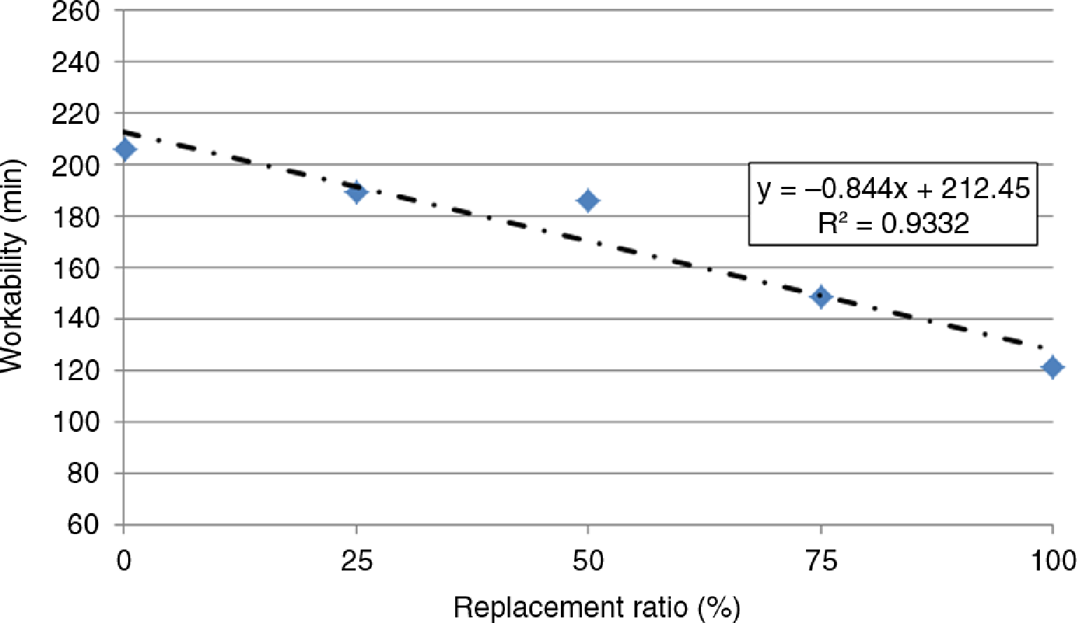

The p-value of the F-test was less than 0.05 (p-value=0.000); thus, the ‘replacement ratio’ factor had a significant effect on this property. Four homogeneous groups were identified in the multiple range tests. Table 9 shows that there were no statistically significant differences between the mean values of mixes with replacement ratios below 25%. Figure 3 shows that the mean workability values decreased linearly as the content of fine RCA increased. This phenomenon occurs because RCA’s absorption capacity of water was higher than that of NA, and the amount of water required to saturate the aggregates was not added during the mixing process. Figure 4 shows how the effective water/cement ratio decreased linearly as the replacement ratio increased.

Workability is a key aspect for the mason to be able to produce quality masonry work. However, few authors have studied the effect of the incorporation of fine RCA on this property. Ledesma et al. (20) found a maximum loss on the workability of 57.5%, using a replacement ratio of fine RCA of 40%. In a previous work, Jiménez et al. (16) found a maximum loss of 55% with the same replacement ratio, but in this case using ceramic masonry aggregates. The maximum loss found in this study was 41.3% with a replacement ratio of 100%. The best results of this study are related to the best control of the environmental conditions in chamber-2 (Table 6), under which the test was performed. Other authors studied water retentivity (prEN 1015-8:1998), a property related to workability. Vegas et al. (15) showed that replacement ratios below 25% of natural sand by fine RCA did not affect the water retentivity of fresh mortar, and Martínez et al. (17) found minimum differences in mortars manufactured with a total replacement level of low-quality natural sand with different types of recycled aggregates from CDW.

One alternative to improve the workability of fresh mortar is pre-saturating the fine RCA (29, 30). The authors believe that pre-saturating the fine RCA is not a viable alternative because fine RCA retain considerable water on their surfaces and pores when wet, increasing the effective water/cement ratio. Cuenca-Moyano et al. (21) proposed pre-soaking the fine recycled aggregates, but these authors did not study this property. Moreover, there is neither a good technique nor proper facilities to manipulate the wet fine RCA for use in mortar production. If fine RCA is used with its natural moisture, the use of chemical admixtures can be used to improve the workability. Pereira et al. (26) demonstrated that the efficiency of superplasticizers in terms of workability falls as the fine RCA incorporation ratio increases in concrete manufacturing.

From a statistical standpoint, a maximum replacement ratio of 25% can be proposed for masonry mortar production to ensure proper performance in terms of workability.

3.4. Dry bulk density of 28-day hardened mortarTOP

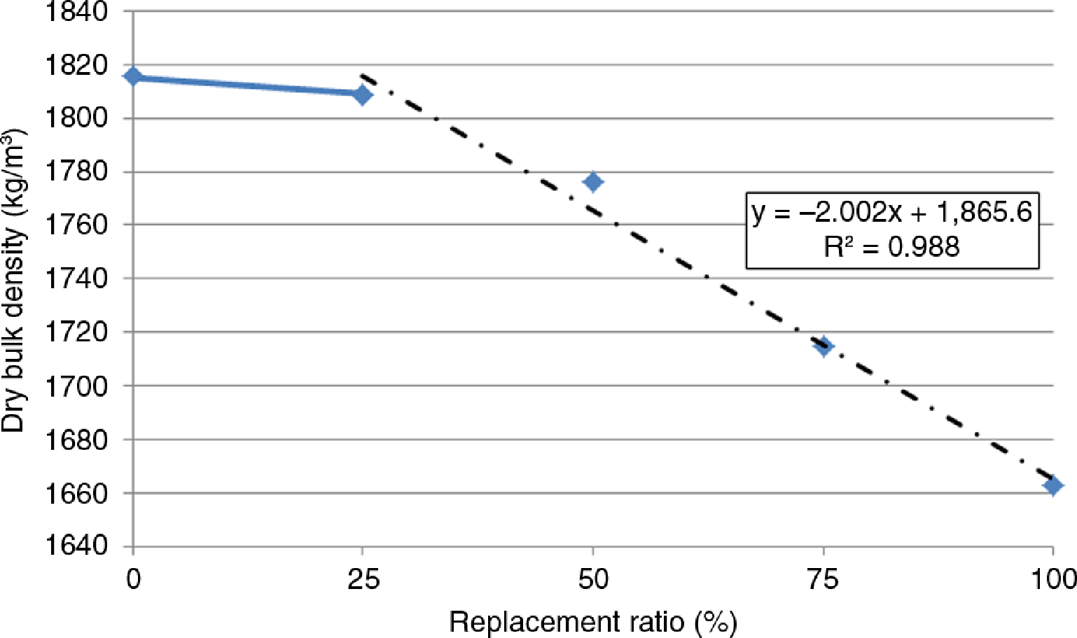

The p-value of the F-test was less than 0.05 (p-value=0.000); thus, the ‘replacement ratio’ factor had a significant effect on this property. Four homogeneous groups were identified in the multiple range tests. Table 10 shows that there were no statistically significant differences between the mean values of mixes with replacement ratios below 25%. Figure 5 shows that the mean dry bulk density values again decreased linearly after the 25% replacement ratio. The reason for the decrease in the dry bulk density is the same as that for the decrease of the fresh bulk density.

These results are consistent with those reported in the literature. Dapena et al. (14) and Vegas et al. (15) found no significant differences with replacement ratios below 20% and 25%, respectively. Martínez et al. (17) found lower densities in mortars manufactured with RA from CDW. Neno et al. (19) showed a similar trend, although in that case the authors found a small increase with a 20% replacement ratio. The maximum losses observed by Neno et al. (19) and in this study were similar (9.0% vs. 8.7%). Ledesma et al. (20) found slight increases with replacement ratios of up to 10% and decreases with replacement ratios of up to 20%.

For the same reason given for the fresh bulk density, a maximum replacement ratio of 100% can be proposed for masonry mortar production.

3.5. Compressive strength of hardened mortarTOP

From a statistical standpoint, a one-way ANOVA test was conducted at 7, 28, 90 and 180 days of curing. In all cases, the p-value of the F-test was less than 0.05 (p-value=0.000); thus, the ‘replacement ratio’ factor had a significant effect on the compressive strength. Table 11 shows the homogeneous groups identified in the multiple-range test. As shown, at early ages more homogeneous groups were identified than at older ages. For all curing times there were no statistically significant differences between the compressive strength mean values in mixes with replacement ratios below 50%. At 180 days, replacement ratios up to 75% did not show statistically significant differences with respect to the reference mortar.

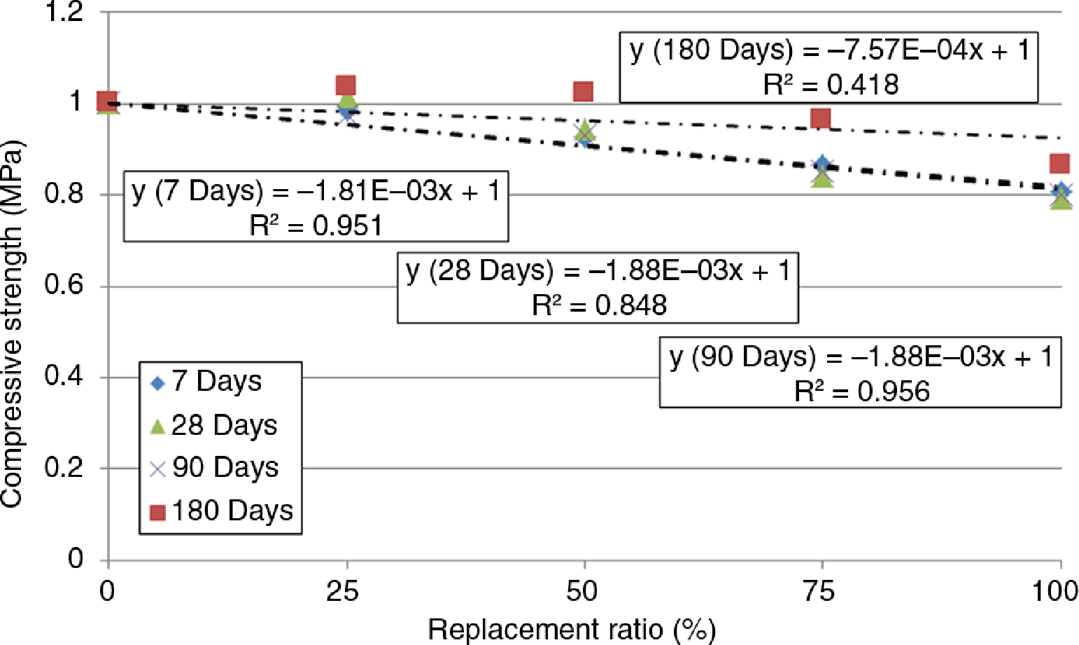

The five mortars displayed a similar pattern in compressive strength. The compressive strength for mortars with replacement ratios up to 50% exceeds the value of 10 MPa required for mortar type M-10 (UNE-EN 998-2:2012) at 28 days of age, whereas the mortars with replacement ratios above 50% did not reach this value. The mortar with fine RCA showed a greater increase in compressive strength mean values over time. For example, a 10.7% increase in compressive strength was recorded between the 7- and 180-day reference mortar (MA-100/0), whereas the rise recorded for mortar MG-50/50 was 24.3% and for mortar MI-0/100 the rise was 20.2%. This demonstrates that the effect of the fine RCA incorporation is greater at early ages than later ages, which is consistent with the statically homogeneous groups identified in Table 11. In relative terms, the 180-day compressive strength was less affected by the incorporation of fine RCA because the slope of the linear trend was slightly lower than for the 7-day material (Figure 6). These results can be explained by the higher specific surface of the fine RCA and the amount of non-hydrated cement that completes its hydraulic reaction when in contact with water.

Neno et al. (19) found that the incorporation of 100% fine RCA resulted in a compressive strength improvement of 48.3% at 28 days of age, whereas in this study the total replacement of NA by fine RCA resulted in a decrease of 20.9%. Ledesma et al. (20) described in detail the reasons for these differences. The most significant reason is that Neno et al. (19) used fine RCA from selected concrete blocks (class 30/37) manufactured in the laboratory and crushed at early ages; therefore, the amount of non-hydrated cement was probably higher than in the recycled aggregates used in this study.

Ledesma et al. (20) demonstrated that replacement ratios of NA by fine RCA up to 40% did not affect the mechanical properties of M-5 masonry mortar. The best results obtained by Ledesma et al. (20) can be attributable to the cement CEM-IV, which used 29% fly ash. The combined effect of coal fly ash and RCA improves the properties of concrete (31). These results are explained by the pozzolanic reaction between coal fly ash and Ca(OH)₂ of the RCA. Kou and Poon (32) found improvements in the long-term properties of concrete made with fly ash and RCA. These authors proposed that a combination of 50% of RCA and 25% replacement ratio of Portland cement by coal fly ash is an optimal solution for recycled concrete production.

Dapena et al. (14) and Vegas et al. (15) concluded that the mechanical strength decreases significantly in mortars when natural sand is replaced by fine RCA. These differences can be explained by the different proportion method employed. This study replaced aggregates by volume, whereas the previous authors replaced NA with RCA by weight. Because of the lower density of the RCA, substituting materials by weight produces a larger volume of lower-quality mortar. Martínez et al. (17) found that the use of fine recycled aggregates, independent of the composition of the CDW origin, improved the compressive strength of the mortar manufactured with the most accessible natural sand in Havana because of the low quality of this natural aggregate.

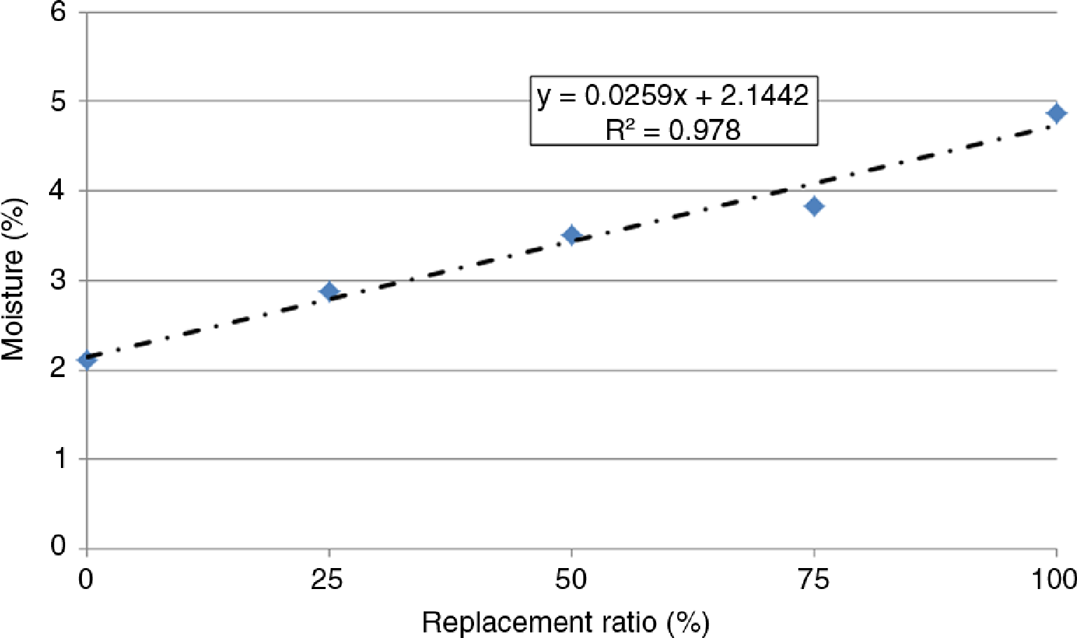

The moisture of the specimen was measured after fracture. Although all specimens were cured under the same conditions (HR=65±5% and T^a=20±2 °C), mixes with more fine RCA incorporation had a higher moisture content (Figure 7). This can be explained by the higher water absorption capacity of the recycled aggregates, which may limit their use in outdoor environments.

Based on the previous results, a maximum replacement ratio of 50% can be proposed for M-10 masonry mortar production to ensure a proper performance in terms of compressive strength.

3.6. Flexural strength of hardened mortarTOP

Regarding the flexural strength, in all cases (7, 28, 90 and 180 days) the p-value of the F-test was less than 0.05 (p-value=0.000); thus, the ‘replacement ratio’ factor had a significant effect on the flexural strength. The reference mortar displayed greater flexural strength values for all curing times. Between two to four homogeneous groups were identified in the multiple range test (Table 12): four for 7 days and 28 days of curing time, two for 90 days and three for 180 days. All mixes had a similar pattern in the flexural strength. At 7 days, the use of 100% fine RCA decreased the flexural strength 36%, with respect to the reference mortar, whereas at 180 days the decrease was 28%. From 7 to 180 days the flexural strength increased 42% in the reference mortar, whereas in mortar with 100% fine RCA the increase was 60%.

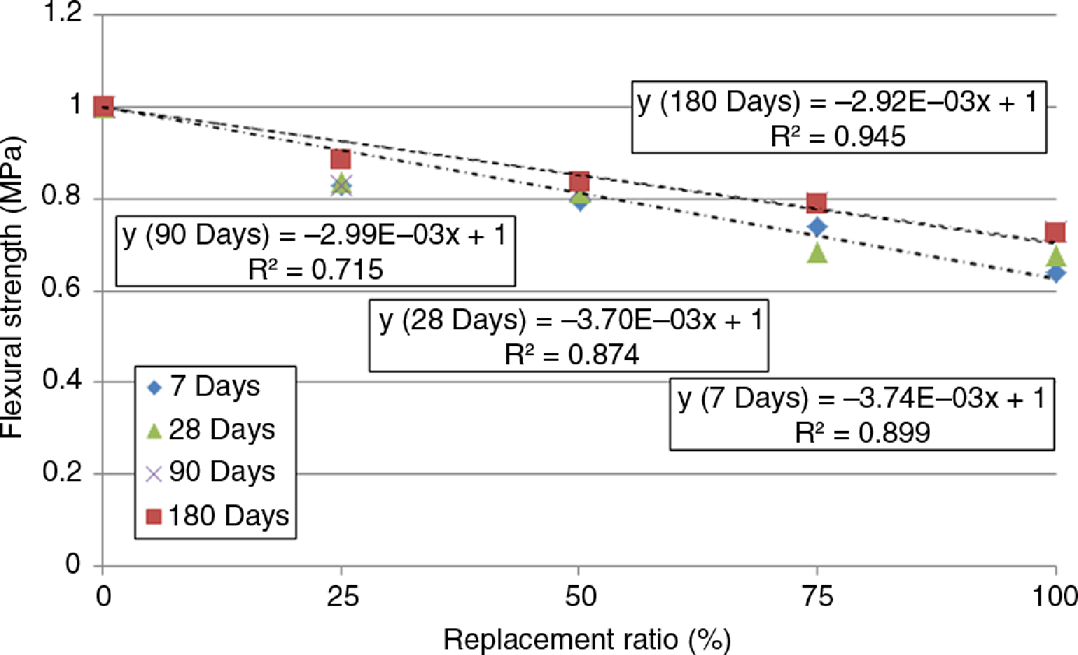

Flexural strength decreased linearly with a rising replacement ratio (Figure 8). As observed for compressive strength, flexural strength was more affected by the incorporation of fine RCA at early ages. Comparing the slopes of the trend lines in Figure 6 and Figure 8, we noted that the compressive strength was more affected than the flexural strength with the use of fine RCA.

These results are in agreement with what happens in concrete made with coarse RCA, where flexural strength exhibits lower reduction than compressive strength (33). Neno et al. (19) showed a similar pattern in flexure and compression.

3.7. Dimensional instability (drying shrinkage)TOP

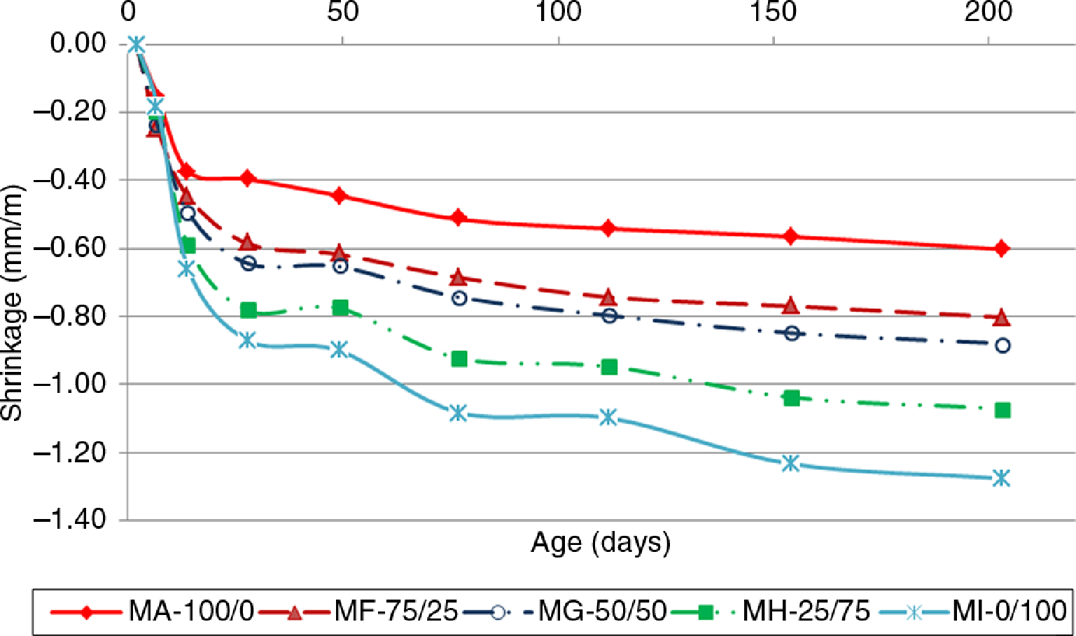

Linear shrinkage (mm/m) was higher in the mortars manufactured with fine RCA than the reference mortar (Figure 9). A one-way ANOVA test was conducted at 28, 112 and 203 days of curing. In all cases, the p-value of the F-test was less than 0.05 (p-value=0.000); thus, the ‘replacement ratio’ factor had a significant effect on the dimensional instability. Table 13 shows the homogeneous groups identified in the multiple-range test. Figure 10 shows the percentage of weight loss of the mortar specimens during the shrinkage test. The weight loss is attributable to water loss. Mortars made with fine RCA had greater weight loss because these mortars needed more water for mixing. After 60 days, slight increases in weight were measured, which may be due to carbonation reactions (34).

These results are consistent with the literature. Vegas et al. (15), Braga et al. (18) and Neno et al. (19) indicated that shrinkage increased with the incorporation of fine RCA. The high total water/cement ratio in the mixture is the first cause of the increase in the shrinkage of recycled mortars (17). In contrast, Ledesma et al. (20) concluded that replacement ratios up to 40% did not affect the shrinkage mean values after one year of measurements. This can be attributed to the type of cement and dosage method.

Based on the shrinkage values, Ledesma et al. (35) proposed two criteria to set the maximum incorporation ratio: the shrinkage value must not exceed 1 mm/m and the difference with respect to the reference mortar must not exceed 0.5 mm/m. A replacement rate of 50% meets both criteria; thus, a maximum replacement ratio of 50% could be suggested for masonry mortar production to ensure proper performance in terms of drying shrinkage.

Tests to measure the susceptibility to cracking and evaluations in real conditions of the development of cracks are necessary.

3.8. Adhesive strengthTOP

The p-value of the F-test was less than 0.05 (p-value=0.000); thus, the ‘replacement ratio’ factor had a significant effect on this property. The multiple-range test showed two homogeneous groups (Table 14): the reference mortar and the recycled mortars. The reference mortar displayed an unreasonably high value compared to the recycled mortars. This can be attributed to the greater amount of free water derived from the higher effective water/cement ratio. However, this would not explain all the results of the recycled mortars; therefore, the high adhesive strength value of the reference mortar may be considered spurious data.

Corinaldesi et al. (36) and Corinaldesi and Moriconi (12) found that RA mortars displayed higher mortar-brick bond strengths than the reference mortar. Braga et al. (18) also achieved significant improvement in the mortar’s adherence capacity with the incorporation of 15% concrete fines. Ledesma et al. (20) found that mortars made with 10% and 20% RCA fines exhibited the highest adhesive strength values, although all of the mortars tested exhibited values between 0.38 and 0.58 MPa. Other authors did not include this parameter in their studies (14, 15, 21).

3.9. Capillary absorptionTOP

The p-value of the F-test was less than 0.05 (p-value=0.000); thus, the ‘replacement ratio’ factor had a significant effect on this property. The multiple-range test showed that no statistically significant differences were observed for replacement ratios below 75% (Table 15), although the mean values increased slightly with the use of fine RCA because of the higher water absorption of recycled concrete sand.

These results are in agreement with those obtained by Martínez et al. (17) and Silva et al. (37), who demonstrated that mortars manufactured with recycled aggregates had a higher capillary absorption capacity than reference mortars. Neno et al. (19) found similar capillarity absorption for replacement ratios below 50%. Ledesma et al. (20) achieved the lowest values with replacement ratios of 5% and 10%. Other authors did not include this parameter in their studies (14, 15, 21).

A maximum replacement ratio of 75% could be suggested for masonry mortar production to ensure proper performance in terms of capillary absorption.

3.10. DurabilityTOP

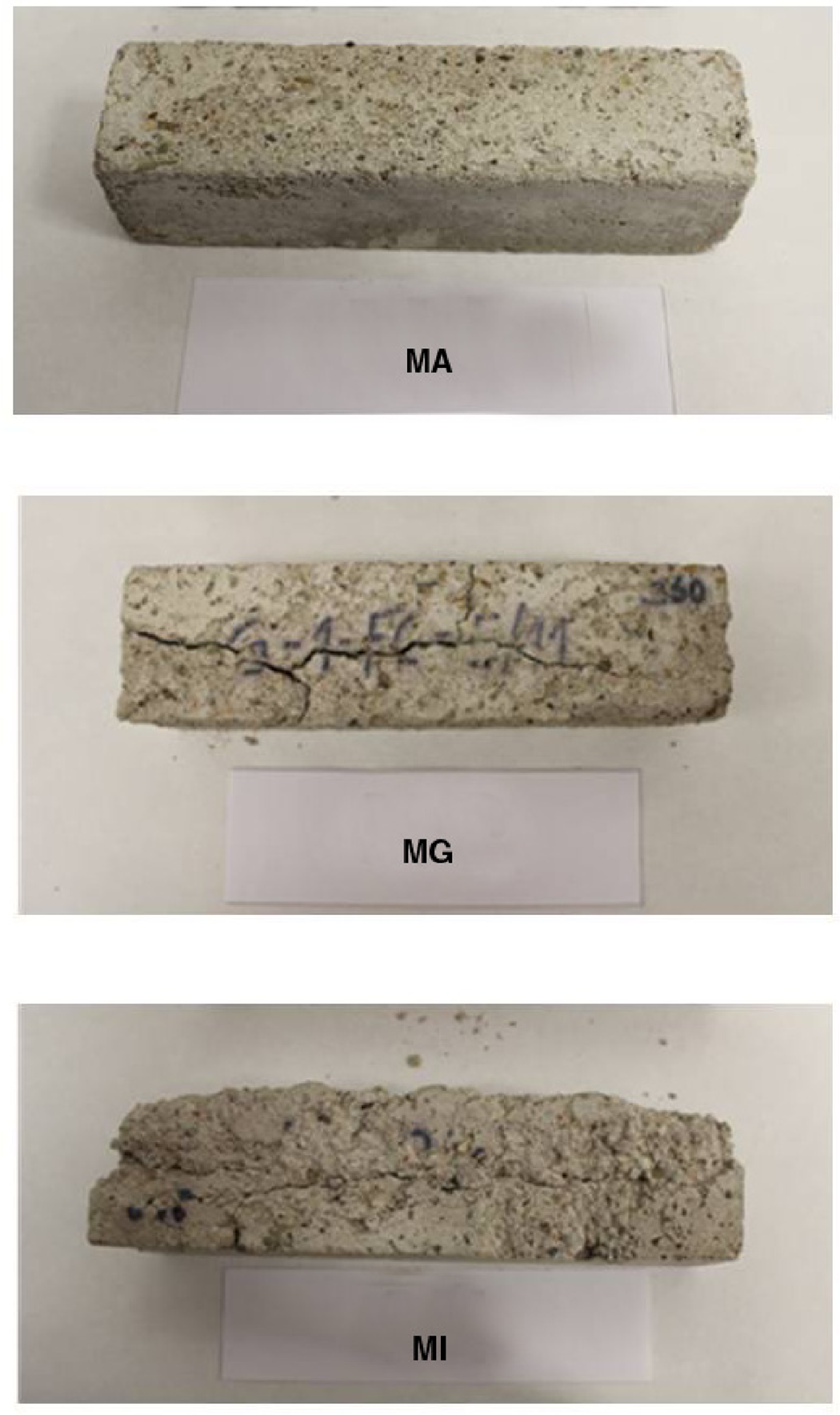

Mortars MG-50/50 and MI-0/100, manufactured with 50% and 100% replacement ratios, respectively, displayed a higher percent of weight loss after 15 cycles in sodium sulfate dissolution than the reference mortar, according to UNE-EN 12370:1999 (Table 16). These results agree with those obtained by Vegas et al. (15) who demonstrated a weight loss of 2.6% and 5.5% in the reference mortar and mortar with a 25% replacement ratio, respectively. Accordingly, mortars prepared with fine RCA appear to be less resistant to salt crystallization. Having a more permeable mortar, which is highlighted by increased water absorption by capillarity, sulfates can more easily penetrate into the mortar structure. These sulfates react with portlandite forming secondary gypsum in the presence of the tricalcium aluminate (C3A), giving rise to the formation of expansive ettringite (38, 39). Dimensional changes at the surface of the concrete generate cracks, which act as capillaries for the transport of water and sulfates deeper into the mortar. This process continues as the mortars disintegrate (40). This negative property can limit the use of mortar with recycled aggregate in outdoor environments that are at risk of frost, but this property does not limit their use in indoor environments. Figure 11 shows the appearance of prism specimens after 15 cycles in sodium sulfate dissolution.

4. CONCLUSIONSTOP

This study proposes a maximum feasible use of recycled concrete sand in the manufacturing of type M-10 masonry mortars. Five mortars were tested with different replacement ratios of 0%, 25%, 50%, 75% and 100% by volume. The most innovative aspects of this work were the following: a) maintaining the original grading curves of the recycled concrete sand; b) using a volumetric dosage method; c) determining a dosage to obtain a mortar type M-10 using a commercial cement and a commercial admixture in the manufacture of mortars, thereby ensuring a knowledge transfer to industry; and d) not pre-saturating the recycled aggregates. The primary conclusions can be drawn as follows:

The bulk density of fresh mortar was not affected with replacement ratios below 50%, whereas higher replacement ratios caused significant decreases. The use of fine RCA did not have a significant effect on the entrained air, whereas the mean workability values decreased with replacement ratios above 25%.

The dry bulk density of hardened mortar decreased with replacement ratios above 25%. The compressive and flexural strength displayed similar behaviors over time. Replacement ratios of up to 50% did not significantly affect the mean compressive strength values for any of the curing times, whereas replacement ratios of 100% produced significant decreases. Compressive strength displayed a higher reduction compared with flexural strength. For the same environmental conditions, mortars with fine RCA had higher moisture content than the reference mortar.

The shrinkage of hardened mortar displayed a similar trend over time. Mortars made with fine RCA displayed higher shrinkage than the reference mortar. No traces of ettringite were detected. Bonding strength decreased with replacement ratios above 25%. Replacement ratios of up to 75% did not affect the mean values of capillary absorption. Mortars prepared with fine RCA were less resistant to salt crystallization, which may limit their use in outdoor environments that are at risk of frost.

In view of the results of this work and considering the requirements of masonry mortars, the maximum recommended replacement ratio of natural sand by recycled sand from concrete waste in indoor environmental conditions without reducing the properties of the reference mortar can be fixed at 50% by volume. Findings from this study encourage the conservation of non-renewable natural resources and an increase in the recycling rate of the fine fraction of CDW. To encourage an increase in this rate, new studies using different types of cement and admixtures are being conducted by this research group.

ACKNOWLEDGMENTTOP

This research was partially funded by the University of Cordoba’s Andalusian Research Group TEP-227.
