Study of potential advantages of pre-soaking on the properties of pre-cast concrete made with recycled coarse aggregate†

Z. Sánchez-Roldán^a, M. Martín-Morales^a*, I. Valverde-Palacios^a, I. Valverde-Espinosa^a, M. Zamorano^b

a. ETS de Ingeniería de Edificación, University of Granada (Granada, Spain)

b. ETS Ingenieros de Caminos, Canales y Puertos, University of Granada (Granada, Spain)

* mariam@ugr.es

1. INTRODUCTIONTOP

The construction industry has several negative effects on the environment, including the consumption of raw materials and the generation of construction and demolition waste (C&DW). These activities contribute significantly to environmental degradation at different stages: extraction and manufacture of materials, design, construction and M&E services (Maintenance and Evaluation services). The construction industry is a major generator of large-volume waste with an important visual impact. The composition of this waste is mainly inert, although some C&DW is hazardous (1). However, C&DW can be treated in appropriate industrial facilities to produce recycled aggregate (RA) that can be used to replace natural aggregate (NA) (2). For example, road construction (3), masonry mortar (4, 5), structural and non-structural concrete (6, 7), and even in pre-cast concrete products such as paving blocks (8), paving flags (9), kerbs (10) or partition wall blocks (11).

RA from concrete differs from NA in that it often contains impurities such as crushed clay brick, crushed ceramic material and gypsum as well as mortar adhered to the original NA (7, 12, 13). These impurities introduce several contaminants into the aggregate, such as chlorides, sulphates and other harmful materials. Consequently, the use of RA in the manufacture of concrete can affect the workability, mechanical performance and durability of the finished product (13, 14, 15, 16, 17).

The higher water absorption capacity of RA is the result of the presence of mortar adhered to the original aggregate (7, 12, 13, 18). This feature of RA may cause mixing problems due to poorer workability, resulting in a lower water/cement (w/c) ratio in the paste and less compressive strength. Therefore, special precautions must be taken during the mixing process (6). In view of this, many studies have compared concrete containing RA with different levels of humidity (12, 19, 20) and developed dosage methods that have had a major effect on the properties of fresh and hardened concrete. In these studies, saturated RA was not recommended because it could cause bleeding problems that may have a detrimental effect on the strength of hardened concrete, resulting in the failure of an effective interfacial transition zone between the saturated recycled coarse aggregates and the new cement paste (12, 21, 22). Nevertheless, some authors recommend setting the humidity level at 80% of the total absorption capacity of the RA to ensure the presence of water on the aggregate surface. This guarantees the attachment of a large quantity of cement particles and improves the bond between the cement paste and aggregate (14, 22, 23); however, other humidity percentages have been also reported (13, 24).

The characteristics of RA, particularly its high water absorption, limit the use of this material in the manufacture of concrete. Studies such as that of Etxeberria et al. (14) and Kou (25) focus on the properties of recycled concrete (RC) for use as structural concrete, and report satisfactory results provided that less than 25% of the coarse fraction is replaced. Other studies have demonstrated the feasibility of using RA in the production of non-structural concrete (13, 15, 26) such as concrete blocks for use in partition walls (11, 27), paving blocks (8, 9, 10, 28, 29, 30), paving flags (8, 31) and concrete kerbs and floor blocks (10). These studies have shown that the quality of the pre-cast elements depends on the extent to which NA is replaced by RA, with values that ranged from 25–50% for paving blocks, 30–65% in the case of paving flags, 50% for kerbs and partition wall concrete blocks, or even 100% in the manufacture of floor blocks. This mainly refers to the mechanical behaviour of pre-cast elements, which is not compromised, and does not address the chemical and physical impact this granular material may have on this kind of pre-cast element.

It is not found references to the use of RA as aggregate in the manufacture of non-structural concrete for street furniture such as concrete benches, fountains, planters, beach walkways, etc. This type of pre-cast concrete has lower mechanical and structural requirements, according to EN 13198 (32), and in this case replacing 100% of the coarse fraction with RA could be an advantage. However, the concrete must be sufficiently workable to facilitate the use of moulds, and in this respect the higher water absorption of RA may be a limiting factor. In this case workability can be improved by the use of plasticizers or by increasing the amount of mixing water, thereby reducing mechanical strength (33).

Pre-soaked RA could improve the behaviour of recycled concrete by preventing the transfer of water between the RA and the cement paste. This would reduce the amount of water required to achieve greater strength and lower water absorption. This study, therefore, focuses mainly on determining the benefits of pre-soaked recycled coarse aggregate (RCA) on the properties of fresh and hardened concrete after replacing natural coarse aggregate (NCA) with RCA. Five pre-soaking methods have been formulated, which differing mainly in terms of pre-soaking time, the amount of water added to the mix, and the mixing time, and then tested and compared these against an RC containing non-pre-soaked RCA and a concrete with NCA. The methods were analysed to determine the potential advantages of pre-soaking on the properties for pre-cast concrete for beach walkways made with RCA.

2. MATERIALS AND METHODSTOP

2.1. MaterialsTOP

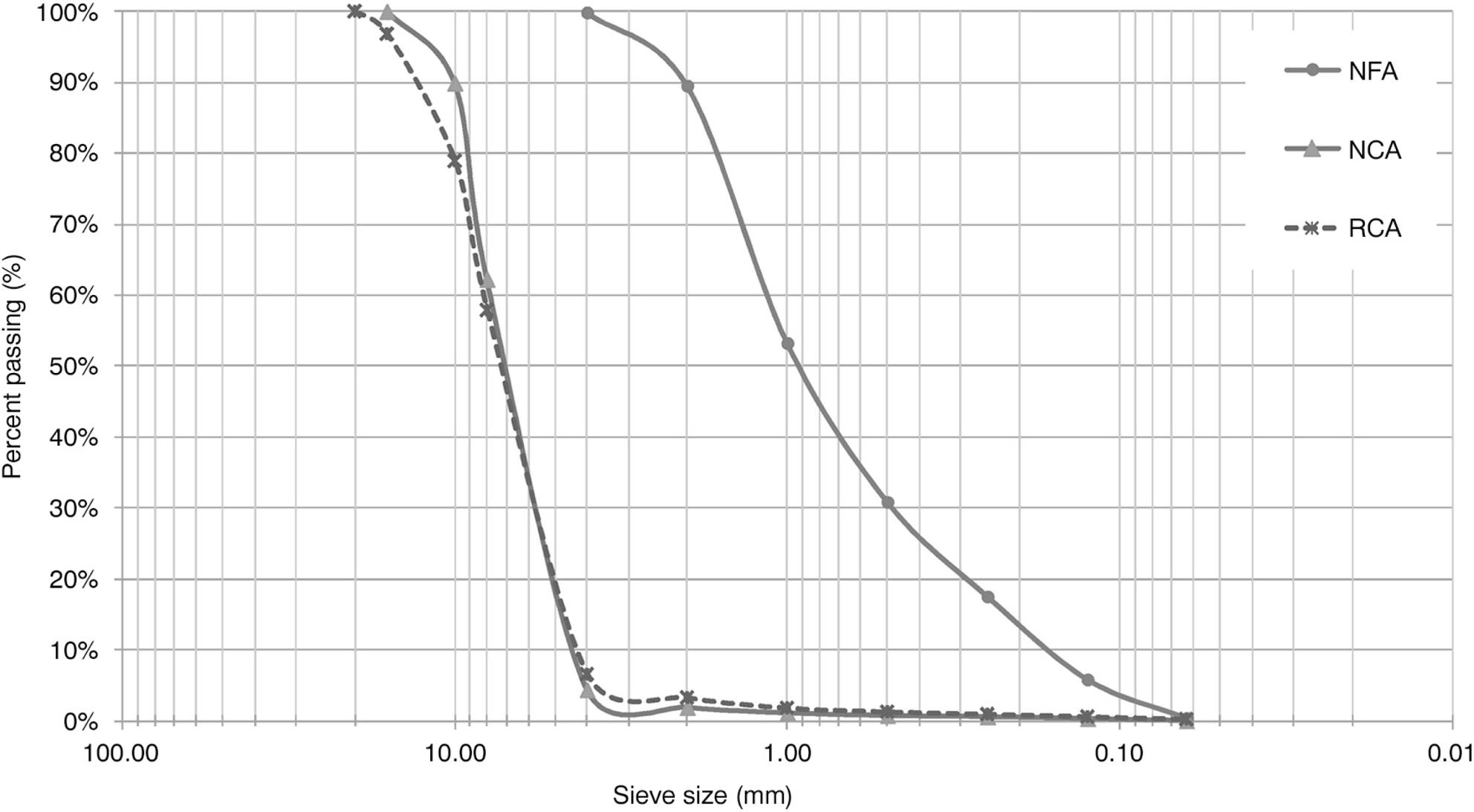

Concrete is composed of sand and coarse aggregate, cement and additives. In this study, two types of concrete were manufactured using NA and RA, respectively. The components used to manufacture both types of concrete are described below:

2.2. MethodsTOP

2.2.1. Pre-soaking methodTOP

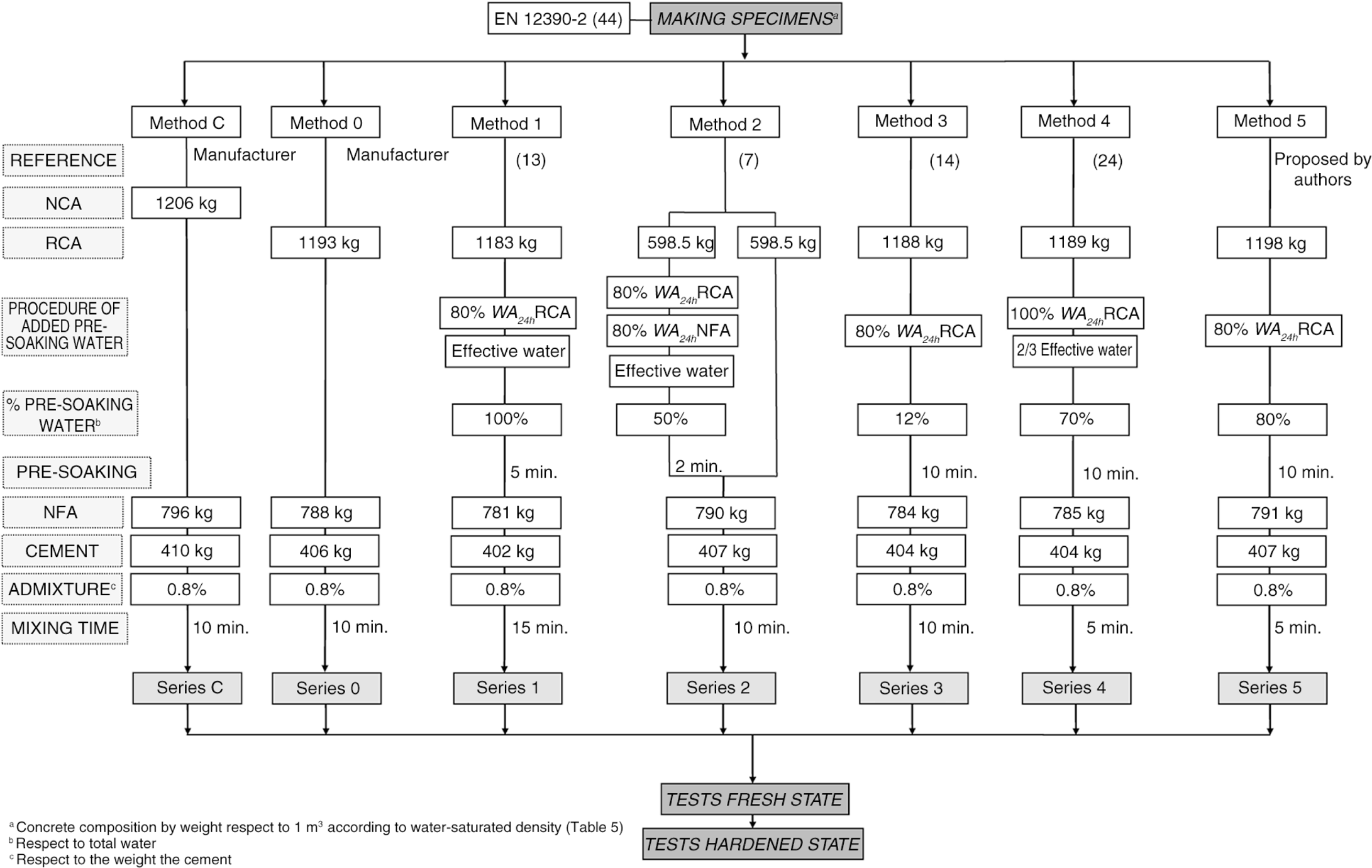

Five pre-soaking methods were tested, 4 of them (Method 1 to 4) from the literature (7, 13, 14, 24) and a fifth proposed by us (Method 5). Pre-soaking methods varied in terms of total water, procedure for adding pre-soaking water, pre-soaking time, and mixing time. Figure 2 shows the characteristics of all the methods used in the study, and the corresponding concrete series produced.

2.2.2. Concrete samplesTOP

For the purpose of the study, a control series (Series C) using NA and 6 further series in which RCA totally replaced NCA (methods 0 to 5) were manufactured according to the manufacturer’s recommended dosage and the concrete quality control data (Table 2) for the manufacture of articulated concrete slabs for beach walkways. Figure 2 shows the respective mixture components and the order in which they should be added, as well as the pre-soaking and mixing times required for each method. Table 3 summarizes the data related to the water content, wherein the w/c effective ratio of 0.48 is constant for all methods.

2.2.3. Testing methodsTOP

For the purpose of this study, the main properties of fresh and hardened concrete were tested according to the manufacturer’s recommendations, European standard EN 13198 (32) and EHE-08 restrictions (34). Table 4 shows the properties analysed and the guidelines and standards used.

In the case of fresh concrete, workability was measured in terms of slump using the Abrams cone method immediately after complete concrete mixing. Density testing was performed according to the reference standard (Table 4).

The properties of hardened concrete were measured in nine cubes measuring 150×150×150 mm, cast using plastic moulds and compacted on a vibrating table, according to EN 12390-2:2009 (43). All cubes were removed from the moulds after 48 h and were cured in water at 22 °C before testing. Compressive strength was determined by crushing at 7 and 28 days age. The results were referenced to 15×30 cm cylindrical samples, using a conversion factor of 0.9, as indicated in EHE-08 (34). Water-saturated density and water absorption tests were performed after samples were immersed in water for 3 days until constant mass was obtained, and then oven-dried for at least 3 days until constant mass was obtained according to the reference standards (Table 4).

3. RESULTS AND DISCUSSIONTOP

The pre-soaking methods were evaluated and compared with the control and non-pre-soaking methods (methods C and 0, respectively). Table 5 summarizes the results of the tests performed on the different concrete series manufactured according to the methods discussed. Figures 3 to 9 summarize the values of the properties examined, showing the reference series (Series C and 0) and then the pre-soaked series (Series 1–5) arranged from the lowest to the highest value obtained for each property. The results are discussed below.

3.1. Fresh concreteTOP

3.1.1. ConsistencyTOP

EN 13198 (32) does not restrict this parameter in pre-cast concrete. According to the literature consulted (8, 9), pre-cast products such as concrete blocks, paving flags or paving blocks are manufactured using a dry-mixed method. These simulates the actual industrial production process in which mixes are prepared with just enough water to produce a cohesive mix but with no slump/workability. However, in the experimental study, according to the dosage and manufacturer’s recommendations (Table 2), it is essential to maintain a workable mix. Therefore, the reference consistency used in this study was soft (6–9 cm) according to the recommendations of the manufacturer and EHE-08 (34).

Table 5 shows the consistency of the concrete series studied, together with the average Abrams cone test values. Results show values ranging from between 1 and 22 cm (dry and liquid consistency) depending on the amount of pre-soaking water, pre-soaking time and total water, including effective and added mixing water. As shown in Figure 3, Series 4 achieved the consistency and soft cone value closest to guidelines and recommendations, and corresponds to RC with a pre-soaking time of 10 minutes and 70% of total water (Figure 2).

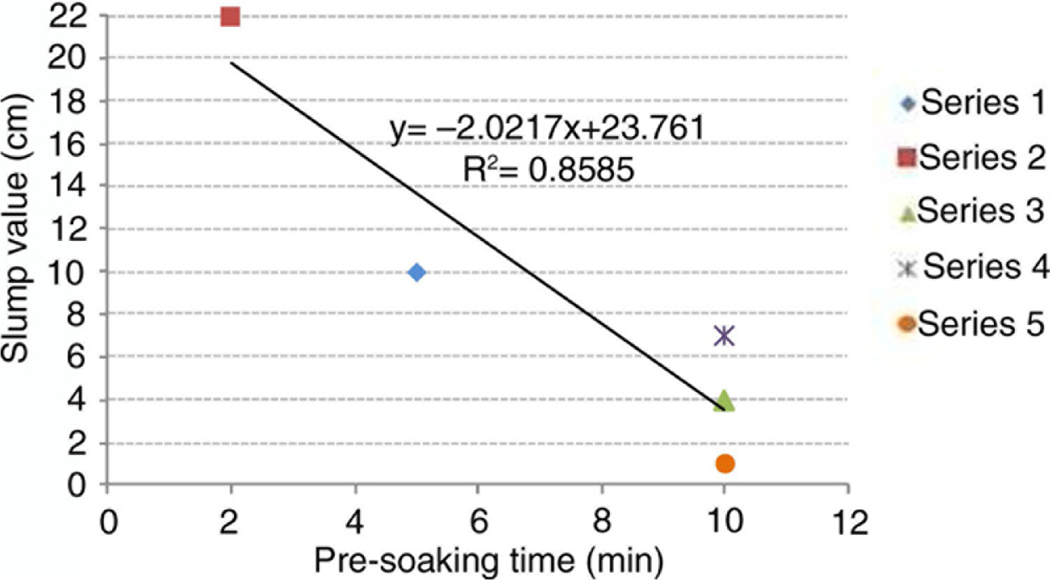

Several authors have studied the importance of pre-soaking and mixing time, defining 10 minutes as the optimal pre-soaking time to obtain the best cone values (7, 23, 24). This ensures optimum moisture percentage, giving the RCA a more effective surface (49). Figure 4 shows the relationship between slump values and pre-soaking time for the series tested. Since the high R-square (R²=0.858) value demonstrated a good fit between pre-soaking time and slump cone, a theoretical pre-soaking time of 10 minutes was predicted. This corresponded to Series 4, which had a cone value nearest to the reference value (6 cm). Shorter pre-soaking times (2 and 5 minutes) prevented the RCA from absorbing the water required to give a mixture with good workability (Series 2 and 1, respectively).

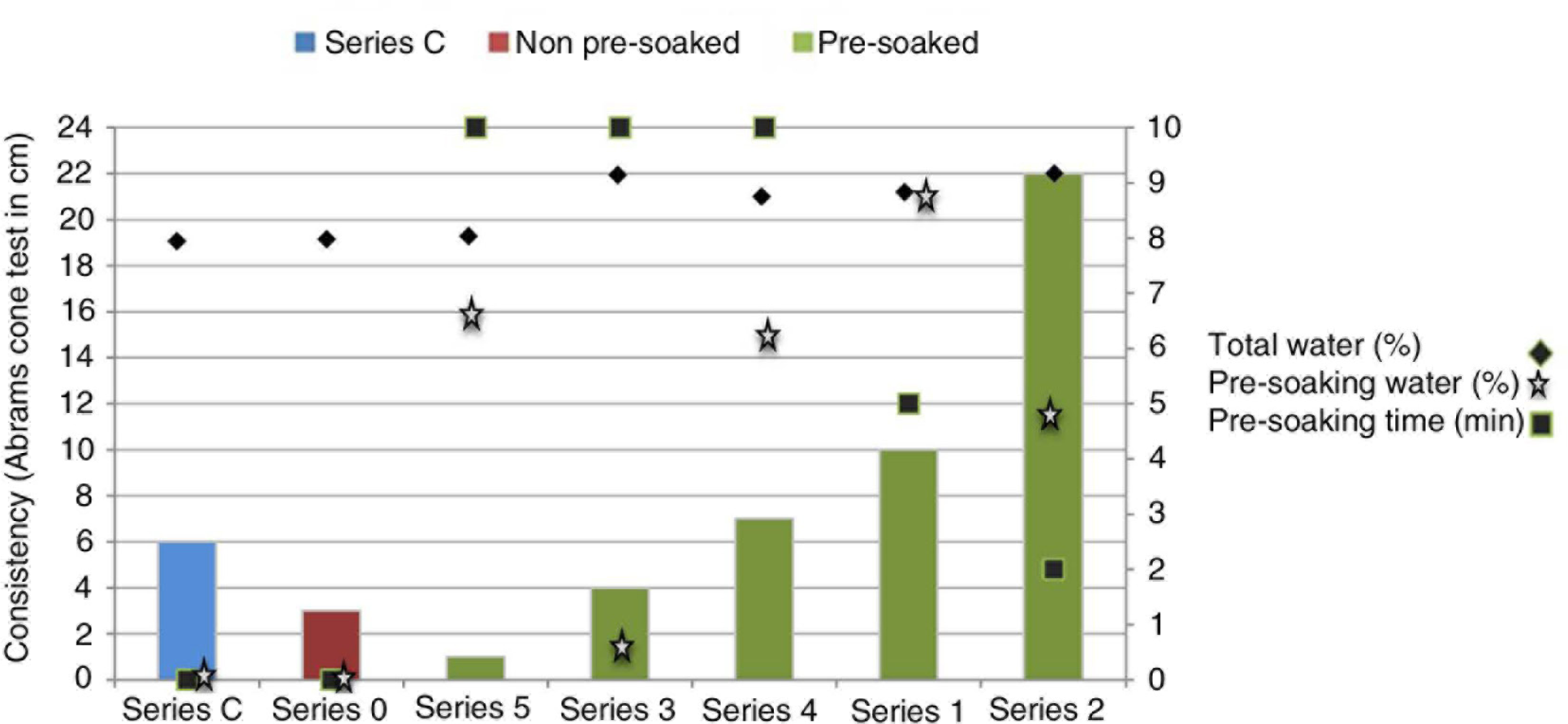

Figure 3 shows that the variable pre-soaking water did not affect the series tested. The same occurs with respect to total water content, since the percentage variation was small compared to other methods.

Based on the results obtained, therefore, pre-soaking affect the consistency of the concrete with respect to the pre-soaking time, but not with respect to the total water content. Therefore, to obtain the desired consistency for the manufacture of pre-cast concrete for street furniture, the RCA would need to be pre-soaked for 10 minutes to achieve a stable moisture level of around 90% of absorption, thereby preventing it from absorbing water from the other components, which would make the pre-soaking effective.

3.1.2. Fresh densityTOP

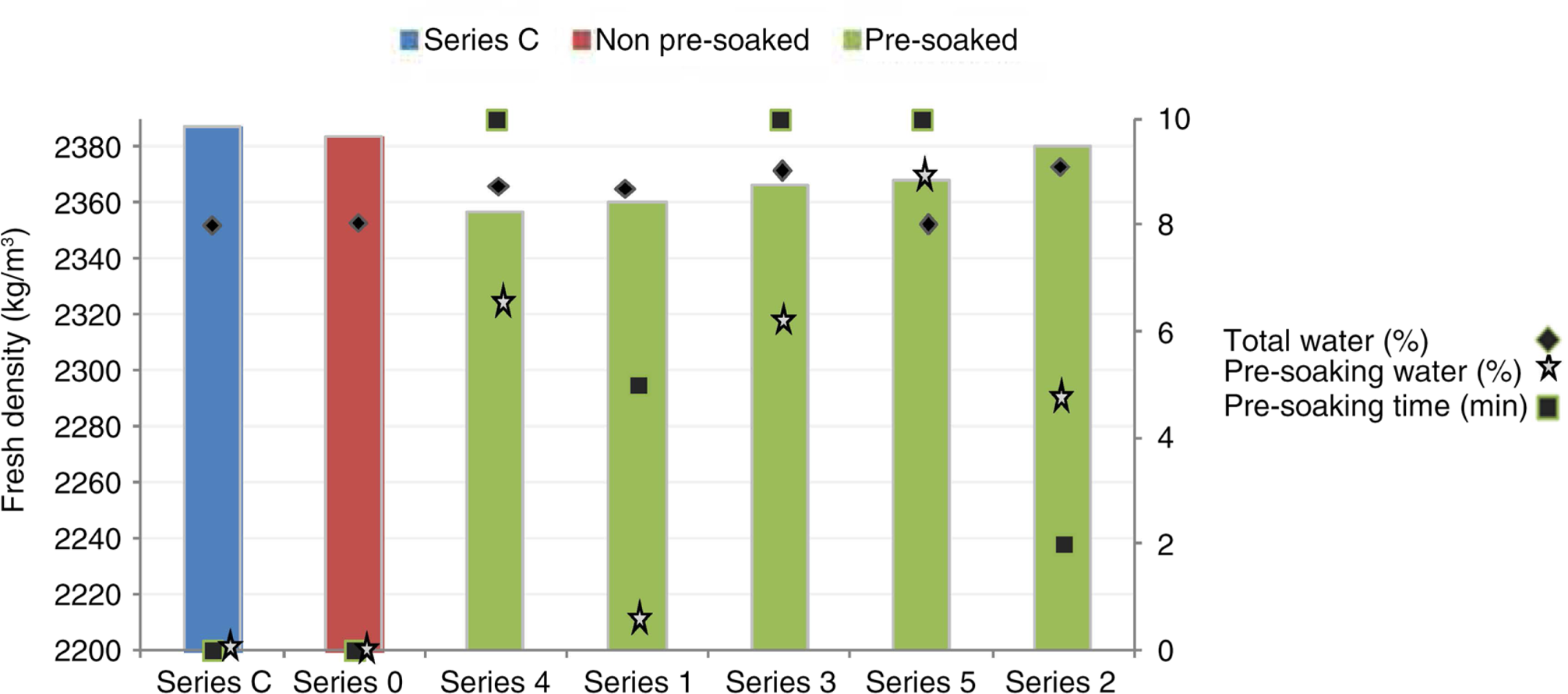

Neither EN 13198 (32) nor the manufacturer’s recommendations include reference values for this parameter; however it has been included in this study because the density of the aggregate and the resulting concrete is an important factor in the manufacture of any type of concrete. The lower density of RA will contribute to concrete made with this aggregate being less workable, with a higher water demand in the state fresh (49, 50, 51). Table 5 and Figure 5 summarize the fresh density values of the concretes tested. Values ranged from 2357 kg/m³ (Series 4) to 2380 kg/m³ (Series 2), showing an insignificant reduction in density in all pre-soaked series, regardless of the amount of total and pre-soaking water or the pre-soaking time used, and with a maximum density reduction of only 1.3% (Series 4) with respect to the control series (Series C). The results are similar to those reported in other studies, such as that of Lopez-Gayarre et al. (52), who obtained variations of 5% or less. These reductions are explained not by the effect of pre-soaking but by the lower densities observed in the RCA compared to NCA (between 5% and 15% lower) (53).

3.2. Hardened state concreteTOP

3.2.1. Water-saturated densityTOP

This parameter is included neither the manufacturer’s recommendations nor in EN 13198 (32), although the analysis of the density in the cured state is justified since, as discussed above, the lower density of RA will lower the hardened-state resistance and durability of concrete made with this aggregate. However, this lower density may be of interest where a more lightweight concrete is needed. In addition, reducing the weight of pre-cast elements, and therefore improving handling, would lower industrial production costs.

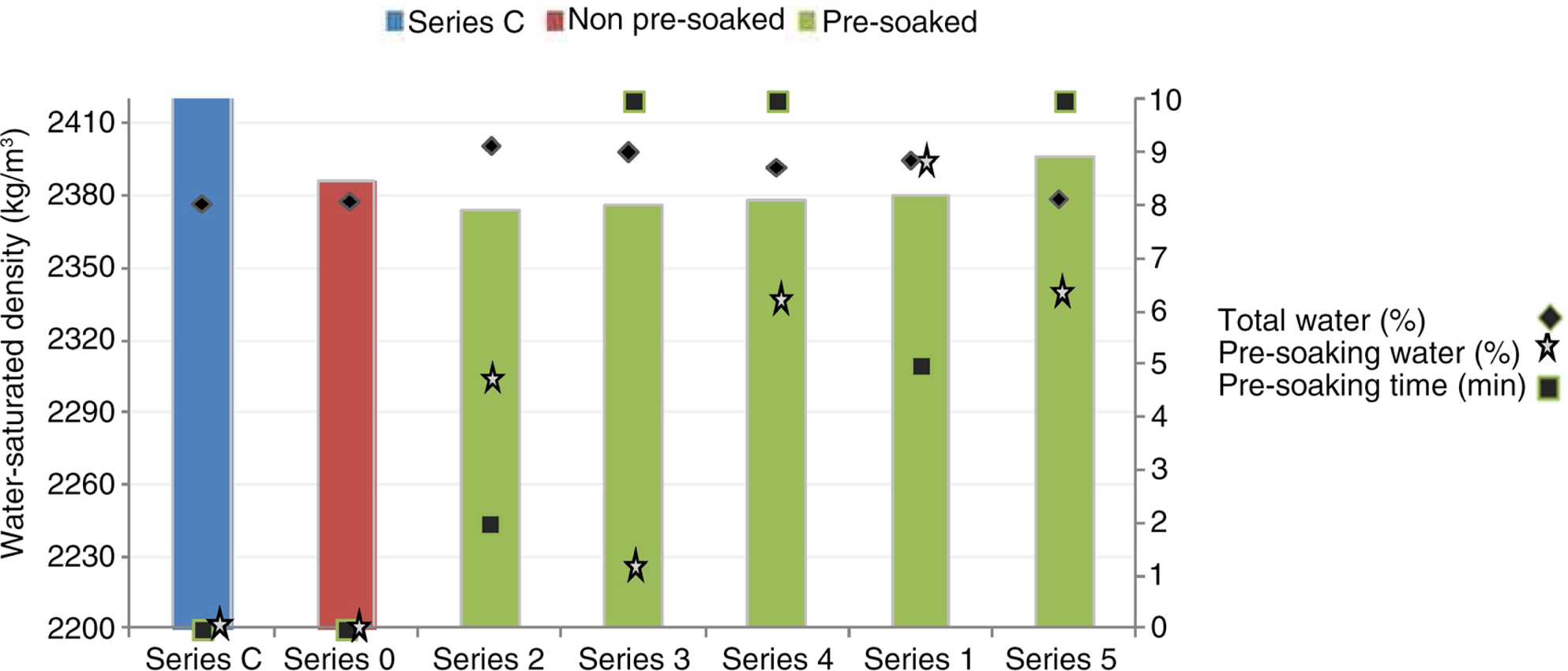

The hardened-state density values of the series tested ranged from 2374 kg/m³ (Series 2) to 2397 kg/m³ (Series 5) (Table 5), a maximum decrease of 2.4% (Series 2) with respect to the reference value (Series C). Figure 6 shows how the variables analysed in each pre-soaking method (pre-soaking water and pre-soaking time) have no effect on the property analysed or the total water content (effective water plus added mixing water). This means that the slight decrease observed cannot be attributed to the pre-soaking method but to the mortar adhered to RA particles, since other studies have reported reductions of between 2% and 5%, depending on the replacement percentage (41, 54).

3.2.2. Water absorptionTOP

EN 13198 recommends water absorption values with and without melting salts of less than 6% and 7%, respectively. In fact, other studies consulted limited this parameter to similar values. Soutsos et al. (29), for example, recommend replacing 55% of coarse fraction in order to avoid exceeding the 6% limit.

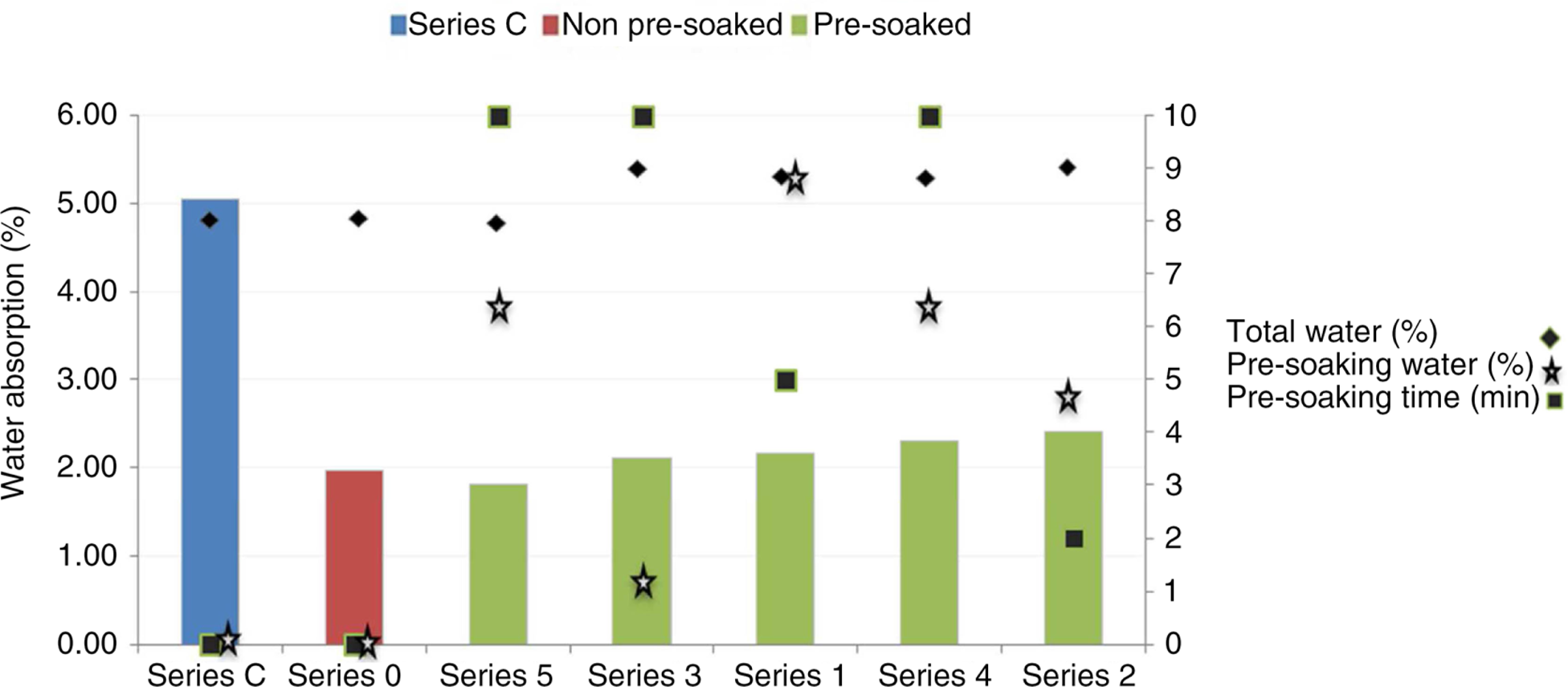

The water absorption values of concrete made with RCA using different pre-soaking methods (Series 1–5) show that the values of all samples tested are within limits, and there are no significant differences between the different pre-soaking methods (Figures 2 and 7). However, differences are observed when the water absorption values of the series manufactured with NCA (Series C) and with RCA (Series 0–5) are compared, as discussed below (Table 5).

Contrary to what was expected, all RC absorption values observed in this study are below established limits, and are lower than that of the sample manufactured with NCA. The percentage reduction ranges from 52% to 64%, corresponding to Series 2 and Series 5, respectively. So, natural concrete absorption is more than twice that of the RC absorption, which could be attributed to the lower content of pores interconnected in recycled concretes. Most studies report a greater absorption of water in the case of concrete made with RCA as a result of the incorporation of a more porous material such as cement paste adhering to the aggregate (33, 54, 55). However, studies such as that of Gencel et al. (30) report reductions of 62%, similar to those obtained in this study, with a similar coarse fraction replacement in the manufacture of concrete paving blocks.

This can be attributed to the discontinuous system of pores generated within the hardened concrete and better RCA bonding, which creates a continuous phase (aggregate particles enveloped by old cement paste). Therefore, the pores do not contribute to water absorption.

After analysing the results obtained from this study, it can be concluded that pre-soaking does not affect water absorption. However, the significant improvement in water absorption may be due more to the type of RCA used, mainly concrete, than the pre-soaking method.

3.2.3. Compressive strengthTOP

EN 13198 (32) recommends 28-day compressive strength values of between 30–37 and 35–45 MPa without and with melting salts, respectively; however, the manufacturer recommends over 50 MPa, due to the type and amount of cement used. The results (Table 5 and Figure 8) shows that all the samples tested are within limits (32) and meet the manufacturer’s specifications (Table 2), except for 2 series (Series 2 and 4), which show a reduction of approximately 8%.

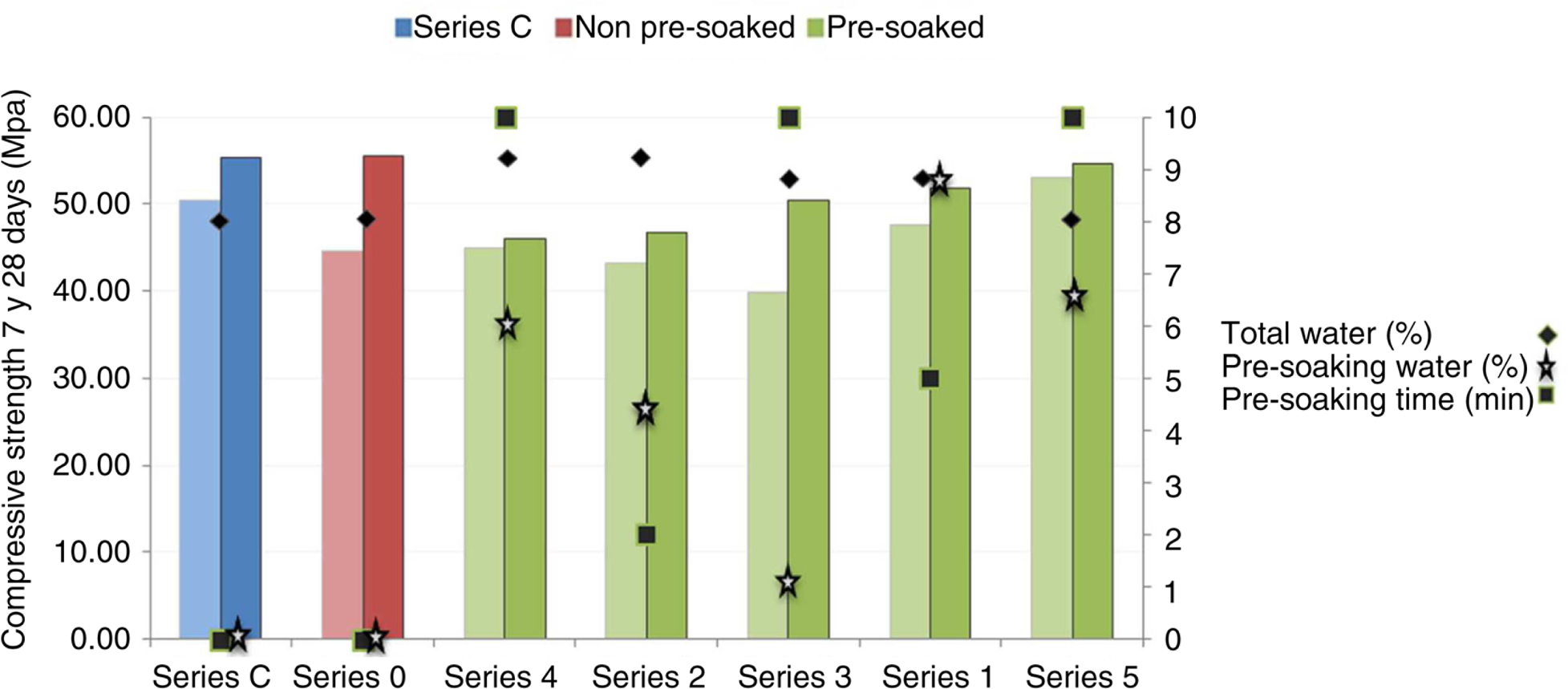

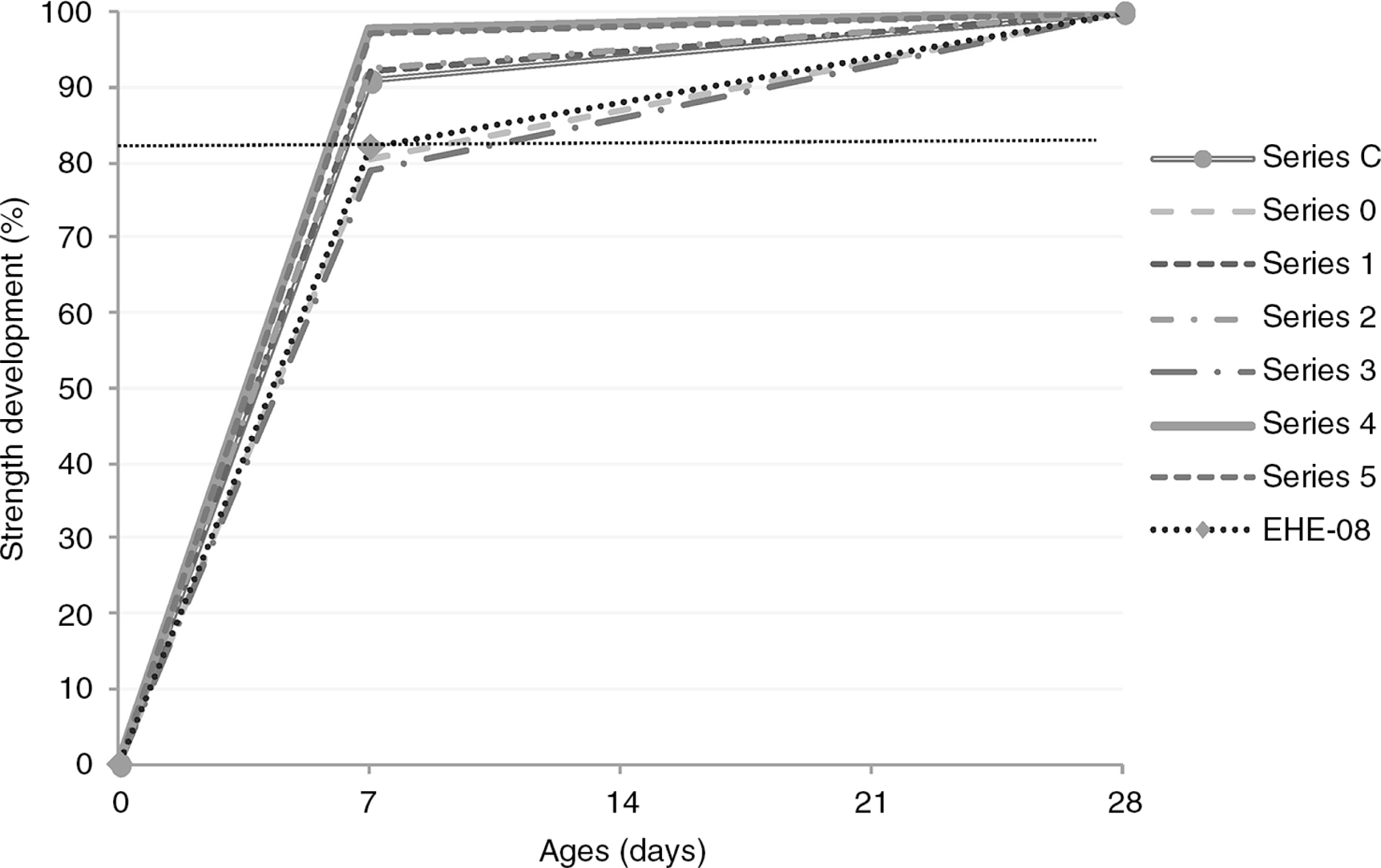

An analysis of the benefits of pre-soaking (Figure 8) on resistance in the first period (7 days) of the pre-soaked series (Series 1–5) shows rapid growth in all series except Series 3, which has lower water content. Similar results were observed in the 7-day resistance of the non-pre-soaked series (Series 0), which leads us to conclude that increased resistance is due to pre-soaking, since this transfers water slowly to help in the curing process of the cement in the first days of age. According to Salem and Burdette (56) in Etxeberria et al. (14), the increased resistance of RC at an early age is due to the high absorption capacity and rough texture of the old mortar adhered to the RCA, which will give better bonding and interconnection between mortar and RCA. Soutsos et al. (57) obtained similar results in the manufacture of concrete building blocks, since pre-soaking ensures that there is sufficient water for mix hydration beyond 7 days.

At 28 days of age, the compressive strength of series manufactured with RCA (Series 0–5) does not follow the same trend observed in the preliminary curing ages (Figure 8). The findings for the pre-soaked series showed that compressive strength was not significantly affected by the pre-soaking method used. Therefore, it can be safely concluded that pre-soaking is only beneficial in the first days of age, provided the amount of pre-soaking water is controlled. This rapidly increases resistance (Figure 9) to above the EHE-08 (34) recommended value (82%) for the strength class of the cement used in this study (42.5R).

The compressive strength at 7 days was not affected by the effect of total water content (Figure 8), although it slightly affected compressive strength at 28 days in series with a small inverse relationship between the total water content added to the mixture (effective water plus added mixing water) and compressive strength. Gonzalez-Fonteboa and Martinez-Abella (41) showed that lowering the total water content reduces the amount of free water in the mixture and increases resistance. However, an excessive decrease in free water can reduce RC resistance due to the poor hydration of cement particles, which affects the workability of the mix (58). These observations explain the result obtained from Series 5 (dry consistency and high resistance at 28 days).

However, if the series manufactured with NCA (Series C) is compared to those manufactured with RCA (Series 0–5), replacing NCA with RCA reduces resistance provided the w/c ratio is maintained. The resistance results obtained in this study (Table 5 and Figure 8) show a reduction of between 1.4% (Series 5) and 16.8% (Series 4) vs. series C, corresponding to a range of 46.09 MPa (Series 6) to 54.65 MPa (Series 5) at 28 days. A similar trend is seen at the age of 7 days, where in this case the minimum and maximum variation corresponds to Series 5 (+5.5%) and Series 2 (−14.4%). Similar results were obtained by other authors, who report reductions of between 12% (56) and 25% (14) in compressive strength at 28 days.

Several factors could explain the loss of strength (59, 60): (i) the lower mechanical resistance of RA due to the presence of adhered mortar; (ii) the higher water absorption of RA (related to the previous factor); (iii) more weak areas in the RC.

Therefore, the results showed that pre-soaking adversely affected the mechanical strength of the concrete manufactured in this study, since without pre-soaking the RCA (Series 0) had a similar resistance to the series manufactured with NCA (Series C).

4. CONCLUSIONSTOP

This study evaluates potential benefits of pre-soaking on the properties of pre-cast concrete for beach walkways made with RCA, following EN 13198 (32) and the manufacturer’s recommendations. The advantages of pre-soaking were studied in terms of pre-soaking time and total water content. With regard to consistency, fresh density, water-saturated density, water absorption and compressive strength in the hardened state, it observed that pre-soaking RCA only affects consistency and compressive strength, and had little effect on other properties.

In general, the workability of concrete made with RCA improved with pre-soaking. This improvement was conditional on a 10-minute pre-soaking time, but total water content has no effect.

The benefits of pre-soaking on the compressive strength of the samples tested showed that the initial resistance was enhanced due to the curing effect, which would be of special interest in the manufacture of pre-cast concrete products. However, resistance at 28 days is lower than that of non-pre-soaked RCA, although certain methods guarantee that even such lower values are within the limits set by the manufacturer.

It can therefore be concluded that pre-soaked RCA does not enhance the physical-mechanical properties of pre-cast concrete, except in terms of workability. Due to the complexity and higher costs involved in the implementation of pre-soaking techniques on an industrial scale, the results suggest the use of non-pre-soaked recycled coarse aggregate as a replacement for NCA in the manufacture of pre-cast concrete products for street furniture. Similar workability can be achieved by the addition of plasticizers, capable of providing the desired consistency to such concrete.
