Characterization of gypsum plasterboard with polyurethane foam waste reinforced with polypropylene fibers

L. Alameda, V. Calderón, C. Junco, A. Rodríguez, J. Gadea, S. Gutiérrez-González*

Departamento de Construcciones Arquitectónicas e Ingeniería de la Construcción y del Terreno, Universidad de Burgos, (Burgos, Spain)

*sggonzalez@ubu.es

1. INTRODUCTIONTOP

Prefabricated gypsum products have increasingly been used in construction over recent years, fundamentally because of their environmental benefits as lightweight products, which imply savings on materials and haulage costs, and greater ease of on-site assembly. Moreover, the fire retardance properties of these products are generally very good (1, 2). Gypsum plasterboards (GPB) are extensively used as internal partitions and ceilings. Their use permits effective spatial layouts inside buildings, thereby improving living conditions and safety (3). Waste management is an acute problem in modern-day society, due to rising demand for goods and services, both in industrialized countries and in the so-called emerging economies. Increasing amounts of solid waste are produced, placing constraints on the availability of landfill sites, with a consequent rise in disposal and dumping costs (4). The current research examines the viability of introducing various wastes of industrial origin in a gypsum matrix (5, 6, 7, 8). The aim is to reduce the weight of the gypsum and to improve its thermal properties. All of this has the purpose of obtaining lightweight, insulation materials that outperform conventional materials, reducing haulage costs, improving energetic efficiency, and exploiting recycled waste products (that would otherwise be dumped). A lighter weight that allows quicker assembly and improved thermal characteristics that require no further insulative layers, represent two implicit advantages of these materials in prefabricated products (9, 10). Numerous references in the literature refer to the incorporation of different waste products in prefabricated plasterboard, in order to improve certain physical and mechanical properties. The use of Expanded Polystyrene (EPS) as a shredded material added to the gypsum plasterboard matrix was analyzed in (11). This waste product is a by-product of packaging collected from municipal recycling schemes that is subsquently milled. Other studies have been conducted on construction panels prepared with a mixture of gypsum rubber from end-of-life tires (12) and gypsum cork waste (13), both of which are characterized by their low density, as well as on the addition of recycled paper to plasterboard (14). Polyurethane foam waste has been studied in lightweight plaster materials with enhanced thermal properties in (15), although no references have been found on the use of this type of waste in the preparation of gypsum plasterboard.

The objective of this study is to examine the reuse of polyurethane waste, which is incorporated in the gypsum matrix, for the manufacture of prefabricated elements. We also aim to study the effect of polypropylene fibers on the mechanical properties of those elements. Several different types of fibers such as polypropylene fiber, polyamide fiber, and glass fiber have been extensively used in gypsum boards because of their specific advantages (16, 17, 18), although no results have been reported on the use of both polyurethane and polymeric fibers. The challenge is to manufacture lightweight gypsum plasterboard for use in the construction industry, thereby improving the thermal properties of these traditional materials and, at the same time, recycling polymer wastes, which would otherwise be dumped in landfill sites.

2. RAW MATERIALSTOP

Gypsum

Construction gypsum is classified as B1/20/2 in Standard EN 13279-1 (19), the specifications of which stipulate an initial setting period of over 20 minutes, with a compression resistance of ≥ 2 N/mm². According to the manufacturer’s specifications, this gypsum presents a purity value of 87.66%. X-Ray Diffraction (XRD) for the purposes of mineralogical characterization identified calcium sulfate hemihydrate as its main component. The real density stood at 2320 kg/m³ and laser diffraction of the granulometry indicated that 50% of the sample presented sizes of below 50 μm.

The gypsum was first oven-dried at 40 ± 2 °C over 24 hours; after cooling and homogenization, it was placed in a watertight container for use in the tests.

Polyurethane foam waste

Polyurethane Foam Waste (PFW) was taken from waste generated in the manufacture of insulative panels in the refrigeration and construction industries. Following crushing, it is presented as a dust with a granulometry of between 0–0.5 mm, with real density and bulk density values of 1080 kg/m³ and 72 kg/m³, respectively.

Polypropylene fibers

The PP fibers (F2) were supplied by Grupo Pumma (Paviland®). The fibers were approximately 30 μm in diameter and 12 mm in length with a tensile strength ranging between 300 and 400 MPa. Elemental analysis (CHNS) indicated the presence of carbon, hydrogen, nitrogen and sulfur in the fiber. In (Table 1), a Scanning Electron Microscopy (SEM) image shows the fiber alignments and dimensions.

Table 1. Elemental analysis (CHNS) and SEM of PP fibres

Element	Carbon	Hydrogen	Nitrogen	Sulfur
%	85.57	14.31	0.08	0.04
SEM

3. EXPERIMENTALTOP

Specimen preparation of the Gypsum Plasterboard (GPB)

The sample reference numbers, fiber percentages, and the Polyurethane Foam Waste/plaster (PFW/p) ratio by volume of each sample are listed in (Table 2).

The mixtures were prepared by partial substitution of the gypsum for the waste product in amounts of 0.5, 1, and 2 parts by volume (p + PFW). They were then tested on the shaking table (slump-flow test, with an average spreading diameter of 165 ± 5 mm), to determine the quantity of water needed for acceptable workability (Table 2). Suitable admixtures were also employed to enhance workability.

A series of reference specimens were manufactured with no waste products in their components (GPB RS), to quantify the effects of the waste aggregates on the prefabricated products. Commercial plasterboard (GPB ST) was also analyzed under the same conditions as the plasterboard investigated in this paper; although its complex mixture of raw materials (paperboard, additives, lighteners, fibers) significantly influenced the final results that were only taken as a reference.

The procedure to prepare gypsum plasterboard (GPB) consisted of progressive additions of PFW to the plaster, in substitution of the various proportions of gypsum by volume (1/1, 1/0.5 1/2). The dry components were homogenously mixed, after which the water was added and mixed in line with standard EN 13279-2 (20). A series of (300 × 400 × 15 mm)³ molds were filled with the mixture and any excess wiped away, to accelerate the drying process. In this way, a series of three specimens for each dosage and each test were prepared to conduct the tests.

Finally, after curing at a temperature of 24 °C and at a relative humidity of 50 ± 1% for 7 days, all the test specimens were then dried to a constant mass at 40 ± 2 °C and cooled to room temperature prior to testing.

Fiber reinforcement of the plasterboard was done in the mixing phase. The fibers were evenly dispersed in the water, before adding the water to the mixture (gypsum + PFW). Dosages of 2% and 4% by weight of gypsum were added.

Test methods

Characterization of all the plasterboard specimens tested bulk density, flexion strength, water absorption rate, water retention capacity, and surface hardness. The instructions in Standard EN 520 (21) were followed, which establishes the specifications and the test methods for gypsum plasterboard.

The flexural strength of the plasterboard represents the maximum stress within the material prior to rupture. The (400 × 300 × 15) mm³ specimens were subjected to controlled loading up until fracture took place. Fiber behavior in the gypsum matrix was also evaluated through the load-displacement ratio.

Total water absorption capacity was determined as the percentage increase in the mass of a specimen were held underwater over 2h ± 2 min. Percentage water retention was measured in terms of sample weight loss after oven-drying at 40 °C over 48 h and was determined using the following equation: Water retention (%) = Ww −Wd/Wd x 100, where Ww is the wet weight of the sample and Wd is the weight of the sample after drying.

Shore C hardness determines the surface hardness of the plasterboards by establishing the indent left by an exerted force on each test specimen, measured in Shore C units, from 0 (softest) to 100 (hardest). In this test, the surface hardness of the plasterboard was defined by the exterior mark of a small steel ball dropped from a specified height.

Scanning Electron Microscopy (SEM) produced images of the interface between the different material components. A FSEM HITACHI S-4800 SEM was employed, with an acceleration current of 20 kV and a current intensity of 20 lA, with a variable working distance, and an EDX Bruker XFlash-5030 silicon drift detector.

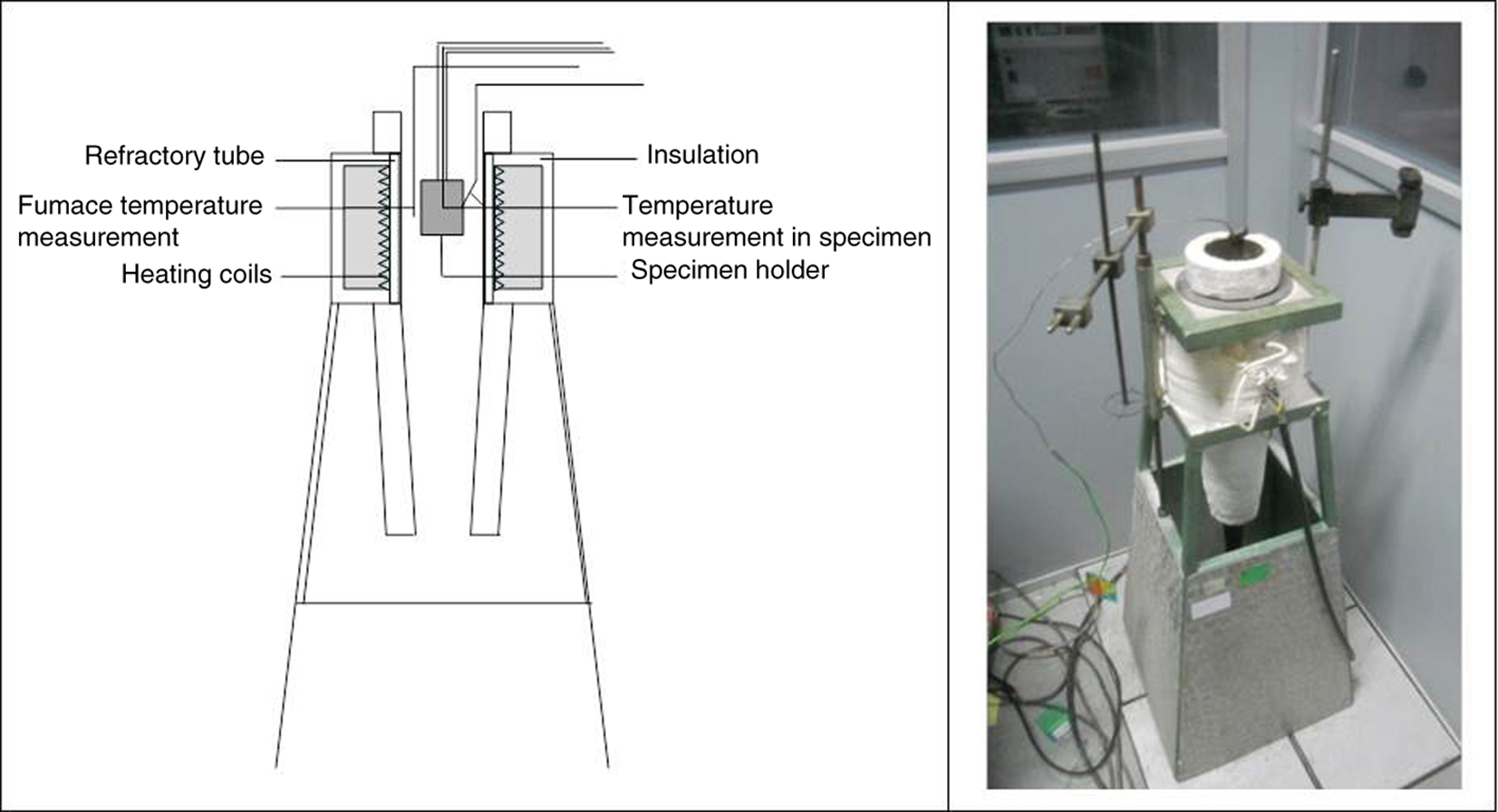

The thermal resistivity and the fire reaction indexes of the samples were measured. Thermal resistivity was taken from thermal conductivity results presented in previous works (15) in accordance with standard EN 12667 (22). The non-combustibility test was applied to evaluate the behavior of the samples at high temperatures, in accordance with standard EN ISO 1182 (23). The tests were conducted in an open vertical furnace (Figure 1), in which the specimen was placed within a cylindrical space with a diameter of 75 mm and a height of 150 mm. During the test, the electronically controlled furnace temperature was increased at a constant rate, from room temperature to 800 °C in 2 h, after which it remained at 800 °C for a further 60 minutes (24). In this test, temperature increases were measured by the furnace thermocouple, the duration of flaming and the mass loss of the sample, in cylindrical samples of 45 mm in diameter, and 50 mm in height, which had previously been conditioned in a ventilated oven at temperatures of (60 ± 5) °C, over 24 hours.

4. RESULTS AND DISCUSSION OF CHARACTERIZATION TEST RESULTSTOP

Bulk density

It may be seen from the results shown in (Table 2) that the density continued to drop as further waste products were introduced in the mixture. The reduction in average density by dosage, taking GPB RS as the reference dosage, varied between 5% and 38%. As the amount of polyurethane increased, larger amounts of water were necessary to ensure the workability of the mixture, which also meant an increase in the porosity of the material and, in consequence, a reduction in its bulk density. In addition, the incorporation of a material with a lower real density than the base matrix was a further fundamental factor in the reduction of the plasterboard density. The result was coherent with the characteristics of the material in use, as the polymer waste presented a real density of 1080 Kg/m³ as opposed to the plaster density of 2320 Kg/m³. This reduction in density meant a reduction in the weight by surface unit of the material, which dropped even further as more waste was incorporated in the composition of the plasterboard. Accordingly, a reduction as high as 48% in the weight/surface ratio was obtained for the GPB2 sample with regard to GPB RS. The incorporation of 2% fibers in the mixtures involved no significant variation with regard to the density of the compound material, which was similar in all cases. However, the density increased from 2–8% at higher percentages (4%). In comparison with the standard series, an increase in bulk density that ranged from 94% for reference gypsum plasterboard (GPB RS 4F2) to 38% for dosages with high polyurethane contents (GPB2 4F2) in the case of Series III (with 4% of PP fibers) was observed. This increased density may be due to the specific additives and aggregates of the commercial gypsum board, which were not applicable to the plasterboard used in this study.

If we establish a relationship between bulk density and water absorption, water absorption increased, as was expected, when the bulk density of the GPB-PFW samples decreased. This may be explained by the increasing demand for water as the percentages of polymer increased, which leads to higher porosity in the plasterboard.

Flexural strength (measured as breaking load flexion)

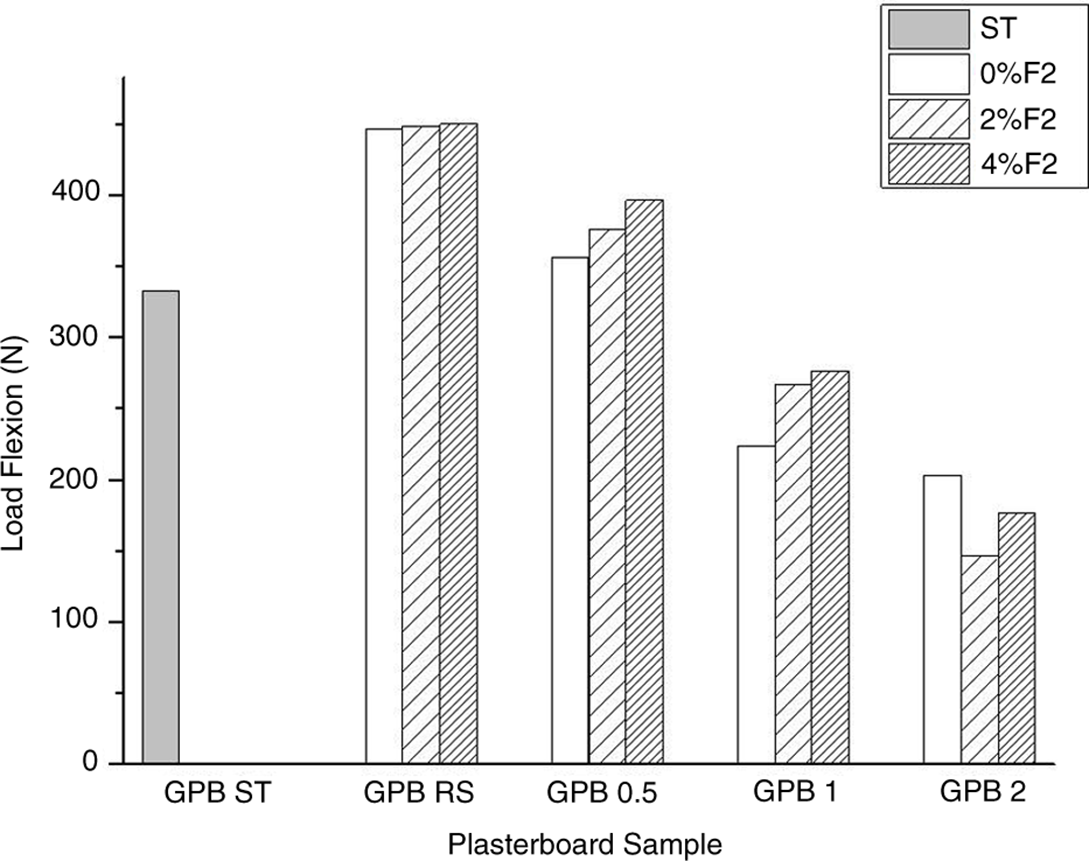

The flexural strengths of the specimens with different polyurethane contents, both with and without fibers, are shown in (Figure 2). The breaking load decreased with the increase in the quantity of polyurethane waste. This reduction in resistance might be related to the lower content of gypsum in the samples, which represents the structural skeleton of the composite material (25). The breaking load appeared to increase with the addition of polypropylene fibers. A 2% presence of fibers led to improvements in the performance of the plasterboard in comparison with the plasterboard without fibers; rising from 5% in GPB0.5 to 10% in GPB1. A 4% presence of fibers was needed for any further increase in the breaking load under flexion. The incorporation of larger amounts of waste progressively strengthened the plasterboard, up until dosages of equal parts (1/1); moving from 11% in (0.5/1) mixtures to 24% in (1/1) mixtures. However, the influence of variations in the percentage of polypropylene fibers on flexural strength, in dosages with higher amounts of polyurethane (2/1), was not so clear. This result was probably due to the high polymer (PP and PFW) content in such a small thickness (15 mm) of board. There was no significant improvement of plasterboards with fibers, but without polyurethane (RS), which may probably be explained in terms of the elastic modulus of the compound. Further research similar to other studies in the literature (26) would be necessary in this field to find an explanation for this effect.

If we compare the results of the gypsum plasterboard in mixtures (1/1) with fibers (GPB1 F2) with those of the commercial boards (GPB ST), in a transversal sense, values of around 16% and less for fracture loads under flexion were obtained. So, the results were acceptable up until dosage (1/1), all the more so as the boards in this study had no paper lining and no additives, which therefore implies weaker mechanical properties in comparison to the commercial gypsum board.

Load versus displacement

An important aspect of this work consisted in determining the behavior of gypsum plasterboard prepared with polyurethane foam wastes, so as to examine the practical application of these recycled materials in prefabricated elements for use in interior partitioning. However, only those boards reinforced with polypropylene fibers (F2) could be selected, and, from among them, those with the most significant physical performance (GPB1).

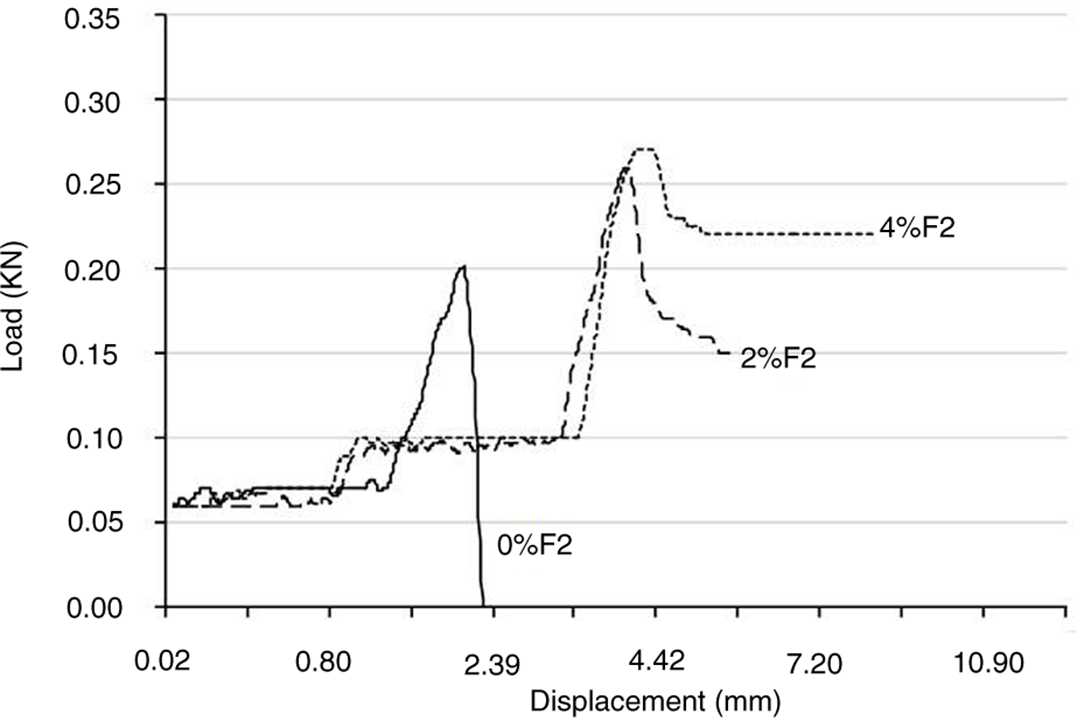

The relationship between load versus displacement of gypsum plasterboard with polyurethane (GPB1) and PP fibers (0%, 2% and 4%) is shown in (Figure 3). It may be seen from the results that creep increased in proportion to the increase in fiber amounts in each dosage, up until breakage, when the plasterboard was unable to withstand further loading. This effect is very important, as the elastic properties of the material actually increased. Another interesting point observed during the fracture load test under flexion was the maintenance of the fracture load over time in series GPB1 4F2. The implicit assumption in these results is that the new mixed material is flexible, in dosages with a ratio of 1/1 and 4% of PP fibers; even after breakage, the plasterboard continued to show the sort of resilient behavior that could reduce the risk of panel collapse (27, 28).

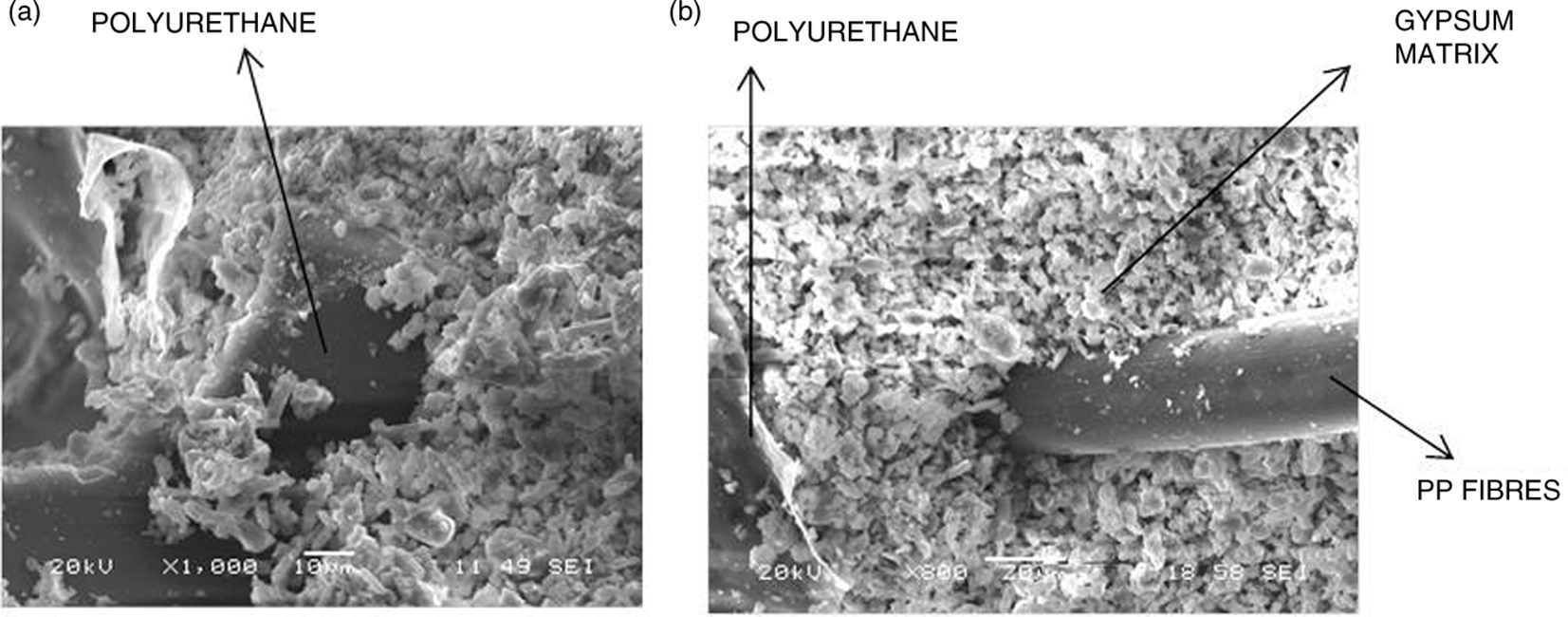

A good internal structure of the matrix and its components can be seen in the SEM images (Figure 4-a), in which the polyurethane waste is surrounded by a crystalline gypsum structure that gives it a solid bond of great stability. The images of the GPB1 4F2 sample show the presence of polyurethane films inside the matrix, the continuity of which appears to be interrupted by the majority presence of gypsum crystals.

In (Figure 4-b), fiber bonding with the gypsum matrix may be seen, in which the fibers show acceptable adherence to the gypsum-polyurethane matrix.

Surface hardness

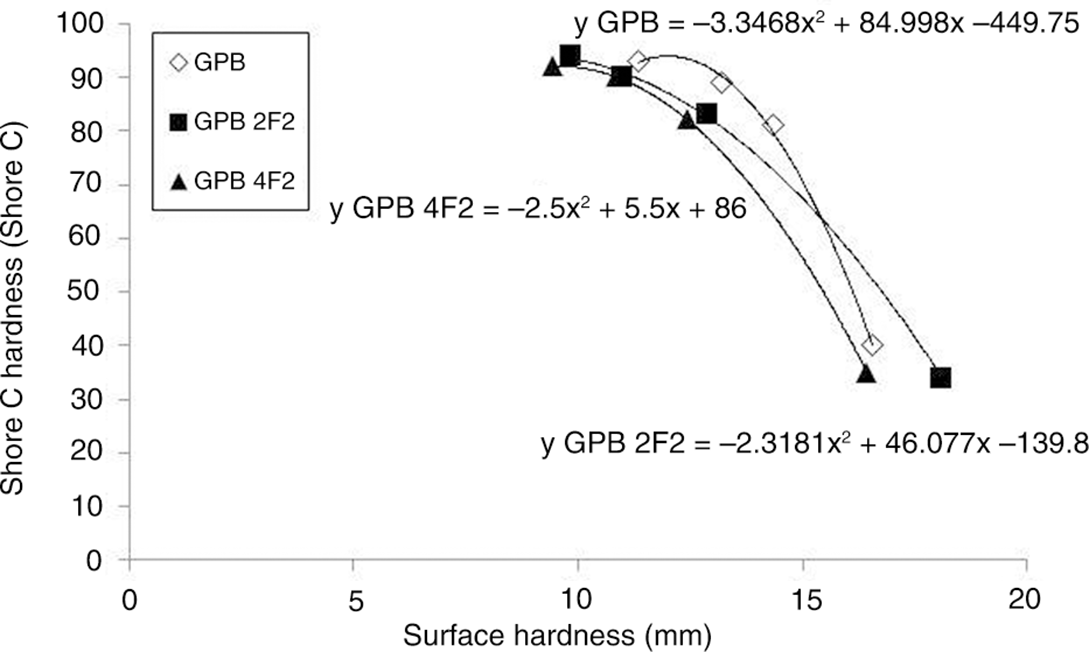

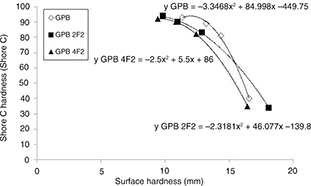

Increased dosages of the waste implied a reduction in the surface hardness of the material. It may be seen that the diameter of the surface imprint increased when the mixture incorporated higher amounts of waste (Table 2). This increase in imprint size is perhaps due to the existence of a larger percentage of pores, which supports the possibility that these compounds may be penetrated or incised by other material. Reductions of surface hardness of up to 47% occurred in samples GPB2 in relation to the reference specimens (GPB RS). (Figure 5) shows the relationship between the surface hardness results obtained in this work and the Shore C hardness results obtained in previous studies on 40 × 40 × 160 mm³ specimens (15). A correlation between both parameters was observed, indicating good proportionality with a fit to a polynomial line (R² = 1). If we compare the hardness results of both the GPB PFW samples and the commercial boards, an increase of 9% was observed in the GPB2 gypsum plasterboards.

Total water absorption and water retention

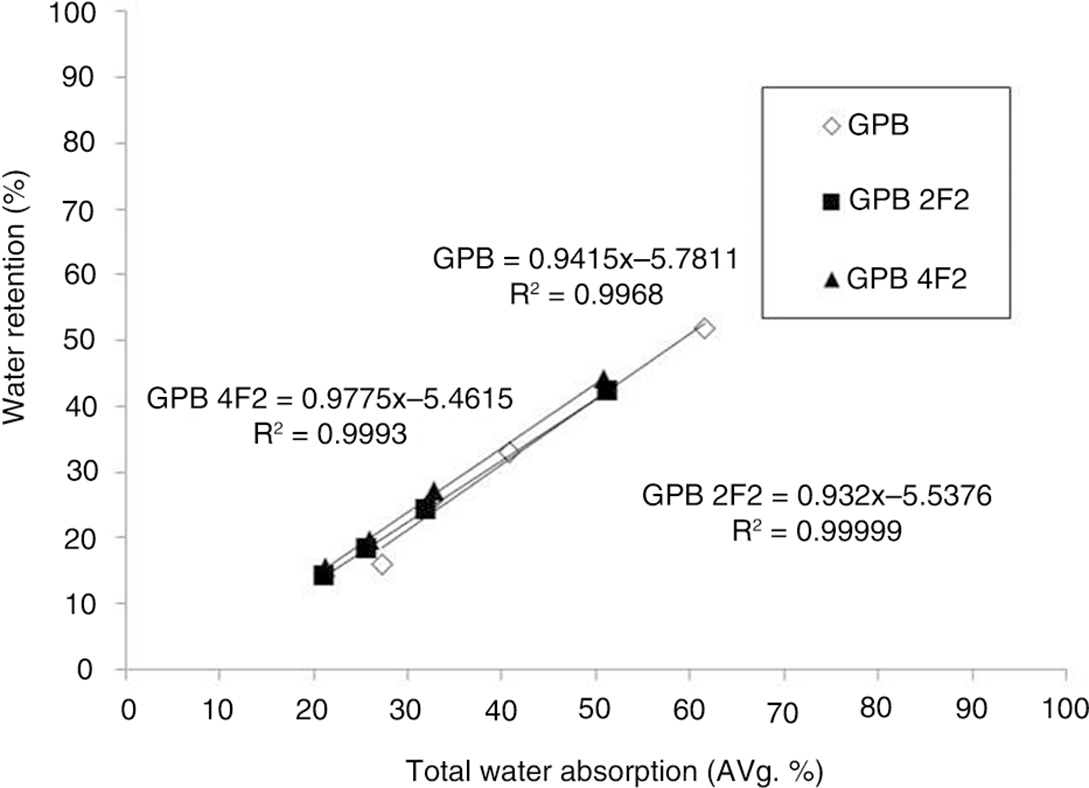

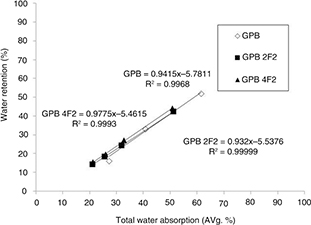

With regard to the total water absorption test, the results show that a percentage of the average total absorption of the different dosages increased in line with the incorporation of higher proportions of polyurethane waste.

As shown in (Table 2), the increased presence of waste in the mixture implied greater water absorption. This capacity increased considerably in the case of the GPB2 plasterboards (60%); 50% greater than in the commercial plasterboard.

The absorption capability of the boards was reduced when fibers were introduced in the mixture; to such a point that their percentages were hardly significant. For example, in dosage (0.5/1) with fibers at 2%, the absorption percentage was around 25.59%, very similar to the 26% of the GPB0.5 4F2, but less than the reference dosage GPB0.5. If the reduction of the absorption by dosages is calculated in percentage terms (%), it is notable that the reductions in absorption stood at around 20%, both for the family of reference specimens RS and for mixtures (0.5/1) and (1/1), at fiber percentages of 2% and 4%. In the (2/1) mixtures, the absorption rates fell slightly less, at any fiber concentration, by around 17%. This reduction in total absorption capability is explained by the hydrophobic characteristics of the polypropylene fibers (29). A relation between the water retention capacity of the material and the results of water absorption was established for GPB with different proportions of fibers (Figure 6). A correlation between both parameters may be seen in all samples, which varies in a proportional way, following a linear-type tendency, in accordance with the equations shown in (Figure 6).

5. THERMAL PROPERTIESTOP

Over recent years, a great deal of effort has gone into promoting energy efficiency in buildings, with new regulations on mandatory insulation of the external envelope. An effective way of saving energy is to improve the thermal insulation of buildings by applying insulative materials to walls and floors (30). However, these kinds of materials must show acceptable fire retardant behavior, which can be measured in terms of the flammability of the material in the presence of fire. In this study, the non-combustibility test provided data on the combustibility of the gypsum plasterboard.

Thermal resistivity

One way of measuring the insulative capabilities of gypsum plasterboard is through the determination of its thermal conductivity. This parameter has been determined in earlier studies (15), in which the analysis of the thermal resistivity of gypsum plasterboard samples in relation to their densities were shown to correlate well. In all cases, the incorporation of the waste in the mixtures produced a reduction in the weight per surface and an improvement in the thermal resistance and the insulative capacity of the material. This improvement was not only due to the lower density of the material, but was also dependent on the type of waste. Consequently, the GPB with PFW plasterboards, characterized by their closed cell structures with a lower thermal conductivity coefficient than the other waste products, showed the best behavior (31).

On the other hand, when compared with the specifications of other commercial prefabricated elements, such as commercial standard gypsum plasterboard (GPB ST), it was found that for dosage (2/1), reference values of over 0.060 m²·K/W were reached (Table 3). Thus the values obtained were similar to other construction materials used in partition walls.

Reaction to fire performance

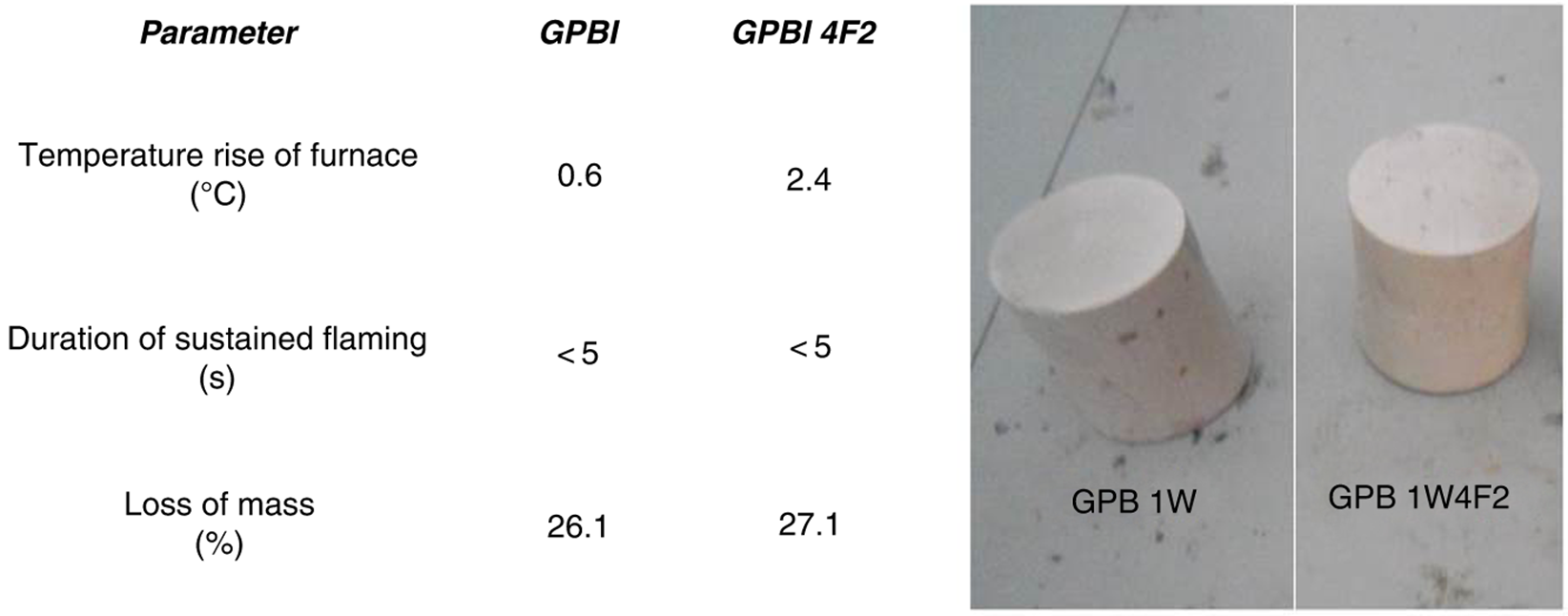

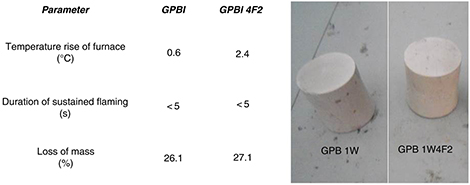

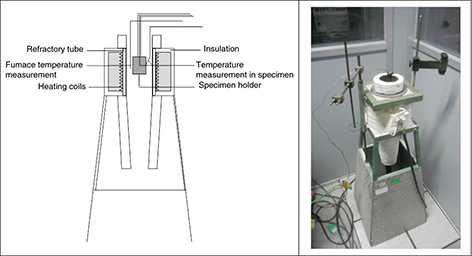

The thermal behavior of the samples, confirmed by the non-combustibility test, gives us an idea of their fire retardance properties. The results of the non-combustibility test (Figure 7) confirmed that the samples that incorporated polyurethane in their composition, and specifically, the GPB1 sample, presented flaming times of less than 20 seconds with a temperature increase of below 50 °C and losses of less than 50% in their mass. This result indicated that even if we only take the contribution of the materials to fire reaction into account, their composition corresponded to Euroclass A2 (non-combustible) in accordance with the European fire reaction classification of building materials for homogeneous products (33). In the case of the plasterboard with polyurethane foam waste fibers at 4% (GPB1 4F2) the fire behavior was similar to the results of the sample without fibers, with a Euro class A2 classification. Other researchers have noted the good behavior of polypropylene fibers and their contribution to the development of fire resistant materials (34). However, the non-combustibility test is not sufficient to classify examples that include polyurethane components. CTE D-SI validation of sample GPB1 as (B-s2-d0) (35) may require an assessment of its performance in accordance with EN ISO 1716 (36) to determine gross calorific value and the EN 13823 (SBI) test (37). Nevertheless, if we take Spanish Royal Decree 110/2008143 (38) as a reference, then a plasterboard system mechanically fixed to a metallic substructure with Euro class type E insulation (40 mm polyurethane foam) is classified as (B-s1, d0). On that basis, we may affirm with a degree of certainty that the new material, having been placed as interior plasterboard on a double-layer dividing wall, will comply with all specifications in the relevant legislation.

6. CONCLUSIONSTOP

A study involving the manufacture of gypsum plasterboard that incorporates polyurethane waste aggregates reinforced with polypropylene fibers has been presented in this paper.
