Recycling ceramic industry wastes in sound absorbing materials

C. Arenas, L.F. Vilches, C. Leiva*, B. Alonso-Fariñas, M. Rodríguez-Galán

University of Seville, Higher Technical School of Engineering, Department of Chemical and Environmental Engineering (Seville, Spain)

*cleiva@us.es

1. INTRODUCTIONTOP

Until the beginning of the global economic crisis in 2008, the Spanish ceramic industry accounted for 40% of European production, although in recent years the production has fallen by almost half. The generation of non-hazardous waste in this industry amount to 3 Kg/m² of manufactured tile. Among all waste generated, the remains of cooked materials account for 10% of the total waste, approximately 50.000 tons a year, despite the declining of the ceramic industry production (1).

With increasing restrictions and cost on landfills in the European Union, it is necessary to find ways for reusing and recycling their wastes (2). It has been estimated that about the 40% of the daily production in the ceramic industry is landfilled. For this reason, the need for seeking new applications in other industries where the ceramic waste can be recycled is becoming absolutely vital (3). Although the reutilization of ceramic waste as fine and coarse aggregates in the concrete production has been previously studied (4, 5, 6, 7), its use in structural concrete is not a common practice, particularly as fine aggregates (8). Thus, it seems that the best engineering applications found for recycling ceramic waste is as in non-structural concretes as recycled aggregates.

Another increasing environmental problem is the noise pollution. The source of most outdoor noise worldwide is traffic noise, including motor vehicle, plains and rail noise. Changes in the regulations have led to the creation of programs under the European Directive on the Assessment and Management of Environmental Noise (9), which are likely to lead to growth in the use of noise barriers as a way of reducing traffic noise.

Conventional noise barriers are generally designed to reflect a large proportion of traffic noise, which creates a problem when a minimization of sound reflection towards noise sensitive areas adjacent to the highway is required. Therefore, there is a need for manufacturing traffic noise barriers that can absorb noise, leading to major developments in the field of sound absorbing materials (10).

One of the most common materials used for noise barrier applications is a combination of porous concrete with a hard backing consisting of standard concrete (11). Porous concrete is made by mixing coarse aggregate material with cement, creating lots of voids in the cast concrete. As a result, the pores inside the material absorb sound energy through internal friction (12).

Many industrial waste materials, such as waste rubber, metal shavings, plastic, textile agglomerates have been demonstrated that can be used to manufacture acoustic materials. Some authors have found useful to mix various recycled materials of different grain size in order to obtain the desired performance. For this purpose, the binder proportion must be properly adjusted (13, 14, 15).

The aim of the present research has a double environmental aspect. From one side, recycling an industrial waste, and to another, reducing traffic noise pollution levels. The objective of this study is to design a product composed mainly of ceramic wastes with all different size particles, so that it can be applied in the field of road noise barriers. In order to achieve the greatest acoustic absorbing behavior of the product, the influence of the grain particle size of ceramic waste, the thickness of the panel and the combination of different layers with various particle sizes creating a composite product have been studied.

2. MATERIALS AND METHODSTOP

2.1. MaterialsTOP

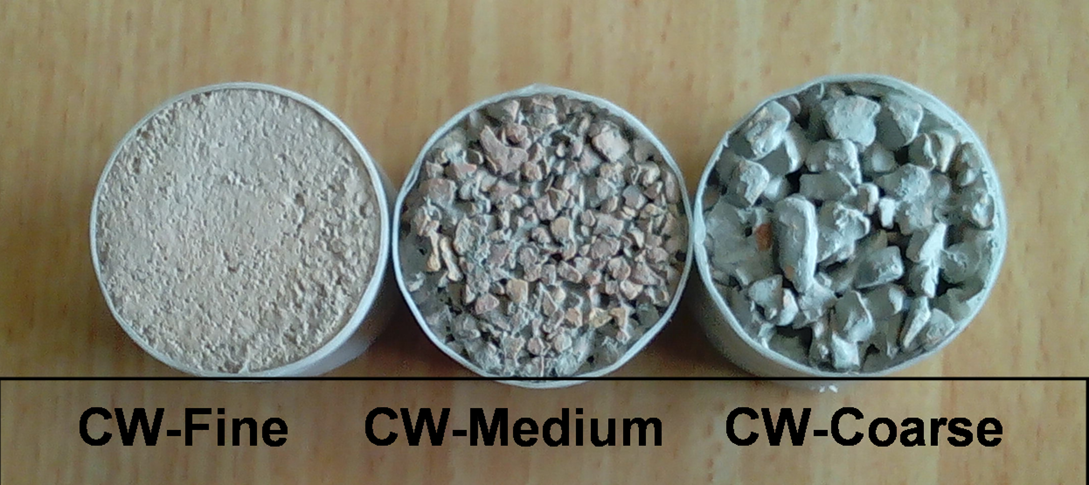

The ceramic waste (CW) presented a wide range of particle sizes, from dust to particles larger than 10 mm. The waste material was sieved in three different sizes (coarse, medium and fine particles) as it was received from the producers without being crushed, in order to analyze the influence of the grain size in the properties of the final product. The CW was combined with ordinary Portland cement type II 32.5N (PCII). The test specimens were manufactured following a simple, low-cost procedure. The solid components were placed in a concrete mixer and were mixed until a homogeneous mixture was achieved. Then water was added to the mixture and it was re-mixed until a workable paste was obtained. When the mixing was completed, the paste was placed in molds (34 mm diameter, variable thickness) and was compacted twice using a vibrating table. The specimens were then taken out of molds after 24 h and left to cure at ambient conditions for 28 days.

2.2. Test methodsTOP

When a sound wave strikes a material, a portion of the sound energy is reflected back, another portion is absorbed by the material while the rest is transmitted. The sound absorption coefficient, α, is the ratio of the absorbed energy to the total incident energy. To determine the acoustic properties of the products, the sound absorption coefficient at normal incidence was determined by the transfer-function method described in EN ISO 10534-2 (16) using an impedance tube connected to a sound source. An ACUPRO system has been used implemented by “Spectronics Inc.”, with two microphones and a SAMSON signal amplifier. The test method consists in creating flat waves inside the tube produced by the sound source, while the microphones measure the acoustic pressure in two fixed positions. Afterwards, the software ACUPRO calculates the acoustic transfer complex function and then the sound absorption coefficient at normal incidence. The circumferential edge of the test sample was carefully sealed with vaseline as recommended by the ISO-10534-2, to ensure a good fit between the sample and the tube. Each value represents the average value obtained after testing three samples. The Noise Reduction Coefficient (NRC) was determined as well by calculating the arithmetic mean of the absorption coefficients at 250, 500, 1000 and 2000 Hz, in order to have single numeric data of the sound absorption coefficient to make comparisons. Three samples for each composition have been measured. Although the NRC is widely accepted as a global absorption coefficient, the weighted sound absorption coefficient (α_w) is more commonly used in the road traffic noise barrier field in Europe. This coefficient was calculated according to the standard EN 11654 (17).

The open porosity has been measured due to it is strongly related to the sound absorbing behavior of rigid frame porous structures. The method of vacuum water saturation has been followed in the determination of open void ratio (VR%) (18). The samples were oven-dried at 105 ± 5 °C. Subsequently, they were weighed (W1) and left under water in a vacuum vessel until saturation was reached. After 24 hours they were removed and weighed again (W2). The open void ratio was calculated by VR (%)=VW/VS·100, where VW is the volume in the sample occupied by water and VS is the total volume of the sample. The volume of water can be found as VW=(W2-W1)/ρw, where ρw is the density of water at the test temperature. Each value represents the results of measuring three samples.

The density (ρ) of the mortars was calculated by weight and volume (dimensions) measurements. Four samples were measured for each value presented. The compressive strength (CS) of the test samples was determined based on the ASTM-C39/C39M-05e2 (19) using a compression test machine (Supezcar, MEM-102/50t). Each result was obtained by testing three specimens.

3. RESULTS AND DISCUSIONTOP

Waste from fired red paste ceramic was used in this work. The chemical composition is showed in Table 1. As it can be seen, the silica and alumina are the most significant oxides present in the ceramic waste. The red paste shows a high proportion of iron oxide responsible of the red color of the material.

In order to analyze the influence of the particle grain size of the ceramic waste in the properties of the final product, specimens with different grain size of CW were manufactured. The properties of the CW products have been compared to a typical porous concrete (HP) (20). Table 2 shows the nomenclature, composition and water content of the samples manufactured, as well as the results of the physical and mechanical properties measured.

The water/solid ratio in the mixtures increased as the particle size is lower, due to the effect of the fineness of the particles on the workability of the mix. Lower particle size increases the surface area which makes the mixtures require more water to lubricate the particles (21). On the other hand, the open porosity of the mortars tended to rise when the particle size is larger. The particle size distribution of HP is wider than the particle distribution of CW-C, but its medium particle size is lower than the medium particle size of CW-C. In consequence, CW-C was the product with highest open porosity, followed by HP, CW-M and CW-F, which presented very low open porosity. Figure 1 shows the appearance of the samples after 28 days of curing, and it can be observed the different open porosity of the samples.

The density of the products increased as the particle size becomes finer. Although CW-F showed the lowest porosity, it presented the greatest density of the CW products. Although the porous concrete used as a reference had an open void ratio close to CW-C, it presented higher density than CW-C composition. This fact is due to the greater specific gravity of the coarse aggregate (2.69 g/cm³) than the specific gravity of the ceramic waste (2.15 g/cm³). The mechanical properties of the CW products showed that the compressive strength of the mortars decreased when the open void ratio increases. Therefore, the most porous materials had the weakest compressive strength.

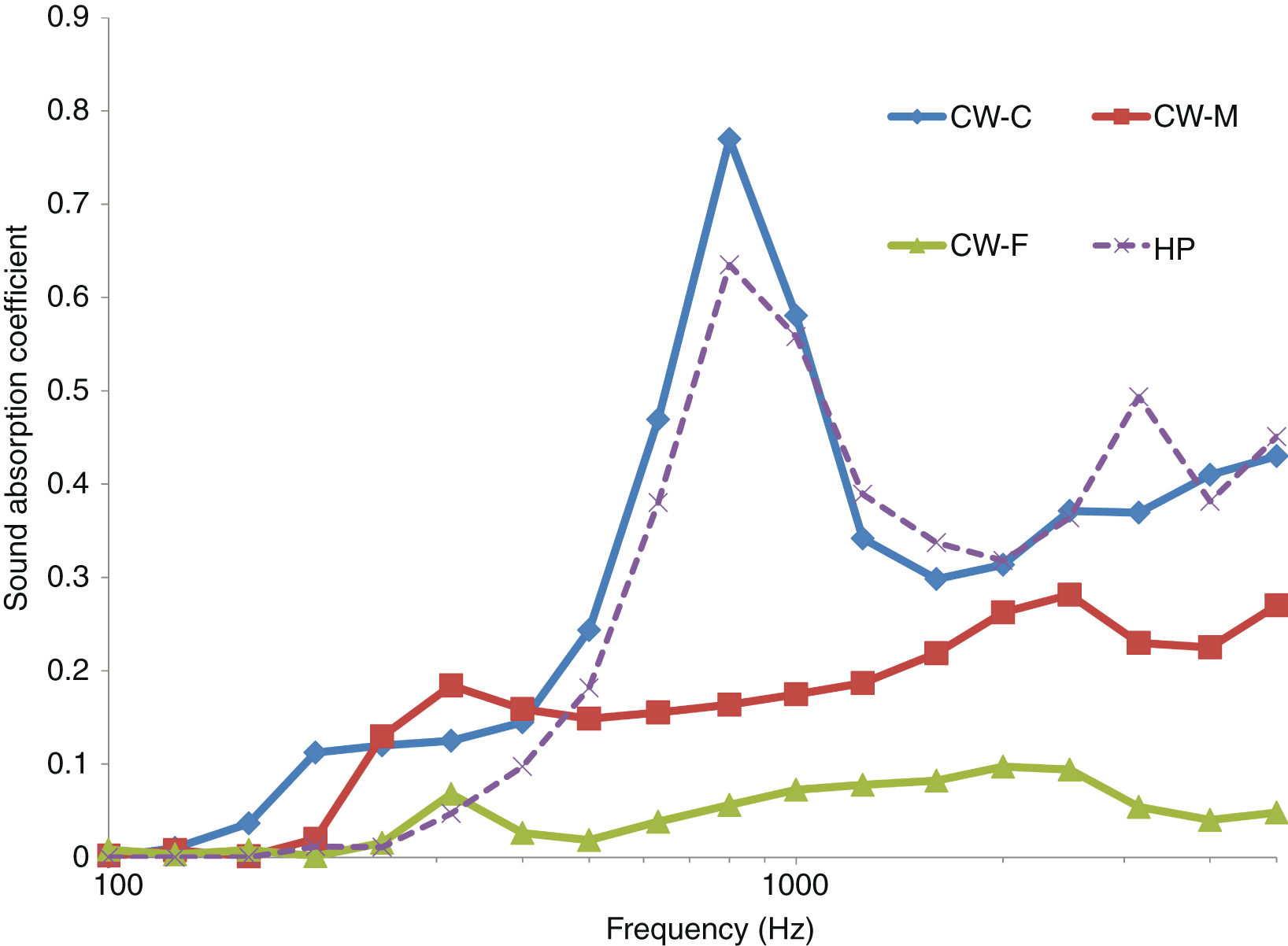

The variation of the acoustic absorption coefficient in the different CW products and porous concrete is shown in Figure 2. The results of the sound absorption coefficient are represented in one-third octave bands. The sound absorption of a porous material is related to the energy loss by friction produced in the walls of its holes. As a result, CW mortars with higher open porosity presented better sound absorption coefficients in the whole range of frequencies. Compared to the porous concrete, HP had similar sound absorption coefficients to CW-C, as it happened when comparing the open porosity. The maximum peak of the sound absorption coefficient registered for CW-C appeared at 800 Hz, which is positive taking into account that noise levels at frequencies lower than 1000 Hz are the most difficult to reduce.

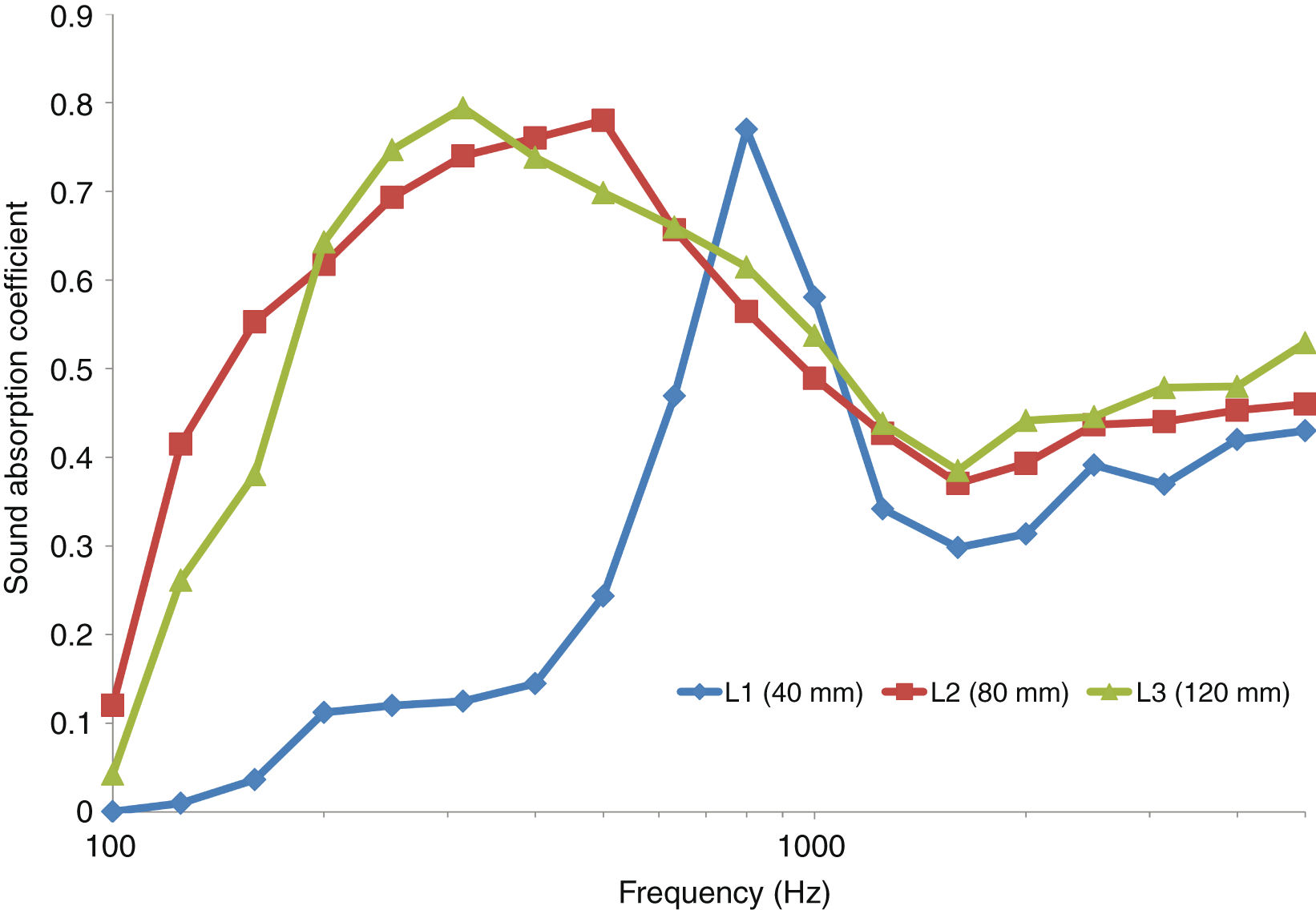

On the other hand, the acoustic absorption of a porous material depends on the thickness of the specimen tested. For this purpose, tests on the same compositions of CW products with different thicknesses were carried out. Figure 3 shows the sound absorption coefficient curves for 40 (L1), 80 (L2) and 120 mm (L3) thicknesses of CW-C specimens. The acoustic absorption spectra of CW-C specimens shifted towards lower frequency levels as the thickness of the specimens becomes larger, although the magnitude of the absorption coefficient peak remained practically uniform. This phenomenon could be due to the relationship between the peak frequency and the thickness of the specimens (equation a), which can be expressed by an equation [1] obtained from the concept of the absorbing mechanism of a porous material (22).

Where f_P is the frequency at the peak, n is the number of peaks (constant), c is the sound speed of air (fixed for temperature), and l is the thickness of the specimen. Therefore, when a reduction of noise at a specific frequency is required, the thickness of the panel is an important design parameter that must be properly adjust. The same tendency was observed in the results of CW-M and CW-F, although in the case of CW-F the sound absorption was so low that very little differences were found with the variation of the thickness.

The Noise Reduction Coefficient (NRC) and α_w were calculated in order to clearly identify the effect of the particle grain size of the ceramic waste material and the thickness of the specimens tested in the Kundt tube, see Table 3. The same tendency as the sound absorption coefficient curves was observed for the NRC and α_w, and this effect was repeated in all the CW compositions. The European normative EN-ISO 11654 (17) allows the products to be classified according to the α_w. CW-C-L3 can be classified as class C (0.6<α_w<0.75), CW-F is out of classification whilst the rest of the compositions are class D (0.30<α_w<0.55) or E (0.15<α_w<0.25). According to the normative, CW-C-L3 and CW-C-L2 present a favorable deviation higher than 0.25 for 500 Hz and should be classified as M.

Our goal is to develop a product elaborated with the entire range of CW particle sizes, although not all of them have the same influence on the properties of the final product as it has been demonstrated so far. The next stage of this research consisted in manufacturing a multilayer composite product using two or three layers made of different particle size fractions.

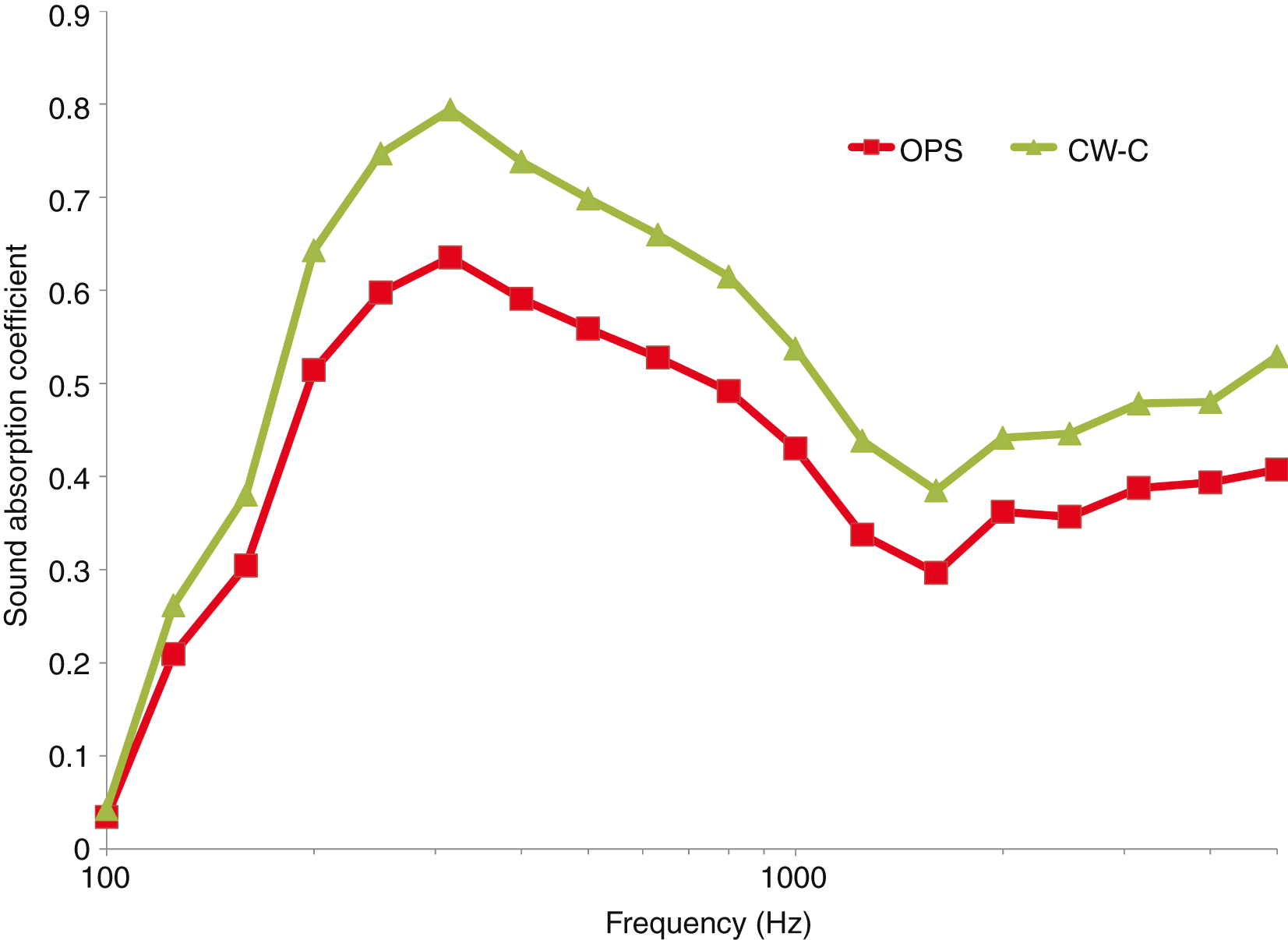

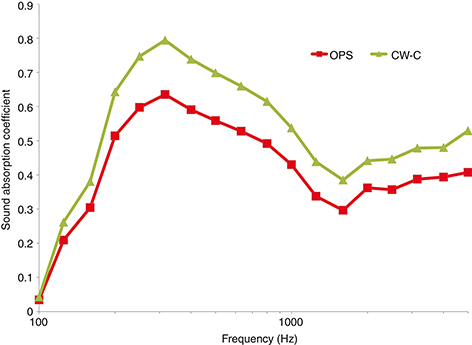

Accordingly, 12 cm-thick specimens were prepared combining layers of CW-Coarse, Medium and Fine. Taking into account the results obtained in previous studies (20), the optimal composite solution (OCS) will be the combination which presents the best acoustic absorption behavior using all the range of particle size. The OCS is given by having CW-C in the incident noise face (4 cm), followed by CW-M (4 cm) and finally CW-F (4 cm). Figure 4 presents the sound absorption coefficient curves of the OCS and CW-C. Wider layers of CW-C give better sound absorption coefficient values. The less porous material as a back layer of the product increases the reflection of the sound wave, making the noise cross again the high absorption zone and increasing the total absorbed noise while keeping the thickness.

The OCS presents lower noise reduction coefficient than CW-C. Despite the fact that the NRC of the OCS is 0.49, 20% less than CW-C, this composition uses all the different sizes of the ceramic waste material.

4. CONCLUSIONSTOP

The recycled porous concrete present better acoustic and mechanical properties than the porous concrete traditionally used to manufacture highway noise barriers. Furthermore, the fabrication process and its potential installation are similar to the porous concrete as well. Therefore, the recycled ceramic concrete could be applied to manufacture road traffic noise reducing devices. The main goal of this experimental study was to develop a product mainly composed by ceramic waste, which presents good noise absorption characteristics. In the course of the study the following conclusions were reached:
