Analysis of the sensitivity of the impact resonance frequency test as a tool to determine the elastic properties of bituminous materials

R. Tauste^a,*, F. Moreno-Navarro^a, R. Gallego^b, M.C. Rubio-Gámez^a

a. Laboratory of Construction Engineering (LabIC.UGR), Department of Construction Engineering (ICPI), School of Civil Engineering (ETSICCP), University of Granada, (Granada, Spain)

b. Department of Structural Mechanics, School of Civil Engineering (ETSICCP), University of Granada, (Granada, Spain)

*rtauste@ugr.es

1. INTRODUCTIONTOP

In recent years, an increase in traffic volumes and loads per axel in roads and highways (primarily due to the globalization of commerce), has led to the need to optimize construction and maintenance works. This is also the main reason why new elements such as polymers, crumb rubber or thermal power plant ashes (1, 2) are being incorporated into bituminous mixtures, in order to achieve more durable pavements that have minimal impact on economic and social activities. In this respect, determining the degree of deterioration of the materials used in the construction of these infrastructures can be of considerable value when attempting to identify the suitability of these new components and the optimal time to conduct rehabilitation activities. For this purpose, it is critical to know the structural behavior of the pavement as well as the way in which different pathologies can have an impact on the roads during their service life (3).

Along with the thickness of the layer of the bituminous mixture, dynamic modulus is one of the most important factors influencing the structural response of pavements (4). Its importance comes from the natural properties of the material and its ability to represent the stress-strain behavior as a function of the temperature and loading rate (5). In addition, the dynamic modulus is considered to be one of the best indicators of the presence of plastic deformations and cracks in asphalt pavements (4, 6), and it can therefore be of use when attempting to ascertain the optimal time to conduct rehabilitation projects.

Given its usefulness, the evaluation of dynamic modulus plays a fundamental role in the design of asphalt pavements. Models such as those developed by Witzack (7) or Hirsch (8), allow for the evaluation of this property based on parameters related to the materials (mineral skeleton, type of binder used, voids content, etc.). However, when evaluating pavement deterioration, this parameter is used rather less extensively during the service life when compared with the design phase. Similar concepts such as the measurement of the pavement deflections have been used in order to monitor the degradation of the pavement structure and to ascertain when repairs are needed. However, this parameter cannot make distinctions between the different layers of the infrastructure (foundation layers and pavement), and their results might not only be linked to the bituminous materials. And whilst it might be possible to conduct preliminary testing of cores extracted from the asphalt layers using standard laboratory methods (9, 10), this approach has some drawbacks such as the potential degradation of the asphalt layer (caused by the drilling of the pavement to extract the core) or the amount of time and resources consumed (the cores must be transported to the laboratory), all of which render the process non-competitive.

Thus, the use of non-destructive methods (such as the impact resonance frequency test) could provide an alternative to determine the damage that occurs in bituminous materials during their service life in the pavement. One advantage of these tests is that they do not damage the properties of the materials, and they are effective in saving time and resources. In addition, the measures involved in these methods are significantly faster, simpler in their execution, and require relatively low-cost equipment that can offer a high level of repeatability without requiring the production of a large number of samples (11). These tests have also been widely used in many other fields, such as metals and cement concrete. For instance, in the field of asphalt materials, previous studies (6, 12, 13) have explored the application of this type of testing on cylindrical specimens of bituminous mixtures. These have yielded a good correlation between the values of modulus obtained with the natural resonance frequency tests, and the values obtained with traditional laboratory tests. Furthermore, in recent years, several studies have sought to extend the potential of these tests through the analysis of the signal recorded (14), the use of ultrasonic compression waves “P” or shear waves “S” (15), the measurements of frequency response functions (FRFs) and their correlation with different models such as a finite element computed frequency response. Such studies aimed to improve the estimation of damping properties (16, 17), or apply the tests to different geometries such as thin disk specimens (18). In some cases, work was aimed at exploring the possibility of estimating the damage in asphalt mixes (17, 19).

Nonetheless, in order to extend the use of these methods to determine the degree of degradation of asphalt pavements on-site, it is necessary to study in more depth the impact of different variables on the relevant measures (such as the dimensions of the sample measured, the temperature of the material, or the type of mixture tested). For this purpose, this paper analyzes the feasibility of applying this type of non-destructive technique to the study of the structural behavior of asphalt pavements by determining the dynamic modulus in prismatic specimens. In particular, the present study will assess the variability of the results in relation to various factors, whilst comparing the findings with those obtained in traditional laboratory tests.

2. METHODOLOGYTOP

2.1. MaterialsTOP

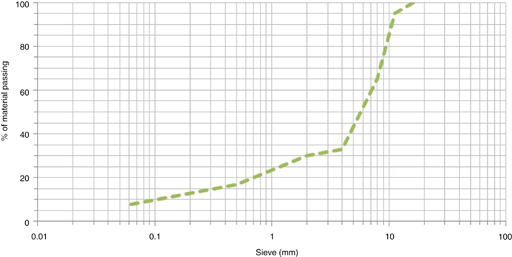

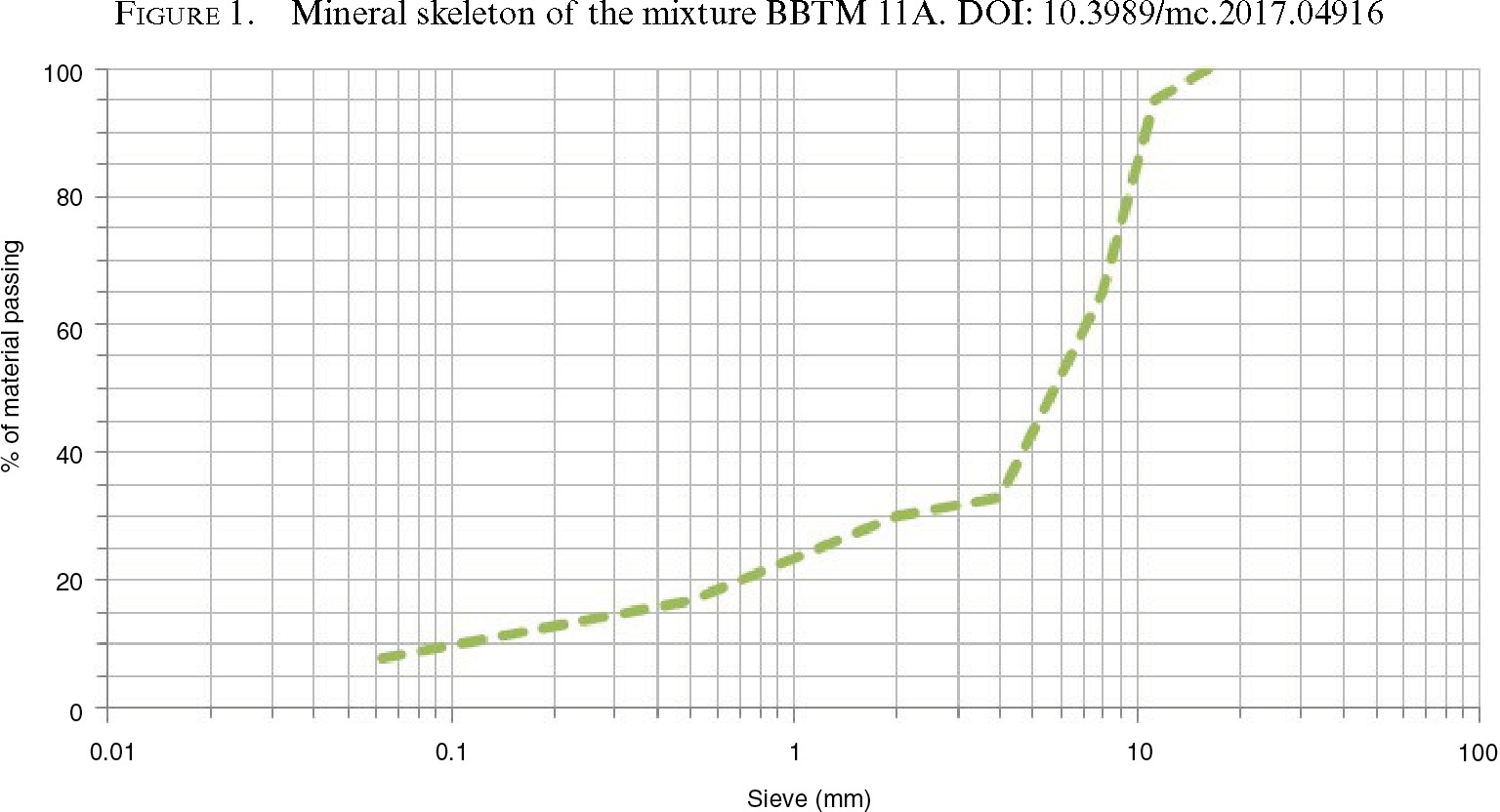

The use of non-destructive tests for defining the damage state of asphalt pavements is primarily applied in the surface layer (given that access to the subjacent layers is not possible without degrading the pavement). The present study employed a bituminous mixture commonly used in the surface layers of pavements worldwide. Further, given that impact resonance methods tend to be more effective when using homogeneous and continuous media (where the vibrations can be propagated easily and with a clearer signal) mixtures with a lower void content such as those composed of a continuous mineral skeleton (asphalt concrete EN 13108-1) (20), would be the most appropriate. However, since this study aimed to analyze if these methods can be extended to all types of asphalt mixtures, a mixture with a gap-graded mineral skeleton was selected. In particular, a surface layer mixture of the type BBTM11A (UNE-EN 13108-2) (21) was chosen for this study. The mineral skeleton of this mixture was composed of limestone aggregate in the sand fraction (0/6 mm), ophites in the gravel fraction (6/12 mm), and cement in the filler fraction (the mineral skeleton employed can be observed in Figure 1).

In order to evaluate different types of materials, two different mixtures were studied. Both mixtures use the same mineral skeleton as that just described, but they were manufactured with different binders: conventional bitumen B 35/50 (commonly used in low volume traffic roads), and high-performance polymer-modified bitumen BM3c (commonly used in high volume traffic roads and highways). The main characteristics of the binders used (B35/50 and BM3c) and the mixtures designed (BBTM 11A-B35/50 and BBTM 11A-BM3c) are summarized in Tables 1 and 2. As can be observed, the mixtures were designed with very similar characteristics in order to assess if the impact resonance tests are sufficiently precise to reveal differences between quite similar materials.

2.2. Testing planTOP

The main objective of this study is to determine the sensitivity of the natural resonance frequency method for determining the modulus of bituminous mixtures. For this purpose, it is necessary to control the quality of the signal obtained in the waves, as well as the repeatability and reproducibility of the results, given the variations in the main variables that could affect the measures. Furthermore, to assess the accuracy of this non-destructive test, it is necessary to compare the results with those obtained from other traditional laboratory tests.

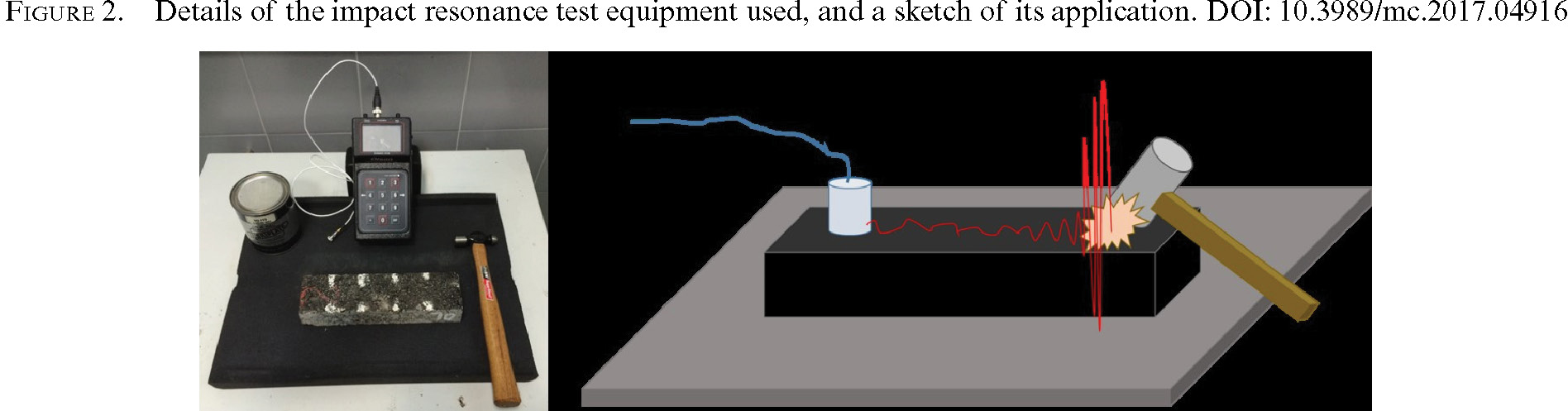

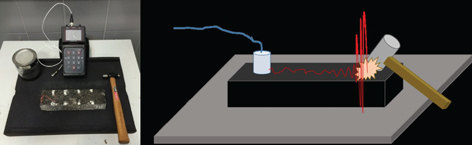

The non-destructive method used for studying the materials was an impact resonance test, commonly used for detecting the elastic properties of cement concretes (29). The main components of the test equipment are a hammer that acts as an exciter, an accelerometer (which registers the vibrations caused by the impact of the hammer), a polystyrene support where the specimen is placed (to ensure constant boundary conditions), and a device that analyzes the signal recorded by the accelerometer (Figure 2). The principle of the test is to induce elastic excitation with the hammer in one point of the specimen, and to register the characteristics of the mechanical vibrations caused using the accelerometer in another point of the specimen. These mechanical vibrations are transformed into signals and transferred to the frequency domain by using the fast Fourier transform algorithm (6), in order to determine the resonance frequency of the material. As this parameter is directly related to the stiffness of the material [1], it can be used to define its modulus and to detect the presence of internal defects. In this respect, it is worth noting that bituminous mixtures have a certain damping due to their partly viscous nature, and this should be taken into account when determining the resonance frequency. Therefore, the natural frequency (f_n) that will be used in the calculation of the modulus must be calculated from the frequency obtained in the measure (f_d) [2] (13).

Where E is the modulus of the material; l is the length of the specimen; b is the width of the specimen; h is the height of the specimen; T is a factor that relates to the length of the specimen and the radius; W is the weight of the specimen; and f_n is the resonance frequency.

Where ξ is the damping factor measured.

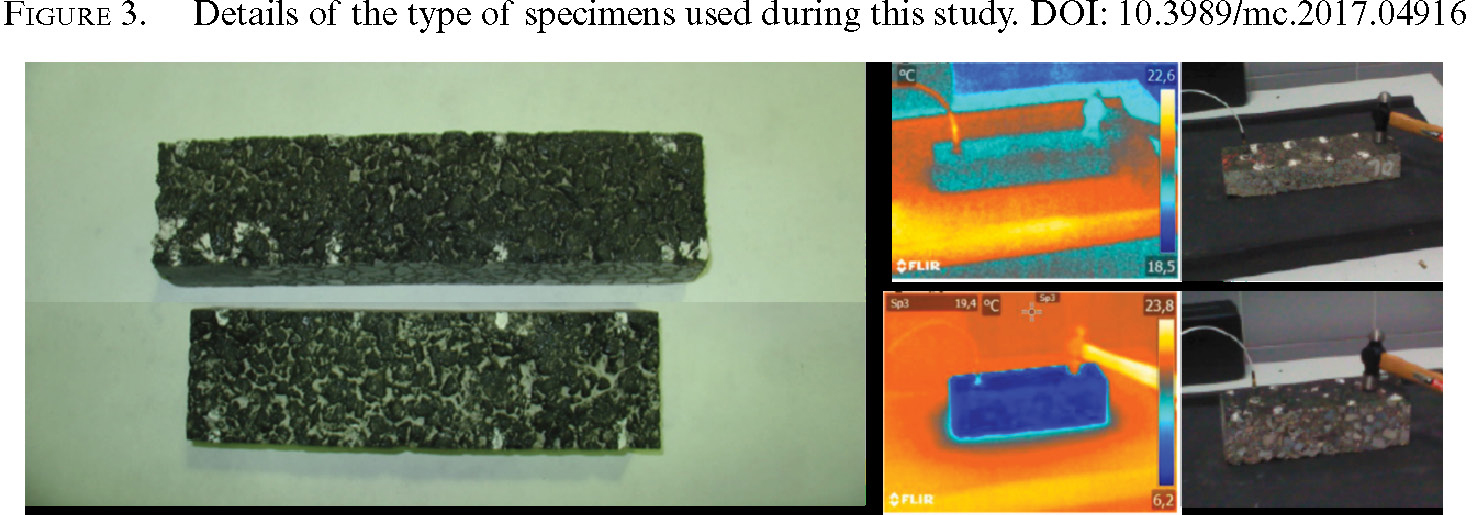

As defined, the resonance frequency of a solid material depends on its stiffness, mass, dimensions, and boundary conditions. It therefore follows that the dimensions of the test specimens will influence the measurement of the modulus using the impact resonance test. Consequently, it is necessary to evaluate the impact of this variable on the calculated value of the dynamic modulus, in order to validate the results obtained. For this purpose, two different lengths of specimen were used (260 mm and 206 mm), maintaining a constant width of 60 mm and a height of 40 mm (Figure 3). When establishing these sizes, the recommendation included in the standard ASTM-C215 (29) was taken into account, stipulating that the ratio between the length and the largest dimension in the transverse direction must be at least 2:1.

As this method was originally intended for concrete cement specimens, it is necessary to consider certain issues. Firstly, it should be noted that the values obtained with this test correspond to those associated with the modulus at high frequencies, due to the high frequencies produced by the impact of the hammer (in the order of kHz) (13). Thus, the values obtained cannot directly be compared with those obtained using other laboratory methods such as the stiffness test (9). Secondly, as bituminous mixtures are visco-elastic materials that behave in a more viscous manner as the temperature increases, the test will suffer a loss of quality in the recorded signals under these circumstances (the damping factor depends on the test temperature, reducing its value when the temperature decreases) (6). Therefore, it is necessary to analyze the influence of the test temperature on the calculated value of the modulus obtained with the impact resonance test. The specimens were therefore tested at different temperatures, starting at −15°C, and increasing in increments of 5°C up to a maximum of 30°C. The specimens were conditioned for 4 hours at the test temperature before the measurements were taken, and the temperature was controlled with an infrared camera during the test (Figure 3). In addition, the vibrations transmitted with the impact of the hammer will depend on the type of material used, thus making it worthwhile to evaluate two different types of bitumen (B35/50 and BM3c).

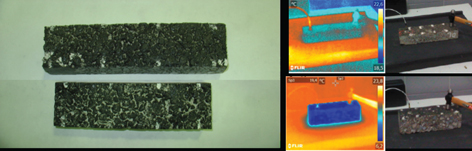

Twelve specimens of each type of mixture (BBTM 11A-BM3c and BBTM11A-B35/50) were tested at the different temperatures, six with a length of 260 mm and another six with a length of 206 mm. Each specimen was tested twenty times at each temperature. Thus, the analysis of sensitivity of the impact resonance test for the measurement of the modulus of bituminous mixtures was evaluated as a function of the main variables that could affect the results (size of the specimen, temperature, and type of material). For this purpose, the repeatability (variations obtained in the measurements made in a given specimen under the same test conditions) and reproducibility (variations obtained in the measurements made in different specimens of the same material under the same test conditions) of the test was evaluated using the coefficient of variation [3].

Finally, in order to compare the results obtained in the impact resonance test, a different laboratory method was used to calculate the modulus of the bituminous materials. Given that the only difference between the mixtures was the type of binder used in their manufacture (they were manufactured with the same mineral skeleton and quantity of bitumen), along with the fact that a direct correlation between the characteristics of the binder and the mixture has been demonstrated (30), two different modulus tests were conducted on the binders (B35/50 and BM3c).

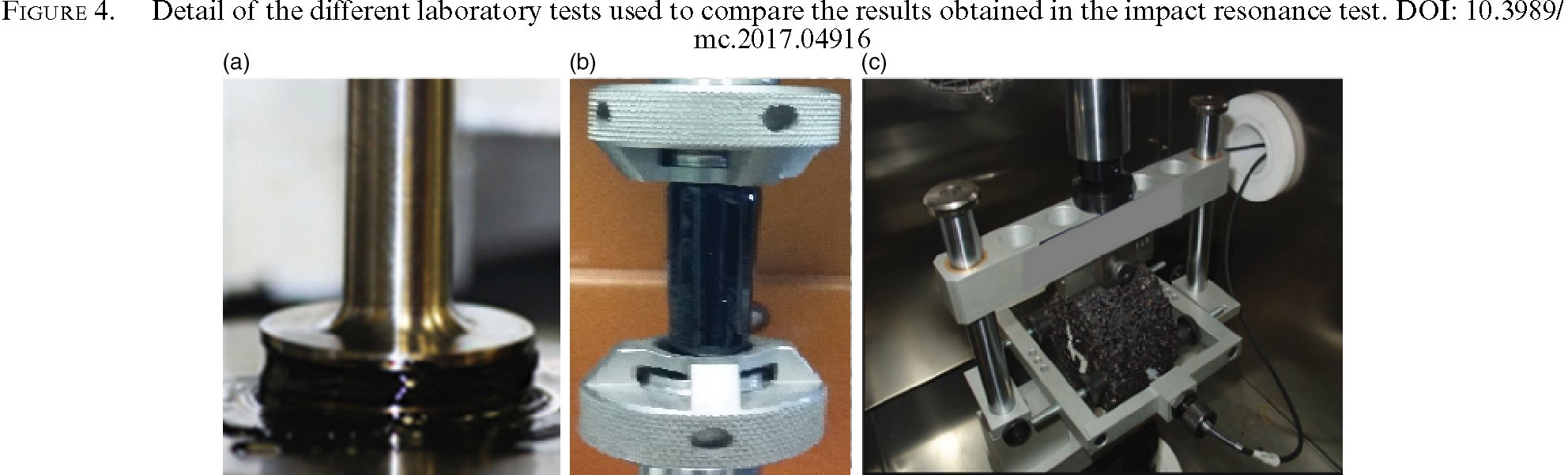

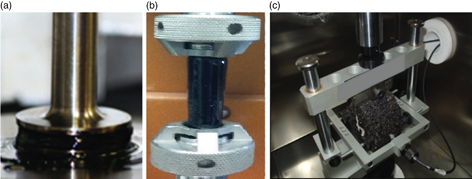

In one test, the modulus was tested through the rheological response of the binders, analyzed using the frequency sweep test at various temperatures (10, 20, 30°C) This test was carried out using the Dynamic Shear Rheometer (DSR - see Figure 4a) where an oscillatory shear loading was applied at constant amplitude (0.1% strain) and at a frequency of 5 Hz. During the tests, the complex shear modulus (G*) was recorded (EN 14770).

In the other test, the modulus was measured under tensile strain conditions (0.1% of strain at 10 Hz at −5°C, 5°C, and 10°C) using a dynamic press (Figure 4b). In addition, the stiffness modulus of the mixtures was also determined at different temperatures (10°C, 20°C and 30°C) using the indirect tensile (IT) test described in the standard EN 12697-26, Annex C (Figure 4c). The test samples were cylinders, which had a thickness of 30–75 mm and a diameter of 101.6 ± 0.1 mm, and manufactured with an impact compactor (UNE-EN 12697-30). The specimens were stored at a temperature of 5°C and then allowed to adjust to the test temperature (10°C, 20°C and 30°C). After placing and securing the specimen in a vertical position at one of its diameters, 10 load pulses were applied so that the device could adjust to the magnitude of the load and its duration. In order to measure the deformation of the diameter, 5 additional load pulses were applied to measure and record the load variation and deformation in the time period of each pulse. At the same time, the surface load factor was also determined. As a result, the stiffness modulus was obtained for two diameters of the specimen (forming an angle of 90 ± 10°).

3. ANALYSIS OF RESULTSTOP

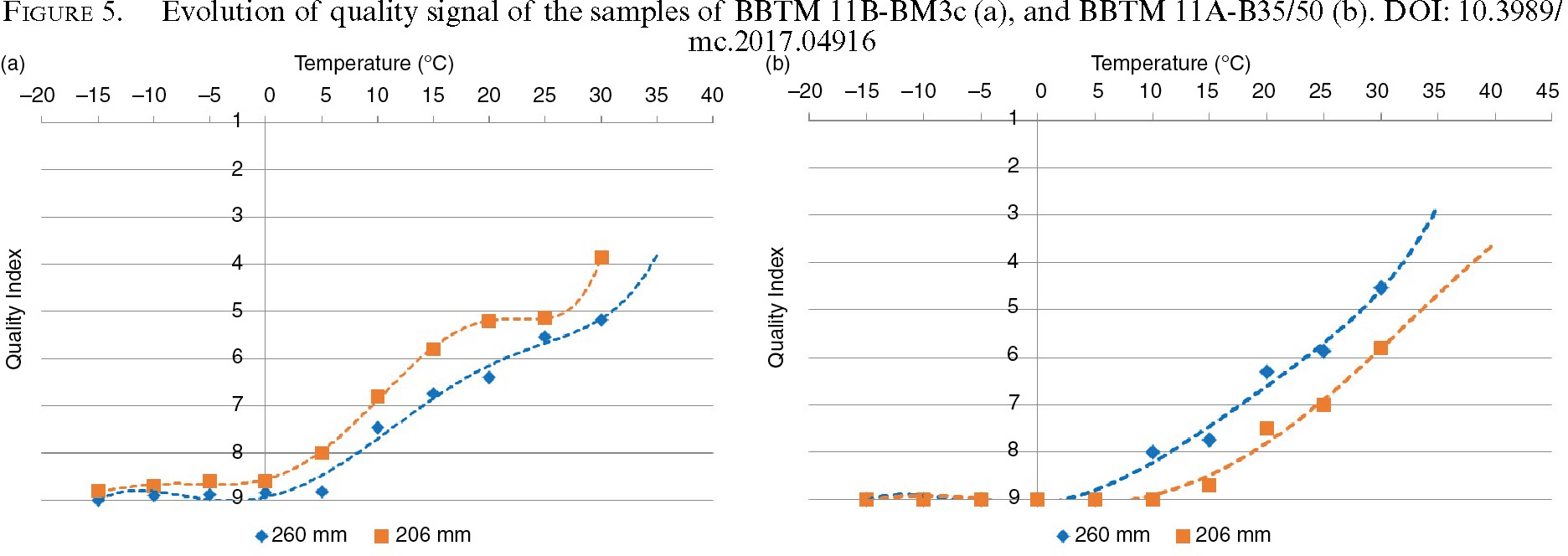

The results from the analysis of the quality of the signal recorded under different test conditions (temperature, mixture type, and size of the test specimen) are shown in Figure 5. For evaluation purposes, the test equipment supplied a quality index ranging between 1 and 9 (the latter value indicating the highest signal quality).

Figure 5 (where the average values obtained in the different mixtures are compared) shows a decline in the quality of the signal obtained on the resonance test as the test temperature increased (regardless of the size of the specimen used). This implies a possible limitation of this test method, since rates below 4 indicates that the acquired signal is not sufficiently accurate and the value of the modulus could not be representative. Thus, at least for the mixtures tested here, it could be argued that measurements over 30°C might not be reliable and are therefore not to be recommended (as at these temperatures, the mixtures reached values close to 4). Values between 8 and 9 can be considered as the most appropriate to take the measurements, and they were obtained at a temperature of approximately 5°C in the case of the mixture manufactured with the BM3c, and approximately 10°C in the case of the mixture manufactured with the B35/50. Comparing the sizes of the specimens suggests that as the size decreases, the quality of the signal also decreases (nonetheless, the impact of this variable is lower than that caused by the test temperature). Finally, a comparison of the two types of mixtures reveals that the mixture manufactured with the B 35/50 has a better quality of signal than that manufactured with the BM3c. This could be due to a stiffer response of the mixture (caused by the type of binder, which has a lower penetration grade), which allows it to perform more elastically. In this case, it is possible that mixtures with a higher stiffness (for example those manufactured with a low penetration binder) can be evaluated at higher temperatures.

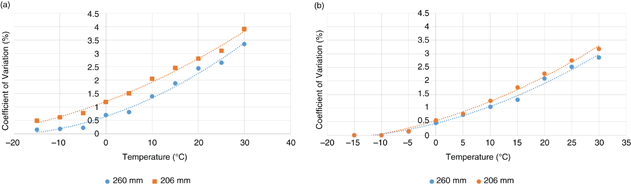

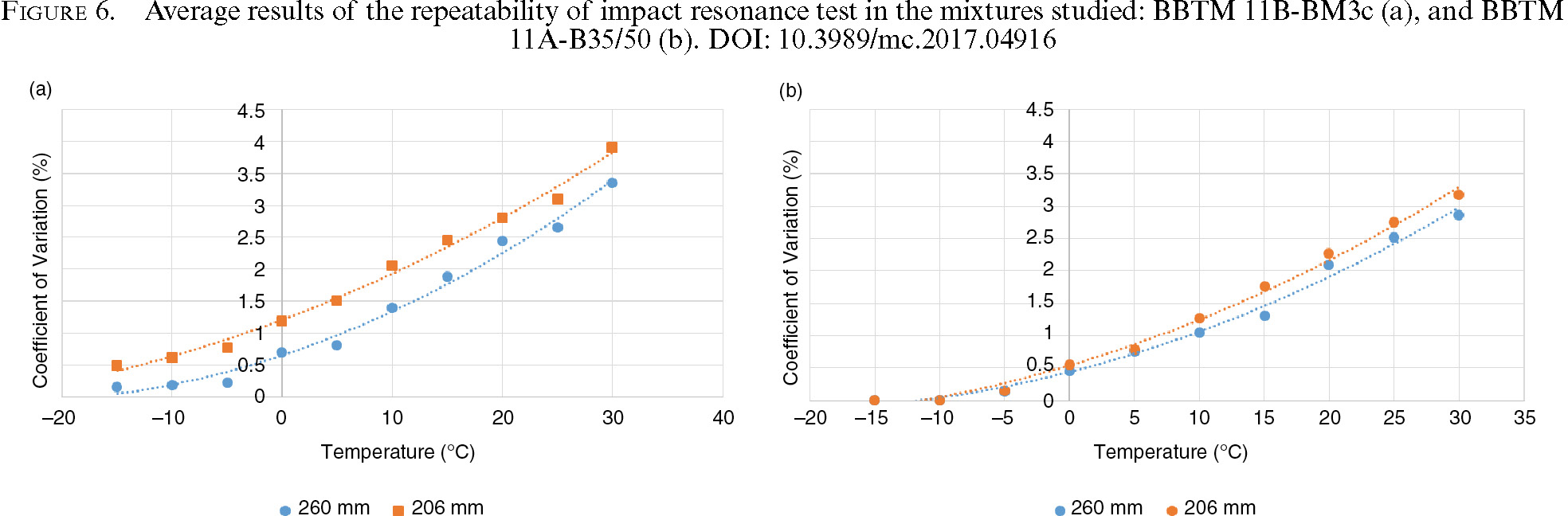

Figure 6 shows the errors of the measurements in terms of the repeatability of the test, during assessment of the modulus using the impact resonance method. As with the case of signal quality, it was found that as the temperature increased and the stiffness of the mixture decreased, the repeatability of the test decreased (which is due to a more viscous behavior that induces an increase in the damping of the vibration), and therefore the resulting measurement can be considered less reliable. This effect is clearly observed regardless of the size of the specimen, which is the variable that least affects the measurements made. This conclusion is in accordance with other studies that also show that the different dimensions of the specimens did not affect the modal test results in cylindrical geometries unless they had a thickness of less than 4 centimeters (16, 17, 18, 19). Nonetheless, it should be pointed out that for the mixtures tested and the temperature used here, the obtained values have high repeatability, suggesting that the resonance impact test is suitable for assessing changes in the modulus of bituminous mixtures. In any case, in order to correctly apply this method and achieve reliable measures, it is necessary to control some factors such as the test temperature and the type of binder used.

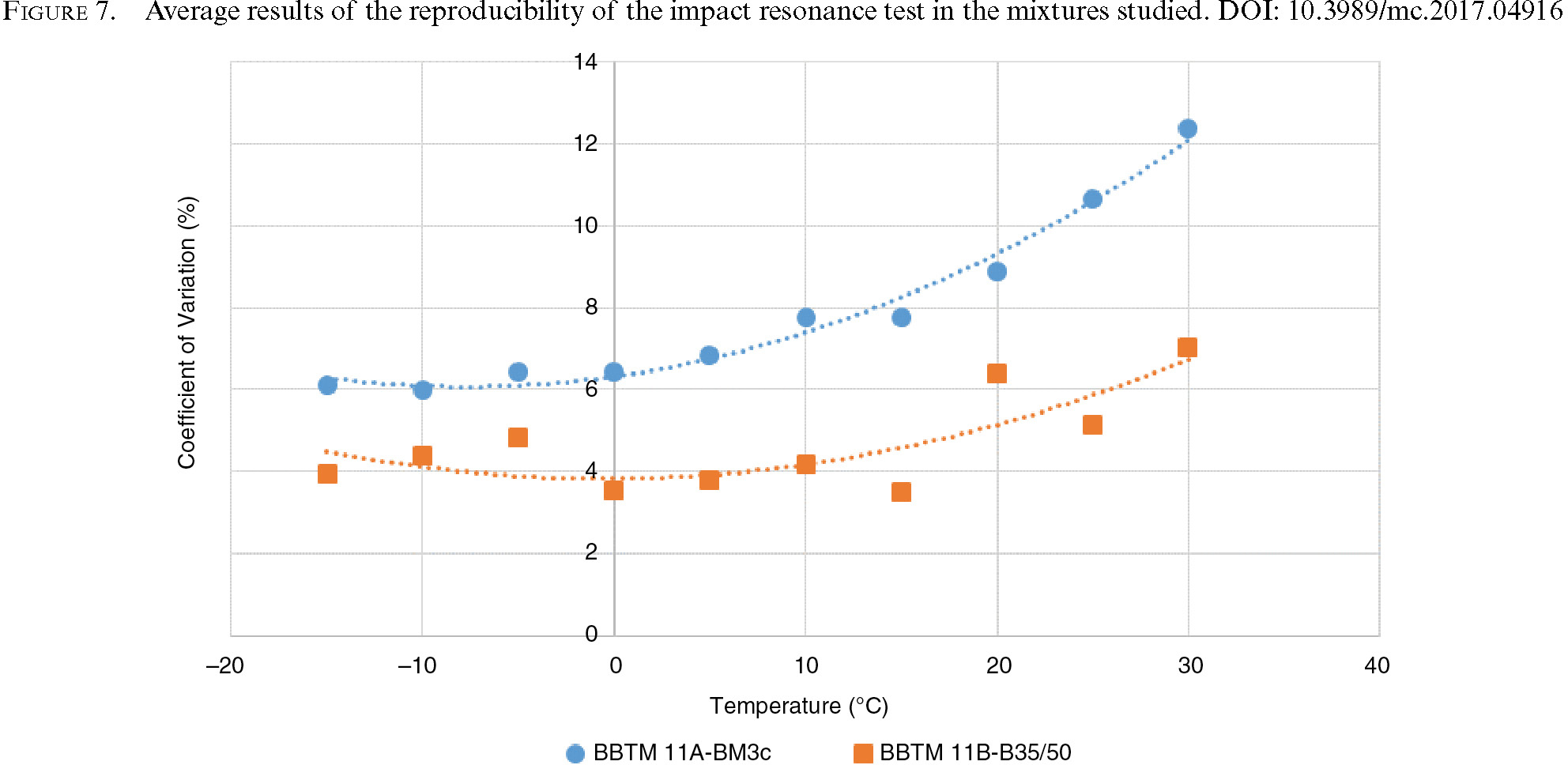

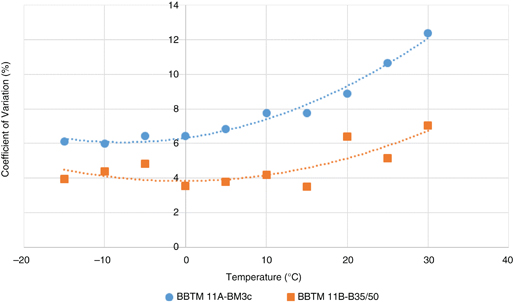

Figure 7 shows the reproducibility of the method, measured using the coefficients of variation obtained from the various tests with different specimens having the same geometry (length of 206 mm). Once again, the effect of damping reduces confidence in the results obtained with this method (the reproducibility of the method decreases with an increase in temperature and a decrease in the stiffness of the mixture). Nonetheless, the results obtained for the mixtures and temperatures tested here show an acceptable value of reproducibility in the calculus of the stiffness modulus, if they are compared with the results obtained in other laboratory tests.

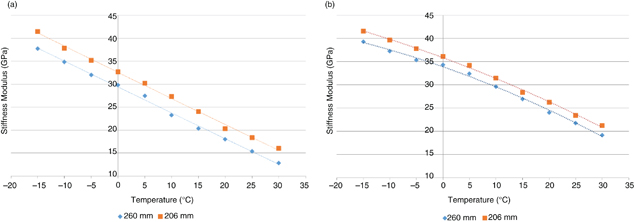

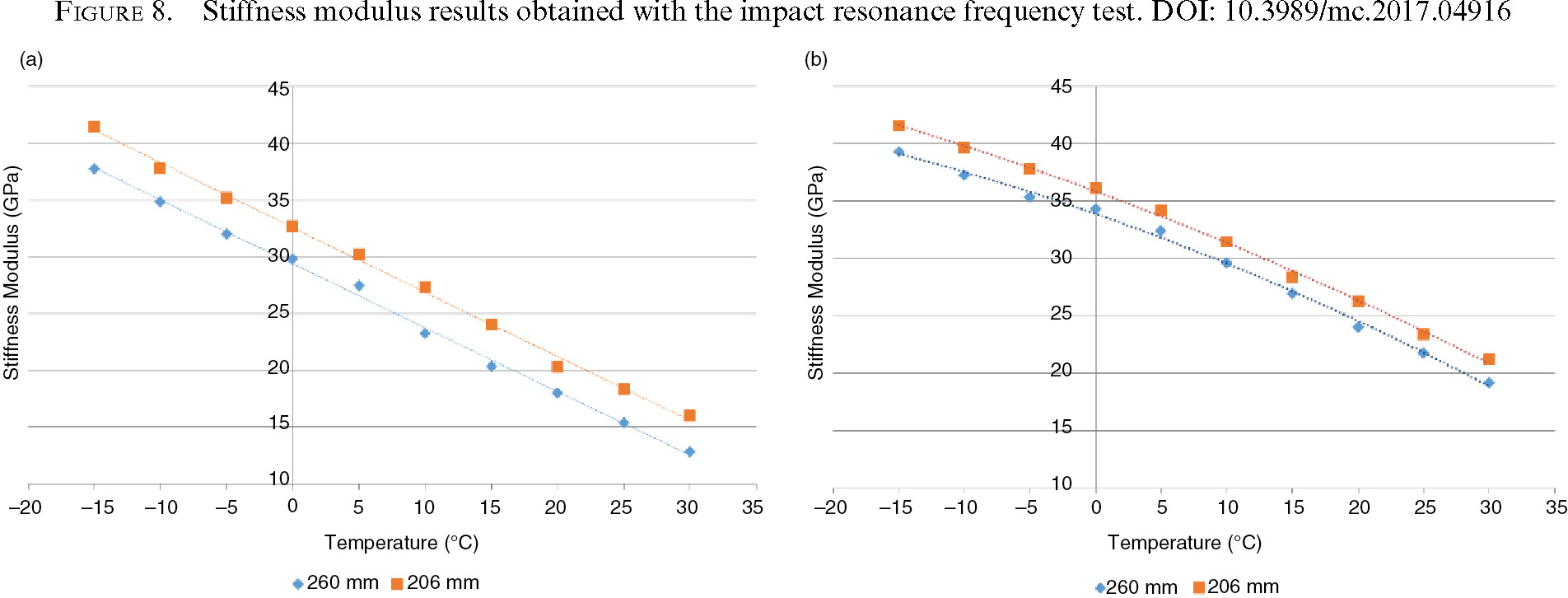

Figure 8 shows, for the various specimens of the two mixtures, the average results of the stiffness modulus obtained as a function of the temperature (calculated using the impact resonance test). The value of the modulus appears to decrease as the temperature increases, regardless of the size of the specimen and the type of bituminous mixture. This trend is in accordance with the results of mechanical tests performed on both the binders (DSR and tension-compression tests) and mixtures (indirect tensile stiffness tests), where the modulus of the bituminous materials also decreases as a function of the temperature. These results also confirm that the weaker the relationship between the length and the width of the sample, the higher the value of the modulus obtained. In this regard, it should be pointed out that higher values of modulus were found in the mixture manufactured with the bitumen B35/50, which is in line with the results obtained in the laboratory tests conducted on the binders and mixtures, and also confirms the viability of using this method to compare different types of mixtures.

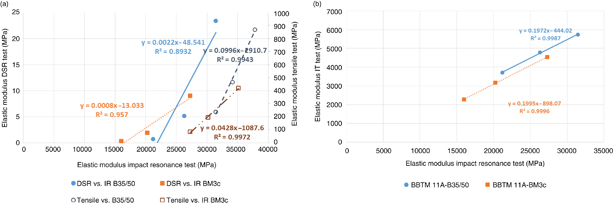

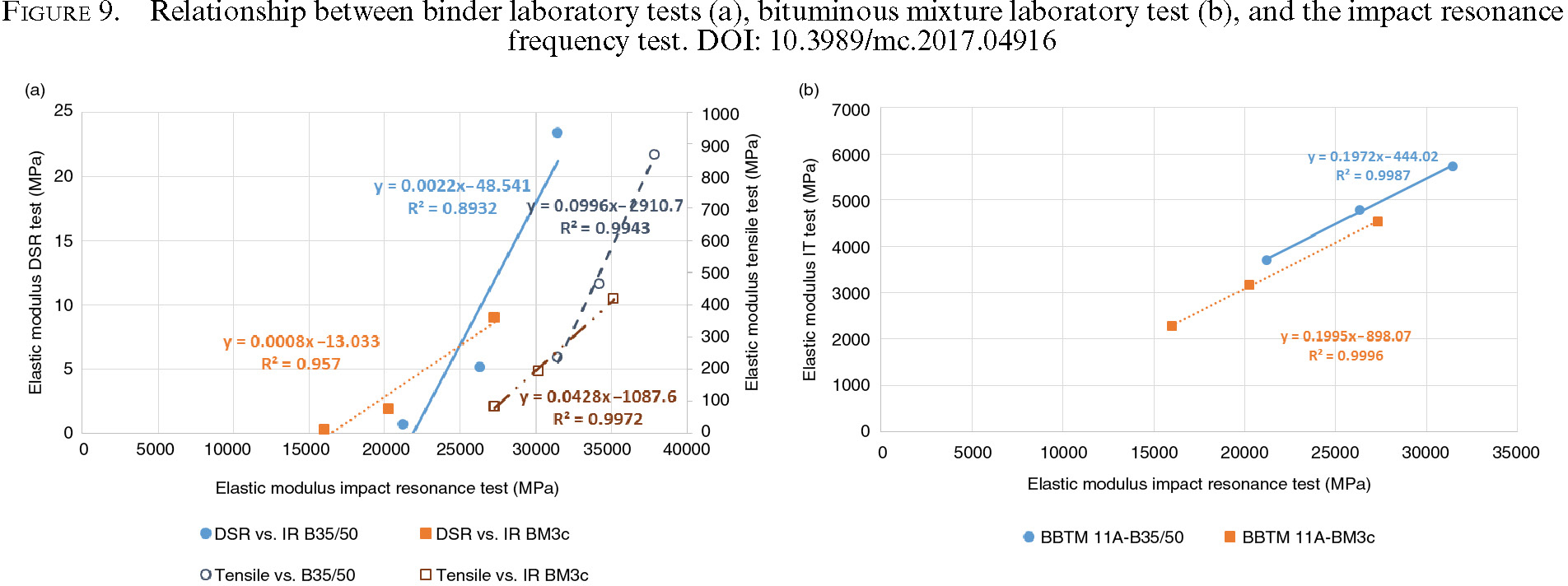

Figure 9 displays the relationship between the values obtained in the non-destructive test and the laboratory tests conducted on the binders and mixtures. The values of modulus obtained vary between the different methods, since the non-destructive test applies frequencies that are considerably higher than those used in the laboratory tests, and these tests are therefore not comparable. This is something characteristic of the test, which occurs systematically, particularly at higher temperatures, as found in several studies (15, 16, 19). Thus, higher values are obtained when determining the modulus with the impact resonance test (it should be pointed out that the values obtained from different laboratory methods are also not comparable, since they apply different types of efforts and frequencies). However, it is worth nothing that, in the present study, there is a high linear correlation between the values obtained at different temperatures and with the different methods employed. This result provides support for the use of non-destructive tests as a tool to identify the changes in the modulus produced in asphalt materials in order to monitor alterations in their mechanical properties without damaging the infrastructure.

4. CONCLUSIONSTOP

This paper analyses the application of a non-destructive test (impact resonance frequency) for evaluating the elastic properties of bituminous materials. This analysis involved studying the main variables that can affect the measurements made with this method, as well as their repeatability and reproducibility. Furthermore, the results obtained with the impact resonance test were compared with those from other traditional laboratory tests. The main conclusions obtained in this research study can be summarized as follows:
