High strength oil palm shell concrete beams reinforced with steel fibres

S. Poh-Yap*, U. Johnson-Alengaram, K. Hung-Mo, M. Zamin-Jumaat

Department of Civil Engineering, Faculty of Engineering, University of Malaya, (Kuala Lumpur, Malaysia)

* spyap@um.edu.my

1. INTRODUCTIONTOP

Lightweight concrete (LWC) has been used successfully for both structural and non-structural applications for many years. The structural applications of LWC are still increasing all around the world due to its benefits of good thermal insulation, better durability and reduction in self-weight of the structures (1, 2). The reduced density of LWC is important in the construction of high rise building, complex and long span structures especially in earthquake regions as it gives considerable cost savings, greater design flexibility and reduced cross-sectional area in members (1–3). Moreover, the increasing demand for concrete in the construction industry has resulted in the rapid depletion of the conventional concrete materials, such as granite aggregate and mining sand. Thus, the utilization of industrial and agricultural wastes to replace the conventional concrete materials imposes significant impact on the development of sustainable concrete. The wastes utilization process decreases the problems on scarcity of virgin materials, and reduces environmental pollution as well. Lightweight aggregates, such as slag, pulverized fuel ash, furnace clinker, expanded clay, pumice and oil palm shell (OPS) are among the materials commonly used to replace granite aggregate to produce LWC (4). From the above-mentioned lightweight aggregates, the utilization of OPS to replace the conventional coarse aggregate has gained considerable interest in developing regions, such as those in Southeast Asia and Africa. This is mainly attributed to the lightweight characteristic, high impact, and high abrasion resistance of OPS (2).

Despite the numerous advantages of LWC, the low tensile strength of LWC is limiting its structural applications (1, 2). Concrete with high tensile strength is desirable for the design of larger and longer structural members to arrest tensile cracking and to improve the tensile loading capacity. Furthermore, in the design of special structures, such as impact and blast resistant structural members, high tensile strength is mandatory (5). The flexural strength of OPSC in the range of about 3–5 MPa (6) is about 60% lower than normal weight concrete (NWC). Thus, enhancing the tensile strength of OPSC is essential to broaden its applications.

The incorporation of steel fibres in concrete is known to increase the toughness and ductility of concrete substantially, especially under tensile loading (5, 7, 8). In this study, hooked end steel fibres with up to 3% (by volume) were added into OPSC in order to improve the low tensile strength of OPSC. The resulting new material will be oil palm shell fibre-reinforced concrete (OPSFRC). Mechanical properties and flexural behaviours of OPSC and OPSFRC beams were investigated and compared to evaluate the feasibility of OPSFRC in special structures subjected to impact, blast or earthquake.

2. RESEARCH BACKGROUNDTOP

The published research on Oil Palm Shell Concrete (OPSC) has shown that it could be produced within the density range of 1690–2020 kg/m³ and with a compressive strength of up to 45 MPa (6, 9). Moreover, the long-term strength of the OPSC was investigated by Mannan and Ganapathy (10) who reported that there was no deterioration in the compressive strength up to 365 days. Meanwhile, there are limited studies on the flexural performance of OPSC reinforced concrete (11, 12). These investigations reported that OPSC beams showed comparable flexural capacities than NWC but with better ductility behaviour. OPSC beams exhibited considerable amount of cracks but the deflections fell within the allowable deflection limit in both the ACI and BS codes.

Meanwhile past studies on fibre-reinforced concrete reported significant enhancement of the mechanical properties, cracking resistance and durability compared to the conventional concrete (3, 7, 8, 13–19). The other reported advantages of steel fibres in concrete include improving toughness (19), ductility (20), flexural behaviours (21) and impact and blast resistance (5). The recent studies showed that the addition of fibres, particularly steel fibres by up to 1% enhanced the flexural strength and impact resistance of OPSC by 30% and 36 fold, respectively (22–24). However, the tensile strength of the OPSC with 1% steel fibre was found to be well below the expected strength of 10 MPa to resist high impact and blast loading (5).

Thus, to combine the advantages of the OPS and steel fibres, OPSFRC is studied in this research to widen the potential application of the OPSFRC for structural members subjected to impact and blast loading. Moreover, there are limited reports on flexural behaviours of fibre-reinforced LWC. This is mainly due to the vast diversity of fibre types and geometries available which limits the comparative studies on flexural behaviours (20, 25). The studies on flexural behaviours of fibre-reinforced LWC becomes more complicated with different types of lightweight aggregate involved. From the past literature, the effect of fibres on the flexural performances of reinforced concrete beams showed a few common benefits by the incorporation of steel fibres, including reduced brittleness, enhanced crack resistance and moment capacity (21, 26–28). However, Meda, Minelli & Plizzari (29) had demonstrated that the fibre reinforcement can lead to a reduction in the ductility of reinforced concrete beams; while Qian & Indubhushan (26) and Wang & Belarbi (28) reported that steel fibres increased the displacement of beams at failure. The complexity then lies on the diverged observations on the flexural ductility of fibre-reinforced concrete beams in past reports.

3. MATERIALS AND METHODSTOP

3.1. MaterialsTOP

Type 1 Ordinary Portland cement with a Blaine specific surface area and specific gravity of 3450 cm²/g and 3.13, respectively was used. Silica fume of 10% cement weight was added as a supplementary cementitious material.

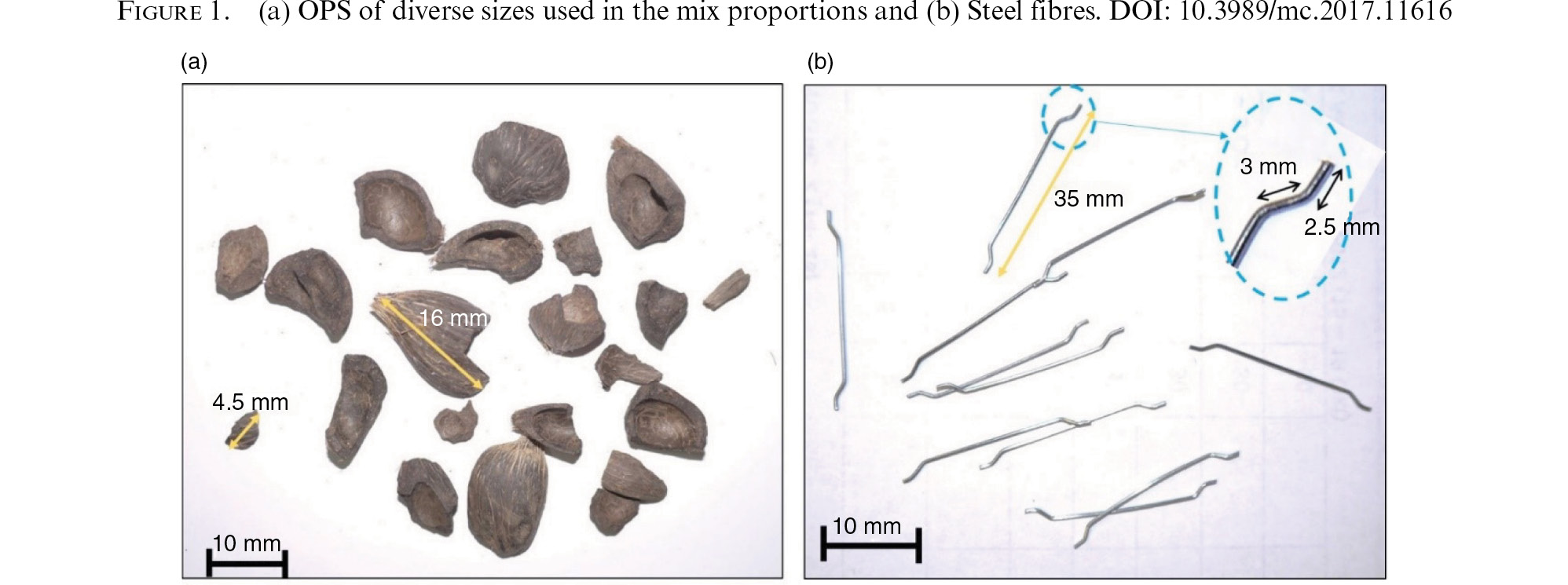

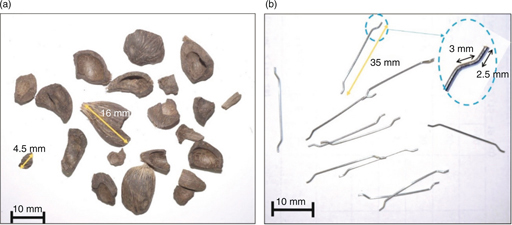

For the coarse aggregate, OPS collected from a local oil palm factory was used as a full replacement of conventional coarse aggregates. Fig. 1 shows the diverse sizes of OPS with concave and convex surfaces; the physical properties of OPS are given in Table 1. The low bulk density, aggregate impact value and Los Angeles abrasion value are the important characteristics of OPS that make it a valuable waste material for producing LWC with high energy absorption capacity. The OPS used in the preparation of OPSFRC was in the saturated surface-dry (SSD) condition to prevent the OPS from absorbing the effective water content for hydration. Before the mixing, the OPS are sieved to remove the OPS sized smaller than 5 mm and the OPS ranges from 5–16 mm are used in the mixing. Mining sand with a specific gravity and fineness modulus of 2.65 and 2.7, respectively, was used as fine aggregate.

Meanwhile, potable water (pH = 6.5) was used in both mixing and curing processes. A polycarboxylate-based superplasticiser (Glenium Ace 388) supplied by BASF Malaysia of 0.8% cement weight was used to enhance the workability of the fresh concrete mixes.

In order to produce the OPSFRC, hooked-end steel fibres of aspect ratio of 65 were added into the OPSC mixes, as shown in Figure 1(b). The length and diameter of the fibres were 35 mm and 0.55 mm, respectively. Specific gravity, tensile strength and modulus of elasticity of the steel fibres used were 7.9, 1100 MPa, and 205 GPa, respectively.

3.2. Specimen preparation and testingTOP

The mix proportions of all the OPSC and OPSFRC mixes are shown in Table 2. The variable investigated in this research is the steel fibre volume. Compared to the previous study (22), the cement content was slightly increased to 530 kg/m³ to provide higher amount of cement paste for the formation of fibre-cement matrix bond.

For each mix proportion, 100 mm cubes, 100 ϕ x 200 mm cylinders, 150 ϕ x 300 mm cylinders, and 100 x 100 x 500 mm prisms were prepared for compressive strength (BS EN 12390:2009), splitting tensile strength (ASTM C496/C496M-11), modulus of elasticity/Poisson’s ratio (ASTM C469-10), and flexural strength (ASTM C78-10, respectively. After the removal of the specimens from the moulds, these specimens were cured in water until the age of testing. All tests were conducted at the age of 28 days.

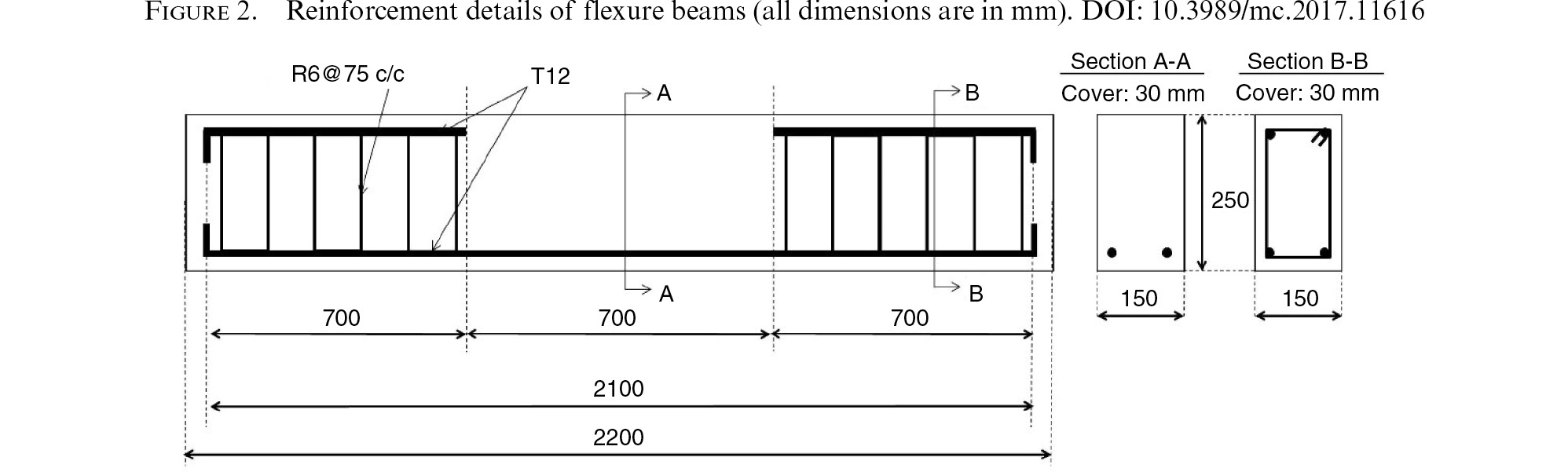

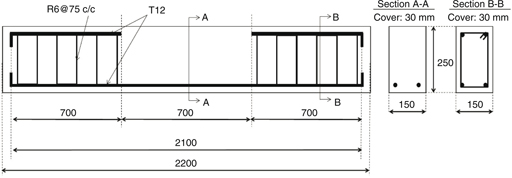

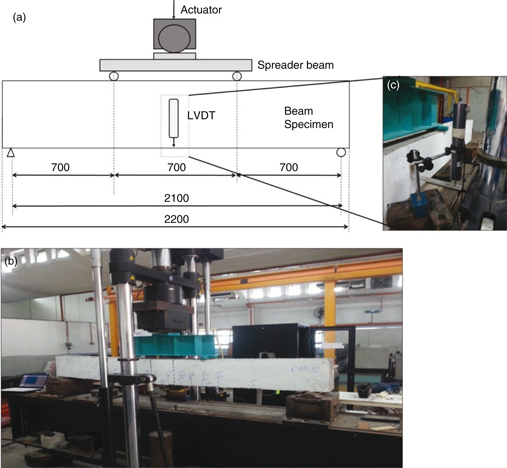

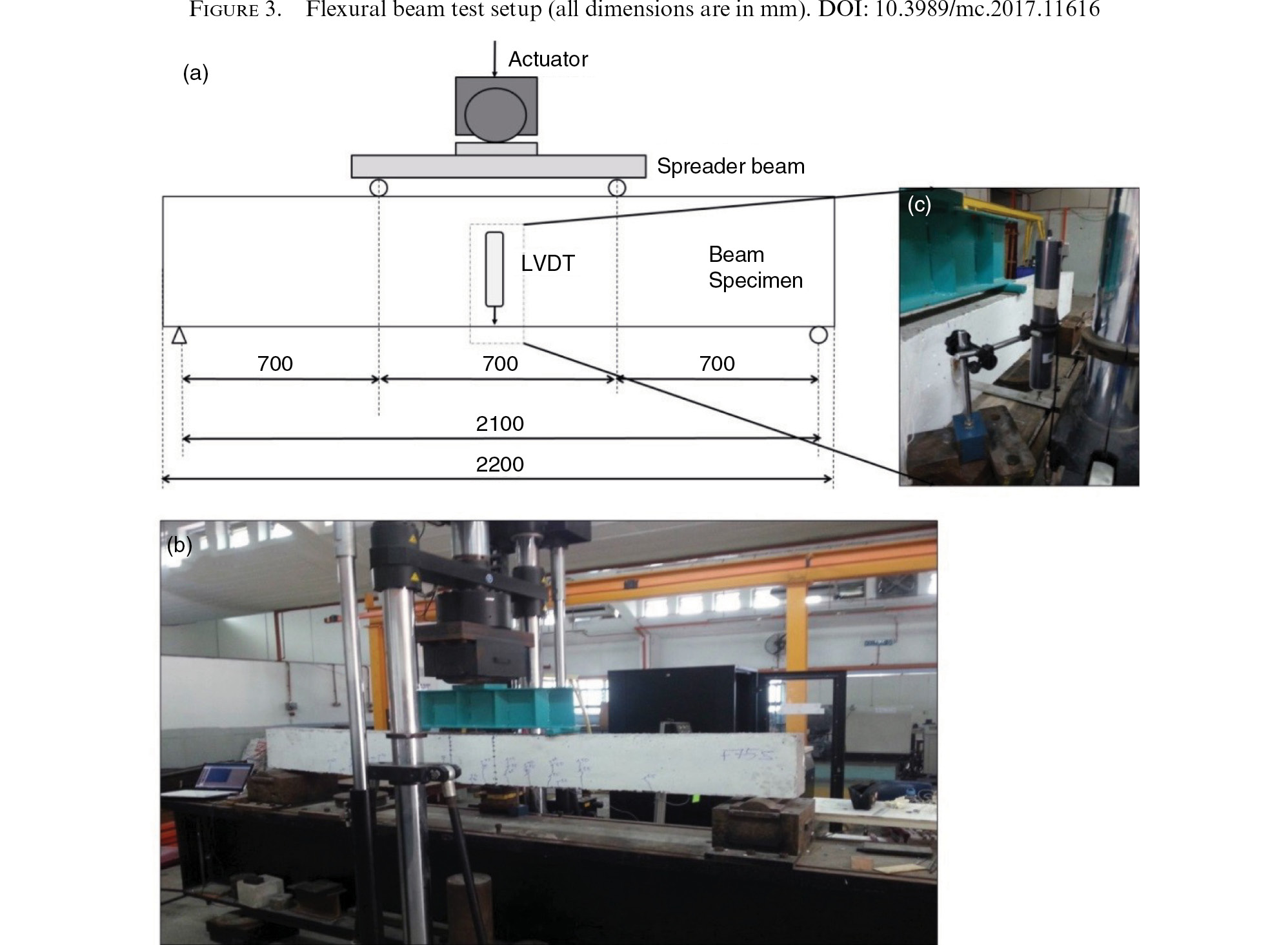

Meanwhile, for the reinforced concrete beam test, six beams were designed and prepared as under-reinforced concrete beams in accordance to the BS 8110 to produce flexural mode of failure for the HT0, HT10 and HT30 mixes. Two beams were tested for each mix design. Fig. 2 shows the reinforcement arrangement for all the flexural beams. Ribbed steel bars with diameter 12 mm were used as tension reinforcement for all the specimens with a clear cover of 30 mm. The compression and shear reinforcements were not used in the middle-third of the beam (pure bending region-distance between two loading points is 0.7m). The shear reinforcement was used only in the shear span (0.7m from each support) at a spacing of about 75mm centre-to-centre to ensure yielding of tension steel before the crushing of concrete. The flexural testing of the beam specimens was conducted by using an Instron universal testing machine with a built-in load cell capacity of 600 kN (Figure 3).

4. RESULTS AND DISCUSSIONTOP

4.1. Mechanical propertiesTOP

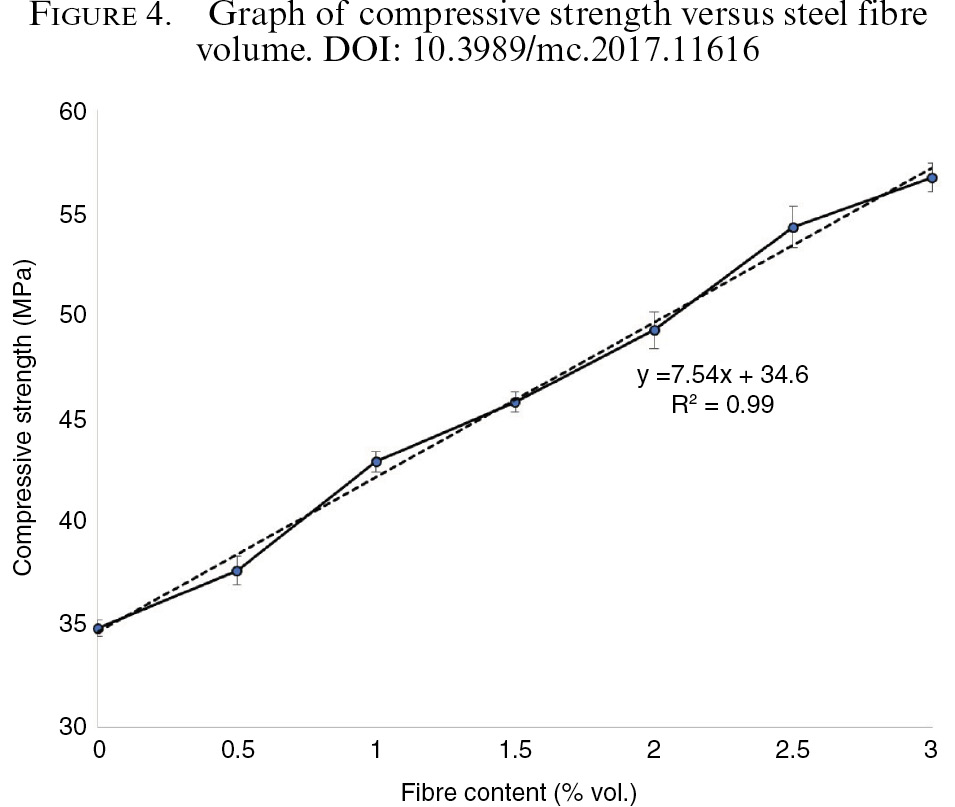

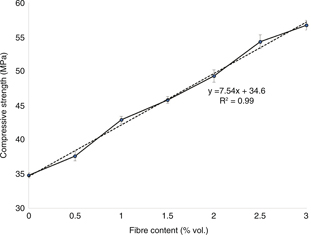

The mechanical properties of OPSC and OPSFRC are reported in Table 3. Figure 4 shows that the 28-day compressive strength of OPSFRC increased proportionally with the addition of steel fibres; for an increase of 0.5% of steel fibres, the 28-day compressive strength of OPSFRC was enhanced by 2.4–5.3 MPa (4–14%). The highest 28-day compressive strength of about 57 MPa was reported in the HT30 mix, which was 63% higher than the OPSC mix. However, the fibre content cannot be further increased beyond 3% due to the poor workability of fresh mixes with fibre content >3%. The compressive strength of HT10 mix is comparable to the published results of OPSFRC albeit with 1% steel fibres while the highest compressive strength of 57 MPa was at least 15 MPa higher (22).

The addition of steel fibres into conventional NWC generally did not impart any significant effect on the compressive strength (30, 31). Meanwhile previous studies on fibre-reinforced LWC have reported two different observations: (i) no effect and (ii) the addition of fibres resulted in a significant enhancement in the compressive strength of LWC, depending on the weak components of LWC (3, 13, 22, 31, 32). Such weak components of LWC include the porous, weak lightweight aggregates and the weak adhesion between aggregates and cement paste. The steel fibres produced negligible effect on the compressive strength of LWC made from low stiffness lightweight aggregates while the steel fibre reinforcement compensated the weak aggregate-cement paste bonding (31, 32). In the case of OPSC, the failure is governed by the weak bond strength between the cement paste and OPS (2). Under increasing compression loading, the vertical compressive strain and transverse tensile strain occur in the compressed concrete specimens. Hence, the continuous deformation of concrete produces cracks at the aggregate-cement paste interface of OPSC (7). However, this weakness could be compensated by the addition of steel fibres. The additional fibre-matrix bond in the concrete increases the energy capacity of the concrete by the toughening mechanisms called fibre debonding and frictional sliding associated with fibre pullout (33, 34). Furthermore, the steel fibres also arrest the crack opening; such an enhancement mechanism is generally known as the crack bridging effect (13, 17, 19, 20, 33, 34). The steel fibres bridge across the cracks in the concrete and take part or even all of the stress when subjected to increased loading. As the advancing crack reaches the fibres, the crack tip stress concentration is reduced, and, thus, the crack propagation is blunted and blocked. Therefore, both the fibre-matrix bond and crack bridging effect contributed to the significant enhancement of the compressive strength of OPSFRC.

In addition, the high amount of steel fibres added to the concrete increases the probability of its ability to be located in the vicinity between the OPS and the matrix thereby enhancing the bond. This explains the linear increment in the compressive strength of the OPSFRC when the volume fraction of the steel fibres increases.

In term of tensile strength, the control OPSC mix produced splitting tensile and flexural strengths of 3.2 MPa and 4.8 MPa, respectively (Table 3). However, these values are relatively lower compared to the tensile strengths reported for NWC and other LWCs (34).

The addition of steel fibres by up to 3% drastically enhanced the tensile strength of OPSFRC by producing the highest splitting tensile and flexural strengths of 11.0 MPa and 18.5 MPa, respectively. This shows an enhancement of 240% and 285% compared to the splitting tensile and flexural strengths of the control mix. On the other hand, the HT30 mix produced a higher flexural strength (>50%) than the fibre-reinforced NWC of the same density (2400 kg/m³) (7, 27). This has indicated the capability if the HT30 mix in compensating the weak tensile strength of conventional OPSC.

The enhanced tensile strength of OPSFRC could be explained similar to the compressive strength. The additional fibre-matrix bond and crack bridging effect of steel fibres allow the concrete to sustain higher tensile loading and to blunt the crack initiation and propagation. In addition, the steel fibres produce a greater improvement in the tensile strength than in the compressive strength of concrete. This statement is evident in the OPSFRC, as the OPSFRC reinforced with steel fibres yielded higher splitting tensile to compressive strength ratios and flexural to compressive strength ratios. The splitting tensile to compressive strength ratios of HT0, HT5, HT10, HT15, HT20, HT25 and HT30 were 9.2%, 11.6%, 13.6%, 15.7%, 16.1%, 17.4% and 19.4%, respectively; while the corresponding flexural to compressive strength ratios were 13.9%, 14.7%, 19.3%, 21.0%, 22.2%, 29.5% and 32.6%. Both ratios increased with the increment of fibre volume. The increased tensile to compressive strength ratios showed that the steel fibres produced higher enhancement effects in the OPSFRC compared to the compressive strength. This is attributed to concrete being generally weak in tension and that tensile cracks form at a much lower loading capacity before the ultimate compressive strength is reached. Therefore, under compression loading, the high compression capacity of steel fibre-reinforced concrete allows for a portion of the applied stress; however, under the tensile loading, the weak tensile strength of the concrete causes the concrete to only take up marginal applied stress. Hence, the contribution of steel fibres on the tensile strength of OPSFRC was more significant than the compressive strength.

The effects of steel fibres in LWC on the modulus of elasticity (MOE) and Poisson’s ratio of LWC relies on the type of lightweight aggregate and fibre content (21). However, it should be noted that there is limited investigation on these aspects as far LWC is concerned. Referring to Table 3, the addition of steel fibres in OPSFRC enhanced the MOE by about 2–2.8 GPa (15–20% increments). The organic OPS has a lower stiffness and restraining effect compared to granite aggregate. Hence, under compressive loading, the OPS undergoes higher strain compared to the NWC, and produces a lower MOE in OPSC (6). Hence the enhanced fibre-matrix bond enabled the OPSFRC to withstand higher compressive strain, while the crack bridging effect prevented and arrested the crack propagation, eventually resulting in the increased compressive energy capacity of OPSFRC. However, both the MOE and Poisson’s ratio were found to be independent of the volume fraction of steel fibres. From the previous researches, it was shown that the addition of steel fibres increased both the compressive stress and strain. When fibre content is increased, both the compressive stress and strains improved equally (36, 37). This results in the MOE (slope of stress-strain curve) remains the same despite the fibre content increases.

Similarly, the presence of steel fibres in the OPSFRC cement matrix arrested the crack propagation and the concrete was capable of enduring higher strain, in both the lateral and longitudinal directions. The benefit of steel fibres in enhancing the lateral strain was found to be more significant than the longitudinal strain. This is evident in the higher Poisson’s ratio of OPSFRC, relative to the control OPSC (Table 3). The HT0 mix produced a Poisson’s ratio of 0.255, and then the Poisson’s ratios of OPSFRC were improved to about 0.29–0.32 (14–24% increments). Therefore, it can be concluded that the addition of steel fibres in OPSC enhanced both the MOE and Poisson’s ratio.

4.2. Flexural behaviours of reinforced concrete beamsTOP

In this section the flexural behaviours of OPSC and OPSFRC reinforced concrete beams with the fibre volume of 1% and 3% are compared.

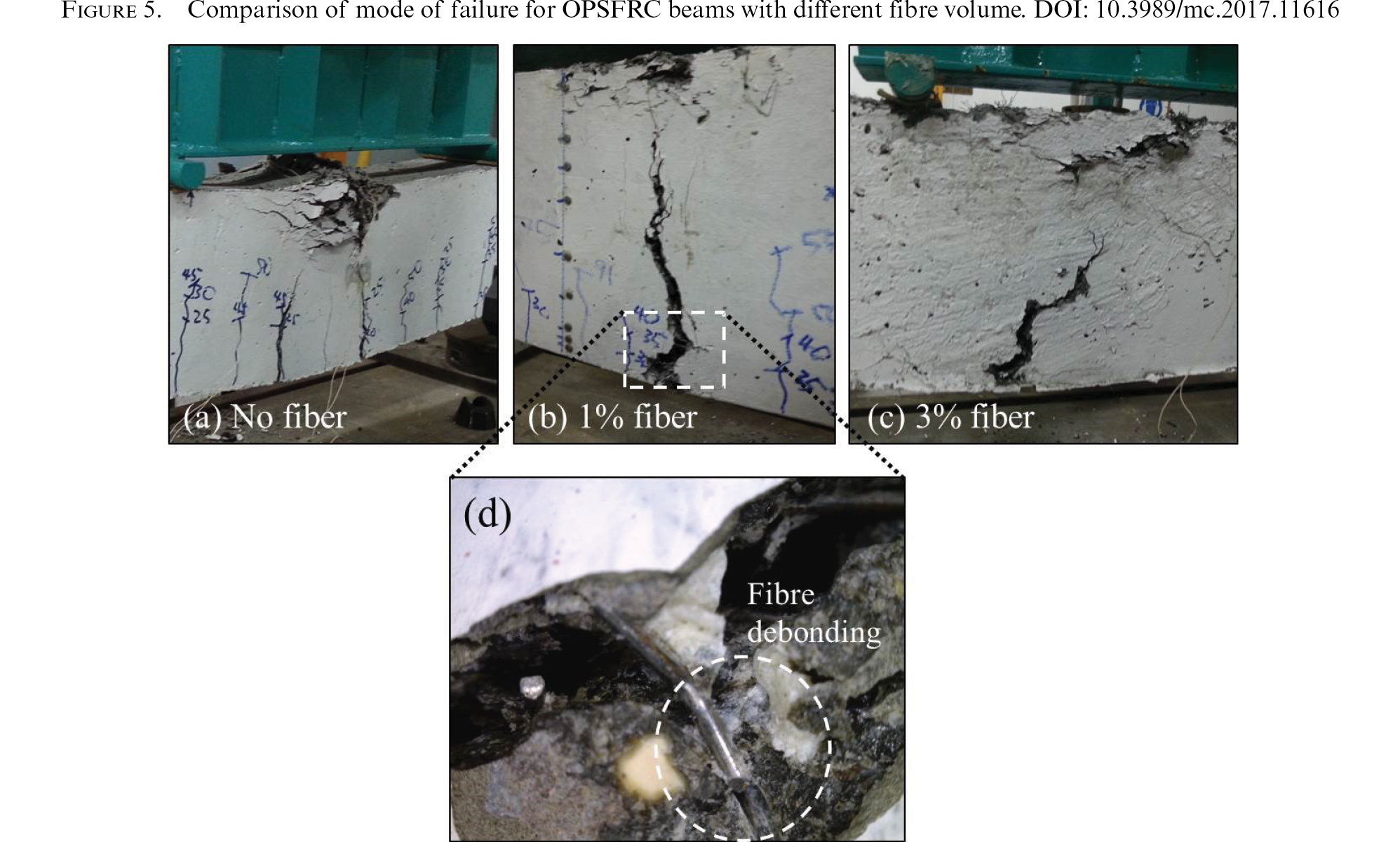

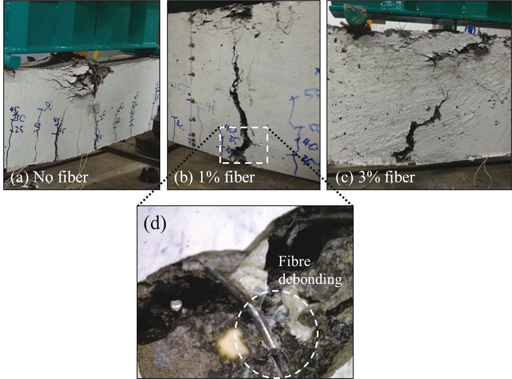

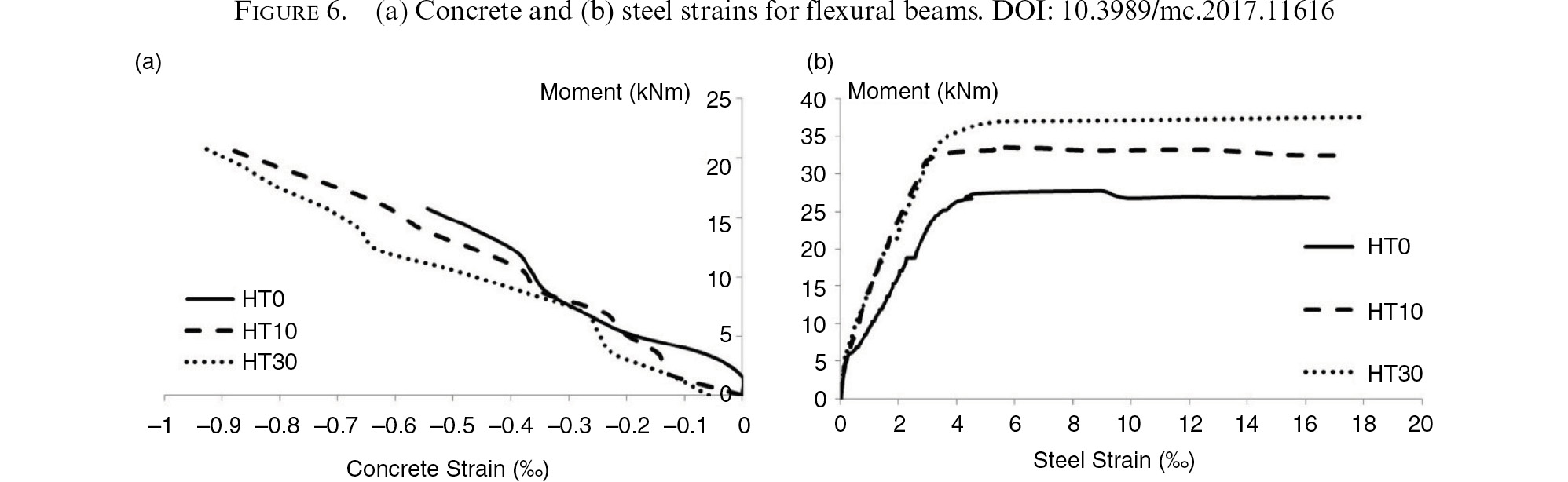

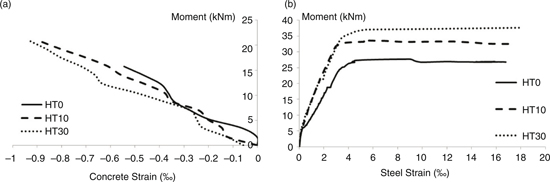

Fig. 5(a) shows the OPSC beams failed under concrete crushing at the compressive zone, while OPSFRC beams in Fig. 5(b and c) failed under bar fracture. Both the OPSFRC beams produced almost identical failure mode of failure, albeit HT30 beams produced smaller depth of flexural crack and concrete wedge. In fibre-reinforced concrete, the fibre improved the steel-concrete bonding by providing confinement effect which leads to the strain localization (18, 28). The strain localization can be explained by using Fig. 6. Fig. 6(b) showed the steel strains (shown as positive strain, while negative strains are denoted for concrete strains) of the steel reinforcement in OPSC specimen achieved maximum moment capacity at about 4500 microstrain (‰), but the OPSFRC beams attained their respective maximum moments at about 2500–3000 ‰. The strain localization effect was more significant when the fibre content increases (29). The addition of high volume of steel fibres (3% by volume) resulted in earlier bar fracture in HT30 beam (Fig. 5(c)) compared to HT10 beam (Fig. 4b) as the former failed under bar fracture before the full development of crack.

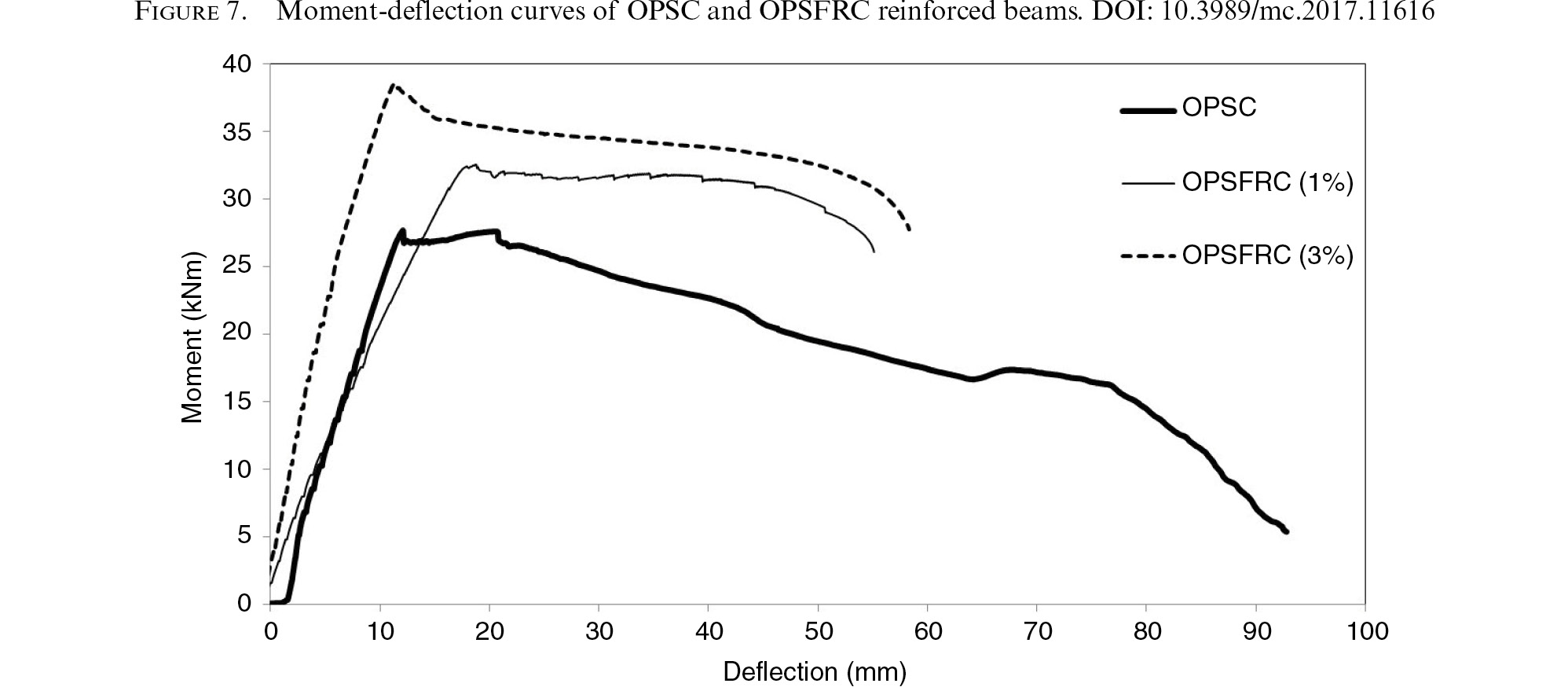

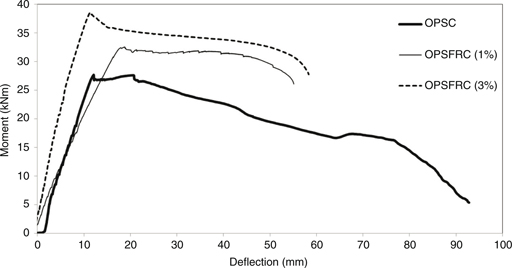

In addition, Fig. 7 shows the comparison of the moment-deflection curve of the beams and the results are summarized in Table 4.

The moment-deflection curve of HT30 mix shows distinct difference from the HT0 and HT10 beams. The incorporation of 3% steel fibres improved the moment capacity of OPSFRC by about 40% relative to the OPSC beam. The improvement was about double as that of OPSFRC with 1% steel fibres. The predicted ultimate moments of HT30 specimens using Eurocode, BS and ACI codes were 26.7, 23.9 and 25.1 kNm, respectively compared to the experimental ultimate moment of 38.6 kNm. The codes underestimate the moment capacity by 45–61% as these codes do not have provision for the design of fibre-reinforced LWC.

The studies on fibre-reinforced concrete reported that the addition of fibres produced both increment and reduction in the ductility (26, 28, 29). The latter effect was found applicable in OPSFRC beams. Based on the deflections at failure from Table 4, the HT10 and HT30 beams failed at deflection of 55.1 and 51.4 mm, respectively. The values were 55–60% as that of OPSC beam. However, the difference between HT10 and HT30 beams differed by 4 mm only, but the difference between the OPSFRC and OPSC beams were 38–41 mm. The reduced flexural ductility of OPSFRC beams opposed the observation in Section 4.4.3 that the addition of fibres enhanced the ductility of OPSFRC concrete prisms. In the reinforced OPSFRC beams, the strain localization effect is more dominant to decrease the flexural ductility. Despite the notable reduced deflection prior to failure in the OPSFRC beams, all beams satisfied the span to service deflection limit of 250 and 150 as stated in Eurocode and ASTM C1609, respectively. Hence the OPSFRC beams satisfied the deflection criteria of serviceability limit state as stipulated in Eurocode 2.

Another technique to measure the flexural ductility of a reinforced concrete beam is by ductility ratio. A high ductility ratio indicates that a structural member is capable of undergoing large deflections prior to failure (11). The mostly used ductility ratio is the deformation-based approach which is reflected by the deformation margin between the service and ultimate stages, as shown in Eq. [1] (9, 10, 26).

where μ = deformation-based ductility ratio, δ_f = final mid-span deflection and δ_yld = mid-span deflection when tensile steel yields.

Meanwhile Jaeger & Tadros (38) introduced Eqs. 2–4 to take account for both the strength and deflection on the ductility characteristics [2].

where μ₂ = ductility ratio by Jaeger, Tadros and Mufti (1997), C_s = strength factor calculated from Eq. [3] and C_d = deflection factor calculated from Eq. [4].

where M_u = moment capacity, M_{ε 0.001} = moment when tensile steel strain is 0.001, δ_u = mid-span deflection at moment capacity and δ_{ε 0.001} = mid-span deflection when tensile steel strain is 0.001.

The ductility ratios, μ and μ₂ for OPSC and OPSFRC beams are reported in Table 4. Members with ductility ratio in the range of 3 to 5 have adequate ductility and can be considered for structural members subjected to large displacements, such as sudden forces caused by earthquake (39). The OPSC beams produced ductility ratio μ of 11.4 and this showed that OPSC is a ductile material attributed to its low modulus of elasticity. Moreover, the observations on the reduced flexural ductility in OPSFRC beams are reflected in the ductility ratio μ. Both the HT10 and HT30 beams produced μ of 5.6 and 6.5, respectively and the values are about 50–55% of that OPSC. Despite that, the ductility ratios are well-above of the required values for structural members. Moreover, the effect of increasing volume fraction on the ductility ratio is less significant as both the ductility ratio μ of OPSFRC with 1% and 3% are close to each other. This phenomenon could be called as “ceiling effect” as described by other researcher (13).

Meanwhile the ductility ratio μ which consider only the deflection margin between the final and yield stages is not appropriate to demonstrate the effect of steel fibres on the flexural behaviours of OPSFRC beams. Previous discussions mentioned that the fibre-matrix bond improved the moment capacity but accompanied by early steel bar fracture. Therefore ductility ratio, μ₂ is more appropriate for the OPSFRC specimens as it takes account for both strength and deflection criteria. Based on Table 4, the steel fibre produced 6–15% higher values of μ₂ than the OPSC beam. This showed that the steel fibres compensated the reduced deflection by imparting higher increment in the moment capacity of the OPSFRC specimens.

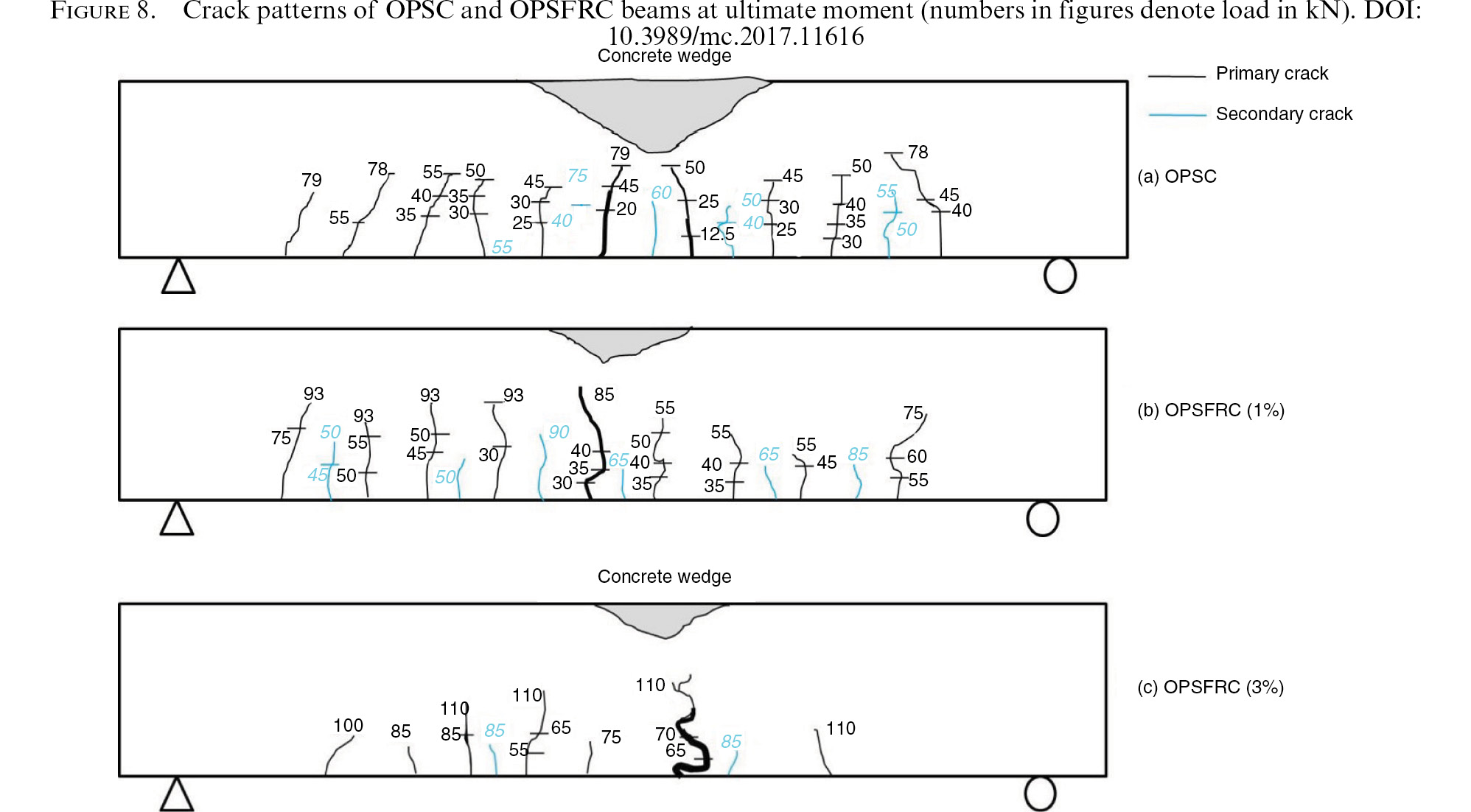

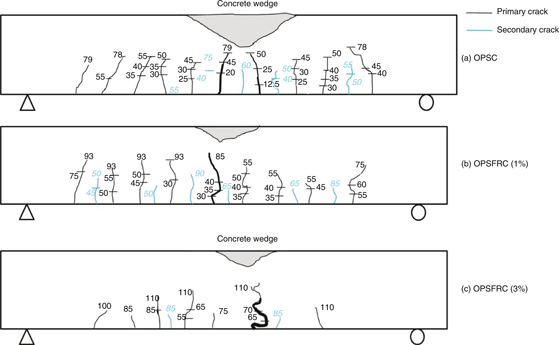

Fig. 8 shows the comparison of the crack patterns of OPSC and OPSFRC with 1% and 3% steel fibres. The HT30 beam (Fig. 8(c)) showed excellent crack arresting ability by exhibiting smaller number of flexural cracks and the depth and width of the cracks are notably reduced compared to the OPSC and HT10 beams. In addition, the crack width of the primary crack at service load in HT10 and HT30 beam was 0.11 and 0.09 mm, respectively. The crack widths were about 30–40% lower than the OPSC beam (0.16mm) and the crack widths are only one-third of the maximum crack width limit stated in BS 8110 (0.3mm). Hence it can be concluded that the OPSFRC with steel fibre up to 3% fulfilled the requirement for the serviceability limit state for cracking control. Furthermore, the crack spacing between the primary cracks for HT30 beam was reduced to 105 mm compared to 165 and 115 mm, in OPSC and HT10 mixes, respectively. Finally, the steel fibres delayed the crack formation in OPSFRC beams with enhanced the crack resistance of OPSFRC. The first and secondary cracks of HT30 beams were initiated at 55 and 85 kN, respectively; while the corresponding first and secondary cracking OPSC are 12.5 and 40 kN only. The increments of for first and secondary cracks in HT30 specimens are 340% and 110%, respectively relative to the control OPSC. The enhanced crack resistance of OPSFRC beams can be explained by the crack bridging effect as shown in Fig. 5. Fig. 5(b and c) showed the presence of steel fibre across the primary crack of OPSFRC beams blunted and changed the direction of the crack propagation, eventually delayed the crack formation and increased the cracking load. As the crack tip stress exceeded the fibre-matrix interfacial bond, fibre debonding took place (Fig. 5d) and reduced the crack opening. In summary, the excellent crack resistance of OPSFRC beam with steel fibre up to 3% outperformed the OPSC with significant reduced crack spacing, crack width and depth and improved crack load capacity.

5. CONCLUSIONSTOP

In general, the addition of steel fibres in OPSC enhances the mechanical properties and flexural behaviours. This is the maiden attempt concerning the addition of a high volume of steel fibres in OPSC, and, hence, the findings are significant. Based on the parameters investigated, the following conclusions can be drawn:

ACKNOWLEDGEMENTSTOP

This study was funded by University of Malaya under Bantuan Kecil Penyelidikan (BKP) titled “Development of waterproofing cement mortar using plastic filling” (Project Number: BK004-2016).
