Valorisation of sugarcane bagasse ash (SCBA) with high quartz content as pozzolanic material in Portland cement mixtures

A.M. Pereira^a, J.C.B. Moraes^a, M.J.B. Moraes^a, J.L. Akasaki^a, M.M. Tashima^a, L. Soriano^b, J. Monzó^b, J. Payá^b*

a. Universidade Estadual Paulista (UNESP), Faculdade de Engenharia, Ilha Solteira. MAC – Grupo de Pesquisa em Materiais Alternativos de Construção. (São Paulo, Brasil)

b. ICITECH – Instituto de Ciencia y Tecnología del Hormigón, GIQUIMA group, Universitat Politècnica de València (Valencia, Spain)

*jjpaya@cst.upv.es

1. INTRODUCTIONTOP

In recent years, Portland cement consumption has become an issue of concern related to environmental problems. In 2015, its worldwide production was over 4.6 billion tonnes (1). To produce 1 tonne of Portland cement, is necessary to use 2.8 tonnes of raw materials (2), and 0.8 tonnes of CO₂ are emitted (3). Moreover, 5–8% of global CO₂ emission is related to Portland cement production (4,5). These numbers have motivated research around the world into reducing the consumption of Portland cement, and the use of pozzolanic material is one of the solutions aimed at achieving this objective.

Pozzolans are siliceous or silico-aluminous materials, which do not themselves harden when mixed with water, but when calcium hydroxide is present in the mixture, they react and form cementing products similar to those formed during Portland cement hydration (6). The technological advantages of using pozzolanic materials lie in the enhancement of the mechanical properties and durability of blended Portland cement (7-9). The environmental advantages of using pozzolans extend beyond the reduction of Portland cement consumption, since the most common pozzolanic materials now used are residues from industry (silica fume and fly ash (10-12)), agroindustry (rice husk ash (13,14)) and others (15). The current study investigates the valorisation of another agroindustry residue — sugarcane bagasse ash (SCBA).

Sugarcane bagasse is a well characterized by-product from the production of alcohol and sugar (16). Since the bagasse presents a substantial calorific value of over 4,000 kcal/kg (17), it is used as biomass in order to generate energy. After this procedure sugarcane bagasse ash is obtained. A problem related to this residue is the increase in the sugarcane production in recent years and, consequently, the production of a larger quantity of waste. Brazil is the largest producer of sugarcane in the world (18), yielding 736.1 million tonnes in 2014, which represents an increase of 154% since the start of the century (19). One quarter of the sugarcane mass harvested is bagasse (17), which means that 163.4 million tonnes of the by-product were obtained in 2014. In Brazil, the bagasse is burned in boilers that temperature (in general, from 300 to 540 ºC), pressure and capacity can vary according to the utilised equipment (20). After the bagasse passes through the burning process, it is reported that about 2.5% of its mass turns into ash (21, 22), which represents a large amount of residue considering that over 80% of the bagasse is burned to generate energy (23). Since this residue causes disposal problems and creates environmental problems, a suitable use of this waste as pozzolanic material in blended Portland cements is being assessed by the scientific community.

Partial replacement of Portland cement with SCBA has technological and environmental benefits. Some authors studied SCBA as a pozzolanic material, and showed that the residue presents good pozzolanic activity (24, 25). In addition, a recent study simulated the use of SCBA as a partial replacement for the clinker in the Portland cement production and concluded that CO₂ emissions would be reduced by 519.3 kilotonnes per year (26). These works provide motivation for the use of SCBA in civil construction and research into achieving a pozzolan with suitable properties.

The key to obtaining SCBA with good pozzolan activity is the calcination temperature (27). In addition, the presence of soil contamination (mainly quartz) in the bagasse has a key role in the pozzolanic activity of the ash (24). Therefore, this paper presents the study of an ash obtained from an auto-combustion process of high quartz content bagasse with no temperature control. The SCBA obtained from this procedure was physically and chemically characterised. Its pozzolanic activity was assessed in pastes through FTIR, TG analysis, Frattini test and SEM studies, and in mortars through compressive strength development.

2. MATERIALS AND METHODSTOP

2.1. MaterialsTOP

Sugarcane bagasse ash (SCBA) is the main material of this study and was obtained through an auto-combustion process of the bagasse. Firstly, bagasse was collected from a sugarcane producer near of the city of Ilha Solteira (São Paulo, Brazil). Due to a high water content in the bagasse, it was dried for 24 hours in the open air until it reached 4% of humidity. The dried bagasse was then treated by an auto-combustion process without temperature control. This auto-combustion process is performed in a furnace. The procedure begins with a forced ignition of the bagasse with fire provided from a phosphorus match and bottled gas. When the bagasse starts to burn by itself, the bottle gas is disconnected from the furnace. The auto-combustion process was performed during 24 hours. The maximum temperature reached in the process was under 700°C. The obtained ash from this process contains some unburned particles, so the material was passed through sieves to remove the unburned part. In order to increase the pozzolanic activity of SCBA, the material was milled for 50 minutes in a ball mill.

In order to assesses the pozzolanic activity of SCBA, high purity (> 95%) hydrated lime (Ca(OH)₂) was mixed with the pozzolan in pastes. Studies on SCBA mixed with Portland cement were carried out for pastes and mortars. The Portland cement used was the Brazilian Portland cement CPV – ARI, which contains more than 95% clinker and has no pozzolans in its composition. The siliceous sand used in this study has a fineness modulus of 2.03 and a specific gravity of 2590 kg/m³.

2.2. MethodsTOP

2.2.1. Physical and chemical characterisation of SCBATOP

SCBA chemical composition was carried out using X-Ray fluorescence (Philips Magix Pro XRF) in order to determine SiO₂ and Al₂O₃ percentages, important oxides for characterisation of pozzolanic materials (6,7). Mineralogy of SCBA was carried out using X-Ray diffraction (Seifert TT X-Ray Diffractometer) using Cu-Kα radiation and a Ni filter, with a voltage of 40 kV and current intensity of 20 mA. The test was performed in the 2θ range of 5–60° with a step of 0.02° and step time of 2 s/step. The efficiency of the milling process was assessed through particle size studies. The mean particle diameter (D_mean), median particle diameter (D₅₀) and ninety percent passing size (D₉₀) were obtained by means of a Malvern Instruments Mastersizer 2000. SEM images (JEOL JSM-6300 scanning electron microscope) were taken in order to obtain the morphology of the SCBA particles.

2.2.2. Microstructural studies: preparation of pastes and experimental techniquesTOP

Studies on pastes were carried out in order to evaluate the pozzolanic activity of the material. The studied hydrated lime/SCBA paste (CH/SCBA) presented a proportion of hydrated lime:SCBA:water of 3:7:10 by mass. For Portland cement/SCBA pastes (OPC/SCBA), the water/binder proportion was 0.50 (with binder being the sum of OPC and SCBA in mass), and five different replacements of OPC by SCBA (in mass) were assessed: 0% (control), 15%, 25%, 33% and 50%. Curing conditions for both types of pastes were performed at 20°C in a relative humidity (RH) higher than 95%.

The following experimental techniques were used to characterise the microstructure of the pastes: Fourier transform infrared spectroscopy — FTIR (only CH/SCBA paste was assessed), thermogravimetric analysis — TGA, Frattini test and scanning electron microscopy — SEM (both CH/SCBA and OPC/SCBA pastes were assessed). FTIR tests were carried out in the wavenumber range of 400 to 4000 cm^-1 using a FTIR Bruker TENSOR 27. TGA tests were performed using a Mettler-Toledo TGA 850, in 100 μL sealed pin-holed aluminium crucibles in the temperature range 35–600°C at a heating rate of 10°C/min in an N₂ atmosphere (75 mL/min gas flow). Frattini test was carried out according to UNE-EN 196-5 (28). SEM images of the fractured surface of the samples were obtained using a JEOL JSM-6300 scanning electron microscope.

CH/SCBA pastes were assessed after 3, 7, 28 and 90 days of curing for FTIR and after 90 days only for TGA and SEM. For OPC/SCSA pastes, TGA studies were carried out after 90 days of curing; Frattini test was carried out for SCBA replacement of 25, 33 and 50% for 8 and 15 days; and for SEM, 33% replaced paste cured for 28 days was analysed.

2.2.3. Compressive strength and workability of mortarsTOP

The compressive strength of mortars was assessed using an EMIC Universal Machine with a 200-tonne load limit. For this test, five replacement percentages of OPC by SCBA were studied: 0% (control), 10%, 15%, 20% and 30%. The water/binder ratio was 0.50, and the binder to sand ratio was 1:2.5. Specimens were moulded in cubic moulds of 50x50x50 mm³, and cured for 3, 7, 28, 56 and 90 days at 25°C with RH higher than 95% until the compressive strength test. Before moulding the specimens, their workability were assessed following the Brazilian standard NBR 7215/1996 (Flow table test) (29).

3. RESULTS AND DISCUSSIONTOP

3.1. SCBA characterisationTOP

The XRF results for SCBA are summarised in Table 1. The material presents a high percentage of SiO₂ (78.6%) and low percentages of Al₂O₃ and Fe₂O₃ (4.5% and 4.9%, respectively), which gives a siliceous characteristic to the SCBA. The sum of these three oxides (88%) is in accordance with the standard for pozzolans, ASTM C-618 (31), which requires more than 70%. The LOI in the ash presented a lower value (4.4%) than that required in the standard (6%). Minor oxides, such as CaO, Na₂O, K₂O and SO₃ were also obtained. The presence of SO₃ (0.7%) was in accordance with the standard maximum (5%). The SCBA in this research presented a similar chemical composition to other ashes from other studies (24, 25).

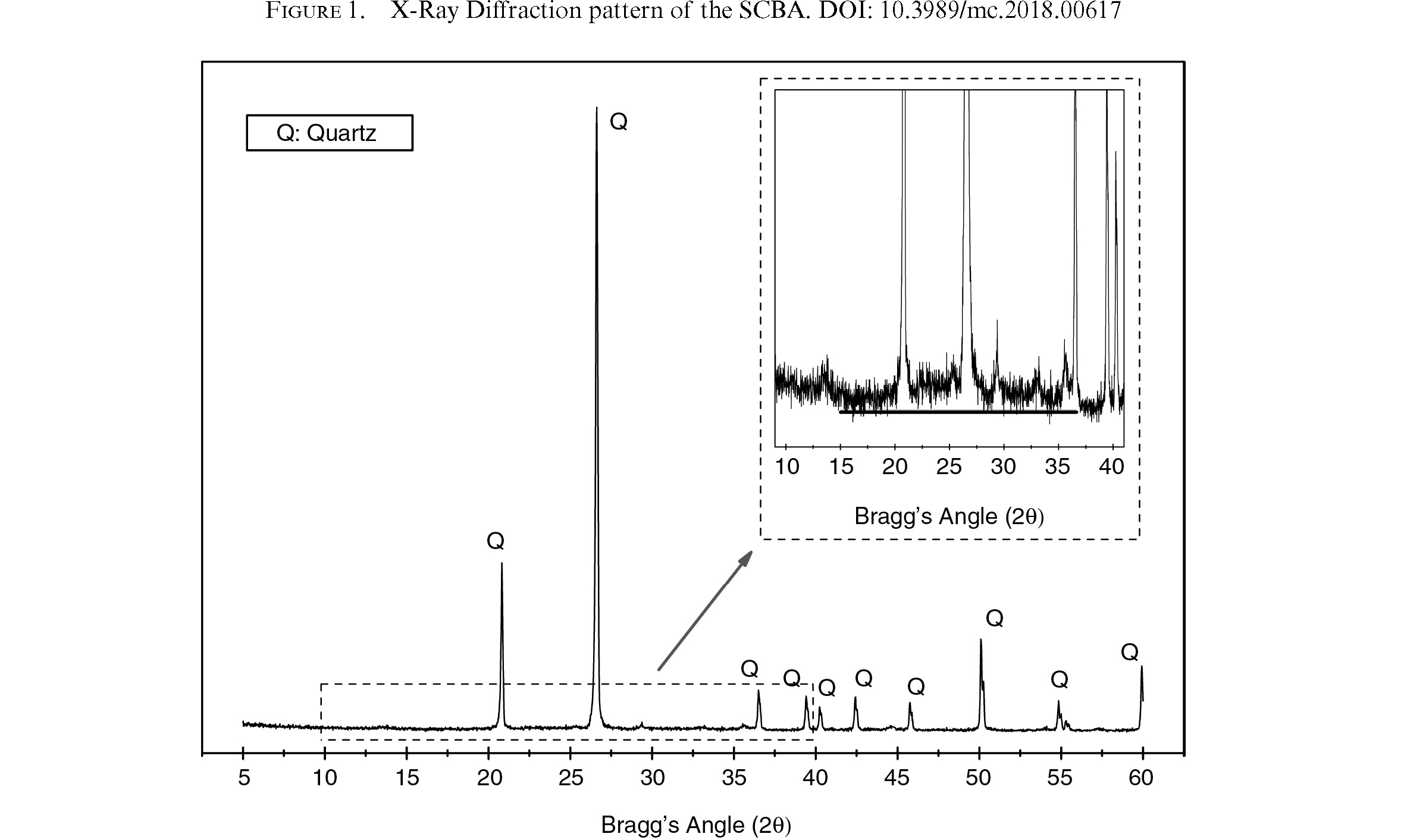

Figure 1 shows XRD pattern of the SCBA. In the enlarged part of the figure, the deviation in the baseline between 2θ = 15° and 2θ = 35° is characteristic of amorphous phase, typically found in pozzolanic material. The main crystalline compound of the SCBA is quartz (SiO₂, PDF Card #331161), which is attributed to the sand from the soil adhering to the bagasse during the harvesting process. Cordeiro et al. (2009) reported that even if the bagasse passes through a washing process, adhered sand is still the major compound in the inorganic matter fraction in the ash (24). Cristobalite and tridymite were not found as mineral phases in SCBA, suggesting that the combustion process was appropriate to yield amorphous compounds from the silica gel contained in the tissues of the plant. The insoluble residue (in percentage) in the SCBA was determined by treating the ash with 4M KOH solution in boiling conditions for 4 minutes. The result of this test was 75%, indicating that the crystalline phase is insoluble in alkaline conditions. This result suggests that poor pozzolanic reactivity would be likely for this ash.

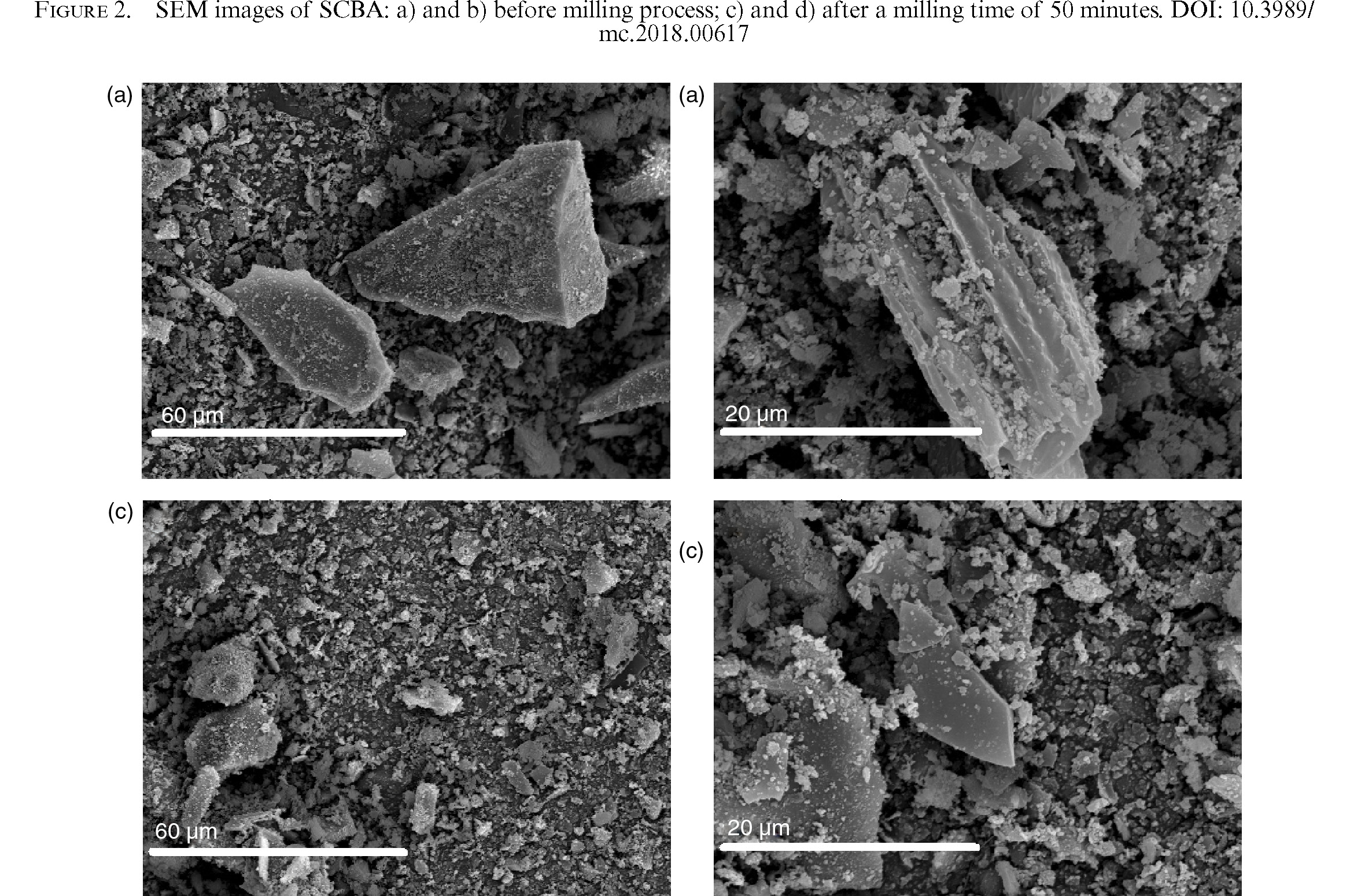

Particle size studies were carried out in order to evaluate the influence of the milling process. The SCBA sample before milling presented a D_mean, D₅₀ and D₉₀ of 87.9 μm, 52.4 μm and 202.8 μm, respectively. For the SCBA sample after a milling time of 50 minutes, the D_mean, D₅₀ and D₉₀ values were 34.6 μm, 25.1 μm and 82.3 μm, respectively. These results showed a reduction of approximately 60% in the particle size of the SCBA, which probably improves its pozzolanic activity. Figure 2 shows SEM images comparing SCBA before and after the milling process. Figure 2a and 2b shows the SCBA before milling process, presenting larger particles than SCBA after the milling process, shown in Figure 2c and 2d. In general, SCBA both before and after the milling process presents irregular particles.

3.2. FTIR, TGA, Frattini and SEM studiesTOP

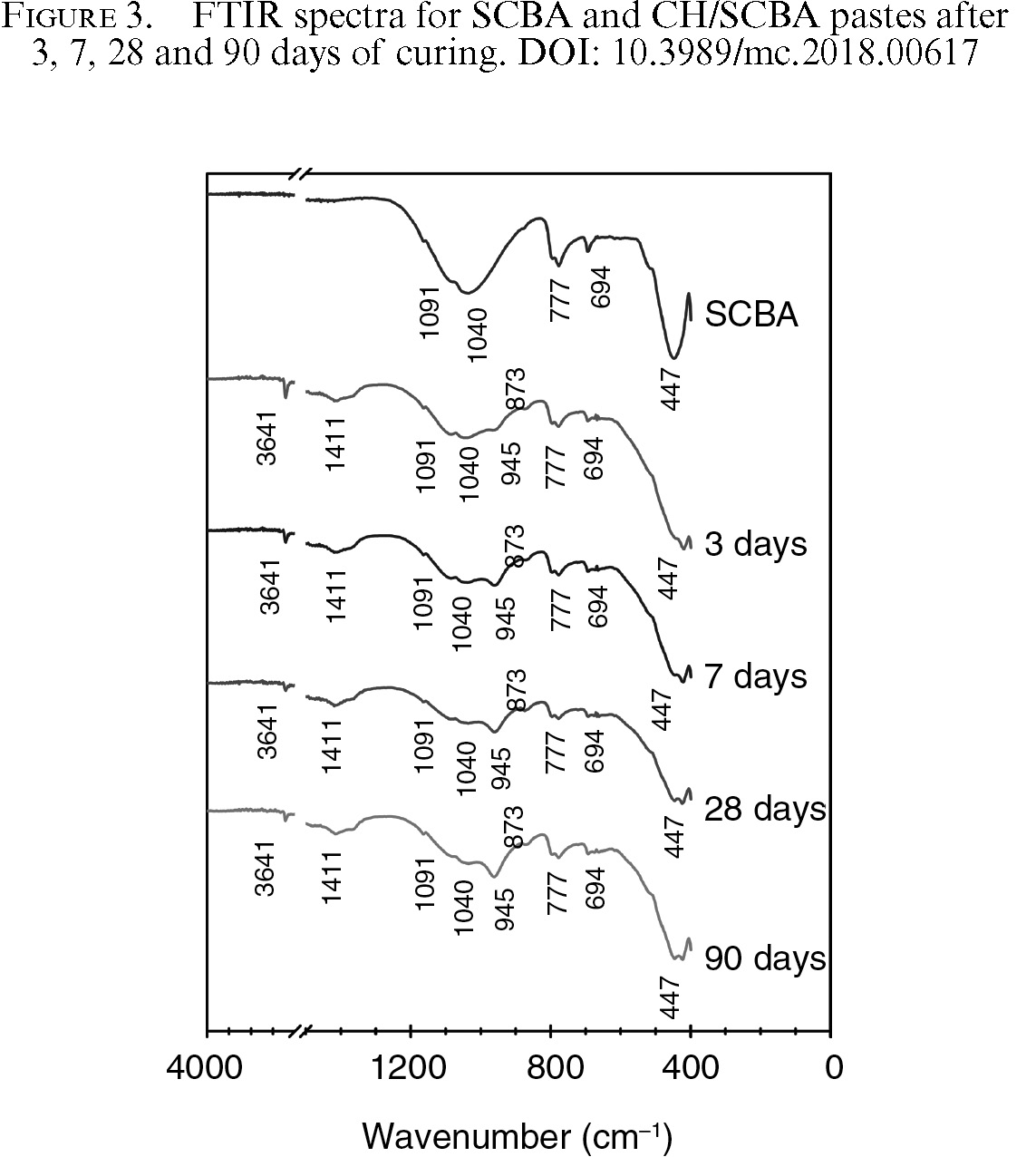

FTIR spectra for SCBA and CH/SCBA paste are shown in Figure 3. The main vibrations of the SCBA are the Si-O vibrations at 1091, 1040, 777, 694 and 447 cm^-1. At all curing ages for CH/SCBA paste, the main vibrations are 3641 cm^-1 (O-H vibration); 1441 and 873 cm^-1, (O-C-O vibration); 1091, 1040, 945, 777, 694 and 447 cm^-1 (Si-O vibration) (31). Firstly, it is notable that the vibration bands at 1040 and 3641 cm^-1 decreased with the curing age, a result of the pozzolanic reaction between the amorphous SiO₂ from the SCBA and the Ca(OH)₂. The cementitious products of this reaction are identified at the vibration band 945 cm^-1, and this band increased with the curing age. According to Yu et al. (1999), bands in the 950–970 cm^-1 are attributed to Si-O vibrations in C-S-H gel (32). Probably in the case of this paper, the lower energy band was due to the high Ca/Si ratio and the presence of Al in the C-S-H gel structure. It is important to mention that the SCBA did not consume all of the hydrated lime, since the vibration band at 3641 cm^-1 remained after 90 days of curing. The vibration bands of Si-O at 1091, 777, 694 and 447 cm^-1 remained unchanged at all curing ages, which means these vibrations are attributed to the quartz present in the SCBA. The other vibration bands, at 1441 and 873 cm^-1, are related to the carbonation of the sample and/or impurities of CaCO₃ in the hydrated lime.

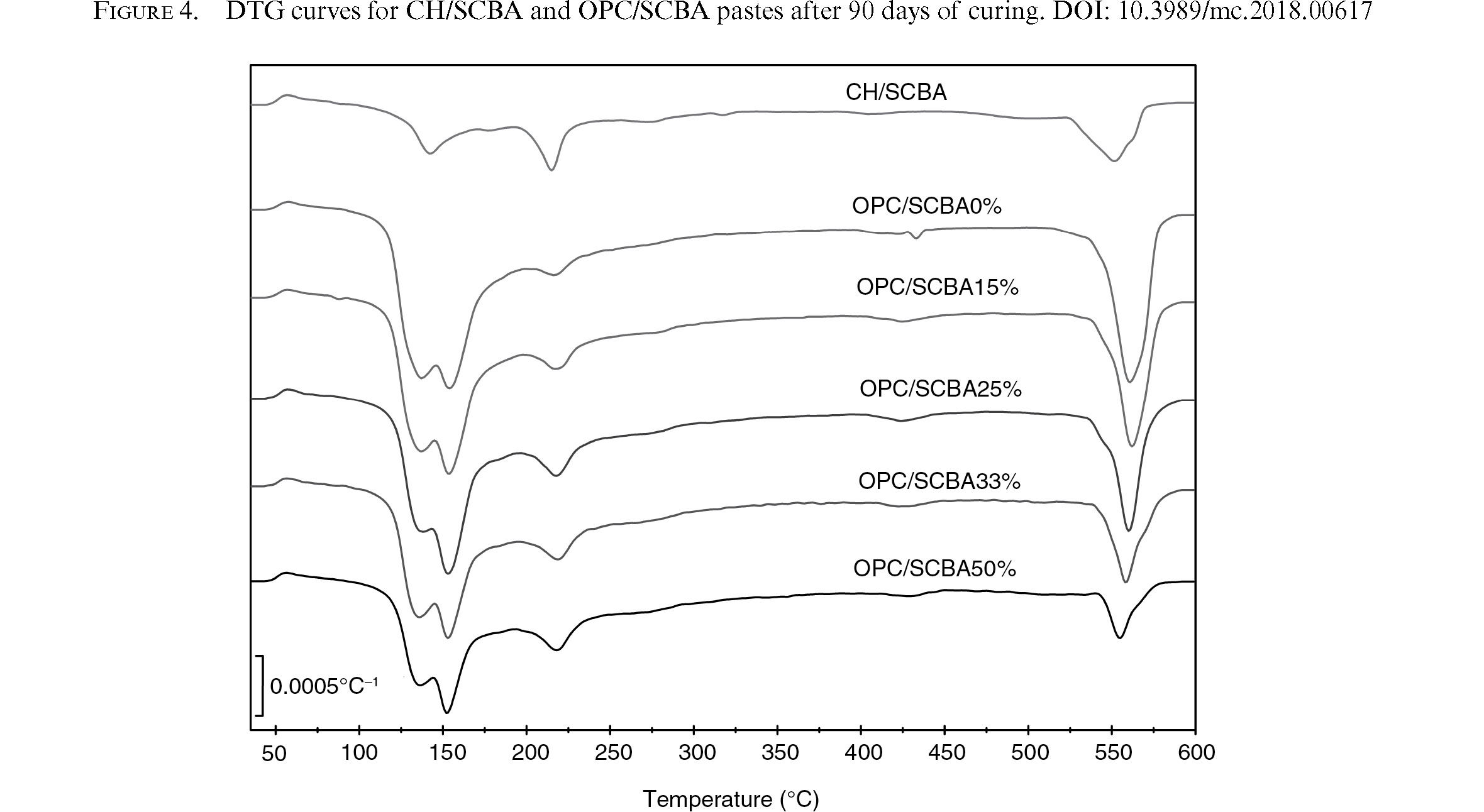

Derivative thermogravimetric (DTG) curves from TGA for CH/SCBA and OPC/SCBA pastes after 90 days of curing are shown in Figure 4. The mass losses between 125 and 250°C are related to the dehydration of cementitious products. The first mass losses, between 125 and 175°C, are related to the dehydration of the C-S-H gel and ettringite (33), the second mass loss, between 200 and 250°C, corresponds to dehydration of probably hydrated gehlenite and other calcium aluminosilicate hydrates (34, 35). The final mass loss, between 525 and 600°C, corresponds to dehydration of the portlandite (33).

In CH/SCBA paste, both reaction products, C-S-H gel and probably hydrated gehlenite, were formed, because there are mass losses in the range 125–150°C and 200–250°C, respectively. Hydrated gehlenite is attributed to the presence of reactive aluminium in the ash. This aluminium is attributed to soil contamination of the bagasse, probably as a component of clay. The SCBA did not react with all of the hydrated lime, since there is mass loss in the range 525–575°C after 90 days of curing. These results are in agreement with the FTIR studies.

For OPC/SCBA pastes, it is notable that the mass loss related to the calcium silicate hydrate decreases with the increase of the SCBA percentage in the paste, whereas the mass loss related to the aluminium-containing hydrates increases. As expected, the mass loss related to the portlandite decreases as the amount of SCBA increases for two reasons: firstly, there is less Portland cement and consequently less portlandite; and secondly, the pozzolanic reaction causes portlandite consumption by the SCBA.

Table 2 summarises the mass losses of the CH/SCBA and OPC/SCBA pastes after 90 days of curing. Summarised mass losses are related to the dehydration of compounds from OPC hydration and pozzolanic reaction (P_T), Ca(OH)₂ dehydration (P_CH), lime fixation (percentage of hydrated lime reacted with SCBA) and lime consumption (ratio of calcium hydroxide consumed/SCBA in mass). For CH/SCBA paste, it is notable that 60.73% of the hydrated lime was consumed by the SCBA after 90 days of curing; and the lime consumption was 0.26. This value is noticeable taking into account the high percentage of insoluble residue in the SCBA.

In OPC/SCBA pastes, the P_T value decreases with increasing SCBA percentage in the paste, as a result of a reduction in the formation of hydrated products. However, P_T values for SCBA containing pastes were higher than the product of P_T for OPC paste multiplied by the percentage of cement: this behaviour means that there is a significant contribution from reactivity of SCBA. Lime fixation increased with the SCBA percentage and for the highest OPC replacement (OPC/SCBA50%) there was remaining portlandite. When comparing this result with the reported lime fixation in similar OPC/fly ash mixtures (36), it can be concluded that the pozzolanic reactivity of the studied SCBA was lower than that found for fly ashes. The highest value of lime consumption for SCBA pastes was 0.19, found for the OPC/SCBA25% mixture, suggesting that the optimum replacement percentage would be in the 20–30% range.

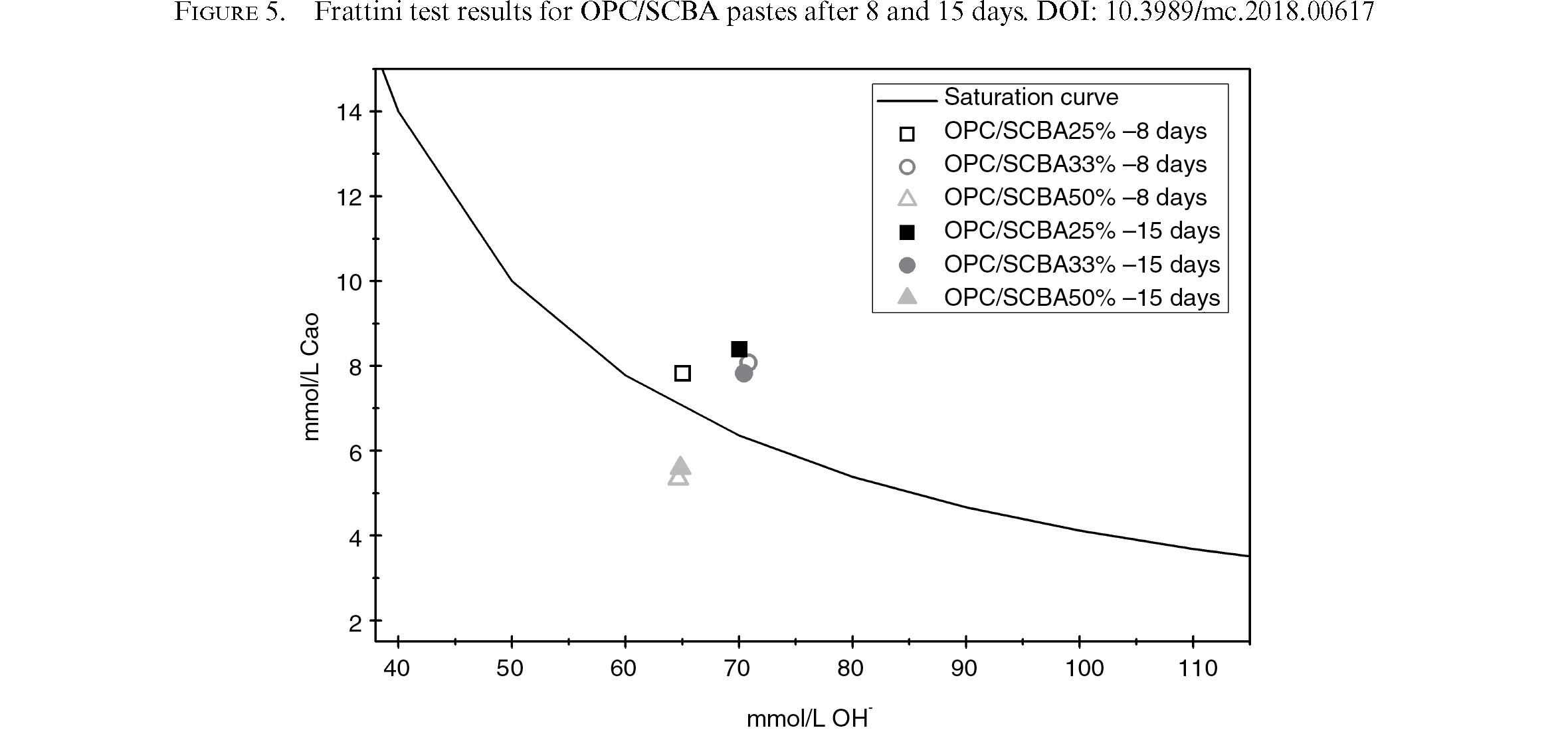

Frattini results are represented in the Figure 5 for OPC/SCBA pastes after 8 and 15 days. For both testing ages, it is noticed that only the OPC/SCBA50% mixture was placed below the saturation curve. In the other hand, OPC/SCBA mixtures of 25 and 33% are found above the saturation. These results showed a low pozzolanic reactivity of the SCBA in early ages. In the other hand, TG and FTIR studies showed some pozzolanic activity in later curing time.

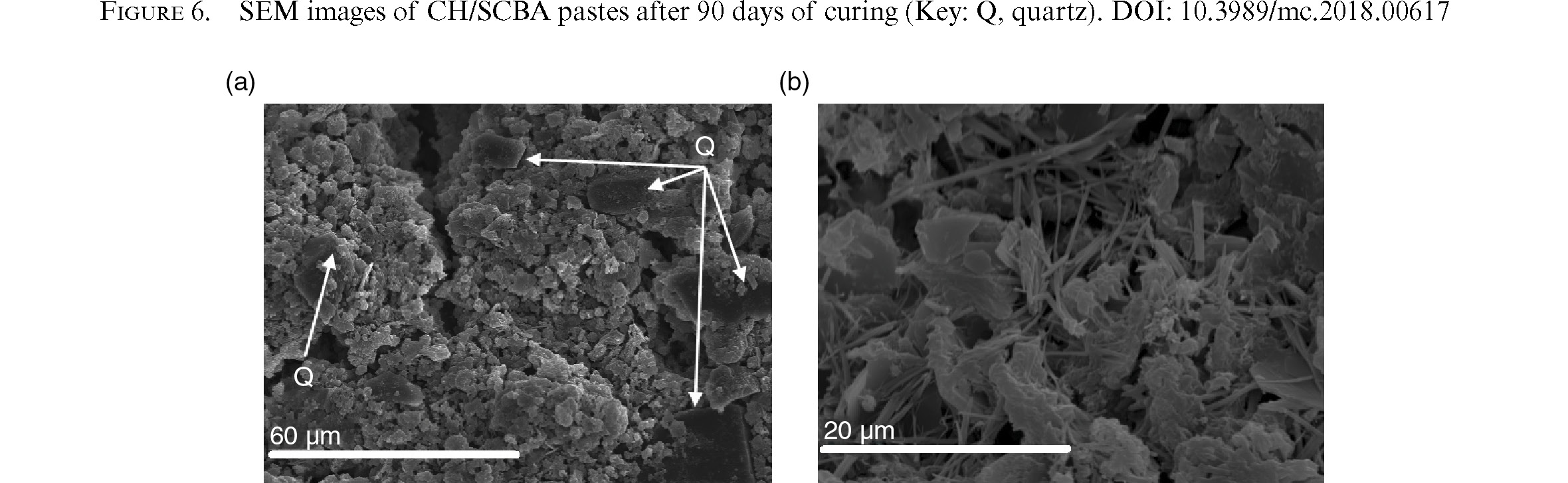

Figures 6 shows SEM images of CH/SCBA pastes after 90 days of curing. In Figure 6a, a general view of the matrix formed from pozzolanic reaction is shown, with particles of quartz from unreacted SCBA. In Figure 6b, detail is shown of an area in which pozzolanic products are observed: different morphologies were identified for hydration products.

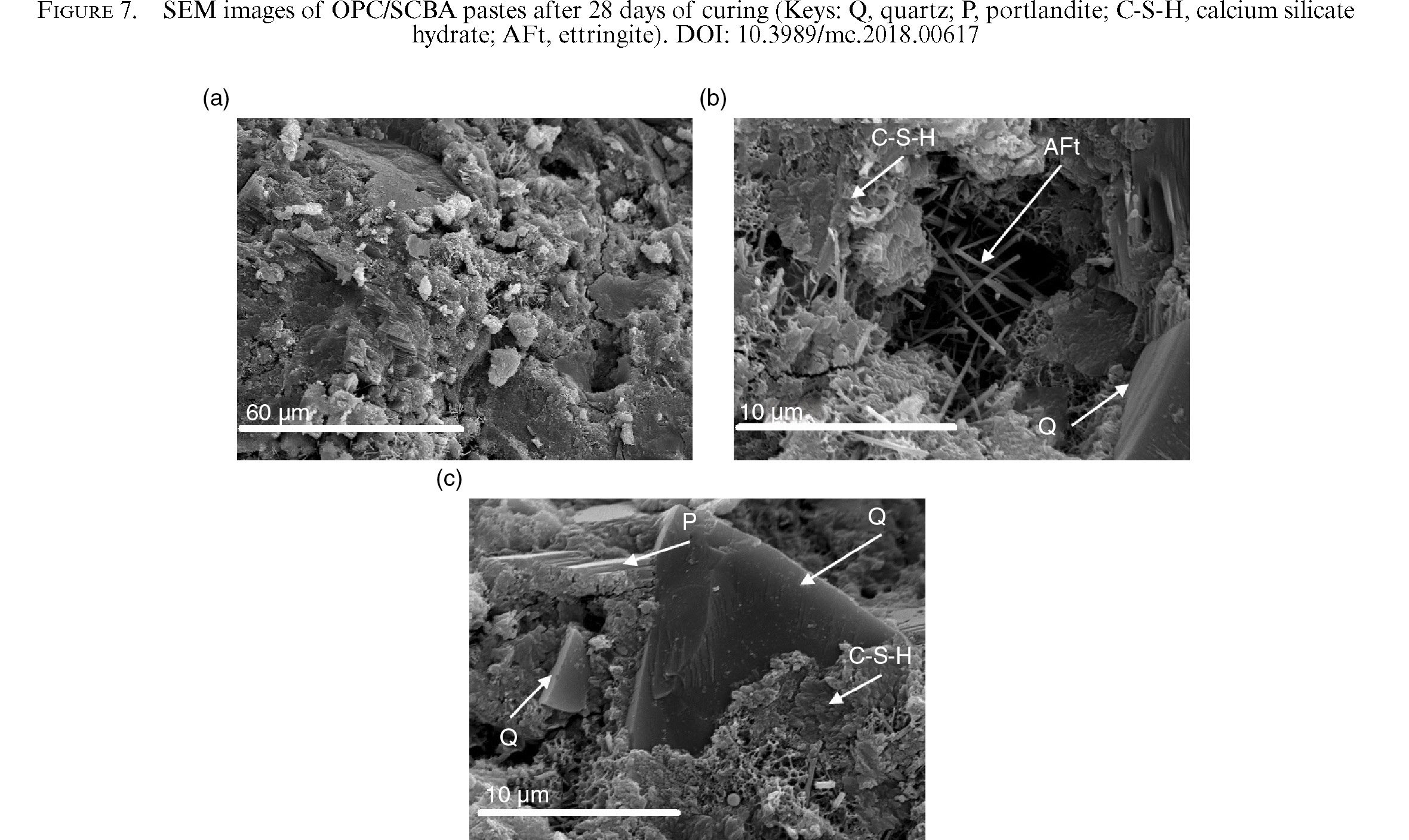

SEM images of OPC/SCBA33% after 28 days of curing are shown in Figure 7. A general view of the matrix formed from OPC and pozzolanic reactions is shown in Figure 7a. Typical C-S-H gel and ettringite needles were observed (Figure 7b). Quartz particles from SCBA are embedded in hydration products (Figure 7c).

3.3. Workability and compressive strength of mortarsTOP

SCBA reactivity in mortars was assessed by partially replacing the Portland cement at a proportion of 0% (control), 10%, 15%, 20% and 30% by mass. Table 3 summarises the results obtained from studies on workability and strength. In general terms, SCBA did not modify the workability of mortars when the replacement was in the range 10–20%, whereas for the highest replacement percentage, a reduction in workability was observed.

With respect to the compressive strength results, all mortars presented increasing values with the increasing curing time. Mortars containing SCBA presented compressive strengths significantly below the corresponding control ones at all curing ages. TGA studies showed that the pozzolanic contribution of SCBA was very limited, and this behaviour is confirmed in terms of compressive strength development. The compressive strength values decrease with the amount of SCBA in the mixtures, with the result that SCBA10% and SCBA15% presented the best results for mortars with pozzolan. After 90 days of curing, both mortars reached 80% of the compressive strength of the control mortar. For the highest replacement (SCBA30%), the achieved strength was only 65% at the same curing age, revealing the limited reactivity of the pozzolan.

In order to determine the contribution of SCBA to the strength gain, a correlation between curing time (t) and compressive strength values (R_c) according to the equation R_c = a + b log(t), were calculated. The slope of the equation, b, represents the gain of compressive strength in a determined curing age interval of the studied mortar. The slope of the control mortar is named b_ctr and the slope of mortar with SCBA is named b_p. The relative slope of a mortar with SCBA is calculated by the ratio b_p/b_ctr (see Table 3).

SCBA15% and SCBA20% showed the highest values for the b_p/b_ctr ratio within the SCBA mortars, which means at those replacement percentages, the SCBA mortars gained more compressive strength than SCBA10% and SCBA30% mortars. It can be concluded that for this pozzolan, which contains a large proportion of inert particles, a suitable replacement percentage is in the range 15–20%.

4. CONCLUSIONSTOP

A pozzolanic activity study of sugarcane bagasse ash (SCBA) with high quartz content was carried out in this paper. This ash was obtained from a new method of auto-combustion process of the sugarcane bagasse. The SCBA obtained from this process was characterized: a high presence of SiO₂ (78.6%) and insoluble phases (75%). In addition, the milling process used to reduce the particle size of the SCBA showed to be suitable, since reduced its particle size in 60%. Studies on CH/SCBA and OPC/SCBA pastes were assessed by FTIR (only for hydrated lime pastes), TGA, Frattini test and SEM analyses. In CH/SCBA pastes, FTIR and TGA studies showed that the pozzolan could not fix all the lime in the proportion studied (3:7), presenting a lime fixation of 60.73% after 90 days of curing; SEM images showed presence of C-S-H gel from pozzolanic reaction. TG studies on OPC/SCBA pastes showed lime fixation in the range of 10.42-39.87% after 90 days of curing and, based on the lime consumption parameter, the best replacement percentage of OPC by SCBA is in the range 20-30% with a value of 0.19 for pozzolan percentage of 25%. Frattini test results showed low pozzolanic activity at early ages. The SCBA was studied in mortars replacing partially the Portland cement in the range 10-30% by means of workability and compressive strength measurements. In general, the workability did not show changes for 0-20% range of replacement. The SCBA containing mortars presented lower strength values than the control in all curing ages. SCBA mortars in the replacement range 15-20% gained more compressive strength with curing time than other replacement percentages studied, showing a b_p/b_ctr value over than 0.80.

ACKNOWLEDGMENTTOP

The authors would like to thank the Ministerio de Educación, Cultura y Deporte of Spain (Cooperación Interuniversitaria Program with Brazil, Project PHB-2011-0016-PC), CAPES-Brazil (Project CAPES/DGU No. 266/12), CNPq (Project 401724/2013-1) and Electron Microscopy Service of the Universitat Politècnica de València.
