Behaviour of recycled aggregate concrete under combined compression and shear stresses

K. Liu^a, J. Yan^a,b,c, C. Zou^a,b,c*

a. School of Civil Engineering, Harbin Institute of Technology (Harbin, China)

b. Key Lab of Structures Dynamic Behaviour and Control of the Ministry of Education1, Harbin Institute of Technology (Harbin, China)

c. Key Lab of Smart Prevention and Mitigation of Civil Engineering Disasters of the Ministry of Industry and Information Technology, Harbin Institute of Technology (Harbin, China)

* cyzou@hit.edu.cn

1. INTRODUCTIONTOP

As sustainable development has become a common concern of mankind, the use of sustainable materials in the construction industry has gained in popularity. With the rapid development of the construction industry, environmental issues, such as the excessive exploitation of natural aggregates and the increasing amount of construction and demolition debris, are increasingly pressing. As a viable way to address demolition waste, recycled aggregate concrete (RAC) can help provide a sustainable construction material and has received considerable attention in many countries over the last several decades (1-2). Although the recycling rate is high in some countries, the use of recycled aggregate is still confined to low-grade applications, such as pavement base, backfill for retaining and hard-core (3-5), which greatly limits the development and application of RAC.

In practical engineering, reinforced concrete elements are frequently subjected to combined compression and shear stresses rather than the uniaxial compression or tension stress state, such as prestressed elements, beams, two-way slabs and shell roofs (6-8). Information on the strength and behaviour of concrete under combined compression and shear stresses becomes important for predicting the performance of these structural members. Bresler et al. (9) investigated the behaviour of concrete hollow cylinders under various combinations of shear and compressive stress and proposed a failure criterion based on the octahedral stress space. Goode et al. (10) compared various failure criteria and indicated that Mohr’s theory with the adoption of Leon’s parabolic envelope (11) provided a good representation of the failure of concrete under compression and shear stresses. Khaloo et al. (6) summarized the experimental results of combined compression and shear stresses on solid cylinders of normal and high compressive strengths and proposed a strength criterion based on all three stress invariants. Le et al. (12) compared Mohr’s theory and the twin shear stress criterion (13) based on the experimental results of Z-shaped specimens and suggested the twin shear stress criterion. Li et al. (14) studied the behaviour of high-strength concrete under combined compression and shear stresses and proposed a failure criterion in terms of the failure criterion proposed by Ottosen (15).

Compared with current studies on conventional concrete, few studies have been conducted for RAC under combined stresses (16-18). As RAC moves toward applications that demand high-performance, such as critical structural elements, it becomes essential to understand its failure under combined loads. To fill in this research gap and facilitate RAC in structural concrete, further research on the behaviour of RAC under combined stresses states must be undertaken to evaluate its performance compared to conventional concrete. This paper presents results from an experimental program to study the failure of hollow-core cylinders of RAC under combined axial load and shear. A modified failure criterion for RAC with normal strength was proposed. Finally, a new procedure based on the proposed failure criterion to calculate the shear strength of RAC beams without stirrups was developed and validated.

2. EXPERIMENTAL PROGRAMMETOP

2.1. MaterialsTOP

Crushed gravel with a maximum diameter of 19 mm from a local ready-mix concrete plant was used as the natural coarse aggregate (NCA). The parent concrete prepared for the recycled coarse aggregate (RCA) in this programme was made from an abandoned concrete frame in the laboratory (2 years old, with concrete compressive strength of 30 MPa). The waste concrete was first manually broken into pieces that were smaller than 150 mm. After screening all other materials and debris, the pieces were further crushed in a mini jaw crusher. The crushed RCA was between 4.75 and 19 mm. The particle size distribution of NCA and RCA satisfied the GB/T 14685-2011 (19) and GB/T 25177-2010 (20) gradation requirements, respectively. It should be noted that the original maximum diameter for coarse aggregate was 10 mm considering the size for hollow cylinders. However, RCA with the maximum diameter of 10 mm had too much residual mortar and cannot represent the physical properties of normal RCA. Finally, a relative appropriate diameter-19 mm was used in this study. The physical properties for NCA and RCA are shown in Table 1. The apparent density, water absorption, and crushing value of NCA and RCA were tested according to JGJ 52-2006 (21). The residual mortar content, which is a measure of the percent (by weight) of residual mortar in the RCA, was determined using the method described by Abbas et al. (22) Ordinary Portland cement P.O 42.5R with a 28-day standard compressive strength of 42.5 MPa and tap water were used for the concrete mix. The fine aggregates consisted of a local natural river sand with a fineness modulus of 2.53.

2.2. Concrete mixture proportionsTOP

There is still no standard mix design method for RAC mixture design. Generally, a standard method of mixture design for conventional concrete is adopted in which the NCA is replaced by RCA at different proportions. Three accepted aggregate replacement methods are direct weight replacement, direct volume replacement (DVR) and equivalent mortar volume (EMV) replacement (23-24). However, RAC mixtures made using the EMV method exhibit poor workability, segregation, and honeycombing (25). In this paper, the DVR method was used to prepare RAC. To control the fluidity of RAC, the RCA was pre-soaked for 24 h to achieve the saturated-surface-dry condition to consider its high water absorption before casting. Table 2 shows the mixture proportions of five mixture designs corresponding to different RCA replacement ratios. NAC represents conventional concrete, RAC30 represents a coarse aggregate replacement ratio of 30%, etc.

2.3. Specimen designTOP

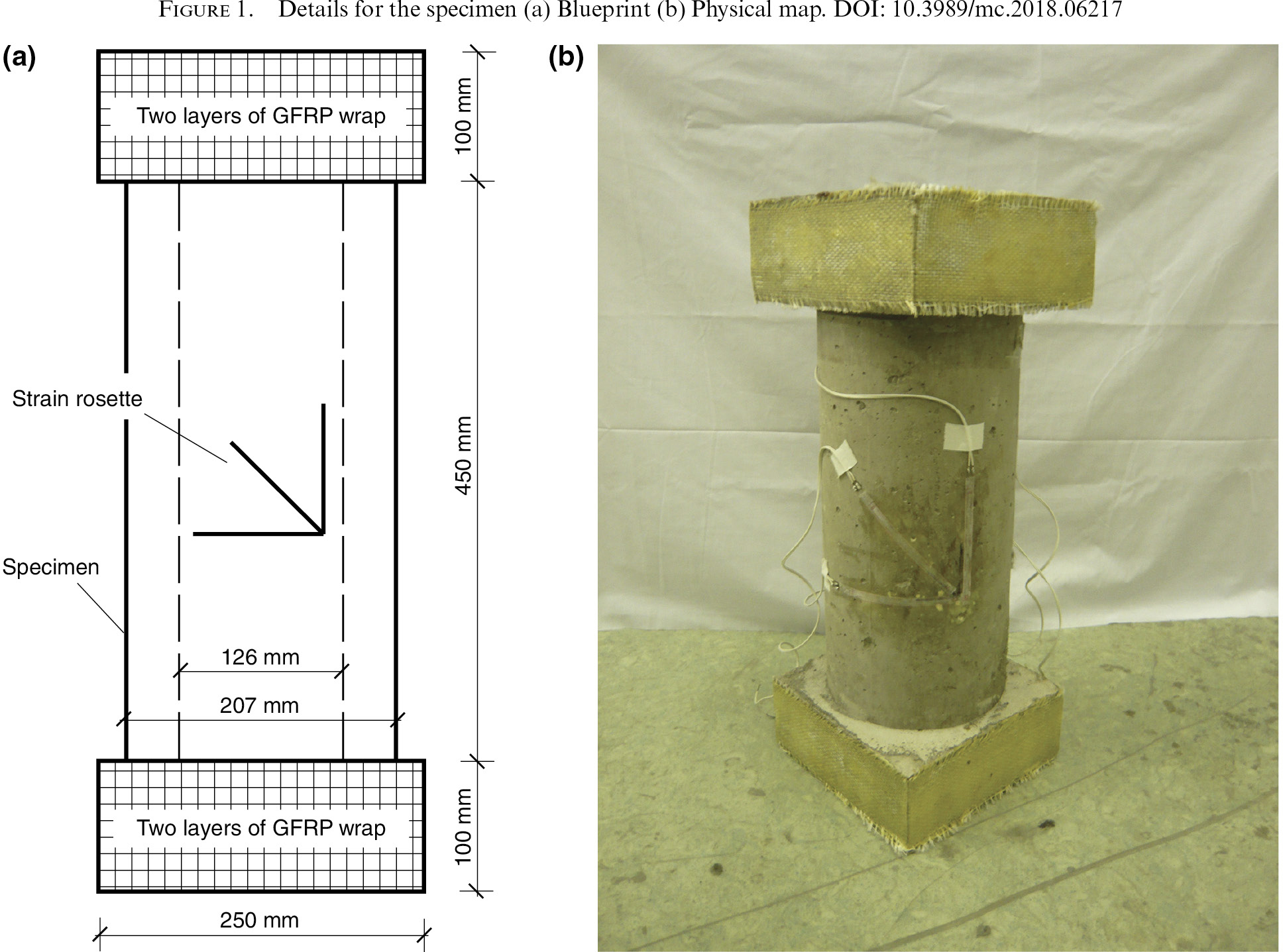

The tested specimens consist of hollow cylinders with a 207 mm outside diameter, 126 mm inside diameter and 650 mm height. The cylinders were cast on a shaking table in a longitudinal position in a split steel mould with a demountable polyethylene core. After 24 h, the specimens were demoulded and then cured under normal conditions (20 ± 2°C and 95% relative humidity).

To load the torque, the end of the cylinder was changed to square shape. The surfaces of both ends with a length of 100 mm was pockmarked by an electric drill, and then four steel bars were plugged into the holes with a diameter of 12 mm made at the quartering point 50 mm from the end. High-strength non-shrinking grouting material was used to fill the square mould and strengthen the ends. Both ends of the cylinders were strengthened by two layers of glass fibre-reinforced polymer wrap to avoid premature failure during the test. The details for the specimen are shown in Figure 1.

A total of 75 cylinders were prepared, 15 for each mixture. Meanwhile, twelve cubes with a side length of 100 mm were made as the control specimens for each mixture to test the compressive strength and split tensile strength. Table 3 shows the test results for the control specimens.

Table 3. Test results for control specimens

ID	Cubic compressive strength fcu (MPa)	Axial compressive strength (MPa)	Split tensile strength (MPa)
NAC	45.63	34.68	2.89
RAC30	34.31	26.08	2.23
RAC50	33.33	25.33	1.69
RAC70	30.79	23.40	1.69
RAC100	30.17	22.93	1.97
a The axial compressive strength was calculated according to GB50152 (26).

2.4. Loading procedureTOP

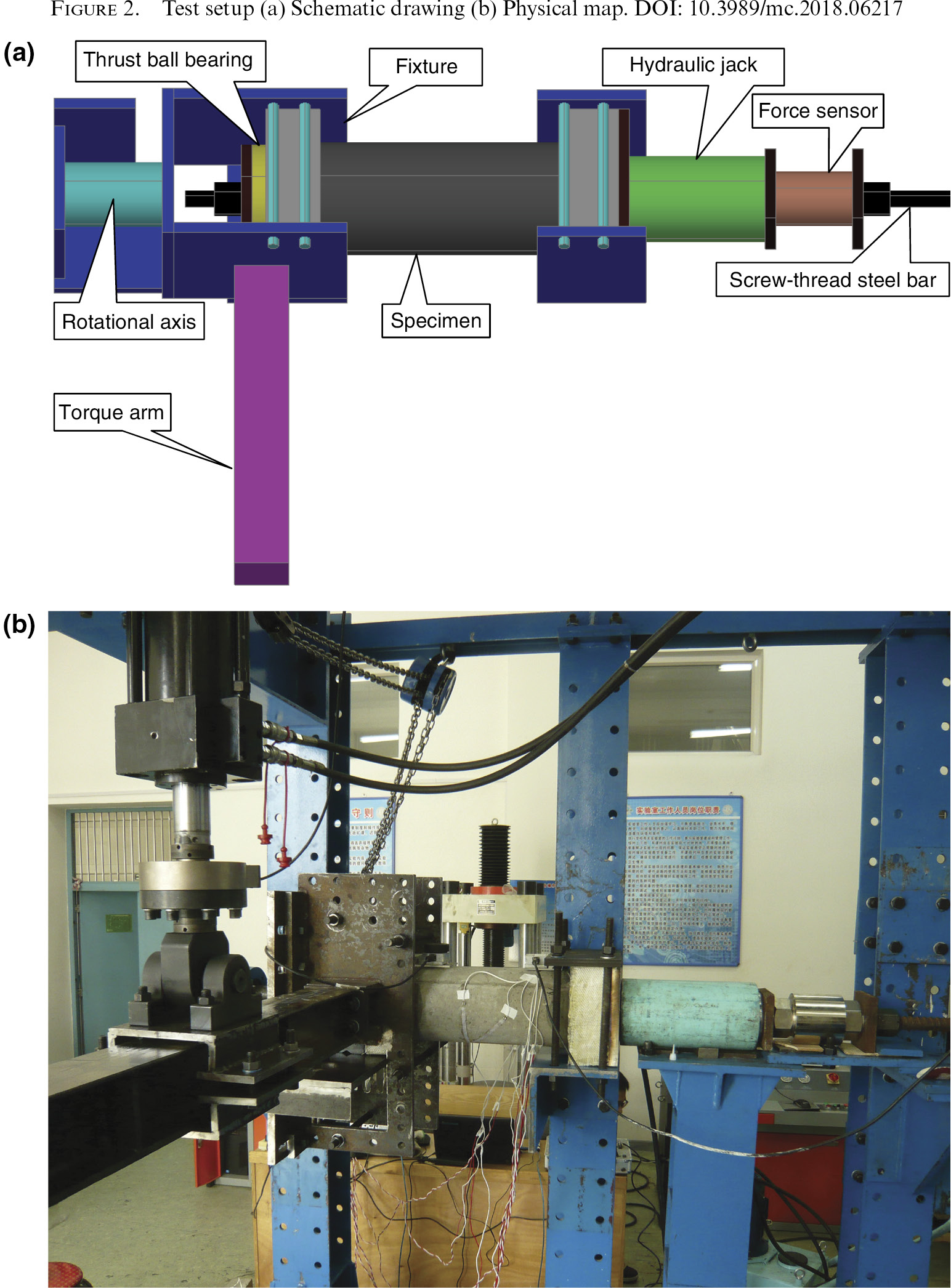

The test setup is shown in Figure 2. One end of the cylinder was set on the rotatable support, linked with the torque arm, while the other end was fixed by steel plates. The torque was applied by a closed loop servo-controlled material testing system. The axial loading was applied by using a 60 ton hydraulic jack to tension the prestressed screw-thread steel bar and measured by a pressure sensor. A thrust ball bearing was placed at the loading end of the cylinder to eliminate the frictional restraint induced by rotation.

The force-control method was used during the whole loading programme. An axial compressive loading was applied first to a predetermined level to give compressive stress σ_x of 0, 0.2, 0.4, 0.6 or 0.8 times the axial compressive strength f_c. The axial compressive stress was held constant and the torque was then applied monotonically in step loading system until failure occurred. The shear strain was tested by two strain rosettes, adhered to the surface of the specimen and consisting of an axial strain gauge, a lateral one and a diagonal one with an angle of 45°. Two tilt sensors were placed at the side of the specimen to monitor the torque angle and make sure a uniform rotation direction. In addition, the torque was recorded by the electro hydraulic servo system automatically in each loading step.

3. RESULTS AND DISCUSSIONTOP

3.1. Failure patternsTOP

The failure patterns for all mixtures were similar. The five typical failure modes for RAC100 series are illustrated in Figure 3. One principal diagonal crack forming approximately 45° to the longitudinal axis was observed for the specimens under pure torsion. As the axial compression ratio σ_x / f_c increased, the angle θ of the diagonal crack to the longitudinal axis gradually decreased. Some short cracks developed and connected with the principal crack at failure for specimens with σ_x / f_c of 0.8.

3.2. Shear stress versus shear strain curvesTOP

A previous study indicated that the shearing stress of a hollow cylinder can be assumed as a linear distribution along the thickness (9). The ratio between average shear stress and maximum shear stress in the cross section is 0.81 for this test, which indicated that the maximum shear stress can be used to represent the shear stress in the specimen (27). The shear stress and shear strain can be calculated as follows [Eq. 1 and 2]:

where τ = shear stress, MPa; T = applied torque, kN·m; d = inside diameter of hollow cylinder, mm; D = outside diameter of hollow cylinder, mm; γ = shear strain, με; ε_0° = axial strain, με; ε_45° = diagonal strain, με; and ε_90° = lateral strain, με.

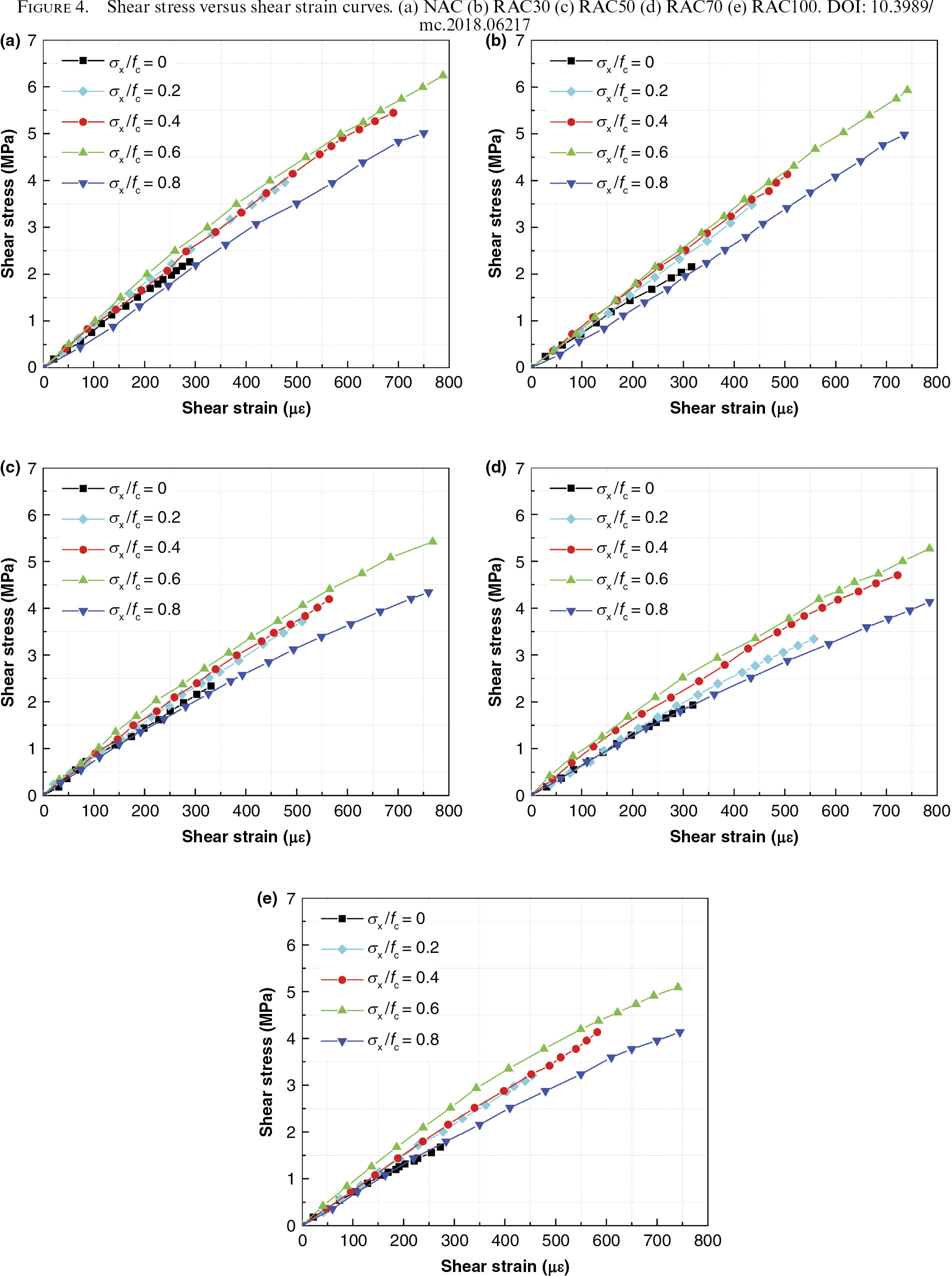

The typical shear stress versus shear strain curves are listed in Figure 4. The curves for all specimens showed a near linear relationship during most of the loading history. The ultimate shear stress and shear stiffness increased with increasing axial compression ratio when the ratio was below 0.6 and declined when the ratio exceeded 0.6. This can be explained by the fact that the favourable behaviour of limiting the development of cracks and enhancing the shear capacity due to axial compressive stress dominated the damage induced thereby when the axial compression ratio was below 0.6. However, once the ratio exceeded 0.6, the cracks caused by high axial compressive stress began to develop unsteadily, which reduced the bearing capacity of the specimen. A summary of the experimental results for ultimate shear stress is given in Table 4.

4. A FAILURE CRITERION FOR RAC UNDER COMBINED COMPRESSION AND SHEAR STRESSESTOP

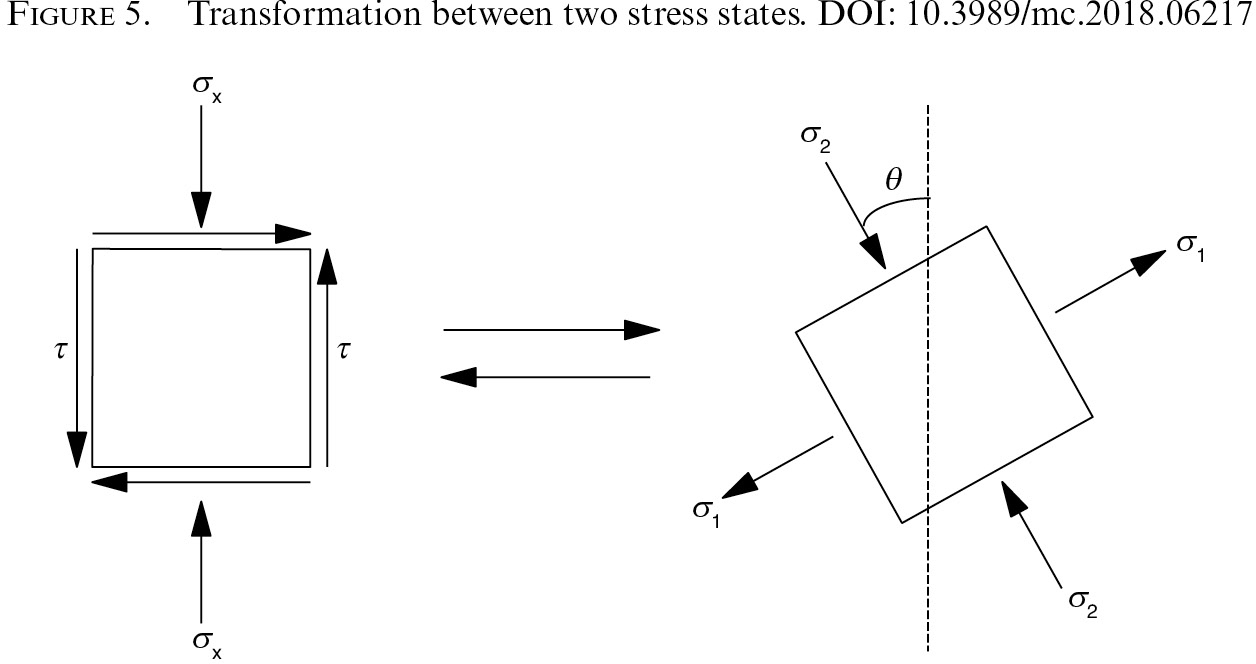

Under the plane stress condition, the combined compression and shear stresses state can be transformed to a tensile–compression stress state (Figure 5). The conversion equations can be expressed as follows [Eq. 3 and 4] :

where σ₁ = principal tensile stress, MPa; and σ₂ = principal compressive stress, MPa.

The angle θ between σ₂ and the longitudinal axis can be calculated as follows [Eq. 5] :

It can be seen from Eq. [5] that θ was 45° for the specimens under pure shear stress and decreased as the compressive stress increased. This was consistent with the change of the angle between the principal diagonal crack and the longitudinal axis (Figure 3).

Based on Eq. [3] and Eq. [4], the failure criterion for concrete under principal stresses state can be translated into that under combined compression and shear stresses state. Therefore, four classical strength criteria, Leon theory (11), Kupfer criterion (28), twin shear stress criterion (13) and Bresler theory (9), were selected to compare with the experimental results. The details of the transformation of the four failure criteria can be seen in the Appendix. A total of 65 effective test results were selected according to GB/T50081 (29). Table 5 shows the average ratios between predictions and experimental results. Leon theory and the twin shear stress criterion agreed well with the test results of RAC compared with NAC, while the Kupfer criterion was just the opposite. In addition, the Kupfer criterion cannot give the strength of concrete under pure stress due to its limitation. The Bresler theory show better consistency with the test values than the others.

Based on the previous analysis, Bresler theory was selected to establish the failure criterion for RAC under combined compression and shear stresses in plane stress space. To make a failure criterion suitable for both NAC and RAC with normal strength, a unified formula was proposed based on experimental results and can be expressed as follows [Eq. 6]:

where ƞ = a coefficient related to the replacement ratio of RCA. The parameters ƞ, , and can be determined by a multiple nonlinear regression analysis, and Eq. [6] was then expressed as follows [Eq. 7] :

where ω = the replacement ratio of RCA.

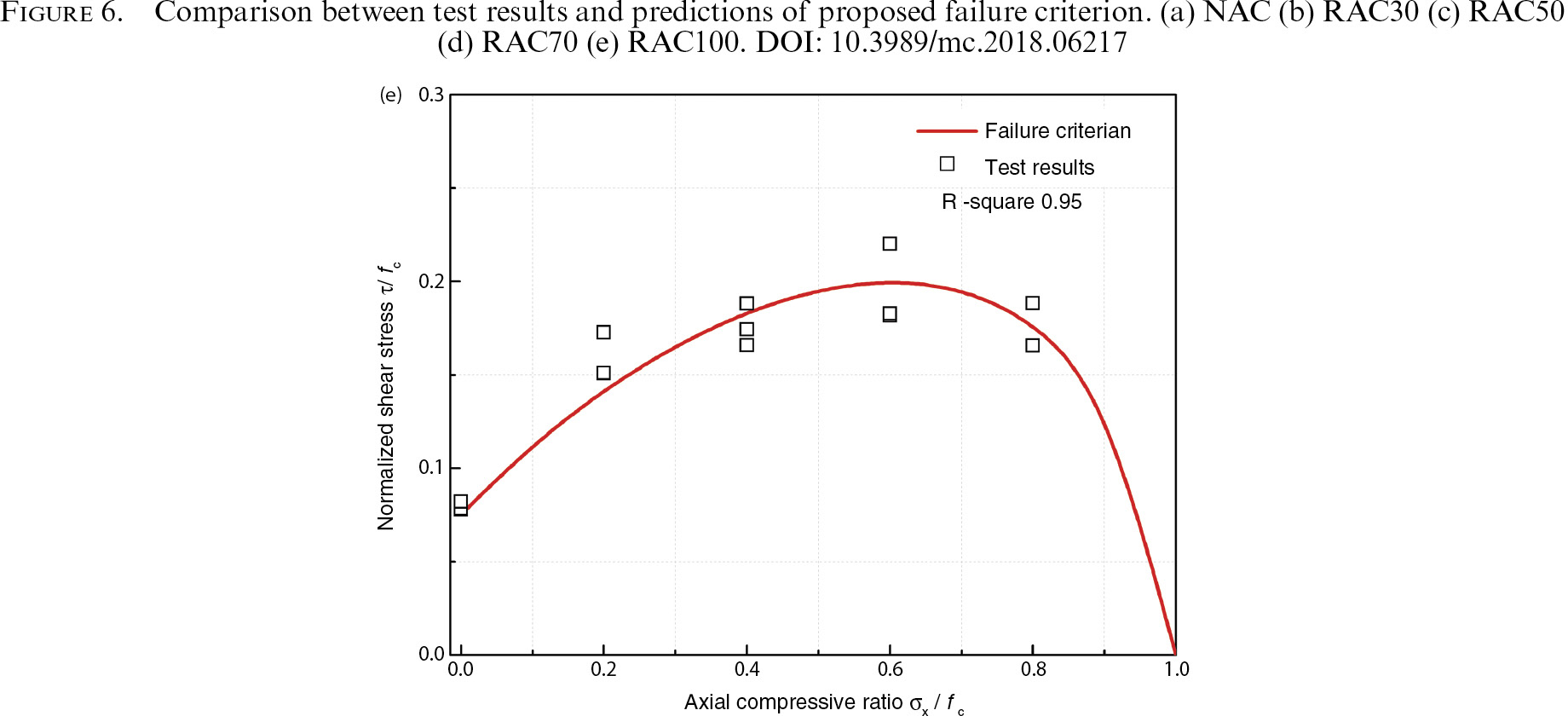

Figure 6 gives the comparison between the resulting values and the theoretical values calculated by the proposed failure criterion. No other test results were used for comparison because experimental studies on the behaviour of RAC under combined compression and shear stresses are very limited. The R-square for all mixtures were larger than 0.90, indicating that the proposed failure criterion compared favourably with the experimental results. From Eq. [7], it can be seen that the normalized ultimate shear stress τ / f_c increased with the increasing ω of less than 70% and declined after exceeding 70%. However, even for RAC with 100% replacement of recycled coarse aggregate, the τ / f_c was still larger than that of NAC.

5. APPLICATION OF THE PROPOSED FAILURE CRITERIONTOP

The failure criterion is an effective approach to determine the capacity of reinforced concrete structures under various conditions of loading. As an indication of the possibility of applying the proposed failure criterion for RAC, a method for calculating the shear strength of normal RAC beams without stirrups was developed. The following conventional assumptions were made in advance:

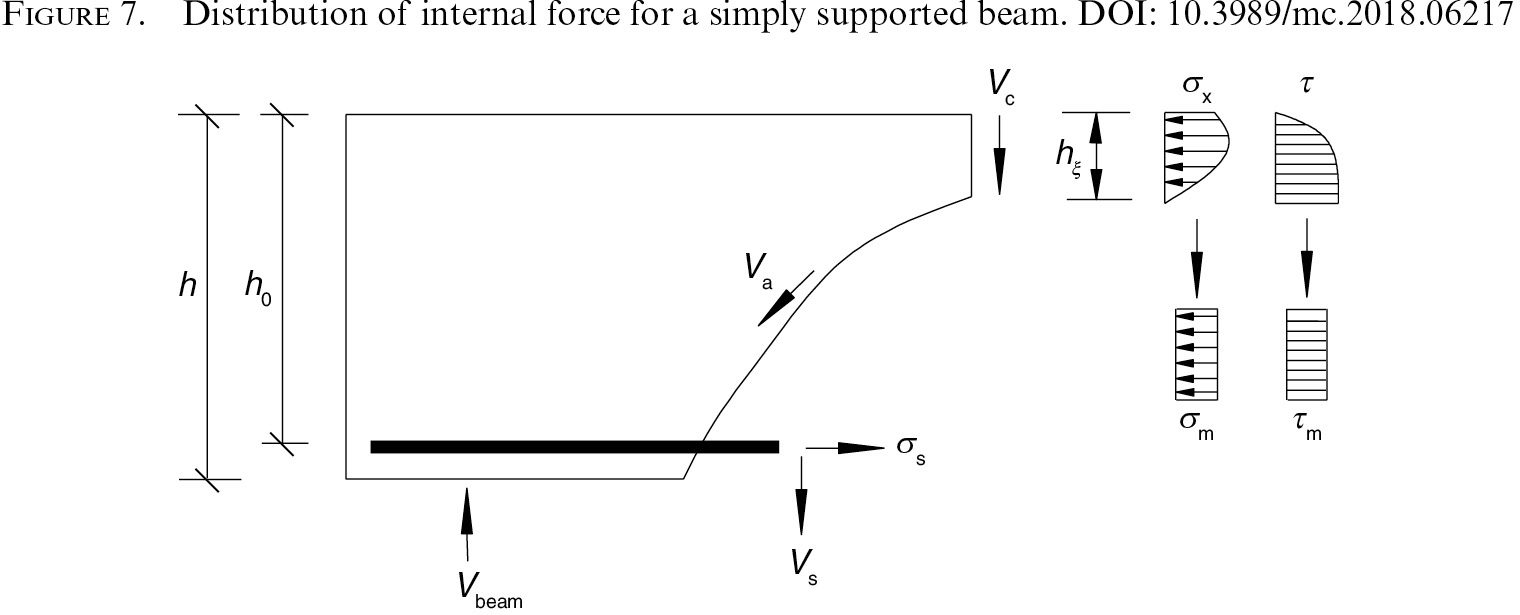

Figure 7 shows the typical distribution of internal force for a simply supported beam. The shape of the distribution for the shear stress and the direct stress were both the curved type.

To simplify the process, the average shear stress τ_m and direct stress σ_m were used for representing the real stress state, and the force equilibrium equation can be expressed as follows [Eq. 8, 9 and 10] :

where b = web width of the section, mm; h_ξ = depth of the shear–compression zone, mm; σ_s= tensile stress of longitudinal reinforcement, MPa; r = reinforcement ratio of longitudinal bars; and h₀ = distance from extreme compression fibre to centroid of longitudinal reinforcement, mm. V_a and V_s can be expressed by the following equation (30) [Eq. 11]:

where μ was a proportionality. For concrete beams without stirrups, m can be set as 0.5 (31). Luo et al. (32) proposed a method to determine h_ξ, which can be expressed as follows [Eq. 12] :

where λ = shear span to depth ratio. The tensile stress σ_s for the longitudinal bar can be calculated by the following formula (31) [13]:

Once σ_s was obtained, σ_m can be determined by Eq. [10] and plugged into Eq. [7] to calculate τ_m. Then, V_c was obtained from Eq. [9]. Finally, the shear strength V_beam was determined by Eq. [8].

Table 6 shows the comparison between the test results V_beam of 20 beams exhibiting shear compression failure (33-35) and predictions V_pre. In addition to the method proposed in this paper, GB50010 (36), Eurocode 2 (37), Level III Approximation of fib Model Code 2010 (38) and ACI 318-11 (39) were also introduced. The predictions calculated by GB50010, Eurocode 2, Level III Approximation of fib Model Code 2010 and ACI 318-11 were relatively conservative compared with the results by the failure criterion, especially for ACI 318-11. The ratios for the method proposed in this paper had an average ratio of 0.96, and 85 percent of the predicted values were in the range of 0.82 to 1.20, showing good correlation with the experimental results, especially for the beams in Fathifazl’s test. It should be noted that compared with the test results for the shear behaviour of conventional concrete beams without stirrups, those for RAC beams were limited. More studies can be done to verify the proposed model in the future.

6. CONCLUSIONSTOP

The behaviour of RAC under combined compression and shear stresses was investigated experimentally in this paper. The following conclusions are drawn:

AppendixTOP

1. Leon theory

Leon (11) suggested a parabola as the envelope to Mohr’s circles for brittle materials whose compressive strength is more than five times their tensile strength, which can be expressed as follows:

where , σ_t and σ_c are the numerical values of the uniaxial tensile and compressive strengths, respectively.

2. Twin shear stress criterion

The twin shear stress theory was proposed by Yu et al. (13) and can be expressed as follows:

where τ₁₃= the maximum principle shear stress; τ₁₂, τ₂₃= the other two principle shear stresses, β = an influencing parameter; c = a parameter related to strength of material; F = equivalent stress, σ_h = hydrostatic pressure; and a = a parameter related to σ_h. The parameters β, a and c can be expressed as follows:

Where α = σt/σc, , and σ_bc is the biaxial compressive strength. In addition,

Therefore, the twin shear stress theory can be described in the principal stress space:

The twin shear stress theory can then be transformed as follows:

Where A, B, A’ and B’ are four parameters that can be expressed as follows:

3. Kupfer criterion

Kupfer et al. (28) proposed a failure criterion for concrete under the tensile–compression stress state, which can be expressed as follows:

This can be rewritten in terms of the applied stresses σ_x and τ:

4. Bresler theory

Bresler et al. (9) proposed a failure criterion for concrete in the octahedral stress space, which can be expressed as follows:

where τ_oct is octahedral shear stress; σ_oct is octahedral normal stress; k₁, k₂ and k₃ are parameters.

This can be rewritten in terms of the applied stresses σ_x and τ:

Where , and are parameters.

ACKNOWLEDGEMENTSTOP

The work described in this paper was supported by a grant from the National Natural Science Foundation of China (grant number 51278151).
