Incorporating graphene oxide into lime solution: A study of flocculation and corresponding improvement

G.J. Jing^a, Z.M. Ye^a*, X.L. Lu^a, J.M. Wu^a, S.X. Wang^a, X. Cheng^b

a. School of Materials Science & Engineering, University of Jinan, (Jinan, China)

b. Shandong Provincial Key Laboratory of Preparation and Measurement of Building Materials, (Jinan, China)

*mse_yezm@163.com

1. INTRODUCTIONTOP

In recent years, several attempts have been made to enhance the mechanical, electrical and transport properties of cement by introducing graphene oxide (GO). Gong et al. (1) demonstrated that the mechanical properties of hardened cement paste were improved by the addition of GO and the compressive and tensile strength exhibited a distinct increase by approximately 40%. Pan et al. (2) showed that the incorporation of GO (0.05 wt. %) into cement could improve the compressive and flexural strength by approximately 33% and 59%, respectively. The transport properties of cement containing GO were studied (3). The results revealed that cement mixed with GO showed a lower chloride penetration depth and water absorption compared with the reference samples. Moreover, Rhee et al. (4) showed that the cement mortar including GO exhibited a moderate electrical conductivity among other carbon nanomaterials such as carbon nanotubes and carbon fibers. The applying of GO not only offers extraordinary properties of cement but also contributes to decreasing maintenance costs. Although an increase in cost occurs compared with common cement, GO is explored as a promising additive for reinforcements in cement-based materials. However, it should be noted that the properties of cement with consistent GO contents are diverse. This is possibly attributed to the poor distribution of GO in cement.

The addition of GO enhances the performance of cement. However, GO easily aggregates in the alkaline environment of cement, and the poor dispersion could weaken the benefits associated with the original properties of GO. The major challenge for GO-added cement is how to evenly disperse GO in the cement matrix. Thus, experimental research on solving the dispersion problem of GO is of great importance.

Considerable research efforts have been devoted to improving the dispersion of GO in cement. However, the well dispersion of GO in the cement matrix has not achieved. To address this issue, a few studies have proposed several methods to achieve uniform distribution. Gong et al. (1) employed a high-speed shear mixer for the mixing process to achieve an improved distribution of GO in cement paste. In addition, silica fume was utilized to improve the dispersion of GO in cement. These investigations revealed that the dispersion of GO has apparently enhanced by adding silica fume (5). A prevalent strategy in enhancing the dispersion of GO was the use of surfactant and ultra-sonication. A few research indicated that the utilization of polycarboxylate-based superplasticizer (PC) in conjunction with ultrasonic energy application could be performed to promote the uniform dispersion of GO in cementitious materials (6-9). Lv et al. (6) reported that the introduction of the PC into cement paste improved losing fluidity resulting from the larger specific surface area of GO. Metaxa (8) used four different PCs as graphene dispersant agents and investigated their efficiency. The findings proved that the PC promoted graphene uniform distribution in cement matrix. However, the studies about the impact of PC addition on the dispersion of GO are still at early stage, and the working mechanism of the PC is unclear.

This study evaluated the flocculation of GO in lime solution by carrying out the UV-Vis spectra and zeta potential investigation. Moreover, this research employed PC to disperse GO and investigated the influence of different PC functional groups on the dispersion of GO. The research could give guidance on the dispersion of GO in the alkaline environment of cement.

2. EXPERIMENTALTOP

2.1. MaterialsTOP

Graphite powder (8000 meshes, 99.95%), concentrated sulfuric acid (H₂SO₄, 98%), hydrochloric acid (HCl, 36%), sodium nitrate (NaNO₃), hydrogen peroxide (H₂O₂, 30%), potassium permanganate (KMnO₄), calcium hydroxide (CH), glycerin, acrylic acid and polyacrylic acid were all analytical grade. Polycarboxylate-based superplasticizer (PC, 30 wt. %) was supplied by Sobute New Materials Co. Ltd (China).

2.2. Synthesis of GOTOP

GO was prepared through a modified Hummers’ method (10, 11). Firstly, graphite powder (1 g) was added into a three-necked round-bottomed flask incorporating NaNO₃ (0.5 g), H₂SO₄ (30 mL), KMnO₄ (3 g) for 0.5 h mixing in an ice bath (<5 °C). Then the mixture was stirred at 35 °C for 4 h and ­subsequently added by deionized water (100 mL). The resulting yellow suspension was mixed with 250 ml deionized water and 5 mL H₂O₂. The mixture was then filtered and washed by HCl solution (10 wt. %). The remained solid was dispersed in water with a total volume of 500 mL, forming a graphite oxide aqueous dispersion. Finally, it was purified by dialysis technology for two weeks and dispersed by sonication at 600 W for 1 h. Then a stable GO suspension was obtained.

2.3. Characterization of GOTOP

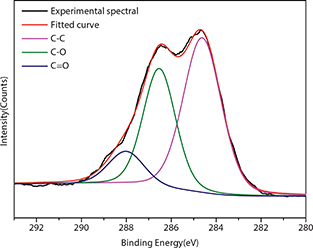

The specimens were dried in a vacuum environment at 45 °C for 24 h. The specimens were characterized by FT-IR, SEM, XRD and X-ray photoelectron spectroscopy (XPS). Fourier transform infrared (Nicolet 380 infrared spectrometer with a resolution of 0.5 cm^-1 for 8 scans) was utilized to determine the functional groups of GO. KBr pellets were used in the analysis. Scanning electron microscopy (Zeiss EVO LS 15) was utilized to observe the microstructure of GO. Prior to the observation, the specimens were sputter-coated with gold-palladium. All images were obtained in the secondary electron mode with an electron beam of 20 kV. The XRD patterns were acquired using an X-ray diffractometer (Bruker D8 Advance from Germany, Cu k α, 40 kV voltage, 40 mA current). The scanning speed was 6°/min with a step size of 0.02° in the scattering 2° range of 5° to 60°. GO samples were manually ground into fine powder, and then fixed in a metal plate. The XPS pattern was acquired using X-ray photoelectron spectroscopy (Kratos Analytical Ltd, UK) and the measurement was carried out with 4 scans per eV.

2.4. Dispersion of GO in CH solution with different reagentsTOP

A certain concentration of GO suspension was employed in this study. Based on the previous research, 0.05 mg/mL was chosen as adequate concentration to study GO dispersion. Different reagents (PC, glycerin, acrylic acid and polyacrylic acid) were added to GO suspension. Meanwhile, CH concentrations varied from 0 to 240 mg/L. The UV–Vis spectra (Shimadzu UV 4800) and zeta potential (Zeta PALS, Brookhaven) were performed to explore the dispersion of GO in lime solution (CH solution) with different reagents. In addition, to understand the interactions between PC and GO, the FT-IR analysis was carried out.

3. RESULTSTOP

3.1. Structural characterization of GOTOP

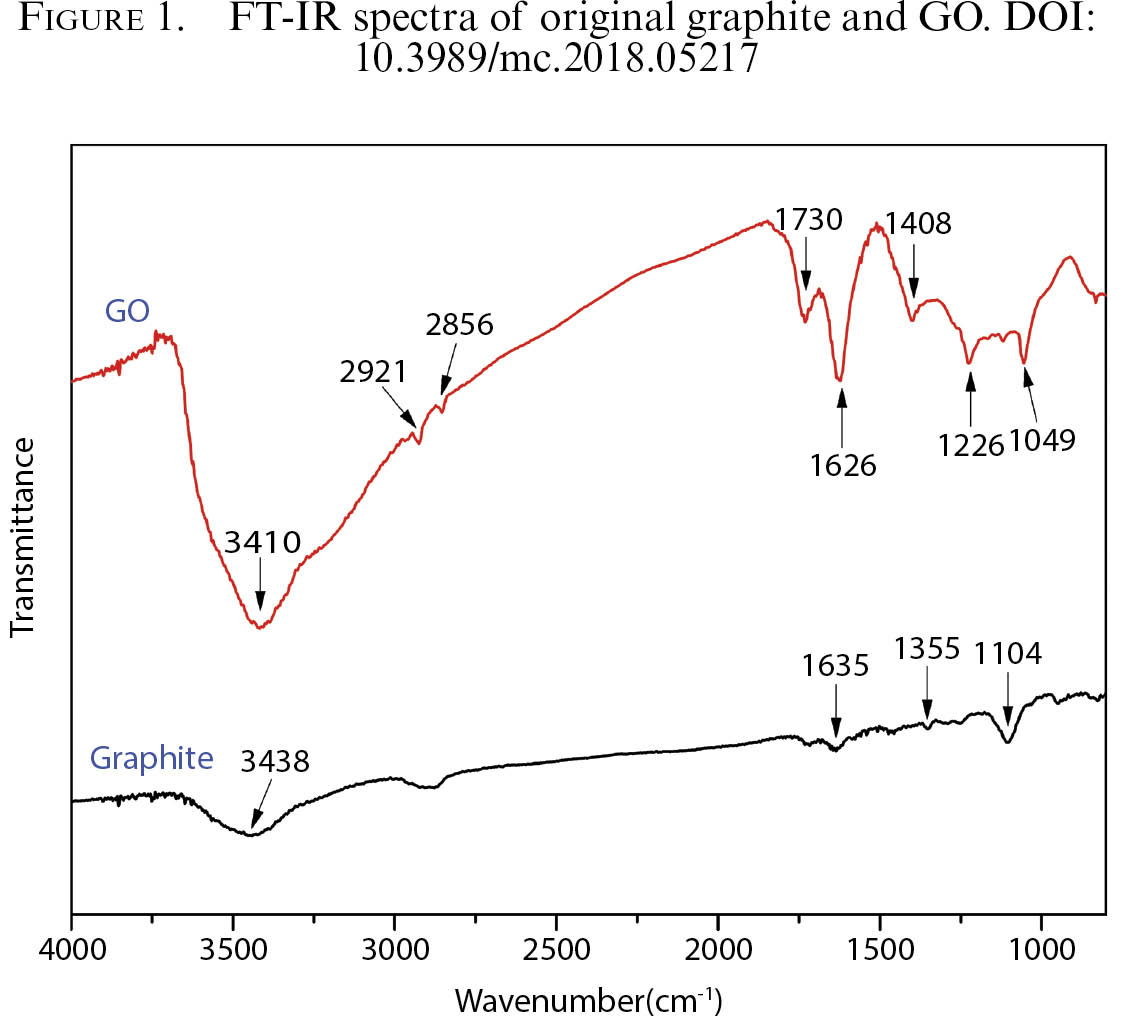

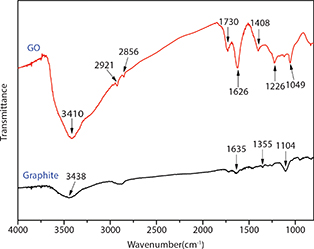

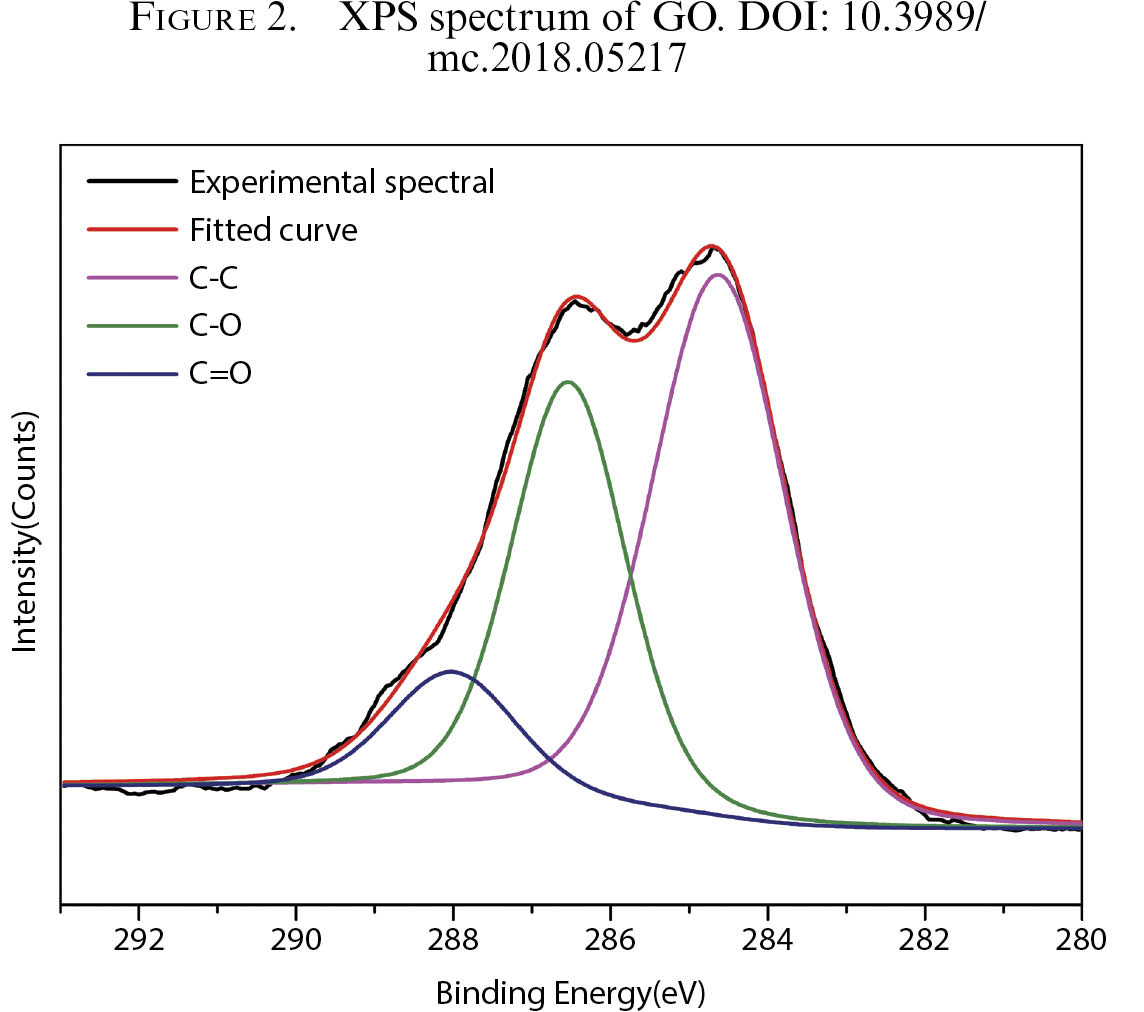

The results of the FT-IR analysis of graphite and GO were shown in Figure 1. In the spectrum of GO, the peak at 3410 cm^-1 suggested the presence of -OH group. The absorption band at 2856 cm^-1 (symmetrical stretching) and 2921 cm^-1 (asymmetrical stretching) could be caused by -CH₂ group. Main peaks at 1408 cm^-1 (deformation peaks of O-H groups) and 1730 cm^-1 (C=O stretching vibration) were ascribed to -COOH group. In addition, the C-O (epoxy) stretching vibration peak at 1226 cm^-1, and the C-O (alkoxy) stretching vibration peak at 1052 cm^-1 were confirmed. The peak at 1626 cm^-1 were caused by H-O-H bending vibration. The results confirmed that graphite had the groups of -CH₂, -C=C-, C-C, C-O, supported by the absorption peaks at 3438 cm^-1, 1635 cm^-1, 1355 cm^-1, 1104 cm^-1, respectively (12-14). Furthermore, the XPS result of GO (see Figure 2) depicted three strong peaks at 288.1, 286.5 and 284.6 eV, which referred to C=O, C-O and C-C groups, respectively (15-16). The results were consistent with the FT-IR measurement.

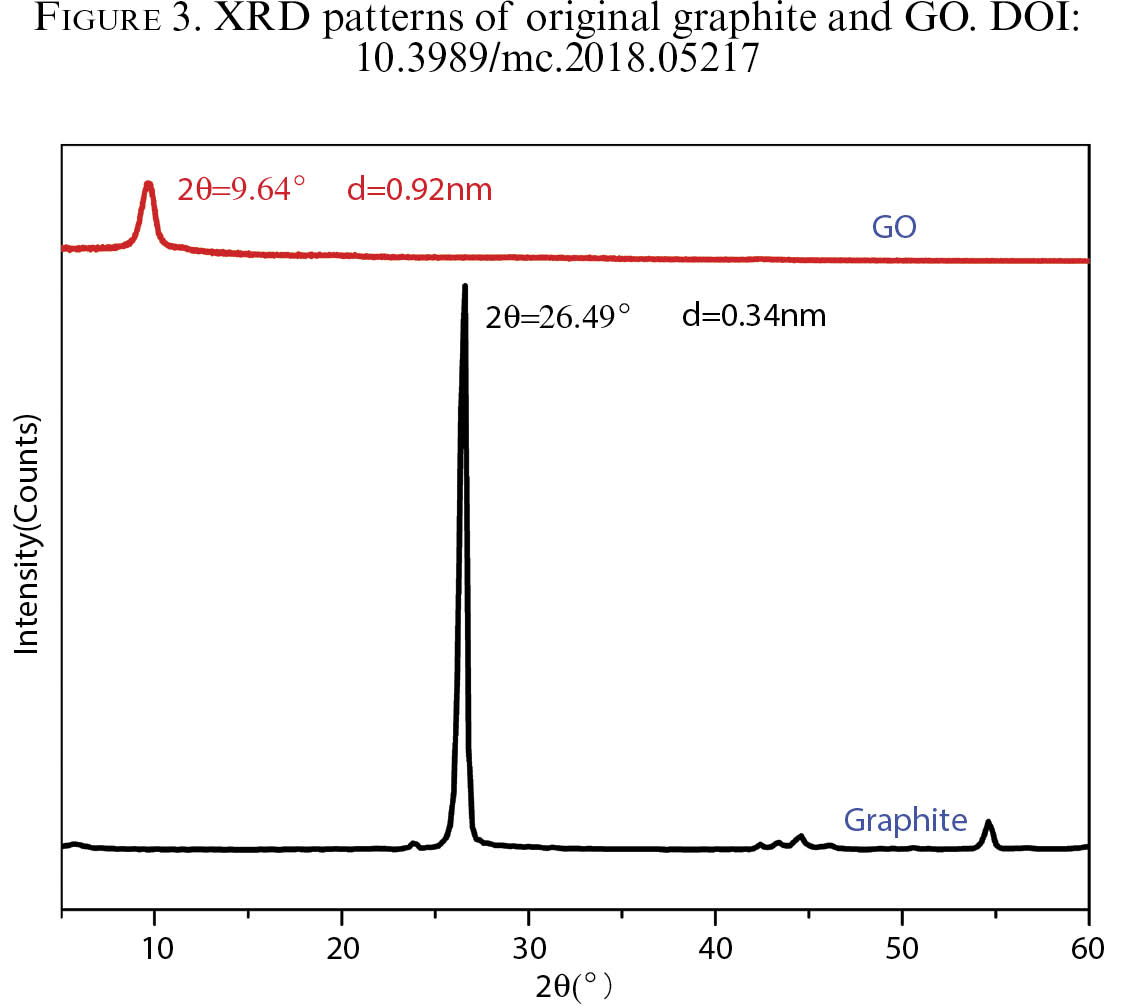

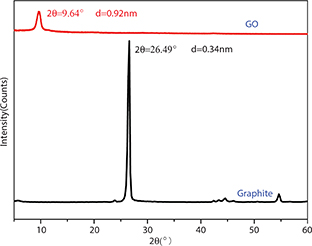

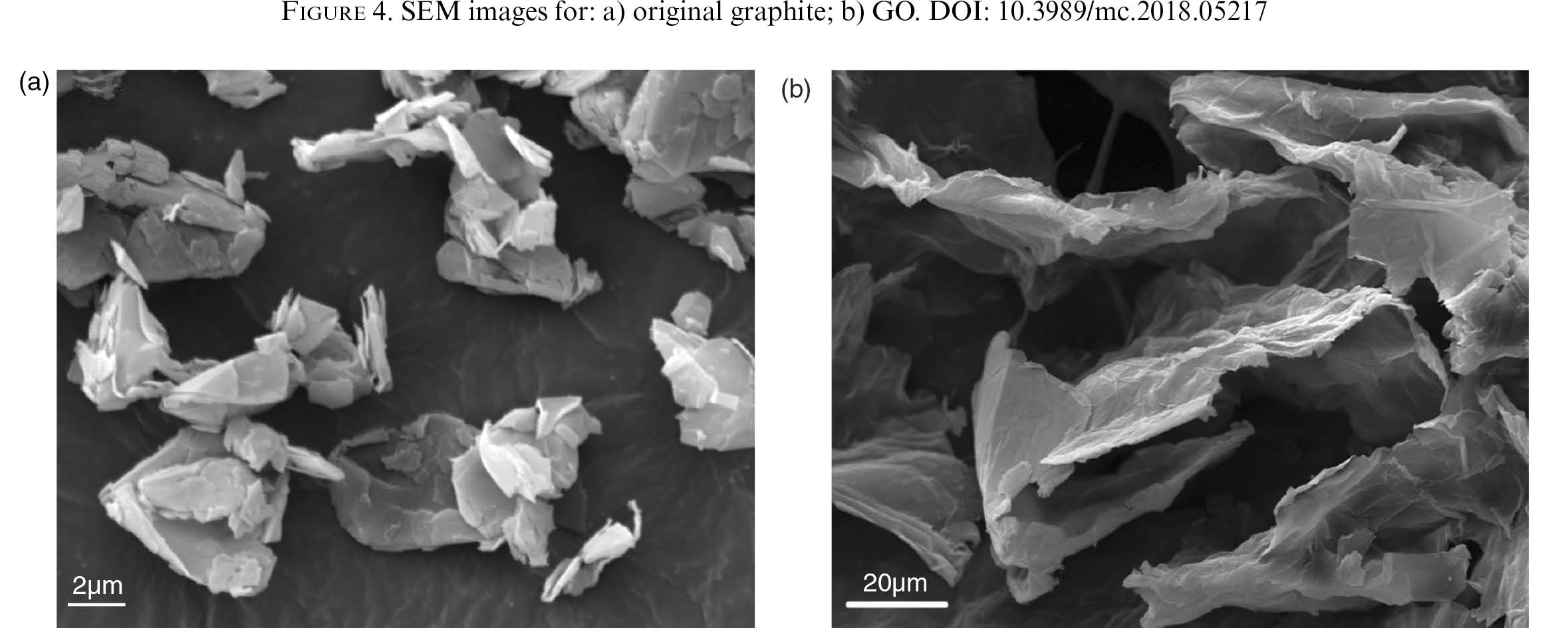

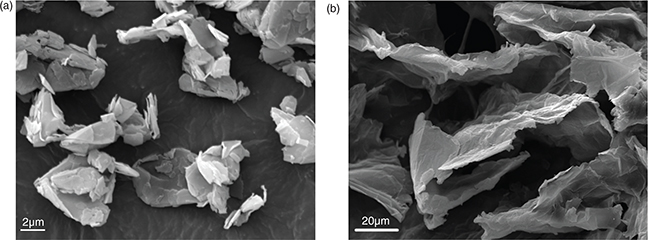

Figure 3 showed the XRD patterns of graphite and GO. The diffraction peaks (002) of graphite and GO were at 26.49° and 9.64°, respectively. The interlayer spacing (d) could be calculated from the Bragg equation. The d_GO increased to 0.92 nm compared with graphite (d_graphite = 0.34 nm), due to the oxygen group addition during the oxidation process, which could increase the distance between the layers of GO. Figure 4 displayed SEM images of original graphite and GO. The original graphite exhibited a flake-like appearance and the surface of GO was rough and wrinkled.

3.2. Flocculation of GO in CH solutionTOP

Generally, in the cement hydration process, tricalcium silicate (Ca₃SiO₅) and dicalcium silicate (Ca₂SiO₄) formed calcium-silicate-hydrates (C-S-H) and calcium hydroxide (CH). Tricalcium aluminate (Ca₃Al₂O₆) and tetracalcium aluminoferrite (Ca₄Al_nFe_2-nO₇) formed ettringite (AFt), monosulphates (AFm), 3CaO•Al₂O₃•6H₂O (C₃AH₆) and 4CaO•Al₂O₃•13H₂O (C₄AH₁₃). Thus, cement paste was alkaline and special attention should be paid towards dispersing GO in alkaline environments (17-18). Generally, CH solution was used to emulate the environment generated during cement hydration.

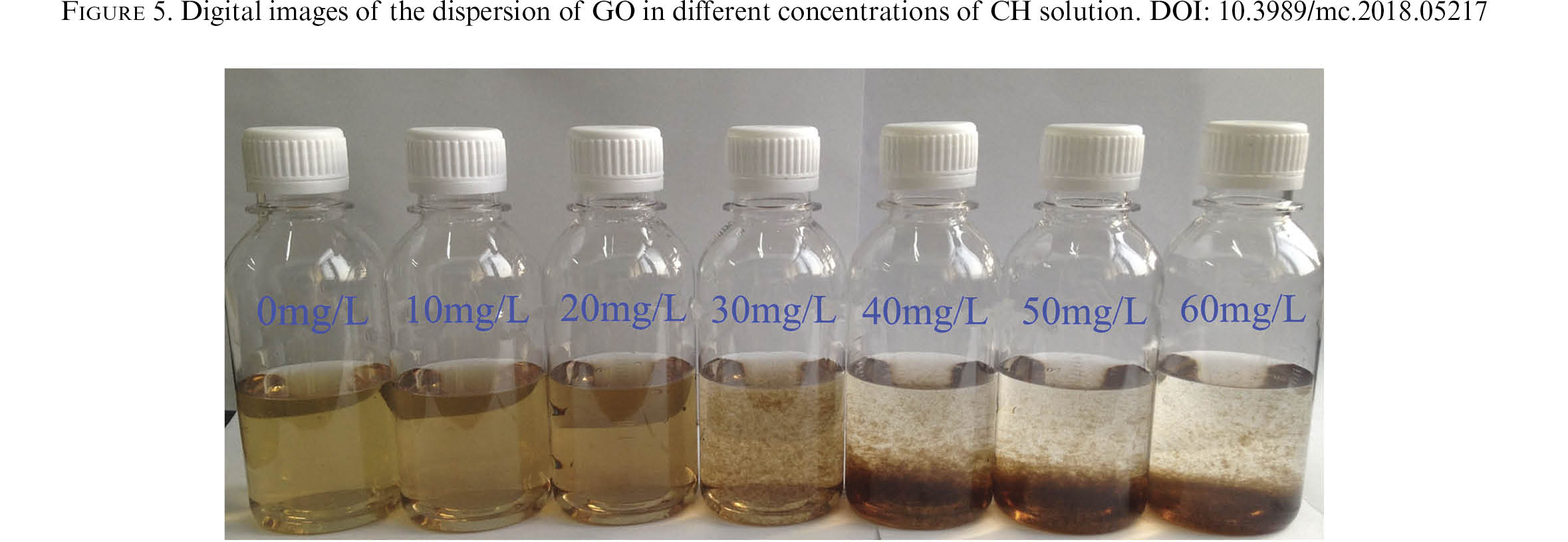

The dispersion of GO was investigated in CH solutions at different concentrations. In this study, the concentration of GO was set at 0.05 mg/ml. Firstly, the dispersion of GO in CH solution was visually shown in Figure 5. As the concentration of CH increased, the flocculation of GO increased significantly indicating CH had a remarkable effect on the dispersion of GO. GO suspension depicted a notable flocculation at the CH concentration of 30 mg/L compared to the plain GO suspension (Figure 5 the far left). At the same time, the cloudy GO flocculation settled down with the increasing CH dosage. The results were in good agreement with the conclusions obtained in other researches (5,19,20).

The GO-CH flocculation and plain GO suspension were also characterized using the UV-Vis spectrum. The UV-Vis values of GO and GO-CH flocculation suspensions were received after subtraction the UV-Vis values of water and corresponding to CH solution, respectively. The zeta potential had been applied to measure the stability of colloid. As known, the electrostatic repulsion mechanisms could enable the formation of well-dispersed GO colloids in water. Hence, the zeta potential was used to analyze GO-CH flocculation suspensions.

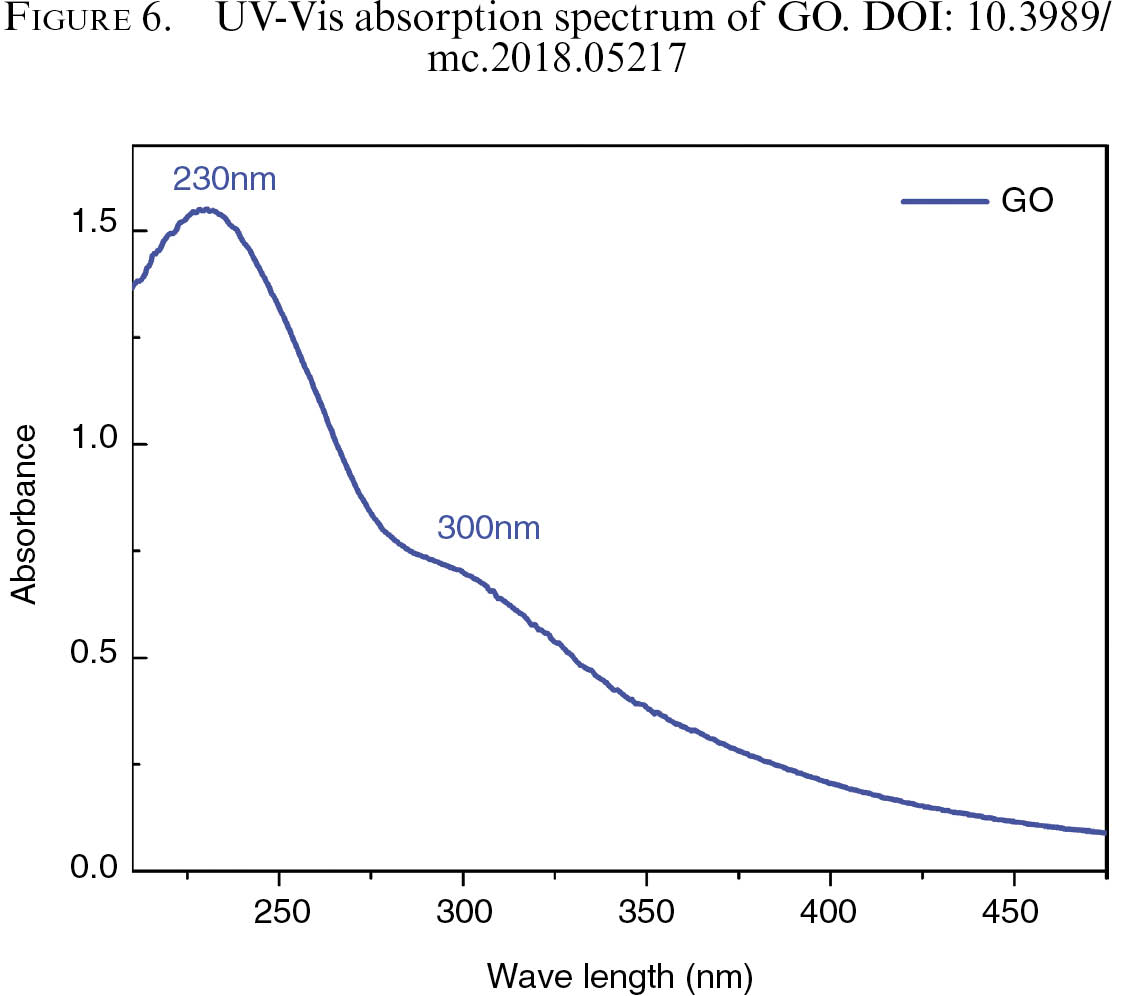

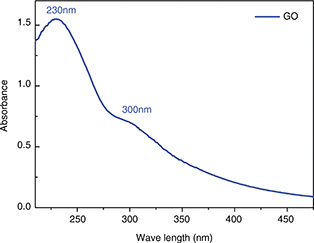

The UV-Vis curve of GO suspension was shown in Figure 6, and two distinct peaks were noticed. The peak at approximately 230 nm was caused by the π-π* transitions, and the shoulder vibration located at 300 nm was attributed to the n-π* transitions (21-22). The peak at 230 nm was the main characteristic peak of GO. Considering the dispersion study, the peak at 230 nm was selected as reasonable wave length to study the effect of CH on the dispersion of GO by the UV-Vis spectra.

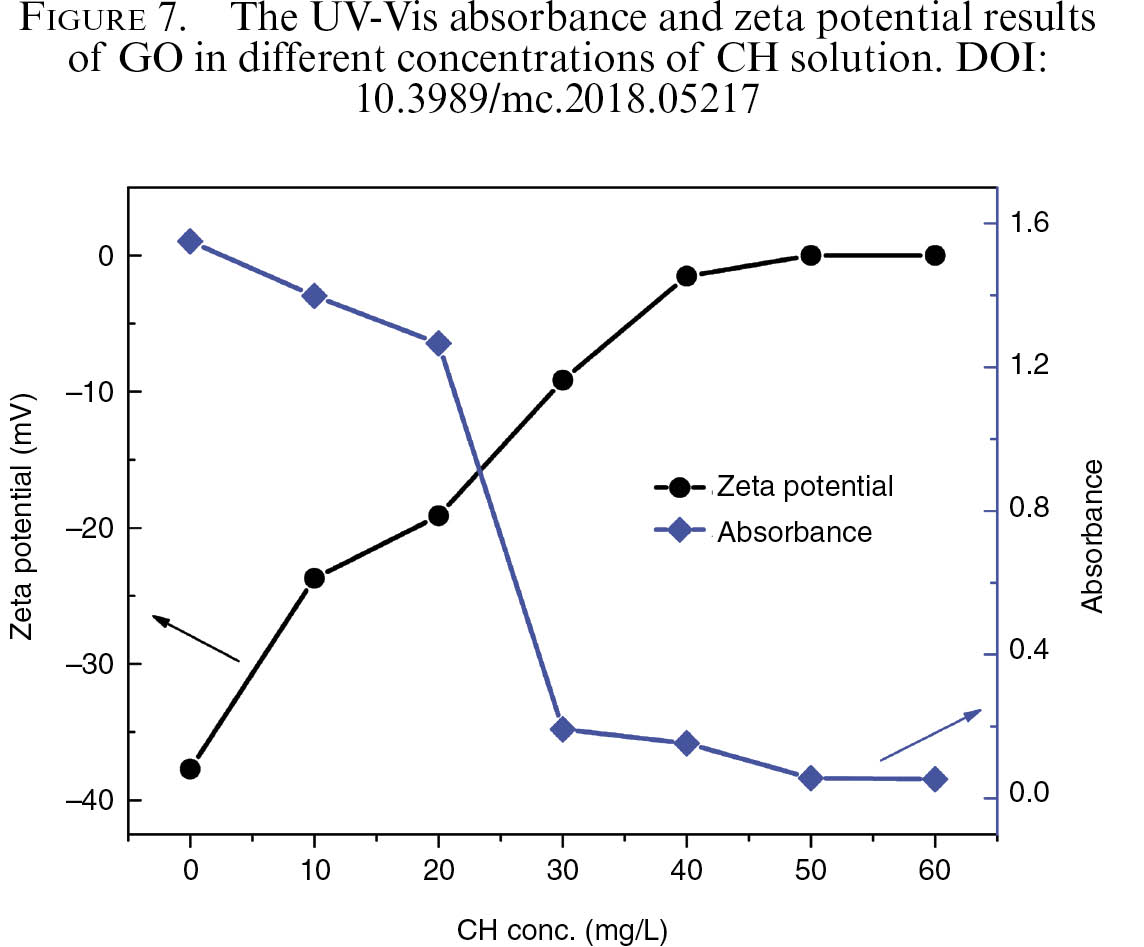

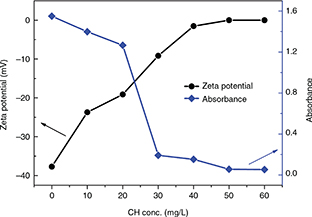

Figure 7 showed the effect of CH concentrations on the dispersion of GO by the UV-Vis spectra and zeta potential. With the increase of CH concentration, the negative zeta potential increased significantly and UV-Vis values decreased sharply. This suggested that the GO-CH suspension had become increasingly unstable with the increase of CH content.

UV-Vis values showed a sharp decrease when the concentration of CH increased from 20 to 30 mg/L, and depicted relatively stable trend later. The results were consistent with the visual observation (Figure 5). Moreover, for a GO suspension of 0.05 mg/ml, the measured zeta potential was approximately -37 mV. As the concentrations of CH increased, the zeta potential also increased significantly. In the end, the zeta potential reached values close to zero, indicating the GO-CH suspensions were relatively unstable. Generally, the suspension was considered to be stable if its zeta potential was more negative than -30 mV or more positive than +30 mV (23).

The addition of CH exhibited a negative effect on the dispersion of GO. Flocculation of GO occurred when CH solution was introduced with an apparently low concentration. This could be explained by the cross-linking reactions between neighboring GO sheets induced by calcium ions from CH (24, 25). Moreover, the process of GO flocculation was very fast. This experimental result showed that the incorporation of GO directly into cement could be improper due to the appearance of CH produced by the cement hydration. When cement interacted with water, CH rapidly generated and the pH value rose quickly. It meant that the flocculation of GO took place before the process of absolute mixing. Thus, the effect of the mixing was limited. This phenomenon was mainly responsible for the variable behavior of cement performance mentioned early. Therefore, it was necessary to further study the dispersion of GO in cement paste.

3.3. Dispersion of GO by PC in CH solutionTOP

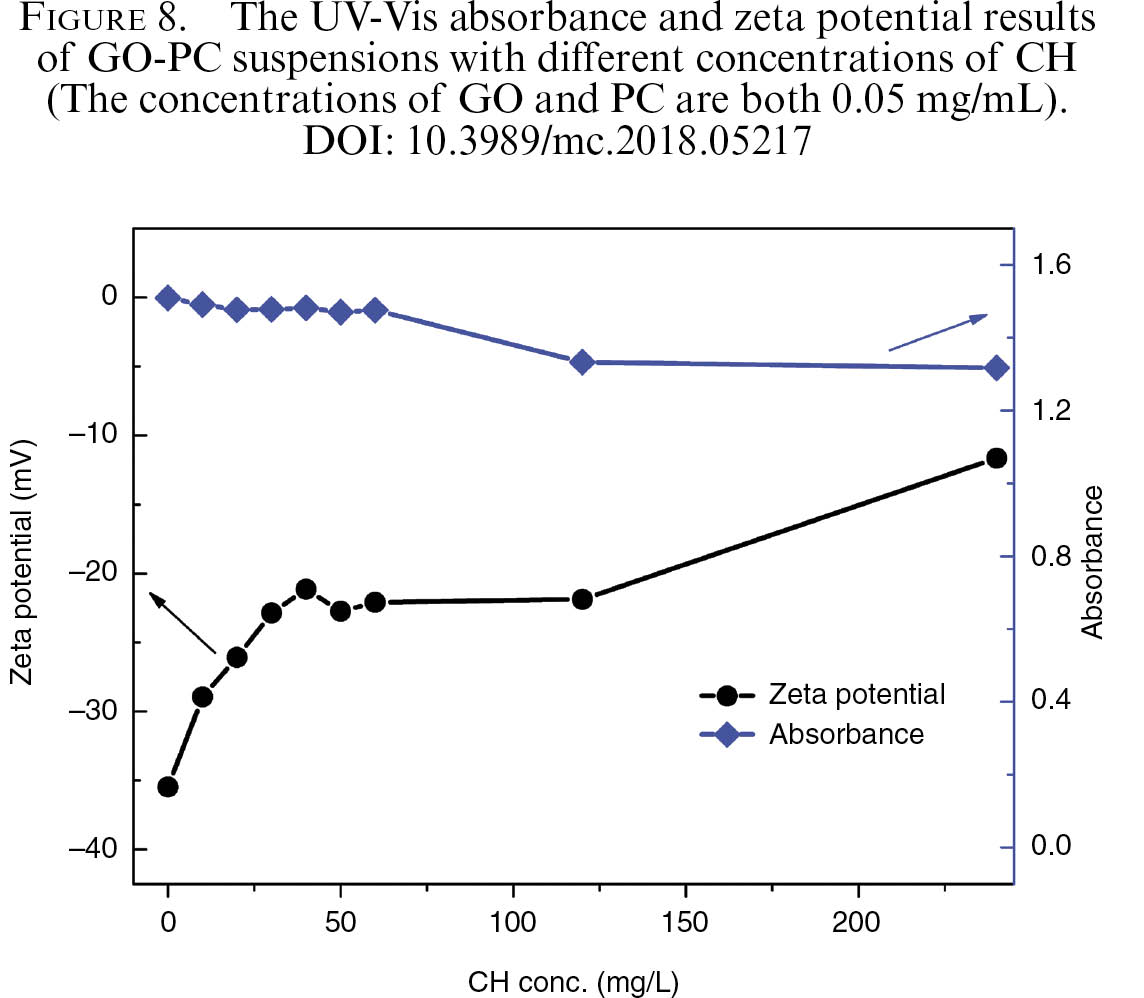

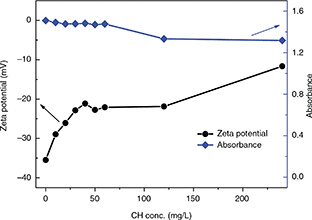

First, GO and PC were together dispersed in deionized water with continuous stirring. The content of PC was equal to the concentration of GO by weight. Then, CH was added into the PC/GO pre-mixture. The suspensions were subjected to the following tests. Figure 8 showed the results of GO dispersed by PC at different concentrations of CH solution. With the increase of CH concentration, UV-Vis values decreased slightly and the zeta potential increased. UV-Vis values exhibited no obvious differences and the zeta potential showed smaller increase when the CH concentrations varied from 0 to 60 mg/L. When the concentrations of CH increased, no observable changes were recorded with UV-Vis values and zeta potential, indicating PC promoted GO uniform distribution in CH solution.

As the concentrations of CH moved from 60 to 240 mg/L, there was a slight jump down in absorbance but it remained much higher than zero. Besides, the zeta potential value was approximately -12 mV when the concentration of CH reached 240 mg/L, which was more stable than GO in CH solution. The relatively effective dispersion of GO was achieved with the use of PC.

3.4. The interaction between PC and GO by FT-IRTOP

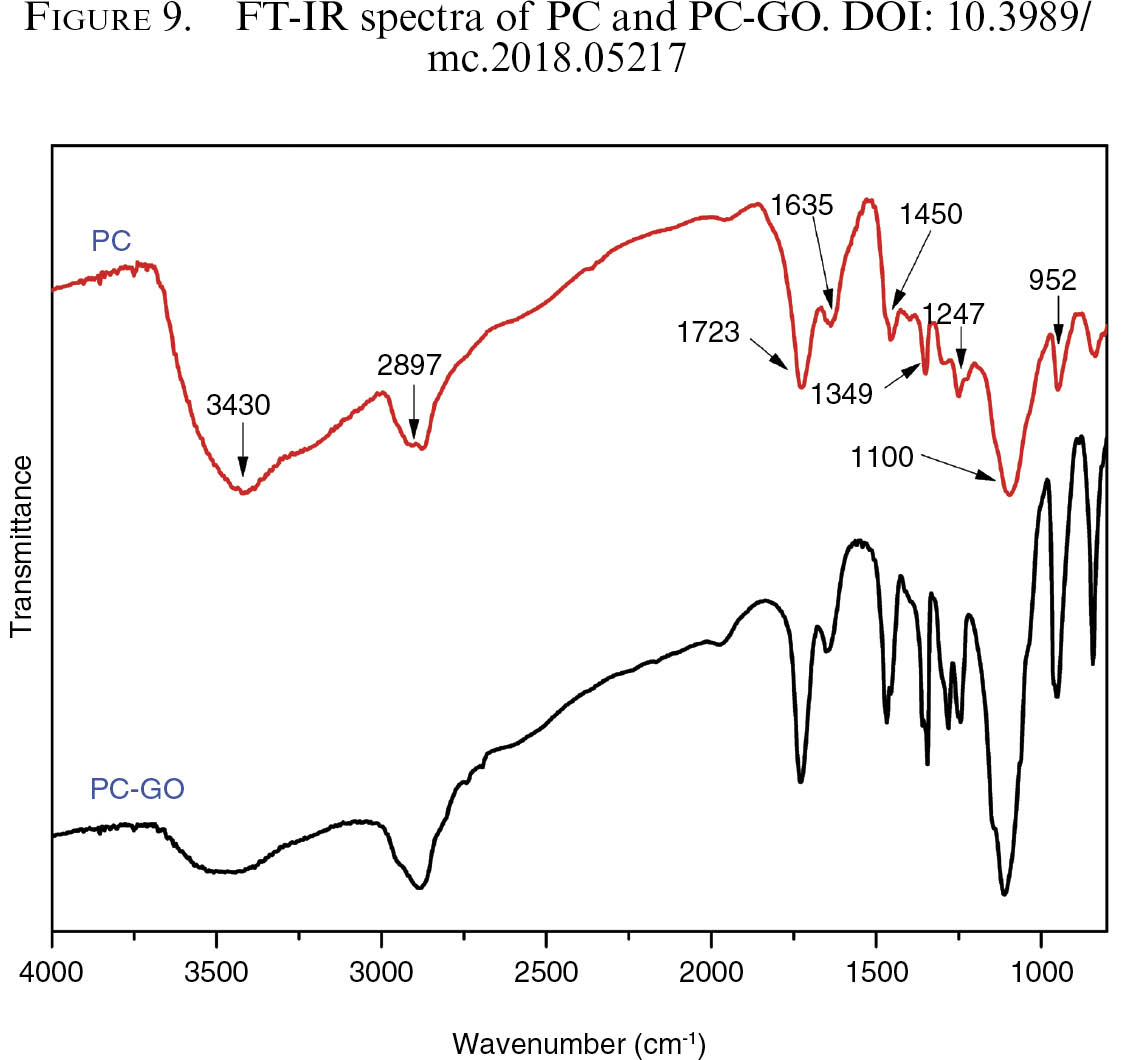

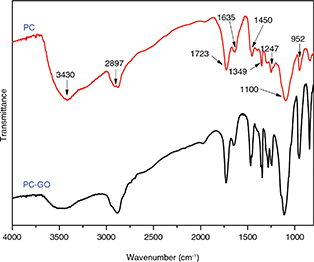

In the consideration of the dispersion study of GO by PC presented above, the amount of PC was also chosen as equal to the concentration of GO by weight. Figure 9 represented the characteristic peaks of PC and PC-GO. In the FT-IR spectrum of PC, the bands at 3430 cm⁻¹ and 1450 cm⁻¹ could be assigned to the vibration and deformation peaks of the -OH group, respectively. Peaks at 2897 cm⁻¹, 1635 cm⁻¹ and 1349 cm⁻¹ were attributed to the stretching vibration of C-H, C=C and C-O, respectively. Moreover, the bands at 1247 cm⁻¹ (epoxy stretching vibration) and 1100 cm⁻¹ (alkoxy stretching vibration) were due to C-O bond. The strong absorption at 1723 cm⁻¹ was originated from -COOH group. These observations confirmed the presence of -OH, -COOH, C-O groups in the PC structure.

FT-IR analysis was further carried out to verify the interaction between PC and GO in the reaction process. As shown in Figure 9, with and without the presence of GO, no obvious differences could be seen at the peaks of different samples, indicating there was no strong chemical bond between PC and GO. The relative intensity of the bands at 3430 cm^-1 (the -OH group) was clearly different. This was possibly due to the presence of weak intermolecular bonds between -COOH groups in PC and similar groups in GO, which was needed to explore in depth.

In fact, PC had notable functional groups, such as -OH and -COOH. The possible cause of a better dispersion of GO by PC was that the functional groups played a pivotal role in the process. Therefore, this study paid attention to the functional groups of PC and selected the reagent containing functional groups to carry out the research. In a typical study, glycerin and acrylic acid were used to analyze the function of -OH and -COOH groups, respectively. The primary reason for the choice was that their structures contained only a single functional group.

3.5. The effect of different functional groups on the dispersion of GO in CH solution TOP

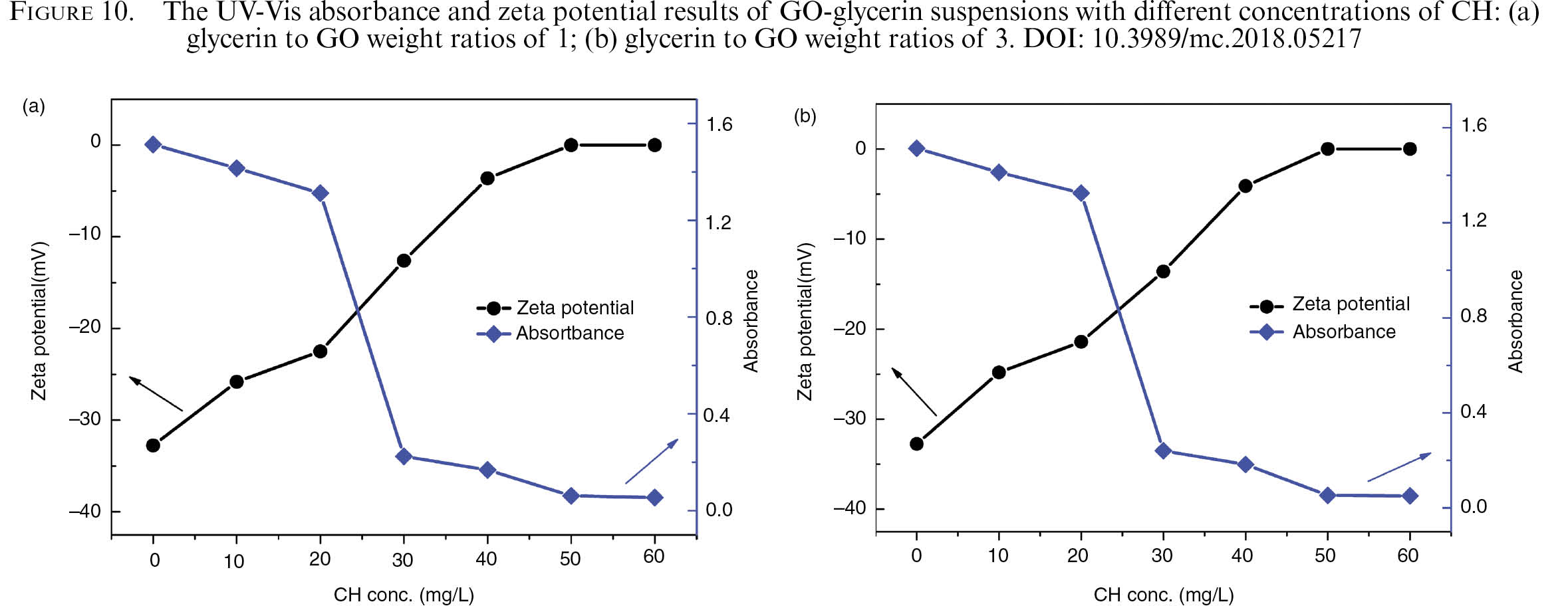

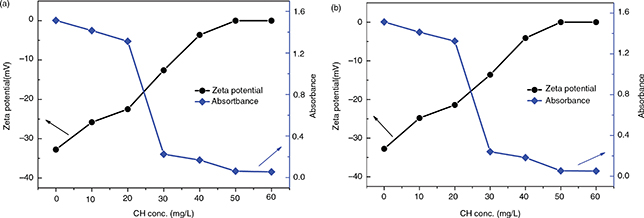

The effect of functional groups on the dispersion of GO in CH solution was investigated. Figure 10 showed the dispersion of GO in CH solution with different contents of glycerin. Two curves showed a similar trend in Figure 7. With an increase of CH dosage, the zeta potential increased drastically and UV-Vis values decreased. The results were consistent with the behavior found in GO suspensions with CH. Moreover, as the weight ratio of glycerin to GO varied from 1 (Figure 10a) to 3 (Figure 10b), there was no significant difference between two curves. This suggested that the introduction of glycerin had little influence on the dispersion of GO in CH solution. The -OH groups did not work in the process of dispersing GO by PC.

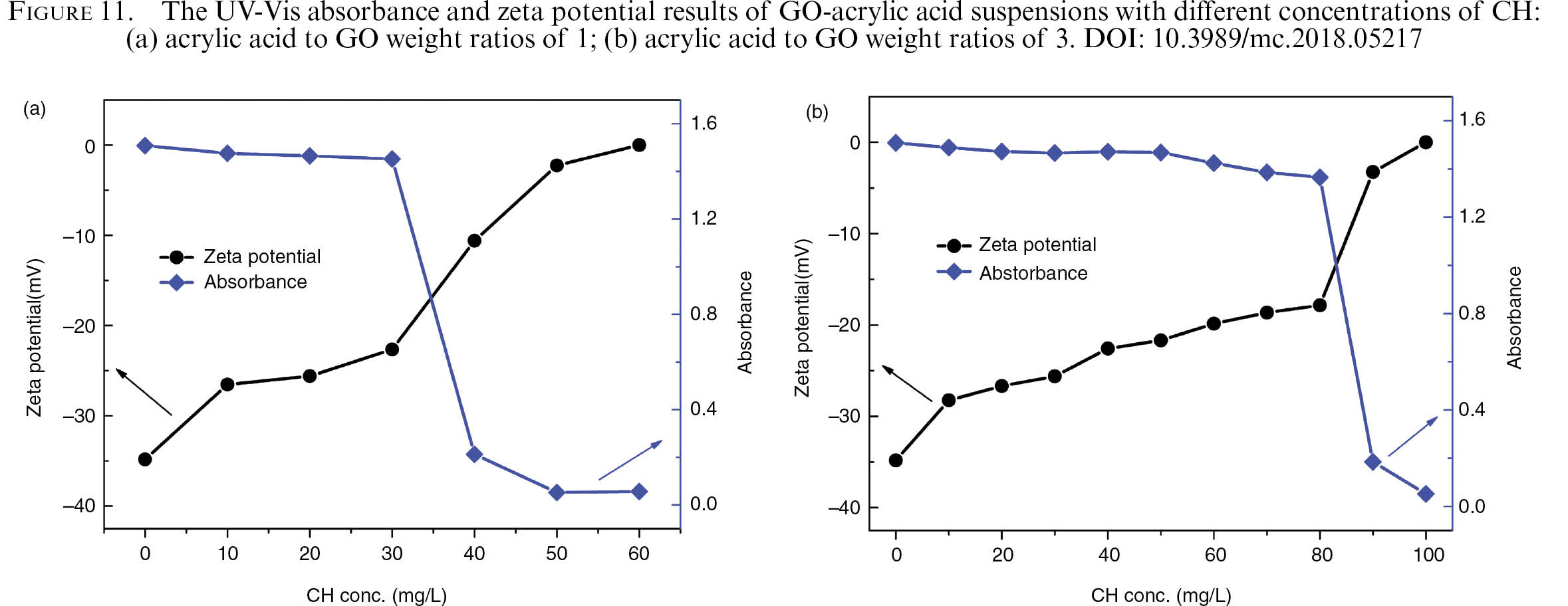

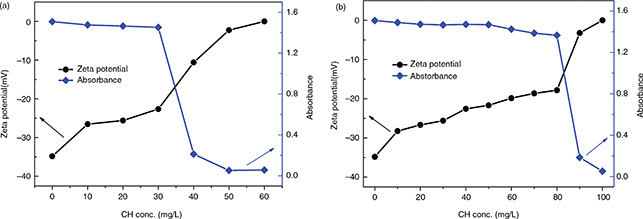

The results of the GO dispersion in CH solution with different amounts of acrylic acid were shown in Figs. 11 (a) and (b). The effective dispersion was achieved by the incorporation of acrylic acid. When the weight ratio of acrylic acid to GO was 1, the zeta potential and UV-Vis values kept stability until the concentration of CH was increased to 40 mg/L. Similarly, from Figure 11 (b) with a weight ratio 3:1, the zeta potential and UV-Vis values showed a sharp decrease as the concentration of CH was increased to 90 mg/L. With the addition of acrylic acid, the flocculation of GO was delayed. Moreover, with an increased amount of acrylic acid, more CH was needed for the flocculation of GO. The incorporation of acrylic acid had a positive effect on the dispersion of GO in CH solution. This behavior indicated that -COOH group was helpful in the process of GO dispersion by PC.

It was mainly because the presence of -COOH group improving the dispersion efficiency of PC. The primary reason for the improvement was that the -COOH group on the edges of the PC could react with Ca²⁺ and reduced the reaction chance of GO and Ca²⁺. However, the effect of acrylic acid on the dispersion of GO was relatively poor in comparison to PC. This difference possibly could be related to the special long chain molecular structure of PC. Thus, polyacrylic acid was chosen to study the effect of long chain.

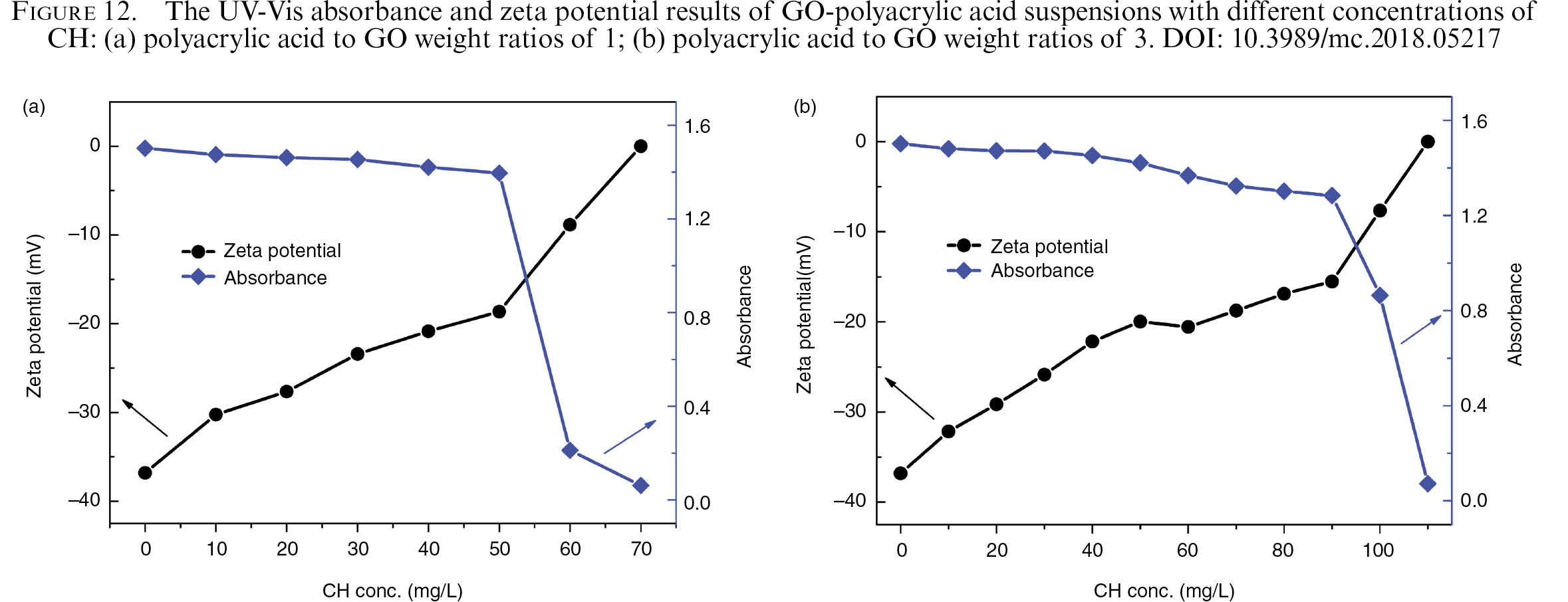

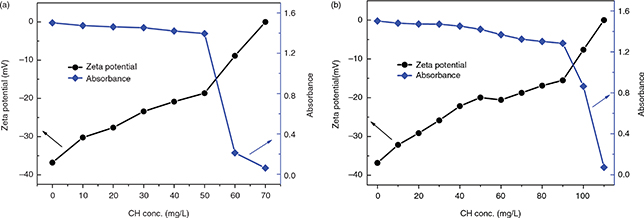

Figure 12 (a) and (b) showed the dispersion of GO in CH solution with different additions of polyacrylic acid. The dispersion of GO in CH solution was improved compared with the specimens with acrylic acid. When the ratio of polyacrylic acid to GO was 1, the concentration of CH for the flocculation of GO was 50 mg/L. There was a slight increase compared with the specimen with acrylic acid. Analogous results were obtained at the polyacrylic acid to GO ratio of 3. The special long chain of PC took effect in the process of GO dispersion by PC.

The overall results suggested that -COOH group and the special long chain of PC were properly beneficial to prevent the flocculation of GO in CH solution.

4. DISCUSSIONTOP

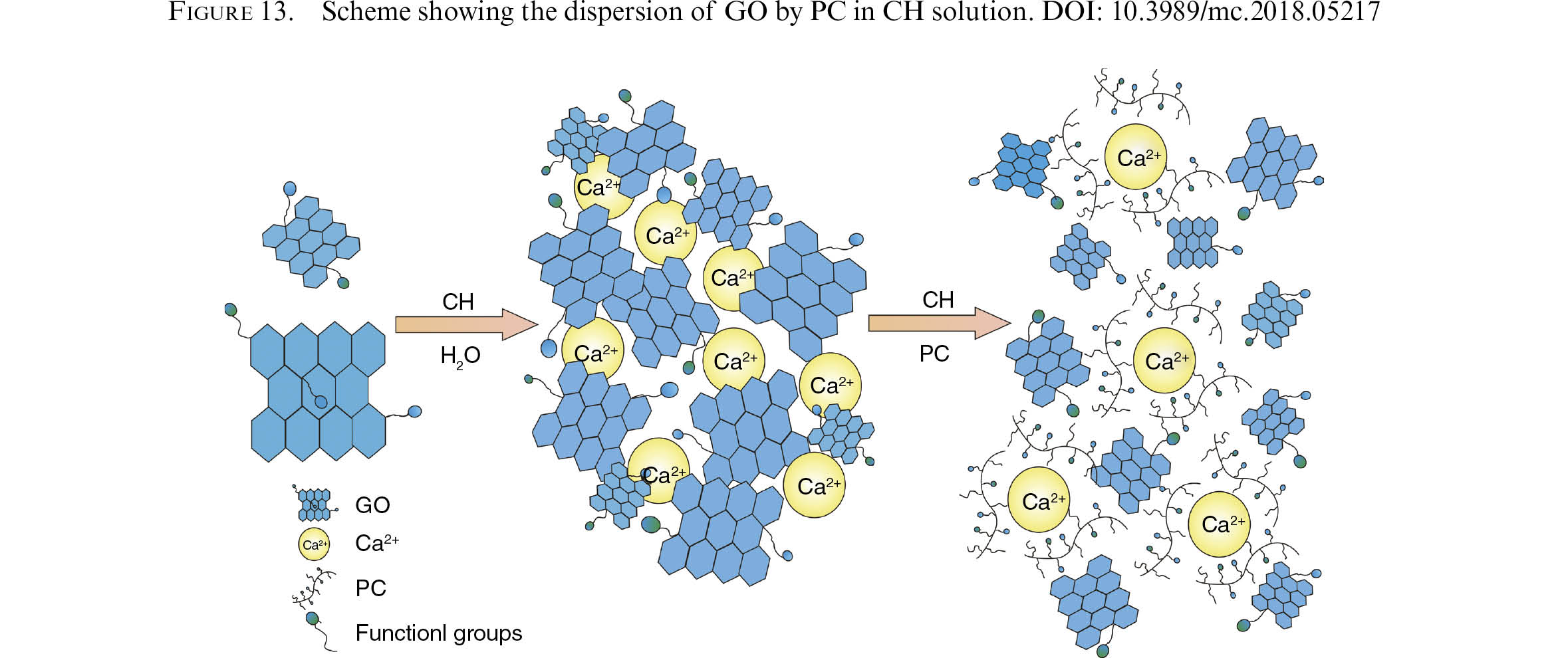

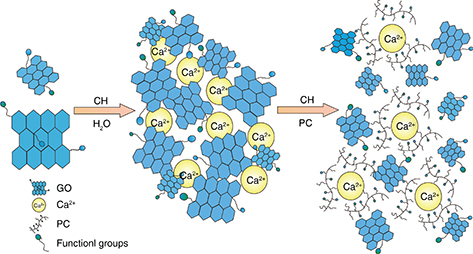

In this study, a reasonable model of explaining the dispersion mechanism of GO by PC in CH solution was proposed in Figure 13. First, the flocculation of GO occurred when GO directly met Ca²⁺. GO nanosheets connected with each other due to the chemical reactions between -COOH group and Ca²⁺. Moreover, GO achieved a relatively better dispersion in CH solution by adding PC. The possible reasons for this phenomenon were discussed as followed. Firstly, the -COOH group on the edges of PC could react with Ca²⁺. Secondly, the special long chain molecular structure of PC could separate GO from Ca²⁺ due to its steric hindrance effect. Moreover, weak intermolecular bonds between -COOH groups in PC and similar groups in GO might have positive effect on the de-flocculate the GO in CH solution. PC could wrap up Ca²⁺ partly and reduced the reaction chance between GO and Ca²⁺. In fact, PC played the role of sacrificial agent and improved the dispersion of GO in CH solution. The findings of this investigation may provide guidelines for delaying GO flocculation in the alkaline environment of cement paste.

5. CONCLUSIONSTOP

In this paper, the flocculation of GO in CH solution and the corresponding improvement were studied experimentally. Based upon the test results, the following conclusions could be drawn:

ACKNOWLEDGMENTSTOP

This research is financially supported by the National Nature Science Foundation of China (Grants 51272092 and 51772129), National Key Technologies R&D Program (Grants 2016YFB0303505) and the 111 Project of International Corporation on Advanced Cement-based Materials (No. D17001).
