Moroccan oil shale and coal waste as alternative raw materials in Portland cement clinker manufacture. Clinkerisation reactions and clinker characterisation

S. Chhaiba^a,^b*, M.T. Blanco-Varela^a, A. Diouri^b

a. Instituto de Ciencias de la Construcción Eduardo Torroja (IETcc-CSIC), (Madrid, Spain)

b. Laboratoire de Chimie du SolideAppliquée, Faculté des Sciences Université Mohammed V, (Rabat, Maroc)

*salmachhaiba@gmail.com

1. INTRODUCTIONTOP

Cement, in many ways an essential material, is used world wideas a concrete component. Portland cement is made primarily from finely ground clinker, which itself is composed of calcium silicate and aluminate minerals formed when limestone and other materials are burnt at high temperatures. The cement industry is believed to account for over 8 % of worldwide CO₂ emissions (1). Further to the conclusions of a number of international conferences (Kyoto, The Hague, Copenhagen)(2), the pursuit of ‘sustainability’ is a must to striking a balance between technological and environmental development. The scientific and industrial communities are consequently in constant pursuit of ways to manufacture cement more energy- and eco-efficiently. One avenue toward that goal is to valorise and reuse industrial waste as alternative raw materials in cement manufacture (3), a practice that would also reduce natural resource consumption.

Oil shale is one of humanity’s most promising sources of energy and chemicals (4) and Morocco has one of the world’s largest oil shale reserves (5). Moreover, the Jerada coal mine in the country’s northeast generates large amounts of waste (6-8), with the recoverable total estimated at 134.482 (short) Gt.Valorising that waste would reduce stockpiling, solving urban planning problems and mitigating the environmental impact of pyrite oxidation in the waste (9).

Recent research (10 - 11) has shown that Moroccan oil shale and coal waste are chemically and mineralogically apt for inclusion in raw cement mixes.

The present study aimed to determine the reactivity and burnability of portland cement raw mixes in which conventional raw materials were replaced with Timahdit oil shale and Jerada coal waste.

2. MATERIALS AND METHODSTOP

The materials used in this study were collected from the Timahdit shale bed, characterised by four lithological zones (T, Y, X and M), and the coal waste (CW) stockpiled at Jerada. The four layers of Timahdit oil shale were mixed to a homogeneous blend (BOS). BOS and CW were each sieved to three particle sizes:

The mean chemical composition for each fraction of BOS and CW is given in Table 1. Loss on ignition (LoI), determined by heating 5 g of sample at 1000 °C in a laboratory muffle furnace, is expressed in the table as wt% of the starting material. Spanish limestone was ground to under 125 μm for the raw mixes, which were corrected for iron content with 96 % pure ferric oxide.

The reactivity and burnability of raw mixes prepared with BOS, CW, limestone and laboratory grade Fe₂O₃ were compared to assess the viability of using oil shale and coal waste as raw materials in portland clinker. Their composition is given in Table 2.

Raw mix reactivity was determined in an air atmosphere with DSC/TG/DTG and burnability by measuring the free lime in the mixes after burning at 1400 °C for 30 min and applying Fundal’s (12) empirical equation:

% CaO_(free) = 0.31 (LSF-100) + 2.18 (M_S- 18) + 0.73 Q₄₅ + 0.33 C₁₂₅ + 0.34 Aq

Where LSF (=CaO/(2.8SiO₂+1.18 Al₂O₃+0.65 Fe₂O₃) is the lime saturation factor, M_S (=SiO₂/(Al₂O₃+ Fe₂O₃) the silica modulus, Q₄₅ the fraction by weight of quartz particles >45 μm, C₁₂₅ the fraction by weight of limestone particles >125 μm and Aq the fraction of clay materials >63μm.

The raw mixes were prepared as follows.

After blending in a turbula for 60 min, the raw materials were pelletised, set into platinum crucibles, clinkerised at 1400 °C for 30 min in a laboratory furnace, cooled at ambient temperature, ground and then sieved to under 45 μm. The free lime content in the clinkers was found with the ethylene glycol method as specified in Spanish standard UNE 80243: 2014 (13). Mineralogical composition was determined by XRD and FTIR and clinker morphology was analysed under an optical microscope, whilst the phases were identified with SEM/EDX.

Analytical techniquesTOP

The majority elements in the raw materials were identified on a Philips PW1404 X-ray fluorescence spectrometer (XRF) operating at 40 kV and 70 mA and fitted with a Sc–Mo tube, Super-Q software and four analyser crystals: PX-1, GE, LIF200, and LIF220. Differential scanning calorimetry (DSC) and thermogravimetric (DTA/TG) analysiswere simultaneously applied to 30 mg samples using a SDTQ600 analyser. The heating rate was 10 °C/min, the range 25 °C to 1450 °C and the carrier gas CO₂-free dry air, flowing at 100 mL/min.

For the morphological study clinker samples were encapsulated in epoxy resin, cut and polished and the surfaces etched with a solution of HNO₃ in absolute ethanol for observation under a Nikon Eclipse ME600 reflected light microscope. Infrared spectra were recorded for KBr pellets at frequencies of 4000 cm⁻¹ to 400 cm⁻¹ on a Thermo Scientific Nicolet 600 FTIR spectrometer featuring a spectral resolution of 4 cm⁻¹.

Clinker samples were polished and carbon coated for analysis on a JEOL JSM 6400 scanning electron microscope (SEM) operating at 20 keV.

Clinker mineralogy was characterised on a Bruker D8 Advance X-ray diffractometer fitted with a high voltage, 3 kW generator and a (1.54-Å Cu Ka) copper anode X-ray tube operating at 40 kV and 30 mA, using the following settings: divergence slit, 6 mm, variable; step time, 0.5 s; step size, 0.019746º; scan time, 23’47”; 2θ angle range, 5° to 60°. Rietveld refinement was used to quantify the crystalline phases identified by XRD.

3. RESULTS AND DISCUSSIONTOP

Raw mix reactivity is defined in terms of the rate at which the reaction reaches completion at a given temperature. The reactions taking place during clinkerisation include thermal decomposition of the raw mix components, limestone in particular, solid state reactions between the acid and basic components to yield C₃A and C₂S and smaller proportions of C₄AF and the formation of large amounts of C₃S in the presence of the eutectic liquid (14,21).

3.1. Thermal behaviourTOP

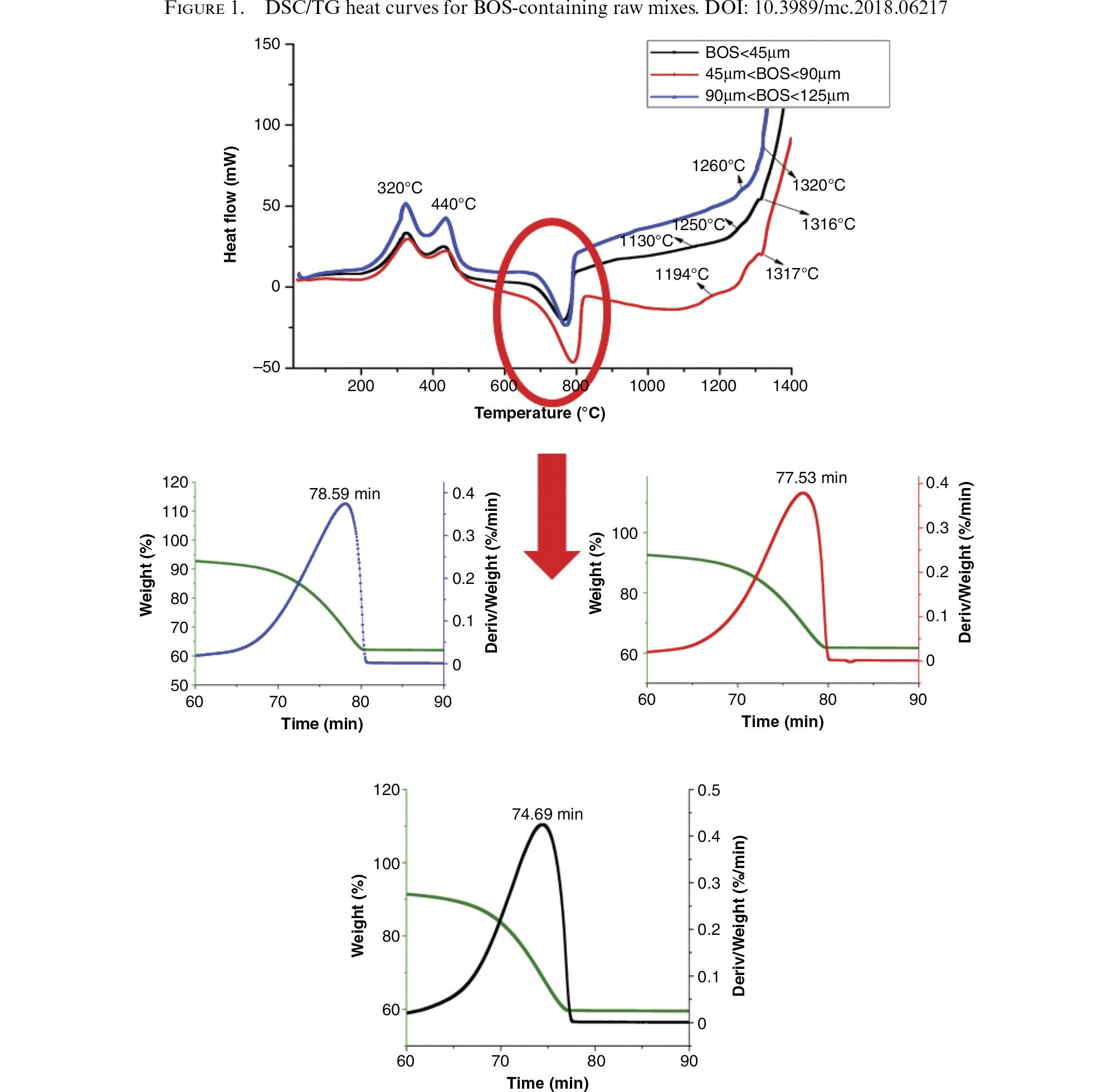

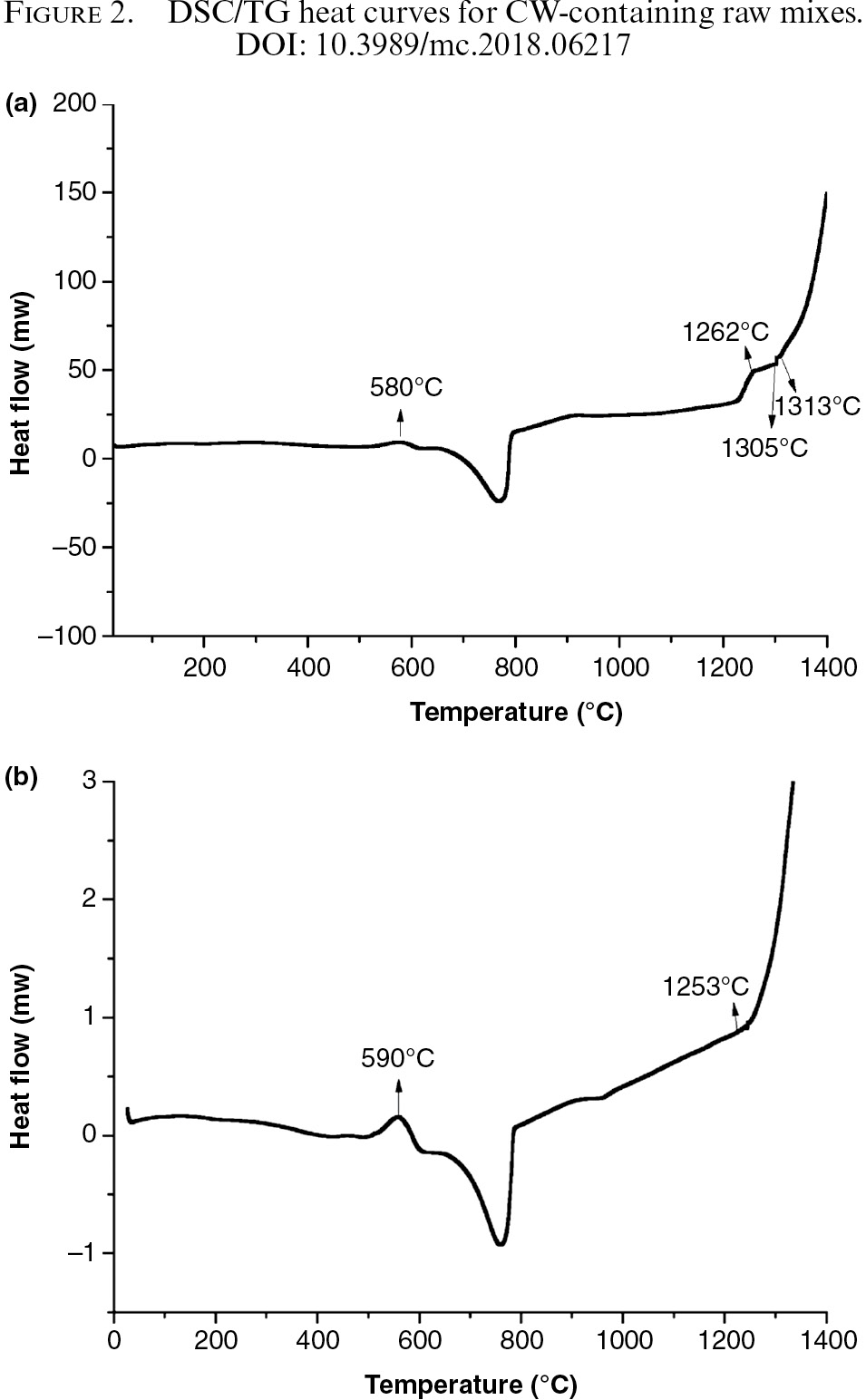

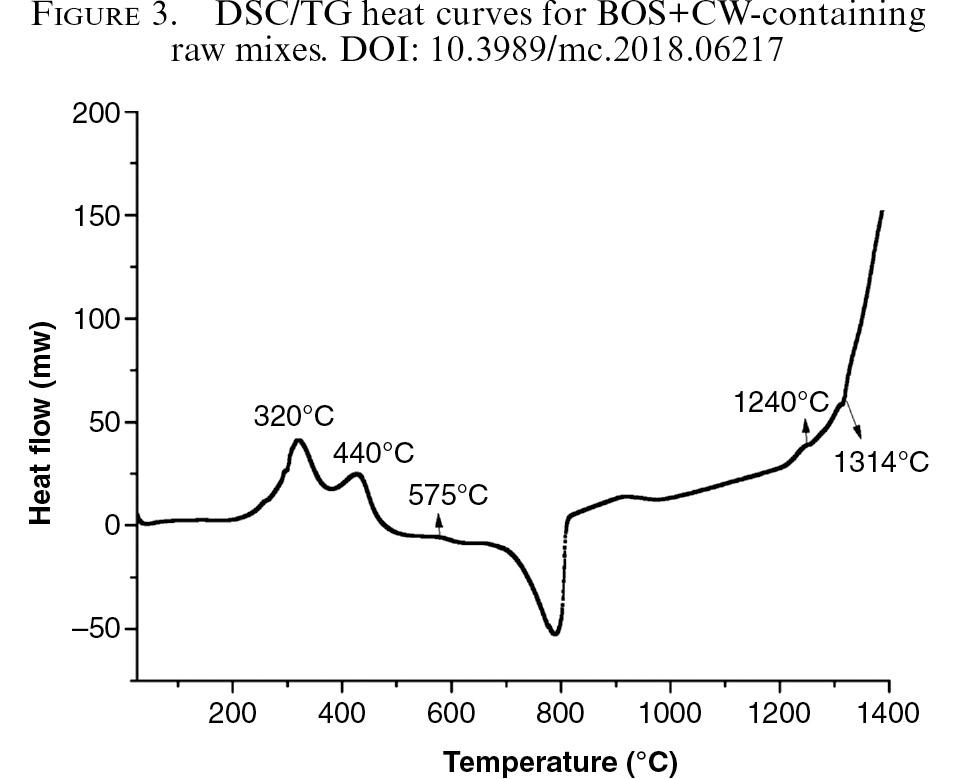

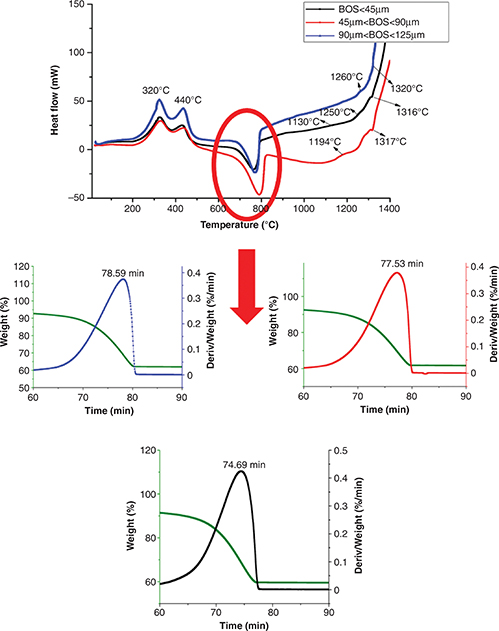

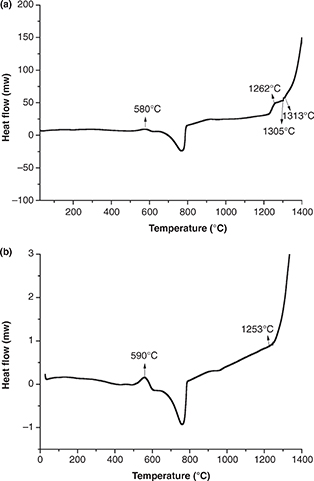

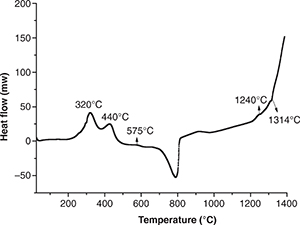

The DSC/TG curves for the raw mixes reproduced in Figures 1, 2 and 3 show the temperatures and signal intensities used to compare the reactivity of the raw mixes. All the raw mixes containing BOS, irrespective of particle size, exhibited exothermal signals at 320 °C and 440 °C, attributed to organic matter combustion. The curves for the mixes bearing CW (Figure 2) had an exothermal signal at around 580 °C, whilst three exothermal peaks were observed for the mix containing both BOS and CW, associated with the combustion of the organic matter in shale oil and coal waste (Figure 3). All the mixes exhibited an ­endothermal signal at about 800 °C, generated by the thermal decomposition of CaCO₃, which began at around 550 °C and intensified at about 780 °C. The TG and DSC curves for both BOS and CW also showed that the smaller the particle size, the lower the temperature at which limestone decomposition began (Figure 1), inferring that raw mix reactivity was high in that temperature range.

The very low intensity exothermal signals observed for the BOS mixes between 1130 °C and 1279 °C, the CW mixes between 1260 °C and 1295 °C and the blended raw mix at 1130 °C were all attributed to solid state reactions and the concomitant formation of C₂S (belite), C₁₂A₇, C₄AF (FF), C₃A (15-16) and C₃S at temperatures of over 1250 °C. The signals appearing at lower temperatures suggested a slightly higher reactivity (17), particularly in the raw mixes consisting of particles <45 μm (1130 °C) and <90 μm (1194 °C). In contrast, the exothermal solid state reaction was recorded at higher temperatures (1253 °C, <45 μm and 1262 °C, <90 μm) in the CW-bearing raw mixes, possibly denoting lower reactivity. The endothermal effect observed at >1300 °C in all the raw mixes denoted the formation of the molten mass in the clinkers. BOS and CW particle size affected the intensity of that signal, which appeared at lower temperatures in all the raw mixes with a particle size of <45 μm, confirming their slightly higher reactivity.

3.2. Chemical compositionTOP

Table 3 gives the chemical analysis for clinkers burnt at 1400 °C and ground and sieved to <45 μm or 90 μm<(BOS, CW or BOS+CW)<45 μm. The oxide content of the main constituents was similar in all the clinkers with the exception of CW<45 μm, which had a higher percentage of SiO₂.

3.3. X-ray diffraction analysisTOP

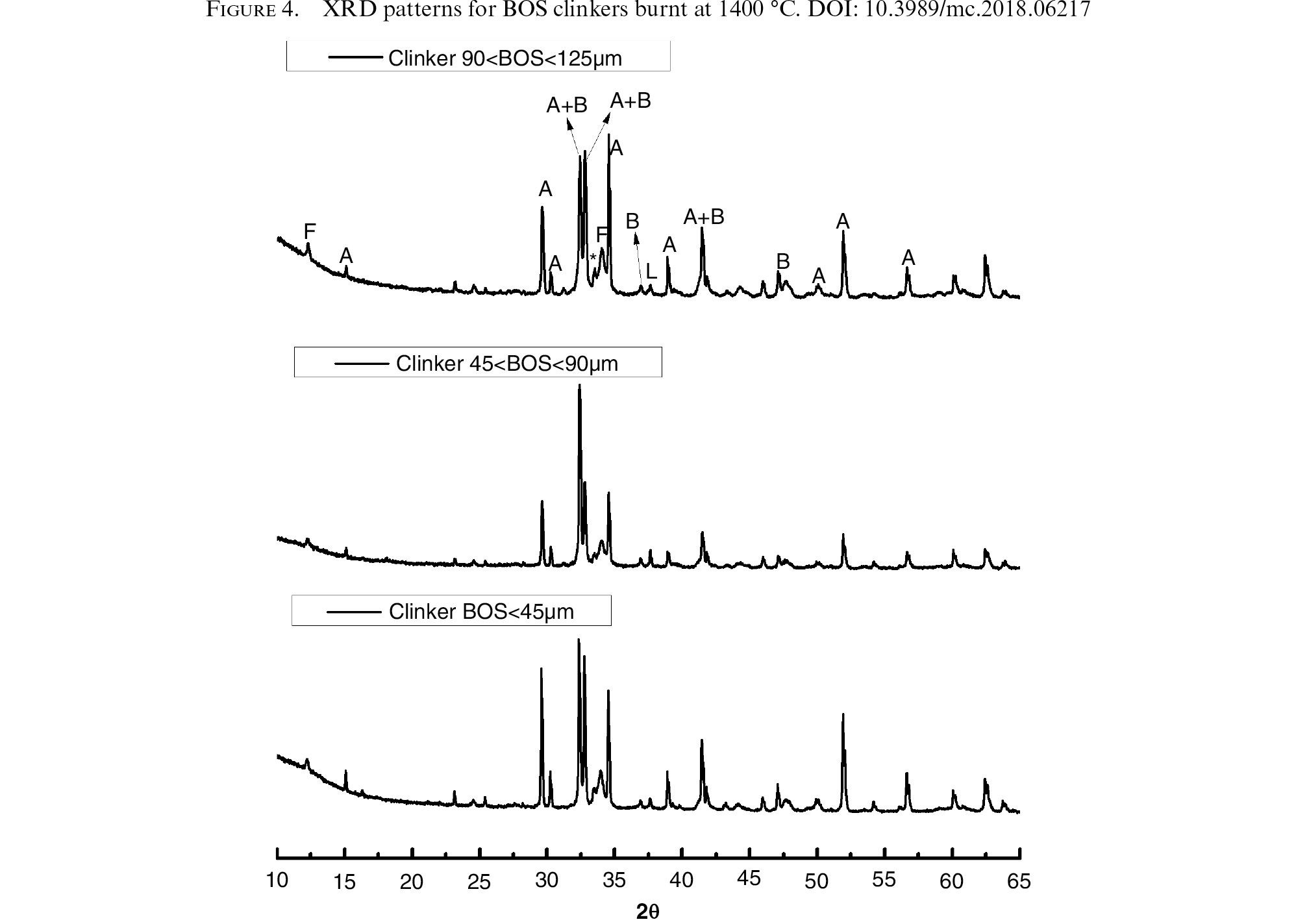

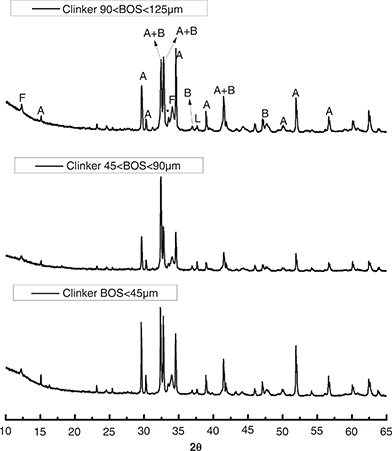

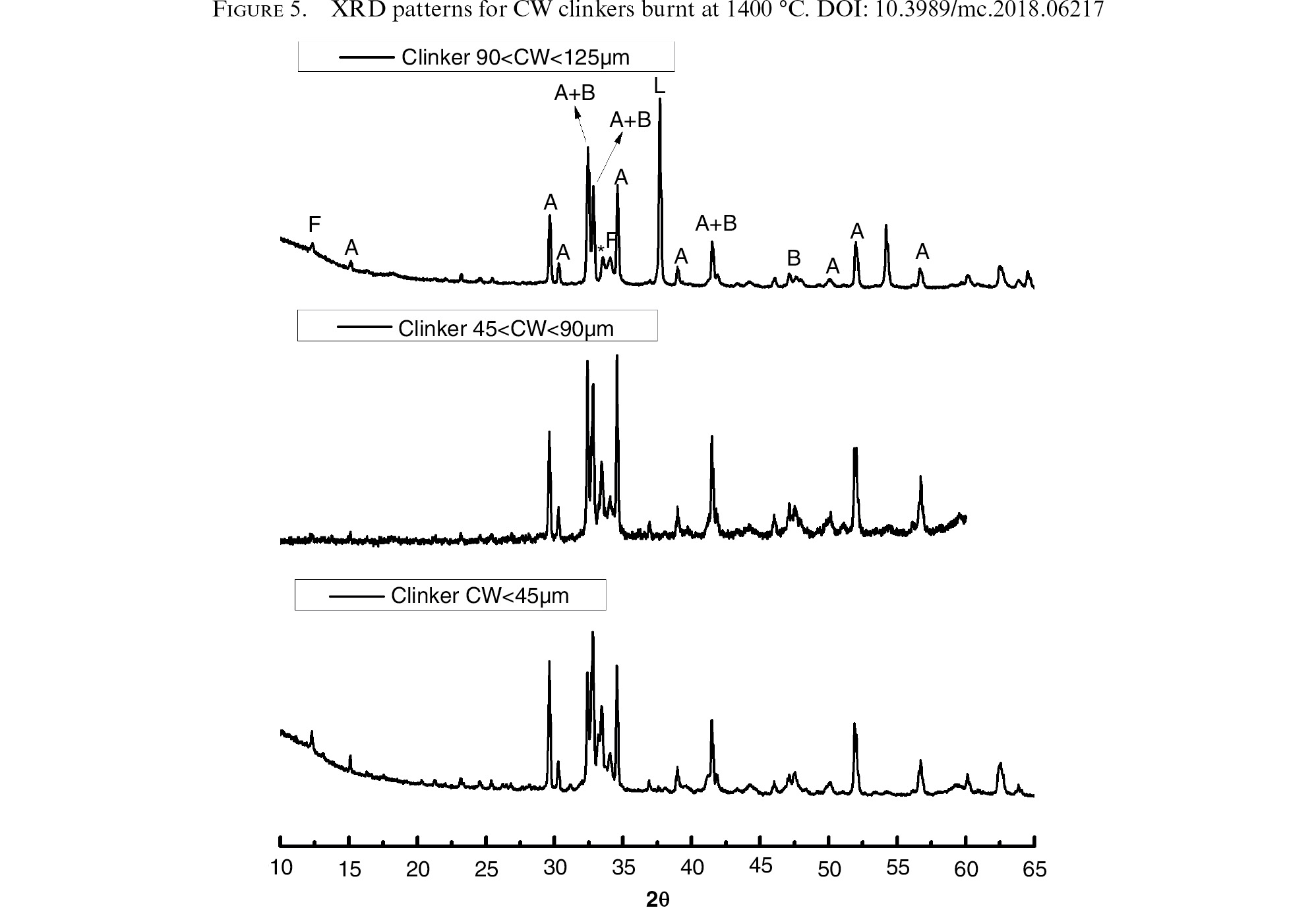

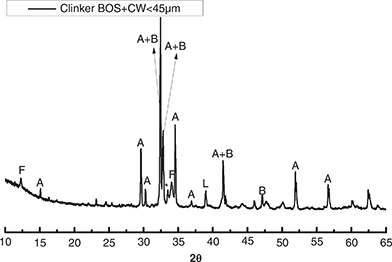

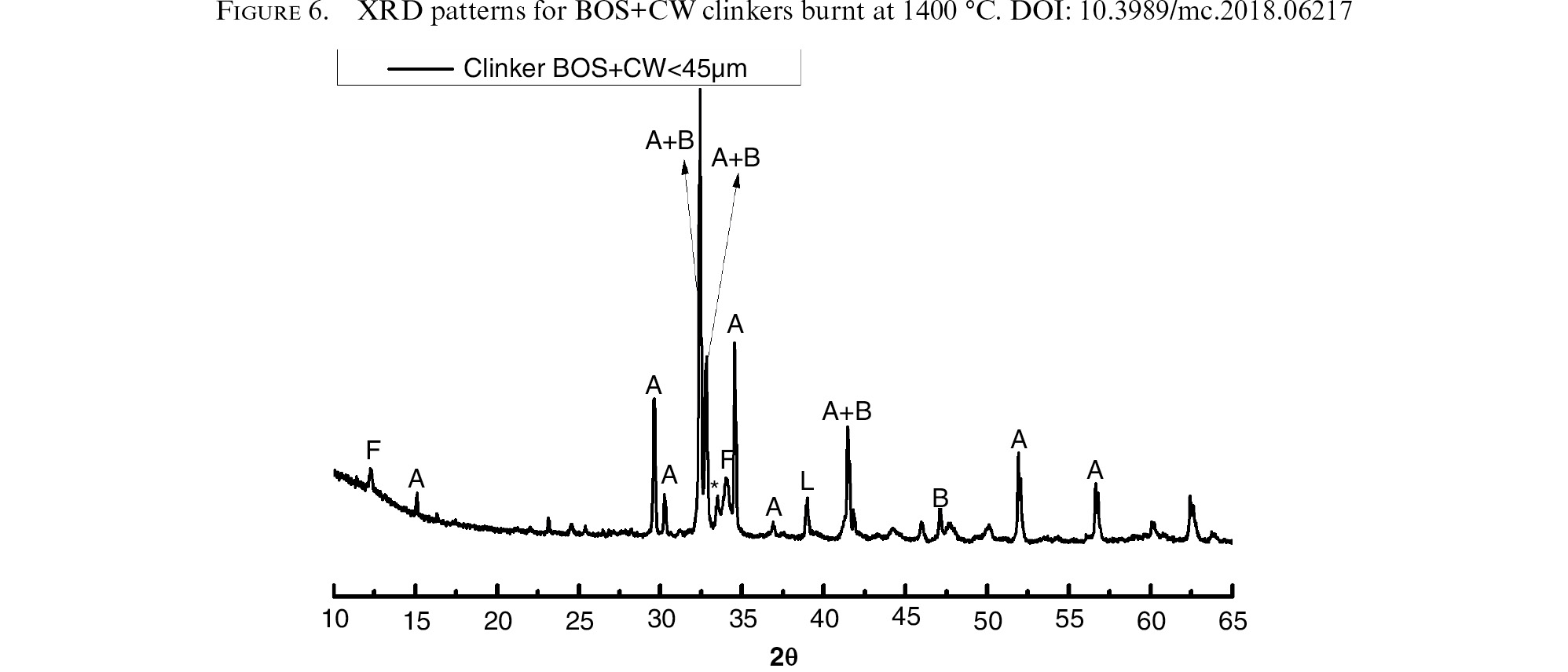

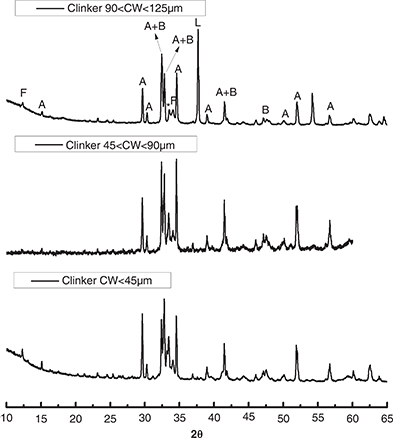

The diffractograms for the clinkers reproduced in Figures 4, 5 and 6 exhibited four major phases. The most visible difference revolved around the presence of free lime, intense lines for which appeared at 2θ=54° and 2θ=37° in 125 μm >CW>90 μm, but which were not detected in the other materials. The signal for the aluminate phase, in turn, was more intense in the CW than in the other clinkers. The Rietveld quantification of the clinker phases identified by XRD, normalising the crystalline phases to 100 %, was compared to the Bogue calculations for four clinker samples. Further to the data in Table 4, the BOS-bearing clinkers had a very high alite (C₃S: 3CaO·SiO₂) content, which was 15 % greater experimentally than calculated from the Bogue formulas, whereas the C₃A (3CaO.Al₂O₃) content found from the XRD patterns was much lower than found with the Bogue equations.

The explanation lies in that with Bogue, C₃A is calculated from the total Al₂O₃ as found with XRF, assuming that all the Al present is in the form of C₃A and the ferritic phase. In other words, the Bogue calculation fails to consider any Al which may be in the silicon positions in alite and belite. Furthermore, when cooling takes place slowly, C₃A crystallises more effectively from the molten mass and the resulting ferrite contains less Al in its structure, whilst when the cooling rate is faster, less microcrystalline C₃A forms and the ferrite phase has a higher Al content. Low clinker crystallinity may also be the reason for these differences, for in that case Al would be in vitreous or poorly crystallised interstitial phases. As in Rietveld analysis the XRD values are normalised to the total crystalline phase content and vitreous or poorly crystallised phases (which fail to crystallise during cooling) are ­disregarded, the silicate phases would be over estimated. The present findings showed that whilst the alumina content was much lower than found with Bogue, the difference for the ferritic phase was much narrower, suggesting that the BOS clinkers cooled quickly.

The CW clinker with particles <45 μm had a lower proportion of C₃S than the BOS-containing clinkers, whilst its belite content was higher. This clinker had a higher Rietveld-determined C₃A than ferrite content, although both were lower than the values found with the Bogue formula.

3.4. Fourier transform infrared spectroscopy TOP

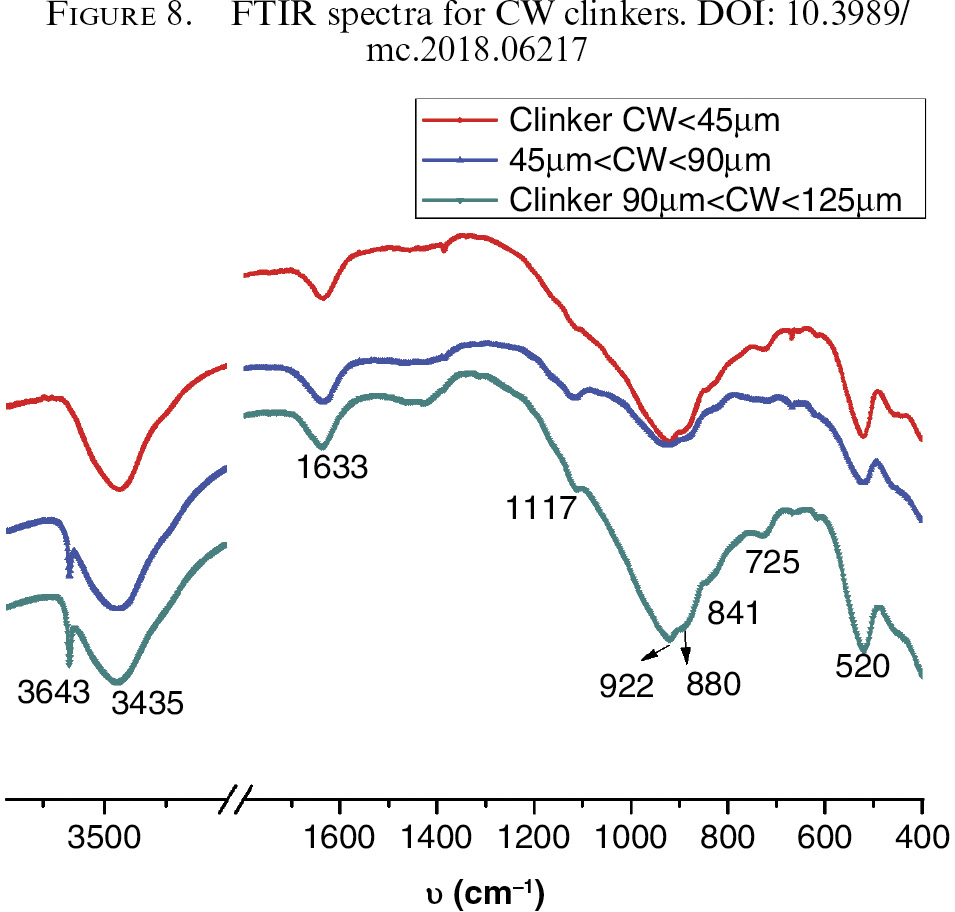

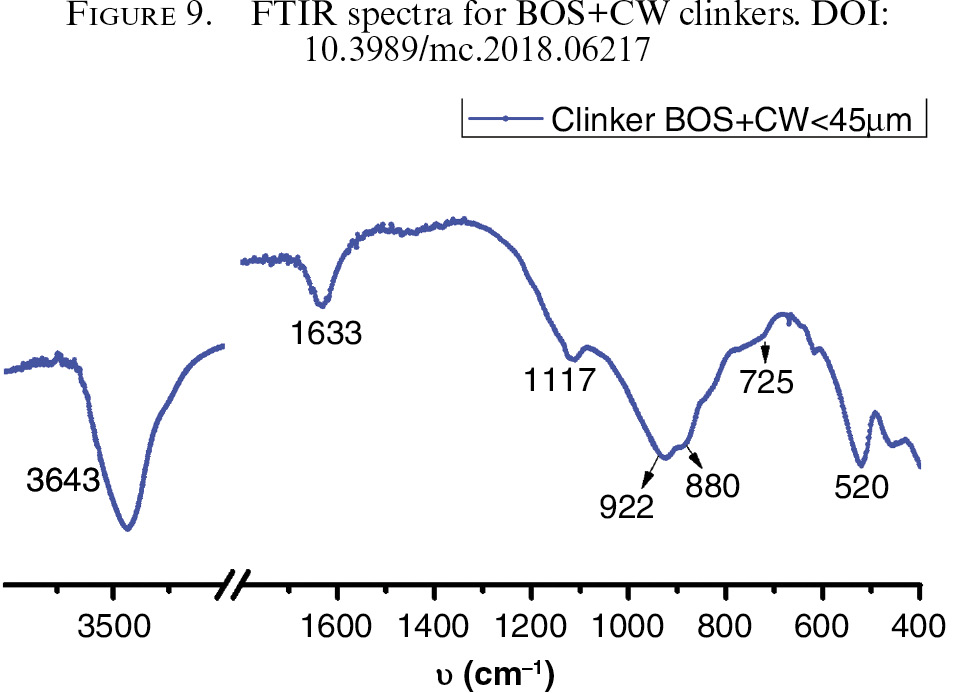

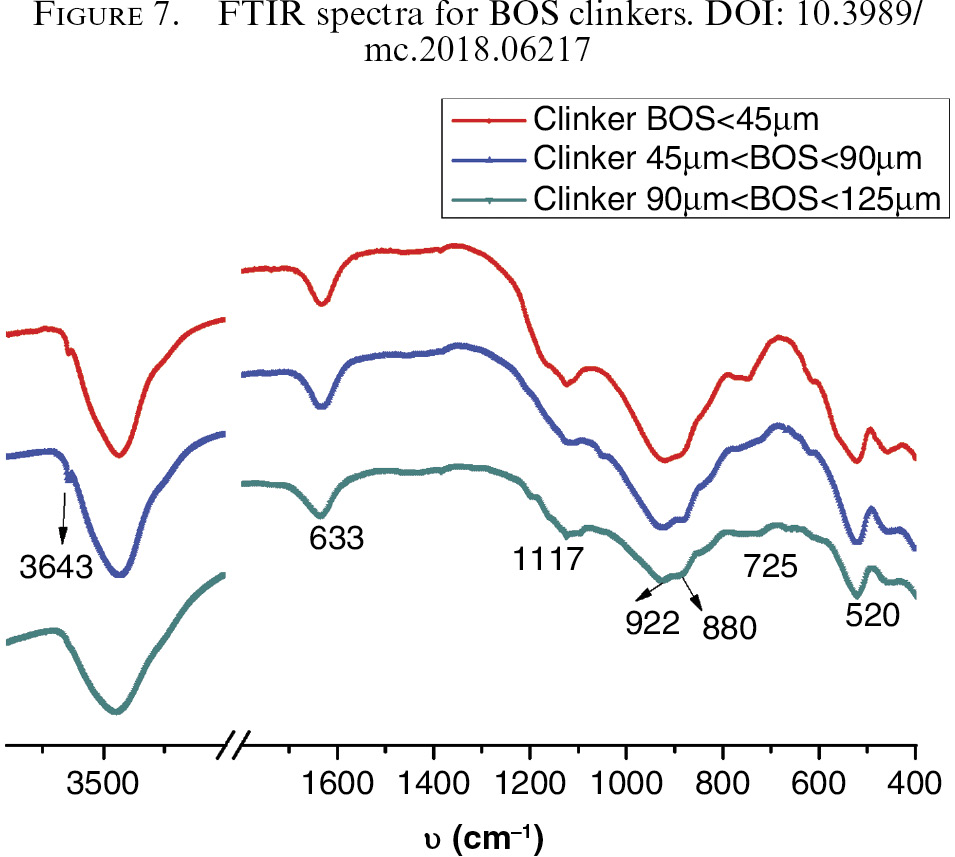

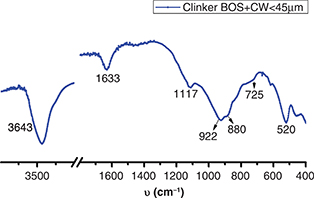

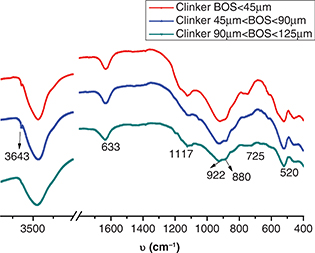

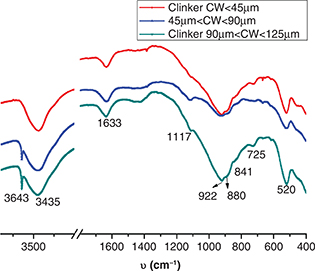

The FTIR spectra for the clinkers reproduced in Figures 7, 8 and 9exhibited two distinct signals, one at around 3436 cm⁻¹ attributed to OH stretching vibrations and the other at 1633 cm^‑1 to H-O-H bending vibrations, both in water. The most intense band, centred in the Si-O stretching vibration zone at 924 cm⁻¹, had two shoulders, at 890 cm⁻¹ associated with alite and 841 cm⁻¹ with belite. The signals at 725 cm⁻¹ and 457 cm⁻¹ were generated by the Al-O vibrations in ferrite and tricalcium aluminate, respectively, whilst the signal at 520 cm⁻¹ was attributable to both calcium silicates.

3.5. Scanning electron microscopy / EDXTOP

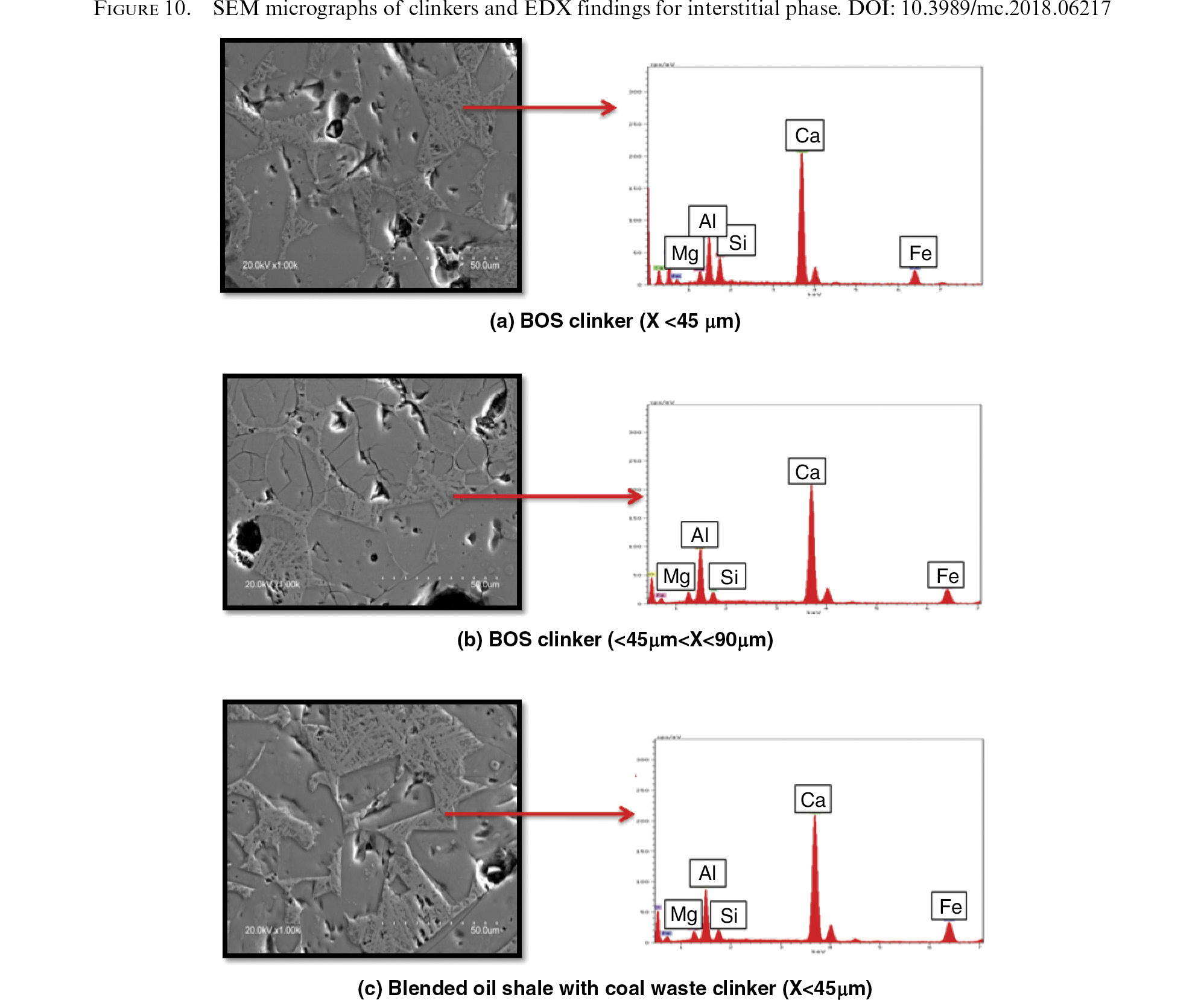

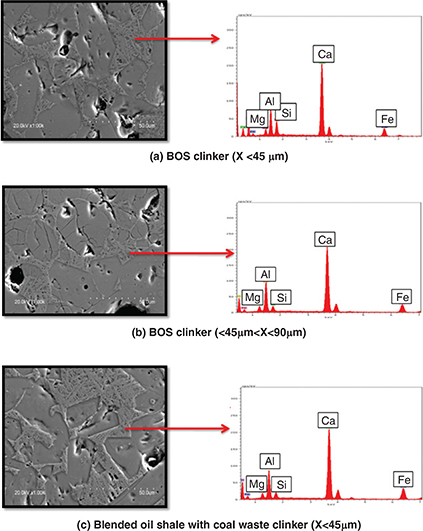

The SEM micrographs of the clinkers reproduced in Figure 10 were the ones most representative of crystalline phase distribution that was very homogeneous. Well-formed alite crystals and small roundish belite particles were uniformly distributed, denoting rapid cooling. The fine interstitial material had a generally adequate crystalline structure with aluminate crystals interspersed in-between ferrite crystals.

EDX analysis identified the majority and minority elements in the phases in the micrographed regions of the clinker. According to the findings in Table 5, the phases in clinker CW had a higher percentage of K than the phases in the BOS material which, conversely, contained a higher percentage of Mg. In other words, Mg was more soluble in the interstitial phase of the BOS-bearing clinker, whilst the belite in the clinker with both BOS and CW solubilised more K. Similarly, the belite in the BOS clinkers solubilised more Al, which may explain the lower percentage of C₃A in the Rietveld quantification than in the Bogue calculation. Majority and minority element solubility in the phases of a clinker depends not only on the chemical composition of the raw mix, but also on the cooling rate. The Al₂O₃/Fe₂O₃ ratio (or alumina modulus) was higher in the interstitial phases of BOS<45 μm (1.07), BOS+CW<45 μm (1.11) and CW<45 μm (1.03) than in the chemical composition of BOS<45 μm (1.7), BOS+CW<45 μm (1.7) and CW<45 μm (1.9).Those differences confirmed that not all the aluminium remained in the interstitial phase, but was also present in silicon positions in alite and belite.

3.6. Reflected light optical microscopyTOP

The optical micrographs of resin-set, polished thin sections of clinker are shown in Figure 11. The alite phase in the BOS clinker <45 μm was highly crystallised and surrounded by an interstitial phase with some belite (Figure 11(a)). Phase distribution was uniform in the clinker containing CW (Figure 11(b)), which had a higher belite phase content as a result of insufficient raw mix homogenisation. These findings corroborate the lower reactivity of the CW mixes detected by other techniques.

Further to the micrographs of the BOS clinker with particle sizes 45 μm to 90 μm in Figure 11(c), alite crystals were distributed more heterogeneously and dispersed in the interstitial phase, whereas the belite content was low. A cluster of free lime was also detected in this clinker, in keeping with its high lime saturation factor (LSF) and the scant homogenisation of the raw mix. The clinker containing both BOS and CW also exhibited a heterogeneous phase distribution due to the presence of the low reactivity coal waste (Figure 11(d)). The alite particles present in the CW clinker were smaller than in the other materials. Whilst belite clusters were observed in all the clinkers, they were more abundant in the CW material, where the high belite content confirmed the Rietveld quantification findings. The microscopic study also corroborated the lower C₃A content found with the Rietveld method.

3.7. Raw mix burnabilityTOP

The lime saturation factor (LSF), silica modulus (M_S) and alumina modulus (Al₂O₃/Fe₂O₃) for the clinkers studied are listed inTable 6. CW clinker burnability was unsuitable as a result of the high free lime content, which rose with particle size. Whilst its LSF was a mere 90 %, clinker CW<45 μm contained 2.68 % free lime, denoting very poor burnability. The likewise high quartz content and an alumina modulus of around 1.9 were indications that CW molten phase viscosity and surface tension at 1400 °C were less suitable than in the other clinkers (19-20).

The free lime content also rose with particle size in the BOS clinkers. Further to the Fundal equation, after burning at 1400 °C for 30 min, the free lime content of a cement depends on the chemistry, mineralogy and particle size of the reagents (12). The raw mixes studied had different and known LSF and alumina moduli, the diameter of their limestone particles was <125 μm and no sand was added to the mixes. The contribution of BOS and CW to the total free lime was consequently calculated by subtracting the chemical contribution of each from the free lime measured (Table 6). The inference drawn from the data in Table 6 was that BOS<45 μm, 45 μm<BOS<90 μm and BOS+CW<45 μm would behave similarly during clinkerisation and deliver much higher quality raw mixes than any of the CW clinkers, including CW<45 μm.

4. CONCLUSIONSTOP

The present findings on the suitability of Moroccan oil shale and coal waste as raw materials in portland cement manufacture support the following conclusions.

ACKNOWLEDGMENTSTOP

This paper has been carried out as part of a CSIC-Mohammed V University of Rabat, cooperation programm (i-COOPA20067). Facilities given by IETcc (CSIC) and funding from BIA 2013-47876-C2-1-P and BIA BIA2013-43293-R projects as well as the Regional Government of Madrid Community and European Social Fund (Geomaterials Programme2 S2013/MIT-2914) are gratefully acknowledged.
