Evaluation of cements obtained by alkali-activated coal ash with NaOH cured at low temperatures

A. A. Hoyos-Montilla*, Y. P. Arias-Jaramillo, J. I. Tobón

Cement and Building Materials Group, Department of Materials and Minerals, Faculty of Mines, Universidad Nacional de Colombia, Colombia.

*aahoyosm@unal.edu.co

1. INTRODUCTIONTOP

Alkaline activation of precursors rich in SiO₂ and Al₂O₃, like coal ash, is currently one of the most relevant research topics in conglomerate materials (1–5). Seen from a technical standpoint, the literature accounts for these materials great benefits in their mechanical properties and durability with respect to conventional cementitious materials, such as Ordinary Portland Cement (OPC) (6). From the environmental point of view, great benefits are also obtained by reusing industrial by-products and by being produced at temperatures around 60 ºC (6), temperature, which is very low for Alkali-Activated Cements (AAC) when compared to the approximately 1500 ºC, which is required to produce the OPC. However, the demand for these curing temperatures means that alkali-activated cements are difficult to handle on site (7), which have been recommended primarily for precast fabrication. Curing at room temperature is very important in terms of practical application since all energy savings in building materials represent not only a lower carbon footprint, but also a lower cost.

It is clear that the temperature is linked to a substantial increase in the kinetics of any reaction. Therefore, it is expected that with increasing temperature, the development of the cementing phases during alkaline activation will be faster. It has been suggested that the increase in temperature in the process of alkaline activation is very effective in the early stages of the reaction, “hours,” because it guarantees a thermal impulse for its development (6).

Some researchers assert that curing between 4 and 48 hours is one of the decisive synthesis conditions in the alkali-activated of coal ash, finding that the best development of mechanical properties occur at temperatures that oscillate around 60 °C (8) and that when the system is cured at higher temperatures the samples lose moisture, thus increasing the number of fissures and cracks (9) and hence decreasing their compressive strength. In line with Davidovits (10) polycondensation, which is the process in which the gels that provide mechanical strength are formed, takes place at temperatures below 120 °C with a recommended value close to 60 °C. Likewise, he states that said process requires curing times, which vary according to the temperature and way of heating. An increase in temperature reduces curing times to achieve higher resistances.

According to Chithiraputhiran and N. Neithalath (11), alkali-activated of fly ash of NaOH 8 M requires activation temperatures above 35 °C in order to reach sufficient heat to overcome the energy barrier of activation so that they are able to form the reaction products. Showing, in this way that it is possible to activate these raw materials at temperatures below 60 ºC.

Therefore, although alkaline cement systems can be asserted to be thermodynamically viable at room temperature (7, 11–13), it is necessary to broaden the understanding of both the activation process and the behavior of the products obtained as well, in order to find methodologies, which allow further reduction of the activation temperatures.

As for other precursors, like metakaolin, researchers, such as Rovnaník (14) have evaluated their activation at temperatures ranging from 10 ºC to 80 ºC. He accounts that in the activation of this system in 4 hours and at temperatures of 40 ºC, cementing phases with mechanical characteristics of the order of 60 MPa are formed, and on the contrary, these characteristics were delayed until approximately 4 days when the mixture was treated at a temperature of 10 ºC. Temperatures higher than 40 ºC presented an increase in the volume and pores size, as well.

Albeit some developments have demonstrated the feasibility of alkaline activation using metakaolin precursors at low temperatures, it is necessary to go deeper into the subject concerning coal ash activation at low temperature, since they have a different chemical composition and structure. Metakaolin is commonly considered as one of the best precursors for the production of alkali activated materials because of the high reactivity and the controlled chemical composition. Coal ashes, on the contrary, present a non-controlled composition and a lower reactivity. The Fly ash also constitutes a greater volume and a lower cost in obtaining this type of building materials.

That is why in this research, both the mechanical behavior and the mineralogical development of two alkali-activated coal ashes with NaOH at temperatures between 8 °C and 38 °C were evaluated. These temperatures are regular at room temperature, in many parts around the world.

2. MATERIALS AND METHODSTOP

2.1. MaterialsTOP

Two ashes from coal combustion were used. One comes from the thermoelectric process of the textile industry (CT) and the other one comes from the heating of boilers in the paper industry (CP). The chemical composition, determined by X-Ray Fluorescence (XRF) on Phillips PW 2400 equipment, is shown in Table 1.

The silica/alumina molar ratio is 1.47 and 1.43 for CT and CP ash, respectively. CT features higher contents of silica, alumina, and iron oxides and smaller loss on ignition than the CP ash. The LOI are mainly associated with the unburned coal contained in the samples.

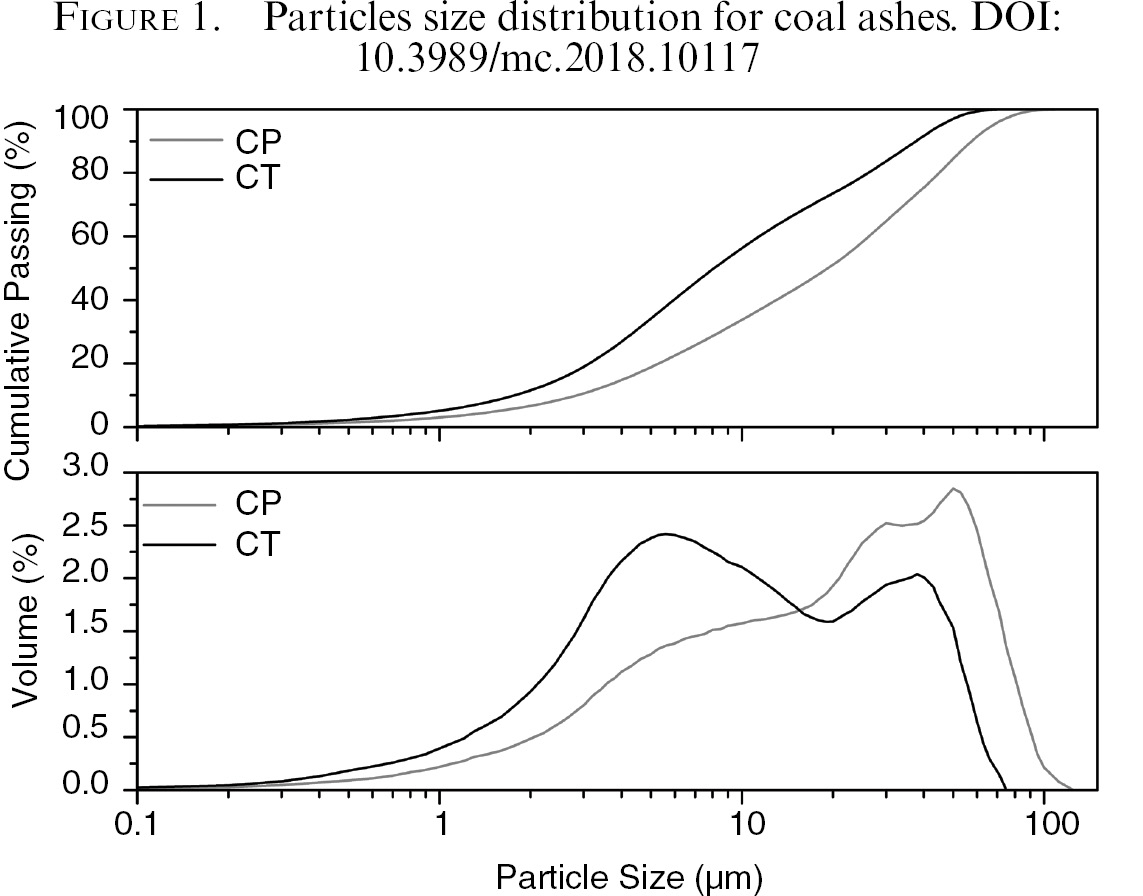

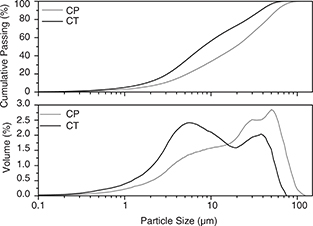

The particles size distribution (PSD) of ashes (Figure 1) was measured in Master Sizer 3000 equipment. A D₈₀ of 28 μm for CT and 45 μm for CP is presented. A bimodal distribution in CT with modes in 5 μm and 40 μm can also be observed. The PSD for CP is much more open with concentrations in 7 μm, 30 μm, and 50 μm. Hence, showing CT as the finest ash.

The mineralogical content of the ashes was determined by X-Ray Diffraction (XRD) on a PANalytical X´Pert MPD PRO equipment, with CuK_α1 (λ=1.54059 Å) source, the X-Ray tube was worked at 45 kV and 40 mA. Data were collected from 5° to 70° for 2 hours. For the quantification phase, 75% coal ash mass and 25% in mass of internal pattern of Al₂O₃ (99.99% purity, Sigma-Adrich, St. Louis, MO, USA) were used. The quantification of the phases was carried out by the Rietveld method using a GSAS Software, as well as the pseudo-Voigt type peak-shape fit function, with asymmetry correction. The parameters used for the refinement were Background coefficients, unit cell parameters, zero change error, peak shape parameters and phase fraction. As it is shown in Table 2, the two ashes have similar mineralogies composed of mullite, quartz, hematite, and mainly amorphous phases. CT features a higher percentage of amorphous phases.

2.2. Experimental procedureTOP

Each of the ashes was activated with a NaOH solution with a concentration of 8 M, prepared from flakes at 98% purity, maintaining a constant liquid/solid (l/s) of 0.28.

Ash-based cement pastes were prepared in consonance with ASTM C 305 standard. For the mechanical tests, cylindrical molds of Poly-Vinyl Chloride (PVC) 1 inch in diameter and the aspect ratio 1:2 were used. The specimens were emptied in three layers; each layer compacted 75 times on the compacting table in accordance with UNE EN 231 standard. Once the paste was emptied into the molds, it was placed in vacuum-sealed polypropylene bags and, subsequently, dipped into water, at temperatures of 8 °C, 18 °C, 28 °C, and 38 °C for curing. The specimens were extracted and evaluated at ages 1, 3, 7, 14, and 28 days.

Cured pastes at different temperatures and ages were analyzed mineralogically by X-Ray Diffraction (XRD) in a PANalytical X´Pert MPD PRO between 5° to 60° with step size of 0.02 ° and counting time of 56 seconds. A CuK_α1 (λ=1.54059 Å) source was used.

The functional groups were evaluated by means of a Fourier Transform Infrared Spectroscopy (FTIR), on a SHIMADZU FTIS-8400S spectrometer, in transmission mode and using KBr pellets. Infrared absorption spectra were measured from 400 cm⁻¹ to 4000 cm⁻¹ with 64 numbers of scans and 4 cm⁻¹ of resolution.

The heat flow during alkaline activation was evaluated by means of isothermal conduction microcalorimetry. A TAM Air micro-calorimeter from TA instruments of isothermal principle was used with air thermostat at 18 ºC, 28 °C and 38 °C. The samples were filled into glass ampoules and were sat inside the kit for 40 minutes to achieve thermal stability. Then, the liquid portion of the samples was injected using an admix device, which was mixed for two minutes. Reading up to 800 hours for 18 °C, 350 hours for 28 °C and 80 hours for 38 °C was carried out.

The chemical composition was obtained by means of XRF on a Phillips PW 2400 X-ray fluorescence spectrometer. The test was carried out on pressed powder ash.

3. RESULTSTOP

3.1. Identification by XRDTOP

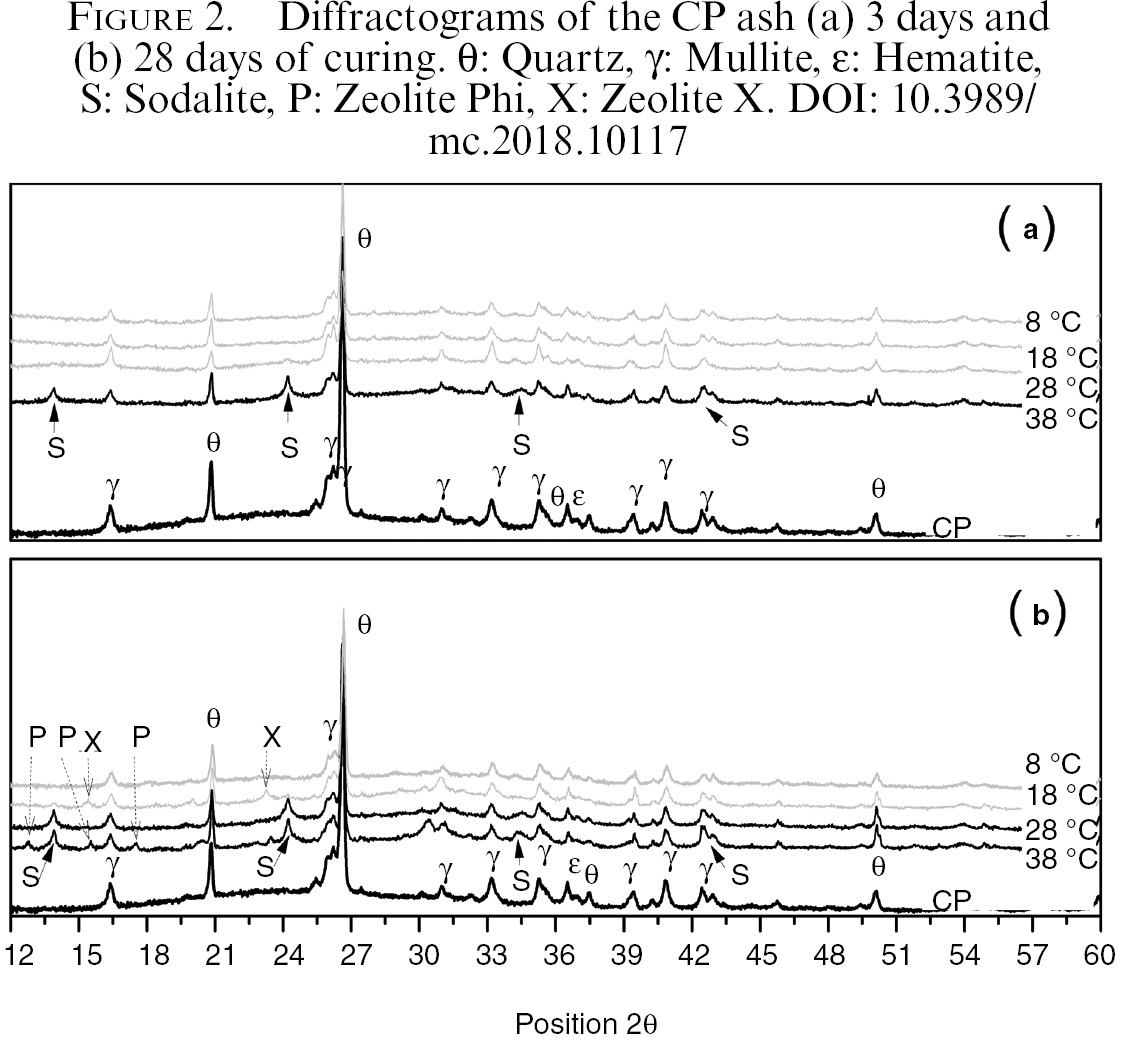

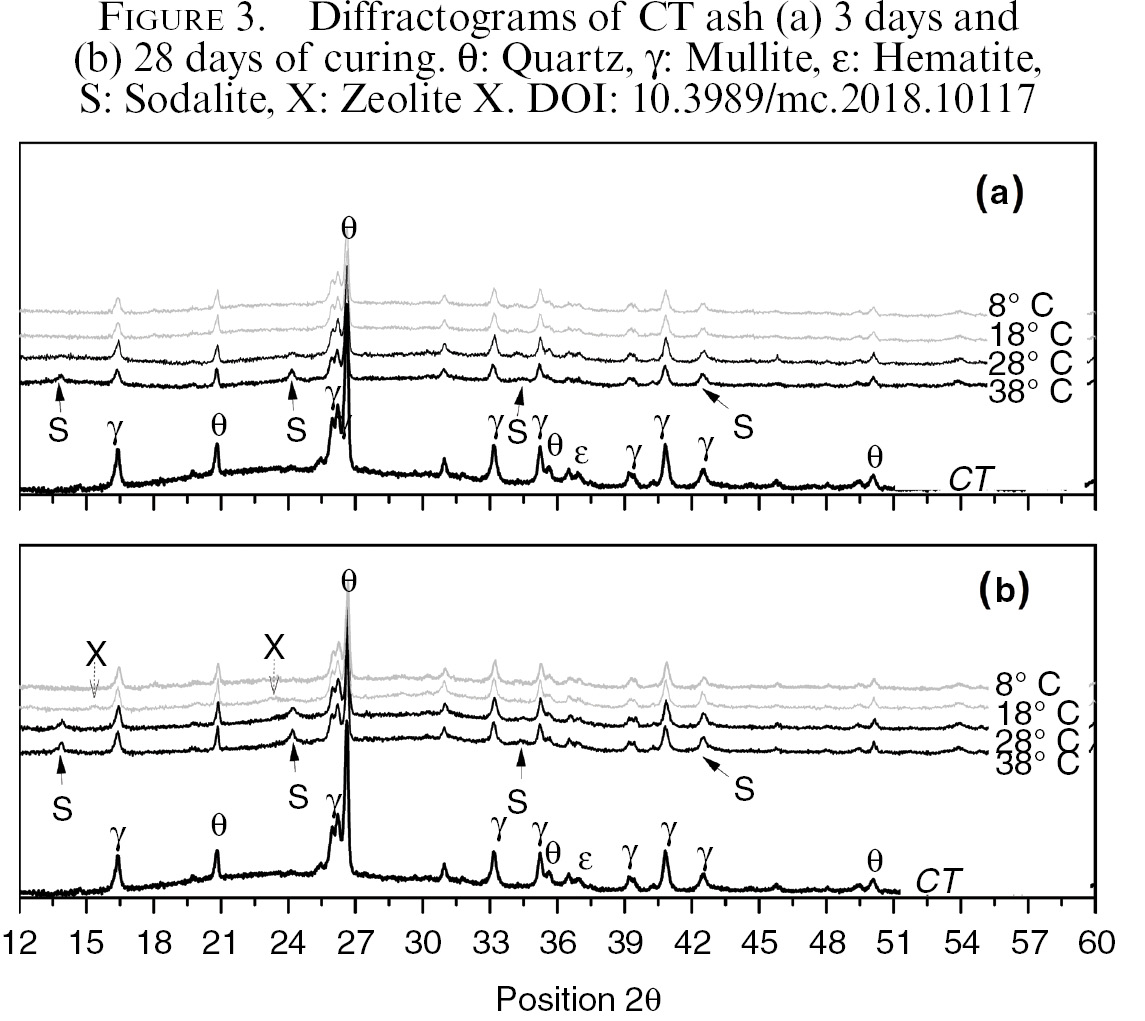

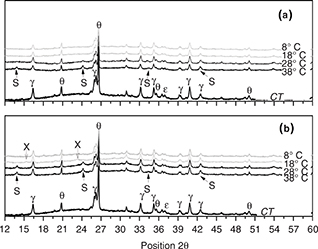

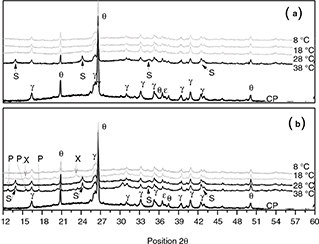

Figure 2 and Figure 3 show the diffractograms for the coal ashes evaluated along with their corresponding mineralogical evolution over time after being activated at different temperatures. Phases with amorphous characteristics, crystalline phases coming from ashes, such as quartz (PDF 00-001-0649), mullite (PDF 00-001-0613), and hematite (PDF 00-024-0072), as well as phases of zeolitic nature, which were developed during activation process, such as sodalite, which were identified in them.

The type of zeolite that crystallizes depends on both the time and temperature of the curing. Hydrated sodalite (S), also known as hydroxysodalite type Na₄Al₃Si₃O₁₂OH (PDF 00-011-0401), was detected in the alkaline synthesis of both coal ashes from 3 days to 28 days when the systems were activated at 38 ºC. In this type of zeolite, the Si/Al is close to the unity indicating an Al rich system.

Sodalite is also detected in alkaline synthesis at temperatures below 38 °C, but at different times. 7 days for 28 °C and 28 days for 8 °C. The crystals of sodalite feature slender peaks at a higher temperature, indicating that the crystallinity of this phase rises with increasing temperature.

In Table 3 and Table 4 the zeolite phases existent in the activated ash at 3 days and 28 days at all temperatures are described qualitatively.

A greater activity in the formation of crystals for the CP ash is observed. This can be associated with the greater quantity of alkalis and oxides of calcium present in the starting ash, which can act as nucleation points (15) facilitating the formation of the zeolitic phases. It is noteworthy that in most of the temperatures at 3 and 28 days the formation of the crystalline structures has already been achieved, which indicates that it is the same for intermediate ages. Now, for both ashes, the appearance of zeolite X is progressive with the curing time, but at low temperature conditions, in all cases below 18 °C.

In the X-ray diffractograms, a halo in the 2θ position between 20° and 40º corresponding to the amorphous phase was observed in both coal ashes. The variation in the position of the point of maximum intensity of the halo at different temperatures and ages of study is shown in Figure 4.

It can be seen that the CP ash, in all evaluated conditions, always features a greater value of 2θ with respect to the CT ash. This can be explained by the higher content of calcium oxide present in CP that contributes to modifying the structure of the vitreous siliceous phases, which displaces the halo to higher values, in consonance with what is reported by S. Diamond (16), who found in his research that the maximum angular position of this vitreous halo increased linearly with the calcium content in their samples. It can also be seen that as the temperature increases the halo is displaced towards values greater than 2θ, which is a characteristic of the formation of the gels product of the alkaline activation (13). At 8 °C the displacement of the angle shows a high variability according to the age of curing, variability that decreases to a higher temperature, hence showing the high incidence of temperature on the development of alkali aluminosilicate gels. At 38 °C all systems, regardless of the synthesis time, converge to the same value of 2θ, which represents a minimum temperature necessary to form alkali-activated cements in less than 72 hours for these systems (alumina-silicic precursor and NaOH).

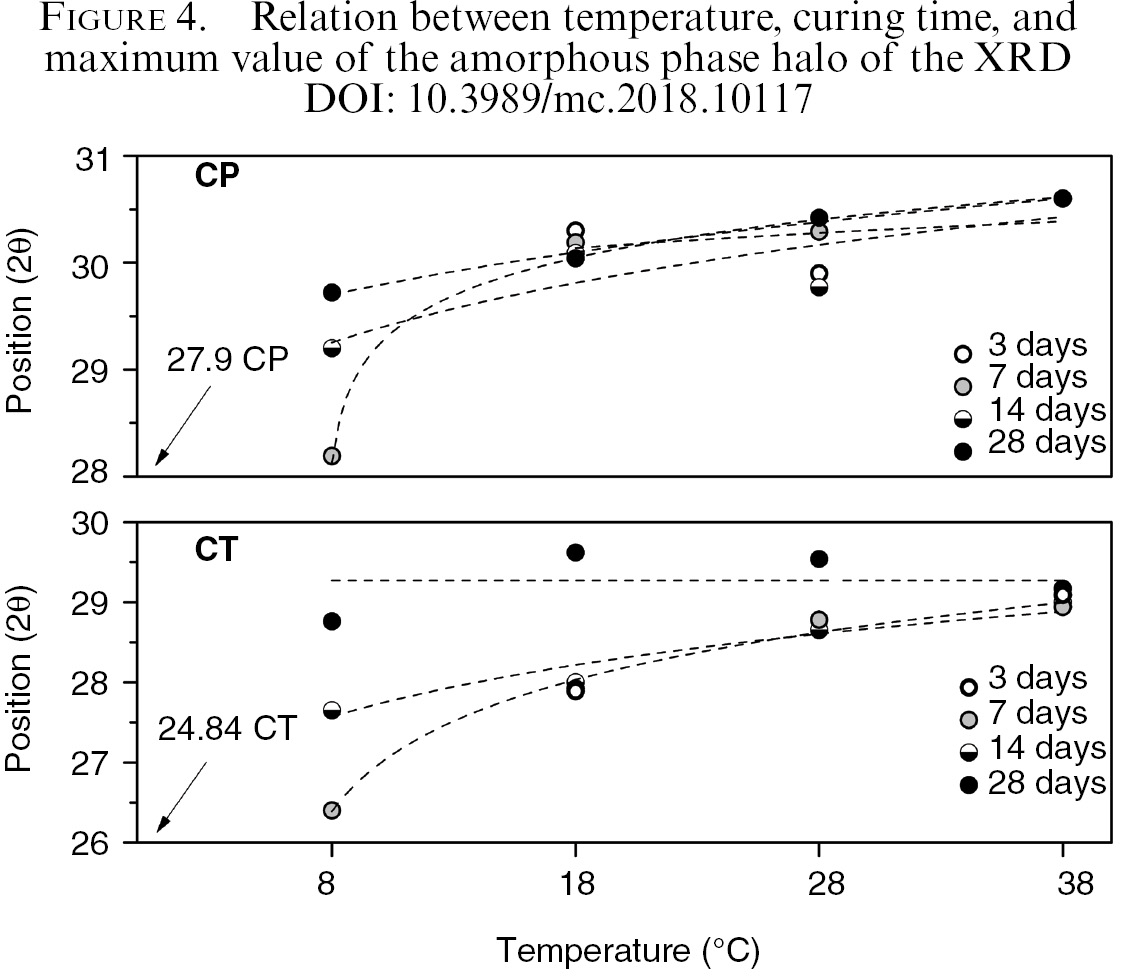

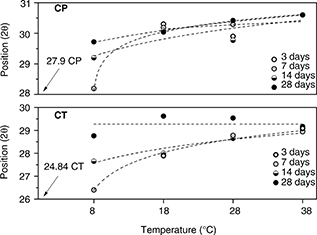

Taking the 2θ position of higher intensity in the halos of both unactivated ashes, as a reference (CP = 27.9° and CT = 24.84°), it can be noticed that the change is 17% for CT and 9.5% for CP for a temperature of 38 °C. A major displacement would represent a higher chemical activity in the system. In other words, there is a micro-structural restructuring, which identifies a higher reactivity in CT. This could also be explained by the fact that the halo product of the alkaline synthesis of CT at temperatures of 8 °C and 28 days has shifted in position by 16%, which is not far from the characteristics of the amorphous component of the synthesis of the same ash at 38 °C. This same phenomenon occurs in CP, but with only 7% intensity.

3.2. Identification by FTIRTOP

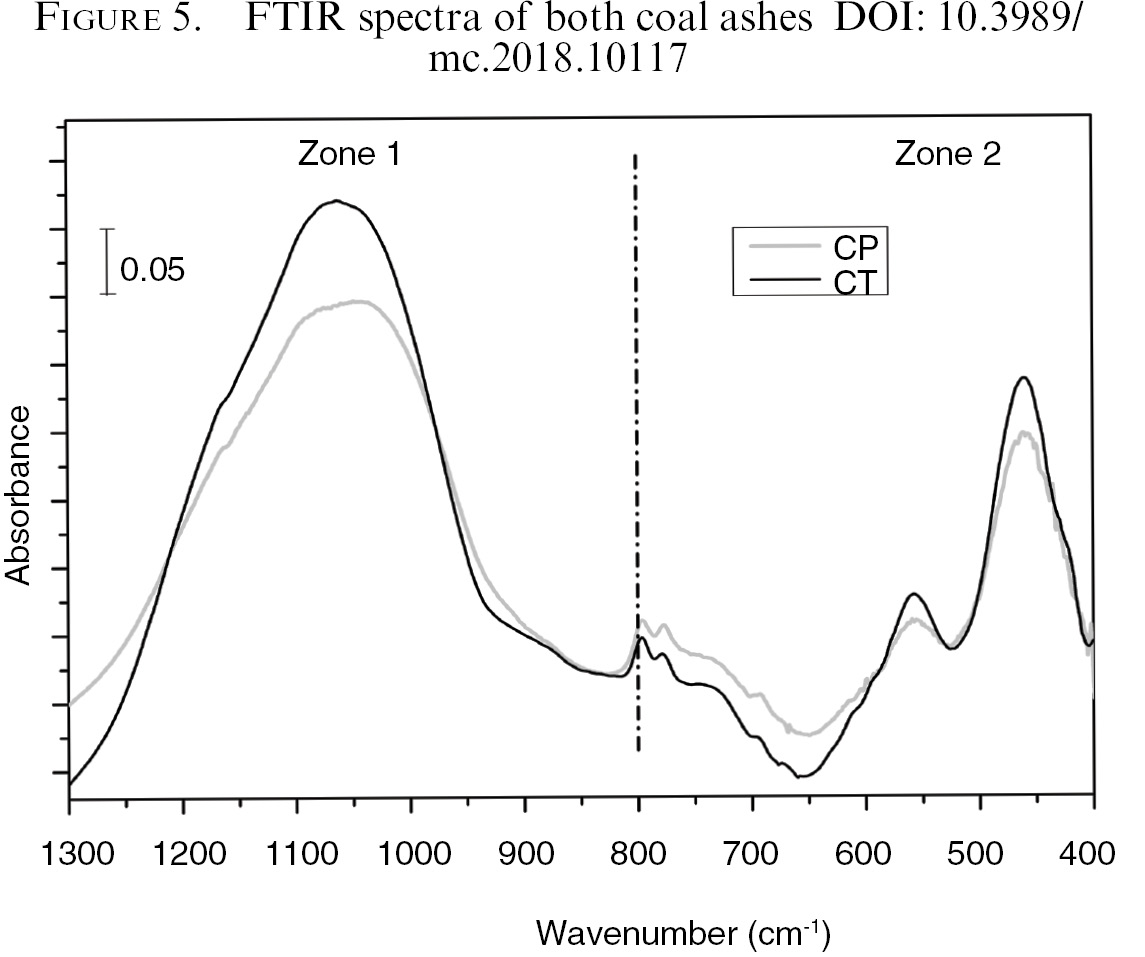

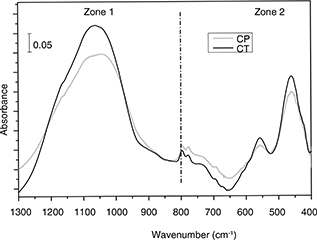

The IR spectrum of both ashes is presented in Figure 5. Zone 1 represents the asymmetric tension band T-O, which can be (Si-O, Al-O) among 1400–800 cm⁻¹. Zone 2 comprised between 400–800 cm⁻¹ corresponds to the outer vibration bands of the different zeolite-type cyclic structures, which exist in the silicates, and which are formed by the connection of AlO₄ and SiO₄ tetrahedra through oxygen bridge atoms (17). This area will be of interest for the subsequent analysis of the reaction products of the synthesis of each ash.

In zone 1, CP ash compared to CT, has a slight displacement in the band towards lower values, which may indicate the presence of components with asymmetric T-O-T bonds, which allow a better alkaline synthesis. On the other hand, the high intensity in absorbance in zone 1 for CT ash compared to CP can be associated with a greater number of components with symmetrical and asymmetric T-O-T bonds.

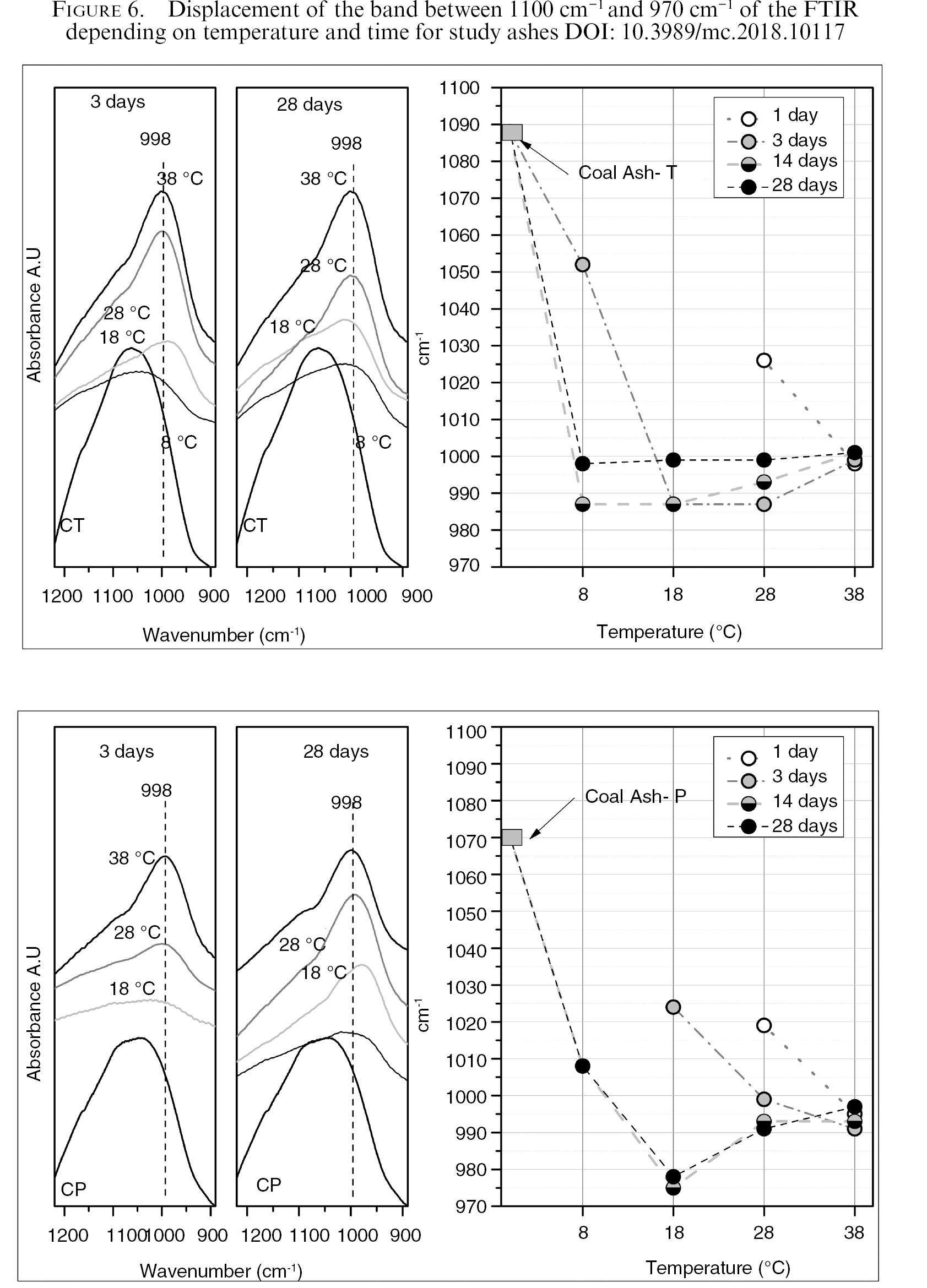

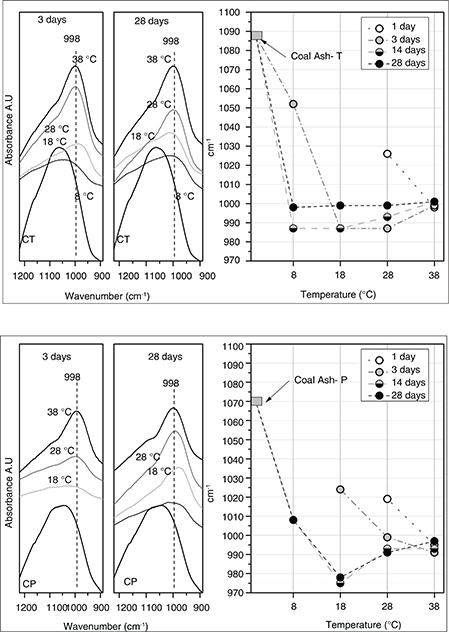

Figure 6 shows, for both coal ashes, the displacement of the asymmetric tension band of the T-O-T bonds, which can be Si-O-Si or Si-O-Al, in the wave number range between 1100 cm⁻¹ and 970 cm⁻¹, with respect to both the temperature and curing time.

Between the two ashes and their activating products at different temperatures, a reduction in wavelength is observed, which has been explained by some researchers as a variation in the chemical structure, as well as in the vitreous structure (7). In the latter case, corresponding to a lower degree of reticulation of the amorphous phase, that is to say, increased amorphicity. Among the activated materials, it can be seen that as the temperature increases, this band moves to lower values with respect to the unactivated ash.

The coal ash in contact with the activator dissolves its vitreous compound and immediately afterward, it precipitates a reaction product, sodium aluminosilicate gel, with a Si/Al close to the unity (18–23). As the system is enriched in Al, the band shifts to lower values (7).

The phenomenon is associated with the breakage of the Al-O bonds since in these they break more easily than the Si-O bonds. Hence, in this first stage of formation, the first gels are rich in Al.

After the system evolves presenting a displacement of the IR spectrum in the asymmetric tension band at values higher than 998 cm⁻¹. This is phenomenon is due to the fact that the system becomes enriched in Si (19). Accordingly, the properties at early ages are governed by gels rich in Al and at final ages, they are governed by gels rich in Si.

As in X-ray diffraction, the formation of the gel is strongly affected at temperatures below 28 ºC. In both ashes, the systems tend to converge to similar values in the tension bands associated with the formation of the (T-O-T) gel, indicating that the characteristics of the gel can be very similar, although the formation process is strongly dependent on both temperature and time. This can be observed in the change of both the 2 Theta (Figure 4) as in the wave number (Figure 6) for each isotherm. Where the abscissa for progressive temporal events is very variable at low synthesis temperatures. Nevertheless, in periods of prolonged times, the values are usually adjusted to those obtained at temperatures of 38 ºC.

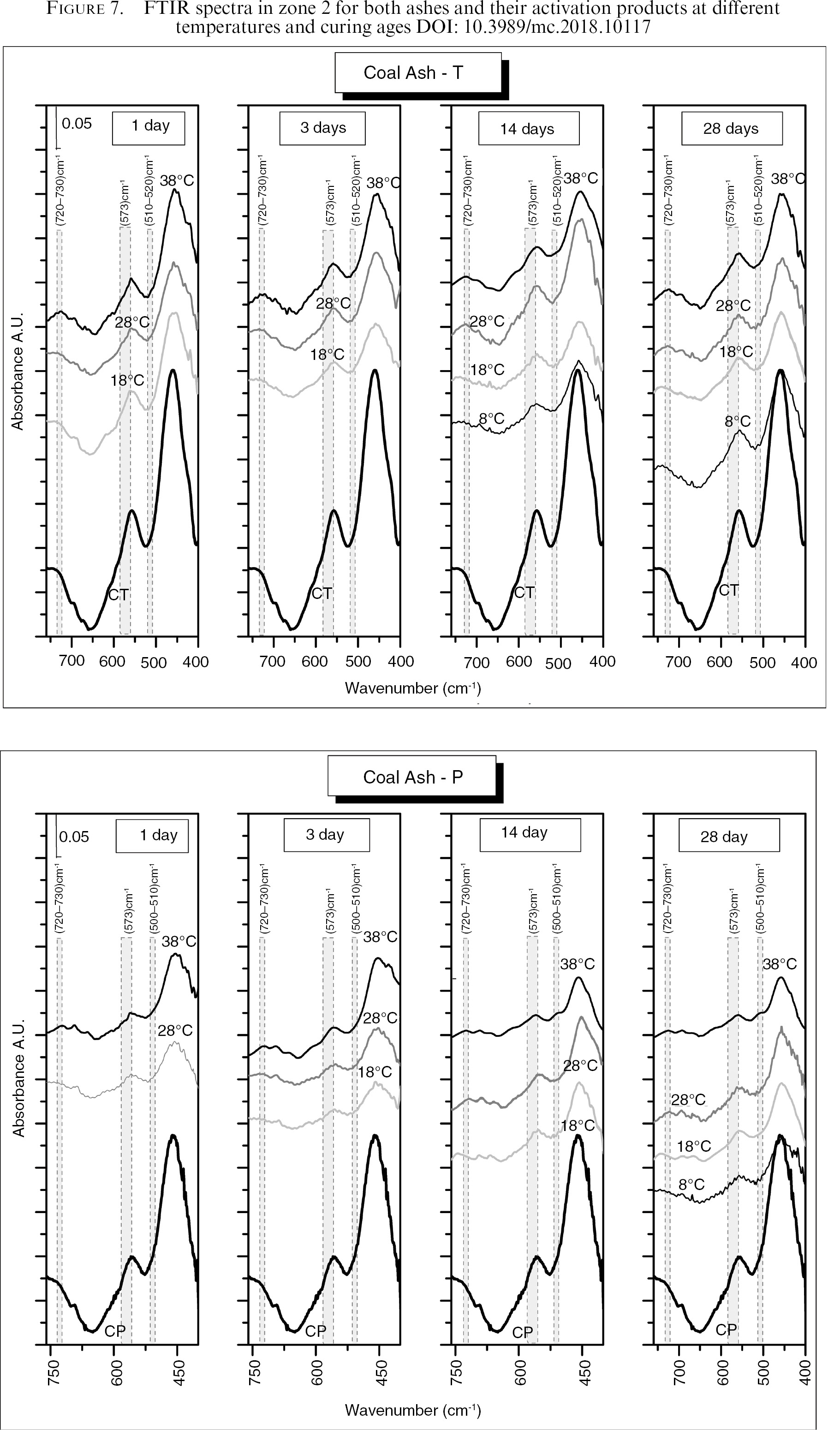

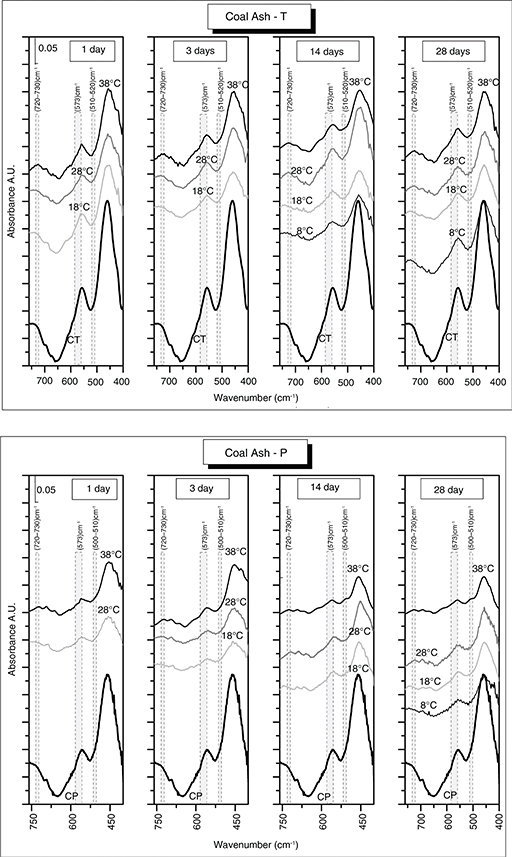

In the spectral range of Figure 7, the appearance of some bands is observed when the coal ash is activated at different temperatures. In zone 2, the vibration bands, which are called secondary structural units (SBU) (24), provide information on the environment of the tetrahedrons in two-dimensional or three-dimensional structures (Links of tetrahedra TO₄, T: Si, Al), as well as the type of ring (Single or double). The increase in the number of units of the ring displaces the band of vibrations towards lower frequencies: 720 -700 cm⁻¹ for rings of three units, 650 cm⁻¹ for 4 units, 620-600 cm⁻¹ for 6 units.

For most of the evaluated conditions of time and temperature, although not for 8 °C at ages less than 3 days, the presence of bands at 720 cm⁻¹ is observed for the two ashes that account for new products of characteristic synthesis of Al_T-O, bonds associated with hydroxisodalite structures rich in aluminum. This is in accordance with the mineralogical analysis by XRD. Increases in bandwidth from 560 to 573 cm⁻¹ are associated with faujasite (25). This occurs with greater frequency in samples cured at 18 ºC.

3.3. Microcalorimetric EvaluationTOP

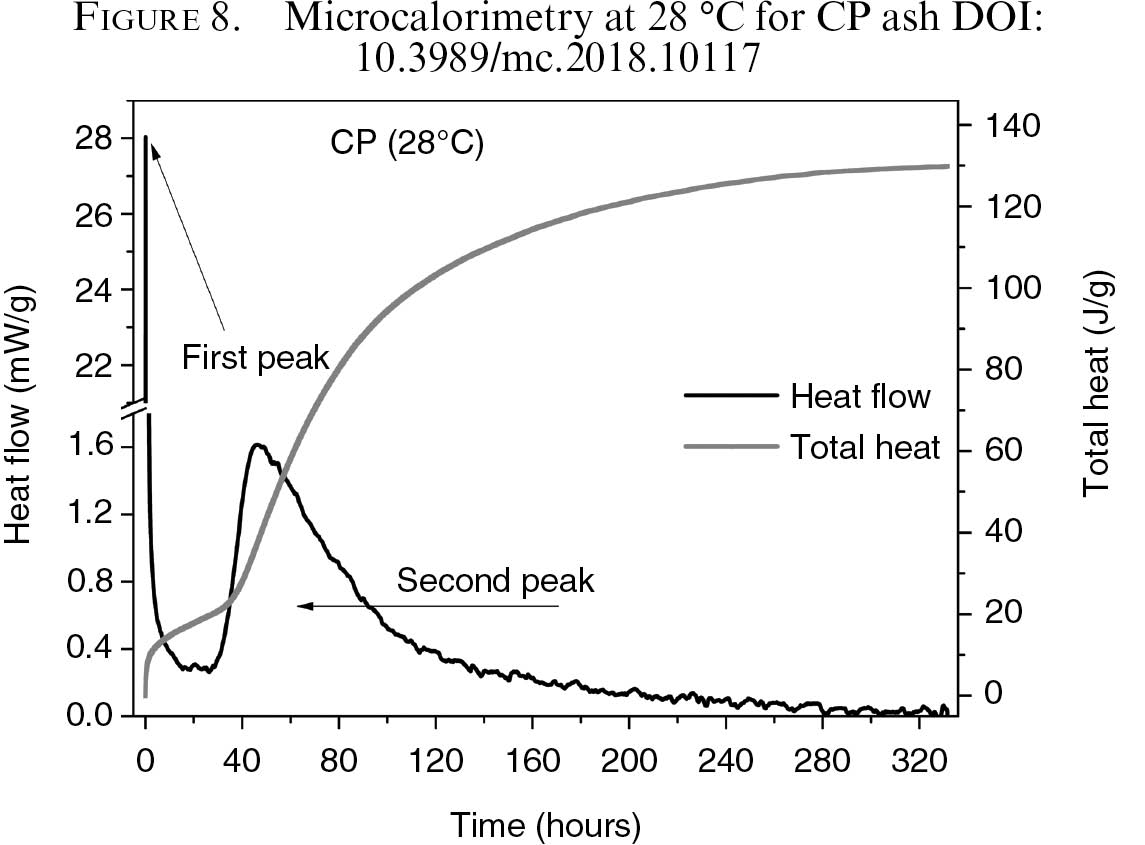

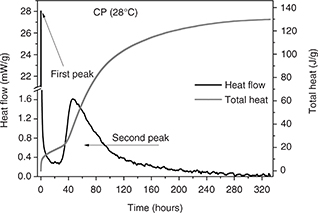

The calorimetric response points out two peaks, as shown, by way of example, in Figure 8 for the CP ash at 28 °C. The first peak is mainly by the energy released in the dissolution of the vitreous phase of the ash upon contact with the activating agent. And the second peak, by the growth and precipitation of gels and mineralogical phases of the reaction products, which begin to be reorganized locally in networks of greater length. Between these two peaks, there is a significant reduction in the heat flow that gives rise to a dormant period. The area under the curve of the microcalorimetric signal represents the total energy released over time due to both the physical and chemical processes, which are carried out during the alkaline activation (gray line Figure 8), indicating the kinetic behavior, as well as the degree of reaction that the ashes exhibit.

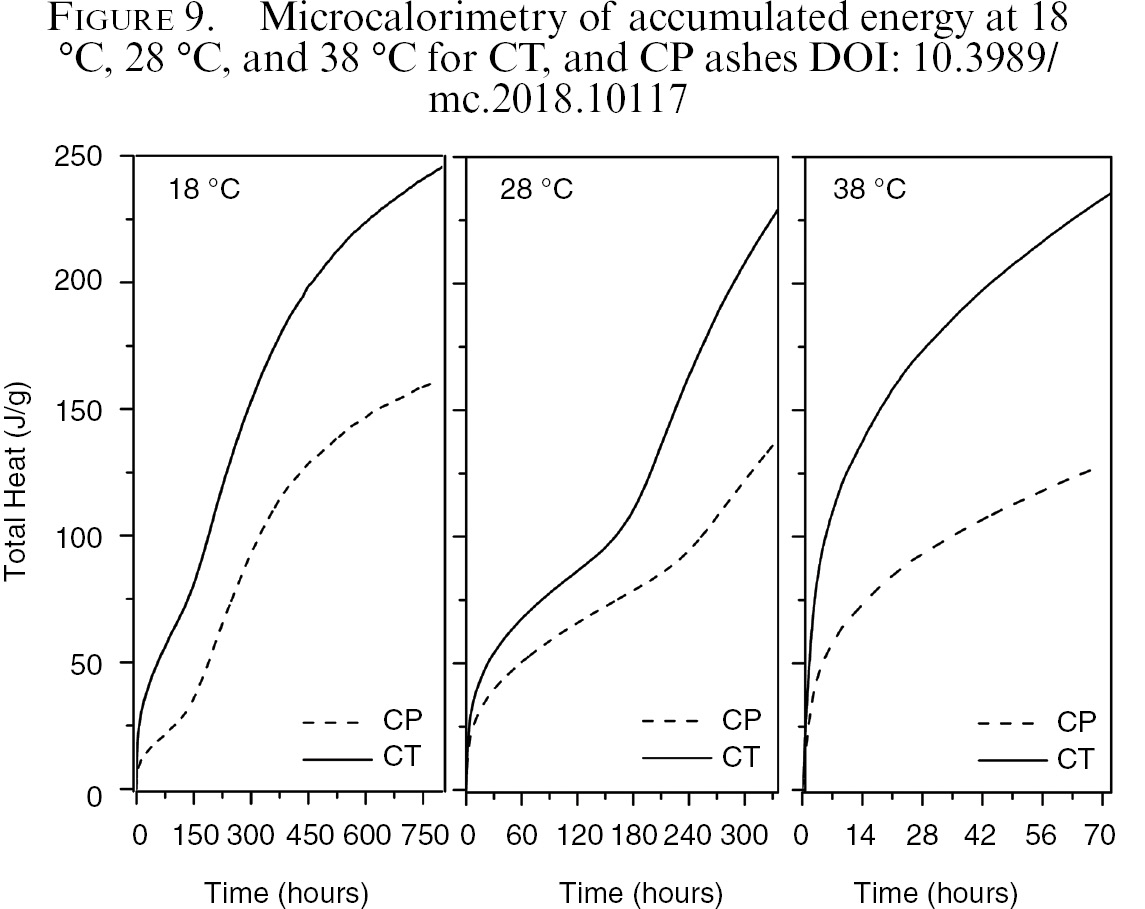

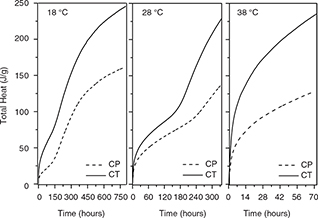

Figure 9 shows the temperatures 18 °C, 28 °C, and 38 °C and the accumulated energy for both CT and CP ashes. It is worth noticing that regardless of the synthesis temperature the released energy product of the activation can be equivalent in different temporal periods. Thus, indicating that the alkaline synthesis of CT at 38 °C takes approximately 3 days to release 225 J/g, at 28 °C, it takes 13.7 days, and at 18°C, it takes 25 days to release the same amount of energy. In the case of the alkaline synthesis of CP, it releases 125 J/g in 3 days at 38 °C, in 12.5 days at 28 °C, and in 18.75 days at 18 °C.

The difference in microcalorimetric response of both ashes is due, among other causes, to the particle size, chemical composition, amount of unburned coal, and percentage of amorphous phase, characteristics, which are described above. Regardless of the temperature, the energy released from the activation of the CT ash is greater than that of the CP ash. And if the temperature increases, the amount of energy released does too, which indicates that the reactivity of CT is greater than the reactivity of the CP. The time for the release of energy decreases substantially as the temperature increases. For instance, to release 100 J/g the CT ash requires 170 hours at 18 °C, whereas at 38 °C, it only requires 7.5 hours. This is a phenomenon, which is linked to the increase of the ionic mobility of the system with temperatures, as it has been stated by researches like Bing-hui et al. (26), where by means of electrochemical impedance at temperatures between 20 ºC and 80 ºC, they evaluated the reaction rates, polymerization, and precipitation processes of the reaction products; finding a direct relation between electrical conductivity associated with these phenomena, as well as the increase of the temperature.

3.4. Mechanical analysis TOP

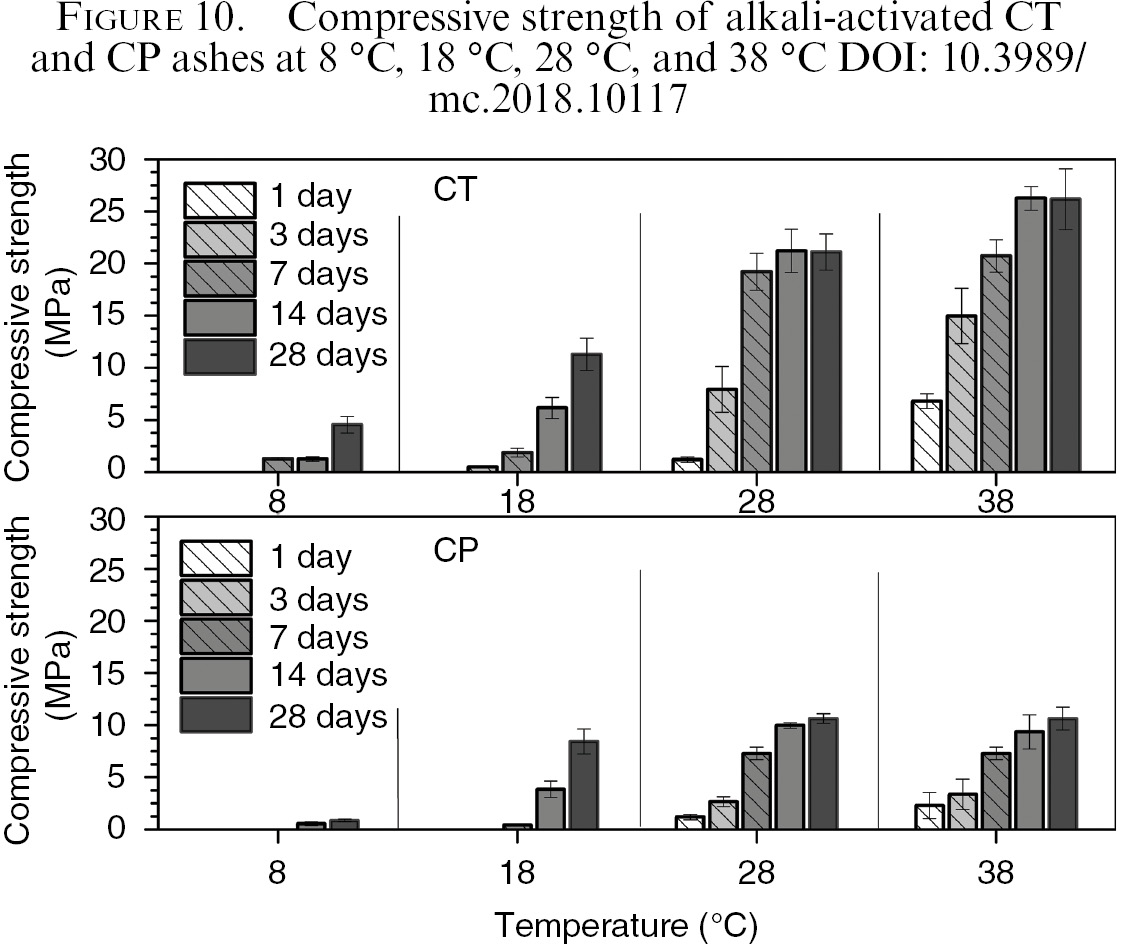

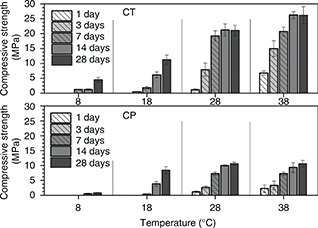

For each temperature, compressive strength of paste specimens was evaluated at ages of 1, 3, 7, 14 and 28 days. The loading rate was 300 N/s in compliance with ASTM C349 standards. Figure 10 shows the results.

It is clear that the mechanical response of the CT ash is greater in all cases than the CP ash, which can be explained by their chemical, particle size and crystallographic differences (content of amorphous phases). The incidence of temperature and curing time on obtaining the mechanical strength is observed. The two ashes, at the lowest temperature, do not show resistance before 7 days. When they are taken to 38 °C for 3 days, they have already reached more than 30% of the highest resistance obtained.

4. DISCUSSION TOP

According to the results obtained in this research, it is possible to state that it is feasible to activate coal ash at a room temperature, reaching compressive strengths above 20 MPa. But as much or more important than the temperature, in times of synthesis less than 28 days, are the characteristics of the starting ash, since better physical and chemical conditions of the ash guarantees a greater available energy to be released during the alkaline activation and accordingly, a better performance of the cement is obtained (27)(28).

By observing the mechanical response of the alkali-activated ashes (Figure 10), the influence of the ash type is clear, which is determined by parameters, such as the reactive silica and alumina contents, amorphous phase content, particle-size distribution, and unburned coal amounts (LOI). In other words, the reaction speed depends clearly on their physical and chemical characteristics (20)(27)(29), without ruling out the importance of temperature. In all the above parameters, the CT ash features the best conditions. It was evidenced that a high content of silica and alumina affects the crystallization rate and formation of zeolites, and encourages the formation of silicon-rich alkali aluminosilicate type gels (19) as it was the case in CT. A higher presence of amorphous phase in the raw materials increases the mechanical performance of the cements manufactured with them. This is because it guarantees the availability of dissolved species for the formation of monomers and subsequent growth of the polymer network (19, 21, 22). The unburned coal contents (LOI) in the ash are particles, which are not part of the activation process, that is to say, unreacted particles, which increase porosity (19, 26, 27) and this largely explains the poor performance of the cement obtained with CP ash. The particle size not only affects the properties in the fluid state of the cement, but it also affects the ash reactivity (19)(29) by increasing the area of wetting between the ash and the activator, which results in an increase in kinetics reaction and increased resistance (27, 29)(30). The presence of metals (calcium and sodium) in the ash affects its degree of reaction (31, 32). Their inclusion in the amorphous network modifies their minimal energy state by decreasing dissolution and accelerating the diffusion and nucleation mechanisms (31, 33, 34).

5. CONCLUSIONS TOP

From the results found in the study of the activation of coal ash with sodium hydroxide, at temperatures from 8 °C up to 38 °C, the most relevant conclusions are the following:

That regardless of temperature, the early stages of the activation process are governed by the physical and chemical characteristics of coal ash used, such as: SiO₂/Al₂O₃ molar ratio, amorphous phase percentage, unburned coal content and particle-size distribution, which significantly affect the performance of the alkaline activation process. For these reasons, the pastes made with CT ash showed better mechanical results than those made with CP, in the curing times analyzed.

It is possible to achieve the synthesis of alkali-activated cement from coal ash at temperatures of 8 °C, although with very poor compressive strength results in the evaluation period of time, due to the slow development of chemical reactions.

For the ashes studied, especially for CT, alkali activation is feasible from 28 ºC because very acceptable compressive strength results (above 20 MPa) are obtained. This is because the speed at which the heat transfer is carried out must be such so that the highest degree of reaction of the ash is guaranteed in the shortest time possible and this was achieved satisfactorily in this study around 28 °C

From microcalorimetric tests, it can be concluded that regardless of the synthesis temperature, the released energy, product of the activation, can be equivalent in different temporal periods. Furthermore, that regardless of the temperature, the energy released from the activation of the CT ash is greater than that of CP ash thanks to its physical-chemical characteristics.

The alkali-activated coal ash T at 18 °C did not show formation of zeolites until the age of 28 days, which allows to affirm that the zeolites require a higher temperature for their appearance at early ages.

Through the XRD and FTIR techniques, it was possible to determine that the different gels show similar characteristics, although with a slight tendency to present crystals as a result of the alkaline synthesis with more complex systems for temperatures below 18 °C, this is attributed to the systems reacting 10 to 20 times slower to generate 100 J/g when compared to temperatures of 38 °C. However, for the conditions evaluated, it is suggested that the effect of the temperature on the simple systems (NaOH + precursor) is of a temporary nature.
