Development of lightweight insulating building materials from perlite wastes

G.M. Tsaousi*, L. Profitis, I. Douni, E. Chatzitheodorides, D. Panias

¹National Technical University of Athens (NTUA), (Athens, Greece)

*margitsaousi@metal.ntua.gr

1. INTRODUCTIONTOP

A review of the embodied energy values (the sum of the amount of energy required to fabricate a product) shows that most of the commonly used insulating materials in the construction industry exhibit high values (45–138 MJ/kg) (1–3). This, mainly results either from the energy-intensive conditions used during manufacturing of the mineral-based insulating materials, or from the high embodied energy values during the production of oil-based raw materials. Moreover, contemporary insulating materials can suffer from various disadvantages, including degrading thermal and acoustic performance, combustibility, shrinkage and pollution of the indoor building environment. The objective of the project is to develop a new generation of inorganic insulating materials that can be used as masonry components.

In the last few years, lightweight cellular masonry materials find great applications in the construction sector, with autoclaved aerated concrete (AAC) and foam concrete (FC) currently leading the market. AAC is made from naturally occurring materials that are found in abundance, such as lime, fine sand, other siliceous materials, water and a small amount of aluminum powder (manufactured as a by-product of aluminum production). Cement is also added, in order to produce low density materials, similar to the conventional building materials (4).

AAC is produced by foaming Portland Cement (OPC) with the use of hydrogen gas that is generated from aluminum powder addition (5). Even though AAC production suffers from some disadvantages, such as the requirement for increased plant precautions due to the explosive nature of hydrogen gas, as well as difficulties in the production control and high energy consumption (5–9).

On the other hand, the production line of FC is quite simple and easy to control, as raw materials are very common and required equipment for their fabrication includes only a truck mixer and an extruder. Still, the use of FC has some disadvantages, such as its sensitivity to water content and its difficulty to be placed and finished due to the porosity and angularity of the aggregate. In some mixes the cement mortar may separate the aggregate and float towards the surface. Furthermore, the mixing time required is longer than that of the conventional concrete (10). Finally, FC presents low compressive strength values for its apparent density and thermal conductivity levels.

Geopolymer foam boards coming from industrial wastes seem to be very attractive as alternatives of the autoclaved aerated concrete and foam concrete, with significant technical benefits (i.e., improved chemical and fire resistance) (11). The geopolymerization process is based on an exothermic heterogeneous chemical reaction between a solid aluminosilicate raw material and an alkali metal silicate solution, under mild conditions (12, 13). The foaming process aims ideally at forming a large number of small individual voids (closed cells) or interconnected networks of voids (open cells) inside a viscous material (i.e., a paste or a polymer). The control of the nature, size and distribution of voids, is the most critical step in the production of foamy materials, specifying their final density and strength (14). Voids can be produced by two methods: 1) by introducing a very large volume fraction of air bubbles (15), usually through the use of surfactants, 2) by endogenous gas generation, which can be achieved by mixing gas-releasing agents, such as aluminum powder or hydrogen peroxide, in a cement like paste or a mortar. Hydrogen peroxide (H₂O₂) is a widely known inorganic foaming agent which is thermodynamically unstable and therefore can be easily decomposed to water and oxygen gas [eq.1], with the latter playing the role of the blowing agent (16) [1].

The synthesis of low density geopolymers using hydrogen peroxide is influenced by the optimization of the kinetics of peroxidede composition with production of oxygen and the increase in viscosity of the geopolymer paste (17).

Alumina powder is also a famous foaming agent which reacts with water and hydroxide in an alkaline environment, liberating bubbles of hydrogen gas and forming hydrolyzed metal complexes. This takes place according to a reaction similar to the equation [eq.2] below (18):

The release of the aforementioned gases, contributes to pores formation prior to the hardening of the geopolymer pastes leading to materials with high overall porosity and low density values after the appropriate curing process. The final hardened structures present good mechanical and thermal properties, and can therefore be used for applications in acoustic panels and in lightweight pre-fabricated components for thermal insulation purposes. Nevertheless, hydrogen peroxide has been proved as the foaming agent that under specific conditions results in materials with lower thermal conductivity values (17).

In this study, geopolymer pastes were foamed by using hydrogen peroxide as the blowing agent. The effect of the foaming agent’s content on the final foam board’s characteristics was extensively studied. In order to determine the frequency of specific size voids in function of increasing peroxide content, image processing techniques were used.

2. EXPERIMENTALTOP

2.1. MaterialsTOP

The raw materials used for the synthesis of foam boards, consist of sodium hydroxide, hydrogen peroxide and perlite wastes from the milling plant of Imerys in Milos island, Greece. The chemical analysis in dry basis, determined by a XEPOS X-ray Fluorescence diffractometer utilizing the X-LAB software, is given as oxides in wt.% in Table 1. Loss on ignition was determined after heating perlite for 1 h at 1100 ^oC.

Granulometry of raw perlite waste was measured on a MALVERN Laser Particle Size Analyzer and its mean particle size was determined as d₅₀ = 26 μm. Its specific surface area was measured to 0.65 m²/g by a QUANTACHROME Nova–1200 Ver 5.01 porosimeter. Its skeletal density, measured with a QUANTACHROME Stereopycnometer, is 2402 kg/m³. The mineralogical analysis has shown that the perlite waste is mostly amorphous, with only a small proportion of crystalline phases, such as quartz and feldspars.

The alkaline activator that was used for the synthesis of geopolymer pastes was an aqueous sodium hydroxide solution, prepared by dissolving sodium hydroxide pellets (Merck Chemicals, 99% purity) in deionized water. Hydrogen peroxide was selected as foaming agent (Merck H₂O₂, 30% w/w).

2.2. Paste preparation and foamingTOP

Geopolymer foams were prepared by mixing perlite with the alkaline activating solution for 20 minutes, until a homogeneous mixture was obtained. The selected NaOH concentration was 2 and 4 M, while the solid/liquid ratio was equal to 2 g/mL according to the previous published study of Tsaousi et al (19). Then the hydrogen peroxide was added in the mechanical stirrer, extending the stirring time by 5 more minutes. The amount of added H₂O₂ varied between 0.05–1% w/w. Then the mixture was molded in 15 × 15 × 4 cm metallic molds and cured in two consecutive stages (stage 1: 70 ^oC for 24 h, stage 2: 50 ^oC for 96 h). The maximum linear shrinkage observed in the final materials was 1%. After curing, the specimens were demolded and kept in a dry atmosphere.

2.3. Characterization methodsTOP

2.3.1. Analytical methodsTOP

The resulting materials were evaluated for their thermophysical properties. Thus, the apparent density d of the foam boards was calculated using the equation: d = m/V, where m = weight of the board, and V = volume of the board. In order to achieve smooth and uniform dimensions appropriate for further evaluation (microstructure study), the measurement took place after cutting the final materials using a band saw. The thermal conductivity of foam boards was also estimated using a Netzsch HFM 436/3 Lamda heat flow meter. Compressive strength measurements of the geopolymer foams were also performed on specimens cut at 4 cm width and at a thickness of between 0.8–3 cm (Instron 4482; in accordance with the standard C 109/C 109M–02). Finally, the microstructure study of the porous materials performed using a scanning electron microscope-JEOL6380LV.

2.3.2. Image processing methodsTOP

Image processing techniques were used to characterize the voids size and distribution as a function of peroxide concentration. The digital images were acquired from the saw–cut flat surfaces of the geopolymer boards, using a commercial scanner at high resolution. A new circle detection software algorithm was developed to analyze each void to its constituent circular bubbles. This void detection algorithm was highly optimized to minimize the irregularities of the void boundaries. In fact, it is partly based on known methodologies in the literature, such as the well-known Circle Hough Transform (20–22) but solves inconsistencies of existing circle-detection algorithms (23–27).

According to the above mentioned method, flat polished surfaces of all samples were colored by masking only the voids boundaries. These surfaces were then scanned with a nominal resolution of 600 × 600 dpi (dots per inch) using a commercially available scanner (pixel size was about 40 μm²). Digital image processing was then used to segment the red-hued flat surface of the sample from its voids.

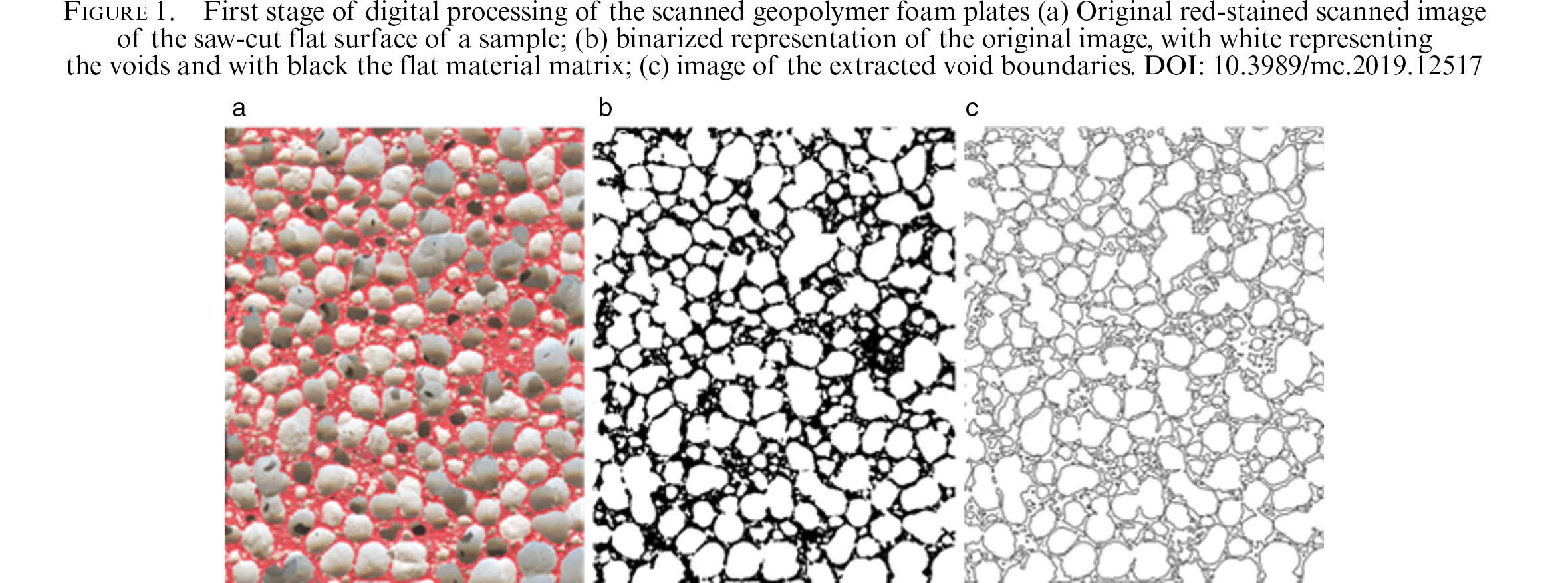

Briefly, the void detection was performed in two processing stages. In the first stage, the k-means clustering method (28) and the Euclidean distance between pixels were used to separate red-hued void boundaries from the grey void volumes (Figure 1a), according to their color and/or brightness which were calculated in the “CIE L * a * b *” color space (often mentioned as “Lab”). Images were then converted to binary format (Figure 1b) and the void boundaries were extracted (Figure 1c).

The second processing stage was the new circle-detection algorithm, which uses the void boundary image (Figure 1c) to effectively and quickly extract the size and the number of voids of a time snapshot of the solidified sample. These are extrapolated to the total porosity of the sample of this snapshot, however in two dimensions. Although the algorithm will be presented in detail in a future publication, here, the methodology is briefly described. The complicated boundaries of voids (i.e., often merged circular bubbles) are composed of arcs. The algorithm detects these arcs as part of a circle’s circumference, i.e., those that are edges of a void and belong to a circle that is a single circular bubble. The detection algorithm is based on a distance transform in binary image by calculating the Euclidean distance, i.e., the distance between every white pixel and its nearest black pixel (zero value). A “Laplacian of Gaussian” filter is applied on the distance transform image with an optimum size window of 5 × 5 pixels and a “sigma” (standard deviation) value of 0.5, appropriate for the scale and resolution of images, which serves as an edge detection technique to enhance the distance transform image. Maxima suppression filter is then applied on the convolved image and local maxima are detected and stored as candidate points of circle centers. To increase the detection accuracy, an additional filter that selects points belonging to a circle and points to reject as possible noise are computed and stored. This is based on the standard deviation of the candidate points that belong to a circle. The resulting array of candidate circles is then searched and overlapping circles are rejected.

The final step of this processing stage comprises a bubble area readjustment, i.e., the recalculation of the areas of the meniscus–shaped merged bubbles to their original area, as if they would be full circles. This recalculation is made with the use of the circle equation. Remaining non–uniform bubble volumes are also included, after they are recalculated by area to represent perfect circles. The resulting list of bubble sizes is finally plotted as histogram plots of bubble area distributions (Figure 6).

3. RESULTS AND DISCUSSIONTOP

3.1. Properties of foamed geopolymers TOP

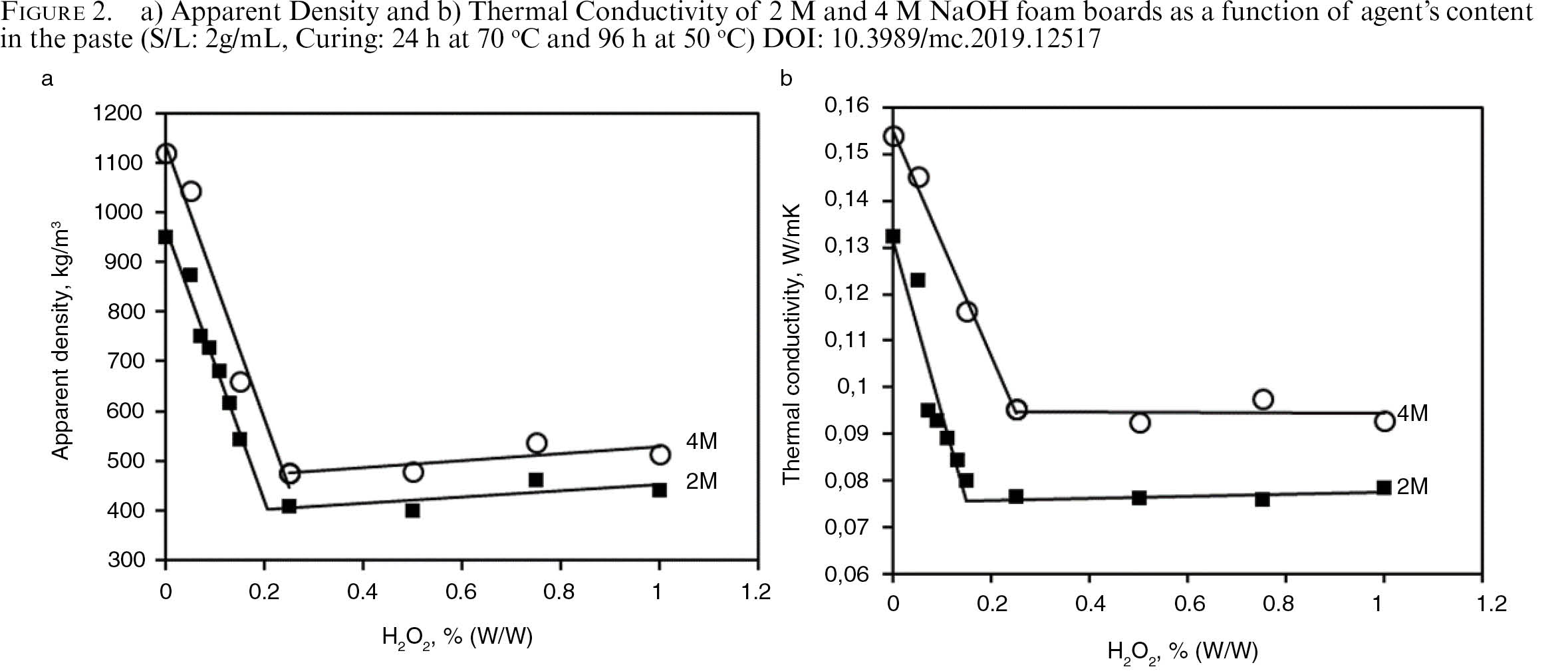

Figure 2 depicts the apparent density (a) and thermal conductivity (b) of the foam boards as a function of the content of the foaming agent (H₂O₂) in the paste for two different sodium hydroxide concentrations (2 and 4 M).

It is observed from Figure 2a that the apparent density decreases substantially as the % H₂O₂ increases up to an optimum value of 0.25%, reaching a value which is slightly higher than 400 kg/m³ and 450 kg/m³ for the 2 M and 4 M of NaOH concentration respectively. Further addition of H₂O₂ seems to have insignificant effect on the board’s apparent density, reaching a plateau in both cases. Concerning the thermal conductivity of the foam boards (Figure 2b), the results reveal a similar trend to the apparent density curve, presenting a rapid decrease on thermal conductivity values at low H₂O₂ contents (0.05 to 0.25%). In the region between 0.25 and 1% H₂O₂ content, thermal conductivity seems to reach a plateau around 0.08 W/mK for 2 M of NaOH concentration and 0.095 W/mK for 4 M.

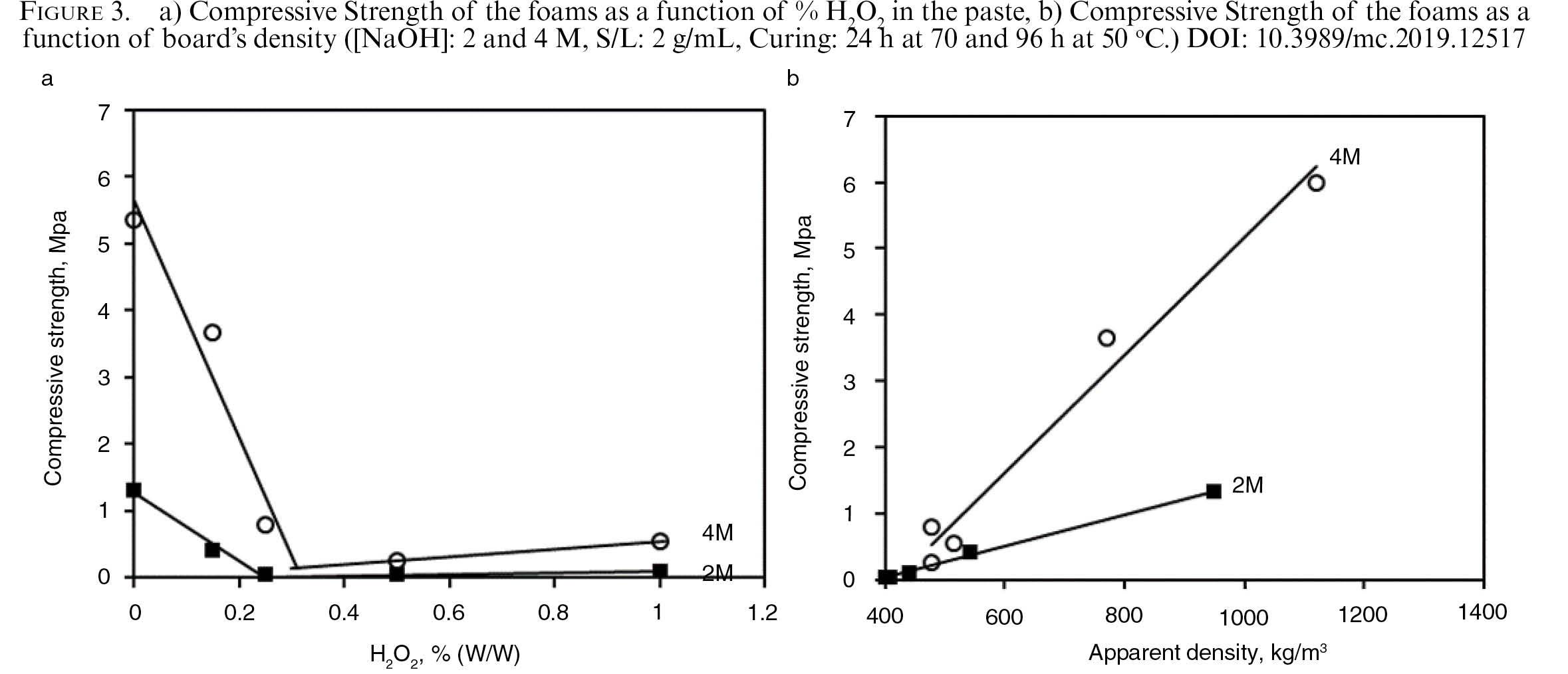

Compressive strength of geopolymer foam specimens (2 and 4 M of NaOH concentration) in relation to the initial hydrogen peroxide’s concentration, is presented in Figure 3a.

Figure 3a reveals that the increase of hydrogen peroxide’s content up to 0.25%, results in specimens with decreased mechanical strengths for both foam boards with 2 and 4 M of NaOH concentrations. Further addition of the foaming agent leads to a plateau on the compressive strength values of the foam boards. The same behavior concerning the optimum value of 0.25% H₂O₂, is also observed in the apparent density and thermal conductivity values (Figure 2 a and b). The foam boards with 4 M of NaOH concentration present higher compressive strength values compared to the boards with 2 M NaOH, while at the same time their apparent density and thermal conductivity values are also higher, as indicated by Figure 2. The correlation between the mechanical properties and the apparent density of the boards is also presented in Figure 3b, showing that the compressive strength increases for higher apparent density values.

The results of Figure 3a are in accordance with Nambiar and Ramamurthy study (29) where is reported that the addition of high volume of foam, produces materials with decreased density and thus, lower the mechanical strength. Similar behavior concerning the mechanical properties of the materials in function of the concentration of the foaming agent, is also noted in case of fly ash geopolymers and geopolymer foam concrete, as indicated by the studies of Soutsos (30) and Zhang (31) respectively. The results of Figure 3b are also confirmed by scientific studies in the literature (32–36) in case of pozzolanic raw materials with different type of foaming agents (aluminium powder, hydrogen peroxide, palm oil) where is reported that the compressive strength of the foam boards increases for rising density values, due to the decrease of overall porosity as it will be confirmed by the following microstructure study.

3.2. Microstructure and porosity of foamed geopolymers TOP

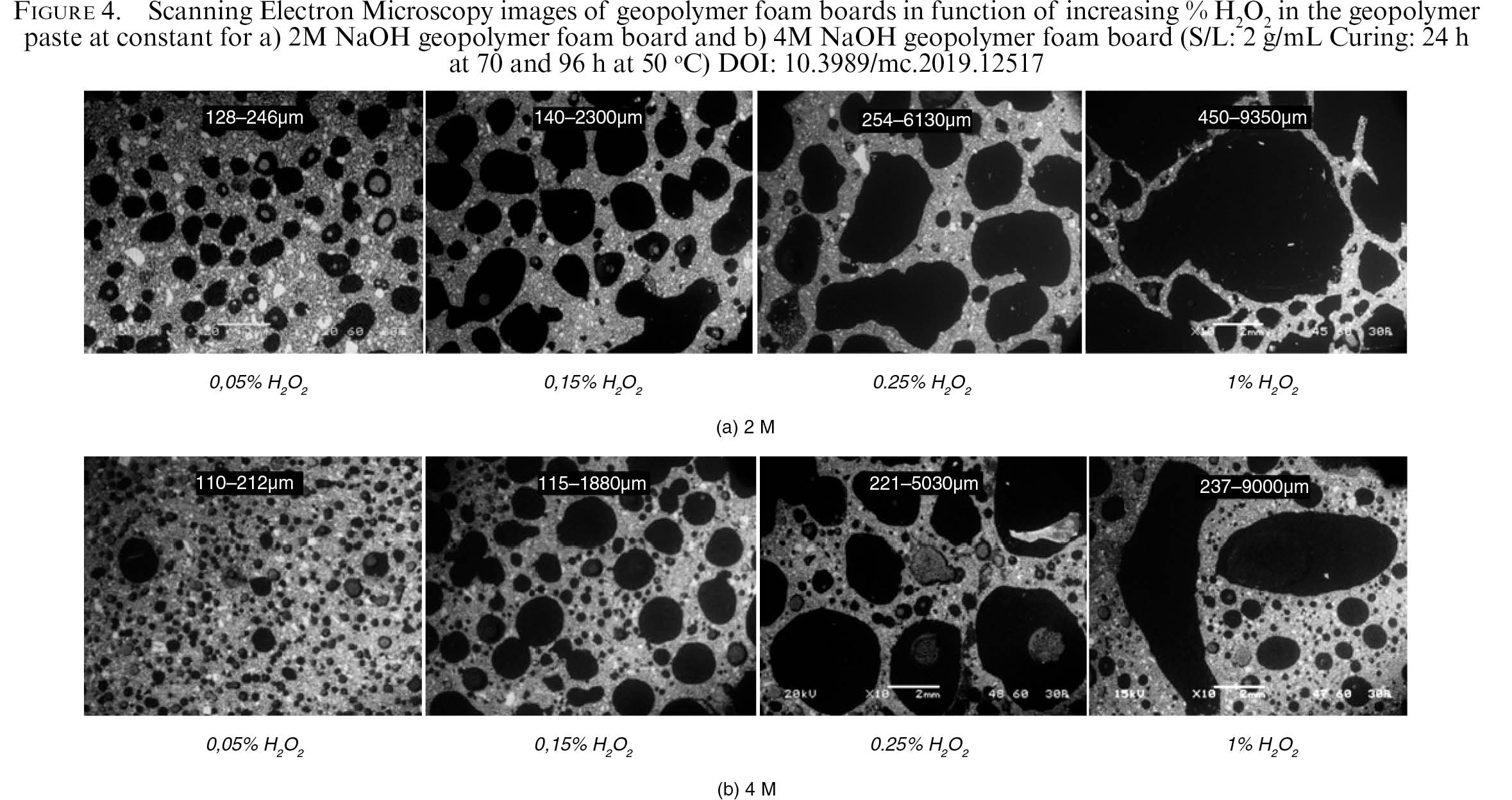

The above mentioned difference on the properties of 2 and 4 M NaOH foam boards can be explained by their microstructure study in function of increasing % H₂O₂. The results are presented in Figure 4.

The increase of the % H₂O₂ up to the optimum value of 0.25%, increases the size of cells (Figure 4 a, b) and makes their walls thinner, especially for the case of 2 M of NaOH concentration. Further increase of % H₂O₂ leads to the perforation of the very thin cell walls causing coalescence of the neighboring cells and collapse of the foamed structure, which has as a consequence the degradation of the board and therefore the slight increase of the apparent density (Figure 3a). The pore sizes in case of foam boards with 4 M of NaOH concentration range at a lower value compared to 2 M NaOH, resulting in less thin walls (Figure 3b) and thus explaining the higher apparent density and thermal conductivity values followed by improved mechanical properties of these specimens.

The fact that the increase of foaming agent results in materials with lower apparent density values and bigger pore sizes (microstructure study) is also confirmed by Vaou et.al and Tsaousi et.al studies (37, 38) focused on the development of geopolymer foams using different origin’s perlite wastes and H₂O₂ as a foaming agent. At the same time, Masi et.al and Ducman et.al (17, 32) confirm the above observations, using fly ash as raw material and hydrogen peroxide, aluminium powder and surfactants as foaming agents.

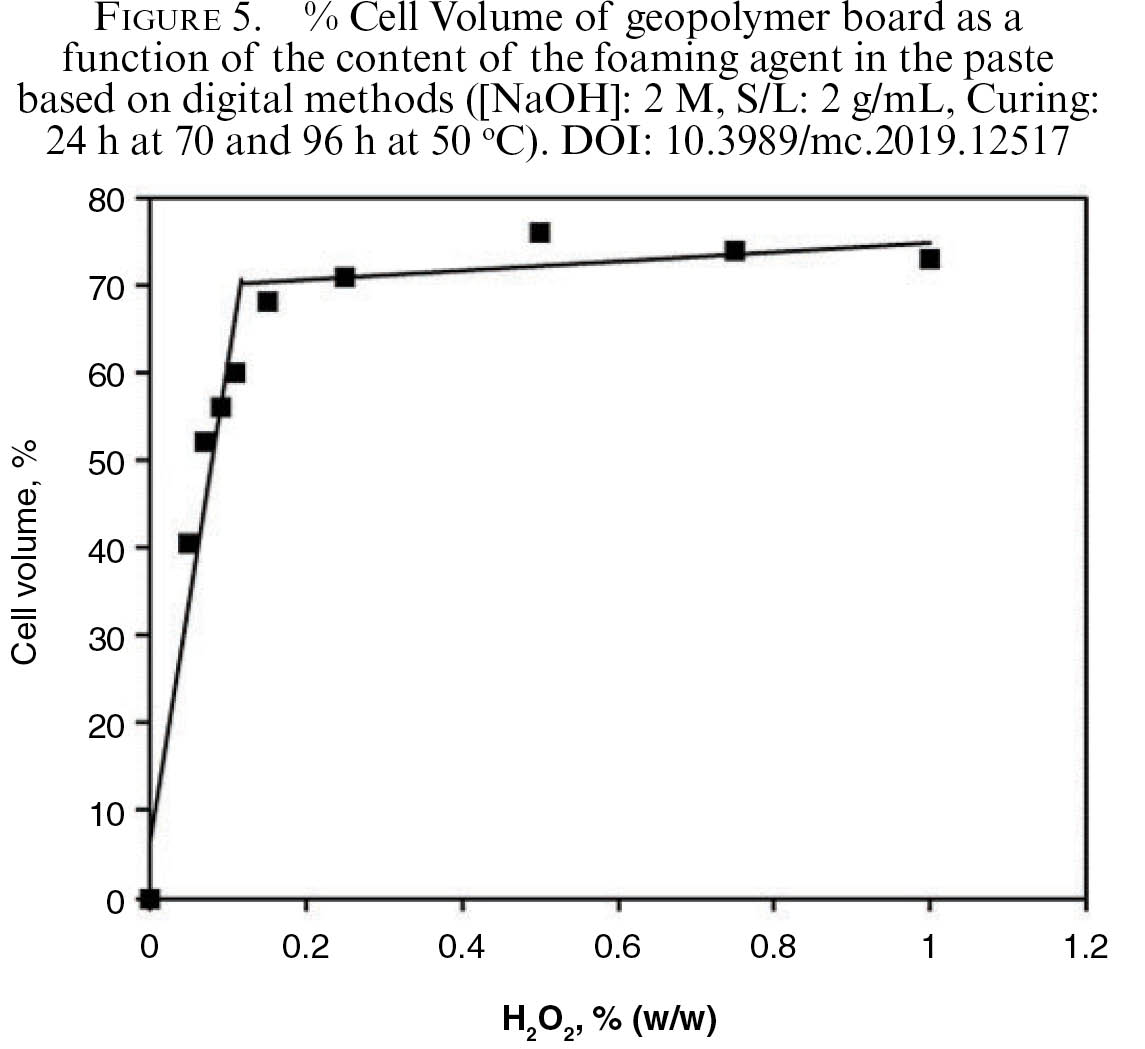

Digital imaging methods were applied for the estimation of the final porosity of the boards, calculated from the scanned images as a ratio of the cumulative area of the detected voids to the total area of the image. The lower concentration of activator (2 M NaOH) was selected for digital segmentation of the voids, while the solid to liquid ratio was kept constant at 2 g/mL and the added % H₂O₂ varied from 0.05–1%. In Figure 5 the % cell volume of the final boards is plotted as a function of H₂O₂ content through a plot diagram of the above digital imaging methods results, demonstrating the relation between the amount of H₂O₂ and the area of porosity, normalized with the total area of the image. Fitting curves have been plotted by using a non–linear regression model for both sets of data. To evaluate the integrity of the digital voids detection, the scanned image of each board was divided into four sub–blocks and ratios were calculated for each sub-block.

The results reveal that the increase of H₂O₂ causes a rapid increase on the % Cell Volume of the geopolymer foams, with a peak point of 72 at 0.25% of H₂O₂, while between 0.25–1% of the agent, a plateau of values is formatted confirming that higher addition of H₂O₂ does not affect the porosity of the final product.

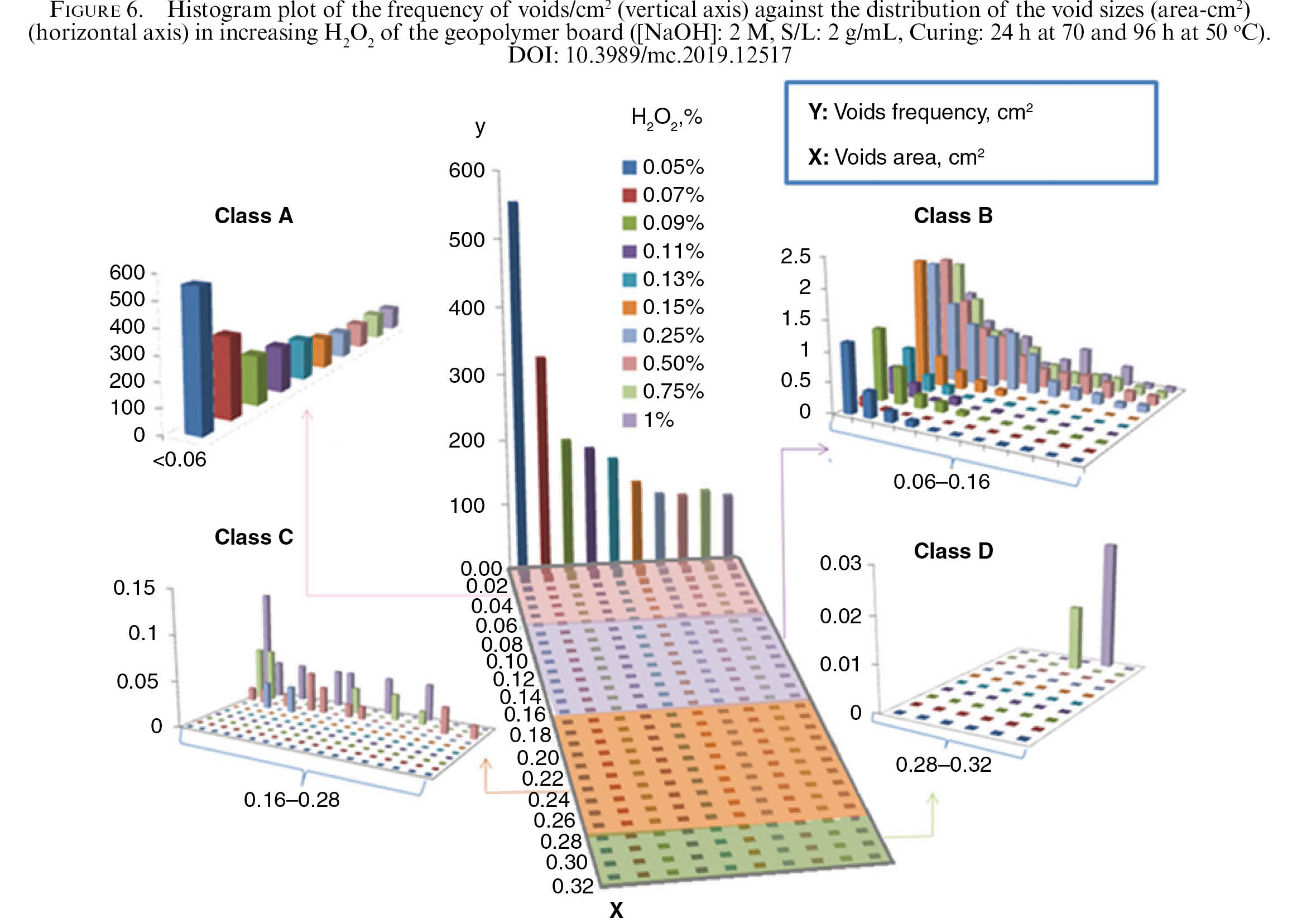

Voids segmentation measurements of the full polished area of each board have been made and the results were summarized in a histogram. The two horizontal axes contain classes of void sizes as a function of increasing H₂O₂ content. These classes are normalized according to the total area of each sample. Vertical axis represents the frequency of each class in values of measured total area in cm² of the detected voids. Data were divided in fifty classes and the most representative of them were selected to form the histogram which is given in Figure 6.

To enable visibility of low frequency values, the vertical axis of the histogram is presented after appropriate magnification for each class, which is needed in case of large size vesicles. As a general trend, samples with low concentration of H₂O₂ (0.05–0.25%) exhibit a large number of independent, small voids (Class A). Further addition of the foaming agent (0.25–1%) results to the formation of medium (Class B, C) and large bubbles (Class D). In this experimental series, the maximum concentration of H₂O₂ is 1%, which mainly results in voids of large size (Class D). High H₂O₂ concentrations in the geopolymer matrix produce a smaller number of bubbles with larger volumes. This appears to be a result of the merging of many smaller bubbles into less larger ones, easily demonstrated by the SEM (Figure 4) and scanned images (Figure 1) of the final boards. These larger perforated voids which clearly form from more circular voids, can also be detected as circles by the circle detection algorithm that was used in this study.

4. CONCLUSIONSTOP

In this study, hydrogen peroxide (H₂O₂) was selected for the foaming of the geopolymer paste. It was observed that the inorganic boards reached low apparent density values, presenting an optimum value (408 kg/m³ and 476.5 kg/m³) at 0.25% hydrogen peroxide content for 2 M and 4 M of NaOH concentartion respectively. Concerning thermal conductivity, the optimum value is aprox 0.075 W/mK in case of 2 M and 0.09 W/mK in case of 4 M. The compressive strength measurements revealed that geopolymer foams can achieve similar or even better values (3.66 MPa) especially in comparison to the other conventional lightweight materials such as AAC and aerated concrete. The microstructure study of final boards revealed large non-homogeneous voids 128–9350 μm and rough but easy leveled surfaces. Digital methods were used for the estimation of frequency for specific voids sizes per cm² of each sample in function of increasing H₂O₂. Results that were presented in a histogram confirmed that low H₂O₂ produces a high number of independent, small voids, while higher peroxide contents lead to bigger void sizes but less in number. Experimental and digital methods are in accordance with the formation of a plateau when peroxide exceeds the value of 0.25%. In comparison with other lightweight materials, the optimum foam boards from perlite have similar apparent density and better thermal conductivity values than AAC blocks (optimum thermal conductivity 0.12 W/mK for apparent density 450 kg/m³) (39, 40) and in case of foam concrete (optimum thermal conductivity 0.1 W/mK and compressive strength 0.5–1 MPa for apparent density 400 kg/m³) (40) they present higher compressive strength and thermal conductivity values for the same density.
