Impact of twisting high-performance polyethylene fibre bundle reinforcements on the mechanical characteristics of high-strength concrete

Y. Zhang^{a, b}, L. Yan^a, *, S. Wang^a, M. Xu^a

a. College of Basic Education, National University of Defence Technology, (Changsha, China)

b. Centre for Structural Engineering and Informatics, Faculty of Engineering, University of Nottingham, University Park, (Nottingham, UK)

*lhyan555@hotmail.com

1. INTRODUCTIONTOP

Fibre reinforced concrete has widely emerged in civil and defence constructions due to its significantly improved properties, such as high tensile strength, high toughness and excellent durability. The quasi-static and dynamic mechanical properties of the concretes reinforced by a variety of fibres have been investigated extensively (1-11). With the increase of terrorist attacks and regional conflicts, more threats from blast and ballistic impacts may give rise to severe damage to concrete constructions. Hence, it is urgent to develop the concrete reinforced by high-performance fibres that not only possess good quasi-static mechanical properties but also have excellent impact resistance.

Ultra-high molecular weight polyethylene (UHMWPE) is a type of thermoplastic polyolefin and is made of long chains of polyethylene that align in the same orientation. The extremely long molecule chains contribute to the high strength of the UHMWPE. Moreover, UHMWPE is highly resistant to corrosive chemicals and abrasion, and has low moisture absorption. Based on these, UHMWPE fibre is manufactured to be a kind of high-performance flexible fibre with high tensile strength, low density and stable performance. This fibre has the anisotropic property as it is governed by the strong sp3 C-C bond in longitudinal direction while it is governed by the weak van der Waals interaction in the radial direction. The UHMWPE fibre has similar axial tensile strength to carbon fibre, but higher failure strain than carbon fibre (12). The quasi-static and dynamic mechanical properties of UHMWPE fibre and fibre-reinforced epoxy resin composites have been investigated, see (13-17) for details. It is reported that the UHMWPE fibre is low strain-rate dependent (17). Under soft foam impact (simulating blast impact) and ballistic impact, the UHMWPE fibre reinforced composites exhibited better resistance than the carbon fibre reinforced composites and stainless steel panel with the same areal density (12, 18). The UHMWPE fibre composite has been broadly used in vehicle and airplane applications as a lightweight and soft armour system. Hence, the concrete reinforced by the high-performance UHMWPE fibres should have better impact resistance than the concrete reinforced by other synthetics fibres. Some studies performed on the mechanical behaviour as well as explosive resistance of UHMWPE fibre reinforced concrete have demonstrated the advantages of this kind of fibre concrete (19-21).

The mechanical performance of fibre reinforced concrete is not only dependent on the strengths of concrete matrix and fibres, but also the interfacial bonding strength between them. Higher bonding strength can be achieved by optimizing the geometries of fibres. Simoes et al. (3) investigated the effect of steel fibre geometry on the tensile strength of the concrete. They pointed out that the concrete reinforced by 2D hooked shaped ending fibres had higher tensile strength than that reinforced by 1D straight ending fibres, and the tensile strength of concrete increased with the diameter and length of fibres. Xu et al. (22) reported that the concrete reinforced by 3D spiral steel fibre provided better dynamic resistance and energy absorption capacity than the concrete reinforced by 2D steel fibres (e.g. hooked, flattened and undulated fibres). This is due to the better internal confinement and bonding between spiral fibres and concrete matrix. As the UHMWPE fibres has low coefficient of friction, the bonding strength between unprocessed fibres and concrete matrix is limited. Thus, the UHMWPE fibres with high tensile strength are more likely to fail with pulling out rather than fibre fracture. In addition, this type of flexible fibre is easy to be intertwined, leading to an uneven distribution and significant defect . Li et al. (19) also reported the high volume fraction (2.5%) of the UHMWPE fibre without being processed in that study may lead to the uneven distribution and large cluster of the fibres in concrete.

It has been reported that the fibre reinforced concrete is a typical strain rate sensitivity material (23-25), and the rate sensitivity under dynamic compression were dependent on the shapes of fibres (22). In addition, the dynamic constitutive model of concrete can provide a guidance for structural design. However, the study on the dynamic compressive constitutive model of UHMWPE fibre reinforced concrete has not been reported, which may limits the applications of this high-performance fibre reinforced concrete. Hence, the study on the dynamic compressive response of the concrete reinforced by UHMWPE fibres is also required.

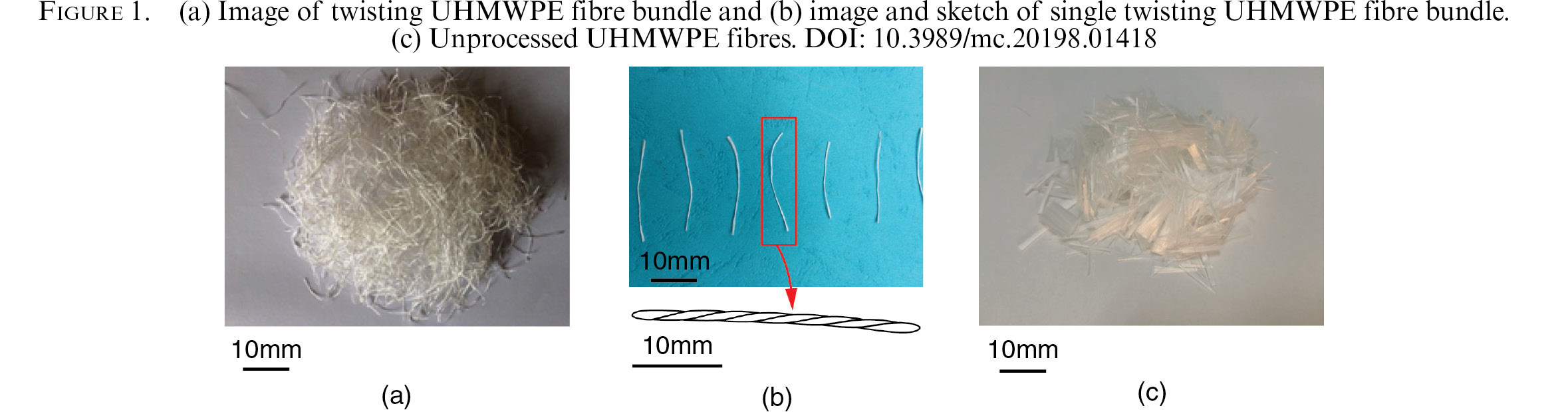

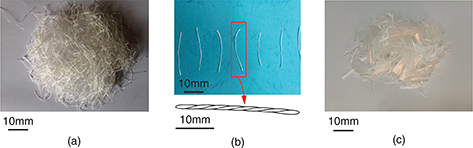

In the present study, we develop the concrete reinforced by the twisting high-performance UHMWPE fibres with improved geometry. This kind of fibre is expected to be distributed more uniformly in concrete matrix and provide better bonding at fibre/matrix interface, which may further improve the mechanical properties of concrete. We aim to gain insight into the quasi-static and dynamic mechanical behaviours of this fibre reinforced concrete systematically, and compare with the concretes reinforced by unprocessed UHMWPE fibre and the other fibres. The compressive responses and failure mechanisms of the twisting UHMWPE fibre concrete under quasi-static and dynamic loading are investigated to provide a guidance for the application of this fibre reinforced concrete. The preparing procedure for more uniform distribution of fibres and higher bonding strength of fibre/matrix interface has also been optimised. The outline of this paper is as follows. Section 2 presents the materials and preparation process for achieving excellent workability of the UHMWPE fibre reinforced concrete. The protocols for quasi-static splitting tension and compression tests as well as the dynamic compression tests through the SHPB setup have been explained in Section 3. In Section 4, the experimental results are discussed.

2. MATERIALS AND PREPARATIONTOP

2.1. Materials and mix proportionTOP

In the present study, the Portland cement of specific surface area 4120 cm²/g was employed. Gravel with consistent grading size of 5-10 mm and fineness modulus of 6.5 was used as the coarse aggregate, and the river sand with density of 2.68 g/cm³, grading size of 0.6-2.0 mm and fineness modulus of 2.5 was used as the fine aggregate. The silica fume of diameter 0.1-0.3 μm and specific surface area 300000 cm²/g had 98% percent of SiO₂. In order to achieve expected workability of the fibre reinforced concrete, the naphthalene based superplasticizer was mixed in the concrete. The ZTX99-400D type twisting UHMWPE fibre bundles were used as the reinforcements of concrete. The image of twisting fibre bundles is shown in Figure 1 (a), and the image as well as sketch of the single fibre bundle are shown in Figure 1 (b). The image of unprocessed UHMWPE fibres for reinforcing concrete (26) is also shown to characterise the difference of fibre geometries, see Figure 1 (c). Each twisting fibre bundle consisted of 400 single fibres which were twisted together. The twisting treatment contributed to a large diameter and a rough surface that increases the friction between fibres and concrete matrix. Moreover, the fibre bundle is more likely to be distributed uniformly in concrete without cluster than the single monofilament. The physical and mechanical properties of the UHMWPE fibre are summarized in Table 1.

UHMWPE fibre reinforced concretes with four different fibre volume fractions (FVF) of 0.3%, 0.5%, 0.7%, 1.0%, designated as U3, U5, U7, U10 for quasi-static tests and HU3, HU5, HU7, HU10 for dynamic compression tests, respectively, have been manufactured. The corresponding plain concrete specimens for quasi-static and dynamic tests designated as U0 and HU0 was prepared to compare with the fibre reinforced concretes. For the five types of fibre reinforced concretes, the mix proportions of cement, gravel, sand, silica fume, superplasticizer and water in concretes were all 547, 936, 615, 57.5, 12 and 185 kg/m³, respectively, as shown in Table 2. The proportions of the UHMWPE fibre mixed in the concrete are indicated in Table 3.

2.2. Preparation of concrete specimensTOP

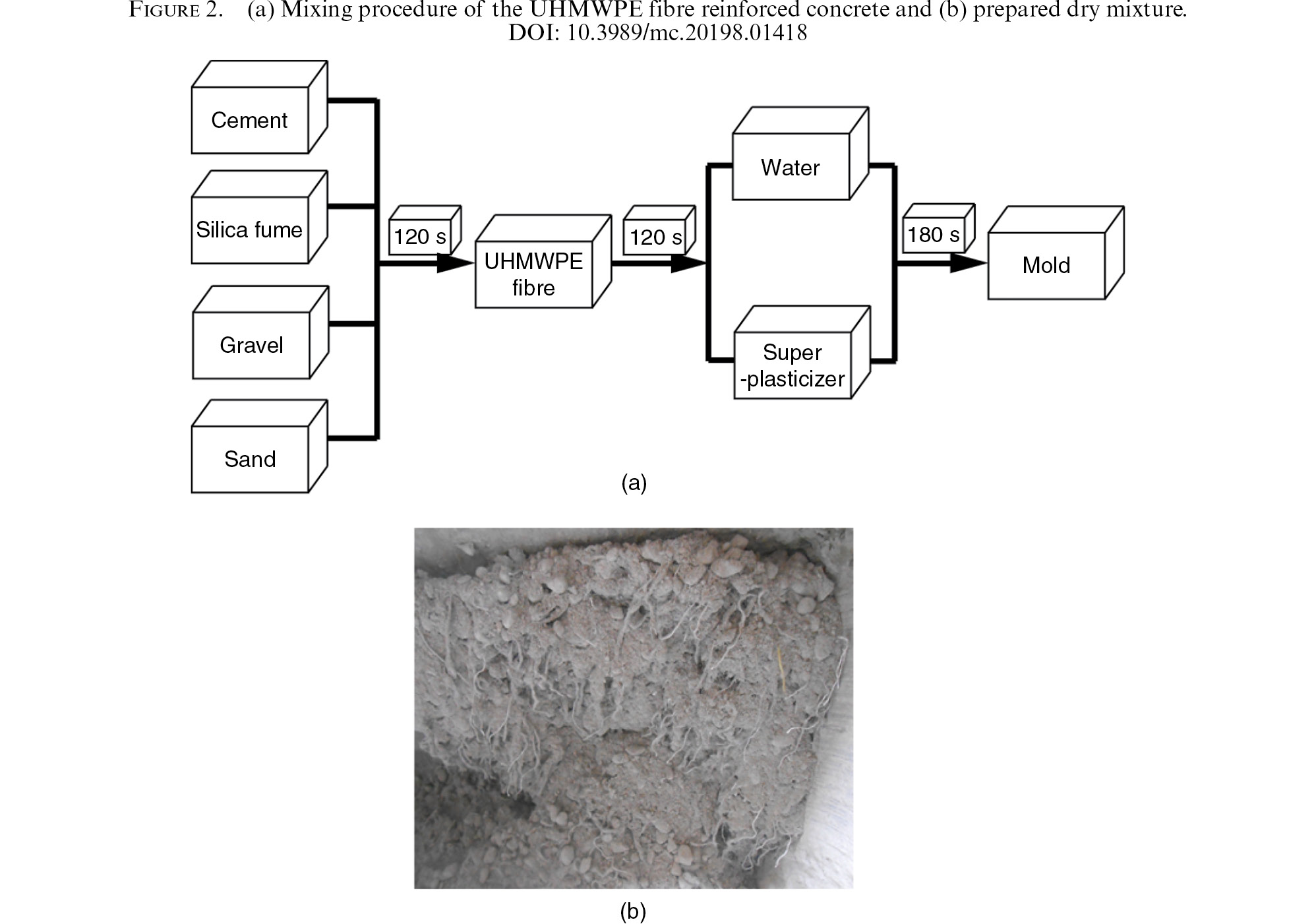

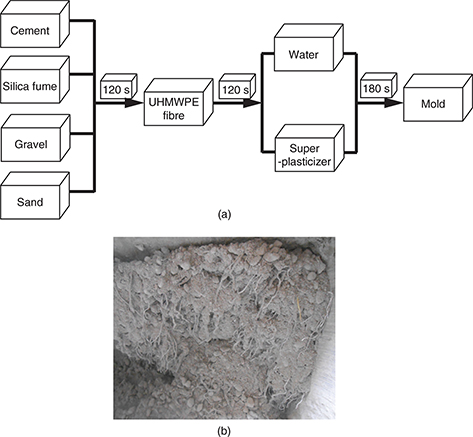

It is suggested that the dry fine particles should be added before adding water and superplasticizer (27, 28). It is due to the fact that the fine particles are easier to separate aggregates when the particles are dry. Figure 2 (a) illustrates an improved mixing methodology of the UHMWPE fibre concrete. This procedure can follow the three steps. First, cement, silica fume, gravel and sand were mixed together for 120 s with a vertical axis laboratory concrete mixer. Then, the twisting UHMWPE fibre bundles were added gradually to avoid the formation of chunks and mixed for additional 120 s. Finally, the mixed water and superplasticizer were added and kept mixing for 180 s. The dry mixture has been shown in Figure 2 (b). The improved mixing methodology was based on a previous mixing methodology for preparing the UHMWPE fibre reinforced concrete (29). For the previous mixing methodology, the mixing time at each step was only 30 s which was too short to guarantee the good dispersion of fibres and hydration of cement. However, the improved mixing methodology solved the problem, and the fibre bundles distributed uniformly and no cluster occurred in concrete matrix. The slumps of concrete with different fibre volume fraction were measured according to the standard GB/T 50080-2002. The slumps of the fresh concretes were measured with a truncated-cone shaped mold of height 300 mm, base diameter 100 mm and top diameter 200 mm. The measured slump values are shown in Table 3. It indicated that the workability decreased with the increase of the UHMWPE fibre volume fraction. This is due to the fact that each twisting fibre bundle had space between single fibres and therefore locked a part of cement mortar from the matrix. The uniformly distributed UHMWPE fibres can be observed in the fresh concretes. Six cubic specimens of dimension 150 × 150 × 150 mm³, three prismatic specimens of dimension 300 × 150 × 150 mm³, and fifteen cylindrical specimens of diameter 92 mm and height 46 mm were moulded for each mixture. The volume of mixture per batch was 0.026 m³ that could manufacture six cubic specimens and around ten cylindrical specimens. The specimens were demoulded after 24 h casting and cured in a moist chamber at a temperature of 20 ± 2 °C and 95% relative humidity until the age of testing. The cured cylindrical specimens were grinded to obtain flat surfaces.

3. EXPERIMENTAL PROTOCOLS FOR UHMWPE FIBRE REINFORCED CONCRETETOP

In order to characterise the mechanical behaviour of the fibre reinforced concretes, a serious of experimental measurements were performed. The design for quasi-static and dynamic testing has been summarized in Table 4.

3.1. Quasi-static splitting tension and compression testingTOP

The splitting tensile strength and cubic uniaxial compressive strength were measured using 150 × 150 × 150 mm³ cubic specimens, both based on the methods described by standards GB/T 50081-2002. The compression test on 300 × 150 × 150 mm³ prismatic specimens was carried out in accordance with the standard GB/T 50081-2002 for measuring the prismatic uniaxial compressive strength, elastic modulus, poisson’s ratio as well as the compressive toughness index. All the tests were conducted using an Instron 1346 testing machine at a constant loading rate of 1.0 mm/min. A linear variable differential transformer (LVDT) displacement transducer was used to measure the corresponding compressive strain of specimens. The LVDT had a displacement range of 51 mm and sensitivity 0.75 mV/mm. In order to examine the poisson’s ratio of the fibre reinforced concretes, two strain gauges of gauge length 5 cm and gauge factor 2.1 were attached centrally on the surface of the prismatic specimen, along and perpendicular to the loading direction, respectively. The strain gauges were connected to a DH3817 strain measurement system. The test on specimen for each mixture had four repeats. For the cylindrical specimens, the quasi-static compression test was conducted based on the ASTM C39 standards with loading rate 1.0 mm/min.

3.2. Dynamic compression testingTOP

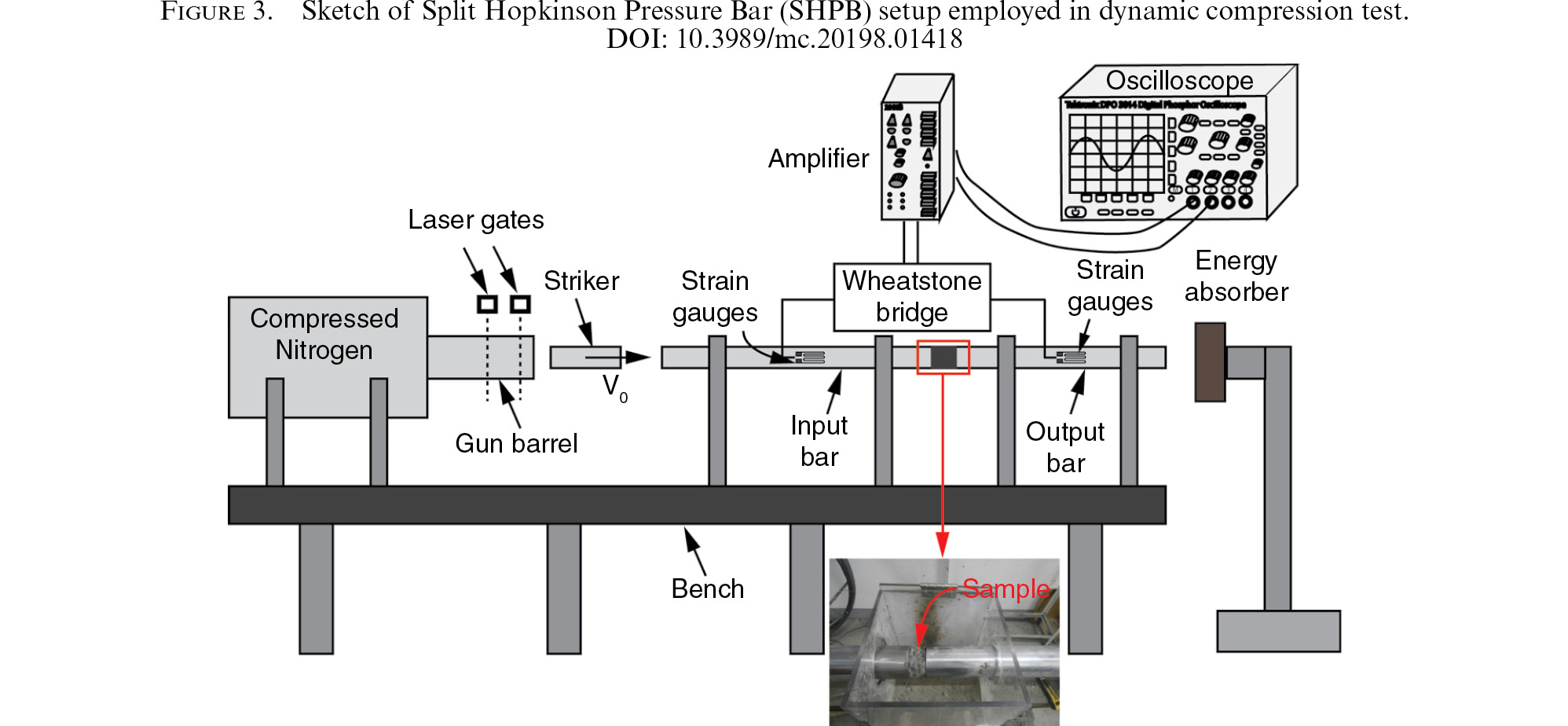

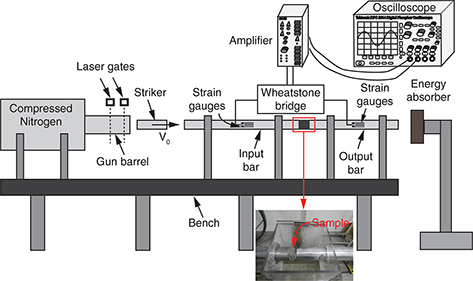

The dynamic compressive response of the UHMWPE fibre reinforced concrete was measured via the Split Hopkinson Pressure Bar (SHPB) setup (30), as shown in Figure 3. The photograph of setup and specimen at contact zone is also shown in this figure for clarity. As stated in Table 4, the cylindrical specimen for dynamic compression had height of 46 mm and diameter of 92 mm. The concrete specimen was positioned between the input bar and output bar, and protected by a polycarbonate box of dimension 300 × 300 × 200 mm³ in case flying out of the fragments. The striker, input bar and output bar were all made from maraging steel of elastic modulus 210 GPa and yield strength 1900 MPa, and had an identical diameter of 100 mm, but lengths of 1.5 m, 6.0 m and 4.0 m, respectively. As the concrete material is not homogeneous due to the coarse aggregate with large diameter and irregular shape, the bars and specimens of large diameters was employed in the present study to reduce effect of coarse aggregate and the discrete of experimental data. In order to eliminate the axial inertia effect during test, the ratio of height to diameter of the specimen was designed to be 0.5. The output bar was resisted at the distal end by an energy absorber. Both the input bar and output bar had two diametrically opposite 120 Ω TML foil strain gauges of gauge length 2 mm in a half-Wheatstone bridge, located at the centre points of the two bars. The stress history was recorded by an oscilloscope as the voltage from the strain gauges changed. Pressurised nitrogen was employed to propel the striker to the velocities in the range of 5 ≤ v₀ ≤ 20 ms^-1. The initial velocity of striker was measured by two laser gates located at the muzzle of the gun barrel. The Photron FASTCAM SA5 high speed camera was used to measure the deformation process of UHMWPE fibre reinforced concrete under dynamic compression, and also confirm the striker velocity measured by laser gates. The frame rate and exposure time were typically 30,000 fps and 8 μs, respectively.

4. RESULTS AND DISCUSSIONTOP

4.1. Quasi-static uniaxial tension and compressionTOP

4.1.1. Damage modes and failure mechanismsTOP

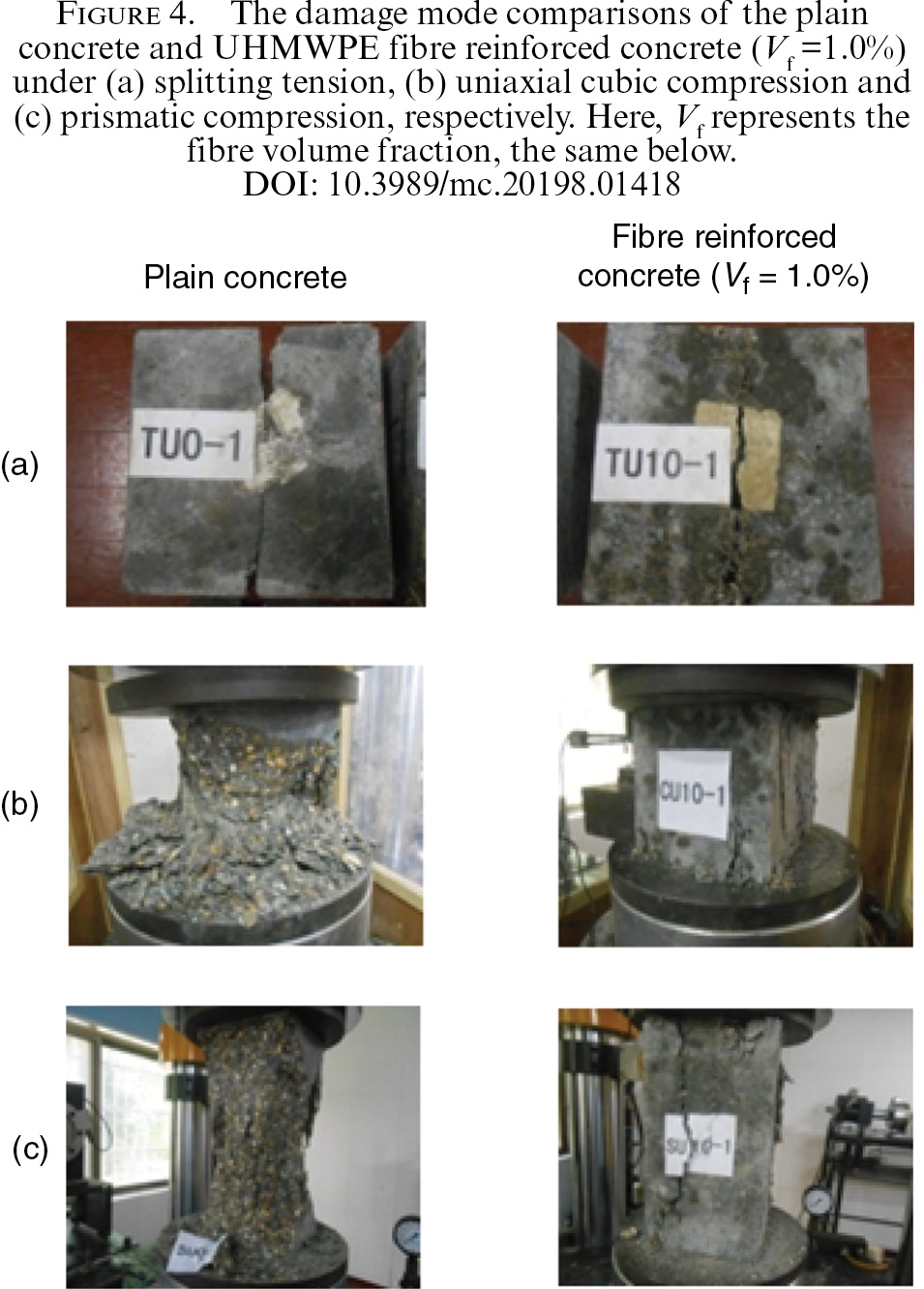

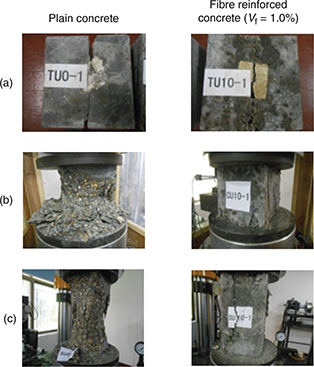

The comparison of damage modes between the plain concrete and fibre reinforced concrete of FVF 1.0% under splitting tension, cubic compression and prismatic compression has been shown in Figure 4. Apparently, the damage modes of the twisting UHMWPE fibre reinforced concrete were different from those of plain concrete whether in splitting tension test or compression test.

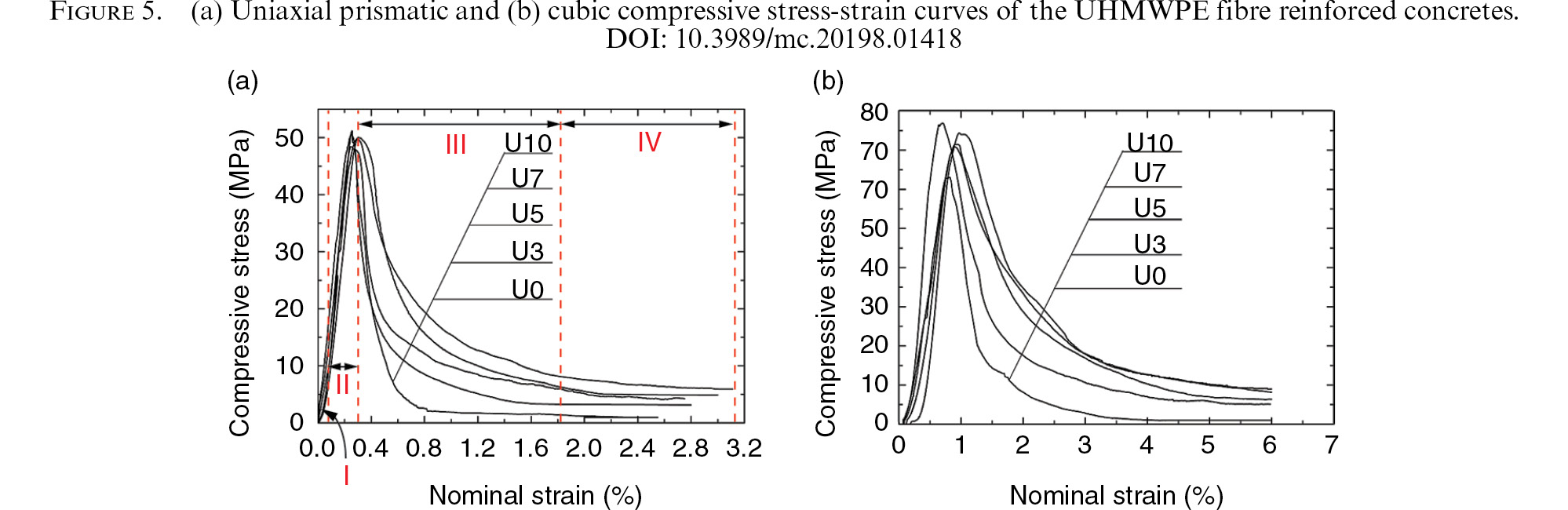

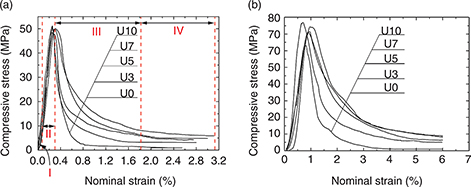

The prismatic compressive stress-strain relations of the plain concrete as well as UHMWPE fibre reinforced concretes are shown in Figure 5. To illustrate the failure mechanism of the fibre reinforced concrete, the compressive stress-strain relation of fibre reinforced concrete can be divided into four stages, and the representative deformation of the specimen of FVF 0.3% at each stage is shown in Figs. 6 (a)-(d), respectively.

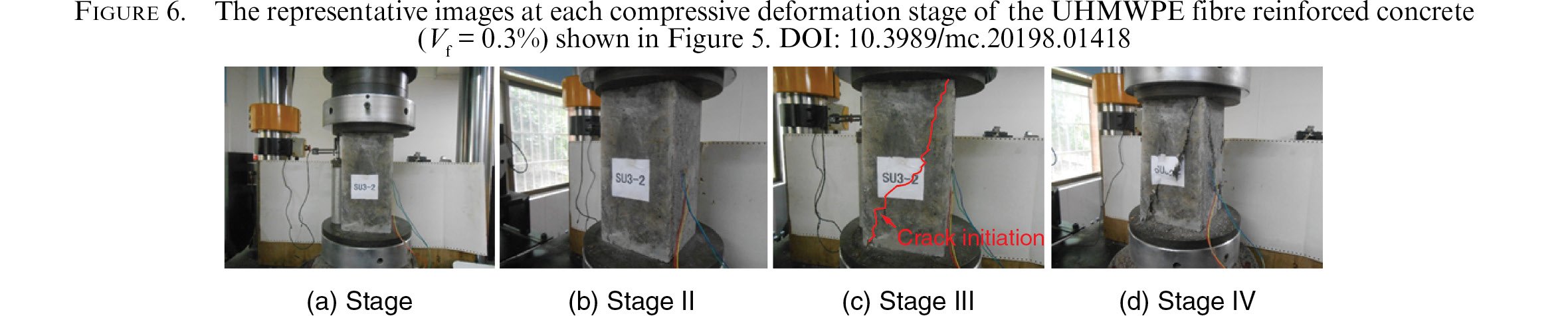

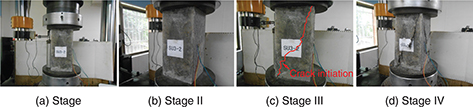

(1) Stage I: Compacting (Figure 6 (a)). In the initial compression stage, the closure of pores and gaps in the concrete resulted in more dense interaction between fibre reinforcements and the concrete matrix. The specimen had a small deformation and there is no observable damage at this stage.

(2) Stage II: Micro-crack propagation (Figure 6 (b)). The micro-cracks began to develop at the weak locations in the concrete specimen when the loading exceeded the cohesive force between the concrete compositions. As the cracks were tiny, UHMWPE fibres didn’t play a significant role in resisting the crack growth at this stage. This stage was linear elastic, and the micro-cracks had a negligible effect on the compressive stress-strain relation.

(3) Stage III: Long crack growth and through (Figure 6 (c)). The cracks developed to be longer and wider with the increase of the deformation of specimen. However, the bridging and cohesion between fibres and concrete matrix contributed to the transformation and redistribution of the stress in specimen. The cracks promoted the development of the cracking surfaces which resulted in the further sharp decrease of the compressive stress.

(4) Stage IV: Residual strength (Figure 6 (d)). The horizontal expansion of the specimen indicated the excellent ductile behaviour of the UHMWPE fibre reinforced concrete. The fibre reinforced concrete still keeping a better integrity and possessing higher residual compressive strength than the plain concrete.

The compressive response of the twisting UHMWPE fibre reinforced cubic concrete specimen is shown in Figure 5 (b) to compare with that of prismatic concrete specimen. It indicated that the cubic specimens had higher compressive strength and failure strain than prismatic specimens. This is due to the more significant lateral constraint of cubic concrete specimen whose height is less than the prismatic specimen. The constraint enhanced the compressive strength and delayed the failure of concrete specimen.

4.1.2. Splitting tensile strength and uniaxial compressive strengthTOP

The average splitting tensile strength σ_t, cubic compressive strength σ_c, prismatic compressive strength , residual compressive strength and the corresponding standard deviation of the UHMWPE fibre reinforced concrete have been presented in Table 5. The ratios of the peak splitting tensile strength, cubic compressive strength and prismatic compressive strength of the fibre reinforced concrete specimens with varied FVFs to those of the corresponding plain concrete specimens are given in Figure 7. The prediction represents the fitting of experimental measurements.

Table 5. Quasi-static tensile and compressive strengths of the UHMWPE fibre reinforced concretes

Index	σt (MPa)	Standard deviation (MPa)	σ c (MPa)	Standard deviation (MPa)	(MPa)	Standard deviation (MPa)	(MPa)	Standard deviation (MPa)
U0	3.55	0.28	68.0	4.21	53.2	3.20	0.94	0.059
U3	5.23	0.37	78.0	5.73	52.9	2.97	3.10	0.024
U5	5.44	0.40	72.9	4.88	47.3	3.30	4.23	0.016
U7	5.58	0.33	72.7	4.16	49.2	2.79	4.86	0.032
U10	6.34	0.42	75.1	5.16	50.7	2.88	5.90	0.035

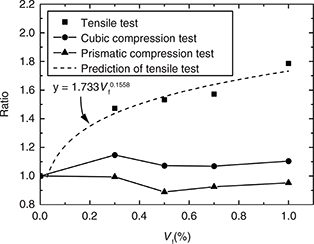

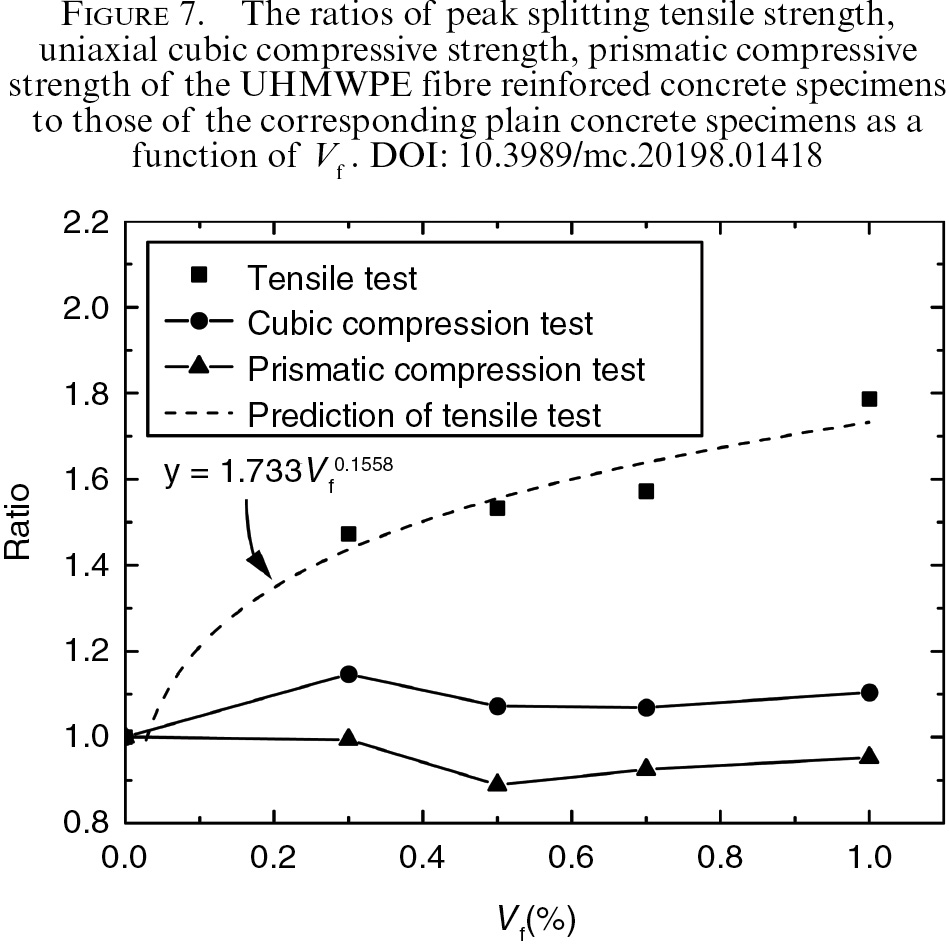

Compared to the plain concrete, the splitting tensile strengths of the fibre reinforced concretes had a significant improvement with the increase of FVF. The ratio was 1.47 at low fibre volume fraction, i.e. 0.3%, and the ratio reached to 1.79 at higher fibre volume fraction of 1.0%. The enhancement resulted from the excellent bonding strength between the UHMMWPE fibre bundles and concrete matrix, which delayed the formation of cracks in specimens, and higher fibre volume fraction contributes to higher bonding strength.

The cubic and prismatic compressive strengths of the fibre reinforced concretes in Table 5 are approximately 70 MPa and 50 MPa, respectively. The UHMWPE fibre reinforcement didn’t enhance the peak compressive strength of concrete significantly, and even slightly decreased the strength of the specimens under prismatic compression. For the four fibre volume fractions varied from 0.3% to 1.0%, the concrete of FVF 0.3% obtained the highest compressive strength, whereas the concrete of FVF 0.5% had lowest compressive strength, the strength increased slightly at higher FVF until the FVF of 1.0%. The results can be explained by following analysis. The UHMWPE fibre reinforcement filled the pores in the concrete at low FVF of 0.3% and enhanced the compressive strength of the specimen. The extra fibre leaded to conglobation at higher FVF of 0.5%, this can be regarded as flaws which decreased the compressive strength of the concrete. Though the flaws were introduced with the increase of the fibre volume fraction (FVF >0.5%), the more addition of UHMWPE fibres of high tensile strength and high modulus resisted the failure of cracking surface and improved the compressive strength of the concrete specimen slightly.

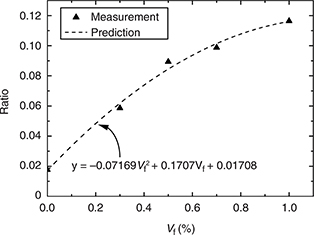

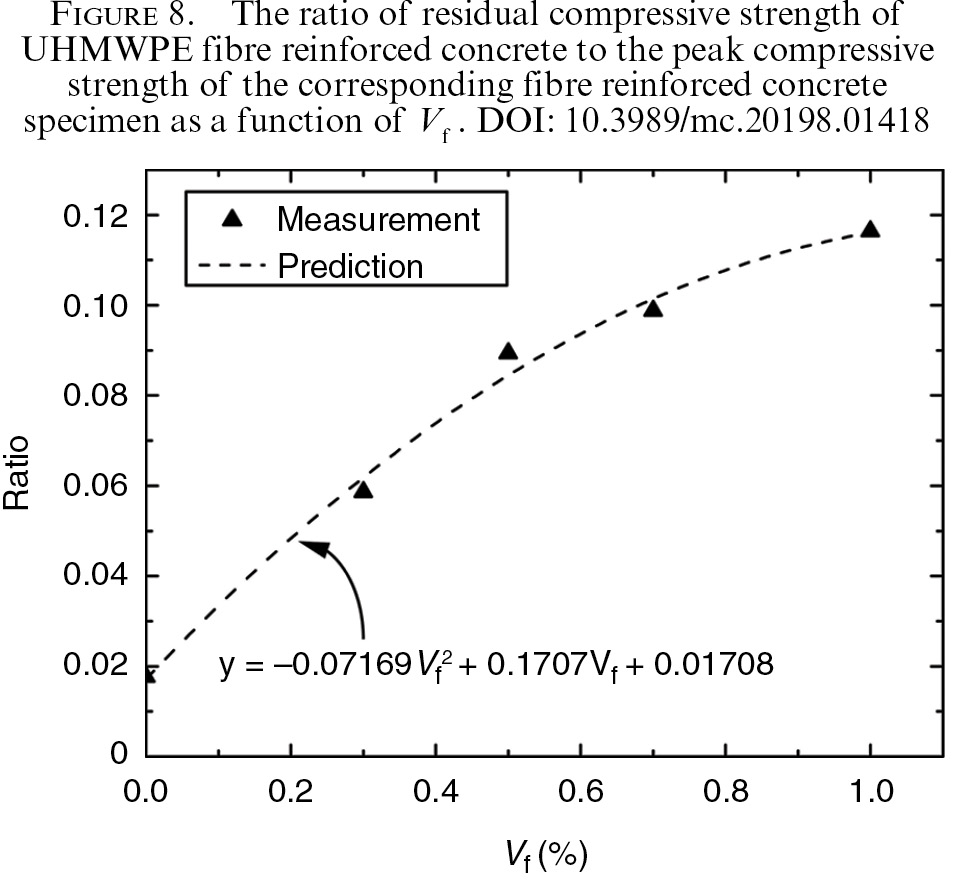

Residual compressive strength is the constant stress of the prismatic concrete specimen at Stage IV that was described in Section 4.1. Figure 8 illustrates the ratio of the residual compressive strength of the fibre reinforced concrete to the peak compressive strength of the corresponding prismatic specimen as a function of FVF. The residual compressive strength increased almost linearly with the increase of FVF. Compared to the plain concrete, the residual compressive strength of the fibre reinforced concrete of FVF 0.3% enhanced 2.3 times and more than 5 times enhancement was achieved when the FVF was 1.0%. Similar to the specimens in splitting tension test, the bonding strength between fibres and concrete matrix played a critical role in improving the post-cracking compressive strength of the concrete.

4.1.3. The effect of FVF on the key properties of UHMWPE fibre reinforced concreteTOP

Table 6 indicates the measured key property parameters obtained from the plain concrete and UHMWPE fibre reinforced concrete. The trends for elastic modulus E_c, poisson’s ratio v and compressive toughness index η_c as a function of FVF have been plotted in Figure 9, Figure 10 and Figure 11, respectively. ε_m is the nominal peak strain regarding to the peak compressive strength of the prismatic concrete specimen.

(1) Elastic modulus

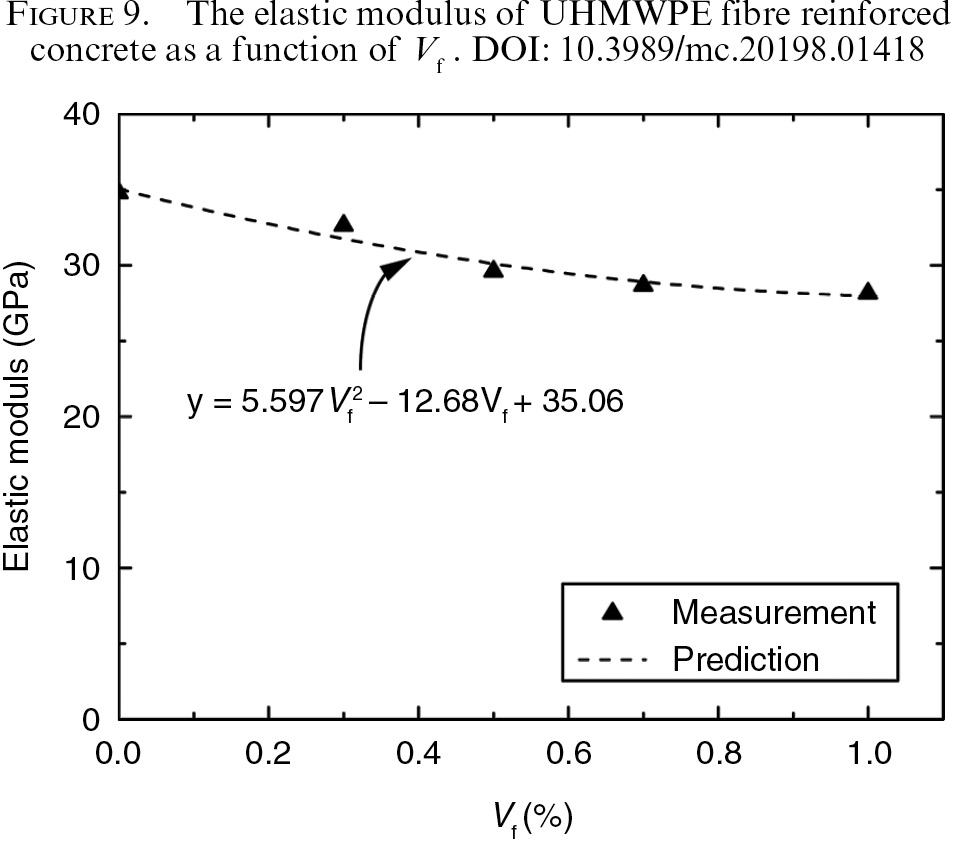

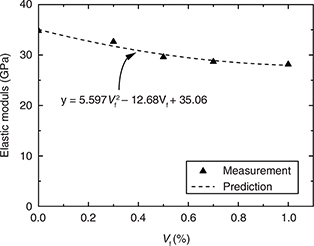

Figure 9 shows the elastic modulus of the fibre reinforced concrete which was determined by the compressive response of the prismatic concrete specimen plotted in Figure 5. The elastic modulus of fibre reinforced concrete was lower than that of the plain concrete and decreased slightly when the FVF increased. This is due to the addition of the UHMWPE fibre reinforcements.

(2) Poisson’s ratio

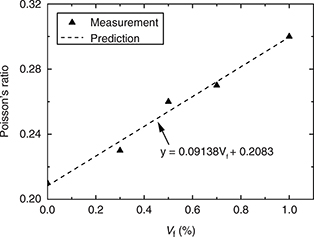

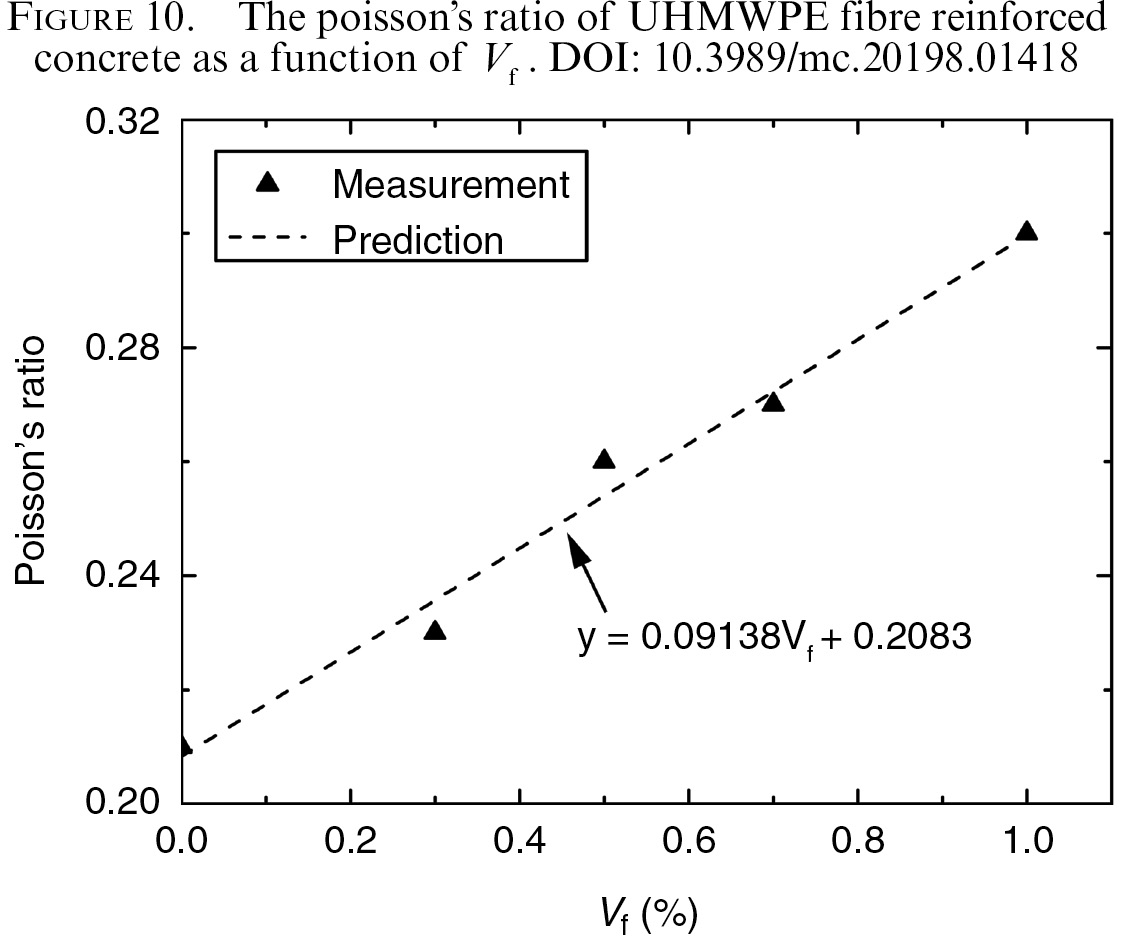

As shown in Figure 10, poisson’s ratio increased linearly with the increase of FVF due to the ductile property of the fibre reinforced concrete. The reason for this result is consistent with the interpretation for the above measurements.

(3) Compressive toughness index

The toughness of the UHMWPE fibre reinforced concrete can be evaluated by compressive toughness index. First define the 0.85 times nominal peak strain ε_m as the critical strain ε_c The compressive toughness index η_c3.0, η_c5.5, η_c15.5 can be defined as follow (31) eq [1].

where S_εc, S_ε3.0, S_ε5.5, S_ε15.5 are the areas surrounded by the compressive stress-strain curves in Figure 5 when the maximum nominal strains are ε_c, 3.0 times ε_c, 5.5 times ε_c and 15.5 times ε_c, respectively.

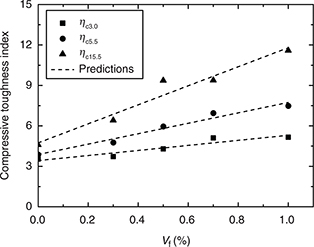

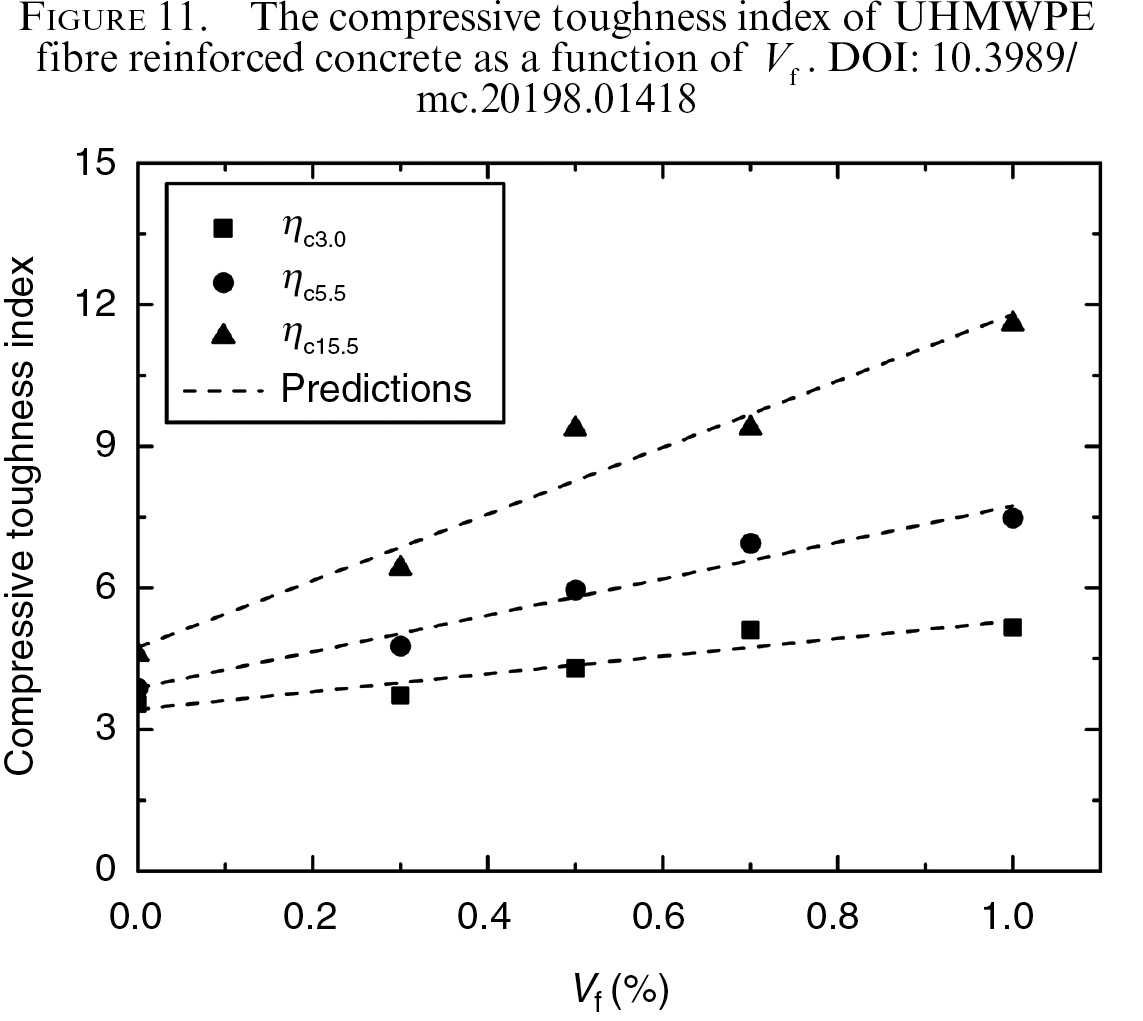

As shown in Figure 11, the compressive toughness index increased linearly with the increase of FVF. The index increased more significantly at larger deformation attributed to the considerable improvement of residual compressive strength of the UHMWPE fibre reinforced concrete. According to the evaluation, the h_c15.5 of the fibre reinforced concrete of FVF 1.0% was 2.53 times that of the plain concrete.

4.2. Comparison between the current study and the concrete reinforced by other fibresTOP

In order to evaluate the advantages of the twisting UHMWPE fibre in reinforcing concrete, the splitting tensile strength as well as uniaxial compressive strength of the twisting fibre concrete were compared with those of the concrete reinforced by other representative flexible fibres including unprocessed UHMWPE fibre (26), polypropylene fibre (32) and basalt fibre (33). For a reasonable comparison, these selected fibre reinforced concretes have similar compressive strengths and the fibre reinforcements have same or similar lengths. The lengths of unprocessed UHMWPE fibre, polypropylene fibre and basalt fibre are 30 mm, 19 mm and 22 mm, respectively.

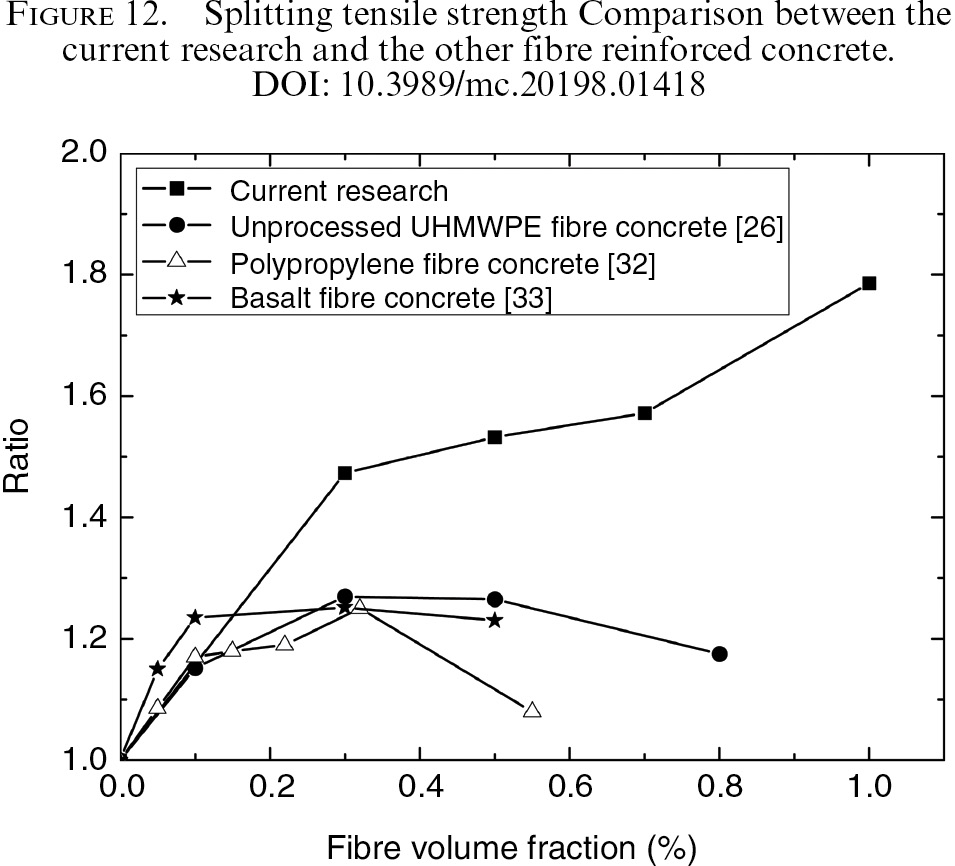

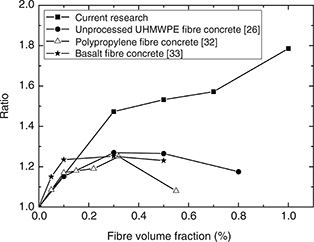

Figure 12 shows the ratio of splitting tensile strength of fibre concrete to that of plain concrete as a function of fibre volume fraction. At low fibre volume fraction (no more than 0.2%), the splitting tensile strength of the concrete increased with the fibre volume fraction. When the fibre volume fraction was more than 0.2%, the splitting tensile strength of the twisting UHMWPE fibre concrete kept increasing, whereas the strength enhancement for the concrete reinforced by other fibres kept a plateau level or even decreased.

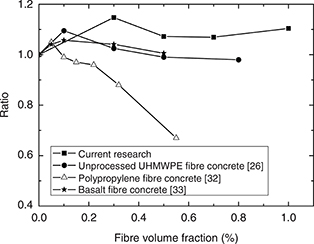

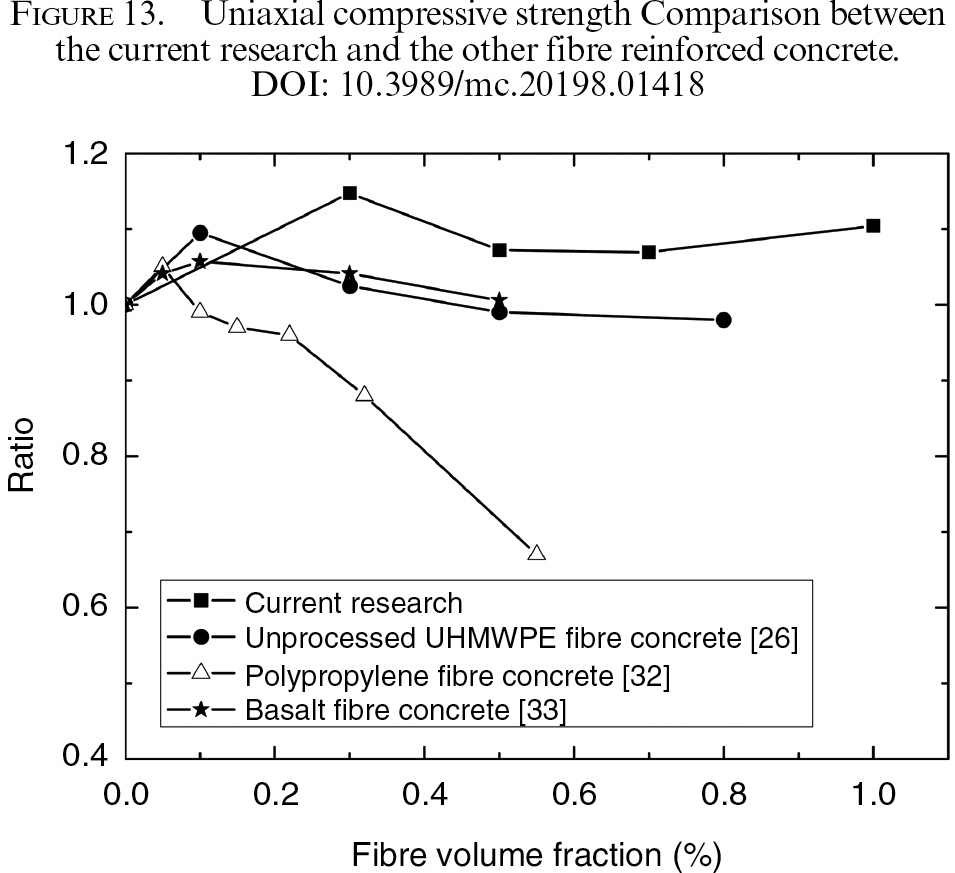

Figure 13 shows the ratio of uniaxial compressive strength of fibre concrete to that of plain concrete as a function of fibre volume fraction. At low fibre volume fraction (no more than 0.1%), the compressive strengths of all these fibre concretes were higher than the corresponding plain concretes. After that, the compressive strength of twisting UHMWPE fibre concrete decreased slightly with the increase of fibre volume fraction, but still higher than that of plain concrete. However, the compressive strengths of concrete reinforced by other fibres decreased more and were close to or even lower than that of plain concrete when the fibre volume fraction increased.

The results were explained that the high fibre volume fraction leaded to the cluster of fibres, which caused significant imperfections and prevent fibre from bonding tightly with concrete matrix. However, the twisting UHMWPE fibres could be distributed more uniformly at high fibre volume fraction due to the improved fibre geometry and mixing methodology. Hence, the twisting UHWPE fibres played a more positive role in bridging cracks and confining concrete deformation than the unprocessed UHMWPE fibres, polypropylene fibres and basalt fibres.

4.3. Dynamic compressionTOP

Since the twisting UHMWPE fibre reinforced concrete exhibits more excellent quasi-static mechanical properties than that reinforced by unprocessed UHMWPE fibres and other high-performance fibres, it is necessary to investigate its dynamic response for widening the applicability of this material.

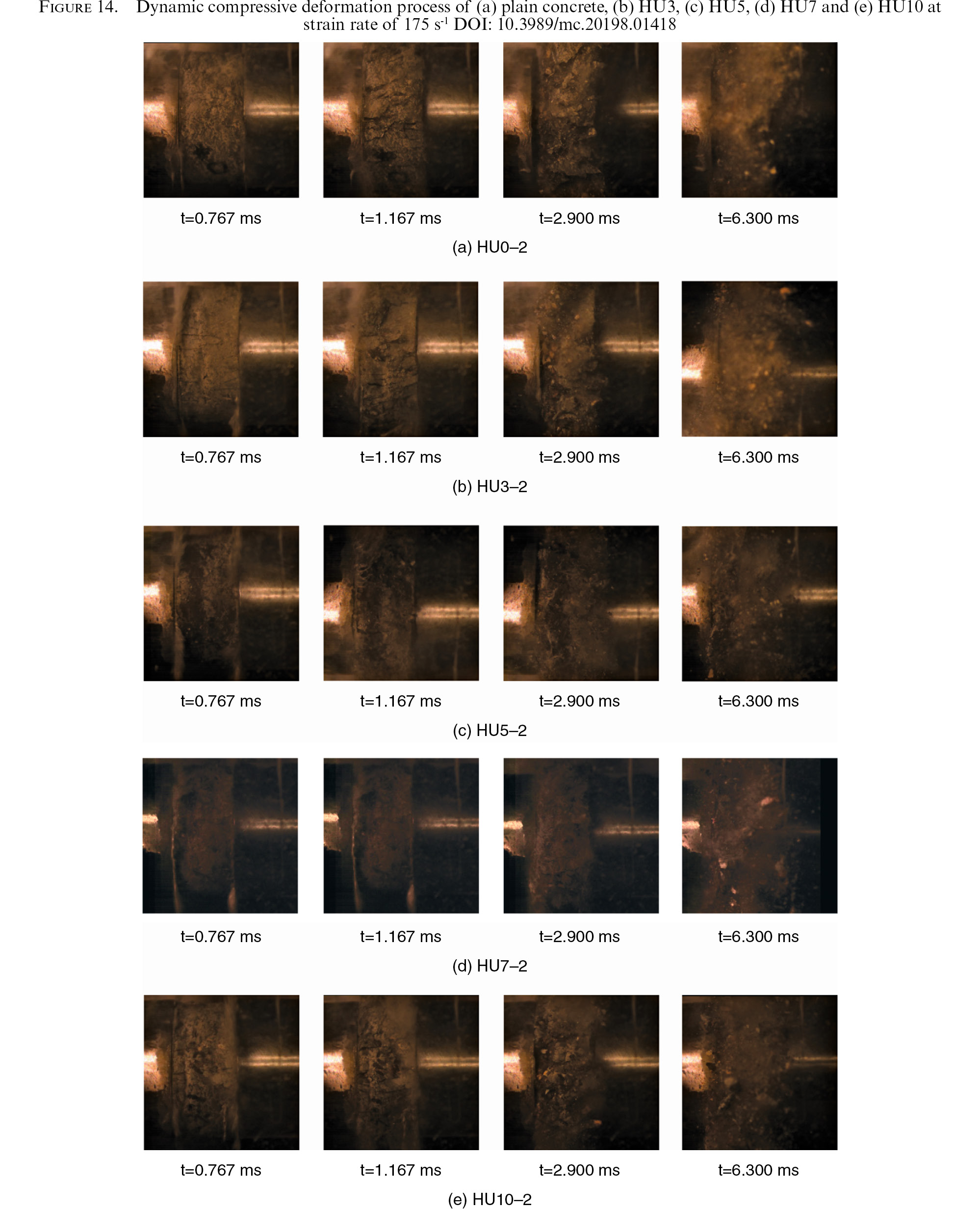

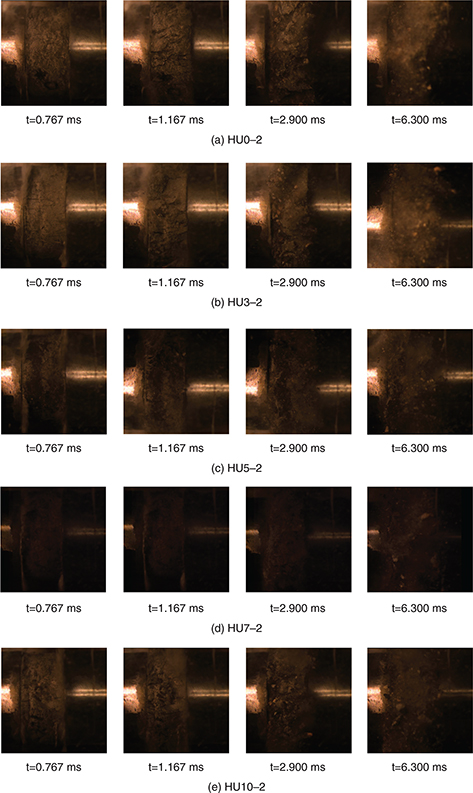

Figure 14 shows the high-speed photography of the twisting UHMWPE fibre concrete specimens during dynamic compression. The longitudinal cracking in the specimen was observed at the initial compression stage, then the cracking developed when the specimen shortened, followed by the debris splashing when the bonding stress decreased significantly in the concrete. However, the cracking in the UHMWPE reinforced concrete specimens developed more slowly and created a smaller debris splashing area compared to the plain concrete specimen. Figs. 15 (a) and (b) show the damage modes of the UHMWPE fibre reinforced concretes after quasi-static compression and dynamic compression at strain rate of = 175 s^-1. The digits of 0, 1, 2, 3 and 4 after dash represent the number of the strain rates applied, corresponding to 10^-3 s^-1, 140 s^-1, 175 s^-1, 200 s^-1 and 255 s^-1, respectively. It indicated that the UHMWPE fibre reinforced concrete kept a better integrity than the plain concrete under quasi-static compression. For the dynamic compression, bigger broken concrete blocks were obtained with the increase of FVF due to the better bridging between the UHMWPE fibre reinforcements and concrete matrix. Hence, the bridging of fibres contributed to more excellent cracking resistance and strength enhancement.

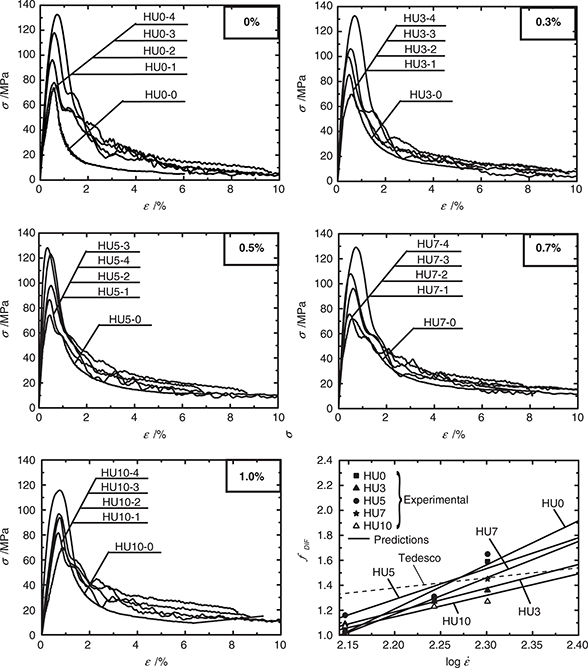

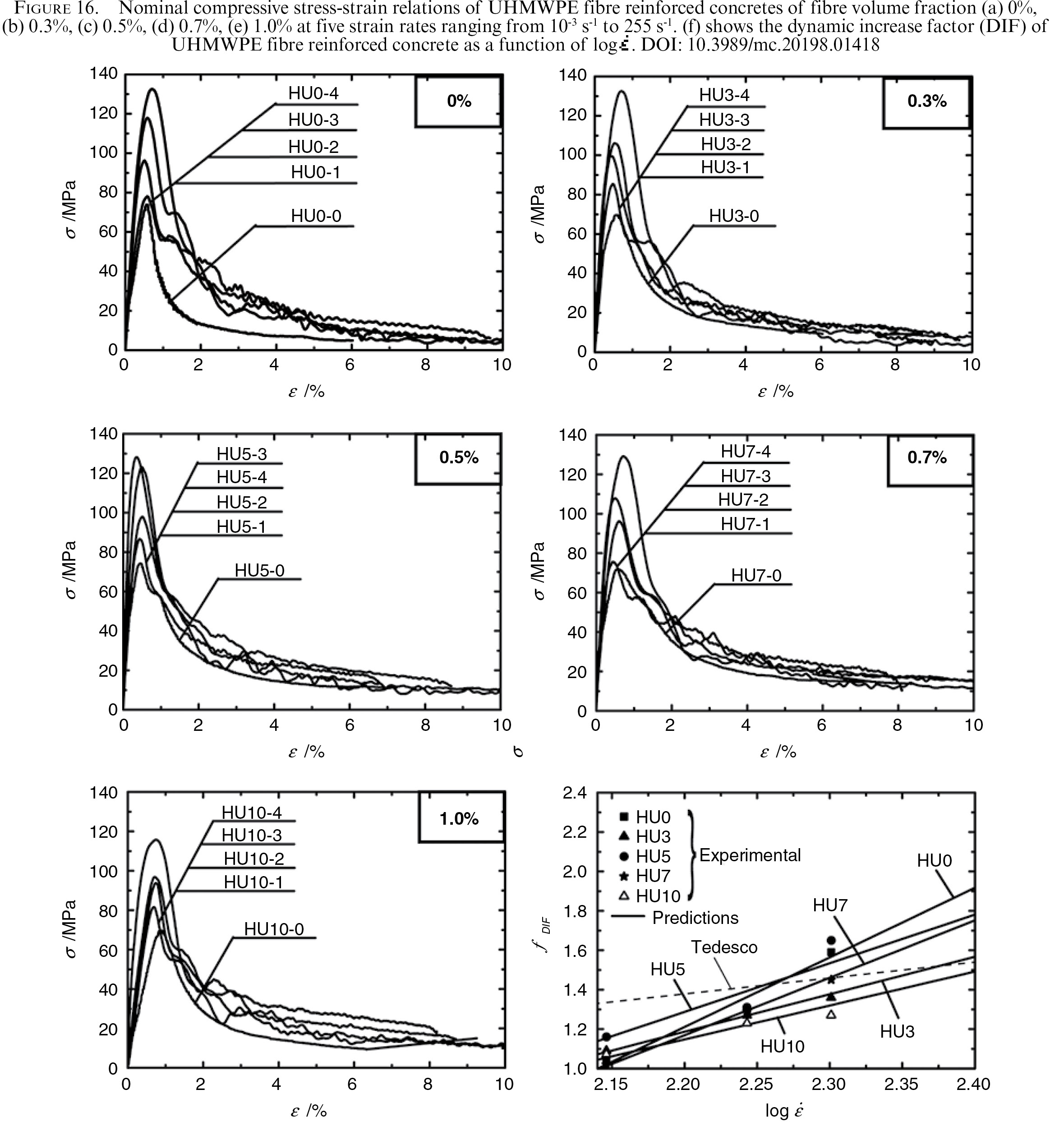

The nominal compressive stress-strain relations of the UHMWPE fibre reinforced concretes at five strain rates ranging from 10^-3 s^-1 to 255 s^-1 are shown in Figs. 16 (a)-(e). It is indicated that the quasi-static compressive strengths of the cylindrical UHMWPE fibre reinforced concrete specimens with different FVFs were similar, approximately 70 MPa. The dynamic compressive strengths of the plain concrete as well as the UHMWPE fibre reinforced concrete enhanced significantly with the increase of strain rate. An important index to evaluate the compressive resistance of material is energy absorption capacity that can be quantified by the area surrounded by stress-strain curve. For each fibre volume fraction, the energy absorption capacity of concrete increased with the increase of strain rate.

Dynamic increase factor (DIF), which was defined as the ratio of dynamic compressive strength to quasi-static compressive strength, was used to explain the strength enhancement: eq [2].

Where f_DIF is the dynamic increase factor (DIF), σ_ccd and σ_cc are the dynamic and quasi-static compressive strengths of the cylindrical UHMWPE fibre reinforced concrete specimens at the same FVF, respectively.

Figure 16 (f) shows the DIF of the UHMWPE fibre reinforced concrete as a function of log. The DIF increased linearly with log. Compared to the plain concrete, the DIF of the twisting UHMWPE fibre reinforced concretes was higher but increased more slowly at low strain rates ( = 144 s^-1). This trend for the strength enhancement may due to the fact that the strain rate sensitivity of the concrete matrix played a dominate role, and the fibres provided constraint on enhancing the strength of specimen at low strain rates. However, the addition of fibre reduced the strain rate sensitivity of concrete slightly. For the UHMWPE fibre reinforced concrete under the same strain rate, the DIF of the HU5 and HU7 increased more significantly than those of the HU3 and HU10. In the range of the applied strain rates, the DIF of the UHMWPE fibre reinforced concretes with different FVFs ranged from 1.02 to 1.95. The DIF prediction for the plain concrete of compressive strength 28 MPa-55MPa, proposed by Tedesco and Ross (24), is suggested as follow eq. [3] and shown in Figure 16 (f).

However, this prediction doesn’t explain the trend of DIF for the currently researched plain concrete and UHMWPE fibre reinforced concrete well. This may due to the higher compressive strength of the specimen in the current research and the effect of the twisting UHMWPE fibre reinforcements.

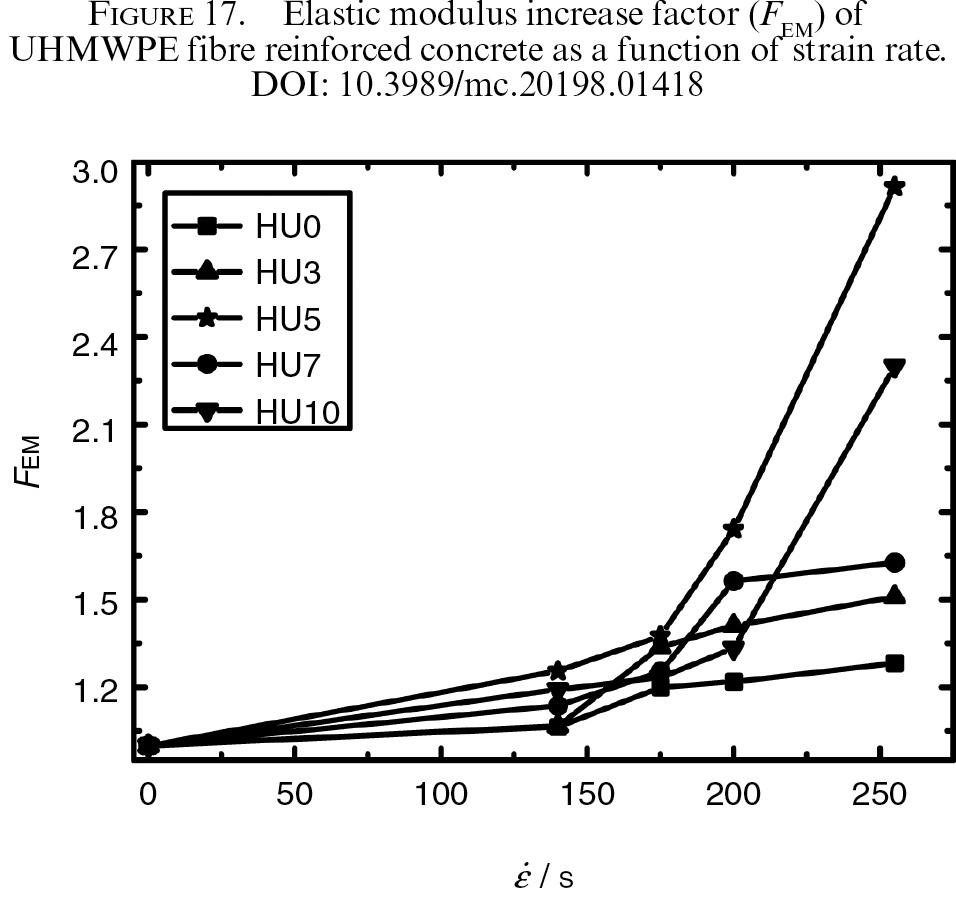

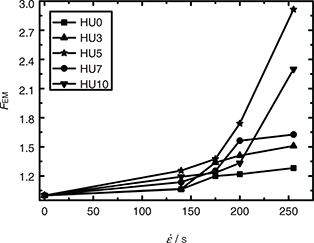

The elastic modulus increase factor, F_EM, as a function of strain rate has been shown in Figure 17. F_EM is defined as [4]

where E_ccd and E_cc are the elastic modulus of the cylindrical UHMWPE fibre reinforced concrete specimens at the same FVF under dynamic and quasi-static compressions, respectively.

The F_EM increased with the increase of strain rate, and more significantly at higher strain rates, particularly for the HU5 and HU10. However, the F_EM of the plain concrete increased slightly. Hence, it is concluded that the elastic modulus of UHMWPE fibre reinforced concrete has rate dependency.

5. CONCLUSIONSTOP

The twisting high-performance UHMWPE fibre bundle with improved geometry was employed to reinforce concrete and expected to improve the mechanical properties of concrete. Based on this, both the quasi-static and dynamic tests of the concrete with varied fibre volume fraction from 0 to 1.0% have been conducted. The quasi-static splitting tensile and compressive strengths of this type of fibre concrete were compared with the concrete reinforced by other fibres. A Split Hopkinson Pressure Bar (SHPB) measurement setup was used for the dynamic compression test at strain rates of 140 s^-1 to 255 s^-1.

The improved preparation method increased the mixing time at each step that guaranteed the good workability of the twisting UHMWPE fibre reinforced concrete. The twisting UHMWPE fibre reinforcements improved the splitting tensile strength and residual compressive strength of the concrete significantly, e.g. 78.6% and 528% enhancement for the concrete of FVF 1.0% compared with those of the plain concrete, respectively. In addition, the investigations into the key property parameters of fibre reinforced concrete, such as elastic modulus, poisson’s ratio as well as compressive toughness index, suggest that the UHMWPE fibre reinforced concrete had a tougher behaviour than the plain concrete. By comparing with the concrete reinforced by other fibres, i.e. unprocessed UHMPWE fibre, polypropylene fibre and basalt fibre, it indicated that the twisting UHMWPE fibre bundle improved the splitting tensile strength and compressive strength of concrete more significantly, the improvement was more apparent at high fibre volume fraction. The superiority is due to the uniform distribution of twisting UHMWPE fibres in concrete matrix and high bonding strength at fibre/matric interface.

The addition of the UHMWPE fibres enhanced the impact resistance and energy absorption capacity of concrete. The strength enhancement of the twisting UHMWPE fibre reinforced concrete under dynamic compression was governed by the strain rate sensitivity of the concrete matrix. The bonding strength between fibre reinforcements and concrete matrix also enhanced the strength at low strain rates. In addition, the strain rate increased the elastic modulus of the UHMWPE fibre reinforced concretes. These findings can provide guidance for designing high-performance fibre reinforced concrete structures.

ACKNOWLEDGEMENTTOP

The authors wish to acknowledge Hunan Zhongtai special equipment Ltd for supplying the ZTX99-400D twisting UHMWPE fibre bundles, and technical discussion facilitating the experimental programme.
