Conductive concrete made from recycled carbon fibres for self-heating and de-icing applications in urban furniture

G. Faneca^a, T. Ikumi^b,^d*, J. M. Torrents^c, A. Aguado^b, I. Segura^b,^d

a. Escofet 1886 Ltd, (Spain)

b. Department of Civil and Environmental Engineering, Barcelona Tech, Polytechnic University of Catalonia, UPC, (Barcelona, Spain)

c. Department of Electronics Engineering, Universitat Politècnica de Catalunya - Barcelona Tech, C4, (Barcelona, Spain)

d. Smart Engineering Ltd, (Barcelona, Spain)

* tai.ikumi@upc.edu

1. INTRODUCTIONTOP

The concept of smart cities have emerged from the opportunities created by the digital era to face the challenges associated with the new urban context. Digital innovation opens up the possibility to be more efficient and more effective, better combating challenges in individual infrastructures, across infrastructure systems, and throughout society as a whole (1-3). As “smart solutions”, or digital technologies, become more commonplace in our cities, the so-called “smart materials” have received increasing attention within the scientific community (4). Their potential is perceived as a key element to bring value to our urban areas and translate it into a profitable commercial practice.

Research on cementitious materials used for civil and building construction has been traditionally focused on mechanical performance and durability characteristics to cover its main functionality, which is structural. However, nowadays there is a demand of multifunctional materials which are not only able to cover the structural requirements but also incorporate additional features that provide the resulting material with an increased range of applications. Most current functional properties in smart concrete are based on the incorporation of functional fillers or aggregates to generate conductive properties in the material. Conductive concrete has been used as anode for electrochemical chloride extraction (5-8), electromagnetic wave shielding (9, 10), self-sensing concrete (11-14), cathodic protection (15), energy harvesting (16, 17) and electrothermal control (18-31), among others.

Electrothermal concrete refers to the material achieving electrical resistance heating based on the Joule effect. Research on electrothermal concrete has been mainly focused on deicing and snow melting applications in roadways (19-22, 25-27), and indoor electrical floor heating (24, 28). Since conventional concrete behaves as a dielectric material, electrically conductive fillers such as carbon fibers, steel fibers, steel shaving, nickel powders and graphite are incorporated to reduce the resistivity of concrete (32).

The use of steel fibers presents a high potential to develop conductive cementitious materials since these are already been widely adopted in a broad range of structural and non-structural concrete applications (33). However, the flow of electric charges through steel fiber reinforced concrete promotes fiber corrosion and thus, the degradation of both the structural and thermal functionality of the material. Nowadays, carbonaceous products are mainly used instead of steel fibers or shavings in the conductive cementitious materials mixture design (34) since these present high thermal conductivity, low thermal expansion and are highly resistant to corrosion.

However, the world-wide demand for virgin carbon fibers often surpasses supply capacity (35, 36), which causes an increase of cost both in terms of energy consumed during manufacturing (up to 165 kWh/kg) and material price (up to 40 £/kg) (37, 38). Additionally, the increasing amount of carbon fiber composites produced raises concern on waste disposal and consumption of non-renewable resources, with the associated negative environmental impact. In this context, the introduction of recycled carbon fibers (RCF) in conductive cementitious materials could potentially convert an expensive product and waste disposal into a profitable reusable material with high retention of mechanical properties (38) and a 30 to 40% cost savings versus virgin carbon fibers.

So far, research published on the use of RCF in conductive cementitious materials is limited to the characterization of the mechanical and electrical properties of the resulting composite (33). This paper presents the first broad experimental study that explores the heating capacity of conductive concrete with recycled carbon fibers for de-icing and self-heating applications at laboratory and industrial scale. Prisms of 40×40×160 mm were fabricated to characterize the electrical properties of two different conductive concretes. Slabs of 300×600×40 mm with two electrode configurations were submitted to different heating test scenarios varying the duration of the heating cycles and the voltage applied. Finally, 3 full-scale benches (700×2000×150 mm) with different electrode disposals were fabricated at Escofet 1886 industrial facilities and tested to assess the current heating capacity of the material in real-scale urban furniture applications.

2. EXPERIMENTAL PROGRAMTOP

2.1. Materials TOP

Ultra high performance concrete mixtures contained CEM I 52.5R cement and siliceous aggregates with particle size distribution ranging from 0 to 5 mm. A high purity calcium carbonate filler (d₅₀ < 3 μm) was used to contribute to higher compactness and workability of the mixture. A superplasticizer based on a polycarboxylate solution (MasterGlenium ACE 425) and a viscosity modulator based on siliceous nano-particles (Meyco ms 685) were employed.

Recycled carbon fibers (Carbiso CT6/CT12) and micronized carbon fibers were used to improve the electrical and thermal conductivity of the concrete matrix. The carbon fiber is produced from a primary recycling process of trimmings, defective pieces or deteriorated carbon fiber reinforced composite materials. The main origin of these residues are companies dedicated to the manufacture of compounds for the aerospace, automotive and similar industries. The carbon fiber is obtained by shredding and subsequent pyrolysis to eliminate the polymeric resins impregnated to the fiber. The micronized carbon fibers present particle sizes of d₉₀-d₇₀ = 0.425 and d₂₀ = 0.300 mm. The properties of the carbonaceous materials used are included in Table 1.

2.2. Composition and preparation of concretesTOP

In total, 2 concrete compositions were designed with different carbonaceous addition contents. Table 2 describes the composition of the concretes used. The first mixture consists of an ultra-high performance concrete (UHPC) with 9 kg of recycled carbon fibers per m³ of concrete (0.407 % vol.) to increase the electrical and thermal conductivity of the material (referred to as RCF). The plain concrete dosage adopted corresponds to mixes typically used by the company Escofet 1886 in the manufacturing process of urban furniture and architectonic façades. The second mixture additionally incorporates 36 kg of micronized carbon fibers per m³ of concrete (1.65 % vol.) to further increase the electrical and thermal conductivity of the material (referred to as R+MCF). The proportions of the carbonaceous additions were set from previous tests on conductive concretes (33, 39).

The mixing process was performed in a planetary mixer at the industrial facilities of the company Escofet 1886 to reproduce the typical fabrication practices adopted in the precast industry. Aggregates, limestone filler and cement were first mixed for 60 s. Then, water was added and mixed for 180 s. Nano-silica and superplasticizer were then incorporated to the mix and homogenized for additional 180 s, each. The carbonaceous additions were added to the mix after incorporating the water and additives, with no previous dispersion of the fibers. Previous research has proved that this procedure provides a good dispersion of the fibers into the cementitious matrix (33). Unfortunately, no data about the combined effects of fibers and the micronized addition is available.

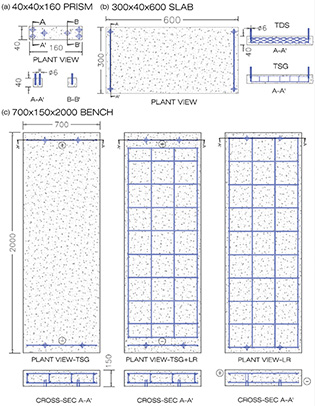

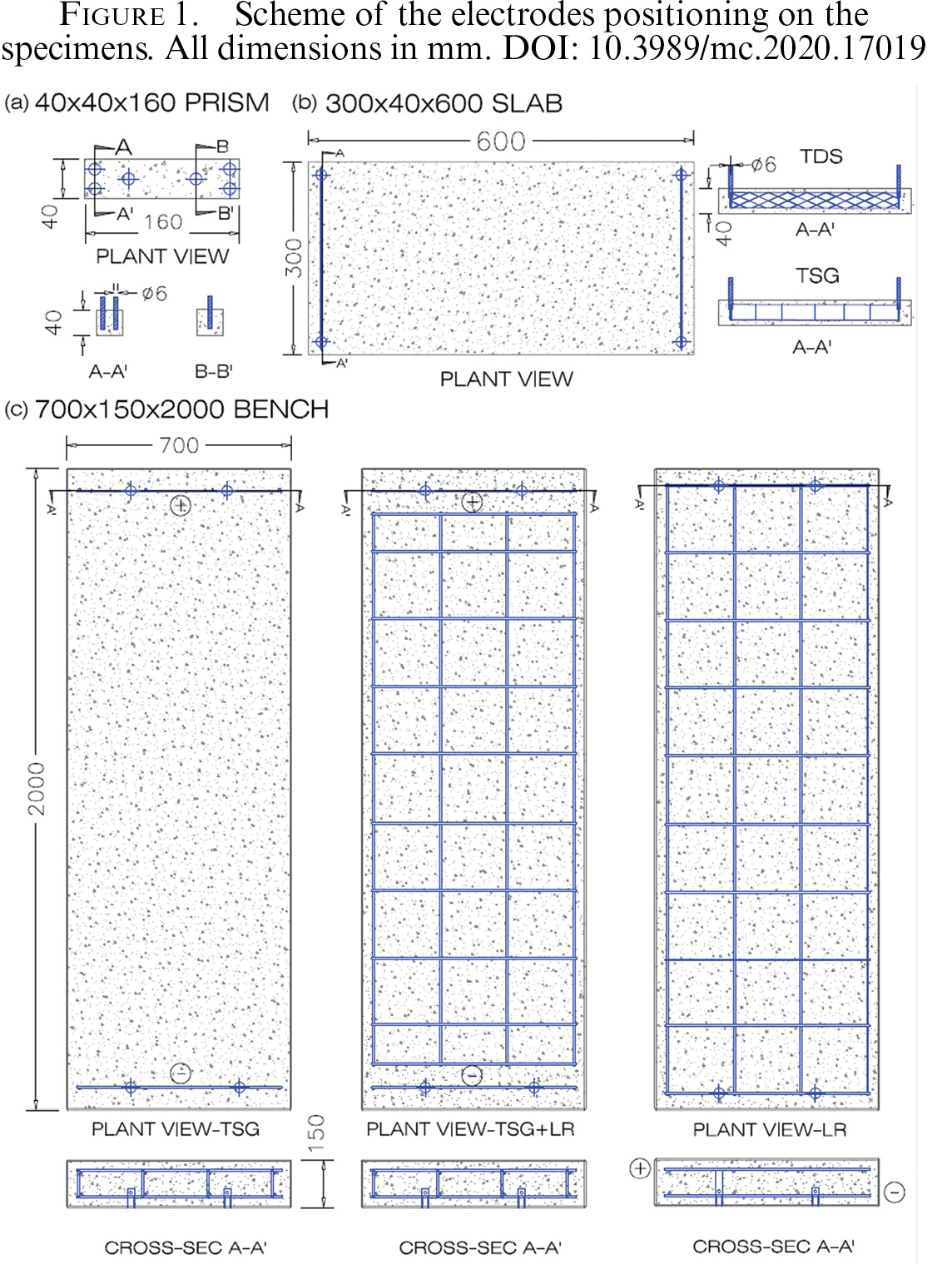

Prismatic specimens with dimensions 40×40×160 mm were fabricated from the mixes indicated in Table 2 according to UNE-EN 196–1 (40) to characterize the electrical properties of the concretes. These specimens incorporate 6 stainless steel threaded shanks of 6 mm diameter and 30 mm length to act as electrodes. The placing of these electrodes was carried out after compacting the fresh concrete in the molds. Figure 1a shows a scheme of the electrodes positioning on the specimens.

Slabs (S) of 300×600×40 mm were fabricated from the mixes indicated in Table 2 to characterize the thermal behavior of larger specimens. In this case, two different electrode disposals were incorporated to create the electric flux. Figure 1b shows a scheme of the electrodes positioning on the slabs. The first configuration (TDS) consisted in two steel deployé sheets with rhomboidal grid of 30×13 mm placed 20 mm from the transverse edges of the element (section A-A’ in Figure 1b). The latter configuration replaced the deployé sheets by a wider squared steel grid (TSG) of 40×40 mm. Grids on both configurations were connected to the external part of the element by stainless steel threaded shanks of 6 mm diameter and 30 mm length. The placing of these electrodes was carried out after compacting the fresh concrete in the molds. All specimens remained in the molds for 24h with liquid curing agents and afterwards were kept under controlled temperature (20° ± 5 °C) and humidity (70 ± 10 %) conditions until testing.

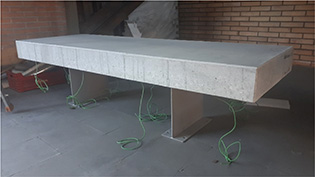

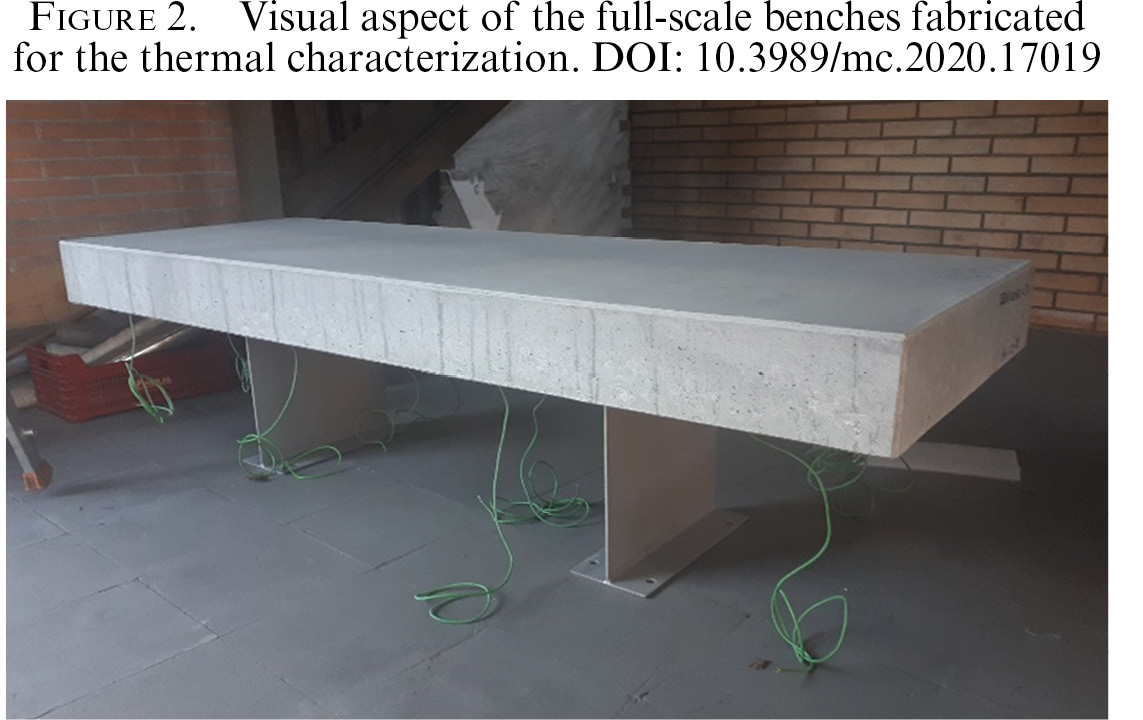

Finally, 3 benches with dimensions 700×2000×150 mm were fabricated to assess the heating capacity of the material in real-scale conditions, each with a different electrode disposal (Figure 1c). The simplest configuration consisted in transversal square grids (TSG) on both edges of the slab. The second bench incorporated upper and lower longitudinal reinforcement (LR) to increase the electrical conductivity of the element, without these being connected to the inlet electrodes (TSG). The third bench replaced the TSG configuration by using directly the upper and lower longitudinal reinforcement as inlet/outlet electrodes. Notice that the latest configuration reduces drastically the distance between electrodes. In this case, the electric flux generated travels vertically from the lower to the upper longitudinal reinforcement. Figure 2 presents the visual aspect of the real-scale benches fabricated.

The nomenclature adopted during the analysis of the results to identify the different specimens, electrode configurations and concrete mix followed the pattern: “Specimen type (B/S/BENCH)”_”electrode configuration (TDS/TSG/TSG+LR/LR)”_”concrete mix (RCF/R+MCF)”.

2.3. Characterization methodsTOP

2.3.1. Electrical characterizationTOP

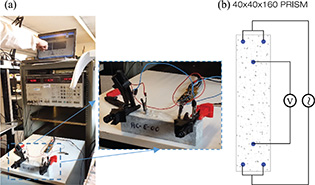

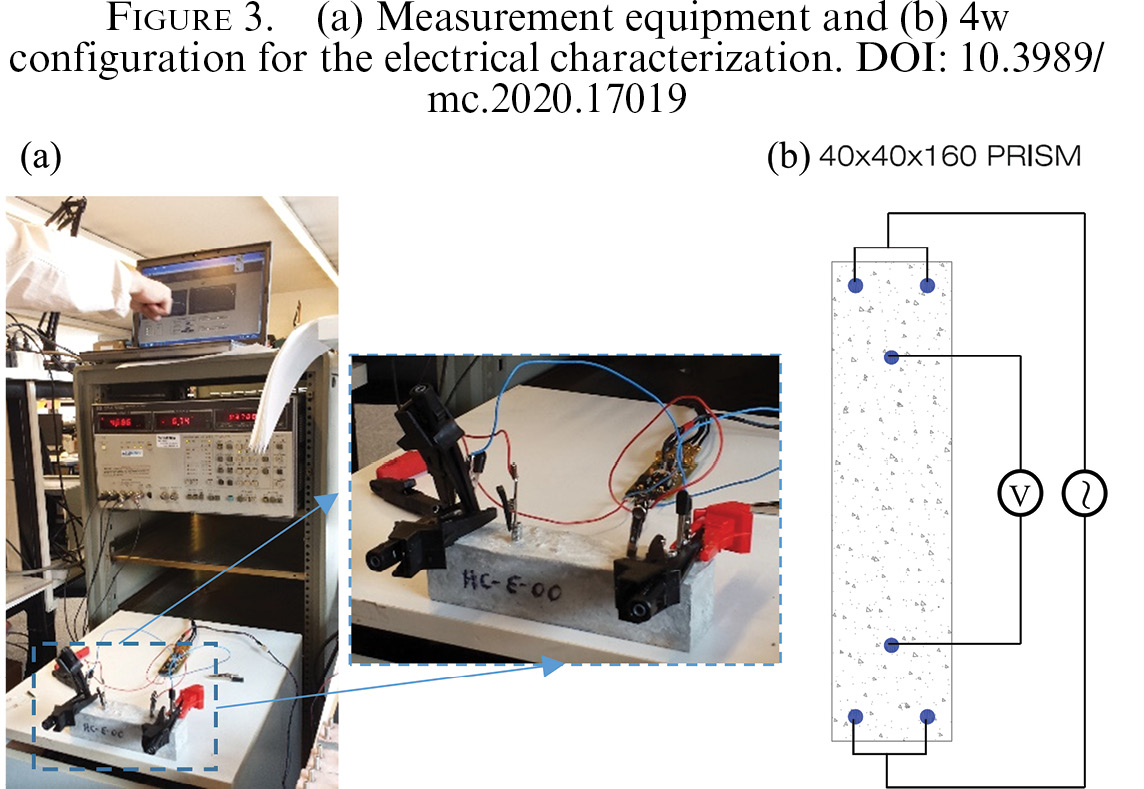

The characterization of the electrical conductivity was performed on 40×40×160 mm prisms by using an Impedance Analyzer HP 4192A together with an instrumentation amplifier as the front-end to allow 4-probe measurements (4w) (41) with an effective voltage of 1 V AC to avoid polarization effects in the electrodes (42, 43). Figure 3 shows the experimental set up and the 4w configuration adopted to perform the electrical characterization.

Measurements were obtained with the frequency scanning from 10 Hz to 1 MHz, providing electrical impedance (Z, in Ω) and phase (ϕ, in °). The electrical impedance is described by Equation [1] and is composed of a real part (electrical resistance, R) and an imaginary part (reactance, X). R and X are obtained from Equation [2] and Equation [3], respectively.

Once the electrical resistance is obtained, it is possible to compute the electrical resistivity of the material ρ [Ω·m]. This property assesses the specific electrical resistance of each material that opposes the electrical flow and can be computed as shown in the Equation [4], where S is the cross-section [m²] and L the length [m].

2.3.2. Thermal characterizationTOP

The heating behavior of the conductive cement-based materials casted was characterized on two different stages. The first stage evaluated the heating capacity of the 300×600×40 mm slabs by modifying the duration of the heating cycles and the voltage applied. The duration of the heating cycles evaluated were 3 h and 48 h. For the 3 h test, a constant voltage was applied throughout the heating cycle to the specimens via the different electrode configurations incorporated. The 48 h test was comprised by 2 cycles of 8 h heating period followed by a 16 h cooling period. Different voltages were adopted during the tests to evaluate different heating kinetics (11/18/25 V in the 3 h heating and 25/33 V in the 48 h cycles).

The thermal characterization of the different configurations is evaluated in terms of the increase of temperature in the center of the slab, the temperature gradient between the center of the element and the inlet electrode and the electrical resistance of the material throughout the test. The electrical resistance is estimated based on the effective voltage (V_eff) and current (I_eff) monitored during the tests. Since the voltage and current are in phase, the electrical resistance (R) can be computed by the Ohm’s law as indicated in Equation [5].

Such characterization covers important aspects required in concrete mixtures for self-heating applications, which are the achievement of certain heating rates, the uniformity of the temperature distribution within the element and the capacity of the material to sustain different voltages during long periods of time without affecting its heating properties. Additionally, the power consumption computed by Equation [6] is reported in each test.

The second stage evaluated the heating capacity of the 3 full-scale benches fabricated. In this case, the duration of the heating cycles was set at 3 h and the voltages applied varied from 2 to 21 V. The different voltages applied were not adopted to perform comparative analyses between the different electrode configurations incorporated in the benches. Instead, these values correspond to the maximum voltage (and thus, maximum heating capacity) sustained by the material prior to degradation of the conductive and thermal properties. In other words, the full –scale trials were designed to show the full potential of the material in real-scale applications. Table 3 summarizes the distribution of the heating tests performed and the voltages evaluated over the different specimens evaluated. All tests were performed at the frequency of 50 Hz.

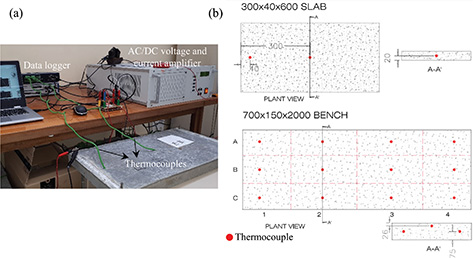

Figure 4a presents the experimental set up adopted during these tests. Temperature variations are registered by type K thermocouples embedded in the material. Figure 4b shows the exact location of the thermocouples placed in the slabs and benches. For the 300×600×40 mm slabs, these were located in the middle section 1 cm away from the inlet electrode and at the center of all specimens. On the other hand, full-scale benches incorporated 12 thermocouples arranged all over the slab. A virtual square grid is depicted in dotted red lines on the plant view of Figure 4b to facilitate the identification of the sensors and the analysis of the results. A can be seen, those near the longitudinal edges (rows A and C) were placed at the middle section of the bench while those located in the central region (row B) were arranged closer to the upper external surface to characterize the temperature perceived by the user.

3. RESULTS AND DISCUSSIONTOP

3.1. Electrical characterization of the carbonaceous materialsTOP

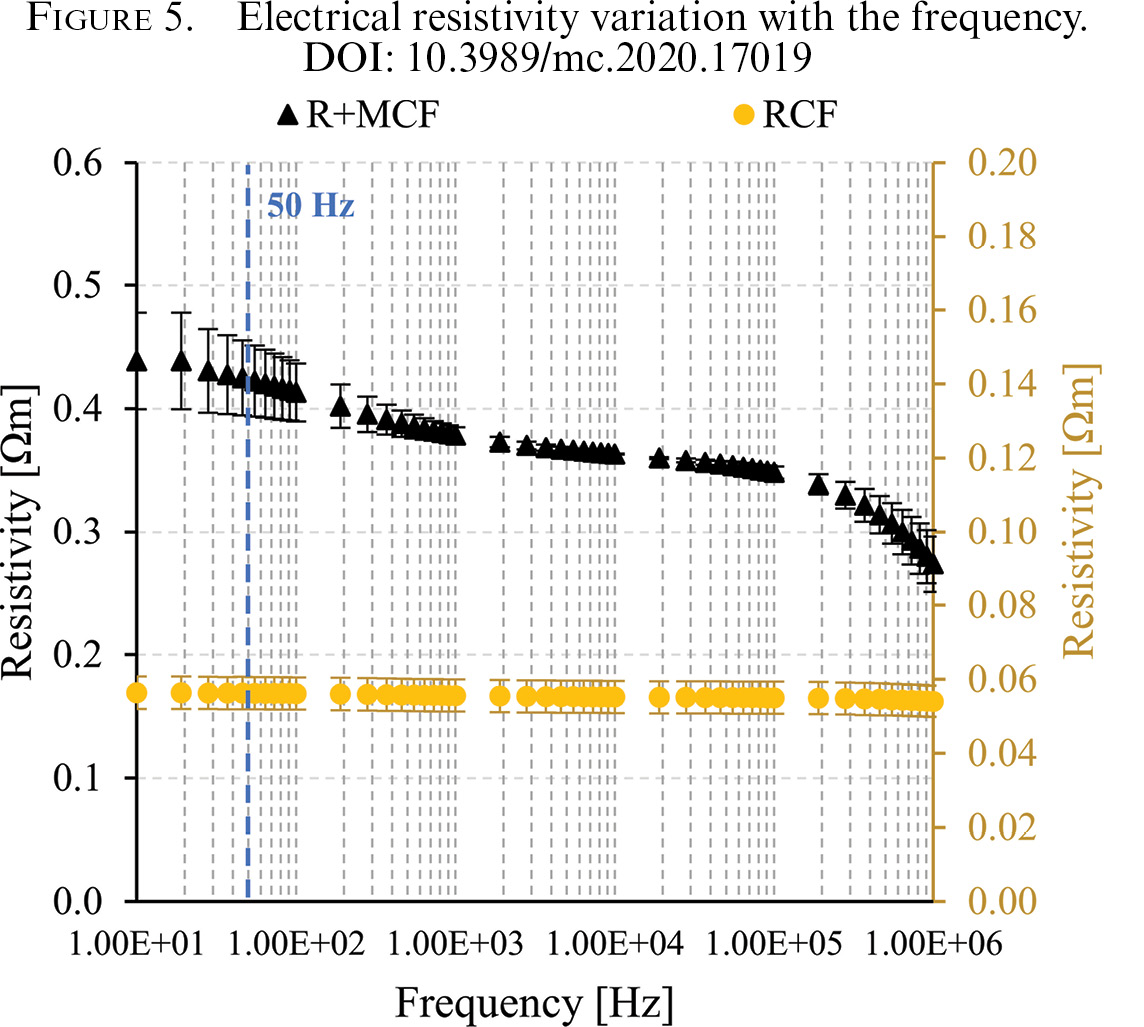

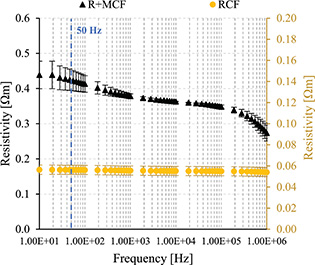

Figure 5 shows the variation of the electrical resistivity within the range of frequencies evaluated for both concrete mixtures used in this study (RCF and R+MCF). Results for the specimens with recycled and micronized carbon fibers are depicted in the main vertical axis while samples with only recycled carbon fibers are represented in the secondary axis. The error bars included correspond to +1/-1 standard deviation associated with the 3 specimens tested for each material. An additional dotted blue line is added at 50 Hz to locate the standard frequency of electrical mains.

RCF specimens present a constant electrical resistivity of 0.055 Ωm, regardless of the frequency applied. On the other hand, R+MCF samples obtained electrical resistivities ranging from 0.27-0.44 Ωm. The behaviour of the mixture R+MCF presents some similitudes with the behaviour of the reference mixes with no conductive addition (see Faneca et al (33)) and might be caused by polarization effects. The reduction of resistivity with the increase of frequency is commonly associated with insulator materials and may be caused by polarization effects. Some authors have suggested that polarization effects are not eliminated by the use of AC but are rather manifested in the form of introduction of a capacitance in parallel with the electrical resistance. As the frequency of the applied current is increased, the effect of the capacitance is reduced (33). In this case, the behaviour of the R+MCF mix exhibits polarization effects although the incorporation of MCF allows to significantly reduce the resistivity considering the values provided for the reference material by Faneca et al. (33) (ranging from 278 to 235 Ωm). These results evidence a difference in the electrical conductive mechanism between R+MCF and R+CF.

At the frequency of 50 Hz, which is the one applied during the heating tests, R+MCF material obtained a resistivity of 0.42 Ωm. This value is 7.6 times higher than the one obtained for RCF material, indicating that the addition of micronized carbon fibers causes a very significant increase of resistivity. This trend was not initially expected as micronized carbon fiber is a highly conductive material. However, the results obtained seem consistent both statistically and with the outcomes of the heating tests performed in 300×600×40 mm slabs (presented in section 3.2.1). Therefore, these should not be attributed to possible malfunctions of the measurement equipment or singular fabrication flaws. Instead, results suggest that the addition of MCF hinders the homogeneous distribution of carbonaceous products within the concrete matrix and disrupts the electrical continuity of the material.

3.2. Thermal characterization in slabsTOP

3.2.1. 3h heating cycle in slabsTOP

The first test series involved the application of three different effective voltages (11, 18 and 25 V) during 3 h on rectangular concrete slabs with both types of electrode disposals (TSG and TDS) and carbonaceous additions (RCF and R+MCF). Figure 6 presents the heating curves obtained for all specimens tested based on the electrode configuration adopted. Figure 6a depicts the specimens with TDS electrode configuration while Figure 6b presents the samples with TSG configuration. The temperature variations presented correspond to the values registered at the center of the specimen, as this region is more representative of the real heating potential of the material. Figure 6 includes average power consumption values registered in each test. These values are maintained constant throughout the heating test duration, with a maximum +1 standard deviation of 0.9 W. Room temperature during the tests ranged between 19 - 21 ºC.

The positive values registered at the beginning of the test indicates that the inner region of the concrete element was at a higher initial temperature than the ambient. The heating curves describe a linear increase of temperature over time followed by a second stage characterized by a decrease on the heating rate. The duration of the first stage decreases with the intensity of the voltage applied while the heating rate reduction during the second stage is more evident for high voltages. As expected, results show increasing heating rates with the voltage applied. Temperature variations registered at the end of the test range from 7 - 17, 4 - 8.5 and 2 - 3 ºC for 25, 18 and 11 V, respectively. These values reflect that the heating performance (increment of temperature per volt applied) is not constant for the different potentials adopted in this study. For the high voltage configuration, the heating performance ranges between 0.28-0.68 ºC/V while for the low voltage configuration, the heating performance decreases to 0.17-0.28 ºC/V.

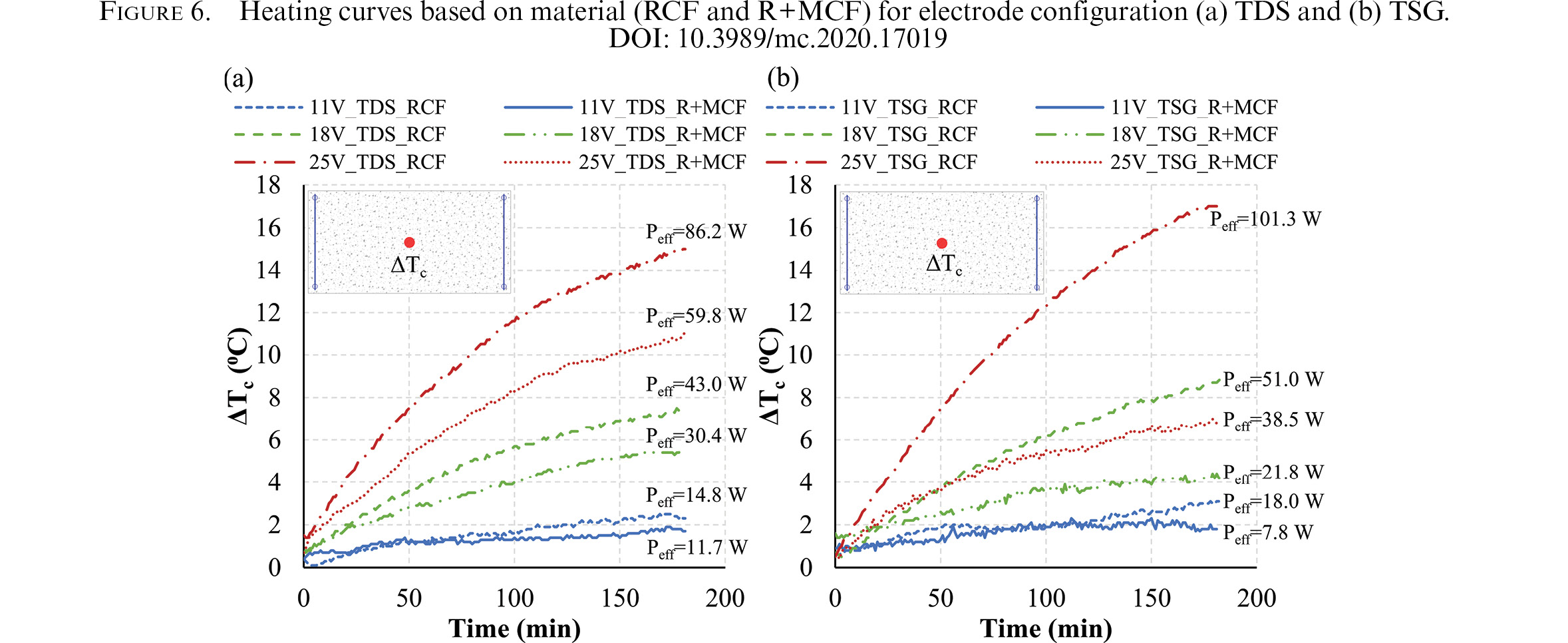

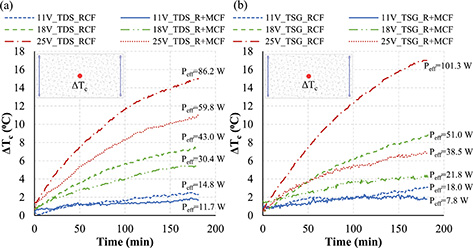

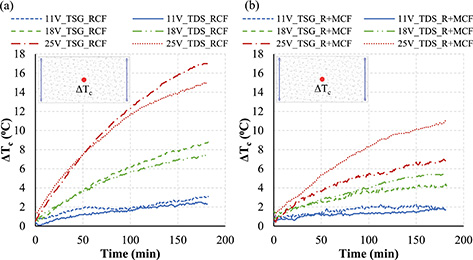

The arrangement of the results adopted allows a direct comparison between the heating capacity associated with the two carbonaceous additions introduced in the concrete mix. On average, temperatures reached at the end of the test by the material with recycled carbon fibers and graphite flakes are 25 and 50 % lower than the ones achieved by the material with only carbon fibers for TDS and TSG electrode configurations, respectively. These results suggest that the additional incorporation of graphite flakes into the mix significantly worsen the performance of the material for heating applications, especially if the TSG electrode configuration is adopted.

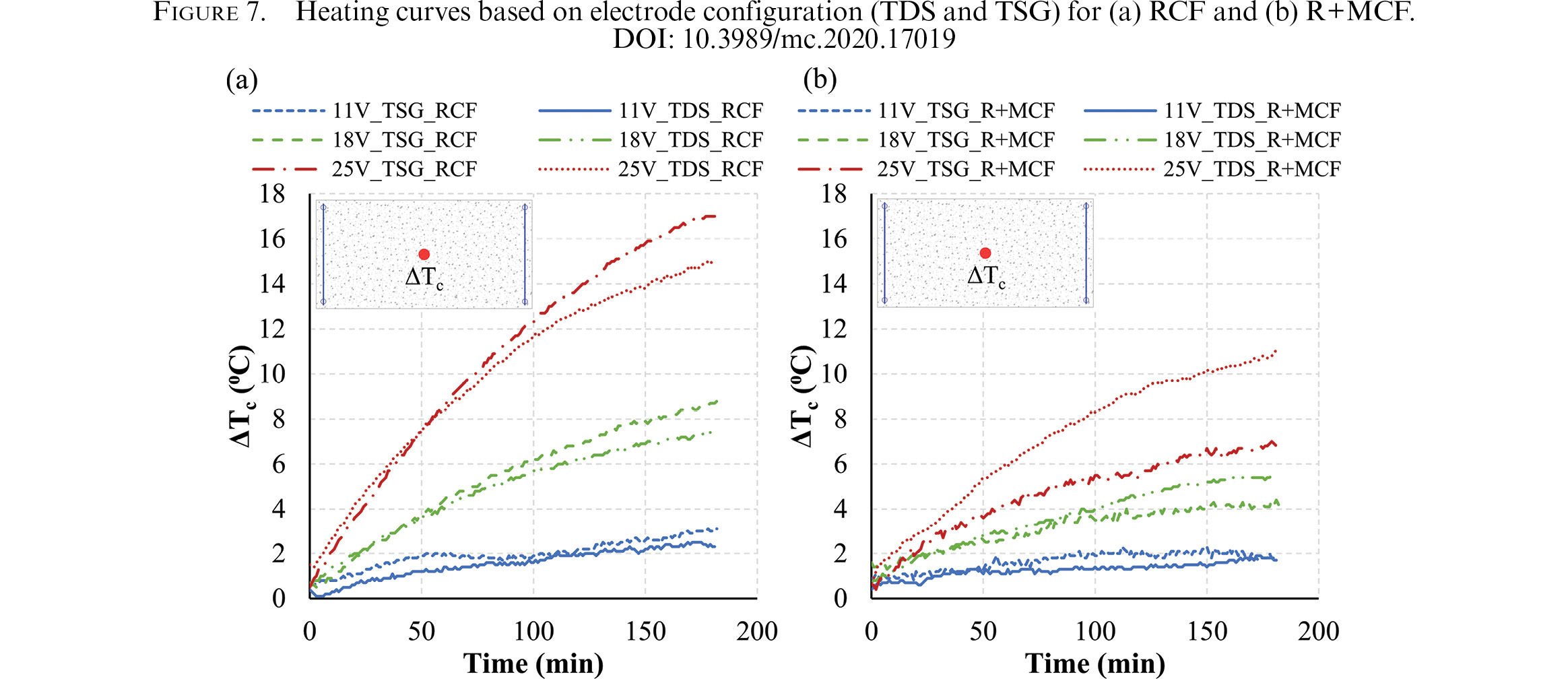

Figure 7 rearranges the same set of results to allow a clear assessment of the influence of the electrode disposal (TDS or TSG) on the heating capacity of RCF (Figure 7a) and R+MCF slabs (Figure 7b). Figure 7a shows similar heating curves for both electrode configurations in specimens with only reinforced carbon fiber, indicating that the electrode disposal plays a minor role on the heating performance of material RCF. However, this trend is not maintained in R+MCF (Figure 7b). In this case, specimens with TDS electrode configuration display higher heating curves than specimens with TSG disposal for all voltages evaluated. These results suggest that in low conductive materials, the increment of steel surface allows a more efficient transfer of the electric charges between the electrode and the conductive concrete.

Even though temperature gradients are inherent to the heating mechanism induced by the Joule effect, if not limited, these might compromise the serviceability of the structure and generate high internal stresses that might affect the structural performance of the element. Therefore, the development of self-heating concrete mixes not only comprises the assessment of the heating rates but also the evaluation of the temperature distribution within the element.

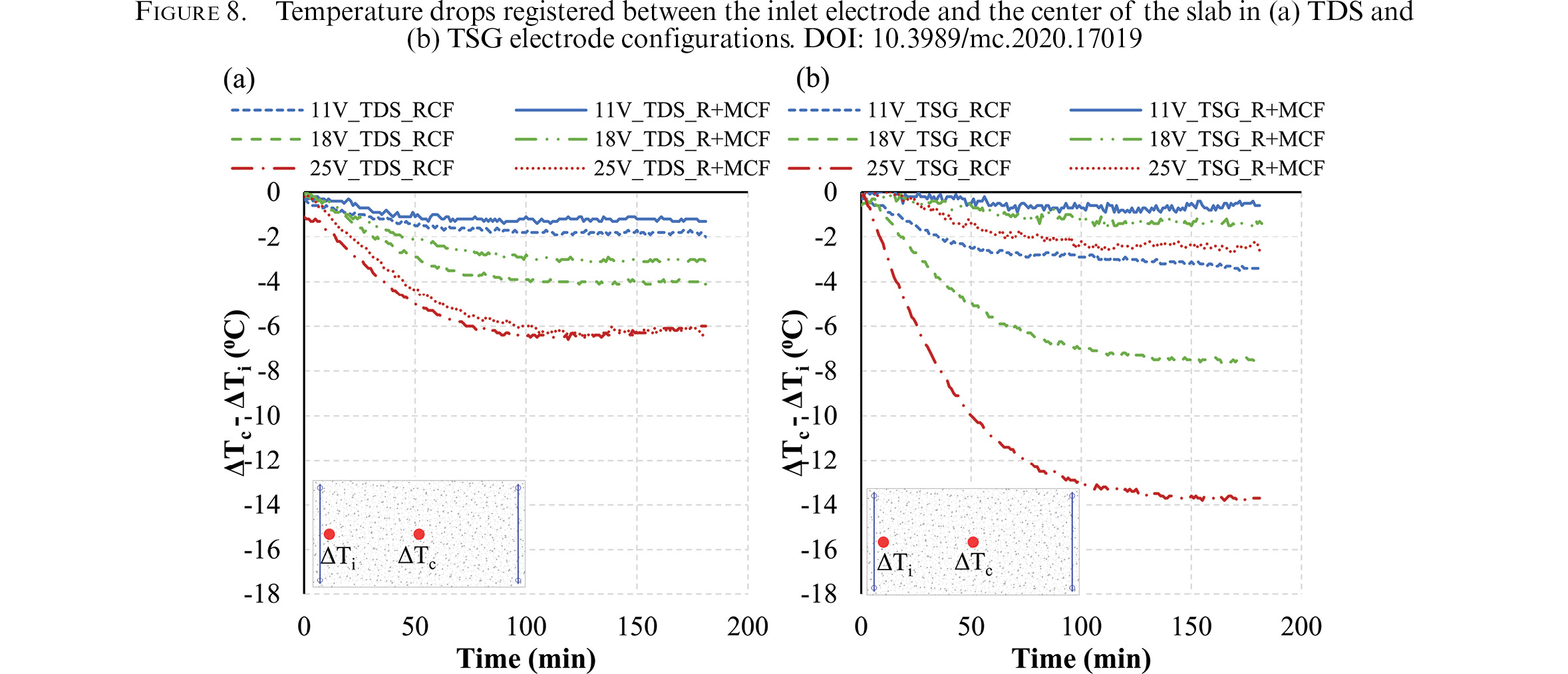

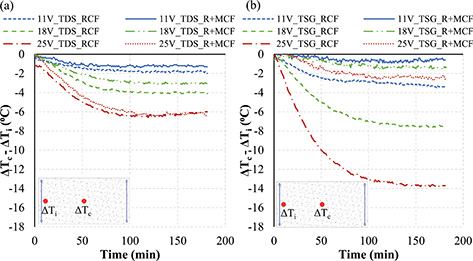

Figure 8a and Figure 8b depict the influence of the voltage and the carbonaceous addition on the temperature drop registered between the center of the slab (ΔT_c) and near the inlet electrode (ΔT_i) for TDS and TSG configuration, respectively. Independently of the electrode disposal, temperature gradients are characterized by a rapid increase followed by a second stage where the temperature lost tend to a constant value, especially for medium and high voltages. As expected, results show increasing temperature drops with the voltage applied, suggesting that temperature gradients increase proportionally with the heating rate.

Temperature drops registered at the end of the test range from 1 - 6 and 1 - 14 ºC for TDS and TSG configuration, respectively. These results suggest that the TDS electrode disposal limits the magnitude of heat peaks nearby the electrode location, allowing a more efficient heat transfer to the conductive concrete. Figure 8a shows a minor influence of the type of carbonaceous addition on the temperature gradients registered throughout the test. Therefore, the temperature drops registered in specimens with TDS electrode disposal is mainly attributed to the intensity of the voltage applied. On the other hand, Figure 8b depicts much larger temperature drops in RCF specimens than in R+MCF slabs. These results seems to be related to the small heat transmission surface of the electrode configuration TSG, when compared to the TDS. The small contact area of the TSG configuration demands a highly conductive cementitious material to distribute efficiently the electrical charges throughout the specimen. Otherwise, high local temperature peaks are generated nearby the electrode location and the temperature drop increase significantly, specially for high voltage configurations.

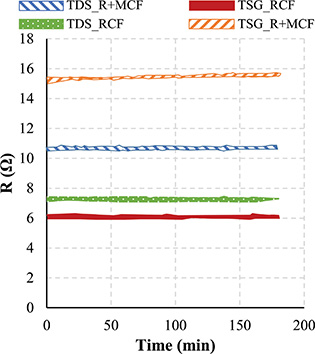

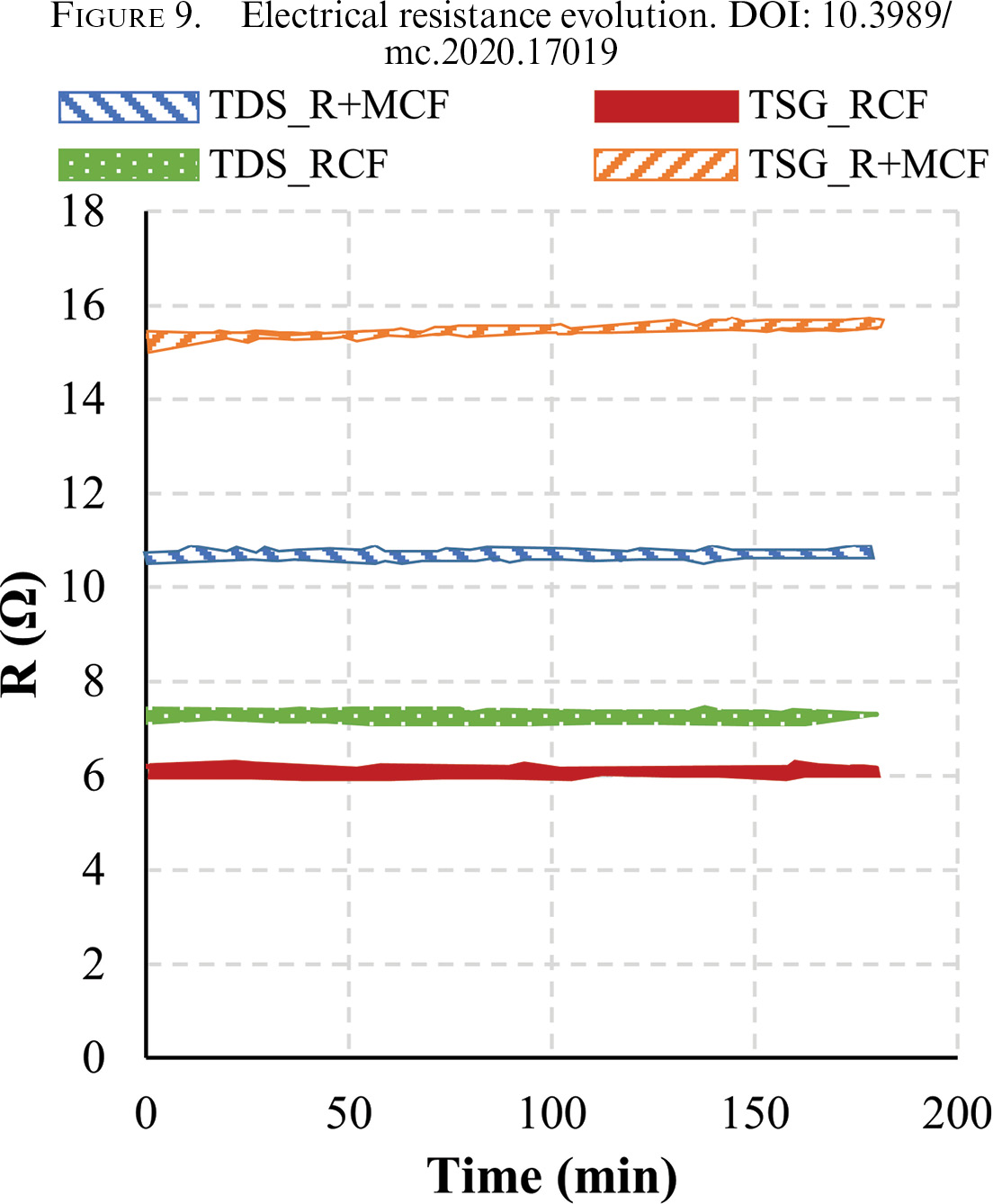

Finally, Figure 9 presents the evolution of electrical resistance displayed by the specimens tested. The shaded domains represented correspond to the envelops covered by the electrical resistance curves measured in each specimen for all voltages (11, 18 and 25 V). Results show constant values throughout the test duration, regardless of the voltage applied. In other words, the variations of voltage and intensity were proportional within the range considered in the tests. This suggests that the material is able to sustain all testing conditions without deteriorating its conductive properties. Values obtained range from 6 to 15.7 Ω, for TSG_RCF and TSG_R+MCF material configuration, respectively. As expected, electrical resistance values are inversely proportional to the heating capacity of the material at the center of the slab.

3.2.2. 2 cycles of 8h heating/16h cooling in slabsTOP

The second test series involves the application of the high voltage configuration (25 V) on concrete slabs with recycled carbon fiber addition (RCF) and both types of electrode disposals (TSG and TDS) during 2 continuous cycles of 8 h heating/16 h cooling. This testing configuration allows the study of the performance of the different specimens under repetitive long heating cycles with high heating rates, which might be representative of the real field conditions. Room temperature during the tests ranged between 24 - 28 ºC.

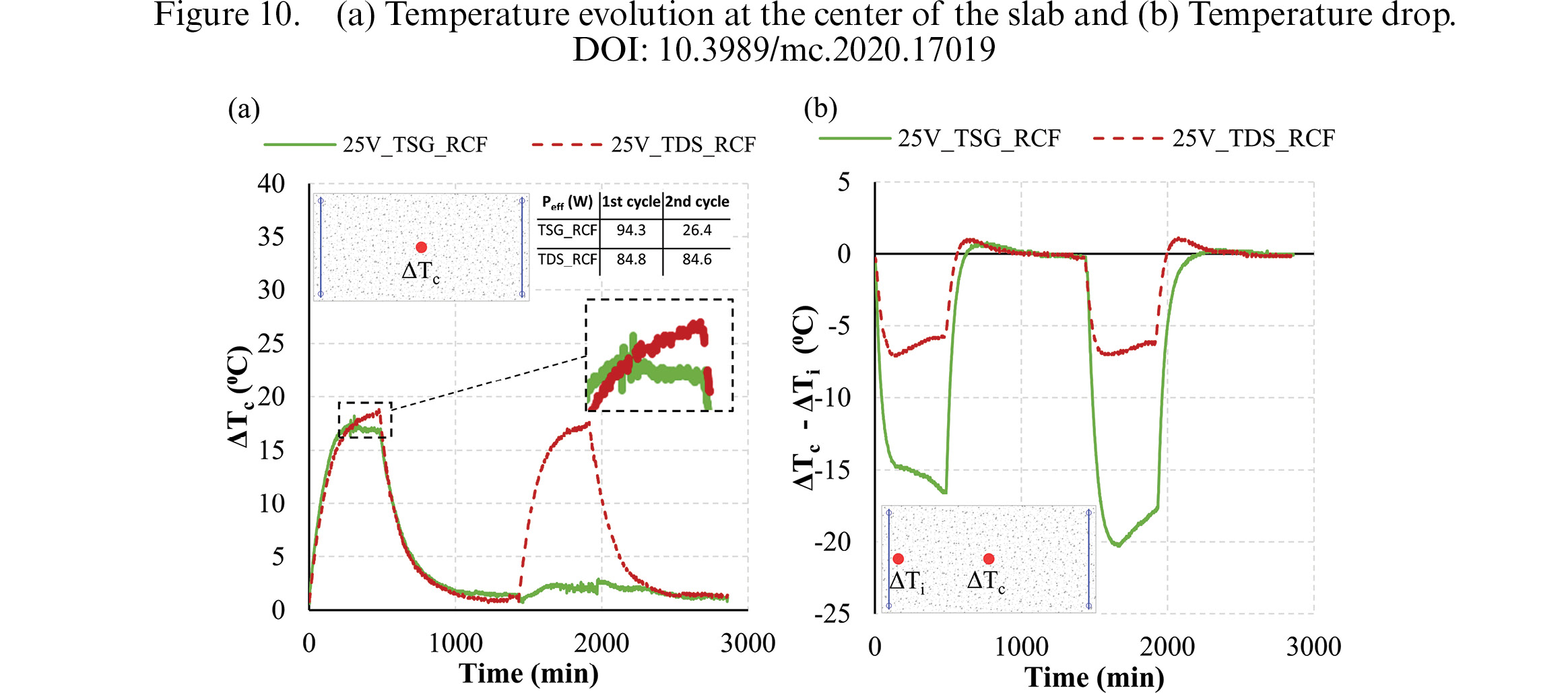

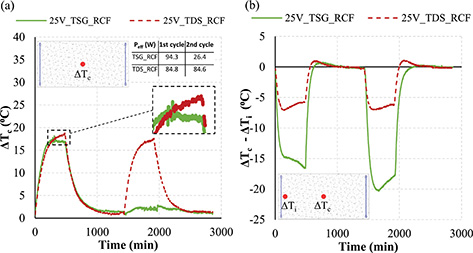

Figure 10a shows the temperature evolution registered at the center of the specimen with respect to room temperature over the test duration. The first heating cycle presents the same trends as described for 3 h tests in both electrode configurations, with a rapid temperature increase followed by a plateau. Notice that specimens TSG_RCF do not follow a natural heating profile near the first plateau region. Instead, these experience a sudden halt, indicating a possible deterioration of the material. The increments of temperature registered reached 18 ºC at the end of the 8 h heating period, which is a similar value than the one obtained during the 3 h tests at the same voltage. During the disconnected period, the material experiences a rapid decrease of temperature followed by a plateau at 1 - 2 ºC over room temperature.

The second heating sequence, 24 h after test start, shows different behaviors for TDS and TSG electrode configurations. Concrete slabs with TDS electrodes display the same heating and cooling rates than the ones described for the first cycle, suggesting no degradation of the conductive and self-heating properties of the material after 8 h of high voltage application. However, slabs with TSG electrode configuration are not able to induce any significant heating during the whole cycle. This behavior indicates that the conductive properties of the material might be completely deteriorated, possibly since the plateau region of the first heating cycle, as commented previously. The average power consumption measurements registered during the heating cycles also reflects this deterioration of the conductive properties of the specimens with TSG electrode disposal (Figure 10a). While during the first cycle both specimens were able to transfer similar average rates of electrical energy per unit time, during the second cycle a dramatic loss of power consumption is registered for the TSG specimen.

Figure 10b depicts the temperature drop registered between the center of the slab (ΔT_c) and near the inlet electrode (ΔT_i) for TDS and TSG configuration. In general, temperature gradients increase rapidly during the first hours of the heating stages, start to decrease slightly during the plateau stage of the heating cycles and decrease rapidly during the cooling phases. Maximum temperature gradients registered for TDS and TSG disposal during the first cycle are 7 and 17 ºC, respectively. Notice that even though both electrode configurations reached similar heating rates (Figure 10a), the temperature drops for TSG disposal are 2.4 times higher than for TDS configuration. These results are consistent with the outcomes presented in section 3.2.1 and confirm the better performance of the TDS disposal when it comes to minimize temperature gradients within the specimen.

Under a steady energy supply and material properties, once the material reaches its highest heating potential, temperature gradients tend to decrease over time until constant temperature distribution across the specimen. TDS_RCF samples reflect this normal behavior with the decrease of temperature gradients during the plateau region of the heating cycles. However, the slight increase of temperature variation depicted by the TSG_RCF specimen during this period can only be explained by a degradation of the conductive properties of the material, as the energy supplied remained constant.

The degradation of the conductive properties in the specimens TSG_RCF is confirmed during the second heating stage. Figure 10a shows that this mixture does not register any relevant increase of temperature at the center of the slab during this period. On the other hand, the temperature drop depicted in Figure 10b indicates that the thermocouple located nearby the inlet electrode did register an increase of temperature during the second heating stage. In other words, the concrete near the inlet electrode was heated, but the conductive properties of the material were not sufficient to heat the center of the slab, indicating severe degradation of the matrix.

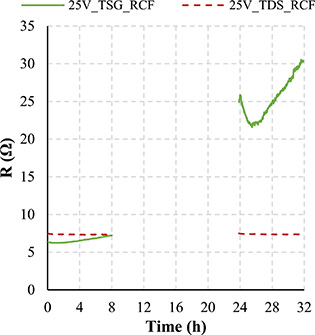

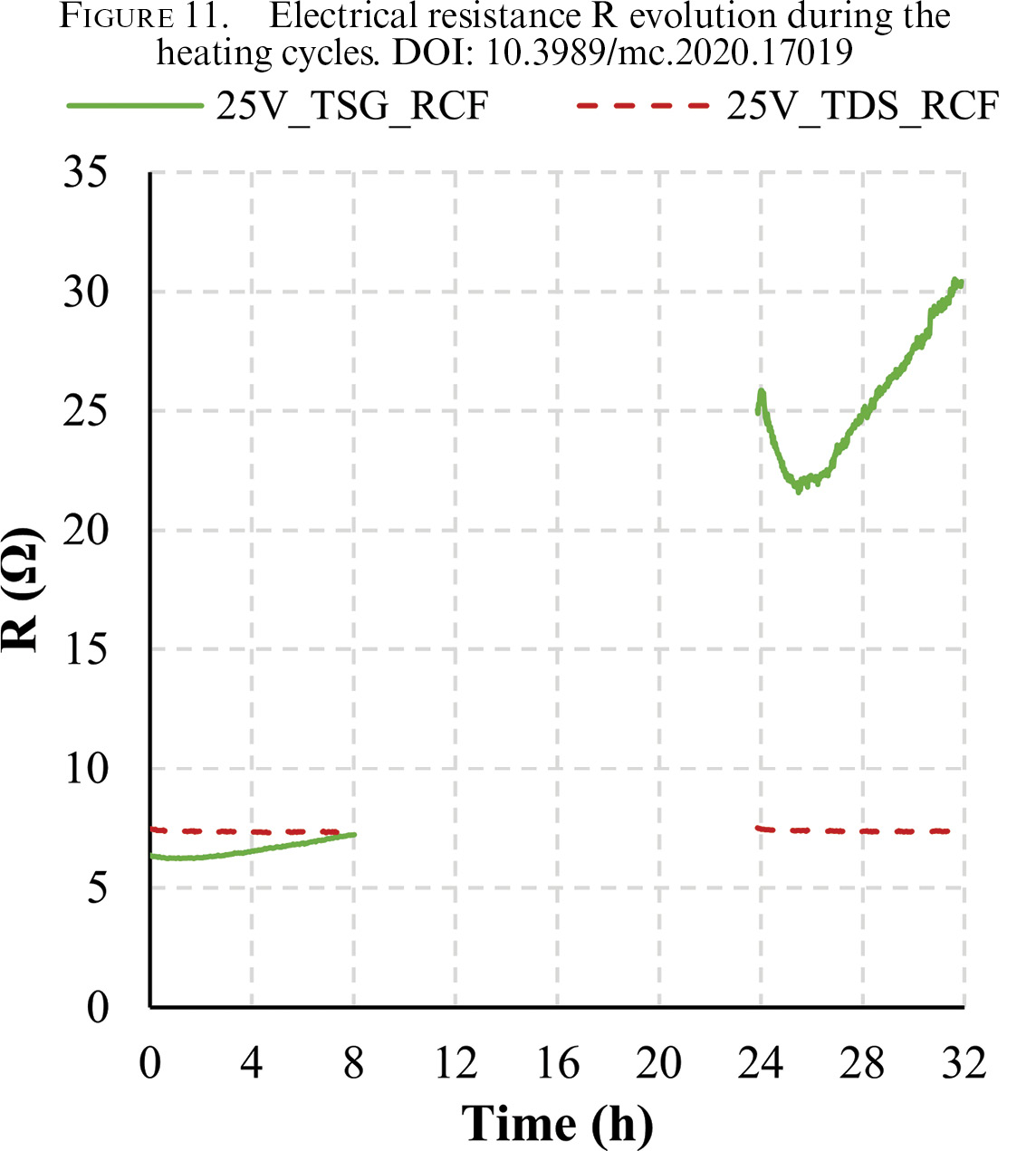

Finally, Figure 11 shows the electrical resistance during the first heating cycle for TSG_RCF and TDS_RCF specimens. Specimens with TDS electrode configuration describe a constant resistance over the two heating cycles, indicating that the specimens were able to sustain the maximum temperature consistently over long periods of time without any degradation. On the other hand, samples with TSG electrode disposal depict an increase of electrical resistance from the second hour of the heating cycle. This suggests an increasing reduction of the material conductive properties over time, which coincides with the unnatural heating profile described during the plateau region of the first heating cycle and the following incapacity of generating heat at the center of the specimen.

3.3. Thermal characterization in real-scale benchesTOP

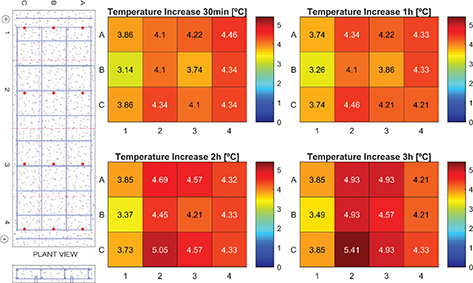

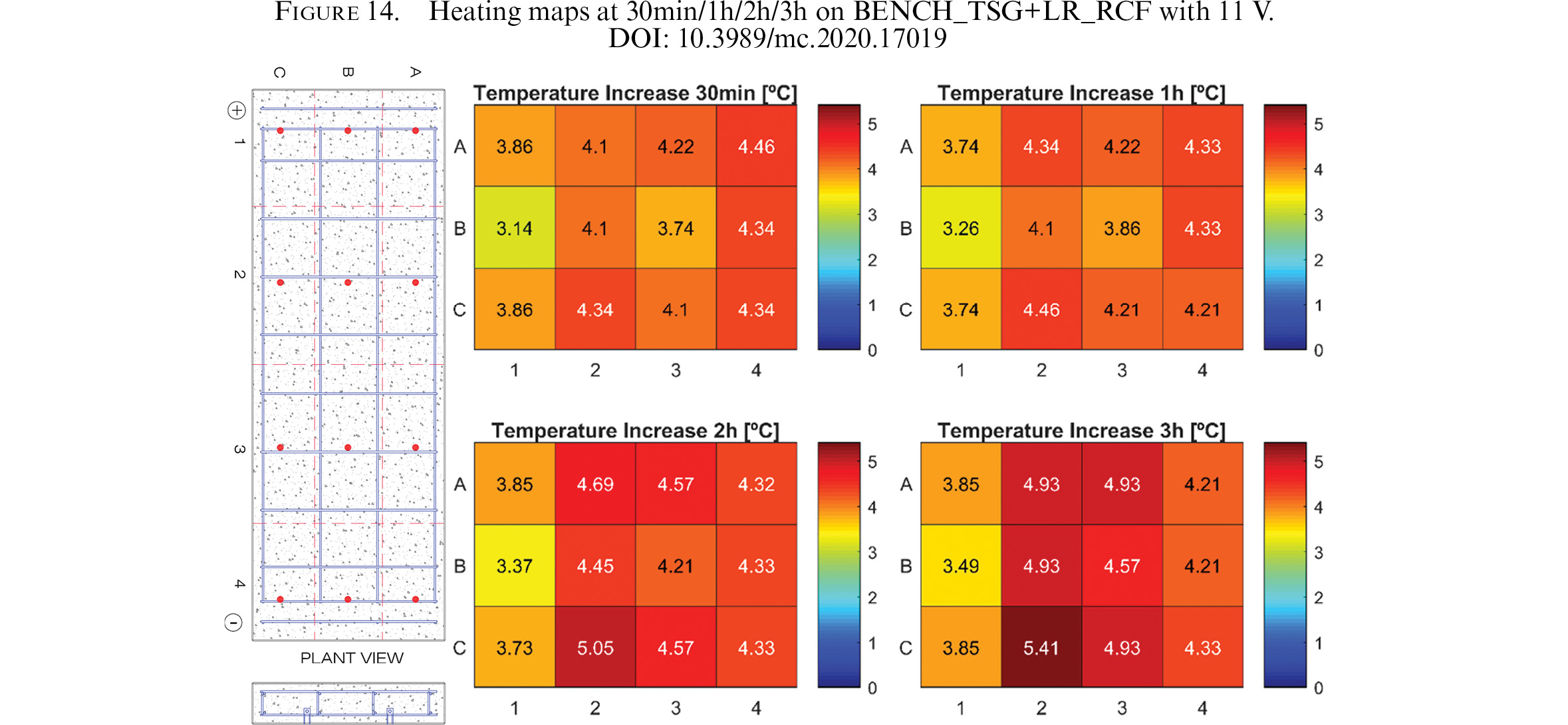

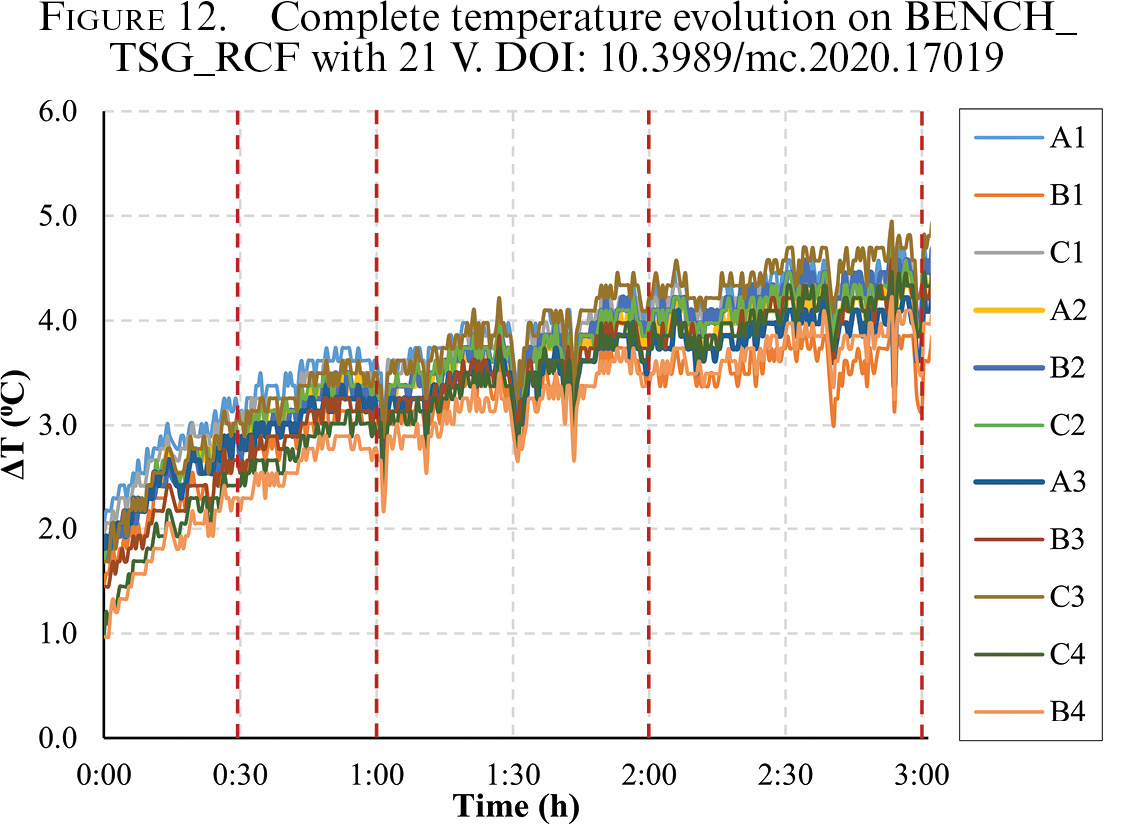

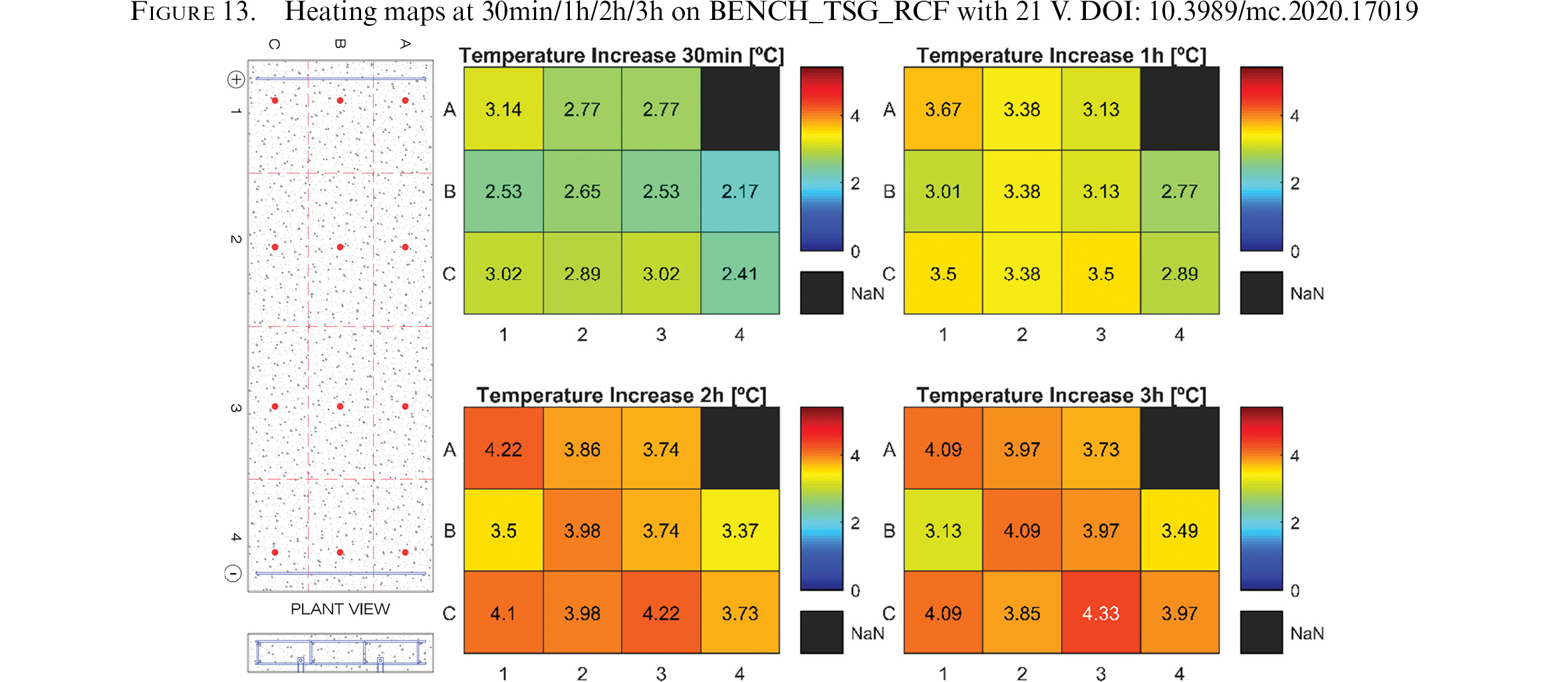

Figure 12-Figure 15 present the results associated with the thermal characterization of real-scale benches with TSG, TSG+LR and LR electrode configurations, respectively. All tests were performed at room temperature between 26 - 29 ºC. The full temperature profile for each of the 12 thermocouples arranged is only displayed for the first bench configuration (BENCH_TSG_RCF) to show the typical temperature evolution profiles registered (Figure 12). As can be seen, the large amount of thermocouples incorporated hinder the interpretation of the graphs. Therefore, results are presented instead in Figure 13-Figure 15 as heating snapshot maps after 30 min/1 h/2 h/3 h of test onset. Figure 12 includes vertical dotted red lines at the times captured in the heat maps for the first bench configuration. The temperature depicted is the difference between the temperature registered by the sensor and the room temperature. Each thermocouple incorporated is representative of the heating capacity of the rectangular region defined by the virtual grid included in each figure, as described in Figure 4b. The range of the color limits adopted in all figures is maintained to allow color-based comparison between the different benches evaluated.

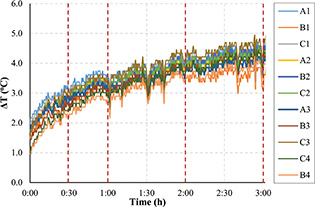

The bench with the TSG electrode configuration and no steel reinforcement reaches increments of temperature between 2.1-3.1 ºC after 30 min at 21 V (Figure 13). The thermocouple located at A4 grid was not working thus no temperature is available there. The largest temperature value is obtained near the inlet electrode (1A) while the lowest temperature is registered at the thermocouples situated near the outlet electrode (4B, 4C). The temperature drops between these locations is limited to less than 1 ºC, which is a very low temperature variation considering the distance between electrodes (almost 2 m). During the 1 h – 2h heating period, temperature variations increase more slowly, reaching temperatures between 3.4-4.2 ºC. After 2 h of heating, the bench seems to have arrived to its maximum heating potential at this voltage, as temperature are maintained. The average power consumption registered during this test was 25.9 W, with a +1 standard deviation of only 0.08 W.

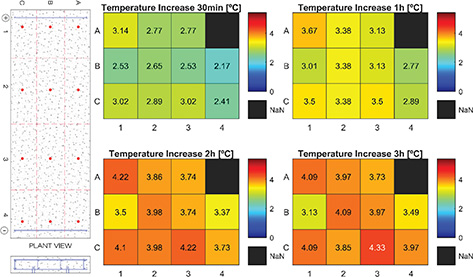

The bench with an additional longitudinal reinforcement (TSG+LR, Figure 14) reaches temperature increments of 3.1-4.5 ºC after only 30 min of 11 V application. Then, temperature profiles increase slightly until the end of the test, where the increase in temperature ranges from 3.5-5.4 ºC. The temperature drops registered between the hottest and coolest locations increase from 1.3 (at 30 min) to 1.9 ºC (at 3 h). which are still a low temperature gradient given the dimensions of the element. The average power consumption registered during this test was 26.1 W, with a +1 standard deviation of only 0.08 W.

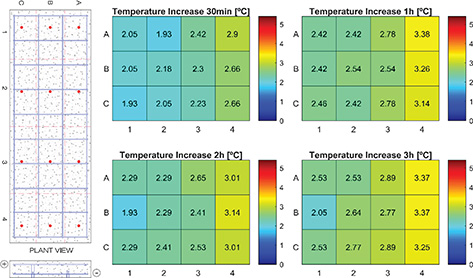

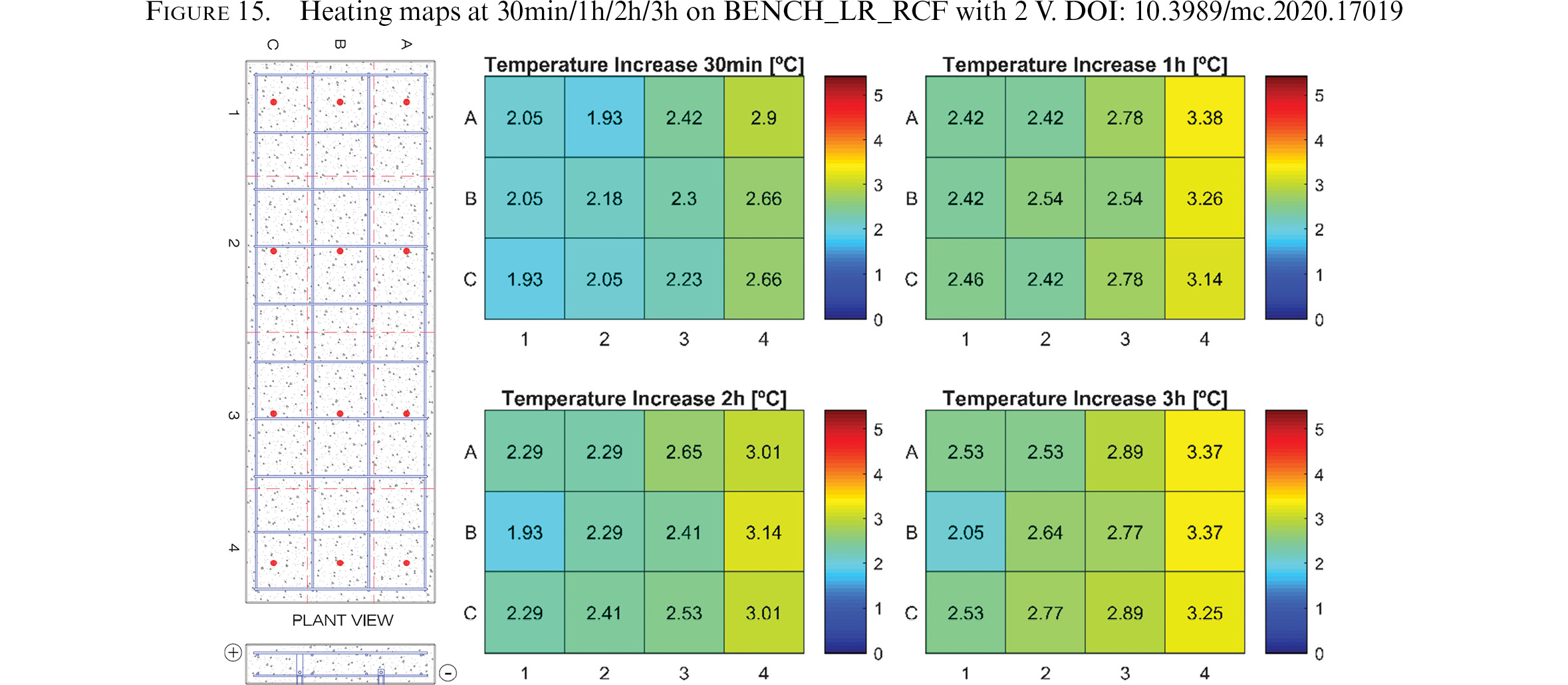

Finally, the bench that uses the longitudinal reinforcement itself as inlet and outlet electrodes shows increases in temperature from 1.9-2.9 ºC after 30 min at 2 V (Figure 15). Temperature continue to increase slightly until 2.4-3.4 ºC after 1 h of voltage application. At this point, the temperature reached is maintained until the end of the heating period. Even though the temperature increase showed by this electrode configuration is lower than the temperatures reached in previous benches, the heating performance of this bench is significantly superior if the voltage applied is considered. The temperature increase per volt applied (ºC/V) of this configuration is 7.5 and 3 times larger than the BENCH_TSG_RCF and BENCH_TSG+LR_RCF, respectively. In terms of electrical consumption, this configuration registered an average power consumption during the test of only 7.7 W, with a +1 standard deviation of 0.06 W.

Similarly to all other real-scale benches evaluated, temperature drops registered in BENCH_LR_RCF between the hottest and coolest locations are limited to values around 1 ºC throughout the test duration. Unlike some of the values obtained in the laboratory-scale slabs presented in section 3.2.1, the temperature drops registered in benches neither compromise the comfort nor the structural performance due to thermal-induced stresses. These results indicate that with the current set of technology, temperature drops can be maintained at acceptable ranges if the increase of temperature is limited to 3-4 ºC over room temperature. Therefore, the technology developed seems to be potentially applicable at de-icing applications in urban furniture in climates where the lowest temperatures remain within the range of -3 or -4 ºC. However, heating tests should be validated at room temperatures of such ranges.

4. CONCLUSIONSTOP

This paper presents a broad experimental study that explores the current capacity of conductive concrete for de-icing and self-heating applications in urban furniture, from small-scale laboratory specimens to full real-scale benches. The following specific findings may be derived from this study.

ACKNOWLEDGMENTSTOP

The authors acknowledge the financial support provided by the Spanish Ministry of Economy and Competitiveness through Project BIA2016-78742-C2-1-R, and the Torres Quevedo Program (postdoctoral fellowships PTQ-14-07072 and PTQ-15-07562), as well as the support from the Catalan Government through the Industrial Doctorate program DI-2015-013. Furthermore, the authors wish to thank the company Escofet 1886 for their collaboration and support throughout the project.
