Petrophysical-mechanical behavior of Grisolia stone found in the architectural heritage of southern Italy

G. Forestieri^a*, M. Alvarez de Buergo^b

^a. Facultad de Ingeniería, Universidad de la Sabana, Campus Universitario del Puente del Común, (Chía, Cundinamarca, Colombia)

^b. Instituto de Geociencias IGEO (CSIC-UCM). Consejo Superior de Investigaciones Científicas – Universidad Complutense de Madrid, (Madrid, Spain)

*giulia.forestieri@unisabana.edu.co

1. INTRODUCTIONTOP

For centuries, Grisolia stone (DG) has been used as a building material both in the towns of the Upper Tyrrhenian part of Calabria (particularly in the province of Cosenza) and throughout the historic centers of the neighboring Basilicata region (1).

This stone has long been employed not only in vernacular construction in the above-mentioned towns, but also in construction of the major religious and aristocratic buildings that form part of Calabria’s architectural heritage. One of the foremost of these is the church of San Francesco (14th century) in Aieta, in which Grisolia stone provides the main building material. Other examples of aristocratic Calabrian architecture are the famous Principi Spinelli (13th century) and Martirano-Spinelli (14th century) palaces (Figure 1) in Scalea and Aieta, respectively. Grisolia stone has been employed for both decorative purposes (elements of palace façades and portals) and structural uses (masonry, arches and retaining walls).

Over the centuries, this building material has been quarried extensively and, in the Pollino and coastal Tyrrhenian ranges in particular, this lithology has also been used to produce artificial stone. Commercially, Grisolia stone, also known as “gold stone” for its yellow intrusions (2), which are visible to the naked eye and are probably due to impurities, was also used as a “comparing stone” to judge the purity of silver or gold.

Macroscopically, Grisolia stone is a compact, deep-grey limestone. The stone varieties differ only in slight variations in tone, which ranges from dark grey to greenish bronze.

Due to Grisolia stone’s historical and architectural importance, several authors have studied it extensively from a geological point of view (3–6). Nevertheless, complete petrophysical and mechanical characterization has not yet been performed. This paper focuses on complete characterization of this stone in order to highlight its properties and encourage its use as a building stone in both conservation of heritage and construction of new buildings.

2. GEOLOGICAL SETTINGTOP

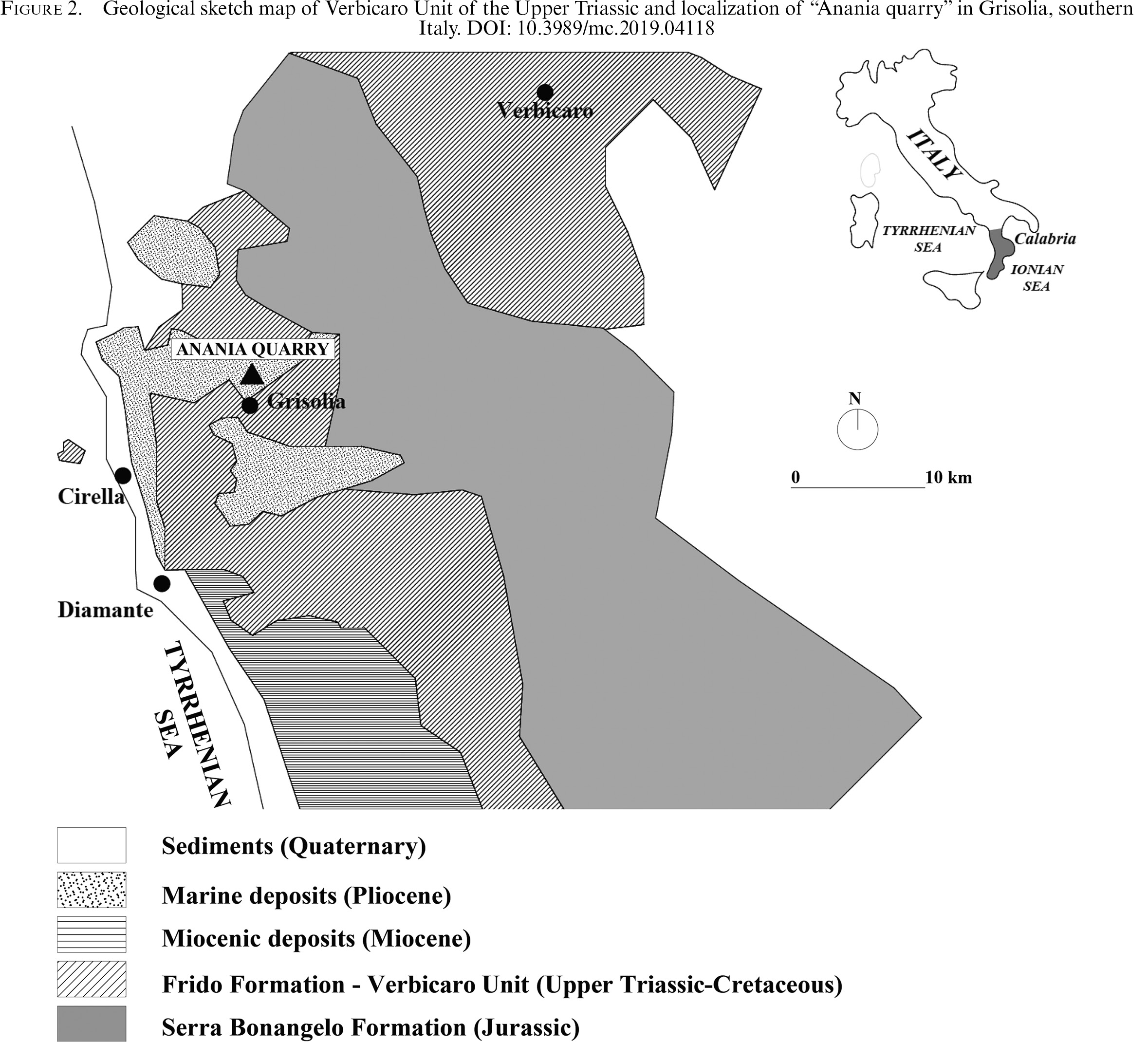

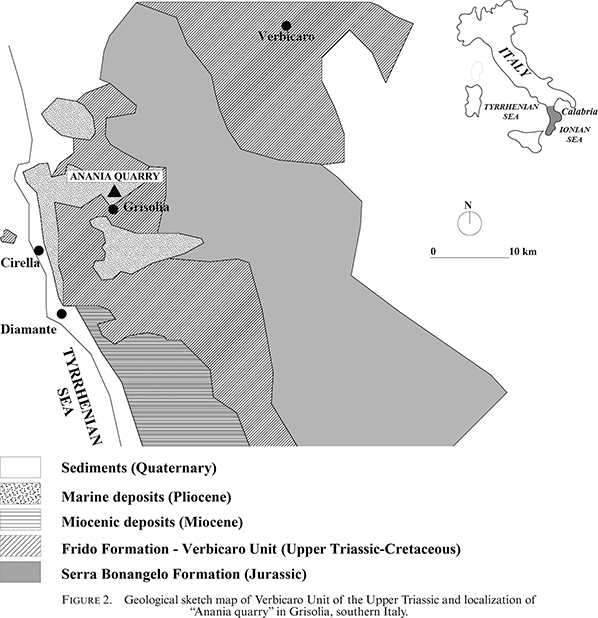

Geologically, Grisolia stone is part of the carbonatic deposits of the Upper Triassic found in the Verbicaro Unit (39°45′N and 15°54′E) (3) (Figure 2). These deposits are also referred to as “Trias Dolomitique” (7) or “dark dolostones” (4). The upper part of the Verbicaro Unit, which corresponds to the Grisolia Formation, is characterized by a succession of grey limestones alternating with yellowish/reddish argillites and marls (5). The Grisolia Formation extends from the Lao river to Papasidero, with outcrops found in the Serra la Limpida mountains and between the Lao river and the road that connects Santa Domenica Talao to Papasidero.

It is considered a transitional stone positioned between dark dolostone and grey limestone and has an average thickness of 50–60 m (4). The Grisolia Formation is composed of clayschists, quartzarenites and crystalline carbonates that are dark grey in color and contain microfossils (5).

In the Verbicaro Unit, Grisolia stone was traditionally quarried in large blocks for ornamental use, while other limestones and dolostones were mainly used for aggregates. Although quarries were scattered throughout the area bounded by the towns of S. Maria del Cedro, Grisolia, Cetraro, Guardia Piemontese, Fuscaldo, Paola, San Lucido and Belmonte Calabro, most of the stone was quarried within the municipal districts of Verbicaro and Grisolia.

3. METHODSTOP

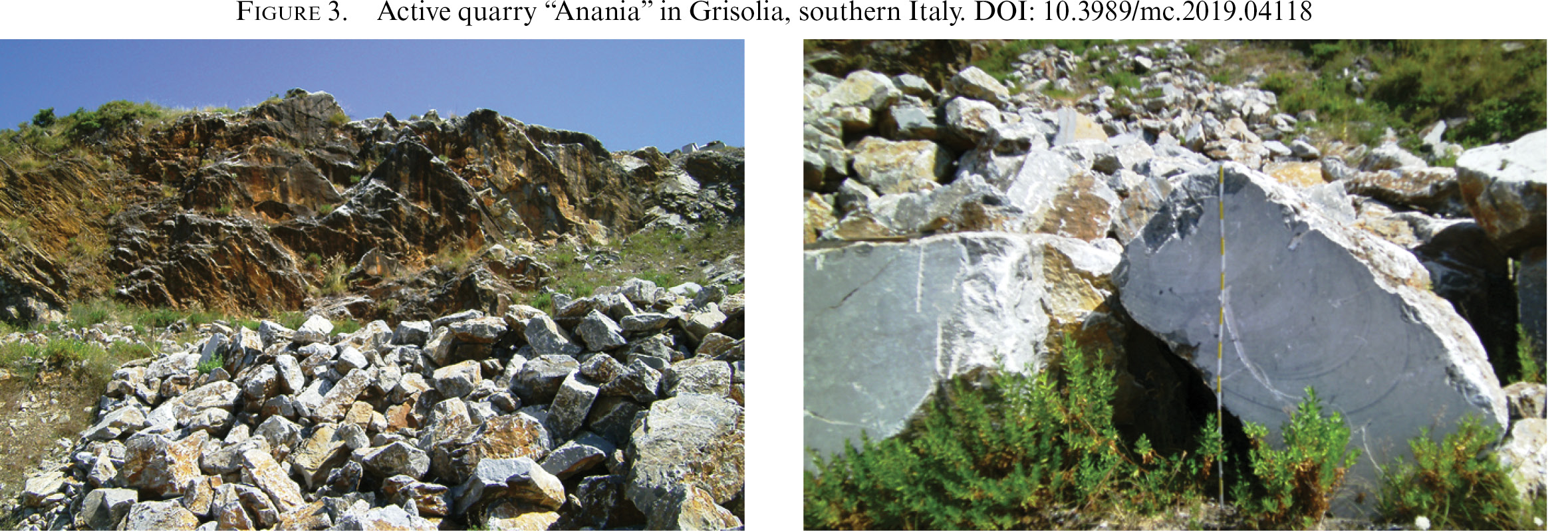

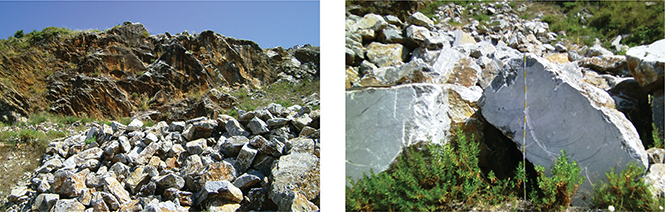

Petrophysical, mineralogical and mechanical characterization of the crystalline carbonates taken from the active Anania quarry (39°43’N and 15°51’E) (Figure 3) were carried out on a set of specimens collected at two different levels of the quarry in Grisolia. Characterization was performed on two blocks per level, taking into account the macroscopic features.

Quarry blocks were cut with a diamond cutting wheel to obtain specimens with shapes and dimensions specific to each test. Specimens were labelled with the letters “DG” (indicating “Grisolia dolostone”) and were numbered in ascending order (4). For each sample, splitting planes were determined in the quarry according both to the coordinate reference system established for the three orthogonal directions (X, Y and Z) and to stratification.

The number of samples used for each analysis was set according to the existing European standard (EN). Thin sections for petrographic analysis (8) were cut according to the splitting planes, considering the anisotropy of the rock (one thin section was cut along the XY quarry plane and the other two, perpendicular to the first one, were cut along the YZ and the XZ planes, respectively) (Figure 4a).

Specimen lengths were measured in the three orthogonal directions with a Mitutoyo digital caliper with a precision of ±0.01 mm. Measurements were taken in each of the three orthogonal directions and averaged.

Petrographic analysis was performed on uncovered and polished thin sections using an Olympus BX 51 polarized light microscope (PM) fitted with a DP 12-coupled camera. Analysis aimed to identify primary minerals and to describe stone samples in petrographical terms. A mineralogical study of the samples was conducted using X-Ray Diffraction (XRD) analysis. The XRD analysis was carried out using a Bruker diffractometer (D8 Advance) coupled to a copper tube. The diffractograms obtained were studied using qualitative and quantitative analysis software (PC-ADP DIFFRACTION).

Physical-mechanical characterization was performed using analytical methodologies: mercury intrusion porosimetry (MIP), chromatic analysis, capillary water absorption test, ultrasonic pulse velocity test (UPV), uniaxial compressive strength test (UCS) and flexural strength test (FST).

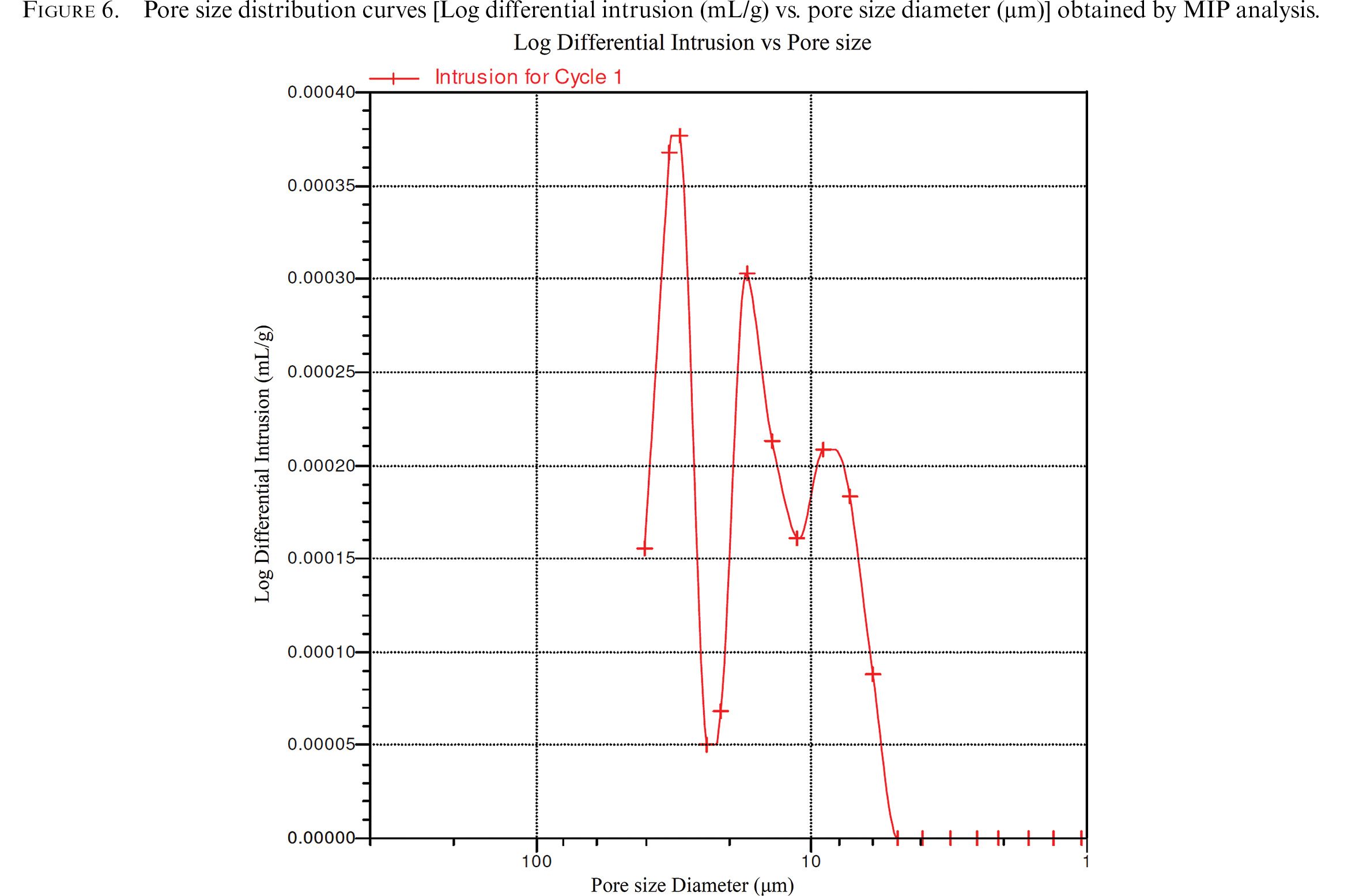

Pore diameter distribution, total cumulative mercury volume, average pore diameter and open porosity were determined by MIP. This test, performed using a Micromeritics Autopore IV mercury porosimeter, furnished information about pore specific surface and apparent and skeletal density. Regarding pore size, the Ordaz and Esbert classification for stone decay (9) was used, which differentiates between micropores (< 7.5 μm) and macropores (> 7.5 μm). Nine prismatic samples measuring 0.5 × 0.5 × 0.8 cm were prepared for MIP analysis.

Chromatic analysis was carried out on the surface specimens with the aid of a spectrophotometer (Minolta CM-700d) and Color Data Spectramagic TM NX CM-S100W software to obtain the color parameters for the CIE 1976 L*a*b* system (L* = lightness; a* = green/red coordinates; b* = blue/yellow coordinates; C* = chroma parameter; the function of the a* and b* values is given by the formula C* = √(a*² + b*²)). Eight cubic specimens of 50 mm (± 5 mm) per side were used for chromatic analysis (10). Thirty readings were taken from each cubic specimen (five readings per cube face) in order to provide an average representative result.

The same eight cubic specimens of 50 mm (± 5 mm) per side employed for the non-destructive chromatic analysis were used for the capillary water absorption (11), UPV (12) and UCS tests (13).

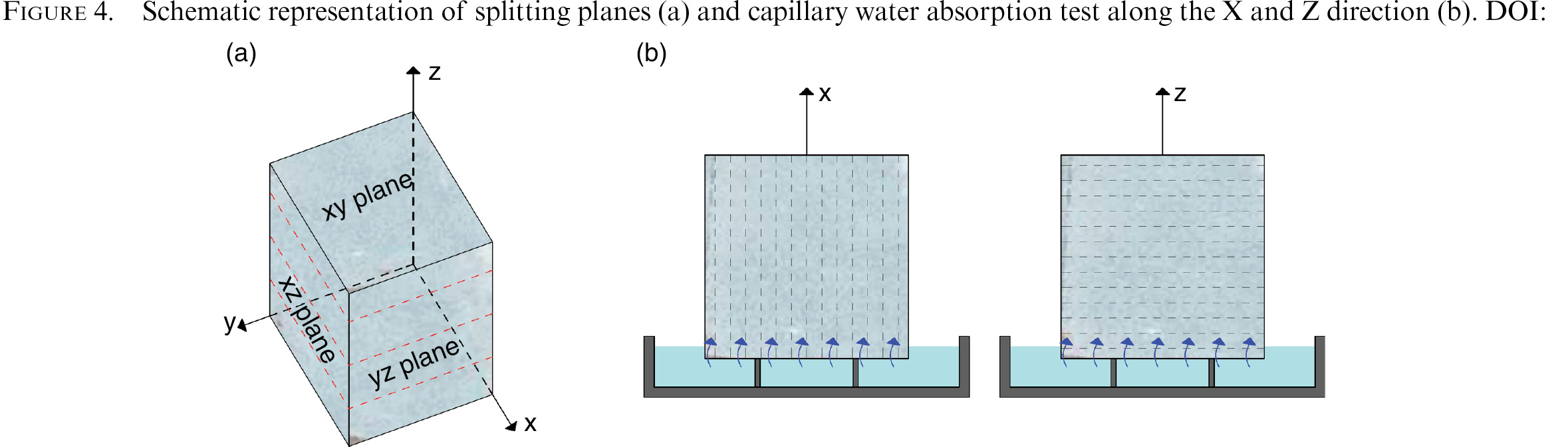

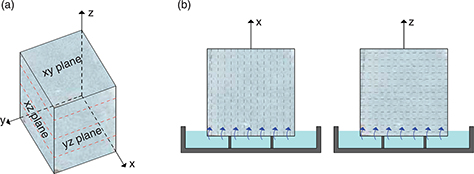

The capillary water absorption test was carried out on cubic specimens aligned in the two anisotropic directions (X and Z). Specimens were placed in water of a depth of 3 mm (±1 mm) and the weight increase due to water absorption was measured at the time intervals stipulated in the corresponding standards until constant mass was reached (11) (Figure 4b). In order to describe the capillary water absorption behavior of the material, capillary coefficients parallel and perpendicular to the stratification planes (X and Z, respectively, obtaining C₂ and C₁, respectively) and the average coefficient Cc were evaluated according to the Snethlage classification (14). The stones were then classified as “slightly absorbing” (Cc < 8 g/m²s^0.5), “medium absorbing” (Cc < 8–50 g/m²s^0.5) or “highly absorbing” (Cc > 80 g/m²s^0.5). Water-related properties and parameters provide an insight into the behavior of the stone when exposed to the action of fluids, in particular water, and can be used to predict the stone’s propensity to decay in the future (15).

The UPV values were obtained to an accuracy of 0.1 microseconds using the portable, non-destructive MATEST Meter Ver equipment fitted with two 55-kHz frequency transducers (diameter of 1.5 cm). During measurement, in order to improve coupling of the transducers (transmitter and receiver) to the surface of the stone substrate, a Farnell ultrasound couplant gel was applied to the opposing faces of the cubic samples. Direct mode was used, placing both transducers in parallel and on opposite sides of the specimens. UPV determination was performed in each of the three orthogonal directions —X, Y and Z— of the cubic specimens in order to analyze the spatial variation of the UPV. The anisotropy indices were also evaluated (16): total anisotropy (dM_UPV%) —using the three directions— and relative or bi-dimensional anisotropy (dm_UPV%). Five measurements were taken in each of the three orthogonal directions and averaged (12).

UCS (13) was performed using the MFL SYSTEM testing machine at a constant speed of 1 mm/min and a maximum load capacity of 3000 kg. UCS under unconfined conditions was performed in the three spatial directions: X, Y, and Z. The corresponding UCS_max,X, UCS_max,Y, and UCS_max,Z values were calculated as the ratio between the maximum applied compressive load at failure and the cross-sectional area of the tested specimens. The UCS_mean value, characteristic of each stone type, was calculated as the average value (17) and the strength anisotropy was evaluated as the ratio of UCS_max/UCS_min.

For the FST, the three-point-load bending test was performed. For each direction, eight parallelepiped specimens measuring 300 × 50 × 50 mm (± 5 mm) were loaded to failure using an INSTRON 1195 testing machine at a maximum load capacity of 5000 kg and at a constant speed of 1 mm/min. For each specimen, the test was performed along the three splitting planes. The FST value of each sample was calculated according to current standards (18). In addition, the anisotropic FST index was evaluated as the ratio of the maximum and minimum values within the three spatial directions.

The mechanical strength values were compared against the Anon classification (19, 20, 21), classifying stones as “moderately strong” (UCS of 12.5–50 MPa), “strong” (UCS of 50–100 MPa), “very strong” (UCS of 100–200 MPa) and “low” (FST of < 5 MPa), “moderate” (FST of 5–10 MPa), “high” (FST of 10–15 MPa) and “very high” (FST of > 15 MPa) to define the quality of the building stone.

4. RESULTSTOP

4.1. Petrographic and mineralogical characterizationTOP

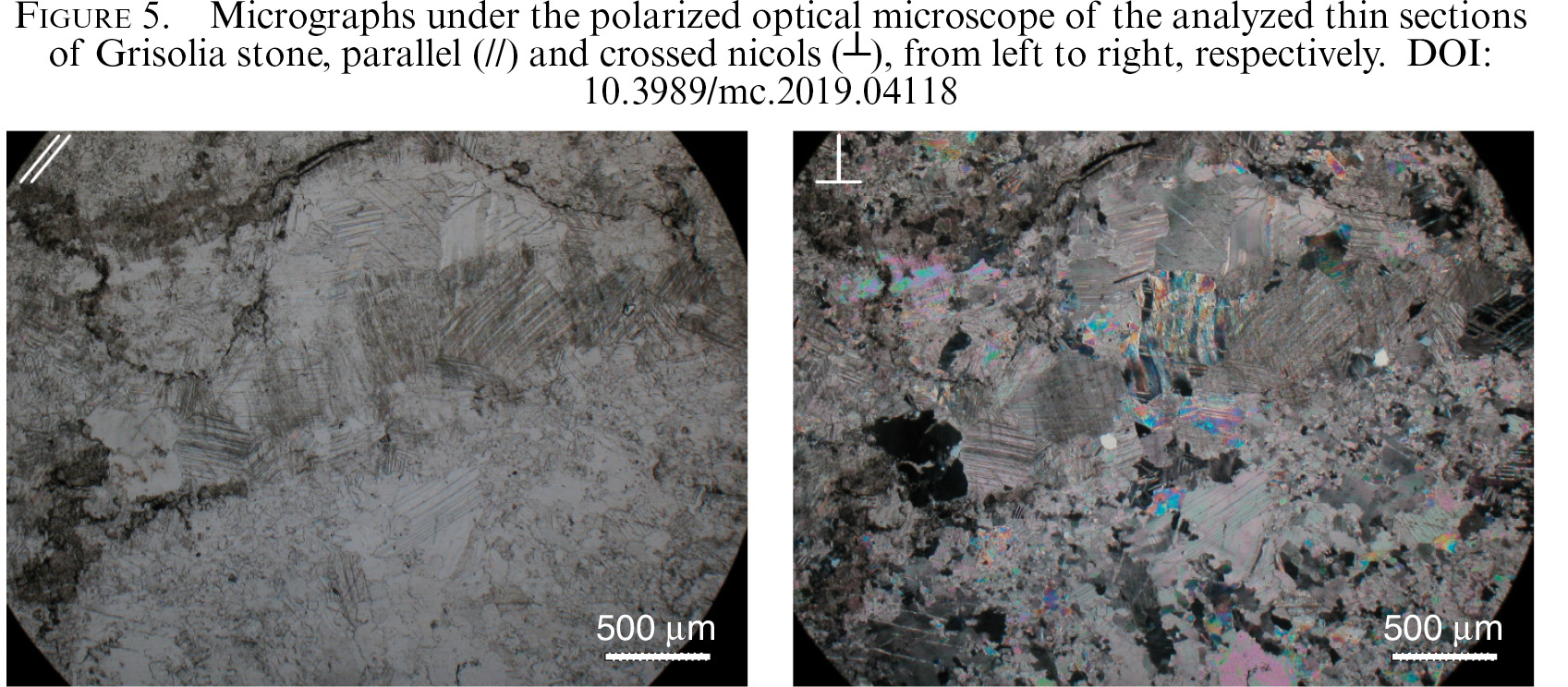

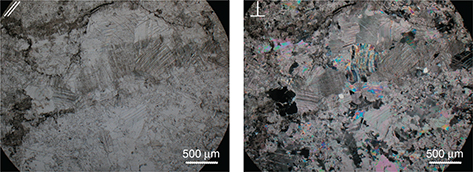

Petrographically, Grisolia stone was revealed to be a compact limestone with very low porosity. It showed a non-recognizable depositional texture and an intense level of diagenesis. It could be classified as a “crystalline carbonate” (22). Although it was fine-grained, it showed coarser calcite crystals near the veins. Its microstructure was very dense and no porosity was detected under the optical microscope (Figure 5).

The diagenetic process —due to recrystallization— could be related to neomorphism, in particular to aggrading neomorphism, which provoked formation of coarser crystalline mosaics (23). The micritic matrix was replaced by a neomorphic pseudosparite (crystal size of between 10 and 50 μm), distinguishable by the irregular distribution of the granulometry composed of coarse mosaics and fine-grained areas.

Analysis of the thin sections in the three directions (X, Y and Z) did not reveal any significant differences, at least at this microscopic level and considering the reduced area analyzed in the thin sections. In this crystalline limestone, diagenesis was governed by recrystallization and cementation processes that eliminated primary (inter- and intraparticle) porosity and generated secondary porosity in which the pore size distribution was homogeneous and the pores were partially sealed as a result of later cementation, as occurred in limestones and calcarenites (24).

The XRD results revealed that calcite is the main mineral. Dolomite was detected only in very small amounts.

4.2. Physical-mechanical characterizationTOP

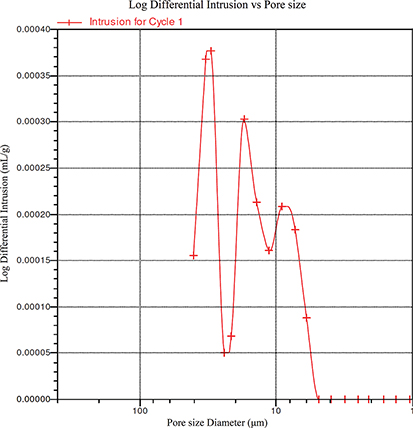

The MIP results and colorimetric values obtained are given in Table 1. Skeletal and bulk densities were very similar and typical of carbonate rocks containing calcite in particular (14). The porosity was probably due to the presence of secondary fissures (14), as demonstrated by the low open porosity (p_o) and the high compactness index (defined as the ratio between real density and bulk density). Average pore diameter corresponded to the range of macroporosity (76%) (8) with a unimodal distribution (Figure 6). These low porosity values were similar to stones with a crystalline texture such as granite and marble and were lower than ornamental limestones (24, 25, 26).

The chromatic parameters revealed Grisolia stone to be homogeneous (due to the low standard deviations) (Table 1).

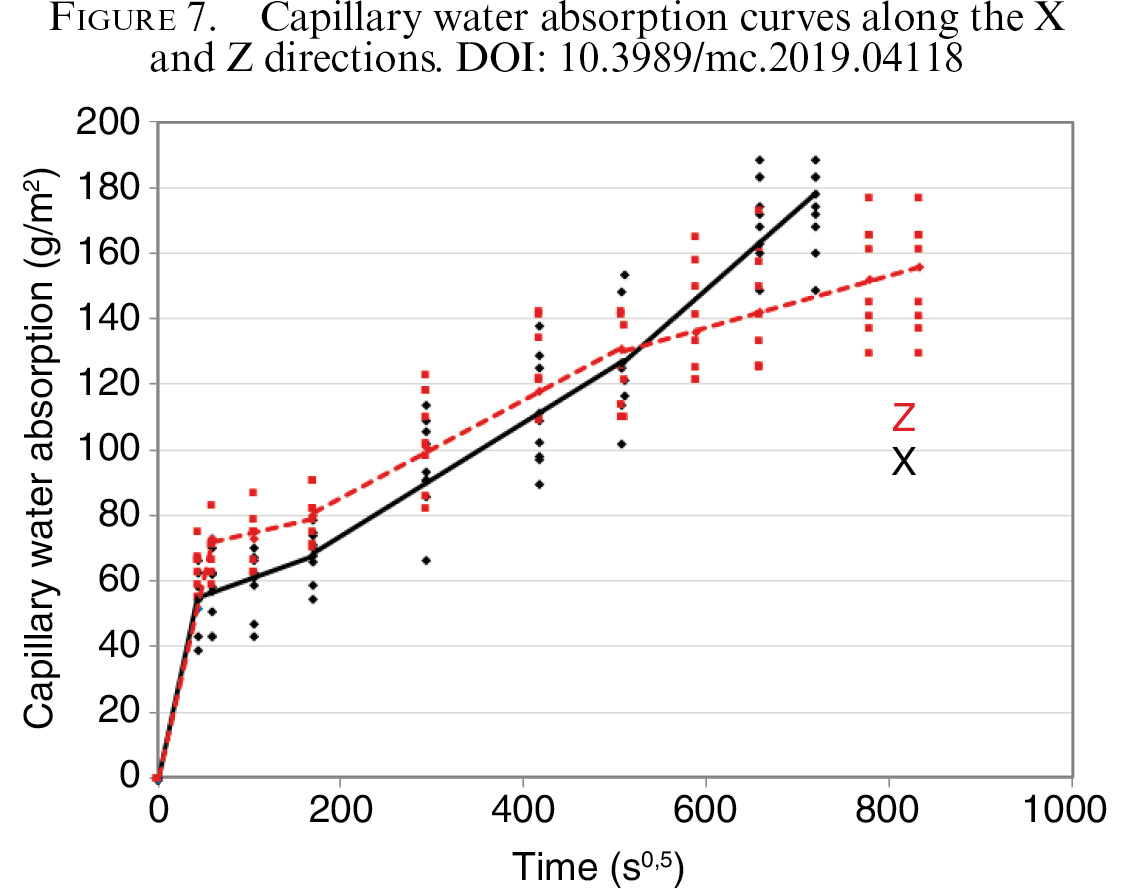

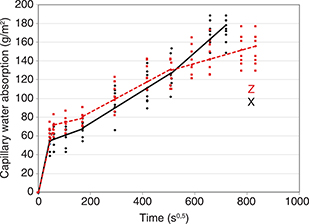

The capillary water absorption coefficients obtained were, respectively, 1.22 + 0.12 g/m²s^0.5 for C1 and 1.29 + 0.22 g/m²s^0.5 for C2 corresponding to the “slightly absorbing” stone classification (14). Capillary water absorption was found to be very low, a common characteristic in highly compact crystalline stones (Figure 7). Analyzing capillary absorption revealed how the stone’s hydric behavior was quite similar in the two directions studied, demonstrating an isotropic hydric absorption trend. Moreover, macropores, which are often found in limestones like DG and were detected by MIP, influenced water absorption capability and aided water evaporation (14). The results of the hydric tests were directly related to the stone texture formed during the diagenesis stage.

UPV was used to find the absolute and relative anisotropy indices. The anisotropy values obtained (Table 2) were considerably lower than those reported for other carbonate stones (27, 28). UPV values in the three directions (X, Y and Z) were very similar and indicative of DG’s low anisotropy. Moreover, the high UPV values demonstrated the high compactness of the stone and were related to the “high velocity class”. UPV depended largely on stone characteristics such as mineralogical composition, porosity and fracture density (29). The high UPV values observed were indicative of DG’s high dynamic quality (30, 31).

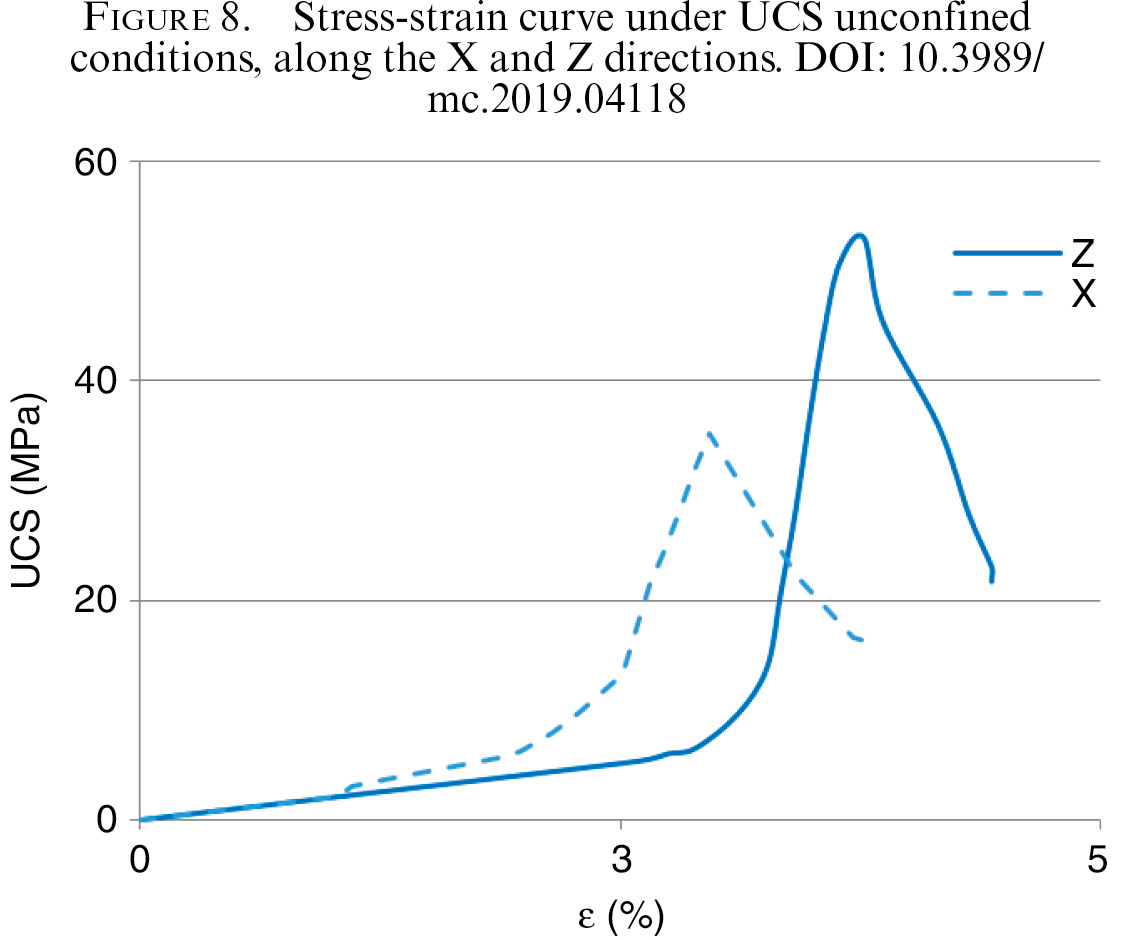

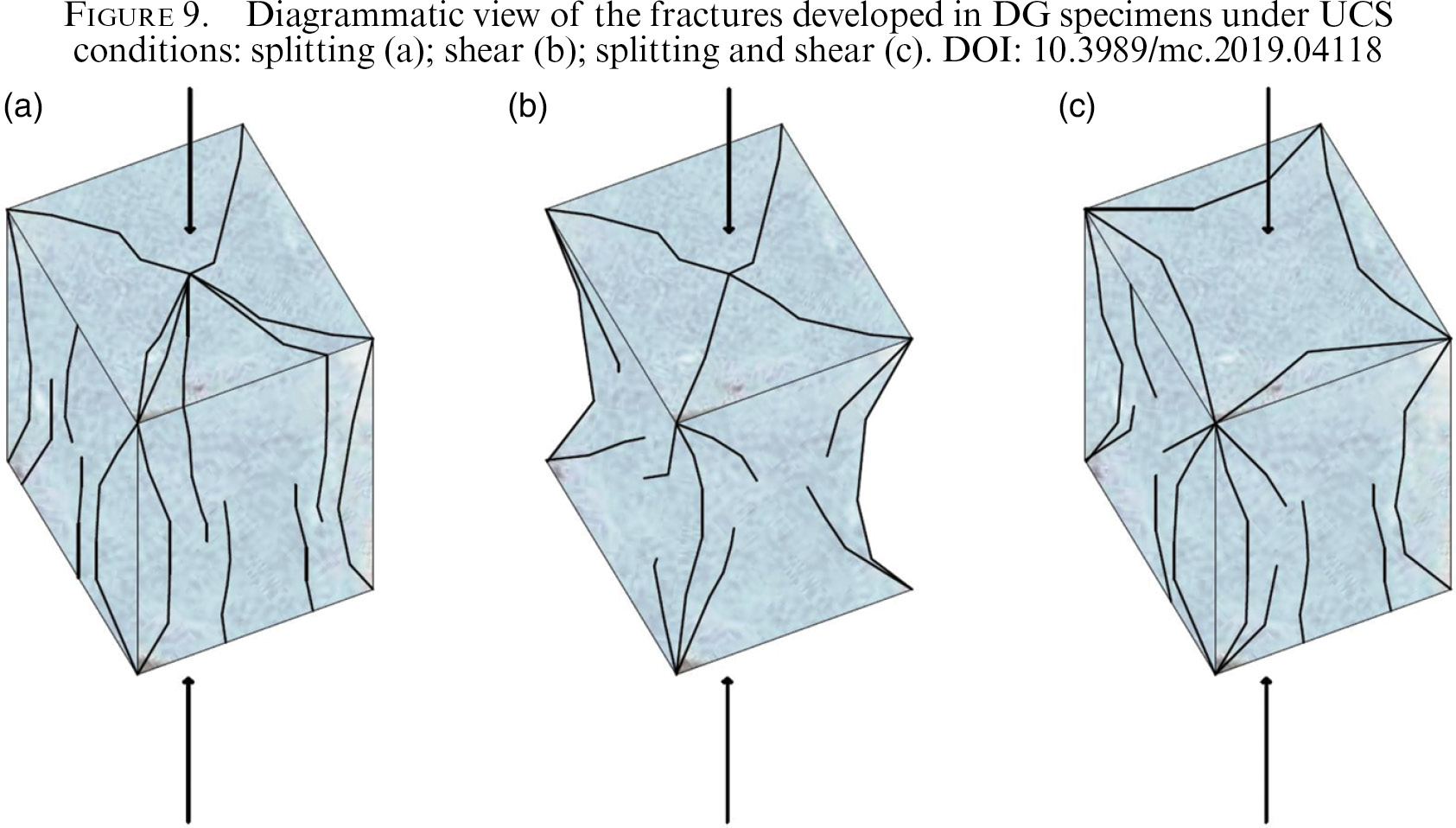

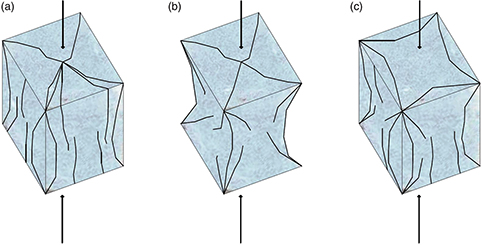

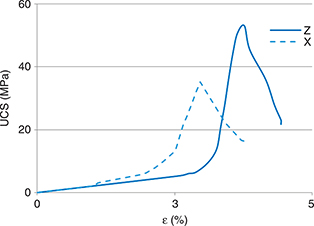

Under mechanical stress, DG proved to be fragile. Young’s modulus (E), determined from the stress–strain curves, depended slightly on the orientation of the specimen with respect to the bedding plane. E values ranged from 83 GPa to 85 GPa (Table 3) and were higher when compared to similar resistant limestones (15). The respective Poisson coefficients (υ) varied from 0.34 to 0.35, with the highest value registered when the force was applied perpendicularly to the bedding plane. The values for the three orthogonal directions presented few differences, corroborating the low total anisotropy value obtained above. UCS values presented slight differences in the three spatial directions. This fact was in agreement with the low anisotropy ratio, DG’s homogeneous features and its ultrasonic isotropic behavior. The maximum value of UCS was recorded along the Z-axis, the intermediate value was recorded along the Y-axis and the minimum value was recorded along the X-axis, with the averaged value corresponding to “strong” stone. The stress–strain curves in unconfined state (Figure 8) for the two directions analyzed showed that the behavior of the stone samples was almost quasi-linear elastic until failure. Graphically, the initial tangent modulus (i.e. the slope of the initial part of the stress–strain curve) remained almost equal to the tangent modulus at 50 % of the failure strength. Furthermore, samples showed the same quasi-elastic behavior along the two axes. The only difference appeared for the strain part, which was longer in the Z-direction than the X-direction. Regarding the schematic representation of the failure orientations (Figure 9), the specimens broke in three different ways: splitting, shear, and splitting and shear. No difference was observed in the three directions analyzed and the difference in mode failure was probably due to the presence or absence of internal weak planes. Fractures were long, extended for the height of the sample and ran mainly parallel to the direction of loading. In the case of shear failure, fractures were oriented towards the inside of the sample. After the rupture, the sample presented an hourglass shape. Shear failure, i.e. complex conjugate failures (32), occurred along planes of weakness.

FST values were in line with the values reported for other building stones with similar textural and compositional characteristics (25). As was the case for UCS, no significant differences were noticed in the three directions, with the highest values being reached on the Z-axis (Table 4). According to the mean value of FST, DG corresponded to the “high” flexural strength class (19, 20, 21). When compared to UCS, under FST conditions DG exhibited greater anisotropic behavior, as shown by the higher FST anisotropy ratio (1.6 vs. 1.1).

5. DISCUSSIONTOP

From a petrographic point of view, the existence of veins and crystals of differing sizes —thin and thick— means that DG is neither homogenous nor isotropic. Rather, it is somewhat heterogeneous. Its relative textural heterogeneity (veins and crystal size, areas of large crystals and areas of fine crystals) may be responsible for the anisotropy (albeit low) and may also be responsible for the non-optimal correlations. Regarding capillary behavior, even though the anisotropy is low, it seems to condition capillary absorption, as shown in Figure 7 where, based on the X-direction, DG would be expected to absorb more water after a certain amount of time. The low anisotropy, revealed by the UPV test, also seems to influence mechanical behavior, as shown by the slight differences in UCS and FST values in the three directions analyzed.

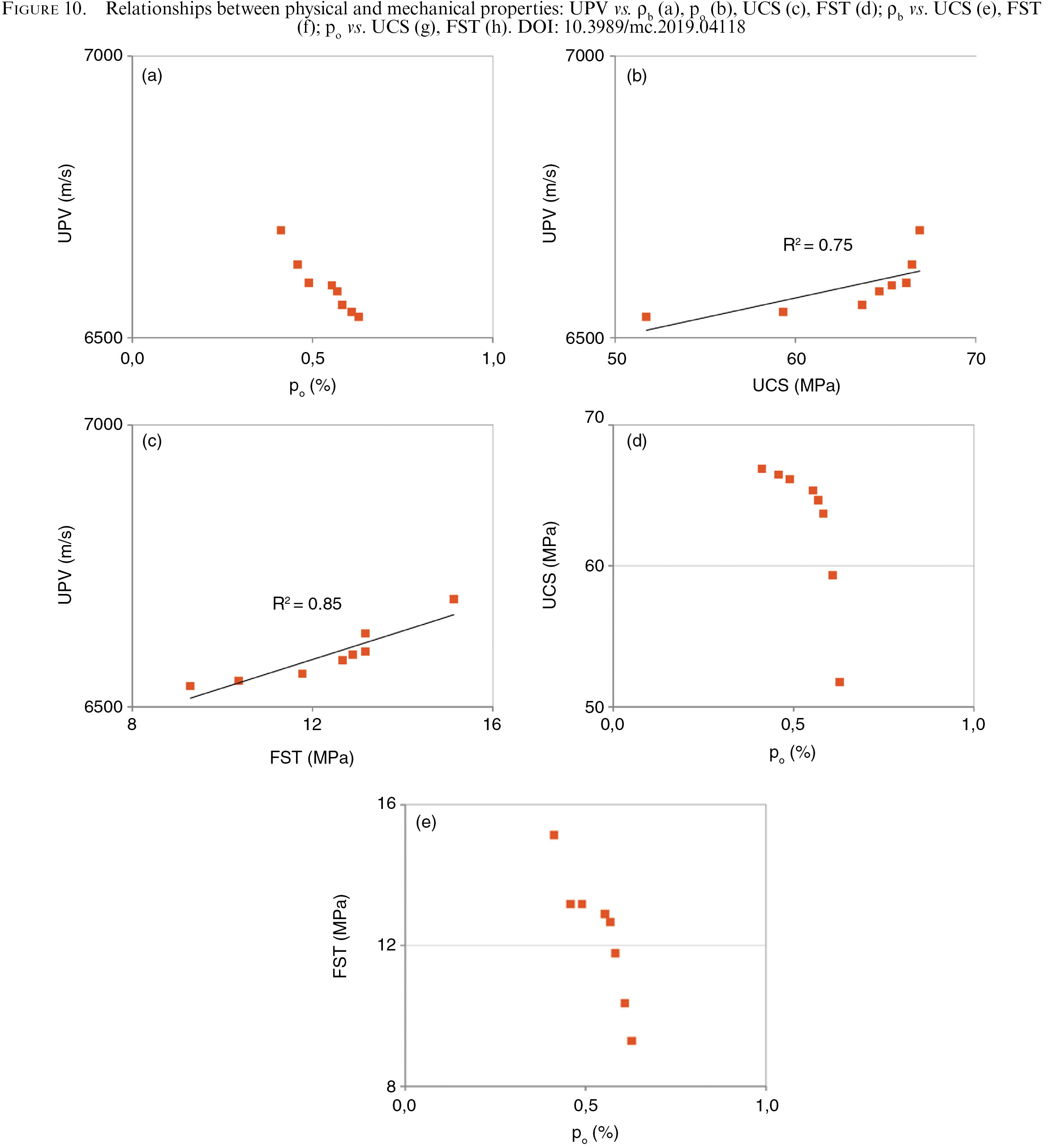

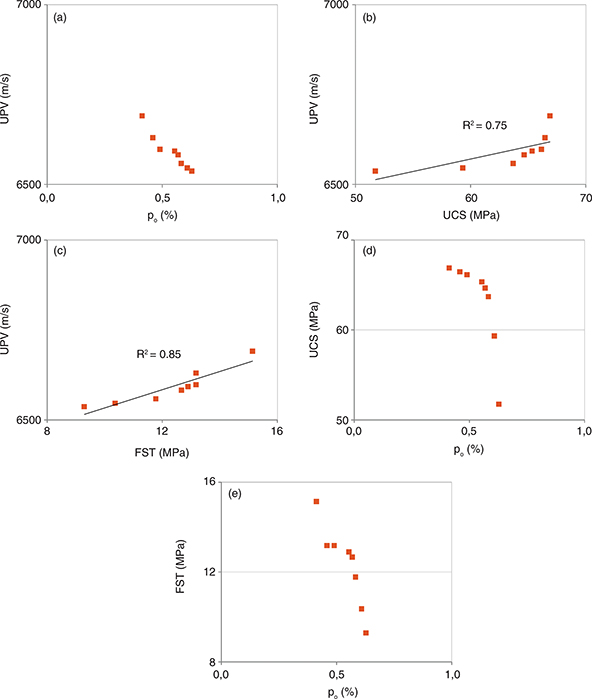

Correlations between petrophysical and mechanical properties are obtained (Figure 10). As expected, the lower the bulk density (ρ_b), the lower the mechanical strength. Regarding the relationship between open porosity (p_o) and UPV (Figure 10a), it can be said that no strong correlation exists between the above-mentioned properties. Rather, there is only an inverse relationship: the lower the p_o, the higher the UPV propagation (33). In this case, the inverse correlation does seem strong and linear for UPV. This can be explained by the very low p_o and by the low standard deviation that influences the very low variability among the values obtained. The low p_o does not affect the UPV, as demonstrated by the very low values of correlation, considered as statistically insignificant. The non-linear relationship is in agreement with other authors, in particular for carbonate stones such as DG, with low p_o (< 2%) occurring where there is no significant correlation between p_o and UPV (14). Even though there is not a linear correlation, it is possible to say that an inverse relationship exists between UPV and p_o, as has also been proved by several authors in various lithological types (34, 35).

Weak relationships are also reached for p_o when using UCS and FST (Figures 10d, 10e), with these possibly being weaker or non-linear. UCS and FST decrease as p_o increases, as previously stated (35, 36). In the case of materials with very low porosity such as DG, no linear relationship exists even though UCS and FST decrease as p_o increases (but without a linear correlation). This result is in contrast with the results of other researchers investigating lithotypes with low p_o (35, 37), but is in agreement with other researchers (16) who found that other factors, such as variable grain size and not p_o, seem to be the main causes of the variability of the strength of low porosity stones.

The correlation between UPV and UCS and FSTs is significant. There is a linear relationship between these properties (Figures 10b, 10c). As expected, the lower the UPV, the lower the UCS (21) and FST (38), and vice versa.

Analysis of decay on buildings constructed from DG reveals that decay is insignificant and almost absent. DG’s open porosity, which conditions its permeability to fluids (14), combined with the presence of macropores instead of micropores that influence the stone’s durability (39), play an important role with respect to the stone’s resistance to decay factors. Fluids hardly circulate inside the stone because its low capillary coefficient —due to its low porosity— makes DG quite impermeable. These same internal features provide adequate protection against pollution ingress. DG’s durability is also the result of its excellent mechanical properties and low structural anisotropy index. These make DG better able to endure (39, 40, 41) the expansion and contraction induced by the mechanical stresses associated with external temperature variations or to endure internal salt-crystallization pressures (42).

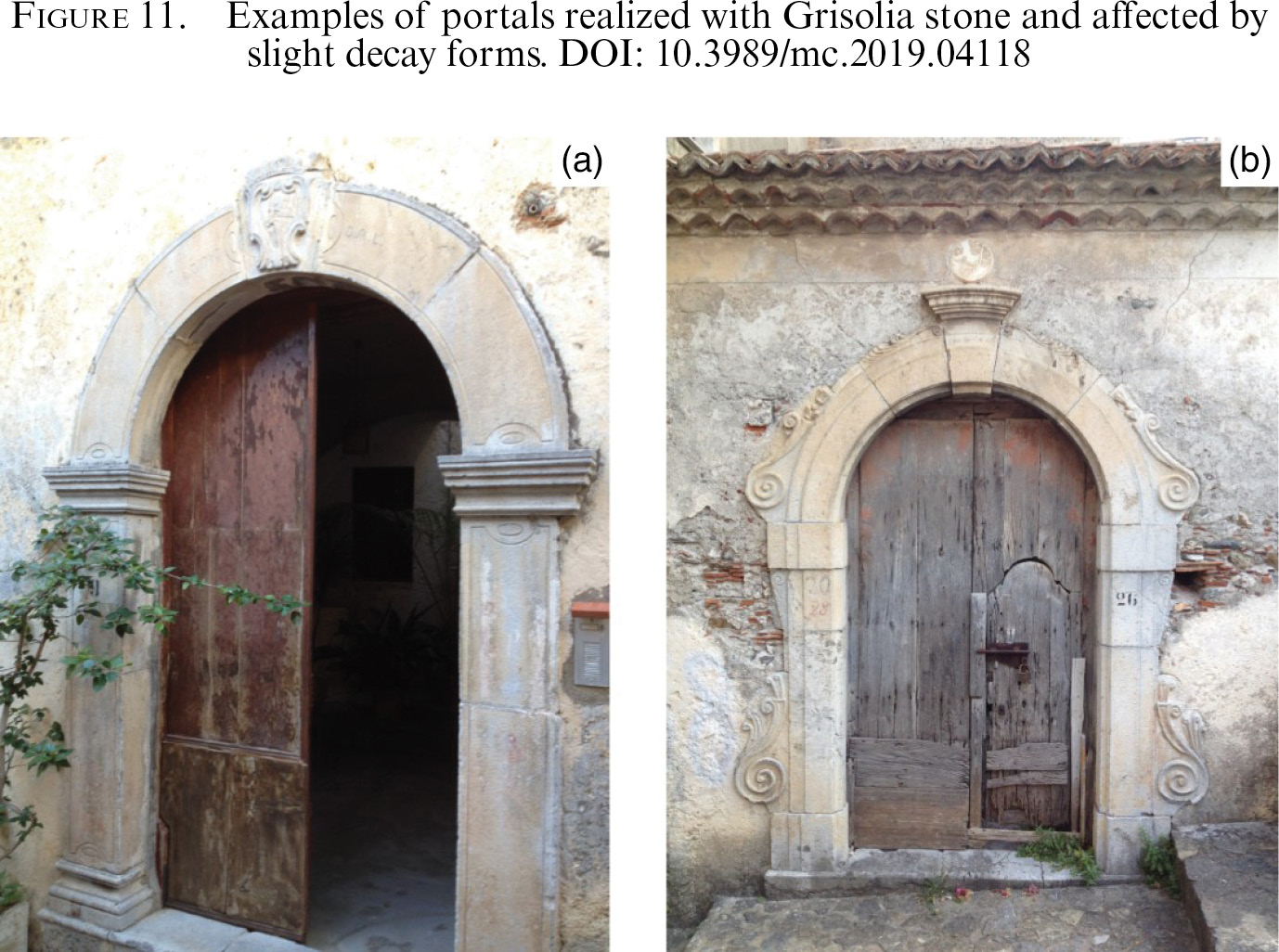

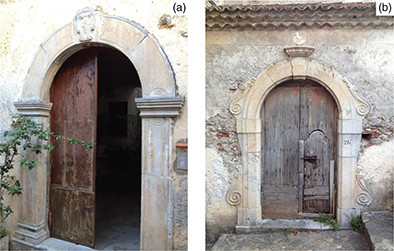

Structural flaws, intrinsic discontinuities, surface deposits (Figure 11a), biological colonization and missing parts (Figure 11b) are the only forms of decay detected. Crumbling also occurs, although less frequently, and is associated with the structural instability of the entire building rather than with the mechanical strength of its building stone. Thus, restoration and conservation of DG require minimal work, consisting merely of cleaning and repair as necessary. Minor protection and consolidation are also recommended.

6. CONCLUSIONSTOP

The complete petrophysical and mechanical characterization performed explains why Grisolia stone is a good natural building stone. Petrographically, DG has a heterogenous composition and texture. It is compact and petrographically quite isotropic. In fact, examining the oriented thin sections in the three directions analyzed does not reveal any significant preferential orientation. This is in agreement with the other tests performed where the corresponding anisotropy indices are very low. Similarly, in agreement with the low porosity values, the compactness index is high.

DG’s petrographic characteristics, low porosity levels, predominant macroporosity, low water absorption capability, isotropic hydric behavior and high ultrasonic wave velocity stand as proof of the suitability of this stone for use in construction. The only recommended conservation techniques consist of removing stains and other surface deposits and repairing damaged stones.

Its high compressive strength also makes DG an ideal material for structural elements such as pilasters, portals, pedestals, staircases, flooring and baseboards, as well as for pavement cobbles and curbing. Its low strength anisotropy means it can be chiseled into shape and placed in constructions without having to pay attention to stone block orientation. Moreover, thanks to its durability, DG can be employed in both internal and external decorative and structural elements. The degree of conservation of historic buildings made from this material demonstrates that it is also resistant to most of the extrinsic factors that usually damage building stone, such as water, biological agents, salt and air pollution. For all these reasons, its use is recommended in both restoration and new building.
