Effect of high temperatures on the mechanical behaviour of hybrid cement

B. Qu^a,b*, A. Fernández Jiménez^b, A. Palomo^b, A. Martin^a, J.Y. Pastor^a

a. Departmento de Ciencia de los Materiales -CIME. Universidad Politécnica de Madrid. E28040-Madrid

b. Eduardo Torroja Institute for Construction Science (CSIC). E28033-Madrid, Spain

*: qubooil@gmail.com

1. INTRODUCTIONTOP

Characterised by a very high value for money, ordinary Portland cement (OPC)-based concrete is, second only to water, the material most assiduously used in the world (1, 2). Unlike wood, plastic and other construction inputs, portland cement-based materials are non-flammable and exhibit low thermal conductivity, which would apparently translate into good fire resistance. High temperatures can induce significant deterioration in OPC-based concrete, mortar and paste microstructure and properties, however (1). The calcium silicate hydrate (C-S-H gel) phase to which OPC primarily owes its mechanical properties loses significant amounts of water at temperatures of 50 °C to 200 °C and decomposes altogether over 800 °C. At the same time, water is released from AFt- and AFm-type phases at temperatures of 100 °C to 400 °C, whilst portlandite decomposes at around 450/460 °C and calcium carbonate at >600 °C (3-6). All those changes and reactions induced by high temperatures have a very significant adverse impact on a material’s physical-chemical and mechanical performance (7). The outcome is severe cement paste deterioration that compromises the integrity and safety of the concrete in which it is used.

In another vein, Portland cement manufacture is known to produce greenhouse gas emissions, accounting for 5 % to 8 % of all CO₂ emissions worldwide, primarily as a result of high cement output (8). In light of growing urbanisation and infrastructure needs, especially in developing countries, portland cement manufacture will foreseeably continue to rise (9), and with it CO₂ emissions. If allowed to continue unfettered, growth will hinder compliance with the United Nations’ 2030 Sustainable Development Goals. The scientific community and the cement industry are therefore working to develop both alternative binders that would reduce the Portland clinker factor in today’s cements and new 0 % Portland clinker cements.

Belite, sulfo-belite, hybrid alkaline and alkaline cements are the objects of that line of research (10-12). Alkaline (0 % Portland clinker) cements have attracted and continue to attract considerable attention in the twenty-first century. Such materials are excellent binders and have been heralded as potentially a low-carbon cementitious materials (13,14). A number of authors have reported better mechanical performance at high temperatures in alkaline cements than in OPC (15-18). Alkaline cements based on activated fly ash have been observed to behave pseudo-plastically when loaded (19, 20) at temperatures ranging from 500 °C to 700 °C, with stress-induced softening and considerable strain. Such behaviour also affects residual strength after the material is exposed to high temperatures, with compressive strength values rising as a rule and bending strength declining for reasons of dimensional stability.

Hybrid alkaline cements (HYCs) are a new group of cements, developed by combining knowledge of traditional Portland and alkaline cement chemistry (11, 20-24). They are characterised by low clinker content (20 % to 30 %) and a high proportion of supplementary cementitious materials (SCMs). Raising the SCM content to above a certain value (~35 %) to the detriment of Portland clinker in traditional cements may prompt a significant decline in early age mechanical strength. To elude that effect while increasing the fraction of SCMs to 70 % or 80 %, a solid or liquid alkaline activator is added. The inclusion of alkaline activators raises the pH of the aqueous phase and lowers Ca(OH)₂ solubility, partially hastening alite hydration (22), while at the same time expediting the initial SCM reaction (24). Accelerating the hydration reactions of both OPC and SCMs shortens setting times and improves early age mechanical strength. Solid alkaline activators (including NaOH, Na₂SiO₃, Na₂SO₄, NaCO₃...) can be used in hybrid alkaline cements. When in contact with the Ca(OH)₂ generated by Portland clinker hydration, these salts release NaOH. As a result, only water needs to be added to hydrate the blend (23). The development of ‘just add water’ binders was a major milestone in HYC industrialisation and commercialisation. The need to add water only constitutes an advantage over traditional alkaline cements, which generally require a highly alkaline, normally viscous, unwieldy solution that is costly to ship and calls for pre-curing at temperatures of 65 °C to 85 °C (25).

The main reaction product formed in OPC is a calcium silicate hydrate (C-S-H gel), which may also take up aluminium in its structure (C-(A)-S-H gel) (26). In aluminosilicate-based alkaline cements (materials with a low calcium content such as fly ash), the main product is an alkaline aluminosilicate hydrate (N-A-S-H gel). Hybrid alkaline cement hydration generates a complex mix of gels, (C,N)-A-S-H and N-(C)-A-S-H, that eventually evolves into a more thermodynamically stable C-A-S-H gel (11, 27).

The aim of this study was to analyse the high-temperature mechanical behaviour of a hybrid alkaline cement, a feature that may be of considerable interest for future eco-cement users. More specifically, it explored a pre-industrially produced HYC comprising 30 % Portland cement clinker and 70 % of a blend of ground granulated blast furnace slag (GGBFS) + fly ash (FA) + solid activator (23).

The high-temperature performance of this cement was assessed during (DT) and after (AT) thermal treatment to determine its ‘during exposure’ behaviour and its residual strength. The first series involved determining compressive and three-point bending strength, modulus of elasticity and fracture toughness (with an innovative notching method) during heating, whilst the second series was conducted on specimens allowed to cool after 2 h of thermal treatment.

2. EXPERIMENTALTOP

2.1. MaterialsTOP

The two materials analysed in this study were CEM I 42.5 R commercial Portland cement (OPC, the reference) and a new pre-industrial hybrid alkaline cement (HYC). The latter comprised 30 % portland clinker (OPC) +32.5 % ground granulated blast furnace slag (GGBFS) + 32.5 % fly ash (FA) + 5 % solid activator. Further details on this hybrid cement were described in an earlier paper by the authors (23).

The (Bruker S8 TIGER) X-ray fluorescence-determined chemical composition of the two cements is given in Table 1. The HYC had a lower CaO and a higher SiO₂+Al₂O₃ content than the OPC. The mineral composition of the cements found on a Bruker AXS D8 ADVANCE X-ray diffractometer was quantified with the Rietveld refinement method. Use of 30 % Al₂O₃, corundum (29) as an external standard and TOPAS software for quantification yielded the results listed in Table 2. The large amorphous fraction in HYC was primarily attributable to the presence of GGBFS and FA.

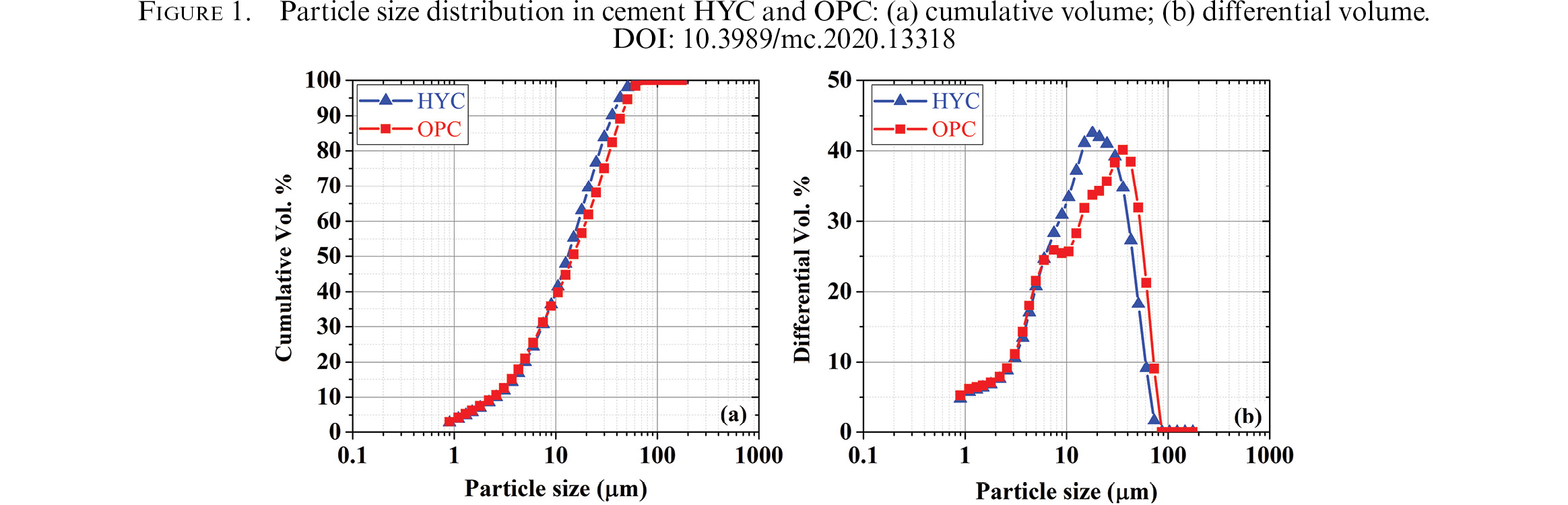

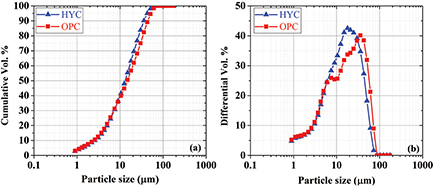

The particle size of the cements was determined on a SYMPATEC laser diffractometer featuring a measuring range of 0.90 µm to 175 µm. The cement powder was mixed with isopropyl alcohol to eliminate inter-particle electrostatic and Van der Waals forces. The findings graphed in Figure 1 show that the particle size distribution was similar in the two cements, with around 40 % under 10 microns and small differences beyond that value. More specifically, the OPC had a larger percentage of particles >45 µm than the HYC.

The cements were mixed with distilled water at a l/s ratio of 0.3 by weight and pre-cured at ambient temperature (25 ± 1 °C) and 99 % relative humidity for 20 h in stainless steel moulds. After removal from the moulds they were stored in a controlled humidity chamber (99 %) for 28 d, when they were tested to determine their high-temperature behaviour during (hereafter DT) and after (hereafter AT) thermal treatment.

2.2. High temperature testsTOP

Three tests were conducted to determine the high-temperature performance during thermal treatment (DT) of the hardened pastes: compressive and three-point bending strength and three-point bending fracture toughness. To ensure sample uniformity, the cements were moulded into 100x100x6 mm³ blocks, which were then sliced into specimens of different sizes for the various tests.

The DT mechanical strength tests were conducted on an Instron 3369 test frame in a small, digitally controlled high-temperature furnace. The specimens were heated under a constant load (to avoid load increases due to expansion in the loading system) at a rate of 5 °C/min up to 200 °C and subsequently at 10 °C/min (28,29). The low initial heating rate aimed to prevent premature failure caused by initial temperature gradients and early water loss. Specimens were held at the target temperature for 20 min for stabilisation prior to testing.

The specimens used in each test are described below:

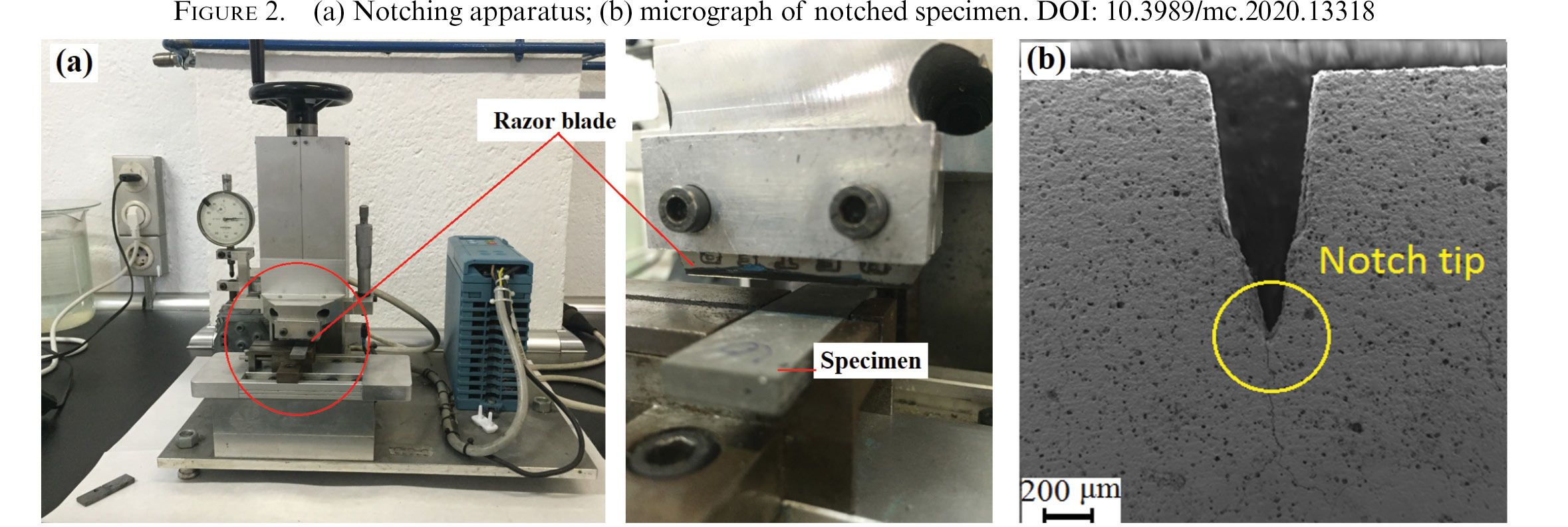

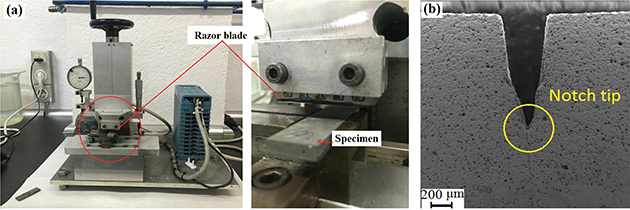

The notching machine designed is depicted in Figure 2(a). The 4×14×50 mm³ paste specimens were secured to adjustable housing underneath the razor blade, in turn set in a holder normal to the length of the specimen. The specimen was moved linearly in the horizontal direction at a strictly controlled frequency while the blade cut the specimen in the vertical direction (likewise adjustable as required). During notching, the diamond powder in the gel sharpened the steel blade and wore down the cement, yielding a tip radius of just a few microns. The conditions needed to cut a notch with a 10 µm tip (Figure 2(b)) were defined after detailed and rigorous analysis. The notches generated with this controlled procedure were practically identical to real cracks, delivering a fracture toughness measurement much closer to the real value for the material and eluding possible size effects due to larger notch tip radii and limiting the damage to the notched materials. Microcracks often appear in the material when more aggressive notching systems such as diamond disc or thread systems are used.

The notched samples were then positioned on the bending strength test frame described above. The supports were again spaced at 20 mm and the testing rate was 100 µm/min. After the test, the failure surfaces were spattered with high-grade gold and analysed under a JEOL JSM 6300 scanning electron microscope.

To determine the behaviour after the thermal treatment (AT), the hardened cement paste was studied for AT mechanical behaviour on 10×10×60 mm³ prismatic specimens prepared as described above. The 28 d specimens were measured and weighed prior to thermal treatment. After treatment for 2 h in a furnace pre-heated to a target temperature of 400 °C, 600 °C, 800 °C or 1000 °C the samples were set on ceramic plates and allowed to gradually cool for at least 12 h. They were then tested for mechanical behaviour, including bending strength and fracture toughness. The relative mechanical strengths were defined as σ_R= σ / σ₂₅, where σ₂₅ is strength at the reference temperature.

Post thermal treatment porosity was found on a Micromeritics AutoPore IV 9500 mercury intrusion porosimeter, featuring a maximum pressure of 227 MPa at a contact angle of 141.3° and a surface tension of 485 dynes/cm (34). The untreated 28 d pastes were also ground to powder for thermogravimetric/differential thermal analysis (TG/DTA) on a Labsys SETARAM analyser, in which the air temperature was ramped up from 25 °C to 1000 °C at a rate of 10 °C/min.

3. RESULTSTOP

3.1. TG and DTATOP

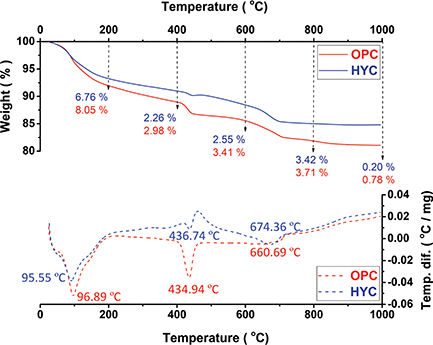

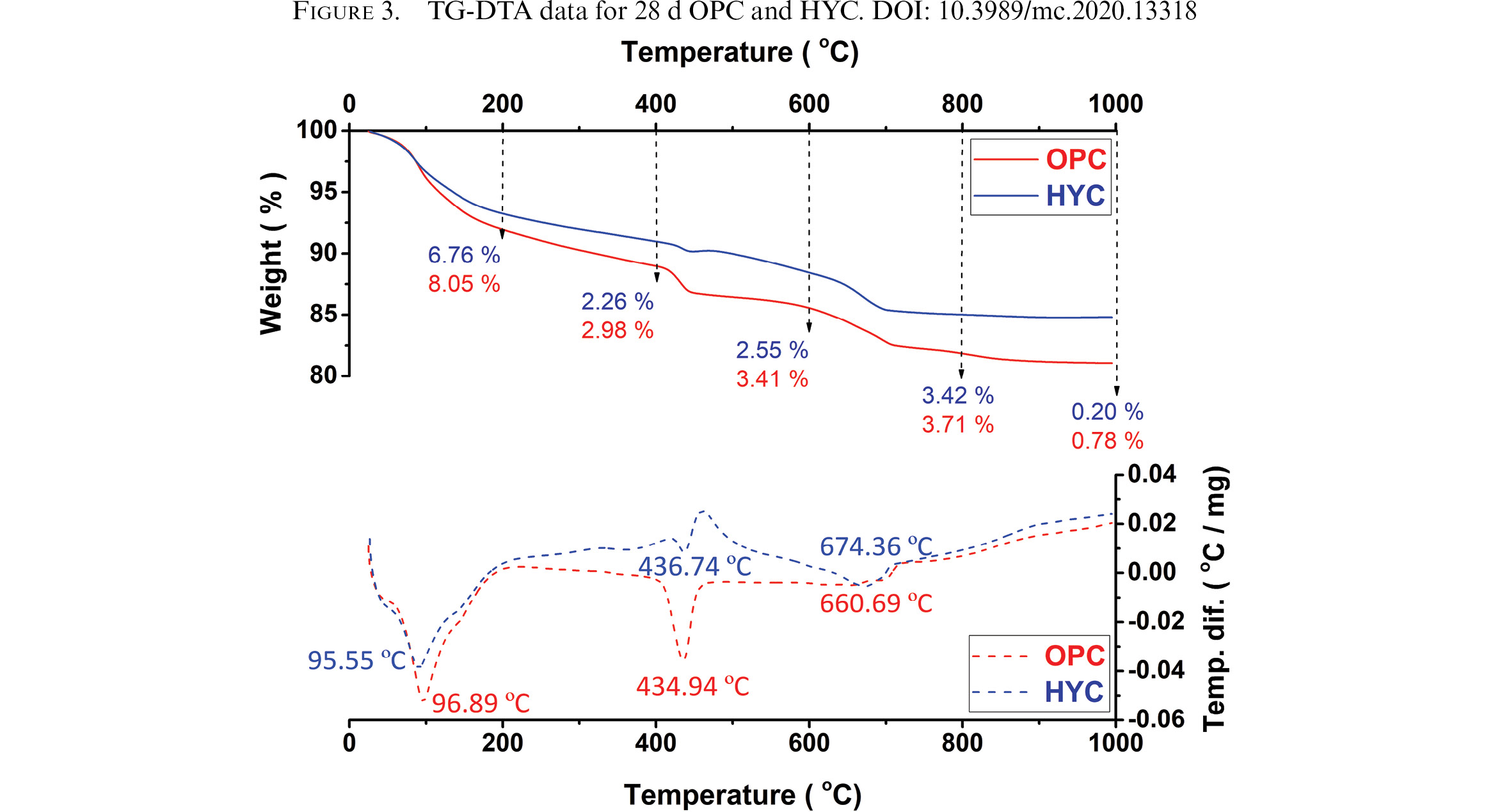

The TG and DTA curves for the 28 d OPC and HYC pastes are plotted in Figure 3. The endothermal peaks between 50 °C and 150 °C observed on both curves (3-5, 35) were associated with the loss of unbound water and water in the hydrated phases. In OPC the peak at 50 °C to 200 °C was related primarily to the loss of water from ettringite and the C-S-H phases, as well as of unbound water. Mass loss at 200 °C was greater in OPC (11 %) than in HYC (9 %). The difference may be attributed to the formation of a smaller amount of hydrates in the HYC, particularly AFm and AFt phases and of hydrates with less water in their structure. C-S-H gels are deemed to take up more water in their structure than C-A-S-H or N-A-S-H gels (24). The endothermal peak at 430 °C to 450 °C related to portlandite dehydroxylation (1, 3) was much more intense in OPC than in HYC (Figure 3), an indication that more portlandite formed in the former than in the latter. A small peak at temperatures of around 670 °C was associated with CaCO₃ decarbonation (36).

3.2. Mechanical behaviour during thermal treatmentTOP

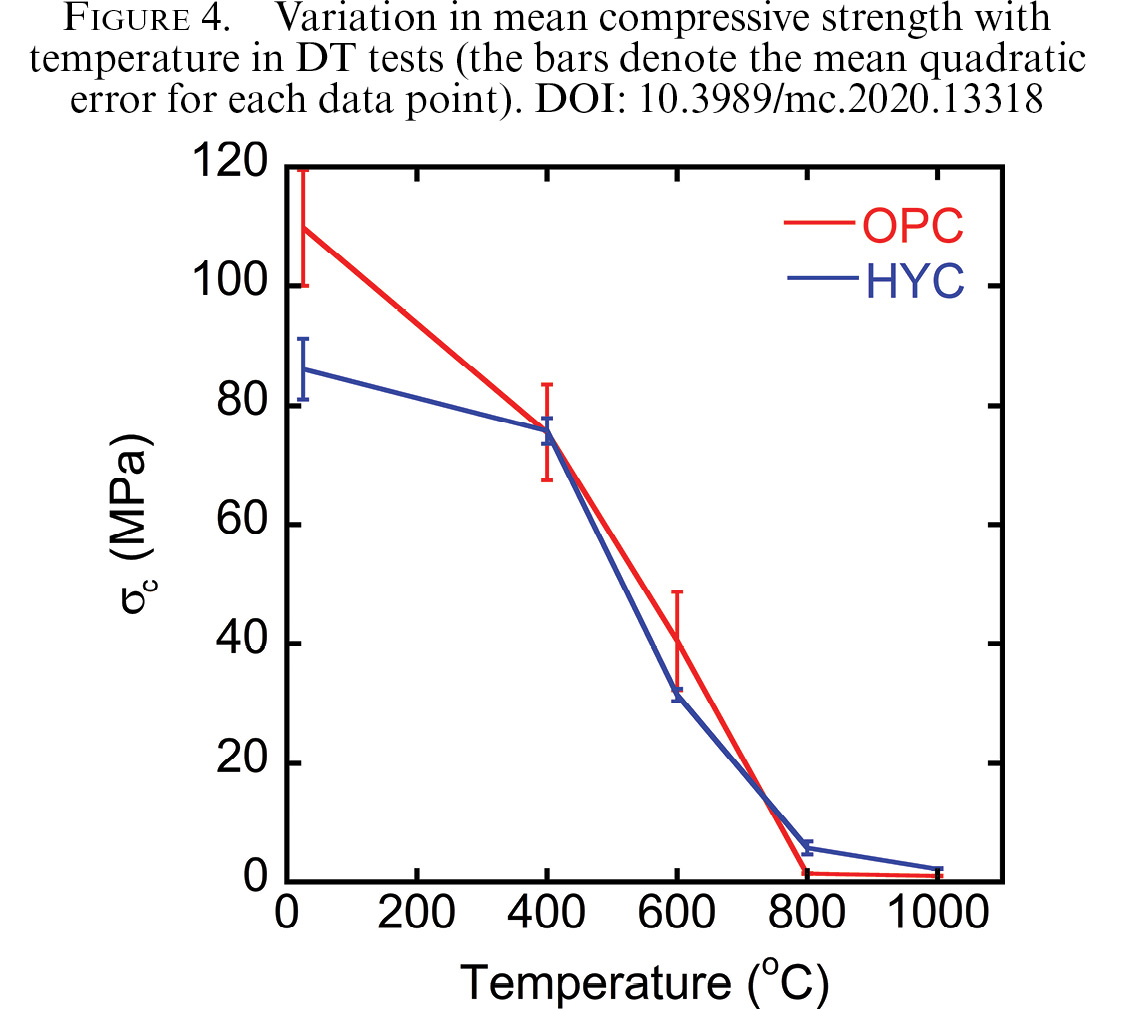

The DT compressive strength findings are shown in Figure 4. At ambient temperature, OPC exhibited higher compressive strength than HYC. When the temperature rose to 400 °C, OPC strength declined steeply from 110 MPa to 80 MPa, whereas in HYC the drop was more moderate, from 86 MPa to 76 MPa. At temperatures of over 400 °C, compressive strength declined similarly in the two materials, sliding linearly to 800 °C. At that and higher temperatures, OPC compressive strength was practically nil. In contrast, HYC retained a certain residual strength at 800 °C, which did not decline to naught as in OPC until the temperature reached 1000 °C. The inference is that HYC performs better than OPC in structural applications exposed to high-temperature compressive stress.

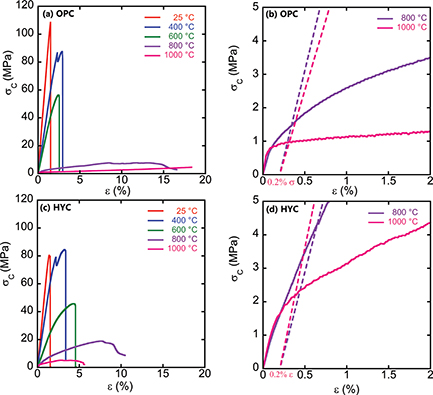

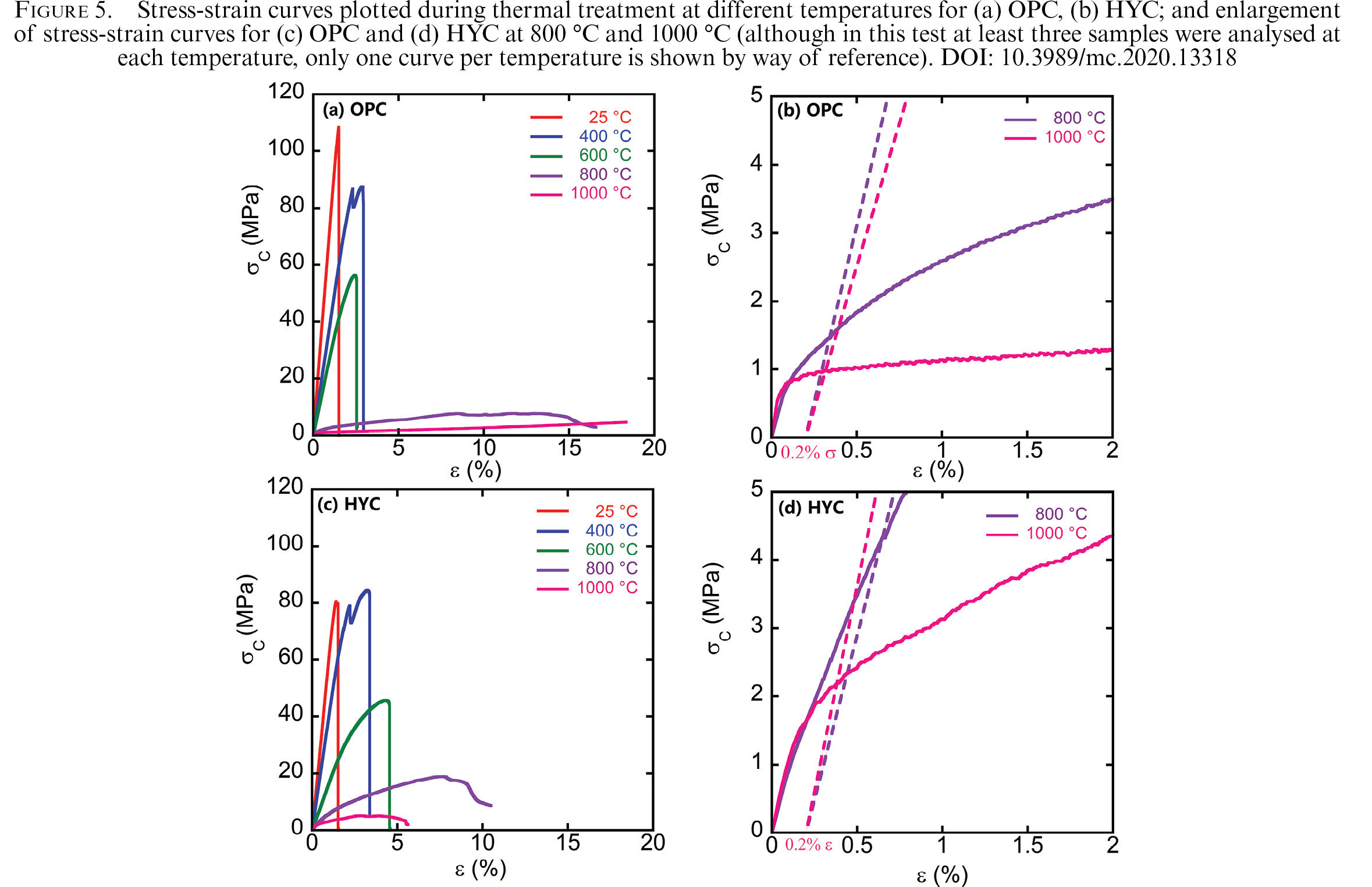

Figure 5 shows the stress-strain curves plotted with DT compressive strength test data. The elastic limit was determined assuming a 0.2 % deviation in the stress-strain curves, drawing a line parallel to the initial part of the curve where the materials exhibited plastic behaviour. That method delimits the elastic zone, although it is only applicable when materials exhibit plastic behaviour at high temperatures. At 25 °C, 400 °C and 600 °C, OPC showed insignificant non-linear strain and brittle failure in the DT compression tests. HYC exhibited similar brittle failure, but only up to 400 °C (Figure 5(c)). At 600 °C, the stress-strain curve for HYC exhibited non-linear strain compatible with macroscopic and microstructural scale plastic strain prior to failure. After exposure to 800 °C, OPC and HYC showed ductile failure with substantial plastic strain. In parallel, yield stress declined sharply with rising temperatures, with the appearance of non-linear strain. HYC had a slightly higher yield stress than OPC (compare Figures 5(b) and 5(d)). Consequently, HYC would out-perform OPC in structural applications exposed to high-temperature bending, as in those exposed to compressive stress.

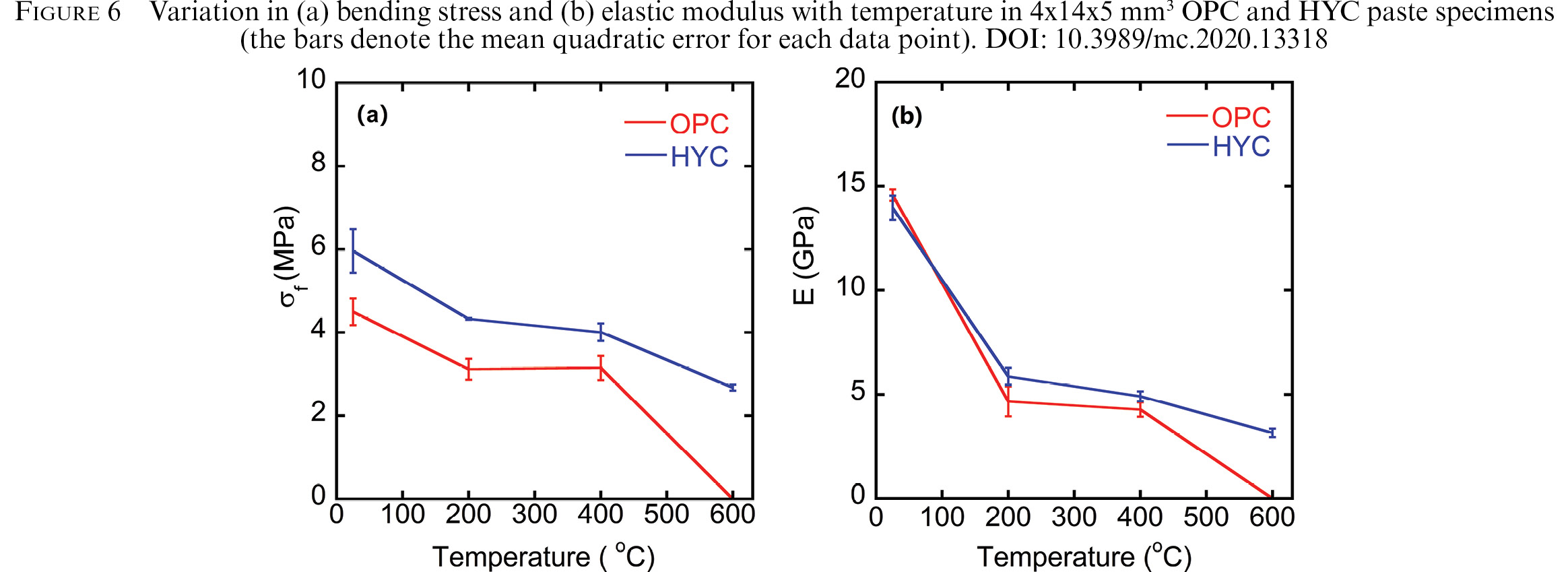

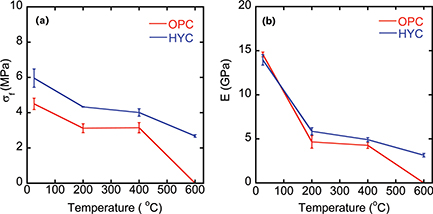

DT bending strength is given for OPC and HYC in Figure 6(a). Conversely to compressive strength, at ambient temperature bending strength was (40 %) higher in HYC than in OPC. Since the decline in bending strength with rising temperature was similar in the two materials, the difference remained constant up to 600 °C, where it widened.

Since at 600 °C the OPC samples collapsed before the test began, their value could not be determined. Rather, as the minor load applied during heating sufficed to cause the sample to fail before reaching 600 °C, strength was deemed to be nil at that temperature. In these tests, HYC clearly performed better than OPC.

The modulus of elasticity (E) (found with the linear section of the stress-strain curve) for the two materials at different temperatures is graphed in Figure 6(b). In the 25 °C to 200 °C range, E declined very significantly in both materials, to slightly over a third of the initial value. Nonetheless, with a decline of 58 % HYC performed somewhat better than OPC, which dipped by 68 %. From 200 °C to 400 °C the values continued to drop, but more moderately. At 600 °C the OPC modulus was deemed to be zero, given the structural disintegration of the material, whereas in HYC the elastic modulus continued to decline gradually with rising temperature. The hybrid cement exhibited higher E values than Portland cement at all the temperatures tested.

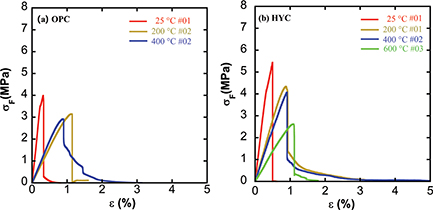

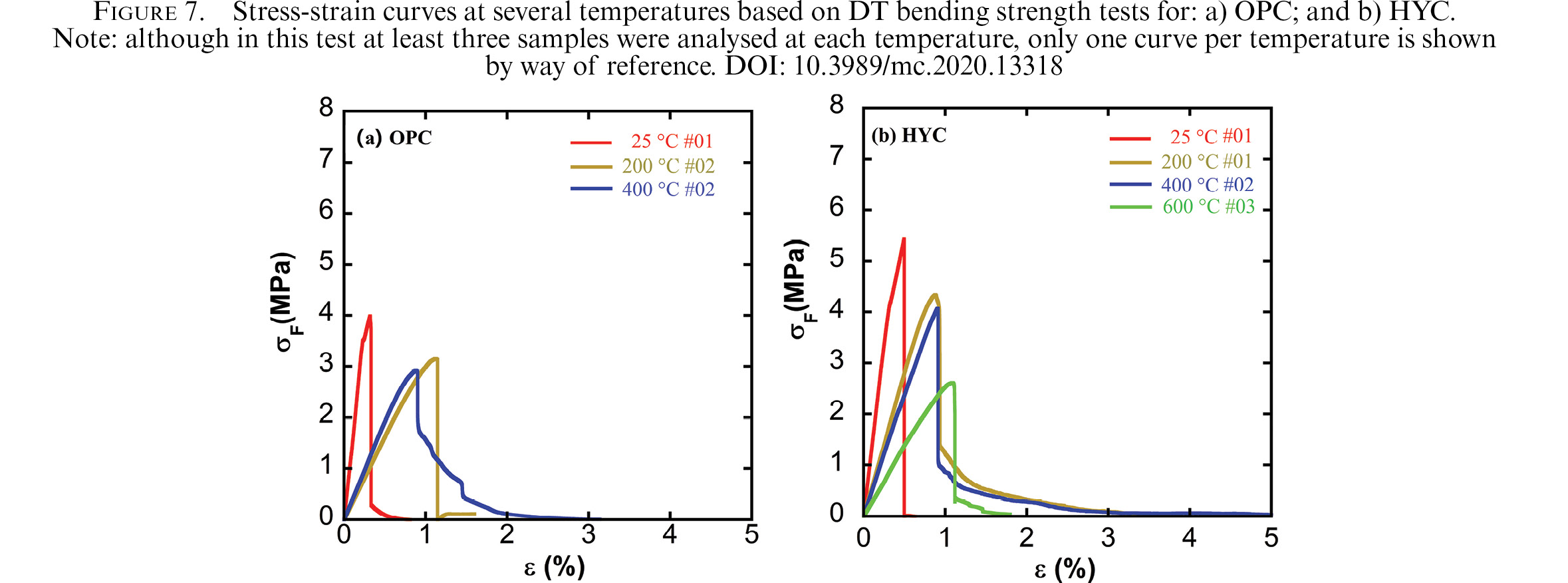

The DT stress-strain curves plotted with bending stress data for the cements at 25 °C, 200 °C and 400 °C are shown in Figure 7. Initially the OPC exhibited elastic and linear behaviour denoting no cracking (37), followed by a brief non-linear stage prior to reaching the yield load that triggered abrupt failure. In this final stage micro-cracks appeared and cracks of a critical size propagated (similar observations have been reported in the literature (38-41). Oddly, both materials exhibited this dual behaviour at all test temperatures. It was more visible with rising temperatures, however, particularly after 400 °C for OPC and 600 °C for HYC. The non-linear part of the stress-strain curve for the two materials denoted the appearance of fracture and plasticity that conditioned material deterioration and failure. An analysis of the different types of curves for the two materials revealed that they were consistent with the declines observed in bending strength and modulus of elasticity with rising temperature.

Fracture strength, KІ_C, defines the critical stress needed for a crack to propagate catastrophically inside a material, in which the subscript IC denotes the intensity factor for critical stress K in fracture mode I at the tip of the crack (40-43).

The small size of the furnace and sample preparation limitations imposed the use of non-standard 50x14x4 mm³ specimens and 20 mm spacing between supports in this experiment. Although international standards on fracture toughness tests call for a span/depth ratio of 4 (40-43) and a notch length of 50 % of the depth, the conditions used here (span/depth ratio of 5 and crack length 37.5 % of the depth) could be deemed valid. K_ІC was calculated with the expressions proposed by Guinea et al. (44), in which the stress intensity factor can be applied irrespective of the crack/depth ratio and for span/depth ratios of over 2.5.

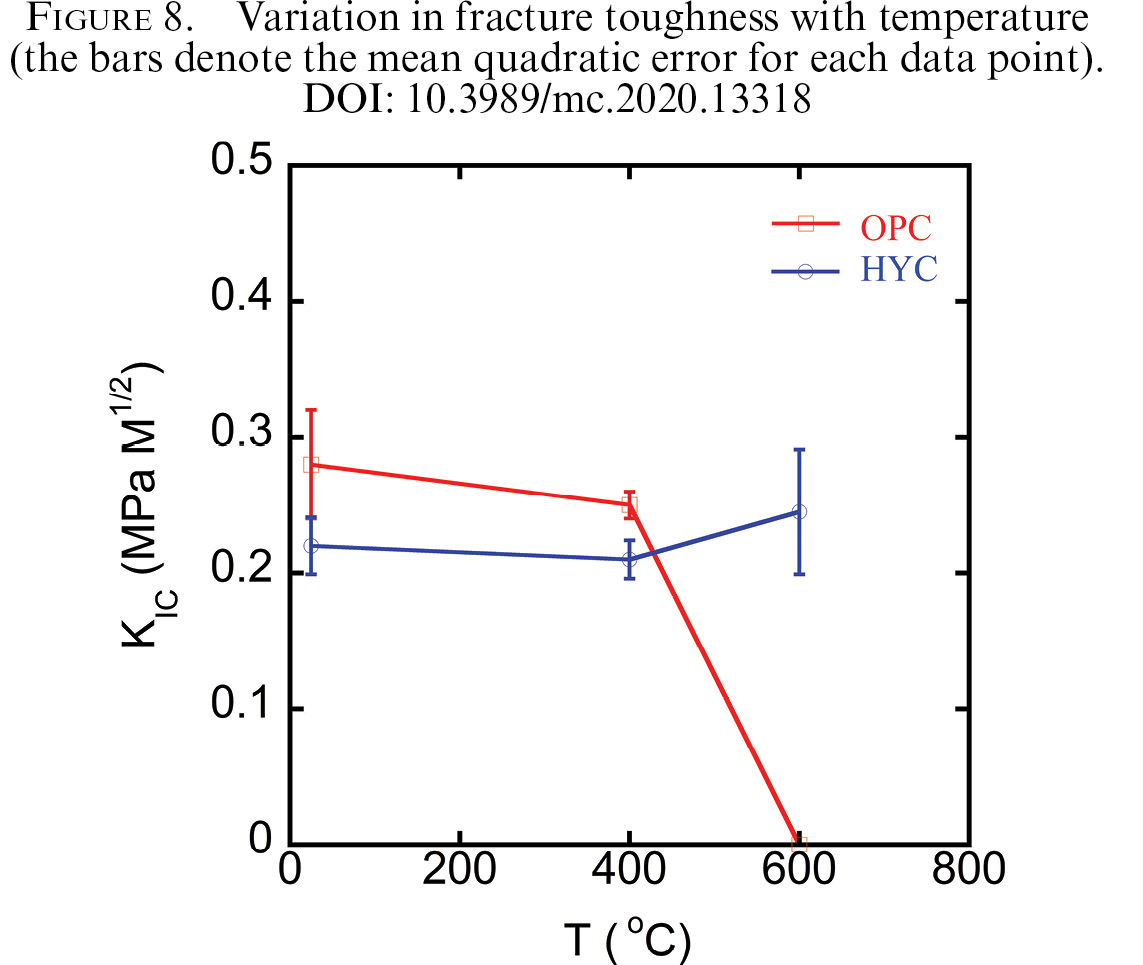

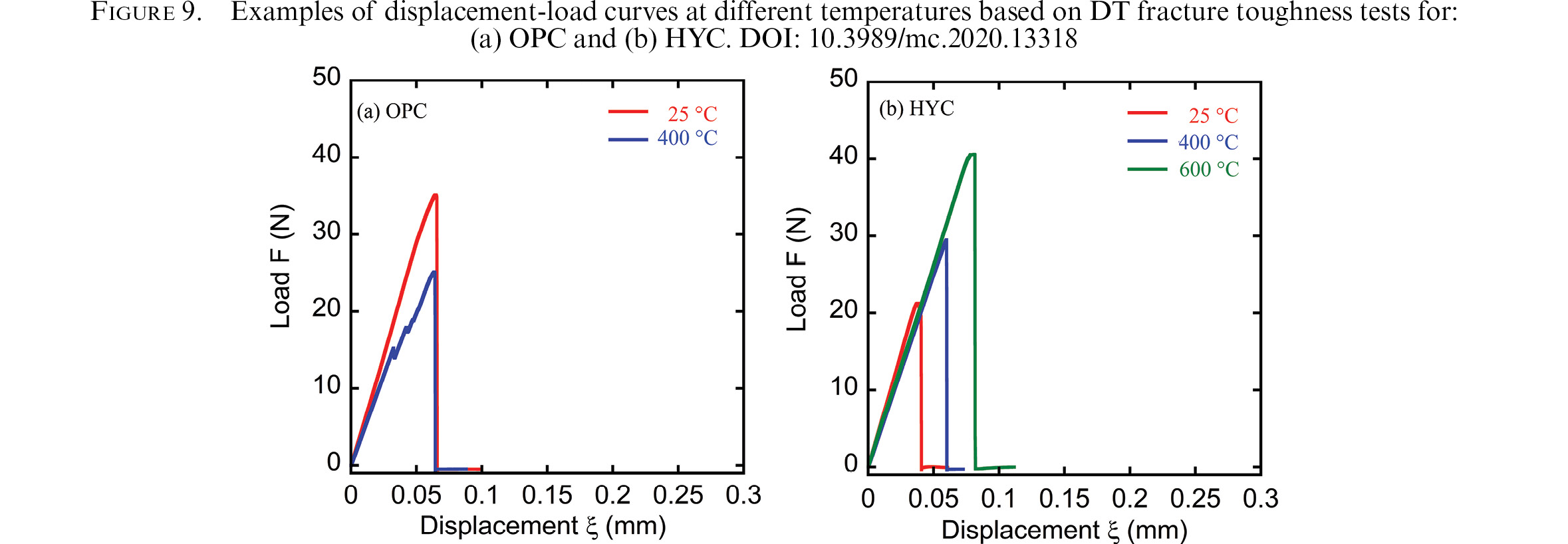

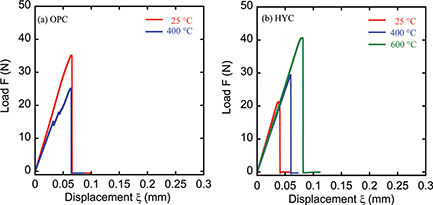

The K_ІC values are plotted against temperature for the two pastes in Figure 8. The low K_ІC values observed were expected given the brittle nature of the materials. The values were slightly higher in OPC than in HYC at temperatures of 25 °C to 400 °C. At 600 °C the OPC disintegrated and could not be tested, whereas K_IC rose perceptibly in HYC at that temperature. The DT data fracture toughness curves for the two materials are plotted in Figure 9. Both pastes exhibited linear elastic behaviour, validating the use of the aforementioned equations. In this respect also, HYC out-performed OPC at high temperatures.

3.3. After treatment mechanical strengthTOP

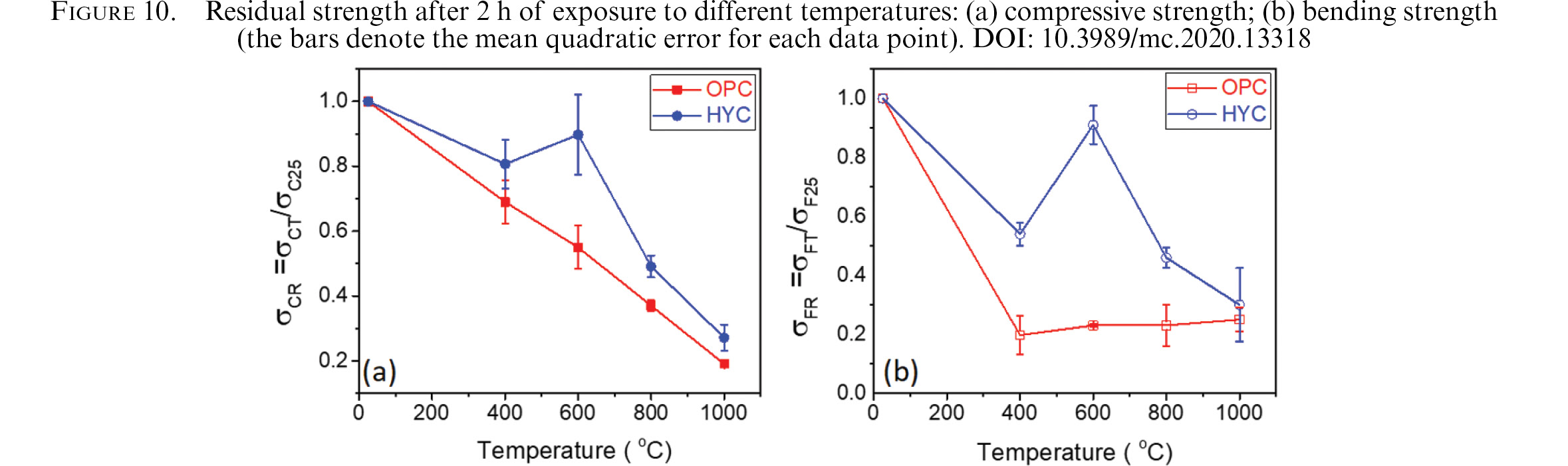

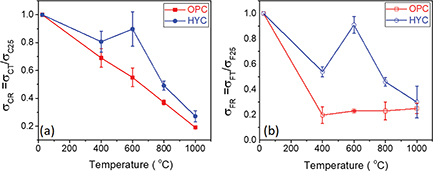

Sample residual compressive and bending strength values after 2 h of high-temperature exposure are shown in Figure 10. Strength was observed to decline significantly after exposure to just 400 °C, although the pattern differed depending on the cement.

In OPC, residual compressive strength dropped linearly with rising temperature, to a mere 20 % of the initial value at 1000 °C. Bending strength in this material behaved very differently, sliding intensely at 400 °C (to 20 % of the initial value) with no further decline at higher temperatures.

Mechanical strength in HYC exhibited unique behaviour. Compressive strength followed a pattern similar to the findings for OPC although the decline was less intense, to 30 % of the initial value at 1000 °C. Bending stress also declined significantly less and more gradually across the entire range of temperatures. The most prominent finding was the very visible rise in the mechanical strength between 400 °C and 600 °C, to nearly the ambient temperature value at 600 °C. The appearance of that peak in both types of strength and for repeated specimens ruled out possible experimental error.

3.4. PorosityTOP

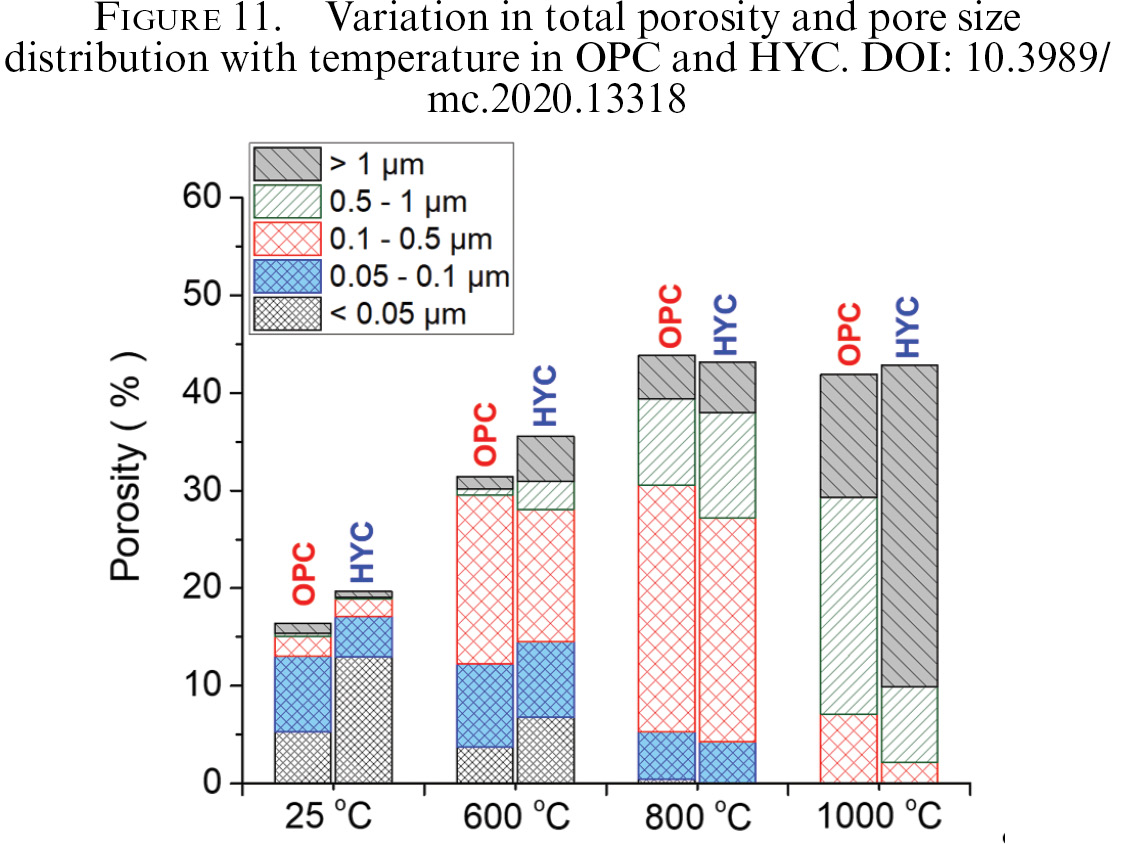

Total porosity and variation in pore size distribution in samples heated to different temperatures are shown in Figure 11. Cement paste pore size is typically classified into four fractions (45): i) <0.1 µm, associated with hydrated phase porosity; ii) 0.1 µm to 0.5 µm, with medium-sized capillary pores; iii) 0.5 µm to 1 µm, with large capillary pores; and iv) >1 µm, with large capillary pores with entrained air.

In this study, high-temperature exposure had a significant impact on pore size distribution and total porosity, primarily in the 0.05 µm to 1 µm and >1 µm fractions, changes that affect material mechanical strength and permeability in particular. At ambient temperature HYC exhibited higher initial porosity than OPC, although with a larger percentage of small pores, which might explain its higher bending strength. As the figure shows, the overall trend was for a rise in porosity with temperature, which was steeper in OPC than HYC. Porosity rose by over 100 % in both materials after exposure to 800 °C or higher.

Pore size distribution was observed to vary with temperature as follows:

3.5. SEM findingsTOP

The experimental findings described in this article show that hybrid alkaline cement exhibited generally higher mechanical strength and toughness than OPC in nearly all the high temperature situations analysed. Performance declined steeply with temperature in both materials, indicating that their microstructures underwent physical-chemical change that conditioned their mechanical behaviour. The fracture surfaces were examined under SEM to validate that hypothesis.

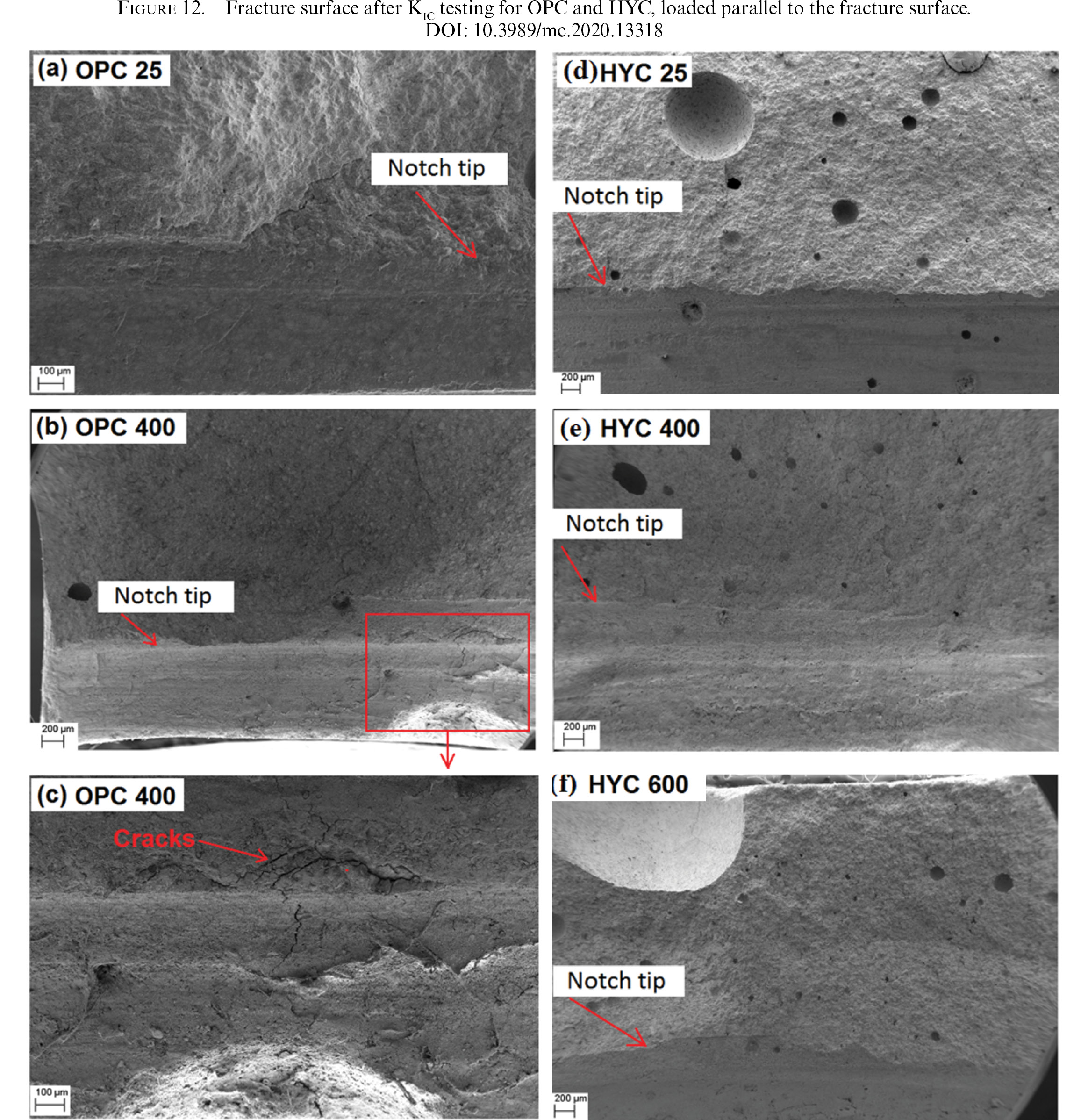

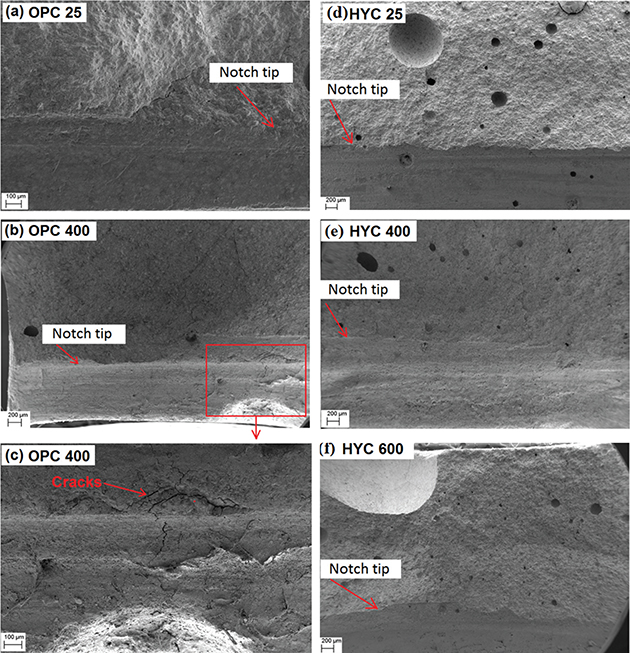

The resulting micrographs are reproduced in Figure 12. At 25 °C, the OPC paste had a typically compact structure with no visible surface cracks. In contrast the HYC paste contained a significant fraction of large pores, a finding consistent with the data in Figure 11. In both materials (Figures 12(a) and (d)) fracture was essentially the result of a crack generated around the tip of the notch.

An analysis of crack propagation in the OPC samples exposed to 400 °C (Figures 12(b) and (c)) revealed general cracking throughout the material in all directions, both on and perpendicular to the fracture plane. That generalised cracking was the cause of the loss of OPC strength at 400 °C and of its structural integrity at 600 °C under insignificant loads, as observed in the tests conducted.

As noted, the hybrid cement had a brittle fracture surface similar to that found for OPC, although with larger pores in the matrix, consistent with the MIP results. Nonetheless, at high temperatures (Figures 12(e) and (f)), while the large pores were still present, no clearly identifiable cracks were visible on the HYC fracture surface.

The very sharp notch tips in both materials were consistently the starting point for fracture, attesting to the validity of the new notching methodology proposed, which generated no flaws or microcracking.

In the 25 °C to 400 °C interval the two cements exhibited similar brittle failure with no apparent plastic strain, as well as similar high-temperature mechanical behaviour.

In the DT tests, cracks formed unstably and after extending rapidly under loading, grew spontaneously with no need to raise the load (34). Greater OPC deterioration was nonetheless obviously related to the presence of general cracking in the matrix. OPC paste is known to lose unbound water when heated to temperatures of under 400 °C, along with water bound to AFt- and AFm-type phases and to C-S-H gel. Transport of the resulting water vapour changes the material’s microstructure with a decisive effect on its mechanical behaviour. The inference is that cement paste strength declines primarily as a result of the appearance of microcracks generated by the pressure exerted by water vapour against the internal walls of the micropores present throughout the matrix (Figure 11).

4. DISCUSSIONTOP

In light of the foregoing, the higher mechanical strength in HYC than in OPC at under 400 °C can be explained as follows:

In addition, portlandite dehydration, known to occur at around 435 °C, gives rise to CaO and water that must be eliminated. Those processes generate pressure inside the matrix that may reduce mechanical strength and induce material collapse. The lower Ca(OH)₂ content in the HYC matrix detected by MIP would consequently also contribute to its better mechanical performance at high temperatures.

Mechanical strength declined so drastically in OPC between 400 °C and 600 °C that no DT testing could be conducted at the latter temperature due to material disintegration. Further to the above reasoning, that deterioration would be attributable to portlandite dehydration and C-S-H gel decomposition.

The low Ca(OH)₂ content in hybrid alkaline cement, in turn, is due to the following:

The better mechanical behaviour of HYC at 600 °C might be related to the alkaline (sodium), fly ash and in general high amorphous phase content in the matrix (Table 2). In earlier studies, pseudo-viscous phases were observed to form in fly ash-based alkaline cement at around 500 °C (34). Vitreous transition at 560 °C (52) and high-temperature softening have also been reported in fly ash alkaline cement (53). In contrast, no macroscopic plastic behaviour was observed in HYC at 600 °C. Nonetheless, a pseudo-viscous phase possibly appearing at around that temperature due to the presence of alkalis and fly ash would affect the pore structure of the matrix, sealing and rounding crack tips and giving rise to local plastic strain in the DT tests. That would provide a simple explanation for the post-treatment residual strength observed at 600 °C, for the rise in local plastic strain might at the same time prompt plastic micro-deformation in the materials and high energy absorption prior to catastrophic failure.

The variation in the elastic modulus with temperature also merits discussion. As Figure 6(b) shows, E declined at 200 °C much more significantly than at higher temperatures, possibly as a result of water release from the cements during heating prior to reaching 200 °C. Water transport creates micropores, raising total porosity and gradually lowering Elastic modulus. Nonetheless, that rise in micro- and total porosity would not contribute to the loss of bending strength, for whereas rising total porosity induces a decline in the modulus of elasticity (a rough estimate could be found based on the rule of mixtures), mechanical strength is controlled by critical defect size. That value did not vary significantly in the 25 °C to 200 °C interval, where the change involved micropore generation and microcracking on a different scale. Since porosity grew more slowly after 200 °C, the decline in the modulus of elasticity was also shallower. Furthermore, E decreased more rapidly in OPC than in HYC because matrix microcracking was much more intense in the former, where no plastic micro-deformation-related repair mechanisms were present, as explained above.

5. CONCLUSIONSTOP

The conclusions that can be drawn from the present study are listed below:

ACKNOWLEDGEMENTSTOP

This research was funded by the Spanish Ministry of the Economy, Industry and Competitiveness and ERDF (BIA2016-76466-R and RTC2016-4872-S), the Spanish Ministry of the Research, Innovation and Universities (MAT2015-70780-C4-4-P), and the Region of Madrid (S2018/NMT-4411 ADITIMAT-CM: Additive Manufacturing: From Material To Application). Author Dr. Qu Bo benefitted from a China Scholarship Council (CSC) PhD. grant.
