Fatigue performance evaluation of bitumen mastics reinforced with polyolefins through a dissipated energy approach

C. Roman, M.A. Delgado, M. García-Morales*

Departamento de Ingeniería Química, Centro de Investigación en Tecnología de Productos y Procesos Químicos (Pro2TecS), Campus de “El Carmen”, Universidad de Huelva, (Huelva -Spain)

* moises.garcia@diq.uhu.es

1. INTRODUCTIONTOP

Fatigue is one of the most important distresses experienced by flexible pavements during their service live. When the traffic applies repetitive load to the pavement surface, cracks may initiate from the bottom and propagate upwards until failure. In this process, the bituminous binder has been recognized as the major factor because it represents the leading media of energy dissipation in asphalt mixtures (1). Molecular mobility could play a significant role in the appearance of fatigue damage in bituminous materials (2). During the hot mix asphalt fabrication, fine mineral material present in the aggregates is incorporated into the binder forming the mastic. Thus, the mastic is the actual binder that holds the coarse aggregates together (3). Polymer-modified bitumens (PMBs) are often used such that fatigue and other pavement-related failures are delayed. The use of a list of different fibres in asphalt mixtures is also common (4,5). In both cases, the resulting mastic is a ternary composite for which fatigue resistance characterization results fundamental.

Most of the studies conducted on fatigue damage in bituminous mastics are based on the so-called dissipated energy approach, which has also been applied to other materials like polymers, metals and composites (1). These studies are frequently carried out in stress-controlled mode (6,7) for mixtures used in thick asphalt concrete layer and strain-controlled mode (8) for materials that are used in thin asphalt concrete layers. Some investigations have compared both modes of deformation (1,9). Under stress-controlled mode, the dissipated energy per volume W_n at every loading cycle “n” can be strictly calculated as Equation [1]:

Within the linear viscoelastic (LVE) range, the result of Equation [1] is given by Equation [2]:

where σ₀ is the stress amplitude imposed, γ_n is the strain amplitude measured, and δ_n is the phase angle (0 rad < δ_n < л/2 rad) between the input signal σ(t)= σ₀·sin(ɷ·t) and its output response γ_n(t)= γ_n·sin(ɷ·t-δ_n). Equation [2] is also valid under strain-controlled mode as long as the imposed amplitude is γ₀ and the response is σ_n.

Even though not specifically mentioned, most of the published works on this field makes use of Equation [2] even if nonlinear conditions are tested (3) assuming that the first harmonic corresponding to the output signal has a much larger contribution if compared to the remaining odd harmonics (10). Otherwise, computation of Equation [1] has to be done by means of Lissajous plots which are not always made available by commercial rheometers.

However, only a part of the dissipated energy comes from the crack formation and propagation, whilst the remaining part is associated to the viscoelastic nature of the sample (11,12). So, the damage done to the material has to be evaluated by computing the difference in the dissipated energy between two consecutives loading cycles.

Based on the dissipated energy concept, a simple approach which allows predicting fatigue failure is the Dissipated Energy Ratio (DER) method (3,6), calculated as the ratio of the cumulative dissipated energy up to cycle “n” relative to the dissipated energy of cycle “n”. When the function DER(n) is plotted, the cycle at which failure occurs can be determined at the point at which the curve deviates from a straight line. Unlike the Ratio of Dissipated Energy Change (RDEC) method, which provides unique relationships between the so-called “plateau value” and fatigue life (1,9,13), the fatigue laws derived from the DER method depend on the loading conditions (mode, frequency, etc.). Even so, this method is an easy way to compare and discern between different materials in terms of fatigue resistance under same loading conditions. In our case, it allowed the effect of the type of polyolefin to be evaluated.

The vast majority of the existing fatigue studies on polymer-modified binders (either bitumen or mastic) are based on SBS or EVA (1,6,8,14). Most of them pursue to derive fatigue laws without paying attention to the specific role of the polymer. They do not describe the prolonged fatigue life observed in terms of the polymer-bitumen microstructure. Few studies report the fatigue performance of bitumen modified with polyolefins even though these polymers have shown improved resistance to permanent deformation. Examples of the sustainable reuse of waste polyolefins as modifiers for asphalt binders can be found in (15,16). Very often, little or no interest is shown in the polymer properties (3,17,18). Some other works related to sustainable approaches in this field are worth mentioning (19-21).

Moreover, rest periods allow the material to recover from damage due to relaxation and self-healing of micro-cracks. This phenomenon, which is not frequently taken into consideration at the experimental design, makes the number of cycles until failure, and so fatigue life, to increase (12). The importance of all these mechanisms is very well described in (22-25).

The objective of this work is to evaluate and compare the fatigue resistance of bituminous mastics modified with three different recycled polyolefins: LDPE, HDPE and PP. The results are based on the application of the dissipated energy concept to dynamic time sweep tests under stress-controlled or strain-controlled modes at the limit or beyond the linear viscoelastic (LVE) threshold, and a potential explanation to the behavior found is provided in terms of morphological observations by fluorescence optical microscopy.

2. MATERIALS AND METHODSTOP

2.1. MaterialsTOP

Two bitumens (A and B) with penetrations at 25 ºC of 73 and 179 1/10-mm, respectively, were selected as base material for polymer modification. A third neat bitumen with penetration at 25 ºC of 50 1/10-mm, denoted as C, was used as an unmodified control sample.

Three different types of recycled polyolefins were used as modifiers: low and high density polyethylenes (LDPE and HDPE, respectively) and polypropylene (PP). The polymers were provided in the form of pellets of 5 mm. Their melting temperature (T_melt) and crystalline fraction percentage (χ_cryst) are provided in Table 1.

The filler has an apparent density of 1.32 g/cm³ and particle size below 100 microns. Table 2 presents its complete gradation. Its mineral composition is: Quartz (40 wt.%), Clay minerals (35 wt.%), Opaque minerals (10 wt.%), Muscovite (5 wt.%), Feldspars (5 wt.%) and Carbonates (5 wt.%). Before its use, moisture was completely removed by setting the filler in an oven at 120 ºC overnight.

2.2. Processing of polymer modified bitumens (PMBs) and masticsTOP

PMBs were first prepared with a high-shear homogenizer at 5000 rpm, for 1.5 hours, and under optimized blending temperatures of 170, 180 and 195 ºC, for LDPE, HDPE and PP, respectively. This device was equipped with a square hole high shear screen, specifically suitable for dispersing molten polymers. In order to compare the effect of the polymer type, a fixed polymer concentration of 4 wt.% was chosen. When dealing with PBMs, fixing the polymer concentration and bitumen type whilst varying the polymer type may lead to PBMs with very different hardness which, undoubtedly, would affect the study. According to the approach reported by Roman and Garcia-Morales (26), it was opted to vary the source bitumen so as to maintain the PBMs penetration within a narrow interval. So, the hardest bitumen A was modified with LDPE, whilst the softest bitumen B was modified with HDPE or PP. Thus, all the binders used in the preparation of mastics presented penetrations within a narrow interval from 50 to 66 1/10-mm. The results of the PMBs penetration grade (UNE-EN 1426) and Ring-and-Ball softening point (UNE-EN 1427) are shown in Table 1.

In order to assess the polymer swelling during the blending, bitumen-rich and polymer-rich phases were separated from the PMBs by their destabilization in tooth paste tubes (UNE-EN 13399) at 170 ºC. When the polymer-rich phase creamed up its volume fraction, ϕ_PRP, was calculated (Table 1).

After this first stage, mastics with a filler/binder ratio of 65/35 by weight (about 60/40 by volume) were obtained. The adequate amount of filler was added and mixed with the binders (PMBs or neat bitumen) for 1 extra hour, at 3500 rpm. The use of a specific dispersing tool for powders provided an effective dispersion.

2.3. Materials testingTOP

First of all, the polyolefins were characterized by means of differential scanning calorimetry (DSC) runs at 5 ºC/min, with a TA Instruments Q100 (USA) calorimeter. In order to erase previous thermal history, samples were always subjected to equilibration for 15 minutes above the polymer melting temperature.

As for the mastics, dynamic torsional time sweep tests were carried out at 25 ºC, under stress-controlled or strain-controlled modes. Although 10 Hz is a common frequency in fatigue tests, it is too high for a rheometer to give accurate results. For this reason the test frequency was set to 1 Hz. The tests were carried out with the rheometer Physica MCR-301 (Anton Paar, Austria), featured with the Anton Paar SFR test fixture for torsion mode. Rectangular probes, prepared by compression-molding (100 bar for 10 min) at ambient temperature, were measured. The probes dimensions, as corresponding to Figure 1, were L=50 mm, W=10 mm and T=2.8 mm. The test temperature selection was conditioned by the fact that the fatigue tests could be greatly affected by plastic flow at higher temperatures than 25 ºC (27). Previously, amplitude sweep tests, at the same frequency, were performed so as to ascertain the critical values beyond which the linear viscoelastic response no longer remains. The evaluation procedure for the time sweep tests consisted of: i) an initial 5 min-interval of loading under a stress or strain within the LVE regime, which gave the values of the viscoelastic functions, |G*| and δ, associated to the unaltered state of the sample; ii) an intermediate 30 min-interval under a stress or strain outside the LVE regime, which yielded partial damage in the sample; iii) a final 30 min-interval under the same stress or strain applied in step i), over which the initial state is partially recovered (self-healing).

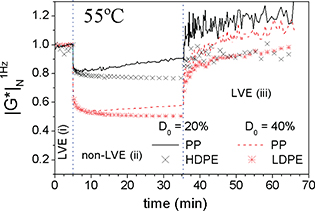

Dynamic shear time sweep tests at a frequency of 1 Hz and a temperature of 55 ºC were also conducted on the same rheometer with a plate-plate measuring system of radius R=12.5 mm and gap h=1 mm, as corresponding to Figure 1. The goal was to evaluate the self-healing capability when the material is heated above the ambient temperature, hence, shear mode was required due to much lower viscoelastic moduli values.

At least three replicates were conducted for every sample and data shown (average) have statistically significant values, i.e. they did not exceed a significance level of 0.05 in Student’s t-test and had a 95% confidence interval.

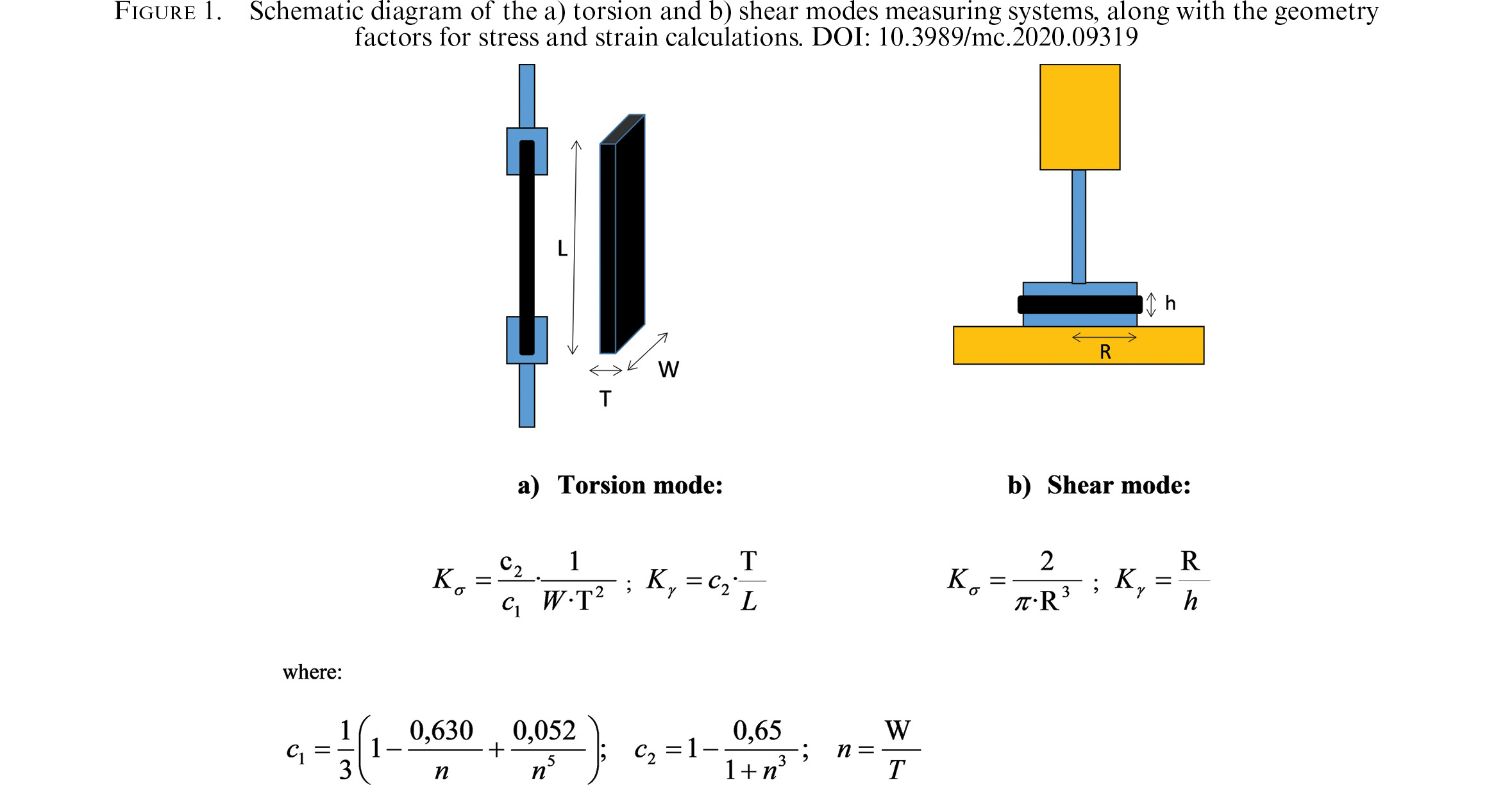

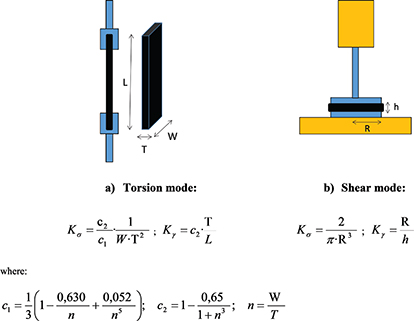

Figure 1 presents schematic diagrams of the measuring systems: a) torsional mode and b) shear mode, along with the formulae provided by the manufacturer for the conversion of torque (M) into stress (σ), and angular displacement (φ) into strain (γ) in the corresponding geometries, according to Equations [3] and [4]:

Fluorescence optical microscopy, at room temperature, was carried out on the polymer-modified source binders. The characterization was conducted on samples prepared by the procedure described in EN-13632 (cryo-fracturing), which guarantees that morphology upon blending is not altered by subsequent handling. Representative morphology prototypes were assured by using, for each formulation studied, at least three different samples and taking five pictures at different locations. An optical microscope Olympus BX51 coupled with a metal halide lamp of 120 W was used.

3. RESULTS AND DISCUSSIONTOP

3.1. Fatigue-resistance evaluation under strain-controlled modeTOP

In order to evaluate the linear viscoelastic (LVE) range of the mastics at 25 ºC, dynamic amplitude sweeps at a constant frequency of 1 Hz were carried out in torsion mode. The onset of the non-linear region was taken as the point where the linear relationship between the input stress and the output strain no longer remains. The strain critical values were 1.3, 0.2, 0.1 and 0.15 %-strain, for neat, LDPE, HDPE and PP mastics, respectively. The unmodified mastic was able to withstand the largest strain before the LVE was overcome, which does not necessarily imply the same trend in the fatigue behavior, as shown later below.

Then, a comparative evaluation of the fatigue resistance of neat and LDPE-modified bitumen mastics, under strain-controlled mode, was firstly conducted. Three values of strain were chosen for the fatigue tests. The first one corresponded to the onset of the non-linear region of the neat bitumen mastic, 1.3 %, and then two largest values of 2.5 and 5.0 %. This is a common approach adopted in this field. Otherwise, the material fatigue life can be extremely long (1,3,11) or could even be below the so-called fatigue endurance limit (13).

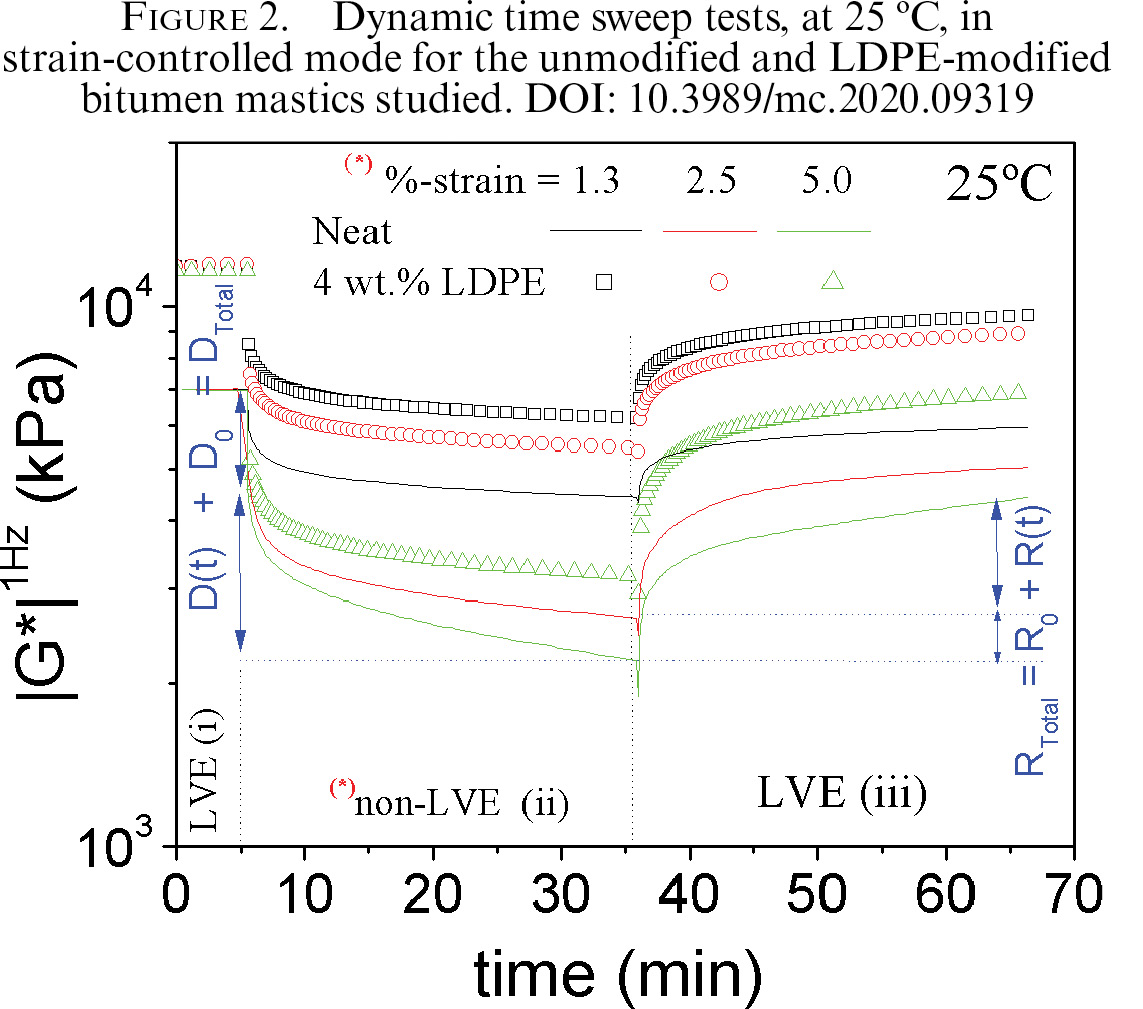

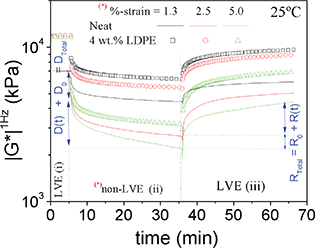

For the sake of comparison, the same strain values were also applied to the 4 wt.% LDPE mastic. Figure 2 illustrates the results of dynamic time sweep tests, at 25 ºC, under strain-controlled mode, plotted as log-linear evolution of |G*| versus time. Over the first 5 minutes a strain well below the LVE limit (stage-i) was applied such that the material stiffness was evaluated with no alteration of its intrinsic microstructure. Obviously, constant values of |G*| were obtained for every set, neat or LDPE mastics, of experiments. Subsequently, the strain imposed was increased up to the corresponding non-linear target values (stage-ii), and maintained during the following 30 minutes. An instant decay in |G*| is observed. This decay, referred to as D₀ in Figure 2, is calculated as a percentage of |G*| in stage-i. It depends on both the strain imposed and the type of mastic, and has been reported to be related to material conditioning (8) rather than real damage. In fact, this decay is disregarded in further dissipated energy calculations. Marked differences in D₀ are observed between 1.3 and 2.5 %-strain for the neat mastic. As for the LDPE mastic, it was necessary a higher level of strain, 5.0 %, in order to appreciate important differences. Then, upon a short transient interval, a steady decreasing rate is observed. The decay associated to this period is referred to as D(t) in Figure 2, and it is also calculated as a percentage of |G*| in stage-i. Hence, the total decay percentage corresponding to stage-ii is calculated as D_Total=D₀+D(t). Moreover, it is noteworthy that the average slope corresponding to the time evolution of |G*| depends on both the strain imposed and the mastic type. For neat mastic, for example, the |G*| curve corresponding to 1.3 %-strain nearly levels off after 30 minutes, whilst |G*| decreases much faster at 5.0 %-strain. Even so, fatigue fracture characterized by a dramatic drop in |G*| does not occur during the test, most probably because the total number of cycles was too low for the cracks to propagate (3). Eventually, self-healing is noticed over the third stage (iii), when the material is returned to the LVE regime. The process takes place as a first instant recovery, R₀, followed by a time-dependent recovery, R(t). Thus, R_Total=R₀+R(t) is the total recovery percentage corresponding to stage-iii, relative to the value of |G*| in stage-i. Comments are provided below, in next section, which compares the self-healing capability of the three polymer-modified bitumen mastics studied.

In terms of dissipated energy, the Dissipated Energy Ratio (DER) above described represents a simple method to assess the damage done to the material due to the continuous application of dynamic loading. First of all, the dissipated energy per volume W_n at every loading cycle was calculated by Equation [2] above for neat and LDPE-modified mastics under %-strain conditions of 1.3, 2.5 and 5. Under strain-controlled mode, W_n decreases with time. Its evolution with the cycle number during stage-ii, which is presented in Figure 3a, follows a decay pattern which can be fairly well represented by Equation [5]:

The fitting parameters of the Equation [5] above, W0, a, b, c and d, are gathered in Table 3. From the calculated parameters, the total dissipated energy corresponding to stage-ii was analytically evaluated by Equation [6]:

with N being the total number of cycles, calculated as N = f·t_st-ii, where f = 1 Hz, and t_st-ii is the stage-ii duration, in seconds. The computed values of W_Total for neat and LDPE-modified mastics at the three levels of deformation chosen are shown in Table 3.

It can be observed that oscillations at higher strain levels involve larger dissipated energies. Moreover, the LDPE-modified mastic presented larger dissipated energy values than the unmodified mastic. However, W_Total such as does not allow drawing conclusions on the fatigue resistance as it does not provide detailed information on how the dissipation has evolved. A parameter p computing the norm of the dissipated energy variation rate (calculated at the steady zone of stage-ii) relative to the total dissipated energy involved, according to Equation [7]:

can be a good first estimate on the effect of the polymer type on the fatigue resistance (p values are included in Table 3). A similar parameter a_w is reported by Artamendi and Khalid (28). Higher values of the calculated parameter p suggest that the unmodified mastic is more fatigue-susceptible that the LDPE-modified mastic. Further, the DER(n) function was analytically evaluated according to Equation [8]:

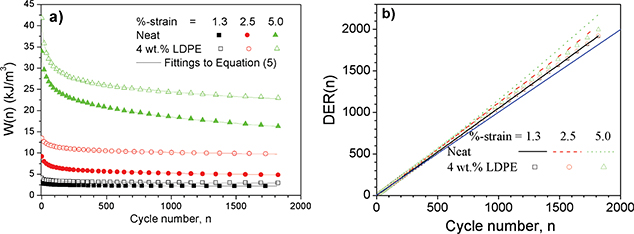

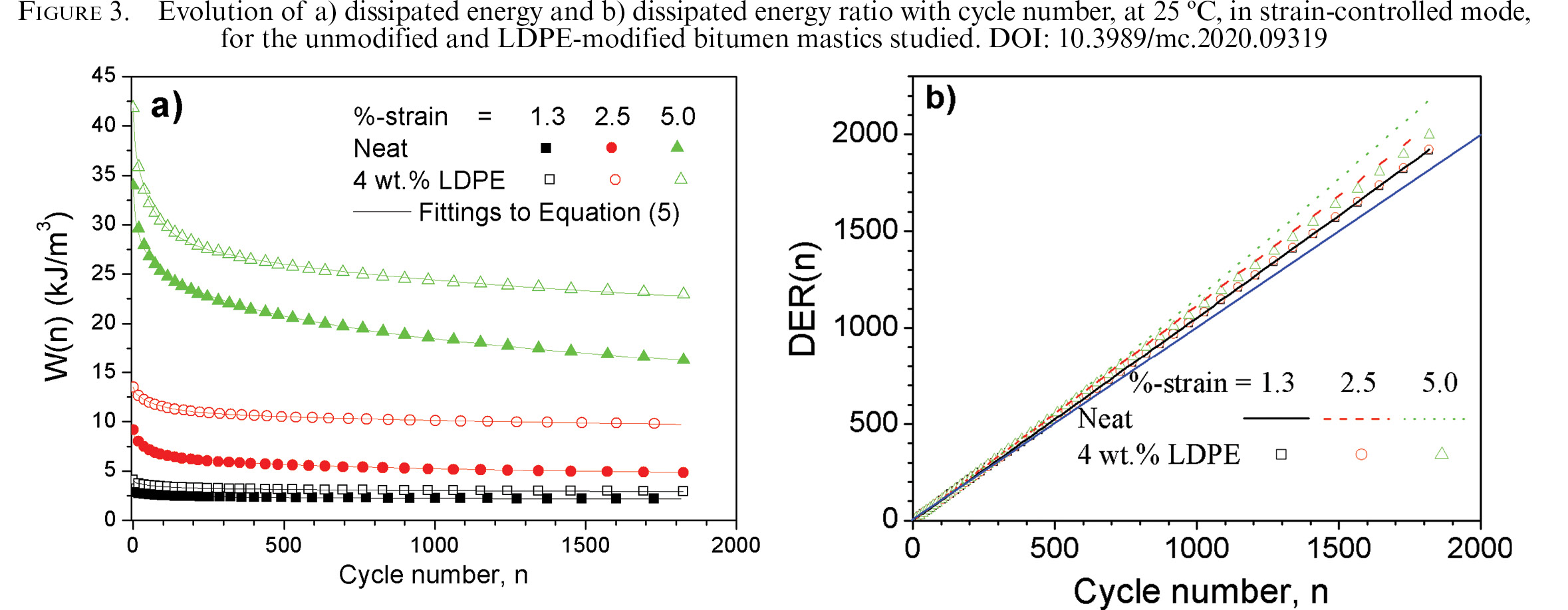

When DER(n) is plotted versus the cycle number, n, as shown in Figure 3b for the neat and LDPE mastics at 25ºC, the larger the deviation above a straight line with slope of 1, the higher the damage. As can be seen, and in agreement with the previous calculated parameter, both mastics exhibit a similar response at 1.3 %-strain. However, the application of 2.5 %-strain on the neat mastic entails a deviation which is equivalent to the application of 5 %-strain on the LDPE-modified mastic. Finally, 5 %-strain on the unmodified mastic yields, by far, the largest deviation. Hence, Figure 3b makes clear the neat mastic supports lower amount of load cycles than the LDPE modified mastic. It is worth mentioning that in a strain controlled mode tests under a specific strain percentage, the amount of energy introduced per load cycle in stiffer materials is higher than in softer materials. In that sense, this may be the cause for a material to support lower amount of load cycles than another one, and not necessarily a lower resistance to fatigue. Figure 2 demonstrate higher values of |G*| (higher stiffness) for the 4 wt.% LDPE mastic which still withstands a higher number of load cycles. In consequence, the above statement allows concluding that the LDPE addition is enhancing the fatigue failure resistance of the mastic.

3.2. Fatigue-resistance and self-healing analysis under stress-controlled modeTOP

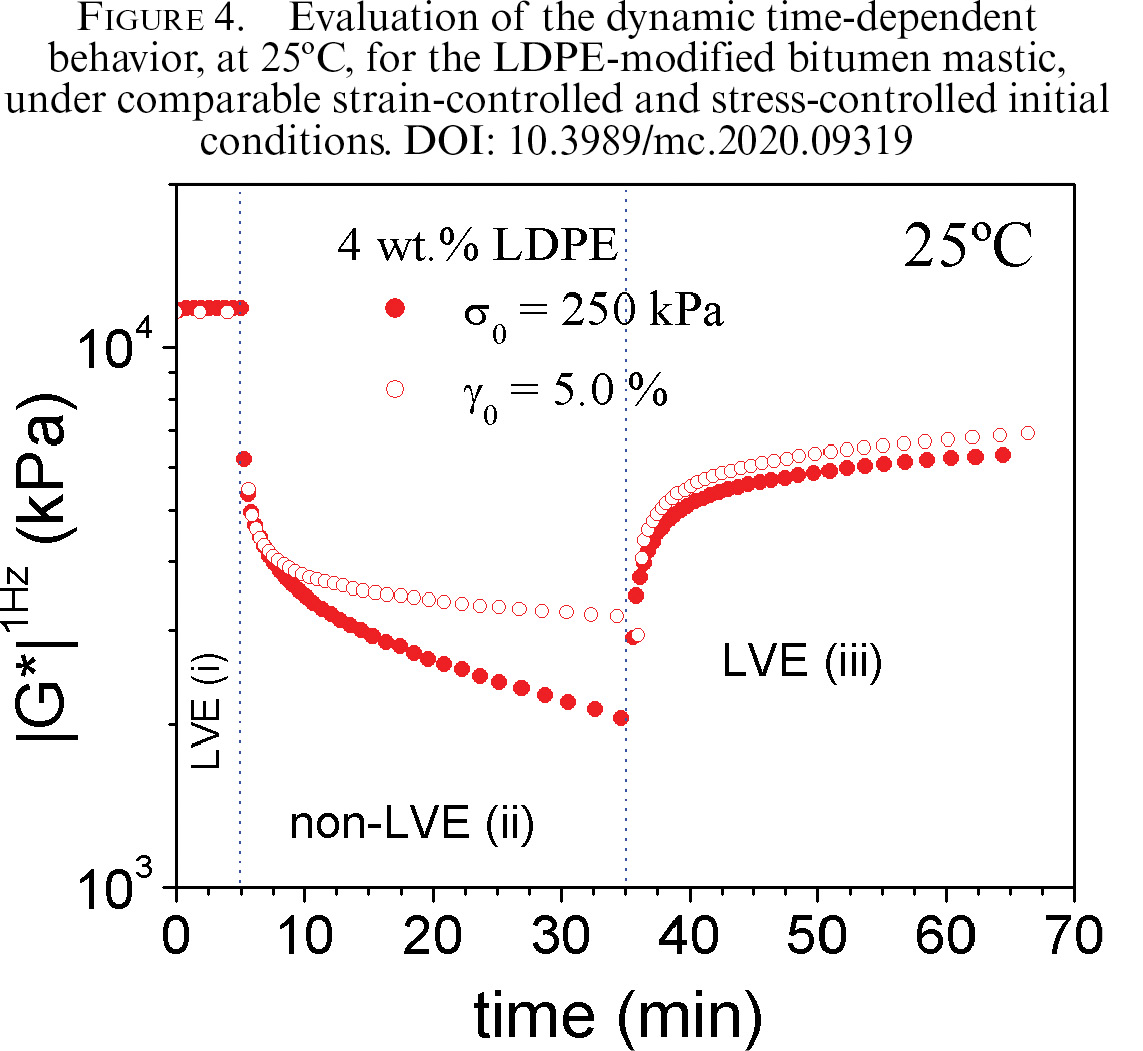

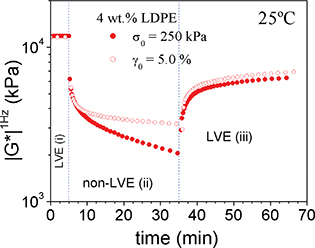

As above referenced, some works which develop dissipated energy approaches based on stress-controlled measurements are also available. Compared to strain-controlled mode, Artamendi and Khalid (28) reported faster rate of damage for a stress-controlled test using a stress amplitude value which caused initially the same value of strain amplitude. This may be explained based on the supplied energy per cycle. Thus, in stress controlled mode the energy per load cycle is constant, whilst in strain controlled mode the energy per load cycle decreases because the stress required to sustain the specified strain is reduced due to the damage produced in the material. In consequence, the fatigue failure is delayed. Figure 4 looks further into this matter. For a strain amplitude of 5 % to be initially attained on the 4 wt.% LDPE mastic, a stress amplitude of 250 kPa has to be imposed.

Both tests yielded similar instant decays D₀, but the decreasing rate during stage-ii (no-LVE period) was much higher under stress-controlled mode. In one of the earliest attempts to characterize fatigue cracking based on the concept of dissipated energy, Van Dijk et al. (29) concluded that for a given material and temperature the total dissipated energy until fatigue failure is constant and independent of the loading history. In our case, the total dissipated energy after the N cycles corresponding to stage-ii was calculated in both cases, showing values of 45.67 and 122.49 MJ/m³ for strain-controlled and stress-controlled, respectively (Table 3). If the Van Dijk and co-workers’ hypothesis is valid, the result indicates that the number of cycles until failure will be lower under stress-controlled mode, that is, stress-controlled mode accelerates the fatigue process. The same conclusion was drawn by Artamendi and Khalid (28) who attributed shorter lives under stress-controlled mode to higher rates of cracking propagation. Later studies suggest that the total dissipated energy is unable to properly describe the fatigue phenomenon in asphalt materials, as it does not distinguish between damage and intrinsic viscous effects. Even so, values of 0.354 and 1.684 in Table 3 for the above defined parameter p, for strain-controlled and stress-controlled modes, respectively, allows concluding on the more severe stress-controlled loading effect. When the LVE conditions are re-established, the mastic self-healing is such that the |G*| recovery potential is barely affected by the mode of deformation, demonstrating that in no case fatigue failure has arisen.

Further, a comparative evaluation of the fatigue resistance of the three types of polyolefin-modified mastics studied was carried out by dynamic time sweep tests at 25ºC under stress-controlled mode. The choice of this mode of deformation was based on subjecting the mastics to the most severe conditions such that the effect of polymer type is stressed. The selected stress values were 60 and 90 kPa. Additionally, the LDPE-modified mastic was also subjected to 130 and 250 kPa. As above, the dissipated energy per cycle was calculated by Equation [2] and its evolution with the cycle number during stage-ii is shown in Figure 5a.

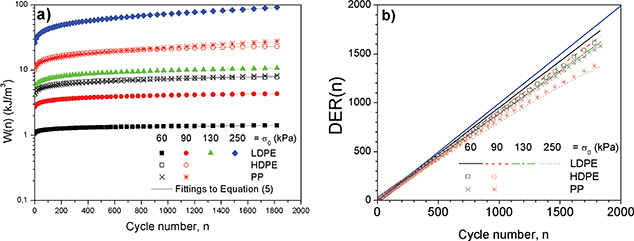

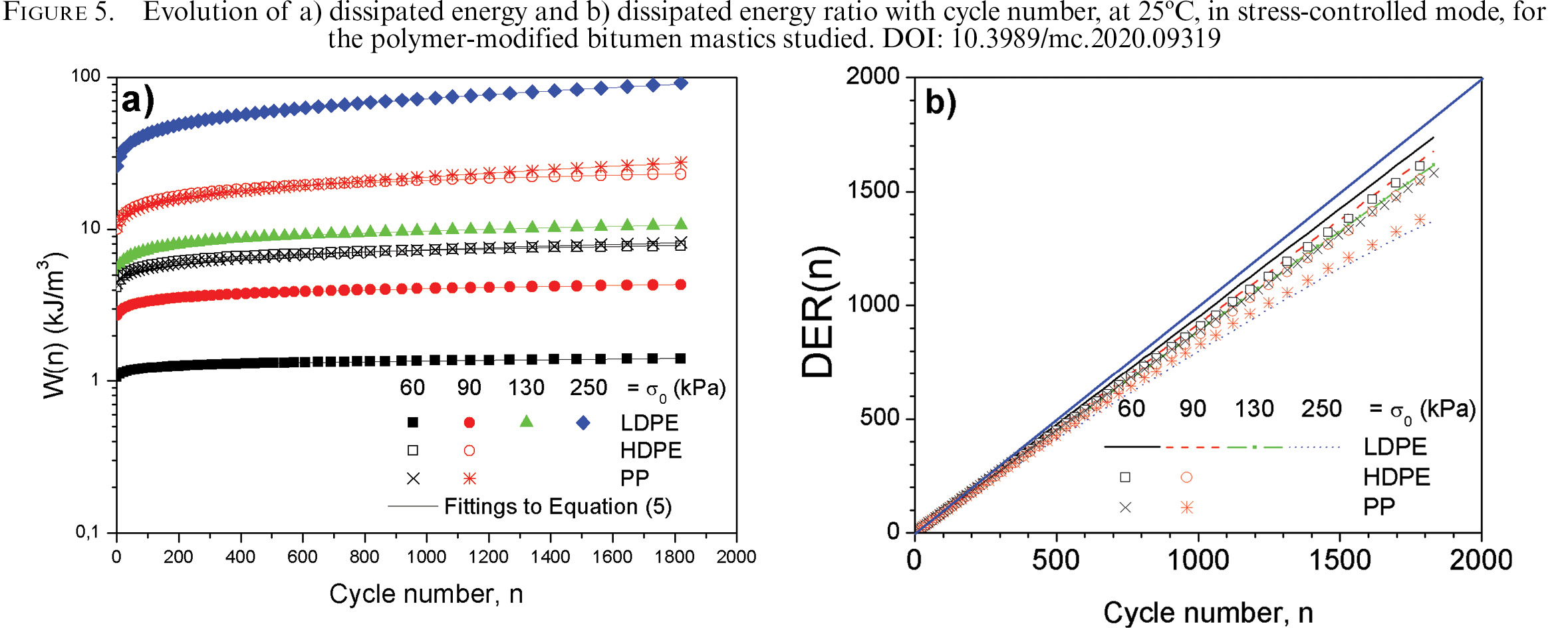

Under stress-controlled mode, the dissipated energy varies with the cycle number according to an increasing profile which can also be described by Equation [5]. The five fitting parameters involved are gathered in Table 3. The values of average dissipated energy variation rate relative to the total dissipated energy were computed as above, and are presented in Table 3. According to this parameter, the PP-modified mastic shows the highest fatigue-sensitivity and the LDPE-modified mastic the lowest. The DER approach illustrated in Figure 5b leads to the same conclusion. At both 60 and 90 kPa, the PP-modified mastic presents larger deviations below a straight line with slope of 1 than the two other mastics under the same load level. The performance of the HDPE-modified mastic under 90 kPa is equivalent to the LDPE-modified mastic under 130 kPa, whilst the response of the PP-modified mastic under 90 kPa is equivalent to the LDPE-modified mastic under 250 kPa. These observations are in agreement with the p values in Table 3.

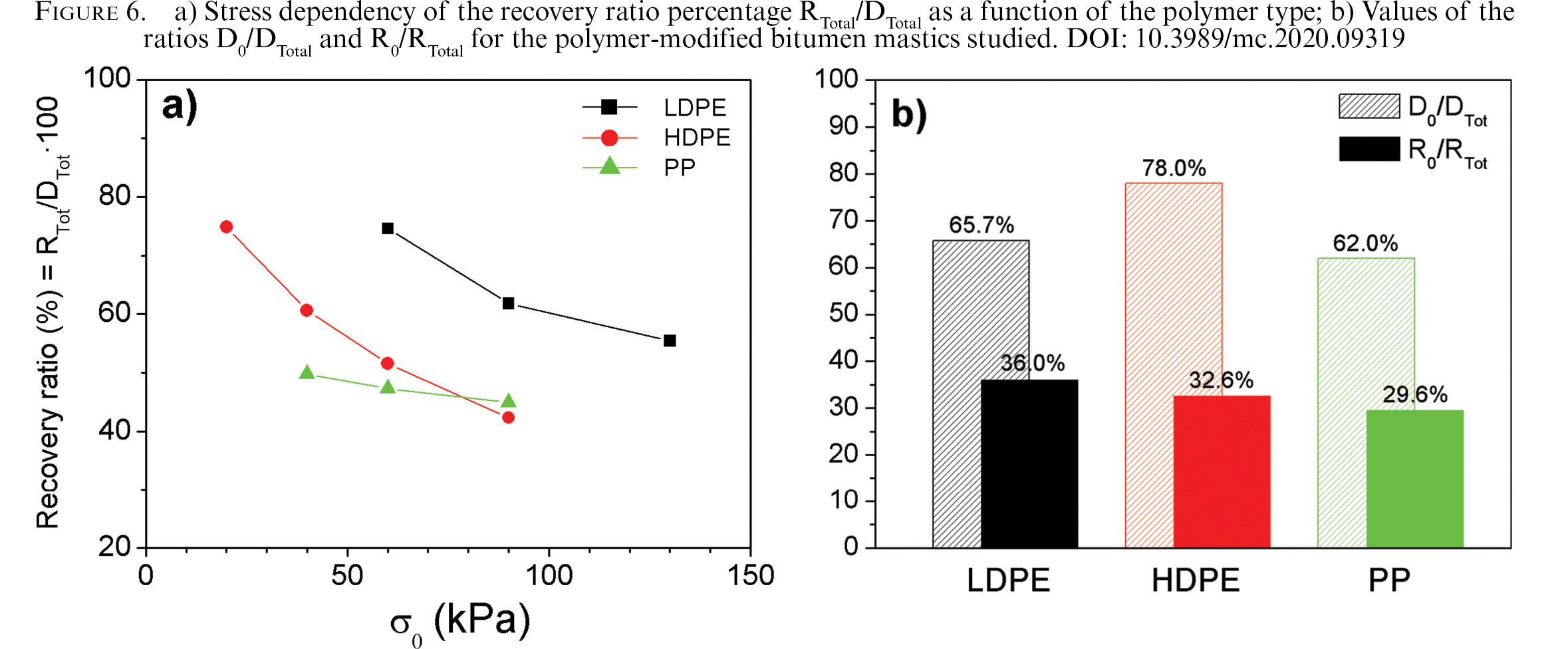

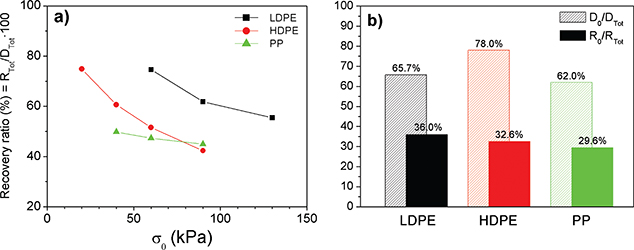

Based on the evolution of |G*| with time, at 25 ºC, under stress-controlled mode for the three polyolefin-modified bitumen mastics, the percentages of decay D_Total and recovery R_Total were obtained from stage-ii and stage-iii, respectively. According to the calculated ratio R_Total/D_Total shown in Figure 6a, the LDPE mastic presents, at 25 ºC, the highest level of recovery after 30 minutes under LVE conditions. This result is probably a consequence of a microstructure which has been less damaged by the repetitive loading, as proposed in next section. In no case, the healing process is complete at the end of the LVE period.

The recovery ratios decreased as the stress applied increased, because the material requires more time to heal. The ratios D₀/D_Total and R₀/R_Total were also calculated. They demonstrated to be almost independent on the stress applied and so average values are presented in Figure 6b. The HDPE mastic was the most affected by the instant decay, proving to be more sensitive to the initial conditioning. The LDPE underwent the fastest initial recovery. Moreover, the healing process is believed to be controlled by the viscosity of the bitumen-rich phase (30) which strongly depends on temperature. Thus, dynamic shear time sweep tests were accomplished at 55 ºC so as to conduct experiments at a temperature which accelerates healing. In order to establish a comparative assessment, normalized |G*|_N curves (relative to unperturbed LVE complex modulus values) are illustrated in Figure 7.

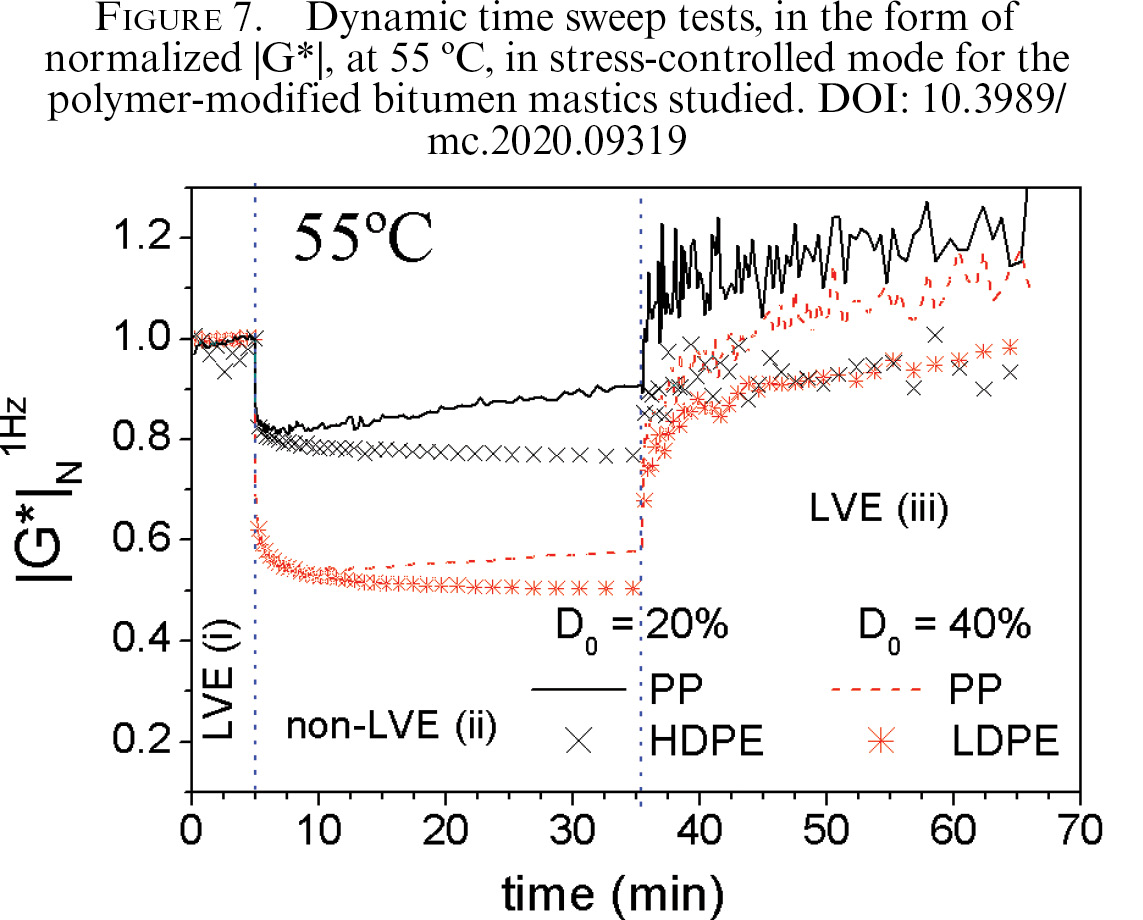

Stress amplitudes which provoked similar initial decays of 20 and 40 % were chosen. When the LDPE-modified mastic was subjected to an initial decay of 40 %, |G*|_N almost levels off and then recovers nearly 100 %. In the case of PP-modified mastic, unexpectedly, the instant decay is followed by an increase in the complex modulus during stage-ii such that |G*|_N at the end of stage-iii is higher than the initial value. A higher effect is observed when the PP-modified mastic was subjected to 40 % initial decay. This phenomenon was explained by Isailovic et al. (12) in terms of rearrangements within the material which induce improved mechanical properties. Such rearrangements are similar to what is observed during an asphalt mix maturing process.

3.3. Effect of the quality of polymer dispersion TOP

Many studies which address the specific role of the polymer in the PMBs performance describe the results in terms of polymer properties like melt flow index, crystallinity or functional groups content (31). This approach, though, might not be successful if the polymer is not properly dispersed. A quick view to Table 3 for the three polyolefin-modified mastics under 90 kPa allows concluding on the worst fatigue performance of the PP-mastic (p= 1.633) as compared, for example, to the HDPE-mastic (p= 0.684), both of them having the same polymer content and source bitumen. However, polypropylene is reported to exhibit better fatigue resistance than high density polyethylene. When dealing with polyolefin-modified bitumens, finding an explanation can be, a priori, more complicated due to the presence of two materials (polyolefin and bitumen) with low mutual compatibility. As reported by Yousefi (32), a description of the PMBs performance in terms of their dual-phase microstructure rather than the polymer structural parameters themselves stands for a much better approach in this case. Hence, an explanation to the worst fatigue performance of PP can be provided on these terms. The PP-modified bitumen is highly unstable, and its behavior is affected by the high rate of polymer segregation. Moreover, the different swelling degree during the blending of polymer and bitumen is also involved. During such a process, the polymer is swollen by the bitumen lightest fractions (referred to as “polymer-rich phase”, PRP) and so bitumen results more concentrated in the heaviest fractions that the original one (termed “bitumen-rich” phase, BRP), as explained elsewhere (33). After blending, a PMB eventually consists of two separate phases, PRP and BRP. For the two above polyolefins, when 4 wt.% was added to bitumen, they underwent volume increases up to 22.6 and 14.5 vol.% for HDPE and PP, respectively (ϕ_PRP in Table 1). It is clear that the PP incorporates much less amount of bitumen lightest compounds (saturates and aromatics) than the two other polyolefins, due most probably to a higher melt viscosity at the blending temperature. In consequence, the smaller extent of the polymer-rich phase influenced the mastic fatigue resistance because the micro-cracks originate within the most fatigue-sensitive bitumen-rich phase which is larger in the PP-modified binder. This fact also explains the high self-healing capability observed at 55 ºC in the PP-modified mastic. Lower absorption of light bitumen components by the PP polymer-rich phase prevents bitumen-rich phase hardening (lower viscosity) what facilitates the internal structure rearrangement (30).

However, LDPE-mastic performs better than the HDPE-mastic, even though its corresponding ϕ_PRP value is very similar (24.5 vol.%). Fluorescence optical microscopy observations were made on the mastics, but no conclusion could be drawn because of the high filler content. However, observations on the polymer-modified bitumen phase in Figure 8 may shed light on the issue.

The LDPE-rich phase in Figure 8a demonstrates a much better level of dispersion than the HDPE-rich phase in Figure 8b. In that sense, Yousefi (32) reported that polyethylenes with short or branched chains are more easily dispersed in bitumen. Heating DSC scans conducted at a rate of 5 ºC/min revealed that the three polyolefins studied present a melting event associated to their crystalline region. The values of melting temperatures (T_melt in Table 1) are 110.4/124.6 ºC for LDPE (which also contains a LLDPE fraction), 132.4 ºC for HDPE and 164.2 ºC for PP. The crystalline fraction percentages (x_cryst in Table 1) were computed from the specific crystallization enthalpies of the polyolefins studied and the theoretical value associated to pure crystalline polyolefins, as reported in Roman and Garcia-Morales (26). The results were 29.2 % for LDPE, 47.5 % for HDPE and 35.7 % for PP. As expected, the LDPE/LLDPE blend crystalline fraction is much lower than that corresponding to HDPE, because LDPE consists of branched backbone chains. LDPE molecular architecture facilitates its dispersion in bitumen, in such a way that, if compared to HDPE, it yields a polymer-bitumen emulsion with reduced droplet size and improved stability, as observed by fluorescence optical microscopy. The direct consequence is that the extent of propagation of a micro-crack arisen within the bitumen-rich fraction is partially restrained by the small separation between adjacent polymer droplets, so, enhancing fatigue resistance. Furthermore, Figure 8c corroborates the smaller level of swelling associated to the PP-rich phase if compared, for example, to the HDPE-rich phase extent illustrated in Figure 8b. This observation further supports the above comments on the worst PP-modified mastic performance at ambient temperature, and its facility for self-healing when is subjected to temperatures close to its softening temperature. Studies on the potential influence provoked by source bitumens with different SARAs fractions (chemical compositions) are still required as future work.

4. CONCLUSIONSTOP

A dissipated energy approach was used to evaluate the fatigue resistance of three polyolefin-modified bitumen mastics at 25 ºC. First, strain-controlled tests demonstrated that bitumen modification with 4 wt.% LDPE enhances the mastic fatigue resistance if compared to an unmodified bitumen with equivalent hardness. Further studies on the effect of the polyolefin type were conducted under stress-controlled mode, which accelerates fatigue and emphasizes the differences among the samples. The PP-modified mastic showed the lowest fatigue resistance and the LDPE-modified mastic the highest. Polymer swelling during the blending may explain the behavior observed. The PP-modified mastic behavior can be related to a smaller polymer-rich phase, 14.5 vol.%, if compared to LDPE and HDPE, with 24.5 and 22.6 vol.%, respectively. Under comparable swelling degrees in LDPE and HDPE mastics, the better performance of the former may be associated to its good dispersion in bitumen, as demonstrated by optical microscopy observations at 25 ºC. The results have important practical implications in terms of pavement engineering. It is not possible to avail of the full potential provided by a polymer if its dispersion in the bitumen phase is poor, which may lead to unexpected and undesirable performance. Homogeneous dispersions can mitigate the propagation of micro-cracks within the bitumen-rich domains, which are restrained by the neighboring polymer droplets. Bitumen-polymer interactions, hence, play a role in the fatigue behavior of the resulting mastic binders.
