Influence of the addition of carbon fibers on the properties of hydraulic lime mortars: comparison with glass and basalt fibers

A. Bustos^a*, E. Moreno^b, F. González^a, A. Cobo^a

a. Department of Architectural Constructions and their Control, School of Building Construction, Universidad Politécnica de Madrid, (Madrid, Spain)

b. Architectural Construction and Technology Department, School of Architecture, Universidad Politécnica de Madrid, (Madrid, Spain)

* arturo.bustos.garcia@gmail.com

1. INTRODUCTIONTOP

Due to its excellent physical and mechanical properties, Portland cement is currently the most widely used binder in the manufacturing of construction mortars. However, its use in restoration works and the conservation of historical buildings, which was very common during the twentieth century, has been shown to be counterproductive due to the pathological processes which develop (1, 2). This incompatibility derives from its high mechanical strength in contrast to the base material, from the formation, due to the migration of alkaline ions, of a large quantity of soluble salts, the crystallization and subsequent increase in volume of which causes tensions and efflorescence, and from excessive water retention due to the low permeability of those mortars (3).

For this reason, the use of hydraulic lime has increased in projects involving buildings which form part of a region’s historical heritage (4, 5). It may be said that hydraulic lime mortars represent a link between those using Portland cement and mortars dating from before the nineteenth century, displaying greater physical, chemical and mechanical compatibility with the materials normally used in these constructions (6).

The main disadvantage of hydraulic lime mortars is their high plastic shrinkage together with low mechanical strength and relatively fragile behavior when subjected to mechanical loads. Their limited deformation capacity and ability to absorb energy constitute a problem in certain situations, such as, for example, in the event of earthquakes, which may result in the detachment of fragments of mortar coating, putting human safety at risk.

This issue, widely studied in cement-based materials, can be overcome by incorporating glass fibers (7-9), basalt fibers (8-11) and carbon fibers (12-14) in the matrix. However, the behavior of hydraulic lime mortars with added fibers has been studied significantly less, indeed it was only possible to find a few albeit interesting references. Lucolano et al. (15) published that the addition of glass and basalt fibers improved the toughness and post-cracking behavior of hydraulic lime mortars. Santarelli et al. (16) reported an improvement in compressive and flexural strengths, as well as in the post-cracking behavior of hydraulic lime mortars featuring different types of basalt fiber. No references of the use of carbon fibers in hydraulic lime mortars have been found.

Consequently, obtaining hydraulic lime mortars with more ductile behavior and improved mechanical strength which can be used in historical buildings as an alternative to cement mortars implies attaining greater compatibility with the base materials used in old factories and, furthermore, providing a greater guarantee of the safety of these constructions.

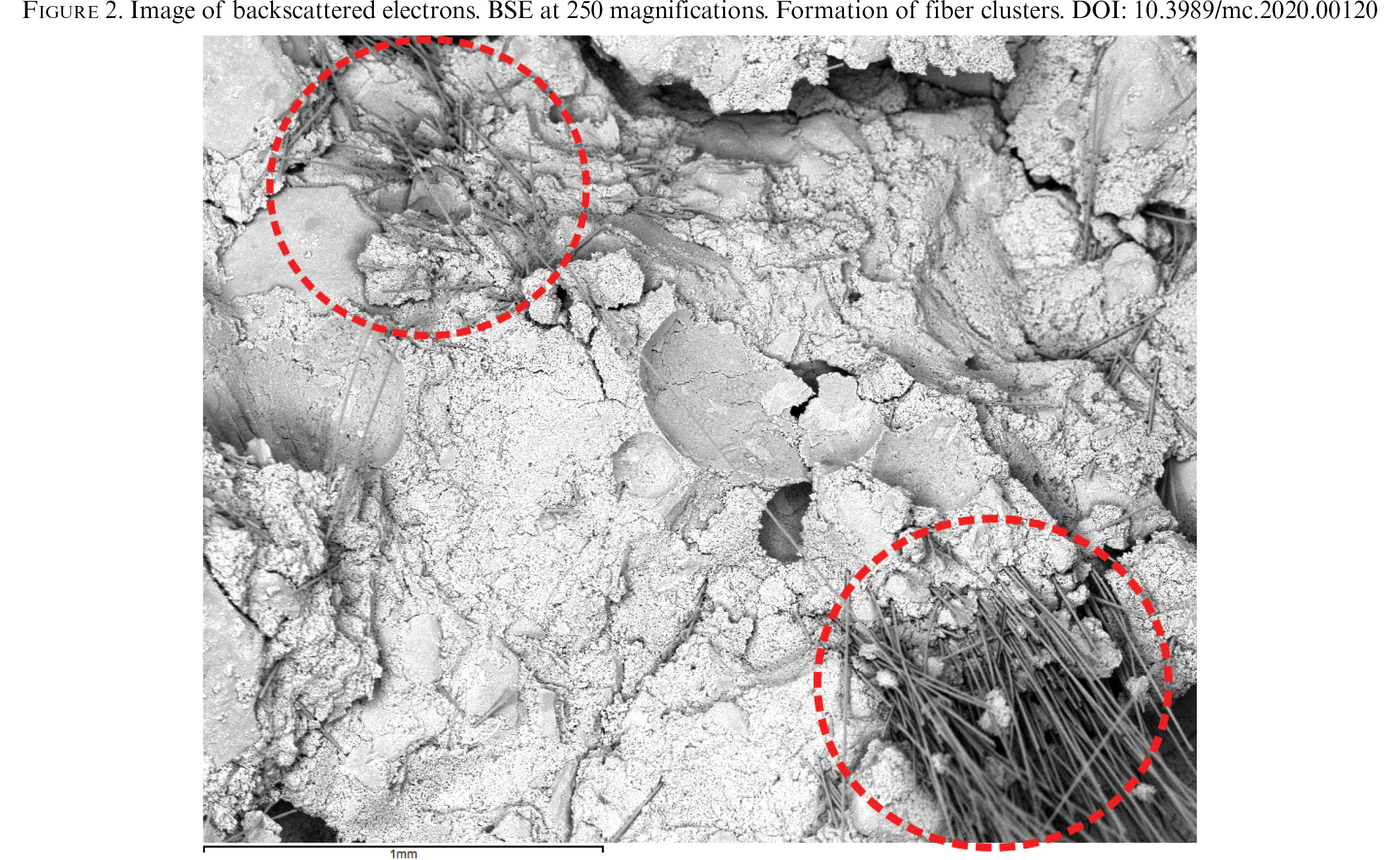

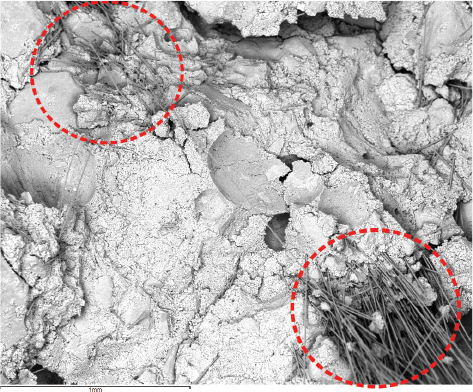

In addition, from all these studies, it is possible to conclude that the fibers have a tendency to flocculation and therefore the amount of fiber that can be incorporated into the mixture is limited by the formation of “balls” (tangled fibers), which negatively affect their working capacity (17); and that the amount of fiber added varies by up to 10% (16), but that the best results are obtained from mixtures containing less than 1.5% (12,14).

This research formalizes a study (not done until the moment) about the behavior of hydraulic lime mortars with carbon fibers added. In addition, its influence is studied in comparison with glass and basalt fibers and a mortar with mixed glass and carbon fibers. Four percentages of fibers have been used over the total volume of the mortar (0.33%, 0.66%, 1% and 1.33%). Based on an analysis of the load–deflection curves obtained from the flexural and compression tests, the energy absorption capacity of the material has been quantified.

2. EXPERIMENTAL PROCEDURETOP

2.1. MaterialsTOP

In order to carry out the experimental work, hydraulic lime mortars were manufactured using the following materials:

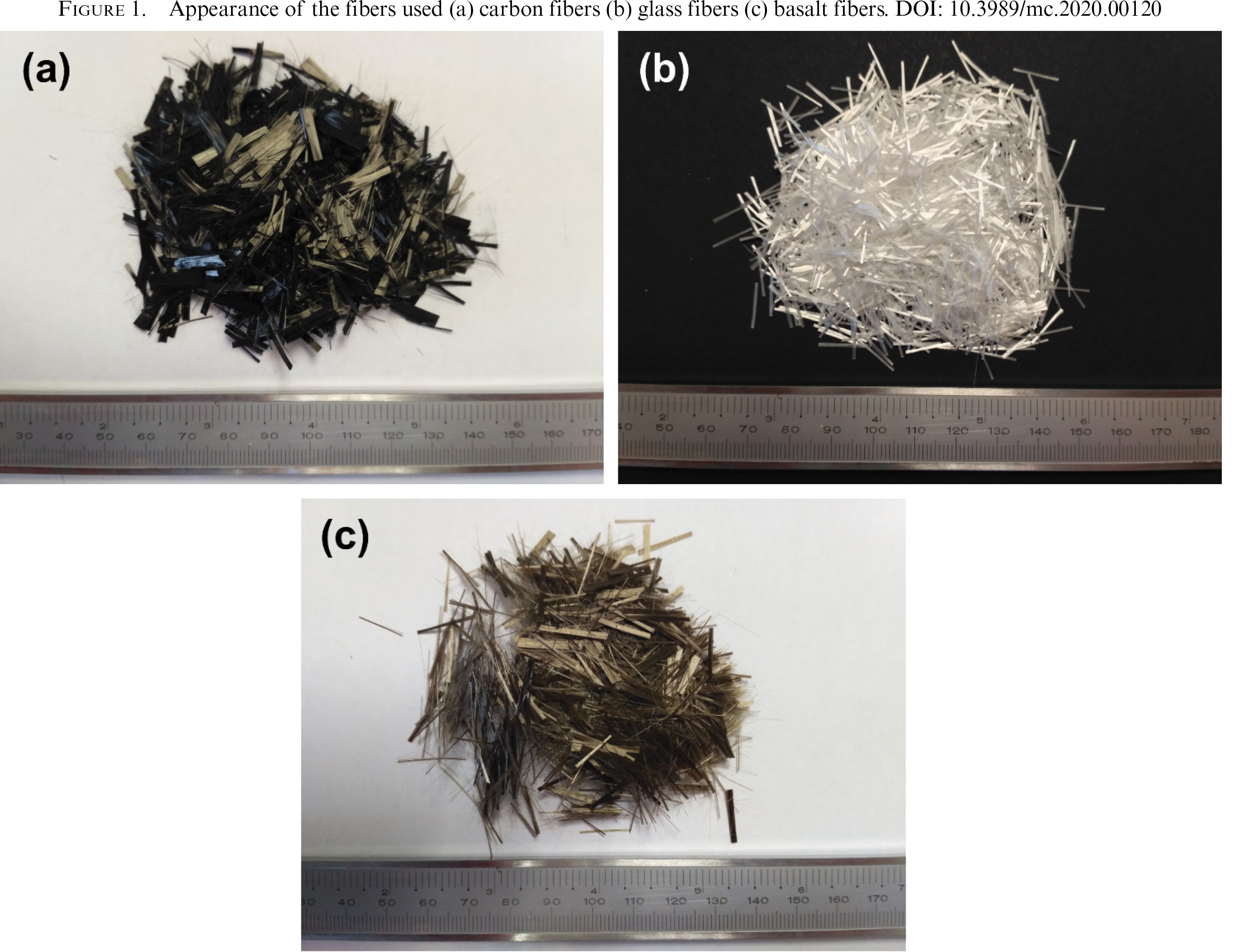

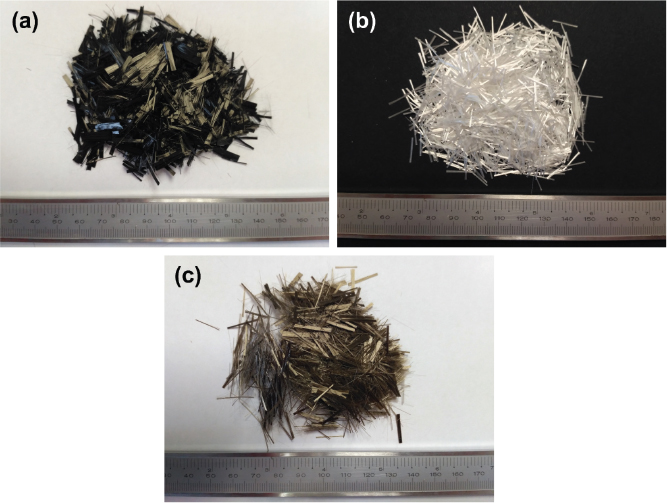

The technical characteristics of the fibers are shown in Table 1, whilst Figure 1 displays the appearance of the aforementioned fibers.

In order to be able to assess the effect of the fibers, reference mortars were produced by mixing 490kg/m³ of hydraulic lime, 1,470kg/m³ of silica sand and 0.65 water/binder ratio. Based on the reference mortars, different mortar mixtures were manufactured, adding carbon (CF), mixed (50 % carbon and 50% glass fibers) (MF), glass (GF) and basalt (BF) fibers. The percentages added are 0.33%, 0.66%, 1% and 1.33% over the total mortar volume. Finally, with the aim of improving the workability of the mortars following the addition of fiber, 2kg/m³ of a water-reducing additive were added to the mixture. Due to increase of population in developing countries the need forlow-cost residential housing has increased considerably around the world (1, 2).

2.2. Manufacturing and curingTOP

The mixing was performed in accordance with the procedure described in regulation EN 196-1 (19). To begin with, the water is mixed with the binder for 30 seconds on a slow speed, before gradually adding the sand for the following 30 seconds. The mixing is completed following the pattern of quick (30 seconds) - stopped (90 seconds) - quick (60 seconds). In mortars with added fibers, taking into consideration the results obtained by Gao et. al. (20), the fibers are premixed with water for 60 seconds before adding the hydraulic lime and starting to mix. For each mortar tested, three prismatic test pieces were manufactured (40x40x160mm³) and wrapped in polyethylene film for the first few hours in order to delay evaporation. The curing process was carried out in a humidity chamber at a temperature of 20ºC and relative humidity of 95% for 28 days, according to standard EN 459-2 (21).

2.3. Experimental techniquesTOP

The physical properties; slump, density in a fresh and hardened state and trapped air content; were determined following the criteria set out in regulations EN 1015-3 (22), EN 1015-6 (23), EN 1015-10 (24) and EN 1015-7 (25), respectively.

The mechanical characterization of mortars was carried out in accordance with regulation EN 1015-11 (26). In order to perform the flexural strength testing, Ibertest model MIB-60/AM equipment was used featuring deflection control, a 100mm separation between supports and a load speed of 0.4mm/min. The tests to determine the compressive strength were performed using the fragments produced during flexural strength testing, with the same equipment and a deflection speed of 1 mm/min.

The toughness was obtained by calculating the area below the load-deflection curve up to a variable deflection, , as shown in the following Equation [1]:

As ASTM C1609 (27) recommends, the flexural toughness evaluation indexes are: the load at the first crack, the maximum load, the residual load and the area below the curve up to a deflection of L/150 (L being the distance between supports). In this study, the indexes used to evaluate the flexural toughness of hydraulic lime mortars included the area below the curve up to breakage (T_p), up to a deflection of L/600 (T_L/600), up to a deflection of L/150 (T_L/150) and up to collapse (T_u). The maximum load (P_p) and residual loads P_L/600, P_L/150 and P_u (28, 29), were also calculated.

The compressive toughness was determined by adapting the procedure set out in UNE 83508 (30). The area below the load-deflection curve was calculated up to breakage (T_cp), up to a deflection of 1.125mm (T_c1.125) and up to a deflection of 2.250mm (T_c2.250). The maximum compression load (P_cp) and residual loads P_c1.125 and P_c2.250 (31) were also calculated.

The microstructural characterization and morphology of the fracture surfaces of the hardened samples was carried out using a scanning electron microscope (SEM Jeol JSM-820). All samples were coated using gold sputtering before testing.

3. RESULTSTOP

3.1. Physical propertiesTOP

The physical properties of the mortars are shown in Table 2. The gradual increase in the amount of fibers added implies a drop in slump, which has a negative impact on the workability of the mortars (32). This effect is common to all of the fibers, not showing significant differences. It is due to the formation of a mesh-like structure which stems from the fact that the distribution of the fibers restricts the segregation of the mixture. This, together with the greater amount of binder required in order to coat the fibers (due to their high specific surface) results in the increased viscosity of the mixture (33). As a result, the formation of “groups” or “tangled fibers” (Figure 2) is observed, having a negative effect on the workability.

Furthermore, the increased fiber amount implies a drop in the mortar density due to the increase in trapped air, resulting in mortars which are less compact. This phenomenon derives from an interruption in the continuity of the material’s microstructure, as a result of including fibers in a homogeneous body.

3.2. Flexural and compressive strengthTOP

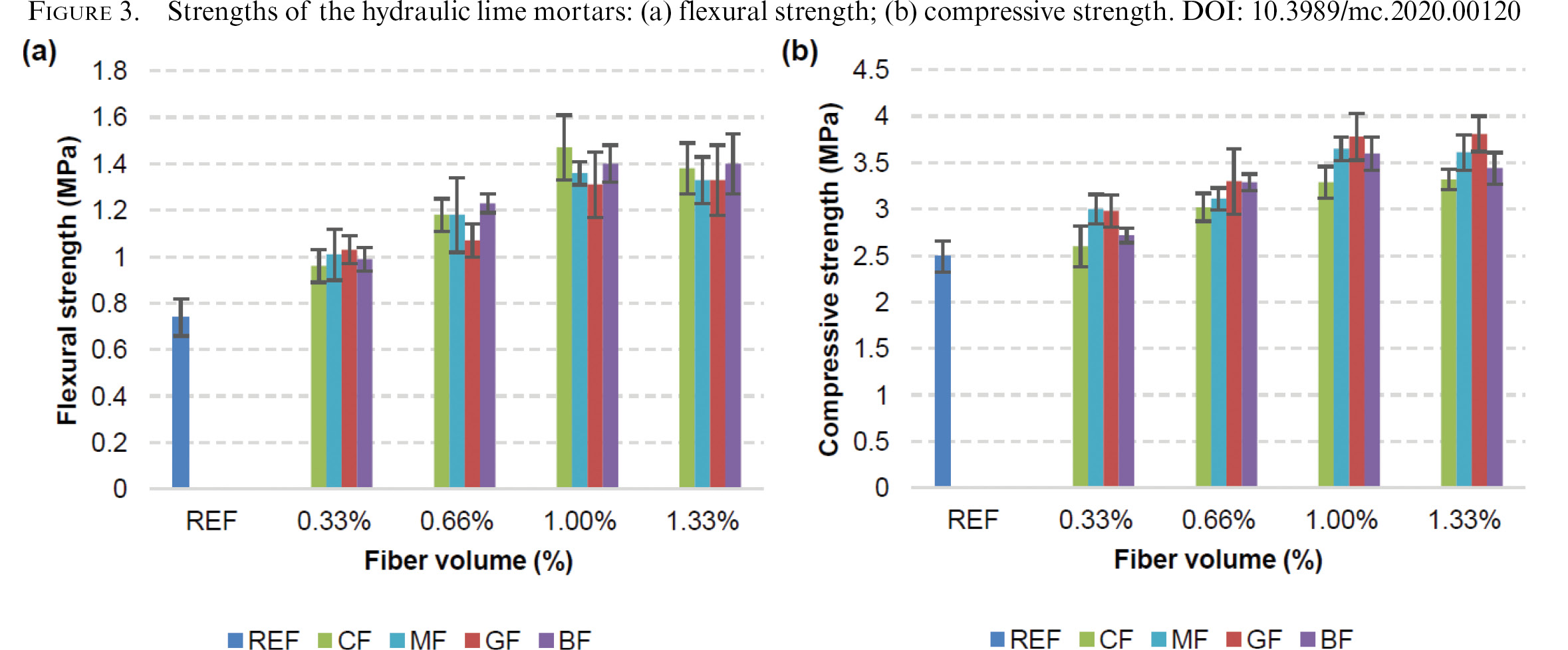

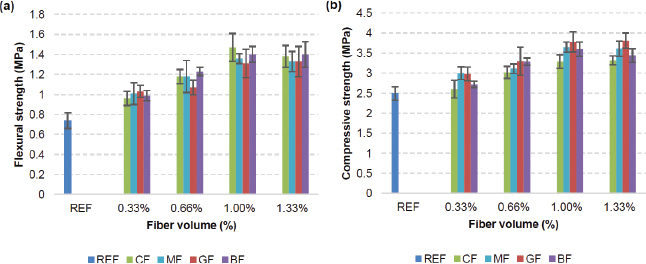

The average flexural and compressive strengths for the different hydraulic lime mortars are set out in Table 3. The strengths’ increase by the addition of fibers can be seen in Figure 3. When compared with the reference mortars, the average values increase by 35%, 57%, 87% and 84%, for addition percentages of 0.33%, 0.66%, 1% and 1.33% respectively (Figure 3.a). In a similar way, compressive strength increases when any type of fiber is added (Figure 3.b), averaging increases of 13%, 28%, 44% and 42% compared with the reference values.

Regardless of the type of fiber added, the flexural and compressive strengths of the mortars increase with the addition of fibers up to 1%. At higher contents, a resistances decrease takes place due to the difficulty of dispersing high amounts of fibers (20). Because the resistances variation depends on numerous factors (such as, the cementitious matrix, the nature of the aggregate and the type and length of the fibers), contradictory data has been found in the bibliography regarding the mechanical resistances (15, 16). Therefore, the results have to be compared with similar materials.

With regards to the type of fiber, observing the standard deviation of each of the experimental mortars, there are no significant differences between the different fibers, and no substantial improvement is found when carbon fibers are added.

3.3 Flexural toughness indexesTOP

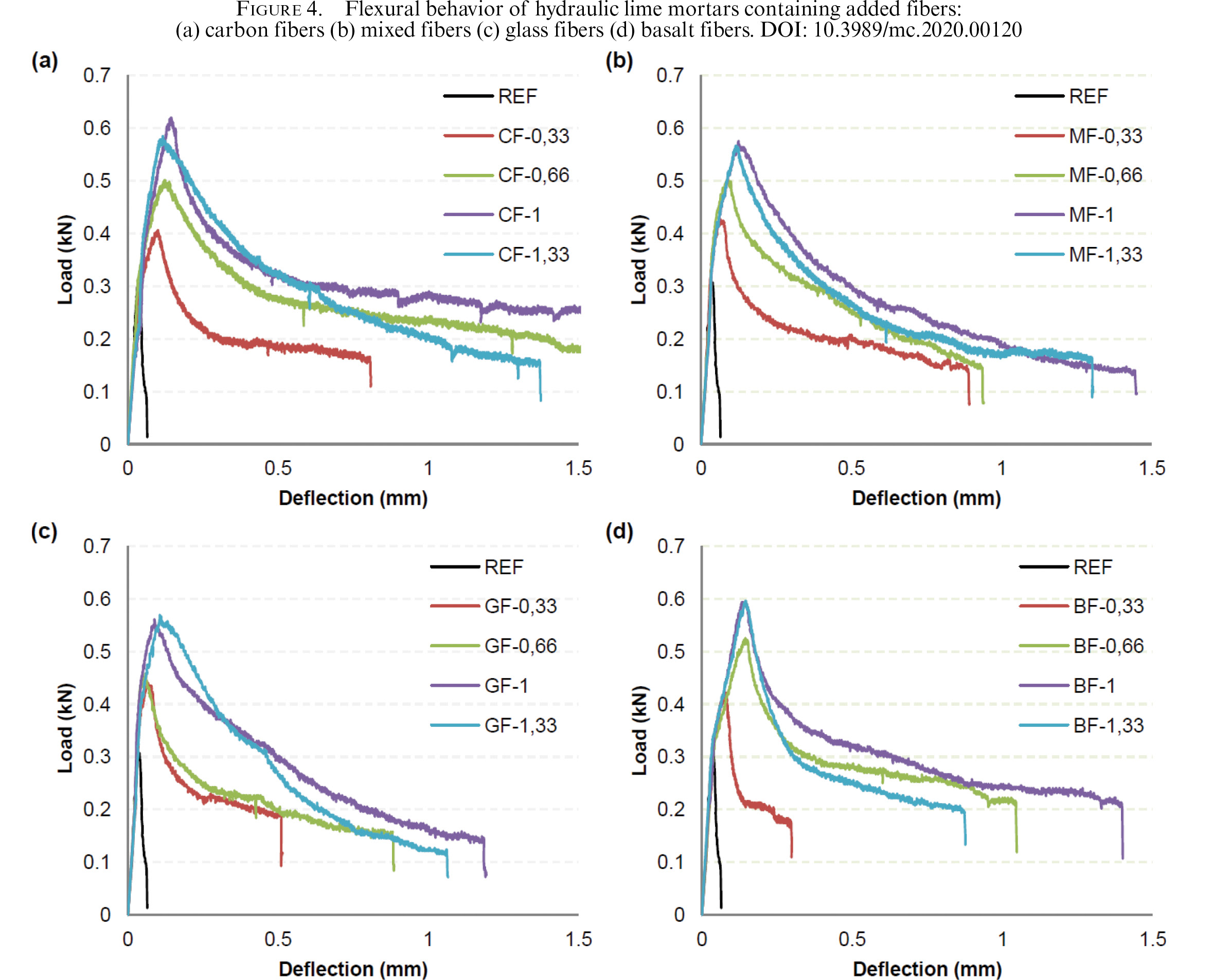

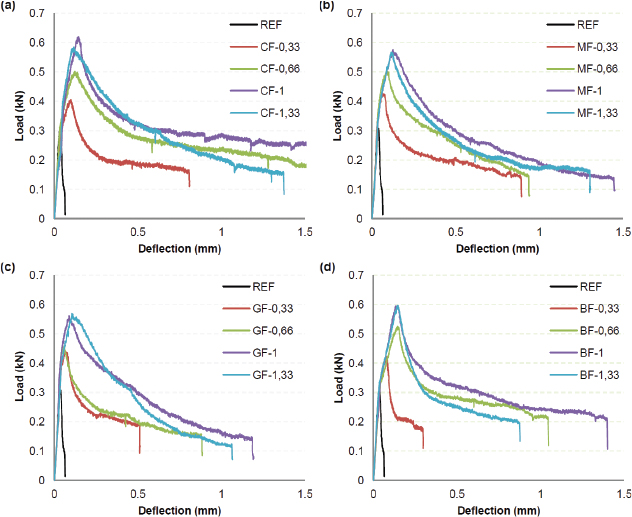

The flexural behavior of hydraulic lime mortars can be divided into four stages, as shown in Figure 4. Up until reaching a load of between 0.35kN and 0.40kN, the behavior is linear (stage I). After this point, the behavior is still noticeably linear but the gradient of the line is lower due to the lower rigidity of the test piece, caused by micro-cracking (stage II). Once the maximum load has been reached, the stitching effect between the fibers prevents brittle fractures, displaying improved post-cracking behavior compared to mortar mixes which do not contain added fibers (stages III and IV). In the third phase, the residual loads rapidly drop before stabilizing and slowly dropping until reaching collapse (stage IV). While, the mortar mixes which do not contain added fibers display brittle fractures, the toughness of the mortars with added fibers increases with the fiber content until this reaches 1%, displaying lower values for a fiber content of 1.33%.

The parameters that quantify the toughness are shown in Table 4; the area below the curve up to breakage (T_p), up to a deflection of L/600 (T_L/600), up to a deflection of L/150 (T_L/150) and up to collapse (T_u); as well as the maximum load (P_p) and residual loads P_L/600, P_L/150 and P_u. The rise in the values of these parameters as the percentage of fiber addition increases highlights the increased ductility of these mortar mixes, irrespective of the fiber type added.

In comparison to the reference mortar, the addition of 0.33%, 0.66%, 1% or 1.33% of carbon, mixed, glass and basalt fibers, implies an increase in values T_p, T_L/150 and T_u of 204%, 1029% and 1883%, of 409%, 2776% and 4348%, of 566%, 3431% and 7029% and of 562%, 3235% and 4516%, respectively. The toughness increases to a greater extent when the fiber added is carbon fiber, obtaining T_p, T_L/150 and T_u values which are 683%, 3620% and 12070% higher than those for the reference mortars.

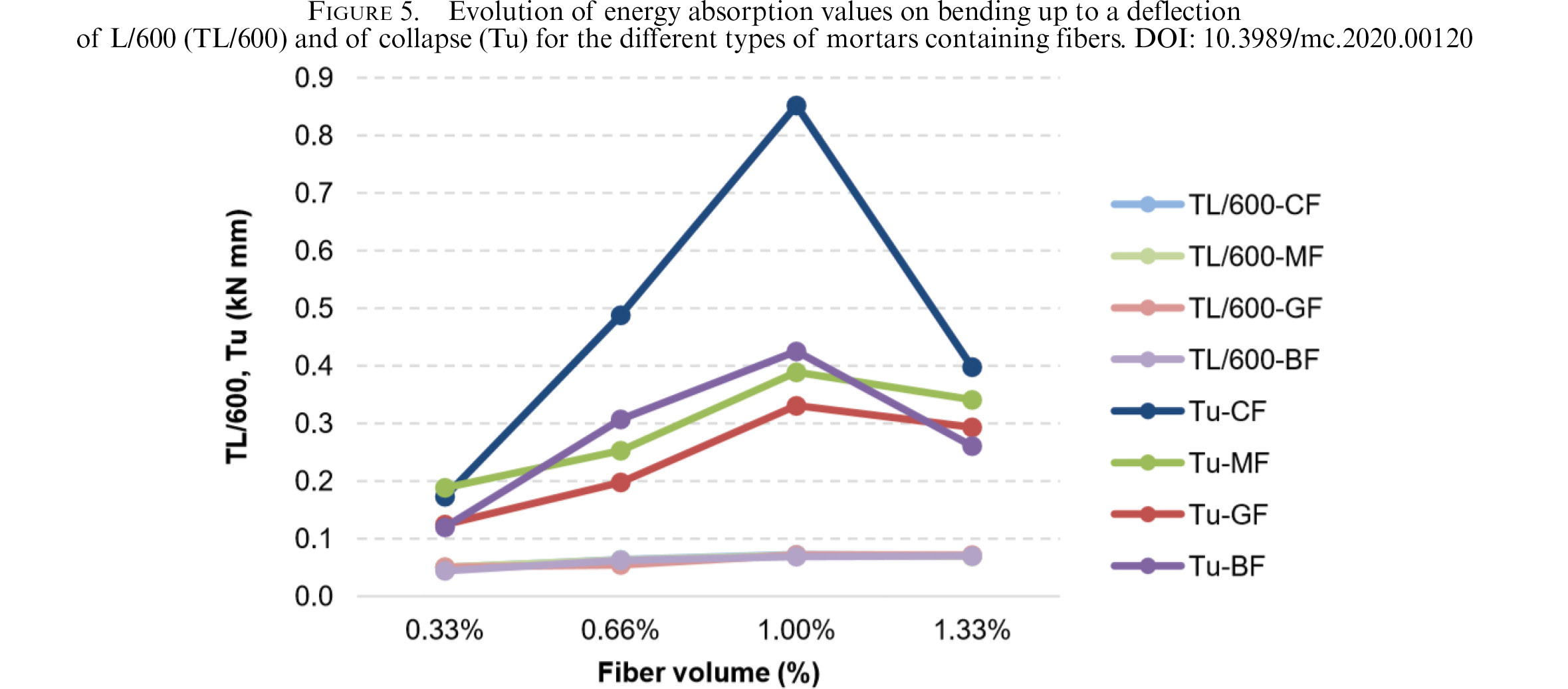

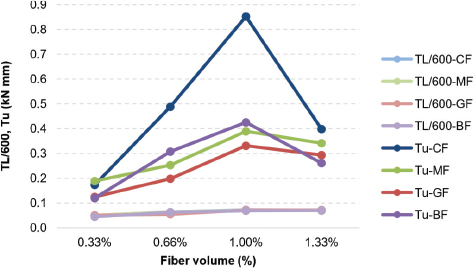

The evolution of the energy absorption values of the different mortars tested to a deflection of L/600 (T_L/600) and to the collapse (T_u) is shown in Figure 5. As can be observed, the T_L/600 and T_u values increase with the addition of fibers, the optimum percentage being 1%. The increase of the T_L/600 values is very similar in all of the mortar mixes, irrespective of the type of fiber added, being between 40% and 55%. This shows us the low influence of the type of fiber in the first phase of post-cracking fissuration. However, when the specimen is subjected to greater deformations, the influence of the fiber’s nature increases. On average, mortars with carbon fibers show T_L/150 and T_u values a 7% and 63% higher to mortars containing a mixture of fibers, a 17% and 102% higher to mortars containing glass fibers and a 18% and 80% higher to mortars containing basalt fibers. These results show the best post-break behavior of mortars with carbon fibers.

This data highlights the improved behavior of mortar mixes containing added fibers. This improvement, already reported by other authors (15, 16), is due to the fact that the fibers, which are randomly placed in every direction throughout the mortar mixture, act as “bridges” or “hooks” between the sides of a crack and are able to transmit the effort with highly variable angles depending on their position in relation to the cracking plane.

There are two effects which are useful for improving the post-cracking behavior of hydraulic lime mortars containing fibers: increasing the effort required for fracturing to begin and increasing the energy required for cracking to continue spreading. Both effects depend on the interaction between the fibers and the matrix. Micrographs (BSE at 1000 magnifications) of the fracture surfaces of hydraulic lime mortars with fibers (1%) are shown in Figure 6. It can be observed how there is a certain amount of hydraulic lime attached to the surface of the fibers, which indicates good bonding between hydraulic lime matrix and the fibers and an effective load transfer mechanism.

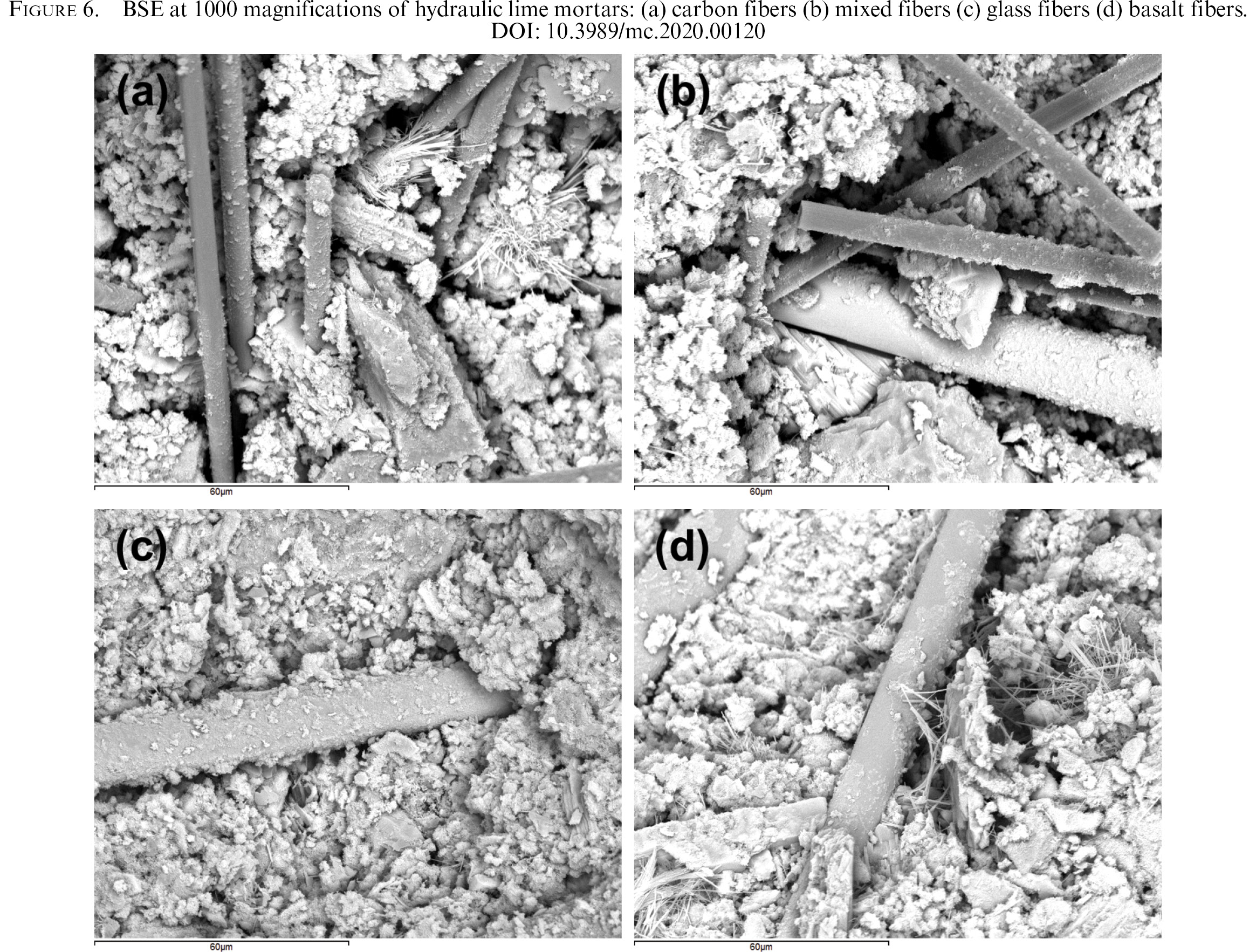

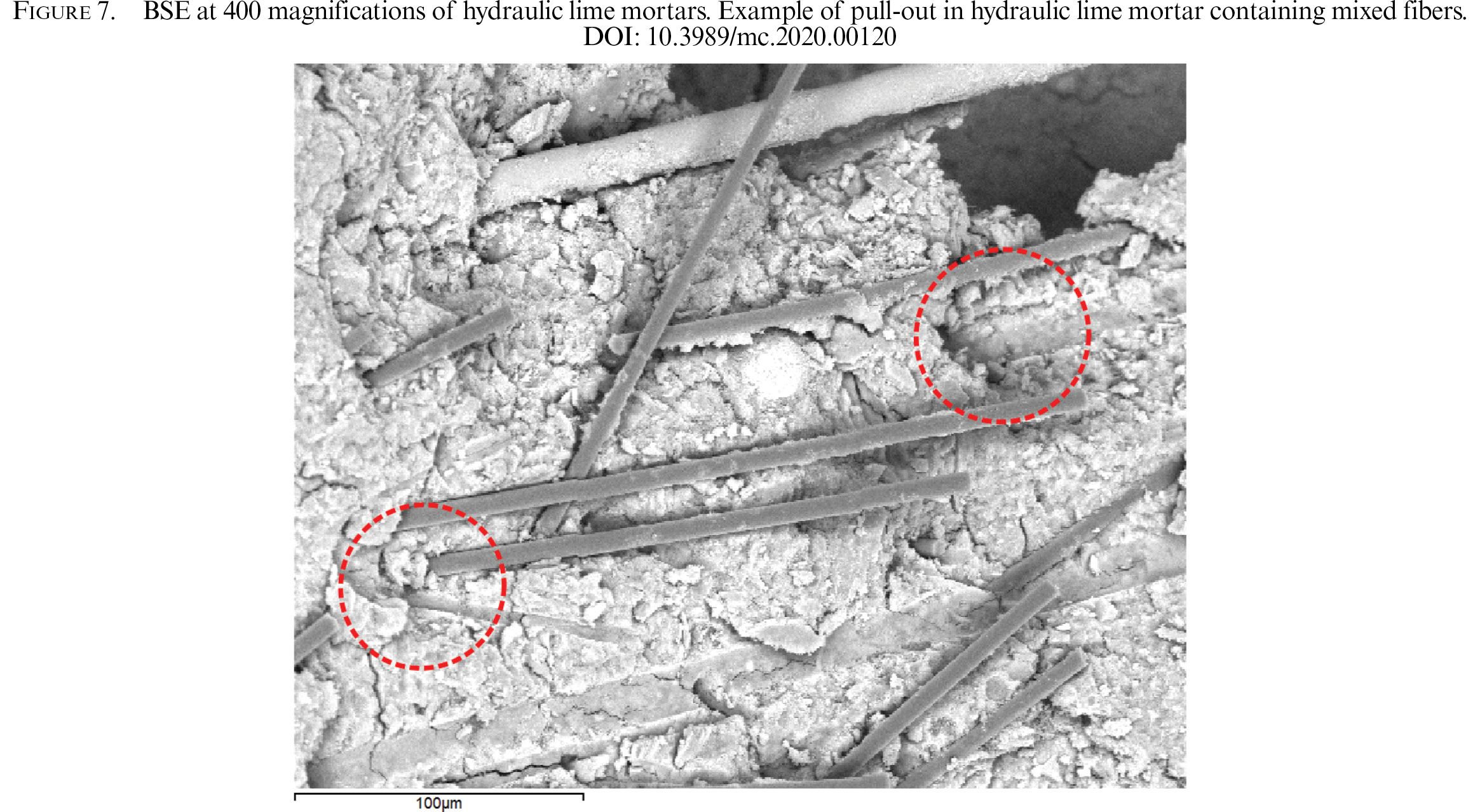

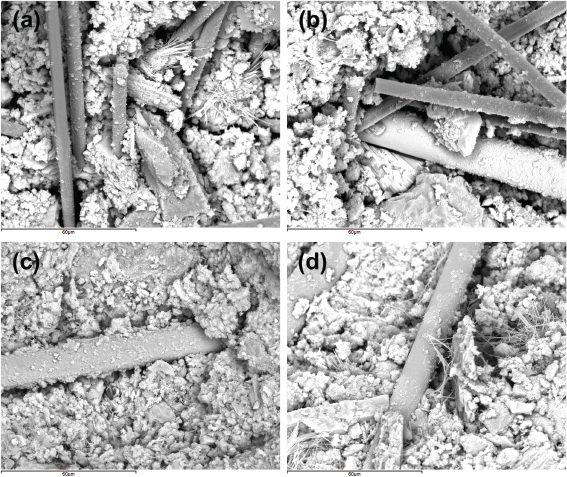

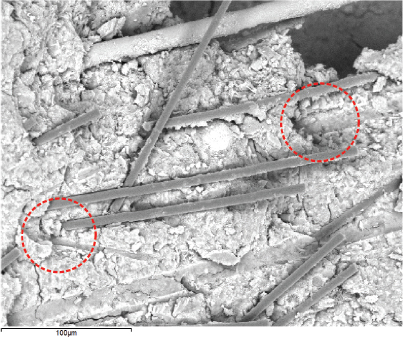

Meanwhile, the absence of fiber breakage leads to the conclusion that the fault is caused by the extraction or slipping of the fibers, an effect which is known as ‘pull-out’. The grooves formed when the fibers are extracted can be seen in Figure 7, confirming this trend. This separation mechanism was found in other studies using acrylic fibers (34), glass (35), basalt fibers (36), polypropylene fibers (37) and steel fibers (38).

3.4. Compressive toughness indexesTOP

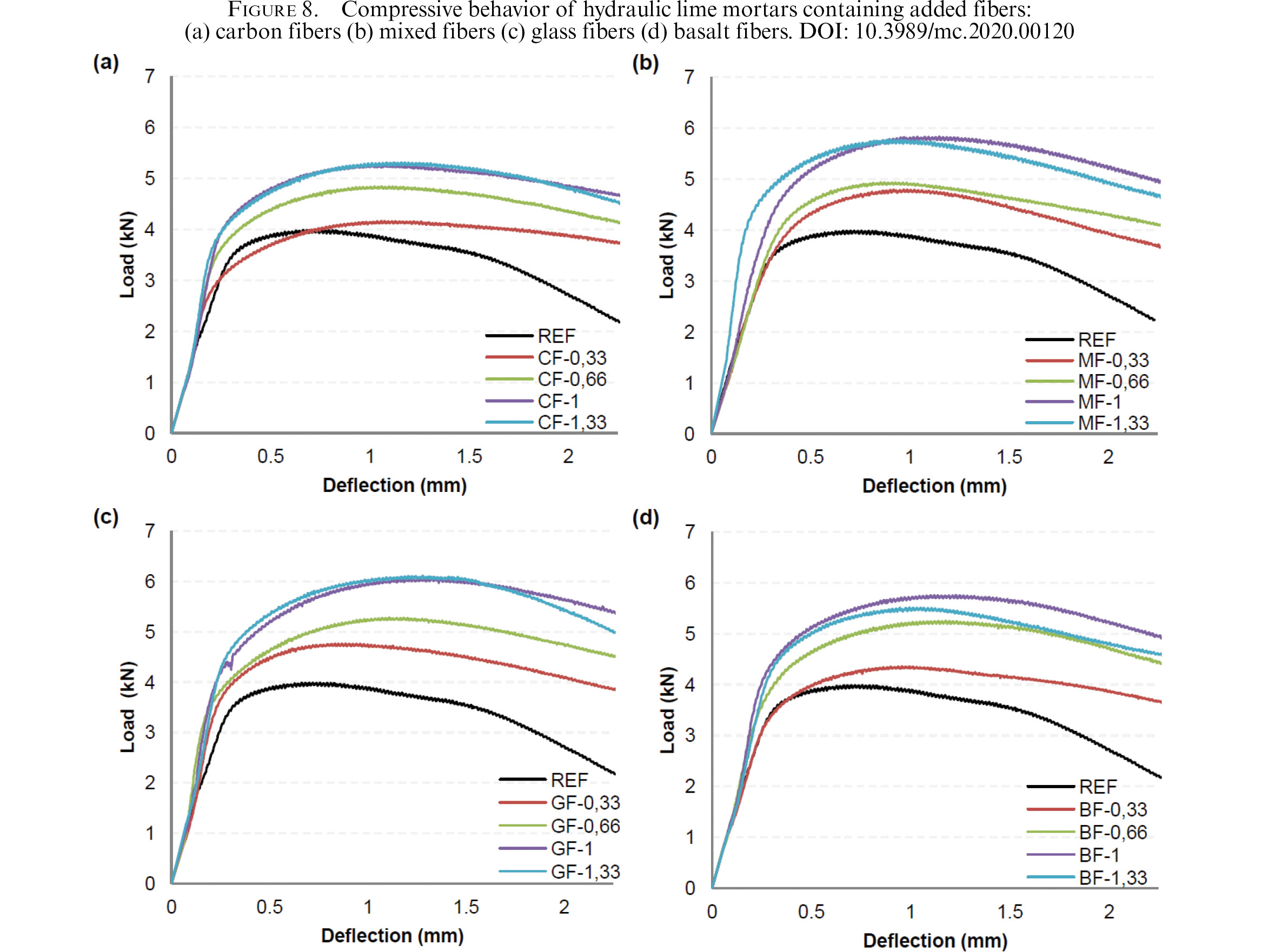

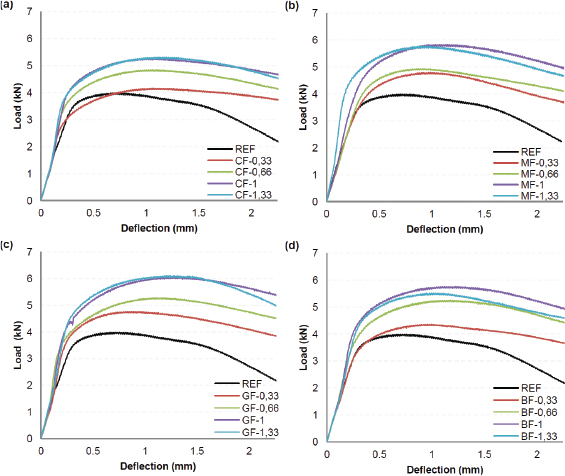

The compressive behavior of hydraulic lime mortars can be divided into four stages, as shown in Figure 8. Up until reaching a load of between 3.5kN and 4kN, the behavior is linear (stage I). After this point, the linearity starts to disappear due to the lower rigidity caused by micro-cracking and it takes on a parabolic shape (stage II). Once the maximum load has been reached, the residual strengths fall, a greater or lesser deflection being required depending on the amount of fibers added (stage III). On compression, ductility increases with a fiber content of up to 1%, a fiber content of 1.33% displaying similar or lower results.

The most representative results from analyzing the diagrams displaying load-deflection on compression are shown in Table 5. The area below the curve was calculated up to breakage (T_cp), up to a deflection of 1.125mm (T_c1.125) and up to a deflection of 2.250mm (T_c2.250). The maximum compression load (P_cp) and residual loads P_c1,125 and P_c2,250 were also calculated.

In comparison with the reference mortar, the addition of 0.33%, 0.66%, 1% or 1.33% of carbon, mixed, glass and basalt fibers, represents an increase in the T_cp, T_c1.125 and T_c2.250 values of 74%, 9% and 21%, of 110%, 21% and 37%, of 147%, 34% and 54% and of 154%, 32% and 51%, respectively. When 1% carbon fibers is added, the toughness index, T_cp, T_c1.125 and T_c2.250, increase by 106%, 27% and 43% over the reference mortars.

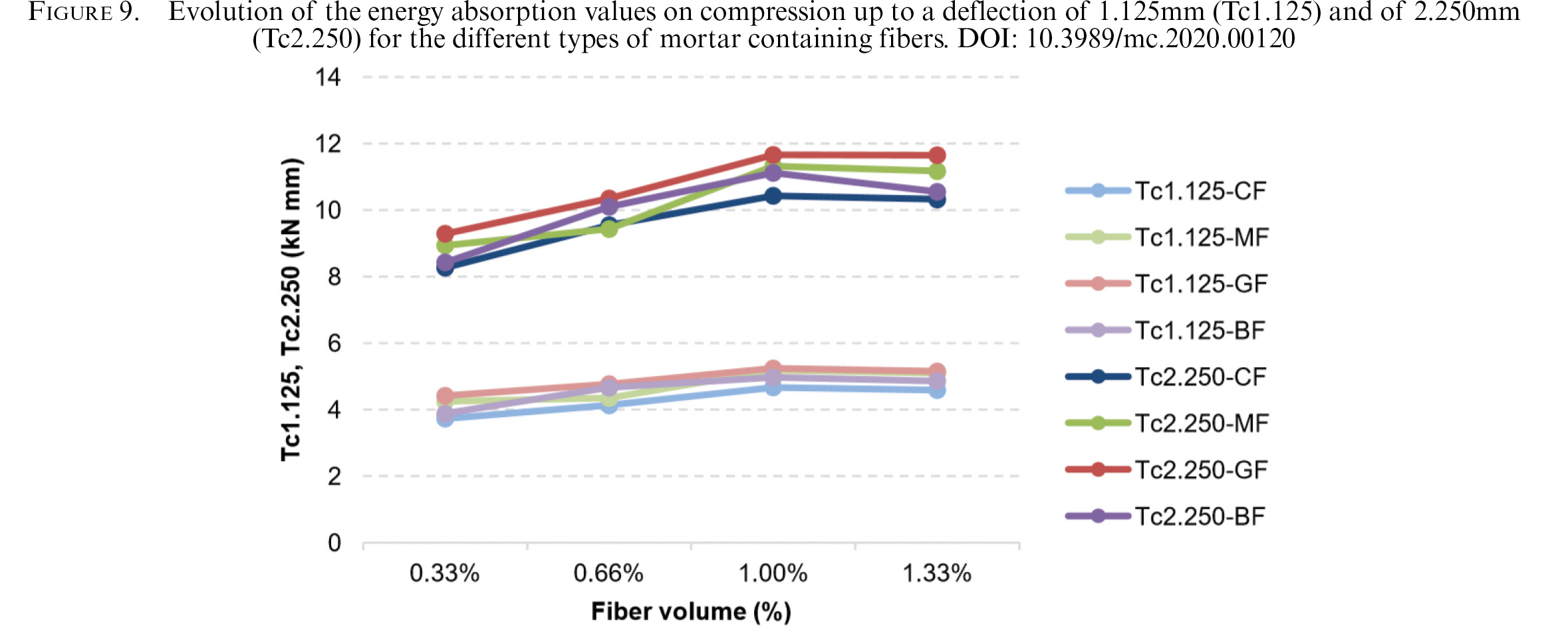

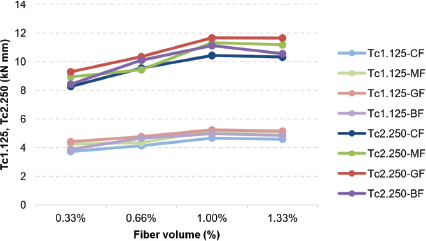

The evolution of the compression energy absorption values of the different mortars tested to a deflection of 1,125 mm (T_c1,125) and 2,250 mm (T_c2,250) is shown in Figure 9. The T_c1.125 and T_c2.250 values increase with the addition of fibers, the optimum percentage being 1%. This increase is very similar in all of the mortar mixes, irrespective of the type of fiber added. However, the best results are obtained when glass fibers are added, with T_c1.125 and T_c2.250 values a 10% and 11% higher to those obtained in mortars with carbon fibers, a 4% and 5% higher to those containing mixed fibers, and a 7% and 7% higher to those containing basalt fibers.

4. CONCLUSIONSTOP

This research studies the physical and mechanical properties of hydraulic lime mortars with addition of carbon fibers, analyzing its influence in comparison with mortars with glass and basalt fibers.

The results confirm that the fibers significantly affect mortar behavior. Having obtained and examined the results, the following conclusions can be reached:

This research shows the technical feasibility of hydraulic lime mortars with carbon fibers, proving better performance than mortars with glass and basalt fibers. While it is true that no significant differences have been found in the pre-cracking behavior, a better post-cracking behavior of the mortars with carbon fibers can be observed, absorbing these types of mortars a greater amount of energy before the collapse.

ACKNOWLEDGEMENTSTOP

The authors would like to thank the Proiescon chair for the partial financing of this work and the UPM School of Building Construction and Architecture for the availability of the materials laboratories for the performance of this work.
