1. INTRODUCTION
⌅The
components from which the pervious concrete is made correspond to those
of normal concrete with a difference in the grain size gradation where,
only one coarse grain fraction or two non-adjacent fractions are used
to achieve a porosity of 11 to 35% (1-31. Putman, B.J.; Neptune, A.I. (2011) Comparison of test specimen preparation techniques for pervious concrete pavements. Constr. Build. Mater. 25 [8], 3480-3485. https://doi.org/10.1016/j.conbuildmat.2011.03.039.
2.
Schaefer, V.R.; Wang, K.; Suleiman, M.T.; Kevern, J. (2006) Mix design
development for pervious concrete in cold climates. Technical report,
National Concrete Pavement Technology Center, Iowa, USA.
3. Sonebi, M.; Bassuoni, M.; Yahia, A. (2016) Pervious concrete: Mix design, properties and applications. RILEM Tech. Lett. 10, 109-115. https://doi.org/10.21809/rilemtechlett.2016.24.
).
In addition, the fine aggregate is omitted completely or added in a
very small percentage, so that it is known as no-fines concrete (44. Yang, Z.; Ma, W.; Shen, W.; Zhou, M. (2008) The aggregate gradation for the porous concrete pervious road base material. J. Wuhan Univ. Technol.-Mat. Sci. Edit. 23, 391-394. https://doi.org/10.1007/s11595-007-3391-4.
). Pervious concrete is characterized by its ability to drain water through the concrete mass (55.
Tennis, P.D.; Leming, M.L.; Akers, D.J. (2004) Pervious concrete
pavements, EB302.02, Portland Cement Association, Skokie, Illinois, and
National Ready Mixed Concrete Association.
), its high
noise absorption and its lighter color, which has a positive effect on
reducing the occurrence of heat islands in urban areas (66.
Rangelov, M.; Somayeh, N.; Haselbach, L.; Englund, K. (2016) Using
carbon fiber composites for reinforcing pervious concrete. Constr. Build. Mater. 126, 875-885. https://doi.org/10.1016/j.conbuildmat.2016.06.035.
).
Pervious concrete also has some disadvantages, namely poor abrasion
resistance, poor resistance to freezing and thawing cycles and
relatively low strength (77. Netinger Grubeša, I.; Barišić, I.; Ducman, V.; Korat, L. (2018) Draining capability of single-sized pervious concrete. Constr. Build. Mater. 169, 252-260. https://doi.org/10.1016/j.conbuildmat.2018.03.037.
). The compressive strength of permeable concrete can be up to 30 MPa (55.
Tennis, P.D.; Leming, M.L.; Akers, D.J. (2004) Pervious concrete
pavements, EB302.02, Portland Cement Association, Skokie, Illinois, and
National Ready Mixed Concrete Association.
), and the bending tensile strength up to 3.5 MPa (33. Sonebi, M.; Bassuoni, M.; Yahia, A. (2016) Pervious concrete: Mix design, properties and applications. RILEM Tech. Lett. 10, 109-115. https://doi.org/10.21809/rilemtechlett.2016.24.
).
Micro-reinforcement of concrete with steel, polymer or glass fibers can
improve its properties, in particular its shrinkage, abrasion and
impact resistivity and flexural strength (8-108.
Bentur, A.; Mindess, S. (2007) Fiber reinforced cementitious
composites. Modern concrete technology series, CRC Press, Taylor &
Francis Group.
9. Mobasher, B. (2011) Mechanics of fiber and textile
reinforced cement composites, CRC Press, Taylor & Francis Group,
Boca Rotan, London and New York.
10. Johnston, C.D. (2010) Fiber-reinforced cements and concretes, Taylor & Francis, London and New York.
).
Since water permeability/drainage is the main purpose of pervious
concrete, steel fibres, which are known for their tendency to corrode,
would not be a good choice for incorporation in such concrete. Finally,
due to their inflexibility, steel fibres could negatively affect the
pore connectivity in pervious concrete and consequently its drainage
capacity.
In accordance with the above, glass, carbon, synthetic
and cellulose fibres can be added to improve the weaker properties of
permeable concrete (33. Sonebi, M.; Bassuoni, M.; Yahia, A. (2016) Pervious concrete: Mix design, properties and applications. RILEM Tech. Lett. 10, 109-115. https://doi.org/10.21809/rilemtechlett.2016.24.
,1111.
Amde, A.M.; Rogge, S. (2013) Development of high quality pervious
concrete specifications for Maryland conditions. Final Report,
MD-13-SP009B4F.
,1212. Kevern, J. T.; Biddle, D.; Cao, Q. (2014). Effects of macrosynthetic fibers on pervious concrete properties. J. Mater. Civil. Eng. 27 [9], 06014031-1-06014031-6. https://doi.org/10.1061/(ASCE)MT.1943-5533.0001213.
). After (12-1412. Kevern, J. T.; Biddle, D.; Cao, Q. (2014). Effects of macrosynthetic fibers on pervious concrete properties. J. Mater. Civil. Eng. 27 [9], 06014031-1-06014031-6. https://doi.org/10.1061/(ASCE)MT.1943-5533.0001213.
13.
Kevern, J.; Schaefer, V.; Wang, K.; Suleiman, M. (2008) Pervious
concrete mixture proportions for improved freeze-thaw durability. J. ASTM Int. 5 [2], 1-12. https://doi.org/10.1520/JAI101320.
14.
Kevern, J.T.; Wang, K.; Schaefer, V.R. (2008) Pervious concrete in
severe exposures: Development of pollution-reducing pavement for
northern cities. ACI Concr. Int. Mag. 43-49.
),
the volume fraction of microfibres in pervious concrete, with which
satisfactory properties are achieved, is between 0.07 and 0.2%. Kevern
et al. (1212. Kevern, J. T.; Biddle, D.; Cao, Q. (2014). Effects of macrosynthetic fibers on pervious concrete properties. J. Mater. Civil. Eng. 27 [9], 06014031-1-06014031-6. https://doi.org/10.1061/(ASCE)MT.1943-5533.0001213.
)
concluded that the addition of macrosynthetic fibres in pervious
concrete reduces its permeability and infiltration coefficient, but, as
in (1515.
Rehder, B.; Banh, K.; Neithalath, N. (2014) Fracture behavior of
pervious concretes: The effects of pore structure and fibers. Eng. Fract. Mech. 118, 1-16. https://doi.org/10.1016/j.engfracmech.2014.01.015.
), does not have a significant effect on the results of compressive and tensile strength.
In contrast, Rangelov et al. (66.
Rangelov, M.; Somayeh, N.; Haselbach, L.; Englund, K. (2016) Using
carbon fiber composites for reinforcing pervious concrete. Constr. Build. Mater. 126, 875-885. https://doi.org/10.1016/j.conbuildmat.2016.06.035.
)
used carbon fibres to reinforce permeable concrete and achieved an
increase in the strength properties of the concrete, and Liu et al. (1616.
Liu, R.; Chi, Y.; Jiang, Q.; Meng, X.; Wu, K.; Li, S. (20121 Physical
and mechanical properties of pervious concrete with multi-admixtures. Mag. Concr. Res. 73 [9], 448-463. https://doi.org/10.1680/jmacr.19.00145.
), who increased the flexural tensile strength with basalt fibre reinforcement. Amde and Rogge (1111.
Amde, A.M.; Rogge, S. (2013) Development of high quality pervious
concrete specifications for Maryland conditions. Final Report,
MD-13-SP009B4F.
) investigated permeable concrete with
various additives, including cellulose fibres, which have been shown to
effectively improve the tensile strength and resistance of the concrete
to abrasion and freeze-thaw cycles.
Since permeable concrete has
poor workability, it must be adequately compacted to achieve
satisfactory mechanical properties while maintaining the required degree
of porosity (33. Sonebi, M.; Bassuoni, M.; Yahia, A. (2016) Pervious concrete: Mix design, properties and applications. RILEM Tech. Lett. 10, 109-115. https://doi.org/10.21809/rilemtechlett.2016.24.
).
Numerous studies of compaction methods have been carried out in the
laboratory to obtain samples identical to those produced in-situ. Shu et
al. (1717.
Shu, X.; Huang, B.; Wu, H.; Dong, Q.; Burdette, E.G. (2011) Performance
comparison of laboratory and field produced pervious concrete mixtures.
Constr. Build. Mater. 25 [8], 3187-3192. https://doi.org/10.1016/j.conbuildmat.2011.03.002.
)
applied compaction under laboratory conditions using a tamping rod to
prepare permeable concrete samples. To consolidate the samples, in (11. Putman, B.J.; Neptune, A.I. (2011) Comparison of test specimen preparation techniques for pervious concrete pavements. Constr. Build. Mater. 25 [8], 3480-3485. https://doi.org/10.1016/j.conbuildmat.2011.03.039.
,1818.
Rizvi, R.; Tighe, S.L.; Henderson, V.; Norris, J. (2009) Laboratory
sample preparation techniques for pervious concrete. Transportation
Research Record Journal of the Transportation Research Board 09-1962:16
(2009).
) compaction with a tamping rod and Proctor hammer was used, in (11. Putman, B.J.; Neptune, A.I. (2011) Comparison of test specimen preparation techniques for pervious concrete pavements. Constr. Build. Mater. 25 [8], 3480-3485. https://doi.org/10.1016/j.conbuildmat.2011.03.039.
) also compaction by dropping the mold from a certain height and in (1919. Kevern, J.T.; Schaefer, V.R.; Wang, K. (2009). Evaluation of pervious concrete workability using gyratory compaction. J. Mater. Civil. Eng. 21 [12], 764-770. https://doi.org/10.1061/(ASCE)0899-1561(2009)21:12(764).
) the centrifugal compactor was used as the compaction method. Putman and Neptune (11. Putman, B.J.; Neptune, A.I. (2011) Comparison of test specimen preparation techniques for pervious concrete pavements. Constr. Build. Mater. 25 [8], 3480-3485. https://doi.org/10.1016/j.conbuildmat.2011.03.039.
) concluded that compaction with a Proctor hammer best simulates the compaction method on a construction site.
Although
most researchers use a ram rod as the compaction method, samples of
permeable concrete compacted in this way achieve an increased degree of
variability in their properties, which is caused by the creation of rod
holes (11. Putman, B.J.; Neptune, A.I. (2011) Comparison of test specimen preparation techniques for pervious concrete pavements. Constr. Build. Mater. 25 [8], 3480-3485. https://doi.org/10.1016/j.conbuildmat.2011.03.039.
). Li et al. (2020.
Li, L.G.; Feng, J.J.; Zhu, J.; Chu, S.H.; Kwan, A.K.H. (2019) Pervious
concrete: Effects of porosity on permeability and strength. Mag. Concr. Res. 73 [2], 69-79. https://doi.org/10.1680/jmacr.19.00194.
) used a metal roller in the laboratory to compact permeable concrete. Zhuge (2121.
Zhuge, Y. (2008). Comparing the performance of recycled and quarry
aggregate and their effect on the strength of permeable concrete. In
Futures in Mechanics of Structures and Materials Toowoomba, Australia.
343-349.
) used two different compaction methods: a standard compaction method and a vibratory compaction method.
By
vibrating, they increased the adhesion between the aggregate grains and
the cement matrix without significantly reducing the permeability of
the concrete. Yang et al. (44. Yang, Z.; Ma, W.; Shen, W.; Zhou, M. (2008) The aggregate gradation for the porous concrete pervious road base material. J. Wuhan Univ. Technol.-Mat. Sci. Edit. 23, 391-394. https://doi.org/10.1007/s11595-007-3391-4.
) also compacted permeable concrete on a vibrating table and the vibration process lasted 40 s for each sample. Juradin et al. (2222.
Juradin, S.; Ostojić-Škomrlj, N.; Brnas, I.; Prolić, M. (2020)
Influence of binder, aggregate and compaction techniques on the
properties of single-sized pervious concrete. Adv. Concr. Constr. 10 [3], 211-220. https://doi.org/10.12989/acc.2020.10.3.211.
)
compacted the samples on a vibrating table. In three series of samples,
the first two layers were vibrated for 5 seconds and the third for 30
seconds (the total vibration time was 40 s), while in four series of
samples, three layers were vibrated evenly for three times each, so that
the total vibration time was less than 12 s. The authors concluded that
vibration favourably affects the permeability and strength of concrete,
longer vibration gives better permeability and shorter vibration gives
better strength.
Due to its lower strength, the application of
pervious concrete is focused on construction of parking lots, pathways
and lightweight traffic roads. Enhanced porosity, which influences
structural and functional properties of pervious concrete (2323.
Zhong, R.; Leng, Z.; Poon, C-S. (2018) Research and application of
pervious concrete as a sustaninable pavement material: A
state-of-the-art and state-of-the-practice review, Constr. Build. Mater. 183, 544-553. https://doi.org/10.1016/j.conbuildmat.2018.06.131.
),
leads to applications where the acoustic absorption or storm water
runoff control is needed. To widen the application of this kind of
concrete, researches are continuously working on the development of
porous concrete with enhanced properties such as high performance
pervious concrete (24-2624.
Tabatabaeian, M.; Khaloo, A.; Khaloo, H. (2019) An innovative high
performance pervious concrete with polyester and epoxy resins. Constr. Build. Mater. 228, 116820. https://doi.org/10.1016/j.conbuildmat.2019.116820.
25. Zhong, R.; Wille, K. (2015) Material Design and Characterization of High Performance Pervious Concrete. Constr. Build. Mater. 98, 51-60. https://doi.org/10.1016/j.conbuildmat.2015.08.027.
26. Tang, C.W.; Cheng, C-K.; Tsai, C-Y. (2019) Mix design and mechanical properties of high-performance pervious concrete. Mater. 12 [16], 2577. https://doi.org/10.3390/ma12162577.
) or fibre reinforced pervious concrete (27-3227. Kharbikar, F.V.; Pathak, S. (2017) Enhancing the strength of pervious concrete using polypropylene fiber, IJARIIE-ISSN(O)-2395-4396. 3 [4], 235-246.
28.
Thakre, N.; Rajput, H.; Saxena, J.; Mitangale, H. (2014) Comparative
Study on Strength and Permeability of Pervious Concrete by Using Nylon
and Polypropylene Fiber, IJCAT Int. J. Comput. Technol. 1 [4], 141-148.
29.
Hesami, S.; Ahmadi, S.; Nematzadeh, M. (2014) Effects of rice husk ash
and fiber on mechanical properties of pervious concrete pavement. Constr. Build. Mater. 53, 680-691. https://doi.org/10.1016/j.conbuildmat.2013.11.070.
30. Patidar, R.; Yadav, S. (2017) Experimental Study Of Pervious Concrete With Polypropylene Fiber. Int. Res. J. Eng. Technol. (IRJET). 4 [12], 22-27.
31.
Pils, S.E.; Oliveira, P.; Regoso, F.; Paulon, V.A.; Costella, M.F.
(2019) Pervious concrete: study of dosage and polypropylene fibers
addiction. Rev. IBRACON Estrut. Mater. 12 [1], 101-121. https://doi.org/10.1590/s1983-41952019000100009.
32.
Oni, B.; Xia, J.; Liu, M. (2020) Mechanical properties of pressure
moulded fibre reinforced pervious concrete pavement brick. Case Stud. Constr. Mater. 13, e00431. https://doi.org/10.1016/j.cscm.2020.e00431.
). Zhong and Wille (3333. Zhong, R.; Wille, K. (2018) Influence of matrix and pore system characteristics on the durability of pervious concrete. Constr. Build. Mater. 162, 132-141. https://doi.org/10.1016/j.conbuildmat.2017.11.175.
)
analysed and discussed the influence of fibre reinforcement on the
freeze-thaw durability of pervious concrete and concluded that the
improvement can be achieved through the incorporation of fibres into
high performance pervious concrete matrix. For pavement structures the
flexural strength is a measure of the resistance to structural failure.
As for the conventional concrete, the addition of fibres to pervious
concrete can enhance its flexural strength. Oni et al. (3232.
Oni, B.; Xia, J.; Liu, M. (2020) Mechanical properties of pressure
moulded fibre reinforced pervious concrete pavement brick. Case Stud. Constr. Mater. 13, e00431. https://doi.org/10.1016/j.cscm.2020.e00431.
)
investigated pervious concrete pavement bricks reinforced with kevlar,
polyvinyl alcohol and ultra-high molecular weight polyethylene fibres
and achieved 9.5% increase of flexural strength in comparison to control
mix that shows the effectiveness of fibres for pavement applications
which are regularly subjected to two dimensional flexural stress.
AlShareedah et al. (3434.
AlShareedah, O.; Nassiri, S.; Dolan, D. (2019) Pervious concrete under
flexural fatigue loading: Performance evaluation and model development. Constr. Build. Mater. 207, 17-27. https://doi.org/10.1016/j.conbuildmat.2019.02.111.
)
investigated the potential of pervious concrete reinforced with fibres
made of recycled cured carbon fibre composite material through a
pervious concrete pavement demonstration project. The pavement sections
with reinforcement had the same values of compressive and flexural
strength as the control section, but higher infiltration rates and lower
surface deflection. FORTA Technical Report (3535. FORTA, Technical Report, FRP - Fiber Reinforced Pervious, 2013. http://www.tagroupkuwait.com/uploads/downloads/pervious_tech_report.pdf.
)
has carried out a number of project trials and applications of
synthetic fibres in pervious concrete that led to the conclusion that
longer fibre lengths and higher dosages are the best opportunity to
increase pervious concrete toughness and durability. Novak et al. (3636.
Novak, J.; Kohoutkova, A.; Chylik, R.; Trtik, T. (2020) Study on
pervious recycled aggregate fiber-reinforced concrete for airfield
pavement, IOP Conf. Series: Materials Science and Engineering 770, 8th
Global Conference on Materials Science and Engineering (CMSE2019). 12-15
November 2019, Sanya, China, (2020). https://iopscience.iop.org/article/10.1088/1757-899X/770/1/012040/meta.
)
investigated the mechanical properties of pervious recycled aggregate
fibre reinforced concrete. The obtained findings showed that fibre
reinforced pervious concrete has a very ductile behavior and a high
post-cracking strength.
This paper deals with the possibility of the improvement of pervious concrete properties by incorporation of various types of fibres and studies the effect of short duration vibration on pervious concrete properties in comparison with incorporation by wooden lath and hammer.
2. EXPERIMENTAL WORK
⌅2.1. Materials and preparation of specimens
⌅In
this study, ten mixtures of pervious concrete were prepared. Regarding
the composition of mixtures, there were five different pervious concrete
mixtures, each compacted using two different methods: (11. Putman, B.J.; Neptune, A.I. (2011) Comparison of test specimen preparation techniques for pervious concrete pavements. Constr. Build. Mater. 25 [8], 3480-3485. https://doi.org/10.1016/j.conbuildmat.2011.03.039.
) compaction with wooden lath and hammer and (22.
Schaefer, V.R.; Wang, K.; Suleiman, M.T.; Kevern, J. (2006) Mix design
development for pervious concrete in cold climates. Technical report,
National Concrete Pavement Technology Center, Iowa, USA.
)
vibration on vibrating table for 5 s. The cement used in the
preparation of specimens was CEM I 42.5 R; its powder X-ray diffraction

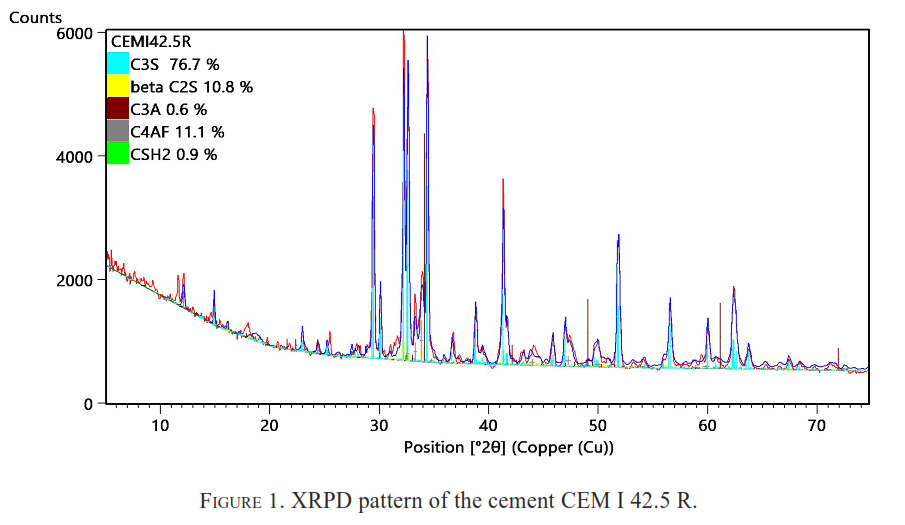

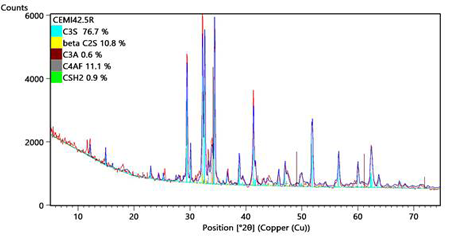

(XRPD) pattern and its mineral composition are shown in Figure 1.
Mineralogical composition of the CEM I 42.5 R was determined from the
XRPD pattern and the quantity of each phase was determined using the
Rietveld refinement method (Rwp=7.8). The fraction of the aggregate used
for concrete mixture preparation was 8-16 mm, with a grain size

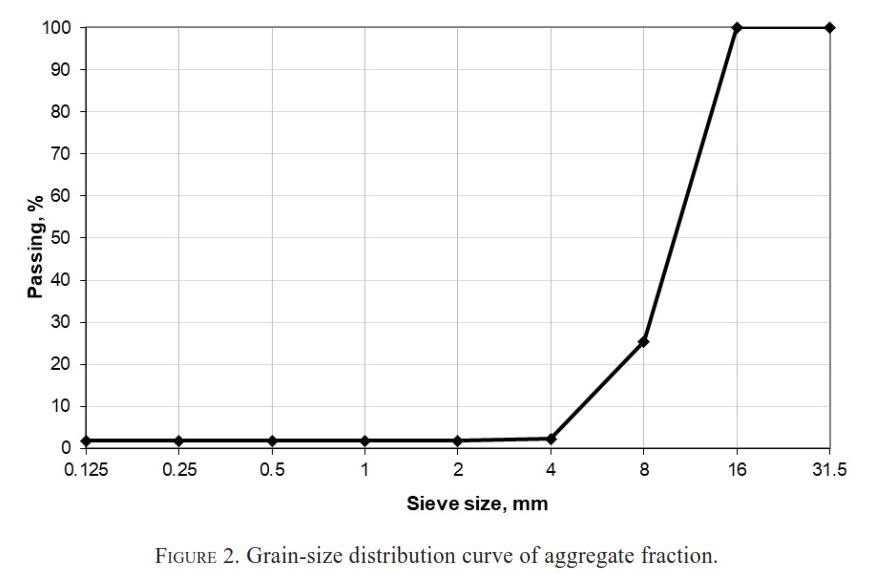

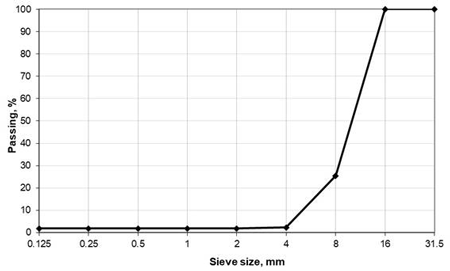

distribution curve as shown in Figure 2.
The
water-to-cement ratio was 0.35 and the amount of water was determined
so that a stable ball of concrete could be formed in hand without
crumbling (55.
Tennis, P.D.; Leming, M.L.; Akers, D.J. (2004) Pervious concrete
pavements, EB302.02, Portland Cement Association, Skokie, Illinois, and
National Ready Mixed Concrete Association.

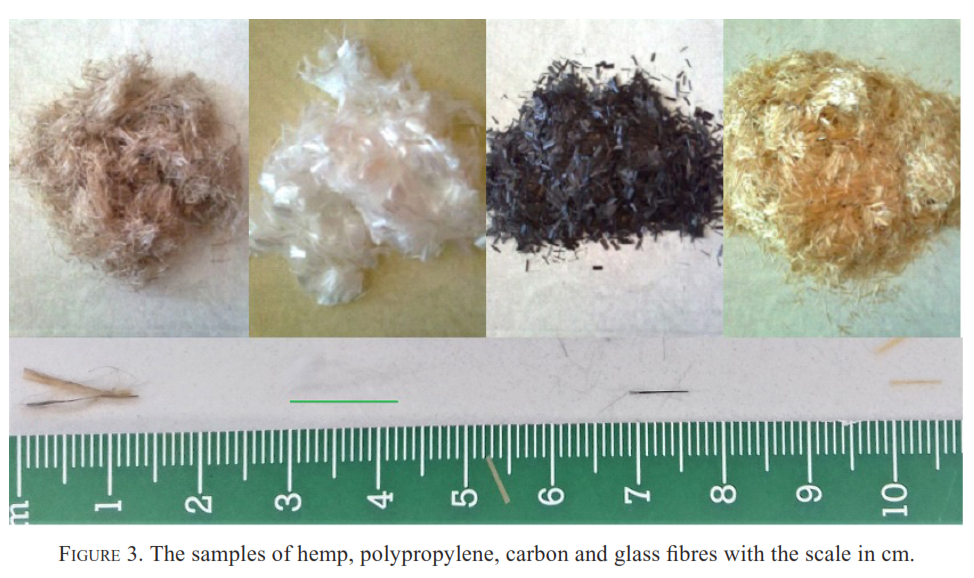

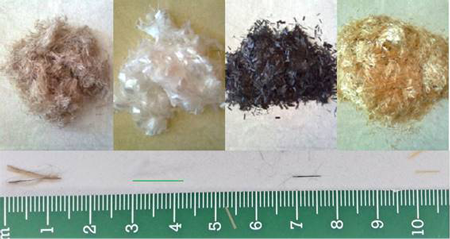

). Four different types of fibres (Figure 3)
- glass (G), polypropylene (PP), hemp (H) and carbon (C) fibres - were
added to the mixtures. All fibres were purchased at the market and the
fibre lengths, diameter, tensile strength and densities are shown in Table 1.
The hemp fibres, in their natural length of 1 m, were treated in 5%
sodium hydroxide for one week, then washed in water, dried at room
temperature, and manually cut to the length of 10 ± 2 mm. The amount of
each sort of fibre was 0.18% of the total volume, which corresponds to
the recommended amount in (12-1412. Kevern, J. T.; Biddle, D.; Cao, Q. (2014). Effects of macrosynthetic fibers on pervious concrete properties. J. Mater. Civil. Eng. 27 [9], 06014031-1-06014031-6. https://doi.org/10.1061/(ASCE)MT.1943-5533.0001213.
13.
Kevern, J.; Schaefer, V.; Wang, K.; Suleiman, M. (2008) Pervious
concrete mixture proportions for improved freeze-thaw durability. J. ASTM Int. 5 [2], 1-12. https://doi.org/10.1520/JAI101320.
14.
Kevern, J.T.; Wang, K.; Schaefer, V.R. (2008) Pervious concrete in
severe exposures: Development of pollution-reducing pavement for
northern cities. ACI Concr. Int. Mag. 43-49.
).
Mixture | Cem | w/c | Aggregate | Fibre | |||||
---|---|---|---|---|---|---|---|---|---|
8-16 mm | |||||||||
kg | kg | type | density g/cm3 | diameter mm | length mm | tensile strength MPa | kg | ||
E, EV | 350 | 0.35 | 1481.5 | - | - | - | - | - | |
G, GV | 350 | 0.35 | 1481.5 | glass | 2.5 | 15 | 6 | 1050-3850 | 4.5 |
C, CV | 350 | 0.35 | 1481.5 | carbon | 1.9 | 5-10 | 6 | 1800-2600 | 3.42 |
PP, PPV | 350 | 0.35 | 1481.5 | PP | 0.9 | 19.8-31 | 12 | 560-770 | 1.64 |
H, HV | 350 | 0.35 | 1481.5 | hemp | 1.5 | 500-620 | 10 | 400-938 | 2.7 |
The composition of the mixtures is given in Table 1. To avoid a balling effect in mixtures, the fibres were added manually during mixing.
The pervious concrete mixture E had no fibres and it was compacted by 25 strokes with a wooden lath and hammer; this method was also used for G, C, PP, and H. The designation of mixtures comes from the type of fibres contained in the specific mixture and the compaction method used; vibrated specimens contain the letter V in their designation.
2.2. Testing of fresh and hardened concrete specimens
⌅The consistency of fresh concrete was determined according to (3737. (2019a) EN 12350-2:2019 Testing fresh concrete - slump test.

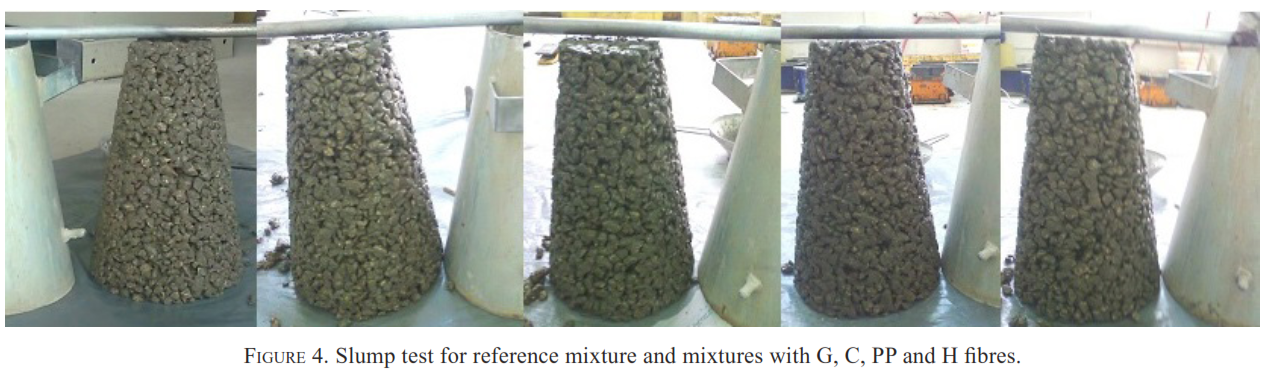

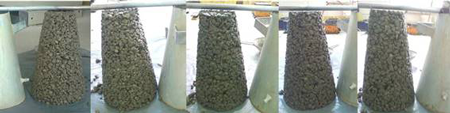

) and the slump test values achieved were between 0 and 1 cm, Figure 4.
Specimens were cast to moulds and compacted with a wooden lath and
hammer or by vibration of 15 cm-sized cubes and cylinders which were 10
cm in diameter and 20 cm in height. The specimens for testing of
density, porosity and strength were extracted from the moulds 24 h after
casting and placed in water, while the specimens for permeability
testing were put with a mould without base in the water 24 h after
casting. The specimens were cured in water at 20 ± 5 °C until the test
day, according to (3838. (2019b) EN 12390-2:2019 Testing hardened concrete - Part 2: Making and curing specimens for strength tests.
).
Porosity (P) was tested on cube specimens and calculated by the expression (Equation [1]):
where M1 is dry mass, M2 is the pervious concrete specimen submerged underwater weight, ρw is the density of water, and V is the specimen volume.
Density and compressive strength were tested in cube specimens according to (3939. (2019c) EN 12390-7:2019 Testing hardened concrete - Part 7: Determination of density.
) and (4040. (2019d) EN 12390-3:2019 Testing hardened concrete - Part 3: Compressive strength of test.
),
respectively. The density was tested on the same specimens as
compressive strength, on the series of three cubes for each mixture,
prior to compressive strength determination. Splitting tensile strength
was tested in cylinder specimens according to (4141. (2009) EN 12390-6:2009 Testing hardened concrete - Part 6: Tensile splitting strength of test specimens.
). Splitting tensile strength was tested on two samples for each mixture.
Permeability was tested using the falling head method (FH) and constant head method (CH) in cylindrical specimens. The permeability was tested on the same specimens as splitting tensile strength and prior to splitting tensile strength determination.
Huang et al. (4242. Huang, B.; Mohammad, L.; Raghavendra, A.; Abadie, C. (1999) Fundamentals of Permeability in Asphalt Mixtures. J. Assoc. Asph. Pav. Technol. 68, 479-500.
) and Huang et al. (4343.
Huang, B.; Wu, H.; Shu, X.; Burdette, E.G. (2010) Laboratory evaluation
of permeability and strength of polymer-modified pervious concrete. Constr. Build. Mater. 24 [5], 818-823. https://doi.org/10.1016/j.conbuildmat.2009.10.025.
)
derived expression for pseudo coefficient of permeability, because of
high porosity and the interconnected air voids path in pervious
concrete, Darcy’s law for laminar flow is no applicable. In this paper,
in accordance with Sandoval et al. (4444.
Sandoval, G.F.B.; Galobardes, I.; Teixeira, R.S.; Toralles, B.M. (2017)
Comparison between the falling head and the constant head permeability
tests to assess the permeability coefficient of sustainable Pervious
Concretes. Case Stud. Constr. Mater. 7, 317-328. https://doi.org/10.1016/j.cscm.2017.09.001.
),
permeability by falling head method (FH) and constant head (CH) was
tested on cylindrical specimens according to expressions (Equation [2]) and (Equation [3]). Permeability coefficient FH (mm/s) was determined according to the expression (Equation [2]):
where a is the area of the cylindrical pipe, A is the area of specimen, L is the length of specimen, t is the time required for the water to pass from level H1 to H2 through the pipe; H1 is initial height of water, H2 is final height of water. The permeability coefficient CH (mm/s) was defined by the expression (Equation [3]):
where V is the collected volume of water, H0 is constant for all tests and equal to 320 mm, and Δt is 30 s in this test.
3. RESULTS AND DISCUSSIONS
⌅Test results for the density, porosity, compressive and splitting tensile strengths, and permeability by both applied methods are shown in Table 2.
Property/Concrete mixture | E | EV | G | GV | C | CV | PP | PPV | H | HV |
---|---|---|---|---|---|---|---|---|---|---|
Porosity (%) | 33.6±2.7 | 35.0±2.6 | 31.1±1.8 | 32.7±3.4 | 32.6±1.8 | 29.8±2.0 | 35.1±2.1 | 31.6±2.6 | 35.8±2.1 | 35.5±3.1 |
Density (kg/m3) | 1850±11 | 1755±51 | 1900±50 | 1890±18 | 1950±32 | 1850±11 | 1898±14 | 1900±42 | 1780±80 | 1820±11 |
Permeability by falling head (FH) method (mm/s) | 22.77±2.41 | 31.28±2.34 | 19.04±1.47 | 21.59±1.28 | 16.67±1.04 | 19.06±0.66 | 20.70±1.00 | 16.34±1.32 | 20.12±1.15 | 16.87±1.13 |
Permeability by constant head (CH) method (mm/s) | 18.77±0.83 | 25.27±1.01 | 16.19±1.35 | 18.50±1.10 | 14.04±1.65 | 15.91±0.47 | 18.58±0.79 | 13.99±0.50 | 15.42±0.94 | 14.24±0.80 |
Compressive strength (N/mm2) | 11.1±1.45 | 8.3±0.87 | 15.6±2.32 | 16.8±0.92 | 11.9±1.45 | 18.6±0.45 | 15.2±2.55 | 17.6±0.67 | 9.8±1.35 | 11.3±0.56 |
Splitting tensile strength (N/mm2) | 1.66±0.05 | 1.32±0.11 | 2.08±0.26 | 2.14±0.28 | 2.11±0.16 | 1.84±0.12 | 1.49±0.04 | 1.65±0.06 | 1.22±0.14 | 1.94±0.14 |

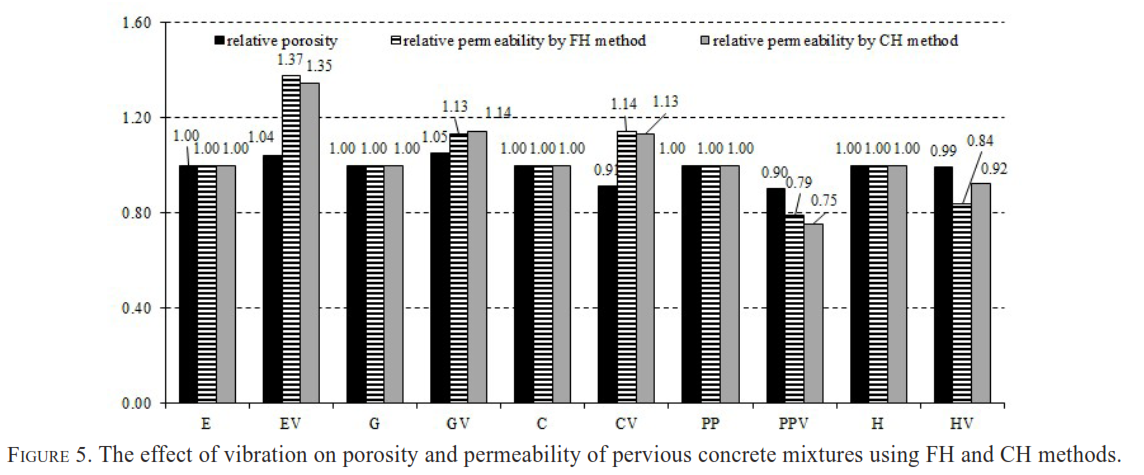

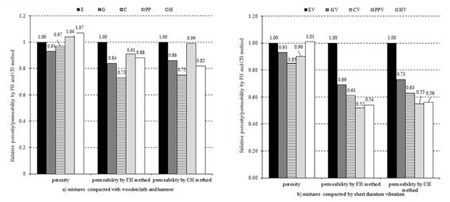

The effect of vibration on the porosity and permeability according to both methods used here was evaluated by the ratio of the properties of the vibrated mixtures and the mixtures of the same composition compacted with wooden lath and hammer (EV / E, GV / G, CV / C, PPV / PP, HV / H). Thus, the obtained relative values of porosity and permeability by both methods are given in Figure 5, while relative values of compressive and splitting tensile strengths are given in Figure 6.
The effect of incorporation of different types of fibres on the porosity and permeability according to both methods used here was evaluated by the ratio of the properties of the pervious concrete mixtures containing fibres and the reference pervious concrete mixtures, taking into consideration that in this case there are two reference mixtures: E mixture compacted with wooden lath and hammer and EV mixture compacted by short duration vibration. The following ratios of properties were considered in this way: G/E, C/E, PP/E, H/E, GV/EV, CV/EV, PPV/EV and HV/EV. Thus, the obtained relative values of porosity and permeability by both methods are given in Figure 7, while relative values of compressive and splitting tensile strengths are given in Figure 8.
The appearances of pervious concrete mixtures with incorporated carbon fibres, both vibrated (CV) and compacted with a wooden lath and hammer (C), are shown in Figure 9 and Figure 10.
The referent mixtures and the appearances of pervious concrete mixtures compacted with wooden lath and hammer or vibrated integrated with different types of fibres are shown in Figure 11.
From Table 2, it is clear that the density values range from 1755 to 1950 kg/m3
and the porosity from 29.8 to 35.8%, which is more than the usually
achieved values of 15 to 25% for porosity of pervious concrete (55.
Tennis, P.D.; Leming, M.L.; Akers, D.J. (2004) Pervious concrete
pavements, EB302.02, Portland Cement Association, Skokie, Illinois, and
National Ready Mixed Concrete Association.
). This
result for porosity is expected for single-sized aggregates and in
accordance with the results in previous research that have shown that a
larger grain ensures good permeability of concrete (45-4745.
Krstulović, P. (2000) Properties and technology of concrete. Faculty of
Civil Engineering, University of Split, Institut IGH, Split (in
Croatian).
46. Andrew, I.; Bradley, J.P. (2010) Effect of aggregate size and gradation on pervious concrete mixtures. ACI Mat. J. 107 [6], 625-631.
47.
ACI (American Concrete Institute) (2010) (Reapproved 2011) ACI 522R‐10:
Report on pervious concrete. American Concrete Institute, Farmington
Hills, MI, USA.

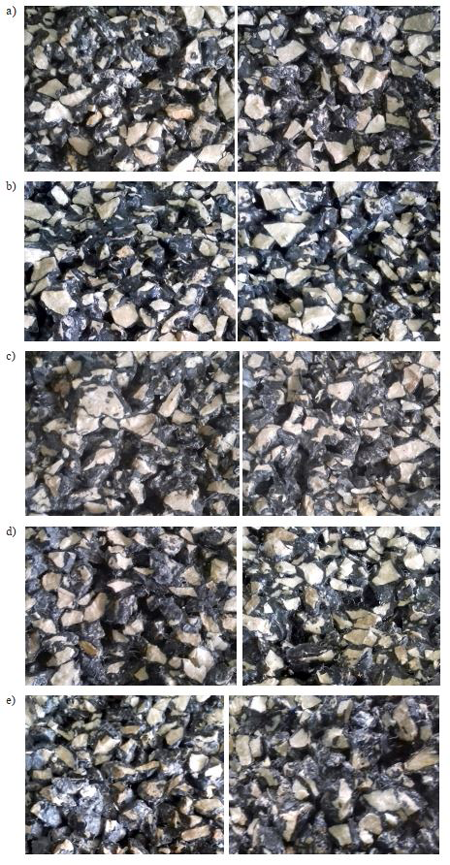

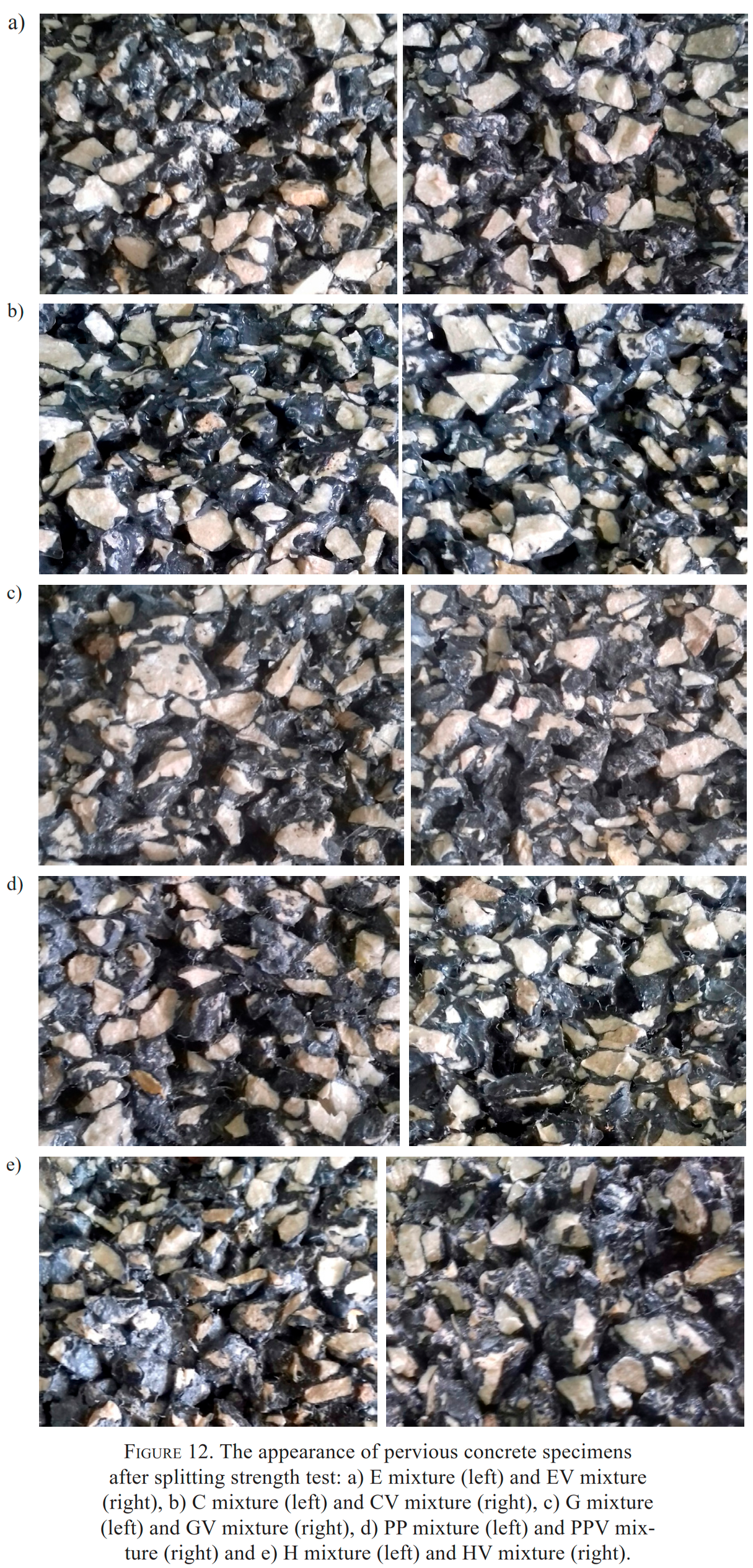

). Figure 12
shows the specimens of pervious concrete after the splitting tensile
test. According to the visible large pores, it is clear why concretes
have such high porosity and good permeability.
The
values of permeability obtained by the FH method are slightly higher
than the values obtained by the CH method for all of the mixtures (Table 2).
The highest value of permeability was achieved in the case of the
concrete mixture EV (31.28 mm/s according to the FH method and 25.27
mm/s according to the CH method), followed by E, GV, and PP. All values
of permeability obtained herein are higher than 2-12 mm/s, the typical
permeability value for pervious concrete (22.
Schaefer, V.R.; Wang, K.; Suleiman, M.T.; Kevern, J. (2006) Mix design
development for pervious concrete in cold climates. Technical report,
National Concrete Pavement Technology Center, Iowa, USA.
, 55.
Tennis, P.D.; Leming, M.L.; Akers, D.J. (2004) Pervious concrete
pavements, EB302.02, Portland Cement Association, Skokie, Illinois, and
National Ready Mixed Concrete Association.
). A positive effect of vibration on the porosity and permeability according to the FH and CH methods (Figure 5) was observed for EV, GV, and CV mixtures, while it was absent for PPV and HV mixtures. Figure 12 shows a smaller proportion of pores in PPV concrete than in PP concrete which justifies such results.
From Table 2, it is clear that the compressive strengths of pervious concrete range from 8.3 to 18.6 N/mm2 while the splitting tensile strengths range from 1.22 to 2.14 N/mm2. Similar results were achieved in the research of Mahalingam and Mahalingam (4848. Mahalingam, R.; Mahalingam, S. V. (2016). Analysis of pervious concrete properties. Građevinar. 68 [6], 493-501. https://doi.org/10.14256/JCE.1434.2015.
).
In their study, the compressive strength and splitting tensile strength
values varied from 5 MPa to 16 MPa and from 1.15 MPa to 1.7 MPa,
respectively. A positive effect of vibration on the compressive and

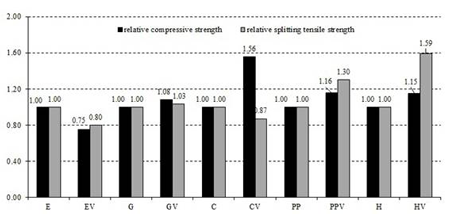

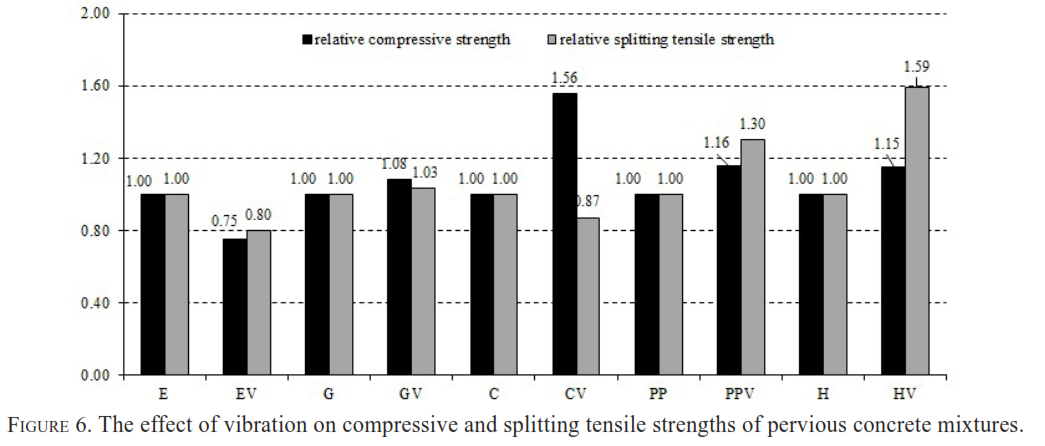

splitting tensile strengths (Figure 6)
was observed for all the mixtures with fibres incorporated while it was
absent for the reference concrete mixture, EV. The reason for the
positive effect of vibration on the properties of pervious concrete may

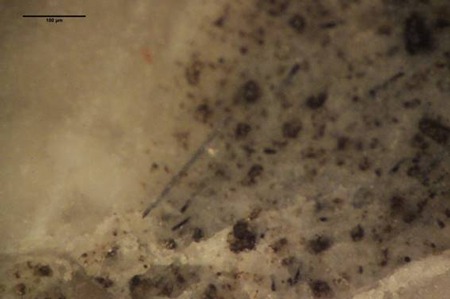

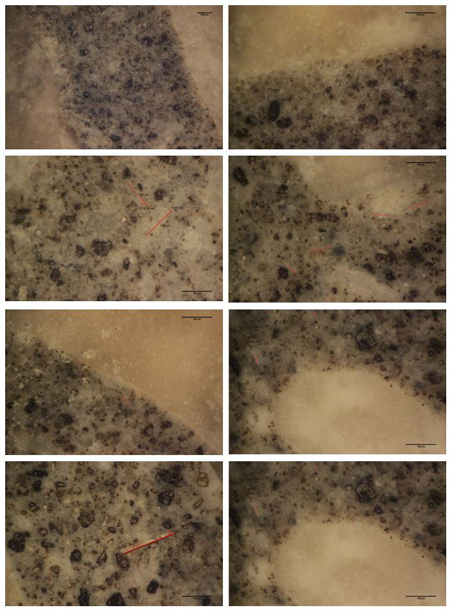

be found by comparing Figure 10 with Figure 11. Specifically, Figure 10
shows a viscous layer 23-26 μm thick formed at the contact surface
between the aggregate grain and the cement matrix in the vibrated
mixture CV while there is no such layer in the mixture C compacted with
wooden lath and hammer (Figure 9). Formation of a viscous layer by vibration of concrete specimens was already confirmed in a study by Juradin and Krstulović (4949.
Juradin, S.; Krstulovic, P. (2012) The vibration rheometer: the effect
of vibration on fresh concrete and similar materials. Mater. Werks. 43 [8], 733-742. https://doi.org/10.1002/mawe.201200769.
). According to (2121.
Zhuge, Y. (2008). Comparing the performance of recycled and quarry
aggregate and their effect on the strength of permeable concrete. In
Futures in Mechanics of Structures and Materials Toowoomba, Australia.
343-349.
), vibration improves the quality of the
interfacial zone between the cement paste and aggregates, which is
usually the weakest link in terms of mechanical properties.

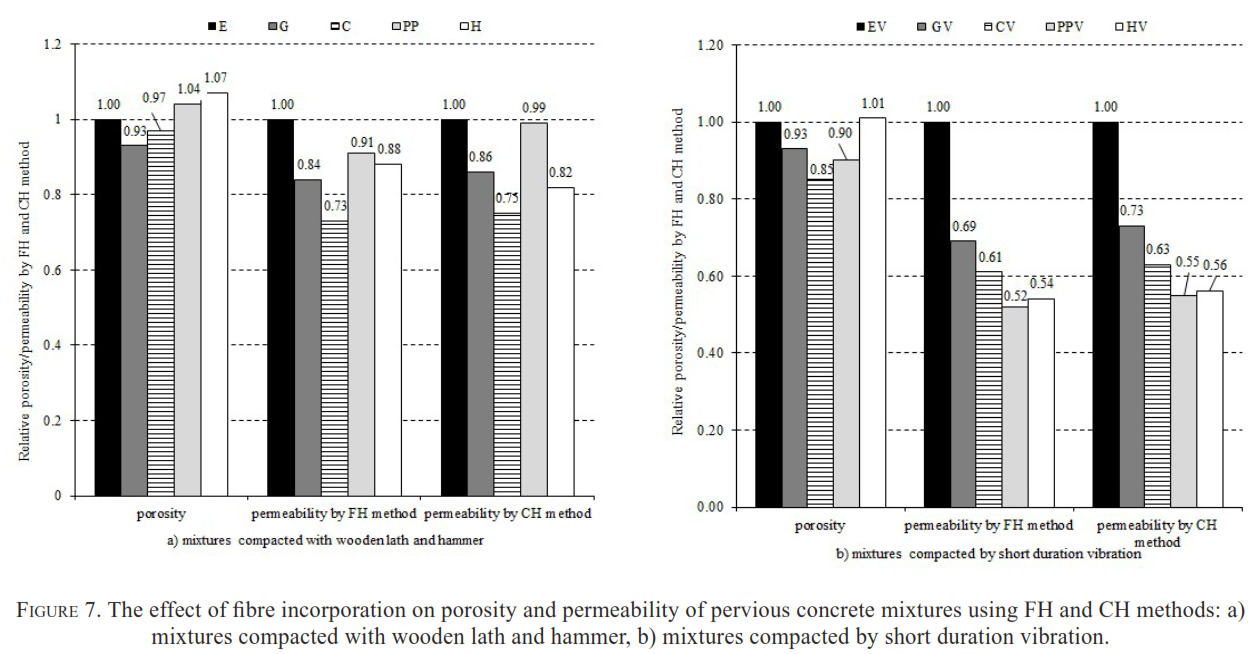

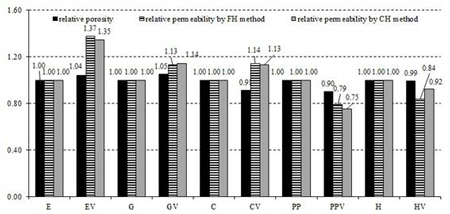

It can be seen from Figure 7
that, in this research, the fibres almost always adversely affect the
porosity and, consequently, the permeability of pervious concrete. In
contrast, Figure 8

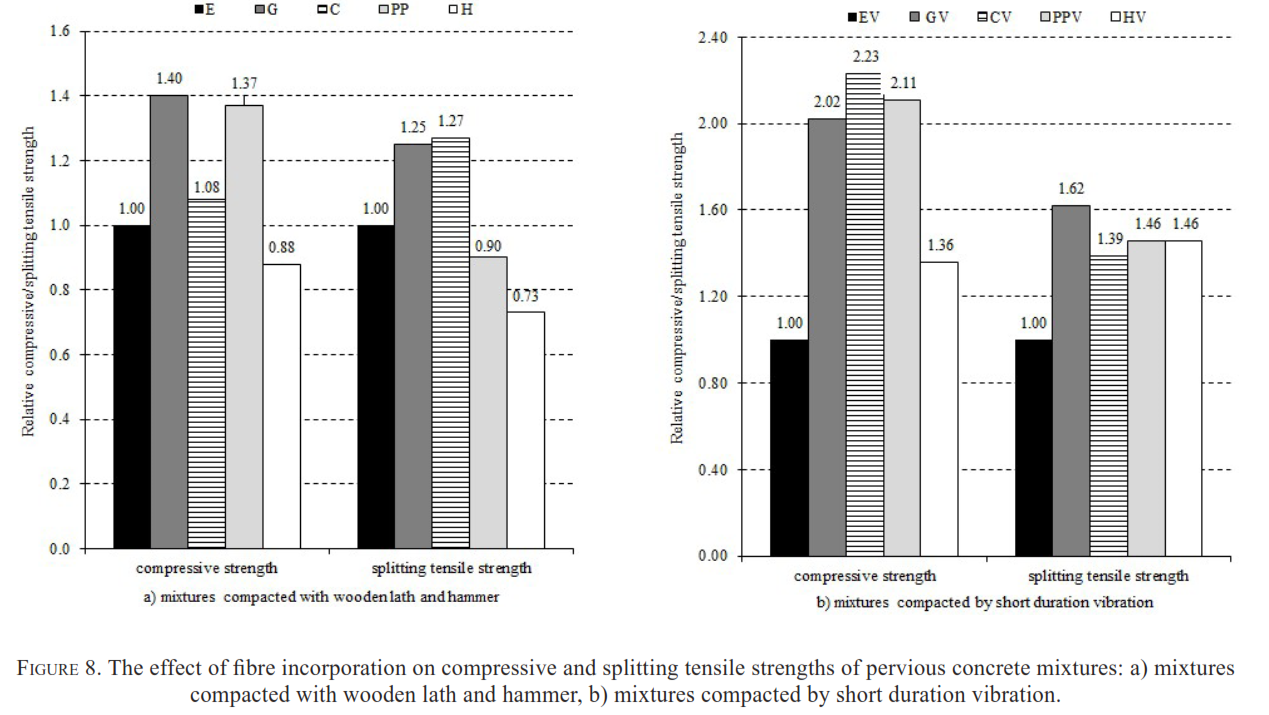

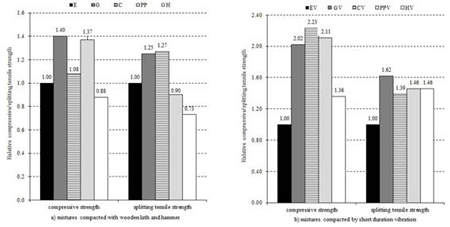

shows the positive effect of fibres on the compressive and splitting
tensile strengths of concrete. An exception here is H mixture which
recorded a decrease in compressive and splitting tensile strengths (12%
for compressive strength and 27% for splitting tensile strength)
compared with the reference mixture (E). There is a positive effect of
fibres on mechanical properties of pervious concrete because the fibres
bridge the gap between the coarse aggregates and bind the pervious
concrete mixture with the fibre-filled matrix (1111.
Amde, A.M.; Rogge, S. (2013) Development of high quality pervious
concrete specifications for Maryland conditions. Final Report,
MD-13-SP009B4F.
, 5050. Patil, P.S.; Sonar, I.P.; Shinde, S. (2017) No fine concrete. Int. J. Concr. Technol. 3 [2], 1-13.
), and because fibre reinforcements may supress the generation and growth of cracks in the interface (5151.
Kim, H.H.; Kim, C.S.; Jeon, J.H.; Park, C.G. (2016) Effects on the
physical and mechanical properties of porous concrete for plant growth
of blast furnace slag, natural jute fiber, and styrene butadiene latex
using a dry mixing manufacturing process. Mater. 9 [2], 84. https://doi.org/10.3390/ma9020084.
). Hesami et al. (2929.
Hesami, S.; Ahmadi, S.; Nematzadeh, M. (2014) Effects of rice husk ash
and fiber on mechanical properties of pervious concrete pavement. Constr. Build. Mater. 53, 680-691. https://doi.org/10.1016/j.conbuildmat.2013.11.070.
) incorporating glass, steel and polyphenylene sulphide (PPS) fibres and Geethanjali et al. (5252.
Geethanjali, S.; Manonmani, B.; Sowmya, P.; Suvetha, T.; Balakumar, V.
(2020) Experimental study of pervious (no fine) concrete. Int. J. Sci. Eng. Res. 11 [3], 83-86. https://www.ijser.org/researchpaper/Experimental-study-of-Pervious-No-Fine-Concrete.pdf.
) using polypropylene fibres obtained an improvement in strength in regards to the control mixtures. The authors in (5252.
Geethanjali, S.; Manonmani, B.; Sowmya, P.; Suvetha, T.; Balakumar, V.
(2020) Experimental study of pervious (no fine) concrete. Int. J. Sci. Eng. Res. 11 [3], 83-86. https://www.ijser.org/researchpaper/Experimental-study-of-Pervious-No-Fine-Concrete.pdf.
)
concluded that the increase in strength is because of the polypropylene
fibres in pervious concrete enhances the bonding between the coarse
aggregate and cement paste. Rangelov et al. (66.
Rangelov, M.; Somayeh, N.; Haselbach, L.; Englund, K. (2016) Using
carbon fiber composites for reinforcing pervious concrete. Constr. Build. Mater. 126, 875-885. https://doi.org/10.1016/j.conbuildmat.2016.06.035.
)
used CCFCM elements (cured carbon fibre composite material) and
improvements in mechanical properties have been observed on compressive
and tensile strength. Infiltration rates were increased, especially on
fibre reinforced slab specimens. Oni et al. (3232.
Oni, B.; Xia, J.; Liu, M. (2020) Mechanical properties of pressure
moulded fibre reinforced pervious concrete pavement brick. Case Stud. Constr. Mater. 13, e00431. https://doi.org/10.1016/j.cscm.2020.e00431.
)
on specimens with Kevlar, PVA and UHMWPE fibres got an increase in the
permeability but decrease in compressive and splitting tensile strength,
when compared with the control group. Similar strength results but
poorer permeability was obtained by Pils et al. (3131.
Pils, S.E.; Oliveira, P.; Regoso, F.; Paulon, V.A.; Costella, M.F.
(2019) Pervious concrete: study of dosage and polypropylene fibers
addiction. Rev. IBRACON Estrut. Mater. 12 [1], 101-121. https://doi.org/10.1590/s1983-41952019000100009.
) on specimens with PP fibres in regards to control mixture.
Of all the fibres studied herein, glass and carbon fibres improved the splitting tensile strength of pervious concrete mixtures the most. An explanation could be found in the number of fibres connecting the aggregate and the cement paste. Fibres are characterised by their aspect ratio, i.e. by the length to diameter ratio and aspect ratio for hemp and propylene differs significantly from the value for glass and carbon fibres, Table 1. Specifically, glass and carbon fibres have a smaller diameter than polypropylene and hemp fibres; thus, in the same volume of all fibres a higher number of fibres can be found in glass and carbon fibres than in propylene and hemp fibres (Figure 11). Furthermore, a higher number of fibres bridging the interfacial transition zone would imply better mechanical properties of pervious concrete.
The authors in (66.
Rangelov, M.; Somayeh, N.; Haselbach, L.; Englund, K. (2016) Using
carbon fiber composites for reinforcing pervious concrete. Constr. Build. Mater. 126, 875-885. https://doi.org/10.1016/j.conbuildmat.2016.06.035.
) and (3131.
Pils, S.E.; Oliveira, P.; Regoso, F.; Paulon, V.A.; Costella, M.F.
(2019) Pervious concrete: study of dosage and polypropylene fibers
addiction. Rev. IBRACON Estrut. Mater. 12 [1], 101-121. https://doi.org/10.1590/s1983-41952019000100009.
) noticed the importance of compaction. In (3131.
Pils, S.E.; Oliveira, P.; Regoso, F.; Paulon, V.A.; Costella, M.F.
(2019) Pervious concrete: study of dosage and polypropylene fibers
addiction. Rev. IBRACON Estrut. Mater. 12 [1], 101-121. https://doi.org/10.1590/s1983-41952019000100009.
),
in conclusion it stands: “… mechanical compaction should be used so
that the mechanical properties are improved…”. As can be seen in Figure 8,
the positive effect of fibre addition was more emphasised in the case
of vibrated mixtures - i.e., mechanical properties of vibrated mixtures
with incorporated fibres (HV, GV, CV, PPV) achieved higher relative
values with respect to their reference mixture (EV) than mixtures
compacted with wooden lath and hammer (H, G, C, PP) with respect to
their reference mixture (E). After all, the value of the standard
deviation for compressive strength is lower for vibrated specimens, Table 2.
In
future research, the authors of this paper will explore the possibility
of using such concrete in paving concrete blocks and flags according to
(5353. EN 1338:2004 Concrete paving blocks -- Requirements and test methods. (2004a)
) and (5454. EN 1339:2004 Concrete paving flags -- Requirements and test methods. (2004b)
).
Since very high permeability of concrete was obtained in this paper,
the addition of a fine aggregate is expected to improve the mechanical
properties of concrete, with a permeability that is in the acceptable
range. Given the drainage capability of pervious concrete, such blocks
and flags would certainly contribute to flood protection in urban areas.
4. CONCLUSION
⌅Ten mixtures of pervious concrete were prepared, five of which were compacted by wooden lath and hammer and five by short duration vibration. Fibres of various origins were added to the mixtures: polypropylene, glass, carbon, and hemp fibres. Density, porosity, permeability (by FH and CH methods), compressive strength and splitting strength were tested in hardened pervious concrete specimens. An examination of the structure of concrete was made using a polarisation microscope. According to the results obtained, the following can be concluded:
Compaction of pervious concrete with a short duration vibration of 5 s did not cause sedimentation of the cement paste, which would negatively affect permeability of concrete. Moreover, mixtures compacted by a short duration vibration achieved better pore-related properties (porosity and permeability) as well as mechanical properties due to the formation of a viscous layer at the contact surface between the aggregate grain and the cement matrix during compaction.
The addition of fibres to the pervious concrete mixtures almost always adversely affected the porosity and, consequently, the permeability of pervious concrete, but had no effect on the density of concrete. In general, a positive effect of fibres on the compressive and splitting tensile strengths of concrete was recorded and this was even more emphasised in the case of vibrated mixtures.
The synergistic effect of fibres and short duration vibration compaction have proven to be good solutions for enhancing usually low mechanical properties of pervious concrete.
