Optimising processing conditions for the functionalisation of photocatalytic glazes by ZnO nanoparticle deposition

1. INTRODUCTION

Ceramics are extensively used as materials for both outdoor and indoor building and construction (i.e. flooring, wall coverings, roofing, ventilated facades, insulating panelling, tunnel lining, and sanitary ware). In 2019, the world production of ceramic tiles was 12,673 million square meters (data reported by the Association of Italian Manufacturers of Machinery and Equipment for the Ceramic Industry, ACIMAC).

The unique properties of ceramics (enhanced energy efficiency and thermal comfort, resilience to corrosion, and versatility) ensure that ceramics will continue to play a fundamental role in the construction and housing sectors. The industry has developed a strategy of ongoing innovation to aggregate value in the final product; high-definition decoration and low-thickness products have opened the market for functional tiles that go beyond traditional applications (11. Berto, A.M. (2007) Ceramic tiles: Above and beyond traditional applications. J. Eur. Ceram. Soc. 27, 1607-1613. https://doi.org/10.1016/j.jeurceramsoc.2006.04.146.
, 22. da Silva, A.L.; Dondi, M.; Raimondo, M.; Hotza, D. (2018) Photocatalytic ceramic tiles: Challenges and technological solutions. J. Eur. Ceram. Soc. 38, 1002-1017. https://doi.org/10.1016/j.jeurceramsoc.2017.11.039.
). Recently, efforts to produce photocatalytic ceramic tiles, obtained by embedded fine TiO₂ particles or coatings, have intensified. Such functionalisation provides materials with de-polluting (33. Jiménez-Relinque, E.; Hingorani, R.; Rubiano, F.; Grande, M.; Castillo, Á.; Castellote, M. (2019) In situ evaluation of the NOx removal efficiency of photocatalytic pavements: statistical analysis of the relevance of exposure time and environmental variables. Environ. Sci. Pollut. Res. 26, 36088-36095. https://doi.org/10.1007/s11356-019-04322-y.
, 44. Jimenez-Relinque, E.; Castellote, M. (2014) Influence of the inlet air in efficiency of photocatalytic devices for mineralization of VOCs in air-conditioning installations. Environ. Sci. Pollut. Res. 21, 11198-11207. https://doi.org/10.1007/s11356-014-2632-2.
), antifogging (55. Takeuchi, M.; Sakamoto, K.; Martra, G.; Coluccia, S.; Anpo, M. (2005) Mechanism of photoinduced superhydrophilicity on the TiO2 photocatalyst surface. J. Phys. Chem. B. 109, 15422-15428. https://doi.org/10.1021/jp058075i.
, 66. Watanabe, T.; Nakajima, A.; Wang, R.; Minabe, M.; Koizumi, S.; Fujishima, A.; Hashimoto, K. (1999) Photocatalytic activity and photoinduced hydrophilicity of titanium dioxide coated glass. Thin Solid Films. 351, 260-263. https://doi.org/10.1016/S0040-6090(99)00205-9.
), disinfecting (7-97. Jimenez-Relinque, E.; Sapiña, M.; Nevshupa, R.; Roman, E.; Castellote, M. (2016) Photocatalytic decomposition of pollen allergenic extracts of Cupressus arizonica and Platanus hybrida. Chem. Eng. J. 286, 560-570. https://doi.org/10.1016/j.cej.2015.10.106.
8. Reddy, P.V.L.; Kavitha, B.; Reddy, P.A.K.; Kim, K-H. (2017) TiO2-based photocatalytic disinfection of microbes in aqueous media: a review. Environ. Res. 154, 296-303. https://doi.org/10.1016/j.envres.2017.01.018.
9. Vohra, A.; Goswami, D.; Deshpande, D.; Block, S. (2006) Enhanced photocatalytic disinfection of indoor air. Appl. Catal. B. 64, 57-65. https://doi.org/10.1016/j.apcatb.2005.10.025.
), and self-cleaning capabilities (1010. Jimenez-Relinque, E.; Rodriguez-Garcia, J.; Castillo, A.; Castellote, M. (2015) Characteristics and efficiency of photocatalytic cementitious materials: Type of binder, roughness and microstructure. Cem. Concr. Res. 71, 124-131. https://doi.org/10.1016/j.cemconres.2015.02.003.
, 1111. Banerjee, S.; Dionysiou, D.D.; Pillai, S.C. (2015) Self-cleaning applications of TiO2 by photo-induced hydrophilicity and photocatalysis. Appl. Catal. B. 176, 396-428. https://doi.org/10.1016/j.apcatb.2015.03.058
). Photocatalysis is a light-induced catalytic process for the reduction of organic and inorganic molecules adsorbed on the surface of a semiconductor through redox reactions (12-1412. Jimenez-Relinque, E.; Castellote, M. (2018) Hydroxyl radical and free and shallowly trapped electron generation and electron/hole recombination rates in TiO₂ photocatalysis using different combinations of anatase and rutile. Appl. Catal. A. 565, 20-25. https://doi.org/10.1016/j.apcata.2018.07.045
13. Fujishima, A.; Hashimoto, K.; Watanabe, T. (1999) TiO₂ Photocatalysis: Fundamentals and Application, 1st ed., Tokyo Bkc, (1999).
14. Serpone, N.; Pelizzetti, E. (1989) Photocatalysis: fundamentals and applications, Wiley, New York, (1989).
).

Meseguer et al. (1515. Meseguer, S.; Galindo, F.; Sorlí, S.; Cargori, C.; Tena, M.; Monrós, G. (2006) Vidriados cerámicos con actividad fotoquímica: aplicación potencial a depuración ambiental. Cerámica Información. 333, 61-68.
) demonstrated the photocatalytic capacity of ceramic glazes as a new functionality of ceramic tiles with applications in construction (such as flooring and wall covering) and in the field (such as air purification and water cleaning). Photocatalytic ceramic tiles are typically prepared by coating the ceramic tile with anatase TiO₂ using various deposition techniques, such as spray deposition (16-1916. Bianchi, C.L.; Sacchi, B.; Capelli, S.; Pirola, C.; Cerrato, G.; Morandi, S.; Capucci, V. (2018) Micro-sized TiO₂ as photoactive catalyst coated on industrial porcelain grès tiles to photodegrade drugs in water. Environ. Sci. Pollut. Res. 25, 20348-20353. https://doi.org/10.1007/s11356-017-9066-6
17. Tobaldi, D.; Graziani, L.; Seabra, M.; Hennetier, L.; Ferreira, P.; Quagliarini, E.; Labrincha, J. (2017) Functionalised exposed building materials: Self-cleaning, photocatalytic and biofouling abilities. Ceram. Int. 43, 10316-10325. https://doi.org/10.1016/j.ceramint.2017.05.061.
18. Ducman, V.; Petrovič, V.; Škapin, S.D. (2013) Photo-catalytic efficiency of laboratory made and commercially available ceramic building products. Ceram. Int. 39, 2981-2987. https://doi.org/10.1016/j.ceramint.2012.09.075.
19. Bianchi, C.L.; Colombo, E.; Gatto, S.; Stucchi, M.; Cerrato, G.; Morandi, S.; Capucci, V. (2014) Photocatalytic degradation of dyes in water with micro-sized TiO₂ as powder or coated on porcelain-grès tiles. J. Photochem. Photobiol. A. 280, 27-31. https://doi.org/10.1016/j.jphotochem.2014.02.002.
), screen printing (2020. Rego, E.; Marto, J.; São Marcos, P.; Labrincha, J. (2009) Decolouration of Orange II solutions by TiO₂ and ZnO active layers screen-printed on ceramic tiles under sunlight irradiation. Appl. Catal. A. 355, 109-114. https://doi.org/10.1016/j.apcata.2008.12.005.
, 2121. São Marcos, P.; Marto, J.; Trindade, T.; Labrincha, J. (2008) Screen-printing of TiO₂ photocatalytic layers on glazed ceramic tiles. J. Photochem. Photobiol. A. 197, 125-131. https://doi.org/10.1016/j.jphotochem.2007.12.017.
) and sol-gel methods (22-2422. Vaiano, V.; Sarno, G.; Sannino, D.; Ciambelli, P. (2015) Photocatalytic properties of TiO₂-functionalized tiles: influence of ceramic substrate. Res. Chem. Intermed. 41, 7995-8007. https://doi.org/10.1007/s11164-014-1872-6.
23. Kuisma, R.; Fröberg, L.; Kymäläinen, H.-R.; Pesonen-Leinonen, E.; Piispanen, M.; Melamies, P.; Hautala, M.; Sjöberg, A.-M.; Hupa, L. (2007) Microstructure and cleanability of uncoated and fluoropolymer, zirconia and titania coated ceramic glazed surfaces. J. Eur. Ceram. Soc. 27, 101-108. https://doi.org/10.1016/j.jeurceramsoc.2006.02.035
24. Määttä, J.; Piispanen, M.; Kymäläinen, H-R.; Uusi-Rauva, A.; Hurme, K-R.; Areva, S.; Sjöberg, A-M.; Hupa, L. (2007) Effects of UV-radiation on the cleanability of titanium dioxide-coated glazed ceramic tiles. J. Eur. Ceram. Soc. 27, 4569-4574. https://doi.org/10.1016/j.jeurceramsoc.2007.03.026.
). However, several critical aspects must be considered to obtain suitable TiO₂-containing ceramic materials: firing temperature and adhesion of the TiO₂film/particles to the substrate (2121. São Marcos, P.; Marto, J.; Trindade, T.; Labrincha, J. (2008) Screen-printing of TiO₂ photocatalytic layers on glazed ceramic tiles. J. Photochem. Photobiol. A. 197, 125-131. https://doi.org/10.1016/j.jphotochem.2007.12.017.
, 2525. Zhao, H.; Peng, C.; Wu, M.; Lv, M.; Wu, J. (2019) A crystallization method for preparation of anatase-based glass-ceramic glaze J. Eur. Ceram. Soc. 39, 1725-1729. https://doi.org/10.1016/j.jeurceramsoc.2018.11.027.
, 2626. Tezza, V.B.; Scarpato, M.; Oliveira, L.F.S.; Bernardin, A.M. (2015) Effect of firing temperature on the photocatalytic activity of anatase ceramic glazes. Powder Technol. 276, 60-65. https://doi.org/10.1016/j.powtec.2015.01.076.
). Temperatures below ~600°C do not generate suitable adhesion between the printed TiO₂ layer and the ceramic support, but over ~900°C, there is evidence of a reaction between the TiO₂ layer and the glazed support. In addition, the anatase crystal form is transformed into rutile, which might have a detrimental effect on the catalytic behaviour. This effect is more pronounced when thinner TiO₂ layers are used (2121. São Marcos, P.; Marto, J.; Trindade, T.; Labrincha, J. (2008) Screen-printing of TiO₂ photocatalytic layers on glazed ceramic tiles. J. Photochem. Photobiol. A. 197, 125-131. https://doi.org/10.1016/j.jphotochem.2007.12.017.
). Kaho et al. (2525. Zhao, H.; Peng, C.; Wu, M.; Lv, M.; Wu, J. (2019) A crystallization method for preparation of anatase-based glass-ceramic glaze J. Eur. Ceram. Soc. 39, 1725-1729. https://doi.org/10.1016/j.jeurceramsoc.2018.11.027.
) prepared anatase-based glass-ceramic glazes from a frit containing TiO₂. The glazed tiles were prepared by firing at 1180°C followed by annealing between 600 and 800°C. However, there was evidence that high temperatures caused a reaction between the TiO₂ and the glazed support. The anatase polymorph remained, but it was immersed in the glaze, resulting in non-active photocatalytic materials. Brunel et al. (2626. Tezza, V.B.; Scarpato, M.; Oliveira, L.F.S.; Bernardin, A.M. (2015) Effect of firing temperature on the photocatalytic activity of anatase ceramic glazes. Powder Technol. 276, 60-65. https://doi.org/10.1016/j.powtec.2015.01.076.
) developed anatase glazes by adding TiO₂ to commercial frits. The glazed ceramic tiles were fired at 850-1000°C, but none of the glazes showed notable photocatalytic activity owing to the anatase phase transformation. To overcome these shortcomings, TiO₂ can be doped with various elements to increase the thermal stability. Thus, photocatalytic ceramic tiles have been prepared by the deposition of Ni-TiO₂ (2727. Barmeh, A.; Nilforoushan, M.R.; Otroj, S. (2018) Wetting and photocatalytic properties of Ni-doped TiO₂ coating on glazed ceramic tiles under visible light. Thin Solid Films. 666, 137-142. https://doi.org/10.1016/j.tsf.2018.09.007.
), W-TiO₂ (2828. Onna, D.; Fuentes, K.M.; Spedalieri, C.; Perullini, M.; Marchi, M.C.; Alvarez, F.; Candal, R.J.; Bilmes, S.A. (2018) Wettability, photoactivity, and antimicrobial activity of glazed ceramic tiles coated with titania films containing tungsten. ACS Omega. 3, 17629-17636. https://doi.org/10.1021/acsomega.8b03339.
), Nb₂O₅-TiO₂ (2929. da Silva, A.L.; Dondi, M.; Hotza, D. (2017) Self-cleaning ceramic tiles coated with Nb₂O₅-doped-TiO₂ nanoparticles. Ceram. Int. 43, 11986-11991. https://doi.org/10.1016/j.ceramint.2017.06.049
, 3030. da Silva, A.L.; Muche, D.N.; Dey, S.; Hotza, D.; Castro, R.H. (2016) Photocatalytic Nb₂O₅-doped TiO₂ nanoparticles for glazed ceramic tiles. Ceram. Int. 42, 5113-5122. https://doi.org/10.1016/j.ceramint.2015.12.029.
), Ag-TiO₂ (3131. Gurbuz, M.; Atay, B.; Dogan, A. (2015) Synthesis of High-Temperature-Stable TiO2 and its Application on Ag+-Activated Ceramic Tile. Int. J. Appl. Ceram. Technol. 12, 426-436. https://doi.org/10.1111/ijac.12165.
), and (Si, P, Zr)-TiO₂ (3232. Zeng, Z.; Peng, C.; Hong, Y.; Lu, Y.; Wu, J. (2010) Fabrication of a Photocatalytic Ceramic by Doping Si-, P-, and Zr-Modified TiO2 Nanopowders in Glaze. J. Am. Ceram. Soc. 93, 2948-2951. https://doi.org/10.1111/j.1551-2916.2010.03910.x.
). In addition, the adhesion constraint can also be controlled by silanising TiO₂ particles before depositing TiO₂-SiO₂ coatings (33-3633. Shakeri, A.; Yip, D.; Badv, M.; Imani, S.M.; Sanjari, M.; Didar, T.F. (2018) Self-cleaning ceramic tiles produced via stable coating of TiO₂ nanoparticles. Materials. 11, 1003. https://doi.org/10.3390/ma11061003.
34. Taurino, R.; Barbieri, L.; Bondioli, F. (2016) Surface properties of new green building material after TiO₂-SiO₂ coatings deposition. Ceram. Int. 42, 4866-4874. https://doi.org/10.1016/j.ceramint.2015.12.002.
35. Sciancalepore, C.; Bondioli, F. (2015) Durability of SiO₂-TiO₂ photocatalytic coatings on ceramic tiles. Int. J. Appl. Ceram. Technol. 12, 679-684. https://doi.org/10.1111/ijac.12240.
36. Zhang, P.; Tian, J.; Xu, R.; Ma, G. (2013) Hydrophilicity, photocatalytic activity and stability of tetraethyl orthosilicate modified TiO₂ film on glazed ceramic surface. Appl. Surf. Sci. 266, 141-147. https://doi.org/10.1016/j.apsusc.2012.11.117.
).

A number of photocatalysts, including ZnO, have been investigated as alternatives to TiO₂. ZnO exhibits similar or greater (37-4037. Qi, K.; Cheng, B.; Yu, J.; Ho, W. (2017) Review on the improvement of the photocatalytic and antibacterial activities of ZnO. J. Alloys Compd. 727, 792-820. https://doi.org/10.1016/j.jallcom.2017.08.142.
38. Hariharan, C. (2006) Photocatalytic degradation of organic contaminants in water by ZnO nanoparticles: Revisited. Appl Catal A. 304, 55-61. https://doi.org/10.1016/j.apcata.2006.02.020.
39. Alcaraz, L.; Jiménez-Relinque, E.; Plaza, L.; García-Díaz, I.; Castellote, M.; López, F.A. (2020) Photocatalytic Activity of ZnxMn3−xO₄ Oxides and ZnO Prepared From Spent Alkaline Batteries. Front. Chem. 8, 661. https://doi.org/10.3389/fchem.2020.00661.
40. Strunk, J.; Kähler, K.; Xia, X.; Muhler, M.J.S.S. (2009) The surface chemistry of ZnO nanoparticles applied as heterogeneous catalysts in methanol synthesis. Surface science. 603, 1776-1783. https://doi.org/10.1016/j.susc.2008.09.063.
) photocatalytic performance for degrading pollutants compared to that of TiO₂ because of its higher electron mobility and valence band oxidation potential. In addition, ZnO does not pose risks to human health or the environment (4141. Di Mauro, A.; Fragala, M.E.; Privitera, V.; Impellizzeri, G. (2017) ZnO for application in photocatalysis: from thin films to nanostructures. Mater. Sci. Semicond. Process. 69, 44-51. https://doi.org/10.1016/j.mssp.2017.03.029.
), and it is cheaper than TiO₂. Therefore, ZnO may be more suitable for large-scale applications in the ceramic industry (42-4442. Ong, C.B.; Ng, L.Y.; Mohammad, A.W. (2018) A review of ZnO nanoparticles as solar photocatalysts: synthesis, mechanisms and applications. Renew. Sustain. Ener. Rev. 81, 536-551. https://doi.org/10.1016/j.rser.2017.08.020.
43. Kaushik, M.; Niranjan, R.; Thangam, R.; Madhan, B.; Pandiyarasan, V.; Ramachandran, C.; Oh, D-H.; Venkatasubbu, G.D. (2019) Investigations on the antimicrobial activity and wound healing potential of ZnO nanoparticles. Appl. Surf. Sci. 479, 1169-1177. https://doi.org/10.1016/j.apsusc.2019.02.189.
44. Saravanan, R.; Gupta, V.K.; Narayanan, V.; Stephen, A. (2013) Comparative study on photocatalytic activity of ZnO prepared by different methods. J. Mol. Liq. 181, 133-141. https://doi.org/10.1016/j.molliq.2013.02.023.
). However, few studies have been conducted on the development of ZnO-containing photocatalytic ceramic tiles with applications in construction. In Rego et al.(2020. Rego, E.; Marto, J.; São Marcos, P.; Labrincha, J. (2009) Decolouration of Orange II solutions by TiO₂ and ZnO active layers screen-printed on ceramic tiles under sunlight irradiation. Appl. Catal. A. 355, 109-114. https://doi.org/10.1016/j.apcata.2008.12.005.
) and Marto et al. (4545. Marto, J.; São Marcos, P.; Trindade, T.; Labrincha, J. (2009) Photocatalytic decolouration of Orange II by ZnO active layers screen-printed on ceramic tiles. J. Hazard. Mater. 163, 36-42. https://doi.org/10.1016/j.jhazmat.2008.06.056.
) , fabricated screen-printed ZnO layer on ceramic tiles, and the tiles demonstrated comparable Orange II decolourisation performance to that of aqueous ZnO suspensions under different artificial light conditions and direct exposure to sunlight, with the advantage of avoiding the removal of the photocatalyst from the liquid media at the end of the process. However, TiO₂layers showed superior performance compared to that of ZnO (2020. Rego, E.; Marto, J.; São Marcos, P.; Labrincha, J. (2009) Decolouration of Orange II solutions by TiO₂ and ZnO active layers screen-printed on ceramic tiles under sunlight irradiation. Appl. Catal. A. 355, 109-114. https://doi.org/10.1016/j.apcata.2008.12.005.
). Singh et al. (4646. Singh, G.; Kumar, S.; Singh, V.; Vaish, R. (2019) Transparent ZnO crystallized glass ceramics for photocatalytic and antibacterial applications. J. Appl. Phys. 125, 175102. https://doi.org/10.1063/1.5081988.
) demonstrated that ZnO-crystallised glasses have good antibacterial properties againstEscherichia coli. ZnO catalysts doped with Fe (4747. Mohsin, M.; Bhatti, I.A.; Ashar, A.; Mahmood, A.; ul Hassan, Q.; Iqbal, M. (2020) Fe/ZnO@ceramic fabrication for the enhanced photocatalytic performance under solar light irradiation for dye degradation. J. Mater. Res. Technol. 9, 4218-4229. https://doi.org/10.1016/j.jmrt.2020.02.048.
), La (4848. Pascariu, P.; Homocianu, M.; Cojocaru, C.; Samoila, P.; Airinei, A.; Suchea, M. (2019) Preparation of La doped ZnO ceramic nanostructures by electrospinning-calcination method: Effect of La³⁺ doping on optical and photocatalytic properties. Appl. Surf. Sci. 476, 16-27. https://doi.org/10.1016/j.apsusc.2019.01.077.
) and Cu (4949. Bouras, D.; Mecif, A.; Barillé, R.; Harabi, A.; Rasheed, M.; Mahdjoub, A.; Zaabat, M. (2018) Cu:ZnO deposited on porous ceramic substrates by a simple thermal method for photocatalytic application. Ceram. Int. 44, 21546-21555. https://doi.org/10.1016/j.ceramint.2018.08.218.
) were deposited on ceramic surfaces to evaluate the photocatalytic performance for dye degradation under visible light. The photocatalytic activity of these coupled photocatalysts was higher than that of a single photocatalyst.

However, the influence of processing conditions during the functionalisation of photocatalytic glazes by ZnO nanoparticle deposition on the microstructure and the consequent photocatalytic efficiency have not been studied in detail. Therefore, in this work, ceramic tiles were coated with a ZnO active layer by the conventional fast-firing route used to manufacture construction ceramic tiles. As-prepared ZnO nanospheres were deposited by both single- and double-fire fast processes. The influence of the firing temperature (650-800°C) and deposited ZnO concentration (0.03-1 mg/cm²) on the physicochemical properties and UV photocatalytic activity of the resulting ceramic glazes were evaluated.

2. MATERIALS AND METHODS

2.2 Preparation and deposition of ZnO nanoparticles

 ⌅

ZnO nanospheres were prepared by a modified polyol method, as described in detail elsewhere (5151. Guzmán-Carrillo, H.; Rivera-Muñoz, E.; Cayetano-Castro, N.; Herrera-Basurto, R.; Barquera-Bibiano, Z.; Mercader-Trejo, F.; Manzano-Ramírez, A. (2017) Facile control of ZnO nanostructures by varying molar concentration of zinc acetate. Mater. Res. Bull. 90, 138-144. https://doi.org/10.1016/j.materresbull.2017.02.034.
). Briefly, 2.196 g of non-dehydrated zinc acetate was dissolved in 10 mL of ethylene glycol by refluxing in a three-necked flask under vigorous stirring. After 30 min, deionised water was injected with a fixed hydration ratio of 8, and the solution was heated at 160°C for 5 h. After successive stages of cooling, centrifugation, and washing, the ZnO nanospheres were dried in a conventional oven at 80°C. The ZnO nanoparticles were deposited on the ceramic substrate using both single- and double-fire processes. In the single-fire process, ZnO nanospheres (10.0 wt.%, 38 nm particle size) were mixed with a commercial frit and poured on the green porcelain stoneware (Figure 1a). In the double-fire process, a glaze slip was first poured onto the surface of the green porcelain stoneware bodies, as shown in Figure 1b. Then, 10 g of ZnO nanospheres were suspended in ethanol (1:1 wt.%) and stirred for 45 min at room temperature. Five active layers of ZnO nanoparticles were then deposited on the glazed porcelain stoneware by a spraying technique using an aerosol spray gun at 0.6 MPa with 15 cm between the gun and the samples. Four different ZnO concentrations (0.03, 0.1, 0.5, and 1 mg/cm²) were deposited, which were dried at 80°C for 5 min and then fired at 650°C for 10 min. In addition, 1 mg/cm² of ZnO nanospheres was deposited on multiple samples, which were fired at 700 and 800°C for 10 min to evaluate the effect of temperature.

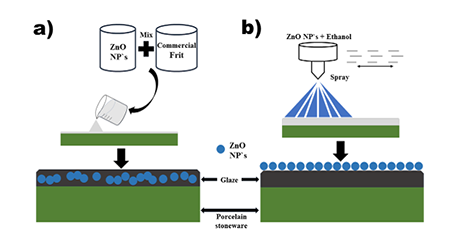

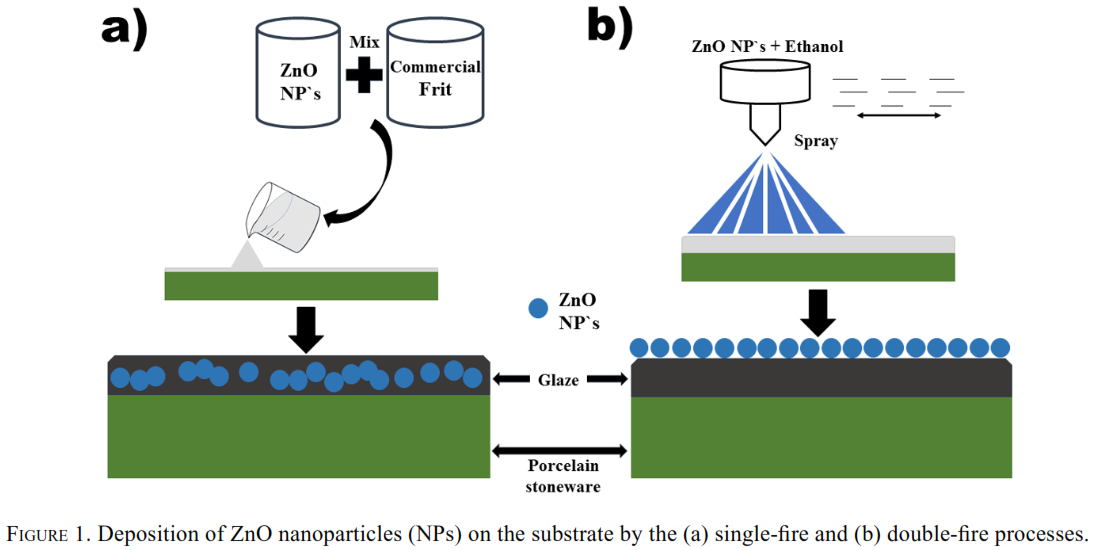

Figure 1.  Deposition of ZnO nanoparticles (NPs) on the substrate by the (a) single-fire and (b) double-fire processes.

In both the single- and double-fire processes, the glaze slip consisted of a mixture of a commercial frit for a glossy-finish glaze (90.0 wt.%), carboxy methyl cellulose (5.0 wt.%), and sodium polymetaphosphate (5.0 wt.%) combined with distilled water at a liquid-to-solid ratio of 70:30.

To avoid interference in the subsequent analysis of the ZnO nanoparticle layers, a ZnO-free frit was also applied. After drying, the glazed bodies resulting from both processes were sintered in a conventional kiln at 1210°C, followed by a fast-firing process.

2.4 Photocatalytic activity measurement

 ⌅

The photocatalytic activity of the as-prepared samples was assessed using resazurin (Rz) ‘intelligent ink’. The photocatalytic activity indicator ink comprised a dye (Rz), a sacrificial electron donor (SED, glycerol), and a polymer (hydroxyethyl cellulose, HEC) to encapsulate the dye and SED after the ink dried. The effectiveness of the Rz dye as a photocatalytic activity indicator ink has been previously demonstrated for a wide range of photocatalytic samples (1212. Jimenez-Relinque, E.; Castellote, M. (2018) Hydroxyl radical and free and shallowly trapped electron generation and electron/hole recombination rates in TiO₂ photocatalysis using different combinations of anatase and rutile. Appl. Catal. A. 565, 20-25. https://doi.org/10.1016/j.apcata.2018.07.045
, 3939. Alcaraz, L.; Jiménez-Relinque, E.; Plaza, L.; García-Díaz, I.; Castellote, M.; López, F.A. (2020) Photocatalytic Activity of ZnxMn3−xO₄ Oxides and ZnO Prepared From Spent Alkaline Batteries. Front. Chem. 8, 661. https://doi.org/10.3389/fchem.2020.00661.
, 52-5552. Mills, A.; Hepburn, J.; Hazafy, D.; O’Rourke, C.; Krysa, J.; Baudys, M.; Zlamal, M.; Bartkova, H.; Hill, C.E.; Winn, K.R.; Simonsen, M.E.; Søgaard, E.G.; Pillai, S.C.; Leyland, N.S.; Fagan, R.; Neumann, F.; Lampe, C.; Graumann, T. (2013) A simple, inexpensive method for the rapid testing of the photocatalytic activity of self-cleaning surfaces. J. Photochem. Photobiol. A. 272, 18-20. https://doi.org/10.1016/j.jphotochem.2013.08.004.
53. Jimenez-Relinque, E.; Castellote, M. (2019) Rapid assessment of the photocatalytic activity in construction materials: Pros and cons of reductive inks and oxidative fluorescence probes versus standardized NOx testing. Catal. Today. 358, 164-171. https://doi.org/10.1016/j.cattod.2019.07.043.
54. Zita, J.; Krýsa, J.; Mills, A. (2009) Correlation of oxidative and reductive dye bleaching on TiO2 photocatalyst films. J. Photochem. Photobiol. A. 203, 119-124. https://doi.org/10.1016/j.jphotochem.2008.12.029.
55. Mills, A.; Wells, N.; O’Rourke, C. (2017) Probing the activities of UV and visible-light absorbing photocatalyst powders using a resazurin-based photocatalyst activity indicator ink (Rz Paii). J. Photochem. Photobiol. A. 338, 123-133. https://doi.org/10.1016/j.jphotochem.2017.01.030.
). It can simply, rapidly, and cheaply probe the photocatalytic activity. Upon irradiation (hʋ ≥ band gap energy) of the ink-coated photocatalytic surface, the photogenerated electrons reduce the blue Rz (608 nm) to the pink resorufin (Rf, 588 nm) (Figure 2). Rf can be subsequently reduced to its colourless counterpart, dihydroresorufin (HRf). Simultaneously, the photogenerated holes oxidise the glycerol into glyceric acid, which acts as a hole trap to prevent electron-hole recombination. The colour/absorbance change during irradiation provides proof of the photocatalytic activity of the tested material.

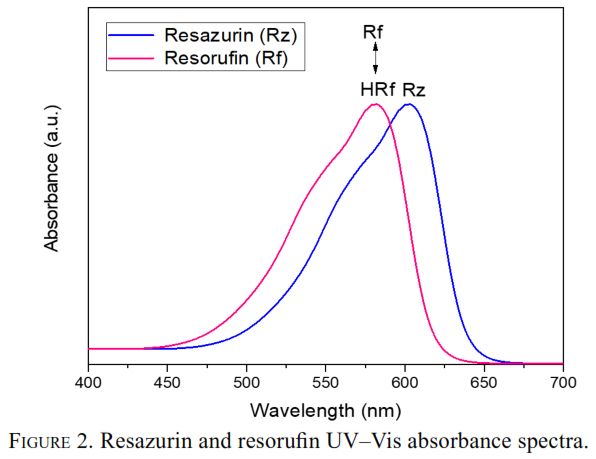

Figure 2.  Resazurin and resorufin UV-Vis absorbance spectra.

The ink formulation used in this study consisted of a redox dye (Rz, 10 mg), SED (glycerol, 0.8 g), and polymer (HEC, 1.1 g) dissolved in ethanol (12 mL). The dissolvents were modified with respect to the typical formulation in water to avoid the hydrophobic effect of the ZnO-coated samples and thus obtain a homogeneous Rz ink layer. The glazed samples were coated with the Rz ink using a wire-wound rod with a pitch that was 750 µm long and 350 µm in diameter. A typical dried ink film was approximately 20 µm thick (measured by SEM analysis). The irradiation of ink-coated samples was conducted using two UV fluorescence tubes (Philips TL-D 15W Actinic BL) with λ_max emission of 368 nm. The samples were irradiated with a UV-A irradiance of 8.6 mW/cm².

The changes in the UV-Vis spectra of the ink-coated films were recorded at different irradiation time intervals using a 2600 Shimadzu UV-Vis spectrophotometer equipped with an integrated reflectance sphere. Simultaneously, digital images of the ink-coated glazed samples were recorded using a digital camera (Bridge Sony Cyber-Shot, 20.1 MP). The images were imported into the digital processing software ImageJ 1.52n Fiji, and the average RGB (red, blue, and green) pixel intensities were collected from the images. Then, the normalised red and blue components, nRt and nBt, respectively, at time t of irradiation were calculated using Equations [1] and [2]. This type of analysis has been successfully performed in previous studies (5656. Mills, A.; Wells, N.; O’Rourke, C. (2014) Correlation between ΔAbs, ΔRGB (red) and stearic acid destruction rates using commercial self-cleaning glass as the photocatalyst. Catal. Today. 230, 245-249. https://doi.org/10.1016/j.cattod.2013.11.023.
, 5757. Jimenez-Relinque, E.; Castellote, M. (2019) Quick assessment of the photocatalytic activity of TiO₂ construction materials by nitroblue tetrazolium (NBT) ink. Constr. Build. Mater. 214, 1-8. https://doi.org/10.1016/j.conbuildmat.2019.04.104.
).

$nRt=\frac{Rt}{Rt+Gt+Bt}$  [1]

$nBt=\frac{Bt}{Rt+Gt+Bt}$  [2]

3. RESULTS AND DISCUSSION

3.1 Characterisation of the glass frit

 ⌅

Table 1 lists the chemical composition of the commercial frit used to prepare the glaze. It is a common silica-sodic material and was selected for this study because it does not contain ZnO. The TG-DTA curves of the glass frit are shown in Figure 3. The first endothermic peak occurred at 110°C, corresponding to the release of water adsorbed on the surface of the commercial frit particles. A second intense endothermic effect occurred at 540-700°C, which is related to the formation of liquid phases; in particular, the glass frit melted at 605°C. These features are relevant for the optimum processing conditions, as discussed later.

TABLE 1.  XRF chemical composition (wt.%) of the commercial glass frit.

Oxide	Percentage	Oxide	Percentage
SiO2	69.22	SO3	0.251
Na2O	15.6	Fe2O3	0.205
CaO	9.08	Cl	0.061
MgO	4.28	TiO2	0.053
Al2O3	0.914	B2O3	0.061
K2O	0.263	ZrO2	0.012

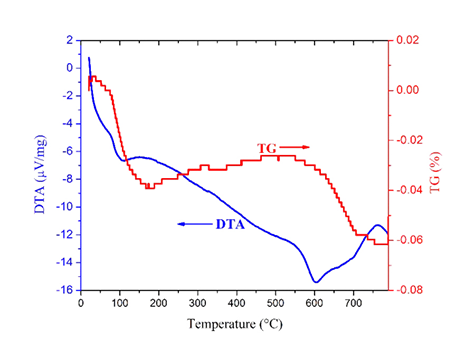

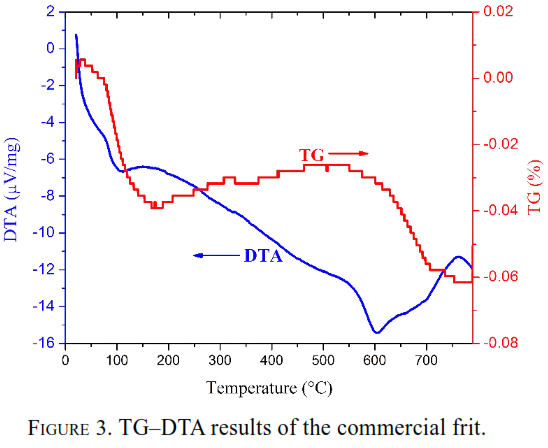

Figure 3.  TG-DTA results of the commercial frit.

3.2 Single-fire process

 ⌅

The SEM image of the ZnO nanoparticles shown in Figure 4a shows that the ZnO nanoparticles had an almost spherical morphology and were 30-40 nm in size. Figure 4b shows a digital image of the glazed porcelain stoneware tile covered with a layer of ZnO nanoparticles by the single-fire process. The glaze was transparent with a crackle finish. It should be noted that the surface of the glaze prepared without ZnO nanoparticles also cracked, and the introduction of the nanoparticles did not noticeably affect the surface appearance of the glazes. The XRD patterns of the single-fired glazed samples with and without ZnO nanoparticles are shown in Figure 4c. No difference was observed between the two patterns, except for the presence of a small peak assigned to cristobalite (SiO₂) from commercial frit on the glazed sample without ZnO. No ZnO crystalline phases were detected in the ZnO-coated glazed sample. However, Figure 4c shows the diffractogram of a sample of ZnO nanoparticles subjected to the same thermal cycle with which the tiles were fired. The ZnO nanoparticles did not undergo any mineralogical transformation during firing, and the diffractogram shows the characteristic peaks of zincite. ZnO is known as a network modifier or former depending on the composition of the glass (5858. Ehrt, D.; Flügel, S. (2011) Properties of zinc silicate glasses and melts. J. Mater. Sci. Eng. A. 1, 312.
). The role of glass modifiers in low-alkali silicate glasses has been previously reported (5959. Calas, G.; Cormier, L.; Galoisy, L.; Jollivet, P. (2002) Structure-property relationships in multicomponent oxide glasses. C. R. Chim. 5, 831-843. https://doi.org/10.1016/S1631-0748(02)01459-5
). Thus, it appears that the ZnO nanoparticles were incorporated into the glass network, acting as a network modifier and avoiding the devitrification of the single-fired glaze. The patterns show an amorphous halo in the range 2θ = 16°-38°, which is characteristic of non-crystalline materials. The absence of a ZnO crystalline signal for the glaze surface could be because the ZnO nanoparticles can act as a glass modifier, as mentioned previously. Upon sintering at 1210°C, the ZnO nanoparticles may have melted and diffused to become part of the glassy network. Another possibility is that the ZnO nanoparticles were embedded in the low-viscosity liquid phase originating from the commercial frit during the sintering of the glazed porcelain stoneware tiles.

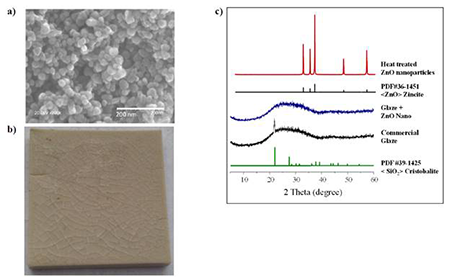

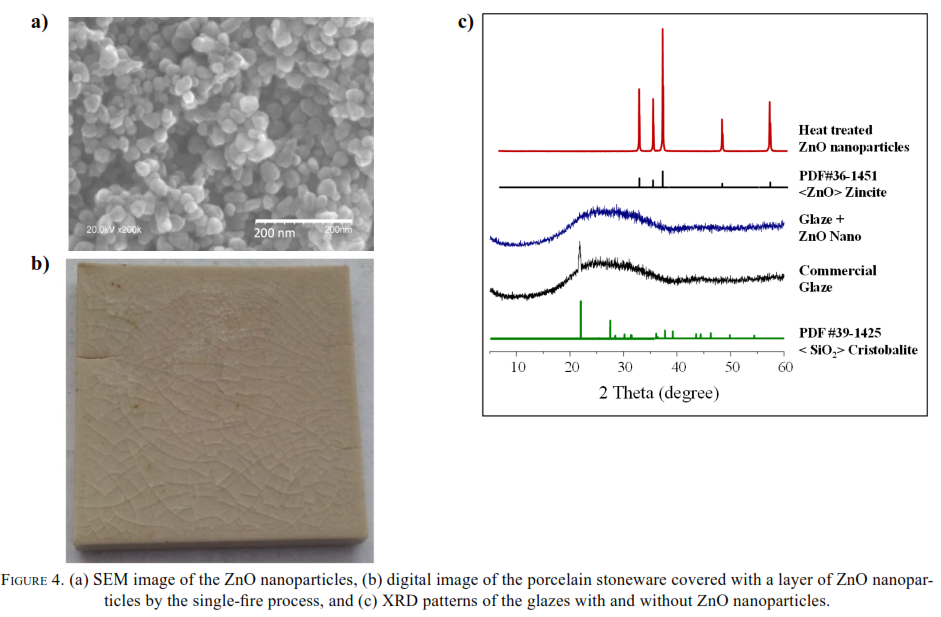

Figure 4.  (a) SEM image of the ZnO nanoparticles, (b) digital image of the porcelain stoneware covered with a layer of ZnO nanoparticles by the single-fire process, and (c) XRD patterns of the glazes with and without ZnO nanoparticles.

Figure 5 shows digital images of the ZnO-containing single-fired glazed samples coated with Rz ink at different irradiation times. These images demonstrate that the ink on the glaze did not show any significant variation in colour during the test irradiation, which proves that the ZnO nanoparticles incorporated into the glaze did not show any evidence of photocatalytic activity. This finding is consistent with the XRD results discussed previously. All these results indicate the potential difficulties stemming from the complexity of preparing active glazes containing ZnO nanoparticles by a single-fire process.

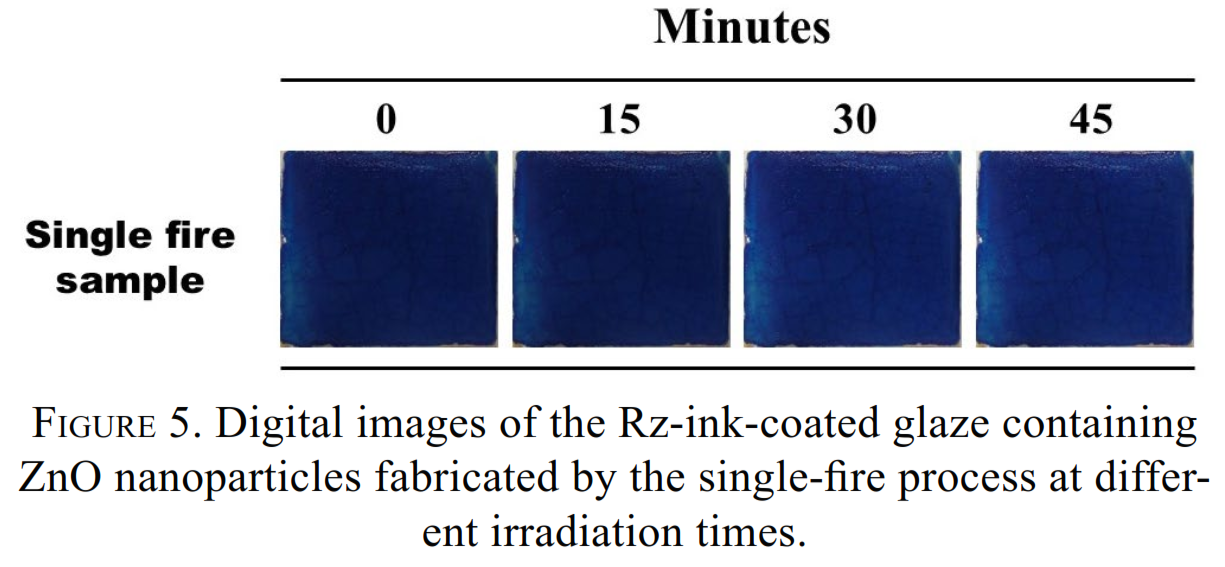

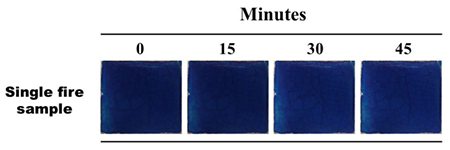

Figure 5.  Digital images of the Rz-ink-coated glaze containing ZnO nanoparticles fabricated by the single-fire process at different irradiation times.

3.3 Double-fire process

 ⌅

3.3.1 Effect of the ZnO concentration

 ⌅

Figure 6 shows the XRD patterns of the glazes prepared by spraying ZnO layers on porcelain stoneware tiles following the double-fire procedure (650°C for 10 min) using different ZnO nanoparticles loadings (0.03, 0.10, 0.50, and 1.00 mg/cm²) The patterns of the three specimens with the highest concentrations of ZnO particles (0.10, 0.50, and 1.00 mg/cm²) confirm the presence of ZnO nanoparticles on the glaze surface. The working temperature of 650°C was in or close to the liquid-phase formation temperature range of the commercial frit. At these temperatures, the viscosity of the liquid phase was insufficient to absorb the nanoparticles, which remained fixed to the surface of the glaze. The peaks correspond to the hexagonal phase of ZnO (zincite, ICDD-PDF #36-1451), and no other crystalline phase was detected. The sharp and clear diffraction peaks indicate that the ZnO-glazed samples had a high crystalline quality, as previously reported (5151. Guzmán-Carrillo, H.; Rivera-Muñoz, E.; Cayetano-Castro, N.; Herrera-Basurto, R.; Barquera-Bibiano, Z.; Mercader-Trejo, F.; Manzano-Ramírez, A. (2017) Facile control of ZnO nanostructures by varying molar concentration of zinc acetate. Mater. Res. Bull. 90, 138-144. https://doi.org/10.1016/j.materresbull.2017.02.034.
). The intensity of the ZnO peaks increased as the concentration increased, and no ZnO peaks were detected at the lowest concentration of nanoparticles (0.03 mg/cm²). These results indicate that this double-fire process can be used to obtain glazed tiles with ZnO nanoparticles on their surfaces. The diffraction patterns also exhibited a peak at 21.9°, which is related to the crystallisation of cristobalite in the glaze from the commercial frit (see Figure 4c).

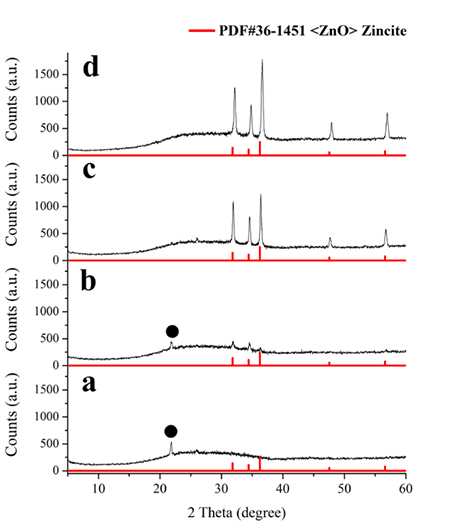

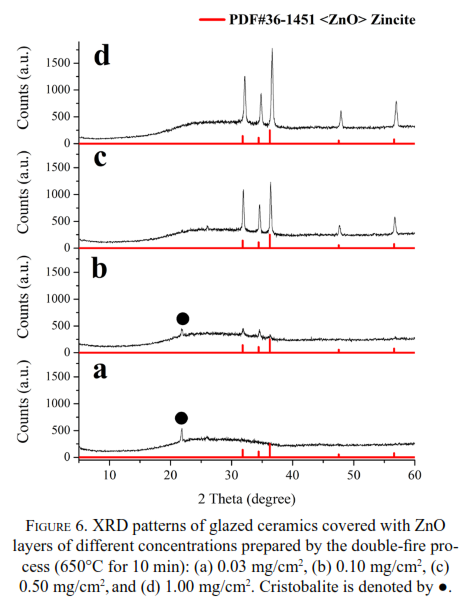

Figure 6.  XRD patterns of glazed ceramics covered with ZnO layers of different concentrations prepared by the double-fire process (650°C for 10 min): (a) 0.03 mg/cm², (b) 0.10 mg/cm², (c) 0.50 mg/cm², and (d) 1.00 mg/cm². Cristobalite is denoted by ●.

Figure 7 shows SEM images of the glazed samples fired at 650°C for 10 min using different concentrations of ZnO nanoparticles. The sample covered with the lowest concentration of ZnO nanoparticles (0.03 mg/cm²) did not have enough nanoparticles to create a uniform layer, and isolated clusters of nanoparticles were observed on the surface of the glaze. Conversely, good substrate coverage was obtained when the concentration of ZnO nanoparticles increased to between 0.10 and 1.00 mg/cm². The thickness of the layer was also affected by the ZnO deposition concentration; the use of a larger concentration created thicker layers. These results are in line with the XRD results described previously.

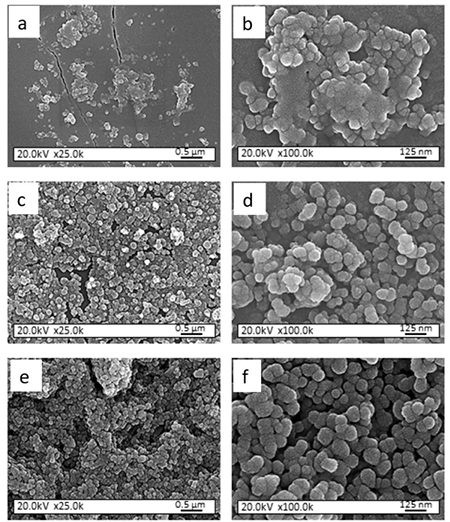

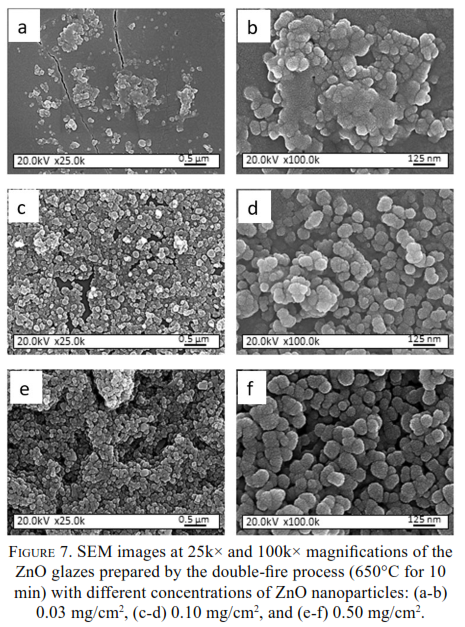

Figure 7.  SEM images at 25k× and 100k× magnifications of the ZnO glazes prepared by the double-fire process (650°C for 10 min) with different concentrations of ZnO nanoparticles: (a-b) 0.03 mg/cm², (c-d) 0.10 mg/cm², and (e-f) 0.50 mg/cm².

The size of the ZnO nanoparticles was measured using ImageJ image analysis software. Although the particles maintained their nanometric size, the thermal treatment at 650°C used to fix the ZnO layer on the glaze surface resulted in the growth of particles by coalescence, which was more pronounced at higher nanoparticle concentrations. The average size of the ZnO particles varied from 75 nm in the glaze prepared with the 0.1 mg/cm² solution to 100 nm in the ZnO layers deposited using the 0.5 and 1.0 mg/cm² solutions.

The absorbance spectra of the Rz-ink-coated samples fired at 650°C with different concentrations of ZnO nanoparticles at different UV irradiation times and the corresponding digital images of the ink test are shown in Figures 8a and 8b, respectively. The colour changes due to the disappearance of Rz (monitored using the normalised blue component in the RGB system, nBt) and the concomitant appearance of Rf (monitored using the normalised red component, nRt) are illustrated in Figure 8 (c). The spectral transition agrees with the digital images. The glaze without ZnO nanoparticles exhibited no photocatalytic conversion of the Rz ink. The sample with the lowest nanoparticle concentration (0.03 mg/cm²) showed a slight variation in the original Rz dye absorbance spectra. The digital images did not exhibit any noticeable changes in colour from blue to pink (Figure 8b), but using the image processing software, a small decrease in nBt and concomitant increase in nRt was detected (Figure 8c). Upon increasing the concentration of ZnO nanoparticles on the surface, an enhanced change in the Rz dye absorbance/colour was observed, which was more visible during the last minutes of UV-A irradiation. The sample with a concentration of 0.10 mg/cm² was able to partially transform Rz (608 nm, blue) into Rf (588 nm, pink) but did not reach the maximum (no plateau state). The colour of the Rz ink significantly changed as a function of irradiation time in samples with a higher concentration of nanoparticles (0.50 and 1 mg/cm²), reaching a plateau of maximum red colour (maximum transformation of Rz to Rf) in both cases. The sample coated with 1 mg/cm² even exhibited a subsequent decrease in blue and red intensity after 25 min of irradiation. This is because the Rz ink compound (blue) entirely transformed into Rf (pink), and thus the predominant process was bleaching of the ink (Rf to HRf (colourless)). The presence of pink colour or even the bleaching of the ink on the surface demonstrated the photocatalytic efficiency of the ZnO-coated glazed stoneware samples prepared by the double-fire route. These findings agree with the XRD and SEM characterisation results discussed previously, all of which indicate that the ZnO coating created using the lowest concentration of nanoparticles did not create a homogeneous layer, but the higher nanoparticle concentrations allowed the formation of homogeneous ZnO layers.

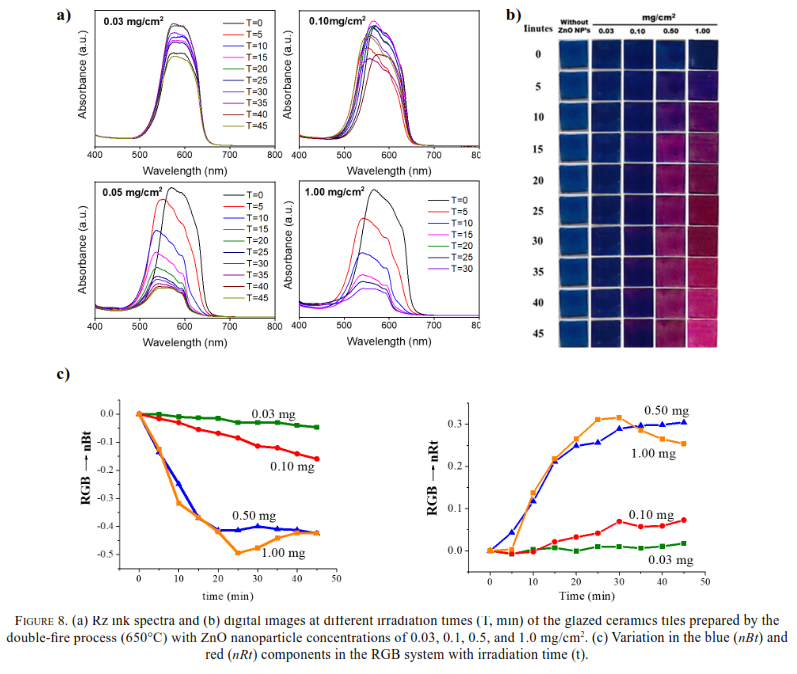

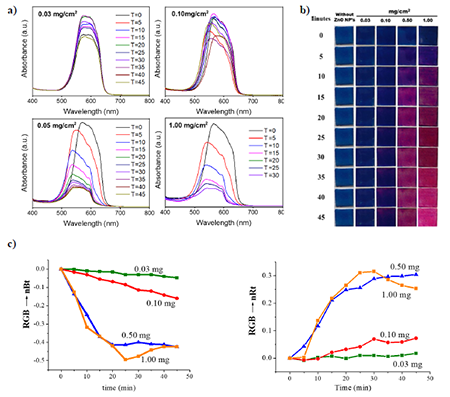

Figure 8.  (a) Rz ink spectra and (b) digital images at different irradiation times (T, min) of the glazed ceramics tiles prepared by the double-fire process (650°C) with ZnO nanoparticle concentrations of 0.03, 0.1, 0.5, and 1.0 mg/cm². (c) Variation in the blue (nBt) and red (nRt) components in the RGB system with irradiation time (t).

3.3.2 Effect of the thermal treatment temperature

 ⌅

The effect of the temperature of the thermal treatment (650, 700, and 800°C) used to fix the ZnO nanoparticles was studied on glazed samples covered with a layer of ZnO nanoparticles at a concentration of 1.00 mg/cm². Figure 9 shows the XRD patterns of the samples treated at the three different temperatures. The Bragg reflections related to ZnO decreased as the thermal treatment temperature increased. All the samples presented a characteristic broad halo in the range 2θ = 20°-38° related to the amorphous nature of the glaze. However, the intensity of this halo decreased as the fixing temperature increased owing to the development of new crystalline phases in the glaze. The XRD patterns of the samples treated at 700 and 800°C showed peaks related to cristobalite (SiO₂, ICDD-PDF #39-1425), tridymite (SiO₂, ICDD-PDF #42-1401), merwinite (Ca₃Mg(SiO₄)₂, ICDD-PDF #35-0591), cordierite (Mg₂Al₄Si₅O₁₈, ICDD-PDF #14-0249), and willemite (Zn₂(SiO₄), ICDD-PDF #14-0653). Simultaneously, as the temperature increased, the intensity of the peaks corresponding to zincite decreased considerably. This could be because as the temperature increased, the viscosity of the glaze decreased, and the ZnO nanoparticles could be embedded in the glaze in a similar manner to that observed in the single-fired glazes. This result was confirmed by the SEM images in Figure 10.

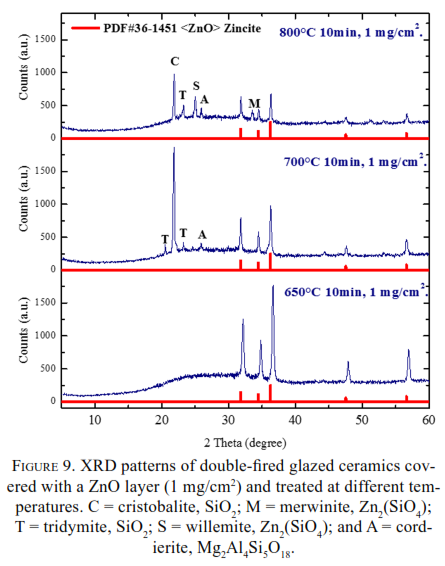

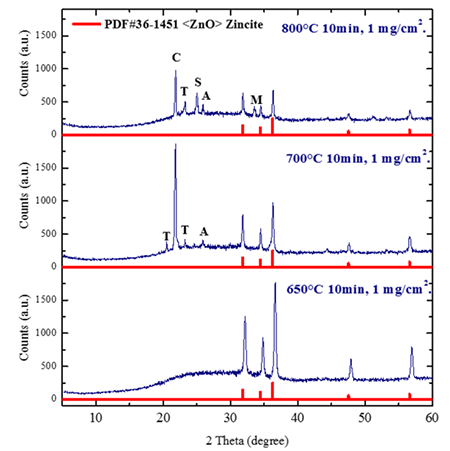

Figure 9.  XRD patterns of double-fired glazed ceramics covered with a ZnO layer (1 mg/cm²) and treated at different temperatures. C = cristobalite, SiO₂; M = merwinite, Zn₂(SiO₄); T = tridymite, SiO₂; S = willemite, Zn₂(SiO₄); and A = cordierite, Mg₂Al₄Si₅O₁₈.

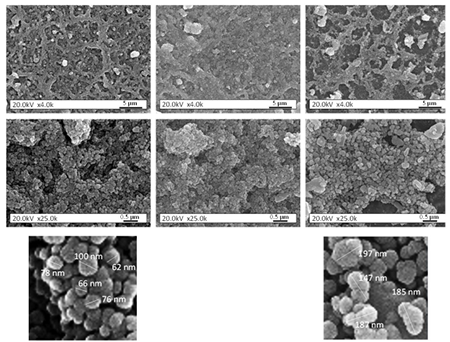

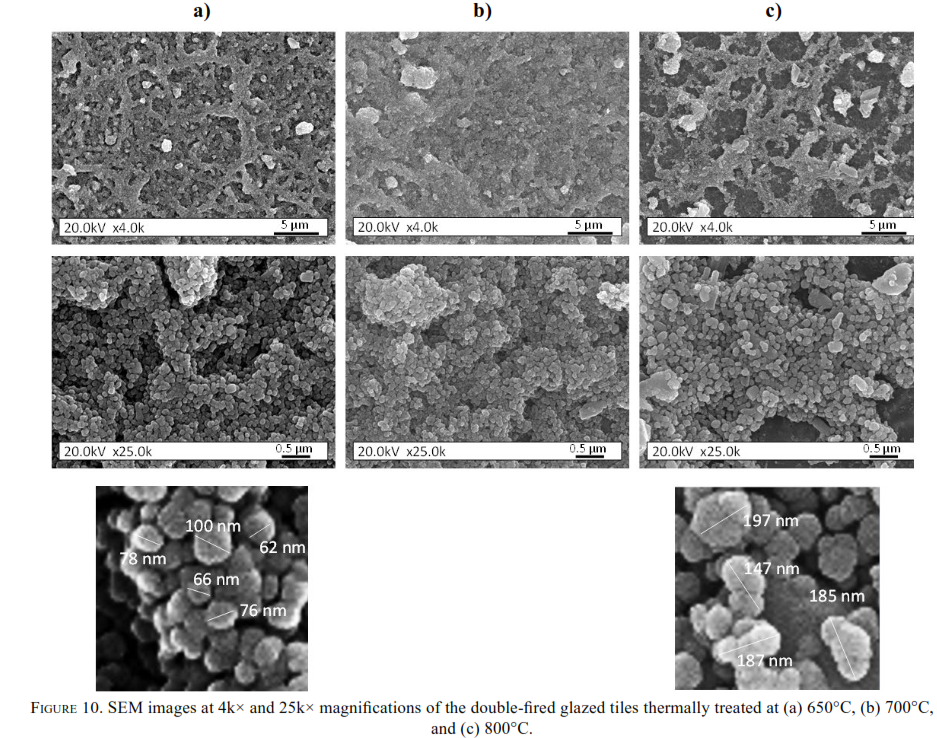

Figure 10.  SEM images at 4k× and 25k× magnifications of the double-fired glazed tiles thermally treated at (a) 650°C, (b) 700°C, and (c) 800°C.

Figure 10 shows SEM images of the glazes subjected to different fixing temperatures. In the sample prepared at 650°C, a good distribution and continuous layer of ZnO nanoparticles on the surface was observed, and the original glaze substrate was not detected. Nevertheless, although the final size of the ZnO nanoparticles increased considerably in the sample fixed at 800°C (from ~60-100 nm to 185-190 nm), the layer of nanoparticles on the surface was thinner, allowing the original glaze to show through. The sample treated at 700°C exhibited an intermediate appearance; the size of the nanoparticles was larger than that at 650°C, but the glaze appeared to be fully covered by the layer of nanoparticles.

The absorption spectra of the Rz ink as a function of UV irradiation time on the glazed tiles thermally treated at different temperatures and the corresponding digital images are shown in Figures 11a and 11b, respectively. As previously described, the colour change of the Rz ink was monitored using the normalised blue (nBt) and red (nRt) components in the RGB system (Figure 11c). A higher absorbance/colour transformation was observed in the sample treated at 650°C. Digital image analysis indicated a complete transformation from blue (Rz) to pink (Rf) and subsequent bleaching for the sample treated at 650°C. As the temperature increased, the Rz ink reaction was noticeably reduced. The superior photocatalytic performance of the samples treated at 650°C is ascribed to the larger quantity of nanoparticles on the surface of the glaze and the minimal nanoparticle growth by coalescence; it is well known that smaller particles have a larger surface area, and the properties of nanoparticles are better in the presence of superficial defects. When the temperature increased, the size of the nanoparticles increased, and the properties were modified. Therefore, the photocatalytic activity was significantly reduced at 700 and 800°C.

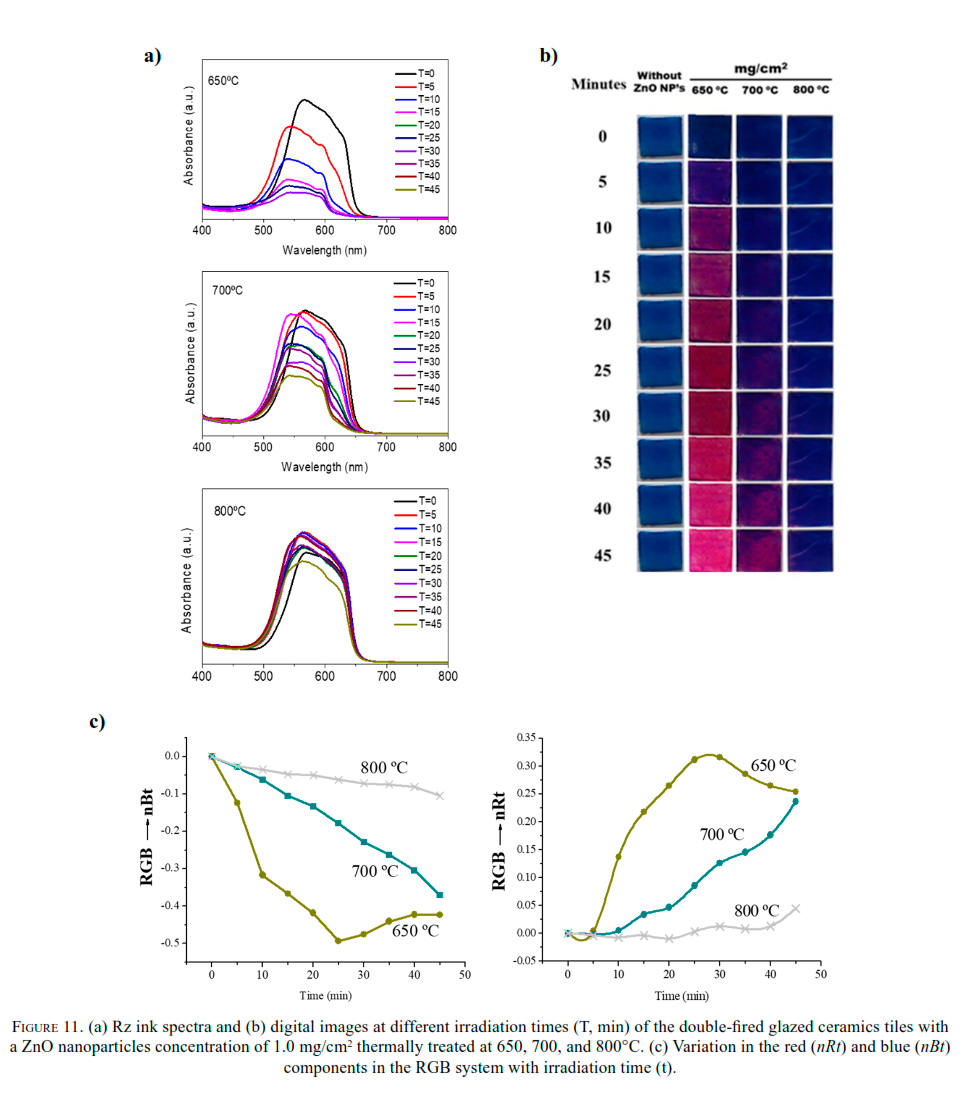

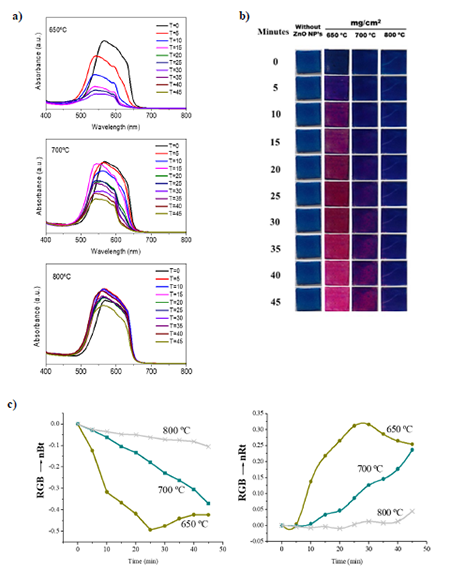

Figure 11.  (a) Rz ink spectra and (b) digital images at different irradiation times (T, min) of the double-fired glazed ceramics tiles with a ZnO nanoparticles concentration of 1.0 mg/cm² thermally treated at 650, 700, and 800°C. (c) Variation in the red (nRt) and blue (nBt) components in the RGB system with irradiation time (t).

3.3.3 Kinetic rate analysis

 ⌅

The apparent rate constant (k, min^-1) calculated from the variation in the red colour in the RGB system (nRt value) versus irradiation time (t) was used to evaluate the impact of the ZnO loading (mg/cm²) and the fixing temperature on the photocatalytic performance of the samples. The rate constant was calculated for the first reduction step of the reaction, from blue (Rz) to red (Rf), by considering the ink transformation as a first-order reaction (Figure 12). Equation [3] was used to determine the tau value (τ) from the exponential fit of the Rz transformation. By applying Equation [4], the kinetic rate (k) of the reaction was obtained. The exponential fit was performed using the first 25 min of irradiation time (first reduction stage of the blue Rz to pink Rf). The subsequent reduction stage to its colourless counterpart (HRf) was excluded. Table 2 shows the calculated values of tau, the kinetic rate, and R². The R² values were higher than 0.9, which indicates a good fit for the experimental data. A correlation was established between the processing conditions (temperature and concentration) and the calculated reaction rate, as shown in Figure 13. The data indicates that the negative effect of increasing the temperature was severe and proportional to the decrease in the Rz degradation rate. The ZnO loading was also a crucial parameter. Three different regions were identified. The first zone had high kinetic rates (samples with concentrations of 0.50 and 1.00 mg/cm² at 650°C), meaning the materials had high photocatalytic activity. The second zone had intermediate kinetic rates (sample with a concentration of 1.00 mg/cm² at 700°C), and the third zone had low or negligible kinetic rates (samples with the lowest concentrations, 0.03 and 0.10 mg/cm², at 650°C or with the highest fixing temperature, 800°C), which indicate poor photocatalytic activity.

$y=C\bullet e^{\left(- \frac{x}{\tau }\right)}$  [3]

$\tau =\frac{1}{k}$  [4]

TABLE 2.  Tau values and kinetic (rate) constants calculated for different concentrations of ZnO nanoparticles and different thermal treatment temperatures.

Sample	τ (RGB)	k Red (min-1)	R2
	RED
650°C, 10 min, 0.03 mg/cm2	16.003	0.06248828	0.9067
650°C, 10 min, 0.1 mg/cm2	14.239	0.07022965	0.9908
650°C, 10 min, 0.5 m/cm2	11.97	0.08354219	0.984
650°C, 10 min, 1 mg/cm2	9.659	0.10353039	0.9486
700°C, 10 min, 1 mg/cm2	12.768	0.0783208	0.9841
800°C, 10 min, 1 mg/cm2	13.811	0.07240605	0.9678

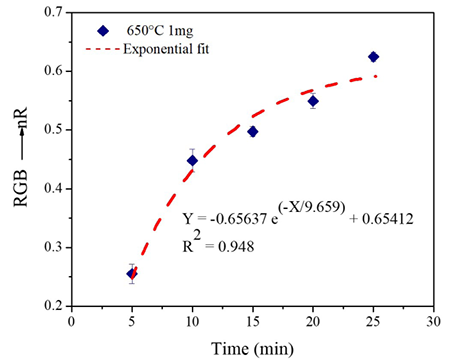

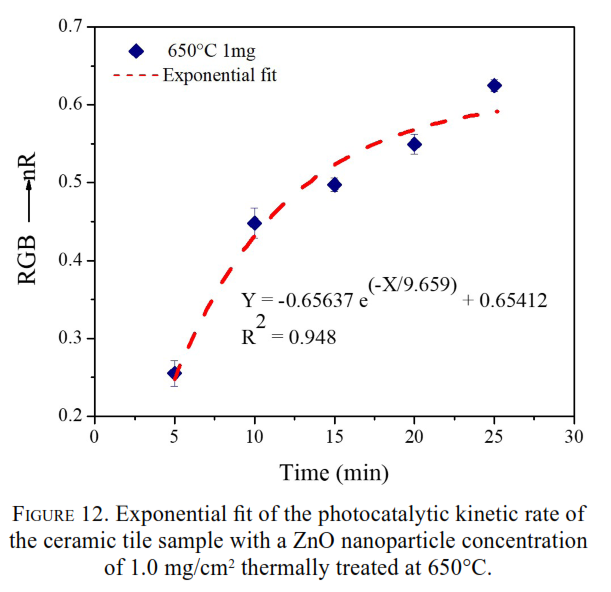

Figure 12.  Exponential fit of the photocatalytic kinetic rate of the ceramic tile sample with a ZnO nanoparticle concentration of 1.0 mg/cm² thermally treated at 650°C.

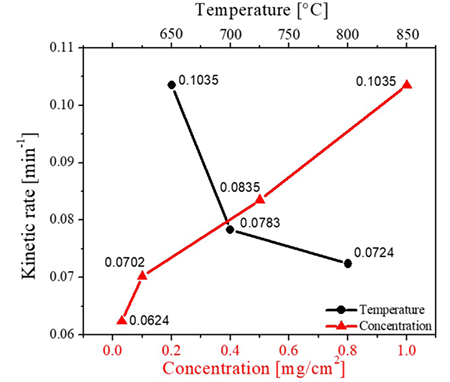

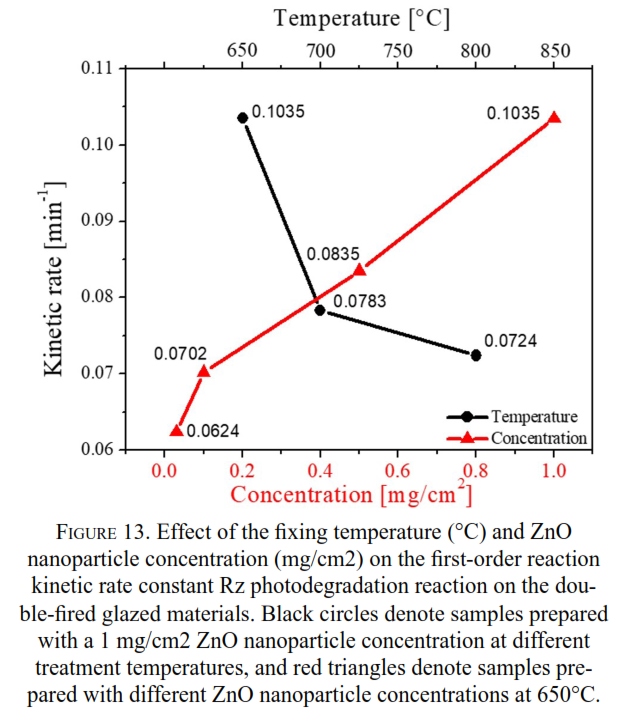

Figure 13.  Effect of the fixing temperature (°C) and ZnO nanoparticle concentration (mg/cm2) on the first-order reaction kinetic rate constant Rz photodegradation reaction on the double-fired glazed materials. Black circles denote samples prepared with a 1 mg/cm2 ZnO nanoparticle concentration at different treatment temperatures, and red triangles denote samples prepared with different ZnO nanoparticle concentrations at 650°C.

4. CONCLUSIONS

Photocatalytic glazed ceramic tiles were functionalised with ZnO nanoparticles using two different fast-firing routes. The single-fire process used ZnO nanospheres (10.0 wt.%, 30-40 nm particle size) premixed with a commercial frit, and the resulting tiles did not show any evidence of photocatalytic activity (measured by an Rz ink test). The ZnO nanoparticles melted, leaving the surface and becoming part of the glassy network during sintering at 1210°C. In the double-fire process, ZnO nanospheres were suspended in ethanol and subsequently deposited on the glazed porcelain stoneware by a spray-coating technique to obtain ceramic glazes with active ZnO nanoparticles on the surface. The optimal layers were processed at 650°C and with 1 mg/cm² of ZnO nanoparticles, which showed the fastest Rz ink transformation rate and thus superior photocatalytic performance. The enhanced activity was attributed to the good dispersion of ZnO nanoparticles on the layer formed on the surface of the glazed tiles. Furthermore, increasing the temperature of the thermal treatment (700 and 800°C) led to an increase in the size of the ZnO nanoparticles due to coalescence, which resulted in a decrease in the photocatalytic activity. This study deepens the understanding of the effect of the processing conditions on the photocatalytic activity of ZnO-coated photoactive ceramic materials and provides a new avenue for their fabrication.
