Experimental analysis and design strength models adopted by international guides for FRP-confined concrete columns subjected to axial compression

1. INTRODUCTION

⌅

Nowadays there is an ever increasing need to reuse/recycle existing means. This also occurs in the construction field where numerous ageing buildings and infrastructures need to be upgraded. Fiber reinforced polymers (FRPs) feature excellent properties for use as structural strengthening. Among others, the use of FRP jackets has proven to be an effective technique to improve the resistance and strain capacity of reinforced concrete (RC) members subjected to axial compression (11. Siddika, A.; Al Mamun, M.A.; Ferdous, W.; Alyousef, R. (2020) Performances, challenges and opportunities in strengthening reinforced concrete structures by using FRPs-A state-of-the-art review. Eng. Fail. Anal. 111, 104480. https://doi.org/10.1016/j.engfailanal.2020.104480.
). The grounding of this reinforcement technique by FRP confinement is widely known. In a column subjected to axial load, the concrete dilates laterally, and this expansion is restrained by the external FRP jacket that provides a confining pressure acting on the concrete core. Unlike steel, FRPs are linear elastic materials and confinement pressure can increase up to the failure point. Failure occurs, mainly, due to tensile failure of the fibers of the jacket. The axial stress-strain behavior of FRP-confined concrete follows an approximately bi-linear ascending response when sufficient amount of reinforcement is applied.

Numerous experimental studies have been carried out on the behavior of FRP-confined concrete, most of them on small circular section specimens (22. De Lorenzis, L.; Tepfers, R. (2003) Comparative study of models on confinement of concrete cylinders with fiber-reinforced polymer composites. J. Comp. Construc. 7, 219-237. https://doi.org/10.1061/(ASCE)1090-0268(2003)7:3(219).
-33. Ozbakkaloglu, T.; Lim, J.C. (2013) Axial compressive behavior of FRP-confined concrete: Experimental test database and a new design-oriented model. Compos. Part B. Eng. 55, 607-634. https://doi.org/10.1016/j.compositesb.2013.07.025.
). Although to a lesser extent, tests have also been performed on non-circular section specimens, where confinement is less efficient (4-84. Mirmiran, A.; Shahawy, M.; Samaan, M.; El Echary, H.; Mastrapa, J.C.; Pico, O. (1998) Effect of column parameters on FRP-confined concrete. J. Compos Constr. 2 [4], 175-185. https://doi.org/10.1061/(ASCE)1090-0268(1998)2:4(175).
5. Ilki, A.; Kumbasar, N. (2003) Compressive behaviour of carbon fibre composite jacketed concrete with circular and non-circular cross-sections. J. Earthq. Eng. 7 [03], 381-406. https://www.worldscientific.com/doi/10.1142/S1363246903001140.
6. Tao, Z.; Yu, Q.; Zhong, Y-Z. (2008) Compressive behaviour of CFRP-confined rectangular concrete columns. Mag. Concr. Res. 60 [10], 735-745. https://doi.org/10.1680/macr.2007.00115.
7. Pham, T.M.; Hadi, M.N. (2014) Stress prediction model for FRP confined rectangular concrete columns with rounded corners. J. Comp. Construc. 18 [1], 04013019. https://doi.org/10.1061/(ASCE)CC.1943-5614.0000407.
8. De Diego, A.; Arteaga, A.; Fernández, J. (2019) Strengthening of square concrete columns with composite materials. Investigation on the FRP jacket ultimate strain. Compos. Part B. Eng. 162, 454-460. https://doi.org/10.1016/j.compositesb.2019.01.017.
). The lower efficiency for rectangular cross-section is due to the confining action seem to be focused mainly at the corners rather than around the entire perimeter, meaning the confining stress field is non-uniform (9-149. Nisticò, N.; Monti, G. (2013) RC square sections confined by FRP: Analytical prediction of peak strength. Compos. Part B. Eng. 45 [1], 127-137. https://doi.org/10.1016/j.compositesb.2012.09.041.
10. Spoelstra, M.R.; Monti, G. (1999) FRP-confined concrete model. J. Comp. Construc. 3 [3], 143-150. https://doi.org/10.1061/(ASCE)1090-0268(1999)3:3(143).
11. Lin, G.; Teng, J.G. (2020) Advanced stress-strain model for FRP-confined concrete in square columns. Compos. Part B. Eng. 197, 108149. https://doi.org/10.1016/j.compositesb.2020.108149.
12. Shayanfar, J.; Barros, J.; Rezazadeh, M. (2021) Generalized Analysis-oriented model of FRP confined concrete circular columns. Compos. Struct. 270, 114026. https://doi.org/10.1016/j.compstruct.2021.114026.
13. American Concrete Institute (2017) ACI-440.2R-17, Guide for the design and construction of externally bonded FRP systems for strengthening concrete structures, Farmington Hills, Michigan.
14. Concrete Society (2012) TR55 Technical Report Design guidance for strengthening concrete structures using fibre composite materials, 3rd edition, UK.
).

Different theoretical models have been proposed, both analysis-oriented models and design-oriented ones. The analysis-oriented models predict the stress-strain behavior of FRP-confined concrete, generally, through an iterative process. Among others, the proposal for circular columns made by Spoelstra and Monti (1010. Spoelstra, M.R.; Monti, G. (1999) FRP-confined concrete model. J. Comp. Construc. 3 [3], 143-150. https://doi.org/10.1061/(ASCE)1090-0268(1999)3:3(143).
), certain approaches for square columns (1111. Lin, G.; Teng, J.G. (2020) Advanced stress-strain model for FRP-confined concrete in square columns. Compos. Part B. Eng. 197, 108149. https://doi.org/10.1016/j.compositesb.2020.108149.
) or the generalized model for FRP full and partial confinement arrangements (1212. Shayanfar, J.; Barros, J.; Rezazadeh, M. (2021) Generalized Analysis-oriented model of FRP confined concrete circular columns. Compos. Struct. 270, 114026. https://doi.org/10.1016/j.compstruct.2021.114026.
) are particularly noteworthy. While the analysis models are usually more accurate, their application tends to be laborious. The design-oriented models provide simple semi-empirical formulations to calculate the increase in strength and deformation of concrete as a function of the FRP confinement pressure and the properties of the unconfined concrete. They are usually based on approaches devised for circular columns, which are then modified by reduction factors related to the two key parameters: the effect of confinement in non-circular sections and the effective strain in the FRP jacket.

The design-oriented models are mostly adopted by the different international design recommendations (13-1613. American Concrete Institute (2017) ACI-440.2R-17, Guide for the design and construction of externally bonded FRP systems for strengthening concrete structures, Farmington Hills, Michigan.
14. Concrete Society (2012) TR55 Technical Report Design guidance for strengthening concrete structures using fibre composite materials, 3rd edition, UK.
15. Fédération internationale du béton (2019) fib Bulletin 90, Externally bonded FRP reinforcement for RC structures. fib, Lausanne, Switzerland.
16. National Research Council, Advisory Committee on Technical Recommendations for Construction (2013) CNR-DT200_R1. Guide for the design and construction of externally bonded FRP systems for strengthening existing structures, Italy.
). The Lam and Teng model of 2003 (1717. Lam, L.; Teng, J.G. (2003) Design-oriented stress-strain model for FRP-confined concrete in rectangular columns. J. Reinf. Plast. Compos. 22, 1149-1186. https://doi.org/10.1177/0731684403035429.
) is worthy of special mention and its approach was adopted with slight modifications by the ACI guide (1313. American Concrete Institute (2017) ACI-440.2R-17, Guide for the design and construction of externally bonded FRP systems for strengthening concrete structures, Farmington Hills, Michigan.
). Likewise, the proposal contained in the fib 90 guide (1515. Fédération internationale du béton (2019) fib Bulletin 90, Externally bonded FRP reinforcement for RC structures. fib, Lausanne, Switzerland.
) is somewhat similar. Teng et al. proposed two modified versions of this model in 2009 (1818. Teng, J.G.; Jiang, T.; Lam, L.; Luo, Y.Z. (2009) Refinement of a design-oriented stress-strain model for FRP-confined concrete. J. Compos. Constr. 13, 269-278. https://doi.org/10.1061/(ASCE)CC.1943-5614.0000012.
) based on new expressions for the ultimate axial strain and concrete strength in which the confinement stiffness and the jacket strain capacity are incorporated separately. This new approach was adopted by the latest revision of the Technical Report TR55 (1414. Concrete Society (2012) TR55 Technical Report Design guidance for strengthening concrete structures using fibre composite materials, 3rd edition, UK.
).

The most accepted “shape factor” to take into account the effect of the confinement in rectangular sections is based on the “arc effect”, taken from the one used in confinement by steel stirrups. However, there are other proposals such as the different patterns of the stress distribution over an FRP confined square section by Lin and Teng (1111. Lin, G.; Teng, J.G. (2020) Advanced stress-strain model for FRP-confined concrete in square columns. Compos. Part B. Eng. 197, 108149. https://doi.org/10.1016/j.compositesb.2020.108149.
) or the TR55 guide (1414. Concrete Society (2012) TR55 Technical Report Design guidance for strengthening concrete structures using fibre composite materials, 3rd edition, UK.
) that assumes conservative values for average confining stress, rather than explicitly defining an effectively confined area.

The effective strain in the FRP at failure is a key parameter. The ultimate strength of the confined concrete is closely related to the value of the reinforcement’s failure strain. Numerous experimental studies have shown that its value is somewhat lower than the ultimate strain obtained from standard tensile tests. For rectangular sections the effective ultimate strain can be affected by the corner radius or the side-aspect ratio (88. De Diego, A.; Arteaga, A.; Fernández, J. (2019) Strengthening of square concrete columns with composite materials. Investigation on the FRP jacket ultimate strain. Compos. Part B. Eng. 162, 454-460. https://doi.org/10.1016/j.compositesb.2019.01.017.
). Empirical values of the strain efficiency factor (ratio of the FRP effective strain to the ultimate tensile strain in uniaxial tension) are enormously divergent in the literature and there is no consensus in the design guidelines.

The work submitted belongs to the research project BIA 2016-80310-P, funded by AEI (Research State Agency of Spanish Ministry of Science and Innovation) and FEDER (European Regional Development Fund). The project aims to contribute to the research on the behavior of FRP confined reinforced concrete columns with square and rectangular cross-sections. To accomplish this, a theoretical and experimental study on the effect of confinement in intermediate-size columns with rectangular section has been carried out. The efficiency reduction due to the aspect ratio of the section has been investigated, along with the effective strain of the FRP jacket.

The study’s scope is limited to non-slender plain concrete columns strengthened with fully wrapping of carbon FRP to provide passive confinement. The fibers are applied orthogonally to the axis member with a proper overlap length following the indication of the FRP suppliers. It is valid solely for concrete columns subjected to axial compression loads (non-bending). The unconfined compressive strength of the concrete is not higher than 50 N/mm² and the ultimate confined concrete axial strain must be limited to 0.01, following the recommendations of the ACI and TR55 guides.

2. CONCRETE COMPRESSIVE STRENGTH ACCORDING TO FOUR INTERNATIONAL GUIDES

⌅

The approach of four international guides to predict the strength gain obtained in rectangular section concrete columns has been reviewed. These are namely: Technical Report ACI-440.2R-17 (1313. American Concrete Institute (2017) ACI-440.2R-17, Guide for the design and construction of externally bonded FRP systems for strengthening concrete structures, Farmington Hills, Michigan.
), TR55 (1414. Concrete Society (2012) TR55 Technical Report Design guidance for strengthening concrete structures using fibre composite materials, 3rd edition, UK.
), fib bulletin 90 (1515. Fédération internationale du béton (2019) fib Bulletin 90, Externally bonded FRP reinforcement for RC structures. fib, Lausanne, Switzerland.
) and CNR-DT200_R1 (1616. National Research Council, Advisory Committee on Technical Recommendations for Construction (2013) CNR-DT200_R1. Guide for the design and construction of externally bonded FRP systems for strengthening existing structures, Italy.
).

2.1 FRP jacket confinement

⌅

The improvement of concrete strength in the retrofitted column depends on the confinement that the FRP jacket can attain. The confinement is more efficient in circular cross-section members, where the FRP confining pressure (f_l) can be considered uniform over the entire perimeter (Figure 1).

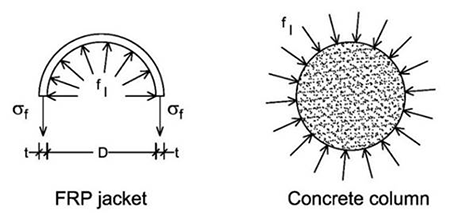

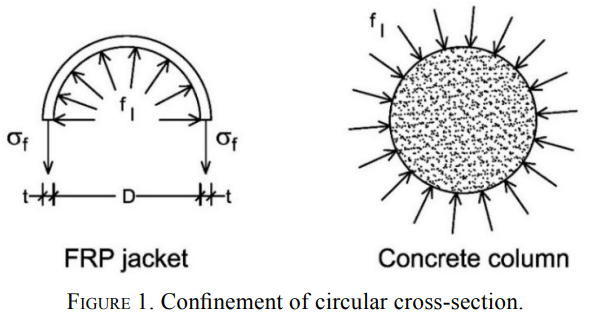

Figure 1. Confinement of circular cross-section.

The confining pressure exerted by the FRP jacket (f_l) can be evaluated using an equilibrium analysis similar to that employed to obtain the circumferential stresses in thin wall cylinders, Equation [1]. The FRP materials feature an elastic lineal behavior up to failure. The confining pressure can be expressed as a function of the modulus of elasticity (E_f), total thickness (t) and tensile strain of the FRP jacket, as well as the diameter (D) of the concrete column. Experimental studies have shown that the ultimate hoop rupture strain of the FRP (called effective strain in the FRP at failure) is lower than the ultimate tensile strain. The maximum lateral confinement (f_l) occurs for the FRP effective strain (ε_fe), Equation [2]

2 σ_{f} t = D f_{l}

[1]

f_{l} = \frac{2 E_{f} t ε_{f e}}{D}

[2]

For rectangular sections, the FRP confinement is non-uniform and is most concentrated at the corners. Moreover, the FRP effective strain is lower than the strain achieved in circular columns. The models, mostly based on approaches for circular sections, incorporate factors that take these circumstances into account. It should be noted that the confined concrete stress over a rectangular section is uneven due to the non-uniformity of the FRP confinement. The concrete strength is commonly accepted to be the average axial stress calculated as the axial load divided by the cross-sectional area for plain concrete columns.

2.2 Guides’ strength equations

⌅

The Table 1 outlines the equations to calculate the strength enhancement ratio (f_cc/f_c) in circular and non-circular cross-sections columns due to the FRP confinement in line with the four international guides (13-1613. American Concrete Institute (2017) ACI-440.2R-17, Guide for the design and construction of externally bonded FRP systems for strengthening concrete structures, Farmington Hills, Michigan.
14. Concrete Society (2012) TR55 Technical Report Design guidance for strengthening concrete structures using fibre composite materials, 3rd edition, UK.
15. Fédération internationale du béton (2019) fib Bulletin 90, Externally bonded FRP reinforcement for RC structures. fib, Lausanne, Switzerland.
16. National Research Council, Advisory Committee on Technical Recommendations for Construction (2013) CNR-DT200_R1. Guide for the design and construction of externally bonded FRP systems for strengthening existing structures, Italy.
). This formulation is dedicated to continuous FRP wrapping and fibers installed transversally to the longitudinal axis of the strengthened member. The equations are expressed using a common nomenclature to facilitate comparison. The partial safety factors of the materials considered by each guide must be added.

Table 1. Guide’s formulations for assessment of the strength enhancement ratio.

Guide	Effective confinement pressure	Strength enhancement ratio	Limitations
ACI-440.2R-17	$f_{l} = \frac{2 E_{f} {tk}_{ε} ε_{fu}}{D}$ Non-circular: $D = \sqrt{b^{2} + h^{2}}$	$\frac{f_{cc}}{f_{c}} = 1 + ψ_{f} 3.3 k_{a} \frac{f_{l}}{f_{c}}$ $(ψ_{f} = 0.95)$	$\frac{f_{l}}{f_{c}} \geq 0.08$ b, h ≤ 900 mm $(\frac{h}{b}) \leq 2$ $f_{c} ≤ 70 N / {mm}^{2}$
TR55	Circular: $ρ_{k} = \frac{2 E_{f} t}{(\frac{f_{c}}{ε_{c 2}}) D}$ Non-circular: $ρ_{k} = \frac{E_{f} t}{(\frac{f_{c}}{ε_{c 2}}) R_{c}}$ Both: $ρ_{ε} = \frac{k_{} ε_{fu}}{ε_{c 2}}$ ; $f_{c} = 0.85 f_{ck}$	$\frac{f_{cc}}{f_{c}} = 1 + 5.25 (k_{e} ρ_{k} - 0.01) ρ_{ε}$	$ρ_{k} \geq \frac{0.01}{k_{e}}$ $R_{c} \geq 20 mm$ $(\frac{h}{b}) \leq 1.5$
fib 90	$f_{l} = \frac{2 E_{f} {tk}_{ε} ε_{fu}}{D}$ $for n \geq 4 t = n^{0.85} t_{f}$ Non-circular: $D = \frac{2 b*h}{b + h}$	Circular: $\frac{f_{cc}}{f_{c}} = 1 + 3.3 \frac{f_{l}}{f_{c}}$ Non circular: $\frac{f_{cc}}{f_{c}} = 1 + 3.3 \propto_{n} {(\frac{b}{h})}^{2} \frac{f_{l}}{f_{c}}$	$\frac{f_{l}}{f_{c}} \geq 0.07$ $\propto_{n} {(\frac{b}{h})}^{2} \frac{f_{l}}{f_{c}} \geq 0.07$ $(\frac{h}{b}) \leq 2$
CNR-DT 200_R1	$f_{l, eff} = k_{H} \frac{1}{2} ρ_{f} E_{f} ε_{fe}$ Circular: $ρ_{f} = \frac{4 t}{D}$ Non-circular : $ρ_{f} = \frac{2 t (b + h)}{bh}$	$\frac{f_{cc}}{f_{c}} = 1 + 2.6 {(\frac{f_{l, eff}}{f_{c}})}^{2 / 3}$	$\frac{f_{l, eff}}{f_{c}} \geq 0.05$ $(\frac{h}{b}) \leq 2$ b, h ≤ 900 mm $R_{c} \geq 20 mm$

The Table 1 details the limitations contained in the guide for which the proposed equations are valid, such as the maximum value of the aspect ratio of the section (b/h) or the unconfined concrete strength (f_c). Furthermore, each guide proposes a minimum value of the confinement ratio (f_l/f_c) from which the FRP confinement would be effective. This means the strengthened columns would display bilinear stress-strain curves with a second ascending branch or, at least, that certain strength gain could be expected. For rectangular sections with an aspect ratio higher than 2 (ACI, fib and CNR), or even 1.5 (TR55), the effectiveness of the reinforcement is questioned. The reduction factors for rectangular section used by the guidelines are given in Table 2.

Table 2. Guide’s factors.

Guide	Strain efficiency factor	Shape factor
ACI-440.2R-17	$k_{ε} = 0.55$	Circular: $k_{a} = 1$ Non-circular: $k_{a} = \frac{A_{e}}{A_{c}} {(\frac{b}{h})}^{2}$ $\frac{A_{e}}{A_{c}} = \frac{1 - \frac{[(\frac{b}{h}) {(h - 2 R_{c})}^{2} + (\frac{h}{b}) ((b - 2 R_{c})^{2})]}{3 A_{c}} - ρ_{g}}{1 - ρ_{g}}$
TR 55	Circular: $k_{ε} = 0.6$ Non-circular: $k_{ε} = [0.46 (\frac{2 R_{c}}{h}) + 0.14]$	Circular: $k_{e} = 1$ Non-circular: $k_{e} = \frac{R_{C}}{b} (1 + \frac{b}{h})$
fib 90	$k_{ε} = \{\begin{matrix} 0.5 \frac{R_{c}}{50} (2 - \frac{R_{c}}{50}), R_{c} < 50 mm \\ 0.5 R_{c} \geq 50 mm \end{matrix}\}$ (Circular: R_c = D/2)	Non-circular: $\propto_{n} {(\frac{b}{h})}^{2}$ $\propto_{n} = \frac{A_{e}}{A_{c}} = 1 - \frac{{(b - 2 R_{c})}^{2} + {(h - 2 R_{c})}^{2}}{3 A_{c}}$
CNR-DT 200_R1	$ε_{fe} = min \{\frac{η_{a} ε_{fu}}{γ_{f}}; 0.004\}$	Circular: $k_{H} = 1$ Non-circular: $k_{H} = 1 - \frac{{(b - 2 R_{c})}^{2} + {(h - 2 R_{c})}^{2}}{3 A_{c}}$

The following nomenclature has been used in the tables:

Parameters related to the cross-section: whereby “D” is the diameter of circular section (for non-circular sections, D is the equivalent diameter); “b” is the width of rectangular section; “h” is the larger side of rectangular section; “R_c” is the corner radius of rectangular section; “A_c” is the gross area of the concrete section, “A_e” is the effectively confined concrete area and “ρ_g” is the longitudinal steel reinforcement ratio.
Parameters related to the FRP material: whereby “E_f” is the tensile modulus of the fiber; “t” is the total fiber thickness; “t_f” is the one ply fiber thickness; “n” is the number of FRP layers; “ε_fu” is the FRP ultimate strain, “ε_fe” is the effective strain in the FRP at failure, “f_l” is the confinement pressure exerted by the FRP jacket; “f_l,eff” is the effective confinement pressure by CNR and “ρ_f” is the volumetric ratio of FRP reinforcement.
Parameters related to the concrete: whereby “f_c” is the unconfined concrete axil compressive strength (for TR55, f_c=0.85f_ck, with f_ck equal to the characteristic concrete strength); “f_cc” is the confined concrete axial compressive strength; “f_cc/f_c” is the strength enhancement ratio and “ε_c2” is the axial strain of the unconfined concrete at the peak stress (usually, equal to 0.2% for f_c≤50 N/mm²).
Reduction factors: whereby “ψ_f” is an additional reduction coefficient contained in the ACI guide; “k_ε” is the FRP strain efficiency factor; “k_a” is the shape reduction factor considered in the ACI guide; “ρ_k” and “ρ_ε” are the confinement and strain ratio of TR55 guide, “α_n” is a shape coefficient used by fib 90; “k_e” is the effectiveness factor for FRP confined rectangular columns; “k_H” is the shape reduction factor for CNR guide and “η_a” is an environmental factor contained in the CNR guide.

2.3 Analysis of the strength predictions

⌅

For rectangular cross-sections, the confinement efficiency decreases as the aspect ratio of the section (b/h) increases. It is also influenced by the corner radius of the rectangular section (R_c), columns with a smaller radius appear to display a lower FRP strain efficiency factor (ε_fe/ε_fu). In addition, the confinement efficiency depends on the unconfined concrete strength (f_c), the effect of FRP jacket confinement is limited in high strength concrete. The guides assume all these known circumstances, although their proposals diverge, among others, on two key issues: the effect of confinement in non-circular sections and the FRP effective strain.

For the following analysis, the predictions by using the guides’ strength equations are calculated for sections with the same gross concrete area (A_c) and different cross-section shapes (circular, square and rectangular with b/h=1.5 and 2). The considered gross concrete area (A_c) is equal to 90000 mm² and the FRP jacket has t=0.39 mm, E_f=230000 N/mm² and ε_fu=0.17%. No partial safety factors have been used with regard to materials.

Figure 2 shows the strength enhancement ratio (f_cc/f_c) versus unconfined concrete strength (f_c) for the different section shapes by using the ACI-440_2R and fib 90 guides, considering a corner radius (R_c) of 30 mm (Figure 2a.) and 50 mm (Figure 2.b). As expected, the strength enhancement for the square section is lower than for the circular section, this difference being greater for the lower values of the unconfined concrete strength. For rectangular sections with an aspect ratio equal to 1.5 and 2, the strength improvement is somewhat smaller and requires a low unconfined concrete strength for the reinforcement to be effective. For the larger corner radius (R_c=50 mm), the prediction of the square section is closer to the circular section. For the square and rectangular sections, the ACI predictions are lower than fib ones, the difference being greater for the larger corner radius.

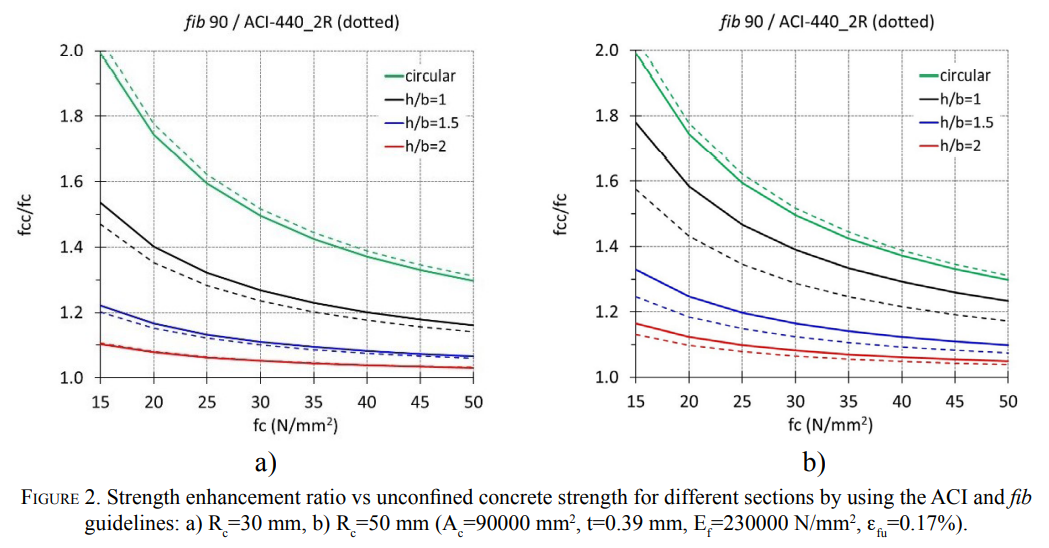

Figure 2. Strength enhancement ratio vs unconfined concrete strength for different sections by using the ACI and fib guidelines: a) R_c=30 mm, b) R_c=50 mm (A_c=90000 mm², t=0.39 mm, E_f=230000 N/mm², ε_fu=0.17%).

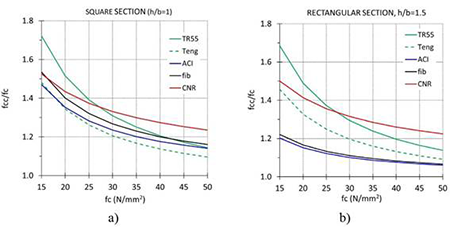

Figure 3 shows the strength enhancement ratio (f_cc/f_c) versus unconfined concrete strength (f_c) for the square and rectangular (h/b=1.5) sections calculated by the four guides. The sections have the equivalent area and the CFRP strengthening above mentioned. The corner radius considered is 30 mm.

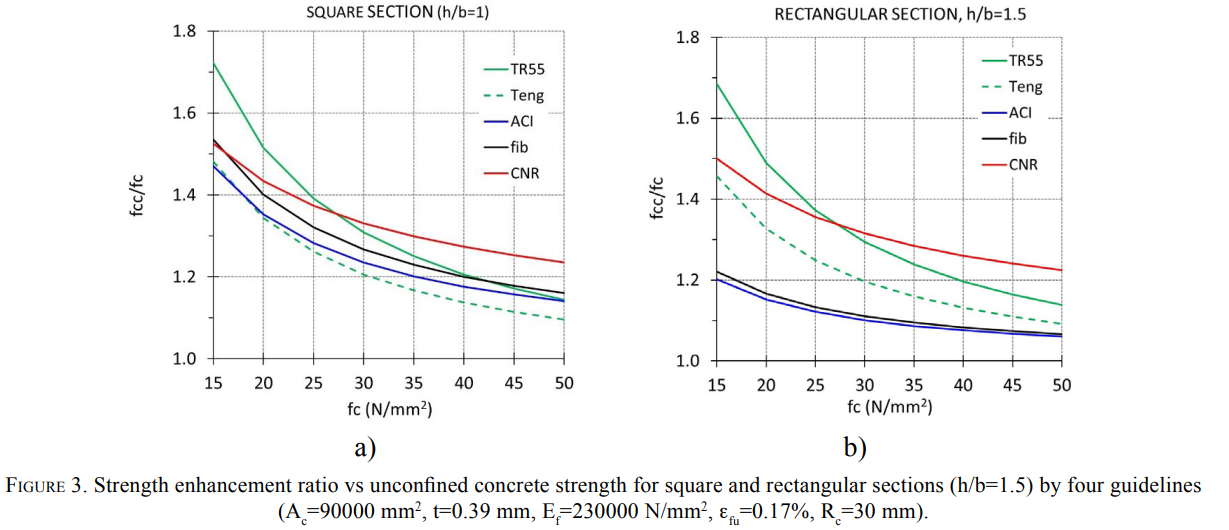

Figure 3. Strength enhancement ratio vs unconfined concrete strength for square and rectangular sections (h/b=1.5) by four guidelines (A_c=90000 mm², t=0.39 mm, E_f=230000 N/mm², ε_fu=0.17%, R_c=30 mm).

For square sections, the prediction is more consistent. For rectangular sections with an aspect ratio equal to 1.5, the ACI and fib guidelines are more conservative than the others. The strength equation of TR55 guide comes from the model of Teng et al. (1818. Teng, J.G.; Jiang, T.; Lam, L.; Luo, Y.Z. (2009) Refinement of a design-oriented stress-strain model for FRP-confined concrete. J. Compos. Constr. 13, 269-278. https://doi.org/10.1061/(ASCE)CC.1943-5614.0000012.
) but this guide uses a numerical coefficient of 5.5 instead of the original value of 3.5. In the graph the strength prediction of the model (1818. Teng, J.G.; Jiang, T.; Lam, L.; Luo, Y.Z. (2009) Refinement of a design-oriented stress-strain model for FRP-confined concrete. J. Compos. Constr. 13, 269-278. https://doi.org/10.1061/(ASCE)CC.1943-5614.0000012.
) is plotted in dot line, which is more in line with the rest of the guides, especially for square sections.

The equivalent diameter for rectangular cross-section considered by the guides differs. ACI adheres to Lam and Teng’s proposal (1717. Lam, L.; Teng, J.G. (2003) Design-oriented stress-strain model for FRP-confined concrete in rectangular columns. J. Reinf. Plast. Compos. 22, 1149-1186. https://doi.org/10.1177/0731684403035429.
) and uses the diameter of the equivalent circle that circumscribes the rectangular section. The fib guide uses the diagonal of a circular section that has the same FRP volumetric ratio as the original rectangular section (CNR follows the same approach). Both parameters are related to the shape of the section and the ratio of the ACI equivalent diameter to the fib one is constant for each aspect ratio (b/h). The ACI equivalent diameter is higher and this has a bearing on ACI strength predictions being lower.

2.4 Shape factor

⌅

Certain international guides use a shape factor (Table 2) calculated from the ratio of the effective confinement area and the gross area of the column cross-section (A_e/A_c). The CNR and fib 90 guides follow the same approach, assuming that only the concrete within the area cordoned off using four parabolas that intersect the edges at 45º is effectively confined, Figure 4.a. The ACI guide uses a modified version, in which the initial slopes of the parabolas are the same of the adjacent diagonal lines, Figure 4.b. This modification prevents the ratio (A_e/A_c) becoming negative if the aspect ratio (h/b) is greater than 2.6 and the corners are not rounded. The coefficient “k_e” proposed by TR55 guide is not related to this approach, this code assumes a simpler average confining stress approach, rather than explicitly defining an effectively confined area.

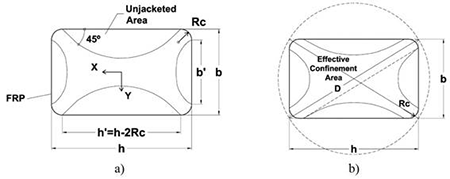

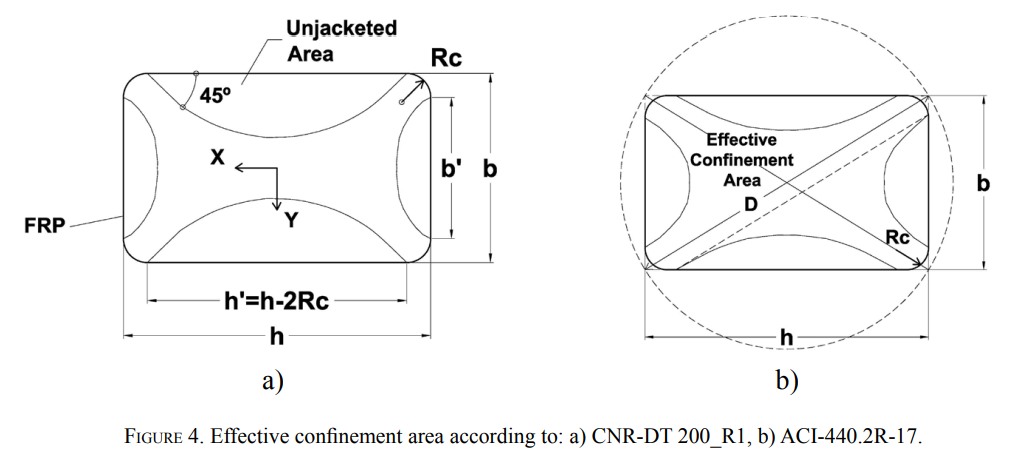

Figure 4. Effective confinement area according to: a) CNR-DT 200_R1, b) ACI-440.2R-17.

The expressions match in square sections without steel longitudinal reinforcement. However, for rectangular ones with an aspect ratio equal to 1.5 and 2, the values of (A_e/A_c) calculated with fib (and CNR) guidelines are more conservative, Figure 5.a. However, the shape factors of fib and ACI guides are obtained by multiplying the ratio (A_e/A_c) by the square of the aspect ratio (b/h). As can be seen in Figure 5.b, these shape factors are ultimately similar, with the fib shape factor being slightly more conservative. For rectangular sections, the action of incorporating the factor (b/h)², minimizes the incidence of the different calculation of (A_e/A_c).

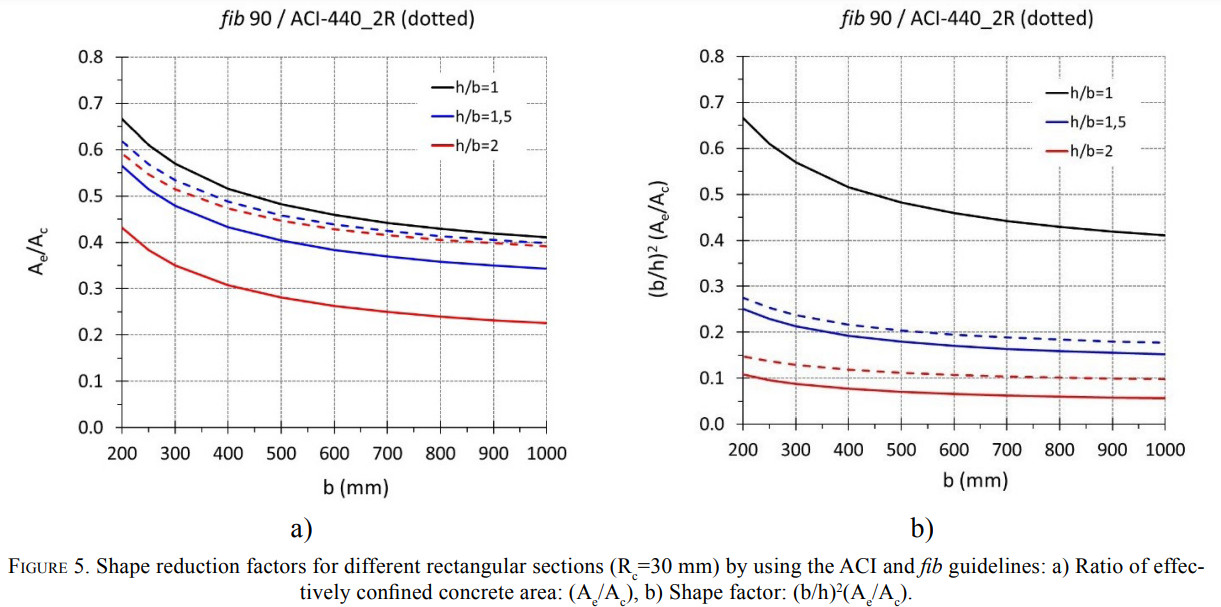

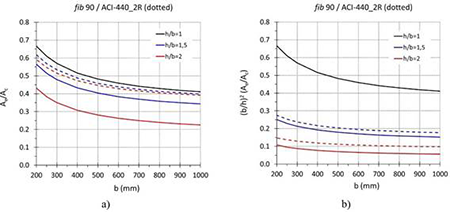

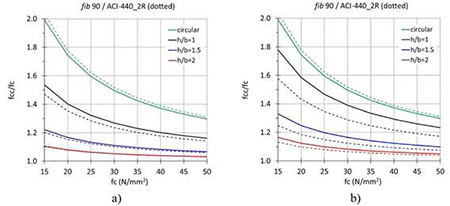

Figure 5. Shape reduction factors for different rectangular sections (R_c=30 mm) by using the ACI and fib guidelines: a) Ratio of effectively confined concrete area: (A_e/A_c), b) Shape factor: (b/h)²(A_e/A_c).

In collaboration with the Technological Institute of Aragon (ITAINNOVA), a numerical model based on the finite element method (FEM) has been carried out via Abaqus software. Circular and rectangular columns were modelled to study the incidence of different variables such as the amount of FRP reinforcement or the corner radius. The FEM model allows us to study the non-uniform confinement in the rectangular section. Figure 6 shows the stress distribution in circular and rectangular cross-section. The stress distribution for rectangular turns out to be similar to that proposed by the guides. However, the graph shows confinement stresses, although lower, outside the effectively confined area, not considered by the guides for reasons of simplicity (1111. Lin, G.; Teng, J.G. (2020) Advanced stress-strain model for FRP-confined concrete in square columns. Compos. Part B. Eng. 197, 108149. https://doi.org/10.1016/j.compositesb.2020.108149.
).

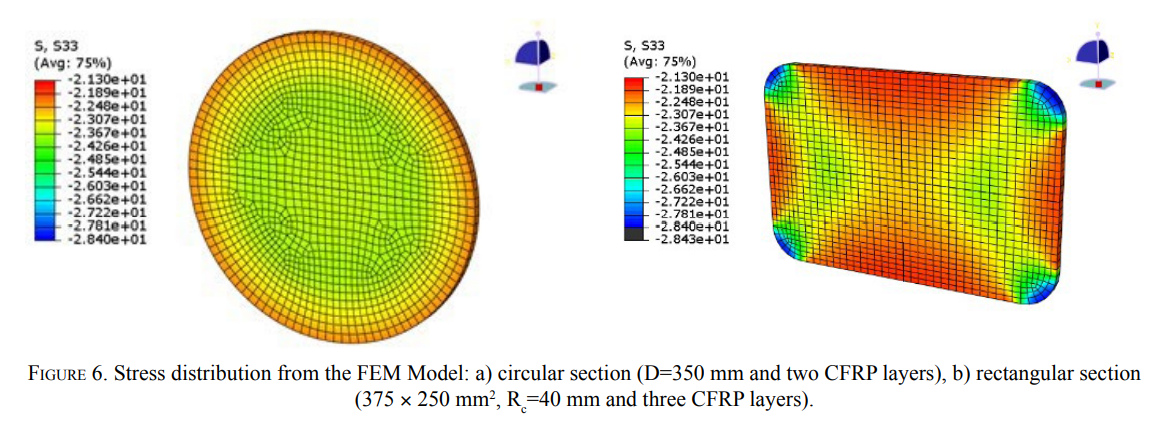

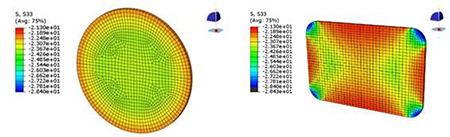

Figure 6. Stress distribution from the FEM Model: a) circular section (D=350 mm and two CFRP layers), b) rectangular section (375 × 250 mm², R_c=40 mm and three CFRP layers).

2.5 Strain efficiency factor

⌅

The FRP effective strain (ε_fe) achieved in axial load tests are much lower than the ultimate tensile strain obtained using the tensile coupon test method (ε_fu). There are a number of possible reasons for this, such as multiaxial stress-state, stress concentrations due to concrete failure, or a curved shape of the jacket, especially at corners with a low radius for square or rectangular columns.

There is no consensus on the design guidelines regarding the strain efficiency factor value (ε_fe/ε_fu). ACI-440.2R-17 proposes a factor equal to 0.55, for both circular and rectangular sections, based on the average value reported by several researchers. fib Bulletin 90 proposes a strain efficiency factor equal to 0.5 for circular sections, and lower values, depending on the radius of the corners, for rectangular columns. TR55 also recommends lower values for the strain factor in rectangular sections, depending on the corner radius and the longest side of the section. CNR-DT200_R1 does not distinguish between circular and rectangular sections and, in practice, limits the FRP effective strain to 0.004 in order to avoid excessive cracking on the concrete.

2.6 Ultimate axial strain of the confined concrete

⌅

The guides propose another set of equations to calculate the ultimate concrete axial strain for the FRP strengthened column. The experimental studies have shown it is possible to obtain significant increases in strain capacity. However, for practical applications, high values of concrete axial strains should be avoided, since, even if the FRP jacket is far from failure, the internal concrete will be highly cracked and the column would not be able to withstand transversal forces. Certain design guides (ACI, TR55) recommend considering a maximum value of the ultimate concrete strain of 0.01.

3. CIRCULAR CONCRETE SPECIMENS STRENGTHENED WITH CFRP JACKETS

⌅

The research project includes tests, mostly, on square and rectangular concrete specimens strengthened with carbon FRP jackets, Figure 7. Some circular specimens were also tested; these are detailed in this section.

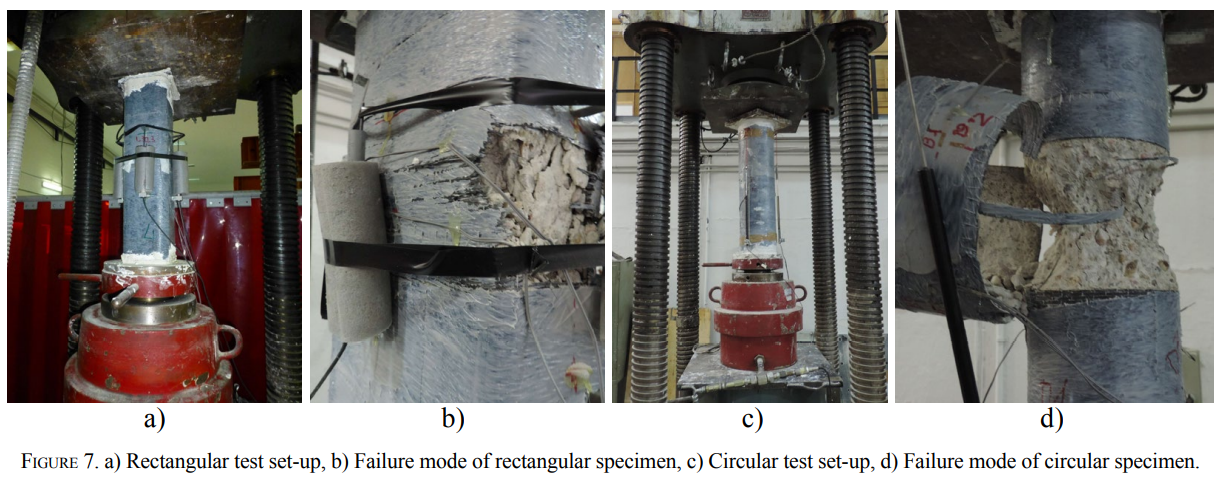

Figure 7. a) Rectangular test set-up, b) Failure mode of rectangular specimen, c) Circular test set-up, d) Failure mode of circular specimen.

3.1 Circular tests of the research project

⌅

Four plain concrete specimens with circular cross-section have been tested under centered compression. They were strengthened applying one ply of unidirectional carbon-fiber reinforced polymer (CFRP) along the full height using the hand lay-up technique.

The CFRP had a nominal fiber thickness of 0.129 mm per ply and the following mechanical properties: a mean value for ultimate strength of 4161 N/mm², a tensile modulus of 236918 N/mm² (E_f) and a mean value for ultimate strain of 0.01776 (ε_fu). The fibers were placed orthogonally to the axis member. The CFRP overlap length was 100 mm.

Eight electrical strain gauges were glued to the FRP jacket on the mid-height, four arranged axially and the other four, laterally. The axial deformations were also measured with four linear variable-displacement transducers (LVDTs). The load, strains and LVDT displacements were monitored using an electronic data acquisition system. Axial compression tests were conducted using a hydraulic jack.

The Table 3 shows the main tests parameters, such as: the diameter specimen (D); the height (H); the total fiber thickness (t) and the unconfined concrete strength (f_c), obtained from cylinders that were cast as the same time as the specimen. The table also includes the experimental results: the confined concrete strength (f_cc) or maximum concrete axial stress at the peak of strain-stress curve; the strength enhancement ratio (f_cc/f_c); the CFRP jacket hoop rupture (ε_fe) and the strain efficiency factor (ε_fe/ε_fu).

Table 3. Main parameters and test results of circular specimens tested.

	D [mm]	H [mm]	t [mm]	f_c [N/mm²]	f_cc [N/mm²]	f_cc/f_c	ε_fe [% ]	ε_fe/ε_fu
1a	140	500	0.129	20.40	63.05	3.09	1.25	0.70
1b	140	500	0.129	20.40	56.34	2.76	1.40	0.79
2a	220	800	0.129	20.98	45.5	2.17	1.73	0.97
2b	220	800	0.129	20.98	43.7	2.08	1.35	0.76

The CFRP jacket is highly efficient for circular cross-section concrete elements. The strength enhancement ratio (f_cc/f_c) with only one CFRP ply has varied from three (for one of the specimens with the smallest diameter) to two. The failure mode of the specimens was largely due to the tensile rupture of the CFRP strengthening.

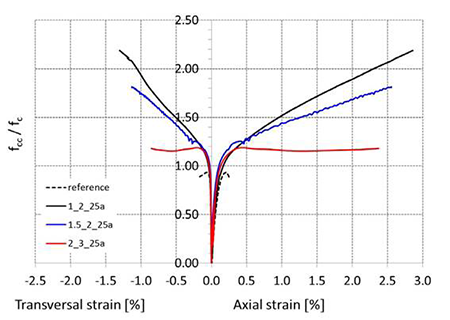

The Figure 8 shows the axial stress vs axial and lateral strain curves, grouped by specimens with the same height. The tests display monotonically ascending curves, typical of “well-confined” concrete.

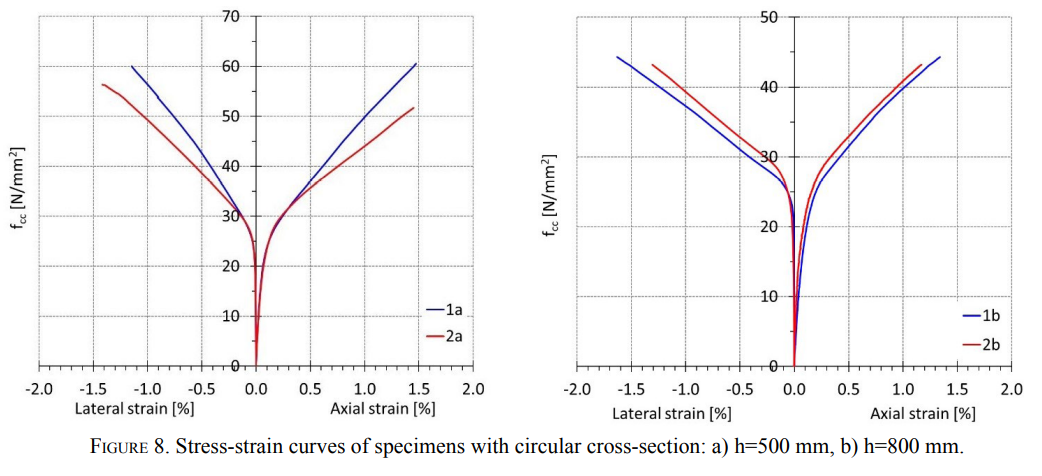

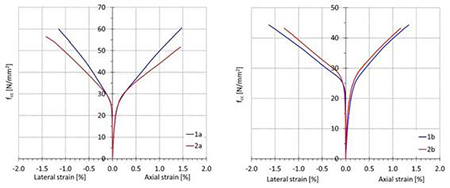

Figure 8. Stress-strain curves of specimens with circular cross-section: a) h=500 mm, b) h=800 mm.

3.2 Strain efficiency factor for circular cross section elements strengthened with CFRP jackets

⌅

The ultimate strain of the CFRP jacket in the hoop direction, or FRP effective strain, for each test is displayed in Table 3. It is the mean value of the measurements from the lateral strain gauges, omitting those glued on the overlap region as these are not representative. The mean value of the strain efficiency factor (ε _fe/ε _fu) for the two specimens measuring 500 mm in height is 0.75. For the two specimens measuring 800 mm in height is 0.87. The mean strain efficiency factor of the four specimens has resulted of 0.81.

The results have been compared to others from CFRP strengthened cylindrical specimens that are included in the database compiled by Ozbakkaloglu and Lim (33. Ozbakkaloglu, T.; Lim, J.C. (2013) Axial compressive behavior of FRP-confined concrete: Experimental test database and a new design-oriented model. Compos. Part B. Eng. 55, 607-634. https://doi.org/10.1016/j.compositesb.2013.07.025.
). To perform this task, intermediate size specimens have been chosen (height from 450 mm to 762 mm), eliminating those with a strain efficiency factor (ε_fe/ε_fu) greater than one. The Table 4 outlines the main parameters and test results of the database tests.

Table 4. Tests on circular specimens from database compiled by Ozbakkaloglu and Lim ().

	D [mm]	H [mm]	t [mm]	E_f [N/mm²]	ε_fu [% ]	f_c [N/mm²]	f_cc [N/mm²]	f_cc/f_c	ε_fe [% ]	ε_fe/ε_fu
Carey et al.	254	762	1.00	72500	1.21	38.90	54.80	1.41	1.00	0.83
Liang et al.	300	600	0.50	242000	1.48	24.50	58.80	2.40	0.98	0.66
Liang et al.	300	600	0.50	242000	1.48	24.50	59.40	2.42	1.33	0.90
Liang et al.	300	600	0.50	242000	1.48	24.50	60.60	2.47	1.22	0.82
Smith et al.	250	500	0.26	210520	1.51	35.00	50.00	1.43	0.89	0.59
Smith et al.	250	500	0.26	210520	1.51	35.00	57.00	1.63	1.22	0.81
Smith et al.	250	500	0.26	210520	1.51	35.00	59.00	1.69	1.31	0.87
Smith et al.	250	500	0.26	210520	1.51	35.00	56.00	1.60	1.15	0.76
Song et al.	150	450	0.13	237000	1.72	22.40	45.70	2.04	1.12	0.65
Song et al.	150	450	0.26	237000	1.72	22.40	65.40	2.92	1.18	0.69
Song et al.	150	450	0.39	237000	1.72	22.40	85.00	3.79	1.21	0.70
Song et al.	150	450	0.13	237000	1.72	40.90	57.10	1.40	1.24	0.72
Song et al.	150	450	0.26	237000	1.72	40.90	78.40	1.92	1.07	0.62
Song et al.	150	450	0.39	237000	1.72	40.90	100.40	2.45	1.16	0.68
Akogbe et al.	300	600	0.50	242000	1.34	24.50	58.80	2.40	-	-
Akogbe et al.	300	600	0.50	242000	1.34	24.50	59.40	2.42	-	-
Akogbe et al.	300	600	0.50	242000	1.34	24.50	63.00	2.57	-	-
Akogbe et al.	300	600	0.50	242000	1.34	24.50	60.60	2.47	-	-
Hosotani et al.	200	600	0.44	230000	1.51	41.70	93.00	2.23	-	-
Ongpeng	180	500	0.13	231000	1.58	27.00	37.23	1.38	-	-
Ongpeng	180	500	0.26	231000	1.58	27.00	51.18	1.90	-	-
Shehata et al.	225	450	0.17	235000	1.51	34.00	43.70	1.29	-	-
Shehata et al.	225	450	0.33	235000	1.51	34.00	62.90	1.85	-	-
Thériault et al.	304	608	0.66	230000	1.51	37.00	66.00	1.78	-	-
Yan et al.	305	610	1.00	86900	1.40	15.00	37.80	2.52	-	-
Youssef et al.	406	813	5.84	103840	1.20	29.40	125.80	4.28	-	-
Youssef et al.	406	813	5.84	103840	1.20	29.40	126.39	4.30	-	-
Youssef et al.	406	813	5.84	103840	1.20	29.40	127.01	4.32	-	-
Youssef et al.	406	813	3.50	103840	1.20	29.40	83.05	2.82	-	-
Youssef et al.	406	813	3.50	103840	1.20	29.40	88.68	3.02	-	-
Youssef et al.	406	813	2.34	103840	1.20	29.40	64.78	2.20	-	-
Youssef et al.	406	813	2.34	103840	1.20	29.40	62.09	2.11	-	-
Youssef et al.	406	813	2.34	103840	1.20	29.40	67.47	2.29	-	-
Youssef et al.	406	813	1.17	103840	1.20	29.40	45.95	1.56	-	-
Youssef et al.	406	813	1.17	103840	1.20	29.40	45.78	1.56	-	-

For the database tests containing information on the ultimate CFRP jacket hoop strain, the mean value of the strain efficiency factor is 0.74. Under laboratory conditions, the FRP jacket in circular specimens tested under perfectly centered axial load can reach extremely high values of lateral strain, still these circumstances may not occur in real applications. For this reason, two tests with an excessive strain efficiency factor (equal or higher than 0.90) have been eliminated. The mean value of the strain efficiency factor of the available circular tests (Tables 3-4 except the two specimens with a strain efficiency factor equal or higher than 0.90) results 0.73.

In this paper, a value for the strain efficiency factor equal to 0.73 is used to ascertain the calculation of compressive strength in CFRP confined concrete columns with circular cross sections.

3.3 Confined concrete strength in circular cross-section elements strengthened with CFRP jackets

⌅

The results of the available circular tests (Tables 3-4 except the two specimens with a strain efficiency factor equal or higher than 0.90) were compared with the theoretical predictions by the four international guides (13-1613. American Concrete Institute (2017) ACI-440.2R-17, Guide for the design and construction of externally bonded FRP systems for strengthening concrete structures, Farmington Hills, Michigan.
14. Concrete Society (2012) TR55 Technical Report Design guidance for strengthening concrete structures using fibre composite materials, 3rd edition, UK.
15. Fédération internationale du béton (2019) fib Bulletin 90, Externally bonded FRP reinforcement for RC structures. fib, Lausanne, Switzerland.
16. National Research Council, Advisory Committee on Technical Recommendations for Construction (2013) CNR-DT200_R1. Guide for the design and construction of externally bonded FRP systems for strengthening existing structures, Italy.
). There are 39 experimental results, 4 belonging to the research project and 35 to the database studies.

The graphs with the comparison between the experimental results and the theoretical predictions by each guide are shown in Figure 9, indicating the root mean square error (RMSE) that is only interpreted comparatively. No partial safety factors of materials have been used to obtain the predictions.

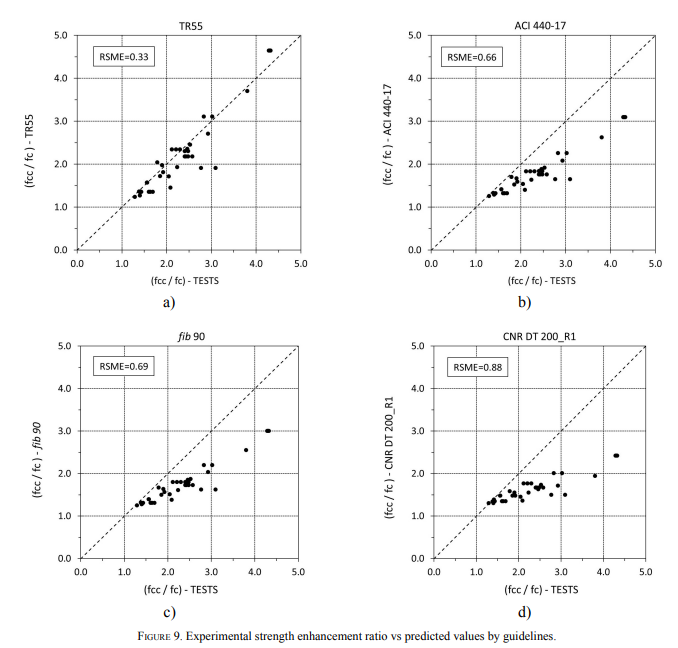

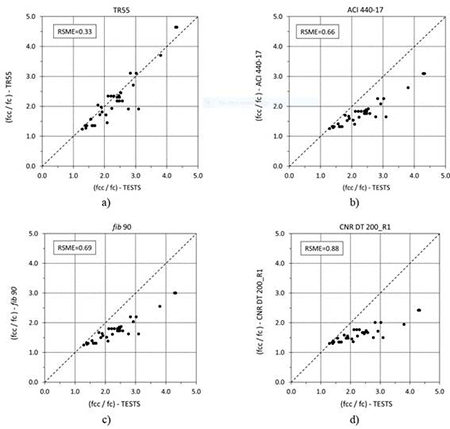

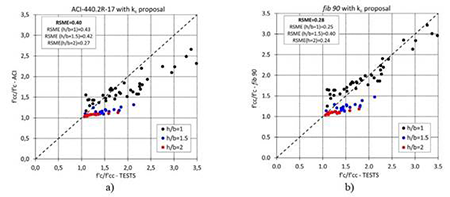

Figure 9. Experimental strength enhancement ratio vs predicted values by guidelines.

The predictions made by using TR55 equations are more in line with the general trend followed by the experimental results. The ACI and fib guides predictions offer reasonable matches, with all theoretical predictions being equal or lower than experimental results. The CNR guide predictions diverged slightly further from the tests results.

Equation [3] displays the general form of the strength equation by the fib 90 and ACI-400_2R guides.

\frac{f_{c c}}{f_{c}} = 1 + α_{} k_{S} k_{ε} \frac{f_{l u}}{f_{c}}

[3]

{w i t h f}_{l u} = \frac{2 E_{f} t ε_{f u}}{D}

[4]

The value of the numerical coefficient “α” can be obtained by using the strain efficiency factor estimated as 0.73 for the available circular tests. The reduction strain factor (k_ε) and the shape factor (k_S) would be equal to one (circular section). A mean value of the coefficient “α” equal to 4.0 and a characteristic value of 2.3 (5% fractile) has thus been obtained. Figure 10 shows the graphs with the comparison between the experimental results and the predictions by means of the Equation [3] and the above values of “α”.

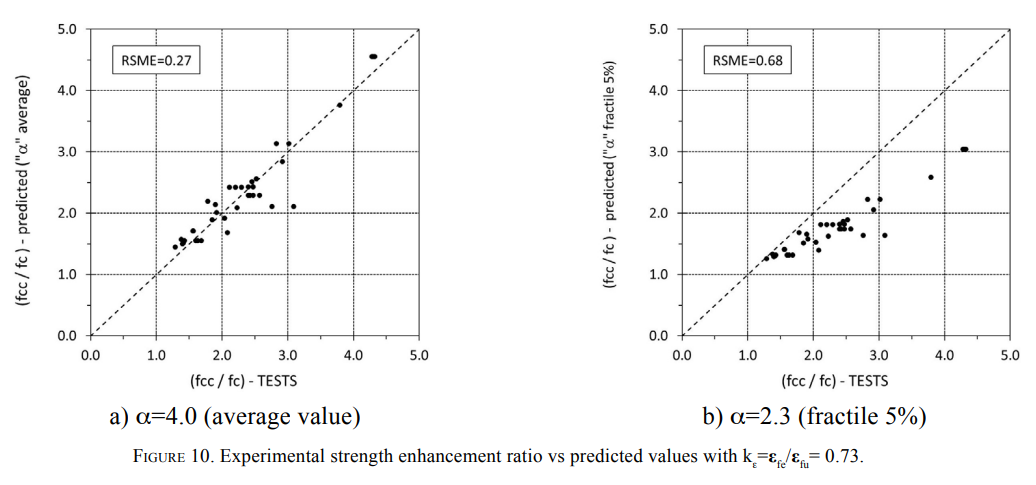

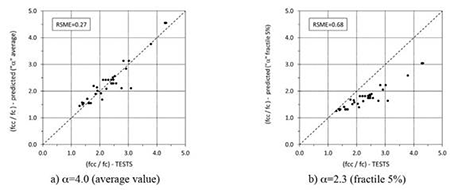

Figure 10. Experimental strength enhancement ratio vs predicted values with k_ε=ε _fe/ε _fu= 0.73.

The proposed strain efficiency factor for circular columns (equal to 0.73) with the characteristic value of the coefficient “α” (equal to 2.3) unearths a similar accuracy to fib predictions. Using the mean value of the coefficient “α” (equal to 4), the adjustment is slightly better than in the TR55 guide.

4. RECTANGULAR CONCRETE SPECIMENS STRENGTHENED WITH CFRP JACKETS

⌅

4.1 Square and rectangular tests of the research project

⌅

Project BIA 2016-80310 includes a large experimental campaign on intermediate-size plain concrete specimens with rectangular cross-section tested under centered compression. The specimens were formed by low and medium strength concrete (unconfined compressive strength of 20 to 35 N/mm²) measuring 600 mm in height. The side-aspect ratio (b/h) of the cross-section varied between 1, 1.5 and 2. The radius of curvature (R_c) of the corners was 20, 25 and 30 mm. Different number of plies of unidirectional carbon-fiber reinforced polymer (CFRP) were applied along the entire height using the hand lay-up technique. The CFRP material used was the same described for the circular test of the above section (t=0.129 mm per ply, E_f=236918 N/mm² and ε_fu=0.01776). The fibers were orthogonal to the axis member with an overlap length of 100 mm.

In order to study the mechanical behavior, electrical strain gauges were glued to the FRP jacket in the middle of each side at the mid height point. Four were arranged axially and two, laterally. The axial deformations were measured using four linear variable-displacement transducers (LVDTs). This information was monitored using an electronic data acquisition system, while axial compression tests were conducted using a hydraulic jack.

From the experimental program, twenty-five specimens have been chosen (those that exhibited a concrete compressive strength enhancement greater than 1.05). Table 5 shows the main test parameters: width (b); longer side (h); corner radius (R_c); the total fiber thickness (t) and the unconfined concrete strength (f_c), obtained from cylinders that were cast as the same time as the specimen. The table also includes the results for: the confined concrete strength (f_cc) or maximum concrete axial stress at the peak of the strain-stress curve; the strength enhancement ratio (f_cc/f_c); the CFRP jacket hoop strain at rupture (ε_fe) and the strain efficiency factor (ε_fe/ε_fu).

Table 5. Main parameters and test results of circular specimens tested.

	b [mm]	h [mm]	R_c [mm]	t [mm]	f_c [N/mm²]	f_cc [N/mm²]	f_cc/f_c	ε_fe [% ]	ε_fe/ε_fu
1_2_20-a	150	150	20	0.258	35.30	48.40	1.37	0.954	0.54
1_2-20-b	150	150	20	0.258	25.10	49.70	1.98	1.158	0.65
1_2_25-a	150	150	25	0.258	25.10	55.10	2.19	1.307	0.74
1_2_25-b	150	150	25	0.258	25.10	56.10	2.23	1.121	0.63
1_3_25	150	150	25	0.387	34.40	72.60	2.11	1.147	0.65
1_3_30	150	150	30	0.387	34.40	78.10	2.27	1.259	0.71
1.5_1_20	150	225	20	0.129	20.20	26.00	1.28	0.954	0.54
1.5_1_25	150	225	25	0.129	20.20	29.80	1.47	0.659	0.37
1.5_1_30	150	225	30	0.129	20.20	28.40	1.40	0.686	0.39
1.5_2_20-b	150	225	20	0.258	20.60	37.10	1.80	0.916	0.52
1.5_2_20-c	150	225	20	0.258	27.10	39.10	1.44	0.915	0.52
1.5_2_25-a	150	225	25	0.258	20.60	37.40	1.81	1.130	0.64
1.5_2_25-b	150	225	25	0.258	27.10	37.80	1.40	1.118	0.63
1.5_2_30-b	150	225	30	0.258	20.60	35.00	1.70	0.889	0.50
1.5_2_30-c	150	225	30	0.258	27.10	43.20	1.59	0.934	0.53
1.5_3_20	150	225	20	0.387	34.40	44.80	1.30	0.975	0.55
1.5_3_25	150	225	25	0.387	34.40	49.40	1.44	0.984	0.55
1.5_3_30	150	225	30	0.387	34.40	52.40	1.52	1.010	0.57
2_3_20	150	300	20	0.387	22.80	25.50	1.12	0.587	0.33
2_3_25	150	300	25	0.387	22.80	27.00	1.19	0.853	0.48
2_3_30-a	150	300	30	0.387	29.80	34.70	1.16	0.658	0.37
2_3_30-b	150	300	30	0.387	22.80	28.60	1.26	0.799	0.45
2_4_20	150	300	20	0.516	29.80	39.10	1.31	0.562	0.32
2_4_25	150	300	25	0.516	29.80	40.60	1.36	0.653	0.37
2_4_30	150	300	30	0.516	28.10	38.00	1.35	0.713	0.40

The specimens failed mainly due to tensile rupture of the CFRP strengthening near to the corner.

For illustrative purposes only, the graph in Figure 11 shows the compressive strength enhancement ratio obtained for three strengthened specimens compared to a non-strengthened one (reference). Specifically, one square cross-section specimen (1_2_25a) and one rectangular with side-aspect ratio (b/h) equal to 1.5 (1.5_2_25a), both strengthened with the addition of two CFRP layers. They are compared to a rectangular version with side-aspect ratio (b/h) equal to 2 (2_3_25) strengthened with three CFRP layers. For all side-aspect rates, the strain capacity improved owing to the CFRP jacket action. In this case, only the specimens with side-aspect ratio other than two exhibited monotonically ascending curves, typical of “well-confined” concrete. As it is known, the confinement efficiency decreases as the aspect ratio of the section increases.

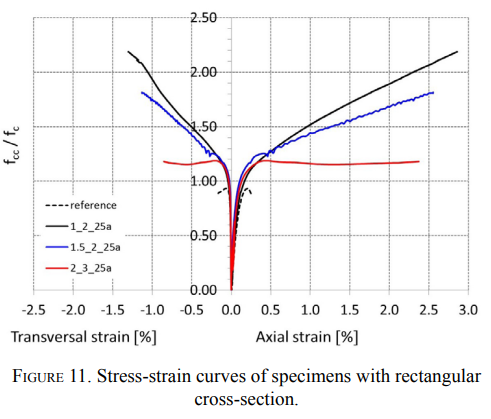

Figure 11. Stress-strain curves of specimens with rectangular cross-section.

4.2 Strain efficiency factor for rectangular cross-section elements strengthened with CFRP jackets

⌅

The ultimate strain of the CFRP jacket in the hoop direction, or FRP effective strain, for each test is obtained from the mean value of four sides measured and is collected in the Table 5. For these rectangular tests, the mean value of the strain efficiency factor (ε_fe/ε_fu) of the specimens with side-aspect ratio (b/h) equal to 1 is 0.65; for those with b/h=1.5 this is 0.52 and for those with b/h=2 this is 0.39. The results have been compared to others from CFRP strengthened plain concrete specimens with square and rectangular sections that are included in the database compiled by Pham and Hadi (77. Pham, T.M.; Hadi, M.N. (2014) Stress prediction model for FRP confined rectangular concrete columns with rounded corners. J. Comp. Construc. 18 [1], 04013019. https://doi.org/10.1061/(ASCE)CC.1943-5614.0000407.
). For this task, intermediate size specimens have been chosen (height from 450 mm to 915 mm), eliminating those with concrete compressive strength enhancement equal or lower than 1.05 or corner radius excessive small (minimum R_c=20 mm).

The Table 6 shows the database tests, indicating the main parameters and results. It must be noted that there is no information regarding the experimental ultimate CFRP jacket hoop strain for several studies. When this information has been published by the actual authors, it has been taken from the original paper. Furthermore, some tests of the database studies have been added, although they are not included by Pham and Hadi (77. Pham, T.M.; Hadi, M.N. (2014) Stress prediction model for FRP confined rectangular concrete columns with rounded corners. J. Comp. Construc. 18 [1], 04013019. https://doi.org/10.1061/(ASCE)CC.1943-5614.0000407.
). The name of the test in Table 6 is the reference number of the database, the original name of the specimen is written only for the tests that have been added.

Table 6. Main parameters and results of rectangular specimens from database compiled by Pham and Hadi ().

Test	b [mm]	h [mm]	R_c [mm]	t [mm]	E_f [N/mm²]	ε_fu [% ]	f_c [N/mm²]	f_cc [N/mm²]	f_cc/f_c	ε_fe [% ]	ε_fe/ε_fu
1	152	152	38	0.900	83000	1.50	42.00	47.50	1.13	0.71	0.47
2	152	152	25	1.200	83000	1.50	43.90	50.90	1.16	0.59	0.39
3	152	152	25	1.500	83000	1.50	43.90	47.90	1.09	0.51	0.34
4	152	152	25	1.200	83000	1.50	35.80	52.30	1.46	0.70	0.47
5	152	152	25	1.500	83000	1.50	35.80	57.60	1.61	0.65	0.43
6	152	152	38	1.200	83000	1.50	35.80	59.40	1.66	0.89	0.59
7	152	152	38	1.500	83000	1.50	35.80	68.70	1.92	0.86	0.57
50	150	150	25	0.165	257000	1.76	33.70	39.40	1.17	1.05^(a)	0.60^(a)
52	150	150	25	0.330	257000	1.76	33.70	61.90	1.84	1.08^(a)	0.61^(a)
54	150	150	25	0.495	257000	1.76	24.00	66.00	2.75	1.16^(a)	0.66^(a)
S4R25^(a)	150	150	25	0.660	257000	1.76	24.00	80.80	3.37	1.08	0.61
S5R25^(a)	150	150	25	0.825	257000	1.76	41.50	95.20	2.29	1.15	0.65
168	250	250	40	0.495	230000	1.50	32.80	41.40	1.26	1.21^(b)	0.81^(b)
169	250	250	40	0.495	230000	1.50	32.80	40.60	1.24	0.91^(b)	0.61^(b)
170	250	250	40	0.825	230000	1.50	32.80	56.70	1.73	1.10^(b)	0.73^(b)
171	250	250	40	0.825	230000	1.50	32.80	53.60	1.63	0.69^(b)	0.46^(b)
174	150	150	25	1.200	75000	1.25	31.80	48.30	1.52	-	-
175	150	150	25	1.200	75000	1.25	28.50	45.60	1.60	-	-
176	150	150	38	1.200	75000	1.25	27.70	57.00	2.06	-	-
177	150	150	38	1.200	75000	1.25	30.30	55.00	1.82	-	-
178	150	150	50	1.200	75000	1.25	26.70	61.70	2.31	-	-
179	150	150	50	1.200	75000	1.25	28.30	63.70	2.25	-	-
180	150	150	20	0.170	239000	1.87	22.00	33.50	1.52	-	-
181	150	150	20	0.340	239000	1.87	22.00	49.60	2.25	-	-
182	150	150	20	0.340	239000	1.87	19.50	47.20	2.42	-	-
183	150	150	35	0.340	239000	1.87	22.00	64.80	2.95	-	-
184	150	150	35	0.340	239000	1.87	19.50	58.70	3.01	-	-
185	150	150	50	0.340	239000	1.87	22.00	76.60	3.48	-	-
186	150	150	50	0.340	239000	1.87	19.50	63.60	3.26	-	-
187	150	150	20	0.170	241000^(c)	1.74	49.50	54.20	1.09	-	-
188	150	150	20	0.340	241000^(c)	1.74	49.50	61.40	1.24	-	-
189	150	150	35	0.340	241000^(c)	1.74	49.50	84.90	1.72	-	-
190	150	150	50	0.340	241000^(c)	1.74	49.50	86.10	1.74	-	-
R4R25^(a)	150	225	25	0.660	257000	1.76	41.50	51.90	1.25	0.74	0.42
LS1.5-1-20^(c)	150	230	20	0.170	239000	1.87	22.00	23.60	1.07	-	-
LS1.5-2-20^(c)	150	230	20	0.340	239000	1.87	22.00	33.20	1.51	-	-
LS1.5-2-35^(c)	150	230	35	0.340	239000	1.87	22.00	40.70	1.85	-	-
LS1.5-2-50^(c)	150	230	50	0.340	239000	1.87	22.00	46.70	2.12	-	-
LS2-1-20^(c)	150	300	20	0.170	239000	1.87	19.50	21.80	1.12	-	-
LS2-2-20^(c)	150	300	20	0.340	239000	1.87	19.50	23.60	1.21	-	-
LS2-2-35^(c)	150	300	35	0.340	239000	1.87	19.50	30.90	1.58	-	-
LS2-2-50^(c)	150	300	50	0.340	239000	1.87	19.50	34.80	1.78	-	-
NS2-2-50^(c)	150	300	50	0.340	241000	1.74	49.50	54.10	1.09	-	-
NS2-2-20^(c)	150	300	20	0.340	241000	1.74	49.50	52.40	1.06	-	-

(a) The data have been taken from the original paper published by Lam and Teng (1717. Lam, L.; Teng, J.G. (2003) Design-oriented stress-strain model for FRP-confined concrete in rectangular columns. J. Reinf. Plast. Compos. 22, 1149-1186. https://doi.org/10.1177/0731684403035429.
).
(b) The data have been taken from the original paper published by Ilki and Kumbasar (55. Ilki, A.; Kumbasar, N. (2003) Compressive behaviour of carbon fibre composite jacketed concrete with circular and non-circular cross-sections. J. Earthq. Eng. 7 [03], 381-406. https://www.worldscientific.com/doi/10.1142/S1363246903001140.
).
(c) The data have been taken from the original paper published by Tao et al. (66. Tao, Z.; Yu, Q.; Zhong, Y-Z. (2008) Compressive behaviour of CFRP-confined rectangular concrete columns. Mag. Concr. Res. 60 [10], 735-745. https://doi.org/10.1680/macr.2007.00115.
).

For the tests displayed in Table 6 containing information on the experimental ultimate CFRP jacket hoop strain, the mean value of the strain efficiency factor for h/b=1 is 0.56. Since the confinement stress distribution is non-uniform in the rectangular sections, it is not easy to establish the transversal strain of the jacket, which is a key parameter in strength prediction. For this reason, the following analysis is undertaken by using only the tests of the research project whose CFRP hoop strain has been set following a common criterion (this being the average of the readings of the lateral gauges of the center of each face in the specimen middle-height).

The values of the FRP effective strain obtained from the research project’s tests don´t fit to any guide recommendation. The Figure 12.a shows the average of the strain efficiency factor (k_ε), from the tests with the same b/h and R_c, versus the ratio radius corner to long side (R_c/h) and its comparison with the TR55 guide proposal, which results conservative for these tests results. There is a general lineal trend, although with certain dispersion. For square section specimens, a higher strain efficiency factor has been obtained when the corner radius is larger, yet for rectangular ones a larger radius has not always led to a higher k_ε.

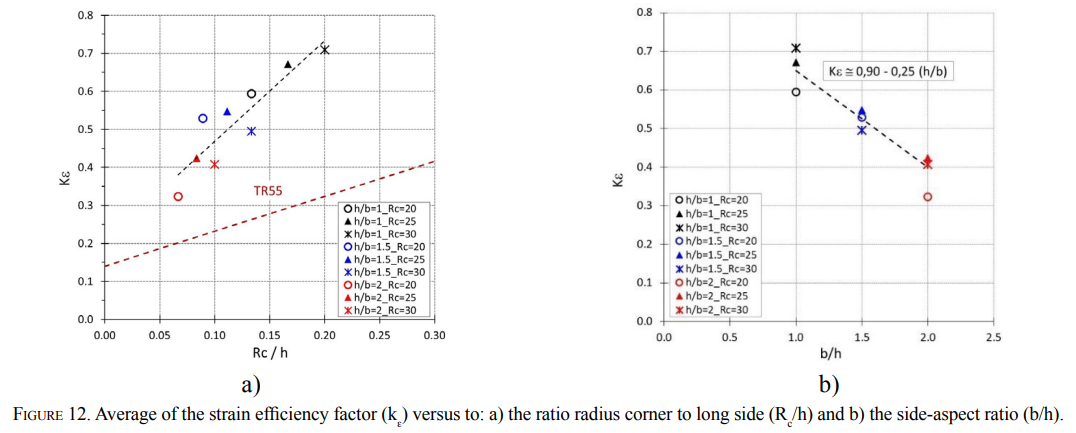

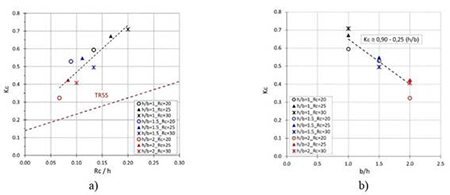

Figure 12. Average of the strain efficiency factor (k_ε) versus to: a) the ratio radius corner to long side (R_c/h) and b) the side-aspect ratio (b/h).

On the other hand, the strain efficiency factor seems highly conditioned to the side-aspect rate, Figure 12.b. It is observed the lineal trend of Equation [5]. This trend is obtained from the research project´s tests (R_c equal to 20, 25 and 30 mm) and it would correspond to the average value of R_c equal to 25 mm.

k_{ε} ≅ (0.90 - 0.25 h / b)

[5]

This linear fit is modulated to take into account the different strength improvement due to the corner radius, which is usually between 20 and 50 mm for real applications. A strength improvement of 10% higher is considered for the larger corner radius regards to the smaller one. This would provide the resulting equation shown below, Equation [6].

k_{ε} ≅ (0.90 - 0.25 h / b) (1 + (R_{c} - 25) / 300) f o r 20 m m \geq R_{c} \leq 50 m m

[6]

4.3 Confined concrete strength in rectangular specimens strengthened with CFRP jackets

⌅

Equally, with regard to circular specimens, the results of rectangular cross-section tests included in the Table 5 and Table 6 have been compared with the theoretical predictions by the four international guides (13-1613. American Concrete Institute (2017) ACI-440.2R-17, Guide for the design and construction of externally bonded FRP systems for strengthening concrete structures, Farmington Hills, Michigan.
14. Concrete Society (2012) TR55 Technical Report Design guidance for strengthening concrete structures using fibre composite materials, 3rd edition, UK.
15. Fédération internationale du béton (2019) fib Bulletin 90, Externally bonded FRP reinforcement for RC structures. fib, Lausanne, Switzerland.
16. National Research Council, Advisory Committee on Technical Recommendations for Construction (2013) CNR-DT200_R1. Guide for the design and construction of externally bonded FRP systems for strengthening existing structures, Italy.
). There are a total of 69 experimental results: 39 of square section (6 of the research project), 17 of rectangular section with b/h=1.5 (12 of the research project) and 13 of rectangular section with b/h=2 (7 of the research project).

The graph showing the comparison between the experimental results and the theoretical predictions by each guide are displayed in Figure 13, indicating the root mean square error (RMSE) that is interpreted only comparatively. No partial safety factors of materials have been used to obtain these predictions.

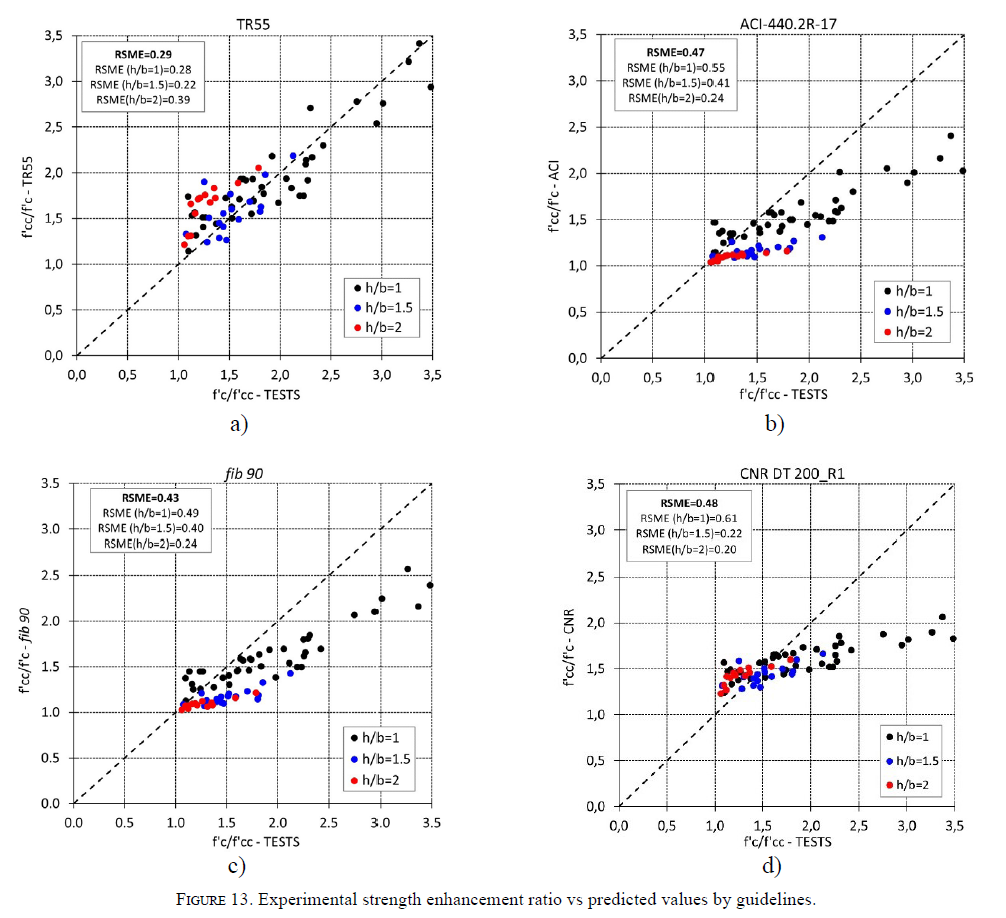

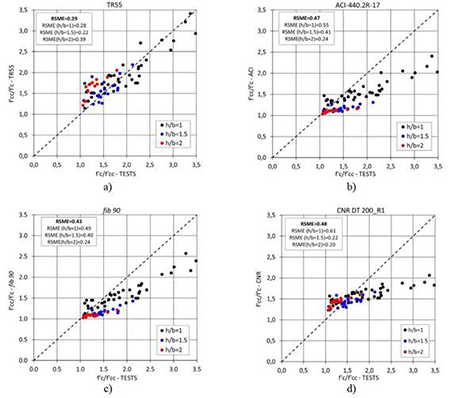

Figure 13. Experimental strength enhancement ratio vs predicted values by guidelines.

In order to compare the different models, no limitations contained in the guides have been used. This means that the predictions of specimens with aspect ratio of 2 by using TR55 formulation have been included. For those that fail to meet the fib 90’ minimum ratio condition, no strength enhancement should be expected according to this guide. Still, these tests entailed strength gain, meaning that the limitation does not apply.

The TR55 predictions adapt more suitably to the general trend followed by the experimental results, except for h/b=2, which is consistent with the fact that this guide excludes this proportion from the sides. The CNR is better suited for rectangular tests with b/h=1.5 and 2. The others present a similar degree of adjustment.

The Figure 14 shows the comparison of the two guides based on the simple linear adjustment, ACI and fib 90, by using the k_ε proposal, Equation [6]. The fib 90 guide’ predictions is improved somewhat. As mentioned before, the transversal strain attained in the FRP jacket at failure is a key parameter in strength prediction.

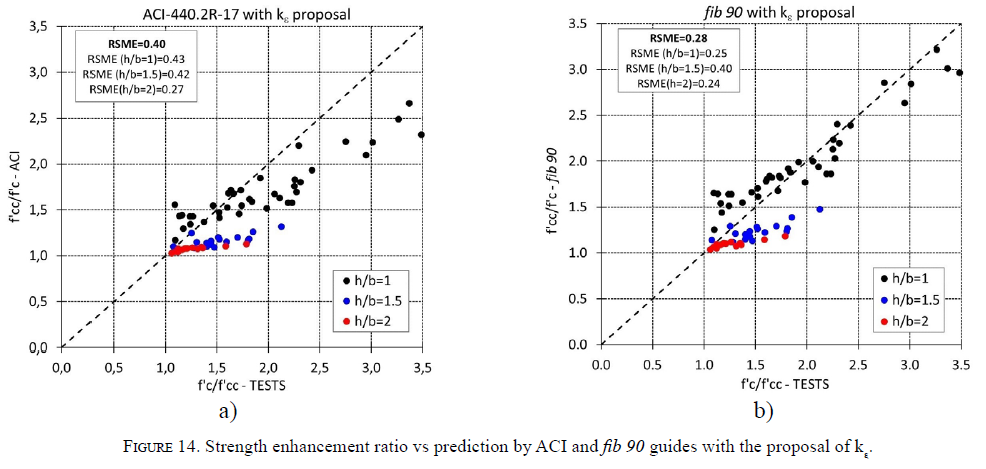

Figure 14. Strength enhancement ratio vs prediction by ACI and fib 90 guides with the proposal of k_ε.

5. CONCLUSIONS

⌅

This paper deals with the behavior of carbon FRP-confined concrete columns, mainly, with square and rectangular cross-section. The results of a research project´s experimental program carried out on intermediate-size plain concrete specimens with square, rectangular and circular section are compared to others of similar characteristics contained in two published databases (33. Ozbakkaloglu, T.; Lim, J.C. (2013) Axial compressive behavior of FRP-confined concrete: Experimental test database and a new design-oriented model. Compos. Part B. Eng. 55, 607-634. https://doi.org/10.1016/j.compositesb.2013.07.025.
, 77. Pham, T.M.; Hadi, M.N. (2014) Stress prediction model for FRP confined rectangular concrete columns with rounded corners. J. Comp. Construc. 18 [1], 04013019. https://doi.org/10.1061/(ASCE)CC.1943-5614.0000407.
).

An overview of the approach of four international guides (ACI-440.2R-17, TR55, fib 90, CNR-DT200_R1) to predict the strength gain obtained for concrete members with FRP reinforcement is presented. Their proposals differ, among others, on two key issues: the effect of confinement in non-circular sections and the effective strain in the FRP jacket at failure. The strength predictions by using the four guidelines were found to diverge mutually, especially, in the case of rectangular cross-section columns.

As reported by other researchers, the ultimate hoop CFRP strain of the jackets in the circular section specimens were lower than the ultimate strain obtained in tensile coupon tests. An average value of the strain efficiency factor (ε_fe/ε_fu) equal to 0.73 was obtained from the circular test database and the research program.

The value of the strain efficiency factor (ε_fe/ε_fu) was found to decrease with an increase in the side-aspect ratio for rectangular sections. An average value of 0.65 was obtained in the research program’s square specimens, while in the rectangular specimens with aspect ratio of 1.5 and 2 the average value was 0.52 and 0.39.

The values of the FRP effective strain (ε_fe) from the research project’s square and rectangular tests don´t fit to the guides recommendations. The lateral strain attained in the FRP jacket at failure is a key parameter in strength prediction. An expression is proposed to calculate the strain efficiency factor (ε_fe/ε_fu) which depends, mainly, on the side-aspect ratio (b/h) and, to a lesser extent, on the corner radius (R_c). The prediction of the ACI and fib guides, based on a simple linear design-model, improves by using the efficiency strain factor proposed for rectangular sections.

Further experimental investigation is deemed necessary to improve the estimation of effective ultimate strain of the FRP as a function of aspect ratio and corner radius of rectangular cross-section columns.

The above conclusions should be considered within the scope of the parameters under study (intermediate-size specimens, non-slender columns, fully wrapping of carbon FRP, unconfined concrete strength not higher than 50 N/mm²) and with the limitations derived from the number of the available tests.
