Uniaxial tensile behavior and mechanism characterization of multi-scale fiber-reinforced cementitious materials

1. INTRODUCTION

⌅

While cementitious materials are the most extensively used materials in civil engineering and infrastructure, these types of materials have their shortcomings, such as low tensile strength, brittleness, and vulnerability to cracking (11. Xu, L.; Huang, L.; Chi, Y.; Mei, G. (2016) Tensile behavior of steel-polypropylene hybrid fiber-reinforced concrete. Aci Mater. J. 113 [2]: 219-229.
). The failure process of a cementitious material is progressive and multi-scale, where the initial internal micro-defects grow, forming meso- and macro-cracks, which negatively affects the mechanical properties and durability of a cementitious material (2-52. Yang, Y.; Zhou, Q.; Deng, Y.; Lin, J. (2020) Reinforcement effects of multi-scale hybrid fiber on flexural and fracture behaviors of ultra-low-weight foamed cement-based composites. Cem. Concr. Compos. 108,103509. https://doi.org/10.1016/j.cemconcomp.2019.103509.
3. Zhang, Y.; Ju, J.W.; Zhu, H.; Yan, Z. (2020) A novel multi-scale model for predicting the thermal damage of hybrid fiber-reinforced concrete. Int. J. Damage Mech. 29 [1], 19-44. https://doi.org/10.1177/1056789519831554.
4. Bao, J.; Li, S.; Zhang, P.; Ding, X.; Xue, S.; Cui, Y. (2020) Influence of the incorporation of recycled coarse aggregate on water absorption and chloride penetration into concrete. Constr. Build. Mater. 239, 117845. https://doi.org/10.1016/j.conbuildmat.2019.117845.
5. Bao, J.; Xue, S.; Zhang, P.; Dai, Z.; Cui, Y. (2020) Coupled effects of sustained compressive loading and freeze-thaw cycles on water penetration into concrete. Struct. Concrete. 22 [S1], E944-E954. https://doi.org/10.1002/suco.201900200.
). To control different stages of cracks in cement-based materials, hybrid fibers of various sizes and physical properties are used (11. Xu, L.; Huang, L.; Chi, Y.; Mei, G. (2016) Tensile behavior of steel-polypropylene hybrid fiber-reinforced concrete. Aci Mater. J. 113 [2]: 219-229.
, 6-106. Li, L.; Cao, M.; Xie, C.; Yin, H. (2019) Effects of CaCO₃ whisker, hybrid fiber content and size on uniaxial compressive behavior of cementitious composites. Struct. Concrete. 20 [1], 506-518. https://doi.org/10.1002/suco.201800185.
7. Cao, M.; Li, L.; Shen, S. (2019) Influence of reinforcing index on rheology of fiber-reinforced mortar. Aci Mater. J. 116 [6], 95-105. https://doi.org/10.14359/51716816.
8. Cao, M.; Li, L.; Khan, M. (2018) Effect of hybrid fibers, calcium carbonate whisker and coarse sand on mechanical properties of cement-based composites. Mater. Construcc. 68 [330], e156. https://doi.org/10.3989/mc.2018.01717.
9. Cao, M.; Li, L. (2018) New models for predicting workability and toughness of hybrid fiber reinforced cement-based composites. Constr. Build. Mater. 176, 618-628. https://doi.org/10.1016/j.conbuildmat.2018.05.075.
10.Li, L.; Cao, M. (2018) Influence of calcium carbonate whisker and polyvinyl alcohol- steel hybrid fiber on ultrasonic velocity and resonant frequency of cementitious composites. Constr. Build. Mater. 188, 737-746. https://doi.org/10.1016/j.conbuildmat.2018.08.154.
). In addition, cheap and expensive fibers are generally an effective way to improve the cost of fiber-reinforced cementitious materials.

However, typical fiber sizes are too large to control pre-existing micron defects or cracks in cementitious materials (22. Yang, Y.; Zhou, Q.; Deng, Y.; Lin, J. (2020) Reinforcement effects of multi-scale hybrid fiber on flexural and fracture behaviors of ultra-low-weight foamed cement-based composites. Cem. Concr. Compos. 108,103509. https://doi.org/10.1016/j.cemconcomp.2019.103509.
, 11-1311. Yang, Y.; Deng, Y.; Li, X. (2019) Uniaxial compression mechanical properties and fracture characteristics of brucite fiber reinforced cement-based composites. Compos. Struct. 212, 148-158. https://doi.org/10.1016/j.compstruct.2019.01.030.
12. Pan, J.; Cai, J.; Ma, H.; Leung, C.K.Y. (2018) Development of multiscale fiber-reinforced engineered cementitious composites with pva fiber and CaCO₃ whisker. ASCE J. Mater. Civ. Eng. 30 [6], 40181066. https://doi.org/10.1061/(ASCE)MT.1943-5533.0002305.
13. Li, L.; Li, Z.; Cao, M.; Tang, Y.; Zhang, Z. (2021) Nanoindentation and porosity fractal dimension of calcium carbonate whisker reinforced cement paste after elevated temperatures (up to 900ºC). Fractals. 29 [2], 2140001. https://doi.org/10.1142/S0218348X21400016.
). Therefore, micro- and nano-sized fibrous materials are used to reinforce cementitious materials. Among these fibers, carbon nanofibers and nanotubes are the two most widely studied nanofibers (1414. Wang, B.; Han, Y.; Liu, S. (2013) Effect of highly dispersed carbon nanotubes on the flexural toughness of cement-based composites. Constr. Build. Mater. 46, 8-12. https://doi.org/10.1016/j.conbuildmat.2013.04.014.
, 1515. Metaxa, Z.S.; Konsta-Gdoutos, M.S.; Shah, S.P. (2013) Carbon nanofiber cementitious composites. Effect of debulking procedure on dispersion and reinforcing efficiency. Cem. Concr. Compos. 36, 25-32. https://doi.org/10.1016/j.cemconcomp.2012.10.009.
). However, both of these fibers are too expensive to be widely used in civil engineering. Hence, micron-sized calcium carbonate whisker (CW) was introduced to reinforce cementitious materials, as this material is much cheaper than nanofibers (about $230/ton) (1616. Li, L.; Cao, M.; Yin, H. (2019) Comparative roles between aragonite and calcite calcium carbonate whiskers in the hydration and strength of cement paste. Cem. Concr. Compos. 104, 103350. https://doi.org/10.1016/j.cemconcomp.2019.103350.
, 1717. Li, L.; Xie, C.; Cao, M.; Zhou, X.; Li, Z. (2021) Synergistic effect between CaCO₃ whisker and steel-pva fibre cocktail in cement-based material at elevated temperature. ASCE J. Mater. Civ. Eng.https://doi.org/10.1061/(ASCE)MT.1943-5533.0004103.
). Moreover, using cheaper CW materials instead of other fibers can reduce the cost of fiber-reinforced cementitious materials (1717. Li, L.; Xie, C.; Cao, M.; Zhou, X.; Li, Z. (2021) Synergistic effect between CaCO₃ whisker and steel-pva fibre cocktail in cement-based material at elevated temperature. ASCE J. Mater. Civ. Eng.https://doi.org/10.1061/(ASCE)MT.1943-5533.0004103.
). The CW material can also be used for the multi-scale reinforcement of various cement-based materials. For example, CW-PVA multi-scale fiber-reinforced ultra-ductile concrete has better strength, deformation ability, and robustness compared with mono PVA fiber-reinforced concrete (1212. Pan, J.; Cai, J.; Ma, H.; Leung, C.K.Y. (2018) Development of multiscale fiber-reinforced engineered cementitious composites with pva fiber and CaCO₃ whisker. ASCE J. Mater. Civ. Eng. 30 [6], 40181066. https://doi.org/10.1061/(ASCE)MT.1943-5533.0002305.
). In normal concrete, the combination of steel-basalt hybrid fibers and CW increases the compressive, splitting tensile, and bending properties of the material (1818. Khan, M.; Cao, M.; Ali, M. (2018) Effect of basalt fibers on mechanical properties of calcium carbonate whisker-steel fiber reinforced concrete. Constr. Build. Mater. 192, 742-753. https://doi.org/10.1016/j.conbuildmat.2018.10.159.
). In ultra-low-weight foamed concrete, the synergistic effects of polypropylene and CWs were also studied (22. Yang, Y.; Zhou, Q.; Deng, Y.; Lin, J. (2020) Reinforcement effects of multi-scale hybrid fiber on flexural and fracture behaviors of ultra-low-weight foamed cement-based composites. Cem. Concr. Compos. 108,103509. https://doi.org/10.1016/j.cemconcomp.2019.103509.
). Therefore, because of their excellent properties, multi-scale fiber-reinforced cementitious materials (MSFRCMs) containing CW and macro fibers have widespread potential in civil engineering applications.

Uniaxial tensile strength is one of the most fundamental mechanical properties of fiber-reinforced concrete. It comprises the basis for studying the failure mechanisms and strength theory of fiber-reinforced concrete and also directly affects the cracking, deformation, and durability of fiber-reinforced concrete structural members (11. Xu, L.; Huang, L.; Chi, Y.; Mei, G. (2016) Tensile behavior of steel-polypropylene hybrid fiber-reinforced concrete. Aci Mater. J. 113 [2]: 219-229.
, 191. Xu, L.; Huang, L.; Chi, Y.; Mei, G. (2016) Tensile behavior of steel-polypropylene hybrid fiber-reinforced concrete. Aci Mater. J. 113 [2]: 219-229.
, 2020. Park, S.H.; Kim, D.J.; Ryu, G.S.; Koh, K.T. (2012) Tensile behavior of ultra high performance hybrid fiber reinforced concrete. Cem. Concr. Compos. 34 [2], 172-184. https://doi.org/10.1016/j.cemconcomp.2011.09.009.
). Currently, scholars have studied the uniaxial tensile stress-strain relationship of fiber-reinforced concrete (11. Xu, L.; Huang, L.; Chi, Y.; Mei, G. (2016) Tensile behavior of steel-polypropylene hybrid fiber-reinforced concrete. Aci Mater. J. 113 [2]: 219-229.
, 2121. Mansour, M.Y.; Hsu, T.T.C.; Mo, Y.L. (2009) Constitutive relations of cracked reinforced concrete with steel fibers. ACI Special Publication. 265, 101-122. Retrieved from https://www.concrete.org/publications/internationalconcreteabstractsportal?m=details&i=51663292.
, 2222. Lu, C.; Leung, C.K.Y.; Li, V.C. (2017) Numerical model on the stress field and multiple cracking behavior of Engineered Cementitious Composites (ECC). Constr. Build. Mater. 133, 118-127. https://doi.org/10.1016/j.conbuildmat.2016.12.033.
). However, to the best of the authors’ knowledge, there is little information about the uniaxial tensile performance of cement-based materials containing CW and macro-fibers. Therefore, to bridge this knowledge gap, the effects of CW, PVA, and steel multi-scale fibers on the uniaxial tensile behavior of cement-based materials were studied. The complete stress-strain curves of MSFRCMs under uniaxial tension were obtained, and the effects of the multi-scale fibers were evaluated. Based on the synthetic fiber properties, predictive equations for the strength and toughness of the MSFRCMs under uniaxial tensile load were established. In addition, micro-observations and component analysis were employed to understand the microstructural evolution of multi-scale fibers under tensile load.

2. MATERIALS AND TESTING

⌅

2.1 Material and specimen preparation

⌅

In this study, the main binder materials consisted of 70 wt.% of ordinary Portland cement and 30 wt.% of fly ash. The chemical compositions of the CaCO₃ whisker, cement, and fly ash are listed in Table 1. The fine aggregate consisted of quartz sand, and a polycarboxylic acid superplasticizer (water reducing ratio of 32%) was employed to control the workability of the fresh mixture. The size and mechanical properties of the steel and PVA fibers, as well as the CaCO₃ whisker material, are illustrated in Table 2. The water-binder and sand-binder ratios were 0.3 and 0.5, respectively. The full mixing specifications, including the binder and fine aggregate content and superplasticizer dosage, are shown in Table 3. In addition, the flow spread values obtained by the mini-slump test (2323. Cao, M.; Li, L.; Xu, L. (2017) Relations between rheological and mechanical properties of fiber reinforced mortar. Comput. Concr. 20 [4], 449-459. https://doi.org/10.12989/cac.2017.20.4.449.
) are also shown in Table 3. The flow spread was generally higher than 18 mm and met the requirements of self-compacting fiber-reinforced mortar (2424. Li, V.C.; Kong, H.J.; Chan, Y.W. (1998) Development of self-compacting engineered cementitious composites. J. Cem. Concr. Compos. 25 [2], 301-309.
).

Table 1. Chemical compositions of the cement and CW (wt.%).

Constituent	CaO	SiO₂	Al₂O₃	Fe₂O₃	MgO	SO₃	K₂O	TiO₂	Cl	SrO
CW	92.31	0.44	0.10	0.19	5.96	0.60	-	-	0.32	0.07
Cement	58.61	22.58	6.01	4.17	1.91	4.57	1.18	0.43	-	0.24
Fly ash	5.13	55.06	26.50	6.07	0.80	1.06	2.54	1.51	-	0.15

Table 2. Size and mechanical properties of the fibers and CW material.

Fiber type	Length/mm	Aspect ratio	Tensile strength/MPa	E-modulus/GPa	Density/(kg/m³)
Steel fiber	13	65	≥2,000	210	7800
PVA fiber	6	151.1	1529.5	36.7	1300
CaCO₃ whisker	0.02-0.03	10-60	3000-6000	410-710	2860

The various MSFRCM fiber combinations are illustrated in Table 3, and Figure 1 depicts the mixing process of the MSFRCM. To produce the samples, fresh MSFRCM mortars were cast into dog-bone steel molds and vibrated for 60s. Afterward, while still in the mold, the samples were covered with plastic film, and then removed from the mold after 24 h. Finally, the samples were stored in a 20±3˚C water tank for 28 days of curing.

Table 3. MSFRCM with various fiber proportions.

Group	Dosage (kg·m⁻³)						Flow spread (mm)	Compressive strength (MPa)	Bending strength (MPa)
Group	Steel	PVA	CW	Binder	Sand	Super-plasticizer	Flow spread (mm)	Compressive strength (MPa)	Bending strength (MPa)
Plain	0	0	0	1220	610	5.12	24.2	48.3	8.7
S2	156	0	0	1195	597.5	5.44	23.1	63.2	15.6
S1.5P0.5	117	6.45	0	1195	597.5	7.11	19.6	55.4	18.8
S1.5P0.4W1	117	5.16	28.6	1184	592.0	8.29	20.3	57.1	20.1
S1.25P0.75	97.5	9.68	0	1195	597.5	9.62	17.1	53.2	18.3
S1.25P0.55W2	97.5	7.10	57.2	1173	586.5	10.88	18.3	53.6	19.3

Note: steel: steel fiber; PVA: polyvinyl alcohol fiber; CW: CaCO₃ whisker.

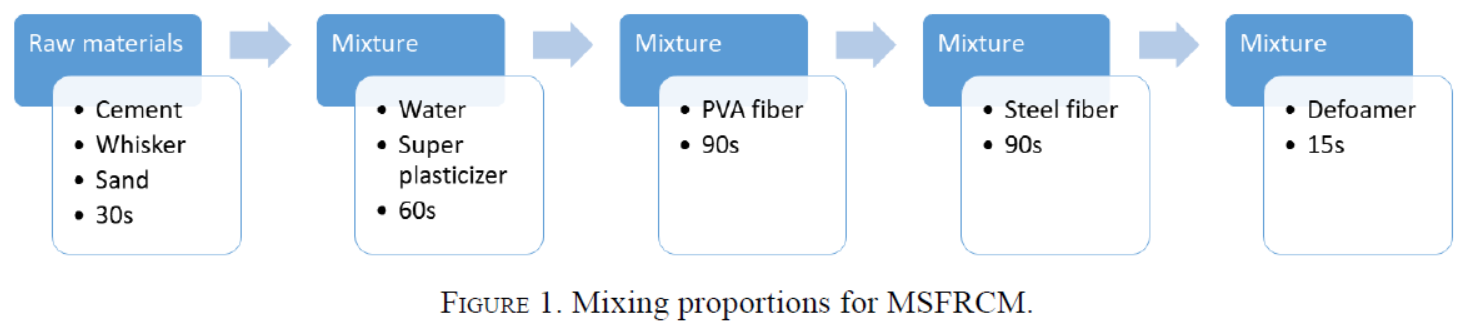

Figure 1. Mixing proportions for MSFRCM.

2.2 Experimental methods

⌅

A custom-designed dog bone plate was used for direct tensile testing of the MSFRCM specimens. The specimen shape, size, and loading conditions are illustrated in Figure 2. Using an MTS hydraulic servo testing machine, direct tensile testing was carried out at a loading rate of 0.1 mm/min. A displacement sensor was used to assess the deformation of the 50 mm long section located in the middle of the dog bone specimens. Testing comprised four samples for every mixture, and all of the data averaged the results of the four specimens.

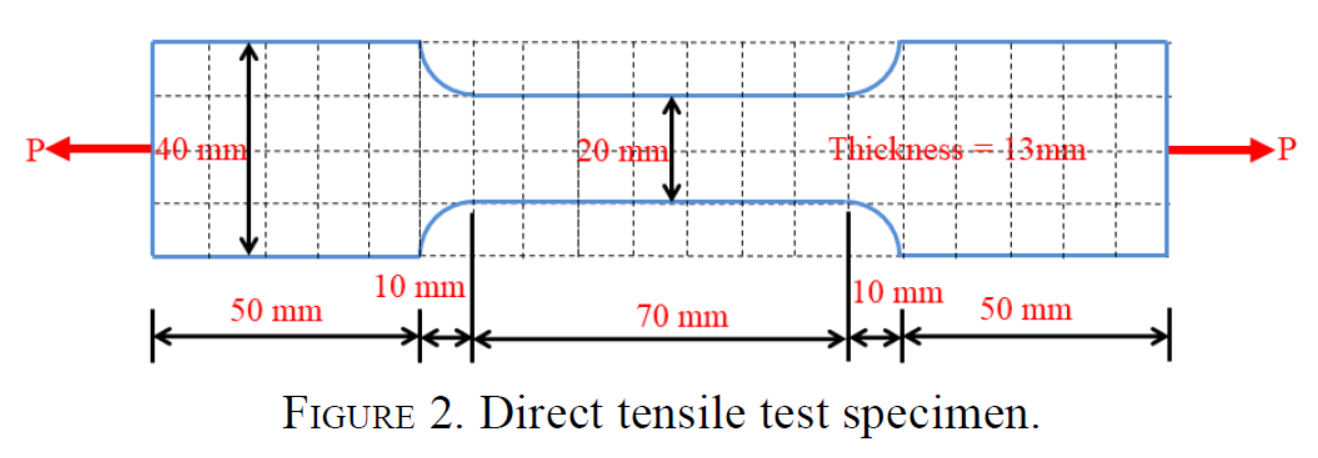

Figure 2. Direct tensile test specimen.

For each mixture, three prisms 40 mm × 40 mm × 160 mm in size were used to conduct the three-point bending and compression tests according to the ISO 679-2009 and GB/T 50081-2002 standards. The compression strength was tested by the two prism halves that were left after bending tests. The compression and bending strengths are shown in Table 3.

Scanning electron microscopy (SEM) was used to observe the hydration products and CW in the interfacial transition zone (ITZ), located between the fiber and matrix. Additionally, backscattered electron imagery and energy spectrums were used to analyze the elemental changes in the ITZ. From the microstructure studies, the micro-mechanisms of CW on the direct tensile behavior of the MSFRCM were deduced.

3. UNIAXIAL TENSILE PROPERTIES

⌅

3.1 Uniaxial tensile stress-strain curve

⌅

Figure 3 (a) shows the full uniaxial tensile stress-strain curve of the MSFRCM. To clearly analyze the crack inhibition effect of the steel and PVA fibers and CW during early stages of fracture, the curve for 0-0.2% strain range was enlarged, as shown in Figure 3 (b), which showed that the plain group presented obvious brittle failure. According to Figure 3 (b), although the curves somewhat fluctuated, the introduction of steel and PVA fibers and CW material significantly changed the direct tensile stiffness of the MSFRCM, as evidenced by the changes in the slopes of each curve in the 0-0.02% strain range. The stiffness of S2 significantly increased compared with the plain group, due to the effects of the short steel fibers with high elastic modulus. However, when the steel fiber material was replaced with the same amount of PVA fiber, the stiffness of S1.5P0.5 and S1.25P0.75 was significantly lower compared with the S2 group. Moreover, the stiffness of S1.25P0.75 with higher PVA fiber content was lower than S1.5P0.5, due to the effects of the flexible PVA fiber. However, after replacing PVA with 1 vol% of CW, S1.5P0.4W1 was stiffer than S1.5P0.5. In addition, S1.25P0.55W2 was stiffer than S1.25P0.75, due to the optimization of the micropores and the control of micro-cracks by CW with a high elastic modulus.

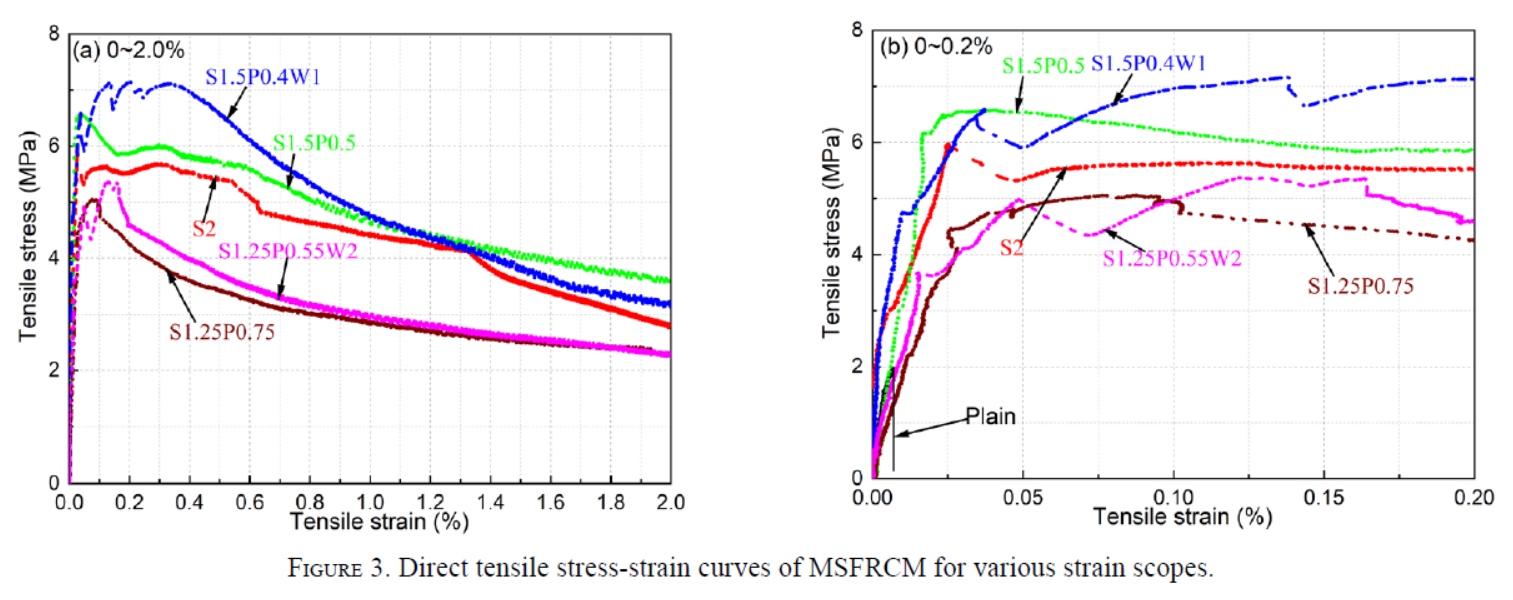

Figure 3. Direct tensile stress-strain curves of MSFRCM for various strain scopes.

As shown in Figure 3 (b), when the strain was 0.02%-0.05%, the curves of each group reached their initial peak strength, and the rapid stress growth stage was over; thus, the stress entered a stable or slow decline stage. Therefore, the overall stress magnitude relationship was S1.5P0.5≈S1.5P0.4W1> S2>S1.25P0.75≈S1.25P0.55W2. After reaching the first peak strength, the variations for each group were different. The S2 stress initially decreased significantly, and then the stress remained stable at about 0.5% strain. The S1.5P0.5 group was similar compared with S2, and the stress was basically stable within 0.5% strain. The stress of S1.5P0.5 was higher than that of S2 and decreased more slowly. The curve of S1.5P0.5 was smoother, more convex, and fuller than S2, indicating that more energy was consumed when the load was applied. This proved that the hybrid effect of the PVA and steel fibers not only improved strength but also optimized ductility and toughness (2525. Li, Q.; Gao, X.; Xu, S. (2016) Multiple effects of nano-SiO₂ and hybrid fibers on properties of high toughness fiber reinforced cementitious composites with high-volume fly ash. Cem. Concr. Compos. 72, 201-212. https://doi.org/10.1016/j.cemconcomp.2016.05.011.
). While the stress of S1.5P0.4W1 decreased at first, it subsequently increased significantly. When the strain value was about 0.07%, the stress of S1.5P0.4W1 exceeded that of S1.5P0.5, showing obvious strain-hardening characteristics. The tensile stress variations of the S1.25P0.55W2 and S1.25P0.75 groups were similar to the S1.5P0.4W1 and S1.5P0.5 groups. However, the tensile stress values of the S1.25P0.55W2 and S1.25P0.75 groups were lower than the S2 group, due to lower steel fiber content.

As shown in Figure 3 (a), when the strain rate was higher than 0.2%, the S1.5P0.4W1 curve was mostly flat and smooth. When the steel fiber content of S1.5P0.4W1 was less than the S2 group, the PVA fiber content of S1.5P0.4W1 was less than the S1.5P0.5 group. During the large deformation stage, S1.5P0.4W1 exhibited good deformation capacity and energy consumption. This indicated that CW not only limited crack formation during the initial stage and increased the stiffness of the cementitious material but also optimized the fiber/matrix interface and improved the reinforcing abilities of the steel and PVA fibers. However, when the strain was about 1.2%, the stress of S1.5P0.4W1 decreased slightly compared with the S1.5P0.5 group. This was due to the lower quantity of PVA fibers, leading to a slight decrease in its load-holding capacity at a larger scale.

3.2 Uniaxial tensile strength and deformation

⌅

Compared with the control group, the peak strength (f_dp) of the fiber-doped group significantly increased by more than 200%, as shown in the second column of Table 4. Compared with S2, the S1.5P0.5 and S1.5P0.4W1 groups significantly improved by 10.0% and 19.9%, respectively. The peak strength of the S1.5P0.4W1 group was the highest, showing the optimization effect of CW on the hybrid fiber system and proving the feasibility of partly replacing steel and PVA fibers with CW. The peak strength value of S1.25P0.75 and S1.25P0.55W2 was lower than S2 due to the decrease in steel fiber content, and was different from the bending strength, indicating that the tensile strength was more sensitive to the decrease in steel fiber content. In addition, when the data in Tables 3 and 4 were compared, the uniaxial tensile strength was significantly lower than the bending strength. This occurred mainly because under direct tensile load, the entire cross-section of the specimen was under the action of tensile stress. The cross-section area of the direct tensile specimen was smaller than the bending specimen; thus, there was less total fiber content in the direct tensile specimen section subjected to testing. Consequently, the direct tensile specimen was more sensitive to a decrease in the number of steel fibers. However, under bending load, only part of the section was in tension; thus, the peak strength was high and was insensitive to the changes in the number of steel fibers (2626. Cao, M.; Li, L.; Yin, H.; Ming, X. (2019) Microstructure and strength of calcium carbonate (CaCO₃) whisker reinforced cement paste after exposed to high temperatures. Fire Technol. 55 [6], 1983-2003. https://doi.org/10.1007/s10694-019-00839-3.
).

Table 4. Direct tensile behavior indexes of MSFRCM (MPa).

Group	f_dp	ε_dp (‰)	f_d0.1	f_d1.0
Plain 1.98±0.02		0.067±0.003	-	-
S2	5.98±0.38	0.25±0.013	5.63±0.41	4.42±0.31
S1.5P0.5	6.58±0.20	0.41±0.022	6.18±0.31	4.66±0.19
S1.5P0.4W1	7.17±0.42	1.4±0.084	6.96±0.38	4.77±0.17
S1.25P0.75	5.06±0.16	0.88±0.043	4.94±0.10	2.85±0.09
S1.25P0.55W2	5.37±0.19	1.2±0.096	4.98±0.13	2.91±0.04

Note: f_dp: peak strength; ε_dp: strain corresponding to peak strength; f_d0.1 and f_d1.0: residual strength at 0.1% and 1.0% strain, respectively.

The increase in the peak strain (ε_dp) of the fiber-doped group was more significant than the peak strength, and the increase was more than 270%, as shown in the third column of Table 4. Compared with S2, the peak strain of all the hybrid fiber groups improved to varying degrees, increasing by 64%-460%. The peak strains of S1.5P0.5 and S1.25P0.75 increased by 64% and 252%, respectively. The increased peak strain rates of S1.5P0.4W1 and S1.25P0.55W2 were 460% and 380%, respectively, indicating that CW and the PVA fibers improved the deformation capacity of the cementitious materials.

Similar to the bending performance, residual strengths f_d0.1 and f_d1.0 for specified strains of 0.1% and 1% were introduced, and the corresponding residual strengths of each group were compared with S2, as shown in Table 4. The plain group lost its bearing capacity after reaching peak strength, and the residual strength was zero. The bearing capacity of the fiber specimens decreased slowly after reaching peak load, and f_d0.1 and f_d1.0 showed the same variation trends, namely S1.5P0.4W1>S1.5P0.5>S2>S1.25P0.55W2>S1.25P0.75. In terms of residual strength, the positive hybrid effect of the hybrid fiber system was evident, especially for S1.5P0.4W1. f_d1.0 of S1.5P0.4W1 reached 4.77 MPa, and the load-holding capacity significantly improved. However, the load holding capacity of S1.25P0.55W2 and S1.25P0.75 obviously decreased, and f_d1.0 decreased to about 50% of the peak strength.

3.3 Uniaxial tensile to compressive strength and uniaxial tensile to flexural strength

⌅

The tensile to compressive strength ratio (T/C ratio) is often employed to assess the toughness of cementitious materials (88. Cao, M.; Li, L.; Khan, M. (2018) Effect of hybrid fibers, calcium carbonate whisker and coarse sand on mechanical properties of cement-based composites. Mater. Construcc. 68 [330], e156. https://doi.org/10.3989/mc.2018.01717.
, 1717. Li, L.; Xie, C.; Cao, M.; Zhou, X.; Li, Z. (2021) Synergistic effect between CaCO₃ whisker and steel-pva fibre cocktail in cement-based material at elevated temperature. ASCE J. Mater. Civ. Eng.https://doi.org/10.1061/(ASCE)MT.1943-5533.0004103.
), and a higher T/C ratio generally indicates better toughness. The T/C ratios of all the fiber-reinforced cementitious materials were about 100%-200% higher than that of the plain matrix, and the data are shown in Figure 4 (a). Thus, the T/C ratios of all the hybrid fiber-reinforced cementitious materials were higher than S, especially for S1.5P0.5 and S1.5P0.4W1. In addition, the introduction of CW further improved the T/C ratio. The details of uniaxial tensile toughness will be discussed in the following sections.

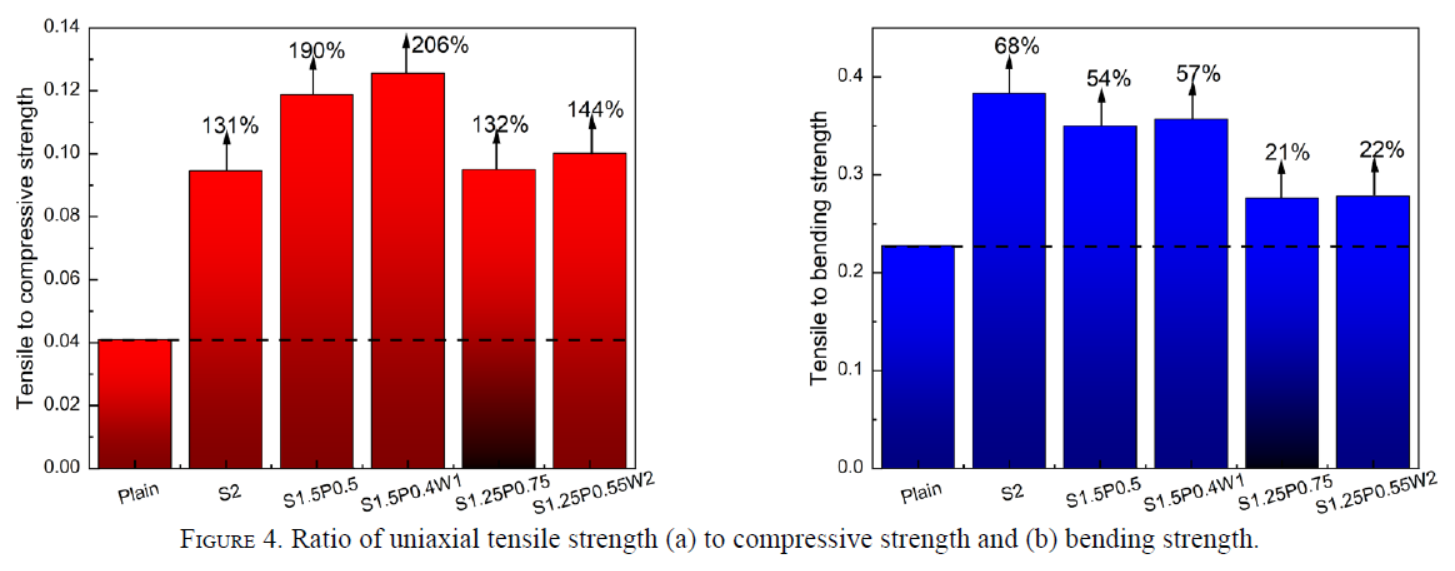

Figure 4. Ratio of uniaxial tensile strength (a) to compressive strength and (b) bending strength.

The tensile to bending strength ratios (T/B ratio) are shown in Figure 4 (b). The T/B ratios for all the fiber-reinforced cementitious material were about 20%-70% higher than the plain matrix. As a result, it appears that the steel fiber content controlled the T/B ratio of the fiber-reinforced cementitious material. Thus, the higher the steel fiber content, the higher the T/B ratio. Additionally, replacing PVA fibers with CW slightly increased the T/B ratio. Of note, the variations in the T/B ratio were completely in accordance with the uniaxial tensile stiffness results discussed in Section 3.1.

3.4 Uniaxial tensile toughness

⌅

The region under the stress-strain curve was defined as the uniaxial tensile strain energy, which was used to measure the uniaxial tensile toughness. The uniaxial tensile strain energy of the six groups of dog-bone specimens, with strains from zero to 0.1%, 0.4%, 1.0%, and 1.8%, was calculated, and the results are shown in Figure 5.

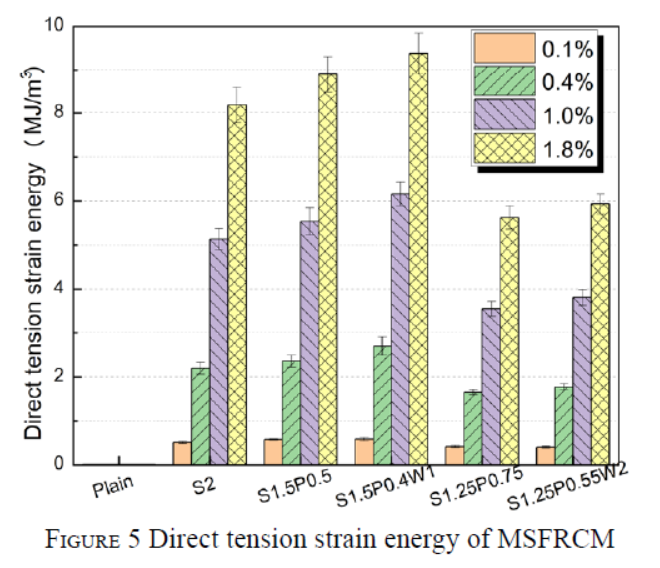

Figure 5. Direct tension strain energy of MSFRCM.

The addition of fibers significantly increased the strain energies of the cementitious materials. Specifically, in the range of 0.1% strain, the addition of fibers increased the strain energy by more than 50 times. In terms of strain within the range of 0.1%, compared with S2, the strain energies of S1.5P0.5 and 1.5P0.4W1 also significantly improved by 12.80% and 14.54%, respectively. This confirmed the effectiveness of CW in the low strain stage. However, the strain energies of S1.25P0.75 and S1.25P0.55W2 decreased due to less steel fiber content. At strains of 0.4%, 1.0%, and 1.8% in the large-strain stage, the strain energies of the 1.5P0.4W1 group increased more significantly, up to 22.95%, compared with S2. This indicated that the toughening effect of the multi-scale fiber system was more effective during the large-deformation stage (1717. Li, L.; Xie, C.; Cao, M.; Zhou, X.; Li, Z. (2021) Synergistic effect between CaCO₃ whisker and steel-pva fibre cocktail in cement-based material at elevated temperature. ASCE J. Mater. Civ. Eng.https://doi.org/10.1061/(ASCE)MT.1943-5533.0004103.
). The enhancement and toughening of the cementitious materials by CW were mainly due to the macroscopic fiber. Compared with S2, the strain energy of the S1.5P0.5 group also increased significantly. However, the improved rate of S1.5P0.5 was only 8%; thus, it was not as effective as the 1.5P0.4W1 group with CW. Consequently, the results showed that the energy absorption capacity of the cementitious material was greatly improved by adding CW into the hybrid fiber system.

4. CALCULATION OF UNIAXIAL TENSILE BEHAVIOR

⌅

Based on computational formulas found in the literature (99. Cao, M.; Li, L. (2018) New models for predicting workability and toughness of hybrid fiber reinforced cement-based composites. Constr. Build. Mater. 176, 618-628. https://doi.org/10.1016/j.conbuildmat.2018.05.075.
), a computational formula was employed to calculate the uniaxial tensile behavior (TB) of the hybrid fiber-reinforced cementitious material according to Equation [1]:

T B = {T B}_{0} ({α R I}_{V}^{2} + {β R I}_{V} + 1),

[1]

where TB and TB₀ denote the uniaxial tensile properties (strength, strain energy) of the fiber-reinforced and plain cementitious materials, respectively, and α, β are the regression coefficients. Additionally, RI_V is the reinforcing index of the hybrid fibers, which is calculated from the volume fraction, tensile strength, and fiber shape, as defined by Equation [2]:

{R I}_{V} = \sum_{i}^{n} k_{i} V_{i} \frac{l_{i}}{d_{i}} {(\frac{f_{t i}}{f_{t s}})}^{η},

[2]

where f_ti and f_ts are the tensile strength of the ith fiber and steel fiber, respectively. The values of the bond parameter, k_i, for straight steel, PVA fiber, and CW were all fixed as 0.1, and the value of the fiber type factor, η, for both the PVA fiber and CW, was fixed as 0.5.

Combined with the analysis of the test data, Equation [1] was used to establish a relationship between the uniaxial tensile performance indexes and the fiber index RI_V of the MSFRCM, and the overall correlation was good, as shown in Equations [3-8]Equations 3, 4, 5, 6, 7, 8:

peak strength:

f_{d p} = 1.98 (1 - {66.02 R I}_{V}^{2} + {23.92 R I}_{V}), R^{2} = 0.85,

[3]

peak strain:

ε_{d p} = 0.0067 (1 + {256.96 R I}_{V}^{2} + {12.28 R I}_{V}), R^{2} = 0.74,

[4]

strain energy between 0-0.1%:

T I = 0.0085 (1 - {2075.29 R I}_{V}^{2} + {717.65 R I}_{V}), R^{2} = 0.91,

[5]

strain energy between 0-0.4%:

T I = 0.0085 (1 - {890.71 R I}_{V}^{2} + {2969.29 R I}_{V}), R^{2} = 0.86,

[6]

strain energy between 0-1.0%:

T I = 0.0085 (1 - {19564.71 R I}_{V}^{2} + {9356.47 R I}_{V}), R^{2} = 0.99,

[7]

strain energy between 0-1.8%:

T I = 0.0085 (1 - {20187.06 R I}_{V}^{2} + {10535.29 R I}_{V}), R^{2} = 0.98 .

[8]

The fitting results of the new model in this study were superior to Xu’s model (1), as shown in Figure 6.

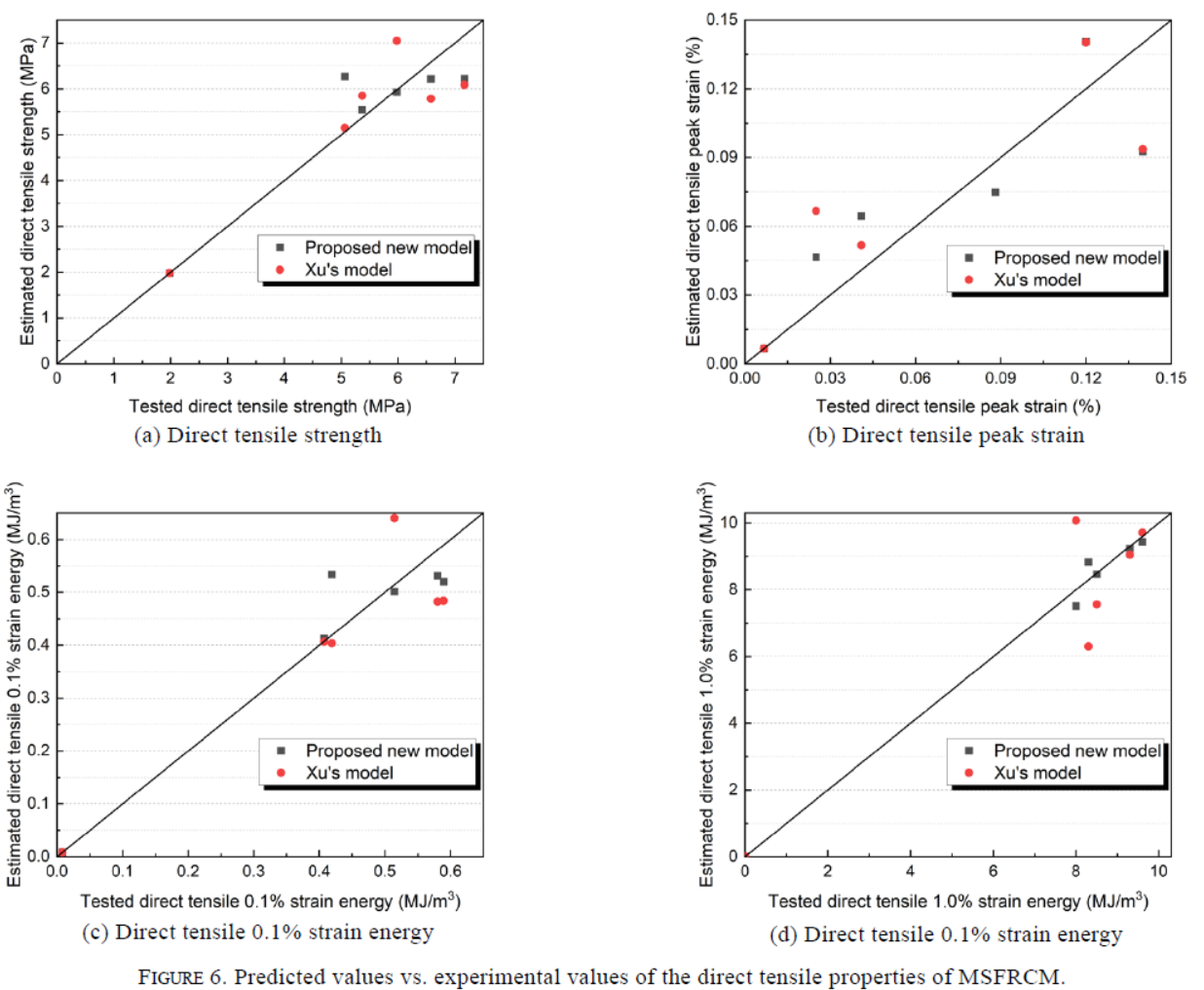

Figure 6. Predicted values vs. experimental values of the direct tensile properties of MSFRCM.

To investigate the applicability of the new model proposed in this study, the experimental data of the hybrid fiber cementitious materials in the literature were analyzed using this model. Xu et al. (11. Xu, L.; Huang, L.; Chi, Y.; Mei, G. (2016) Tensile behavior of steel-polypropylene hybrid fiber-reinforced concrete. Aci Mater. J. 113 [2]: 219-229.
) studied the uniaxial tensile properties of steel-polypropylene hybrid fiber-reinforced concrete with different aspect ratios. Thus, Equation [1] was used to fit the uniaxial tensile peak strength, peak strain, and post-peak tensile strain energy data from Xu’s research (1). The steel fiber consisted of corrugated steel fiber, and the anchoring coefficient k_i was set to 1, while the anchoring coefficient of the polypropylene fiber remained as 0.1. The data fitting results were calculated according to Equations [9-11]Equations 9, 10, 11:

peak strength:

f_{d p} = 2.96 (1 - {0.12 R I}_{V}^{2} + {0.65 R I}_{V}), R^{2} = 0.79,

[9]

peak strain:

ε_{d p} = 123.6 \times 10^{- 6} (1 + {0.47 R I}_{V}^{2} + {1.42 R I}_{V}), R^{2} = 0.60,

[10]

post-peak tensile strain energy:

T I = 192.7 (1 - {18.28 R I}_{V}^{2} + {55.32 R I}_{V}), R^{2} = 0.76 .

[11]

Due to the variety of the steel fibers and the complexity of the system, the correlation was somewhat affected. Nevertheless, the overall correlation was acceptable, indicating that the mathematical relationship was applicable to the uniaxial tensile performance of the steel-polypropylene fiber-reinforced concrete with corrugated steel fibers.

5. MICRO-MECHANISM DISCUSSION

⌅

5.1 Microstructure and mechanism analysis of the fiber/matrix interface in the MSFRCM

⌅

The fiber effect in cementitious materials depends on the physical properties of the fiber itself and its quantity. This is discussed in Section 4, and a quantitative calculation model was established. However, this effect also depends on the interactions between the fibers and the cementitious material matrix. That is, the interface between the fiber and matrix will significantly affect the reinforcing effect of the fiber, which will be discussed in this section.

Figure 7 shows the microstructure of the steel and PVA fibers and matrix, as obtained via SEM. As shown in Figure 7 (a), the area neighboring the steel fiber consisted of a dense calcium silicate hydrate (C-S-H) gel. The region slightly further away from the steel fiber was a loose and porous region composed of needle-like ettringite (AFt) and hexagonal plate-like Ca(OH)₂ crystals, designating the ITZ area. The cement matrix far away from the steel fibers was still dominated by C-S-H gel. As shown in Figure 7 (b), the PVA fiber surface was also enriched with dense C-S-H gel and discernable porous loose bands formed outwardly (designated by the dotted line in Figure 7 (b)). The arrow in Figure 7 (b) shows the loose and porous area at the ITZ, bridged by larger-sized CW. An enlarged rectangular frame is shown in Figure 7 (b) and depicted in Figure 7 (c), which highlights the large CW material, while the smaller-sized material may be CW or AFt. CW clusters will play a filling role similar to micro-aggregates in the ITZ near the PVA fiber, improving the pore structure in the ITZ of the PVA fiber (2727. Yang, Y.; Fu, S.; Li, X. (2017) Mechanical attributes of uniaxial compression for calcium carbonate whisker reinforced oil well cement pastes. Adv. Mater. Sci. Eng. 2017, 2939057. https://doi.org/10.1155/2017/2939057.
).

Figure 7. Micro-structure of the interface between the fibers and the matrix.

As shown in Figure 7 (d), the ITZ on the steel and PVA fiber surfaces could be divided into three regions (2828. Xu, L.; Deng, F.; Chi, Y. (2017) Nano-mechanical behavior of the interfacial transition zone between steel-polypropylene fiber and cement paste. Constr. Build. Mater. 145, 619-638. https://doi.org/10.1016/j.conbuildmat.2017.04.035.
). Region 1 was adjacent to the fiber, where the amount of C-S-H gel was relatively large. In region 2, which was slightly distanced from the fiber, there were a few C-S-H gels mainly composed of Ca(OH)₂ and an AFt network structure, forming numerous pores. This was the weakest part of the ITZ. In region 3, far from the fibers, the C-S-H gel content gradually increased, while the content of Ca(OH)₂ and AFt gradually decreased. Region 3 eventually became consistent with the matrix, forming a compact structure dominated by C-S-H gel.

As shown in Figure 8, to further explore the ITZ formation mechanism of the steel and PVA fibers in cementitious materials, EDS was used to analyze the elemental composition in the ITZ, and the results are shown in Figure 9. The overall silicon content gradually increased from the fiber surface to the exterior, and the C-S-H gel gradually increased and became stable. However, due to the differences in the physical properties and sizes of the fibers, the ITZ sizes were different. Thus, the ITZ width for the steel fiber was about 45-50 μm, which was close to the results reported by Xu et al. (2828. Xu, L.; Deng, F.; Chi, Y. (2017) Nano-mechanical behavior of the interfacial transition zone between steel-polypropylene fiber and cement paste. Constr. Build. Mater. 145, 619-638. https://doi.org/10.1016/j.conbuildmat.2017.04.035.
). The ITZ width for the PVA fiber was about 20-25 μm, which was also close to the width of ITZ of polypropylene fibers (2828. Xu, L.; Deng, F.; Chi, Y. (2017) Nano-mechanical behavior of the interfacial transition zone between steel-polypropylene fiber and cement paste. Constr. Build. Mater. 145, 619-638. https://doi.org/10.1016/j.conbuildmat.2017.04.035.
).

Figure 8. Backscattered electron (BSE) image of the MSFRCM.

Figure 9. Elemental mole fractions of the fiber and cement matrix interfaces.

The formation mechanism of the weak ITZ for steel and PVA fibers in cementitious materials is shown in Figure 10, namely showing the “wall effect” (2828. Xu, L.; Deng, F.; Chi, Y. (2017) Nano-mechanical behavior of the interfacial transition zone between steel-polypropylene fiber and cement paste. Constr. Build. Mater. 145, 619-638. https://doi.org/10.1016/j.conbuildmat.2017.04.035.
). As shown in Figure 9, in region 2, there was an obvious “fovea” in the silicon and calcium content curve, and the molar percentage decreased. Thus, the region with the least amount of C-S-H gel content did not appear in region 1, close to the fiber, but in region 2 slightly away from the fiber. As shown in Figure 9 (a), in region 1, Fe²⁺ content was significantly higher than in regions 2 and 3. This result was mainly due to the dissolution of the steel fiber, forming more hydration products, and reducing the adverse effects of the water film layer in region 1 (2828. Xu, L.; Deng, F.; Chi, Y. (2017) Nano-mechanical behavior of the interfacial transition zone between steel-polypropylene fiber and cement paste. Constr. Build. Mater. 145, 619-638. https://doi.org/10.1016/j.conbuildmat.2017.04.035.
). As shown in Figure 9 (b), the concentration of calcium ions on the surface of the PVA fiber was higher, because the PVA fiber contained abundant hydroxyl radicals with a strong adsorption capacity for Ca²⁺. Hence, the hydration products easily enriched the surface of the PVA fiber, forming a relatively dense region 1.

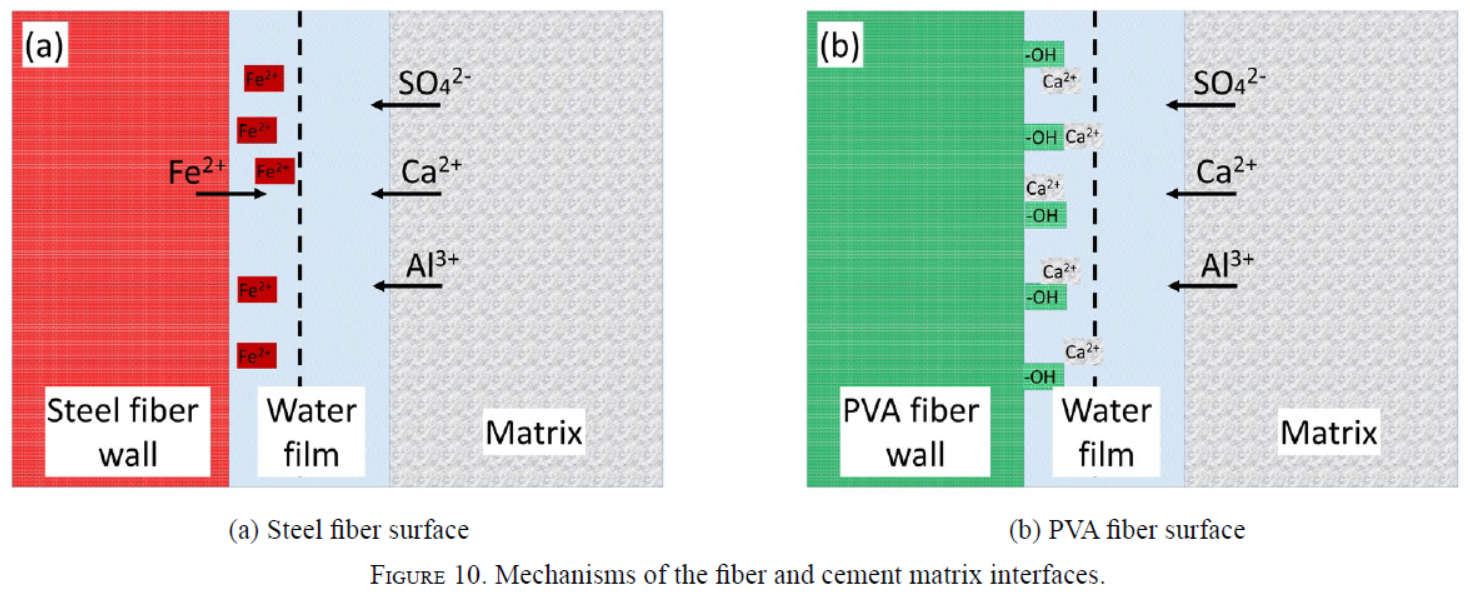

Figure 10. Mechanisms of the fiber and cement matrix interfaces.

The presence of CW in the MSFRCM optimized and improved the weak ITZ on the steel and PVA fiber surfaces, as shown in Figure 11. The main mechanism consisted of physical effects, such as bridging and filling effects, as shown in Figure 7 (b) and (c). The weak ITZ of the steel and PVA fibers was mainly composed of Ca(OH)₂ and Aft, and CW influenced Ca(OH)₂ and AFt via chemical effects. As described in (1616. Li, L.; Cao, M.; Yin, H. (2019) Comparative roles between aragonite and calcite calcium carbonate whiskers in the hydration and strength of cement paste. Cem. Concr. Compos. 104, 103350. https://doi.org/10.1016/j.cemconcomp.2019.103350.
), CWs can reduce the orientation index of Ca(OH)₂ in cementitious materials, and when in the presence of CW, Ca(OH)₂ amount is reduced when space is limited and constrained. Thus, the Ca(OH)₂ crystal was refined, and the ITZ density improved. This was one of the reasons why the mechanical properties of the fiber-reinforced cementitious materials containing CW improved, as discussed in Section 3.

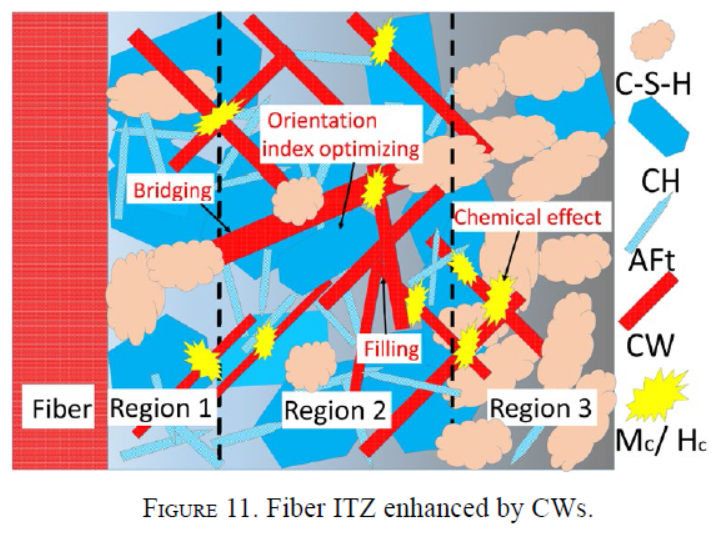

Figure 11. Fiber ITZ enhanced by CWs.

5.2 Mechanism analysis of multi-scale fibers in the MSFRCM

⌅

When cementitious materials begin to crack and fail, the steel fibers, PVA fibers, and CW in MSFRCMs can bridge the cracks at the macro, mesoscopic, and microscopic levels, respectively. This inhibited crack propagation, consumed energy, and improved the strength and toughness of the cementitious material. The multi-scale crack resistance principle is shown in Figure 12.

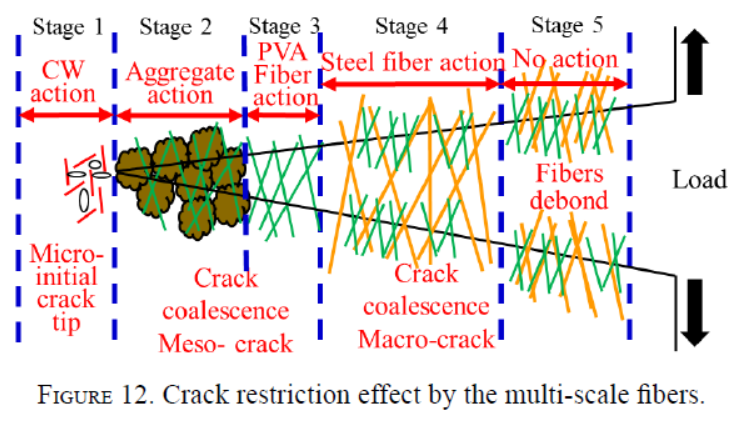

Figure 12. Crack restriction effect by the multi-scale fibers.

Figure 13 shows the action of the multi-scale fibers at various loading stages during the uniaxial tensile loading process. The micron-sized CW inhibited the initial extension of micron grade defects under loading and improved the initial crack strength of the cementitious material, namely in stage 1. With the continuous increase in tensile stress, the CW material pulled out from the matrix or broke, internal forces were redistributed through the matrix, and the initial defects combined, forming micro-cracks. Additionally, the fine aggregate and PVA fibers restricted the development of cracks by bridging action in stage 2. Then the micro-cracks gradually coalesced, the fine aggregate debonded, and the PVA fibers started to pull out and break under load. Macroscopically, this occurred in the form of cracks that were visible to the naked eye. Due to the strong deformation capability of the PVA fibers, this process consumed energy and diffused stress during the pull-out process, and a certain degree of strain hardening appeared on the curve. This macroscopically manifested as multi-cracks, in stage 3. After reaching peak load, the cracks continued to expand, and the deformation increased significantly, with a large number of PVA fibers pulling out from the matrix. However, the steel fibers still bridged the crack, effectively maintaining the load-holding capacity of the MSFRCM during the post-peak large deformation stage. Consequently, the load attenuation rate during the post-peak stage of the stress-strain curve significantly slowed down in stage 4. Under the continuous action of tensile stress, cracks continued to develop, and deformation further increased. Finally, a large number of steel fibers were pulled out from the matrix, and the MSFRCM was destroyed in stage 5.

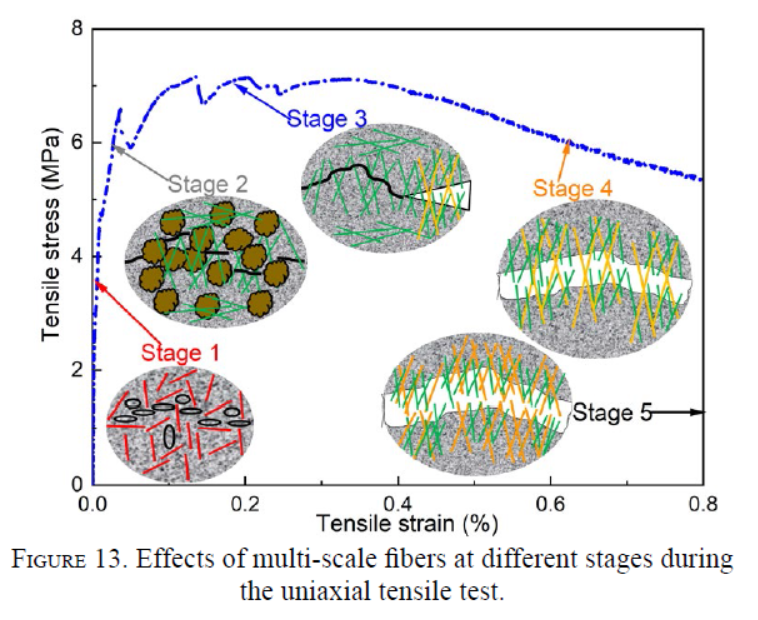

Figure 13. Effects of multi-scale fibers at different stages during the uniaxial tensile test.

The effects of CW and the PVA and steel fibers not only were independent at different scales but also exhibited significant mutual effects, as shown in Figure 14. However, the small-scale CW and PVA fibers did improve the properties of the matrix by controlling the small-scale defects and micro-cracks. This enhanced the holding force of the matrix on the large-scale steel fibers, strengthening the reinforcing effect of the steel fibers. Additionally, when the large steel fibers were pulled out by force, the internal forces were redistributed in the matrix, and new tiny cracks were generated along the periphery of the steel fiber. These cracks were restricted by the PVA fibers and the CW; thus, the PVA fibers and CW continued to have an effect. Therefore, the interactions between the multi-scale fibers in the MSFRCM were the result of interactions and dynamic and chain reactions, which can be called the “fiber chain effect.” This was the cause of the positive hybrid effect of the fibers described in Section 3.

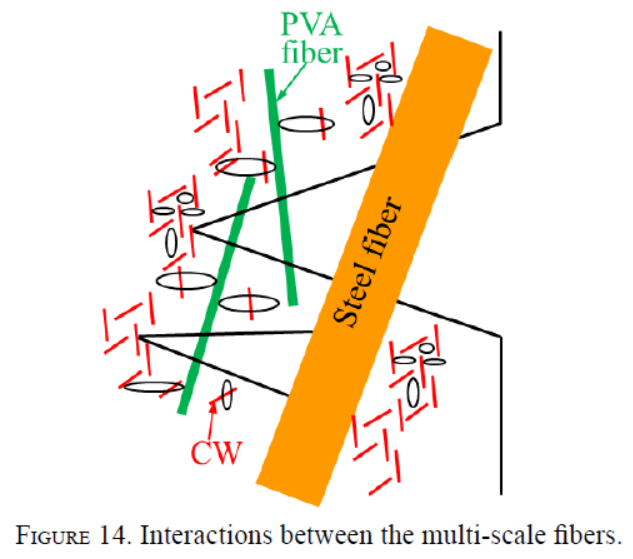

Figure 14. Interactions between the multi-scale fibers.

6. CONCLUSIONS

⌅

The following conclusions were drawn from the results of this study.

The hybrid combination of steel fiber, PVA fiber, and CW presented noteworthy improvements in the uniaxial tensile behavior of cementitious materials. Specifically, CW improved the uniaxial tensile stiffness, strength, peak strain, and toughness of the steel-PVA hybrid fiber-reinforced cementitious materials. The CW not only played a role during the small deformation stage but also improved the load holding capacity and toughness of the hybrid fiber-reinforced cementitious materials during the large deformation stage. A fiber combination of 1.5% steel fiber + 0.5% PVA fiber + 1% CaCO₃ CW performed the best.
Based on test data, a mathematical formula analyzing the relationship between the uniaxial tensile properties and the fiber characteristic parameter RI_V of the MSFRCM was proposed. RI_V reflected the effect of fiber tensile strength and mechanical anchoring properties on the tensile properties of the MSFRCM. This formula was in the form of a quadratic function, reflecting the toughening effect of the hybrid fiber system on the MSFRCM. By analyzing data from the experiment and the literature, we found that the mathematical model applied well to the hybrid fiber-reinforced cementitious materials.
The microstructure observations showed that the steel and PVA fibers formed weak ITZ areas due to the “wall effect.” The fiber/matrix ITZ formation mechanisms were different for the steel and PVA fibers. The Fe ions that dissolved from the steel fibers may have increased the density of the cement stone structure on the fiber surface. Furthermore, the abundance of hydroxides from the PVA fiber also resulted in a relatively dense cement structure on the fiber surface. The CW effectively optimized the ITZ structure for the steel and PVA fibers by physical and chemical effects, such as filling, bridging, improving Ca(OH)₂ orientation, and chemical effects.
The steel fibers, PVA fibers, and the CW in the MSFRCM bridged cracks at the macro, mesoscopic, and microscopic levels, respectively. This inhibited crack propagation, consumed energy, and improved the tensile strength and toughness of the cementitious materials. Consequently, we observed a fiber chain effect that improved the positive hybrid effect between the multi-scale fibers.
