1. INTRODUCTION
⌅For
the past decades, concrete has been one of the most dominant
construction materials applied for the sustainable infrastructural
construction. When compared with other common construction materials
such as steel or aluminum, the concrete structures consume less energy
and have the satisfactory mechanical properties and excellent durability
(11.
Gutowski Timothy, G.; Sahni, S.; Allwood Julian, M.; Ashby Michael, F.;
Worrell, E. (2013) The energy required to produce materials:
constraints on energy-intensity improvements, parameters of demand. Philos. Trans. R. Soc. London, Ser. A. 371 [1986], 20120003. https://doi.org/10.1098/rsta.2012.0003.
).
However, the existing issues of high energy consumption and tremendous
amount of released flue gases induced by the ordinary Portland cement
(OPC) manufacture are still observed (22.
Talaei, A.; Pier, D.; Iyer, A. V.; Ahiduzzaman, M.; Kumar, A. (2019)
Assessment of long-term energy efficiency improvement and greenhouse gas
emissions mitigation options for the cement industry. Energy. 170, 1051-1066. https://doi.org/10.1016/j.energy.2018.12.088.
, 33. Rust, D.; Rathbone, R.; Mahboub Kamyar, C.; Robl, T. (2012) Formulating low-energy cement products. J. Mater. Civ. Eng. 24 [9], 1125-1131. https://doi.org/10.1061/(ASCE)MT.1943-5533.0000456.
).
Moreover, the concrete structures with plain OPC illustrate the weak
resistances to severe chemical attacks such as the organic acid and
sulfate, such that the modern cement/concrete industries need to
consider to use the supplementary cementitious material as an
alternative binder with multiple enhancements of the final concrete
products (44.
Damtoft, J.S.; Lukasik, J.; Herfort, D.; Sorrentino, D.; Gartner, E.M.
(2008) Sustainable development and climate change initiatives. Cem. Concr. Res. 38 [2], 115-127. https://doi.org/10.1016/j.cemconres.2007.09.008.
, 55. Juenger, M.C.G.; Winnefeld, F.; Provis, J.L.; Ideker, J.H. (2011) Advances in alternative cementitious binders. Cem. Concr. Res. 41 [12], 1232-1243. https://doi.org/10.1016/j.cemconres.2010.11.012.
).
On
the other hand, during the service life, the concrete structures have
been vulnerable to the crack issue taking place when the inner tensile
stress of concrete members reaches its tensile strength, possibly due to
high corrosion potential of the steel rebar (66.
Pal Kaur, N.; Kumar Shah, J.; Majhi, S.; Mukherjee, A. (2019) Healing
and simultaneous ultrasonic monitoring of cracks in concrete. Mater. Today Commun. 18, 87-99. https://doi.org/10.1016/j.mtcomm.2018.10.022.
, 77.
Lang, L.; Zhu, Z.; Zhang, X.; Qiu, H.; Zhou, C. (2019) Investigation of
crack dynamic parameters and crack arresting technique in concrete
under impacts. Constr. Build. Mater. 199, 321-334. https://doi.org/10.1016/j.conbuildmat.2018.12.029.
).
For the practical reinforced concrete design, the allowable crack sizes
have to be limited at a certain threshold dependent on the structural
serviceability and environmental attacks (88.
Marí, A.; Torres, L.; Oller, E.; Barris, C. (2019) Performance-based
slenderness limits for deformations and crack control of reinforced
concrete flexural members. Eng. Struct. 187, 267-279. https://doi.org/10.1016/j.engstruct.2019.02.045.
).
By taking the allowable controlled crack into account of concrete
structure design, the application of prestressed concrete structure has
been a preferable consideration (99. Farnam, S.M.; Rezaie, F. (2019) Simulation of crack propagation in prestressed concrete sleepers by fracture mechanics. Eng. Fail. Anal. 96, 109-117. https://doi.org/10.1016/j.engfailanal.2018.09.012.
, 1010.
Murray, C.D.; Diaz-Arancibia, M.; Okumus, P.; Floyd, R.W. (2019)
Destructive testing and computer modeling of a scale prestressed
concrete I-girder bridge. Eng. Struct. 183, 195-205. https://doi.org/10.1016/j.engstruct.2019.01.018.
).
However, in some specific situations where the prestressed construction
technique is restricted, the enhancement of concrete capacity to
restrain the crack occurrence and propagation with an addition of short
fiber has become a crucial alternative.
Normally, the type and
dosage of fiber are the primary influencing factors to affect the
improved performance of a fiber reinforced concrete (FRC) (1111. Yoo, D.-Y.; Banthia, N. (2019) Impact resistance of fiber-reinforced concrete - A review. Cem. Concr. Compos. 104, 103389. https://doi.org/10.1016/j.cemconcomp.2019.103389.
) or mortar (1212.
Bustos, A.; Moreno, E.; González, F.; Cobo, A. (2020) Influence of the
addition of carbon fibers on the properties of hydraulic lime mortars:
comparison with glass and basalt fibers. Mater. Construcc. 70 [340], e229. https://doi.org/10.3989/mc.2020.00120.
).
Recently, various types of steel, glass, synthetic, and natural fibers
have been practically used for manufacturing the FRC with significant
improvement of bearing capacity and durability to withstand static and
dynamic loads (1313.
Alhozaimy, A.M.; Soroushian, P.; Mirza, F. (1996) Mechanical properties
of polypropylene fiber reinforced concrete and the effects of
pozzolanic materials. Cem. Concr. Compos. 18 [2], 85-92. https://doi.org/10.1016/0958-9465(95)00003-8.
, 1414. Reis, J.M.L. (2006) Fracture and flexural characterization of natural fiber-reinforced polymer concrete. Constr. Build. Mater. 20 [9], 673-678. https://doi.org/10.1016/j.conbuildmat.2005.02.008.
).
With the beneficial properties of low specific density and high
chemical stability, the synthetic fiber, particularly the polypropylene,
or acrylic emulsion polymer (PR) becomes a high level of interest in
research (1313.
Alhozaimy, A.M.; Soroushian, P.; Mirza, F. (1996) Mechanical properties
of polypropylene fiber reinforced concrete and the effects of
pozzolanic materials. Cem. Concr. Compos. 18 [2], 85-92. https://doi.org/10.1016/0958-9465(95)00003-8.
, 15-1815.
Qin, Y.; Zhang, X.; Chai, J.; Xu, Z.; Li, S. (2019) Experimental study
of compressive behavior of polypropylene-fiber-reinforced and
polypropylene-fiber-fabric-reinforced concrete. Constr. Build. Mater. 194, 216-225. https://doi.org/10.1016/j.conbuildmat.2018.11.042.
16.
Saje, D.; Bandelj, B.; Šušteršič, J.; Lopatič, J.; Saje, F. (2011)
Shrinkage of polypropylene fiber-reinforced high-performance concrete. J. Mater. Civ. Eng. 23 [7], 941-952. https://doi.org/10.1061/(ASCE)MT.1943-5533.0000258.
17.
Saeedian, A.; Dehestani, M.; Asadollahi, S.; Vaseghi Amiri, J. (2017)
Effect of specimen size on the compressive behavior of
self-consolidating concrete containing polypropylene fibers. J. Mater. Civ. Eng. 29 [11], 04017208. https://doi.org/10.1061/(ASCE)MT.1943-5533.0002067.
18.
Ríos José, D.; Cifuentes, H.; Leiva, C.; García, C.; Alba María, D.
(2018) Behavior of high-strength polypropylene fiber-reinforced
self-compacting concrete exposed to high temperatures. J. Mater. Civ. Eng. 30 [11], 04018271. https://doi.org/10.1061/(ASCE)MT.1943-5533.0002491.
).
Currently, the utilization of hybrid fiber for FRC becomes a research
interest due to the multiple beneficial effects when compared with the
mono FRC (1919. Pakravan, H.R.; Latifi, M.; Jamshidi, M. (2017) Hybrid short fiber reinforcement system in concrete: A review. Constr. Build. Mater. 142, 280-294. https://doi.org/10.1016/j.conbuildmat.2017.03.059.
, 2020.
Siva Chidambaram, R.; Agarwal, P. (2015) Seismic behavior of hybrid
fiber reinforced cementitious composite beam-column joints. Mater. Des. 86, 771-781. https://doi.org/10.1016/j.matdes.2015.07.164.
). Although the FRC incorporated with polymer-polymer hybrid fiber has been properly studied (1919. Pakravan, H.R.; Latifi, M.; Jamshidi, M. (2017) Hybrid short fiber reinforcement system in concrete: A review. Constr. Build. Mater. 142, 280-294. https://doi.org/10.1016/j.conbuildmat.2017.03.059.
, 2121.
Leung, H.Y.; Balendran, R.V. (2003) Properties of fresh polypropylene
fibre reinforced concrete under the influence of pozzolans. J. Civ. Eng. Manage. 9 [4], 271-279. https://doi.org/10.1080/13923730.2003.10531339.
),
the study focusing on the performance of FRC with hybrid fiber
comprised of acrylic emulsion polymer and polypropylene seems to be
relatively limited. For the purpose of gradually enriching the database
for the FRC with polymer-polymer hybrid fiber, the current study aims at
investigating the influence of using the acrylic emulsion polymer on
the performance of polypropylene FRC. Moreover, this study further
explores the effect of interaction between the high reactive microsilica
of silica fume and different amounts of hybrid fiber on the properties
of the modified FRC which has not been previously studied.
2. EXPERIMENTAL PROGRAM
⌅2.1. Materials
⌅The
Type I ordinary Portland cement (OPC), ground granulated blast furnace
slag (slag), low calcium Class F fly ash (FA), and commercial silica
fume (SF) supplied by imported Elkem 940U were used for the preparation
of supplementary cementitious binder. The physicochemical properties of
these materials are shown in Table 1.
Accordingly, the OPC and slag mostly contained calcium oxide while the
FA abundantly contained oxides of aluminum and silicon. On the other
hand, the SF distinguished itself with tremendous content of silicon
oxide accompanying with minor amount of other oxides. For concrete
manufacture, the natural sand with specific gravity of 2.65 and finesse
modulus (FM) of 2.72 and the crushed stone with specific gravity of 2.67
and maximum size of 19 mm were used as fine and coarse aggregates,
respectively. The water absorptions of sand and crushed stone were of
1.0 and 0.8%, respectively. The particles size distributions of the
aggregates are shown in Figure 1. According to the figure, the aggregates essentially complied with ASTM C33 (2222. ASTM (2018) Standard specification for concrete aggregates. ASTM C33. West Conshohocken, PA.
).
To produce fiber reinforced concrete (FRC), the commercial
polypropylene fiber supplied by the local dealer, Poplar Co. Ltd.,
Taiwan, with properties shown in Table 2 was used. On the other hand, for preparing the modified FRC with hybrid
polymer fiber, the waterborne acrylic polymer used in this study was a
domestic commercial product with a trade name of ETERSOL 6976, which was
purchased from the Eternal Materials Co., Ltd. Taiwan. It had a cream
color, a solid content (150 oC×15 mins) of 48 ± 1%, viscosity (Brookfield, LVF, No, 2, 60 rpm, 30oC) of less than 200 cps, a pH value between 8.0 and 9.0 and a minimum filming temperature (73% RH) of 14 to 16 oC.
Both polymer and fibers used in this study were available in Taiwan. In
this study, commercial Type G superplasticizer (SP) supplied by local
dealer, Poplar Co. Ltd., Taiwan (same dealer of polypropylene fiber),
was used for achieving the workable concrete. In addition, to minimize
the air trapped in the fresh concrete during mixing process, the
commercial milky white liquid of antifoam agent supplied by local
dealer, Hsin An Instruments Co., Ltd., was also used.
Chemical compositions (wt.%) | OPC | Slag | Class F fly ash (FA) | Silica fume (SF) |
---|---|---|---|---|
SiO2 | 20.42 | 34.86 | 49.9 | 88.21 |
Al2O3 | 4.95 | 13.52 | 25.6 | 0.33 |
Fe2O3 | 3.09 | 0.52 | 3.49 | 0.74 |
CaO | 61.96 | 41.77 | 3.63 | 0.93 |
MgO | 3.29 | 7.18 | - | 2.37 |
SO3 | 2.40 | 1.74 | 1.12 | - |
Loss on ignition | 1.75 | 4.27 | 3.72 | 2.62 |
Insoluble residue | 1.02 | - | - | - |
C3S | 49 | - | - | - |
C2S | 21 | - | - | - |
C3A | 7.9 | - | - | - |
C4AF | 9.4 | - | - | - |
Physical properties | ||||
Specific gravity | 3.15 | 2.9 | 2.14 | 2.14 |
Surface area (cm2/g) | 3450 | 6000 | 2630 | - |
Initial setting (min) | 155 | - | - | - |
Final setting (min) | 260 | - | - | - |
Length, mm | 19 |
Diameter, mm | 0.36 |
Specific gravity | 0.9 |
Tensile strength, MPa | 303 |
Elastic modulus, GPa | 1.57 |
Toughness, MPa | 193 |
Melting point, °C | 225 |
Appearance | White |
2.2. Mix proportions
⌅The concrete proportions were based on an equivalent fixed volumetric ratio of aggregate to concrete of 0.62. The mass ratio of fine aggregate to total aggregates was fixed at 0.4. The reference supplementary cementitious binder contained the ternary mixture of 50% OPC, 25% of slag, and 25% of fly ash in volume. Three amounts of commercial silica fume (SF) were used as partial replacement of OPC with fraction at 0, 5, and 10% of total volume of the powder, respectively. The commercial polypropylene fiber amount fixed at 0.2% of concrete volume was used for the control set of FRC. To assess the performance of the modified FRC with hybrid polymer fiber, the commercial acrylic emulsion polymer (PR) was used at 0, 5, and 10% of total weight of powder. The water to binder ratio (w/b), in which the water content included both the distilled water and the water extracted from the PR, of all concrete mixtures was fixed at 0.4. The mix proportions of the concretes are illustrated in Table 3.
Mixes | OPC | Slag | FA | SF | PR | PPF | AF* | SP** | Sand | Stone | Water |
---|---|---|---|---|---|---|---|---|---|---|---|
S0P0 | 266 | 120 | 93 | 0 | 0 | 1.8 | 0 | 0.3 | 654 | 1000 | 191 |
S0P5 | 266 | 120 | 93 | 0 | 50 | 1.8 | 7.5 | 0.4 | 654 | 1000 | 166 |
S0P10 | 266 | 120 | 93 | 0 | 100 | 1.8 | 15 | 0.4 | 654 | 1000 | 140 |
S5P0 | 241 | 121 | 94 | 18 | 0 | 1.8 | 0 | 0.3 | 654 | 1000 | 190 |
S5P5 | 241 | 121 | 94 | 18 | 49 | 1.8 | 7.5 | 0.4 | 654 | 1000 | 164 |
S5P10 | 241 | 121 | 94 | 18 | 99 | 1.8 | 15 | 0.5 | 654 | 1000 | 138 |
S10P0 | 217 | 123 | 95 | 37 | 0 | 1.8 | 0 | 0.4 | 654 | 1000 | 188 |
S10P5 | 217 | 123 | 95 | 37 | 49 | 1.8 | 7.5 | 0.5 | 654 | 1000 | 163 |
S10P10 | 217 | 123 | 95 | 37 | 98 | 1.8 | 15 | 0.5 | 654 | 1000 | 137 |
Note: OPC = Ordinary Portland cement; FA = Class F fly ash; SF = Silica fume; PR = Acrylic emulsion polymer; PPF = Polypropylene fiber; AF = Antifoam agent; SP = Superplasticizer; *Mass percent of total fiber; **Mass percent of total powder.
2.3. Specimen preparation and test methods
⌅The fresh property of concrete was estimated with the slump test in accordance with ASTM C143 (2323. ASTM (2015) Standard test method for slump of hydraulic-cement concrete. ASTM C143. West Conshohocken, PA.
). Immediately after the slump test, the concrete cylinders with dimensions of Φ100×200 mm2 were cast for the tests of compressive strength in accordance with ASTM C39 (2424.
ASTM (2018) Standard test method for compressive strength of
cylindrical concrete specimens. ASTM C39. West Conshohocken, PA.
). The durability of concrete specimen was evaluated by using the tests of water absorption in accordance with ASTM C642 (2525. ASTM (2013) Standard test method for density, absorption, and voids in hardened concrete. ASTM C642. West Conshohocken, PA.
),

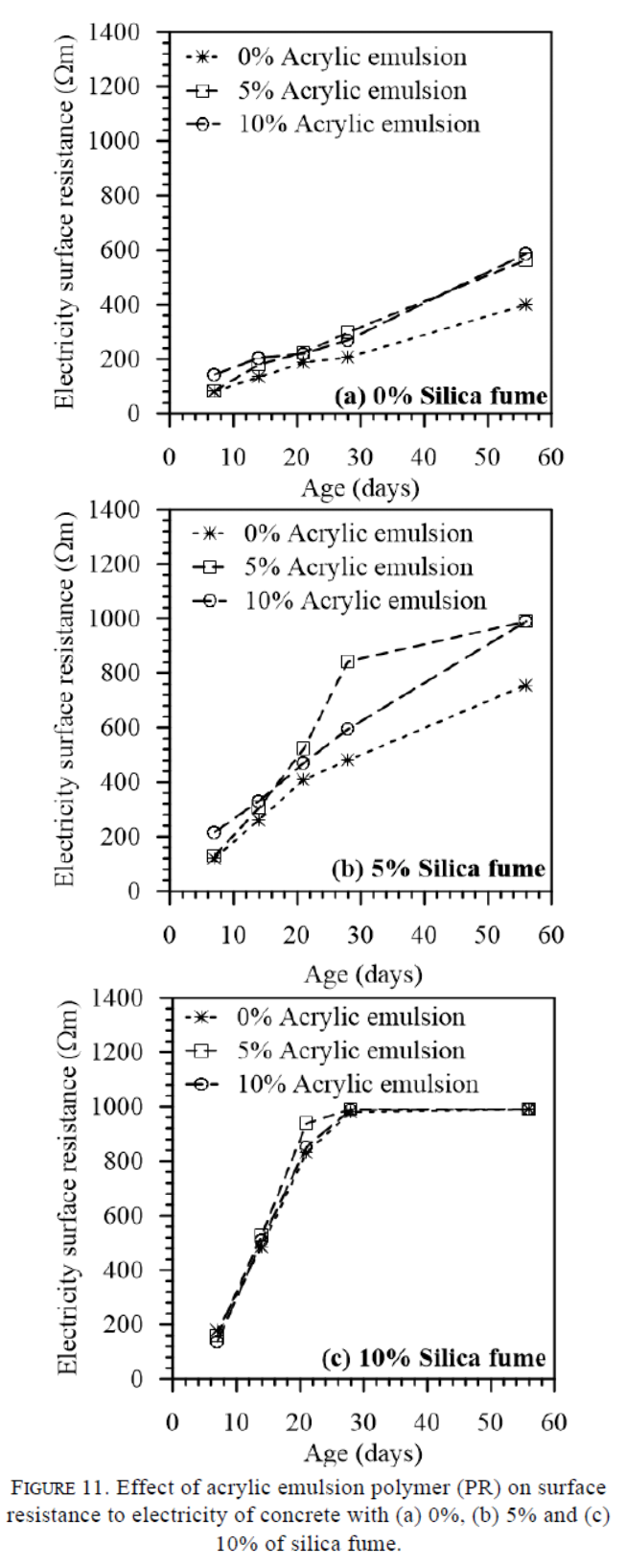

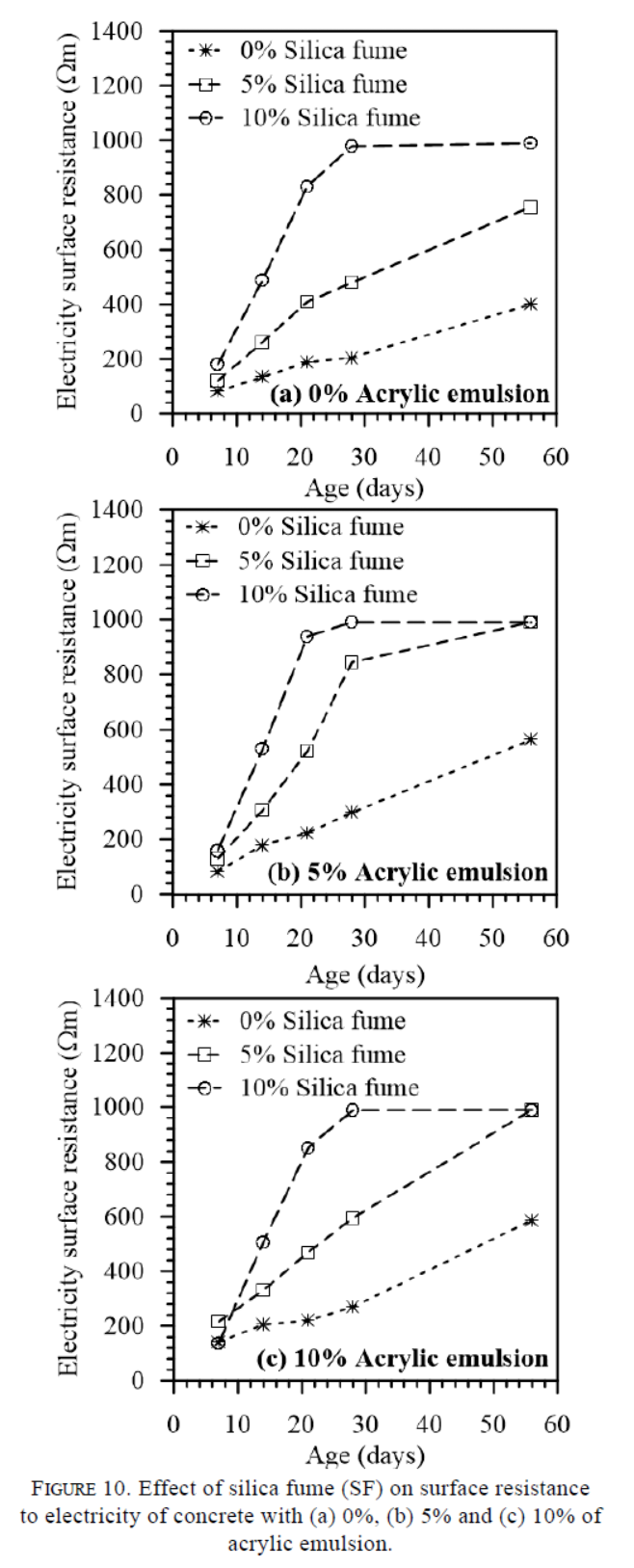

the electricity surface resistance test using 4-point probe equipment,

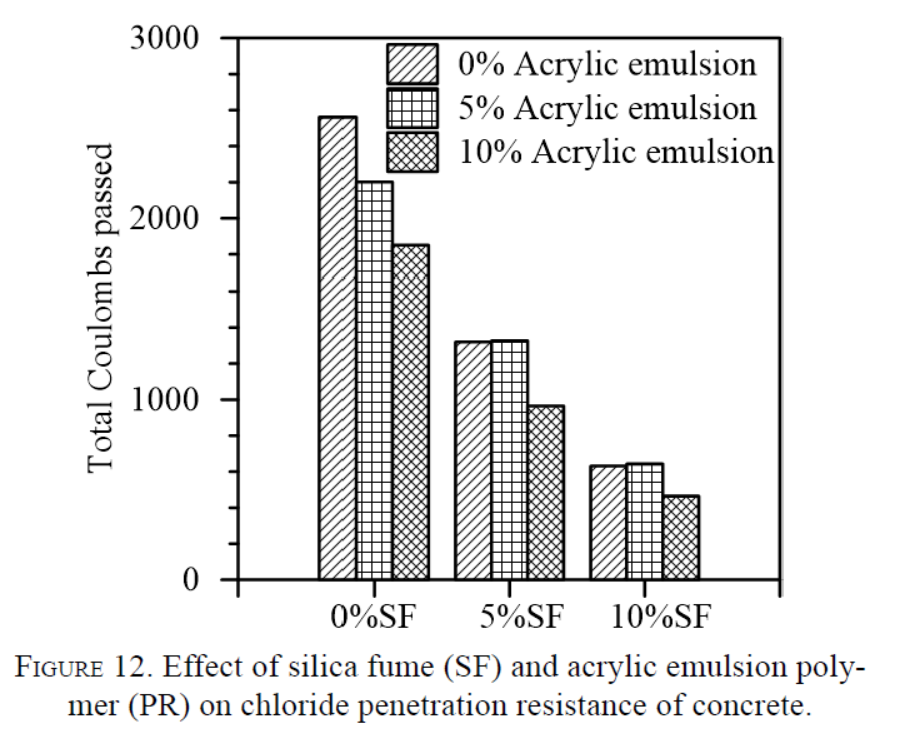

and the rapid chloride penetration test (RCPT) in accordance with ASTM
C1202 (2626.
ASTM (2019) Standard test method for electrical indication of
concrete’s ability to resist chloride ion penetration. ASTM C1202. West
Conshohocken, PA.
). On the other hand, the 100×100×100 mm3 cubic specimens of concretes were prepared for the abrasion resistance
test. After 24 hours, all the concrete specimens were demoulded and
cured in room temperature of 23±2oC and relative humidity (RH) of 50-70% until the ages of testing, without any water curing.

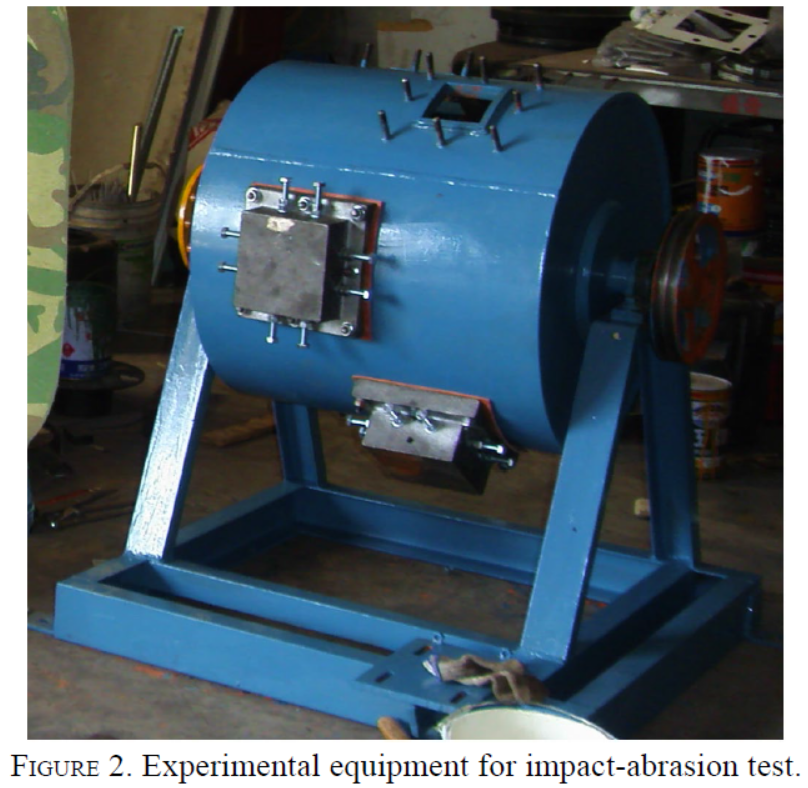

In this study, a self-designed patented enclosed cylindrical steel container of Rotary-drum Hydraulic Impact-Abrasion Testing Machine (US patent 8,833,136 B2) as shown in Figure 2 was used to evaluate the hydraulic impact-abrasion resistance on 100×100×100 mm3 cubic concrete specimens. The testing machine had six 100×100 mm2 openings evenly distributed with an angle of 60o around its circumferential surface in which each opening allowed a half of one 100×100×100 mm3 cubic concrete specimen to be inserted into the inner compartment of enclosed container which was either filled with water or empty accompanying with 12 steel balls. Thus a half of 100×100×100 mm3 cubic concrete specimen which was inserted into the inner chamber would be subjected to either the wet (container with water) or the dry (container without water) impact and abrasion test simultaneously once the cylindrical container was rotating. One to six 100×100×100 mm3 cubic concrete specimens could be installed for one test. The contacting impact included fixed quantity of uniform steel balls free falling inside the cylindrical steel container. To run the test, the whole system was set to rotate with a fixed speed of 30 to 33 rpm similar to that of ASTM C535-16 for 500 revolutions. The weight loss of 100×100×100 mm3 cubic concrete sample computed after the test was used for estimating the impact-abrasion resistance of concrete mixture. In this study, the impact-abrasion resistances of concrete specimen at both dry and wet conditions were conducted. The wet condition of the test was simulated by filling the enclosed chamber with tap water during the rotating period.

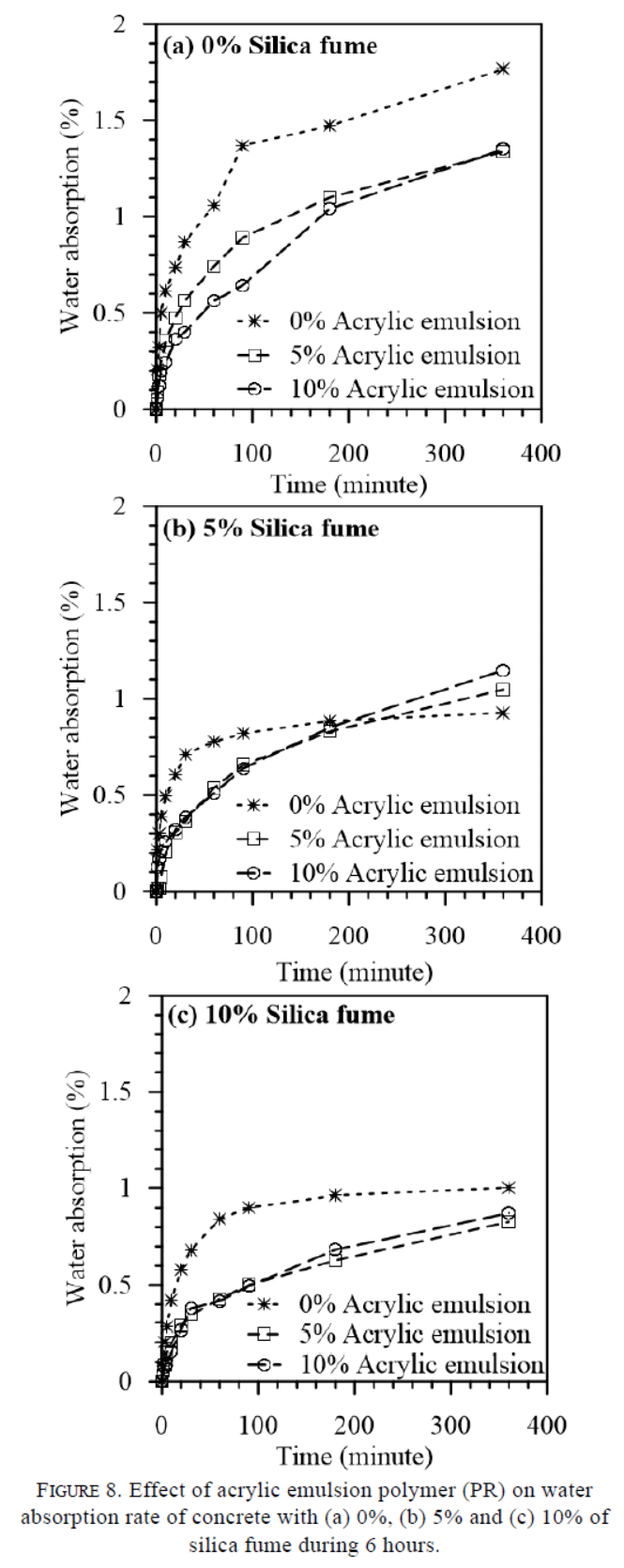

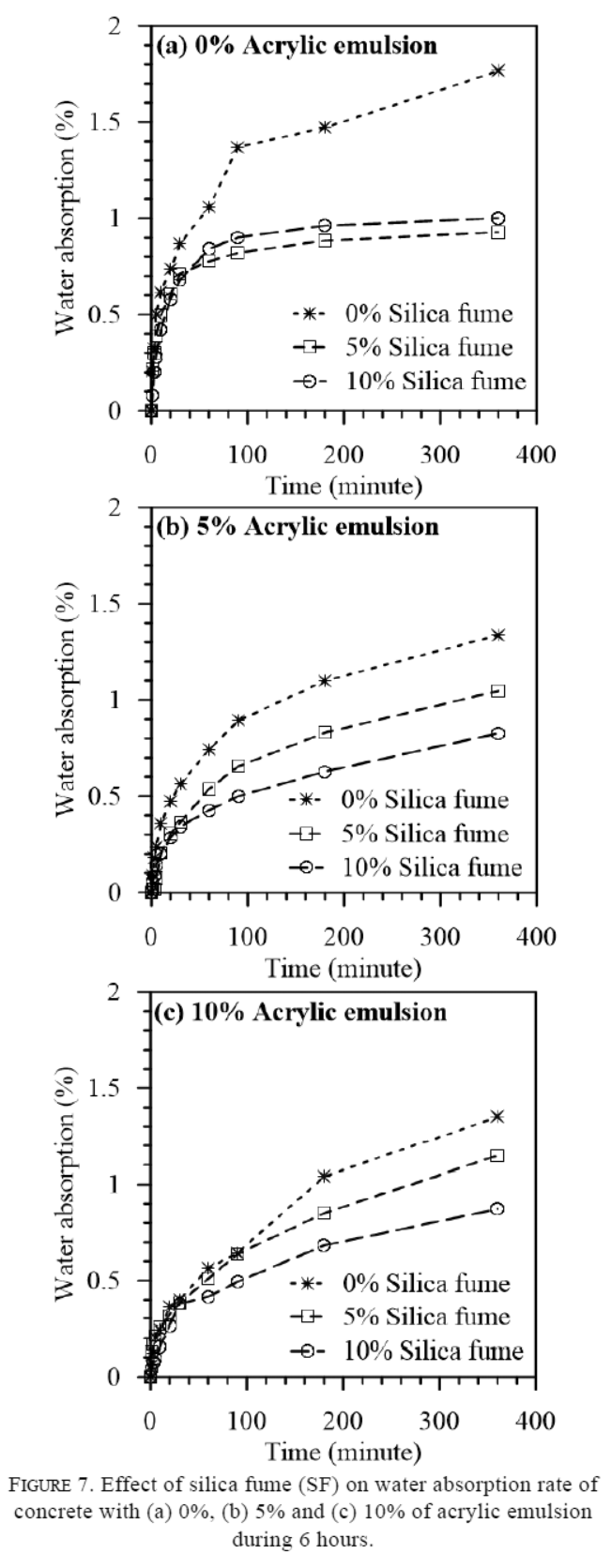

In order to continuously measure the water absorption rate of Φ100×200 mm concrete cylinder at time intervals of 0, 1, 5,10, 20, 30, 60, 180 and 360 minutes, a self-designed experimental cylindrical plastic transparent container with dimension of Φ120×210 mm2 was used (Figure 3). After the oven-dried concrete cylinder was set into the cylindrical container, a transparent cap equipped with a vertical graduated capillary tube at the center was sealed to the container. Then the graduated tube was used to measure the level of sinking water to estimate the water absorption of oven-dried concrete cylinder after the container being filled with tap water. At beginning of the test, the initial level of added water was recorded and used as the reference value for computing the absorbed water. With the elapse of testing time, the decrease of sinking water level was continuously monitored and used for computing the water absorption and water absorption rate of concrete specimens. In this study, the water absorption rate of concrete was monitored up to initial 6 hours. On the other hand, the final water absorption of concrete specimens was reported after 3 days of immersion.
The compressive tests of polymer concrete specimens were conducted at ages of 7, 14, 21, 28 and 56 days, respectively, while all the other four tests and the scanning electron microscopic analysis of specimens were performed at age of 28 days.
3. RESULTS AND DISCUSSIONS
⌅3.1. Compressive strength
⌅The influences of SF and PR on the compressive strengths of the modified FRC specimens are shown in Figure 4 and 5, respectively. Accordingly, the compressive strengths of the concrete specimens increased with the increase of curing ages regardless of the concrete proportions. At the equivalent amount of PR, the compressive strengths of the modified FRC specimens were improved with the increase of SF Figure 4 showed that without using PR, the compressive strengths of modified FRC specimens with 10% SF were higher than those of the reference FRC specimens without SF addition at all ages of curing. With the increase of PR at 5 and 10%, the compressive strengths of the modified FRC specimens with SF in range of 5-10% were improved in comparison with those of the control FRC without SF addition at all ages. The observed results were due to the SF having the pozzolanic property which contributed to the enhancement of pore refinement of binding system induced by the extra hydration products. Normally the utilization of silica fume (SF) has a significant improvement on the compressive strength and durability of the hardened concrete with a high amount of Portland cement as the key cementitious agent. As shown in Table 3, the cementitious material for the concrete studied in this study consisted of only 50 vol.% of Portland cement and other 50 vol.% of slag, class F fly ash, silica fume and acrylic emulsion polymer. The unique effect by increasing the amount of silica fume from 0 to 10% on the enhancement of compressive strength of concrete mainly from the pozzolanic reaction seems to be smeared out with the effects from other pozzolanic materials of slag and fly ash and not as apparent as expected. However, the remarkable filling effect of extreme finer size of silica fume as compared with that of slag and fly ash did effectively stuff in the small pores in the microstructure of hydrated cement paste, so that such impressive filling effects of fine silica fume become very significant appeared in the results of water absorption, electrical surface resistance and rapid chloride ingress tests.

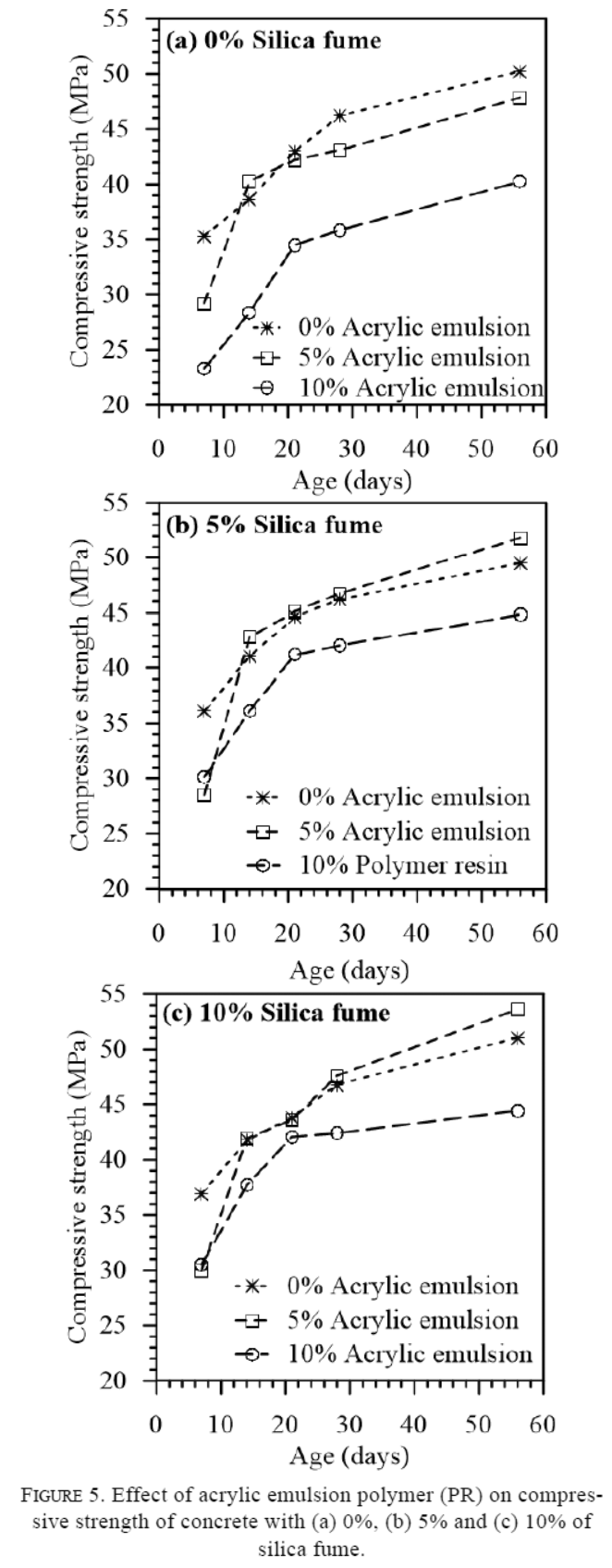

On the other hand, the influence of PR addition on the compressive strengths of the modified FRC specimens was minor. Figure 5 showed that irrespective of the SF amount used, the addition of PR
significantly reduced the early compressive strengths of modified FRC
specimens. Without using SF, the addition of PR illustrated a negative
effect on the compressive strengths of the modified FRC specimens at all
ages of curing. Consequently, the PR addition normally led to the
generation of internal polymerization film causing the reduction of
compressive strengths of the modified FRC specimens probably due to the
diminished effect of mechanical interlock among the ingredients (2727.
Morin, V.; Moevus, M.; Dubois-Brugger, I.; Gartner, E. (2011) Effect of
polymer modification of the paste-aggregate interface on the mechanical
properties of concretes. Cem. Concr. Res. 41 [5], 459-466. https://doi.org/10.1016/j.cemconres.2011.01.006.
).
However, with an addition in range of 5-10% for both SF and PR, the
modified FRC specimens had shown an improvement of compressive strengths
after 7 days of curing. Therefore, the addition of SF obviously
compensated the negative effect of a sole addition of FR and led to the
modified FRC specimens with enhanced compressive strengths at later
ages. Such result could be attributed to the improved bonding strength
at the interface between the fiber and the high-strength binding matrix (2828.
Zhang, Y.; Yan, L.; Wang, S.; Xu, M. (2019) Impact of twisting
high-performance polyethylene fibre bundle reinforcements on the
mechanical characteristics of high-strength concrete. Mater. Construcc. 69 [334], e184. https://doi.org/10.3989/mc.2019.01418.
).
3.2. Impact-abrasion resistance

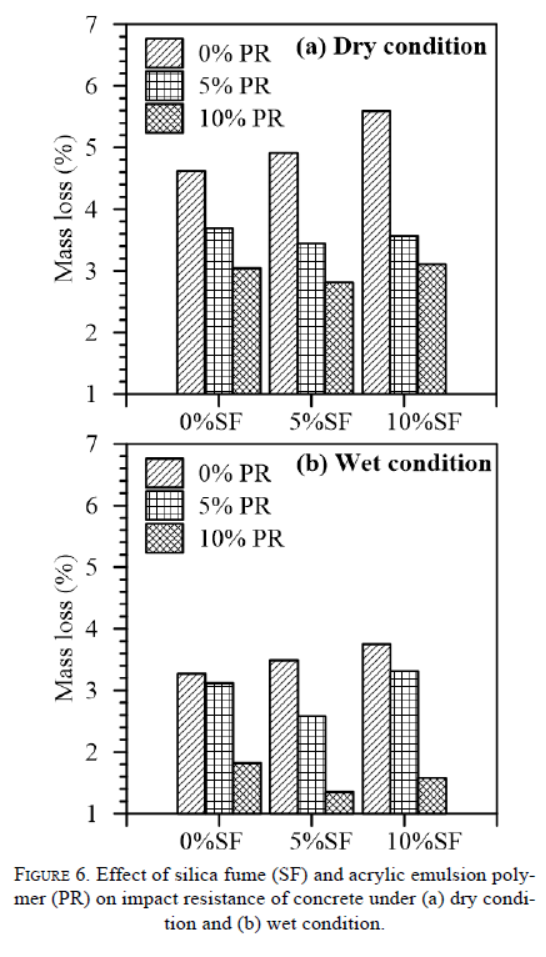

⌅The impact-abrasion resistances of the FRCs with/without modifiers consisting of SF and/or PR are illustrated in Figure 6,
which indicated that a sole addition of SF apparently reduced the
impact-abrasion resistance of the modified FRCs. On the contrary, with
the addition of SF, the modified FRCs with an addition of PR illustrated
the optimal impact-abrasion resistance being superior to that of the
FRC without the addition of PR. Such enhanced benefit of using the
polymer-polymer hybrid fiber to increase the impact-abrasion resistance
of FRCs in comparison with a single addition of polypropylene polymer
was clearly verified. The usage of SF accompanying with the PR resulted
in the modified FRCs with a significant enhancement of the
impact-abrasion resistance when compared with the SF modified FRCs
without the PR addition, implying that the positive effect of the
interaction between the SF and PR utilizations on the impact-abrasion
resistance of the modified FRCs due to the mutual complementary effect. Figure 6 showed that when compared with the modified FRCs with a sole addition
of SF, the modified FRCs with various combinations of SF and PR had the
impact-abrasion resistances significantly increased up to 20.1-39.2% and
4.6-58.7%, respectively, at dry and wet conditions. Regardless of
different proportions, the impact-abrasion resistance of FRCs at the wet
state was higher than that of the FRCs at dry state. The observed
results could be explained due to the lubricating effect from the
existence of moisture in the concrete causing the aggregates to slip and
separate by each other easily to lower its impact-abrasion resistance.
In this study, the addition of SF not only increased the strengths of
the modified FRCs but also induced the additional brittleness of binding
matrix, which is just opposite to the promoting effect of a sole
addition of PR. The increased ductility of FRC in comparison with that
of plain concrete was also reported in the previous study (2727.
Morin, V.; Moevus, M.; Dubois-Brugger, I.; Gartner, E. (2011) Effect of
polymer modification of the paste-aggregate interface on the mechanical
properties of concretes. Cem. Concr. Res. 41 [5], 459-466. https://doi.org/10.1016/j.cemconres.2011.01.006.
).
3.3. Water absorption

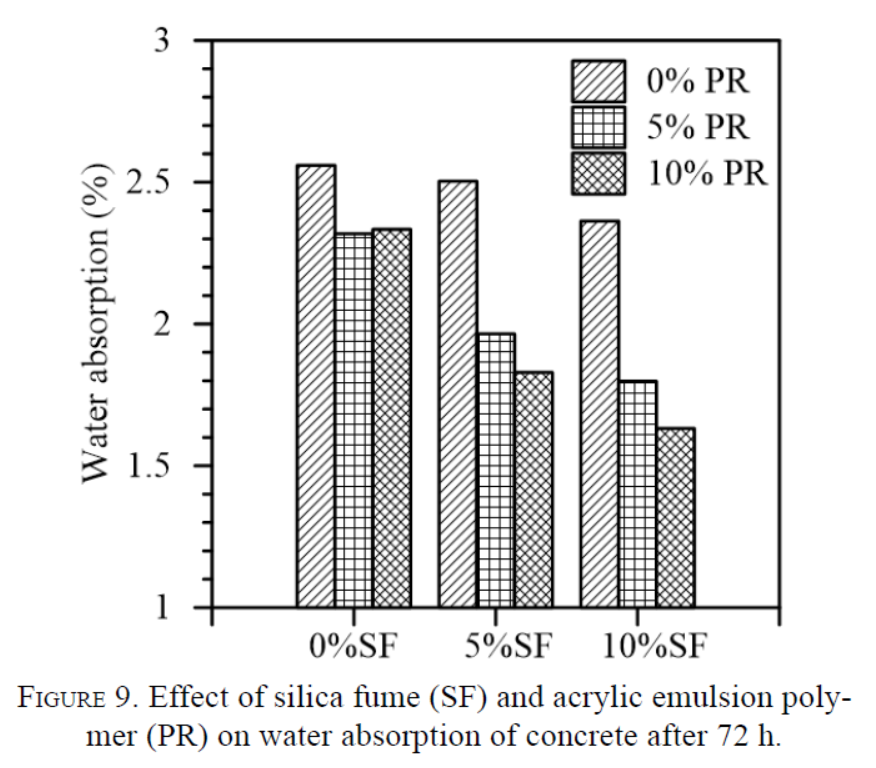

⌅The effects of the SF and/or PR additions on the performance of water absorption of the modified FRCs are investigated in Figure 7, 8 and 9. As can be seen from Figure 7 and 8, a sole addition of SF or PR significantly reduced the water absorption rate of the modified FRCs during the initial 6 hours. In addition, the beneficial effect of the complementary interaction between the SF and PR additions on the water transport resistance of the modified FRCs was also observed with an exception of the FRCs modified with 5% SF and PR varied in range of 5-10%. Similarly, a sole addition of SF or PR and the complementary interaction between the SF and PR additions induced the modified FRCs with remarkable decrease in water absorptions as shown in Figure 9. In this study, a sole addition of SF in range of 5-10% and PR in range of 5-10% resulted in the modified FRCs with the reduced water absorptions in range of 2.2-7.7% and 8.8-9.4%, respectively. Such result implied that the beneficial effect of using the PR for reducing the water absorption of the modified FRCs was higher than that of using the SF, which could be due to the waterproof function of the PR to enhance the resistance of modified FRC to the penetration of water molecule. Moreover, the polymer film could be formed in the acrylic emulsion modified concrete specimens subjected to the drying condition, which was probably an additional reason supporting the reduction of water absorption of the acrylic emulsion modified concretes. On the other hand, Figure 9 showed that the advantage of combined addition of SF and PR was better than a sole addition of either SF or PR to improve the water absorption of the modified FRCs. Especially, such beneficial effect obviously was increased with the increase of the amounts of SF and/or PR.
3.4. Surface electricity resistance
⌅The
surface electricity resistance (SER) has been one of the important
indexes used for evaluation of concrete durability in terms of
resistance to the ion penetrability through the free water maintained in
the pore system. It has been highly agreed that a greater value of SER
refers to the concrete with condenser microstructure and thus indicates
the higher resistance of concrete to the ion migration. For concrete
with a practically acceptable resistance to the permeability, the SER
value measured at 56 days of curing is normally greater than 200 Ω-m (2929. Ghosh, P.; Tran, Q. (2015) Correlation between bulk and surface resistivity of concrete. Int. J. Concr. Struct. Mater. 9 [1], 119-132. https://doi.org/10.1007/s40069-014-0094-z.
, 3030. FDOT (2004) Florida method of test for concrete resistivity as an electrical indicator of its permeability. Standard FM5-578. Florida Department of Transportation.
). In this study, the SERs of FRCs at ages of up to 56 days were measured as illustrated in Figure 10 and 11.
Generally, the SERs of the FRCs increased with the increases of curing
ages irrespective of concrete proportions. At a specific fixed amount of
PR, the SERs of the modified FRCs increased with the addition of SF at
all ages when compared with the FRCs without SF addition (Figure 10),
which implied that the SF addition significantly improved the
permeability resistance of the modified FRCs. The reason could result
from the improvement of microstructure of the modified FRCs with SF
addition due to the acceleration of pozzolanic reaction. Similarly, the
values of SER of the modified FRCs increased with the PR addition, which
could be due to the low electrical conductivity of the PR. However, the
beneficial effect of PR addition was lower than that of the SF
addition, which might reduce the expected advantage of combining
additions of SF and PR to increase the permeability resistance of
modified FRCs when compared with a sole addition of SF (Figure 10).
In this study, all FRCs could be classified as the durable concretes
with the satisfactory resistance to the permeability because their SER
values at 56-day were higher than the threshold value of 200 Ω-m as
formerly suggested.
3.5. Rapid chloride penetration test
⌅Rapid
chloride penetration test (RCPT) has been an efficient tool for
preliminary estimation of the resistance of concrete to the aggressive
ion penetration and thus has been normally applied for predicting the
corrosion potential of concrete structure subjected to severe attacks,
particularly under the chloride rich environment. In this study, the
total charges passing through the FRCs samples detected from the RCPT
test are investigated in Figure 12.
Accordingly, the SF addition significantly reduced the total charges
passing through the modified FRCs with all additions of PR. Figure 12 showed that the reference FRC without an addition of SF and PR had the
total passing charges in range of 2000-3000 Coulombs and thus was
classified as the concrete with moderate chloride penetrability. An
addition of SF at 5% led to the SF modified FRCs to reduce the total
passing charges to a new low range of 1000-2000 Coulombs, which was
associated with the classification of low chloride penetrability of
concrete. Further increase of the SF addition resulted in the SF
modified FRCs with the total charges passed to sharply reduce to an even
lower range of 100-1000 Coulombs, referring to the concrete with very
low chloride penetrability. Similarly, a sole addition of PR also
resulted in the PR modified FRCs with a remarkable improvement of the
chloride penetration resistivity. According to Figure 12,
the modified FRCs with an addition of PR at 10% was classified as the
low chloride penetrability, but the reference FRC without an addition of
SF and PR belonged to the moderate chloride penetrability. Moreover, as
shown in Figure 12,
the most beneficial effect of the modifier on providing the best
resistivity of the modified FRCs to the chloride penetrability was the
FRC combining the mixture of 10% SF and 10% PR. The literature showed
that the microstructure, the chemical composition and the pore solution
of concrete have been the crucial factors affecting the RCTP test (3131.
Wee, T.H.; Suryavanshi, A.K.; Tin, S.S. (2000) Evaluation of rapid
chloride permeability test (RCPT) Results for concrete containing
mineral admixtures. ACI Mater. J. 97 [2], 221-232.
).
In this study, the improved resistivity of the SF modified FRCs could
be due to the contribution of both the filling effect and pozzolanic
reaction of SF powder to pore refinement of the binding matrix. On the
other hand, the enhanced resistivity of the modified FRCs with PR was
possibly due to the waterproof capacity of the PR.
3.6. Scanning electron microscope
⌅The scanning electron microscope (SEM) images of the hardened FRCs modified with SF and PR at 28 days of curing are shown in Figure 13 and Figure 14. Obviously, with a fixed amount of PR, the SF addition induced the modified FRCs with condenser microstructure when comparison with that of the modified FRCs without an addition of SF, which could be due to the extra hydration products supplied from the pozzolanic reaction. On the other hand, with an equivalent amount of SF used, the influence of adding PR on the microstructural condensation of the modified FRCs was invisible. On the other hand, Figure 14 showed that the hydration products of the modified FRCs with the addition of PR seemed to have the surfaces to be smoother than those of the modified FRCs without the PR addition, which could be due to the generation of internal polymerization film of the PR modified FRCs. Therefore, apparently, the SEM images conducted in this study provided proper evidence to support the observed results of mechanical and durability properties of the modified FRCs as formerly discussed.
4. CONCLUSIONS
⌅The influence of utilizations of both the silica fume (SF) and acrylic emulsion polymer (PR) on the engineering and durability performance of the modified fiber reinforced concrete (FRC) with polypropylene fiber has been comprehensively conducted. Experimental results illustrated that a sole addition of SF in range of 5-10% to replace the ordinary Portland cement significantly increased the compressive strength but decreased the impact-abrasion resistance of the modified FRC. On the contrary, the opposite results were observed for the FRC modified with the PR addition in range of 5-10%. The compressive strengths after 7 days and impact-abrasion resistances at 28 days of the modified FRCs due to the supplemental interaction between the SF and PR additions were higher than those of the reference FRC, respectively. Sole additions of either the SF in range of 5-10% or the PR in range of 5-10% increased the durability of the modified FRCs in terms of the reduced water absorption rate and the reduced water absorption, increased the surface electricity resistance (SER), and reduced total charges passing through concrete specimens. Improvements of durability of the modified FRCs with interaction between SF and PR additions were also observed. In this study, the modified FRC with 10% SF and 10% PR had the lowest water absorption, the highest SER value at 28 days of curing, and the lowest total charges passed at 56 days of curing, which were 36.2% lower, 12.1 times higher, and 5.5 times lower than those of the reference FRC without the addition of SF and PR, respectively.
