1. INTRODUCTION
⌅The
granite manufacturing industry holds a key role in the industrial
network of the North-Western area of Spain. This region is the largest
ornamental granite producer, accounting for 62% of the total national
production (11. Dirección General de Política Energética y Minas. (2019) Estadística minera de España 2019. Retrieved from https://energia.gob.es/mineria/Estadistica/DatosBibliotecaConsumer/2019/estadistica mineraanual-2019.pdf.
).
Traditionally the mining sector, including the granite industry, has
been reluctant to adopt new technologies, but the competitive market
leaves few options for the mining industry (22. Qi, C. (2020) Big data management in the mining industry. Int. J. Miner., Metall. Mater. 27 [2], 131-139. https://doi.org/10.1007/s12613-019-1937-z.
).
In this context, an improvement in traceability is required. By
definition, traceability involves any processes, procedures, or systems
that support the generation of verifiable evidence about a product as it
moves along its supply chain (33.
Anh Vo, S.; Scanlan, J.; Mirowski, L.; Turner, P. (2018) Image
processing for traceability: A system prototype for the Southern Rock
Lobster (SRL) supply chain. Proceedings of the International Conference on Digital Image Computing: Techniques and Applications (DICTA), 1-8. Retrieved from https://eprints.utas.edu.au/29370.
).
Nowadays, blocks are initially identified in the quarry with marks
indicating type and origin, once they reach the factory for further
processing, they are colour-coded for identification purposes (44. Araújo, M.; Martínez, J.; Ordóñez, C.; Vilán, J.A. (2010) Identification of granite varieties from colour spectrum data. Sensors (Basel). 10 [9], 8572-8584. https://doi.org/10.3390/s100908572.
). Given this setting, a computer vision application could prove helpful in the automation of the traceability system in use.
The
scope of computer vision is the development of theories and algorithms
for automating the process of visual perception. The mathematical basis
for image processing and feature analysis was defined by several
authors, including Ervin E. Underwood, John C. Russ, and Jean Serra (5-85.
Underwood, E.E. (1973) Quantitative stereology for microstructural
analysis. microstructural analysis. Springer, Boston, M.A., (1973). https://doi.org/10.1007/978-1-4615-8693-7_3.
6. Underwood, E.E. (1986) Quantitative fractography. Applied metallography. Springer, Boston, M.A., (1986). https://doi.org/10.1007/978-1-4684-9084-8_8.
7. Russ, J.C.; Neal, F.B. (2016) The image processing handbook (7th ed.). CRC Press, Boca Raton, F.L., (2016). https://doi.org/10.1201/b18983.
8. Serra, J. (1982) lmage analysis and mathematical morphology. Academic Press. Cambridge, M.A., (1982).
),
in the last decades of the twentieth century and beginning of the
twenty-first, while its applications reach a broad range of fields, and
the potential benefit of its development can have a major impact in the
upcoming years. Computer vision has found its applications in the mining
sector, more specifically, in the slate industry for the detection of
defects in the ceramic industry (9-119. Iglesias, C.; Martínez, J.; Taboada, J. (2018) Automated vision system for quality inspection of slate slabs. Comput. Ind. 99, 119-129. https://doi.org/10.1016/j.compind.2018.03.030.
10.
Martínez, J.; López, M.; Matías, J.M.; Taboada, J. (2013) Classifying
slate tile quality using automated learning techniques. Math. Comp. Model. 57 [7-8], 1716-1721. https://doi.org/10.1016/j.mcm.2011.11.016.
11.
López, M.; Martínez, J.; Matías, J.M.; Vilán, J.A.; Taboada, J. (2010)
Application of a hybrid 3D-2D laser scanning system to the
characterization of slate slabs. Sensors (Basel) 10 [6], 5949-5961. https://doi.org/10.3390/s100605949.
), for the same purpose in the marble industry (12-1612.
Ozkan, F.; Ulutas, B. (2016) Use of an eye-tracker to assess workers in
ceramic tile surface defect detection. Proceedings of the International
Conference on Control, Decision and Information Technologies (coDIT). https://doi.org/10.1109/CoDIT.2016.7593540.
13.
Hanzaei, S. H.; Afshar, A.; Barazandeh, F. (2017) Automatic detection
and classification of the ceramic tiles’ Surface defects. Pattern. Recogni. 66, 174-189 https://doi.org/10.1016/J.PATCOG.2016.11.021.
14. Sioma, A. (2020) Automated control of surface defects on ceramic tiles using 3D image analysis. Materials (Basel) 13 [5], 1250. https://doi.org/10.3390/ma13051250.
15.
Hocenski, Z.; Matic, T.; Vidovic, I. (2016) Technology transfer of
computer vision defect detection to ceramic tiles industry. Proceedings
of the International Conference on Smart Systems and Technologies (SST).
301-305. https://doi.org/10.1109/SST.2016.7765678.
16.
Samarawickrama, Y.C.; Wickramasinghe, C.D. (2017) Matlab based
automated surface defect detection system for ceremic tiles using image
processing. Proceedings of the National Conference on Technology and
Management (NCTM). 34-39. https://doi.org/10.1109/NCTM.2017.7872824.
), for pattern detection and classification (1717.
Avci D.; Sert, E. (2021) An effective Turkey marble classification
system: Convolutional neural network with genetic algorithm -wavelet
kernel- extreme learning machine. Colloq. Traitement. Signal. Imag. 38 [4], 1229-1235. https://doi.org/10.18280/ts.380434.
, 1818.
Panda, G.; Satapathy, S.C.; Biswal, B.; Ramesh, B. (2028)
Microelectronics, electromagnetics and telecommunications. Proceedings
of the International Conference on Micro-Electronics, Electromagnetics
and Telecommunications (ICMEET). Retrieved from https://www.springerprofessional.de/en/microelectronics-electromagnetics-and-telecommunications.
) as well as in the granite manufacturing industry for the characterization of granite varieties (44. Araújo, M.; Martínez, J.; Ordóñez, C.; Vilán, J.A. (2010) Identification of granite varieties from colour spectrum data. Sensors (Basel). 10 [9], 8572-8584. https://doi.org/10.3390/s100908572.
, 1919.
López, M.; Martínez, J.; Matías, J.M.; Taboada, J.; Vilán, J.A. (2010)
Functional classification of ornamental stone using machine learning
techiniques. J. Comput. App. Math. 234 [4], 1338-1345. https://doi.org/10.1016/J.CAM.2010.01.054.
),
but there has not been found any previous research on the applications
of computer vision for colour detection and analysis in order to improve
product traceability in this sector.
The current traceability method based on colour-coding each granite block is affordable but entails a substantial number of drawbacks, which may lead to failures. The colours have to identified and interpreted as a sequence of integers several times in the production process by an employee. This simple task can be subject to human error due to fatigue and the harsh work environment in the granite industry, plus its accuracy is affected by the weathering of the colours. The main goal of the program developed is to analyse pictures of granite slabs with the colour code drawn on their side and convert the colour bands into their corresponding numerical code. Consequently, the implementation of a program of this kind would dramatically reduce the time needed to decrypt the colour code, currently performed manually, and reduce human error. In addition, it decreases economic losses by avoiding the discard of those slates not correctly identified. The work presented in this research paper is a crucial step in the implementation of this system on mobile phone devices for in-factory use with the same purpose and even more features.
Section 2 of this paper introduces the materials needed for this research, including the granite slabs, the images with the colour bands, a middle-class computer, and Python 3.9. and explains the methodology of this research, focused on the algorithm developed. Section 3 presents the results obtained on the detection of colour bands on granite and the decryption process. Lastly, Section 4 concludes with the main findings and future applications.
2. MATERIALS AND METHODS
⌅Granite
is by definition a very hard natural igneous rock formation of visibly
crystalline texture formed essentially of quartz and orthoclase or
microcline and used especially for buildings and monuments. It typically
contains 20-60% quartz, 10-65% feldspar, and 5-15% mica (biotite or
muscovite), although a wide range of lithological materials is
considered granite from a commercial perspective (44. Araújo, M.; Martínez, J.; Ordóñez, C.; Vilán, J.A. (2010) Identification of granite varieties from colour spectrum data. Sensors (Basel). 10 [9], 8572-8584. https://doi.org/10.3390/s100908572.
).
Granite blocks mined in the quarry are wired cut when processed in the
factory to produce the granite slabs. Their dimensions are not
consistent and tend to range between 1.70 to 2.00 meters in width and 20
to 30 mm in thickness.
The database used in this research project consists of 130 pictures of granite slabs focused on one of the sides of the slab, where the colour code displayed is in the shape of bands manually drawn. The sole purpose of this particular type of code is to keep track of the granite slab from its entry into the factory until its final sale to the customer.
The colour code is made up of a variable number of colour bands drawn using spray paint on the granite block once it enters the factory. They are placed either close to the higher or lower edges of the block, with a distance of approximately 15 cm in between them. Each band can have any of the 8 different colours shown in Table 1, and they can be placed in any order. Each colour is associated with a number, which makes the block have a specific numerical code depending on the configuration of the colour bands it has drawn on its side. This method to numerate, count and keep track of every block has been chosen over simply drawing the corresponding number on the block because, to produce the final version of the product, the block has to be wired cut. This means that the colour bands drawn on the surface of the stone would be cut as well, and they would become illegible, losing their purpose.
Black | Brow | Red | Orange | Yellow | Green | Blue | Purple |
---|---|---|---|---|---|---|---|
0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
The iPhone 12 Pro camera used to capture the side of the granite slabs in the RGB colour space has a resolution of 12MP, a ƒ/1.6 aperture, and 26 mm of focal length. Development and testing of the program have been completely performed with a 1.6 GHz Intel i5 10210U processor with 16 GB (2×8 GB) of RAM. The program to identify colour codes is written in Python 3.9 using OpenCV, which is an open-source computer vision library written in C++ and C.
2.1. Theory of colour detection
⌅A
correct choice of colour space is considered crucial in computer vision
applications. There are several types of colours spaces available, but
for the most part, they can be classified into two categories:
device-dependent or device-independent. The first group includes those
colour spaces, which their representation of colours lays further away
when compared to how the human nervous system senses colours. According
to (2020. Kang, H. (2006) Computational Color Technology (1st ed.). Spie Press, Bellingham, WA.
),
the colour spaces in this category, such as RGB and HSV, simply encode
device-specific data at the device level. On the other hand, the colour
spaces in the second group are directly related to the human visual
system. They aim to define colour coordinates, which can be comprehended
by the average observer. The basic colour space in this category is CIE
XYZ and any other colour spaced that can be transformed directly into
CIE XYZ is considered device-independent, such as CIE Lab or CIE Luv.
Moreover, the concept of uniformity can be applied in this category: a
colour space is said to be uniform when the Euclidean distance between
colours in that space is proportional to colour differences as perceived
by humans (2121.
Bianconi, F.; Fernández, A.; González, E.; Saetta, S.A. (2013)
Performance analysis of the colour descriptors for parquet sorting. Expert. Syst. Appl. 40 [5], 1636-1644. https://doi.org/10.1016/j.eswa.2012.09.007.
).
Digital
images are usually captured in the RGB colour space, whereas hue-based
colour models, such as HSV, are the most commonly implemented in colour
detection in OpenCV due to their robustness against light changes, while
CIE Lab can be more efficient in measuring colour differences in
brightness. According to (2222. Paschos, G. (2000) Fast colour texture recognition using chromaticity moments. Pattern Recognit. Lett. 21 [9], 837-841. https://doi.org/10.1016/S0167-8655(00)00043-X.
),
HSV outperforms RGB because it is approximately uniform and divides the
colour data into intensity (Value) and a chromatic part (Hue and
Saturation).
2.1.1. The RGB colour space
⌅Two of the
main advantages of the RGB colour space are its simplicity and its
additive property, which makes it very easy to store and display images (2323.
Xiong, N.N.; Shen, Y.; Yang, K.; Lee, C.; Wu. C. (2018) Color sensors
and their applications based on real-time color image segmentation for
cyber physical systems. EURASIP J Image Video Process. 2018, 23 https://doi.org/10.1186/s13640-018-0258-x.
).
Nevertheless, this colour model is not the best for colour detection,
since important colour properties such as brightness and purity are
embedded within the RGB channels, which makes it difficult to determine
specific colours and their reliable working ranges (2424. Ibraheem, N.A.; Hasan, N.M.; Khan, R.Z.; Mishra, P.K. (2012) Understanding color models: a review. ARPN J. Eng. Appl. Sci. 2 [3], 365-275. Retrieved from https://haralick.org/DV/understanding_color_models.pdf.
).
Furthermore, the original pictures were processed in the 24-bit RGB
format, in which all components have a depth of 8 bits. This makes up a
maximum number of colours of 28 * 28 * 28 = 16777216. The components are
internally presented as unsigned integers in range [0, 255], which is
the exact value range of a single byte (2525. Sebastian, P.; Voon, Y.V.; Comley, R. (2010) Colour space effect on tracking in video surveillance. Int. J. Electr. Eng. Inform. 2 [4], 298-312. https://doi.org/10.15676/ijeei.2010.2.4.5.
).
2.1.2. The HSV colour space
⌅The HSV colour
space is a transformation of the RGB colour space, and it can be
represented in a different coordinate system. The idea of a
representation in a hexagonal cone (hexacone) was first proposed by (2626.
Smith, A.R. (1978) Color gamut transform pairs. Proceedings of the
Conference on Computer Graphics and Interactive Techniques ACM SIGGRAPH
Computer Graphics. 12 [3], 12-19. https://doi.org/10.1145/800248.807361.

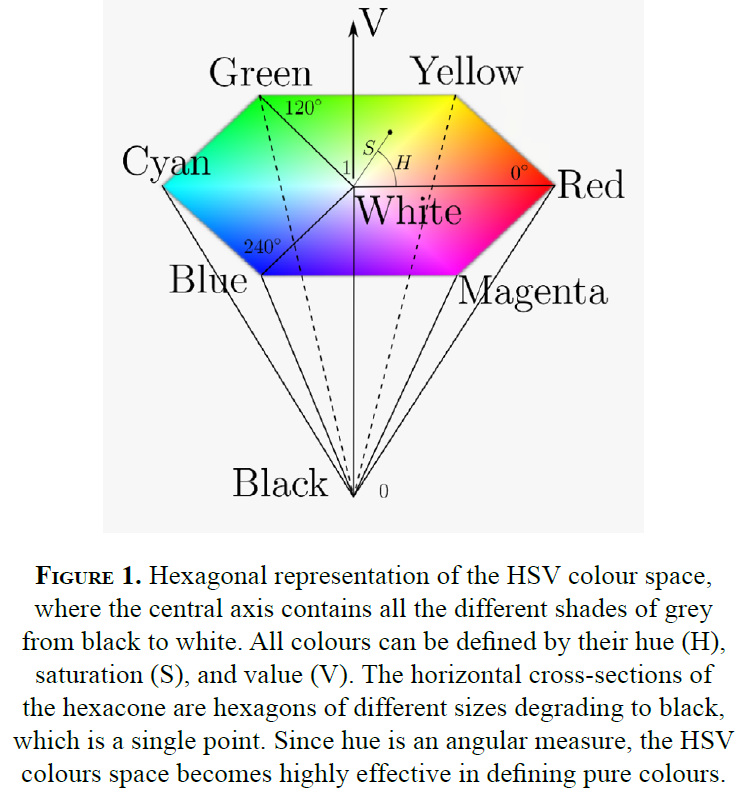

) and it can be observed in Figure 1,
where points are defined by hue (H), saturation (S), and value (V). In
this space, hue (H) contains the colour angle information, saturation
(S) represents purity, which quantifies how a colour is diluted by
white, and value (V), which stores the brightness of the colour
measuring how far it is from black. The separation of crucial properties
such as brightness and purity is what makes the HSV colour space a
better fit for colour detection purposes.
The transformation from RGB to HSV as described in (2727. Roger, D.F. (2016) Procedural elements of computer graphics (1st ed.). McGraw-Hill, New York City, New York, (2016).
) is given by (2828. Bhatia, P.K. (2013) Computer graphics (3rd ed.), I.K. International, Daryaganj, New Delhi, Delhi, (2013).
) in the following equations:
For our purposes, and due to its advantages, the HSV model was chosen to detect the different colours present on the granite slabs.
2.2. Workflow implemented
⌅The
presented program uses a computer-vision-based approach to identify
different colour bands on granite slabs and output a numerical code

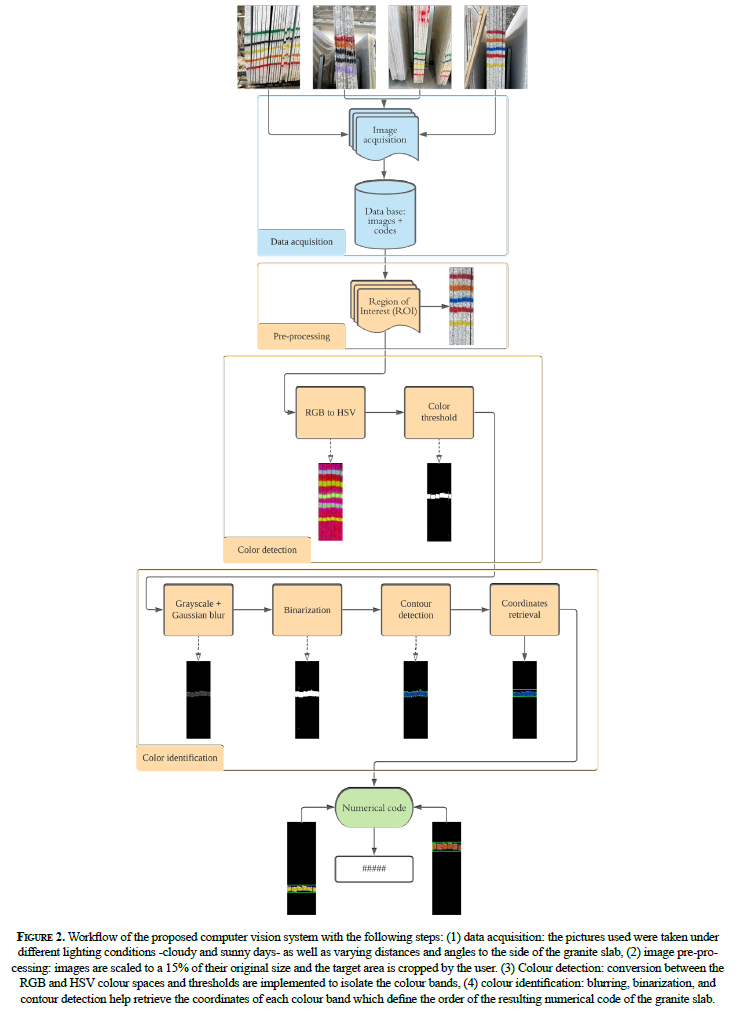

defined by the colour of each band. The workflow diagram of the proposed
system is presented in Figure 3, where the following stages are introduced: (11. Dirección General de Política Energética y Minas. (2019) Estadística minera de España 2019. Retrieved from https://energia.gob.es/mineria/Estadistica/DatosBibliotecaConsumer/2019/estadistica mineraanual-2019.pdf.
) data acquisition, (22. Qi, C. (2020) Big data management in the mining industry. Int. J. Miner., Metall. Mater. 27 [2], 131-139. https://doi.org/10.1007/s12613-019-1937-z.
) image pre-processing, and (33.
Anh Vo, S.; Scanlan, J.; Mirowski, L.; Turner, P. (2018) Image
processing for traceability: A system prototype for the Southern Rock
Lobster (SRL) supply chain. Proceedings of the International Conference on Digital Image Computing: Techniques and Applications (DICTA), 1-8. Retrieved from https://eprints.utas.edu.au/29370.
) image analysis. This workflow is repersented graphically in Figure 2.
) data acquisition: the pictures used were taken under different lighting conditions -cloudy and sunny days- as well as varying distances and angles to the side of the granite slab, (22. Qi, C. (2020) Big data management in the mining industry. Int. J. Miner., Metall. Mater. 27 [2], 131-139. https://doi.org/10.1007/s12613-019-1937-z.
) image pre-processing: images are scaled to a 15% of their original size and the target area is cropped by the user. (33. Anh Vo, S.; Scanlan, J.; Mirowski, L.; Turner, P. (2018) Image processing for traceability: A system prototype for the Southern Rock Lobster (SRL) supply chain. Proceedings of the International Conference on Digital Image Computing: Techniques and Applications (DICTA), 1-8. Retrieved from https://eprints.utas.edu.au/29370.
) Colour detection: conversion between the RGB and HSV colour spaces and thresholds are implemented to isolate the colour bands, (44. Araújo, M.; Martínez, J.; Ordóñez, C.; Vilán, J.A. (2010) Identification of granite varieties from colour spectrum data. Sensors (Basel). 10 [9], 8572-8584. https://doi.org/10.3390/s100908572.
) colour identification: blurring, binarization, and contour detection help retrieve the coordinates of each colour band which define the order of the resulting numerical code of the granite slab.
2.2.1. Data acquisition
⌅The images were obtained in situ, under the effect of the changing conditions of the environment, and analysed afterward. As a simple requirement, the colour bands must be completely visible. This means that the picture cannot be taken up too close to the point some colours are left out of the image or from a very distant location where the colour bands are unidentifiable. The RGB pictures that make up the database of the case studied were taken in three separate batches under non-identical conditions. Their features are shown in Table 2.
Name | # Pictures | Distance (m) | Angle (º) | Focus | Lighting | Resolution (pixels) | |
---|---|---|---|---|---|---|---|
Inside | Outside | ||||||
Batch1 | 14 | 1 | Not consistent | Colour bands | 100% | 0.00% | 3472x4640 |
Bacth2 | 40 | 1.75 | Parallel | Colour bands | 27.50% | 72.50% | 3024x4032 |
Batch3 | 84 | 2 | Parallel | Granite slabs | 25.90% | 74.10% | 3024x4032 |
2.2.2. Image pre-processing
⌅The pre-processing of the images includes two main operations. In the first place, pictures are scaled down to 15% of their initial dimension, decreasing the computational load without compromising the final outcome. Furthermore, the program allows the user to crop out the area where the colour bands are captured on the scaled picture, which entails an increase in the overall accuracy of the results obtained.
2.2.3. Image analysis
⌅The different colour bands are detected by a total number of eight functions, one for every colour. They share a common algorithm (algorithm 1), but the input parameters change depending on each target colour. These inputs are not arbitrary; initially, they were set manually, but in order to increase the precision of the model, the parameters have to be optimized for every case. This is achieved in the training process, which aims to minimize the error in colour detection and the decryption of the code. In order to accomplish this, each colour detection algorithm iterates on the available images for every combination possible within the ranges set for each parameter. A success condition is defined based on the ground truth of colours contained in each image. This helps identify those combinations which succeed in their task, therefore, those parameters with a higher number of true positives become the ideal values in each function.
The input parameters for all functions are -1- coloured area (CA), -2- coloured ratio (CR), -3- width-to-height ratio (WHR), -4- maximum vertical distance (MVD), -5- minimum Hue (Hmin), -6- minimum Saturation (Smin), -7- minimum Value (Vmin), -8- maximum Hue (Hmax), -9- maximum Saturation (Smax), and -10- maximum Value (Vmax).
The coloured area -1- defines the minimum number of pixels that have to be turned on to be considered a true positive case of colour detection, while the colour ratio -2- is given by the relation between the number of pixels coloured with the target colour and the total amount of pixels; it has the same goal as the coloured area but implements a second layer of security to avoid false positives. The width/height ratio -3- analyses the relation between the width and the height of the colour areas detected. Given the fact that the colour bands have rectangular shapes, this parameter aims to discard all detected areas which do not have the minimum width-to-height ratios, such as shades or colour spots that do not belong to the colour code system. The minimum vertical distance -4- quantifies the required separation between different colour bands to be considered independent. These bands are drawn directly on the granite block, which is cut afterward to generate the granite slabs, in this process the colour bands are also divided into several sections. As a consequence of this division, gaps are generated throughout every colour band, with a direct effect on the colour detection process. When the picture is taken, these gaps are usually shown as dark spaces that break up the colour band, as a result, several coloured areas will be identified, but thanks to the implementation of this parameter, as long as the detected areas are within the height range set by the MVD, they will be considered as a single band. Lastly, parameters from 5 to 10 belong to the HSV colour space and define the thresholds for each colour.
Each colour function takes the RGB image, proceeds with the HSV transformation, and applies the colour thresholds on the resulting image. In this case, an adaptive multichannel threshold was implemented to identify colour in a more reliable way under the wide variety of lighting conditions presented in this problem. The first of the colour masks takes the lowest hue, saturation, and value possible for the target colour, delimiting the range for these three channels. Therefore, once the mask is applied to the HSV picture, the resulting image is binarized as the pixels that are defined within this range are turned into white [1] and the ones which fall out of this condition are turned off to display black [0]. The mathematical principle of this method is introduced in Equation [4]:
Where H is hue, S is saturation, and V is value. Similarly, the second mask applies the same principle and methodology, but in this case, it takes the highest values of hue, saturation, and value for the target colour. The sum of both masks is applied to the original image, concluding the detection of the target colour in every case.
In the case that the resulting image delivered by the colour detection algorithm fulfils the requirement established by the CR parameter, the image is proposed for further processing, where the coordinates of the colour bands identified are extracted. This process begins with the detection of the contours of all isolated coloured areas. To achieve this, the picture is converted to grayscale and blurred out with the implementation of Gaussian blur. This helps reduce the sharpness of the structures contained in the picture and increases the efficiency of the contour detection method.
Gaussian blur is classified as a low-pass filter
because it reduces the high-frequency components of the image. It uses
Equation [5] explained in (2929.
Shapiro, L.; Stockman, G. (2001) Computer vision (1st ed.), 137-150.
Prentice Hall., New York City, New York, (2001). Retrieved from https://theswissbay.ch/pdf/.
, 3030.
Nixon, M.; Aguado, A. (2019) Feature extraction and image processing
for computer vision (1st ed.), 650. Academic Press, Cambridge, MA,
(2019).
):
Where x is the distance from the origin in the horizontal axis, y is the distance from the origin in the vertical axis, and σ is the standard deviation of the Gaussian distribution. Applying Equation 5 produces a surface on which contours are concentric circles with a Gaussian distribution from the centre point. The convolution matrix, built from the values of this distribution, is applied to the original image, where the new value of each pixel is set to a weighted average of the pixels in its surrounding area. The pixels further away from the centre (original pixel) receive smaller weights as the distance increases, while the original holds the highest value. This helps preserve boundaries and edges in a better way compared to simpler filters. Additionally, the blurred image is binarized before applying contour detection, in this step all pixels that are black remain in this state, while the rest are converted into white according to Equation [6]:
Where src is the source image, and dst is the destination image of the same size and type as the source. The contour detection method, as defined Suzuki and Abe (3131. OpenCV: The OpenCV reference manual. 2.4.13.7 edn. OpenCV, (2014). OpenCV
, 3232. Suziki, S.; Abe, K. (1985) Topological structural analysis of digitalized binary images by border following. Comput. Vis Image Underst. 30 [1], 32-46. https://doi.org/10.1016/0734-189X(85)90016-7.
),
is a border following algorithm, which works by starting at a given
point on the image and following the contour of the object until it
returns to the starting point. The algorithm keeps track of the points
visited along the contour, as well as the junctions (i.e., points where
the contour branches or reconnects) encountered along the way. In this
process, those areas of the picture with an intensity gradient strong
enough to be noticed by the algorithm are detected and marked up with
individual points. The result is a point cloud surrounding the different
structures featured in the image. By leveraging this result, the area
that encloses the colour band is defined with the aid of Green’s theorem
(3333.
Edwards, C.; Penney, D. (1982) Calculus and analytical geometry (1st
ed.), 859-866. Prentice Hall, Upper Saddle River, NJ, (1982).
).
Such theorem relates the circulation of a vector field around a closed
curve to the flux through the surface bounded by that curve. It states
that the circulation of a vector field around a closed curve is equal to
the flux of the curl of through the surface bounded by , as expressed
mathematically in Equation [7]:
Here, dr is an infinitesimal line element along the curve C, and dS is an infinitesimal surface element on S. The circulation is the line integral of F along C, and the flux is the double integral of the curl of F over the surface C. The curl of a vector field is defined as a measure of the local rotation or twisting of the field. It is defined as the vector cross-product of the del operator and F:
In the case
that the obtained coloured area is bigger than CA, the contours are
drawn, and their length is calculated. Next, the irregular and complex
shape of the contours is simplified to a rectangle, which contains each
valid colour area detected. This is achieved with the
Ramer-Douglas-Peucker algorithm (3434. Ramer, U. (1972) An iterative procedure for the polygonal approximation of plane curves. Comput. Graph. Image Process. 1 [3], 244-256. https://doi.org/10.1016/S0146-664X(72)80017-0.
, 3535.
Douglas, D.H.; Peucker, T.H. (1973) Algorithms for the reduction of the
number of points required to represent a digitalized line or its
caricature. Cartographica. 10 [2], 112-122. https://doi.org/10.3138/FM57-6770-U75U-7727.
),
which reduces the number of points in a curve through approximation,
resulting in a smaller series of points. The algorithm works by
recursively eliminating points that are within a given tolerance of the
curve. This process is repeated until the desired tolerance is achieved.
The resulting curve is typically a simplified version of the original
curve, with fewer points but still closely approximating the original
curve. Given that the colour bands tend to have fairly rectangular
shapes, a rectangle was selected for this purpose, which wraps all

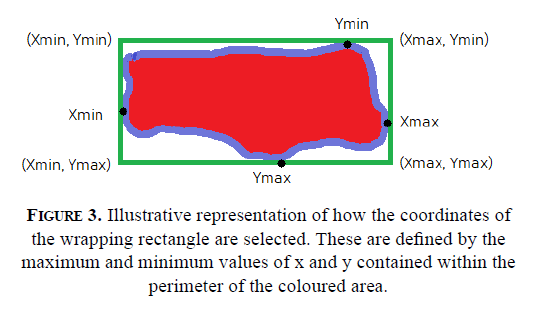

around every area defined in this step. Figure 3 shows a simplified configuration of these rectangles.
Up until this last step, there can be coloured areas of the picture that fulfil all the requirements to be considered as colour bands, but in reality, they are not. Therefore, the parameter WHR is introduced, which sets a limit to the numeric relation between width and height for every rectangle. It allows filtering out the vast majority of areas with rectangular shapes, eliminating those in which the vertical sides are the longest.

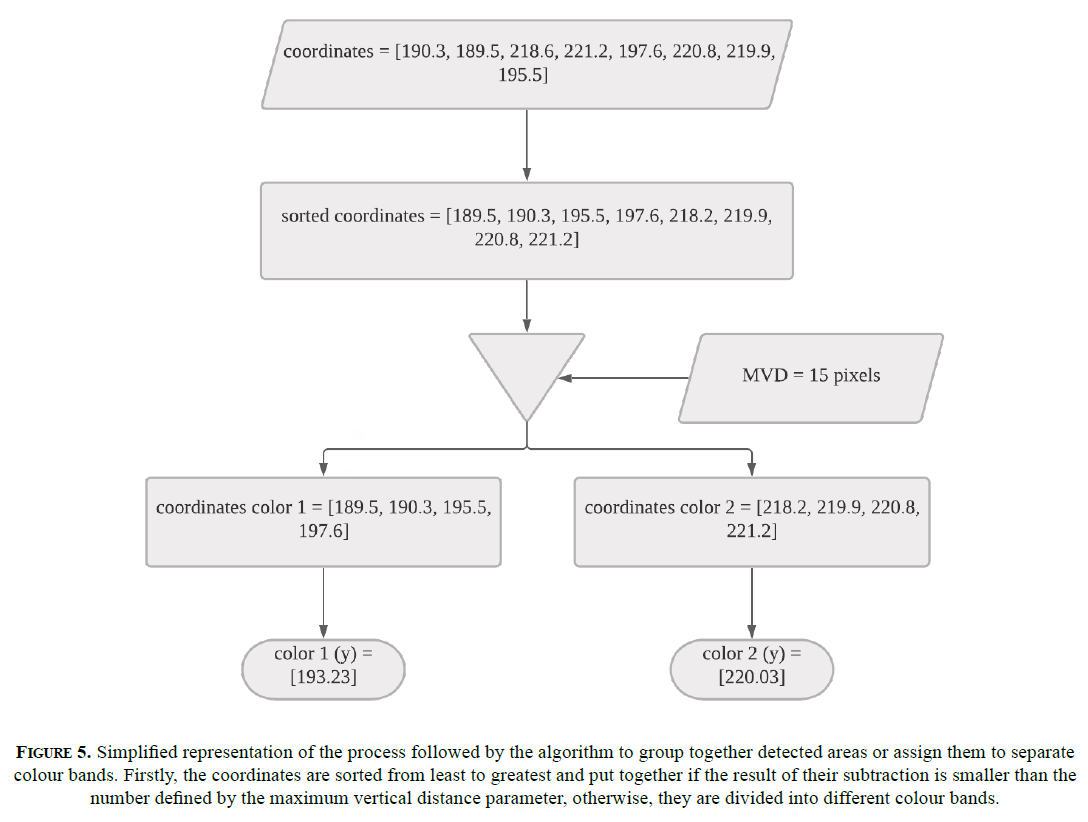

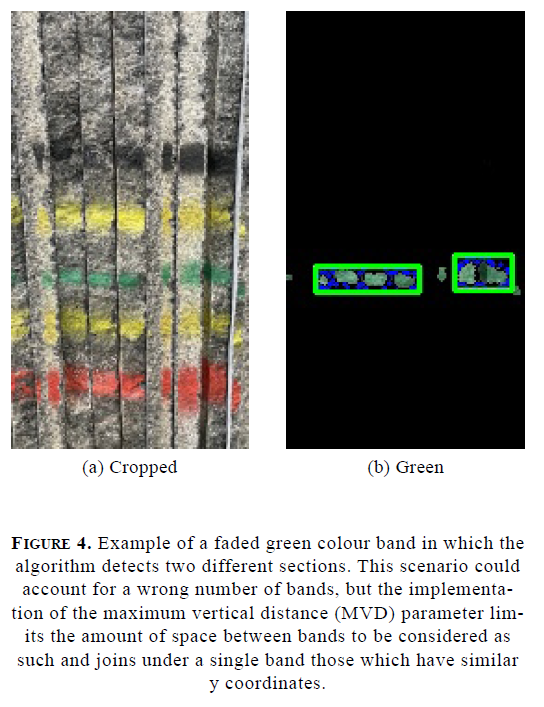

Following up comes the implementation of the last parameter, MVD. As explained before in this section, its goal is to group under the same band those areas with equal colour, but which are broken down into smaller rectangles as seen in Figure 4. This step avoids the anomalous detection of a not realistic number of bands. The relative coordinates of each band are retrieved from the information contained in the rectangles. For this particular application, the coordinates are sorted from least to greatest and analysed in this order. In the case the result of the subtraction between i + 1 and i is smaller than the MVD, those two rectangles would be considered as the same colour band, otherwise, they would be set to belong to separate colour bands. Lastly, the average of all the coordinates belonging to each colour band is calculated to get a single value per band, which allows the algorithm to read the colours and write the code in the correct order. This process is represented in Figure 5.
Algorithm 1. [colour_detector(image, CA, CR, WHR, MVD, Hmin, Smin, Vmin, Hmax, Smax, Vmax)]
Input: An image and all the parameters defined.
Output: A list containing the (x, y) coordinates of each colour band and the colour name.
-
1. image ← RGB2HSV(image)
-
2. masked_image ← thresholds(image)
-
3. binarized_image ← bitwise_and(image, masked_image)
-
4. coloured_ratio ← (# active pixels in binarized_image)/(# total pixels in binarized_image)
-
5. if coloured_ratio ≥ CR:
-
6. gray_image ← BRG2GRAY(masked_image)
-
7. blured_image ← GaussianBlur(gray_image)
-
8. binary_thresholded_image ← bin_threshold(blured_image). Pixels turned on are set to white, otherwise to black.
-
9. Initialize a list that will store the vertical coordinate of the upper-right corner of each bounding box (yColor)
-
10. Initialize a list that will store the horizontal coordinates of the bounding boxes (ys)
-
11. Initialize a list that will store the vertical coordinates of the bounding boxes (xs)
-
12. contours ← findContours(binary_thresholded_image)
-
13. for i in contours:
-
14. area ← contourArea(i)
-
15. if area > CA:
-
16. drawContour(image, i)
-
17. perimeter ← arcLenght(i)
-
18. corners ← approxPolyDP(i, 0.015*perimiter)
-
19. x, y, width, height ← boundintRect(corners)
-
20. if width/height ≥ WHR:
-
21. yColor ← store(y)
-
22. xs ← store(x, x+widht)
-
23. ys ← store(y, y+height)
-
24. drawRectangle(img, (x, y), (x+width, y+height))
-
-
-
-
25. if yColor NOT empty:
-
26. coordinates ← group if yColor if < MVD value.
-
-
-
27. Return dictionary with coordinates and colour name.
The final algorithm (algorithm 2) takes an image as input and return the corresponding numerical code encrypted in the colour bands. All colour detection functions are integrated in its architecture. Additionally, this algorithm sorts the obtained coordinates of each colour to be able to output the numerical code in the correct order. Regarding the order in which the coordinates are sorted, this is defined by the position of the different colour bands, meaning that if the bands are placed closer to the top of the slab, the reading direction is downwards, while the reading direction changes to upwards if the bands are placed closer to the bottom of the slab. Essentially, the colour code has to be decrypted starting with the bands which are close to one of the horizontal edges, and the algorithm knows this by checking which colour band, the higher or the lower one, is close to a horizontal edge. By knowing which colour corresponds to which number, retrieving the coordinates of each colour band, and defining the appropriate reading direction, the algorithm can output the encrypted code correctly.
Algorithm 2. [code_decryptor(image, )]
Input: An image and a matrix with all parameters for each colour detection function.
Output: The numerical code encrypted in the colour bands draw on the granite slates.
-
dict(coordinates, color_name) ← colour_detector(image, )
-
dict(sorted_coordinates, sorted_color_names) ← sort(coordinates, color_name)
-
numerical_code ← convert the sorted_color_names into numerical code according to Table 1.
-
Return the numeric code contained in the image.
2.3. Training and validation
⌅For this task, the database, which contains a total of 130 pictures, is divided into two different sets: the training set which has 109 images, and the validation set with 21 images, which contain all colours studied and are representative of the characteristics of the database as well as the main challenges for the computer vision system. All functions are trained and validated respectively on those images that have the corresponding target colour. The same database structure was used to implement the final algorithm, which is capable of detecting all colours and decrypting the code associated. In the training process, each function analyses those images which contain their respective colour. If the detection result agrees with the ground truth provided for every image, the combination of parameters that achieved a satisfactory output is rewarded. Finally, the combination of parameters that has the better performance is considered the final input values for each corresponding colour function.
Since the colour functions need initial parameters to start off the training process, they are given approximate values calculated manually based on the HSV definition of each colour for the hue, value, and saturation parameters, while CA, CR, WHR, and MVD are iterated from zero to their highest value, being the last one determined from direct analysis of the image features.
3. RESULTS AND DISCUSSION
⌅The training process for each function defined the ideal values for the parameters that the colour detection functions depend on. These results are presented in Table 3, where the first column contains the name of the different colours present on the slabs. The next four columns contain information regarding the geometrical characteristics of the colour bands, and the rest of the columns present the hue, saturation and value limits for each colour threshold.
It is noticeable how, in the training process, the colour ratio (CR) between the number of active pixels after applying the thresholds and the total number of pixels in the image tends to zero. This is due to the presence of some faint and weathered colour bands that would not be detected otherwise. If CR took higher values, some of these images, which actually contain areas of interest, would get discarded and count as a classification error. Additionally, the results presented in Table 3 show how the hue measure is the most effective in isolating different colours compared to the saturation and value. The difference between the maximum and minimum hue values is the smallest in all colours except black, which need to be isolated with the aid of the value variable. This reduces the importance of the two other parameters (saturation and value), which leads to them having more wide ranges explaining the reasoning behind the higher limit of the saturation and value threshold having the maximum number possible (255) in almost all cases. An exception to this rule is the colour black, which has to be isolated with the aid of the value parameter.
Colour | CA | CR | WHR | MVD | Hmin | Smin | Vmin | Hmax | Smax | Vmax |
---|---|---|---|---|---|---|---|---|---|---|
Black | 50 | 0 | 0.8 | 16 | 0 | 0 | 3 | 179 | 255 | 51 |
Dark Brown | 300 | 0 | 1.2 | 72 | 5 | 49 | 64 | 15 | 255 | 128 |
Light Brown | 300 | 0 | 1.2 | 72 | 14 | 74 | 132 | 18 | 255 | 165 |
High-hue Red | 50 | 0 | 0.4 | 22 | 171 | 100 | 103 | 179 | 255 | 255 |
Low-hue red | 50 | 0 | 0.4 | 30 | 1 | 93 | 97 | 5 | 255 | 255 |
Orange | 250 | 0 | 1.1 | 29 | 6 | 112 | 116 | 15 | 255 | 255 |
Yellow | 150 | 0 | 0.2 | 16 | 23 | 69 | 42 | 43 | 255 | 255 |
Green | 150 | 0 | 0.8 | 18 | 40 | 60 | 0 | 80 | 255 | 255 |
Blue | 100 | 0 | 0.6 | 32 | 81 | 113 | 0 | 109 | 255 | 255 |
Purple | 200 | 0 | 0.7 | 30 | 120 | 21 | 81 | 155 | 255 | 255 |
The conditions and the success rate of every colour in the training phase along with the computation time are included in Table 4. During the development of the program, it was noticed that the colours red and brown display two different varieties. The changes in the shade of brown have their origin in the weathering of the colour, resulting in two categories: dark brown and light brown. In the case of the red colour, we hypothesize that its variance is heavily dependent on the brightness conditions under which the picture was taken. The presence of clouds in the sky or shadows projected on the granite slabs seems to be a likely cause for a high hue value, while if the light rays hit the granite slab and the shadow is projected backward the value of hue for the red colour tends to be much lower as it is shown in Table 3. In order to improve the accuracy, a double mask method was implemented in the algorithm, which works by defining two distinct thresholds for each colour variety but still identifying them as the same colour.
Colour | Images | Success rate | Total time (sec.) |
---|---|---|---|
Black | 32 | 90.32% | 0.37 |
Dark Brown | 9 | 100.00% | 0.13 |
Light Brown | 32 | 57.69% | 0.32 |
High-hue Red | 36 | 83.33% | 0.29 |
Low-hue red | 65 | 79.69% | 0.54 |
Orange | 57 | 78.95% | 0.47 |
Yellow | 60 | 88.33% | 0.50 |
Green | 40 | 95.00% | 0.32 |
Blue | 32 | 83.97% | 0.28 |
Purple | 38 | 85.53% | 0.44 |
The results of the validation process for each colour function are presented in Table 5. It can be seen in the fourth column that the times required for each calculation decrease in direct proportion to the number of images analysed. The images in this set are completely new for the algorithm, meaning that it has not been trained on them. Therefore, the high success rates in this process confirm that the parameters defined in the training stage are accurate, and the model can read the correct codes of new images which makes it valid.
Colour | Images | Success rate | Total time (sec.) |
---|---|---|---|
Black | 8 | 88.89% | 0.14 |
Dark Brown | 4 | 75.00% | 0.04 |
Light Brown | 4 | 75.00% | 0.04 |
High-hue Red | 6 | 100.00% | 0.09 |
Low-hue red | 15 | 81.25% | 0.13 |
Orange | 10 | 80.00% | 0.09 |
Yellow | 13 | 85.71% | 0.16 |
Green | 9 | 100.00% | 0.07 |
Blue | 8 | 88.89% | 0.09 |
Purple | 9 | 88.89% | 0.09 |

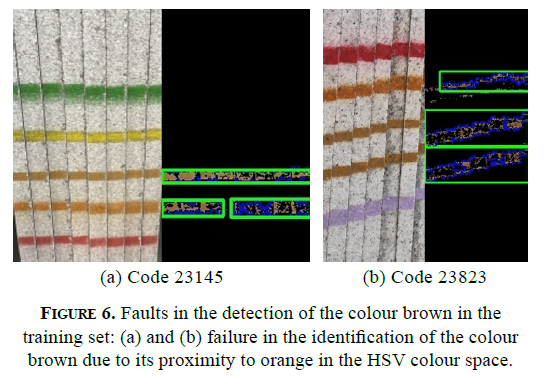

After the training and validation of all colour detection functions, these are included in the main architecture of the final algorithm, which is tasked with the detection of each colour band and its conversion into the correctly ordered numerical code. In this case, a result is classified as true when the output of the algorithm matches the exact numerical code an employee would read off the granite slab. Those codes obtained from the algorithm whose numbers are not the same and/or are not placed in the right orders would be considered faults. The colours which present a lower success rate tend to have an important negative effect on the final result. Particularly, light brown can be mistaken for orange, and dark brown can be confused with the low-hue red due to their proximity on the HSV colour space. These conditions make it difficult for the algorithm to achieve a very precise detection on all colours, which hijacks the results leading to a faulty detection, as can be seen in Figure 6.
The
replacement of the colour brown is proposed in order to tackle this
issue. The spray paint colours cyan and light green are encouraged due
to their strong contrast with the current colours in use, as shown in
the HSV hexacone contained in Figure 1.
Moreover, the election of the colour pink was motivated by its great
endurance to weathering, as it is demonstrated by Alonso-Villar et al. (3636.
Alonso-Villar, E.M.; Rivas, T.; Pozo-Antonio, J.S. (2021) Resistance to
artificial daylight of paints used in urban artworks. Influence of
paint composition and substrate. Prog. Org. Coat. 154, 106180. https://doi.org/10.1016/J.PORGCOAT.2021.106180.
). According to these authors (3636.
Alonso-Villar, E.M.; Rivas, T.; Pozo-Antonio, J.S. (2021) Resistance to
artificial daylight of paints used in urban artworks. Influence of
paint composition and substrate. Prog. Org. Coat. 154, 106180. https://doi.org/10.1016/J.PORGCOAT.2021.106180.
),
the use of silicate-based paint can be considered as a future line of
research to solve the detection problem associated with the erosion of
the spray paints currently employed.
Additionally, most colour detection systems have to operate within steady light conditions (33.
Anh Vo, S.; Scanlan, J.; Mirowski, L.; Turner, P. (2018) Image
processing for traceability: A system prototype for the Southern Rock
Lobster (SRL) supply chain. Proceedings of the International Conference on Digital Image Computing: Techniques and Applications (DICTA), 1-8. Retrieved from https://eprints.utas.edu.au/29370.
, 55.
Underwood, E.E. (1973) Quantitative stereology for microstructural
analysis. microstructural analysis. Springer, Boston, M.A., (1973). https://doi.org/10.1007/978-1-4615-8693-7_3.
, 3737. Kondo, N. (2009) Robotization in fruit grading system. Sens. Instrum. Food Qual. Saf. 3 [1], 81-87. https://doi.org/10.1007/s11694-008-9065-x.
, 3838.
Burgus-Artizzu, X.P.; Ribeiro, A.; Guijarro, M.; Pajares, G. (2011)
Real-time image processing for crop/weed discrimination in maize fields. Comput. Electron. Agric. 75 [2], 337-346. https://doi.org/10.1016/j.compag.2010.12.011.
) and require stable camera positioning (39-4239.
Carew, T.; Ghita, O.; Whelan, P.F. (2003) Exploring the effects of a
factory-type test-bed on a painted slate defect detection system.
Proceeding of the International Conference on Mechatronics (ICOM).
365-370. Retrived form https://doras.dcu.ie/18806/1/whelan_2003_126.pdf.
40.
Andrew, W.; Hannuna, S.; Campbell, N.; Burghardt, T. (2016) Automatic
individual Holstein Friesian cattle identification via selective local
coat pattern matching in RGB-D imagery. Proceedings of the International
Conference on Image Processing (ICIP) vol. August 2016. 484-488. https://doi.org/10.1109/ICIP.2016.7532404.
41. Ghita, O.; Whelan, P.F.; Carew, T.; Padmapriya, N. (2005) Quality grading of painted slates using texture analysis. Comput. Ind. 56 [8-9], 802-815. https://doi.org/10.1016/j.compind.2005.05.008.
42.Ghita, O.; Carew, T.; Whelan, P. (2006) A vision-based system for inspecting painted slated. Sens. Rev. 26 [2], 108-115. https://doi.org/10.1108/02602280610652695.
),
while the system proposed, although not perfect, achieves results in
very different conditions. In this case, the algorithm shows a success
rate of 74.42% on the training set, while the validation shows an
efficiency of 75.00%. Several examples of correct detection are
displayed in Figure 7.
Several results of the validation process for the final algorithm are shown in Table 6. The first column contains the ground truth for each image, which is the numerical code defined by the colour bands in each case. The last column shows the numerical code decrypted by the algorithm from the information represented in the corresponding image of the granite slabs. The rest of the columns contain each of the sorted numbers outputted by the system. According to the success condition previously defined, a result is correct when all numbers match the ones present in the ground truth in the correct order. Two errors can be noted in red in Table 6. The result of the fourth code presented (24036) is affected by the detection of a black area out of place, and the same happens in the case of the fifth code of the table (24066). Consequently, the rest of the numbers in the code decrypted are displaced by these anomalous detections of black areas leading to a faulty result. Considering the fact that granite has important black, areas in its structure due to the presence of mica, this becomes the main source of errors, despite the final algorithm having an accuracy of 75.00% in the testing phase.
Code | Number 1 | Number 2 | Number 3 | Number 4 | Number 5 | Result |
---|---|---|---|---|---|---|
22475 | 2 | 2 | 4 | 7 | 5 | 22475 |
23405 | 2 | 3 | 4 | 0 | 5 | 23405 |
23457 | 2 | 3 | 4 | 5 | 7 | 23457 |
24036 | 4 | 0 | 0 | 3 | 6 | 40036 |
24066 | 2 | 4 | 0 | 6 | 0 | 24060 |
24227 | 2 | 4 | 2 | 2 | 7 | 24227 |
24465 | 2 | 4 | 4 | 6 | 5 | 24465 |
24526 | 2 | 4 | 5 | 2 | 6 | 24526 |
4. CONCLUSIONS
⌅The traceability problem in the granite industry has been studied in the present research paper. The current method to keep track of the granite blocks until they reach the final product stage is fairly simple and cheap, consisting in the usage of graffiti spray to assign a color-coded number to each granite block. Weathering of the paint and human error due to different causes, such as fatigue, lead to a faulty reading of the numerical code represented by colour bands and ultimately to economic losses for the industry as well as pollution originated by the granite that has not been traced. In this paper, a computer vision algorithm is proposed to automate the traceability process in this industry. The computational method developed operates in the HSV colour space and makes use of a double threshold for the correction isolation of colours on the granite slabs. This is followed by the conversion of the thresholded image to grayscale and the application of Gaussian blurring to soften the edges. After the binarization of the blurred image, contours are detected and the coordinates of those shapes that approximate to rectangular colour bands are extracted. Lastly, those coordinates are sorted and converted into the decrypted numerical code.
The proposed system performs an accurate detection of a combination of seven out of the eight colours used in the granite industry. It shows success rates on the reading of colour codes and the output of their corresponding numerical codes of 74.42% in the training set and 75.00% in the validation set. Moreover, these results are achieved on images that display different lighting conditions and were not taken with a fixed target distance, which increases the difficulty in the detection of different colours and adds up to the value of the results presented. In conclusion, the computer vision system presented is considered to be helpful in the granite manufacturing industry owing to its accuracy, and it is part of the first approach towards a full implementation on mobile phone devices for the corresponding users in each factory.
