Comparing the effects of jouravskite and ettringite on the hydration of the clinker

1. INTRODUCTION

According to World Bank data ( 1 1. Global Waste Statistics (2022) Waste Statistics / By Cheapa Waste.
), the world generates 2 billion tons of municipal solid waste annually and is expected to increase to 3.4 billion metric tons by 2050. This problem was partially solved by the employment of the wastes in the cement industry because of the high temperature of the kiln and the suitable chemistry of the clinker. This strategy was implemented in the early 1990s ( 2 2. Chaterjee, A.; Sui, T. (2019) Alternative fuels-Effects on clinker process and properties. Cem. Concr. Res. 123, 105777. https://doi.org/10.1016/j.cemconres.2019.105777 .
). Municipal, industrial, and agricultural wastes are now largely used in the cement plants. For the cement manufacturers, the advantages of their use are cost savings, conservation of natural resources, and minimization of greenhouse gas emissions. These applications have, however, influenced the cement manufacturing process and the properties of the product ( 3-5 3. Shimosaka, K.; Inoue, T.; Tanaka, H.; Kishimoto, Y. (2007) Influence of minor elements in clinker on the properties of cement:a new approach for application to commercial cement manufacturing. Trans. Mater. Res. Soc. Japan. 32 [3], 647-652. https://doi.org/10.14723/tmrsj.32.647 .
4. Achternbosch, M.; Bräutigam, K.R.; Hartlieb, N.; Kupsch, C.M.; Richers, U.; Stemmermann, P.; Gleis, M. (2003) Heavy metals in cement and concrete resulting from the co-incineration of wastes in cement kilns with regard to the legitimacy of waste utilisation. Karlsruhe: Forschungszentrum Karlsruhe GmbH.
5. Ludwig, H.M.; Zhang, W. (2015) Research review of cement clinker chemistry. Cem. Concr. Res. 78, 24-37. https://doi.org/10.1016/j.cemconres.2015.05.018 .
). The clinker absorbs the ashes and entraps the non-volatile and semi-volatile heavy metals in the crystal lattice of its phases. Several trace elements available in the ashes, which were not present in conventional raw materials and regular fuels, are incorporated in the clinker; manganese is the focus of this paper. The World Bank data ( 1 1. Global Waste Statistics (2022) Waste Statistics / By Cheapa Waste.
) shows that the world generates ~2 billion tons of municipal solid waste annually and is expected to increase to 3.4 billion metric tons by 2050. This problem was partially solved by the employment of the wastes in the cement industry because of the high temperature of the kiln and the suitable chemistry of the clinker. This strategy was implemented in the early 1990s ( 2 2. Chaterjee, A.; Sui, T. (2019) Alternative fuels-Effects on clinker process and properties. Cem. Concr. Res. 123, 105777. https://doi.org/10.1016/j.cemconres.2019.105777 .
). Municipal, industrial, and agricultural wastes are now largely used in the cement plants. For the cement manufacturers, the advantages of their use are cost savings, conservation of natural resources, and minimization of greenhouse gas emissions. These applications have, however, influenced the cement manufacturing process and the properties of the product ( 3-5 3. Shimosaka, K.; Inoue, T.; Tanaka, H.; Kishimoto, Y. (2007) Influence of minor elements in clinker on the properties of cement:a new approach for application to commercial cement manufacturing. Trans. Mater. Res. Soc. Japan. 32 [3], 647-652. https://doi.org/10.14723/tmrsj.32.647 .
4. Achternbosch, M.; Bräutigam, K.R.; Hartlieb, N.; Kupsch, C.M.; Richers, U.; Stemmermann, P.; Gleis, M. (2003) Heavy metals in cement and concrete resulting from the co-incineration of wastes in cement kilns with regard to the legitimacy of waste utilisation. Karlsruhe: Forschungszentrum Karlsruhe GmbH.
5. Ludwig, H.M.; Zhang, W. (2015) Research review of cement clinker chemistry. Cem. Concr. Res. 78, 24-37. https://doi.org/10.1016/j.cemconres.2015.05.018 .
). The clinker absorbs the ashes and entraps the non-volatile and semi-volatile heavy metals in the crystal lattice of its phases. Several trace elements that are found in the ashes but not in regular raw materials and fuels are added to the clinker. This paper will focus on manganese. Furthermore, the amount of manganese oxides in cement made from primary raw materials was rarely greater than 0.2% ( 6 6. Lea, F.M. (1970) The Chemistry of Cement and Concrete. 3^rd Edition, Edward Arnold Ltd. London. 76 (1970).
). Their concentrations in the cements produced with alternative fuels and raw materials might attain ~0.9% ( 3 3. Shimosaka, K.; Inoue, T.; Tanaka, H.; Kishimoto, Y. (2007) Influence of minor elements in clinker on the properties of cement:a new approach for application to commercial cement manufacturing. Trans. Mater. Res. Soc. Japan. 32 [3], 647-652. https://doi.org/10.14723/tmrsj.32.647 .
). Manganese is present in a significant amount in the iron ores used to reduce the clinkering temperature ( 7 7. Saidi, I.; Ben Abdelmalek, J.; Ben Said, O.; Chicharo, L.; Beyrem, H. (2020) Chemical composition and heavy metal content of portland cement in northern tunisia. Iran. J. Chem. Chem. Eng. (IJCCE). 39 [3], 147-158.
). Its content in the blast furnace slag cement may reach 5%. Studies are reported in the literature ( 8-11 8. Nath, S.K.; Randhawa, N.S.; Kumar, S. (2022) A review on characteristics of silico-manganese slag and its utilization into construction materials. Resour. Conserv. Recycl. 176, 105946. https://doi.org/10.1016/j.resconrec.2021.105946 .
9. Saly, F.; Guo, L.; Ma, R.; Gu, C.; Sun, W. (2018) Properties of steel slag and stainlesssteel slag as cement replacement materials: a comparative study. J. Wuhan Univ. Technol. Mater. Sci. Ed. 33 [6], 1444-1451. https://doi.org/10.1007/s11595-018-1989-3 .
10. Anjali, P.; Sajitha Beegom, A. (2022) A study on the utilization of activated steel slag as partial replacement of cement in concrete. Int. J. Eng. Res. Technol (IJERT). 11 [01].
11. Wulfert, H.; Keyssner, M.; Ludwig, H.M.; Adamczyk, B. (2013) Metal recovery and conversion of steel slag into highly reactive cement components. ZKG. Int Deutsch-englische Ausgabe. 9, 34-40 (1995).
) on the use of silicon-manganese slag with ~ 10% MnO, as well as steel slag, which has manganese in its structure, as cement replacement materials, The effect of manganese on the clinker hydration process must thus be investigated. Manganese appears in several oxidation states (M²⁺, Mn³⁺, and Mn⁺⁴) in Portland cement clinker ( 12-15 12. Puertas, F.; Glasser, F.P.; Blanco-Varela, M.T.; Vaquez, T. (1988) Influence of the kiln atmosphere on manganese solid solution in Ca3SiO5 and CA2SiO4. Cem. Concr. Res. 18 [5], 783-788. https://doi.org/10.1016/0008-8846(88)90103-2 .
13. Puertas, F.; Blanco, M.T.; Vázquez, T. (1989) Manganese substitutions into the portland cement clinker phases. Mater. Construcc. 39 [214], 19-30. https://doi.org/10.3989/mc.1989.v39.i214.806 .
14. Puertas, F.; Varela, M.B.; Dominguez, R. (1990) Characterization of Ca₂AlMnO5. A comparative study between Ca₂AlMnO₅ and Ca₂AlFeO₅. Cem. Concr. Res. 20 [3], 429-438. https://doi.org/10.1016/0008-8846(90)90033-T .
15. Diouri, A.; Boukhari, A.; Aride, J.; Puertas, F.; Vázquez, T. (1997) Stable Ca3SiO5 solid solution containing manganese and phosphorus. Cem. Concr. Res. 27 [8], 1203-1212. https://doi.org/10.1016/S0008-8846(97)00110-5 .
). Its presence in the clinker can be summarized as follows: The replacement of Ca²⁺ by Mn²⁺ is possible due to the similarity of their ionic radii (0.91 and 0.99). Mn³⁺ replaces Fe³⁺ preferentially in C₄AF and forms Ca₂AlMnO₅. Its substitution for Al3+ in the C₃A is limited, and the C₃A content is reduced in parallel with its incorporation in the ferrite phase ( 16 16. Tao, Y.; Zhang, W.; Shang, D.; Xia, Z.; Li, N.; Ching, W.Y.; Hu, S. (2018) Comprehending the occupying preference of manganese substitution in crystalline cement clinker phases: A theoretical study. Cem. Concr. Res. 109, 19-29. https://doi.org/10.1016/j.cemconres.2018.04.003 .
). In the C₃S and C₂S phases, Si⁺⁴ is difficultly replaced by Mn⁺⁴, with the C₂S phase having a higher capacity for doping, but in the presence of excess Mn, 2CaO.MnO₂ forms.

On the other hand, the strength of cement decreases when the concentration of Mn₂O₃ is higher than 0.5% ( 1 1. Global Waste Statistics (2022) Waste Statistics / By Cheapa Waste.
, 17 17. Lea’s. (1998) Chemistry of cement and concrete. fourth edition. ISBN 0340 565896. Reprinted by Butterworth-Heinemann.
). Manganese was found to activate the hydration of the ferrite phase but reduce the strength of the calcium silicate hydrates ( 3 3. Shimosaka, K.; Inoue, T.; Tanaka, H.; Kishimoto, Y. (2007) Influence of minor elements in clinker on the properties of cement:a new approach for application to commercial cement manufacturing. Trans. Mater. Res. Soc. Japan. 32 [3], 647-652. https://doi.org/10.14723/tmrsj.32.647 .
).

Few publications are found on the type of manganese salts formed during cement hydration. The tetravalent oxidation state of manganese is the most stable state in neutral and alkaline solutions ( 18 18. Cotton, F.A.; Wilkinson, G.; Murillo, C.A.; Bochmann, M. (1999) Advanced inorganic chemistry. John Wiley and Sons, Inc.
). The jouravskite, Ca₃Mn⁴⁺(SO₄)(CO₃)(OH)₆.12H₂O, is an interesting salt in cement chemistry because it is an ettringite with isostructural similarities to thaumasite ( 19 19. Jouravskite: Mineral information, data and localities.
). Its structure is characterized by the presence of columns composed of [Ca₃Mn⁴⁺(OH)₆(H₂O)₁₂]⁴⁺ formed by alternating Mn(OH)₆ octahedra and triplets of Ca-centered eightfold polyhedra Ca(OH)₄(H₂O). The SO₄ tetrahedra and CO₃ triangles are located among the columns, and all O atoms of these groups are involved in a system of hydrogen bonds ( 20 20. Chukanov, N.V.; Zubkova, N.V.; Pautov, L.A.; Göttlicher, J.; Kasatkin, A.V.; Van, K.V.; Pushcharovsky, D.Y. (2019). Jouravskite: refined data on the crystal structure, chemical composition and spectroscopic properties. Phys. Chem. Miner. 46 [4], 417-425. https://doi.org/10.1007/s00269-018-1012-8 .
). It is expected that jouravskite will form in limestone-bearing cements with enough manganese content exposed to sulphate media. To understand its nature, the expansion of a clinker doped with a synthesized jouravskite salt in sulphate solution was compared with that of a clinker doped with ettringite ( 21 21. Mohamed, M.K.M. (2022) Studies on some important salts formed in Portland cement: Thaumasite and ettringite-similar phases. Ph.D. Thesis, Helwan University Cairo Egypt.
). Previous research ( 22 22. Ghorab, H.Y.; Zayed, A.M.; Mohamed, A.S.; Abdel Tawab, Y.; Mabrouk, M.R.; Ahmed, H.E.H. (2007) Factors affecting the sulfate expansion in cement systems. 12^th Inter. Cong. Chem. Cem. (ICCC). Montreal, Canada, TH4-12.4.
, 23 23. Mohamed, A.S. (2006) Studies on the expansion behavior of ettringite in pure systems and in cement pastes. M.Sc. thesis Helwan University, Cairo, Egypt.
) demonstrated a significant length change in sodium sulphate solutions of a synthesized ettringite as well as clinker doped with ettringite. The clinker sample deteriorated after 60 days of exposure to a 1 molar solution. In the present work, measurements are carried out using the self-designed methods applied in the previous research as follows ( 22 22. Ghorab, H.Y.; Zayed, A.M.; Mohamed, A.S.; Abdel Tawab, Y.; Mabrouk, M.R.; Ahmed, H.E.H. (2007) Factors affecting the sulfate expansion in cement systems. 12^th Inter. Cong. Chem. Cem. (ICCC). Montreal, Canada, TH4-12.4.
, 23 23. Mohamed, A.S. (2006) Studies on the expansion behavior of ettringite in pure systems and in cement pastes. M.Sc. thesis Helwan University, Cairo, Egypt.
): The length change of the clinker pastes was recorded for small cylindrical samples using an accurate micrometer, and the compressive strength of the hardened pastes was measured on 1x1x1 inch cubes.

2. EXPERIMENTAL PROCEDURE

3. RESULTS

3.1 Characterization

  ⌅

The X-ray diffraction patterns of the synthesized jouravskite are depicted in Figure 1 . They show d-value lines at 9.52, 5.52, 4.91, 3.88, 3.59, 3.44, 3.09, 2.76, 2.60, 2.21, 1.92, 1.79, 1.68, and 1.60 A, which corresponds to jouravskite database ( 25 25. Granger M.; Protas, J. (1969) Determination et etude de la structure cristalline de la jouravskite Ca₃MnIV(SO₄)(CO₃)(OH)*12(H₂O). Acta. Crystallogr. B25 1943-1951 Locality: Tachgagalt mine, Morocco. Database_code_amcsd 0009362.
, 26 26. Gaudefroy, C.; Permingeat, F. (1965) La jouravskite, une nouvelle espèce minérale. Bull. Soc. fr. minéral. Cristallogr. 88, 254-262. Reference code00-018-0668.
).

Wet chemically ( 21 21. Mohamed, M.K.M. (2022) Studies on some important salts formed in Portland cement: Thaumasite and ettringite-similar phases. Ph.D. Thesis, Helwan University Cairo Egypt.
) and using X-ray fluorescence, the oxide composition of the synthesized jouravskite, with the theoretical formula Ca₃Mn⁴⁺(SO₄)(CO₃)(OH)₆•12(H₂O), was determined. The results obtained are very close to each other and accord with the theoretical value ( Table 1 ).

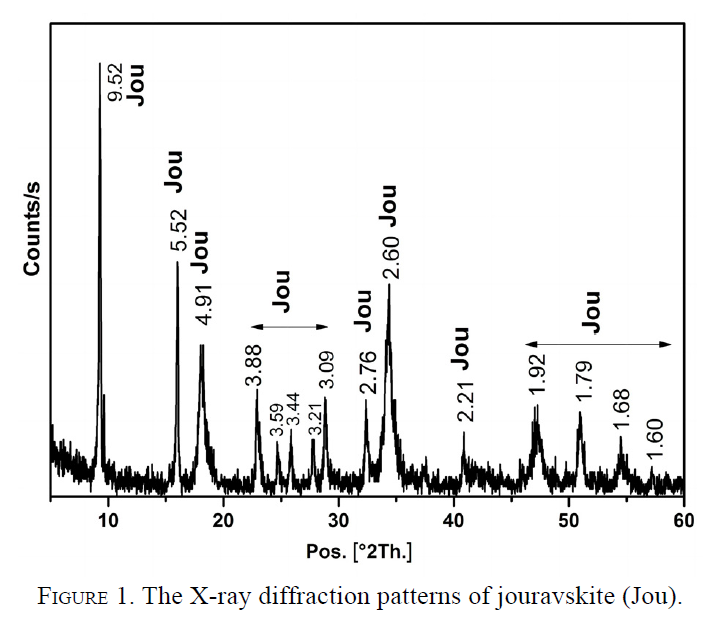

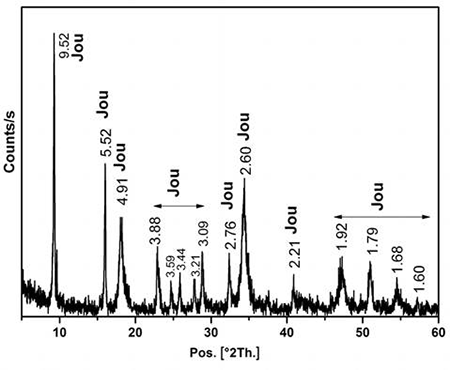

Figure 1.  The X-ray diffraction patterns of jouravskite (Jou).

Table 1.  Chemical composition of jouravskite (wt. %).

Oxide	Theoretical	Wet Chemically	XRF
CaO	25.20	25	25.22
MnO2	13.02	12.5	13.04
SO3	17.99	17.4	17.94
CO2	3.30	3.6	3.37
H2O	40.49	41.5	40.43

The infrared spectra of Figure 2 indicate a strong band of OH/portlandite at 3642 cm^-1. The stretching and bending modes of OH/water are found at 3390 and 1645 cm^-1 and the CO bands of carbonate are at 1473 and 1411 cm^-1. The strong band observed at 1099 cm^-1 is attributed to the stretching vibration mode of S-O, and that at 620 cm^-1 is due to the bending vibration. The bands identified at 573 and 550 cm^-1 belong to Mn⁴⁺-O stretching vibrations. These data agree with the literature ( 20 20. Chukanov, N.V.; Zubkova, N.V.; Pautov, L.A.; Göttlicher, J.; Kasatkin, A.V.; Van, K.V.; Pushcharovsky, D.Y. (2019). Jouravskite: refined data on the crystal structure, chemical composition and spectroscopic properties. Phys. Chem. Miner. 46 [4], 417-425. https://doi.org/10.1007/s00269-018-1012-8 .
).

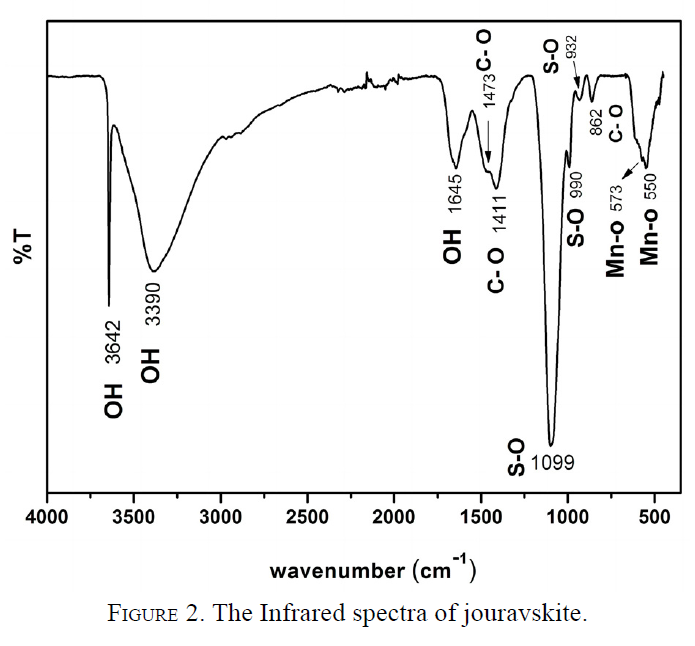

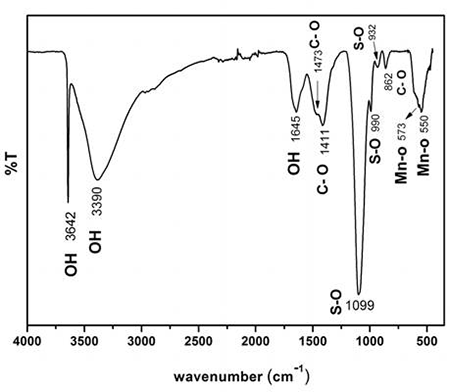

Figure 2.  The Infrared spectra of jouravskite.

The morphology of the salt shows rounded columnar shaped particles of different sizes lying in the range of 3-4 microns ( Figure 3 ).

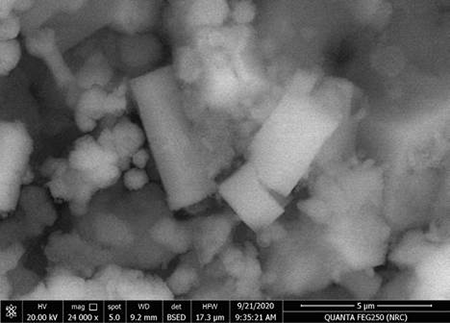

Figure 3.  The scanning electron micrograph of the prepared jouravskite salt.

All of the characteristics of the prepared ettringite salt were consistent with the literature.

Tables 2 and 3 illustrate the chemical composition of the clinker. Its X-ray diffraction patterns, and its infrared spectra are shown in Figures 4 and 5 . All the characteristic d-value lines of the clinker phases are represented in the diffractogram. As expected, no hump is observed in the background of the figure; the hump reflects the hydration of the sample and the presence of amorphous products.

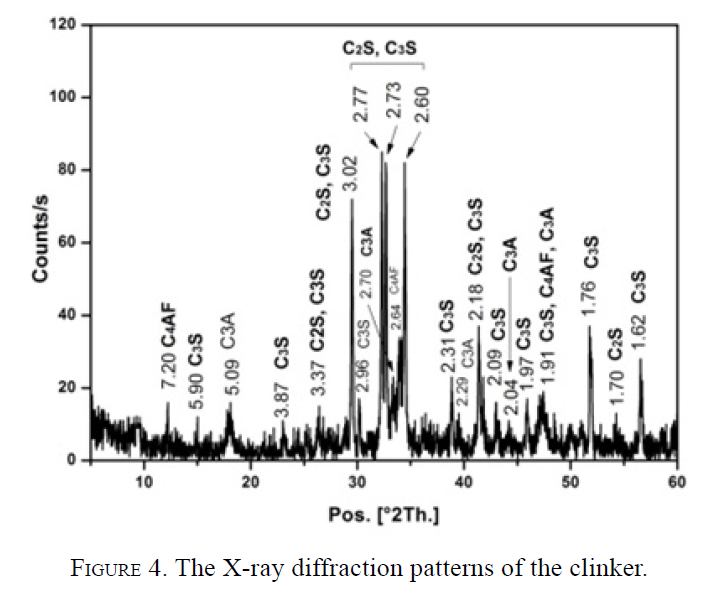

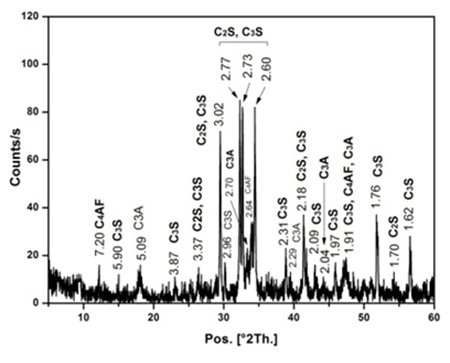

Figure 4.  The X-ray diffraction patterns of the clinker.

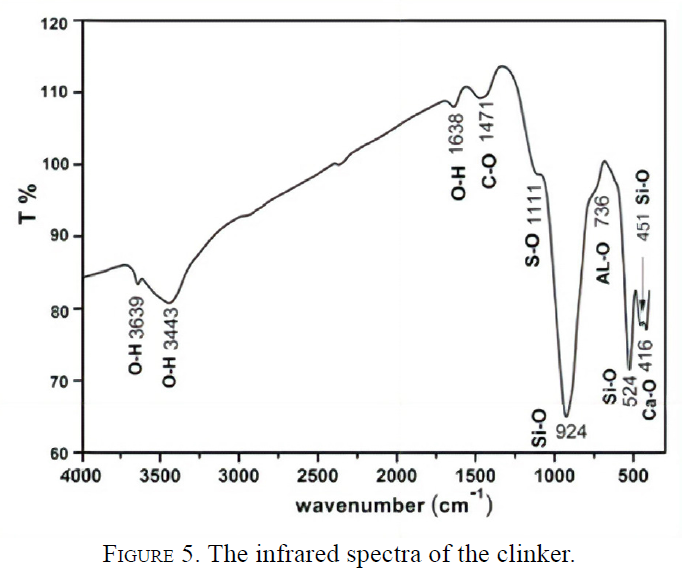

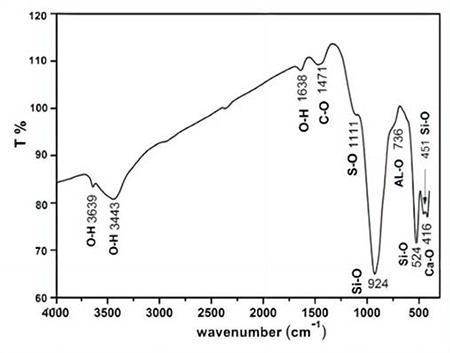

Figure 5.  The infrared spectra of the clinker.

Table 2.  The chemical composition of the clinker (wt.%).

	SiO2	Al2O3	Fe2O3	CaO	MgO	Na2O	K2O	SO3	F. L.	Cl	LOI
CEM I 42.5 R	20.83	5.07	3.91	65.05	3.19	0.32	0.17	0.74	1.32	0.01	3.7

Table 3.  The phases composition of the clinker (wt.%).

C3S	C2S	C3A	C4AF
66.80	9.41	6.82	11.89

The infrared spectrum of the clinker indicates that a slight hydration and carbonation of the clinker occurred in the sample; the respective bands appear in the range of 3500 and 1470 cm^-1 respectively. Weak shoulders of S-O and Al-O are detected at 1111 and 736 cm^-1, and the Si-O frequencies are observed at 924 and 451 cm^-1.

3.2 Effect on the clinker

  ⌅

Figure 6a shows the expansion behavior of the clinker pastes doped with jouravskite in 0.01, 0.1, and 1% magnesium sulfate solutions at room temperature. The expansion of the clinker doped with ettringite is illustrated in Figure 6b . The results show that no significant change occurs in the length of the clinker/jouravskite curve over the 60-day exposure time; the clinker/ettringite pastes, however, undergo noticeable expansion in 0.1 and 1% magnesium sulfate solutions.

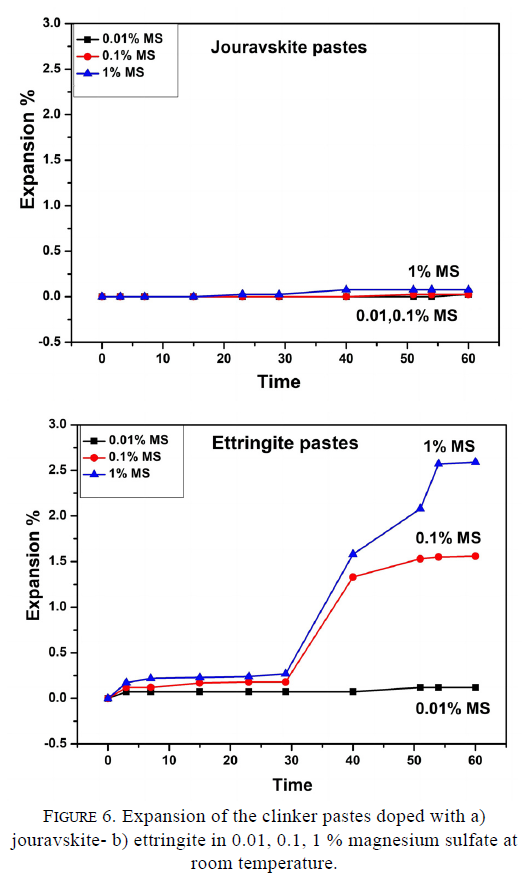

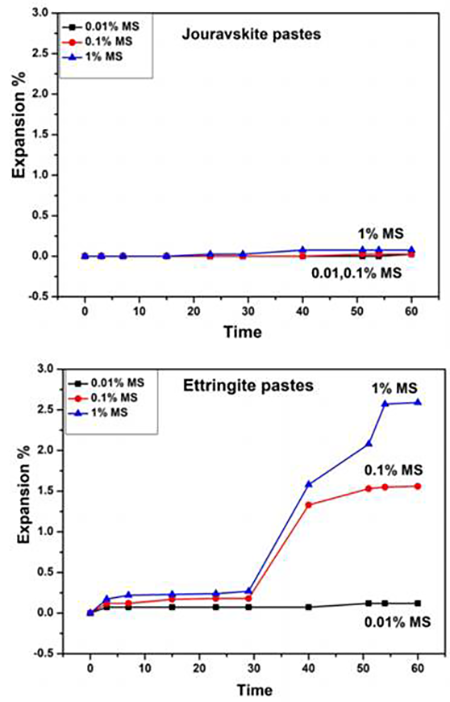

Figure 6.  Expansion of the clinker pastes doped with a) jouravskite- b) ettringite in 0.01, 0.1, 1 % magnesium sulfate at room temperature.

Figure 7 illustrates the X-ray diffractogram of a sample taken from the bulk of the clinker/ ettringite paste cured in a 1% magnesium sulfate solution for 60 days. The diffractogram of the clinker/ jouravskite paste treated under similar conditions is shown in Figure 8 . The results indicate the presence of the ettringite d-values at 9.63, 5.56A and others, beside gypsum and portlandite. In this figure, the clinker patterns are weak, which means that progressive hydration took place in the sample. This is supported by the presence of a hump in the two-theta range of 25 to 35 degrees, which reflects the presence of amorphous products in the sample. Figure 8 shows the presence of jouravskite patterns at 9.55 and 5.55 A, beside a moderate peak at 4.95 A attributed to portlandite and jouravskite. Well-defined lines of the anhydrous clinker phases appear at 3.02, 2.76, 2.73, and 2.59 A. The absence of a hump in the two-theta range of 25 to 35 degrees means that the hydration process of the clinker is retarded.

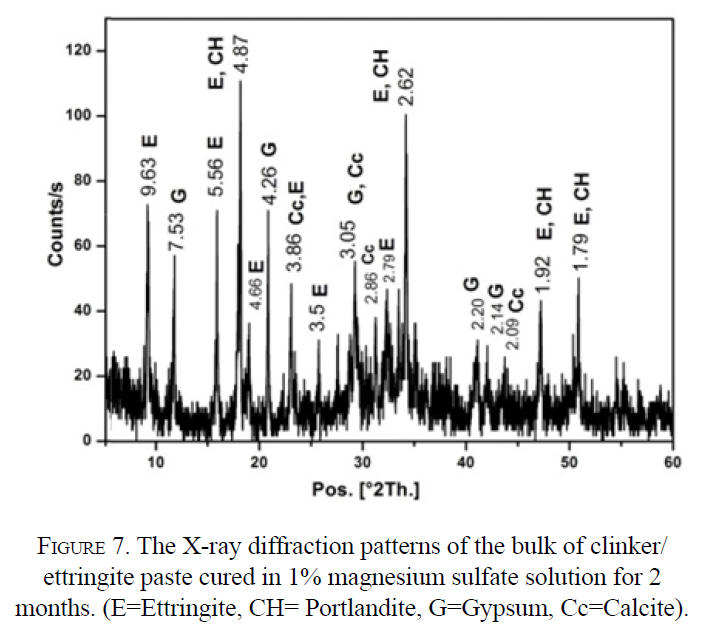

Figure 7.  The X-ray diffraction patterns of the bulk of clinker/ ettringite paste cured in 1% magnesium sulfate solution for 2 months. (E=Ettringite, CH= Portlandite, G=Gypsum, Cc=Calcite).

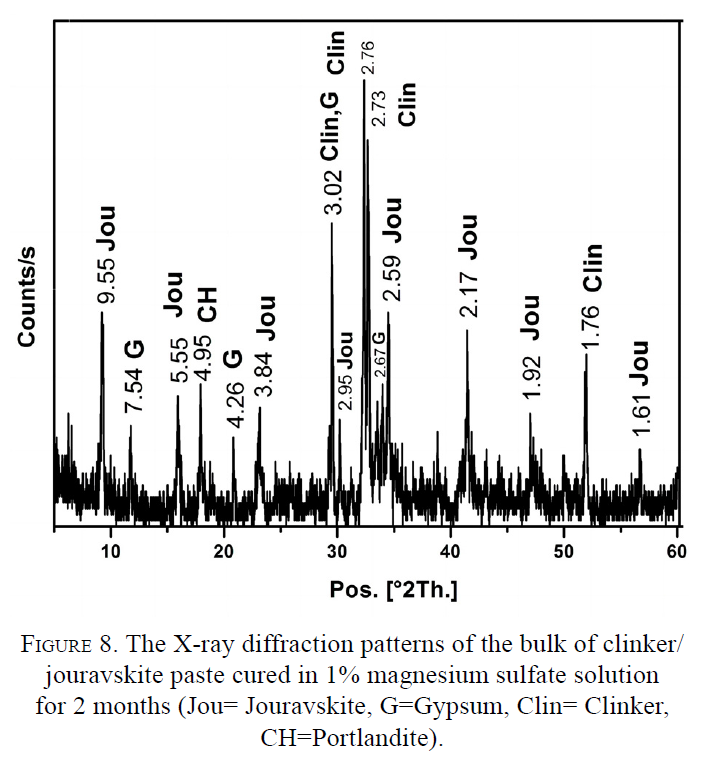

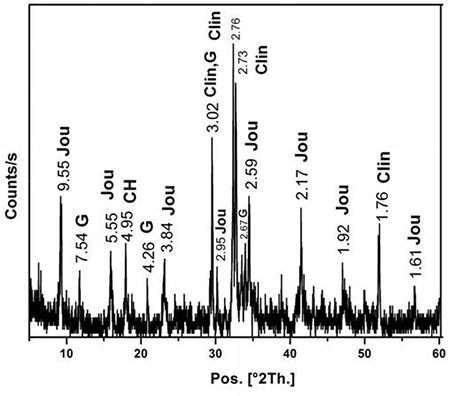

Figure 8.  The X-ray diffraction patterns of the bulk of clinker/ jouravskite paste cured in 1% magnesium sulfate solution for 2 months (Jou= Jouravskite, G=Gypsum, Clin= Clinker, CH=Portlandite).

The scanning electron micrograph of the paste cured for 60 days at room temperature in 1% magnesium sulphate solution shows a coated layer formed on the surface of the clinker phases ( Figure 9 ).This sample’s infrared spectra show a weak stretching vibration of the OH^- group of calcium hydroxide at 3640 cm^-1 ( Figure 10 ); the bands detected at 989 and 940 cm^-1 are assigned to the stretching vibration of Si-O; and the band detected at 539 cm^-1 is assigned to Mn-O.

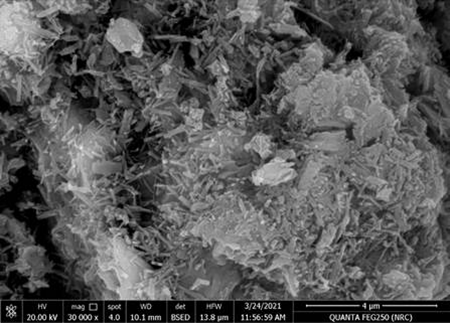

Figure 9.  The scanning electron micrograph clinker/jouravskite pastes cured 60 days in 1% magnesium sulfate at room temperature indicating a layer probably coating the clinker phases.

The 28 and 60-days compressive strength curves of the clinker/jouravskite and the clinker/ettringite pastes in 0.01, 0.1, 1 % magnesium sulfate at room temperature were identical. Typical curves are depicted in Figure 11 next to those of the reference pastes for comparison. The results show very low compressive strength values for the clinker/jouravskite pastes, which reach zero at 60 days. The values of the clinker/ ettringite are low as well but are slightly higher than those of the jouravskite. The reference sample shows a value of 18 N/mm² after one month and increases to 25 N/mm² after 60 days.

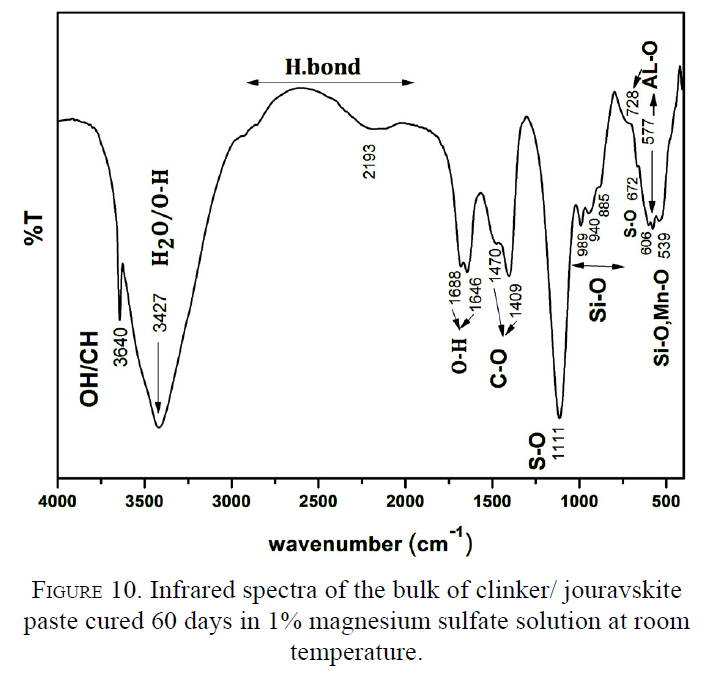

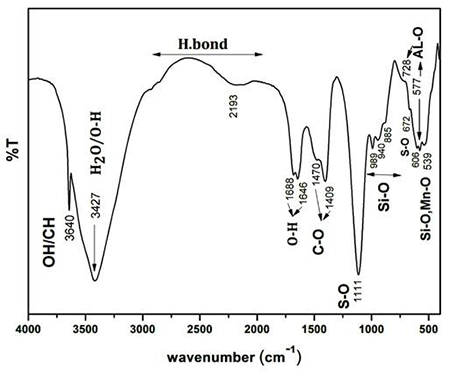

Figure 10.  Infrared spectra of the bulk of clinker/ jouravskite paste cured 60 days in 1% magnesium sulfate solution at room temperature.

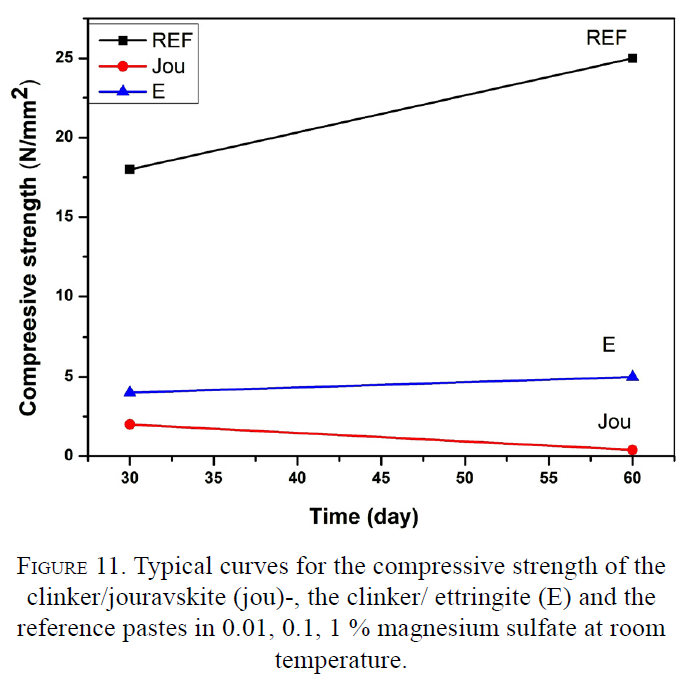

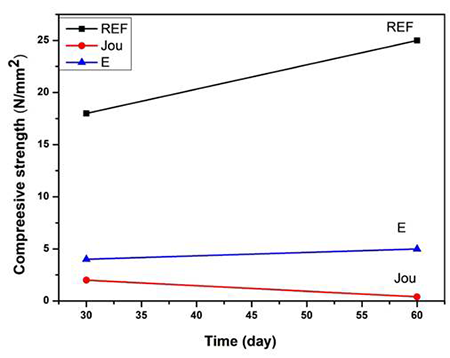

Figure 11.  Typical curves for the compressive strength of the clinker/jouravskite (jou)-, the clinker/ ettringite (E) and the reference pastes in 0.01, 0.1, 1 % magnesium sulfate at room temperature.

4. DISCUSSION

The ettringite (Ca₆[Al (OH)₆]₂·(SO₄)₃·24H₂O), and thaumasite (Ca₆[Si(OH)₆]₂(SO₄)₂(CO₃)₂·24H₂O) salts are known to damage cement and concrete in sulfate media. The structure of ettringite is composed of columns of central trivalent aluminum ions surrounded octahedrally by hydroxyl ions attached to the 8-coordinated calcium ions. The expansive properties take place in the presence of excess sulfate, lime, and humidity at room temperature. The sulfates enter the channels between the columns and cause expansion. The source of sulfate may be internal or external ( 27 27. Scrivener, K.; Skalny, J.P. (2005) Conclusions of the international RILEM TC 186-ISA workshop on internal sulfate attack and delayed ettringite formation (4-6 September 2002, Villars, Switzerland). Mater. Struct. 38 [6], 659-663. https://doi.org/10.1007/BF02481597 .
, 28 28. Whittaker, M.; Black, L. (2015) Current knowledge of external sulfate attack. Adv. Cem. Res. 27 [9], 532-545. https://doi.org/10.1680/adcr.14.00089 .
).

In thaumasite, tetravalent silicon is present as a central ion in the octahedra instead of aluminum. It is responsible for the deterioration of cement systems in carbonate and sulfate media at low temperatures (<15^oC). The mechanism of its formation is explained as follows: In the presence of carbonate, the pH-value of the system is reduced, the calcium silicate hydrates, and ettringite decomposes. Thaumasite forms with the resupply of lime and the rise of the value. To allow the formation of the octahedral arrangement of OH^-ions around the highly polarizing Si, the existence of a transition intermediate state was proposed ( 29 29. Bensted, J. (2003). Thaumasite--direct, woodfordite and other possible formation routes. Cem. Concr. Compos. 25 [8], 873-877. https://doi.org/10.1016/S0958-9465(03)00115-X .
). This mechanism is favored by low temperatures because of the increased solubility of lime. The intermediate phase was identified ( 30 30. Ghorab, H.Y.; Zahran, F.S.; Kamal, M.; Meawad, A.S. (2018). On the durability of portland limestone cement: Effect of pH on the thaumasite formation. HBRC J. 14 [3], 340-344. https://doi.org/10.1016/j.hbrcj.2017.04.002 .
) as a carbonated silicate phase incorporating relics of ettringite. It shows an IR shoulder at 1030 cm^-1 instead of the pure Si-O band usually appearing at 980 cm^-1. This band disappears with the supply of lime, and the formation of thaumasite. The formation of thaumasite is not accompanied by an expansion behavior like ettringite ( 31 31. Ghorab, H.Y.; Mabrouk, M.R.; Abd Elnaby, S.F.; Yousri, K.M.; Ahmed, H.H.; Herfort, D.; Osman, Y.A. (2014). The suitability of portland limestone cement for use in construction applications in Egypt. Cem. Inter. 12, 70-77.
), but the surface of hardened cement systems exposed to sulphate separates and further layers deteriorate.

The effect of jouravskite (Ca₆[Mn(OH)₆]₂(SO₄)₂(CO₃)₂·24H₂O) on cement is rarely discussed in the literature, and its formation mechanism is not explained. The present work shows that it is a strong retarder for the hydration of the clinker.

The major product of the hydration of the silicate phases in cement is the calcium silicate hydrate gel. This gel is a mixture of poorly crystallized particles with a structure far from equilibrium. It is thermodynamically unstable at ambient temperature. When pH approaches 12.5, portlandite precipitates from solutions. Calcium hydroxide influences the morphological and structural features of C-S-H ( 32 32. Dweck, J.; Ferreira da Silva1, P.; Silva Aderne, R.; Büchler, P.; Cartledge, F.K. (2003) Evaluating cement hydration by non-conventional DTA; An Application to Waste Solidification. J. Therm. Anal. Calorim. 71 [3], 821-827. https://doi.org/10.1023/a:1023322108940 .
), and a tightly bound bi-layer of calcium ions forms with the negatively charged C-S-H surface ( 33 33. Chen, Q.Y.; Tyrer, M.; Hills, C.D.; Yang, X.M.; Carey, P. (2009) Immobilisation of heavy metal in cement-based solidification/stabilisation: A review. Waste. Manag. 29 [1], 390-403. https://doi.org/10.1016/j.wasman.2008.01.019 .
, 34 34. Yousuf, M.; Mollah, A.; Vempati, R.K.; Lin, T.C.; Cocke, D.L. (1995) The interfacial chemistry of solidification/stabilization of metals in cement and pozzolanic material systems. Waste Manag. 15 [2], 137-148. https://doi.org/10.1016/0956-053X(95)00013-P .
).

Heavy metals will be adsorbed on the hydration products if the amount is sufficient precipitation may occur on the surfaces of the CSH phases because of the unsatisfied charges. The cement grains are then coated with salts of the heavy metals. The saturation indices of the low-solubility species of these metals are very high, and the spontaneous nucleation of the salts occurs very quickly. Metals that form the least soluble hydroxides retard the hydration reactions, inhibit their nucleation and growth, and in some cases enhance the silicate polymerization ( 35 35. Tashiro, C.; Oba, J. (1979) The effects of Cr₂O₃, Cu (OH)₂, ZnO and PbO on the compressive strength and the hydrates of the hardened C₃A paste. Cem. Concr. Res. 9 [2], 253-258. https://doi.org/10.1016/0008-8846(79)90032-2 .
, 36 36. Poon, C.S.; Clark, A.I.; Peters, C.J.; Perry, R. (1985) Mechanisms of metal fixation and leaching by cement based fixation processes. Sci. Total Environ. 3 [2], 127-142. https://doi.org/10.1016/0048-9697(85)90161-5 .
). The more soluble hydroxides exhibit only a slight degree of retardation, and metals that form soluble hydroxides behave as accelerators of cement hydration. In general, heavy metals are considered inhibitors of C₃S; some of them retard early hydration and then act as accelerators at later ages.

The carbonation process might change the characteristics of the C-S-H phases and increases their capacity for retaining heavy metal cations and heavy metal hydroxyl ions, because of the large surface area and the meta-stability of decalcified C-S-H gel ( 34 34. Yousuf, M.; Mollah, A.; Vempati, R.K.; Lin, T.C.; Cocke, D.L. (1995) The interfacial chemistry of solidification/stabilization of metals in cement and pozzolanic material systems. Waste Manag. 15 [2], 137-148. https://doi.org/10.1016/0956-053X(95)00013-P .
). The jouravskite shall precipitate if enough sulfate, carbonate, hydroxide, calcium, and manganese are available.

The jouravskite was added as an already-formed salt in the current work. Its effect on the clinker hydration is therefore explained by adsorption rather than precipitation from the individual soluble ions. The morphology of the hydration products in the clinker-jouravskite system after 60 days of immersion in 1% magnesium sulphate solution is fascinating ( Figure 9 ) The coated layer of the cement grains is composed of particles with dimensions less than one micron. The jouravskite particles in Figure 3 are seen to be of greater size. This observation indicates that a certain interaction took place between the jouravskite and the cement grains in the magnesium sulfate solution. The amount of portlandite in the system was very low at 60 days, as determined by infrared, indicating that clinker hydration was inhibited.

Because of the similarity between the composition of jouravskite and thaumasite, the availability of carbonate ions for their formation must be strictly considered. The jouravskite is expected to form in limestone cement and in carbonated atmosphere of ordinary Portland cement exposed to sulfate media. The low temperature required for thaumasite formation in jouravskite is unclear.

5. CONCLUSIONS
