1. INTRODUCTION
⌅Sandstones
are sedimentary, granular, porous rocks widely used in construction
worldwide because of their great abundance on the planet’s surface, ease
of extraction and processing and high aesthetic value. However,
sandstones are soft materials likely to suffer severe weathering when
exposed to environmental agents (
1-7
1.
Hosein-Ghobadi, M.; Babazadeh, R.; Khodabakhsh, S. (2014) Petrophysical
and durability tests on sandstones for the evaluation of their quality
as building stones using Analytical Hierarchy Process (AHP). J. Geope. 4 [1], 25-43.
https://doi.org/10.22059/JGEOPE.2014.51190
.
2.
Stück, H.; Koch, R.; Siegesmund, S. (2013) Petrographical and
petrophysical properties of sandstones: statistical analysis as an
approach to predict material behaviour and construction suitability. Environ. Earth Sci. 69, 1299-1332.
https://doi.org/10.1007/s12665-012-2008-1
.
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
.
4.
Cultrone. G.; Luque, A.; Sebastián, E. (2012) Petrophysical and
durability tests on sedimentary stones to evaluate their quality as
building materials. Quart. J. Eng. Geol. Hydrog. 45, 415-422.
https://doi.org/10.1144/qjegh2012-007
.
5.
Ruedrich, J.; Bartelsen, T.; Dohrmann, R.; Siegesmund, S. (2011)
Moisture expansion as a deterioration factor for sandstone used in
buildings. Environ. Earth Sci. 63, 1545-1564.
https://doi.org/10.1007/s12665-010-0767-0
.
6.
Buj, O.; Gisbert, J. (2007) Petrophysical characterization of three
commercial varieties of Miocene sandstones from the Ebro valley. Mater. Construcc. 57 [287], 63-74.
https://doi.org/10.3989/mc.2007.v57.i287.57
.
7.
McCabe, S.; Smith, B.J.; Warke, P.A. (2007) Preliminary observations on
the impact of complex stress histories on sandstone response to salt
weathering: laboratory simulations of process combinations. Environ. Geol. 52, 251-258.
https://doi.org/10.1007/s00254-006-0531-7
.
).
Sandstones’ great compositional and textural variety means their
physical and mechanical behaviour differs widely. It is therefore
necessary to characterise their petrographic and petrophysical
parameters in order to assess their quality as a building material and
predict their medium- and long-term behaviour and durability (
2
2.
Stück, H.; Koch, R.; Siegesmund, S. (2013) Petrographical and
petrophysical properties of sandstones: statistical analysis as an
approach to predict material behaviour and construction suitability. Environ. Earth Sci. 69, 1299-1332.
https://doi.org/10.1007/s12665-012-2008-1
.
,
3
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
.
,
7-12
7.
McCabe, S.; Smith, B.J.; Warke, P.A. (2007) Preliminary observations on
the impact of complex stress histories on sandstone response to salt
weathering: laboratory simulations of process combinations. Environ. Geol. 52, 251-258.
https://doi.org/10.1007/s00254-006-0531-7
.
8.
Forestieri, G.; Álvarez de Buergo, M. (2019) Petrophysical-mechanical
behavior of Grisolia Stone found in the architectural heritage of
southern Italy. Mater. Construcc. 69 [334], e188.
https://doi.org/10.3989/mc.2019.04118
.
9.
Molina, E.; Cultrone, G.; Sebastián E.; Alonso, F.J. (2013) Evaluation
of stone durability using a combination of ultrasound, mechanical and
accelerated aging tests. J. Geophys. Eng. 10 [3], 035003.
https://doi.org/10.1088/1742-2132/10/3/035003
.
10.
Esbert, R.M.; Alonso, F.J.; Ordaz. J. (2008) La petrofísica en la
interpretación del deterioro y la conservación de la piedra de
edificación. Trabajos de Geología. 28, 87-95. Univ. Oviedo.
11.
Varas, M.J.; Molina, E.; Vicente, M.A. (2003) Petrophysical
characteristics of the sandstones used in the construction of the
Monumental Heritage of Ciudad Rodrigo, Salamanca, España. Mater. Construcc. 53 [269], 73-88.
https://doi.org/10.3989/mc.2003.v53.i269.269
.
12.
Varas, M.J.; Molina, E.; Vicente, M.A. (2002) Ornamental sandstones
used in Ciudad Rodrigo, Salamanca: petrographic and chemical
characterization of the quarry materials. Mater. Construcc. 52 [266], 33-53.
https://doi.org/10.3989/mc.2002.v52.i266.333
.
).
The
presence of specific mineralogy in sandstones’ intergranular space
(clay matrices and/or crystalline cement), as well as the empty spaces
that define their pore system, are the main features that determine
these materials’ hardness and thus their quality and durability as they
constrain sandstones’ intergranular cohesion and resistance to
aggression from the two most damaging agents of deterioration: water and
salts (
2
2.
Stück, H.; Koch, R.; Siegesmund, S. (2013) Petrographical and
petrophysical properties of sandstones: statistical analysis as an
approach to predict material behaviour and construction suitability. Environ. Earth Sci. 69, 1299-1332.
https://doi.org/10.1007/s12665-012-2008-1
.
,
3
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
.
,
6
6.
Buj, O.; Gisbert, J. (2007) Petrophysical characterization of three
commercial varieties of Miocene sandstones from the Ebro valley. Mater. Construcc. 57 [287], 63-74.
https://doi.org/10.3989/mc.2007.v57.i287.57
.
,
9
9.
Molina, E.; Cultrone, G.; Sebastián E.; Alonso, F.J. (2013) Evaluation
of stone durability using a combination of ultrasound, mechanical and
accelerated aging tests. J. Geophys. Eng. 10 [3], 035003.
https://doi.org/10.1088/1742-2132/10/3/035003
.
,
13-16
13.
García-Talegón, J.; Iñigo, A.C.; Alonso-Gavilán, G.; Vicente-Tavera. S.
(2014) Villamayor Stone (Golden Stone) as a Global Heritage Stone
Resource from Salamanca (NW of Spain). In: Global Heritage Stone:
Towards International Recognition of Building and Ornamental Stones.
Pereira, D., Marker, B. R., Kramar, S., Cooper, B. J. & Schouenborg,
B. E. (eds). Geol. Soc. London, Special Publications. 407, 12p.
https://doi.org/10.1144/SP407.19
.
14.
Molina, E.; Cultrone, G.; Sebastián, E.; Alonso, F.J.; Carrizo, L.;
Gisbert, J.; Buj, O. (2011) The pore system of sedimentary rocks as a
key factor in the durability of buildings materials. Eng. Geol. 118 [3-4], 110-121.
https://doi.org/10.1016/j.enggeo.2011.01.008
.
15.
Benavente, D.; Cueto, N.; Martínez-Martínez, J.; García del Cura, M.A.;
Cañaveras. J.C. (2007) The influence of petrophysical properties on the
salt weathering of porous building rocks. Environ. Geol. 52, 215-224.
https://doi.org/10.1007/s00254-006-0475-y
.
16.
Benavente, D.; García del Cura, M.A.; Fort, R., Ordóñez, S. (2004)
Durability estimation of porous building stones from pore structure and
strength. Eng. Geol. 74 [1-2], 113-127.
https://doi.org/10.1016/j.enggeo.2004.03.005
.
).
The side effects of water circulation and the crystallisation pressure
exerted by soluble salts within the pore system of any material will
cause significant changes in pore size, geometry, quantity and
distribution. These in turn produce measurable changes in the material’s
petrophysical properties (
3-5
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
.
4.
Cultrone. G.; Luque, A.; Sebastián, E. (2012) Petrophysical and
durability tests on sedimentary stones to evaluate their quality as
building materials. Quart. J. Eng. Geol. Hydrog. 45, 415-422.
https://doi.org/10.1144/qjegh2012-007
.
5.
Ruedrich, J.; Bartelsen, T.; Dohrmann, R.; Siegesmund, S. (2011)
Moisture expansion as a deterioration factor for sandstone used in
buildings. Environ. Earth Sci. 63, 1545-1564.
https://doi.org/10.1007/s12665-010-0767-0
.
,
15
15.
Benavente, D.; Cueto, N.; Martínez-Martínez, J.; García del Cura, M.A.;
Cañaveras. J.C. (2007) The influence of petrophysical properties on the
salt weathering of porous building rocks. Environ. Geol. 52, 215-224.
https://doi.org/10.1007/s00254-006-0475-y
.
,
17-20
17.
Fort, R.; Feijoo, J.; Varas-Muriel, M.J.; Navacerrada, M.A.;
Barbero-Barrera, M.M.; De la Prida, D. (2022) Appraisal of
non-destructive in situ techniques to determine moisture - and salt
crystallization- induced damage in dolostones. J. Build. Eng. 53, 104525.
https://doi.org/10.1016/j.jobe.2022.104525
.
18.
Angeli, M.; Bigas, J.P.; Benavente, D.; Menéndez, B.; Hébert R.; David,
C. (2007) Salt crystallization in pores: quantification and estimation
of damage. Environ. Geol. 52, 205-213.
https://doi.org/10.1007/s00254-006-0474-z
.
19. Ruedrich J.; Siegesmund, S. (2007) Salt and ice crystallisation in porous sandstones. Environ. Geol. 52, 225-249.
https://doi.org/10.1007/s00254-006-0585-6
.
20.
Benavente, D.; García del Cura, M.A.; García-Guinea, J.; Sánchez-Moral,
S.; Ordoñez, S. (2004) Role of pore structure in salt crystallisation
in unsaturated porous stone. J. Crys. Growth. 260, 532-544.
https://doi.org/10.1016/j.jcrysgro.2003.09.004
.
).
Laboratory
simulations, such as accelerated ageing tests, are carried out in order
to assess the type and extent of damage these stones suffer under real
environmental conditions. These tests are usually destructive in the
short term, which makes it possible to compare the induced damage with
the real damage and thus estimate the degree of durability (
1
1.
Hosein-Ghobadi, M.; Babazadeh, R.; Khodabakhsh, S. (2014) Petrophysical
and durability tests on sandstones for the evaluation of their quality
as building stones using Analytical Hierarchy Process (AHP). J. Geope. 4 [1], 25-43.
https://doi.org/10.22059/JGEOPE.2014.51190
.
,
7
7.
McCabe, S.; Smith, B.J.; Warke, P.A. (2007) Preliminary observations on
the impact of complex stress histories on sandstone response to salt
weathering: laboratory simulations of process combinations. Environ. Geol. 52, 251-258.
https://doi.org/10.1007/s00254-006-0531-7
.
,
9
9.
Molina, E.; Cultrone, G.; Sebastián E.; Alonso, F.J. (2013) Evaluation
of stone durability using a combination of ultrasound, mechanical and
accelerated aging tests. J. Geophys. Eng. 10 [3], 035003.
https://doi.org/10.1088/1742-2132/10/3/035003
.
).
Although most durability properties can be improved by applying
consolidation and/or water-repellent treatments, these products can also
be affected by environmental agents (
10
10.
Esbert, R.M.; Alonso, F.J.; Ordaz. J. (2008) La petrofísica en la
interpretación del deterioro y la conservación de la piedra de
edificación. Trabajos de Geología. 28, 87-95. Univ. Oviedo.
,
21-23
21.
Varas-Muriel, M.J.; Pérez-Monserrat, E.M.; Vázquez-Calvo, M.C.; Fort,
R. (2015) Effect of conservation treatments on heritage stone.
Characterisation of decay processes in a case study. Const. Build. Mat. 95, 611-622.
https://doi.org/10.1016/j.conbuildmat.2015.07.087
.
22.
Varas-Muriel, M.J.; Alvarez de Buergo, M.; Fort, R. (2007) The
influence of past protective treatments on the deterioration of historic
stone façades: A case study. Stud. Conser. 52 [2], 110-124.
https://doi.org/10.1179/sic.2007.52.2.110
.
23.
Esbert, R.M.; Díaz Pache, F. (1993) Influencia de las características
petrofísicas en la penetración de consolidantes en rocas monumentales
porosas. Mater. Construcc. 43 [230], 25-36.
).
Treatment use has grown over the last century and the extremely wide
variety of products on the market creates uncertainty about their degree
of effectiveness and their suitability for the stone to which they are
to be applied (
24-27
24.
Pozo-Antonio, J.S.; Noya, D.; Montojo, C. (2020) Aesthetic effects on
granite of adding nanoparticle TiO2 to Si-Based consolidants (ethyl
silicate or nano-sized silica). Coatings. 10 [3], 215.
https://doi.org/10.3390/coatings10030215
.
25.
Luque, A.; Cultrone, G.; Sebastián, E.; Cazalla, O. (2008)
Effectiveness of stone treatments in enhancing the durability of
bioclastic calcarenite (Granada, Spain). Mater. Construcc. 58 [292], 115-128.
https://doi.org/10.3989/mc.2008.41607
.
26. Zendri, E.; Biscontin, G.; Nardini, I.; Riato, S. (2007) Characterization and reactivity of silicatic consolidants, Const. Buil. Mat. 21 [5], 1098-1106.
https://doi.org/10.1016/j.conbuildmat.2006.01.006
.
27.
Fort, R.; Álvarez de Buergo, M.; Varas-Muriel, M. J.; Vázquez-Calvo,
M.C. (2005) Valoración de tratamientos con polímeros sintéticos para la
conservación de materiales pétreos del patrimonio. R. Plásticos Modernos. 89 [583], 83-89.
).
This paper characterises both the petrographic and petrophysical properties of a porous sandstone marketed as ‘Demanda Gold’ (Sierra de la Demanda, Burgos, Spain) and the changes in these properties after treating it with ESTEL 1100 and/or subjecting it to accelerated ageing by salt crystallisation in order to establish the aforementioned sandstone’s quality and durability as a building material. Likewise, it evaluates the treatment’s compatibility with this stone and its effectiveness against the action of water and salts. Analysis will place special emphasis on changes to the pore system.
Demanda Gold sandstone is
principally quarried in Palacios de la Sierra, Burgos, Spain (41° 58’
26.37” N, 3° 6’ 27.46” W), although it is also extracted in Sala de los
Infantes, Vilviestre del Pinar, Canicosa de la Sierra and Quintanar de
la Sierra (Burgos). It is known commercially as ‘Piedra de la Demanda’,
‘Dorada Urbión’ or ‘Piedra de Salas’. This sandstone has historically
been used in the towns and villages close to the extraction sites. It is
currently marketed nationally and internationally and is found in
buildings in Madrid, Burgos, Soria, Salamanca, Cantabria and the Basque
Country. It is used in both modern and traditional architecture, mainly
as cladding for façades and exterior walls, although it is also used in
masonry and ashlars. Geologically, this sedimentary rock is found in the
southern domain of the Iberian Mountain Range in the Cameros Basin. It
belongs to the Aptian (Lower Cretaceous) Weald facies, which originated
during the second rifting phase (
28
28.
Mas, R.; García, A.; Salas, R.; Meléndez, A.; Alonso, A.; Aurell, M.;
Bádenas, B.; Benito, M.I.; Carenas, B.; García-Hidalgo, J.F.; Gil, J.;
Segura, M. (2004) Segunda fase de rifting: Jurásico Superior-Cretácico
inferior. In: Vera, J. A. (ed.) Geología de España, IGME, SGE. 503- 522.
).
The sandstones are texturally and compositionally mature and are
classified as quartz arenites and subarkoses of a whitish to greyish
ochre colour. They are continental-origin detrital facies with lateral
facies changes where dry and wet cycles occur, causing the oxidation of
ferrous ions and giving rise to red banding (
29
29.
Arribas, J.; Ochoa, M.; Mas, R.; Arribas, Mª. E.; González-Acebrón, L.
(2007) Sandstone petrofacies in the northwestern sector of the Iberian
Basin. J. Iberian Geol. 33 [2], 191-206.
) typical of the sandstone variety marketed as ‘Veteada de la Demanda’ (Cream Veined) sandstone (
30
30.
SIEMCALSA (Sociedad de Investigación y explotación Minera de Castilla y
León) (2008) La piedra natural en Castilla y León. Junta de Castilla y
León. Consejo de Economía y Empleo. Domènech e-learning multimedia, S.A.
ediciones. Deposito Legal: B-3721-2008.
).
2. METHODOLOGY
⌅2.1 Materials

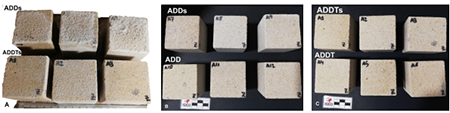

⌅The Demanda Gold sandstone was supplied by Areniscas Sierra de la Demanda S.L., a company located in Palacios de la Sierra (Burgos). A total of 24 specimens of different dimensions were cut: 12 cubic specimens measuring 5 x 5 x 5 cm and weighing 281.4 ± 10.4 g; 6 prismatic specimens measuring 1 x 1 x 10 cm and weighing 51.5 ± 10.1 g; and 6 flat square plates measuring 5 x 5 x 1 cm and weighing 49.2 ± 5.9 g ( Figure 1 , Table 1 ).

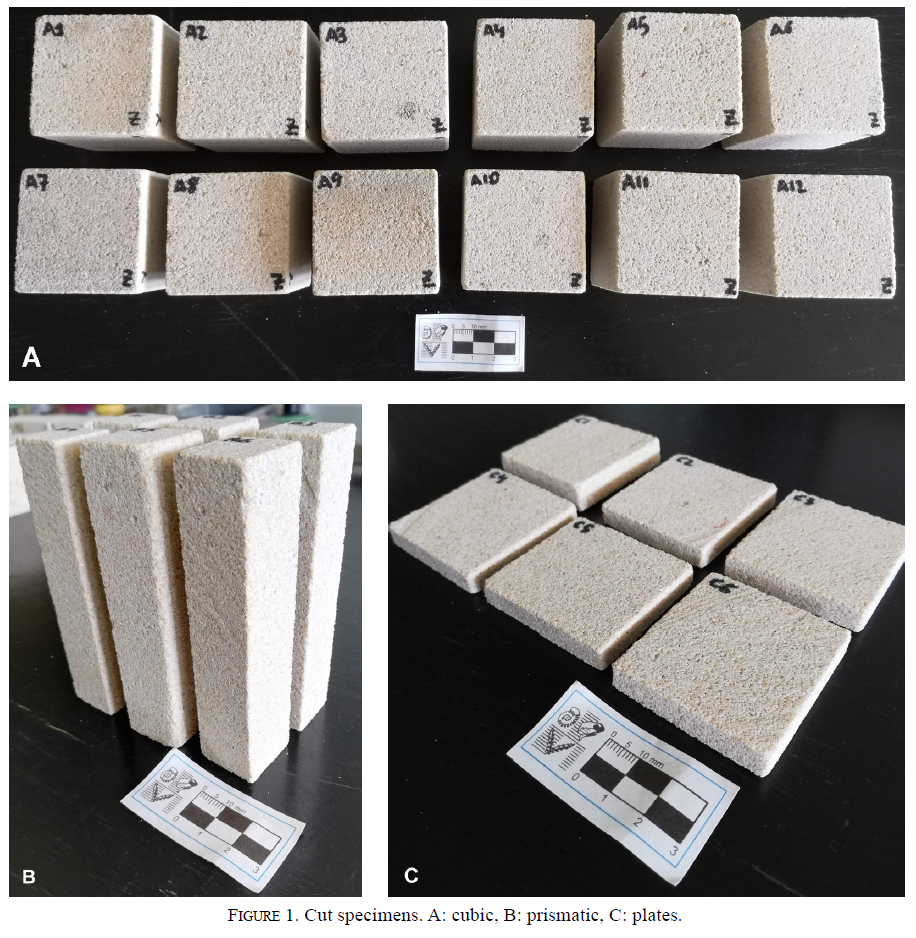

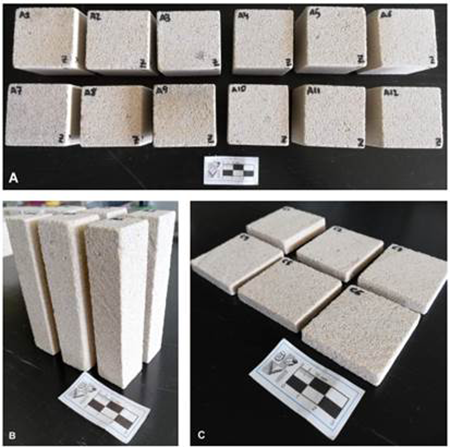

Cubic specimens | Prismatic specimens | Plate specimens | ||
---|---|---|---|---|
ADD | Original | A7-A12 (
6
6.
Buj, O.; Gisbert, J. (2007) Petrophysical characterization of three
commercial varieties of Miocene sandstones from the Ebro valley. Mater. Construcc. 57 [287], 63-74.
https://doi.org/10.3989/mc.2007.v57.i287.57
. ) |
B4-B6 (
3
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
. ) |
C4-C6 (
3
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
. ) |
ADDs | Salts | A7-A9 (
3
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
. ) |
B4-B6 (
3
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
. ) |
C4-C6 (
3
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
. ) |
ADDT | Treatment | A1-A6 (
6
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
. ) |
B1-B3 (
3
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
. ) |
C1-C3 (
3
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
. ) |
ADDTs | Salts + treatment | A1-A3 (
3
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
. ) |
B1-B3 (
3
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
. ) |
C1-C3 (
3
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
. ) |
The ESTEL 1100 chemical conservation product, provided by CTS España S.L., possesses consolidant and water-repellent properties. It is composed of silicic acid ethyl esters and oligomeric polysiloxanes dissolved in organic solvent. These compounds react with atmospheric moisture to form a silica gel. The reaction takes four weeks to complete according to the manufacturer’s specifications. The treatment performs a dual function: 1) it penetrates the material to unite its granular components as a cementitious hardening product and 2) it waterproofs the surface to prevent water ingress. A double coat was applied to half of each type of specimen (cubic, prismatic and plates). No product was applied to the upper and lower faces of the prismatic test specimens in order to facilitate the ascent of water inside them. On the flat specimens, the product was only applied to the outer face exposed to the atmosphere. Product absorption accounted for 1.7-2.5% of the weight of the specimens.
The following abbreviations are used in this paper to refer to each type of sample according to whether they have been treated and/or degraded with salts: Demanda Gold sandstone (ADD), Demanda Gold sandstone with salts (ADDs), Demanda Gold sandstone with treatment (ADDT) and Demanda Gold sandstone with treatment and salts (ADDTs) ( Table 1 ).
2.2 Techniques and tests
⌅The techniques and tests used in this paper followed the UNE-EN 16515:2016 standard (
31
31.
UNE-EN 16515 (2016) Conservación del patrimonio cultural. Métodos de
ensayo. Líneas directrices para caracterizar la piedra natural utilizada
en el patrimonio cultural. Asociación Española de Normalización y
Certificación (AENOR). Madrid.
) on characterisation of
natural stone used in cultural heritage. Both petrographical and
petrophysical characterisation were made in two stages, being the first
one before the ageing test (ADD, ADDT), and the second one right after
it (ADDs, ADDTs).
2.2.1 Petrographical characterisation
⌅Compositional
and textural characterisation of the samples were carried out by
macroscopic and microscopic description as per the UNE-EN 12407:2020
standard (
32
32.
UNE-EN 12407 (2020) Métodos de ensayo para la piedra natural. Estudio
petrográfico. Asociación Española de Normalización y Certificación
(AENOR). Madrid.
). An Olympus BX51 fluorescence and polarising light microscope (PLM) equipped with an Olympus U-RFL-T mercury lamp and Olympus CellSens Entry v2.3 image acquisition software was used. To facilitate both detection of
pores and cracks in thin sections (3 x 2 cm and 30 μm thick), the
sandstone samples were impregnated with fluorescent yellow resin (EpoDye) (
33
33.
Varas-Muriel, M.J. (2012) Técnicas de caracterización petrológicas
(II): microscopía óptica de fluorescencia (MOF) y microscopía
electrónica de barrido (MEB). En: La conservación de los geomateriales
utilizados en el patrimonio. Ed. Programa Geomateriales. Comunidad de
Madrid. España, pp. 31-36. ISBN: 978-84-615-7660-9.
). The Oxford Instruments FEI Inspect scanning electron microscope (SEM) in secondary electron mode (SE) with
dispersive energy X-ray detector (EDS) was used to locate the salts and
treatment. This equipment was operated under vacuum at a pressure of
0.50 torr and a voltage of 20 kV. Unmetallised fragments < 1 cm3 were studied. Crystallised mineral phases were detected by X- ray
diffraction (XRD) of the fragments’ powder fraction (< 53 µm). A BRUKER D8 diffractometer with CuKα anode and graphite monochromator was used. The
measurements were performed on a 2 g powder sample in a range between
2° and 65°, with an interval of 0.02°/min in continuous mode. Fourier

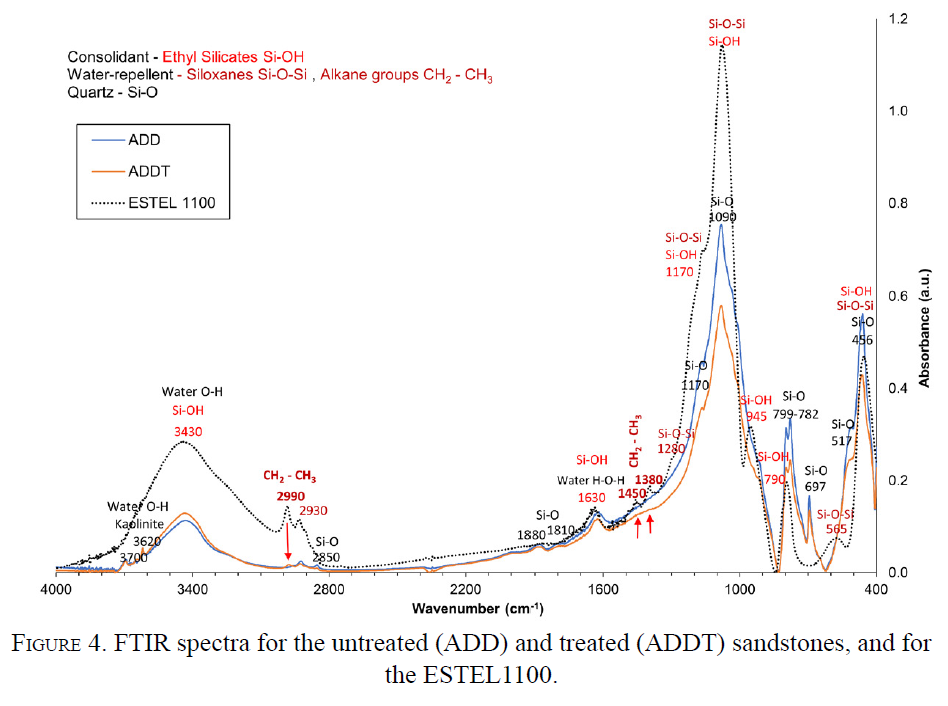

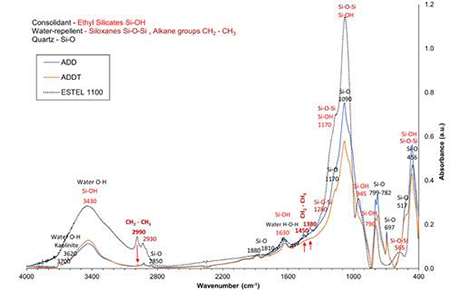

transform infrared spectroscopy (FTIR) was used to detect the treatment.
The device used was a Nicolet Nexus 670-870 measuring in the infrared spectrum’s 4000-400 cm-1 range. BrK pellets and a 1.5 mg powder sample were used for this test.
2.2.2 Petrophysical characterisation
⌅Surface
properties: The following tests were carried out on the cubic specimens:
1) colour measurement of surfaces (UNE-EN 15886:2011 (
34
34.
UNE-EN 15886 (2011) Conservación del patrimonio cultural. Métodos de
ensayo. Medición del color de superficies. Asociación Española de
Normalización y Certificación (AENOR). Madrid.
); ASTM E313:2020 (
35
35.
ASTM E313 (2020). Standard practice for calculating yellowness and
whiteness indices from instrumentally measured color coordinates.
American Society for Testing and Materials (ASTM). West Conshohocken,
PA, 19428-2959. Unites States.
https://doi.org/10.1520/E0313-20
.
)) using CIELAB system parameters (1976) and a Minolta CM-700d spectrophotometer with D65° illuminant and the SpectraMagic NX Color Data Software (CM-100SW); 2) gloss (ASTM D523-14:2018 (
36
36.
ASTM D523-14 (2018) Standard test method for specular gloss. American
Society for Testing and Materials (ASTM). Pennsylvania, 2018.
https://doi.org/10.1520/D0523-14
.
)) using a BYK Gardner Multigloss 268 glossmeter; 3) infrared thermography (UNE-EN 16714:2017 (
37
37.
UNE-EN 16714 (2017) Ensayos no destructivos. Ensayo por termografía.
Asociación Española de Normalización y Certificación (AENOR). Madrid.
)) using a Termacam B4 FLIR infrared camera; and 4) static contact angle (UNE- EN 15802:2010 (
38
38.
UNE-EN 15802 (2010) Conservación del patrimonio cultural. Métodos de
ensayo. Determinación del ángulo de contacto estático. Asociación
Española de Normalización y Certificación (AENOR). Madrid.
)) using a Dino-Lite Edge digital microscope (AM7915MZT model, 20-200x magnification, 5 MPx camera and DinoCapture v2.0 software).
Dynamic
properties: On the cubic specimens, the ultrasonic propagation velocity
of the P-waves (Vp) was determined (UNE-EN 14579:2005 (
39
39.
UNE-EN 14579 (2005) Métodos de ensayo de piedra natural. Determinación
de la velocidad de propagación del sonido. Asociación Española de
Normalización y Certificación (AENOR). Madrid.
)). The equipment used was a PROCEQ Pundit Lab+ (transducers: 54 kHz frequency, 5 cm diameter). The different
anisotropies (dM-dm) of this sandstone were also calculated from the Vp
values (
40-42
40.
Fort, R.; Varas, M.J.; Álvarez de Buergo, M.; Freire-Lista, D.M. (2011)
Determination of anisotropy to enhance the durability of natural stone. J. Geophys. Eng. 8 [3], 132-144.
https://doi.org/10.1088/1742-2132/8/3/S13
.
41.
Fort, R.; Fernández-Revuelta, B.; Varas, M. J.; Álvarez de Buergo, M.;
Taborda-Duarte, M. (2008) Influence of anisotropy on the durability of
Madrid-region Cretaceous dolostone exposed to salt crystallization
processes. Mater. Construcc. 58, 289-290.
https://doi.org/10.3989/mc.2008.v58.i289-290.74
.
42.
Guyader, J.; Denis, A. (1986) Propagation des ondes dans les roches
anisotropes sous contrainte évaluation de la qualité des schistes
ardoisiers. Bullet. Eng. Geol. 33, 49-55.
https://doi.org/10.1007/BF02594705
.
).

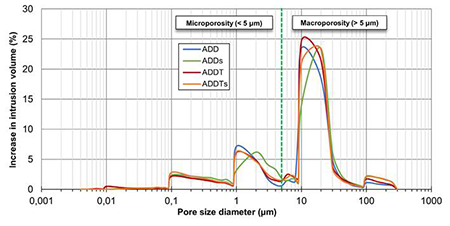

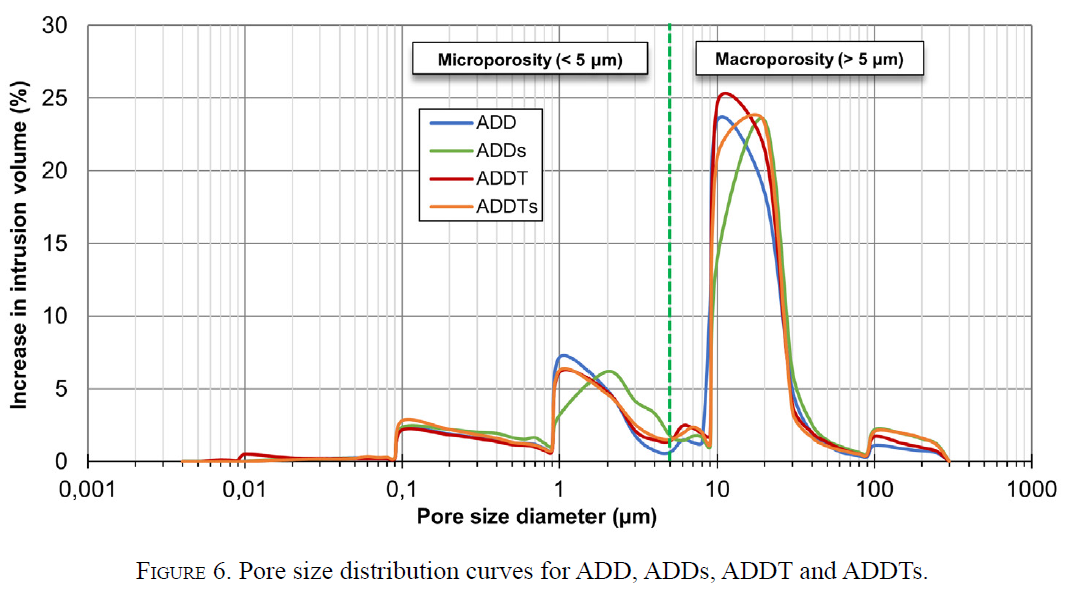

Structural
and hydric properties: Mercury intrusion porosimetry (MIP) was used to
determine pore structure (percentage, size and shape of the pores, and
their distribution) (ASTM D4404:2010 (
43
43.
ASTM D4404 (2010) Standard test method for determination of pore volume
and pore volume distribution of soil and rock by Mercury Intrusion
Porosimetry. American Society for Testing and Materials (ASTM).
Pennsylvania, 2010. United States.
https://doi.org/10.1520/D4404-18
.
)). Four cylindrical specimens (1.2 x 2 cm) were cut and a Micromeritics Autopore IV 9500 porosimeter was used. In order to determine the hydric behaviour of
this sandstone, the following hydric tests were carried out: 1) the
cubic specimens were subjected to saturation (UNE-EN 1936:2007 (
44
44.
UNE-EN 1936 (2007) Métodos de ensayo para piedra natural: Determinación
de la densidad real y aparente y de la porosidad abierta y total.
Asociación Española de Normalización y Certificación (AENOR). Madrid.
)),

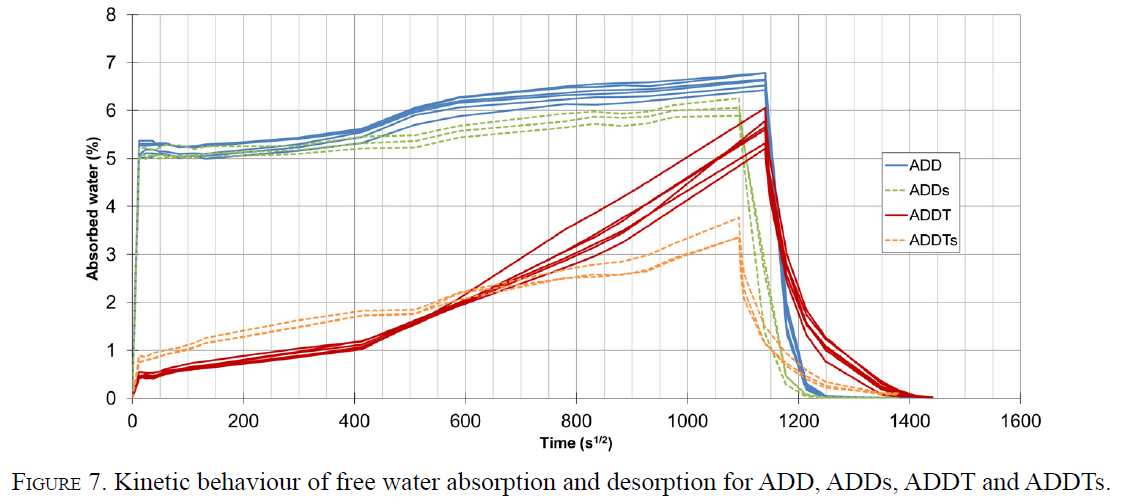

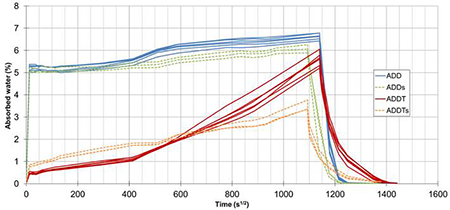

which also determined density and water porosity, and water absorption
by immersion and desorption by evaporation at atmospheric pressure
(UNE-EN 13755:2008 (
45
45.
UNE-EN 13755 (2008) Métodos de ensayo de piedra natural. Determinación
de la absorción de agua a presión atmosférica. Asociación Española de
Normalización y Certificación (AENOR). Madrid.
) and NORMAL 7/81 (
46
46. NORMAL 7/81 (1981) Assorimiento d’acqua per inmersione totale. Capacitá di imbibizione. Doc., CNR-ICR. Roma. 5p.

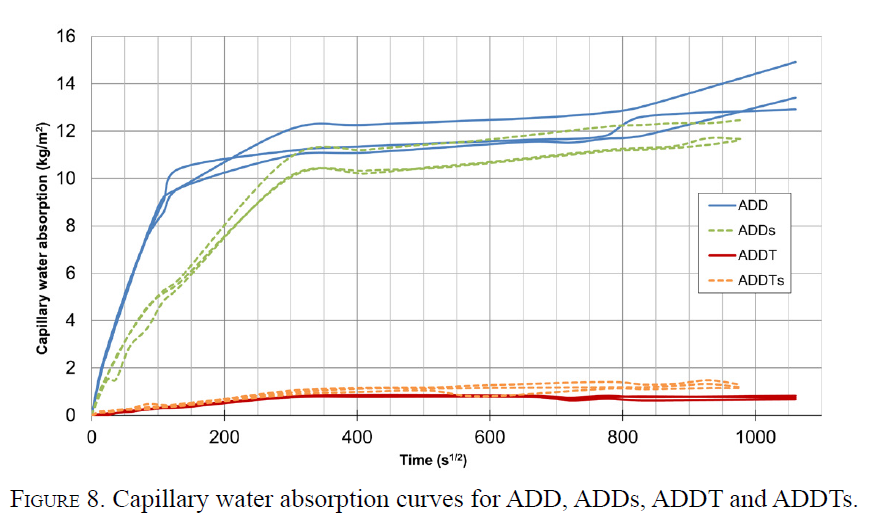

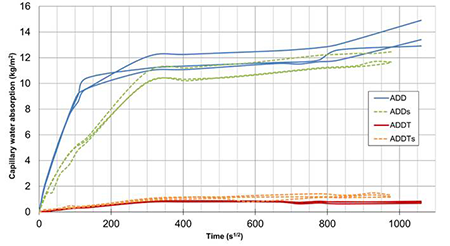

)). 2) The prismatic specimens were subjected to water absorption by capillarity (UNE-EN 15801:2010 (
47
47.
UNE-EN 15801 (2010) Conservación del patrimonio cultural. Métodos de
ensayo. Determinación de la absorción de agua por capilaridad.
Asociación Española de Normalización y Certificación (AENOR). Madrid.
)). 3) The square plates were subjected to water vapour permeability (UNE-EN 15803:2010 (
48
48.
UNE-EN 15803 (2010) Conservación del patrimonio cultural. Métodos de
ensayo. Determinación de la permeabilidad al vapor de agua. Asociación
Española de Normalización y Certificación (AENOR). Madrid.
))
using the wet tray method, which simulated high humidity conditions
(93%) inside the material. In addition, air permeability was calculated
on the cubic specimens using a Tiny Perm II measuring device and
the formula [T = - 0.8206-log10(K) + 12.8737], where T is the value
obtained by the device and K is the air permeability in millidarcy (mD).
Mechanical properties: The Leeb surface hardness test (HLD) was performed (UNE-EN ISO 16859-1:2016 (
49
49.
UNE-EN ISO 16859-1 (2016) Materiales metálicos. Ensayo de dureza Leeb.
Parte 1: Método de ensayo. (ISO 16859-1:2015). Asociación Española de
Normalización y Certificación (AENOR). Madrid.
)) using the PROCEQ Equotip 3 with an impact energy of 11.5 Nmm (D probe). Additionally, the Schmidt
(R) surface hardness test was carried out (ASTM D5873-14:2016 (
50
50.
ASTM D5873-14 (2016) Standard test method for determination of rock
hardness by rebound hammer method. American Society for Testing and
Materials (ASTM). West Conshohocken, PA, 2000.
http://doi.org/10.1520/D5873-14
.
) and ISRM (
51
51.
Aydin, A. (2009) ISRM (International Society for Rock Mechanics
Commission) Suggested method for determination of the Schmidt hammer
rebound hardness: revised version. Int. J. Rock Mech. Min. Sci. 46 [3], 627-634.
https://doi.org/10.1016/j.ijrmms.2008.01.020
.
)) using a PROCEQ Rock Schmidt L type digital sclerometer with an impact energy of 535 Nmm. Both tests were
carried out on cubic specimens. Indirectly, the sclerometer estimated
the unconfined compressive strength (UCS) using the formula of Katz et al. (
52
52. Katz, O.; Reches, Z.; Roegiers, J.C. (2000) Evaluation of mechanical rock properties using a Schmidt Hammer. Int. J. Rock Mech. Min. Sci. 37 [4], 723-28.
https://doi.org/10.1016/S1365-1609(00)00004-6
.
), [UCS (MPa) = 2.208·e0.067R, with R2 = 0.964], where R is the Schmidt hardness value.
2.2.3 Durability: Accelerated ageing tests
⌅In order to
determine the durability of Demanda Gold sandstone and to assess the
effectiveness of the conservation treatment applied, this lithological
variety was subjected to a highly aggressive accelerated ageing test
combining the action of both water and salts (Na2SO4·10H2O at 14%)
(UNE-EN 12370:2020 (
53
53.
UNE-EN 12370 (2020) Métodos de ensayo para piedra natural.
Determinación de la resistencia a la cristalización de las sales.
Asociación Española de Normalización y Certificación (AENOR). Madrid.
)).
Thirty daily cycles of immersion in dissolved-salt water (4 h) and
drying in a constant heated atmosphere at 25ºC (20 h) were carried out.

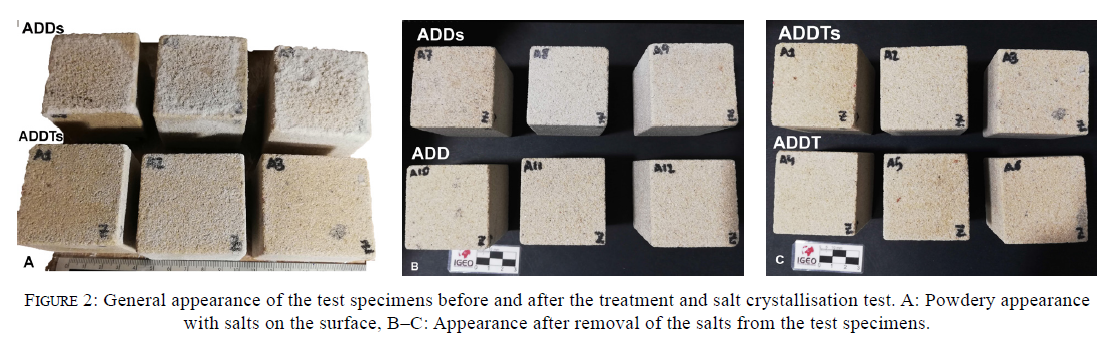

After the salt resistance test, the specimens (ADDs and ADDTs) were again characterised both petrographically and petrophysically in order to quantify the changes undergone and to estimate their quality and durability, as well as the suitability and effectiveness of the treatment applied ( Table 1 ).
3. RESULTS AND DISCUSSION
⌅3.1 Petrographic characterization
⌅This lithological variety is a detrital, homogeneous, massive, light beige-colored and strongly cohesive sedimentary rock (ADD) ( Figure 1 ). Although the treatment initially affected its visual appearance, at 50 days after application no differences were observed between treated (ADDT) and untreated (ADD) specimens. Product penetration depth in the specimens was ~5 mm. After the ageing tests (ADDs, ADDTs), the salts were detected on the surface as white powdery residues that mainly affected and lightened the color of the untreated specimens ( Figure 2 ).
Microscopically
(PLM) and mineralogically (XRD), this sandstone (ADD) is mainly formed
of single-crystal subangular quartz grains (> 75%) and some
polycrystalline quartz, feldspars (5- 10%), and muscovites, biotites and
tourmalines (< 5%) (
54
54.
Baccelle, L.; Bosellini, A. (1965) Diagrammi per la stima visive della
composizione percentuale nelle rocche sedimentarie. Annali
dell’Università di Ferrara, sezione 9, Scienze geologiche e
paleontologiche. 1 [3], 59-62.
). Grain size ranges
from medium to coarse sand (0.25-1 mm), with a relatively good size
selection. Some of the feldspars are altered to clay mineral (illite)
due to geological mineral transformation processes. The single-crystal
quartz grains show a significant syntaxial cement, which favours their
high intergranular cohesion (
Figure 3A-C
).
Between the grains, there is a sparse kaolinite clay matrix (< 5%)
and high intergranular void porosity (> 15%), with pore sizes of up
to 0.8 mm (
Figure 3D
).
The good compositional and textural maturity of this sandstone favour
its high porosity. This sandstone is classified as subarkose (
55
55. Pettijohn, F.J.; Potter, P.E.; Siever, R. (1987) Sand and sandstone. Springer-Verlag, New York. 617p.
).
In the ADDT, the treatment appears as a cracked and irregular surface coating (hydrophobic layer of oligomeric polysiloxanes) up to 80 µm thick, and as a micrometric film (< 40 µm) with high optical relief surrounding the grains on the inside (silicic acid consolidating film), but without filling the intergranular porosity ( Figure 3E-F ). After the accelerated ageing test with salts, the ADDs shows a small increase in porosity as the clays (kaolinite and illite) partially disappear, both from the matrix and from the interior of the altered feldspars ( Figure 3A-C ). The salts also generate fissures that break the syntaxial cement between the quartz grains ( Figure 3C-D ). In the ADDTs, the aggression is more evident in the outer or superficial areas, where it breaks up the treatment film, detaching it and dispersing it in some areas ( Figure 3G-H ).
The
presence of abundant syntaxial cement between the quartz grains is
mainly responsible for both the high intergranular cohesion of this
sandstone and its hardness. In addition, the existence of large pores
seems to favour its resistance to salt crystallisation, as only the
smaller pores are able to generate fissures (
2
2.
Stück, H.; Koch, R.; Siegesmund, S. (2013) Petrographical and
petrophysical properties of sandstones: statistical analysis as an
approach to predict material behaviour and construction suitability. Environ. Earth Sci. 69, 1299-1332.
https://doi.org/10.1007/s12665-012-2008-1
.
,
5
5.
Ruedrich, J.; Bartelsen, T.; Dohrmann, R.; Siegesmund, S. (2011)
Moisture expansion as a deterioration factor for sandstone used in
buildings. Environ. Earth Sci. 63, 1545-1564.
https://doi.org/10.1007/s12665-010-0767-0
.
,
6
6.
Buj, O.; Gisbert, J. (2007) Petrophysical characterization of three
commercial varieties of Miocene sandstones from the Ebro valley. Mater. Construcc. 57 [287], 63-74.
https://doi.org/10.3989/mc.2007.v57.i287.57
.
,
9
9.
Molina, E.; Cultrone, G.; Sebastián E.; Alonso, F.J. (2013) Evaluation
of stone durability using a combination of ultrasound, mechanical and
accelerated aging tests. J. Geophys. Eng. 10 [3], 035003.
https://doi.org/10.1088/1742-2132/10/3/035003
.
).
Although the FTIR technique is very effective for the detection of treatments, in this study it has been hampered because the ESTEL 1100 product has a significant siliceous component (Si-O-Si and Si-OH groups), so its vibration bands (1170, 1090, 799-780 and 450 cm-1) are the same as those of quartz (Si-O). Nevertheless, the treatment could be identified by the presence of the C- H alkane groups of the water repellent (CH2-CH3: 2990 single peak and 1450-1380 cm-1 double peak).
3.2 Petrophysical characterisation
⌅Surface
properties: Aesthetically, ADD is a light yellowish-grey luminous
sandstone with a high lightness value (L* = 71.5) and yellowness index
(YI = ~25) and a low chroma value (C* < 14), albeit with yellow
tonality (b* = 13.2) (
Table 2
).
The treatment causes a slight darkening of the specimens (ADDT) and
slightly intensifies their yellow tonality (L* = 62.2, C* = 18, b* >
17 and YI > 34). At 50 days after treatment (ADDT), these values tend
to be similar to the original values. After deterioration with salts
(ADDs), specimens gain lightness (L* > 74) but lose colour (C* =
11.5), becoming lighter due to the appearance of salts on their surface.
Conversely, salts hardly affect the treated specimens (ADDTs), which
present similar colour parameters to the ADDT-3 and are practically the
same as the original untreated specimens (
Table 2
). The colour difference (ΔE*;
Table 3
)
shows that in the first month the treatment modified the original
colour of the sandstone (ΔE* = 10.3) significantly enough for it to be
detectable to the eye (ΔE* > 5) (
56
56.
Grossi, C.M.; Brimblecombe, P.; Esbert, R.M.; Alonso, F.J. (2007) Color
changes in architectural limestones from pollution and cleaning. Color Res. Appl. 32 [4], 320-331.
https://doi.org/10.1002/col.20322
.
,
57
57.
Cultrone, G.; Sánchez-Ibañéz, V. (2018) Consolidation with ethyl
silicate: how the amount of product alters the physical properties of
the bricks and affects their durability. Mater Construcc. 68 [332], e173.
https://doi.org/10.3989/mc.2018.12817
.
).
At 50 days after treatment, these differences decreased (ΔE* = 4.1) and
were no longer visible. With the presence of salts, the ΔE* was
minimal, especially with respect to the initially treated sandstone (ΔE*
= 1.7), confirming that the visual effect was negligible. Gloss and its
variations are low (1.2-1.6 UB at 60° and 0.5-0.7 UB at 85°) and very
constant, despite treatment and salt aggression. Values < 10 UB
establish that this sandstone is matt (
36
36.
ASTM D523-14 (2018) Standard test method for specular gloss. American
Society for Testing and Materials (ASTM). Pennsylvania, 2018.
https://doi.org/10.1520/D0523-14
.
).
ESTEL 1100 does not cause relevant aesthetic modifications in either
this type of sandstone or in others with similar chromatic parameters (
25
25.
Luque, A.; Cultrone, G.; Sebastián, E.; Cazalla, O. (2008)
Effectiveness of stone treatments in enhancing the durability of
bioclastic calcarenite (Granada, Spain). Mater. Construcc. 58 [292], 115-128.
https://doi.org/10.3989/mc.2008.41607
.
).
): At 29 days after treatment. ( 3 3. Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.; Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878. https://doi.org/10.1016/j.conbuildmat.2012.12.026 .
): At 50 days after treatment. ( 4 4. Cultrone. G.; Luque, A.; Sebastián, E. (2012) Petrophysical and durability tests on sedimentary stones to evaluate their quality as building materials. Quart. J. Eng. Geol. Hydrog. 45, 415-422. https://doi.org/10.1144/qjegh2012-007 .
): At 118 days after treatment and salts.
ADD | ADDs | ADDT (
2
2.
Stück, H.; Koch, R.; Siegesmund, S. (2013) Petrographical and
petrophysical properties of sandstones: statistical analysis as an
approach to predict material behaviour and construction suitability. Environ. Earth Sci. 69, 1299-1332.
https://doi.org/10.1007/s12665-012-2008-1
. ) |
ADDT (
3
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
. ) |
ADDTs (
4
4.
Cultrone. G.; Luque, A.; Sebastián, E. (2012) Petrophysical and
durability tests on sedimentary stones to evaluate their quality as
building materials. Quart. J. Eng. Geol. Hydrog. 45, 415-422.
https://doi.org/10.1144/qjegh2012-007
. ) |
|
---|---|---|---|---|---|
L* | 71.5 ± 0.1 | 74.2 ± 1.3 | 62.2 ± 0.4 | 67.7 ± 0.4 | 69.2 ± 0.1 |
a* | 3.5 ± 0.1 | 3.1 ± 0.3 | 5.1 ± 0.3 | 4.0 ± 0.2 | 3.7 ± 0.0 |
b* | 13.2 ± 0.3 | 11.1 ± 0.8 | 17.1 ± 0.4 | 14.3 ± 0.5 | 13.7 ± 0.5 |
C* | 13.7 ± 0.3 | 11.5 ± 0.9 | 17.8 ± 0.4 | 14.9 ± 0.5 | 14.2 ± 0.5 |
WI | 0.7 ± 0.9 | 9.3 ± 3.6 | -11.6 ± 0.8 | -3.9 ± 1.3 | -1.6 ± 1.4 |
YI | 24.7 ± 0.5 | 20.5 ± 1.7 | 34.3 ± 0.8 | 27.6 ± 0.9 | 26.1 ± 0.9 |
): At 29 days after treatment. ( 3 3. Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.; Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878. https://doi.org/10.1016/j.conbuildmat.2012.12.026 .
): At 50 days after treatment. ( 4 4. Cultrone. G.; Luque, A.; Sebastián, E. (2012) Petrophysical and durability tests on sedimentary stones to evaluate their quality as building materials. Quart. J. Eng. Geol. Hydrog. 45, 415-422. https://doi.org/10.1144/qjegh2012-007 .
): At 118 days after treatment and salts.
ΔE* | |
---|---|
ADD vs ADDT (
2
2.
Stück, H.; Koch, R.; Siegesmund, S. (2013) Petrographical and
petrophysical properties of sandstones: statistical analysis as an
approach to predict material behaviour and construction suitability. Environ. Earth Sci. 69, 1299-1332.
https://doi.org/10.1007/s12665-012-2008-1
. ) |
10.3 |
ADD vs ADDT (
3
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
. ) |
4.1 |
ADD vs ADDs | 3.4 |
ADDT (
3
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
. ) vs ADDTs ( 4 4. Cultrone. G.; Luque, A.; Sebastián, E. (2012) Petrophysical and durability tests on sedimentary stones to evaluate their quality as building materials. Quart. J. Eng. Geol. Hydrog. 45, 415-422. https://doi.org/10.1144/qjegh2012-007 . ) |
1.7 |
ADD vs ADDTs (
4
4.
Cultrone. G.; Luque, A.; Sebastián, E. (2012) Petrophysical and
durability tests on sedimentary stones to evaluate their quality as
building materials. Quart. J. Eng. Geol. Hydrog. 45, 415-422.
https://doi.org/10.1144/qjegh2012-007
. ) |
2.4 |
The static contact angle between a water droplet and the surface of this sandstone establishes its strong hydrophilic character, producing similar results both before (θADD = 29° ± 5.2°) and after (θADDs = 32.7° ± 7.2°) ageing tests. The treatment makes it hydrophobic (θADDT > 106° ± 6.8°) until after the attack with salts, which returns it to its initial hydrophilic state, albeit with a greater contact angle (θADDTs > 56° ± 8.3°) due to the cracking and partial dispersal of the hydrophobic agent on the surface ( Figure 5 ). Infrared thermography has determined that the treated specimens, both before (ADDT) and after the aggression with salts (ADDTs), tend to retain heat for longer. After a cycle of heating to 55 °C followed by 30 min of cooling, the difference between the treated and untreated sandstones was +3-4 °C. The application of ESTEL 1100 to the surface of this sandstone therefore seems to favour the retention of the heat absorbed from the outside for longer, reducing the material’s thermal conductivity.
Dynamic
properties: These porous sandstones’ high intergranular cohesion, due
to the natural syntaxial cement around the dominant quartz grains,
results in high P-wave propagation velocities (VpADD ~2667 m/s). These
values are similar to the averages of quartz-rich sandstones (quartz
arenites-subarkoses) with crystalline cement (
2
2.
Stück, H.; Koch, R.; Siegesmund, S. (2013) Petrographical and
petrophysical properties of sandstones: statistical analysis as an
approach to predict material behaviour and construction suitability. Environ. Earth Sci. 69, 1299-1332.
https://doi.org/10.1007/s12665-012-2008-1
.
,
3
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
.
,
9
9.
Molina, E.; Cultrone, G.; Sebastián E.; Alonso, F.J. (2013) Evaluation
of stone durability using a combination of ultrasound, mechanical and
accelerated aging tests. J. Geophys. Eng. 10 [3], 035003.
https://doi.org/10.1088/1742-2132/10/3/035003
.
). The treatment led to a considerable increase on their original values (VpADDT ~3832 m/s) (
Table 4
).
After deterioration with salts, the Vp of the ADDs increased slightly
(by ~150 m/s), possibly because of the presence of crystallised salts
inside its pores (
58
58.
Zoghlami, K.; López-Arce; P., Zornoza-Indart, A. (2016) Differential
stone decay at the Spanish tower façade of Bizerte, Tunisia. J. Mater. Civ. Eng.
https://doi.org/10.1061/(ASCE)MT.1943-5533.0001774
.
).
However, the Vp of the ADDTs decreased by up to 345 m/s because of
breakup and dispersal of the surface treatment. In addition, this
sandstone exhibits low anisotropy (dMm ADD ~19%, dM ADD < 12%, (40)),
although it does have a preferential anisotropy orientation (dM >
dm;
Table 4
),
possibly related to the bedding planes typical of sandstones and which
in this case are not visible at the macroscopic level. The treatment
lowers and homogenises its initial anisotropy (dMmADDT = 11.5%), making
its preferred direction practically disappear, especially after salt
crystallisation (dM ADDTs~dm ADDTs). There is a linear correlation
between propagation velocity (Vp) and total anisotropy (dM) that results
in a substantial difference between treated and untreated sandstones.
While the original sandstones with (ADDs) and without salts (ADD) on
average show lower Vp (2600-2800 m/s) and higher total anisotropy (dM =
8-14), the treated (ADDT) and ageing (ADDTs) sandstones show higher Vp
(> 3400 m/s; a 30% increase) and lower anisotropy (dM = 6-8; a
decrease of up to 40%).
)).
Vp (m/s) | dM (%) | dm (%) | dMm (%) | |
---|---|---|---|---|
ADD | 2667 ± 53 | 11.79 ± 2.3 | 7.24 ± 2.1 | 19.03 ± 4.1 |
ADDs | 2811 ± 66 | 8.83 ± 1.1 | 3.88 ± 1.4 | 12.70 ± 2.4 |
ADDT | 3832 ± 53 | 7.03 ± 0.9 | 4.43 ± 1.1 | 11.47 ± 1.1 |
ADDTs | 3487 ± 85 | 7.50 ± 1.9 | 6.32 ± 1.7 | 13.81 ± 0.6 |
WI | 0.7 ± 0.9 | 9.3 ± 3.6 | -11.6 ± 0.8 | -3.9 ± 1.3 |
YI | 24.7 ± 0.5 | 20.5 ± 1.7 | 34.3 ± 0.8 | 27.6 ± 0.9 |
Structural and hydric properties: Untreated sandstone (ADD) has a high real density (~2640 kg/m3) due to its high quartz composition (
2
2.
Stück, H.; Koch, R.; Siegesmund, S. (2013) Petrographical and
petrophysical properties of sandstones: statistical analysis as an
approach to predict material behaviour and construction suitability. Environ. Earth Sci. 69, 1299-1332.
https://doi.org/10.1007/s12665-012-2008-1
.
,
3
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
.
). The difference with the average bulk density (~2150 kg/m3) reflects its high porosity of almost 19%, with 99% being open porosity (
Table 5
). Its pore system is determined by the monomodal distribution (10-30 µm) of the dominant macroporosity (71%;
Figure 6
). Average pore size is 10.4 µm and pore geometry tends to be regular and equidimensional with a specific surface area of 0.26 m2/g
and a pore diameter of 1.2 µm. With this porosity, this sandstone
saturates at 8.7 wt% and has an average 48 h water absorption
coefficient of 5.5 wt% and total absorption of 6.6 wt%, being able to
absorb 78% of this total in the first 2 minutes. Similarly, it loses 75%
of the absorbed water in only 24 h, not retaining any water internally (
Table 5
,
Figure 7
). Capillary water absorption is ~14 kg/m2, with 73% absorbed in the first 3-4 h. This implies a high capillary absorption coefficient (~0.0331 kg/m2·s0.5;
Table 5
,
Figure 8
). These sandstones also exhibit high permeability values, both to water vapour (~1.6·10-9 kg/m·s·Pa) and air (~772.5 mD) (
Table 5
).
All these structural and physical values are similar to those described
for quartz arenites and subarkoses from different geological ages (
2-4
2.
Stück, H.; Koch, R.; Siegesmund, S. (2013) Petrographical and
petrophysical properties of sandstones: statistical analysis as an
approach to predict material behaviour and construction suitability. Environ. Earth Sci. 69, 1299-1332.
https://doi.org/10.1007/s12665-012-2008-1
.
3.
Vázquez, P.; Alonso, F.J.; Carrizo, L.; Molina, E.; Cultrone, G.;
Blanco, M.; Zamora, I. (2013) Evaluation of the petrophysical properties
of sedimentary building stones in order to establish quality criteria. Const. Build. Mat. 41, 868-878.
https://doi.org/10.1016/j.conbuildmat.2012.12.026
.
4.
Cultrone. G.; Luque, A.; Sebastián, E. (2012) Petrophysical and
durability tests on sedimentary stones to evaluate their quality as
building materials. Quart. J. Eng. Geol. Hydrog. 45, 415-422.
https://doi.org/10.1144/qjegh2012-007
.
,
9
9.
Molina, E.; Cultrone, G.; Sebastián E.; Alonso, F.J. (2013) Evaluation
of stone durability using a combination of ultrasound, mechanical and
accelerated aging tests. J. Geophys. Eng. 10 [3], 035003.
https://doi.org/10.1088/1742-2132/10/3/035003
.
,
59
59.
Zoghlami, K.; Gómez-Gras, D.; Álvarez, A.; Luxan, M.P. (2004) Intrinsic
factors that condition the physical behavior and the durability of the
Miocene sandstones used in the construction of the Roman aqueduct of
Zaghouan-Carthage. Mater. Construcc. 54 [276], 37-49.
https://doi.org/10.3989/mc.2004.v54.i276.254
.
).
ADD | ADDs | ADDT | ADDTs | ||
---|---|---|---|---|---|
Real density, ρr (kg/m3) | 2641 ± 0.7 | 2637 ± 0.9 | 2588 ± 3.5 | 2604 ± 1.0 | |
Bulk density, ρap (kg/m3) | 2148 ± 8.0 | 2148 ± 9.2 | 2184 ± 5.2 | 2175 ± 5.8 | |
Total porosity (%) | 18.83 ± 0.3 | 18.7 ± 0.4 | 15.75 ± 0.2 | 16.62 ± 0.2 | |
Geometry | Specific pore surface area (m2/g) | 0.26 | 0.22 | 0.29 | 0.17 |
Average pore diameter (µm) | 1.2 | 1.14 | 0.6 | 1.14 | |
Average pore size (µm) | 10.4 | 16.9 | 14.5 | 16.1 | |
Pore size distribution (%) | Micro: 29.0 Macro: 71.0 | Micro: 34.2 Macro: 65.8 | Micro: 28.9 Macro: 71.1 | Micro: 30.7 Macro: 69.3 | |
Tortuosity | 10.1 | 6.59 | 18.2 | 2.37 | |
Compactness index (0-1) | 0.81 | 0.81 | 0.84 | 0.83 | |
Saturation (%) | 8.69 ± 0.2 | 8.63 ± 0.2 | 7.13 ± 0.1 | 7.57 ± 0.1 | |
Water absorption coefficient at Patm (%) | 5.52 ± 0.1 | 5.33 ± 0.1 | 1.11 ± 0.1 | 1.76 ± 0.1 | |
Capillary absorption coefficient (kg/m2·s0,5) | 0.03308 ± 2.23·10-3 | 0.03208 ± 1.61·10-3 | 0.002598 ± 7.53·10-6 | 0.002875 ± 2,1·10-4 | |
Water vapour permeability coefficient (kg/m·s·Pa) | 1.63·10-9 ± 3.7·10-11 | 2.97·10-9 ± 1.1·10-10 | 1.14·10-9 ± 1.5·10-10 | 2.73·10-9 ± 6.9·10-10 | |
Air permeability (mD) | 772.53 ± 326.2 | 484.15 ± 50.4 | 315.98 ± 40.6 | 380.75 ± 74.7 |
Application
of ESTEL 1100 reduces porosity in this sandstone to 15.7% without
causing any changes in its modal distribution or its micro/macroporosity
ratio (
Table 5
;
Figure 6
).
Average pore size increases to 14.5 µm and pore geometry becomes more
irregular, reducing pore diameter (0.6 µm) and increasing specific
surface area (0.29 m2/g). Also, capillary connections become
more sinuous (tortuosity = 18.2), which restricts the mobility of water
inside the sandstone and reduces the degree of saturation (~7 %;
Table 5
). These pore geometry changes substantially modified the sandstone’s behaviour and absorption capacity (
Figure 7
).
Water absorption takes place slowly and progressively, presenting a low
absorption coefficient at 48 h (1.1 wt%) but a total absorption
capacity (5.6 wt%) similar to that of untreated sandstone. Similarly,
the outflow of water from the interior is also restricted, with 52% of
the total water absorbed evaporating in 24 h and 3% being retained
internally. The treatment also significantly reduces (90%) the water
absorbed by capillary action (< 1 kg/m2), saturating in less than 24 h and presenting a very low capillary absorption coefficient (~0.0026 kg/m2·s0.5;
Table 5
,
Figure 8
).
The negative influence of the treatment on the internal mobility of
water vapour and air, which affects the respective permeabilities, is
also noteworthy (
Table 5
). While vapour permeability is reduced by one third (~1.14·10-9 kg/m·s·Pa), air permeability is reduced by up to 60% (~316 mD) (
Table 5
).
ESTEL 1100 effectively restricts the ingress of water in this
sandstone, but it also restricts its egress by reducing transpiration,
which may affect the durability of this material (
25
25.
Luque, A.; Cultrone, G.; Sebastián, E.; Cazalla, O. (2008)
Effectiveness of stone treatments in enhancing the durability of
bioclastic calcarenite (Granada, Spain). Mater. Construcc. 58 [292], 115-128.
https://doi.org/10.3989/mc.2008.41607
.
,
27
27.
Fort, R.; Álvarez de Buergo, M.; Varas-Muriel, M. J.; Vázquez-Calvo,
M.C. (2005) Valoración de tratamientos con polímeros sintéticos para la
conservación de materiales pétreos del patrimonio. R. Plásticos Modernos. 89 [583], 83-89.
,
60
60.
Dunčková, L.; Durmeková, T.; Adamcová, R.; Bednarik, M. (2022)
Laboratory Assessment of Selected Protective Coatings Applied on Two
Sandstone Types. Coatings. 12 [6], 761.
https://doi.org/10.3390/coatings12060761
.
).
Salt
aggression does not cause significant changes to the structural and
hydric properties of the original sandstone (ADD and ADDT;
Table 5
,
Figure 6
-
8
).
The most important changes are related to the increase in average pore
size, which in both cases (ADDs and ADDTs) exceeds 16 µm, possibly
because of the removal of the few clays they contain. Also,
microporosity increases slightly (> 30%) to the detriment of
macroporosity, which remains dominant (
60
60.
Dunčková, L.; Durmeková, T.; Adamcová, R.; Bednarik, M. (2022)
Laboratory Assessment of Selected Protective Coatings Applied on Two
Sandstone Types. Coatings. 12 [6], 761.
https://doi.org/10.3390/coatings12060761
.
). The geometry of the pores (0.22-0.17 m2/g
and 1.14 µm) and their capillary connections (tortuosity = 6.6-2.4)
become more regular and straighter, establishing a new fissure
microporosity - especially in the treated sandstones (ADDTs) - detected
by PLM and FLM. This means that the capacity of the ADDTs to absorb
embedded and capillary water is greater than that of the ADDs, where the
possible presence of salts may have hindered water ingress. The ADDTs
also has a higher water absorption coefficient (~1.8 wt%) than ADDT,
although its total absorption is lower (3.5 wt%;
Table 5
,
Figure 7
). Capillary water absorption after salt aggression evolves in the same direction as in the ADD and ADDT (
Figure 8
). While in the ADDs these values are somewhat lower (~12 kg/m2; ~0.0321 kg/m2·s0.5) and the sandstone takes 24 h to absorb > 85% of its total capacity, in the ADDTs this value rises slightly (~1.2 kg/m2; ~0.0029 kg/m2·s0.5), favoured by treatment breakup and better water mobility (
Table 5
;
Figure 8
).
Air permeability follows the same behaviour. In the ADDTs it rises by
17% (~380 mD) because the treatment breaks up, but in the non-treated
samples it falls to 35% (~484 mD) because salts fill its pores,
restricting air movement (
Table 5
). In contrast, the salts significantly affect initial water vapour permeability almost equally, doubling it in each case (
Table 5
).
Salt crystallisation near the surface would favour an increase in these
sandstones’ water vapour permeability because of the increase in
microporosity (31-34%) after aggression in both the treated and
untreated specimens. The fact that these sandstones show a large pore
size domain (> 10 µm) makes them less susceptible to degradation by
the effect of crystallisation of salts that exert high crystallisation
pressure, such as mirabilite (Na2SO4·10H2O) (
9
9.
Molina, E.; Cultrone, G.; Sebastián E.; Alonso, F.J. (2013) Evaluation
of stone durability using a combination of ultrasound, mechanical and
accelerated aging tests. J. Geophys. Eng. 10 [3], 035003.
https://doi.org/10.1088/1742-2132/10/3/035003
.
,
15
15.
Benavente, D.; Cueto, N.; Martínez-Martínez, J.; García del Cura, M.A.;
Cañaveras. J.C. (2007) The influence of petrophysical properties on the
salt weathering of porous building rocks. Environ. Geol. 52, 215-224.
https://doi.org/10.1007/s00254-006-0475-y
.
,
19
19. Ruedrich J.; Siegesmund, S. (2007) Salt and ice crystallisation in porous sandstones. Environ. Geol. 52, 225-249.
https://doi.org/10.1007/s00254-006-0585-6
.
,
20
20.
Benavente, D.; García del Cura, M.A.; García-Guinea, J.; Sánchez-Moral,
S.; Ordoñez, S. (2004) Role of pore structure in salt crystallisation
in unsaturated porous stone. J. Crys. Growth. 260, 532-544.
https://doi.org/10.1016/j.jcrysgro.2003.09.004
.
).
Mechanical properties: The Demanda Gold sandstone shows high surface hardness and strength (~427 HLD, ~48 RL and > 55 MPa) (
51
51.
Aydin, A. (2009) ISRM (International Society for Rock Mechanics
Commission) Suggested method for determination of the Schmidt hammer
rebound hardness: revised version. Int. J. Rock Mech. Min. Sci. 46 [3], 627-634.
https://doi.org/10.1016/j.ijrmms.2008.01.020
.
,
52
52. Katz, O.; Reches, Z.; Roegiers, J.C. (2000) Evaluation of mechanical rock properties using a Schmidt Hammer. Int. J. Rock Mech. Min. Sci. 37 [4], 723-28.
https://doi.org/10.1016/S1365-1609(00)00004-6
.
,
61-64
61.
González de Vallejo, L.; Ferrer, M.; Ortuño, L.; Oteo, C. (2012) (4th
Ed). Ingeniería Geológica. Prentice Hall Pearson Educación, Madrid.
744p.
62. Saptono, S.; Kramadibrata, S.; Sulistianto, B. (2013) Using
the Schmidt Hammer on rock mass characteristic in sedimentary rock at
Tutupan coal mine. Proc. Earth Planet. Sci. 6, 390-395.
https://doi.org/10.1016/j.proeps.2013.01.051
.
63.
Desarnaud, J.; Kiriyama, K.; Bicer Simsir, B.; Wilhelm, K.; Viles, H.
(2019) A laboratory study of Equotip surface hardness measurements on a
range of sandstones: What influences the values and what do they mean? Earth Surf. Process. Landf. 44 [7], 1419-1429.
https://doi.org/10.1002/esp.4584
.
64. Aoki, H.; Matsukura, Y. (2008) Estimating the unconfined compressive strength of intact rocks from Equotip hardness. Bull. Engineer. Geol. Environ. 67, 23-29.
https://doi.org/10.1007/s10064-007-0116-z
.
) due to the quartz grains and associated quartz syntaxial cement, which are directly responsible for its cohesion (
Table 6
).
However, such hardness could have been even greater if it were not for
the high porosity of this sandstone. The strong correlation between
composition and hardness concurs with other authors’ (
62-64
62.
Saptono, S.; Kramadibrata, S.; Sulistianto, B. (2013) Using the Schmidt
Hammer on rock mass characteristic in sedimentary rock at Tutupan coal
mine. Proc. Earth Planet. Sci. 6, 390-395.
https://doi.org/10.1016/j.proeps.2013.01.051
.
63.
Desarnaud, J.; Kiriyama, K.; Bicer Simsir, B.; Wilhelm, K.; Viles, H.
(2019) A laboratory study of Equotip surface hardness measurements on a
range of sandstones: What influences the values and what do they mean? Earth Surf. Process. Landf. 44 [7], 1419-1429.
https://doi.org/10.1002/esp.4584
.
64. Aoki, H.; Matsukura, Y. (2008) Estimating the unconfined compressive strength of intact rocks from Equotip hardness. Bull. Engineer. Geol. Environ. 67, 23-29.
https://doi.org/10.1007/s10064-007-0116-z
.
)
findings for similar sandstones. The partial coating of the sandstone’s
pores with the ESTEL 1100 treatment does not affect Leeb surface
hardness, but it does affect Schmidt hardness and unconfined compressive
strength, which are substantially improved (52 RL, > 72 MPa) (
25
25.
Luque, A.; Cultrone, G.; Sebastián, E.; Cazalla, O. (2008)
Effectiveness of stone treatments in enhancing the durability of
bioclastic calcarenite (Granada, Spain). Mater. Construcc. 58 [292], 115-128.
https://doi.org/10.3989/mc.2008.41607
.
,
51
51.
Aydin, A. (2009) ISRM (International Society for Rock Mechanics
Commission) Suggested method for determination of the Schmidt hammer
rebound hardness: revised version. Int. J. Rock Mech. Min. Sci. 46 [3], 627-634.
https://doi.org/10.1016/j.ijrmms.2008.01.020
.
,
52
52. Katz, O.; Reches, Z.; Roegiers, J.C. (2000) Evaluation of mechanical rock properties using a Schmidt Hammer. Int. J. Rock Mech. Min. Sci. 37 [4], 723-28.
https://doi.org/10.1016/S1365-1609(00)00004-6
.
).
The presence of salts in surface porosity after aggression (ADDs and
ADDTs) reduces Leeb surface hardness as it can have an impact at
single-mineral level on soft (salts) or weakened (feldspars) grains or
crystals (364-382 HLD). However, on a larger scale, salt aggression does
not modify either Schmidt hardness (~48 RL) or UCS (~55 MPa) in the
untreated sandstone (ADDs), but it does modify them in treated
sandstones (ADDTs), where both parameters are reduced (> 50 RL, >
64 MPa), thus lowering their hardness and strength. Moreover, the
filling of this porosity by both the treatment and the salts makes the
resistance to external stress homogeneous in its three spatial
directions, eliminating the preferential anisotropy orientation that the
sandstones originally showed (ADD) and that was detected in previous
tests (Vp and dM).
ADD | ADDs | ADDT | ADDTs | |
---|---|---|---|---|
Leeb hardness (HLD) | 426.7 ± 25.3 | 382.3 ± 5.8 | 422.2 ± 55.8 | 363.8 ± 32.6 |
Schmidt hardness (RL) | 47.92 ± 2.8 | 47.67 ± 2.8 | 52.00 ± 1.9 | 50.33 ± 1.5 |
UCS (MPa) | 55.58 ± 11.8 | 54.67 ± 10.8 | 72.58 ± 9.9 | 64.67 ± 6.5 |
4. CONCLUSIONS
⌅Demanda Gold sandstone is a Cretaceous subarkose with good compositional and textural maturity that determine its petrographic and petrophysical properties. These intrinsic properties make this sandstone an outstanding building material. Moreover, its response to the weathering and salt crystallisation tests would seem to confirm its durability. The dominant monomineralic composition (quartz grains), the high-strength cement and the high monomodal porosity (~19%) determine its physical and mechanical properties. Its mineralogy makes it a dense material (> 2600 kg/m3) with high ultrasonic propagation velocities (2660 m/s) and high hardness (~48 RL, > 55 MPa). Because of its dominant macroporosity (71% measuring 10-30 µm) it has high water absorption (embedded and capillary) and air and water vapour permeability coefficients.
Application of the ESTEL 1100 treatment effectively fulfils a dual function, cementing (consolidating) up to a depth of ~5 mm and waterproofing (water-repellent) on the surface, substantially improving the sandstone’s physical-mechanical properties. Although the sandstone’s original porosity is only reduced to 16-17%, the treatment does significantly modify the geometry of its pores and capillary connections, making them more irregular and sinuous. Not only does this restrict water, water vapour, air and even heat ingress and mobility inside the stone, it also hinders their egress. This results in reductions of 80-90% in water absorption capacity (embedded and capillary), of 60% in air permeability and of 30-35% in water vapour permeability. Similarly, the treatment does not significantly modify the sandstone’s aesthetic appearance as it does not change its chromatic parameters or its gloss, although it does reduce its original anisotropy. It also increases its ultrasonic propagation velocity by almost 30% (3800 m/s), its surface hardness by ~8% (52 RL) and its UCS by > 23% (> 72 MPa). In conclusion, the treatment improves the quality of the stone by making it harder and less absorbent, although it may leave a certain amount of water retained inside (3%), which can influence its durability.
The accelerated ageing test with Na2SO4·10H2O confirms these sandstones’ low susceptibility to degradation by the effects of crystallisation of this salt inside their pore system. The large pore size (> 10 µm) seems to be able to contain the high crystallisation pressure of this type of salt so that the physical-mechanical variations suffered by this sandstone are minimal and non- significant. It should be noted that the presence of salts on its surface seems to have generated microporosity to the detriment of the macroporosity it fills, thus doubling its permeability to water vapour. The salts affect the treated sandstone by causing significant changes in the geometry and connectivity of its pores, which have been previously modified by the treatment and which, in this case, makes them more regular and straighter. Here, the salts break up and detach part of the surface treatment, increasing the sandstone’s porosity somewhat (5%) and generating fissural microporosity that increases its water absorption capacity (embedded ~37% and capillary ~10%), which was strongly reduced after the treatment. Another consequence of this action was a reduction in its mechanical properties (of 3.2% in surface hardness and ~11% in UCS). Thus, the amount, size, modal distribution and geometry of the pores of this sandstone seem to significantly influence its resistance to weathering, improving its durability.
