1. INTRODUCTION
⌅The
rapid increase in urbanization and industrialization is leading to a
growing trend in construction and demolition waste (CDW). The production
of construction and demolition waste has increased to 3.5 billion
tons/year, which is a threat to the environment (11.
Luo, J.; Chen, S.; Li, Q.; Liu, C.; Gao, S.; Zhang, J.; Guo, J. (2019)
Influence of graphene oxide on the mechanical properties, fracture
toughness, and microhardness of recycled concrete. Nanomat. 9 [3], 325. https://doi.org/10.3390/nano9030325.
).
The large amounts of waste generated by the construction sector
negatively affect the environment due to the lack of appropriate
disposal sites and the use of inadequate disposal methods (22.
De Oliveira Andrade, J.J.; Possan, E.; Squiavon, J.Z.; Ortolan, T.L.P.
(2018) Evaluation of mechanical properties and carbonation of mortars
produced with construction and demolition waste. Constr. Build. Mater. 161, 70-83. https://doi.org/10.1016/J.CONBUILDMAT.2017.11.089.
).
In the last 10 years, only in Europe, construction activity generated
around 827 million tons of CDW on average per year and only 50% of them
were reclaimed (33.
Porras-Amores, C., Martin Garcia, P., Villoria Sáez, P., del Rio
Merino, M.; Vitielo, V. (2021) Assessing the energy efficiency potential
of recycled materials with construction and demolition waste: a spanish
case study. Appl. Sci. 11 [17], 7809. https://doi.org/10.3390/app11177809.
).
In Spain, waste management is regulated by Directive (EU) 2018/851 (44.
Directive (EU) 2018/851 of the European Parliament and the Council
Amending Directive 2008/98/EC on waste. Off J. Eur. Union n.d.
) amending Directive 2008/98/EC on waste (55. Directive 2008/98/EC of the European Parliament and the Council on Waste. Off J. Eur. Union n.d.
), which includes the definition of CDW as “waste generated by construction and demolition activities” (66. European Commission. Protocol on the management of construction and demolition waste in the EU, September 2016. n.d.
).
The Spanish State Waste Management Framework Plan (PEMAR) 2016-2022
establishes a minimum percentage of non-hazardous CDW destined for
preparation for reuse, recycling, and other recovery operations
(excluding clean soil and stones) and a maximum percentage of
non-hazardous CDW disposal in landfills. The values are shown on Table 1 (77.
Junta de Andalucía. Integrated waste plan for Andalusia. Towards a
circular economy in the 2030 Horizon., PIRE 2030. 5 April 2021 n.d.
Retrieved from https://www.juntadeandalucia.es/medioambiente/portal/documents/20151/26992369/2021_10_19_PIRec_completo5.pdf/6c1a646a-c293-79ca-c201-a913386b86ce?t=1634807843024.
).
Minimum % of non-hazardous CDW destined for preparation for reuse, recycling, and other recovery operations | ||
60% in 2016 | 65% in 2018 | 70% in 2020 |
Maximum % of non-hazardous CDW disposal in landfills | ||
40% in 2016 | 35% in 2018 | 30% in 2020 |
Construction
and demolition waste results mainly from the demolition of buildings or
the rejection of building materials from new construction sites and
home renovations. A considerable part of this waste is sent to
landfills, with a negative visual, landscape and environmental impact
because of the disposal of materials that could be recycled with proper
treatment (88. CEDEX. Construction and demolition waste. Waste usable in construction. November 2014. Retrieved from https://www.cedexmateriales.es/upload/docs/es_RESIDUOSDECONSTRUCCIONYDEMOLICIONNOV2014.pdf.
).
These
problems provide an incentive to develop recycling alternatives and to
exploit their potential as secondary materials. Research and technology
for recycling construction waste makes it possible not only to conserve
many aggregate natural resources but also to reduce construction waste,
which is consistent with the sustainability requirements of the
construction industry (11.
Luo, J.; Chen, S.; Li, Q.; Liu, C.; Gao, S.; Zhang, J.; Guo, J. (2019)
Influence of graphene oxide on the mechanical properties, fracture
toughness, and microhardness of recycled concrete. Nanomat. 9 [3], 325. https://doi.org/10.3390/nano9030325.
, 99.
Kabirifar, K.; Mojtahedi, M.; Wang, C.; Tam, V.W.Y. (2020) Construction
and demolition waste management contributing factors coupled with
reduce, reuse, and recycle strategies for effective waste management: A
review. J. Clean. Prod. 263, 121265. https://doi.org/10.1016/J.JCLEPRO.2020.121265.
, 1010.
Bao, Z.; Lu, W. (2020) Developing efficient circularity for
construction and demolition waste management in fast emerging economies:
Lessons learned from Shenzhen, China. Sci. Total Environ. 724, 138264. https://doi.org/10.1016/J.SCITOTENV.2020.138264.
).
Recycled
concrete aggregates exhibit a certain heterogeneity in their properties
due to the different characteristics of the materials that are sent to
recycling plants, crushing systems and impurities. To ensure that CDWs
are inert or non-hazardous materials, they undergo a selection,
cleaning, and separation process, after which they are subjected to
treatment if necessary. The recycled aggregate obtained from the
original concrete after the crushing process is a mixture of coarse
aggregate (≥ 4 mm) and fine aggregate (< 4 mm) (1111. CEDEX. Recycled aggregate from concrete. Retrieved from https://www.cedexmateriales.es/catalogo-de-residuos/34/reciclado-de-pavimentos-de-hormigon/
).
Recycled aggregate as a replacement for standard sand in cementitious composites has already been explored in various studies (12-1412.
Zhou, Y.; Gong, G.; Huang, Y.; Chen, C.; Huang, D.; Chen, Z.; Guo, M.
(2021) Feasibility of incorporating recycled fine aggregate in high
performance green lightweight engineered cementitious composites. J. Clean. Prod. 280 [2], 124445. https://doi.org/10.1016/J.JCLEPRO.2020.124445.
13.
Long, W.J.; Zheng, D., Duan, H.; Han, N.; Xing, F. (2018) Performance
enhancement and environmental impact of cement composites containing
graphene oxide with recycled fine aggregates. J. Clean. Prod. 194, 193-202. https://doi.org/10.1016/J.JCLEPRO.2018.05.108.
14.
Shi, C.; Li, Y.; Zhang, J.; Li, W.; Chong, L.; Xie, Z. (2016)
Performance enhancement of recycled concrete aggregate - A review. J. Clean. Prod. 112 [1], 466-472. https://doi.org/10.1016/J.JCLEPRO.2015.08.057.
).
Research has shown that recycled sand (RS) has more porous structures
and higher water adsorption than standard sand (SS). The bond between RS
and the cement matrix has been found to be weaker than in SS cement
composites. These results have revealed that the use of RS to replace SS
reduces the mechanical properties of cementitious composites.
In Spain, aggregates for mortars must satisfy the following standards:
-
EN 13139:2003 “Aggregates for mortars” (1515. EN 13139. (2003) Aggregates for mortar, European Committee for Standardization.
). -
prEN 12620: 2002 Aggregates for concrete (1616. prEN 12620. (2002) Aggregates for concrete. European Committee for Standardization.
). -
EN 13055-1: 2003 Lightweight aggregates - Part 1: Lightweight aggregates for concrete, mortar and grout (1717. EN 13055-1. (2003) Lightweight aggregates - Part 1: Lightweight aggregates for concrete, mortar and grout. European Committee for Standardization.
). -
prEN 13242:2017 Aggregates for bituminous mixtures and surface treatments for roads, airfields and other trafficked areas (1818. prEN 13242. (2017) Aggregates for bituminous mixtures and surface treatments for roads, airfields and other trafficked areas. European Committee for Standardization.
).
To
improve the mechanical performance of cement composites with recycled
aggregates, various reinforcements such as graphene oxide (GO) have been
used in the concrete industry (19-2119.
Tobón, J.I.; Payá, J.; Restrepo, O.J. (2015) Study of durability of
Portland cement mortars blended with silica nanoparticles. Constr. Build. Mater. 80, 92-97. https://doi.org/10.1016/J.CONBUILDMAT.2014.12.074.
20. Liu, J., Li, Q.; Xu, S. (2015) Influence of nanoparticles on fluidity and mechanical properties of cement mortar. Constr. Build. Mater. 101 [1], 892-901. https://doi.org/10.1016/J.CONBUILDMAT.2015.10.149.
21.
Mohammed, A.; Sanjayan, J.G., Duan, W.H.; Nazari, A. (2015)
Incorporating graphene oxide in cement composites: A study of transport
properties. Constr. Build. Mater. 84, 341-347. https://doi.org/10.1016/J.CONBUILDMAT.2015.01.083.
).
Graphene oxide is a derivative of graphene that can be described as a
layer of graphene with functional oxygen groups grafted (2222.
Zhao, L.; Guo, X.; Song, L.; Song, Y.; Dai, G.; Liu, J. (2020) An
intensive review on the role of graphene oxide in cement-based
materials. Constr. Build. Mater. 241, 117939. https://doi.org/10.1016/J.CONBUILDMAT.2019.117939.
). These oxygen-containing groups contribute to make GO sheets hydrophilic and highly dispersible in water (11.
Luo, J.; Chen, S.; Li, Q.; Liu, C.; Gao, S.; Zhang, J.; Guo, J. (2019)
Influence of graphene oxide on the mechanical properties, fracture
toughness, and microhardness of recycled concrete. Nanomat. 9 [3], 325. https://doi.org/10.3390/nano9030325.
).
The main approach used to manufacture cement-GO composites simply
involves ultrasonication of GO dispersion in water, prior to mixing with
cement. GO is a material with a planar structure and excellent
mechanical properties that has the potential to improve the hardness of
calcium silicate hydrate (C-S-H). This material can significantly
improve the tenacity and strength of concrete and other cement-based
materials (2323.
Wang, W.; Jian-Chen, S.; Sagoe-Crentsil, K.; Duan, W. (2022) Graphene
oxide-reinforced thin shells for high-performance, lightweight cement
composites. Composites Part B: Engineering 235, 109796. https://doi.org/10.1016/j.compositesb.2022.109796.
).
GO in cementitious materials began to appear in the literature in 2011. Some of the first studies were conducted by Lv et al. (24-2524.
Lv, S.; Ma, Y.; Qiu, C.; Sun, T.; Liu, J.; Zhou, Q. (2013) Effect of
graphene oxide nanosheets of microstructure and mechanical properties of
cement composites. Constr. Build. Mater. 49, 121-127. https://doi.org/10.1016/j.conbuildmat.2013.08.022.
25. Lv, S.; Ma, Y.; Qiu, C.; Zhou, Q. (2013) Regulation of GO on cement hydration crystals and its toughening effect. Mag. Concr. Res. 65 [20], 1246-1254. https://doi.org/10.1680/macr.13.00190.
).
These authors suggested that GO was a great reinforcement for cement
products that was able, for example, to enhance flexural strength by
more than 60%. There is currently a controversy between the results
reported by different researchers on GO-reinforced cement products
because other studies (26-2726.
Lv, S.; Liu, J.; Sun, T.; Ma, Y.; Zhou, Q. (2014) Effect of GO
nanosheets on shapes of cement hydration crystals and their formation
process. Constr. Build. Mater. 64, 231-239. https://doi.org/10.1016/J.CONBUILDMAT.2014.04.061.
27.
Li, W.; Li, X.; Chen, S.J.; Liu, Y.M.; Duan, W.H.; Shah, S.P. (2017)
Effects of graphene oxide on early-age hydration and electrical
resistivity of Portland cement paste. Constr. Build. Mater. 136, 506-514. https://doi.org/10.1016/j.conbuildmat.2017.01.066.
) have shown no improvements or even disadvantages (28-3028.
Li, X.; Wang, L.; Liu, Y.; Li, W.; Dong, B.; Duan, W.H. (2018)
Dispersion of graphene oxide agglomerates in cement paste and its
effects on electrical resistivity and flexural strength. Cem. Concr. Compos. 92, 145-154. https://doi.org/10.1016/j.cemconcomp.2018.06.008.
29.
Li, X.; Li, C.; Liu, Y.; Chen, S.J.; Wang, C.M.; Sanjayan, J.G.; Duan,
W.H. (2018) Improvement of mechanical properties by incorporating
graphene oxide into cement mortar. Mech. Adv. Mater. Struct. 25 [15-16], 1313-1322. https://doi.org/10.1080/15376494.2016.1218226.
30.
Peng, H.; Ge, Y.; Cai, C.S.; Zhang, Y.; Liu, Z. (2019) Mechanical
properties and microstructure of graphene oxide cement-based composites. Constr. Build. Mater. 194, 102-109. https://doi.org/10.1016/J.CONBUILDMAT.2018.10.234.
).
It could be thought that discrepancies between results are due to the
existence of significant differences between studies. Considering
previous studies, two important factors can be observed to explain this
controversy: a) the different particle size of GO after the necessary
ultrasonication and b) the different porosity of the matrix to which GO
is added (which depends on the water/cement ratio and the particle size
of materials).
This study had a dual objective: to explore the possibility of recycling construction and demolition waste by replacing all the standard sand used in mortar composites, and to analyze how the addition of GO affects mortars with both types of aggregates. The implementation of the results of this study will promote more sustainable construction practices, which will contribute to reducing the amount of construction and demolition waste that ends up in landfills as well as the costs in the construction industry will be reduced. On the other hand, mortars with nano-graphene oxide addition could exhibit increased durability, especially in terms of resistance to moisture ingress, chemical attack, and carbonation, as well as reduction of porosity which could lead to higher strength. This enhanced durability would contribute to longer-lasting structures, reducing maintenance and repair costs over time.
2. MATERIALS AND METHODS
⌅2.1. Materials
⌅For
the production of the different compositions explored in this study,
several components were used: Portland cement (CEM II/B-L 32.5 N)
conforming to EN 197-1 (3131.
EN 197-1. (2011) Cement - Part 1: Composition, specifications and
conformity criteria for common cements, European Committee for
Standardization.
); standard sand (i.e., natural river sand) conforming to EN 196-1 (3131.
EN 197-1. (2011) Cement - Part 1: Composition, specifications and
conformity criteria for common cements, European Committee for
Standardization.
); and sand from CDW obtained from the
ALCOREC plant in San Jose de la Rinconada (Seville, Spain). Both sands
were previously sieved to obtain a maximum particle size of 1.25 mm.

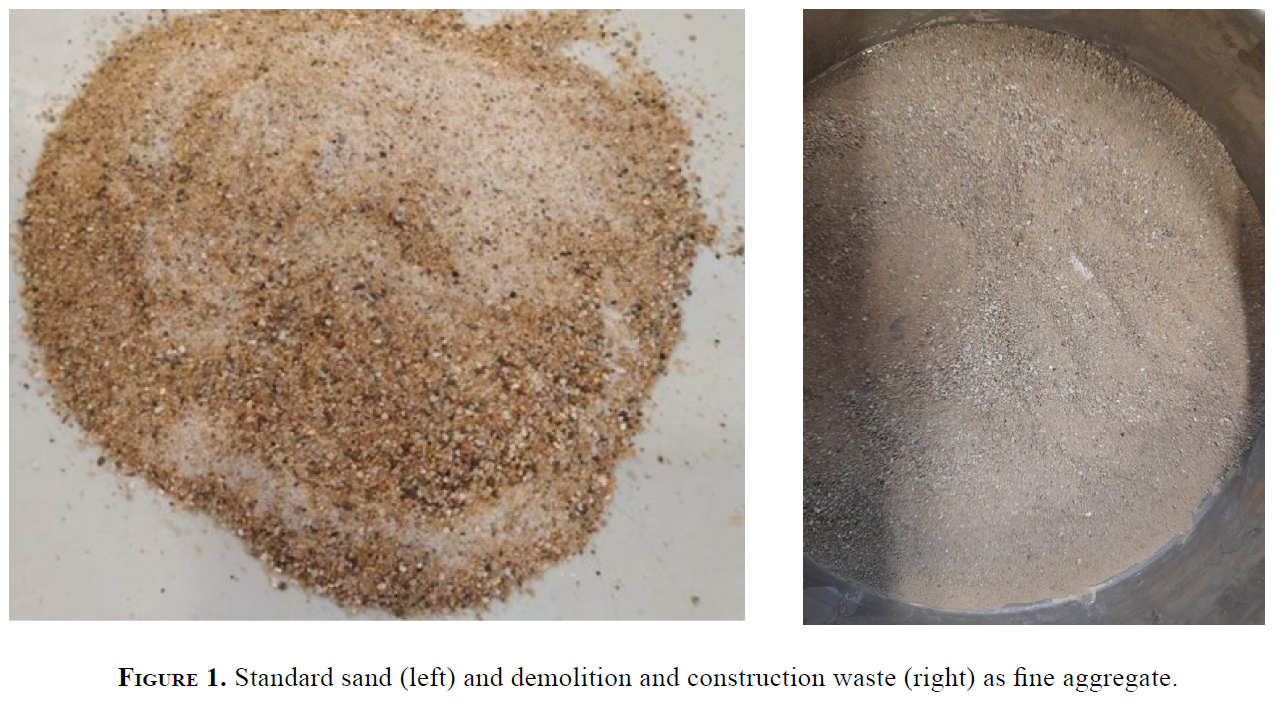

Figure 1 shows the comparison between standard sand and recycled sand as received (without previous sieve). At first sight, it can be seen that demolition waste has larger particles than standard sand. The colour is different, with recycled sand having a cementitious colour and standard sand having a more intense yellowish colour.
2.2. Preparation of mortars
⌅The dosage of each component was conducted by weighing them according to the established ratio shown on Table 2.
Material / Mix design | Cement (kg) | Standard sand (kg) | Recycled sand (kg) | Water (L) | Graphene oxide (kg) | |
---|---|---|---|---|---|---|
I | SS -W/PC=0.37 | 333.3 | 999.9 | - | 123.3 | - |
II | SS -W/PC=0.45 | 150.0 | ||||
III | SS -W/PC=0.5 | 166.7 | ||||
IV | SS - W/PC=0.37 - GO | 123.3 | 0.10 | |||
V | RS -W/PC=0.5 | - | 999.9 | 166.7 | - | |
VI | RS -W/PC=0.6 | 200.0 | ||||
VII | RS -W/PC=0.6 - GO | 0.10 |
The
water/cement ratio is higher in mortars with recycled aggregates, due
to their low specific gravity. CDW absorbs water during the mixing
process, and a high water/cement ratio is necessary to obtain a
homogeneous mix (3232.
Leiva, C.; Solís-Guzmán, J.; Marrero, M.; García-Arenas, C. (2013)
Recycled blocks with improved sound and fire insulation containing
construction and demolition waste. Waste Manag. 33 [3], 663-671. https://doi.org/10.1016/j.wasman.2012.06.011.
).
Cement
and sand (standard or recycled) were weighed and mixed for 30 seconds
in a laboratory mixer. Next, water was added and mixed with the solids
for 2 minutes, until a homogeneous paste was obtained. When GO was
added, the required GO at a concentration of 4 g/L (Graphenea) was
previously stirred for 24 hours and sonicated for 15 minutes. All GO
solutions had the same concentration during sonication. The sonicated
solution was mixed with clean water (i.e., without GO) and then added to
the solids. The dose of GO (0.0075% of solid content) was chosen
according to a previous study (2626.
Lv, S.; Liu, J.; Sun, T.; Ma, Y.; Zhou, Q. (2014) Effect of GO
nanosheets on shapes of cement hydration crystals and their formation
process. Constr. Build. Mater. 64, 231-239. https://doi.org/10.1016/J.CONBUILDMAT.2014.04.061.
).
The material was left in the mould for 24 hours so that it was hard enough for demoulding. After demoulding, the mortars were placed in water for 14 days to cure. At the end of this period, they were removed from the water and exposed to air for 13 days. After 28 days, they were ready for exploring their physical and mechanical properties.
2.3. Leaching study
⌅Given
that waste is used in mortars, a leaching test was necessary. According
to European standards, construction materials should not emit hazardous
substances, but, for example, in Spain, no national tests or limits are
specified to evaluate the leaching properties of construction materials
containing waste. This study was conducted in accordance with the
EN-12457 (3333.
EN 12457-4. (2003) Characterisation of waste - Leaching - Compliance
test for leaching of granular waste materials and sludges. Part 4: One
stage batch test at a liquid to solid ratio of 10 l/kg for materials
with particle size below 10 mm (without or with size reduction),
European Committee for Standardization.
) waste
characterization standard. It is a conformity test for the leaching of
granular waste and sludge including a one-stage batch test with a
liquid-solid ratio of 10 l/kg for waste with a particle size of less
than 10 mm. This test is the most common leaching test in Europe to
classify wastes, and some countries, such as Italy (3434.
IMD 186. (2006) Individuazione dei rifiuti non pericolosi sottoposti
alle procedure semplificate di recupero ai sensi degli articoli 31 e 33
del decreto legislativo 05/02/1997. Gazzetta Ufficiale n. 115.
),
use the results of this test to determine whether a residue can be used
in building materials when compared to certain reference values. This
test is a protocol used to accelerate the release of chemical species
contained in a material in order to characterize its potential to be
mobilized into the environment. The pollutants of greatest interest that
can be mobilized by weathering and leaching due to rainfall are heavy
metals, due to their high toxicity at low concentrations. Analysis in
leachates was carried out through Inductively Coupled Plasma technique.
2.4. Physical properties

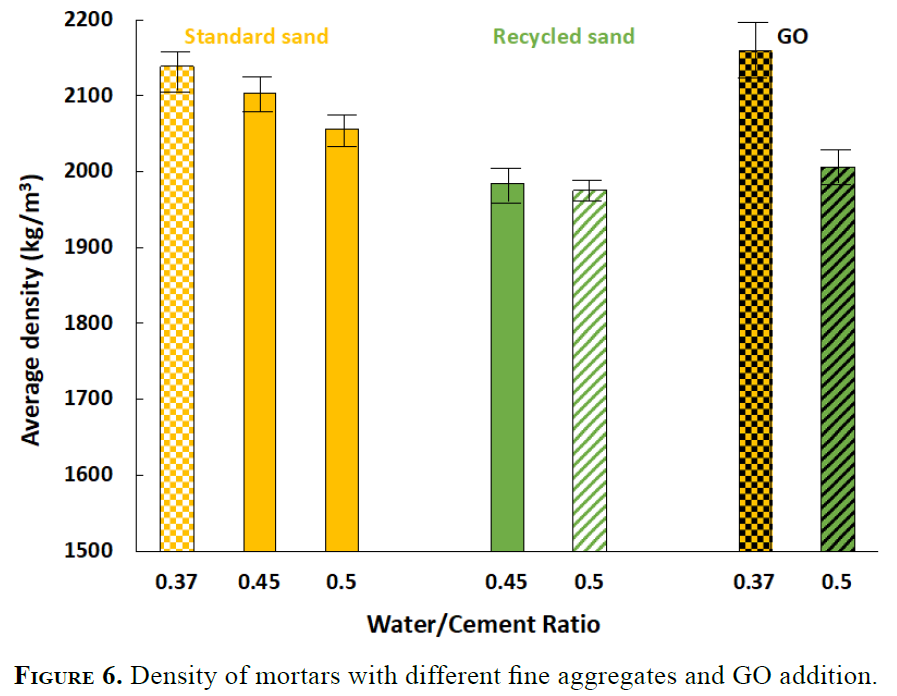

⌅2.4.1. Density
⌅Density is one of the main properties of construction products, as it affects other properties such as compressive and flexural strength. The density of the different mortars was determined by their weight and volume dimensions. The density was carried out on 15 cylindrical samples of 33 mm of diameter and 40 mm of heigh.
2.4.2. Humidity content
⌅The
water content of the mortars after 28 days is obtained from the change
in weight observed in the samples at room temperature when weighed
before introducing them into the oven and after curing in an oven at 105
˚C until the weight of the samples is constant (3535.
EN 12859. (2012) Gypsum blocks. Definitions, requirements and test
methods. European Committee for Standardization. Brussels, Belgium.
). The humidity content of each mortar was determined using the following Equation [1]:
where H (%) is the humidity content, Wo is the initial weight and Wd is the dried weight. The test was carried out on 3 cylindrical samples of 33 mm of diameter and 40 mm of heigh.
2.4.3. Water absorption capacity
⌅The
water absorbed by the materials was obtained from the weight change
produced in the samples during a period of two hours immersed in a water
bath (3535.
EN 12859. (2012) Gypsum blocks. Definitions, requirements and test
methods. European Committee for Standardization. Brussels, Belgium.
). After this time, they reached their saturation weight. Water absorption was obtained with the following Equation [2]:
where: A (%) is the Water absorption capacity, Ws is Saturation weight and Wd is the dried weight. The test was carried out on 3 cylindrical samples of 33 mm of diameter and 40 mm of heigh.
2.4.4. Open void porosity ratio
⌅To determine the open void ratio (3636.
ASTM C642-21. (2021) Standard test method for density, absorption, and
voids in hardened concrete. ASTM International (ASTM).
), the samples were dried in the oven at 105 ± 5 ºC. Next, they were weighed (Wd)
and left under water in a vacuum vessel completely submerged until
saturation was reached. After 24 hours, they were removed and reweighed
(WS). The proportion of open voids was calculated with the following Equation [3]:
where: V is the Total volume of the sample and Vw is Volume of the sample occupied by water, which can be expressed as (Equation [4]):
where ρw is the Density of water. The test was carried out on 3 cylindrical samples of 33 mm of diameter and 40 mm of heigh.

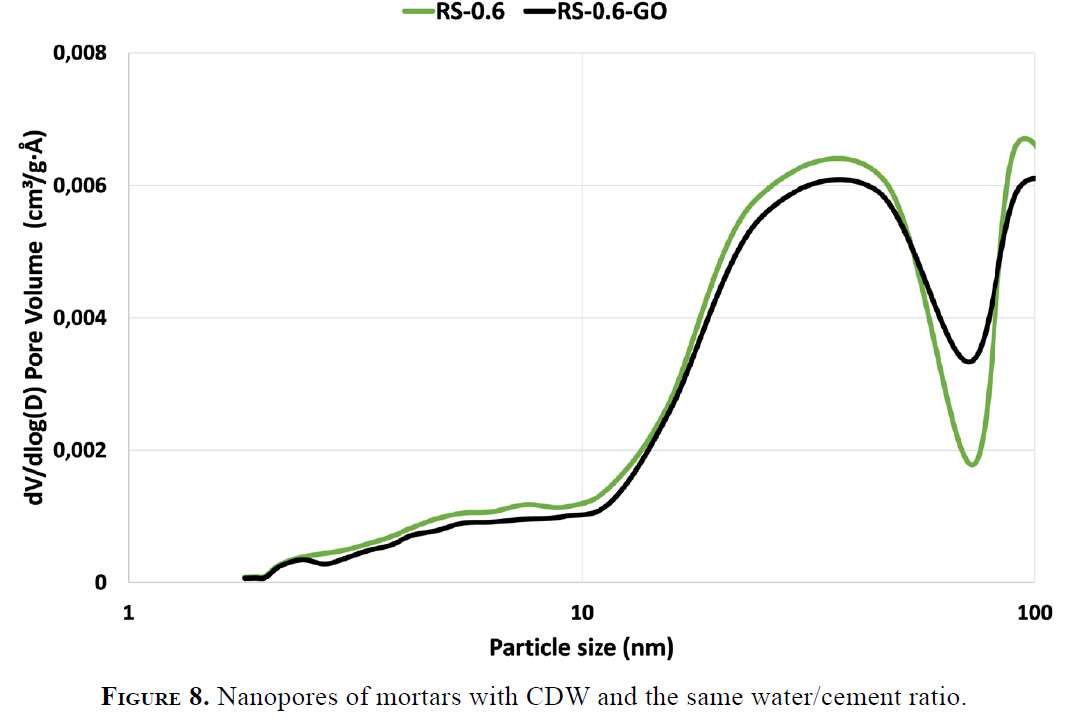

2.4.5. Pore size distribution
⌅A pore size analysis was performed. Micromeritics Autopore IV mercury intrusion porosimeter was employed. The quantifiable pore size was in the range of 0.007 to 150 mm. The samples had to be dried in an oven at 105 °C until a constant mass was achieved because they were in the form of pellets that were around 5 mm in size. Gas adsorption measurements were performed at -196 ºC using N2 in a Micromeritics ASAP 2020 analyzer.
Scanning electron microscopy (SEM) was performed with a JEOL JSM-5600 instrument. All of the samples were bonded to a thin coating of a quick-drying epoxy glue on an aluminum specimen stub, and then gold was sputter coated to a thickness of 10 nm to prevent charging effects.
2.5. Mechanical properties

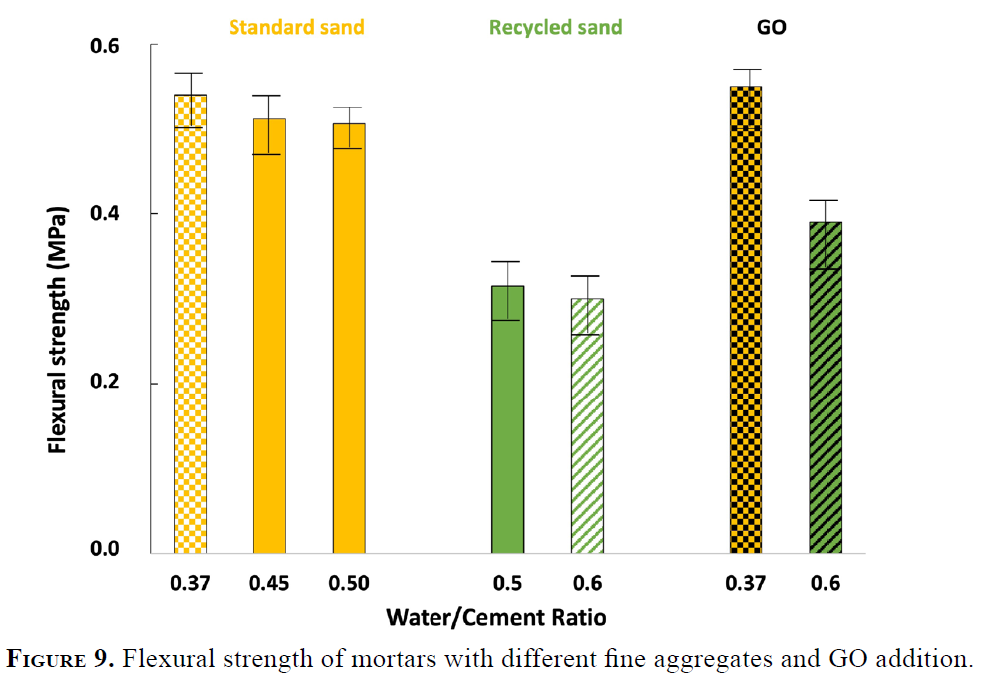

⌅Flexural strength was determined according to ASTM C-348-02 (3737. ASTM C348. (2021) Standard test method for flexural strength of hydraulic-cement mortars, ASTM International (ASTM).
).
Three different parallelepipeds 160 × 40 × 40 mm were used and tested
at a loading rate of 15 mm/min. The equipment used to calculate flexural
strength was the same as that used for the compression test: the
Suzpecar machine, model MEM102/50 t.

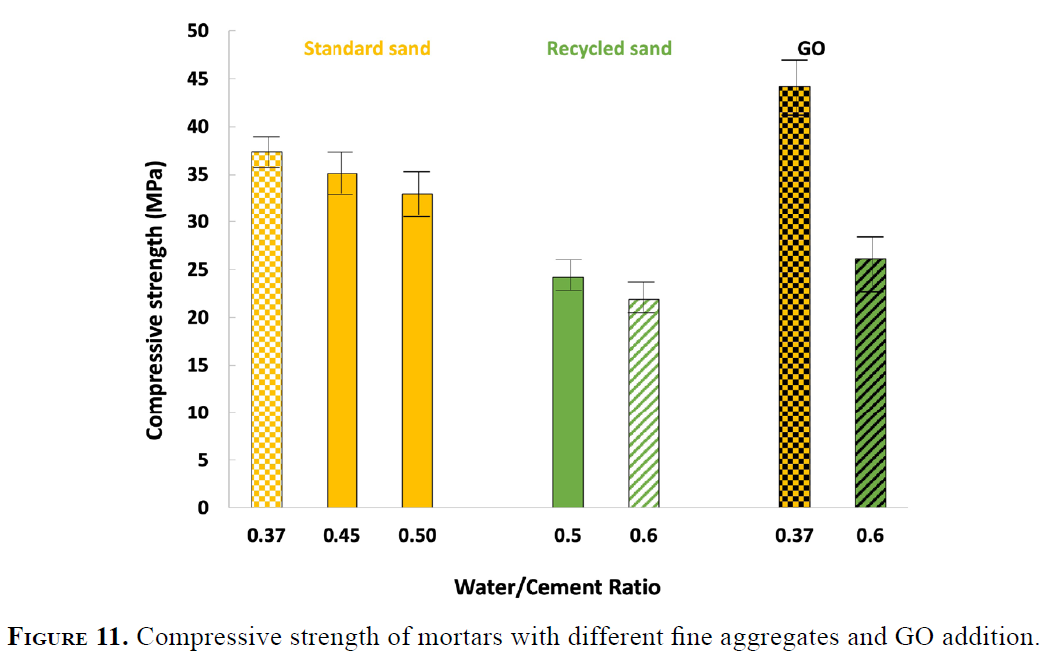

Compressive strength was measured at the age of 28 days following the procedure given in EN 196-1 (3838. EN 196-1. (2018) Methods of testing cement - Part 1: Determination of strength, European Committee for Standardization.
).
The two pieces of each sample after the flexural test (6 samples) were
subjected to compressive tests. This standard establishes that
compressive strength is determined by applying a normal force to the
surface of the sample and measuring the stress applied when breakage
occurs. Compressive strength tests were performed with a Suzpecar
machine, model MEM102/50 t. Six samples were broken down for each type
of composition. In addition, speed was controlled by the displacement of
the top face, which was tensioned at a rate of 0.5 mm/min.
2.5.1. Acid attack test
⌅Resistance
to sulfuric acid attack was measured using six samples after they had
been cured for 28 days. Three were exposed to air and three were
immersed in 1 molar sulfuric acid for 14 days. The acid volume used was 3
times the volume of the samples, all the surfaces were exposed to the

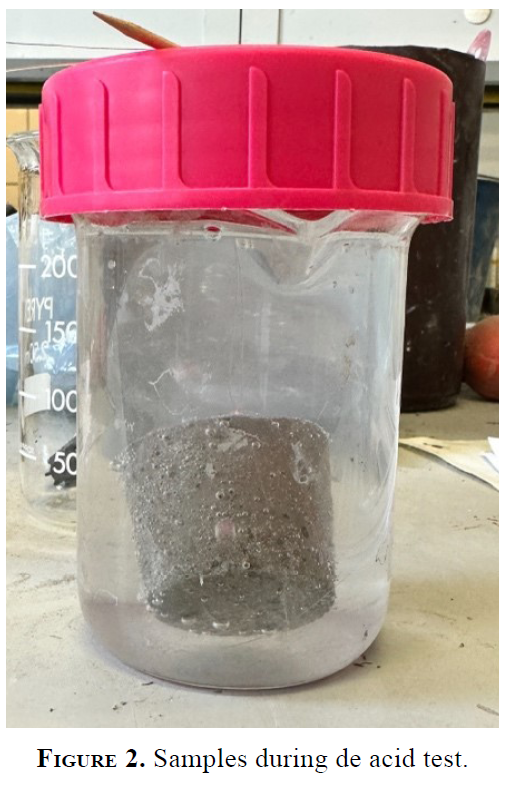

acid attack as it can be seen in Figure 2.
They were hanging and during the 15 days the total volume of acid was
constant, since acid was renewed as water evaporated, keeping the acid
volume constant. Samples were removed from their containers and their
compressive strengths were measured after immersion (3939.
Cerulli, T.; Pistolesi, C.; Maltese, C.; Salvioni, D. (2003) Durability
of traditional plasters with respect to blast furnace slag-based
plaster. Cem. Concr. Res. 33 [9], 1375-1383. https://doi.org/10.1016/S0008-8846(03)00072-3.
).
Results are expressed as the ratio between the compressive strength of the mortars immersed in acid and that of the mortars exposed to air, as this calculation shows:
where Ci (MPa) is Compressive strength of mortars immersed in acid after 14 days and Cair (MPa) is the Compressive strength of non-immersed after 14 days.
3. RESULTS
⌅3.1. Characterization of materials
⌅The chemical composition using an X-ray fluorescence spectrometer of all components is shown on Table 3. SiO2 was the component most present in recycled sand, although standard sand contained a higher proportion of it. CaO, Al2O3 and Fe2O3 were also among the main components of recycled sand. Given that recycled aggregate results from construction and demolition waste, its composition is similar to that of cement (without considering SiO2).
Component (%) | Portland cement | Standard sand | Recycled sand |
---|---|---|---|
SiO 2 | 13.83 | 96.21 | 52.60 |
Al 2 O 3 | 3.53 | 0.76 | 7.08 |
Fe 2 O 3 | 2.26 | 0.22 | 3.06 |
MnO | 0.06 | - | 0.05 |
MgO | 0.70 | - | 1.84 |
CaO | 59.33 | 0.13 | 18.50 |
Na 2 O | 0.08 | 0.05 | 0.71 |
K 2 O | 0.48 | 0.30 | 1.38 |
TiO 2 | 0.19 | 0.12 | 0.40 |
P 2 O 5 | 0.06 | 0.01 | 0.09 |
SO 3 | 1.68 | 0.02 | 0.03 |
Cl | <0.03 | <0.03 | <0.03 |
Loss on ignition | 15.50 | 0.31 | 12.27 |
Specific gravity (g/cm 3 ) | 3.18 | 2.62 | 1.68 |
The
specific gravity of recycled sand is lower than that of standard sand.
The specific gravity of recycled aggregate is lower than that of natural
aggregates due to the mixture of materials (e.g., Portland cement,
concrete, gypsum, bricks) that form CDW (4040.
Arenas, C.; Luna-Galiano, Y.; Leiva, C.; Vilches, L.F.; Arroyo, F.;
Villegas, R.; Fernandez-Pereira, C. (2017) Development of a fly
ash-based geopolymeric concrete with construction and demolition wastes
as aggregates in acoustic barriers. Constr. Build. Mater. 134, 433-442. https://doi.org/10.1016/J.CONBUILDMAT.2016.12.119.
).
The particle size distribution of standard and recycled sand was measured with a particle size analyzer (Mastersizer 3000, Malvern, UK) and is presented in Figure 3. The cumulative percentage is represented by continuous lines, while dotted lines represent the total percentage.
CDW had smaller particle size than natural river sand. Cement was the component with the smallest particle size, with an particle size interval between 0 and 150 μm. Although the particle size distribution is a key factor on the properties of the mortars, in this study, the different sands have no been subjected to any previous treatment (except the previous sieving at 1.25 mm for both) in order to compare the results as they were received. According to the technical data sheet the composition of GO consists of the following elements: C (49-56%), O (41-50%), S (2-4%), H (0-1%) and N (0-1%).

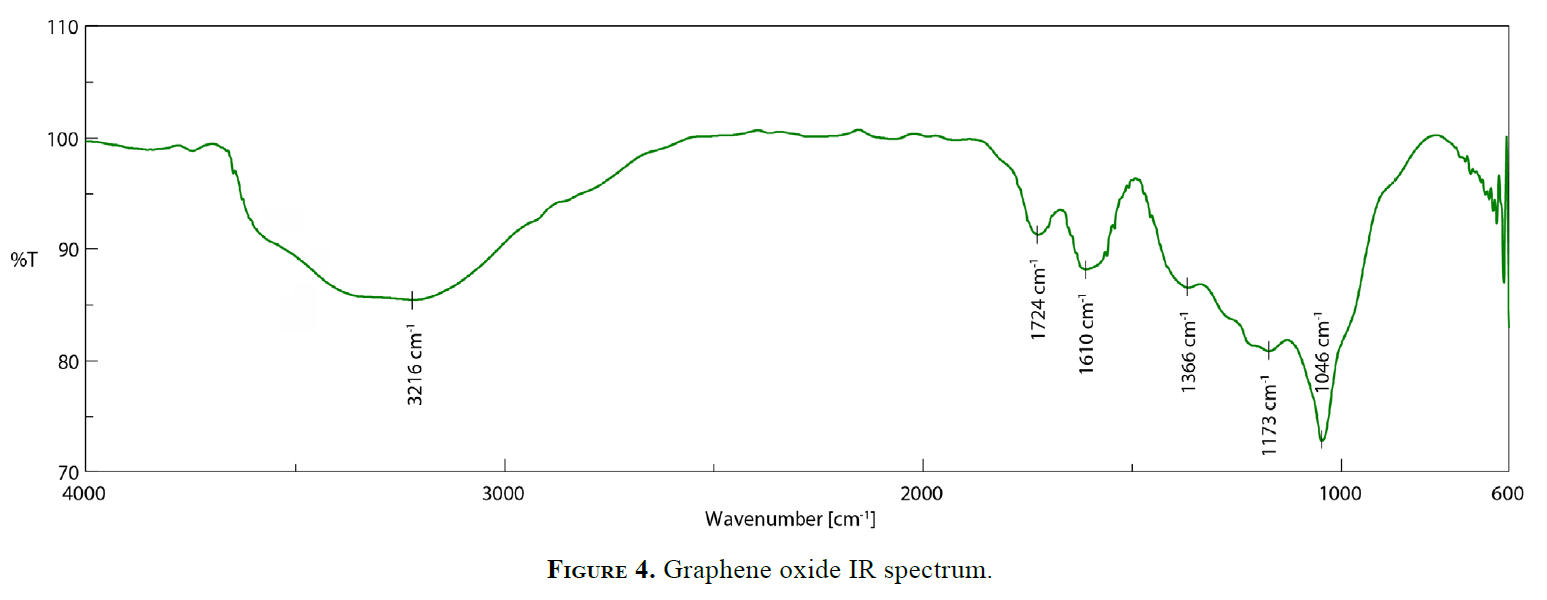

Fourier-transform infrared spectroscopy (FTIR) measurements were performed on a Nicolet 380 infrared spectrometer (Thermo Electron Corporation, USA). To perform the FTIR, 1 mg paste powder samples were mixed with 100 mg KBr to produce slices. The FTIR spectrum of graphene oxide is shown in Figure 4; the curve exhibits a sizable peak at 3216 cm-1 in the high frequency region, which is related to the stretching mode of the O-H bond and reveals the existence of hydroxyl groups in the graphene oxide. The carboxyl group was assigned to the band at 1724 cm-1. The stretching and bending vibration of the C=C groups of the water molecules adsorbed on the graphene oxide may have caused the peak at 1610 cm-1. The C-O-H group was responsible for the peak at 1366 cm-1. The peak at 1046 cm-1was the vibrational mode of the C-O group, and the peak at 1173 cm-1 represented C-O-C stretching.
The
time and power of ultrasonication of GO to achieve a good dispersion of
GO were very variable in previous studies. In some cases, samples were
exposed for 5 minutes (4141.
Li, X.; Korayem, A.H.; Li, C.; Liu, Y.; He, H.; Sanjayan, J.G.; Duan,
W.H. (2016) Incorporation of graphene oxide and silica fume into cement
paste: A study of dispersion and compressive strength. Constr. Build. Mater. 123, 327-335. https://doi.org/10.1016/J.CONBUILDMAT.2016.07.022.
), while in others they were exposed for about 3 hours (4242.
Horszczaruk, E.; Mijowska, E., Kalenczuk, R.J.; Aleksandrzak, M.;
Mijowska, S. (2015) Nanocomposite of cement/graphene oxide - Impact on
hydration kinetics and Young’s modulus. Constr. Build. Mater. 78, 234-242. https://doi.org/10.1016/J.CONBUILDMAT.2014.12.009.
). For instance, in (2121.
Mohammed, A.; Sanjayan, J.G., Duan, W.H.; Nazari, A. (2015)
Incorporating graphene oxide in cement composites: A study of transport
properties. Constr. Build. Mater. 84, 341-347. https://doi.org/10.1016/J.CONBUILDMAT.2015.01.083.
, 2828.
Li, X.; Wang, L.; Liu, Y.; Li, W.; Dong, B.; Duan, W.H. (2018)
Dispersion of graphene oxide agglomerates in cement paste and its
effects on electrical resistivity and flexural strength. Cem. Concr. Compos. 92, 145-154. https://doi.org/10.1016/j.cemconcomp.2018.06.008.
)
GO was not even ultrasonicated. Ultrasonication breaks GO sheets,
producing smaller platelets. Therefore, the size of GO sheets decreases
with increasing time and power. The two types of sand used in this study
had a relatively large particle size (between 0.1 and 1 mm), which was
expected to mark their mechanical performance (4343.
Ríos, J.D.; Leiva, C.; Ariza, M.P.; Seitl, S.; Cifuentes, H. (2019)
Analysis of the tensile fracture properties of ultra-high-strength
fiber-reinforced concrete with different types of steel fibers by X-ray
tomography. Mater. Des. 165, 107582. https://doi.org/10.1016/j.matdes.2019.107582.
).
Therefore, a moderate sonication process was carried out to adequately
determine the particle size of GO and the pore size of the matrix,
because smaller pore sizes of GO do not affect the larger pores of the
matrix. The GO solution was previously agitated for 24 hours. GO was
sonicated for 15 minutes using an ULTRASONS 3000513 device with a power
of 150 W to increase the dispersion of graphene oxide nanoparticles in
water.

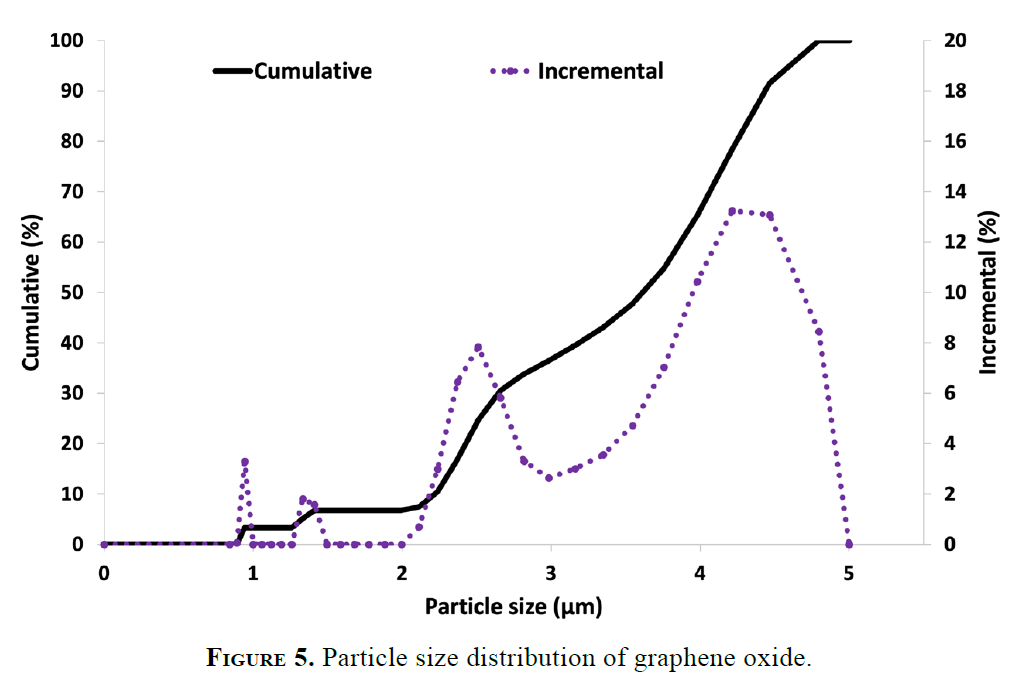

The distribution of graphene oxide is shown in Figure 5. It was measured with a high-definition digital particle size analyzer (Saturn DigiSizer II). Different peaks can be seen in Figure 5 due to the three dimensions of GO (i.e., thickness, width, and length). The two larger peaks - at 2.5 and 4 mm - correspond to the width and length and are quite wide, which means that a high level of dispersion was not reached. The two smaller peaks (at 0.8 and 1.6 mm) correspond to particles of different thicknesses and indicate the low GO-dispersion achieved.
3.2. Leaching study
⌅ Table 4 shows the concentration of leached heavy metals according to EN-12457 (3333.
EN 12457-4. (2003) Characterisation of waste - Leaching - Compliance
test for leaching of granular waste materials and sludges. Part 4: One
stage batch test at a liquid to solid ratio of 10 l/kg for materials
with particle size below 10 mm (without or with size reduction),
European Committee for Standardization.
) of standard sand and recycled sand. The results were also compared to the limits set by European landfill regulations (4444.
Council Directive 1999/31/EC of 26 April (1999) On the landfill of
waste. Official Journal L. 182, 16/07/1999 P. 0001 - 0019. European
Commission (1999) http://data.europa.eu/eli/dir/1999/31/oj.
),
which establish three categories of waste: inert, non-hazardous and
hazardous. Recycled waste (and standard sand) can be considered as inert
waste because both meet the limits set in the regulations.
Standard sand (mg/kg) | Recycled sand (mg/kg) | Inert waste (mg/kg) | Non-hazardous waste (mg/kg) | Hazardous waste (mg/kg) | Italian Ministerial Decree 186 (3434.
IMD 186. (2006) Individuazione dei rifiuti non pericolosi sottoposti
alle procedure semplificate di recupero ai sensi degli articoli 31 e 33
del decreto legislativo 05/02/1997. Gazzetta Ufficiale n. 115. ) (mg/kg) |
|
---|---|---|---|---|---|---|
As | ≤0.05 | ≤0.05 | 0.5 | 2 | 25 | 0.5 |
Ba | 0.82 | 0.17 | 20 | 100 | 300 | 10 |
Ca | 76.62 | 5989.6 | - | - | - | - |
Cd | ≤0.01 | ≤0.01 | 0.04 | 1 | 5 | 0.05 |
Co | 0.01 | 0.01 | - | - | - | 2.5 |
Cr | ≤0.02 | ≤0.02 | 0.5 | 10 | 70 | 0.5 |
Cu | ≤0.015 | ≤0.015 | 2 | 50 | 100 | 0.5 |
Hg | ≤0.005 | ≤0.005 | 0.01 | 0.2 | 2 | 0.01 |
K | 5.99 | 226.32 | - | - | - | - |
Mg | 6.96 | 2.21 | - | - | - | - |
Mo | ≤0.02 | ≤0.02 | 0.5 | 10 | 30 | - |
Na | 1.94 | 230.45 | - | - | - | - |
Ni | ≤0.05 | ≤0.05 | 0.4 | 10 | 40 | 0.1 |
Pb | ≤0.015 | ≤0.015 | 0.5 | 10 | 50 | 0.5 |
Sb | ≤0.015 | ≤0.015 | 0.06 | 0.7 | 5 | - |
Se | ≤0.025 | ≤0.025 | 0.1 | 0.5 | 7 | 0.1 |
Sn | ≤0.01 | ≤0.01 | - | - | - | - |
V | ≤0.02 | 0.29 | - | - | - | 2.5 |
Zn | 0.67 | ≤0.02 | 4 | 50 | 200 | 0.03 |
In Italy, EN 12457-1 (3333.
EN 12457-4. (2003) Characterisation of waste - Leaching - Compliance
test for leaching of granular waste materials and sludges. Part 4: One
stage batch test at a liquid to solid ratio of 10 l/kg for materials
with particle size below 10 mm (without or with size reduction),
European Committee for Standardization.
) results are
used to determine whether waste can be used in construction materials.
According to the limits of the Italian Ministerial Decree (3434.
IMD 186. (2006) Individuazione dei rifiuti non pericolosi sottoposti
alle procedure semplificate di recupero ai sensi degli articoli 31 e 33
del decreto legislativo 05/02/1997. Gazzetta Ufficiale n. 115.
), CDW could be used as they do not exceed any limits, but Standard Sand exceeds the limit set for Zn.
3.3. Physical properties
⌅3.3.1. Density
⌅Figure 6 shows the density of the different compositions with standard sand and CDW waste, with and without the addition of GO. Density is related to two parameters: particle size distribution and the specific gravity of the two types of sands. A higher particle size distribution produces higher porosity between the particles. If the specific gravity is lower, it results in higher porosity inside the particles. SS has a slightly higher particle size and a higher specific density (see Figure 3 and Table 1), so standard sand mortars have a higher density than recycled sand mortars.
Regardless of the material mortars are made of, their density decreases as the water/cement ratio rises. This is because when a high water/cement ratio is used, non-reacted water evaporates during the last period of curing and creates a higher number of pores. When CDW aggregate is used, part of the water is stored inside the CDW aggregate producing a lower density diminution.
As shown by Figure 6, the addition of GO did not affect the mortar density because the amount of GO added was very low. Nevertheless, the effect of GO on the pore size distribution of mortars was very significant (Figure 7). By adding GO, large pores decreased in size and were divided into smaller pores. Between 100 and 1000 μm, the number of large pores decreased, and a larger number of pores between 10 and 100 μm appeared. The peak clearly displaced to finer pores with the addition of GO, and pore volume decreased significantly. The same thing happened to the peak around 0.1 μm: thanks to the addition of GO, the number of pores of that size decreased.
To analyze the influence in pores smaller than 0.1 μm, gas adsorption measurements were performed (Figure 8). As can be seen, there was an increase in the number of nanopores between 60 and 100 nanometers when GO was added. This increase was due to the previous reduction of pores by the addition of 0.1 μm GO. If GO with a low particle size had been used, the largest pores in the mortar would not have undergone any changes.
3.3.2. Humidity, water absorption capacity and porosity.
⌅Table 5 presents other physical properties: humidity content, water absorption capacity and open void porosity.
Mortars | Humidity (%) | Water absorption capacity (%) | Open void porosity (%) |
---|---|---|---|
SS- W/PC=0.37 | 5.6 | 8.3 | 17 |
SS- W/PC=0.45 | 5.7 | 10.1 | 20 |
SS- W/PC=0.5 | 5.8 | 10.8 | 22 |
RS- W/PC=0.5 | 6.9 | 15.6 | 26 |
RS- W/PC=0.6 | 8.1 | 15.6 | 28 |
GO-SS- W/PC=0.37 | 4.1 | 5.4 | 10 |
GO-RS- W/PC=0.6 | 5.1 | 8.8 | 14 |
As mentioned above, when the water/cement ratio is higher, the density is lower because more pores are formed. These properties are inversely related to density, so we expected humidity content, water absorption capacity and open void porosity to be higher when density decreased. When GO was added, density remained almost constant, but pore size decreased, preventing water from entering the sample during these tests.
3.4. Mechanical properties
⌅Figure 9 shows the flexural strength of mortars with different compositions after the 28-day curing period. The strength of all mortars decreased as the amount of water increased. This happened because of the growth in porosity.
There was a considerable difference in the flexural strength values obtained between the two materials. Standard sand showed better results than CDW with the same water/cement ratio. The addition of GO improved the flexural strength of recycled waste. The improvement was greater for CDW.
The mechanical properties of mortars are very dependent on
their microstructure. The corresponding SEM images of the mortars were
also examined to determine the link between mechanical strength and
microstructure. SEM images of the microstructure of mortars containing
recycled aggregate with and without GO are shown in Figure 10.
When the mortar did not contain GO, many needle- and bar-like crystals
emerged on the fracture surface; they were disorderly stacked cement
hydration crystals of ettringite and/or gypsum (Figure 9A).
it is not easy to distinguish both. During the initial stage of
hydration, ettringite decomposes to produce monosulfate, and at the same
time, sulfate ions can be adsorbed in calcium silicate hydrates. Then,
at ambient temperature, the sulfate ions adsorbed in calcium silicate
hydrates leach out and react with monosulfate to form ettringite (4545.
Ando, Y.; Shinichi, H.; Katayama, T.; Torii, K. (2022) Microscopic
observations of sites and forms of ettringite in the microstructure of
deteriorated concrete. Mater. Construcc. 72 (346), e283. https://doi.org/10.3989/mc.2022.15521.
). Since GO is not easy to found at the presented doses. It has been postulated (46-4746.
Basquiroto de Souza, F.; Shamsaei, E.; Sagoe-Crentsil, K.; Duan, W.
(2022) Proposed mechanism for the enhanced microstructure of graphene
oxide-Portland cement composites. J. Build. Eng. 54, 104604. https://doi.org/10.1016/j.jobe.2022.104604.
47.
Sharma, S.; Kothiyal, N.C. (2015) Influence of graphene oxide as
dispersed phase in cement mortar matrix in defining the crystal patterns
of cement hydrates and its effect on mechanical, microstructural and
crystallization properties. RSC Adv. 65, 52642-52657. http://doi.org/10.1039/C5RA08078A.
)
that GO sheets act as 2D platforms to guide the formation of 2D calcium
silicate hydrated microplates with a dense nanostructure form a 3D
network that can mechanically reinforce the cement paste at the
nanoscale. GO regulates the morphology of calcium silicate hydrates and
induces the formation of compact, flower-like C-S-H crystals, so
flexural strength was greater (2424.
Lv, S.; Ma, Y.; Qiu, C.; Sun, T.; Liu, J.; Zhou, Q. (2013) Effect of
graphene oxide nanosheets of microstructure and mechanical properties of
cement composites. Constr. Build. Mater. 49, 121-127. https://doi.org/10.1016/j.conbuildmat.2013.08.022.
, 4848.
Long, W.J.; Wei, J.J.; Xing, F.; Khayat, K.H. (2018) Enhanced dynamic
mechanical properties of cement paste modified with graphene oxide
nanosheets and its reinforcing mechanism. Cem. Concr. Compos. 93, 127-39. https://doi.org/10.1016/J.CEMCONCOMP.2018.07.001.
).
GO gives a filler effect, supplies more nucleation sites at the time of
the hydration process, and regulates the development of cement
hydration crystals (4949.
Wang, M.; Wang, R.; Yao, H.; Farhan, S.; Zheng, S.; Du, C. (2016) Study
on the three dimensional mechanism of graphene oxide nanosheets
modified cement. Constr. Build. Mater. 126, 730-739. https://doi.org/10.1016/j.conbuildmat.2016.09.092.
).
Figure 11 shows the effect of water/cement ratio, type of sand and GO addition on compressive strength; its variation was like flexural strength.
According to CEDEX, the Spanish National Public Works Research Centre (88. CEDEX. Construction and demolition waste. Waste usable in construction. November 2014. Retrieved from https://www.cedexmateriales.es/upload/docs/es_RESIDUOSDECONSTRUCCIONYDEMOLICIONNOV2014.pdf.
),
when 100% fine aggregates are replaced by recycled mortars instead of
standard aggregates, compressive strength can decrease by 33%. In this
case, the experiment showed a 36% loss in compressive strength using
recycled aggregate.
The addition of GO to standard sand and recycled sand mortars resulted in an improvement of approximately 20% in both samples. The action of GO benefitted from enhanced compressive strength. This material reduced the size of internal pores and reinforced its internal structure, leading to a decrease of large pores and an improvement of compressive strength.
The improvement in compressive strength due to the addition of small amounts of GO has been shown by many studies (2727.
Li, W.; Li, X.; Chen, S.J.; Liu, Y.M.; Duan, W.H.; Shah, S.P. (2017)
Effects of graphene oxide on early-age hydration and electrical
resistivity of Portland cement paste. Constr. Build. Mater. 136, 506-514. https://doi.org/10.1016/j.conbuildmat.2017.01.066.
, 4848.
Long, W.J.; Wei, J.J.; Xing, F.; Khayat, K.H. (2018) Enhanced dynamic
mechanical properties of cement paste modified with graphene oxide
nanosheets and its reinforcing mechanism. Cem. Concr. Compos. 93, 127-39. https://doi.org/10.1016/J.CEMCONCOMP.2018.07.001.
, 4949.
Wang, M.; Wang, R.; Yao, H.; Farhan, S.; Zheng, S.; Du, C. (2016) Study
on the three dimensional mechanism of graphene oxide nanosheets
modified cement. Constr. Build. Mater. 126, 730-739. https://doi.org/10.1016/j.conbuildmat.2016.09.092.
).
The introduction of small amounts of GO - as little as 0.0075% by
weight - increased compressive strength by 15-33%. The polyhedron-like
crystal hydration products formed a compacted structure and had greater
compressive strength (Figure 9).
As can be seen in the figure, all mortars exceeded a compressive strength of 20 MPa. Thus, according to the EN 998-2 (5050. EN 998-2. (2018) Specification for mortar for masonry - Part 2: Masonry mortar. European Committee for Standardization.
) specifications for masonry mortars, they would be classified as class M20.
3.4.1. Acid attack test
⌅The properties related to CDW durability have been studied previously (5151.
Gómez-Cano, D.; Arias-Jaramillo, Y.P.; Bernal-Correa, R.; Tobón, J.I.
(2023) Effect of enhancement treatments applied to recycled concrete
aggregates on concrete durability: A review. Mater. Construcc. 73 [349], e308. https://doi.org/10.3989/mc.2023.296522.
),
the foreign agents move through concrete by flowing through the porous
system and diffusion and sorption, which introduces corrosion hazards. Figure 12 shows the variation in compressive strength in a mortar after immersion
in acid for 14 days, compared to a mortar that was not immersed for the
same period.
Acid attack resistance decreases with higher water/cement ratios and with the addition of recycled aggregate because open void porosity increases (see Table 5). Sulphuric acid attacks the matrix, producing gypsum inside the pores, which causes pore spalling and results in worse mechanical properties than cement. As CDW is made up of cement and concrete waste, the reactivity of recycled aggregate increases, decreasing acid resistance; by contrast, standard aggregate is composed mainly of SiO2, which is not reactive, so only the cement matrix is affected by the acid attack.

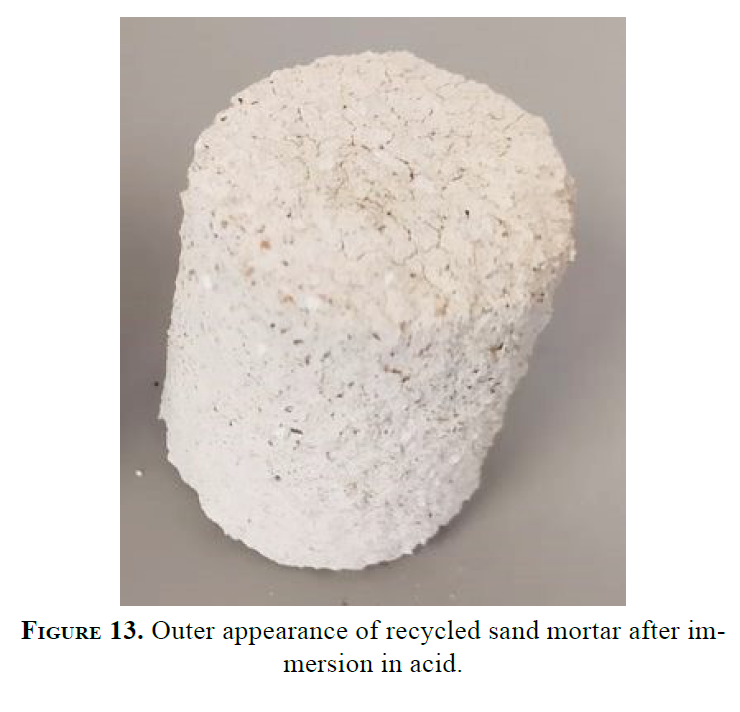

Figure 13 shows a mortar made from recycled fine aggregate with a water/cement ratio of 0.6 and added GO after 14 days of immersion and two days of drying. The sample is covered by a white layer due to the formation of CaSO4∙H2O in the acid attack.
When GO was added, the pore size distribution was lower, which prevented the entry of water (and acid); only gypsum was formed outside and the interior matrix remained unchanged (see Figure 13).

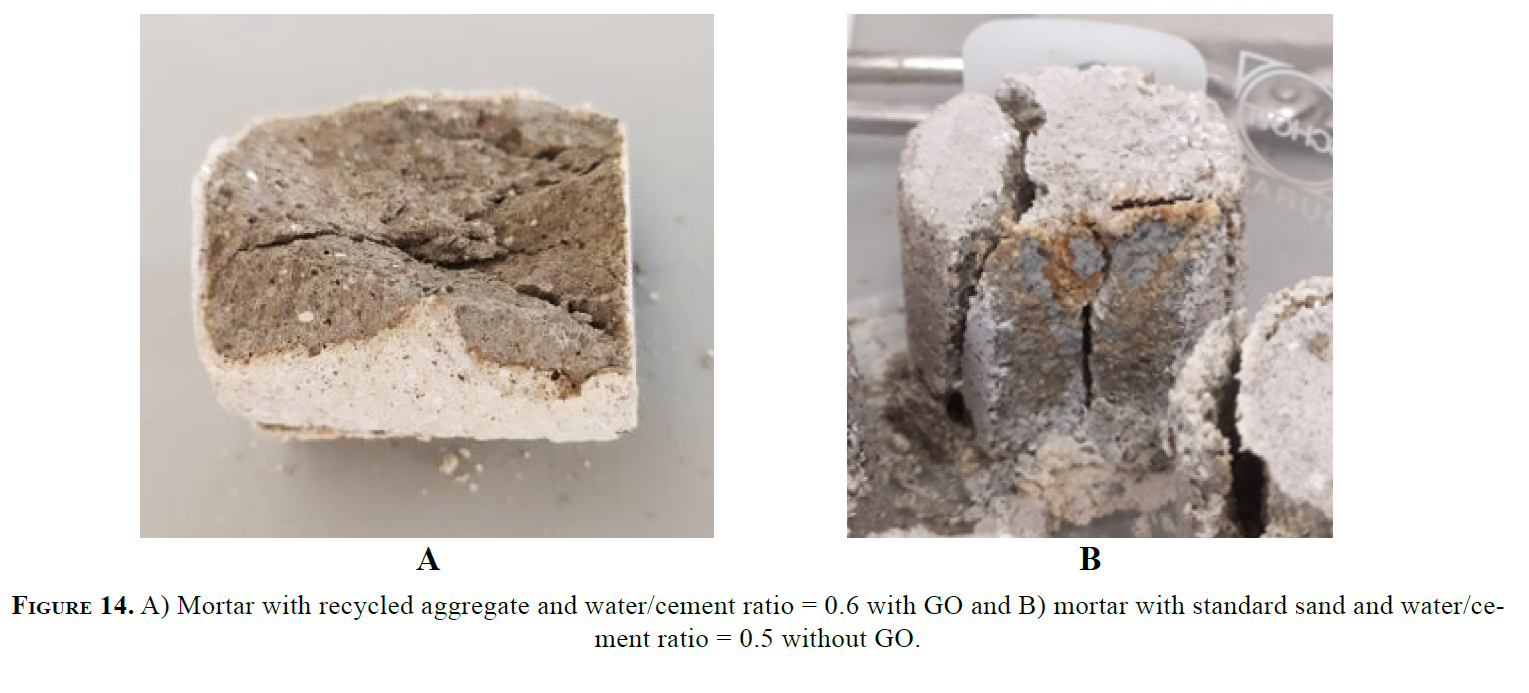

A recycled sand mortar with a water/cement ratio = 0.6 with GO is presented above (Figure 14. A) after the compression test. The sample had a white layer covering the surface, and the inside of the mortar had the colour of cement, which indicated that the attack was only superficial due to the addition of GO. Figure 14. B shows the standard sand mortar with a water/cement ratio = 0.5 without GO when the acid had penetrated the core of the mortar, after the compression test, although it is not as marked as in the outer zone of both samples. Due to its high-water absorption capacity, the acid was able to penetrate more easily, and gypsum formed on the inside, contributing to the breakdown of the material as a result of spalling.
4. CONCLUSIONS
⌅The following conclusions were drawn from this study:
-
The W/C ratio affected all properties. Samples with a lower ratio had better physical and mechanical properties, as their porosity was lower. Recycled aggregates present a higher W/C ratio, due to its lower specific density, which absorb the water during the mixing.
-
Mortars made with standard sand had higher density than those made with recycled sand. Density depends on particle size distribution and specific gravity. According to the compressive strength. Both mortars with two aggregates can be classified as M20, although the particle size of the aggregates is very important factor.
-
The addition of GO improved the properties of mortars with both sands, as graphene oxide reduces the macro and micropores, increasing the nano-pores, obtaining similar total porosities, but increasing the mechanical properties because the nano-pores have no influence in the properties.
-
Graphene oxide acts as a nucleation site for the formation of hydration products during the cement hydration process which accelerates the early-stage hydration reactions, leading to the formation of denser cementitious products which derive into higher compressive and flexural strength.
-
Regarding the acid attack, as recycled sand mortars are more porous, compressive strength decreased more in the samples containing recycled sand than in those containing standard sand. Although the attack was carried out outside of the samples, the addition of GO in mortars made with both types of sand prevented the entry of the acid solution inside and showed a positive compressive strength after the acid immersion.
-
The addition of GO in mortars made with both types of sand prevented the entry of the acid solution inside and showed a positive compressive strength in acid immersion.
-
Standard sand typically has well-rounded particles with a consistent size distribution. This allows for better particle packing and interlocking, resulting in a denser mortar matrix. In contrast, waste sand has irregular particle shapes, impurities, porosity and varying size distributions, leading to less efficient packing and reduced mortar density which conducts to lower mechanical properties and durability.
Although the flexural and compressive results of recycled sand were lower than those of standard sand, they all satisfied the standard and the strengths obtained were sufficient for compliance with EN standard on use in construction sites as masonry mortars.
