1. INTRODUCTION
⌅The
ultramarine blue pigment (UB), that was extensively used in Europe in
the 14th and 15th centuries, was first imported to Europe from Asia. The
pigment was obtained by the purification of lapis lazuli (a
semi-precious stone, from the Latin lapis, stone, and lazulus, blue) by crushing, grinding and cleaning the raw material to separate the other minerals from lazurite (11.
Osticioli Y, Mendes NFC, Nevin A, Gil PSC, Becucci M, Castelluci E.
2009. Analysis of natural and artificial ultramarine blue pigments using
laser induced breakdown and pulsed Raman spectroscopy, statistical
analysis and light microscopy. Spectrochim. Acta Part A. Mol. Biomolec.
Spectros. 73(3):525-531. https://doi.org/10.1016/j.saa.2008.11.028.
).
Therefore, the use of UB pigment was limited due to its high price. In
1828, an artificial UB was synthesized by Guimet, who, in 1830, started a
factory for the commercial production of the pigment (22.
Plesters J. 1966. Identification of materials of paintings: II.
Ultramarine blue, natural and artificial. Studies in conservation.
11(2):76-91.
); the synthetic pigment was rapidly
adopted soon after its invention. A good account of the manufacturing
processes and synthesis of UB can be found in the literature (2-52.
Plesters J. 1966. Identification of materials of paintings: II.
Ultramarine blue, natural and artificial. Studies in conservation.
11(2):76-91.
3. Landman AA. 2003. The role sulphur plays in the
formation of ultramarine blue, in: University of Pretoria ed., Aspects
of solid-state chemistry of fly ash and ultramarine pigments, PhD These,
Chapter 4, Pretoria, 65-76.
4. Arieli D, Vaughan DEW, Golfarb D.
2004. New synthesis and insight into the structure of blue ultramarine
pigments. J. Amer. Chem. Soc. 126(18):5776-5788. https://doi.org/10.1021/ja0320121.
5. Miliani C, Daveri A, Brunetto BG, Sgamellotti A. 2008. CO2 entrapment in natural ultra-marine blue. Chem. Phys. Lett. 466(4-6):148-151. https://doi.org/10.1016/j.cplett.2008.10.038.
6.
Cato E, Rossi A, Scherrer N, Ferreira ESB. 2018. An XPS study into
sulphur speciation in blue and green ultramarine. J. Cult. Herit.
29:30-35. https://doi.org/10.1016/j.culher.2017.09.005.
).
In
general, UB is a pigment whose fundamental structure is a sodium
aluminosilicate type zeolite, with a chromophore structure of
polysulphides inside the zeolite cell. In this type of structure, the
skeleton is formed by chains of aluminosilicates that join to form a
cage-like structure. Sodium ions and chromophores are located inside the
cell. Synthetic ultramarine samples have a higher chromophore
concentration than natural pigments (55. Miliani C, Daveri A, Brunetto BG, Sgamellotti A. 2008. CO2 entrapment in natural ultra-marine blue. Chem. Phys. Lett. 466(4-6):148-151. https://doi.org/10.1016/j.cplett.2008.10.038.
, 66.
Cato E, Rossi A, Scherrer N, Ferreira ESB. 2018. An XPS study into
sulphur speciation in blue and green ultramarine. J. Cult. Herit.
29:30-35. https://doi.org/10.1016/j.culher.2017.09.005.
).
UB
has a general chemical formula of An((Al, Si)12O24)X2, where A
represents the cations included in the structure (mainly Na+, although
it can also include K+, Mg2+, Ca2+) and X represents the anions included
in the structure, fundamentally SO42- and S3- (77.
Climent-Pascual E, Sáez-Puche R, Gómez-Herrero A, Romero J. 2008.
Cluster ordering in synthetic ultramarine pigments. Micropor. Mesopor.
Mater. 116(1–3):344–351. https://doi.org/10.1016/j.micromeso.2008.04.026.
).
These pigments, due to their similarity to zeolites, have a high cation
exchange capacity. Therefore, the sodium atoms can be replaced by other
cations, among which are K, Ca and Mg. Many studies have been published
about the structure of the aluminosilicate framework of natural and
synthetics UB (55. Miliani C, Daveri A, Brunetto BG, Sgamellotti A. 2008. CO2 entrapment in natural ultra-marine blue. Chem. Phys. Lett. 466(4-6):148-151. https://doi.org/10.1016/j.cplett.2008.10.038.
, 88.
Booth DG, Dann SE, Weller MT. 2003. The effect of the cation
composition on the synthesis and properties of ultramarine blue. Dyes
Pigmen. 58(1):73-82. https://doi.org/10.1016/S0143-7208(03)00037-8.
).
In
the world of art and art restoration, the deterioration of ultramarine
blue is known as “ultramarine sickness” or “ultramarine disease” (9-149.
Cato E, Borca C, Huthwelker T, Ferreira ESB. 2016. Aluminium X-ray
absorption near-edge spectroscopy analysis of discoloured ultramarine
blue in 20th century oil paintings. Microchem. J. 126:18-24. https://doi.org/10.1016/j.microc.2015.11.021.
10.
Plesters J. 1993. Ultramarine blue, natural and artificial, in: ashok
roy ed., artists pigments: a handbook of their history and
characteristics, vol. 2, National Gallery of Art, Washington, 37-65.
11.
Del Federico E, Newman J, Tyne L, O’Hern C, Isolani L, Jerschow A.
2006. Solid-state NMR studies of ultramarine pigments discoloration. MRS
Online Proceedings Library Archive 984, 713. https://doi.org/10.1557/PROC-984-0984-MM07-13.
12.
Del Federico E, Shöfberger W, Schelvis J, Kapetanaki S, Tyne L,
Jerschow A. 2006. Insight into framework destruction in ultramarine
pigments. Inorg. Chem. 45(3):1270-1276. https://doi.org/10.1021/ic050903z.
13.
De la Rie ER, Michelin A, Ngako M, Del Federico E, Del Grosso C. 2017.
Photo-catalytic degradation of binding media of ultramarine blue
containing paint layers: A new perspective on the phenomenon of
“ultramarine disease” in paintings. Polym. Degrad. Stab. 144:43-52. https://doi.org/10.1016/j.polymdegradstab.2017.08.002.
14.
Cato E, Scherrer N, Ferreira ESB. 2017. Raman mapping of the
S3-chromophore in degraded ultramarine blue paints. J. Raman Spectros.
48(12):1789-1798.
). Different alternatives have been developed for the protection of UB pigment from degradation. Gobeltz et al. (1515.
Gobeltz N, Demortier A, Lelieur JP, Duhayon C. 1998. Encapsulation of
the chromophores into the sodalite structure during the synthesis of the
blue ultramarine pigment. J. Chemic. Soc. Farad. Transac.
94(15):2257-2260. https://doi.org/10.1039/A801526K.
)
investigated the encapsulation of the chromophores into the sodalite
structure during the synthesis of the UB pigment and confirmed the
results with a source of polysulphides. Liu et al. (1616.
Liu QX, Xu ZH, Finch JA, Egerton RA. 1998. A novel two-step silica
coating process for engineering magnetic nanocomposites. Chem. Mater.
10(12):3936-3940. https://doi.org/10.1021/cm980370a.
)
proposed a two-step silica coating process (sol−gel process followed by
dense liquid process used to form silica films on surfaces to minimize
photodegradation). Compared with the single-step sol−gel or the
dense-liquid-coating process, the two-step process produces magnetic
nanocomposites with the highest protection against acid attack at the
lowest level of silica coatings with maximized magnetization. Li et al. (1717.
Li S, Liu M, Sun I. 2011. Preparation of acid-resisting ultramarine
blue by novel two-step silica coating process. Industr. Engineer. Chem.
Res. 50(12):7326-7331. https://doi.org/10.1021/ie200343k.
)
proposed another two-step method for the preparation of acid-resistant
UB particles with highly dense, smooth and uniform silica films. They
compared the resistance to hydrochloric acid of the UB prepared with the
method with those achieved by dense liquids, sol-gel, and conventional
two-step coatings. A great enhancement of acid resistance for
ultramarine blue was achieved by coating the pigment particles with
transparent silica films (1818.
Liu M, Li S, Umereweneza D. 2011. Enhancement of acid resistance for
ultramarine blue by silica coatings. Advanc. Mater. Res.
291-294:163-166. https://doi.org/10.4028/www.scientific.net/AMR.291-294.163.
). Aranzabe et al. (1919.
Aranzabe E, Villasante PM, March R, Arriortua MI, Vadillo J, Larrañaga
A, Aranzabe A. 2016. Preparation and characterization of NIR reflective
pigments based in ultramarine blue. Ener. Build. 126:170-176. https://doi.org/10.1016/j.enbuild.2016.05.011.
) developed pigments based on a standard UB coated with different reflecting films, based on TiO2,
containing different types and concentrations of nanoparticles of
alumina, titania and their mixtures. The pigments were dispersed in a
water-based paint, stainless steel substrates were then painted with
50mm thick layer and the total solar reflectance (TSR) was measured. All
of the obtained pigments increased the TSR of the original UB pigment.
There
are references in the scientific literature that show the instability
of the Ultramarine Blue pigments in cementitious media and evaluate the
improvement of mechanical properties (20-2220.
Kroone B. 1968. The reaction between hydrating Portland cement and
ultramarine blue. Chemistry and Industry. London, 287-288.
21. Posada
N, Sanmartín R, Restrepo O. 2003. Coloración de cemento con pigmento
azul ultramar. DYNA 70(139):35-45. Retrieved from https://www.redalyc.org/articulo.oa?id=49613905.
22.
Restrepo J, Restrepo O, Tobón O. 2009. Evaluación del desempeño
mecánico del cemento blanco coloreado con pigmento azul ultramar. DYNA
76(157):225-231. Retrieved from https://revistas.unal.edu.co/index.php/dyna/article/view/9571/11501
). They indicate the convenience of protecting the
pigment by means of encapsulation or using additions with pozzolanic
characteristics, to avoid the loss of colour. Giraldo et al. (2323.
Giraldo C, Tobón JI, Restrepo OJ. 2012. Ultramarine blue-pigment: A
non-conventional pozzolan. Constr. Build. Mater. 36:305-310. https://doi.org/10.1016/j.conbuildmat.2012.04.011.
)
delved into the pozzolanic properties of the pigment by replacing high
percentages of white Portland cement (10 and 20%); attributing the
reaction between the pigment and the portlandite to the formation of
hauynite. They replaced the sodium ion for a calcium ion in the
structure of UB, which would cause the disintegration and discoloration
of the pigment samples.
The degradation process of the UB pigment in cementitious matrices involves a series of physical-chemical processes that the present work incrementally analyses in order to reveal the phenomenon that destabilizes the chromophore.
To evaluate the influence of different characteristic parameters of the cementing medium in the degradation process, the loss of colour of the pigment in solution was first addressed. Then, the influence of the pigment on the hydration of the cement and the formation of hydrated phases in cement pastes was studied. For this, two commercial UB pigments were used, one with, and the other without, a protective coating, in order to compare the degradation process in both.
2. MATERIALS AND METHODS
⌅2.1. Materials
⌅The samples initially used in the study were of pigment powder and then cement pastes incorporating the pigment. The cement used in the production of the different samples was a white cement BL I 52.5R. Its chemical composition is presented in Table1, with a specific gravity of 3060 g/cm3 and a specific surface (Blaine) of 410 m2/kg.
Oxide content (%) | Cement | UB0 | UB1 |
---|---|---|---|
SiO2 | 21.4 | 37.2 | 53.7 |
Al2O3 | 4.1 | 22.9 | 15.3 |
CaO | 65.4 | 0.8 | 0.5 |
K2O | 0.6 | 0.9 | 0.4 |
Na2O | 0.1 | 19.4 | 13.0 |
SO3 | 3.4 | 12.9 | 9.2 |
P2O5 | - | 0.1 | 1.4 |
ZnO | - | 2.0 | |
MgO | - | 0.2 | |
BaO | 1.3 | 0.4 | 0.6 |
TiO2 | - | 0.02 | 0.1 |
Fe2O3 | - | 0.4 | 0.3 |
Rb2O | 0.3 | 0.02 | |
SrO | - | 0.02 | 0.02 |
ZrO | - | 0.02 | |
LoI | 3.2 | 4.85 | 3.53 |
To carry out the studies, two commercially available ultramarine blue pigments (called UB0 and UB1) were used. The pigments studied were two different developments from the same company, being the pigment UB1 a modification of UB0 by incorporating a protective encapsulation to prevent its degradation in cementitious media. This encapsulation was made by silicates and water-repellent additives. Table 1 shows the chemical composition (in the form of major oxides) of both pigments determined by XRF. It can be seen that the fundamental difference between pigment UB0 and UB1 is in the silicon, zinc and phosphorus contents, probably related to the encapsulation treatment to which pigment UB1 has been put through.

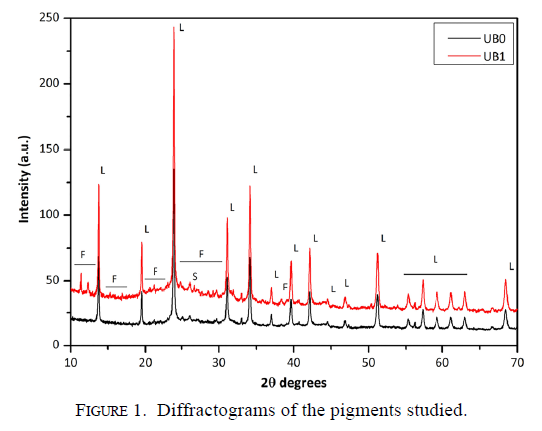

The X-ray diffractograms of the pigments studied are shown in Figure 1. Most of the peaks detected correspond to a lazurite phase (L), which is characteristic of the ultramarine blue pigment. The Lazurite chemical formula is Na4Al3Si3O12S. The pigment sample UB1 presented another series of peaks, along with phase L, corresponding to zinc phosphate (F), and a halo between 20° and 30° 2θ that reveals the presence of amorphous components, probably amorphous silica due to the presence of spikes associated with silica (S) in the diffractogram.
2.2. Experimental program
⌅To study the degradation of the pigments, an incremental study was carried out to analyse the pigments dissolution, as well as in pastes.
2.2.1. Study of pigment deterioration in different solutions
⌅In the initial phase of the study, the process of colour loss of the pigment in solution was addressed, to evaluate the influence of different characteristic parameters of the cementitious medium in the degradation process (such as pH, alkali content and Ca2+ ion content).
Dissolution studies were carried out based on a modification of the method developed by Chinchón-Payá et al. (2424.
Chinchón-Payá S, Aguado A, Chinchón S. 2012. A comparative
investigation of the degradation of pyrite and pyrrhotite under
simulated laboratory conditions. Engineer. Geol. 127:75-80. https://doi.org/10.1016/j.enggeo.2011.12.003.
) for the study of the oxidation of pyrites and pyrrhotites. Three different solutions were used, with a constant O2 contribution, to study the above indicated parameters: a neutral
solution (NS, medium only with water); a saturated solution of Ca(OH)2,
named SSC; and a solution that simulated the aqueous phase of the
pores, named SSP (using KOH 0.6 mol/l; NaOH 0.2 mol/l; and Ca(OH)2 until saturation). The solid / liquid ratio used was 1/20 (20 g of
pigment per 400 ml of solution). The test duration was 60 days, during
which the pH of the solution was periodically monitored. Likewise,
samples of solution were extracted at 1, 3, 17 and 60 days for chemical
analysis by ion chromatography and inductively coupled plasma - optical
emission spectrometry (ICP-OES).
Through ion chromatography, the concentration of sulphates in the different media was monitored. The increase in sulphate concentration is directly related to the pigment degradation. As this occurs, the chromophore can get rid of the structure and oxidise. The following elements were analysed by ICP-OES: Na, K, Ca, Fe and Al. This allowed the analysis of the variation of its concentration as a function of the reaction time for the different media.
At the end of the test, the remaining solids were characterised by XRD, XRF and infrared spectroscopy and the results were compared with the analyses performed on the solid samples before beginning the dissolution analysis. Colorimetric analyses were also performed to determine the colour change in the samples.
2.2.2. Study of pigment deterioration in cement pastes
⌅In the second stage of the experimental campaign, the evolution of the hydrated phases and the pigment in cement pastes were studied, using point and continuous DRX measurements. In order to do this, cement pastes were manufactured incorporating the pigments studied at 4% on the weight of the cement (wc). In all the pastes, a fixed cement content (300 g) and a water/cementitious material ratio of 0.35 (corresponding to the amount of water necessary to obtain a normal consistency paste) were used.
2.3. Characterization techniques
⌅2.3.1. X-Ray Diffraction measurement
⌅Two types of XRD analysis were performed: point measurements and continuous measurements. For the point measurements, a PANalytical X’Pert PRO MPD Alpha1 was used, working in reflection with Bragg-Brentano geometry. CuKα radiation (λ = 1.5418 Å) filtered by Ni and an X’Celerator detector (active length of 2,122°), operating at 40 kV and 45 mA were used. The analysis conditions were between 4° 2θ to 80° 2θ, using an angular pitch of 0.017° 2θ and a step time of 50 seconds, with a variable divergence slit.
Continuous XRD measurements were performed following the same methodology used by Salvador et al. (2525.
Salvador RP, Cavalaro SHP, Segura I, Figueiredo AD, Pérez J. 2016.
Early age hydration of cement pastes with alkaline and alkali-free
accelerators for sprayed concrete. Constr. Build. Mater. 111:386-398. https://doi.org/10.1016/j.conbuildmat.2016.02.101.
)
to study the evolution of the hydration of cement pastes with setting
accelerators. To this end, cement pastes were manufactured shortly
before their measurement with an w/c ratio of 0.4, 4% wc pigment. An internal alumina standard (NIST) was incorporated at 10% wc.
To avoid water evaporation during the measurements and carbonation of
the samples, the sample holders were covered with a Kapton® film, with a
thickness of 7.5µm. The temperature remained constant during the
measurement process at 26 oC. The measurements were made in a
PANalytical X’Pert PRO MPD θ / θ device, working in reflection with
Bragg-Brentano geometry. CuKα radiation (λ = 1.5418 Å), filtered by Ni,
and a PIXcel detector (active length of 3,347°) were used, operating at
40 kV and 45 mA. Cylindrical sample holders, 32 mm in diameter and 3 mm
deep, were used, which amounted to the use of approximately 3.7 g of
paste for each test. The analysis conditions were between 5° 2θ and 70°
2θ, using an angular pitch of 0.026° 2θ and 60 seconds of passage time,
with a fixed divergent slit of 0.5. A diffractogram was recorded every
hour for the different samples, obtaining the first diffractogram 6
minutes after mixing the cement with the water. During the first 48
hours after mixing the cement with the water, diffractograms were
obtained at the following times: 6 minutes, 1 hour, 12 hours, 24 hours
and 48 hours. Once the continuous monitoring was completed, the samples
were extracted and kept in containers with water, to facilitate the
hydration process and to accelerate the possible degradation process.
The samples, thus preserved, were maintained for a maximum of 24 days,
obtaining diffractograms at 3, 5, 7, 10, 14, 17, 21 and 24 days. At the
end of the study, all samples had lost the blue hue. The different
diffractograms obtained were analysed qualitatively using X’Pert High
Score Plus software.
2.3.2. Chemical analysis methods
⌅The ICP analyses were performed with a Perkin Elmer Optima 4300DV Inductively Coupling Plasma emission spectrometer. The ion chromatography was carried out in a Dionex DX500 ion chromatography System. Likewise, quantification of the oxide content was carried out by X-ray fluorescence, in a sequential X-ray spectrometer (PHILIPS MAGIX PRO) equipped with a rhodium tube and beryllium window.
The characterisation of the solids before and after the experiment was carried out by infrared (IR) spectroscopy using an FT-IR Spectrometer (Bruker IF66 / S).
2.3.3. Colorimetric analysis
⌅The
analysis was conducted using an X-rite spectrophotometer (model
RM200QC) with a measurement area of 8 mm in diameter, independent
tri-directional 25 LED light source, D65 illuminant and an observer
angle of 10o. Colour was expressed in the CIE L*a*b* space (2626.
Teichmann G. 1990. The use of colorimetric methods in the concrete
industry. Beton. Fertig.-Tech./Concr. Precast. Plant Technol. 10:58-73.
, 2727.
López A, Guzmán GA, Di Sarli AR. 2016. Colour stability in mortars and
concretes. Part 1: Study on architectural mortars, Constr. Build. Mater.
120:617-622. https://doi.org/10.1016/j.conbuildmat.2016.05.133.
).
The parameters measured were the lightness L* (varying from black to
white: 0 and 100, respectively), a* (which varies from +a* and -a*, red
and green, respectively) and b* (with ranges from +b* and -b*, yellow
and blue, respectively). The total colour change ΔE* 76 was computed using successive measurements performed at different times:
where DL*= L*t - L*1; Da*= a*t - a*1 and Db*= b*t - b*1,
which are the colour differences between age 1 and age t, according to
the comparison of the colour before and after the exposure,
respectively. For the purposes of the evaluation of the total color
change, the criteria indicated in Table 2 were adopted, according to (2626.
Teichmann G. 1990. The use of colorimetric methods in the concrete
industry. Beton. Fertig.-Tech./Concr. Precast. Plant Technol. 10:58-73.
, 2828.
López A, Di Sarli AR. 2020. Measurements number in cementitious
mixtures to define the colour and its homogeneity. Constr. Build. Mater.
238:117636. https://doi.org/10.1016/j.conbuildmat.2019.117636.
, 2929.
López A, Tobes JM, Giaccio G, Zerbino R. 2009. Advantages of
mortar-based design for coloured self-compacting concrete. Cem. Concr.
Compos. 31(10):754-761. https://doi.org/10.1016/j.cemconcomp.2009.07.005.
).
ΔE76 * | Visual assessment of DE* |
---|---|
0.5<ΔE76 * < 1.5 | Slight |
1.5<ΔE76 * <3.0 | Obvious |
3.0<ΔE76 * <6.0 | Very obvious |
6.0<ΔE76 * < 12.0 | Large |
3. RESULTS AND DISCUSSION
⌅3.1. Dissolution Testing
⌅3.1.1. pH evolution

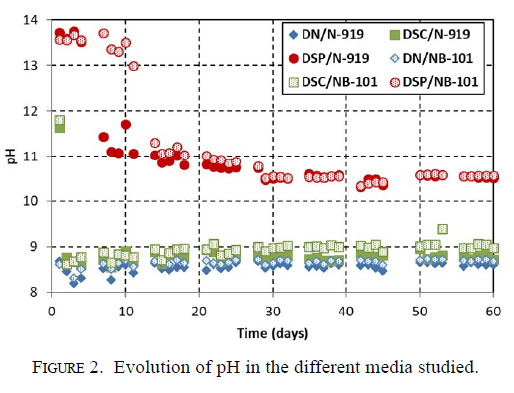

⌅Figure 2 shows the evolution of pH with exposure time, depending on the type of sample and the environment studied. The medium with the highest pH value is the one that simulates the aqueous phase of the pores (SSP). In general, there is a decrease in pH in all media regarding values at early ages, although there are differences regarding the speed of change.
The neutral solution (NS) and the saturated solution of calcium hydroxide (SSC) stabilised at a pH between 8.5 and 9.0, by the second or third days after starting the studies. In this sense, there are no significant differences in behaviour between the two pigments studied. The rapid and significant variation of pH in the SSC medium was equal to the pH values of the NS medium. The effect of CO2 (carbonation) on pH decrease is clear in both SSC and SSP mixtures. The medium that simulates the aqueous phase of the pores (SSP) maintains high pH values for longer time due to larger amount of OH ions (Ca(OH)2 has, by contrast, low solubility product). In this case stabilisation occurs around 20 days with a pH value close to 10.5. In this medium, behavioural differences are observed between the two pigments studied, the main one being the fact that it took twice as long for the UB1 sample to achieve pH stabilisation in relation to the UB0 sample (16 days and 8 days, respectively).
3.1.2. Ion chromatography
⌅The sulphate concentration in the different media is monitored by ion chromatography. Figure 3 shows this variation depending on the type of sample, medium and time of sampling. Each value represented in Figure 3 is the mean of the results of 5 samples, the coefficients of variation obtained by a basic statistical analysis of the results in all cases were less than 1%.
In all of the samples studied, an increase in the sulphate content occurs with the exposure time. However, this increase is more noticeable in the UB1 pigment samples and in the samples exposed to the solution that simulates the aqueous phase of the pores (SSP). These results show the different behaviour of both pigments, as well as the different aggressiveness of the solutions under study.
3.1.3. ICP-OES
⌅The following elements have been analysed using the ICP-OES technique: Na, K, Ca, Fe and Al. Table 3 shows the variation of its concentration as a function of the reaction time. It is worth noting that Fe ion was not detected in any of the solutions.
Media | Time (days) | Ca (ppm) | K (ppm) | Na (ppm) | Al (ppm) | ||||
---|---|---|---|---|---|---|---|---|---|
UB0 | UB1 | UB0 | UB1 | UB0 | UB1 | UB0 | UB1 | ||
SN | 1 | 0.722 | 0.0 | 2.2 | 1.4 | 107 | 120 | 0.577 | 0.034 |
3 | 0.828 | 0.376 | 7.0 | 8.1 | 149 | 150 | 0.717 | 0.037 | |
17 | 1.664 | 0.15 | 11.1 | 2.4 | 204 | 187 | 1.1 | 0.149 | |
60 | 0.854 | 0.0 | 5.5 | 2.3 | 268 | 237 | 0.590 | 0.207 | |
SSC | 1 | 3.9 | 62.2 | 12.5 | 10.8 | 120 | 64 | 9.5 | 0.163 |
3 | 14.8 | 51.9 | 3.4 | 1.6 | 150 | 123 | 0.884 | 0.011 | |
17 | 7.1 | 61.0 | 5.1 | 2.7 | 187 | 224 | 1.6 | 0.036 | |
60 | 6.1 | 35.3 | 5.9 | 2.9 | 237 | 329 | 1.3 | 0.145 | |
SSP | 1 | 0.0 | 0.0 | 19420 | 20070 | 5250 | 5358 | 174 | 9.9 |
3 | 0.0 | 0.0 | 21260 | 19790 | 6087 | 5480 | 203 | 11.8 | |
17 | 71.9 | 20.3 | 25500 | 24120 | 8666 | 7344 | 11.0 | 2.6 | |
60 | 0.0 | 6.5 | 33200 | 33900 | 13100 | 11200 | 11.3 | 0.0 |
First, the variation of the calcium ion content will be analysed. The variations obtained differ significantly depending on the medium, so they will be analysed separately. On the one hand, the samples contained in the neutral solutions (NS) hardly show any increase in the calcium content, with only minor increases occurring for the UB0 sample. On the other hand, saturated solutions of calcium hydroxide (SSC) show significant differences in calcium ion content between both pigments. Considering that it initially started from a concentration of 1850 ppm of calcium in solution (saturated medium), the decrease in calcium content in solution may be due to both environmental carbonation and the incorporation of the calcium ions into the pigment structure. The differences obtained between the pigment samples show a reaction of the calcium in solution with the pigment, which was much more significant in the UB0 sample. Finally, in the SSP medium, the observed behaviour is anomalous a priori. For both samples studied, during the first few days, it was not possible to detect calcium in solution; subsequent measurements showed an increase in its concentration and a subsequent disappearance or decrease.
In the case of the variation of the potassium ion content, the variations are significantly different depending on the type of medium. In the neutral solution and that saturated with calcium hydroxide there are very low contents of this ion (below 13 ppm in all cases). The variations observed in these cases are within the detection limit of the technique and cannot be attributed to specific behaviours. The solution that simulates the aqueous phase of the pores (SSP) shows an increase in the potassium ion content in solution throughout time, without appreciating significant differences between both pigments.
Studies carried out by Booth et al. (88.
Booth DG, Dann SE, Weller MT. 2003. The effect of the cation
composition on the synthesis and properties of ultramarine blue. Dyes
Pigmen. 58(1):73-82. https://doi.org/10.1016/S0143-7208(03)00037-8.
)
revealed that the modification in cation type and content in the
pigment structure leads to an increase in the size of the unit cell
(larger structures), and also to interactions between the cations and
the chromophore that can lead to a colour change. Based on the data in Table 1,
the potassium content in the pigments was less than 1%. Likewise, the
initial content of potassium ion in solution was 24,000 ppm (0.6 mol /
L). The K concentration increase in SSP along time, evidencing a
possible ion-exchange phenomenon between the pigment and the solution.
The variation in sodium ion content shows similar trends for the different samples and media studied, as can be seen in Table 3. In all cases, a continuous increase in the sodium ion content is observed throughout time, both in the UB0 sample and in UB1.It is noteworthy that the ion content that is present in solution differs significantly between the samples exposed to the medium that simulated the aqueous phase of the pores (SSP) and the rest of the samples (NS and SSC). The initial sodium ion content in that medium was approximately 4,600 ppm, which shows the ion exchange process that is taking place.
Finally, by analysing the aluminium ion content in a general way, in the different samples and media studied, it can be seen that its variation is minor, with the exception of the samples exposed to the medium that simulates the aqueous phase of the pores (SSP). In this medium, both UB0 and UB1 show an increase in the content of aluminium ions in the first 3 days subsequently, show a reduction. In the case of UB0 it goes from a concentration of 203 ppm to one of 11 ppm. This abrupt variation in the content of the aluminium ions may be related to some precipitation or reaction process.
The results presented show that:
-
An ion exchange phenomenon occurs. This ion exchange takes place between the sodium ions of the pigment and the calcium and potassium ions present in the different media, without ruling out the existence of other ions or impurities present in the pigments that could also contribute to this phenomenon.
-
The ion exchange takes place in the three studied media, with different extensions in each one of them. When potassium ions are present (as is the case with the medium that simulated the aqueous phase of the pores, SSP), it takes place to a greater extent.
-
Only the samples exposed to the SSP environment have shown evidence of modification of the aluminosilicate structure that makes up the pigment cell. This modification has been confirmed by the presence of aluminium contributed to the solution after the degradation of the pigments and the higher concentration in the samples exposed to the SSP medium at 1 and 3 days.
3.1.4. Solids analysis
⌅Different samples of solids were taken at the same times as the aliquots for the solutions analyses (at 1, 3, 18 and 60 days). The results obtained by XRD and XRF were compared to analyses carried out on the solid samples before beginning the dissolution analyses. Similarly, infrared spectroscopy analyses were performed on both non-degraded pigments and the final solids of each of the degradation experiences (after 60 days of exposure). The results obtained are presented and discussed below.
Diffractograms obtained for both pigments preserved in the neutral solution (NS), at the different ages studied, did not show significant differences, being consistent with the results of the analysis of the solutions, where no significant changes were evident.
Diffractograms of the samples of both pigments exposed to the lime saturated solution (SSC) showed some differences compared to the untreated sample. The main difference found was the appearance of new peaks at different angular spacings, in the 29 to 30 ° 2θ and 43 to 50 ° 2θ intervals in the UB0 pigment, and in the first interval only in the UB1 pigment. These corresponded to the presence of calcite and could be induced during sample preparation of UB0 for the XRD; in pigment UB1 they were less noticeable than in UB0.

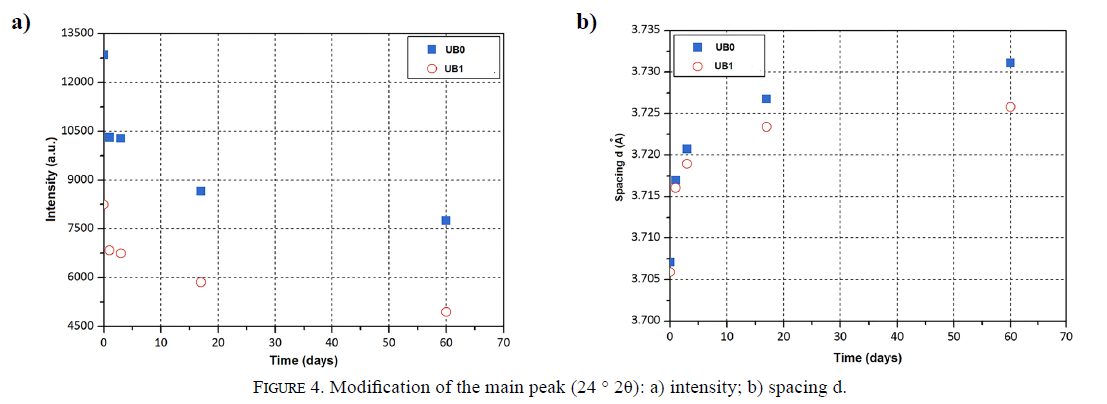

Diffractograms of the two pigments that were exposed to the SSP medium, showed greater differences. The main variations were in relation to the intensity losses in the peaks (displacement to 2θ lower values and an increase in the width of the peaks) as the exposure time of the pigments in solution progresses. The effect of the degradation process is shown in Figure 4, with the variation of the intensity and spacing of the peak located at 24 ° 2θ.
The decrease in the intensity of the peak shows that the crystalline structure is changing, while the modification of spacing d indicates that an increase in the size of the unit cell (and its distortion) is taking place.
As the degradation process progresses, the structure degrades, as shown in Figure 4b . This modification leads to destabilisation and oxidation of the S3- chromophore and, therefore, to loss of pigment colour.
The analysis of both parts of the figure shows that the degradation phenomenon occurs more significantly in UB0 than in UB1, although both samples show evidence of modifications in their crystal structure. The modification that takes place is a distortion of the lazurite-like structure of the pigment and a loss of crystallinity, this may be associated with the formation of a new phase.

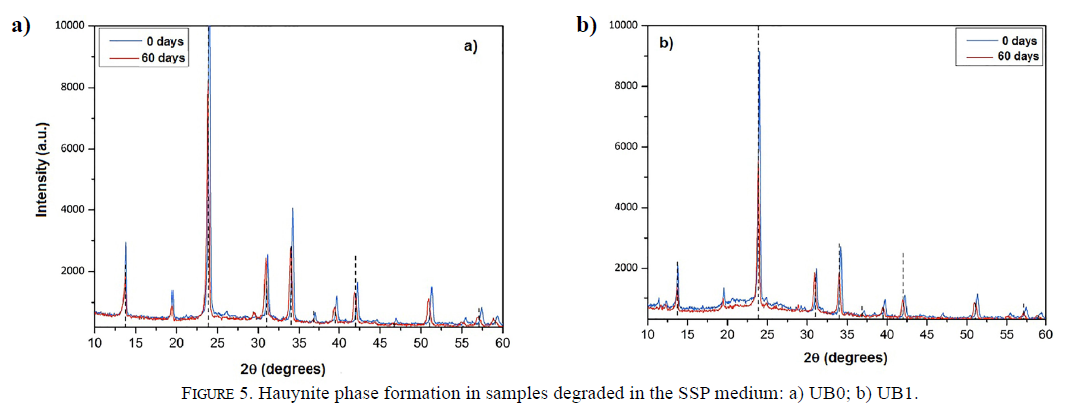

Figure 5 shows the diffractograms of UB0 and UB1 after times 0 and 60 days in
the SSP medium, showing the coincidences with the hauynite phase (showed
as dashed lines on the diffractograms). Previous results presented by
Giraldo (2323.
Giraldo C, Tobón JI, Restrepo OJ. 2012. Ultramarine blue-pigment: A
non-conventional pozzolan. Constr. Build. Mater. 36:305-310. https://doi.org/10.1016/j.conbuildmat.2012.04.011.
)
also evidenced the formation of this phase. The new phase that is
formed could be related to hauynite, since the displacement of the peaks
coincides with that of this phase and has the chemical formula: K1,6Ca2,4Na4,32(Al6Si6O24)(SO4)1,52. It is also an alumino-silicate, but has incorporated calcium and potassium into its structure.
The
degradation of the pigment structure is observed in the X-ray
diffractograms. Peak modifications have been noted, as well as
distortion of the unit cell. According to (33.
Landman AA. 2003. The role sulphur plays in the formation of
ultramarine blue, in: University of Pretoria ed., Aspects of solid-state
chemistry of fly ash and ultramarine pigments, PhD These, Chapter 4,
Pretoria, 65-76.
), the diffractograms of the samples
depend fundamentally on the structure of the aluminosilicate.
Ultimately, it is this modification of the aluminosilicate structure
that favours the loss of colour of the pigment.
The chemical composition of the solids obtained after 60 days of treatment was determined by means of X-ray fluorescence and compared with the untreated samples of the pigments. Likewise, the loss on ignition (LOI) of the different samples was determined. The results obtained are shown in Table 4, for the different environments studied.
CaO | Al2O3 | SiO2 | SO3 | P2O5 | Na2O | K2O | LoI | Si/Al | |
---|---|---|---|---|---|---|---|---|---|
UB0 | 0.8 | 24.1 | 39.1 | 13.6 | 0.1 | 20.4 | 0.9 | 4.9 | 1.63 |
NS/UB0 | 0.8 | 27.1 | 43.9 | 4.8 | 0.1 | 20.9 | 1.2 | 10.2 | 1.62 |
SSC/UB0 | 3 | 26 | 42 | 5 | 0.1 | 20 | 1 | 11.8 | 1.59 |
SSP/UB0 | 1 | 24 | 40 | 7 | 0.1 | 16 | 10 | 35.2 | 1.64 |
UB1 | 0.5 | 15.9 | 55.7 | 9.5 | 1.5 | 13.5 | 0.4 | 3.5 | 3.51 |
NS/UB1 | 0.5 | 17.5 | 57.9 | 4.5 | 1.6 | 13.9 | 0.7 | 12.0 | 3.30 |
SSC/UB1 | 2.0 | 15.6 | 59.2 | 4.9 | 1.6 | 12.9 | 0.5 | 8.3 | 3.80 |
SSP/UB1 | 0.8 | 14.2 | 53.9 | 7.8 | 0.9 | 10.7 | 9.1 | 13.2 | 3.80 |
It is worth noting that the pigments were mainly composed of silicon, sodium and sulphur, as shown in Table 1, and that they hardly showed any trace of calcium or potassium in their composition.
Firstly, the variation of aluminium and silicon content was analysed, since it may show modifications in the structure of the zeolite that contains the chromophore. In both cases, the observed variations do not clearly show the effect of the degradation process.
It must be taken into account that X-ray fluorescence provides contents in percentages, so the variation of one of the components can affect the others. In this sense, the analysis of the Si/Al ratio in the pigment can provide more information on the degradation phenomenon, as can be seen in Table 4. This relationship hardly varies in the UB0 samples while there is a slight variation in the UB1 samples exposed to SSC and SSP environments, showing a slight loss of aluminium in the structure.
The analysis
of the other major pigment component, sodium, shows that, in both
pigments, the samples exposed to the SSP environment show significant
reductions in its content. In the analysis of the major components of
the pigments, it is worth noting the variation in the sulphur content.
In this sense, a noticeable decrease in the sulphur content is observed
for all samples and studied environments, although in SSP this decrease
was the smallest. In ultramarine pigments, sulphur can be found in the
form of a chromophore (S3-) or in the form of a sulphate ion (77.
Climent-Pascual E, Sáez-Puche R, Gómez-Herrero A, Romero J. 2008.
Cluster ordering in synthetic ultramarine pigments. Micropor. Mesopor.
Mater. 116(1–3):344–351. https://doi.org/10.1016/j.micromeso.2008.04.026.
),
the former providing the blue colour to the pigment. The sizes of the
two ions differ markedly, and probably this difference in size allows
ion exchange of the sulphate anions to take place in all of the media
studied.
Another factor to consider is the loss on ignition (LoI), which makes evident the presence of hydrated or carbonated compounds in the pigments. The results obtained show increases in these in all environments, being more remarkable in the samples exposed to the SSP environment. This fact could be the result of the reaction or incorporation of calcium, in the form of portlandite, to the pigment and its subsequent carbonation with ambient CO2. The modification of the aluminosilicate structure that makes up the pigment cell, has been confirmed by the decrease in the contents of the major components studied in the pigments.
After this, the content variation of the minority elements (calcium, potassium and phosphorus) was analysed. Regarding calcium, there is a remarkable increase in content in samples exposed to the medium saturated with lime (SSC). This fact may be related to the incorporation of this ion into the pigment structure. It is noteworthy that this increase is not seen in the samples exposed to the medium that simulated the aqueous phase of the pores (SSP).
Potassium also shows a
remarkable increase in content, in the samples exposed to the medium
that simulated the aqueous phase of the pores (SSP); the samples exposed
to the other environments do not show significant variations in the
content of this element compared to the untreated sample UB0. As
previously showed by Booth et al. (88.
Booth DG, Dann SE, Weller MT. 2003. The effect of the cation
composition on the synthesis and properties of ultramarine blue. Dyes
Pigmen. 58(1):73-82. https://doi.org/10.1016/S0143-7208(03)00037-8.
),
the ion-exchange phenomenon between the SSP solution and the pigment
may lead not only to an increase in the size of the unit cell (larger
structure), but interactions between the cations and the S3- chromophore may also take place, which at the end can lead to the colour change that is experimentally observed.
The presence of phosphorus in the UB1 pigment samples is interesting. The diffractograms of the untreated samples, shown in Figure 1, evidenced the presence of some type of inorganic phosphate in these samples. Table 4 shows a decrease in the phosphorus content in the UB1 pigment samples exposed to the environment that simulated the aqueous phase of the pores (SSP), compared to the original samples; the possible degradation of the coating pigment protector is evident.

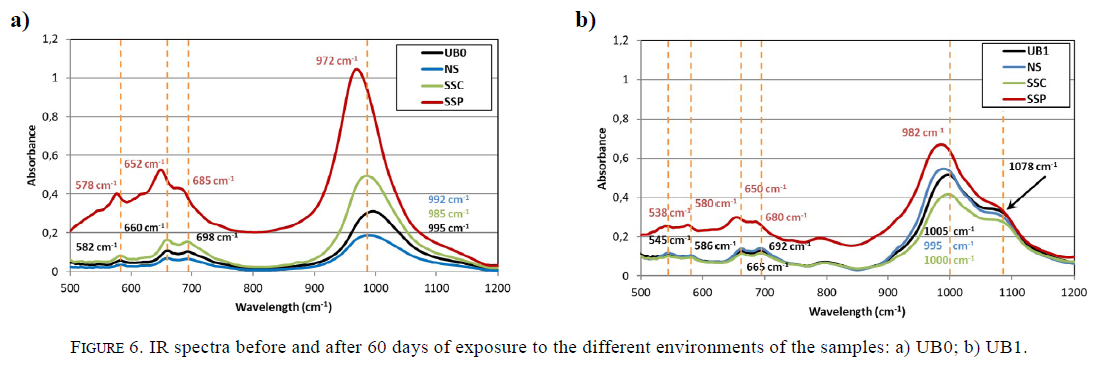

Figures 6a and 6b show the different IR spectra obtained for samples UB0 and UB1 before and after exposure to the different environments evaluated. To facilitate interpretation, only the information contained between wavelengths 500 to 1200 cm-1 is presented.
Figure 6a clearly shows that the spectra obtained from the UB0 pigment are
characteristic of aluminosilicates. The characteristic peaks of the S3- chromophore are located at 542 and 582 cm-1 (3030.
Afremow LC, Vanderberg JT. 1966. High resolution spectra of inorganic
pigments and extenders in the mid-infrared region from 1500 cm-1 to 200 cm-1. J. Paint. Technol. 38(495):169-202.
, 3131.
Sancho JP, Restrepo OJ, García P, Ayala J, Fernández B, Verdeja LF.
2008. Ultramarine blue from Asturian “hard” kaolins. Appl. Clay Sci.
41(3-4):133-142. https://doi.org/10.1016/j.clay.2007.10.005.
); in this pigment only the peak at 582 cm-1 is observed. Similar results have been obtained (3232.
Landman A, de Waal D. 2004. Fly ash as a potential starting reagent for
the synthesis of ultramarine blue. Mater. Res. Bull. 39(4-5):655-667. https://doi.org/10.1016/j.materresbull.2003.12.002.
),
showing an intense band in that location. In this area, a certain
modification in the IR spectrum can be seen in the Figure. Samples
exposed to neutral and lime saturated solutions do not undergo
significant modifications. However, the sample exposed to the solution
that simulated the aqueous phase of the pores shows a shift of the
chromophore peak to 578 cm-1.
The peaks that appear in the 650-700 cm-1 band and the intense peak that appears around 1000 cm-1 are characteristic of the Si-O-Al bonds of the aluminosilicates (3333.
Jakobsson S. 2002. Determination of Si/Al ratios in semicrystalline
aluminosilicates by FT-IR spectroscopy. J. Appl. Spectros.
56(6):797-799. https://doi.org/10.1366/000370202760077559.
). In NS and SSC media, there are few modifications in these bands but slight variations in intensity in the 1000 cm-1 band, which increases in intensity in the SSC medium and moves to values close to 990 cm-1. This may show the incorporation of Ca2+ ions in the aluminosilicate structure. The most significant changes are
seen in the sample exposed to the SSP environment. In addition to an
outstanding increase in the intensity of the band at 1000 cm-1 and a shift to values close to 970 cm-1, an outstanding distortion of the band 650-700 cm-1 is observed in Figure 6a. These differences reveal alterations in the Si-O-Al bonds, due to the pigment degradation process.
When analysing the spectra obtained for the UB1 sample (see Figure 6b), no significant differences were observed between the different media. There are hardly any differences between the samples exposed to the NS and SSC media, regarding the starting sample. The sample submitted to the SSP medium presents a series of differences that are similar to those found in the UB0 sample, although less intense. The different changes observed are related to the distortion of the structure of the chromophore and of the Si-O-Al bonds of the aluminosilicates.
The shoulder seen around 1100 cm-1 (marked with an arrow in Figure 6b is related to Si-O-Al bonds, probably due to the amorphous or polymeric
silica used in the coating of the UB1 sample. These results agree with
previously published results (1717.
Li S, Liu M, Sun I. 2011. Preparation of acid-resisting ultramarine
blue by novel two-step silica coating process. Industr. Engineer. Chem.
Res. 50(12):7326-7331. https://doi.org/10.1021/ie200343k.
).
3.1.5. Colorimetric analysis
⌅The results of the colorimetric analysis of the samples of pigments UB0 and UB1 as well as those of the final solids of all the degradations studied in solution, are presented in Table 5 where the values obtained by the CIE L* a* b colour system are collected, and then represented in Figure 7. In Table 5, it can be clearly seen that the major colour differences DE* 76 occur in pigment UB0 exposed to the medium that simulates the aqueous phase of the pores (SSP), where ΔE* 76 >> 12.
Pigment | Legend | Solution | L* | a* | b* | ΔE*76 | Visual assessment Of ΔE*76 |
---|---|---|---|---|---|---|---|
UB0 | Initial | 51.16 | 15.75 | -39.02 | |||
NS | 50.27 | 14.64 | -35.45 | 3.84 | Very obvious | ||
SSC | 50.80 | 15.34 | -37.34 | 1.77 | Obvious | ||
SSP | 47.45 | 12.17 | -26.89 | 13.18 | Very large | ||
UB1 | Initial | 53.24 | 15.16 | -40.23 | |||
NS | 51.15 | 14.17 | -35.32 | 5.43 | Very obvious | ||
SSC | 51.62 | 13.77 | -35.54 | 5.15 | Very obvious | ||
SSP | 49.60 | 14.49 | -33.17 | 7.90 | Large |
3.2. Studies on pastes
⌅3.2.1 Evolution in early and long-term stages
⌅First of all, the evolution of the samples in early stages was analysed during the first 48 hours after mixing the material. The following study intervals were selected: 0.10 hours (first measurement performed), and then 1, 12, 24 and 48 hours. Figure 8 shows the evolution of the hydration of the cement pastes with the two pigments studied at the indicated ages. The main modifications in the diffractograms appear in the range 5 ° to 30 ° 2θ, in which the main detected phases have been indicated in the cited figure: Et - Ettringite, M - Monocarboaluminate, G-Gypsum, P - Portlandite, C - Calcite, L - Lazurite, A - Alumina and Q - Quartz. From this angle, the variations correspond mainly to the unreacted cement.

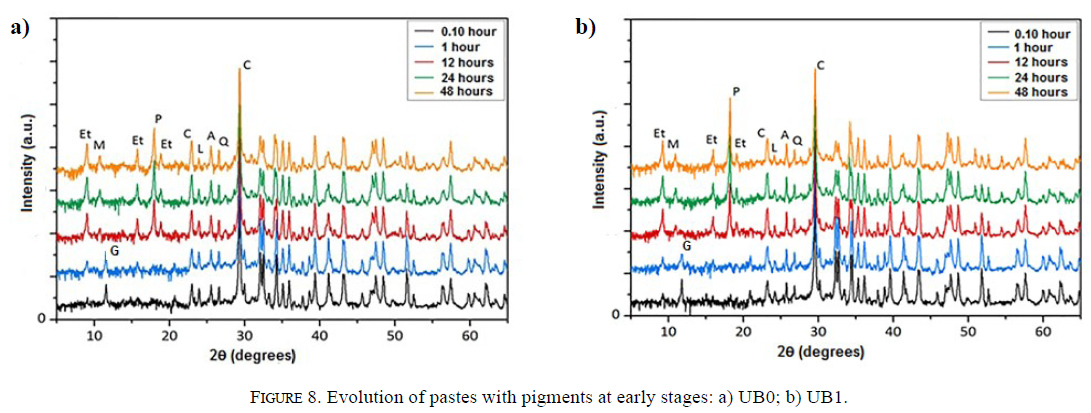

As the hydration process progresses, as is clearly seen in Figure 8a,
portlandite, ettringite and monocarboaluminate appear as the main
products of cement hydration. Likewise, and as one would expect, the
disappearance of the gypsum is observed between 1 and 12 hours after
manufacturing. The other phases present are calcite, alumina (used as an
internal standard) and quartz. Figure 8b shows the evolution of the hydration of the cement paste with the UB1
pigment in the initial stages. The phases identified are the same as
those found in the paste with UB0 pigment. For at least up to 48 hours,
higher ettringite contents are not appreciated, as stated in the
bibliography (2222.
Restrepo J, Restrepo O, Tobón O. 2009. Evaluación del desempeño
mecánico del cemento blanco coloreado con pigmento azul ultramar. DYNA
76(157):225-231. Retrieved from https://revistas.unal.edu.co/index.php/dyna/article/view/9571/11501
, 2323.
Giraldo C, Tobón JI, Restrepo OJ. 2012. Ultramarine blue-pigment: A
non-conventional pozzolan. Constr. Build. Mater. 36:305-310. https://doi.org/10.1016/j.conbuildmat.2012.04.011.
).
3.2.2. Long-term evolution

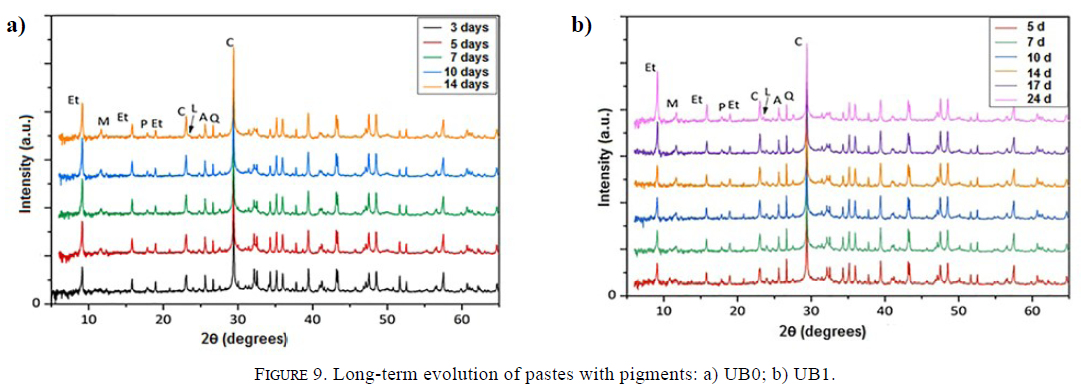

⌅Once the continuous monitoring was completed, the pastes were kept in containers with water, as indicated in Section 2.3.2. In relation to the long-term evolution Figure 9 shows diffractograms of the samples made with pigments UB0 and UB1, indicating the main phases detected.
In the samples made with the UB0 pigment (as shown in Figure 9a), the abundant presence of ettringite stands out. The low intensity of the portlandite peak is also noteworthy, especially in the younger samples (3 days) that have been less exposed to environmental carbonation. Finally, it is worth highlighting that the evolution of the pigment degradation process between 10 and 14 days, is not possible to practically detect the peak with the highest intensity. The diffractograms of the samples made with the UB1 pigment present a similar scenario, as shown in Figure 9b. High ettringite contents and low portlandite contents can be repeatedly seen in all of the analysed stages. It is noteworthy that the intensities of the ettringite peaks are higher in the samples with UB1 pigment than in the samples with UB0 pigment. The peak corresponding to the pigment is appreciable for a longer time, although at 24 days its intensity is practically negligible, revealing that degradation has taken place. As a reference element, the diffractograms of the long-term pigment-free cement pastes are shown in Figure 10. Of the mentioned figure, two aspects should be highlighted: the absence of peaks corresponding to ettringite and the portlandite content.
Regarding ettringite, and in light of previous comments on the cement hydration process, it disappears 3 days after the sample is manufactured, as can be seen in Figure 10. Instead, we found the presence of various phases of monosulfoaluminate and monocarboaluminate. As sample curing progresses, the intensity of the peaks in these phases increases. Therefore, the diffractograms obtained at 21 days for the reference sample contrast with those obtained for pastes with different pigment samples. In all the pigmented samples we found high ettringite contents and the intensity of the peak of the monosulfoaluminate / monocarboaluminate phases is lower than in the reference samples.
The intensity of the portlandite peak at 3 days stands out compared to that observed in the pastes with the different pigment samples. The intensity observed in Figure 10, as well as its evolution over time, responds to the normal process of cement hydration and carbonation of the sample as it is preserved in laboratory conditions and exposure to environmental CO2.
3.2.2 Semi-quantitative analysis
⌅Complementary to the results shown in the previous section, and to facilitate the interpretation of the results, a semi-quantitative analysis of the evolution of the content of each phase was performed. For this, the internal standard added in each sample was used, in a known quantity. As this is an inert phase, its intensity must be constant and vary according to the experimental conditions of the diffractograms.
In this way, it is possible to obtain relative intensities. Table 6 shows the main data from the different phases analysed. The calculation of the relative intensities of the different phases has been performed according to Equation [2], in which I i is the intensity of the main peak of the phase concerned (in calculation) and is the intensity of the main peak of the internal alumina standard (in calculation).
Phase | Formula | Code PDF | Main peak (° 2θ) |
---|---|---|---|
Alumina | Al2O3 | 010-0173 | 43.36 |
Calcite | CaCO3 | 083-0577 | 29.41 |
Portlandite | Ca(OH)2 | 072-0156 | 18.11* |
Ettringite | Ca6Al2(SO4)3(OH)12· 26H2O | 041-1451 | 9.09 |
Ultramarine blue | An((Al, Si)12O24)X2 | 041-1393 | 38.76 |
* Portlandite, along with other hydrated phases, usually has a preferred orientation of certain reflection planes. This causes that the most intense peak is not the one outlined in the crystallographic record, but the one indicated in Table 6.

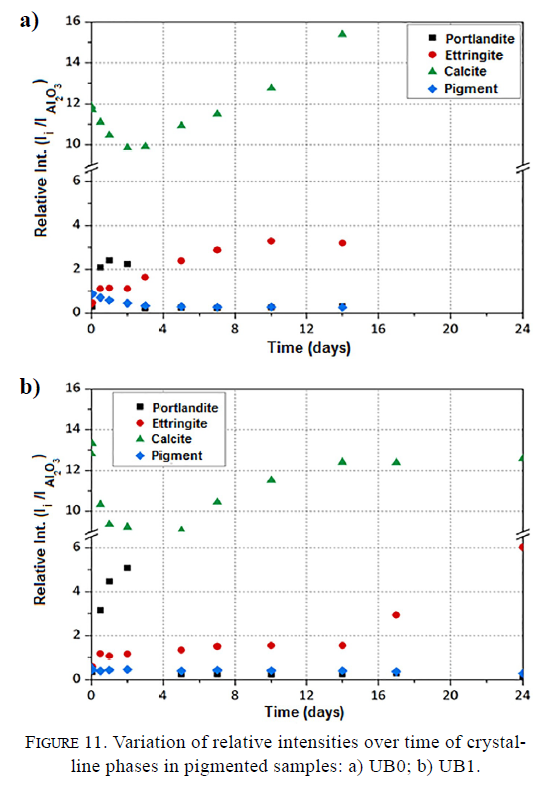

Figure 11 shows the variation of the relative intensities of the phases of interest (portlandite, ettringite, calcite and pigment) for pastes containing the two studied pigments.
The results corresponding to the pastes with pigment UB0 (Figure 11a), show that, firstly, the ettringite content increases continuously during the study time, stabilising between 7 and 10 days. On the contrary, the content of portlandite increases during the initial period, up to its maximum at 48 hours, then it decreases drastically until it is practically undetectable on the diffractogram.
Figure 11a shows that the content of the UB0 pigment decreases continuously from the beginning, reaching the minimum between 2 and 3 days. Subsequently it remains at a level close to the detection limit.
These results contrast with those that can be seen for the samples with the pigment UB1, whose variation of relative intensities over time is presented in Figure 11b. The most remarkable differences are found in the ettringite and portlandite contents.
Regarding the first, the contents in early ages are similar to those observed in the sample with pigment UB0. However, although there is an increase in the ettringite content over time, it is not as remarkable as the one observed in the sample with pigment UB0. An increase in the ettringite content is only observed in the sample after 14 days, reaching values much higher than those observed in the sample with UB0 pigment. This phenomenon reveals the formation of ettringite from monosulfoaluminate phases and at an age in which the rigidity of the material is high. It should be borne in mind that the formation of ettringite from these phases is an expansive process, due to the difference in volume between the two phases. This could become a durability problem for materials containing this pigment.
Regarding portlandite, its contents are observed in the early ages and are much higher than those found in the sample with UB0 pigment, which shows the different reactivity of both pigments. Finally, regarding the pigment content, Figure 11b shows only a slight variation of the same. It should be noted that the starting intensity of the pigment peak was already lower, which influences the subsequent detection process. At the end of the measurement process, it was practically impossible to detect the pigment peak.
4. CONCLUSIONS
⌅4.1. General conclusion
⌅The incremental study presented allows us to conclude that the process of degradation of the ultramarine blue pigment in cementitious media mainly attends to a process of reaction and ion exchange. During hydration, high ion contents are released, with calcium and potassium being the most aggressive for UB pigments.
Calcium is incorporated into the aluminosilicate structure, distorting the unit cell. A cation exchange phenomenon occurs between the sodium in the pigment and the potassium in the medium. Both processes lead to the diffusion of sulphate and sulphide ions from the pigment to the cementitious medium, and thus the chromophore S3- is degraded leading to a colour loss. In the end, it is this phenomenon of diffusion of sulphate ions that causes the formation o ettringite in the studied material. This formation of ettringite could have other consequences, depending on the moment of formation in the material, since it is, in some cases, an expansive phenomenon.
4.2. Conclusions of the dissolution studies
⌅The dissolution studies presented in Section 3.1 allowed us determine the aggressiveness of different conditions and identify the degradation processes that were taking place.
The different results obtained allow us to conclude that the most aggressive samples of the ultramarine blue pigment are obtained with the medium that simulated the aqueous phase in the pores (SSP). This aggressiveness leads to the degradation of the pigments to a greater extent. Likewise, it has been concluded that the pigment with a protective coating (UB1) resists the aggressive environment better than the one without it (UB0), although it also suffers degradation.
4.3. Conclusions of the studies on cement pastes
⌅The studies of cement pastes were aimed at monitoring the hydration process of the pastes with the incorporation of the ultramarine blue pigment. This allowed us to carry out an in-depth analysis of the degradation process that takes place, see Section 3.2.
Degradation takes place in three different phases. In phase one, calcium is incorporated into the pigment’s aluminosilicate structure, distorting it. In phase two, a cation exchange takes place between the pigment’s sodium and the potassium present in the cementitious medium. In phase three, and as a consequence of the previous two, sulphate and sulphide ions are diffused into the medium, leading to the stabilisation of the primary ettringite and the formation of secondary ettringite. Occasionally, this phenomenon could give rise to some expansive phenomenon, being a type of internal sulphate attack.
