1. INTRODUCTION
⌅Climate
change is occurring as a result of human activities, the most
significant contribution being due to industrial expansion (11.
Abbas A, Ekowati D, Suhariadi F, Fenitra RM. 2022. Health Implications,
Leaders Societies, and Climate Change: A Global Review. In: Chatterjee
U, Akanwa AO, Kumar S, Singh SK, Dutta Roy A. (eds) Ecological
Footprints of Climate Change. Springer Climate. Springer, Cham. https://doi.org/10.1007/978-3-031-15501-7_26.
). These changes are caused by CO2 emissions that enhance the greenhouse effect (22.
Shi Q, Cai R, Huo T, You K, Cai W. 2023. A fairly and effectively
analysis for the sharing of CO2 emissions reduction responsibility in
China’s provincial building sectors. Environ. Impact Assess. Rev.
99:106984. https://doi.org/10.1016/j.eiar.2022.106984.
), making climate phenomena increasingly extreme (33.
Zhou B, Zeng H, Zhao L, Han Z. 2023. Climate change and climate risks
in the Guangdong-Hong Kong-Macau greater bay area. 173–193. https://doi.org/10.1007/978-981-19-7738-1_12.
). Because of this, the European Union aims to be climate neutral by 2050 - an economy with zero net greenhouse gas emissions (44.
Salvetti F, Cavicchioli C, Borgarello M, Bertagni B. 2023. Time
traveling towards a climate-neutral society: an interactive and
immersive experience. 581:351–362. https://doi.org/10.1007/978-3-031-21569-8_33.
).
Portland
cement concrete is one of the most widely used construction materials.
The production of the main constituent of concrete, cement, is energy
intensive and highly polluting. Due to this, the cement industry ends up
contributing with about 5% to 8% increase in global carbon dioxide (CO2) emissions, emitting about 2 Gt of CO2 per year (55.
Li Q, Qiao H, Li A, Li G. 2022. Performance of waste glass powder as a
pozzolanic material in blended cement mortar. Constr. Build. Mater.
324:126531. https://doi.org/10.1016/j.conbuildmat.2022.126531.
). And it represents between 12% and 15% of the total industrial energy consumption (66.
Ige OE, Olanrewaju OA, Duffy KJ, Collins OC. 2022. Environmental impact
analysis of Portland cement (CEM1). Using the midpoint method.
Energies. 15(7):2708. https://doi.org/10.3390/en15072708.
).
Clinker, the base material of Portland cement, is produced by the
decomposition of calcium carbonate into calcium oxide and high amounts
of CO2, followed by the sintering of calcium oxide with
aluminosilicates and the rest of the raw materials. Calcination of
limestone is responsible for about 95% of greenhouse gas emissions,
while consuming 80% of total energy demands (77.
Galusnyak SC, Petrescu L, Cormos CC. 2022. Environmental impact
assessment of post-combustion CO2 capture technologies applied to cement
production plants. J. Environ. Manage. 320:115908. https://doi.org/10.1016/j.jenvman.2022.115908.
).
More than half of the emissions from the cement production process come from the decomposition of the CaCO3 present in the limestone, which follows Equation [1] which occurs from 700 ºC, the other part of the emission from the processes comes from the energy used in the process (88.
Hotta M, Tone T, Favergeon L, Koga N. 2022. Kinetic parameterization of
the effects of atmospheric and self-generated carbon dioxide on the
thermal decomposition of calcium carbonate. J. Phys. Chem. C.
126(18):7880–7895. https://doi.org/10.1021/acs.jpcc.2c01922.
). The calcination process represents more than 50% of total CO2 emissions from cement manufacturing, and the reduction of the
clinker/cement ratio is intended to reduce energy consumption and
improve some characteristics of the final product (99.
Tan C, Yu X, Guan Y. 2022. A technology-driven pathway to net-zero
carbon emissions for China’s cement industry. Appl. Energy. 325:119804. https://doi.org/10.1016/j.apenergy.2022.119804.
).
The high carbon emissions of cementitious materials are increasingly
raising concerns about the grand goal of global carbon neutrality (1010.
Liu Z, Du J, Meng W. 2022. Achieving low-carbon cementitious materials
with high mechanical properties using CaCO3 suspension produced by CO2
sequestration. J. Clean. Prod. 373:133546. https://doi.org/10.1016/j.jclepro.2022.133546.
).
The great
mineral extraction generated by the cement industry is also a cause for
concern due to the reduction of natural reserves of limestone and clay.
In addition to emissions, cement production consumes large amounts of
natural resources and devastates large areas due to the need for clay
and limestone mining. 1.5 ton of raw material is used to produce one ton
of clinker, while each ton of Portland cement generates almost one ton
of CO2 (77.
Galusnyak SC, Petrescu L, Cormos CC. 2022. Environmental impact
assessment of post-combustion CO2 capture technologies applied to cement
production plants. J. Environ. Manage. 320:115908. https://doi.org/10.1016/j.jenvman.2022.115908.
, 1111.
Qaidi S, Najm HM, Abed SM, Özkılıç YO, Al Dughaishi H, Alosta M, Sabri
MM, Alkhatib F, Milad A. 2022. Concrete containing waste glass as an
environmentally friendly aggregate: a review on fresh and mechanical
characteristics. Mat. 15(18):6222. https://doi.org/10.3390/ma15186222.
).
Faced with these environmental impacts, a portion of cement in concrete
is often replaced by a supplementary cementitious material (SCM) that
has a lower environmental impact and often lower cost. Despite the
favorable influence of SCMs on fresh, hardened and durability properties
of concrete, SCM resources are finite and current supply can only meet
around 15% of concrete industry demand worldwide (1212.
Shakouri M, Exstrom CL, Ramanathan S, Suraneni P, Vaux JS. 2020.
Pretreatment of corn stover ash to improve its effectiveness as a
supplementary cementitious material in concrete. Cem. Concr. Compos.
112:103658. https://doi.org/10.1016/j.cemconcomp.2020.103658.
).
Waste
glass (WG) causes serious environmental problems because it is not
biodegradable, reducing the useful life of landfills and, increasing the
severity of its pollution in the ecosystem. WG is very common in our
daily lives, it can be found in different types of products, such as
bottles, windows and lamps, which have a limited useful life, with glass
recycling being the most promising way to mitigate its environmental (1313.
Hamada H, Alattar A, Tayeh B, Yahaya F, Thomas B. 2022. Effect of
recycled waste glass on the properties of high-performance concrete: A
critical review. Case Stud. Constr. Mater. 17:e01149. https://doi.org/10.1016/j.cscm.2022.e01149.
).
The use of WG in concrete and mortar is a promising strategy to
mitigate the environmental problems of WG and cement production, but
research is needed to comprehensively explore the effects of this use (1414.
Jiang X, Xiao R, Bai Y, Huang B, Ma Y. 2022. Influence of waste glass
powder as a supplementary cementitious material (SCM). On physical and
mechanical properties of cement paste under high temperatures. J. Clean.
Prod. 340:130778. https://doi.org/10.1016/j.jclepro.2022.130778.
).

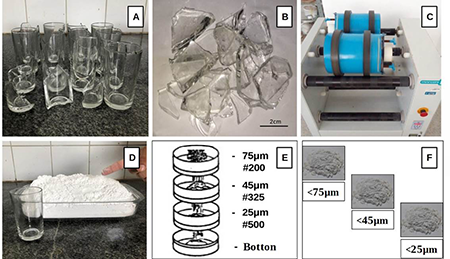

When
glass is pulverized to the size of microparticles, due to its chemical
composition rich in silica and the degree of disorder in its atomic
structure, it can be used as a cement substitute SCM in cement systems.
The most important phenomenon in this substitution is the pozzolanic
reaction of the glass, which leads to the formation of large amounts of
extra Hydrated Calcium Silicates (C-S-H) in cement mixtures, which are
the binding phases of hardened cement (15-1815.
Mosaberpanah MA, Eren O, Tarassoly AR. 2019. The effect of nano-silica
and waste glass powder on mechanical, rheological, and shrinkage
properties of UHPC using response surface methodology. J. Mater. Res.
Technol. 8(1):804–811. https://doi.org/10.1016/j.jmrt.2018.06.011.
16.
de la Villa Mencía RV, Frías M, Ramírez SM, Carrasco LF, Giménez RG.
2022. Concrete/glass construction and demolition waste (CDW). Synergies
in ternary eco-cement-paste mineralogy. Mat. 15(13):4661. https://doi.org/10.3390/ma15134661.
17.
Cadore BC, Ribeiro FRC, Modolo RCE, Pacheco F. 2023. Performance
analysis of concrete with repurposed industrial glass waste. J. Build.
Pathol. Rehabil. 8(1):1–13. https://doi.org/10.1007/s41024-022-00230-w.
18.
Guo P, Bao Y, Meng W. 2021. Review of using glass in high-performance
fiber-reinforced cementitious composites. Cem. Concr. Compos.
120:104032. https://doi.org/10.1016/j.cemconcomp.2021.104032.
).
The increase in the C-S-H gel is found due to the pozzolanic reaction
of the glass powder, with portlandite (calcium hydroxide - CH) and
water, as shown in Equation [2] (1818.
Guo P, Bao Y, Meng W. 2021. Review of using glass in high-performance
fiber-reinforced cementitious composites. Cem. Concr. Compos.
120:104032. https://doi.org/10.1016/j.cemconcomp.2021.104032.
). The reaction affects the contraction of voids and pore densification of mortar prepared with waste glass (1919.
Gupta J, Jethoo AS, Ramana PV. 2021. Valorization of soda lime glass in
cement sand matrix. Mat. Today Proc. 49(5):1230–1238. https://doi.org/10.1016/j.matpr.2021.06.295.
).
The amorphous structure of glass allows it to be easily dissolved in a
high alkalinity environment and function as a pozzolanic material in
cement systems.

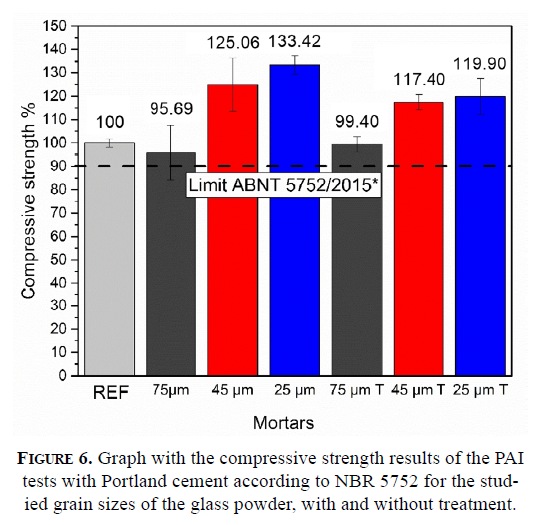

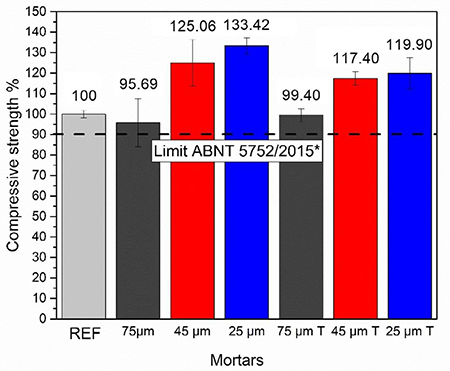

The
characterization of pozzolans through the Pozzolanic Activity Index
(PAI) with Portland cement or portlandite, as recommended by NBR 5752
and NBR 5751 (2020.
ABNT - Associação Brasileira de Normas Técnicas. 2015. NBR 5751:
Pozzolanic materials: determination of pozzolanic activity with lime at
seven days.
, 2121.
ABNT - Associação Brasileira de Normas. 2014. NBR 5752: Pozzolanic
materials: determination of the performance index with Portland cement
at 28 days.
), respectively, is primarily based on
indirect methods for assessing their reactivity. These methods aim to
estimate the amount of C-S-H formed considering the mechanical
performance of mortars (2222.
Filho JH, Gobbi A, Pereira E, Quarcioni VA, De Medeiros MHF. 2017.
Atividade pozolânica de adições minerais para cimento portland (Parte
I): Índice de Atividade Pozolânica (IAP). Com Cal, Difração de Raios-X
(DRX), Termogravimetria (TG/DTG). E chapelle modificado. Rev. Matéria.
22(3). https://doi.org/10.1590/S1517-707620170003.0206
).
Highly reactive pozzolans, characterized by their elevated amorphous
content and, notably, their high specific surface area, tend to consume a
significant amount of portlandite. In Portland cement mortars or with
hydrated lime, this can deplete the alkaline reserve of the medium.
Moreover, these methods do not account for the specific surface area of
the additive or the constant water-to-binder ratio, both of which are
crucial factors. This oversight can lead to reduced performance when
using highly reactive additives, as they require more mixing water to
meet the regulatory consistency requirements (2222.
Filho JH, Gobbi A, Pereira E, Quarcioni VA, De Medeiros MHF. 2017.
Atividade pozolânica de adições minerais para cimento portland (Parte
I): Índice de Atividade Pozolânica (IAP). Com Cal, Difração de Raios-X
(DRX), Termogravimetria (TG/DTG). E chapelle modificado. Rev. Matéria.
22(3). https://doi.org/10.1590/S1517-707620170003.0206
).

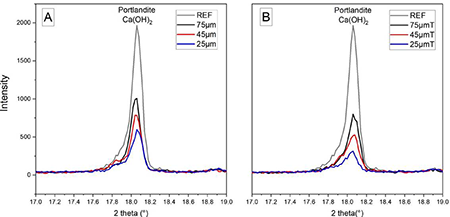

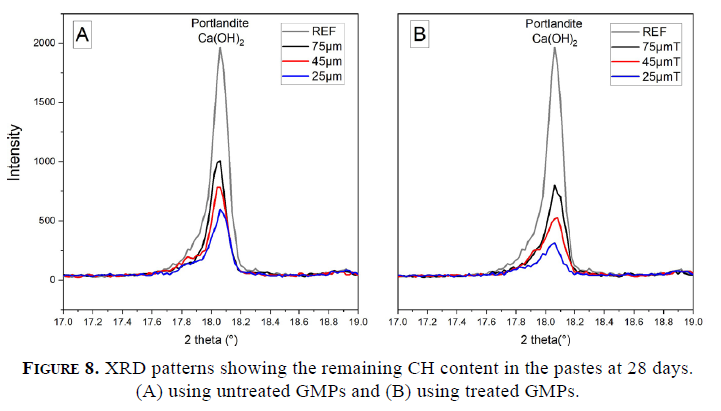

These
factors can lead methods to underestimate the pozzolanicity of
materials and make their hierarchization difficult. The combined

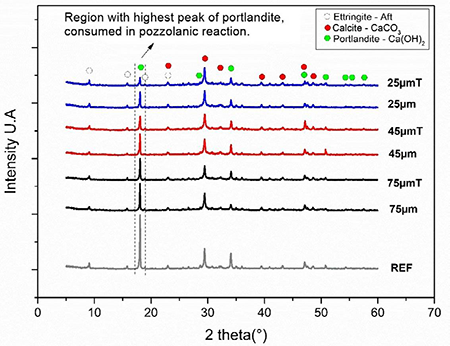

analysis of PAI with DRX and SEM/EDS aims to examine the
consumption/depletion of portlandite in the systems. This analysis
considers that some pozzolans may exhibit low performance when evaluated
based on the compressive strength of mortars with CH, despite their
ability to bind a high content of calcium hydroxide and form hydrated
compounds (C-S-H) (22-2422.
Filho JH, Gobbi A, Pereira E, Quarcioni VA, De Medeiros MHF. 2017.
Atividade pozolânica de adições minerais para cimento portland (Parte
I): Índice de Atividade Pozolânica (IAP). Com Cal, Difração de Raios-X
(DRX), Termogravimetria (TG/DTG). E chapelle modificado. Rev. Matéria.
22(3). https://doi.org/10.1590/S1517-707620170003.0206
23.
Brekailo F, Pereira E, Pereira E, Filho JH, De Medeiros MHF. 2019.
Evaluation of the reactive potential of additions of red ceramic Waste
and Comminuted Concrete of CDW in cement matrix. Cerâmica.
65(375):351–358. https://doi.org/10.1590/0366-69132019653752552.
24.
Bouchikhi A, Benzerzour M, Abriak NE, Maherzi W, Mamindy-Pajany Y.
2019. Study of the impact of waste glasses types on pozzolanic activity
of cementitious matrix. Constr. Build. Mater. 197:626–640. https://doi.org/10.1016/j.conbuildmat.2018.11.180.
).
Many authors have investigated and proposed physical methods to enhance
the pozzolanic properties of glass by reducing the size of glass
particles and consequently increasing their surface area. It is widely
agreed that reducing particle size and increasing surface area of glass
effectively alters the kinetics of the chemical reaction toward the
pozzolanic reaction (55.
Li Q, Qiao H, Li A, Li G. 2022. Performance of waste glass powder as a
pozzolanic material in blended cement mortar. Constr. Build. Mater.
324:126531. https://doi.org/10.1016/j.conbuildmat.2022.126531.
, 25-3025.
Chen Z, Wang Y, Liao S, Huang Y. 2020. Grinding kinetics of waste glass
powder and its composite effect as pozzolanic admixture in cement
concrete. Constr. Build. Mater. 239:117876. https://doi.org/10.1016/j.conbuildmat.2019.117876.
26.
Kalakada Z, Doh JH, Zi G. 2020. Utilisation of coarse glass powder as
pozzolanic cement - A mix design investigation. Constr. Build. Mater.
240:117916. https://doi.org/10.1016/j.conbuildmat.2019.117916.
27.
Más-López MI, García del Toro EM, García-Salgado S, Alcala-Gonzalez D,
Pindado S. 2021. Application of concretes made with glass powder binder
at high replacement rates. Mat. 14(14): 3796. https://doi.org/10.3390/ma14143796.
28.
Borges AL, Soares SM, Freitas TOG, Junior AO, Ferreira EB, Ferreira
FGS. 2021. Evaluation of the pozzolanic activity of glass powder in
three maximum grain sizes. Mater. Res. 24(4). https://doi.org/10.1590/1980-5373-MR-2020-0496.
29.
Patel D, Shrivastava R, Tiwari RP, Yadav RK. 2021. The role of glass
powder in concrete with respect to its engineering performances using
two closely different particle sizes. Struct. Concr. 22(S1):E228–E244. https://doi.org/10.1002/suco.201900182.
30. Omer
B, Saeed J. 2022. Effect of water to binder ratio and particle size
distribution of waste glass powder on the compressive-strength and
modulus of elasticity of normal-strength concrete. Eur. J. Environ. Civ.
Eng. 26(11):5300–5321. https://doi.org/10.1080/19648189.2021.1893227.
). However, some authors discuss chemical pretreatments/methods aiming to increase the pozzolanicity of SCMs (31-3331.
Liu Y, Shi C, Zhang Z, Li N. 2019. An overview on the reuse of waste
glasses in alkali-activated materials. Resour. Conserv. Recycl.
144:297–309. https://doi.org/10.1016/j.resconrec.2019.02.007.
32.
Maraghechi H, Maraghechi M, Rajabipour F, Pantano CG. 2014. Pozzolanic
reactivity of recycled glass powder at elevated temperatures: Reaction
stoichiometry, reaction products and effect of alkali activation. Cem.
Concr. Compos. 53:105–114. https://doi.org/10.1016/j.cemconcomp.2014.06.015.
33.
Palomo A, Krivenko P, Garcia-Lodeiro I, Kavalerova E, Maltseva O,
Fernández-Jiménez A. 2014. A review on alkaline activation: new
analytical perspectives. Mater. Construcc. 64(315):e022. https://doi.org/10.3989/mc.2014.00314.
).
Pretreatments
are used as methods to enhance the performance of SCMs in concretes and
mortars. These pretreatment techniques include physical methods, such
as mechanical grinding, and chemical methods. Chemical pretreatment
involves immersing materials in different acidic or basic solutions
before use. The objective of a pretreatment is to promote the pozzolanic
reaction and allow higher levels of residue incorporation. The
effectiveness of a pretreatment is evaluated by testing the concrete or
mortar in which a part of the cement has been replaced by the pretreated
SCMs, and examining how the pretreatment influenced the durability and
mechanical properties of the cement system, as demonstrated in (3434.
Albiajawi MI, Embong R, Muthusamy K. 2021. An overview of the
utilization and method for improving pozzolanic performance of
agricultural and industrial wastes in concrete. Mat. Today Proc.
48(4):778–783. https://doi.org/10.1016/j.matpr.2021.02.260.
).
In
the literature, there are still uncertainties regarding a complete
understanding of the impact of glass on the durability of cement
systems. Pretreatment in alkaline solution on fine glass aggregate
causes the formation of a dense layer of Calcium Silicate Hydrate
(C-S-H) on the surface of the glass when Ca(OH)2 is used in
the solution, which slows down the dissolution rate of the glass. The
reaction product is dense and firmly attached to the glass particle
substrate. The product on the surface of the glass particle aggregates
will act as a protective layer, which may consequently reduce the risk
of alkali-silica reaction. The use of pretreatment can ensure the
durability of cement systems that use glass particles, and therefore the
incorporation of more glass in cement systems (3535.
Sun L, Zhu X, Kim M, Zi G. 2021. Alkali-silica reaction and strength of
concrete with pretreated glass particles as fine aggregates. Constr.
Build. Mater. 271:121809. https://doi.org/10.1016/j.conbuildmat.2020.121809.
). However, Sun et al. (3535.
Sun L, Zhu X, Kim M, Zi G. 2021. Alkali-silica reaction and strength of
concrete with pretreated glass particles as fine aggregates. Constr.
Build. Mater. 271:121809. https://doi.org/10.1016/j.conbuildmat.2020.121809.
)
explored the effects of such treatment on fine glass aggregate rather
than on microparticles, in addition to the effects of pretreatment on
pozzolanic activity and microstructure of cement systems containing
pretreated particles.
Research into the use of SCMs is advancing,
but there is still room to achieve improvements in their performance and
greater knowledge about their effects. There are still many gaps in
knowledge, and more research is needed on the use of pretreatment in SCM
in the concrete industry to produce more ecologically sustainable and
efficient materials (3434.
Albiajawi MI, Embong R, Muthusamy K. 2021. An overview of the
utilization and method for improving pozzolanic performance of
agricultural and industrial wastes in concrete. Mat. Today Proc.
48(4):778–783. https://doi.org/10.1016/j.matpr.2021.02.260.
).
Considering the potential to expand glass waste recycling methods and
aiming to simultaneously reduce cement consumption and associated
environmental problems, this article investigates the influence of using
chemically treated glass microparticles as a partial substitute for
cement in pastes and Portland cement mortars. The mortars were evaluated
using the methodology described in the Brazilian standard NBR ABNT 5752
(2121.
ABNT - Associação Brasileira de Normas. 2014. NBR 5752: Pozzolanic
materials: determination of the performance index with Portland cement
at 28 days.
). To achieve this, three different sizes
of glass microparticles were evaluated, both with and without chemical
treatment in an alkaline solution.
2. EXPERIMENTAL PROCEDURE
⌅2.1. Characterization methods
⌅2.1.1. X-ray fluorescence spectroscopy (XRF)
⌅Chemical composition of cement, glass and calcium hydroxide was determined using XRF on a Shimadzu XRF-1800 equipment, with Rh Tube, 4.0 kW, voltage of 30 kV, and current of 60 mA.

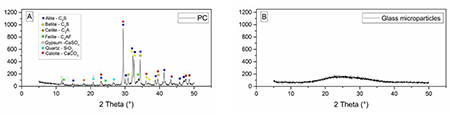

2.1.2. X-ray powder diffraction (XRD)

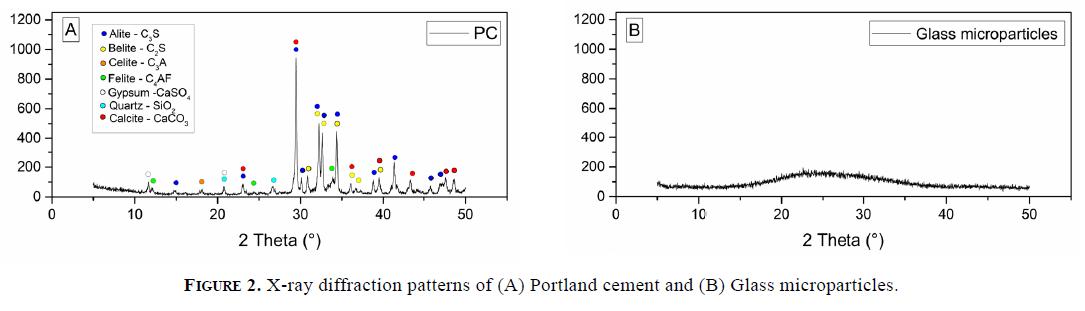

⌅Diffraction patterns were obtained using a Shimadzu LabX XRD-6000 instrument, with a nominal 2θ scan range between 5° and 60°, a step size of 0.02°, a scan speed of 2°/min, and an operating voltage of 40 kV with a current of 30 mA, using a copper anode.
2.1.3. Scanning electron microscopy (SEM/EDS)
⌅Scanning Electron Microscopy (SEM) and Energy Dispersive Spectroscopy (EDS) analyses were conducted using a JEOL JSM-5700 instrument at 15 kV. Prior to analysis, the samples were coated with silver for 200 seconds.
2.1.4. Laser diffraction granulometry

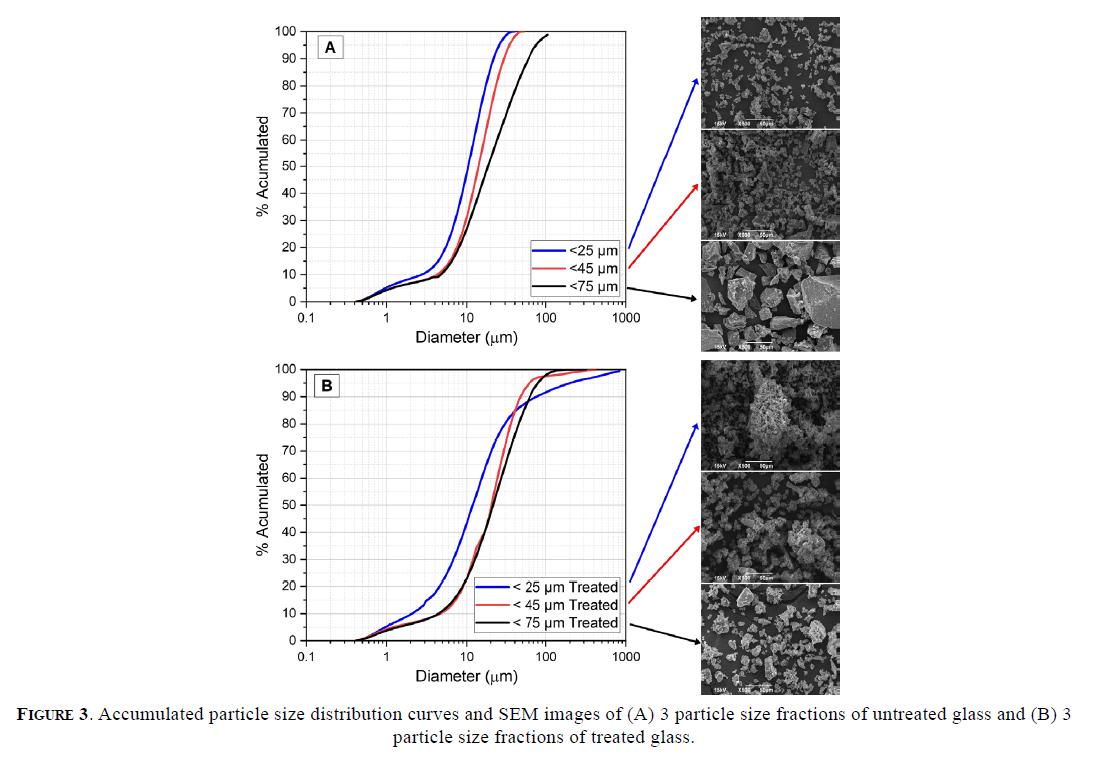

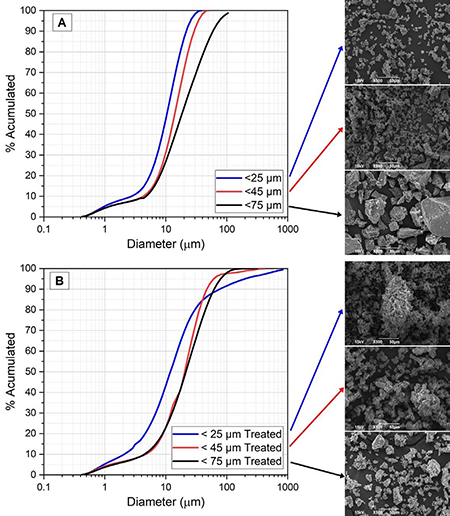

⌅The particle size distribution of the glass microparticles was obtained using a Mastersizer MS2000-E equipment with a Helium/Neon laser and a detection range between 0.1 and 1000 µm.
2.1.5. Thermogravimetric analysis
⌅Thermogravimetric analysis (TG/DTG) of the pastes was carried out using NETZSCH equipment, model STA 449 F1 JUPITER. Approximately 10 mg of powder was heated from 25 to 1000 °C under a nitrogen gas atmosphere at a rate of 10 °C/min.
2.2. Materials
⌅The Portland cement type II (here denoted as PC, determined by NBR 5752 (2121.
ABNT - Associação Brasileira de Normas. 2014. NBR 5752: Pozzolanic
materials: determination of the performance index with Portland cement
at 28 days.
)) and the calcium hydroxide (Ca(OH)2 - here denoted as CH, provided by ACS Científica were used as received.
Glass microparticles (GMP) were obtained by grinding waste from
soda-lime glass packaging. The glass density of 2.54 g/cm3 was determined by the pycnometer method. The particle size fractions
used were obtained from glass containers that were washed with
detergent, dried, ground in a ball mill, and sieved through mesh sieves
#200 (<75 µm), #325 (<45 µm) and #500 (<25 µm) (Figure 1).
The chemical composition of the raw materials is indicated in Table 1. Figure 2 shows the X-ray diffraction patterns of the cement (Figure 2.A) and the characteristic amorphous halo of glass (Figure 2.B). Cement is formed by its characteristic phases C3S (ICSD 81100), C2S (ICSD 39006), C3A (ICSD 1841), C4AF (ICSD 2841) and gypsum (ICSD 168091). It presents traces of quartz (ICSD 16331) and a high content of calcite (ICSD 423568), as it is a cement with the addition of limestone filler.
Oxides | PC (%)* | GMP (%) | CH (%) |
---|---|---|---|
SiO2 | 19.45 | 73.11 | 0.90 |
Al2O3 | 4.79 | 2.16 | - |
CaO | 64.87 | 11.95 | 94.95 |
Fe2O3 | 2.94 | - | - |
MgO | 3.27 | 0.79 | 4.12 |
Na2O | - | 11.96 | - |
SO3 | 4.66 | - | - |
Others | 0.02 | 0.03 | 0.03 |
*Portland cement with addition of limestone filler
2.3. Chemical treatment of glass microparticles (GMP)
⌅The
three different particle size fractions of GMP (<75μm, <45μm,
<25μm) underwent a chemical pretreatment in which 250 g of glass (of
each fraction) were soaked in a 1-liter saturated water solution with 5 g
of calcium hydroxide for 7 days at a temperature of 80°C (3535.
Sun L, Zhu X, Kim M, Zi G. 2021. Alkali-silica reaction and strength of
concrete with pretreated glass particles as fine aggregates. Constr.
Build. Mater. 271:121809. https://doi.org/10.1016/j.conbuildmat.2020.121809.
).
At the end of the treatment, the material was dried in an oven at the
same temperature as the treatment until all the water was removed.
2.4. Preparation of mortars and evaluation of the Pozzolanic Activity Index (PAI)
⌅The
determination of the Pozzolanic Activity Index (PAI) using Portland
cement was conducted in accordance with the standard NBR 5752 (2121.
ABNT - Associação Brasileira de Normas. 2014. NBR 5752: Pozzolanic
materials: determination of the performance index with Portland cement
at 28 days.
). This analysis involved mortars produced
from three different particle size fractions of glass powder (<75 µm,
<45 µm, <25 µm), both with and without pre-treatment. A reference
mortar, without the addition of GMP, was produced, along with six other
mortars in which 25% of the cement was replaced by GMP. Mortars
containing 25% pre-treated GMP were identified with the letter ‘T’ in
their nomenclature. For each composition, four cylindrical specimens
were cast, with dimensions of 50 mm x 100 mm (diameter x height). In
accordance with NBR 5752/2017, the amount of water was kept constant at
200 mL for all samples, and those with the addition of GMP presented a
consistency similar to that of the reference sample, within a tolerance
of ±10 mm. The compositions and quantities of materials required for
production are detailed in Table 2.
Mortar | CP II 32-F1 (g) | Glass (g) | standard sand 2 (g) | Water3 (mL) | Consistency4 (mm) |
---|---|---|---|---|---|
PC | 416 | - | 1248 | 200 | 205 |
75µm | 312 | 104 | 1248 | 200 | 202 |
45µm | 312 | 104 | 1248 | 200 | 201 |
25µm | 312 | 104 | 1248 | 200 | 198 |
75µmT | 312 | 104 | 1248 | 200 | 199 |
45µmT | 312 | 104 | 1248 | 200 | 197 |
25µmT | 312 | 104 | 1248 | 200 | 196 |
1 CP II 32-F - Composite Portland cement with addition of limestone filler.
2 Standard sand according to NBR 7214 (3636. ABNT - Associação Brasileira de Normas Técnicas. 2015. NBR 7214: standard sand for cement tests: specification.
): 234 g of each of the four fractions (coarse, #16; medium coarse, #30; medium fine, #50; and fine, #100).
3 Amount of water of 200 mL fixed by NBR 5752 (2121.
ABNT - Associação Brasileira de Normas. 2014. NBR 5752: Pozzolanic
materials: determination of the performance index with Portland cement
at 28 days.
).
4 Workability obtained in the slump test, using the spreading table, as prescribed by NBR 7215 (3737.
ABNT - Associação Brasileira de Normas Técnicas. 2019. NBR 7215:
Portland cement: determination of compressive strength of cylindrical
test specimens.
), the consistency of the samples with addition could vary ±10mm from the consistency of the standard.
The specimens were cured in their molds, kept closed at room temperature for the first 24 h, and then placed to cure submerged in water at 23 °C. At the end of the curing process, the specimens were submitted to the compressive strength test.
2.5. Preparation of pastes with compositions similar to the mortars
⌅The preparation of these pastes maintained the water-to-binder (w/b) ratio constant at 0.70. The w/b ratio for pastes needed to be higher compared to mortars due to the fineness of the materials. It was determined based on the minimum amount of water required for cement pastes containing finer particle size fractions (25µm and 25µmT) to be adequately mixed and fill the molds without leaving empty spaces. After mixing, the pastes underwent submerged curing in water, carried out at 23 ± 2 ºC for 28 days. The pastes from mixtures identical to those of the mortars had the hydration reaction interrupted at the end of the curing process, being submerged for 1 hour in isopropyl alcohol, dried for 1 hour in an oven at 70°C, and stored under vacuum.
3. RESULTS AND DISCUSSION
⌅3.1. Characterization of GMP
⌅The graphs in Figure 3 show the cumulative grain size distribution curves in % of the particle size fractions of untreated (3.A) and treated (3.B) glass particles. It can be observed that the treatment changed the initial conditions of particle distribution and their maximum size. The treatment of glass particles increased the values of D10, D50 and D90, and reduced their specific surface area, with the exception of the specific surface area of the fraction separated by the #500 mesh sieve (<25µm) as shown in Table 3.
GMP | D10 (µm) | D50 (µm) | D90 (µm) | Area BET (m2/g) | AD (µm) |
---|---|---|---|---|---|
75µm | 4.969 | 20.636 | 65.524 | 0.796 | 28.814 |
45µm | 4.890 | 16.116 | 33.368 | 0.861 | 17.851 |
25µm | 3.131 | 11.988 | 34.791 | 1.070 | 13.254 |
75µmT | 5.122 | 24.529 | 71.513 | 0.719 | 32.968 |
45µmT | 5.420 | 20.409 | 47.047 | 0.782 | 27.289 |
25µmT | 3.131 | 11.988 | 24.791 | 1.070 | 23.459 |
Figure 4A contains scanning electron microscopy images of the untreated glass
particles, where the characteristic smooth surface of the glass can be
seen. In Figures 4B and 4C,
the surface of the particles appears completely covered by pozzolanic
C-S-H, a product strongly adhered to the surface of the glass particle (3535.
Sun L, Zhu X, Kim M, Zi G. 2021. Alkali-silica reaction and strength of
concrete with pretreated glass particles as fine aggregates. Constr.
Build. Mater. 271:121809. https://doi.org/10.1016/j.conbuildmat.2020.121809.
),
originating from the pozzolanic reaction that occurred during the
treatment. It can also be seen that the particles were held together by
this C-S-H layer.
The pretreatment changed the smooth surface of the glass particles to a rough surface coated with different C-S-H morphologies (38-4038.
Nassiri S, Markandeya A, Haider MM, Valencia A, Rangelov M, Li H,
Halsted A, Bollinger D, McCloy J. 2023. Technical and environmental
assessment of hydrothermally synthesized foshagite and tobermorite-like
crystals as fibrillar C-S-H seeds in cementitious materials. J. Sustain.
Cement-Based Mater. 12(10):1181-1204. https://doi.org/10.1080/21650373.2023.2185828.
39. Bellmann F, Scherer GW. 2018. Analysis of C-S-H growth rates in supersaturated conditions. Cem. Concr. Res. 103:236–244. https://doi.org/10.1016/j.cemconres.2017.05.007.
40.
Zhang Z, Scherer GW, Bauer A. 2018. Morphology of cementitious material
during early hydration. Cem. Concr. Res. 107:85–100. https://doi.org/10.1016/j.cemconres.2018.02.004.
).
Despite the small amount of calcium hydroxide used for the treatment,
2% in relation to the mass of glass, compared to the large surface area
of all the granulometric fractions of glass particles, no particles
without C-S-H coating were observed in the SEM images. The C-S-H that
covers the particles has an acicular morphology, with small layers in
the ‘cloisonné’ style (bee panel) and with flattened elongated fibers (4141.
de la V Mencía RV, Rojas MF, Martínez-Ramírez S, Fernández-Carrasco L,
Cociña EV, García-Giménez R. 2021. Reactivity of binary construction and
demolition waste mix as supplementary cementitious materials. Mat.
14(21):6481. https://doi.org/10.3390/ma14216481.
).
Still in Figure 4 (B and C) it is possible to observe that the smaller glass particles were
encompassed by the C-S-H formed around the larger glass particles,
behavior different from that observed in the work by Sun et al. (3535.
Sun L, Zhu X, Kim M, Zi G. 2021. Alkali-silica reaction and strength of
concrete with pretreated glass particles as fine aggregates. Constr.
Build. Mater. 271:121809. https://doi.org/10.1016/j.conbuildmat.2020.121809.
).
This is due to the ratio between the size of the particles used and the
amount of C-S-H generated around the particles. In the work by Sun et
al. (3535.
Sun L, Zhu X, Kim M, Zi G. 2021. Alkali-silica reaction and strength of
concrete with pretreated glass particles as fine aggregates. Constr.
Build. Mater. 271:121809. https://doi.org/10.1016/j.conbuildmat.2020.121809.
)
the particles used were much larger, ranging from 4.76mm - 2.38mm (#4
and #8) and the amount of C-S-H generated was much smaller, which made
it impossible for the agglutination of particles to be generated by the
C-S-H.

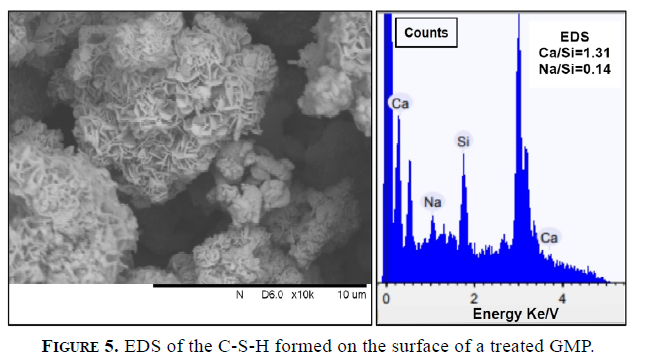

Figure 5 shows an SEM image and its respective EDS analysis of the treated
particle surface, highlighting another characteristic morphology of
calcium silicate hydrate (42-4442.
Li W, Jiang C, Zhang Q, Li S. 2022. Evaluation of pozzolanic and
alkali-activated reactivity of low-purity calcium bentonite. Mat.
15(22):8015. https://doi.org/10.3390/ma15228015.
43.
Bhatrola K, Kothiyal NC. 2023. Influence of (1D/2D. hybrid
nanomaterials on the mechanical and durability properties of pozzolana
portland cementitious mortar. J. Adhes. Sci. Technol. 38(2):288-312. https://doi.org/10.1080/01694243.2023.2226287.
44.
Yagüe S, González Gaya C, Rosales Prieto V, Sánchez Lite A. 2020.
Sustainable ecocements: chemical and morphological analysis of granite
sawdust waste as pozzolan material. Mat, 13(21):4941. https://doi.org/10.3390/ma13214941.
).
The composition found indicates the presence of calcium, silicon and
sodium. The Ca/Si ratio obtained was 1.3, which is within the range to
be considered referring to pozzolanic C-S-H (0.7<Ca/Si<2.1).
Although the C-S-H phase is traditionally described as predominantly
amorphous, Figure 5 shows similarities with natural minerals such as tobermorite and jennite (4545.
Maraghechi H, Rajabipour F, Pantano CG, Burgos WD. 2016. Effect of
calcium on dissolution and precipitation reactions of amorphous silica
at high alkalinity. Cem. Concr. Res. 87:1–13. https://doi.org/10.1016/j.cemconres.2016.05.004.
, 4646.
Tajuelo Rodriguez E, Garbev K, Merz D, Black L, Richardson IG. 2017.
Thermal stability of C-S-H phases and applicability of Richardson and
Groves’ and Richardson C-(A)-S-H(I). models to synthetic C-S-H. Cem.
Concr. Res. 93:45–56. https://doi.org/10.1016/j.cemconres.2016.12.005.
).
3.2. Pozzolanic Activity Index (PAI) - mortars
⌅The graph in Figure 6 shows the compressive strength results of the molded specimens according to the NBR 5752 standard (2121.
ABNT - Associação Brasileira de Normas. 2014. NBR 5752: Pozzolanic
materials: determination of the performance index with Portland cement
at 28 days.
), which evaluates the pozzolanic activity
index using cement after 28 days. In order to verify the pozzolanicity
of the different glass parameters used indirectly (through mechanical
resistance), the standard establishes that the mortar containing 25% of
cement replacement by the supposedly pozzolanic material must reach a
minimum limit of 90% of the compressive strength of the reference mortar
(100% cement), for the material to be considered pozzolanic. By the
criterion of NBR 5752 (2121.
ABNT - Associação Brasileira de Normas. 2014. NBR 5752: Pozzolanic
materials: determination of the performance index with Portland cement
at 28 days.
), all particle sizes used were considered
pozzolanic, it can be seen that both for treated and untreated
particles, the smaller the particle size used, the better the mechanical
result, as in recent works that investigated the influence of
granulometry on the pozzolanic properties of glass (25-3025.
Chen Z, Wang Y, Liao S, Huang Y. 2020. Grinding kinetics of waste glass
powder and its composite effect as pozzolanic admixture in cement
concrete. Constr. Build. Mater. 239:117876. https://doi.org/10.1016/j.conbuildmat.2019.117876.
26.
Kalakada Z, Doh JH, Zi G. 2020. Utilisation of coarse glass powder as
pozzolanic cement - A mix design investigation. Constr. Build. Mater.
240:117916. https://doi.org/10.1016/j.conbuildmat.2019.117916.
27.
Más-López MI, García del Toro EM, García-Salgado S, Alcala-Gonzalez D,
Pindado S. 2021. Application of concretes made with glass powder binder
at high replacement rates. Mat. 14(14): 3796. https://doi.org/10.3390/ma14143796.
28.
Borges AL, Soares SM, Freitas TOG, Junior AO, Ferreira EB, Ferreira
FGS. 2021. Evaluation of the pozzolanic activity of glass powder in
three maximum grain sizes. Mater. Res. 24(4). https://doi.org/10.1590/1980-5373-MR-2020-0496.
29.
Patel D, Shrivastava R, Tiwari RP, Yadav RK. 2021. The role of glass
powder in concrete with respect to its engineering performances using
two closely different particle sizes. Struct. Concr. 22(S1):E228–E244. https://doi.org/10.1002/suco.201900182.
30.
Omer B, Saeed J. 2022. Effect of water to binder ratio and particle
size distribution of waste glass powder on the compressive-strength and
modulus of elasticity of normal-strength concrete. Eur. J. Environ. Civ.
Eng. 26(11):5300–5321. https://doi.org/10.1080/19648189.2021.1893227.
).
Comparing the mortars between the respective particle size fractions with and without treatment, we can observe that for particle sizes <45µm and <75µm the mechanical results did not indicate significant differences. However, for sizes <25µm, the mortar with treated particles showed lower mechanical performance, resulting in reduced compressive strength and the formation of particle agglomerates, as represented in the SEM images of the treated particles. This, in turn, caused mortars containing treated particles of all sizes to have lower workability when the same amount of water was added in the fresh state, as illustrated in Table 2. It is worth noting that all compositions, both with and without treatment, resulted in compressive strengths equivalent to or greater than that of the reference mortar. Notably, the samples with a cement replacement of 45µm and 25µm without treatment exhibited gains of 25% and 33%, respectively, while the treated samples of 45µm and 25µm showed gains of 17% and 19%, respectively.
The methodologies proposed in the NBR 5752 (2121.
ABNT - Associação Brasileira de Normas. 2014. NBR 5752: Pozzolanic
materials: determination of the performance index with Portland cement
at 28 days.
) standard constitute an indirect method
for classifying mineral additions, based on the compressive strength of
pozzolanic systems, which are compared to arbitrary conditions
recommended in NBR 12653 (4747. ABNT - Associação Brasileira de Normas Técnicas. 2014. NBR 12653: Pozzolanic materials: requirements.
).
The challenge with measuring pozzolanicity through indirect means is
that other factors can influence the mechanical properties of the
material, such as the water-cement ratio, since pozzolans with a high
specific surface area require more water to maintain the same
pre-plasticity, which reduces mechanical resistance (2222.
Filho JH, Gobbi A, Pereira E, Quarcioni VA, De Medeiros MHF. 2017.
Atividade pozolânica de adições minerais para cimento portland (Parte
I): Índice de Atividade Pozolânica (IAP). Com Cal, Difração de Raios-X
(DRX), Termogravimetria (TG/DTG). E chapelle modificado. Rev. Matéria.
22(3). https://doi.org/10.1590/S1517-707620170003.0206
).
It was possible to observe that, with the same amount of water, systems
containing treated particles reached lower workability than their
equivalent particles without treatment, which influenced the mechanical
results.
Considering the standard deviation, the mechanical performance can be considered equal for the mortars with particles of 45 and 75 mm, with and without treatment. However, the treatment reduced the mechanical strength of the mortars containing treated 25 mm particles compared to the same fraction without treatment. This effect can be attributed to the formation of particle clusters generated by their agglomeration by the formed C-S-H, impairing the filler effect and reducing packing. This observation is corroborated by the particle agglomeration observed in Figure 3.
3.3. Characterization of cement pastes with 25% of GMP
⌅3.3.1. X-ray diffraction analysis

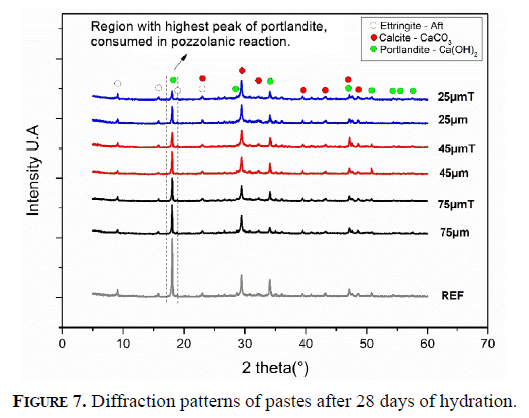

⌅XRD analysis was used to estimate the pozzolanicity of GMPs in cement pastes at 28 days of age. The assessment of GMPs’ pozzolanicity, with and without treatment, was conducted by examining the remaining portlandite content in various cementitious systems with the addition of glass. The diffraction patterns for standard paste samples (100% OPC) and those with 25% cement replacement by GMPs (<75μm, <45μm, <25μm), both treated and untreated, are displayed in Figure 7. In all formulations, characteristic peaks of portlandite (2θ = 18.08°, 28.66°, 34.10°, and 47.12°), calcite (2θ = 29.40°), and ettringite (2θ = 9.09°) are present. Despite the 25% replacement of cement with GMPs, the curve profiles showed no significant variations related to the presence of an amorphous halo. This lack of variation can be attributed to the fact that cementitious products’ diffraction patterns naturally include an amorphous halo associated with amorphous C-S-H.
To emphasize the impact of GMPs on portlandite consumption, Figure 8 presents the diffraction patterns of all evaluated compositions, with a
focus on the 2θ region between 17.0 and 19.0°. Based on the intensity
of the peaks, it can be observed that the amount of portlandite
decreases with the replacement of cement by glass powder under all
conditions, indicating that the glass residues reacted with calcium
hydroxide during the hydration process. As the glass particle size
decreases, the peaks related to portlandite also decrease; this
observation applies to both treated and untreated particles. It is also
worth noting that in the pastes produced with treated glass particles,
the portlandite peaks have lower intensities than their untreated
counterparts. This indicates a greater consumption of portlandite due to
the pozzolanic reaction (2222.
Filho JH, Gobbi A, Pereira E, Quarcioni VA, De Medeiros MHF. 2017.
Atividade pozolânica de adições minerais para cimento portland (Parte
I): Índice de Atividade Pozolânica (IAP). Com Cal, Difração de Raios-X
(DRX), Termogravimetria (TG/DTG). E chapelle modificado. Rev. Matéria.
22(3). https://doi.org/10.1590/S1517-707620170003.0206
, 4848.
Bonavetti VL, Rahhal VF, Locati F, Irassar EF, Marfil S, Maiza P. 2020.
Pozzolanic activity of argentine vitreous breccia containing mordenite.
Mater. Construcc. 70(337):208. https://doi.org/10.3989/mc.2020.04019.
).
This can be attributed to the surface changes that the treatment caused
in the glass particles, altering their dissolution mechanisms (3535.
Sun L, Zhu X, Kim M, Zi G. 2021. Alkali-silica reaction and strength of
concrete with pretreated glass particles as fine aggregates. Constr.
Build. Mater. 271:121809. https://doi.org/10.1016/j.conbuildmat.2020.121809.
).

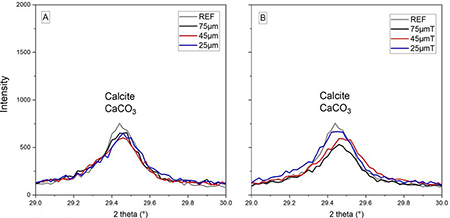

The portlandite (CH) content can also decrease due to carbonation caused by exposure to CO2 and humidity in the aging environment of cement products. Equation 3
indicates, in a summarized and non-stoichiometric way, how the
portlandite carbonation process occurs (4949.
Potapov VV, Efimenko YV, Gorev DS. 2019. Determination of the amount of
Ca(OH)2 bound by additive nano-SiO2 in cement matrices. Nanotechnol.
Constr. Sci. Internet-J. 11(4):415–432. https://doi.org/10.15828/2075-8545-2019-11-4-415-432.
, 5050.
Barbero-Barrera MM, Gomez-Villalba LS, Ergenç D, Sierra-Fernández A,
Fort R. 2022. Influence of curing conditions on the mechanical and
hydric performance of air-lime mortars with nano-Ca(OH)2 and nano-SiO2 additions. Cem. Concr. Compos. 132:104631. https://doi.org/10.1016/j.cemconcomp.2022.104631.
).
The carbonation of the samples led to a decrease in the amount of portlandite and an increase in the amount of CaCO3. In this case, the decline in CH content could be misinterpreted and attributed to the pozzolanic reaction. To resolve this doubt, Figure 9 presents a comparison of the intensities of the main calcite peak for all compositions investigated using untreated particles (Figure 9.A) and treated particles (Figure 9.B). It is notable that the reference sample exhibits a slightly more intense calcite peak than the compositions with GMPs. This is primarily due to the high level of substitution carried out (25 %wt of GMP), as the cement used to prepare the samples contains a significant amount of limestone filler. When observing the other samples, they all have similar peak intensities, with no changes caused by particle size or treatment. This indicates that the reduction in portlandite peaks in the pastes shown in Figure 8 was solely due to its consumption through the pozzolanic reaction.
3.3.2. Thermal behavior of the pastes
⌅In Figure 10, the TGA/DTG curves of pastes with untreated and treated particles are shown, Figures 10.A and 10.B,
respectively. Three decomposition regions can be highlighted. The first
region occurs in the range of 80 to 400 °C and can be attributed to
water loss, dehydration of C-S-H, decomposition of ettringite (AFt), and
dehydration of hydrated aluminates (HA) (5151.
Frías M, Martínez-Ramírez S, de la Villa RV, Fernández-Carrasco L,
García R. 2021. Reactivity in cement pastes bearing fine fraction
concrete and glass from construction and demolition waste:
Microstructural analysis of viability. Cem. Concr. Res. 148:106531. https://doi.org/10.1016/j.cemconres.2021.106531.
, 5252.
Martins GLO, Fraga YSB, de Paula A, Rêgo JH da S, Terrades AM, Rojas
MF. 2023. Analysis of the microstructure and porosity of cement pastes
with functionalized nanosilica with different contents of aminosilane.
Mat. 16(16):5675. https://doi.org/10.3390/ma16165675.
).
The second region (400 - 460 °C) corresponds to the dehydration of
portlandite. The third region (550 - 830°C) results from the
decomposition of calcium carbonate due to the release of CO2 (1616.
de la Villa Mencía RV, Frías M, Ramírez SM, Carrasco LF, Giménez RG.
2022. Concrete/glass construction and demolition waste (CDW). Synergies
in ternary eco-cement-paste mineralogy. Mat. 15(13):4661. https://doi.org/10.3390/ma15134661.
, 5353.
Peng L, Zhao Y, Ban J, Wang Y, Shen P, Lu JX, Poon CS. 2023. Enhancing
the corrosion resistance of recycled aggregate concrete by incorporating
waste glass powder. Cem. Concr. Compos. 137:104909. https://doi.org/10.1016/j.cemconcomp.2022.104909.
, 5454.
Rashad AM, Essa GMF, Abdel-Gawwad HA. 2022. An investigation of
alkali-activated slag pastes containing recycled glass powder under the
effect of elevated temperatures. Environ. Sci. Pollut. Res.
29(19):28647–28660. https://doi.org/10.1007/s11356-021-18365-7.
).
Naturally, pastes produced by replacing glass with GMPs exhibit lower
amounts of portlandite due to its consumption by the pozzolanic reaction
and a lower cement content. Compared to the reference paste, which
experiences a 4.5% mass loss due to portlandite decomposition, pastes
containing 25% GMPs exhibit reduced mass loss, ranging between 2.48% and
3.13%. All pastes containing GMPs exhibit lower mass loss related to
the C-S-H compared to the reference paste (21.87%). Pastes with treated
particles show higher thermal decompositions in the temperature range
corresponding to the C-S-H than pastes with untreated particles (75μm →
10.52%, 75μmT → 14.36%, 45μm → 11.26%, 45μmT → 13.43%, 25μm → 14.08%,
and 25μmT → 17.8%), indicating greater formation of this product through
pozzolanic reaction.
3.3.3. Morphology of hydrated products (SEM/EDS)
⌅As shown in Figure 11.A,
CH is predominant in the reference paste after a curing time of 28
days. When glass waste was incorporated into the paste, a layer of
Si-rich gel was formed on the surface of the glass particle due to its
incongruous dissolution. The depolymerized silicates in this layer react
with Ca2+ to form a C-S-H reaction ring, as shown in Figure 11 (B, C and, D). At the same time, the dissolved silicate can react with Ca(OH)2 to form the external product (C-S-H), which resulted in a lower Ca/Si ratio (1414.
Jiang X, Xiao R, Bai Y, Huang B, Ma Y. 2022. Influence of waste glass
powder as a supplementary cementitious material (SCM). On physical and
mechanical properties of cement paste under high temperatures. J. Clean.
Prod. 340:130778. https://doi.org/10.1016/j.jclepro.2022.130778.
). Thus, the pozzolanic reactivity of the glass waste was also confirmed by microscopy images.
The mechanism of the pozzolanic reaction is initially due to a large amount of Ca2+ and SiO4 2- released into the pore solution. In this alkaline
environment, the amorphous silica from the waste glass that is dissolved
forms a Si layer on the surface of the waste glass particle. The
released Ca2+ ions react with the Si layer and produce C-S-H. As the addition of waste glass increased, more cations such as Na+ contributed to forming more C-S-H with a higher Si/Ca ratio. Therefore, fewer free Ca2+ ions and a lower pH of the pore solution can attenuate the hydration process of glass particles due to the dilution effect (1414.
Jiang X, Xiao R, Bai Y, Huang B, Ma Y. 2022. Influence of waste glass
powder as a supplementary cementitious material (SCM). On physical and
mechanical properties of cement paste under high temperatures. J. Clean.
Prod. 340:130778. https://doi.org/10.1016/j.jclepro.2022.130778.
).
The formation of extra C-S-H by the pozzolanic reaction explains the
superior compressive strength results observed with the use of particles
<25μm and <45μm, with and without treatment.
It is evident in Figures 11.B, C, and D the effect of heteronucleation of the C-S-H phase on the surface of the glass particle (5555.
Dobiszewska M, Pichór W, Tracz T, Petrella A, Notarnicola M. 2023.
Effect of glass powder on the cement hydration, microstructure and
mechanical properties of mortar. 10th MATBUD’23 Sci-Tech. Conf. 40.
13(1):40. https://doi.org/10.3390/materproc2023013040.
). The dissolved SiO2 produces denser C-S-H than the CH consumed by the pozzolanic reaction, which develops a rim around the glass powder particles (5656.
Elaqra HA, Haloub MAA, Rustom RN. 2019. Effect of new mixing method of
glass powder as cement replacement on mechanical behavior of concrete.
Constr. Build. Mater. 203:75–82. https://doi.org/10.1016/j.conbuildmat.2019.01.077.
).
Due to the products formed on the surface of the treated particles with
a morphology similar to tobermorite, the C-S-H nucleation power of the
glass particles is increased, and they begin to act in a manner
analogous to seeds of C-S-H (3838.
Nassiri S, Markandeya A, Haider MM, Valencia A, Rangelov M, Li H,
Halsted A, Bollinger D, McCloy J. 2023. Technical and environmental
assessment of hydrothermally synthesized foshagite and tobermorite-like
crystals as fibrillar C-S-H seeds in cementitious materials. J. Sustain.
Cement-Based Mater. 12(10):1181-1204. https://doi.org/10.1080/21650373.2023.2185828.
).
Smaller glass particles were not found adhered to larger particles in
cement pastes. The alkaline environment, coupled with the very high
surface area of these particles (diameter <1μm), may have caused them
to dissolve completely in the paste, increasing the silicon available
to form C-S-H.
The interfacial transition zone (ITZ) between the
GMP and the cementitious matrix can be visualized in the SEM images of
the untreated pastes (Figure 11.B), but are not seen in the treated pastes (11.C and 11.D).
In pastes with treated particles, it was possible to observe that the
C-S-H formed was linked directly to the glass particle, without a
defined transition between what was C-S-H and what was glass. To

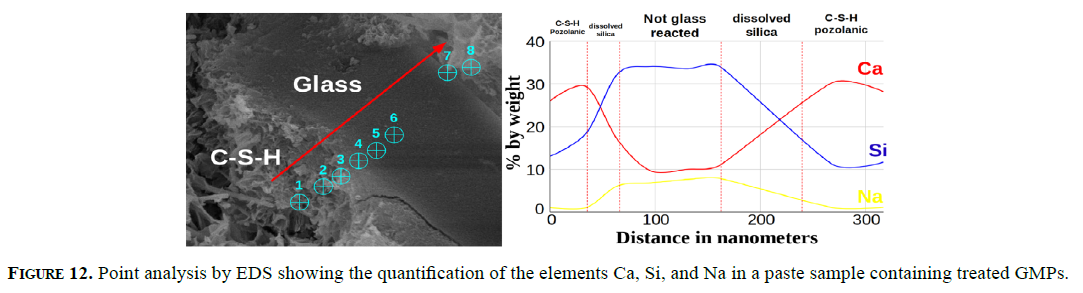

evaluate this transition region, an EDS analysis was performed at
several points, connecting one end to the other of a particle with
surface C-S-H (Figure 12).
The composition of C-S-H can vary within the same paste, especially in
the case of blended cement pastes where different Ca/Si and Al/Si ratios
can be observed depending on the measurement area. In Figure 12,
it can be noticed that the Ca/Si ratio tends to decrease in the region
on the smooth surface of the residual glass particles, while this ratio
increases as the measurement point moves away from the center of the
glass particles. Points 1 and 2 have Ca/Si ratios of 2.00 and 1.57,
respectively, within the range to be considered C-S-H. Points 3 to 6
have Ca/Si ratios below 0.7, representing the regions where the glass
did not react. Points 7 and 8 have Ca/Si ratios of 2.82 and 2.42,
respectively, which are values above the commonly accepted theoretical
values for C-S-H. However, the morphology indicates that it is C-S-H,
possibly in a region with a high calcium content due to the presence of
limestone filler in the cement (4646.
Tajuelo Rodriguez E, Garbev K, Merz D, Black L, Richardson IG. 2017.
Thermal stability of C-S-H phases and applicability of Richardson and
Groves’ and Richardson C-(A)-S-H(I). models to synthetic C-S-H. Cem.
Concr. Res. 93:45–56. https://doi.org/10.1016/j.cemconres.2016.12.005.
).
The dissolution of glass residues slowly introduces additional silica
and sodium into the system over time. Silica reacts with portlandite to
form more C-S-H, while sodium is partially incorporated into the C-S-H (5757.
Mejdi M, Wilson W, Saillio M, Chaussadent T, Divet L, Tagnit-Hamou A.
2022. Hydration and microstructure of glass powder cement pastes – A
multi-technique investigation. Cem. Concr. Res. 151:106610. https://doi.org/10.1016/j.cemconres.2021.106610.
).
4. CONCLUSIONS
⌅-
Although mortars made with treated particles have lower workability compared to untreated ones, which impacts mechanical resistance qualities. All glass particle sizes used provided the mechanical performance necessary to be considered pozzolanic materials.
-
The use of pre-treatment with a calcium hydroxide solution at 80°C for 7 days enhances the pozzolanic activity of glass particles. Treated glass particles are coated with C-S-H and act as nucleation seeds for C-S-H, enhancing their pozzolanic activity. However, the pre-treatment induced the formation of clusters of glass particles, which negatively affected the particle filling effect.
-
The smaller the size of the glass particles, the higher the consumption of calcium hydroxide. Additionally, the incorporation of treated particles consumed more calcium hydroxide than untreated particles of equivalent size. The increased consumption of calcium hydroxide indicates a greater pozzolanic reaction.
-
Glass particles that are very small (<1μm) are not observed by SEM in hydrated pastes, likely because they are completely dissolved in the cementitious matrix. In pastes with treated particles, it was possible to observe changes in the interfacial transition zone (ITZ) between the cementitious matrix and the glass particle, as the matrix-glass ITZ was not as well-defined as in pastes with untreated particles.
-
The studied composites can be applied in cement systems aiming to reduce the amount of portlandite, preventing issues such as efflorescence. Additionally, they can be useful for applications where there is a need to decrease the content of aluminates, which are reduced by substituting 25% of the cement with glass particles.
