Investigation of freeze-thaw performance for sustainable rubberized concrete composites with different water to cement ratios

2.1. Materials

In the study, Portland cement was classified as CEM I 42.5 R according to the TS EN 197-1 (5050. TS EN 197-1. 2012. Cement- Part 1: Composition, specification and conformity criteria for common cements. Turkish Standards Institution, Ankara, Turkey (Turkish Codes).
) standard. Technical information about the cement provided by the manufacturer is given in Table 1.

The properties of the limestone-based aggregates used in the study are presented in Table 2.

Mixed aggregate was obtained by using half the volume of coarse and fine aggregate in order to remain between the limit curves according to the TS 802 (5151. TS 802. 2016. Design of concrete mixes, Turkish Standards Institution, Ankara, Turkey (Turkish Codes).

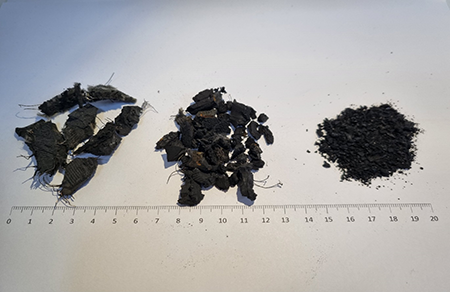

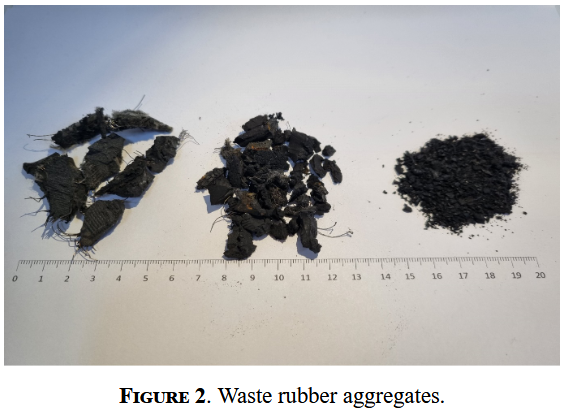

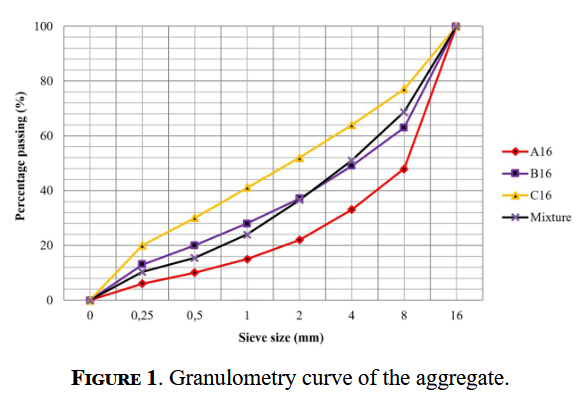

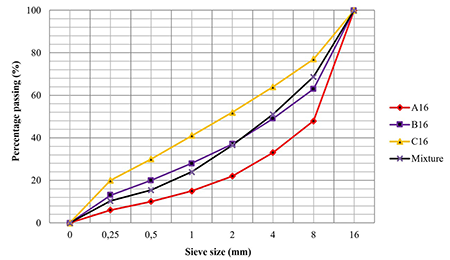

) standard. Accordingly, for example, the rubber aggregate ratios in rubberized concrete containing 20% waste rubber are: It is chips rubber instead of 10% coarse aggregate, and powder and crumb rubber instead of 10% fine aggregate. Granulometry curve of the aggregate is given in Figure 1.

Limit curves in the standard (A16, B16 and C16) are used to determine the ideal aggregate granulometry in concrete. Accordingly, the aggregate used in this study granulometry curve between the A16 and C16 limit curves is defined as a curve that can be ideally used in concrete. In the recycling facility, waste tires are first separated from their steel wires (some steel wire may remain inside the tires at this stage), and then they are mechanically shredded. Waste tire particles of different sizes resulting from this process are sifted and divided into groups. Chips were used instead of coarse aggregate, and crumb and powder rubber were used instead of fine aggregate. Additionally, waste rubbers contain 1% to 3% steel wire by volume. The length of these steel wires is between 5-10 mm and is embedded in the waste rubber. Waste rubber aggregates are given in Figure 2. The specific gravity of waste rubber aggregates is 1.05 g/cm³. The average water absorption value of waste rubber aggregates used in concrete production was determined as 3.67%.

A polycarboxylate ether based superplasticizer was used in all concretes to keep the slump value constant.

2.2. Concrete production and parameters

Rubberized concrete production with seven different aggregate contents (0%, 4%, 8%, 12%, 16%, 20% and 24%) by volume instead of natural aggregates was carried out at water/cement ratios of 0.4 and 0.5. Therefore, a total of fourteen different concretes were produced, including seven concretes with 0.4 water/cement ratio and seven concretes with 0.5 water/cement ratio. In concrete production, first the aggregates (including waste rubbers) were poured into the mixer and mixed for 1 minute. Then, saturation water was added to the mixer and mixed for 2 minutes. Three-quarters of the mixing water and cement were poured into the mixer and the whole mixture was mixed for 2 minutes. Finally, superplasticizer was added to the remaining one-quarter of the water, poured into the mixer and mixed for 2 minutes, and then the concretes were produced. After the concretes for which slump tests were performed were kept in the molds for 24 hours, the molds were removed and water curing was applied to the samples until the 28 days. Cement was used in all concretes at a dosage of 400 kg/m³. In the coding of mixtures, the numbers before "WR" indicate the water/cement ratio, and the numbers after indicate the waste rubber aggregate substitution ratio. In addition, in order to keep the slump values (8 ± 1 cm) ​​of concrete constant, superplasticizer chemical additives were included in production at a rate of 0.15% to 0.8% in proportion cement. More detailed information on concrete mixture design is available in Kandil and Bulut (5252. Kandil U, Bulut HA. 2024. Examination of the permeability of rubberized concrete with different water/cement ratios and their resistance against acid and sulfate attack. Progress in Rubber, Plastics and Recycling Technology. 40(3):320-339 https://doi.org/10.1177/14777606231224132
).

2.3. Testing of specimens

Slump tests were conducted on concretes according to ASTM C143/C143M (5353. ASTM C143/C143M. 2020. Standard test method for slump of hydraulic-cement concrete. ASTM International, West Conshohocken, PA, USA.
) standard. For each mixture, four cylindrical samples (diameter of 10 cm and length of 20 cm) were produced, and two of them were used in the freeze-thaw test and two in the compressive strength test. A total of 56 samples were produced. Within the scope of the study, the resistance of the concretes against freeze-thaw was evaluated according to their weight loss and compressive strength loss after 300 cycles. A visual evaluation of the samples was also made. Cylindrical samples with a diameter of 10 cm and length of 20 cm were used to examine the freeze-thaw performance of the concretes. At the end of the curing period, these samples were weighed in a saturated state and placed in the freeze-thaw chamber. The samples were subjected to freeze-thaw in a way to be subjected to 300 cycles in total. At the end of cycles of 0, 100, 150, 200, 250 and 300, the samples were weighed, and the weight changes compared to the initial condition were examined. ASTM C666 was taken as a basis for the freeze-thaw test (5454. ASTM C666/C666M-15. 2016. Standard test method for resistance of concrete to rapid freezing and thawing. ASTM International, West Conshohocken, PA, USA.
). The test followed procedure B in ASTM C666 (5454. ASTM C666/C666M-15. 2016. Standard test method for resistance of concrete to rapid freezing and thawing. ASTM International, West Conshohocken, PA, USA.

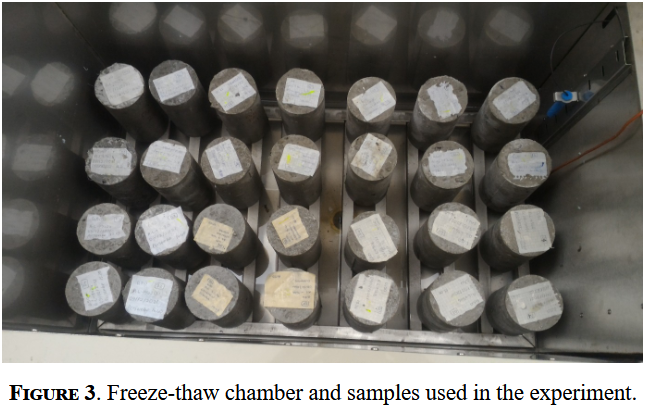

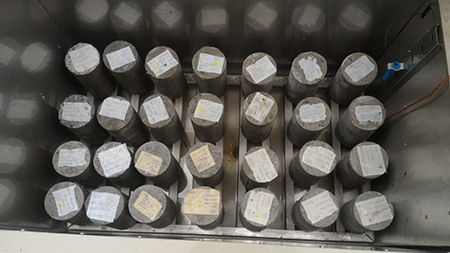

), i.e. freezing in air and thawing in water. The automatic device was programmed so that the applied temperature cycle was -18°C to 4°C, and the test was continued in this way. A photograph of the device in which the freeze-thaw test was performed and the samples placed in it is given in Figure 3. The changes in the microstructure of rubberized concrete and control concrete after exposure to freeze-thaw were examined by taking SEM (scanning electron microscope) images. SEM analysis was performed by means of a QUANTA FEG 450 brand device. ANOVA carried out statistical analysis to examine the level of contribution of the selected parameters to the results. The fact that the waste rubber substitution ratio and water/cement ratio factors have a significant effect on weight loss and compressive strength loss was examined by this method. As a general acceptance, if the p-value is lower than 0.05, it is accepted that the independent variables have a significant effect.

3.1. Mass loss of rubberized concretes after freeze-thaw cycles

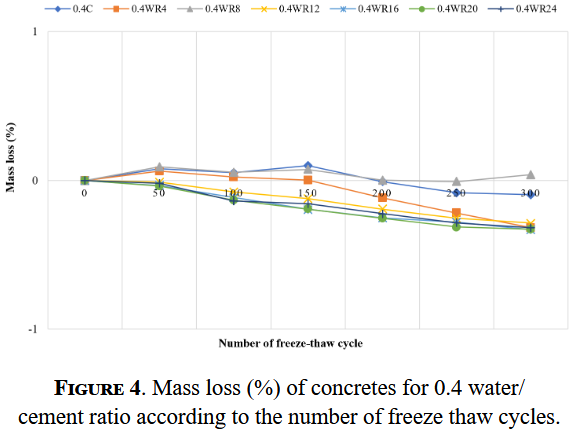

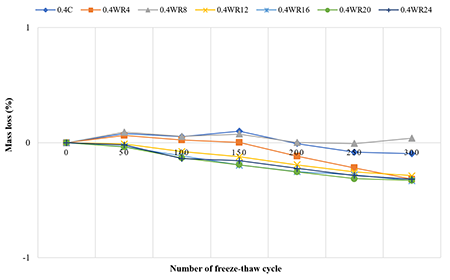

The change in mass of 0.4 water/cement ratio of the samples according to the number of freeze-thaw cycles applied is given in Figure 4. With the increase in the number of freeze-thaw cycles, it is seen that the mass loss of concretes with 12% and more waste rubber aggregate content decreases continuously; that is, their weight increases. It is thought that this weight increase occurs due to the growth of cracks as well as voids in the concretes as a result of the freeze-thaw effect and due to the filling of these voids by water. In addition, the steel wires, which are present in very small amounts in the rubber aggregate used, prevent exfoliation due to the freeze-thaw effect, causing a large number of voids to fill with water and play an important role in the weight increase. It’s possible that a lot of the early mass increase is due to continued hydration of the concrete. The decrease in mass of concrete containing 4% waste rubbers (0.4WR4) up to 150 cycles and increase in mass in more than 150 cycles and the decrease in mass of control (0.4C) concrete without waste rubbers up to 200 cycles and increase in mass in 250 and 300 cycles support this idea. As a result, it was observed that the saturated masses of the samples increased with the increase in waste rubber content, and it was seen that more freeze-thaw-resistant samples could be produced with an increase in the waste rubber aggregate substitution ratio.

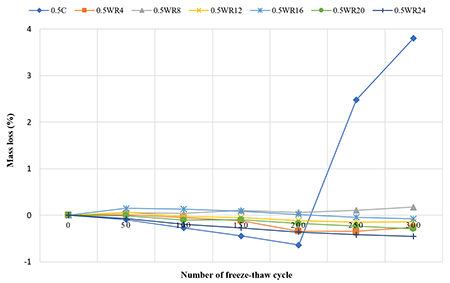

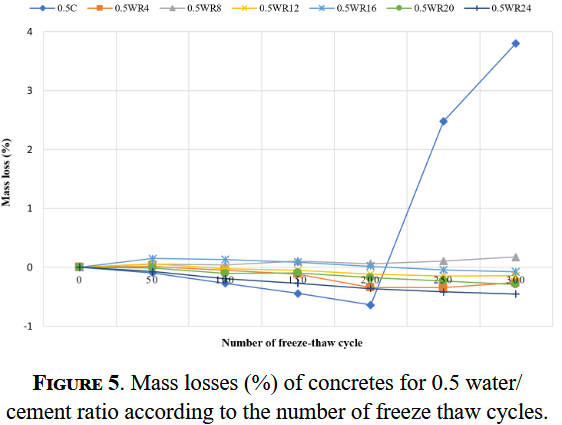

Figure 5 shows the changes in the masses of concretes with 0.5 water/cement ratio according to the number of freeze-thaw cycles applied.

From Figure 5, it was seen that at the end of 250 and 300 freeze-thaw cycles, the weight loss of concrete without waste rubbers (0.5C) increased significantly to 2.5% and 3.8%, respectively. On the other hand, the mass changes of all concrete containing waste rubber aggregate did not exceed 0.5% after 300 cycles. Here, the effectiveness of the use of waste rubbers in preventing mass loss is visible. For a 0.5 water/cement ratio, all concrete containing waste rubbers were not affected by the freeze-thaw number up to 300 cycles.

When the freeze-thaw test results of concretes with 0.4 and 0.5 water/cement ratios are analyzed together, while the mass change at the end of 300 cycles in 0.4C concrete without waste rubbers is about 0.1%, the said mass loss in 0.5C concrete is 3.8%. In terms of mass loss, significant reductions in freeze-thaw resistance were seen in conventional concretes as the water/cement ratio increased. However, it was observed that the water/cement ratio was not a very effective parameter in concretes containing waste rubber aggregate with a very small amount of steel wire. Different researchers have shown that recycled rubber aggregates reduce the mass loss of concretes due to the freeze-thaw effect and increase the freeze-thaw resistance (5555. Shu X, Huang B. 2014. Recycling of waste tire rubber in asphalt and portland cement concrete: an overview. Constr. Build. Mater. 67(Part B):217-224. https://doi.org/10.1016/j.conbuildmat.2013.11.027
, 5656. Si R, Guo S, Dai Q. 2017. Durability performance of rubberized mortar and concrete with NaOH-Solution treated rubber particles. Constr. Build. Mater. 153:496-505. https://doi.org/10.1016/j.conbuildmat.2017.07.085
).

Turgut and Yesilata (5757. Turgut P, Yesilata B. 2008. Physico-mechanical and thermal performance of newly developed rubber-added bricks. Energy Build. 40(5):679-688. https://doi.org/10.1016/j.enbuild.2007.05.002
) reported that concretes containing crumb rubber as a natural sand substitute at levels exceeding 50% by volume had higher freeze-thaw resistance. As a result of this study, it was found that the use of waste rubbers reduced the mass loss of concretes, and parallel results were obtained with the literature. The reason for the increase in freeze-thaw resistance due to the use of waste rubbers can be explained in two ways. The first is that the ductile rubber aggregate can allow ice to expand (2323. Thomas BS, Gupta RC. 2016b. A comprehensive review on the applications of waste tire rubber in cement concrete. Renew. Sustain. Energ. Rev. 54:1323-1333. https://doi.org/10.1016/j.rser.2015.10.092
). The second one is explained as the fact that the rubber aggregate increases the effective porosity, which increases the entrained air and, hence, the freeze-thaw resistance (5858. Girskas G, Nagrockiene D. 2017. Crushed rubber waste impact of concrete basic properties. Constr. Build. Mater. 140:36-42. https://doi.org/10.1016/j.conbuildmat.2017.02.107
, 5959. Nehdi M L, Najjar MF, Soliman AM, Azabi TM. 2017. Novel eco-efficient two-stage concrete incorporating high volume recycled content for sustainable pavement construction. Constr. Build. Mater. 146:9-14. https://doi.org/10.1016/j.conbuildmat.2017.04.065
). In addition, it is thought that the size and amount of waste rubber aggregate also affect the results (6060. Li Y, Chai J, Wang R, Zhou Y, Tong X. 2022. A review of the durability-related features of waste tyre rubber as a partial substitute for natural aggregate in concrete. Build. 12(11):1975. https://doi.org/10.3390/buildings12111975
). In the literature, it is seen that crumb rubber is used as aggregate in almost all studies, but there is no study in which fine and coarse rubber aggregate are used at the same time. It is thought that this study, which also examines the effect of different water/cement ratios, will fill an important gap in the literature. Figure 5 shows that the mass loss of concrete with a 16% waste rubber ratio increases dramatically after 200 cycles. As stated in the literature (6060. Li Y, Chai J, Wang R, Zhou Y, Tong X. 2022. A review of the durability-related features of waste tyre rubber as a partial substitute for natural aggregate in concrete. Build. 12(11):1975. https://doi.org/10.3390/buildings12111975
), especially when the waste rubber ratio exceeds 10%, rubberized concrete becomes more permeable and high weight loss may occur.

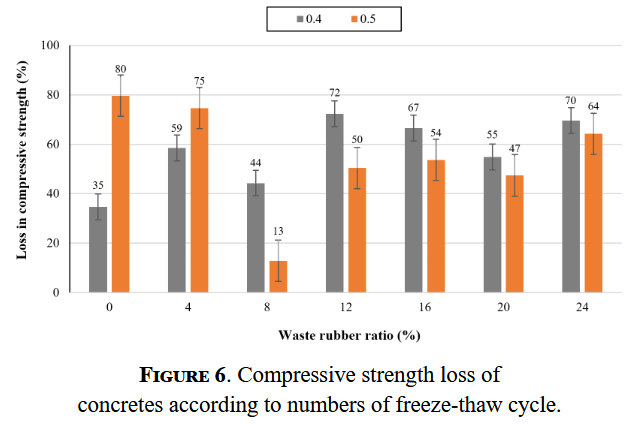

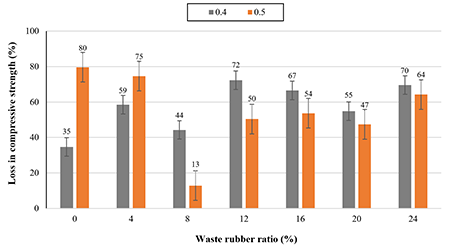

The decrease in the compressive strength of the samples at the end of 300 freezes and thaws compared to the compressive strength of 28-day concretes is given in Figure 6. According to Figure 6, compressive strength decreased in all concretes at the end of 300 freeze-thaw cycles. The lowest compressive strength losses were observed in concrete without waste rubbers (0.4C), with 35% compressive strength loss for 0.4 water/cement ratio, and in concrete with 8% waste rubber substitution (0.5WR8) with 13% compressive strength loss for 0.5 water/cement ratio. Moreover, the compressive strength loss of concrete with code 0.5WR8 was the lowest among all the concretes produced.

3.2. Compressive strength loss of rubberized concretes after freeze-thaw cycles

Table 3 presents the compressive strength results of the concrete before the freeze-thaw test.

The compressive strength loss of concrete coded 0.5WR8 is lower at a ratio of about 1/8 than that of concrete coded 0.5C without waste rubbers. While concretes with a 0.4 water/cement ratio have smaller compressive strength losses than those with a 0.5 water/cement ratio for concretes without waste rubbers and 4% waste rubber, the opposite is true for concretes with other waste rubber substitutes. In other words, in general, for concretes containing waste rubbers, the compressive strength loss of concretes with 0.5 water/cement ratio is lower than that of concretes with 0.4 water/cement ratio. In a study, it was recorded that the compressive strength of concretes produced using 5% rubber aggregate by weight increased to 23% after 200 freeze-thaw cycles and decreased by 58% after 400 cycles (6161. Grinys A, Augonis A, Daukšys M, Pupeikis D. 2020. Mechanical properties and durability of rubberized and SBR latex modified rubberized concrete. Constr. Build. Mater. 248:118584. https://doi.org/10.1016/j.conbuildmat.2020.118584
).

In this study, the average compressive strength loss in all groups at the end of 300 cycles was approximately 55%, and the results conformed to the literature. It can be stated that the decrease in compressive strength due to the freeze-thaw effect is the further growth of cracks in the concretes at the end of each cycle and the existence of mass losses (6161. Grinys A, Augonis A, Daukšys M, Pupeikis D. 2020. Mechanical properties and durability of rubberized and SBR latex modified rubberized concrete. Constr. Build. Mater. 248:118584. https://doi.org/10.1016/j.conbuildmat.2020.118584
). As seen in Table 3, as the waste rubber replacement ratio increased, there was a decrease in compressive strength. However, compressive strength losses (Figure 6) compare the concrete before the freeze-thaw test. The minimum compressive strength loss is seen in rubberized concrete with a waste rubber ratio of 8%. It is thought that the internal strains that will arise from the freeze-thaw effect with the presence of rubber in the concrete are compensated to some extent by the waste rubber. In addition, the fact that the steel wire in the waste rubber absorbs the energy created by the stresses caused by the freeze-thaw effect is another reason that prevents the loss of compressive strength (6262. Medina DF, Martínez MCH, Medina NF, Hernández-Olivares F. 2023. Durability of rubberized concrete with recycled steel fibers from tyre recycling in aggressive enviroments. Constr. Build. Mater. 400:132619. https://doi.org/10.1016/j.conbuildmat.2023.132619
).

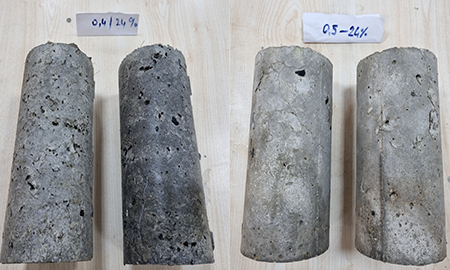

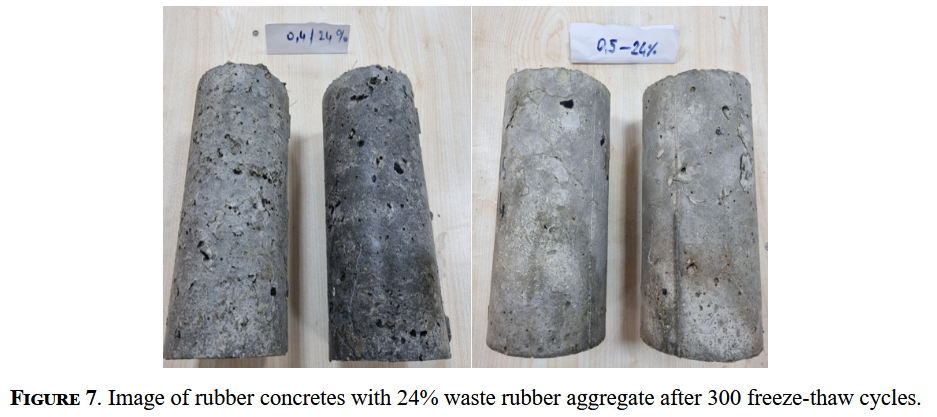

Finally, the sample images of the concrete containing the highest amount of waste rubbers (24%) at the end of 300 freeze-thaw cycles are given in Figure 7. Accordingly, it is clearly seen that concrete samples with a 0.4 water/cement ratio (0.4WR24) containing 24% waste rubbers were damaged more than concrete samples with a 0.5 water/cement ratio (0.5WR24) containing 24% waste rubbers. It was also revealed by the visual results that the water/cement ratio should be a clear parameter of the resistance to be shown by rubberized concretes against freeze-thaw.

3.3. Microstructural analysis

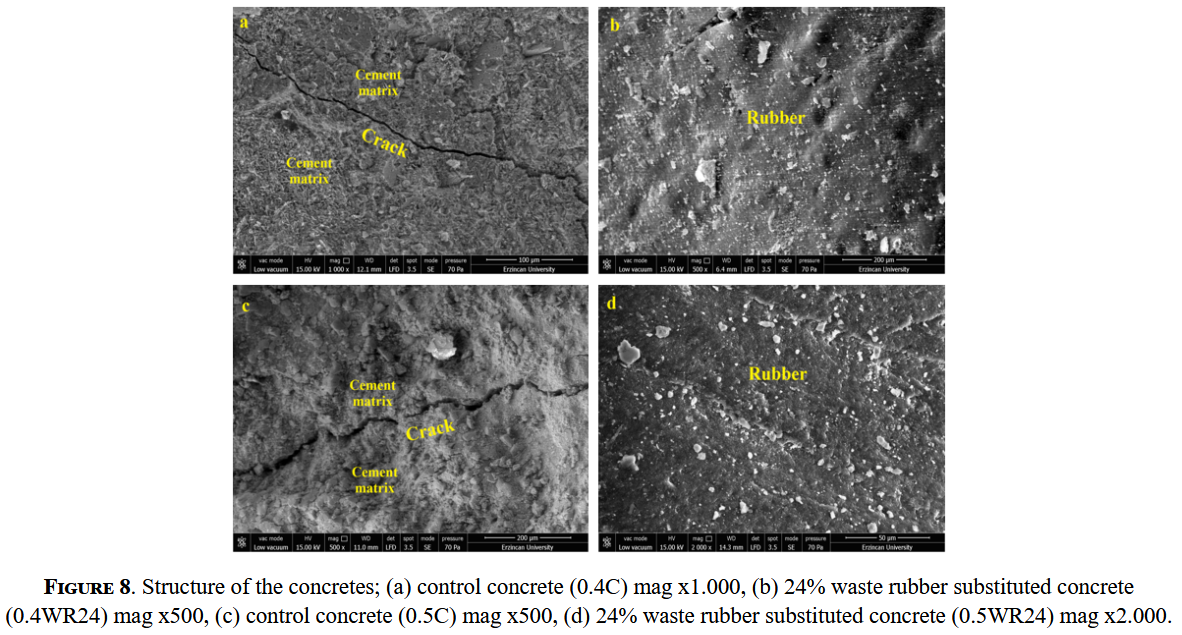

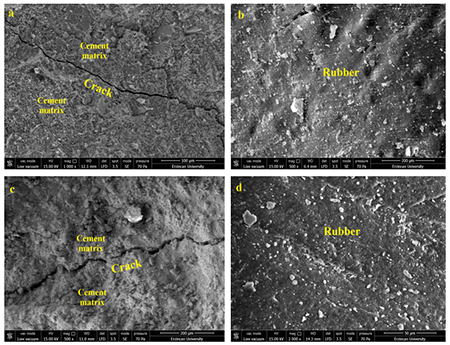

The microstructures of the concrete subjected to the freeze-thaw test at the end of 300 cycles were analyzed by SEM analysis. The SEM analysis results of the control concrete with water/cement ratios of 0.4 and 0.5 and the concretes in which the highest waste rubber ratio (24%) is substituted are given in Figure 8. Figure 8(a) shows the microstructure of concrete without waste rubbers and a water/cement ratio 0.4. According to the results of the freeze-thaw test, obvious cracks appeared thoroughly in the cement paste. Figure 8(b) shows the internal microstructure of concrete with the highest waste rubber substitution (24%) and a water/cement ratio of 0.4. Figure 8(b) clearly shows that no cracks or large pores were formed between the rubber and the hydration products. Figure 8(c) shows the microstructure of waste rubber-free concrete with a water/cement ratio of 0.5. According to Figure 8(a), as the water/cement ratio increased from 0.4 to 0.5, the width of the cracks in the matrix increased and became clear. This indicates that the increase in water/cement caused significant damage to the microstructure with freeze-thaw cycles. The SEM analysis result of 24% waste rubber substituted concretes with a water/cement ratio of 0.5 (Figure 8(d)) revealed that no cracks were formed either in the rubber or in the interface region with the hydration products. This result proved that the use of waste rubbers in concrete increased the resistance to freeze-thaw. In Figure 8(b) and (d), the products (C-S-H and Ca(OH)₂) formed as a result of cement hydration can be seen. In addition, it was obtained that no significant cracks or voids were formed in the interfacial transition zone (ITZ) between the waste rubber/cement matrix. It is evaluated that these results are distinctive from the few studies in the literature (22. Pelisser F, Zavarise N, Longo TA, Bernardin AM. 2011. Concrete made with recycled tire rubber: Effect of alkaline activation and silica fume addition. J. Clean. Prod. 19(6-7):757-763. https://doi.org/10.1016/j.jclepro.2010.11.014
, 6363. Mei J, Xu G, Ahmad W, Khan K, Amin MN, Aslam F, Alaskar A. 2022. Promoting sustainable materials using recycled rubber in concrete: A review. J. Clean. Prod. 373:133927. https://doi.org/10.1016/j.jclepro.2022.133927
). When the SEM analysis results were evaluated in general, it was seen that the formation of cracks in the microstructure was significantly reduced with the use of waste rubbers as a result of freeze-thaw. In addition, as seen in Figure 8(b) and Figure 8(d), as a result of SEM analysis, it is thought that the compressive strength decreases due to non-homogeneous microstructures (6464. Zhang B, Feng Y, Xie J, Lai D, Yu T, Huang D. 2021. Rubberized geopolymer concrete: Dependence of mechanical properties and freeze-thaw resistance on replacement ratio of crumb rubber. Constr. Build. Mater. 310:125248. https://doi.org/10.1016/j.conbuildmat.2021.125248
).

3.4. ANOVA analysis

At the end of 300 freeze-thaw cycles, with the ANOVA analysis performed, it was determined whether the waste rubber substitution ratio and water/cement ratio had a significant effect on the percentage changes in weight loss and compressive strength loss of the concrete. The results of the analysis were interpreted in a way to be within a 95% confidence interval. The fact that p values obtained here are lower than 0.05 means that the examined parameter has a significant effect on the target result. Table 4 shows the ANOVA analysis performed on the percentage weight and compressive strength losses at the end of 300 cycles. From Table 4, it is seen that the p-value for the effect of the water/cement ratio on weight loss is 0.0502. Since the p-value is higher than 0.05, it is seen that the difference in water/cement ratio is not a significant parameter in the mass loss amounts of the samples at the end of the freeze-thaw test. However, since the value found (0.0502) is very close to the limit value (0.05), it is not very accurate to say that the water/cement ratio is insignificant on concrete mass losses. On the other hand, since the p-value found for the waste rubber substitution ratio is 0.0087, it is seen that the waste rubber substitution ratio is an effective parameter on the mass loss of the concretes at the end of the freeze-thaw test. Since both the effect of the water/cement ratio (p-value = 0.8869) and the effect of waste rubber substitution ratio (p-value = 0.0937) were higher than the limit p-value (0.05) for the compressive strength loss, it is seen that these two parameters are not effective parameters on the compressive strength loss of concretes after 300 cycles of freeze-thaw.
